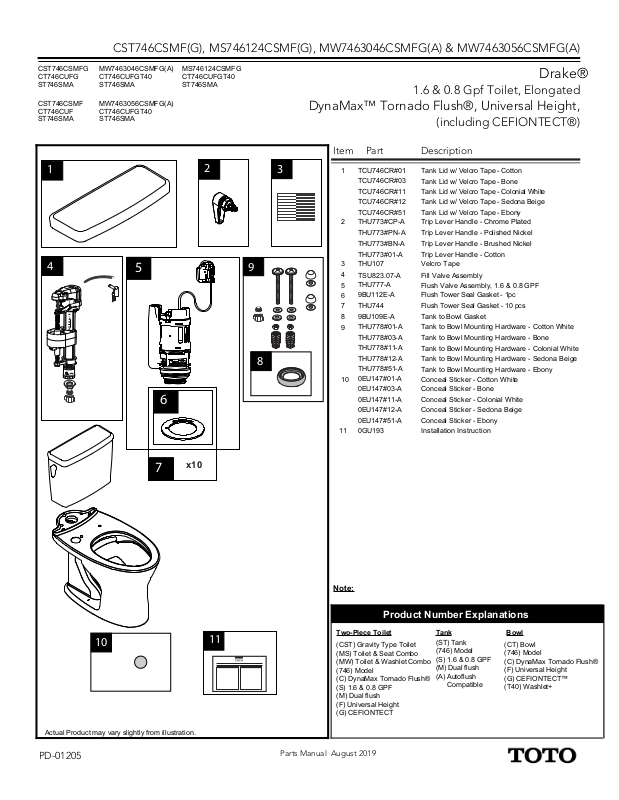

Page 1
CST74
6CSMF(G), MS746124CSMF(G), MW7463046CSMFG(A) & MW7463056CSMFG(A)
Two-Piece Toilet
Bowl
Tank
Product Number Explanations
Note:
Actual Product may vary slightly from illustration.
1
TCU746CR#01
Tank Lid w/ Velcro Tape - Cotton
Tank Lid w/ Velcro Tape - Bone
TCU746CR#11
Tank Lid w/ Velcro Tape - Colonial White
TCU746CR#12
Tank Lid w/ Velcro Tape - Sedona Beige
Tank Lid w/ Velcro Tape - Ebony
5707
THU773#CP-A
Trip Lever Handle - Chrome Plated
5708
THU773#PN-A
Trip Lever Handle - Polished Nickel
5709
Trip Lever Handle - Brushed Nickel
5710
THU773#01-A
5711
2
TSU823.07-A
Fill Valve Assembly
5712
3
5713
4
5715
5
571865719
7
9BU112E-A
Flush Tower Seal Gasket - 1pc
5720
8
THU744
Flush Tower Seal Gasket - 10 pcs
5721
5722
9BU109E-A
Tank to Bowl Gasket
9
THU778#01-A
Tank to Bowl Mounting Hardware - Cotton White
10
0EU147#01-A
Conceal Sticker - Cotton White
0EU147#03-A
Conceal Sticker - Bone
Conceal Sticker - Colonial White
Conceal Sticker - Sedona Beige
Conceal Sticker - Ebony
THU778#03-A
Tank to Bowl Mounting Hardware - Bone
Tank to Bowl Mounting Hardware - Colonial White
Tank to Bowl Mounting Hardware - Sedona Beige
Tank to Bowl Mounting Hardware - Ebony
5723
5724
5725
5726
5727
5728
5729
5730
5731
5732
5733
0GU193
THU107
Velcro Tape
CST746CSMFG
CT746CUFG
ST746SMA
CST746CSMF
CT746CUF
ST746SMA
1
1
4
MW7463046CSMFG(A)
CT746CUFGT40
ST746SMA
MW7463056CSMFG(A)
CT746CUFGT40
ST746SMA
5
MS746124CSMFG
CT746CUFGT40
ST746SMA
2
Drake®
1.6 & 0.8 Gpf Toilet, Elongated
DynaMax™ Tornado Flush®, Universal Height,
(including CEFIONTECT®)
Item Part Description
3
1
9
8
TCU746CR#03
TCU746CR#51
THU773#BN-A
THU777-A
THU778#11-A
THU778#12-A
THU778#51-A
Trip Lever Handle - Cotton
Flush Valve Assembly, 1.6 & 0.8 GPF
10
6
9
7
x10
11
0EU147#11-A
0EU147#12-A
0EU147#51-A
11
(CST) Gravity Type Toilet
(MS) Toilet & Seat Combo
(MW) Toilet & Washlet Combo
(746) Model
(C) DynaMax Tornado Flush®
(S) 1.6 & 0.8 GPF
(M) Dual flush
(F) Universal Height
(G) CEFIONTECT
Installation Instruction
(ST) Tank
(746) Model
(S) 1.6 & 0.8 GPF
(M) Dual flush
(A) Autoflush
Compatible
(CT) Bowl
(746) Model
(C) DynaMax Tornado Flush®
(F) Universal Height
(G) CEFIONTECT™
(T40) Washlet+
PD-01205
Parts Manual August 2019
