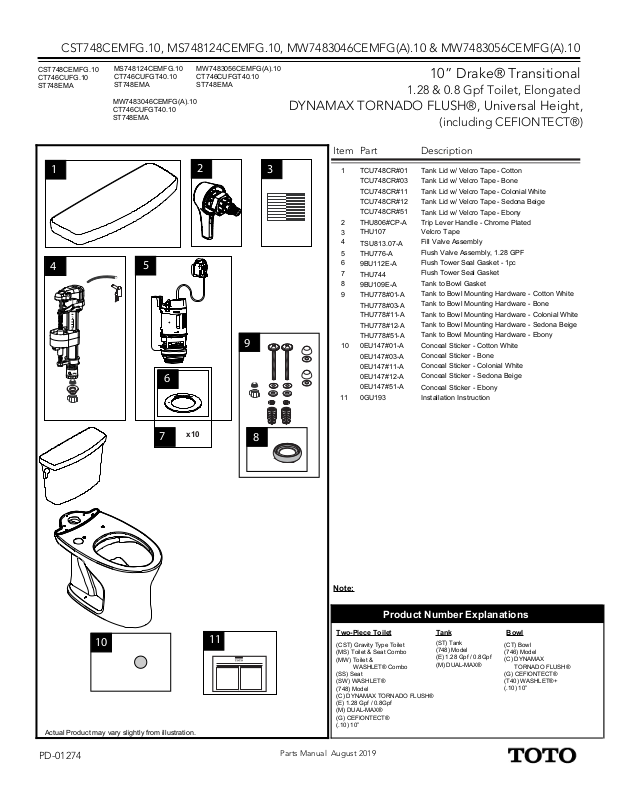

CST748CEMFG.10, MS748124CEMFG.10, MW7483046CEMFG(A).10 & MW7483056CEMFG(A).10
Two-Piece Toilet
Bowl
Tank
Product Number Explanations
Note:
Actual Product may vary slightly from illustration.
Tank Lid w/ Velcro Tape - Cotton
Tank Lid w/ Velcro Tape - Colonial White
Tank Lid w/ Velcro Tape - Sedona Beige
5707
5708
5709
5710
5711
2
TSU813.07-A
5712
3
5713
4
5715
5
571865719
7
9BU112E-A
5720
THU744
5721
5722
9BU109E-A
9
THU778#01-A
5723
5724
5725
5726
5727
5728
5729
5730
5731
5732
5733
THU776-A
THU107
CST748CEMFG.10
CT746CUFG.10
ST748EMA
1
1
4
MS748124CEMFG.10
CT746CUFGT40.10
ST748EMA
MW7483046CEMFG(A).10
CT746CUFGT40.10
ST748EMA
5
6
MW7483056CEMFG(A).10
CT746CUFGT40.10
ST748EMA
2
3
1
9
9
10” Drake Transitional®
1.28 & 0.8 Gpf Toilet, Elongated
DYNAMAX TORNADO FLUSH®, Universal Height,
(including CEFIONTECT®)
Item Part Description
1 TCU748CR#01
TCU748CR#03
TCU748CR#11
TCU748CR#12
TCU748CR#51
THU806#CP-A
8
THU778#03-A
THU778#11-A
THU778#12-A
THU778#51-A
10
0EU147#01-A
0EU147#03-A
0EU147#11-A
0EU147#12-A
0EU147#51-A
11 0GU193
Tank Lid w/ Velcro Tape - Bone
Tank Lid w/ Velcro Tape - Ebony
Trip Lever Handle - Chrome Plated
Velcro Tape
Fill Valve Assembly
Flush Valve Assembly, 1.28 GPF
Flush Tower Seal Gasket - 1pc
Flush Tower Seal Gasket
Tank to Bowl Gasket
Tank to Bowl Mounting Hardware - Cotton White
Tank to Bowl Mounting Hardware - Bone
Tank to Bowl Mounting Hardware - Colonial White
Tank to Bowl Mounting Hardware - Sedona Beige
Tank to Bowl Mounting Hardware - Ebony
Conceal Sticker - Cotton White
Conceal Sticker - Bone
Conceal Sticker - Colonial White
Conceal Sticker - Sedona Beige
Conceal Sticker - Ebony
Installation Instruction
10
x10
7
11
8
(CST) Gravity Type Toilet
(MS) Toilet & Seat Combo
(MW) Toilet &
WASHLET® Combo
(SS) Seat
(SW) WASHLET®
(748) Model
(C) DYNAMAX TORNADO FLUSH®
(E) 1.28 Gpf / 0.8Gpf
(M) DUAL-MAX®
(G) CEFIONTECT®
(.10) 10”
(ST) Tank
(748) Model
(E) 1.28 Gpf / 0.8Gpf
(M) DUAL-MAX®
(CT) Bowl
(746) Model
(C) DYNAMAX
TORNADO FLUSH®
(G) CEFIONTECT®
(T40) WASHLET®+
(.10) 10”
PD-01274
Parts Manual August 2019
