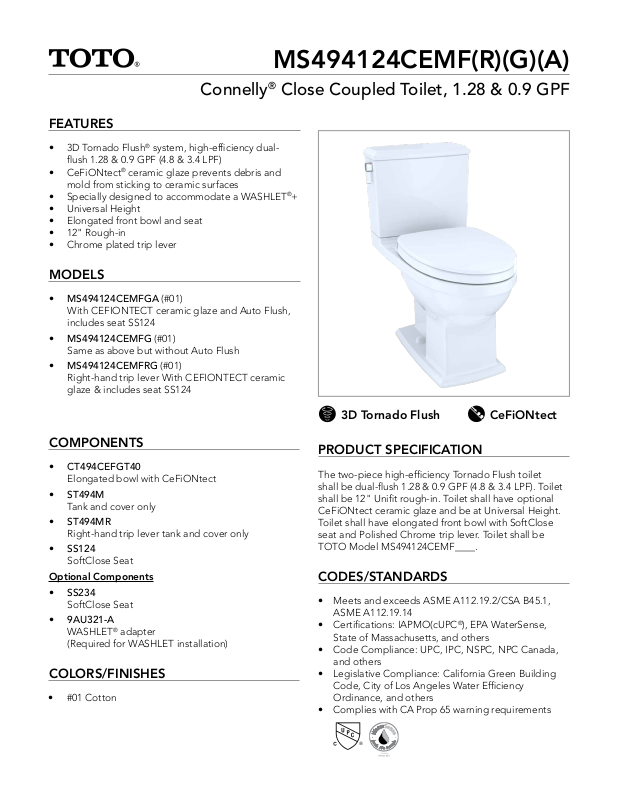

MS494124CEMF(R)(G)(A)
Connelly® Close Coupled Toilet, 1.28 & 0.9 GPF
FEATURES
• 3D Tornado Flush® system, high-efficiency dualflush 1.28 & 0.9 GPF (4.8 & 3.4 LPF)
• CeFiONtect® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Specially designed to accommodate a WASHLET®+
• Universal Height
• Elongated front bowl and seat
• 12" Rough-in
• Chrome plated trip lever
MODELS
• MS494124CEMFGA (#01)
With CEFIONTECT ceramic glaze and Auto Flush,
includes seat SS124
• MS494124CEMFG (#01)
Same as above but without Auto Flush
• MS494124CEMFRG (#01)
Right-hand trip lever With CEFIONTECT ceramic
glaze & includes seat SS124
COMPONENTS
• CT494CEFGT40
Elongated bowl with CeFiONtect
• ST494M
Tank and cover only
• ST494MR
Right-hand trip lever tank and cover only
• SS124
SoftClose Seat
Optional Components
• SS234
SoftClose Seat
• 9AU321-A
WASHLET® adapter
(Required for WASHLET installation)
COLORS/FINISHES
• #01 Cotton
CeFiONtect3D Tornado Flush
PRODUCT SPECIFICATION
The two-piece high-efficiency Tornado Flush toilet
shall be dual-flush 1.28 & 0.9 GPF (4.8 & 3.4 LPF). Toilet
shall be 12" Unifit rough-in. Toilet shall have optional
CeFiONtect ceramic glaze and be at Universal Height.
Toilet shall have elongated front bowl with SoftClose
seat and Polished Chrome trip lever. Toilet shall be
TOTO Model MS494124CEMF____.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MS494124CEMF(R)(G)(A)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
[305mm]
[404mm]
Connelly® Close Coupled Toilet, 1.28 & 0.9 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 & 0.9 GPF (4.8 & 3.4 LPF)
3D Tornado Flush
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/8"
12" (10" & 14" Optional)
2-1/8"
One Year Limited Warranty
Vitreous China
CT494CEF(G)T40
70 lbs
ST494M
31 lbs
CT446CU(G)T40
30-3/4"L x 17-3/8"W x 20-1/2"H
ST446EMA
17-1/4"L x 7-7/8"W x 17-1/2"H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
15 7/8"
12"
4 5/8"
[117mm]
Finished Wall
7 3/8"
[188mm]
[4mm]
7/8"
[22mm]
19 5/8"
[500mm]
1/8"
28 3/4"
[729mm]
18 1/2"
[470mm]
[Ø50mm]
Ø2"
16 1/8"
[411mm]
Finished Floor
5 1/2"
[140mm]
as Req'd
[305mm]*
*Suggested Dimensions
[380mm]
Supply
12"
4"
[101mm]*
15"
15 7/8"
[404mm]
30 1/4"
[768mm]
11 1/4"
[285mm]
Finished Wall
[152mm]
[305mm]
Back of Bowl
6"
12"
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01340 v.03
