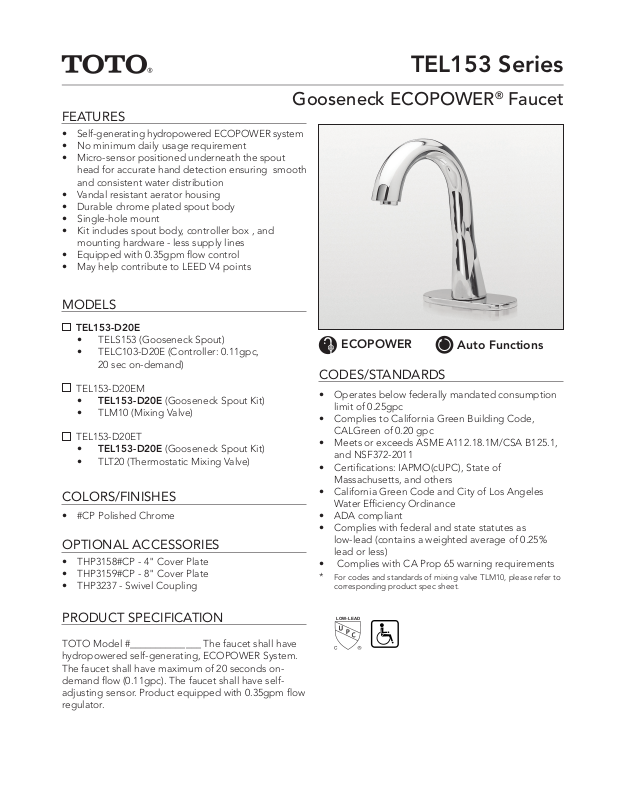

Gooseneck ECOPOWER® Faucet
LOW-LEAD
FEATURES
• Self-generating hydropowered ECOPOWER system
• No minimum daily usage requirement
• Micro-sensor positioned underneath the spout
head for accurate hand detection ensuring smooth
and consistent water distribution
• Vandal resistant aerator housing
• Durable chrome plated spout body
• Single-hole mount
• Kit includes spout body, controller box , and
mounting hardware - less supply lines
• Equipped with 0.35gpm flow control
• May help contribute to LEED V4 points
MODELS
TEL153-D20E
• TELS153 (Gooseneck Spout)
• TELC103-D20E (Controller: 0.11gpc,
20 sec on-demand)
TEL153-D20EM
• TEL153-D20E (Gooseneck Spout Kit)
• TLM10 (Mixing Valve)
TEL153-D20ET
• TEL153-D20E (Gooseneck Spout Kit)
• TLT20 (Thermostatic Mixing Valve)
COLORS/FINISHES
• #CP Polished Chrome
OPTIONAL ACCESSORIES
• THP3158#CP - 4" Cover Plate
• THP3159#CP - 8" Cover Plate
• THP3237 - Swivel Coupling
TEL153 Series
ECOPOWER
CODES/STANDARDS
• Operates below federally mandated consumption
limit of 0.25gpc
• Complies to California Green Building Code,
CALGreen of 0.20 gpc
• Meets or exceeds ASME A112.18.1M/CSA B125.1,
and NSF372-2011
• Certifications: IAPMO(cUPC), State of
Massachusetts, and others
• California Green Code and City of Los Angeles
Water Efficiency Ordinance
• ADA compliant
• Complies with federal and state statutes as
low-lead (contains a weighted average of 0.25%
lead or less)
• Complies with CA Prop 65 warning requirements
* For codes and standards of mixing valve TLM10, please refer to
corresponding product spec sheet.
Auto Functions
PRODUCT SPECIFICATION
TOTO Model #______________ The faucet shall have
hydropowered self-generating, ECOPOWER System.
The faucet shall have maximum of 20 seconds on-
demand ow (0.11gpc). The faucet shall have self-
adjusting sensor. Product equipped with 0.35gpm flow
regulator.
Page 2
TEL153 Series
3-15/16”
(100mm)
(50mm)
2-15/16”
(74mm)
4-1/2”
(114mm)
2” (50mm)
Max deck thickness
Faucet hole Ø1-3/8” (Ø35mm)
5-5/8”(142mm)
G1/2
1-11/16” (42mm)
1-3/4”
(44mm)
7” (178mm)
4-5/8”(117mm)
3-5/16”(83mm)
3-5/8”(94mm)
3-3/16”(82mm)
G1/2
G1/2
G1/2
Φ1-5/8”( Φ42mm)
G1/2 compatibel with ½ NPSM
3-5/16”(84mm)
3/8 COMPRESSION
2-1/2” (63mm)
1-7/16”
(36mm)
2-13/16” (71mm)
7/8”
(23mm)
Finished wall
Ø2-3/8”
(Ø60mm)
4-15/16”
(125mm)
3-3/4”
(95mm)
6-3/4”
(168mm)
7-11/16”
(194mm)
7-5/16”
(186mm)
Ø2-3/16”
(Ø55mm)
Faucet hole Ø1-3/8” (Ø35mm)
2”
(50mm)
2” (50mm)
Max deck thickness
Max deck thickness
Faucet hole Ø1-3/8” (Ø35mm)
60°
60°
L=45-1/4”
(L=1150mm)
L=31-1/2”
(L=800mm)
L=29-9/16”
(L=750mm)
L=41-5/16”
(L=1050mm)
Gooseneck ECOPOWER® Faucet
SPECIFICATIONS
NOTE
Power Supply ECOPOWER
Sensor Detection
Range
5-1/8" - 7-7/8" (130 - 200mm)
Sensor is self-adjusting
Min (Dynamic/Flowing) Pressure:
Water Supply
Pressure
15 psi (100kPa)
Max (Static) Pressure:
80 psi (551kPa)
Water Supply
Inlet Temperature
Range
Ambient
Temperature
Humidty
Flow Rate
Warranty
*Gallons per cycle (gpc) is the amount of water per usage cycle .
** On-demand refers to the way in which the water is dispersed (i.e.; water is only dispersed when the sensor is activated by the user as needed).
G1/2 (1/2 NPSM compatible)
32-110°F(0-42°C)
32-104°F(0-40°C)
Max. 90% RH
0.11 gpc* - max 20 second On-Demand**
(0.11 gpc = 0.35 gpm x 20/60 sec)
Equipped with 0.35 gpm flow control
Three years
Following the federal mandate for water efficiency
outlined in the Environmental Protection Act of 1992,
faucets can be rated for water consumption based on
two categories: Flow Rate and Water Consumption.
TOTO uses the water consumption standard because
it is the most accurate method of measuring water
use. TOTO faucets also comply with the CALGreen
Guideline of water usage.
Water Saving
On-Demand [20 sec.] faucet (0.11gpc)
Federal Standard (0.25gpc) – 56% less
CAL Green (0.20gpc) – 45% less
PRODUCT DIMENSIONS
Gooseneck
2”
(50mm)
L=25-9/16”
(L=650mm)
L=37-3/8”
(L=950mm)
Available Mixing Valves
80°
9-3/16”
2” (50mm)
5-3/4”
(145mm)
5-13/16”
(147mm)
Hot/Cold Mixing Tee (TLM10)
(231mm)
Controller
4-5/8”(117mm)
5-5/8”(142mm)
G1/2
3-5/8”(94mm)
3-5/16”(83mm)
1-11/16” (42mm)
7” (178mm)
1-3/4”
(44mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specifications are subject to change without notice
#SS-01393, v.01
