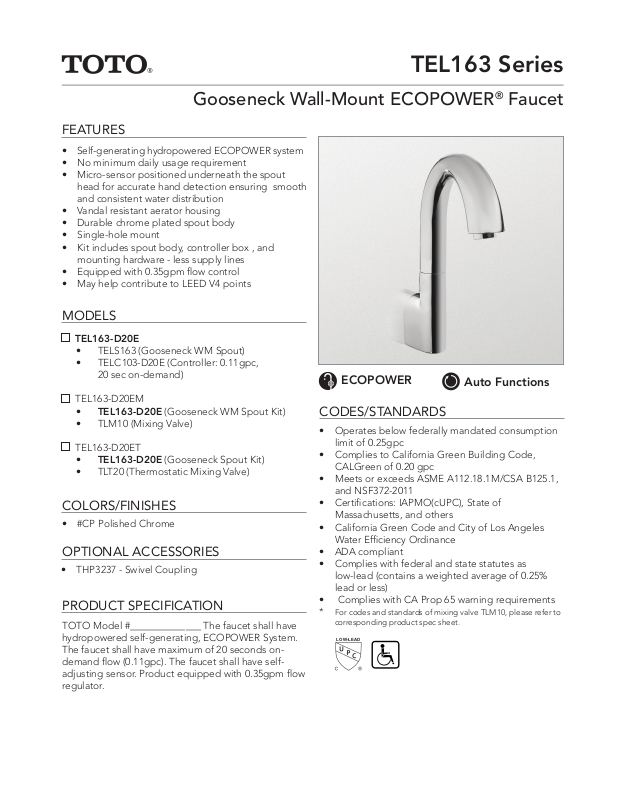

Gooseneck Wall-Mount ECOPOWER® Faucet
FEATURES
• Self-generating hydropowered ECOPOWER system
• No minimum daily usage requirement
• Micro-sensor positioned underneath the spout
head for accurate hand detection ensuring smooth
and consistent water distribution
• Vandal resistant aerator housing
• Durable chrome plated spout body
• Single-hole mount
• Kit includes spout body, controller box , and
mounting hardware - less supply lines
• Equipped with 0.35gpm flow control
• May help contribute to LEED V4 points
MODELS
TEL163-D20E
• TELS163 (Gooseneck WM Spout)
• TELC103-D20E (Controller: 0.11gpc,
20 sec on-demand)
TEL163-D20EM
• TEL163-D20E (Gooseneck WM Spout Kit)
• TLM10 (Mixing Valve)
TEL163-D20ET
• TEL163-D20E (Gooseneck Spout Kit)
• TLT20 (Thermostatic Mixing Valve)
COLORS/FINISHES
• #CP Polished Chrome
OPTIONAL ACCESSORIES
• THP3237 - Swivel Coupling
PRODUCT SPECIFICATION
TOTO Model #______________ The faucet shall have
hydropowered self-generating, ECOPOWER System.
The faucet shall have maximum of 20 seconds on-
demand ow (0.11gpc). The faucet shall have self-
adjusting sensor. Product equipped with 0.35gpm flow
regulator.
TEL163 Series
ECOPOWER
CODES/STANDARDS
• Operates below federally mandated consumption
limit of 0.25gpc
• Complies to California Green Building Code,
CALGreen of 0.20 gpc
• Meets or exceeds ASME A112.18.1M/CSA B125.1,
and NSF372-2011
• Certifications: IAPMO(cUPC), State of
Massachusetts, and others
• California Green Code and City of Los Angeles
Water Efficiency Ordinance
• ADA compliant
• Complies with federal and state statutes as
low-lead (contains a weighted average of 0.25%
lead or less)
• Complies with CA Prop 65 warning requirements
* For codes and standards of mixing valve TLM10, please refer to
corresponding product spec sheet.
LOW-LEAD
Auto Functions
Page 2

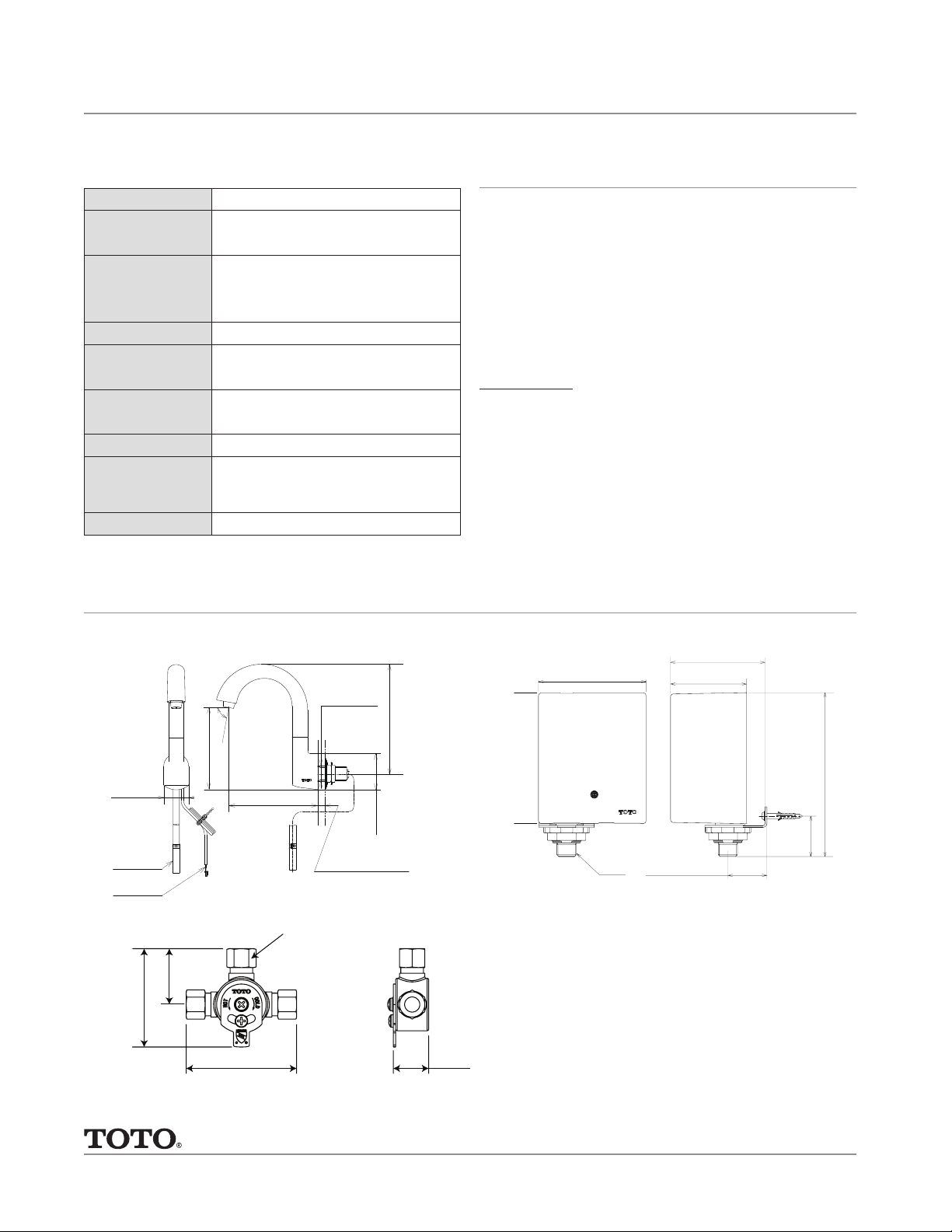

TEL163 Series
3-15/16”
(100mm)
(50mm)
2-15/16”
(74mm)
4-1/2”
(114mm)
2” (50mm)
Max deck thickness
Faucet hole Ø1-3/8” (Ø35mm)
5-5/8”(142mm)
G1/2
1-11/16” (42mm)
1-3/4”
(44mm)
7” (178mm)
4-5/8”(117mm)
3-5/16”(83mm)
3-5/8”(94mm)
3-3/16”(82mm)
G1/2
G1/2
G1/2
Φ1-5/8”( Φ42mm)
G1/2 compatibel with ½ NPSM
3-5/16”(84mm)
3/8 COMPRESSION
2-1/2” (63mm)
1-7/16”
(36mm)
2-13/16” (71mm)
7/8”
(23mm)
Gooseneck Wall-Mount ECOPOWER® Faucet
SPECIFICATIONS
NOTE
Power Supply ECOPOWER
Sensor Detection
Range
Water Supply
Pressure
Water Supply
Inlet Temperature
Range
Ambient
Temperature
Humidty
5-1/8" - 7-7/8" (130 - 200mm)
Sensor is self-adjusting
Min (Dynamic/Flowing) Pressure:
15 psi (100kPa)
Max (Static) Pressure:
80 psi (551kPa)
G1/2 (1/2 NPSM compatible)
32-110°F(0-42°C)
32-104°F(0-40°C)
Max. 90% RH
Following the federal mandate for water efficiency
outlined in the Environmental Protection Act of 1992,
faucets can be rated for water consumption based on
two categories: Flow Rate and Water Consumption.
TOTO uses the water consumption standard because
it is the most accurate method of measuring water
use. TOTO faucets also comply with the CALGreen
Guideline of water usage.
Water Saving
On-Demand [20 sec.] faucet (0.11gpc)
Federal Standard (0.25gpc) – 56% less
CAL Green (0.20gpc) – 45% less
0.11 gpc* - max 20 second On-Demand**
Flow Rate
(0.11 gpc = 0.35 gpm x 20/60 sec)
Equipped with 0.35 gpm flow control
Warranty
Three years
*Gallons per cycle (gpc) is the amount of water per usage cycle .
** On-demand refers to the way in which the water is dispersed (i.e.; water is only dispersed when the sensor is activated by the user as needed).
PRODUCT DIMENSIONS
Gooseneck Wall-Mount
2”
(50mm)
L=26-3/4”
(L=680mm)
L=37-3/8”
(L=950mm)
Available Mixing Valves
80°
(165mm)
6-1/2”
(177mm)
Controller
3-5/8”(94mm)
4-5/8”(117mm)
Ø1-1/8”
(Ø29mm)
8-7/8”
(221mm)
7”
2-7/8”
(72mm)
2” (50mm)
Max Wall thickness
5-5/8”(142mm)
G1/2
3-5/16”(83mm)
1-11/16” (42mm)
7” (178mm)
1-3/4”
(44mm)
Hot/Cold Mixing Tee (TLM10)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specifications are subject to change without notice
#SS-01394, v.01
