TOTO SBSA1145 Specifications

Page 1

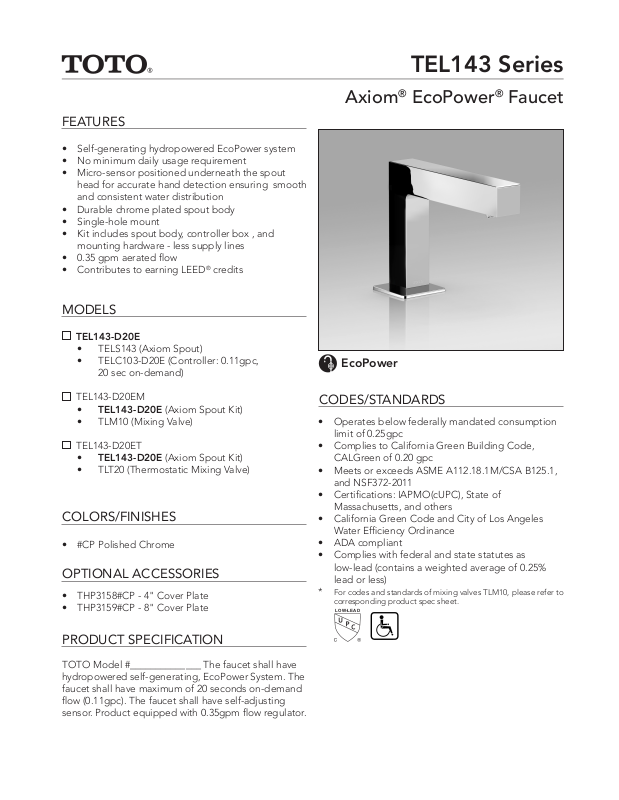

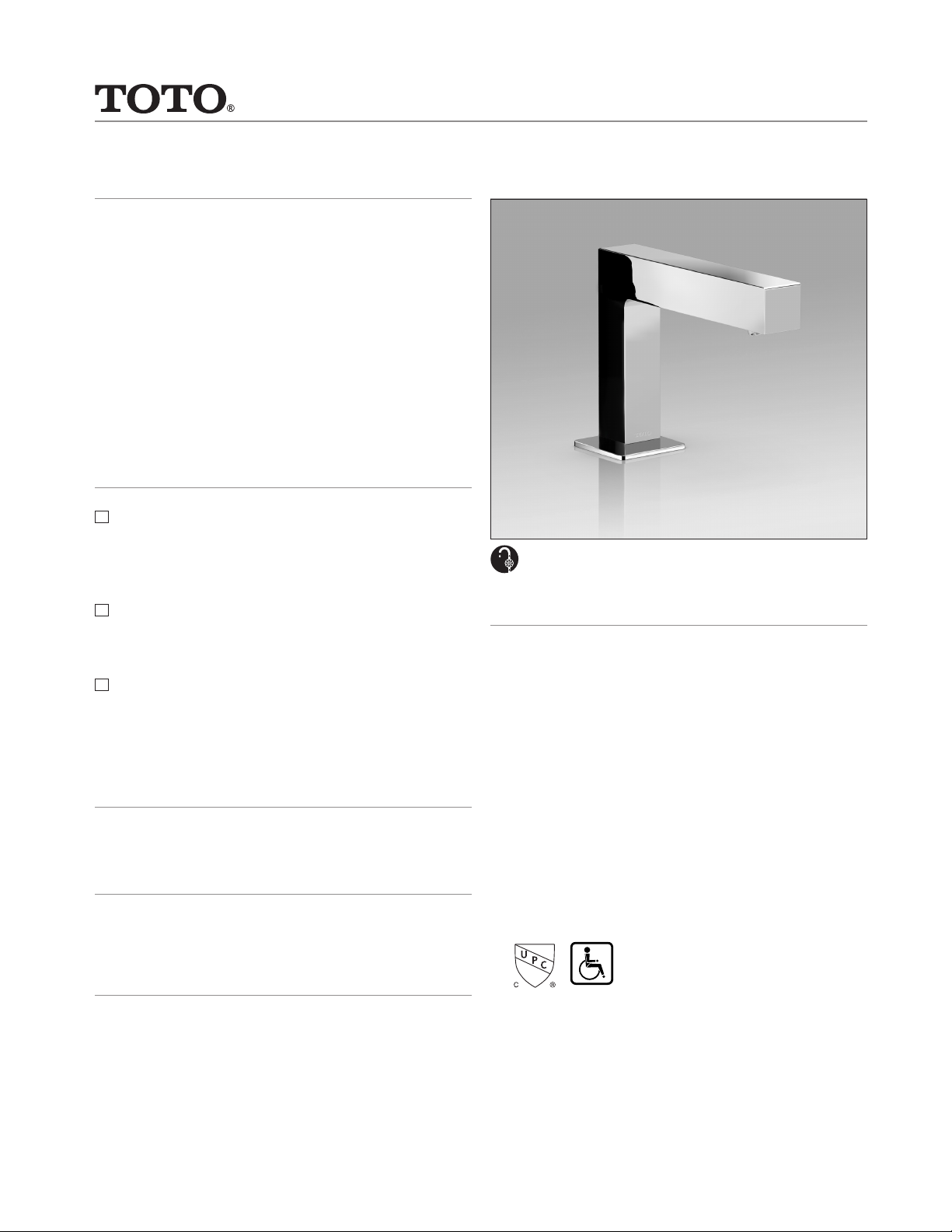

FEATURES

LOW-LEAD

• Self-generating hydropowered EcoPower system

• No minimum daily usage requirement

• Micro-sensor positioned underneath the spout head for accurate hand detection ensuring smooth and consistent water distribution

• Durable chrome plated spout body

• Single-hole mount

• Kit includes spout body, controller box , and mounting hardware - less supply lines

• 0.35 gpm aerated ow

• Contributes to earning LEED® credits

MODELS

TEL143-D20E

• TELS143 (Axiom Spout)

• TELC103-D20E (Controller: 0.11gpc, 20 sec on-demand)

TEL143 Series

Axiom® EcoPower® Faucet

EcoPower

TEL143-D20EM

• TEL143-D20E (Axiom Spout Kit)

• TLM10 (Mixing Valve)

TEL143-D20ET

• TEL143-D20E (Axiom Spout Kit)

• TLT20 (Thermostatic Mixing Valve)

COLORS/FINISHES

• #CP Polished Chrome

OPTIONAL ACCESSORIES

• THP3158#CP - 4" Cover Plate

• THP3159#CP - 8" Cover Plate

PRODUCT SPECIFICATION

TOTO Model #______________ The faucet shall have hydropowered self-generating, EcoPower System. The faucet shall have maximum of 20 seconds on-demand

ow (0.11gpc). The faucet shall have self-adjusting

sensor. Product equipped with 0.35gpm ﬂow regulator.

CODES/STANDARDS

• Operates below federally mandated consumption limit of 0.25gpc

• Complies to California Green Building Code, CALGreen of 0.20 gpc

• Meets or exceeds ASME A112.18.1M/CSA B125.1, and NSF372-2011

• Certications: IAPMO(cUPC), State of

Massachusetts, and others

• California Green Code and City of Los Angeles

Water Efciency Ordinance

• ADA compliant

• Complies with federal and state statutes as low-lead (contains a weighted average of 0.25% lead or less)

* For codes and standards of mixing valves TLM10, please refer to

corresponding product spec sheet.

Page 2

TEL143 Series

3-15/16”

(100mm)

(50mm)

2-15/16”

(74mm)

4-1/2”

(114mm)

2” (50mm)

Max deck thickness

Faucet hole Ø1-3/8” (Ø35mm)

5-5/8”(142mm)

G1/2

1-11/16” (42mm)

1-3/4”

(44mm)

7” (178mm)

4-5/8”(117mm)

3-5/16”(83mm)

3-5/8”(94mm)

3-3/16”(82mm)

G1/2

Φ1-5/8”( Φ42mm)

G1/2 compatibel with ½ NPSM

3-5/16”(84mm)

3/8 COMPRESSION

2-1/2” (63mm)

1-7/16”

(36mm)

2-13/16” (71mm)

7/8” (23mm)

5-5/8”(142mm)

ROUGH-IN DIMENSIONS / BOSQUEJO /

ROBINETTERIE BRUTE/DIMENSÕES APROXIMADAS

Finished wall

3-15/16” (100mm)

2”

(50mm)

2-15/16”

(74mm)

4-1/2”

(114mm)

2” (50mm)

Max deck thickness

Ø2-3/8”

(Ø60mm)

Faucet hole Ø1-3/8” (Ø35mm)

4-15/16” (125mm)

3-3/4”

(95mm)

6-3/4”

(168mm)

2”

(50mm)

5-13/16” (147mm)

5-3/4”

(145mm)

9-3/16”

(231mm)

Helix-Wall

Helix

Gooseneck

7-11/16” (194mm)

7-5/16” (186mm)

Ø2-3/16” (Ø55mm)

Faucet hole Ø1-3/8” (Ø35mm)

2” (50mm)

Max deck thickness

TELS105 TELS101

TELS115 TELS111

4-15/16” (125mm)

6-1/2”

(165mm)

9-1/2”

(238mm)

Faucet hole Ø1-3/8” (Ø35mm)

2”

(50mm)

2” (50mm)

Max deck thickness

TELS125 TELS121

Faucet hole Ø1-3/8” (Ø35mm)

2” (50mm)

Max deck thickness

Faucet hole Ø1-3/8” (Ø35mm)

TELS135 TELS131

TELS145 TELS141

TELS155 TELS151

80°

60°

30°

L=25-9/16”

(L=650mm)

L=37-3/8”

(L=950mm)

L=45-1/4”

(L=1150mm)

L=31-1/2”

(L=800mm)

L=26-3/4”

(L=680mm)

L=39-3/8”

(L=1000mm)

L=29-9/16”

(L=750mm)

L=41-5/16”

(L=1050mm)

L=43-5/16”

(L=1100mm)

L=25-9/16”

(L=650mm)

4-1/16”(102.9mm)

Axiom® EcoPower® Faucet

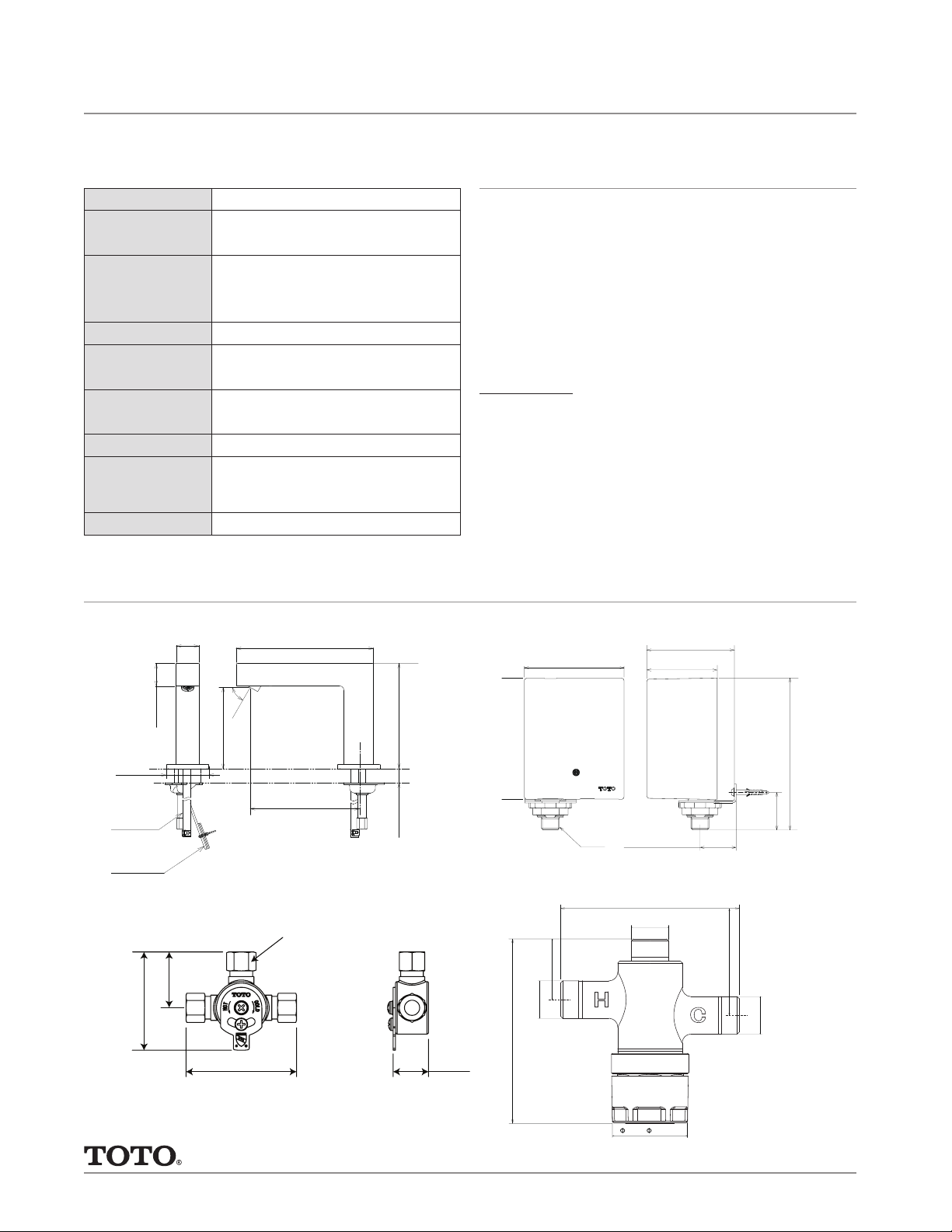

SPECIFICATIONS

NOTE

Power Supply Ecopower

Sensor Detection

Range

Water Supply

Pressure

Water Supply

Inlet Temperature

Range

Ambient

Temperature

Humidty

Flow Rate

Warranty

*Gallons per cycle (gpc) is the amount of water per usage cycle .

5-1/8" - 7-7/8" (130 - 200mm) Sensor is self-adjusting

Min (Dynamic/Flowing) Pressure: 15 psi (100kPa) Max (Static) Pressure: 80 psi (551kPa)

G1/2 (1/2 NPSM compatible)

32-110°F(0-42°C)

32-104°F(0-40°C)

Max. 90% RH

0.11 gpc* - max 20 second On-Demand** (0.11 gpc = 0.35 gpm x 20/60 sec) Equipped with 0.35 gpm ﬂow control

Three years

** On-demand refers to the way in which the water is dispersed (i.e.; water is only dispersed when the sensor is activated by the user as needed).

PRODUCT DIMENSIONS

Following the federal mandate for water efciency

outlined in the Environmental Protection Act of 1992, faucets can be rated for water consumption based on two categories: Flow Rate and Water Consumption. TOTO uses the water consumption standard because it is the most accurate method of measuring water use. TOTO faucets also comply with the CALGreen Guideline of water usage.

Water Saving

On-Demand [20 sec.] faucet (0.11gpc)

Federal Standard (0.25gpc) – 56% less CAL Green (0.20gpc) – 45% less

Axiom

1-1/16” (27mm)

6-7/16” (163mm)

Controller

4-5/8”(117mm)

3-5/8”(94mm)

3-5/16”(83mm)

1-1/16”

(27mm)

2”

(50mm)

L=23-5/8”

(L=600mm)

L=41-5/16”

(L=1050mm)

Available Mixing Valves

60°

3-3/4”

(95mm)

5”

(126mm)

Hot/Cold Mixing Tee (TLM10)

4-13/16”

(122mm)

1-9/16”

(40mm)

Max deck thickness

These dimensions and specications are subject to change without notice

G1/2

4-1/16” (102.9mm)

1-5/16” (34mm)

G1/2

1-5/16”(34mm)

1-11/16” (42mm)

3-15/16” (100mm)

3-15/16”(100mm)

G1/2

1-5/8” ( 42mm)

1-11/16”(42.8mm)

1-11/16” (42.8mm)

G1/2

Thermostatic Mixing Valve (TLT20)

G 1/2 compatipble with ½ NPSM

7” (178mm)

1-3/4”

(44mm)

#SS-01256 v.03
