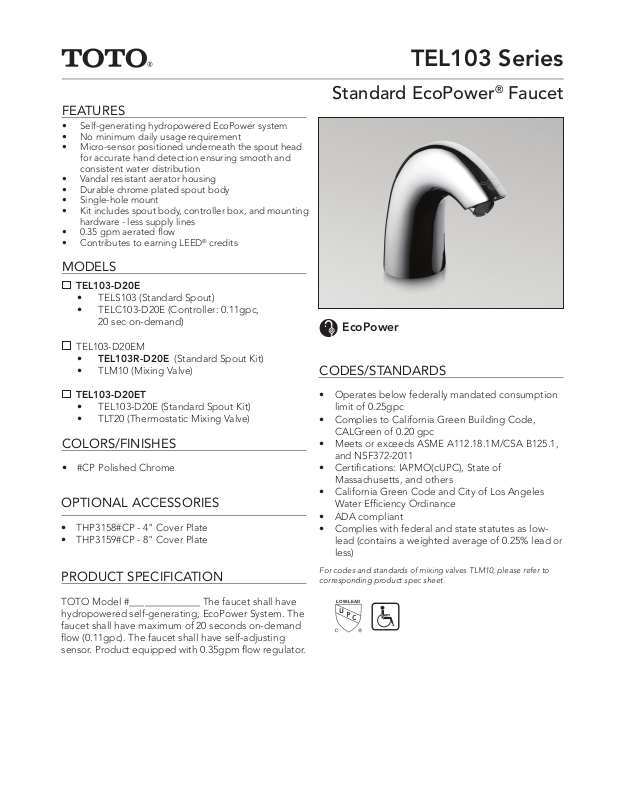

Page 1
FEATURES
LOW-LEAD
• Self-generating hydropowered EcoPower system
• No minimum daily usage requirement
• Micro-sensor positioned underneath the spout head
for accurate hand detection ensuring smooth and
consistent water distribution
• Vandal resistant aerator housing
• Durable chrome plated spout body
• Single-hole mount
• Kit includes spout body, controller box, and mounting
hardware - less supply lines
• 0.35 gpm aerated flow
• Contributes to earning LEED® credits
MODELS
TEL103-D20E
• TELS103 (Standard Spout)
• TELC103-D20E (Controller: 0.11gpc,
20 sec on-demand)
TEL103-D20EM
• TEL103R-D20E (Standard Spout Kit)
• TLM10 (Mixing Valve)
TEL103 Series
Standard EcoPower® Faucet
EcoPower
CODES/STANDARDS
TEL103-D20ET
• TEL103-D20E (Standard Spout Kit)
• TLT20 (Thermostatic Mixing Valve)
COLORS/FINISHES
• #CP Polished Chrome
OPTIONAL ACCESSORIES
• THP3158#CP - 4" Cover Plate
• THP3159#CP - 8" Cover Plate
PRODUCT SPECIFICATION
TOTO Model #______________ The faucet shall have
hydropowered self-generating, EcoPower System. The
faucet shall have maximum of 20 seconds on-demand
flow (0.11gpc). The faucet shall have self-adjusting
sensor. Product equipped with 0.35gpm flow regulator.
• Operates below federally mandated consumption
limit of 0.25gpc
• Complies to California Green Building Code,
CALGreen of 0.20 gpc
• Meets or exceeds ASME A112.18.1M/CSA B125.1,
and NSF372-2011
• Certifications: IAPMO(cUPC), State of
Massachusetts, and others
• California Green Code and City of Los Angeles
Water Efficiency Ordinance
• ADA compliant
• Complies with federal and state statutes as lowlead (contains a weighted average of 0.25% lead or
less)
For codes and standards of mixing valves TLM10, please refer to
corresponding product spec sheet.
Page 2
TEL103 Series
G1/2
m
Standard EcoPower® Faucet
SPECIFICATIONS
NOTE
Power Supply Ecopower
Sensor Detection
Range
5-1/8" - 7-7/8" (130 - 200mm)
Sensor is self-adjusting
Min (Dynamic/Flowing) Pressure:
Water Supply
Pressure
15 psi (100kPa)
Max (Static) Pressure:
80 psi (551kPa)
Water Supply
Inlet Temperature
Range
Ambient
Temperature
G1/2 (1/2 NPSM compatible)
32-110°F(0-42°C)
32-104°F(0-40°C)
Humidty Max. 90% RH
Following the federal mandate for water efficiency
outlined in the Environmental Protection Act of 1992,
faucets can be rated for water consumption based on
two categories: Flow Rate and Water Consumption.
TOTO uses the water consumption standard because
it is the most accurate method of measuring water
use. TOTO faucets also comply with the CALGreen
Guideline of water usage.
Water Saving
On-Demand [20 sec.] faucet (0.11gpc)
Federal Standard (0.25gpc) –56% less
CAL Green (0.20gpc) – 45% less
0.11 gpc* - max 20 second On-Demand**
Flow Rate
(0.11 gpc = 0.35 gpm x 20/60 sec)
Equipped with 0.35 gpm flow control
Warranty
Three years
*Gallons per cycle (gpc) is the amount of water per usage cycle .
**On-demand refers to the way in which the water is dispersed (i.e.; water is only dispersed when the sensor is activated by the user as needed).
Standard
2”
(50mm)
L=43-5/16”
(L=1100mm)
L=25-9/16”
(L=650mm)
2-15/16”
(74mm)
30°
3-15/16”
(100mm)
Faucet hole Ø1-3/8” (Ø35m
4-1/2”
(114mm)
2” (50mm)
Max deck thickness
Controller
4-5/8”(117mm)
5-5/8”(142mm)
G1/2
3-5/8”(94mm)
3-5/16”(83mm)
1-11/16” (42mm)
7” (178mm)
1-3/4”
(44mm)
Available Mixing Valves
3/8 COMPRESSION
1-7/16”
(36mm)
2-1/2” (63mm)
2-13/16” (71mm)
7/8”
(23mm)
Hot/Cold Mixing Tee (TLM10)
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
Pending release date: Fall 2017
1-5/16” (34mm)
1-5/16”(34mm)
G1/2
4-1/16” (102.9mm)
4-1/16”(102.9mm)
3-15/16” (100mm)
3-15/16”(100mm)
G1/2
1-5/8” ( 42mm)
1-11/16” (42.8mm)
1-11/16”(42.8mm)
G1/2
Thermostatic Mixing
Valve (TLT20)
#SS-01217 v.04
