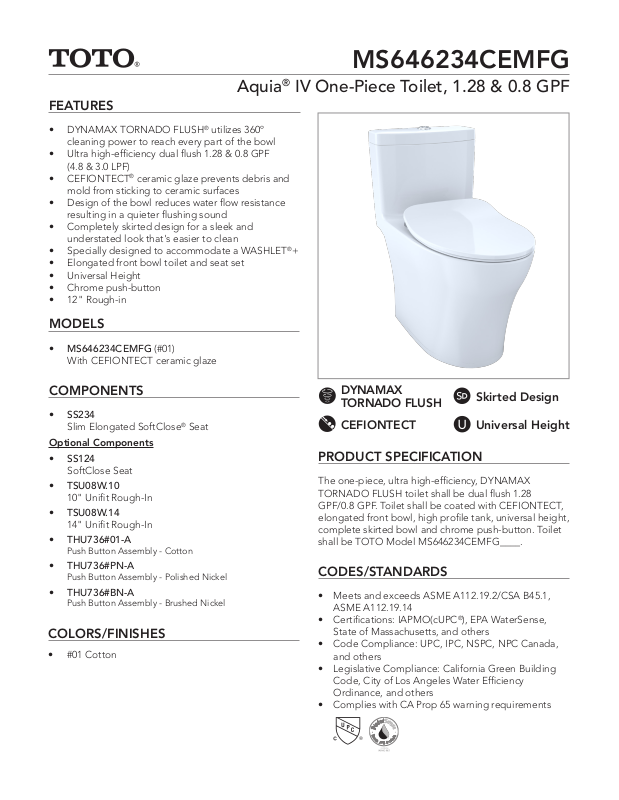

Page 1
Aquia® IV One-Piece Toilet, 1.28 & 0.8 GPF
FEATURES
• DYNAMAX TORNADO FLUSH® utilizes 360º
cleaning power to reach every part of the bowl
• Ultra high-efficiency dual flush 1.28 & 0.8 GPF
(4.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Completely skirted design for a sleek and
understated look that's easier to clean
• Specially designed to accommodate a WASHLET®+
• Elongated front bowl toilet and seat set
• Universal Height
• Chrome push-button
• 12" Rough-in
MODELS
• MS646234CEMFG (#01)
With CEFIONTECT ceramic glaze
MS646234CEMFG
COMPONENTS
• SS234
Slim Elongated SoftClose® Seat
Optional Components
• SS124
SoftClose Seat
• TSU08W.10
10" Unifit Rough-In
• TSU08W.14
14" Unifit Rough-In
• THU736#01-A
Push Button Assembly - Cotton
• THU736#PN-A
Push Button Assembly - Polished Nickel
• THU736#BN-A
Push Button Assembly - Brushed Nickel
COLORS/FINISHES
• #01 Cotton
DYNAMAX
TORNADO FLUSH
CEFIONTECT
Skirted Design
Universal Height
PRODUCT SPECIFICATION
The one-piece, ultra high-efficiency, DYNAMAX
TORNADO FLUSH toilet shall be dual flush 1.28
GPF/0.8 GPF. Toilet shall be coated with CEFIONTECT,
elongated front bowl, high profile tank, universal height,
complete skirted bowl and chrome push-button. Toilet
shall be TOTO Model MS646234CEMFG____.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MS646234CEMFG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Aquia® IV One-Piece Toilet, 1.28 & 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX™ TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12" (10" & 14" Optional)
2-1/8"
One Year Limited Warranty
Vitreous China
122 lbs
32"L x 20"W x 17-3/4" H1 x 28-3/4" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
2
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01442 v.03
