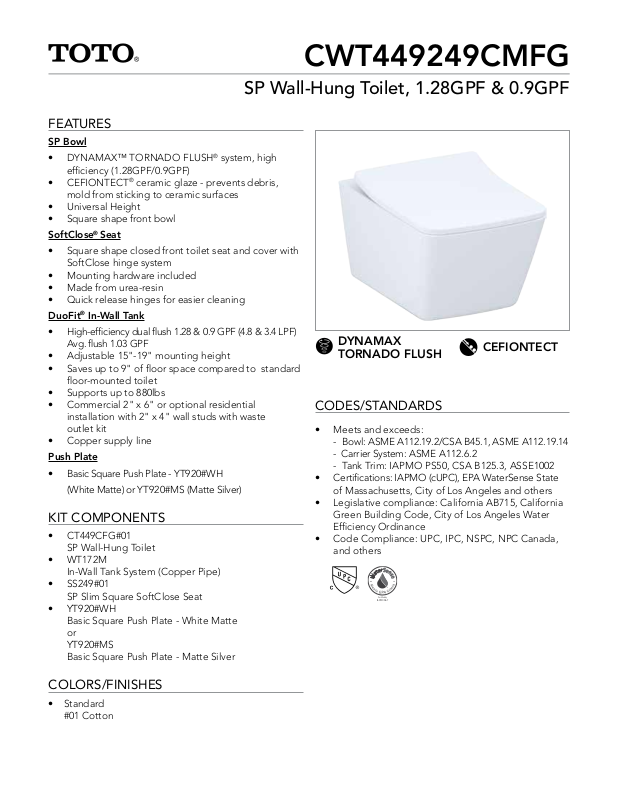

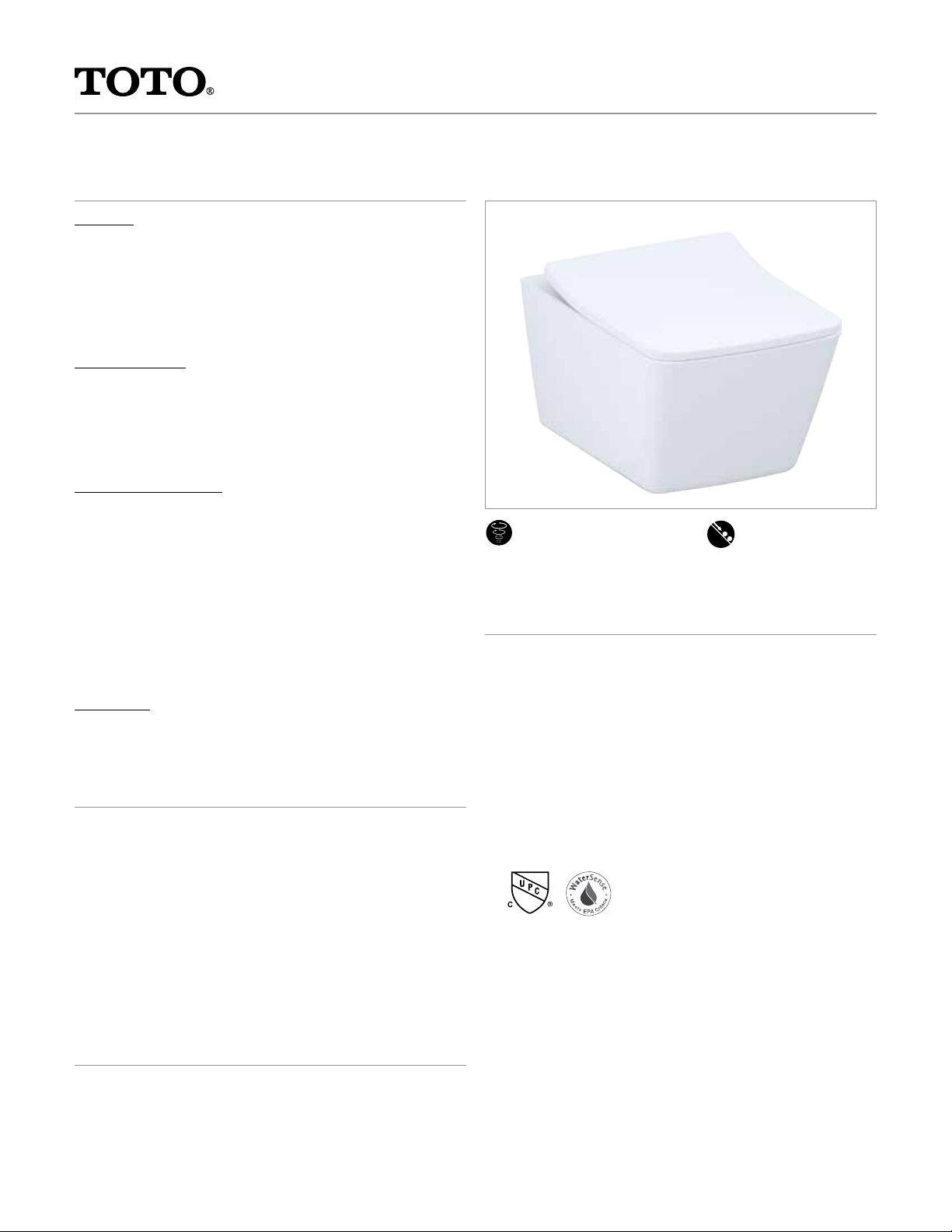

Page 1
SP Wall-Hung Toilet, 1.28GPF & 0.9GPF
FEATURES
SP Bowl
• DYNAMAX™ TORNADO FLUSH® system, high
efficiency (1.28GPF/0.9GPF)
• CEFIONTECT® ceramic glaze - prevents debris,
mold from sticking to ceramic surfaces
• Universal Height
• Square shape front bowl
SoftClose Seat
• Square shape closed front toilet seat and cover with
• Mounting hardware included
• Made from urea-resin
• Quick release hinges for easier cleaning
DuoFit In-Wall Tank
• High-efficiency dual flush 1.28 & 0.9 GPF (4.8 & 3.4 LPF)
• Adjustable 15"-19" mounting height
• Saves up to 9" of floor space compared to standard
• Supports up to 880lbs
• Commercial 2" x 6" or optional residential
• Copper supply line
Push Plate
• Basic Square Push Plate - YT920#WH
KIT COMPONENTS
• CT449CFG#01
• WT172M
• SS249#01
• YT920#WH
®
SoftClose hinge system
®
Avg. flush 1.03 GPF
floor-mounted toilet
installation with 2" x 4" wall studs with waste
outlet kit
(White Matte) or YT920#MS (Matte Silver)
SP Wall-Hung Toilet
In-Wall Tank System (Copper Pipe)
SP Slim Square SoftClose Seat
Basic Square Push Plate - White Matte
or
YT920#MS
Basic Square Push Plate - Matte Silver
CWT449249CMFG
DYNAMAX
TORNADO FLUSH
CODES/STANDARDS
• Meets and exceeds:
- Bowl: ASME A112.19.2/CSA B45.1, ASME A112.19.14
- Carrier System: ASME A112.6.2
- Tank Trim: IAPMO PS50, CSA B125.3, ASSE1002
• Certifications: IAPMO (cUPC), EPA WaterSense State
of Massachusetts, City of Los Angeles and others
• Legislative compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
Certified by
CEFIONTECT
COLORS/FINISHES
• Standard
#01 Cotton

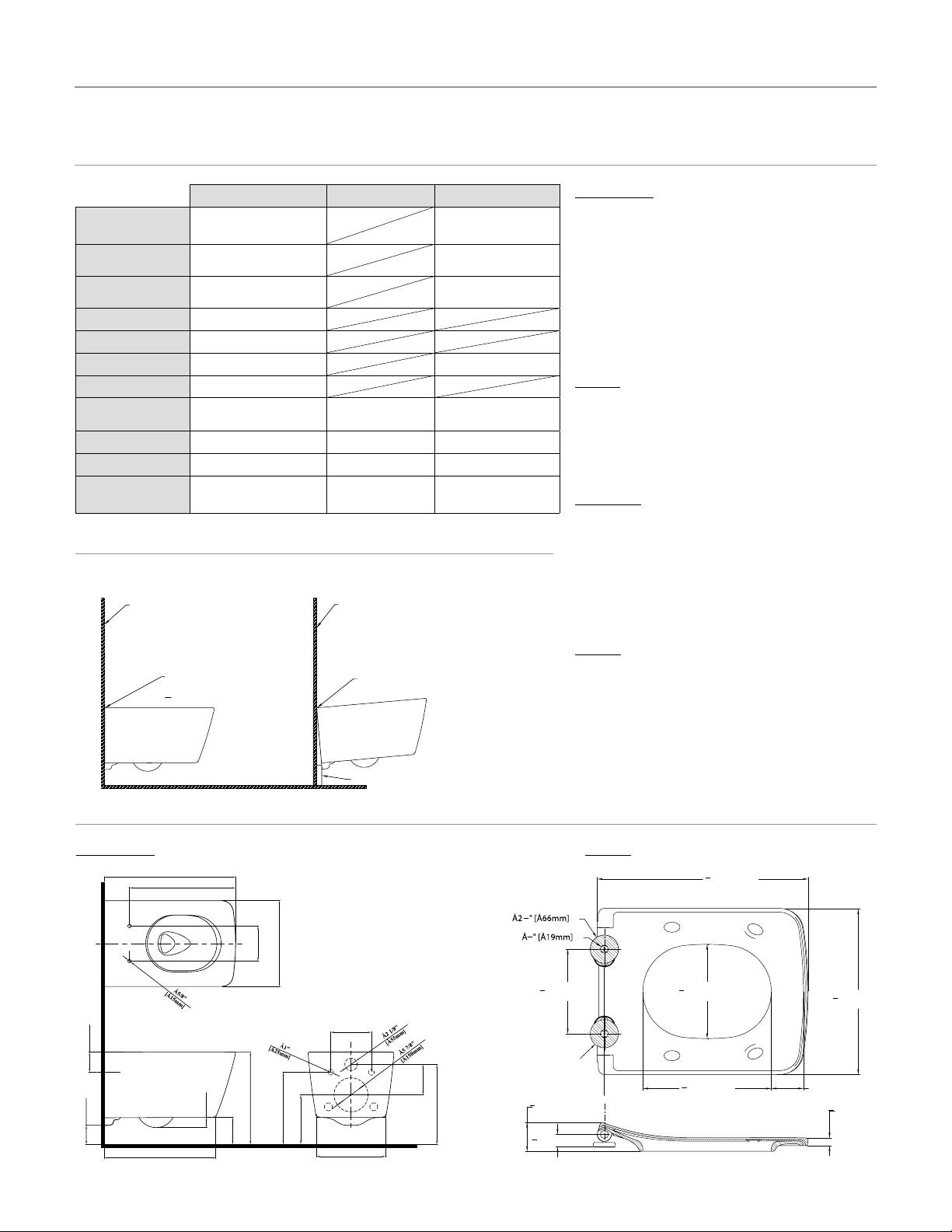

Page 2
CWT449249CMFG
PRODUCT SPECIFICATIONS
SP Wall-Hung Toilet, 1.28GPF & 0.9GPF
CT449CFG SS249 WT172M
Water Use
Flush System
Min. Water
Pressure
1.28GPF & 0.9GPF
(4.8LPF & 3.4LPF)
DynaMax
TORNADO FLUSH
™
®
8 psi (static) 8 psi (static)
1.28GPF & 0.9GPF
(4.8LPF & 3.4LPF)
DUAL-MAX
Water Surface 5-1/2” X 4-1/8”
Trap Diameter 2-1/8"
Installation Height 15” to 19” 15” to 19”
Tra p Seal 2-1/8”
Warranty
One Year
Limited Warranty
One Year
Limited Warranty
One Year
Limited Warranty
Material Vitreous China Urea-Resin Various
Shipping Weight 68 lbs 9 lbs 38 lbs
Shipping
Dimensions
22” L x 14.6” W
x 16.5” H
20-5/8” x 19-1/8”
x 3-1/4”
48” L x 26-1/2” W
x 6” H
INSTALLATION NOTES
• Adequate structural bracing is required
Finish wall
Proper
Installation
Back of toilet even
with installation surface
1
16
" Wall gap
Finish wall
Improper
Installation
Uneven wall gap
CT449CFG
This universal height, square shaped front
bowl, high efficiency DYNAMAX TORNADO
flushing system toilet shall be 1.28GPF &
0.9GPF. Toilet shall have CEFIONTECT®
ceramic glaze. Toilet requires in-wall tank
system and wall-mounted push-button
type trip lever. Toilet shall be TOTO Model
CT449CFG#01.
SS249
Seat shall be made from urea-resin for both
the seat and seat cover. The seat installation
is top mount installation with adjustable
hinge plates and stainless steel hinge caps.
WT172M
This universal height, high-efficiency, dual
flushing, in-wall tank system toilet shall be
1.28GPF & 0.9GPF. Requires TOTO toilet
model CT449CFG and wall-mounted push
plate. In-Wall tank system shall be TOTO
Model WT172M.
YT920
Dual button push plate required. Basic Wall
comes in two options, White Matte or Matte
Silver.
Baseboard
PRODUCT DIMENSIONS
CT449CFG SS249
22 7/8"
[580mm]
18 1/2"
[470mm]
5
8
3
4
3
" [197mm]
7
4
The shaded area is
adjustable range
5
2
" [67.5mm]
8
1
1
" [29mm]
8
3 3/8"
3 1/2"
[90mm]
[85mm]
19 3/8"
[492mm]
1 3/4"
[45mm]
4 3/4"
[120mm]
16 1/8"
6 1/8"
[155mm]
[410mm]
15"
[380mm]
12 5/8"
[320mm]
8 5/8"
[220mm]
7 1/8"
[180mm]
12 1/8"
[307mm]
5 1/4"
[135mm]
14"
[355mm]
5
8
8
3
11
4
3
" [493mm]
19
8
" [220mm]
" [300mm]
15
3" [75mm]
3
4
1
" [387mm]
4
" [18mm]

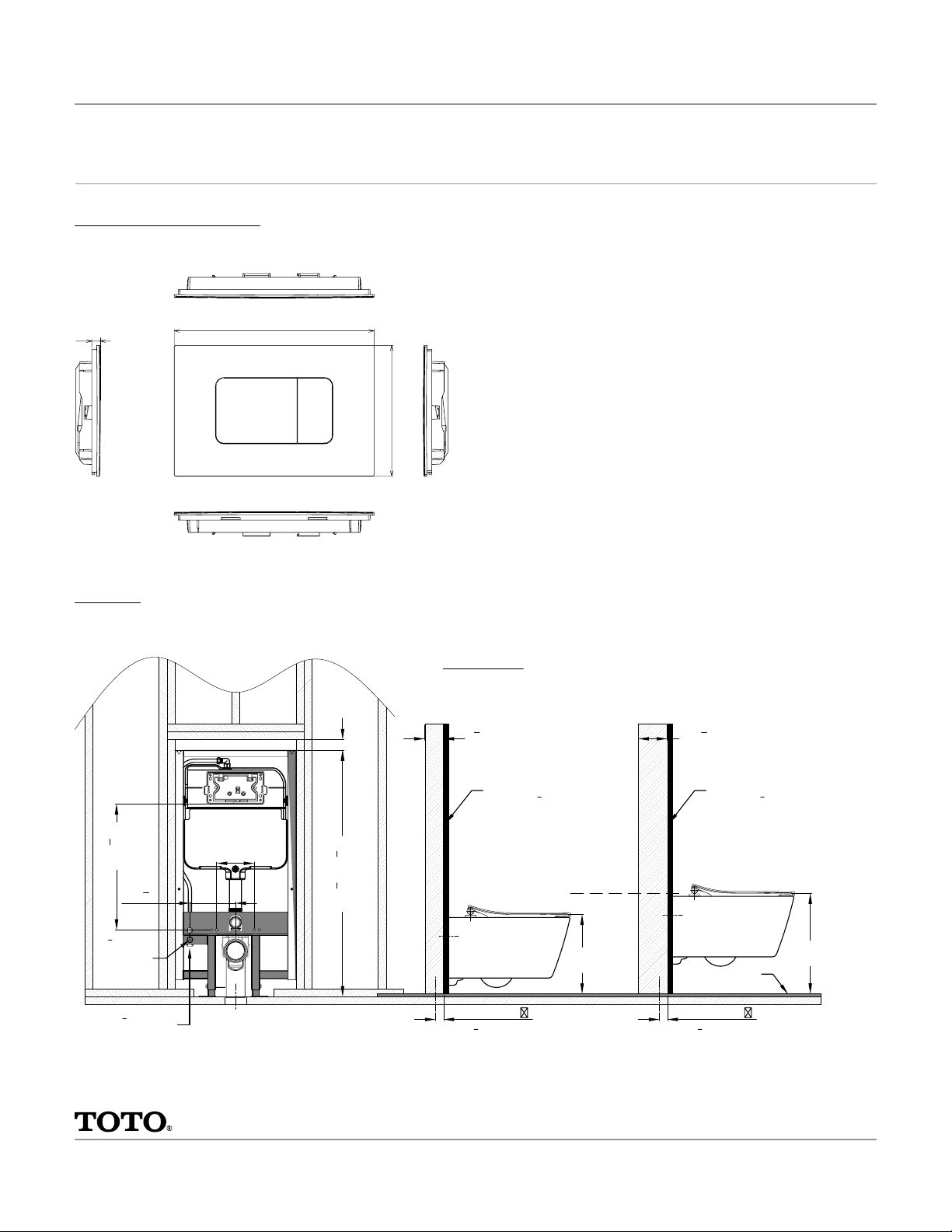

Page 3
CWT449249CMFG
PRODUCT DIMENSIONS
YT920#WH or YT920#MS
SP Wall-Hung Toilet, 1.28GPF & 0.9GPF
10
WT172M
243
2"
[51mm]
159
Frame Work
Follow wall framing code
around the Carrier
3
[89mm]
*Refer to Installation
Manual on the specific
Carrier height for the
desired height of the toilet
1
"
2
1
"
5
2
[140mm]
"
4
3
23
[603mm]
5
8
"
8
[218mm]
1
" NPT
2
Water
Supply to
Washlet
1
" NPT
2
Water Supply
7"
[180mm]
"
1
4
" - 53
1
4
45
[1148 - 1351 mm]
Finished Wall
thickness
1
" to 2"
2
2"x4"
[51mm x 102mm]
Installation
Range from 15" to 19"
CT449
15"
[381mm]
Drain Hole :
3
1
" from front of frame
4
using 2"x4" installation kit
THU343
These dimensions and specications are subject to change without notice
Finished Wall
thickness
[51mm x 152mm]
2"x6"
1
" to 2"
2
or with Back Access
Installation
CT449
Finished Floor
Drain Hole :
3
1
" from front of
4
frame using Ø90mm
Outlet Pipe
19"
[483mm]
#SS-01339 v.01Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
