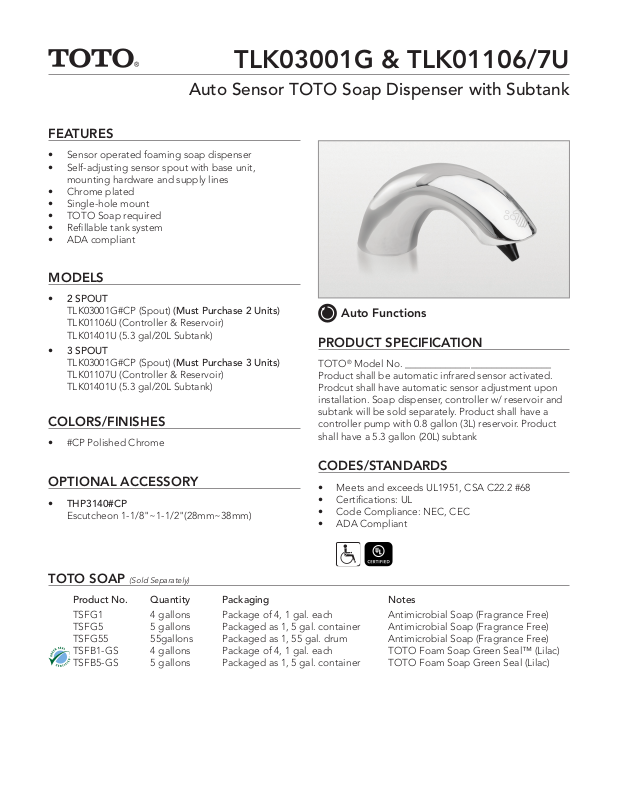

Page 1
TLK03001G & TLK01106/7U

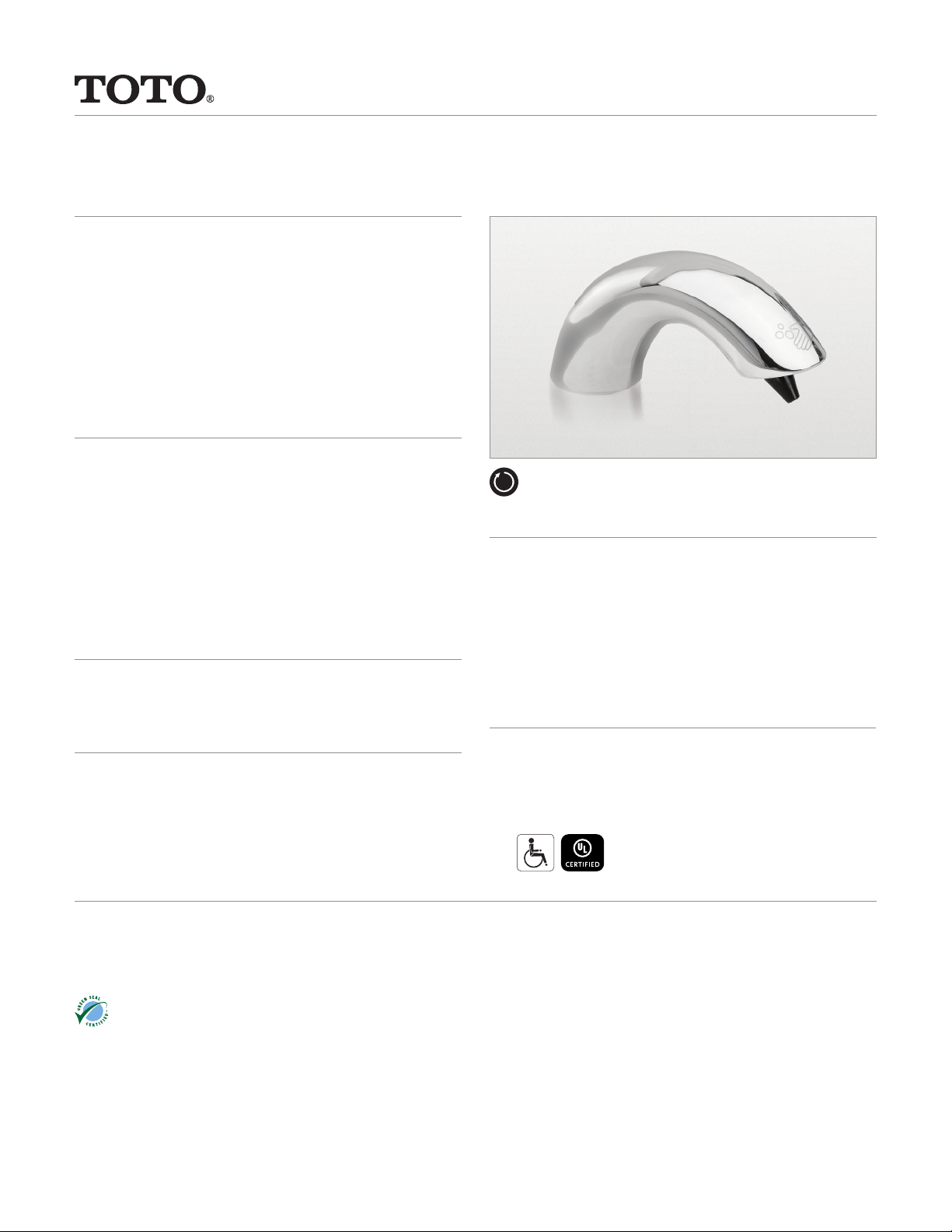

Auto Sensor TOTO Soap Dispenser with Subtank
FEATURES
• Sensor operated foaming soap dispenser
• Self-adjusting sensor spout with base unit,
mounting hardware and supply lines
• Chrome plated
• Single-hole mount
• TOTO Soap required
• Refillable tank system
• ADA compliant
MODELS
• 2 SPOUT
TLK03001G#CP (Spout) (Must Purchase 2 Units)
TLK01106U (Controller & Reservoir)
TLK01401U (5.3 gal/20L Subtank)
• 3 SPOUT
TLK03001G#CP (Spout) (Must Purchase 3 Units)
TLK01107U (Controller & Reservoir)
TLK01401U (5.3 gal/20L Subtank)
COLORS/FINISHES
• #CP Polished Chrome
Auto Functions
PRODUCT SPECIFICATION
TOTO® Model No. _____________________________
Product shall be automatic infrared sensor activated.
Prodcut shall have automatic sensor adjustment upon
installation. Soap dispenser, controller w/ reservoir and
subtank will be sold separately. Product shall have a
controller pump with 0.8 gallon (3L) reservoir. Product
shall have a 5.3 gallon (20L) subtank
CODES/STANDARDS
OPTIONAL ACCESSORY
• THP3140#CP
Escutcheon 1-1/8"~1-1/2"(28mm~38mm)
TOTO SOAP
Product No. Quantity Packaging Notes
TSFG1 4 gallons Package of 4, 1 gal. each Antimicrobial Soap (Fragrance Free)
TSFG5 5 gallons Packaged as 1, 5 gal. container Antimicrobial Soap (Fragrance Free)
TSFG55 55gallons Packaged as 1, 55 gal. drum Antimicrobial Soap (Fragrance Free)
TSFB1-GS 4 gallons Package of 4, 1 gal. each TOTO Foam Soap Green Seal™ (Lilac)
TSFB5-GS 5 gallons Packaged as 1, 5 gal. container TOTO Foam Soap Green Seal (Lilac)
(Sold Separately)
• Meets and exceeds UL1951, CSA C22.2 #68
• Certifications: UL
• Code Compliance: NEC, CEC
• ADA Compliant
Page 2
TLK03001G & TLK01106/7U

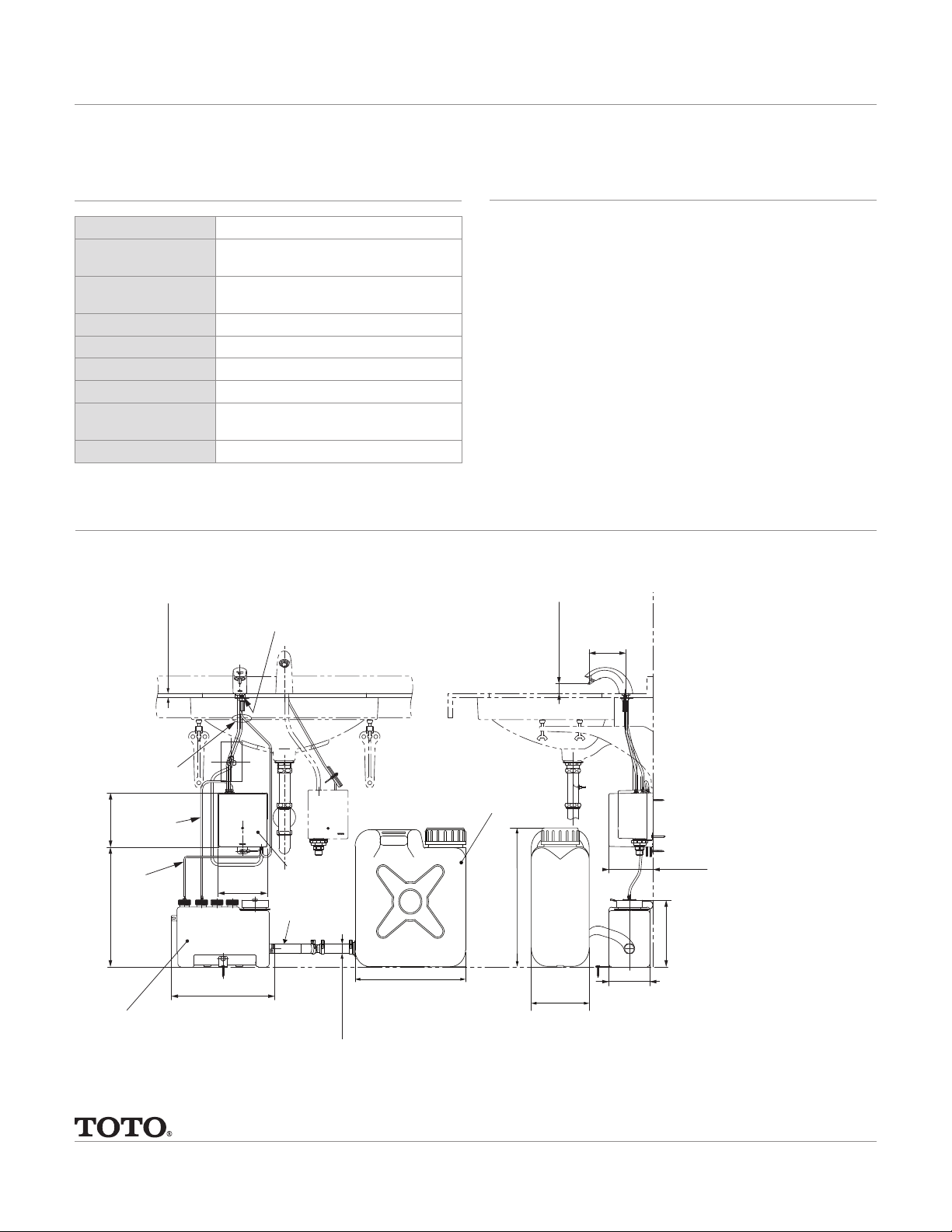

ROUGH - IN DIMENSIONS
(continued)
EN
DIMENSIONES DE LA ESTRUCTURA INTERIOR
(continuación)
ES
DIMENSIONS DE LA PLOMBERIE BRUTE
(suite)
FR
DIMENSÕES APROXIMADAS
(continuação)
PT
(Unit: Inch (mm))
"(26 mm)
Auto Sensor TOTO Soap Dispenser with Subtank
SPECIFICATIONS
Power Supply AC 120V
Wattage
Sensor Detection
Range
Ambient Temperature 34-104°F(1-40°C)
Humidity Max. 90% RH
Power Cord Length 55" (1.4 m)
Soap Output Volume 0.04 oz (factory setting)
Tank Capacity
Warranty *Three Year Warranty
*Failure to use TOTO soap will void warranty
(TLK01106U) 6.5W
(TLK01107U) 9W
5-1/8" ~ 7-7/8" (130~200mm)
Sensor is self-adjusting
Approximately 0.8 gal (3L)Tank
Approximately 5.3 gal (20L) Subtank
DIMENSIONS
Mounting hole
Φ 1" (25 mm) ~ Φ 1-1/8" (28 mm)
Deck Thickness
1/4" ~ 1-1/8"
(5 ~ 30mm)
INSTALLATION NOTES
• Spout Mounting Hole ⌀1" ~ ⌀1-1/8" (⌀25 ~ ⌀28 mm)
• Deck Thickness 1/4" ~ 1-1/8" (5 ~ 30 mm)
Wall surface
4-1/4"
(108 mm)
1-1/8" (28 mm)
L=6'
(1800 mm)
L=6' 6-3/4"
(2000 mm)
6-5/16"
(159 mm)
L=6' 2-13/16"
(1900 mm)
14" (350 mm)
0.8 gal (3L) Tank unit
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
5-11/16"
(144 mm)
12" (302 mm)
Controller unit
L=16
' 4-7/8"
(5000mm)
14-3/16" (360mm)
Φ1
5.3 gal (20L) Sub-tank
5-1/8"
(130 mm)
(415mm)
"
16-5/16
4-3/4" (120 mm)
7-7/8" (200mm)
These dimensions and specications are subject to change without notice
7-11/16"
(195 mm)
#SS-01445 v.01
