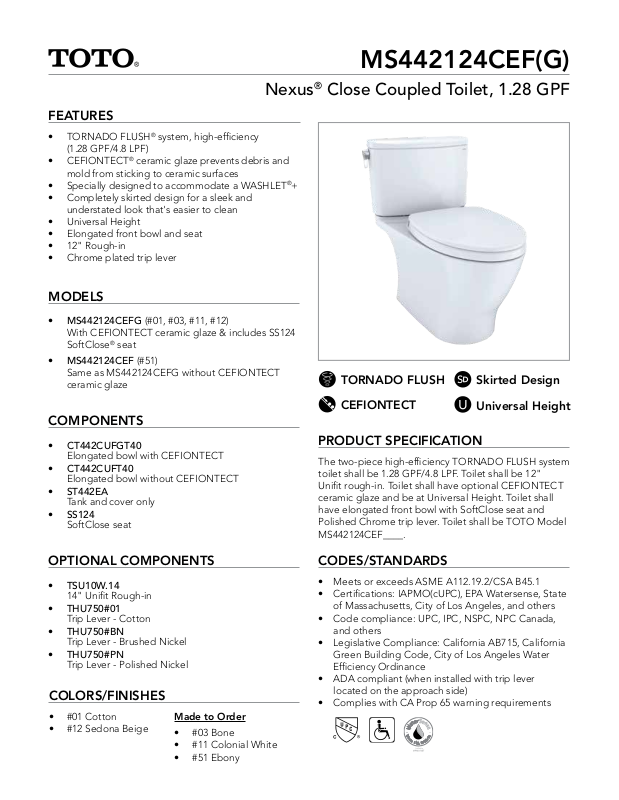

Page 1
Nexus® Close Coupled Toilet, 1.28 GPF
FEATURES
• TORNADO FLUSH® system, high-efficiency
(1.28 GPF/4.8 LPF)
• CEFIONTECT® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Specially designed to accommodate a WASHLET®+
• Completely skirted design for a sleek and
understated look that's easier to clean
• Universal Height
• Elongated front bowl and seat
• 12" Rough-in
• Chrome plated trip lever
MODELS
• MS442124CEFG (#01, #03, #11, #12)
With CEFIONTECT ceramic glaze & includes SS124
SoftClose® seat
• MS442124CEF (#51)
Same as MS442124CEFG without CEFIONTECT
ceramic glaze
MS442124CEF(G)
TORNADO FLUSH Skirted Design
COMPONENTS
• CT442CUFGT40
Elongated bowl with CEFIONTECT
• CT442CUFT40
Elongated bowl without CEFIONTECT
• ST442EA
Tank and cover only
• SS124
SoftClose seat
OPTIONAL COMPONENTS
• TSU10W.14
14" Unifit Rough-in
• THU750#01
Trip Lever - Cotton
• THU750#BN
Trip Lever - Brushed Nickel
• THU750#PN
Trip Lever - Polished Nickel
COLORS/FINISHES
• #01 Cotton
• #12 Sedona Beige
Made to Order
• #03 Bone
• #11 Colonial White
• #51 Ebony
CEFIONTECT
Universal Height
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH system
toilet shall be 1.28 GPF/4.8 LPF. Toilet shall be 12"
Unifit rough-in. Toilet shall have optional CEFIONTECT
ceramic glaze and be at Universal Height. Toilet shall
have elongated front bowl with SoftClose seat and
Polished Chrome trip lever. Toilet shall be TOTO Model
MS442124CEF____.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MS442124CEF(G)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
SPECIFICATIONS
Water Use 1.28 GPF (4.8 LPF)
Flush System TORNADO FLUSH
Min. Water
Pressure
Water Surface 6-5/8" x 9-1/8"
Trap Diameter 2-1/8"
Rough-in 12" (14" Optional)
Tra p Seal 2-1/4"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight
Shipping
Dimensions
8 psi (Static)
CT442CUF(G)T40
87 lbs
ST442UA
25 lbs
CT442CUF(G)T40
29-3/4"L x 18-1/4"W x 18-3/4"H
ST442EA
17-1/4"L x 7-7/8"W x 17-1/2"H
Nexus
®
Close Coupled Toilet, 1.28 GPF
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
DIMENSIONS
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
# SS-01459 v.01
