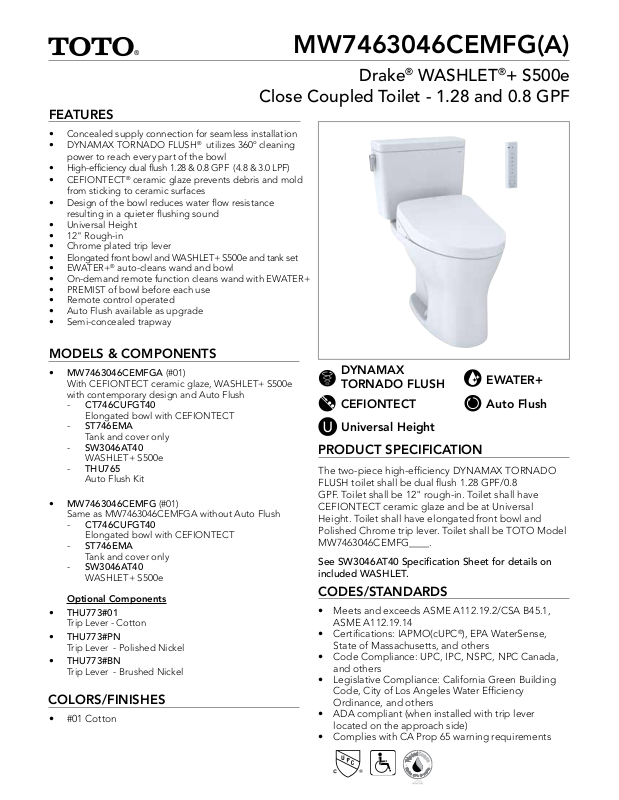

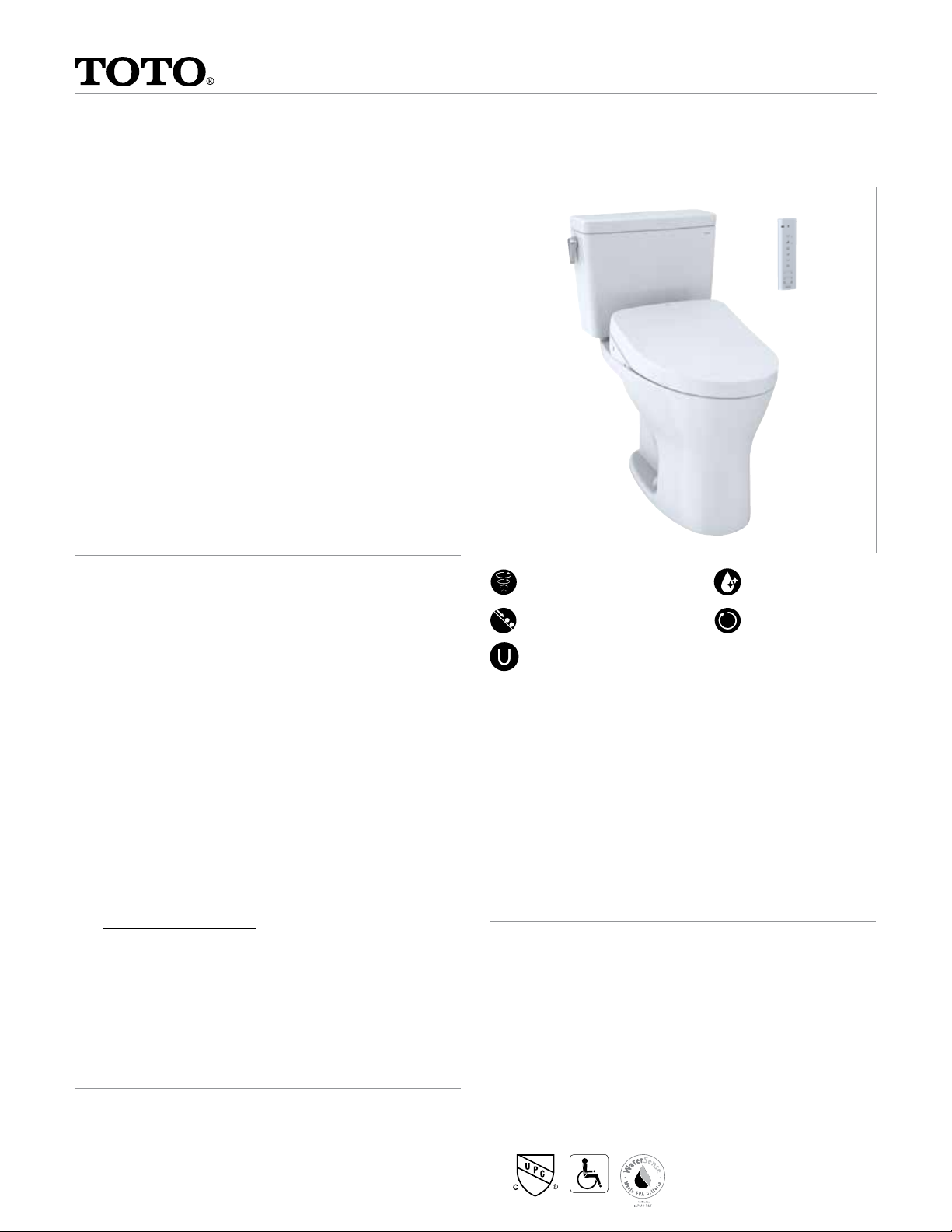

Page 1
FEATURES
MW7463046CEMFG(A)
Drake® WASHLET®+ S500e
Close Coupled Toilet - 1.28 and 0.8 GPF
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH
power to reach every part of the bowl
• High-efficiency dual flush 1.28 & 0.8 GPF (4.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and mold
from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Universal Height
• 12" Rough-in
• Chrome plated trip lever
• Elongated front bowl and WASHLET+ S500e and tank set
• EWATER+
• On-demand remote function cleans wand with EWATER+
• PREMIST of bowl before each use
• Remote control operated
• Auto Flush available as upgrade
• Semi-concealed trapway
®
auto-cleans wand and bowl
®
utilizes 360º cleaning
MODELS & COMPONENTS
• MW7463046CEMFGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S500e
with contemporary design and Auto Flush
- CT746CUFGT40
Elongated bowl with CEFIONTECT
- ST746EMA
Tank and cover only
- SW3046AT40
WASHLET+ S500e
- THU765
Auto Flush Kit
• MW7463046CEMFG (#01)
Same as MW7463046CEMFGA without Auto Flush
- CT746CUFGT40
Elongated bowl with CEFIONTECT
- ST746EMA
Tank and cover only
- SW3046AT40
WASHLET+ S500e
Optional Components
• THU773#01
Trip Lever - Cotton
• THU773#PN
Trip Lever - Polished Nickel
• THU773#BN
Trip Lever - Brushed Nickel
COLORS/FINISHES
• #01 Cotton
DYNAMAX
TORNADO FLUSH
CEFIONTECT
EWATER+
Auto Flush
Universal Height
PRODUCT SPECIFICATION
The two-piece high-efficiency DYNAMAX TORNADO
FLUSH toilet shall be dual flush 1.28 GPF/0.8
GPF. Toilet shall be 12" rough-in. Toilet shall have
CEFIONTECT ceramic glaze and be at Universal
Height. Toilet shall have elongated front bowl and
Polished Chrome trip lever. Toilet shall be TOTO Model
MW7463046CEMFG____.
See SW3046AT40 Specification Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements

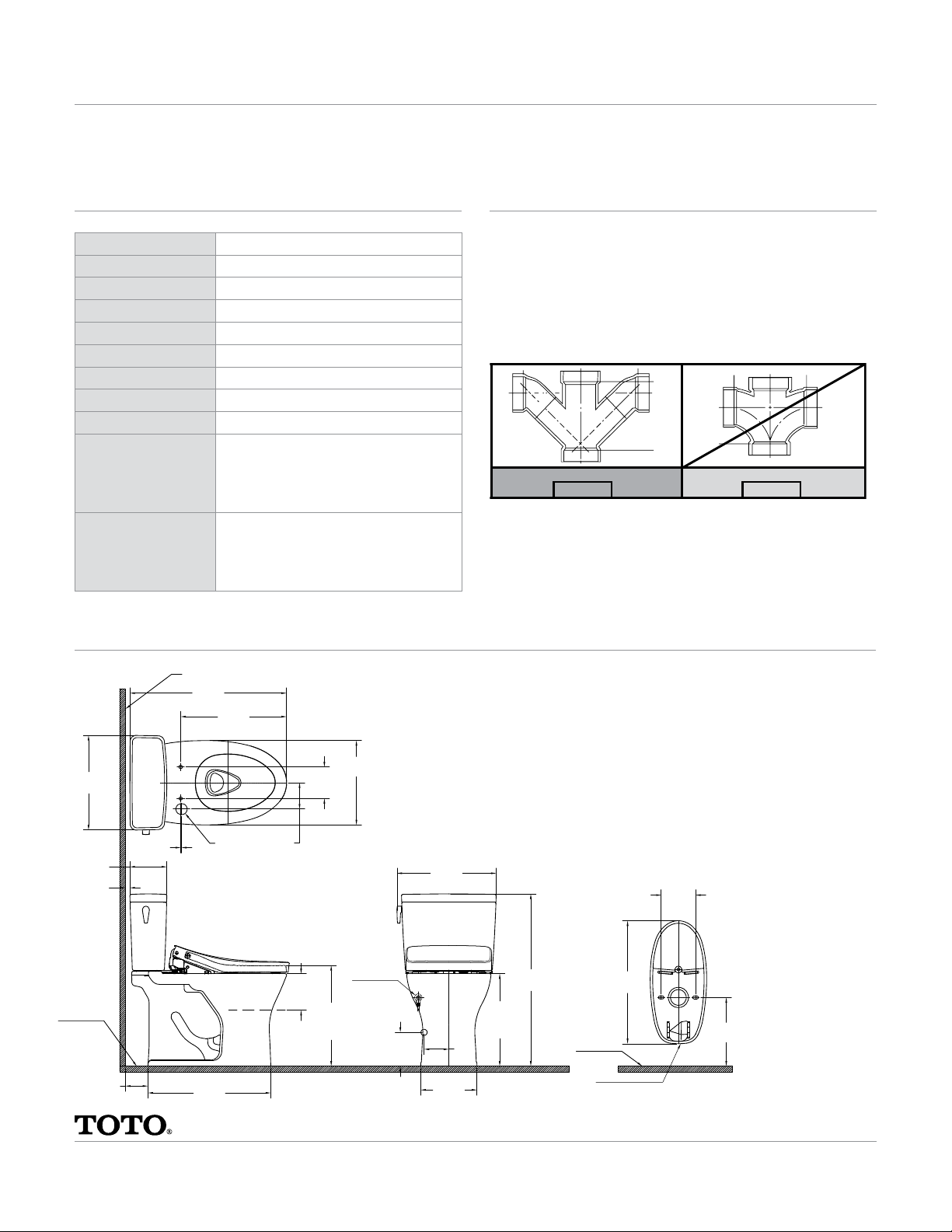

Page 2
MW7463046CEMFG(A)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® WASHLET®+ S500e
Close Coupled Toilet - 1.28 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3046AT40 Specication Sheet for details on included WASHLET.
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUFGT40
66 lbs.
ST746EMA
35 lbs.
CT746CUFGT40
18-3/4" L x 10-1/2" W x 18-1/8"H
ST746EMA
18-3/4" L x 8-3/8" W x 16"H
®
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
16 1/2"
[420mm]
[164mm]
FINISHED
FLOOR
6 7/16"
3/4"
[20mm]
3 15/16"
[100mm]
3/16"
[4mm]
FINISHED WALL
27 3/8"
[695mm]
18 1/2"
[470mm]
Ø1 15/16"
[Ø50mm]
21 7/16"
[545mm]
[140mm]
4 5/8"
[117mm]
*SUGGESTED LOCATION OF
SHUTOFF VALVE
**GFCI OUTLET 120V, 10 A MPS.
WASHLET POWER CORD 3 PRONGS
6 3/8"
WATER
LEVEL
[162mm]
5 1/2"
SEAT
HEIGHT
17 5/8"
[447mm]
14 3/4"
[374mm]
OUTLET
12" FROM
**GFCI
FLOOR
*5 7/8"
[150mm]
17 5/16"
[440mm]
9 13/16"
[250mm]
*4 5/16"
[110mm]
RIM
HEIGHT
16 1/8"
[410mm]
30 1/16"
[764mm]
FINISHED
WALL
BACK OF BOWL
21 7/16"
[545mm]
6"
[152mm]
12"
[305mm]
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01535 v.01
