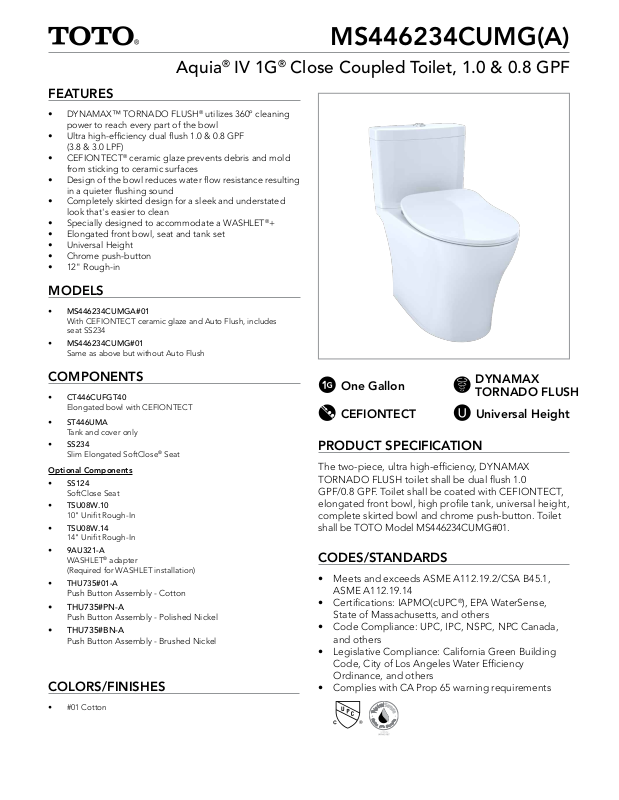

Aquia® IV 1G® Close Coupled Toilet, 1.0 & 0.8 GPF
FEATURES
• DYNAMAX™ TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• Ultra high-efficiency dual flush 1.0 & 0.8 GPF
(3.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and mold
from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance resulting
in a quieter flushing sound
• Completely skirted design for a sleek and understated
look that's easier to clean
• Specially designed to accommodate a WASHLET®+
• Elongated front bowl, seat and tank set
• Universal Height
• Chrome push-button
• 12" Rough-in
MODELS
• MS446234CUMGA#01
With CEFIONTECT ceramic glaze and Auto Flush, includes
seat SS234
• MS446234CUMG#01
Same as above but without Auto Flush
MS446234CUMG(A)
COMPONENTS
• CT446CUFGT40
Elongated bowl with CEFIONTECT
• ST446UMA
Tank and cover only
• SS234
Slim Elongated SoftClose® Seat
Optional Components
• SS124
SoftClose Seat
• TSU08W.10
10" Unifit Rough-In
• TSU08W.14
14" Unifit Rough-In
• 9AU321-A
WASHLET® adapter
(Required for WASHLET installation)
• THU735#01-A
Push Button Assembly - Cotton
• THU735#PN-A
Push Button Assembly - Polished Nickel
• THU735#BN-A
Push Button Assembly - Brushed Nickel
COLORS/FINISHES
One Gallon
CEFIONTECT
DYNAMAX
TORNADO FLUSH
Universal Height
PRODUCT SPECIFICATION
The two-piece, ultra high-efficiency, DYNAMAX
TORNADO FLUSH toilet shall be dual flush 1.0
GPF/0.8 GPF. Toilet shall be coated with CEFIONTECT,
elongated front bowl, high profile tank, universal height,
complete skirted bowl and chrome push-button. Toilet
shall be TOTO Model MS446234CUMG#01.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
• #01 Cotton
Page 2
MS446234CUMG(A)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Aquia® IV 1G® Close Coupled Toilet, 1.0 & 0.8 GPF
SPECIFICATIONS
Water Use 1.0 & 0.8 GPF (3.8 & 3.0 LPF)
Flush System DYNAMAX™ TORNADO FLUSH
Min. Water Pressure 8 psi (Flowing)
Water Surface 5-5/8" x 4-1/8"
Trap Diameter 2-1/2"
Rough-in 12" (10" & 14" Optional)
Tra p Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
CT446CUFGT40
Shipping Weight
Shipping
Dimensions
85 lbs
ST446UMA
29 lbs
CT446CUFGT40
30-3/4"L x 17-3/8"W x 20-1/2"H
ST446UMA
17-1/4"L x 7-7/8"W x 17-1/2"H
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ultra-low high efficiency toilets require a system with
adequate supplemental flows from other water usage
fixtures and a 4" ID drainline with minimum 2% slope
and maximum linear runs of 60ft.
DIMENSIONS
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
# SS-01404 v.02
