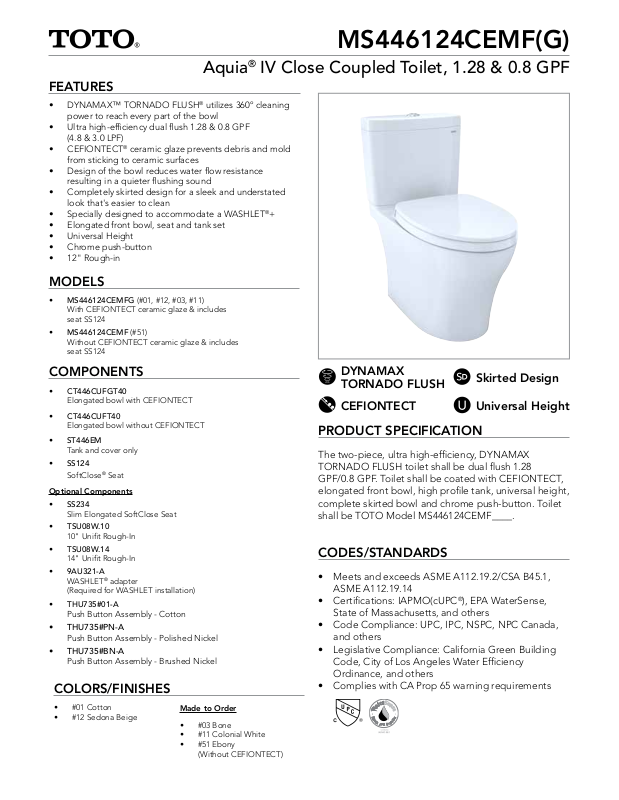

Page 1
Aquia® IV Close Coupled Toilet, 1.28 & 0.8 GPF
FEATURES
• DYNAMAX™ TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• Ultra high-efficiency dual flush 1.28 & 0.8 GPF
(4.8 & 3.0 LPF)
• CEFIONTECT® ceramic glaze prevents debris and mold
from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Completely skirted design for a sleek and understated
look that's easier to clean
• Specially designed to accommodate a WASHLET®+
• Elongated front bowl, seat and tank set
• Universal Height
• Chrome push-button
• 12" Rough-in
MODELS
• MS446124CEMFG (#01, #12, #03, #11)
With CEFIONTECT ceramic glaze & includes
seat SS124
• MS446124CEMF (#51)
Without CEFIONTECT ceramic glaze & includes
seat SS124
MS446124CEMF(G)
COMPONENTS
• CT446CUFGT40
Elongated bowl with CEFIONTECT
• CT446CUFT40
Elongated bowl without CEFIONTECT
• ST446EM
Tank and cover only
• SS124
SoftClose® Seat
Optional Components
• SS234
Slim Elongated SoftClose Seat
• TSU08W.10
10" Unifit Rough-In
• TSU08W.14
14" Unifit Rough-In
• 9AU321-A
WASHLET® adapter
(Required for WASHLET installation)
• THU735#01-A
Push Button Assembly - Cotton
• THU735#PN-A
Push Button Assembly - Polished Nickel
• THU735#BN-A
Push Button Assembly - Brushed Nickel
COLORS/FINISHES
• #01 Cotton
• #12 Sedona Beige
Made to Order
• #03 Bone
• #11 Colonial White
• #51 Ebony
(Without CEFIONTECT)
DYNAMAX
TORNADO FLUSH
CEFIONTECT
Skirted Design
Universal Height
PRODUCT SPECIFICATION
The two-piece, ultra high-efficiency, DYNAMAX
TORNADO FLUSH toilet shall be dual flush 1.28
GPF/0.8 GPF. Toilet shall be coated with CEFIONTECT,
elongated front bowl, high profile tank, universal height,
complete skirted bowl and chrome push-button. Toilet
shall be TOTO Model MS446124CEMF____.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MS446124CEMF(G)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Aquia® IV Close Coupled Toilet, 1.28 & 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX™ TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12" (10" & 14" Optional)
2-1/8"
One Year Limited Warranty
Vitreous China
CT446CUF(G)T40
85 lbs
ST446EM
29 lbs
CT446CUF(G)T40
30-3/4"L x 17-3/8"W x 20-1/2"H
ST446EM
17-1/4"L x 7-7/8"W x 17-1/2"H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01346 v.01
