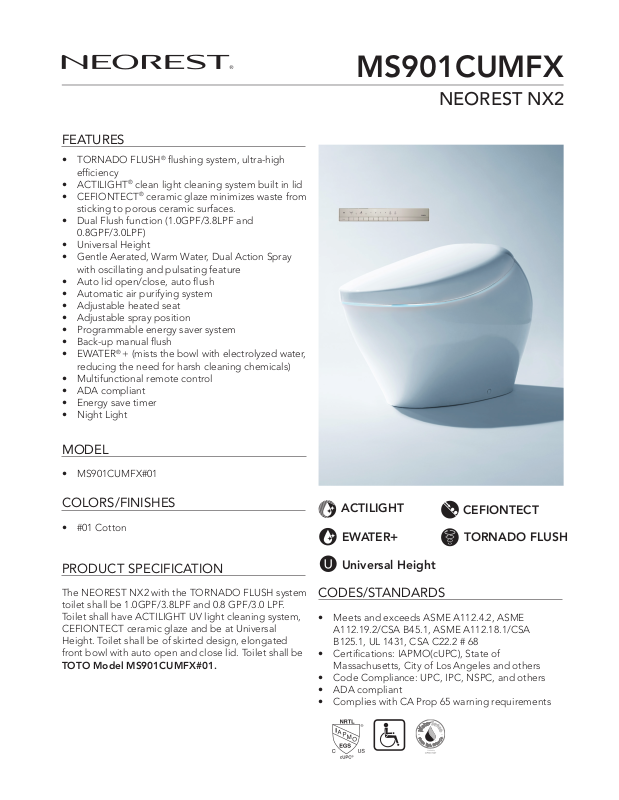

Page 1
FEATURES
• TORNADO FLUSH® flushing system, ultra-high
efficiency
• ACTILIGHT® clean light cleaning system built in lid
• CEFIONTECT® ceramic glaze minimizes waste from
sticking to porous ceramic surfaces.
• Dual Flush function (1.0GPF/3.8LPF and
0.8GPF/3.0LPF)
• Universal Height
• Gentle Aerated, Warm Water, Dual Action Spray
with oscillating and pulsating feature
• Auto lid open/close, auto flush
• Automatic air purifying system
• Adjustable heated seat
• Adjustable spray position
• Programmable energy saver system
• Back-up manual flush
• EWATER® + (mists the bowl with electrolyzed water,
reducing the need for harsh cleaning chemicals)
• Multifunctional remote control
• ADA compliant
• Energy save timer
• Night Light
MS901CUMFX
NEOREST NX2
MODEL
• MS901CUMFX#01
COLORS/FINISHES
• #01 Cotton
PRODUCT SPECIFICATION
The NEOREST NX2 with the TORNADO FLUSH system
toilet shall be 1.0GPF/3.8LPF and 0.8 GPF/3.0 LPF.
Toilet shall have ACTILIGHT UV light cleaning system,
CEFIONTECT ceramic glaze and be at Universal
Height. Toilet shall be of skirted design, elongated
front bowl with auto open and close lid. Toilet shall be
TOTO Model MS901CUMFX#01.
ACTILIGHT
EWATER+
CEFIONTECT
TORNADO FLUSH
Universal Height
CODES/STANDARDS
• Meets and exceeds ASME A112.4.2, ASME
A112.19.2/CSA B45.1, ASME A112.18.1/CSA
B125.1, UL 1431, CSA C22.2 # 68
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles and others
• Code Compliance: UPC, IPC, NSPC, and others
• ADA compliant
• Complies with CA Prop 65 warning requirements
Page 2
MS901CUMFX
NEOREST® NX2
SPECIFICATIONS
Water Use: 1.0 GPF & 0.8 GPF
(3.8 LPF & 3.0 LPF)
Flush System: Tornado Flush
Water Pressure: Flowing:
Min 7.25 PSI (0.05MPa)
Static:
Max 108.75 PSI (0.75 MPa)
Water Surface: 8-1/2" x 7-1/2"
Trap Diameter: 2” (51mm)
Trap Seal: 2-1/8” (55 mm)
Warranty: Three Year Limited (Residential)
One Year Limited (Commercial)
Material: Bowl: Vitreous china
Seat + Cover: Plastic
Power Rating:
Power Cord:
Water Feature:
Rear Washing:
Soft Washing:
Front Washing:
Wide Front Washing:
Washing Spray Temperature:
Safety Feature:
Drying Feature:
Airflow Volume:
Safety Feature:
Seat Warming Feature:
Seat Heater Capacity:
Safety Feature:
Air Purifying Feature:
Air Volume:
Ambient Temperature Range:
Product Size:
Weight:
Floor to Seat Height:
Shipping Weight:
Shipping Dimensions:
AC 120 V, 60 Hz, 1300 W
1.2 m (3.94 ft)
Adjustable Water Flow Rate
Approx. 0.08 - 0.11 gal/min
Approx. 0.08 - 0.11 gal/min
Approx. 0.08 - 0.11 gal/min
Approx. 0.09 - 0.11 gal/min
Approx: 86ºF - 104ºF (30ºC - 40ºC)
Temperature Fuse
Air Temperature:
Approx: 95ºF - 140ºF (35ºC - 60ºC)
10.24 ft3/min
Temperature Fuse
Surface Temperature:
Approx: 82ºF - 97ºF (28ºC - 36ºC)
542 W
Temperature Fuse
O2 Deodorizer
5.65 ft3/min
32ºF/0ºC to 104ºF/40ºC
31-1/2” L x 18-7/16” W x 23” H
Approximately 141 lbs.
17 5/16” (440mm)
158.7 lbs. (72kg)
36-3/4" (933mm) L x 21" (545mm) W
x 31" (802mm) H
INSTALLATION NOTES
• For use with potable water only. Do not use with
recycled water.
18 7/16"
[468mm]
31 1/2"
[800mm]
Water supply Rc 1/2
140mm±10mm
-
(5
60mm±10mm
(2
-
)
Water supply Rc 1/2
)
1 1/8"
[29mm]
11 7/16"
[290mm]
1 7/8"
[47mm]
Recommended
power outlet
location
12"
[305mm]
11 13/16"
[300mm]
Water outlet
11 13/16"
[300mm]
7 7/8"
[200mm]
12 3/4"
[324mm]
[400mm]
235mm±10mm
(9
-
215mm±10mm
(8-)
17 5/16"
[440mm]
15 3/4"
)
12"
[305mm]
20 1/4"
[514mm]
305mm±10mm
)
46 7/8"
[1191mm]
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01409 v.02
