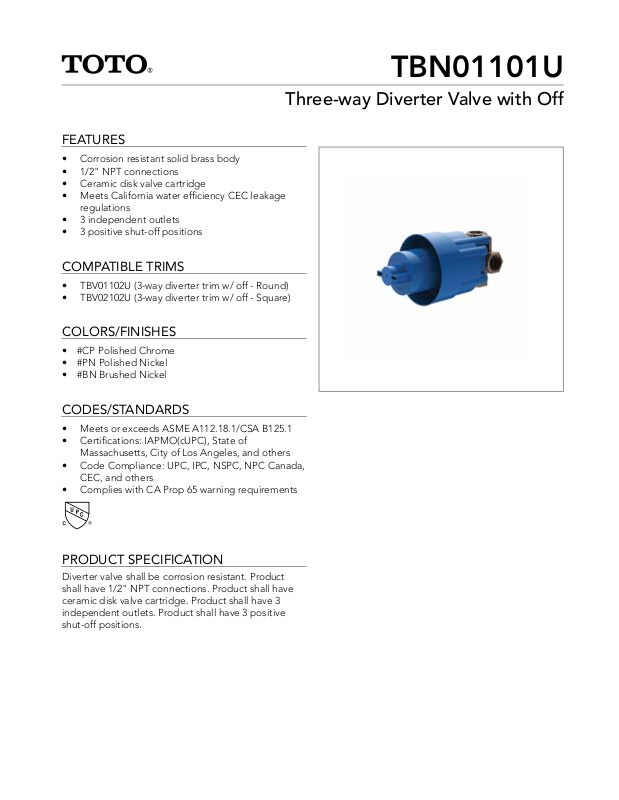

Page 1
FEATURES
• Corrosion resistant solid brass body
• 1/2" NPT connections
• Ceramic disk valve cartridge
• Meets California water efficiency CEC leakage
regulations
• 3 independent outlets
• 3 positive shut-off positions
COMPATIBLE TRIMS
• TBV01102U (3-way diverter trim w/ off - Round)
• TBV02102U (3-way diverter trim w/ off - Square)
COLORS/FINISHES
• #CP Polished Chrome
• #PN Polished Nickel
• #BN Brushed Nickel

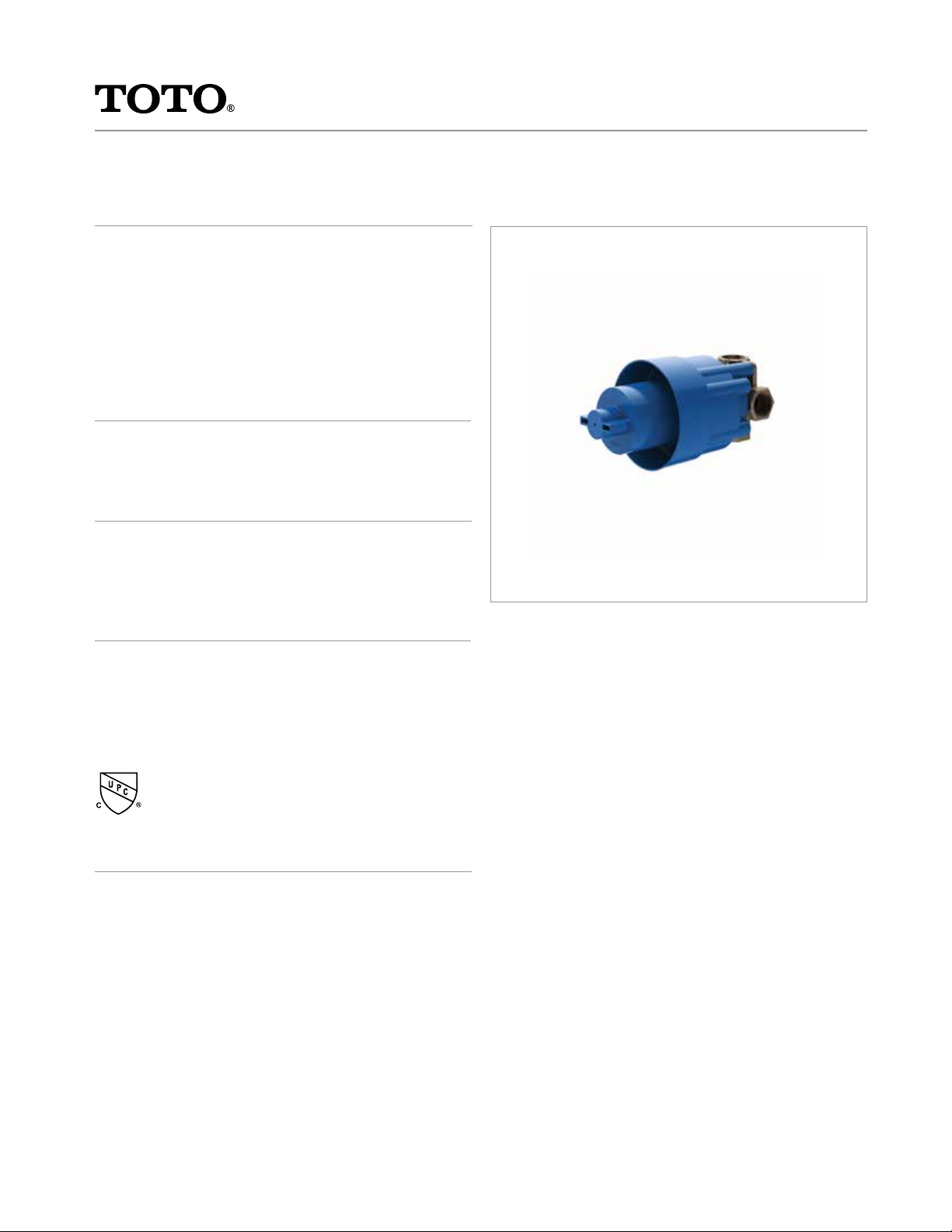

TBN01101U
Three-way Diverter Valve with Off
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
CEC, and others
• Complies with CA Prop 65 warning requirements
PRODUCT SPECIFICATION
Diverter valve shall be corrosion resistant. Product
shall have 1/2" NPT connections. Product shall have
ceramic disk valve cartridge. Product shall have 3
independent outlets. Product shall have 3 positive
shut-off positions.

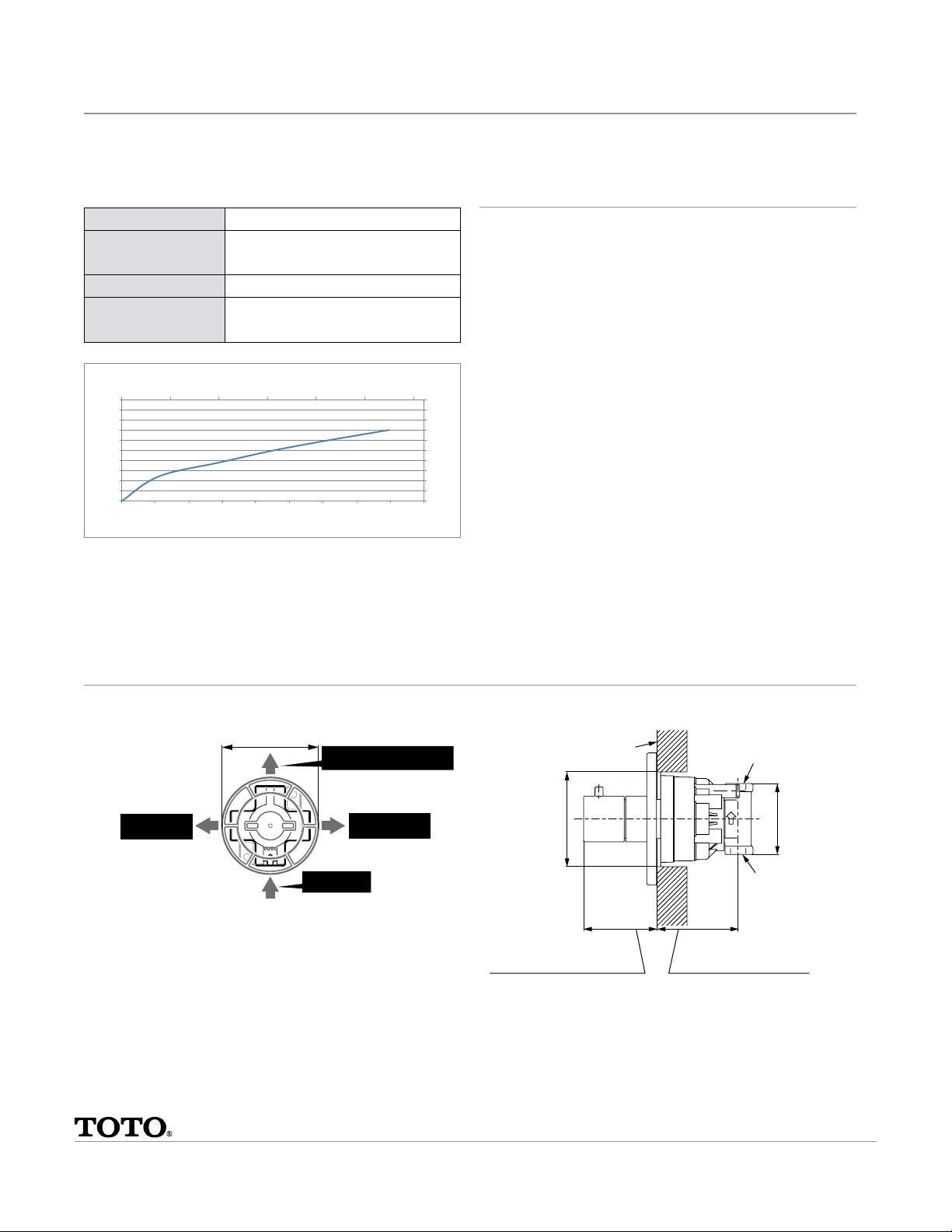

Page 2
TBN01101U
ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES /
DIMENSIONS BRUTES / DIMENSÕES APROXIMADAS
Finished wall surface
2-3/4"[70mm]
TBV01102U / TBV02102U + TBN01101U
TBN01101U
2-3/4"[70mm]
Outlet 2 / Salida 2 /
Sortie 2 / Saída 2
φ5-5/16"[φ135mm]
Min : 2-5/16"[59.5mm]
Max : 3-3/8"[85.5mm]
Min : 2-5/8"[67mm]
Max : 3-11/16"[93mm]
Φ3-9/16"[Φ90mm]
Reqired hole
Outlet
1/2” NPT
1/2” NPT
Inlet
Min : 2-11/32"[59.5mm]
Max : 3-23/32"[85.5mm]
Min : 2-41/64"[67mm]
Max : 3-21/32"[93mm]
Finished wall surface
Φ5-35/64"[90mm]
Reqired hole
2-3/4"[70mm]
2-3/4"[70mm]
Three-way Diverter Valve with Off
SPECIFICATIONS
Material
Warranty
Shipping Weight
Shipping
Dimensions
0 100 200 300 400 500 600
20
18
16
14
12
10
8
6
Flow Ra te(g pm)
4
2
0
0 10 20 30 40 50 60 70 80 90
Bronze
Limited Lifetime (Residential Use)
One Year (Commercial Use)
2.7 lbs
7" x 6-1/2" x 5-1/8"
Pres sure(k Pa)
Pressure(psi)
INSTALLATION NOTES
Three-way diverter trims with off sold separately
76
68
61
53
45
38
30
23
Flow Ra te(lpm)
15
8
0
DIMENSIONS
Front view
Outlet 1
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
Outlet 2
Outlet 3
Inlet
Finished wall surface
Outlet
1/2" NPT
2-3/4"[70mm]
Φ3-9/16"[Φ90mm]
Reqired hole
Inlet
1/2" NPT
Min : 2-5/16"[59.5mm]
Max : 3-3/8"[85.5mm]
Min : 2-5/8"[67mm]
Max : 3-11/16"[93mm]
These dimensions and specications are subject to change without notice
#SS-01311 v.01
