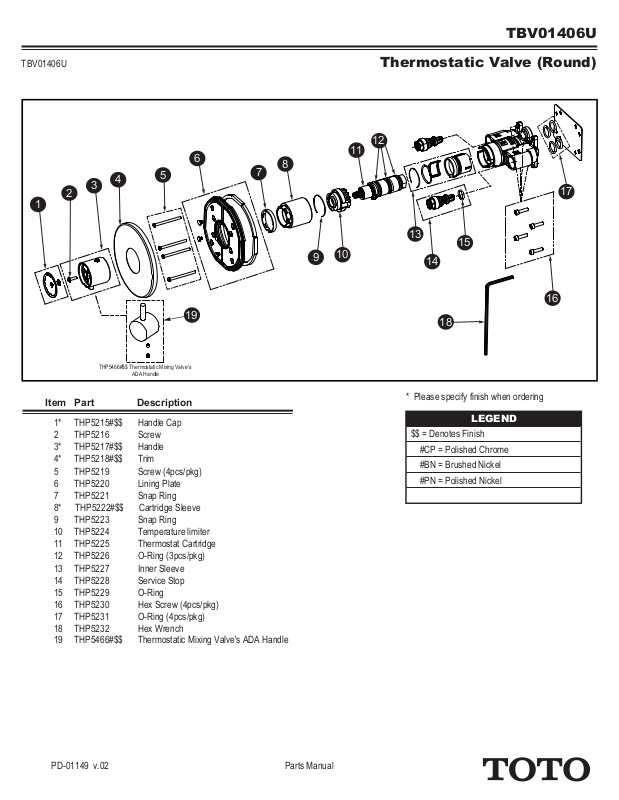

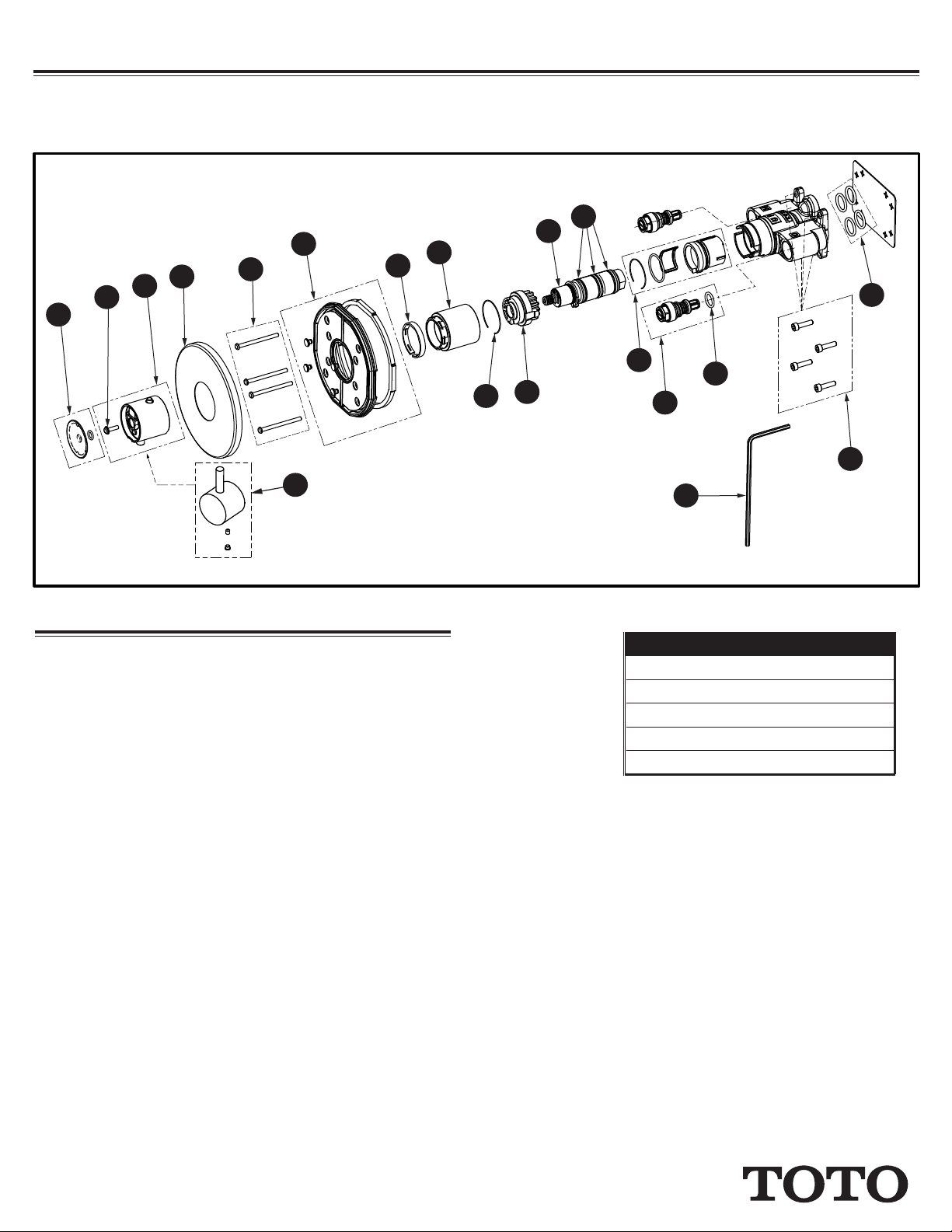

TBV01406U
TBV01406U
1
Thermostatic Valve (Round)
12
10
11
17
13
15
14
16
18
6
4
3
2
5
8
7
9
19
THP5466#$$ Thermostatic Mixing Valve's
Item Part Description
1* THP5215#$$ Handle Cap
2 THP5216 Screw
3* THP5217#$$ Handle
4* THP5218#$$ Trim
5 THP5219 Screw (4pcs/pkg)
6 THP5220 Lining Plate
7 THP5221 Snap Ring
8* THP5222#$$ Cartridge Sleeve
9 THP5223 Snap Ring
10 THP5224 Temperature limiter
11 THP5225 Thermostat Cartridge
12 THP5226 O-Ring (3pcs/pkg)
13 THP5227 Inner Sleeve
14 THP5228 Service Stop
15 THP5229 O-Ring
16 THP5230 Hex Screw (4pcs/pkg)
17 THP5231 O-Ring (4pcs/pkg)
18 THP5232 Hex Wrench
19 THP5466#$$ Thermostatic Mixing Valve's ADA Handle
ADA Handle
* Please specify finish when ordering
LEGEND
$$ = Denotes Finish
#CP = Polished Chrome
#BN = Brushed Nickel
#PN = Polished Nickel
Parts ManualPD-01149 v.02
