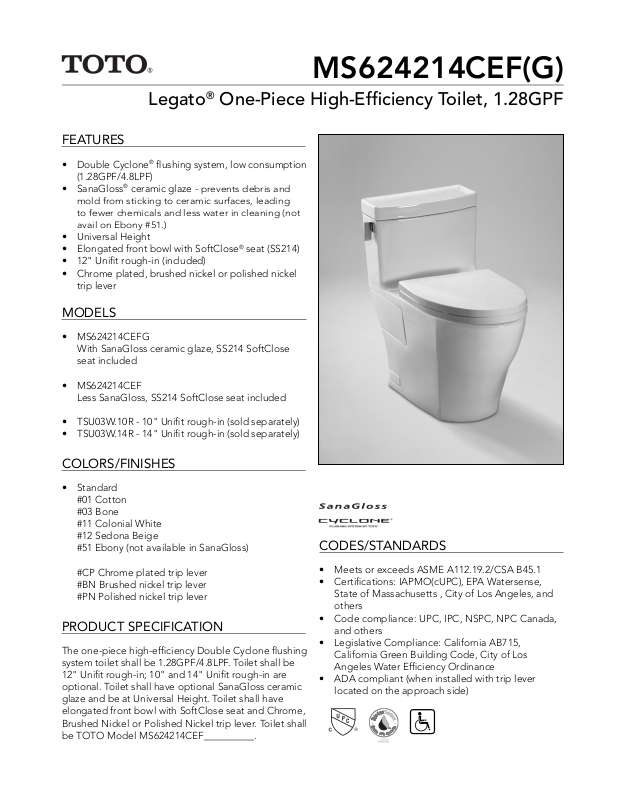

Toto MS624214CEFG03 Specifications
Legato® One-Piece High-Effi ciency Toilet, 1.28GPF
FEATURES
• Double Cyclone® fl ushing system, low consumption
(1.28GPF/4.8LPF)
• SanaGloss® ceramic glaze -
mold from sticking to ceramic surfaces, leading
to fewer chemicals and less water in cleaning (not
avail on Ebony #51.)
• Universal Height
• Elongated front bowl with SoftClose® seat (SS214)
• 12" Unifi t rough-in (included)
• Chrome plated, brushed nickel or polished nickel
trip lever
MODELS
• MS624214CEFG
With SanaGloss ceramic glaze, SS214 SoftClose
seat included
prevents debris and
MS624214CEF(G)
• MS624214CEF
Less SanaGloss, SS214 SoftClose seat included
• TSU03W.10R - 10" Unifi t rough-in (sold separately)
• TSU03W.14R - 14" Unifi t rough-in (sold separately)
COLORS/FINISHES
• Standard
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available in SanaGloss)
#CP Chrome plated trip lever
#BN Brushed nickel trip lever
#PN Polished nickel trip lever
PRODUCT SPECIFICATION
The one-piece high-effi ciency Double Cyclone fl ushing
system toilet shall be 1.28GPF/4.8LPF. Toilet shall be
12" Unifi t rough-in; 10" and 14" Unifi t rough-in are
optional. Toilet shall have optional SanaGloss ceramic
glaze and be at Universal Height. Toilet shall have
elongated front bowl with SoftClose seat and Chrome,
Brushed Nickel or Polished Nickel trip lever. Toilet shall
be TOTO Model MS624214CEF__________.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), EPA Watersense,
State of Massachusetts , City of Los Angeles, and
others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Effi ciency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
MS624214CEF(G)
Legato® One-Piece High-Effi ciency Toilet, 1.28GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System Double Cyclone
• Min. Water Pressure 8 psi (fl owing)
• Water Surface 7-3/4" x 9-3/8"
• Trap Diameter 2-1/8"
• Rough-in 12" std, 10" & 14" optional
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 119 lbs.
• Shipping Dimensions 32"L x 20"W x 17-3/4" H1
x 28-3/4" H
®
2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
3/4" (19mm) 18-1/2" (470mm)
15-5/16"
(390mm)
28-7/16" (722mm)
6-7/8"
(175mm)
*
17-7/16"
(442mm)
10" (254mm)
12" (305mm)
14" (356mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
17-5/16" (439mm)
15-13/16" (402mm)
27-15/16"
*1/2"(12mm)
supply
*6"
(153mm)
*8"
(203mm)
11-13/16" (300mm)
*Suggested Dimensions
(709mm)
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO USA 03/11 | Printed on recycled paper ♻
#SS-00551 V.02
