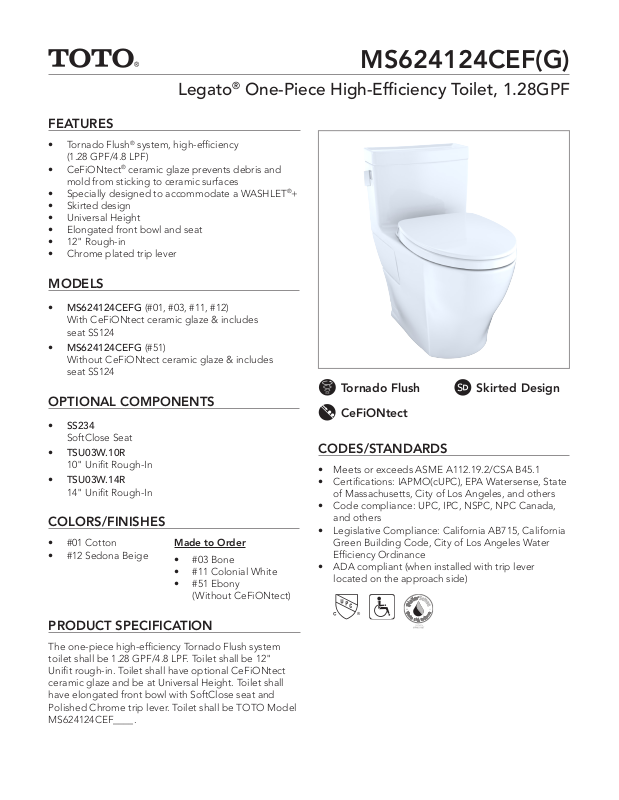

Toto MS624124CEFG01 Specifications
Legato® One-Piece High-Efficiency Toilet, 1.28GPF
FEATURES
• Tornado Flush® system, high-efficiency
(1.28 GPF/4.8 LPF)
• CeFiONtect® ceramic glaze prevents debris and
mold from sticking to ceramic surfaces
• Specially designed to accommodate a WASHLET®+
• Skirted design
• Universal Height
• Elongated front bowl and seat
• 12" Rough-in
• Chrome plated trip lever
MODELS
• MS624124CEFG (#01, #03, #11, #12)
With CeFiONtect ceramic glaze & includes
seat SS124
• MS624124CEFG (#51)
Without CeFiONtect ceramic glaze & includes
seat SS124
MS624124CEF(G)
OPTIONAL COMPONENTS
• SS234
SoftClose Seat
• TSU03W.10R
10" Unifit Rough-In
• TSU03W.14R
14" Unifit Rough-In
COLORS/FINISHES
• #01 Cotton
• #12 Sedona Beige
Made to Order
• #03 Bone
• #11 Colonial White
• #51 Ebony
(Without CeFiONtect)
PRODUCT SPECIFICATION
The one-piece high-efficiency Tornado Flush system
toilet shall be 1.28 GPF/4.8 LPF. Toilet shall be 12"
Unifit rough-in. Toilet shall have optional CeFiONtect
ceramic glaze and be at Universal Height. Toilet shall
have elongated front bowl with SoftClose seat and
Polished Chrome trip lever. Toilet shall be TOTO Model
MS624124CEF____.
Tornado Flush Skirted Design
CeFiONtect
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
MS624124CEF(G)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Constructed Wall
Legato® One-Piece High-Efficiency Toilet, 1.28GPF
SPECIFICATIONS
Water Use 1.28 GPF (4.8 LPF)
Flush System Tornado Flush
Min. Water Pressure 8 psi (Flowing)
Water Surface 7-3/4" x 9-3/8"
Trap Diameter 2-1/8"
Rough-in 12" (10" & 14" Optional)
Tra p Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight 119 lbs
Shipping
Dimensions
32"L x 20"W x 17-3/4" H1 x 28-3/4" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
2
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
3/4" [19mm]
6 7/8"
[175mm]
12" [304mm]
18 1/2" [470mm]
28 7/16" [722mm]
15 5/16"
[390mm]
17 1/8"
[435mm]
1/2"
(12mm)
supply*
6" [153mm]
17 5/16" [439mm]
15 13/16" [402mm]
8"
[204mm]
11 13/16" [300mm]
*Suggested Dimensions
27 15/16"
[709mm]
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01329 v.02
