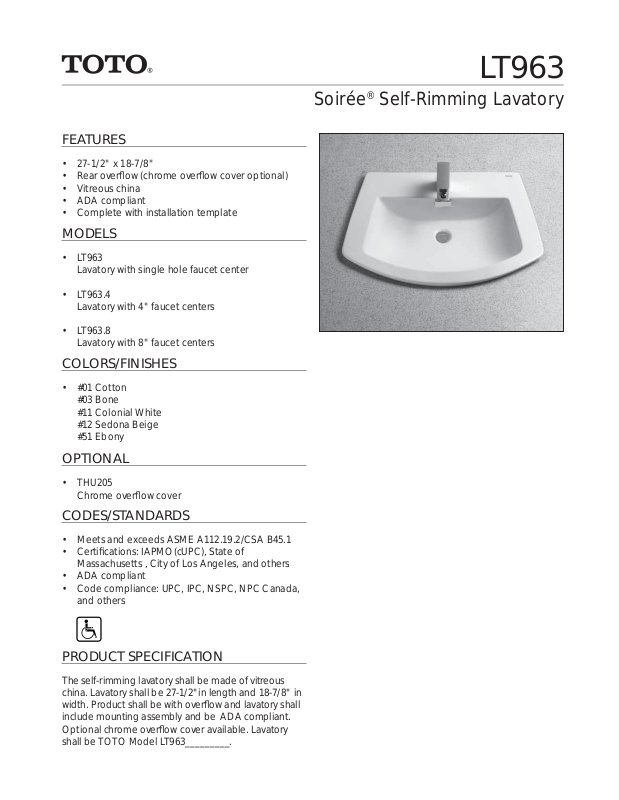

Toto LT96301 Specifications
FEATURES
• 27-1/2" x 18-7/8"
• Rear overfl ow (chrome overfl ow cover optional)
• Vitreous china
• ADA compliant
• Complete with installation template
MODELS
• LT963
Lavatory with single hole faucet center
• LT963.4
Lavatory with 4" faucet centers
• LT963.8
Lavatory with 8" faucet centers
COLORS/FINISHES
LT963
Soirée® Self-Rimming Lavatory
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
OPTIONAL
• THU205
Chrome overfl ow cover
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• ADA compliant
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The self-rimming lavatory shall be made of vitreous
china. Lavatory shall be 27-1/2"in length and 18-7/8" in
width. Product shall be with overfl ow and lavatory shall
include mounting assembly and be ADA compliant.
Optional chrome overfl ow cover available. Lavatory
shall be TOTO Model LT963_________.
LT963
Soirée® Self-Rimming Lavatory
SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 27-1/2"W x 18-7/8"D
• Basin 21-5/8"W x 12-1/4"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 31.1 lbs.
• Shipping Dimensions 28-9/16"W x 20-1/4"D
x 9-1/16"H
8" (203mm)
4"
(102mm)
1-3/8" (35mm)
34"
(864mm)
1-3/16"
(30mm)
*18"
(457mm)
*21"
(533mm)
21-5/8" (548mm)
27-1/2" (700mm)
*8" (203mm)
*ø 3/8" (10mm)
*ø 1-1/4" O.D.
(32mm)
12-1/4"
(310mm)
7-1/4"
(185mm)
18-7/8"
(480mm)
ADA Compliance Check
24" (610.6mm )
8" (203.2mm)
2" (50.8mm )
27" (685.8mm)
6"
(152.4mm)
33" (839.6mm)
9" (228.6mm)
34" (865mm )
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifi cations are subject to change without notice
#SS-00303 v.02
Printed in U.S.A. | © TOTO LTD. 02/10 | Printed on recycled paper ƛ
