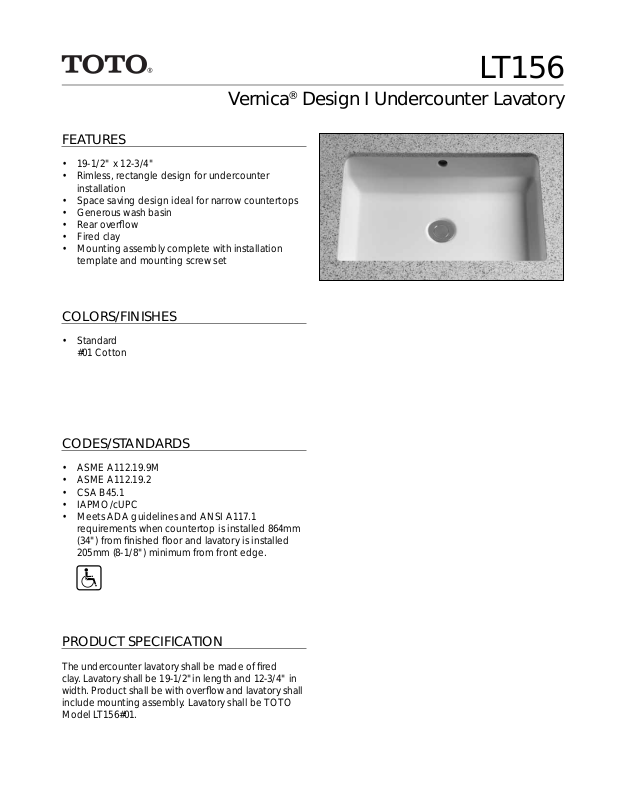

Toto LT15601 Specifications
Vernica® Design I Undercounter Lavatory
FEATURES
• 19-1/2" x 12-3/4"
• Rimless, rectangle design for undercounter
installation
• Space saving design ideal for narrow countertops
• Generous wash basin
• Rear overfl ow
• Fired clay
• Mounting assembly complete with installation
template and mounting screw set
COLORS/FINISHES
• Standard
#01 Cotton
LT156
CODES/STANDARDS
• ASME A112.19.9M
• ASME A112.19.2
• CSA B45.1
• IAPMO/cUPC
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from fi nished fl oor and lavatory is installed
205mm (8-1/8") minimum from front edge.
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of fi red
clay. Lavatory shall be 19-1/2"in length and 12-3/4" in
width. Product shall be with overfl ow and lavatory shall
include mounting assembly. Lavatory shall be TOTO
Model LT156#01.
LT156
Vernica® Design I Undercounter Lavatory
SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 21-1/2"W x 14-1/8"D
• Basin 19-1/2"W x 12-3/4"D
• Warranty One Year Limited Warranty
• Material Fired clay
• Shipping Weight 28.5 lbs.
• Shipping Dimensions 24"W x 17-1/8"D x 8-5/8"H
10-3/4"
(273mm)
14-1/8"
(358mm)
19-1/2"
(495mm)
21-1/2"
(545mm)
12-3/4"
(323mm)
6-7/8"
(176mm)
LT156 ADA INSTALLATION
11"
[279mm]
"
1
8
8
[205mm]
8"
[203mm]
29"
[737mm]
27"
[686mm]
17"
[432mm]
24"
[610mm]
[152mm]
34"
MAX
[864mm]
6"
9"
[229mm]
1"
(25mm)
*14-1/4"
(363mm)
*12-1/4"
(312mm)
Supplies
8"
(203mm)
*SUGGESTED DIMENSIONS
6-5/8"
(169mm)
1-1/4" O.D. Waste
(864mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
34"
These dimensions and specifi cations are subject to change without notice
#SS-00307 v.02
