CST754EF

CST754EF
ST753E
C754SF

3

Dartmouth

1.28 Gpf Toilet, Elongated,
E-Max , 12” Rough-In,

®

®

Universal Height

Item Part Description

1 TCU753CR#01 Tank Lid w/ Velcro Tape

1

5

6

4

7

2

TCU753CR#03 Tank Lid w/ Velcro Tape
TCU753CR#04 Tank Lid w/ Velcro Tape
TCU753CR#11 Tank Lid w/ Velcro Tape
TCU753CR#12 Tank Lid w/ Velcro Tape
TCU753CR#51 Tank Lid w/ Velcro Tape

2 THU107 Velcro Tape

3 TSU34A Fill Valve

4 THU229 Fill Valve Filter

5 THU252W Flush Valve

6 THU347S Flapper w/ Chain

7 THU141#01 Trip Lever

THU141#03 Trip Lever
THU141#04 Trip Lever
THU141#11 Trip Lever
THU141#12 Trip Lever
THU141#51 Trip Lever
THU141#CP Trip Lever
THU141#PB Trip Lever
THU141#SB Trip Lever
THU141#BN Trip Lever

8 THU131 Tank to Bowl Gaskets (for 10 toilets)

9 TSU01D Tank Mounting Kit

10 THU098#01 Bolt Cap Sets (for 10 toilets) for #01 & #11

THU098#03 Bolt Cap Sets (for 10 toilets) for #03 & #12
THU098#04 Bolt Cap Sets (for 10 toilets)
THU098#51 Bolt Cap Sets (for 10 toilets)

Note: THU141 has Left Hand threads.

PD-00133 v.02 10/11

10

8

x 10

9

Product Number Explanations

T w o-Piece T oilet T ank Bo wl

(CST) Gravity Type Toilet (ST) Tank (C) Bowl
(754) Model (753) Model (754) Model

x 10

®

(E) E-Max
(F) Universal Height (F) Universal Height

Color

s Finishes

(#01) Cotton (#CP) Chrome Plated
(#03) Bone (#PB) Polished Brass
(#04) Gray (#SB) Satin Brass
(#11) Colonial White (#BN) Brushed Nickel
(#12) Sedona Beige
(#51) Ebony

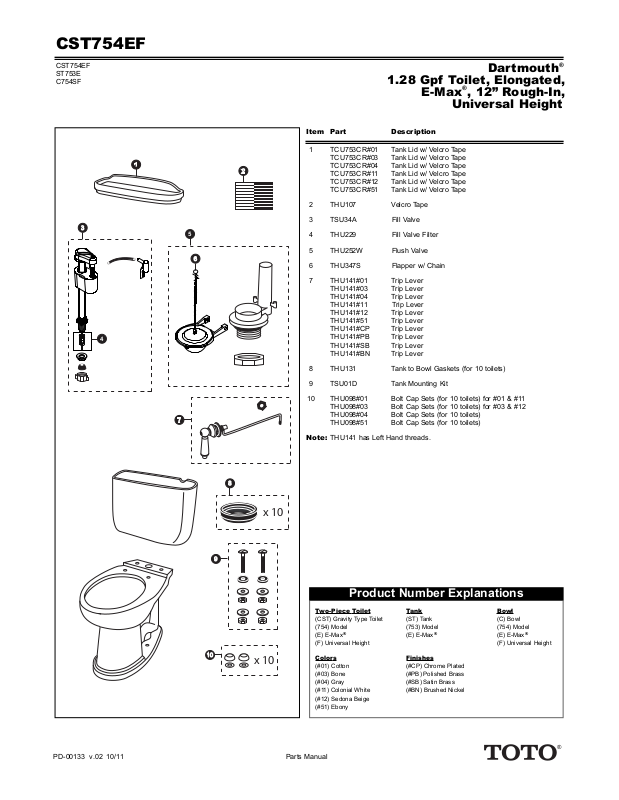

Parts Manual

(E) E-Max

®

(E) E-Max

®
