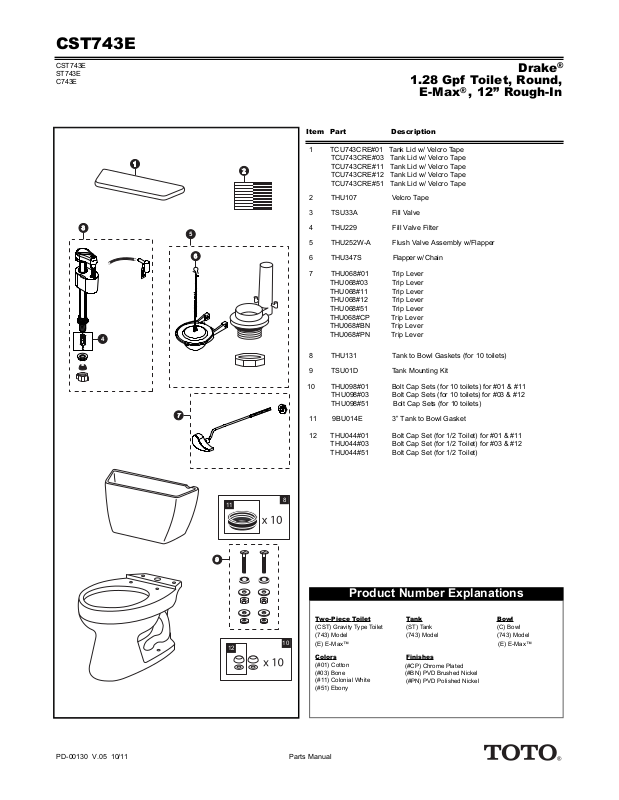

Toto CST744E03 User Manual

CST743E

Discontinued

CST743E
ST743E
C743E

Drake

®

1.28 Gpf Toilet, Round,
E-Max , 12” Rough-In

Item Part Description

1 TCU743CRE#01 Tank Lid w/ Velcro Tape

1

3

4

5

6

7

2

TCU743CRE#03 Tank Lid w/ Velcro Tape
TCU743CRE#11 Tank Lid w/ Velcro Tape
TCU743CRE#12 Tank Lid w/ Velcro Tape
TCU743CRE#51 Tank Lid w/ Velcro Tape

2 THU107 Velcro Tape

3 TSU33A Fill Valve

4 THU229 Fill Valve Filter

5 THU252W-A Flush Valve Assembly w/Flapper

6 THU347S Flapper w/ Chain

7 THU068#01 Trip Lever

THU068#03 Trip Lever
THU068#11 Trip Lever
THU068#12 Trip Lever
THU068#51 Trip Lever
THU068#CP Trip Lever
THU068#BN Trip Lever
THU068#PN Trip Lever

8 THU131 Tank to Bowl Gaskets (for 10 toilets)

9 TSU01D Tank Mounting Kit

10 THU098#01 Bolt Cap Sets (for 10 toilets) for #01 & #11
THU098#03 Bolt Cap Sets (for 10 toilets) for #03 & #12
THU098#51 Bolt Cap Sets (for 10 toilets)

11 9BU014E 3” Tank to Bowl Gasket

12 THU044#01 Bolt Cap Set (for 1/2 Toilet) for #01 & #11
THU044#03 Bolt Cap Set (for 1/2 Toilet) for #03 & #12
THU044#51 Bolt Cap Set (for 1/2 Toilet)

®

34

PD-00130 V.05 10/11

11

9

8

Product Number Explanations

T w o-Piece T oilet T ank Bo wl

(CST) Gravity Type Toilet (ST) Tank (C) Bowl

12

10

(743) Model (743) Model (743) Model
(E) E-Max™ (E) E-Max™

Color

s Finishes

(#01) Cotton
(#03) Bone
(#11) Colonial White
(#51) Ebony

Parts Manual

(#CP) Chrome Plated
(#BN) PVD Brushed Nickel
(#PN) PVD Polished Nickel
