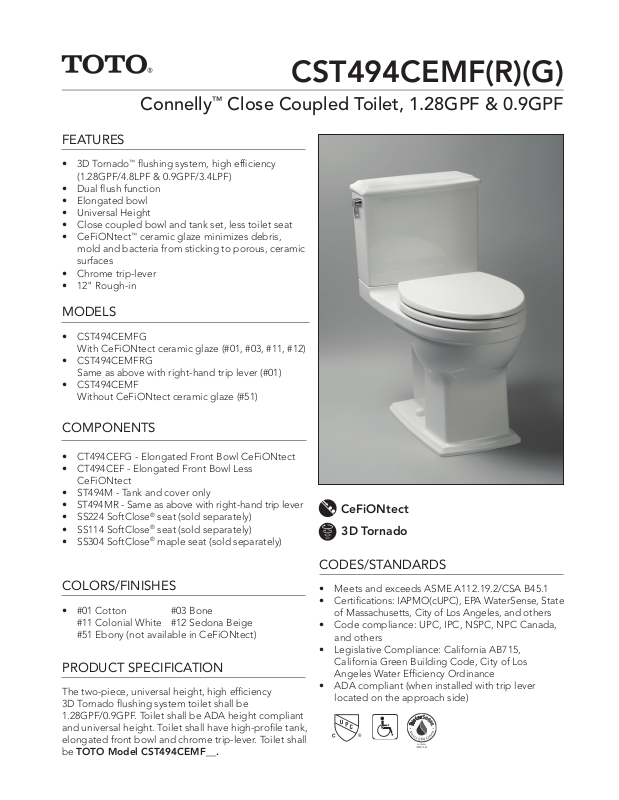

CST494CEMF(R)(G)
Connelly™ Close Coupled Toilet, 1.28GPF & 0.9GPF
FEATURES
• 3D Tornado™ flushing system, high efficiency
(1.28GPF/4.8LPF & 0.9GPF/3.4LPF)
• Dual flush function
• Elongated bowl
• Universal Height
• Close coupled bowl and tank set, less toilet seat
• CeFiONtect™ ceramic glaze minimizes debris,
mold and bacteria from sticking to porous, ceramic
surfaces
• Chrome trip-lever
• 12" Rough-in
MODELS
• CST494CEMFG
With CeFiONtect ceramic glaze (#01, #03, #11, #12)
• CST494CEMFRG
Same as above with right-hand trip lever (#01)
• CST494CEMF
Without CeFiONtect ceramic glaze (#51)
COMPONENTS
• CT494CEFG - Elongated Front Bowl CeFiONtect
• CT494CEF - Elongated Front Bowl Less
CeFiONtect
• ST494M - Tank and cover only
• ST494MR - Same as above with right-hand trip lever
• SS224 SoftClose® seat (sold separately)
• SS114 SoftClose® seat (sold separately)
• SS304 SoftClose® maple seat (sold separately)
COLORS/FINISHES
• #01 Cotton #03 Bone
#11 Colonial White #12 Sedona Beige
#51 Ebony (not available in CeFiONtect)
PRODUCT SPECIFICATION
The two-piece, universal height, high efficiency
3D Tornado flushing system toilet shall be
1.28GPF/0.9GPF. Toilet shall be ADA height compliant
and universal height. Toilet shall have high-profile tank,
elongated front bowl and chrome trip-lever. Toilet shall
be TOTO Model CST494CEMF__.
CeFiONtect
3D Tornado
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
Certified by
CST494CEMF(R)(G)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Connelly™ Close Coupled Toilet, 1.28GPF & 0.9GPF
SPECIFICATIONS
• Water Use 1.28 GPF & 0.9GPF
(4.8LPF & 3.4LPF)
• Flush System 3D Tornado
• Min. Water Pressure 8 psi (flowing)
• Water Surface 5-1/2" x 4-3/16"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight C494CEF(G) - 70lbs
ST494M(R) - 31lbs
• Shipping Dimensions C494CEF(G)
29" L x 18" W
x 15-3/4" H
ST494M(R)
17-1/4" L x 8-1/2" W
x 16-1/4" H
™
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specications are subject to change without notice
# SS-00996 V.04
