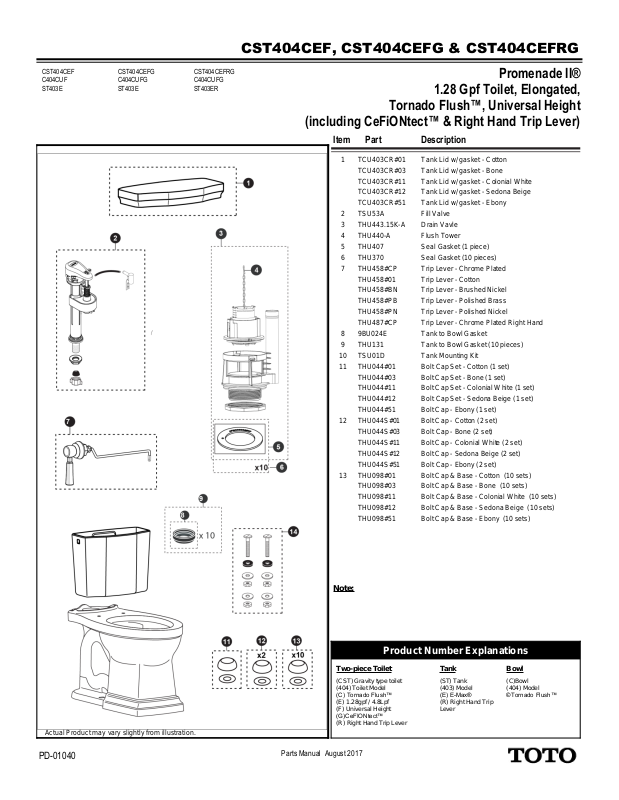

Toto CST404CEFG01 User Manual

CST404CEF, CST404CEFG & CST404CEFRG

CST404CEF
C404CUF
ST403E

CST404CEFG
C404CUFG
ST403E

CST404CEFRG
C404CUFG
ST403ER

Promenade II®

1.28 Gpf Toilet, Elongated,

Tornado Flush™, Universal Height

(including CeFiONtect™ & Right Hand Trip Lever)

Two-piece Toilet

(CST) Gravity type toilet
(404) Toilet Model

(C) Tornado Flush™

(E) 1.28gpf / 4.8Lpf
(F) Universal Height

(G)CeFIONtect™

(R) Right Hand Trip Lever

(ST) Tank
(403) Model

(E) E-Max®

(R) Right Hand Trip
Lever

Bowl

(C)Bowl
(404) Model

©Tornado Flush™

Tank

Product Number Explanations

Note:

Item

Part

Description

Actual Product may vary slightly from illustration.

1

TCU403CR#01

Tank Lid w/ gasket - Cotton

515

TCU403CR#03

Tank Lid w/ gasket - Bone

516

TCU403CR#11

Tank Lid w/ gasket - Colonial White

517

TCU403CR#12

Tank Lid w/ gasket - Sedona Beige

518

TCU403CR#51

Tank Lid w/ gasket - Ebony

519

2

TSU53A

Fill Valve

520

3

THU443.15K-A

Drain Vavle

521

4

THU440-A

Flush Tower

522

5

THU407

Seal Gasket (1 piece)

523

6

THU370

Seal Gasket (10 pieces)

524

7

THU458#CP

Trip Lever - Chrome Plated

525

THU458#01

Trip Lever - Cotton

526

THU458#BN

Trip Lever - Brushed Nickel

527

THU458#PB

Trip Lever - Polished Brass

528

THU458#PN

Trip Lever - Polished Nickel

529

THU487#CP

Trip Lever - Chrome Plated Right Hand

530

8

9BU024E

Tank to Bowl Gasket

531

9

THU131

Tank to Bowl Gasket (10 pieces)

532

10

TSU01D

Tank Mounting Kit

533

11

THU044#01

Bolt Cap Set - Cotton (1 set)

534

THU044#03

Bolt Cap Set - Bone (1 set)

535

THU044#11

Bolt Cap Set - Colonial White (1 set)

536

THU044#12

Bolt Cap Set - Sedona Beige (1 set)

537

THU044#51

Bolt Cap - Ebony (1 set)

538

12

THU044S#01

Bolt Cap - Cotton (2 set)

539

THU044S#03

Bolt Cap - Bone (2 set)

540

THU044S#11

Bolt Cap - Colonial White (2 set)

541

THU044S#12

Bolt Cap - Sedona Beige (2 set)

542

THU044S#51

Bolt Cap - Ebony (2 set)

543

13

THU098#01

Bolt Cap & Base - Cotton (10 sets)

3693

THU098#03

Bolt Cap & Base - Bone (10 sets)

5459

THU098#11

Bolt Cap & Base - Colonial White (10 sets)

5460

THU098#12

Bolt Cap & Base - Sedona Beige (10 sets)

5461

THU098#51

Bolt Cap & Base - Ebony (10 sets)

5462

PD-01040

Parts Manual August 2017
