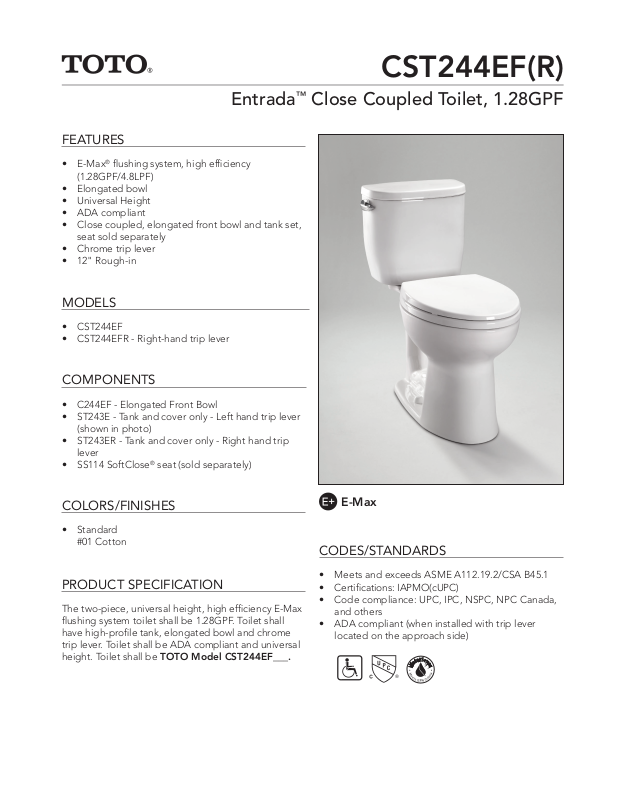

Toto CST244EF12 Specifications
Entrada™ Close Coupled Toilet, 1.28GPF
FEATURES
• E-Max® flushing system, high efficiency
(1.28GPF/4.8LPF)
• Elongated bowl
• Universal Height
• ADA compliant
• Close coupled, elongated front bowl and tank set,
seat sold separately
• Chrome trip lever
• 12" Rough-in
MODELS
• CST244EF
• CST244EFR - Right-hand trip lever
CST244EF(R)
COMPONENTS
• C244EF - Elongated Front Bowl
• ST243E - Tank and cover only - Left hand trip lever
(shown in photo)
• ST243ER - Tank and cover only - Right hand trip
lever
• SS114 SoftClose® seat (sold separately)
COLORS/FINISHES
• Standard
#01 Cotton
PRODUCT SPECIFICATION
The two-piece, universal height, high efficiency E-Max
flushing system toilet shall be 1.28GPF. Toilet shall
have high-profile tank, elongated bowl and chrome
trip lever. Toilet shall be ADA compliant and universal
height. Toilet shall be TOTO Model CST244EF___.
E-Max
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC)
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant (when installed with trip lever
located on the approach side)
CST244EF(R)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Entrada™ Close Coupled Toilet, 1.28GPF
SPECIFICATIONS
• Water Use 1.28 GPF (4.8 LPF)
• Flush System E-Max
• Min. Water Pressure 8 psi (flowing)
• Water Surface 8-3/8" x 10-1/2"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-3/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight C244EF - 53lbs
ST243E(R) - 24lbs
• Shipping Dimensions C244EF - 28-1/2" x 16" W1
x 10-1/4" W2 x 17-3/4"
ST243E(R) - 16-1/2” x 8-1/4”
x 15-3/4”
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
These dimensions and specifications are subject to change without notice
# SS-00636 V.07Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
