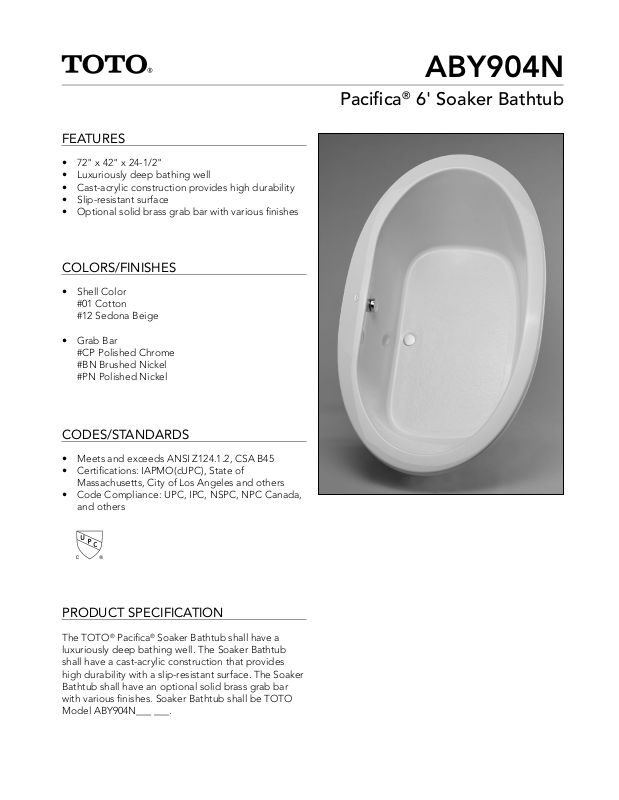

Toto ABY904N01N, ABY904N12N Specifications
ABY904N
FEATURES
• 72" x 42" x 24-1/2"
• Luxuriously deep bathing well
• Cast-acrylic construction provides high durability
• Slip-resistant surface
• Optional solid brass grab bar with various finishes
COLORS/FINISHES
• Shell Color
#01 Cotton
#12 Sedona Beige
• Grab Bar
#CP Polished Chrome
#BN Brushed Nickel
#PN Polished Nickel
Pacifica
®
6' Soaker Bathtub
CODES/STANDARDS
• Meets and exceeds ANSI Z124.1.2, CSA B45
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
®
The TOTO
luxuriously deep bathing well. The Soaker Bathtub
shall have a cast-acrylic construction that provides
high durability with a slip-resistant surface. The Soaker
Bathtub shall have an optional solid brass grab bar
with various finishes. Soaker Bathtub shall be TOTO
Model ABY904N___ ___.
Pacifica® Soaker Bathtub shall have a
ABY904N
72" (1829mm)
63-23/32" (1619mm)
3-3/4"
(95mm)
18-3/4"
(476mm)
3-1/2"
(89mm)
2"
(51mm)
(845mm)
DIA 2” THRU
(51mm)
DIA 2-3/8” THRU
(60mm)
Pacifica® 6' Soaker Bathtub
SPECIFICATIONS
• Size 72"L x 42"W
• Depth 21"
• Water Depth 16.1"
• Warranty 1 Year Limited Warranty on
acrylic tub
1 Year Limited Warranty on
components and parts
• Material Cast Acrylic
• Shipping Weight 140 lbs.
• Shipping Dimensions 74"L x 44"W x 27"H
• Gallons 100 to overflow
INSTALLATION NOTES
Floor support under bath must provide a minimum of
75 lbs/square foot (366 kg/square meter) loading.
3-3/4"
(95mm)
DIA 2” THRU
(51mm)
72" (1829mm)
DIA 2-3/8” THRU
(60mm)
18-3/4"
(476mm)
63-23/32" (1619mm)
3-1/2"
(89mm)
24-1/2"
(622mm)
9-7/8"
(251mm)
1-1/2"
(38mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
42" (1067mm)
32-1/8" (816mm)
2"
(51mm)
33-1/4"
These dimensions and specifications are subject to change without notice
#SS-00181, v.04
