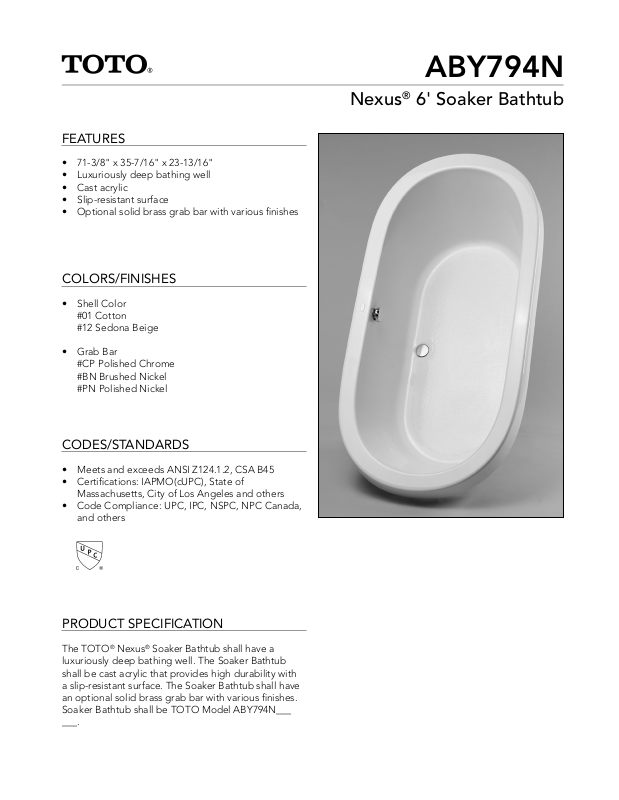

Toto ABY794N12N, ABY794N01N Specifications
ABY794N
FEATURES
• 71-3/8" x 35-7/16" x 23-13/16"
• Luxuriously deep bathing well
• Cast acrylic
• Slip-resistant surface
• Optional solid brass grab bar with various finishes
COLORS/FINISHES
• Shell Color
#01 Cotton
#12 Sedona Beige
• Grab Bar
#CP Polished Chrome
#BN Brushed Nickel
#PN Polished Nickel
Nexus
®
6' Soaker Bathtub
CODES/STANDARDS
• Meets and exceeds ANSI Z124.1.2, CSA B45
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
®
The TOTO
luxuriously deep bathing well. The Soaker Bathtub
shall be cast acrylic that provides high durability with
a slip-resistant surface. The Soaker Bathtub shall have
an optional solid brass grab bar with various finishes.
Soaker Bathtub shall be TOTO Model ABY794N___
___.
Nexus® Soaker Bathtub shall have a
ABY794N
71-3/8" (1813mm)
51-3/8" (1305mm)
3-3/4" (95mm)
3"
(76mm)
3-5/16"
(84mm)
DIA 2” THRU
(51mm)
DIA 2-3/8” THRU
(60mm)
8-1/2"
(216mm)
Nexus® 6' Soaker Bathtub
SPECIFICATIONS
• Size 71-3/8"L x 35-7/16"W
• Depth 20-1/4"
• Water Depth 15.3"
• Warranty 1 Year Limited Warranty on
acrylic tub
1 Year Limited Warranty on
components and parts
• Material Cast Acrylic
• Shipping Weight 105 lbs.
• Shipping Dimensions 74"L x 44"W x 27"H
• Gallons 100 to overflow
INSTALLATION NOTES
Floor support under bath must provide a minimum of
75 lbs/square foot (366 kg/square meter) loading.
23-13/16"
(605mm)
3-3/4" (95mm)
DIA 2” THRU
(51mm)
71-3/8" (1813mm)
51-3/8" (1305mm)
DIA 2-3/8” THRU
(60mm)
8-1/2"
(216mm)
3"
(76mm)
35-7/16" (900mm)
25-13/16" (656mm)
28-1/32" (712mm)
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-00182, v.07
