The Biggest Thing in
p

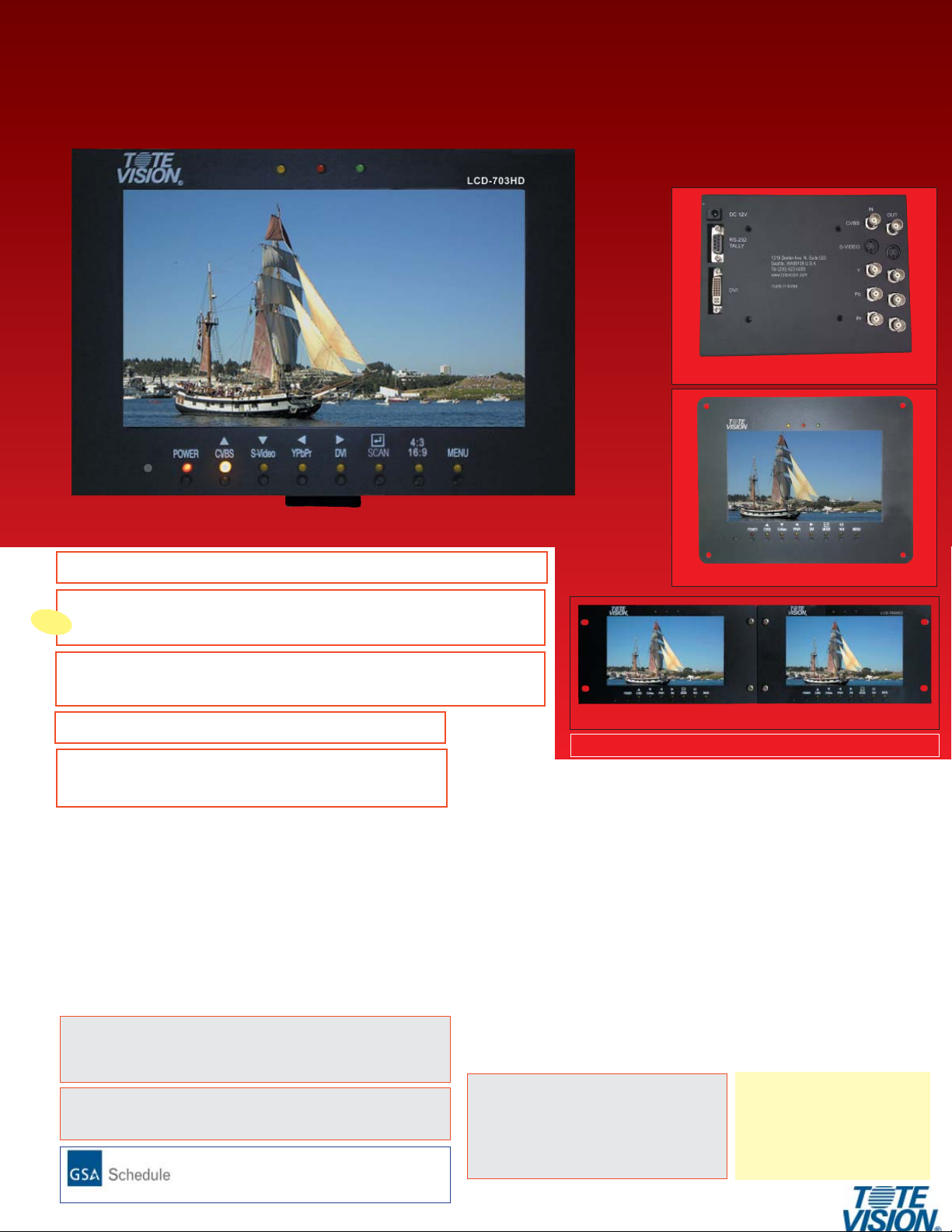

LCD-703HD
LCD-703HD1
Small HD Monitors
Active Matrix 7" Color LCD Monitors
LCD-703HD2
LCD-703HDL
Back View
• HD compatible (supports 480p/i, 576p/i, 720p, 1080p/i)
NEW
• LED
backlight provides longer life
, uses less
power and provides better color saturation
• RS-232 feature allows external devices to
control the monitor through the serial port.
• Underscan capability
• Blue gun feature provides for easy
adjustment of screen display
• Anti-glare treatment adds to viewing pleasure
• Displays either 16:9 or 4:3 aspect ratio
• Front controls for : menu, up, down, On/Off, mode
• IR remote control
• Case made of durable metal.
• A/C adaptor (Part No. AC-1000) included
• Built-in interface and proper cable exiting for wall or
arm mounting VESA 75mm FPMPMI compliant
• Response time: 22mS (Rising), 35mS (Falling)
• Mounting pad with ¼ -20 threaded socket
LCD-703HDL Flush mount kit (shown above)
Dimensions (WHD): 215 x 175 x 35mm / 8.5" x 6.9" x 1.4"
Installer’s Cut-out (WH): 180 x 138mm / 7.1" x 5.4"
LCD-703HDLX - w/ no LEDs & no controls showing
- Special Order Only
GS-07F-0069L, SIN: 246-42(1), 246-50
Specifi cations subject to change without notice
P.23
LCD-703HD1 / LCD-703HD2: Dimensions (WHD):
20K-30K©2008 ToteVision
LCD-703HDL Unit in fl ush mount kit
LCD-703HD2 Dual Rack Mount Unit
LCD-703HD1 Single Rack Mount Unit
Display:
Back Light:
Input Signal:
Resolution:
Dot Pitch:
Brightness rating:
Contrast Ratio:
Number of Pixels:
Viewing angle L/R/T/B:
Pixel Confi guration:
Power Requirements:
Power Consumption:
LCD-703HD: Dimensions (WHD):
Actual visible screen size (WH):
Video Input Level:
Operating temperature:
Storage temperature:
Rear inputs:
LCD-703HD: Weight:
LCD-703HD2: Weight:
LCD-703HDL: Weight:
Field Monitor Kit
Order LCD-703HD KIT for unit with
monitor, tote bag, and rechargable
2600mAH battery pack (approx. 6
hours operation).
1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109
Tel: 206-623-6000 • FAX: 206- 623-6609
E-mail: sales@totevision.com
htt
://www.totevision.com
7" TFT LCD active matrix
LED
NTSC/PAL (auto sensing)
800 (H) x 480 (V) dots
0.19(H) x 0.19 (V)mm
350 cd/m² (Nit)
300 : 1
1.2 M
65/65/55/60 degrees
Stipe
6 ~20 VDC, 500mA, + pin, - ground
350mA@ 12 VDC (max)
1.0 V P-P (positive) 75 Ohm
174 x 134 x 35mm / 6.9" x 5.3" x 1.4"
(Height including 5mm mounting pad: 134 + 5mm = 139mm)
482 x 133.4 x 55mm / 19" x 5.25" x 2.2", 3RU
152.4 x 91.4mm / 6" x 3.6"
10 ~ 104°F / -12 ~ 40°C
-13 ~ 140°F / -25 ~ 60°C
BNC composite video IN/OUT,
S-Video IN/OUT, BNC component IN/OUT
RS-232, Tally , DVI-D,2.1mm DC IN jack
Net: 0.6 kg./ 1.35 lbs Gross: 0.86 kg. / 1.9 lbs.
Net: 2.5 kg./ 5.5 lbs Gross: 3.2 kg. / 7 lbs.
Net: 0.86 kg./ 1.9 lbs Gross: 1.1 kg. / 2.45 lbs
Optional Accessories
HS-1 Hot shoe mount
MB-3 Desk stand
SS-703HD Sun shield
TB-703 Custom Tote bag with
sun shield for LCD-703HD
WM-30 Wall mount bracket (fi xed)
