LCD-703HD Series
High Definition
7.0” TFT LCD Monitor
Model : LCD-703HD (Stand Alone)
Model: LCD-703HD2 (19” Rack Mount unit)
www.totevision.com
LCD-703HD Series features our completely Digital million pixel TFT LCD high
The
resolution screen, excellent color reproduction. Analog signals are digitized using an
advanced 10 bit process with 4x over sampling and adaptive 5 line comb filter plus exacting
color space conversion. Video is scaled to fit on screen in the highest resolution using a
state of the art Triple gate technology LCD panel that incorporates with precision Gamma
correction to product the best images available.
• High Resolution 7.0 inch wide screen 800xRGBx480 Dots with 1.2 million pixels
• Ultra low power consumption using 24 long life LED back light
• Runs 6 hours on optional 2600 MAh rechargeable battery(model: BP-563)
• Durable metal enclosure with VESA and 1/4-20 Mount holes
• Triple gate technology Antireflective/Antiglare coated TFT LCD
• 100% digital processing high resolution scaling of all images
• Analog signals converted to 10 bit digital
• Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility
• 350 candelas per square meter (cd/m²) luminance produces enhanced image quality
• 300:1 ratio of contrast between black and white luminance values with response rates
less than 22 ms results in excellent quality for motion images
• Video loss detect, Under scan feature
• 4:3 and 16:9 screen aspect ratios
• Automatic NTSC/PAL format detection
• Standard inputs:
- Composite Video PAL/NTSC with BNC loop output
- S-Video IN / OUTPUT
- DVI INPUT
- RS-232 and TALLY INPUT
- HD/SD Component YPrPb with BNC loop out
- 2.1mm center pin D.C. power jack
• Easy to see three color TALLY indicators
• Blue Screen for color adjustment
• Adjustment Settings Memory
• Includes ¼-20 mounting pad
Display (Viewing Area) 7" (6.0" × 3.6")
Resolution (Pixels) 800 H × RGB × 480 V
Dot Pitch 0.1905mm × 0.1905mm
Brightness (in cd/m²) 350 cd/m²
System NTSC/PAL auto recognition
Inputs
1 Composite, 1 Component HD/SD in/OUT,
S-Video IN/OUT , DVI
Dimensions 6.85"W × 5.24"H × 1.38"D
Approx. Weight 0.7 Kgs(with Remote excluding packing)
Power Consumption DC 12V 400 mA (run @ 5-20 VDC)
1. Overview
The LCD-703HD Series represents a state of art LCD display technology in broadcast and
professional video applications. This is a low cost stand alone monitor and is constructed with
a VESA holes and 1/4-20 or flanges for 19” Rack mount option.
This unit consumes extremely low power and the monitor can be powered for over 6 hours
with a 2600 MAh battery.
The 1.2-million pixel TFT screen has 130 degree viewing angles and incorporates 24 bit
completely digital signal processing to provide excellent image reproduction.
All SMPTE/ITU High Definition and Standard Definition digital video standards and signal
types are accepted and displayed on this model.
All video formats are scaled to fit on screen in the highest resolution using a state of the art
Triple gate technology LCD panel that incorporates with precision Gamma correction.
Additional features include, three LED tally, setup memory, Blue Gun, and on screen menu
access for all adjustment and selection functions.
Features
High Definition Displays
Standard Inputs
Durable metal enclosure
Display Multiple Screen
Formats and Frame Rates
Memory Function
Blue Gun Screen
TALLY (DB-9)
RS-232 (DB-9)
Capable of displaying more than 1000 TV Lines resolution. Standard definition is internally up converted to
High Definition. All signals remain completely digital to provide the most exact images available.
• Analog Component YPrPb (3 BNC with loop out) (ITU-BT601/607)
• Analog Composite PAL/NTSC Auto Detect (BNC with loop out) (SMPTE170M)
• Y/C (S-video) (4 Pin Mini-din with loop out) • DVI
• Protection for all connections and controls with strategically placed ventilation for use in harsh environments
• 720x480-60i , 576-50i, (Interlaced), 720x480-60p , 576-50P, (Progressive)
• 1280x720 - 50/ 60P (Progressive)
• 1920x 1080 - 50/ 60i (Interlaced), 1920x 1035 - 60i (Interlaced)
• 1920x 1080 - 50/ 60P (Progressive)
Adjustment Settings Memory stored on shutdown and recalled when power is applied
Use for adjustment to SMPTE color Bars
Three LEDs (Amber,Red, Green) produce 7 different tally indications
Control by external devices via network
5 Electrical Specifications
Display (Viewing Area) 7” (6.0”H × 3.6”V) (152.4mm x 91.44mm)
Viewing Angles 130°H x 120°V
Resolution (RGB Dots) 800H x RGB x 480V (1.2 million pixels)
Contrast Ratio 300:1
Gamma 2.2
Luma Linearity Typical +/- 3% with 5 ire increments (0 to 10 ire)
Dot Pitch 0.1905mm H x 0.1905mm V
Pixel Response 22ms average
Screen Refresh Rate 50/60 Frames per second
Backlight Type / Life LED / 20,000 to 30,000 Hours Typical
Brightness 350 cd/m²
System NTSC/PAL auto recognition
Inputs Analog Component (YPrPb / YCrCb / Y R-y B-y) (3 BNC)
Analog Composite (BNC)
S-Video (Y/C) (4 pin mini din female)
DVI, RS-232/TALLY (DB-9 Female)
Active Outputs
Available when power is applied
Passive Outputs
Available all the time
S-Video (Y/C) (4 pin mini din female)
Component Video (3 BNC)
Composite Video (BNC)
6
Mechanical Specification
LCD-703HD LCD-703HD2 LCD-703HDL
Dimensions (mm) 174x133x35 241x133x35 215x175x35
Approx. Weight(gm) 850 2,000 1,000
Power Consumption
Operating Temperature
Storage Temperature
5-20 VDC, Approx. 5 Watts
-20° C to 60° C Ambient
-30° C to 80° C
Standard Accessories
• Remote Control
• User manual
Optional Accessories
4
• Custom tote bag, model TB-703
7 LCD Panel Cleaning
When cleaning the LCD Panel it is very important to use non-abrasive and
ammonia free cleaning agents and a clean micro fiber clothe, or cheese clothe. Do
not use paper towels. Paper towel fibers are coarse and may scratch the surface
of the LCD screen. Paper towels may also leave streaks on the surface.
Antistatic and fingerprint resistant cleaning agents are recommended.
Operational Setup
1. Unpack the LCD-703HD and accompanying remote control.
Physically inspect for any damage that may have occurred during shipping.
Should there be any damage, immediately contact ToteVision at 206-623-6000.
2. Connect required cables for signal input and output.
Please note that power must be applied to the LCD-703HD for the S-Video
outputs to be activated. All BNC connectors should be rated for 75Ω.
3. Plug the power supply into the A.C. source.
Please note that power can be supplied from a variety of DC sources, such as
batteries or Vehicle power. Input power range is 5.0 to 20 Volt D.C.
In operation, the LCD-703HD will draw approx. 0.4 amp. @ 12VDC.
4. Turn on the LCD-703HD by tapping the power switch located on the front of
the unit.
5. LED indicate selected signal source. It becomes bright if there is video loss.

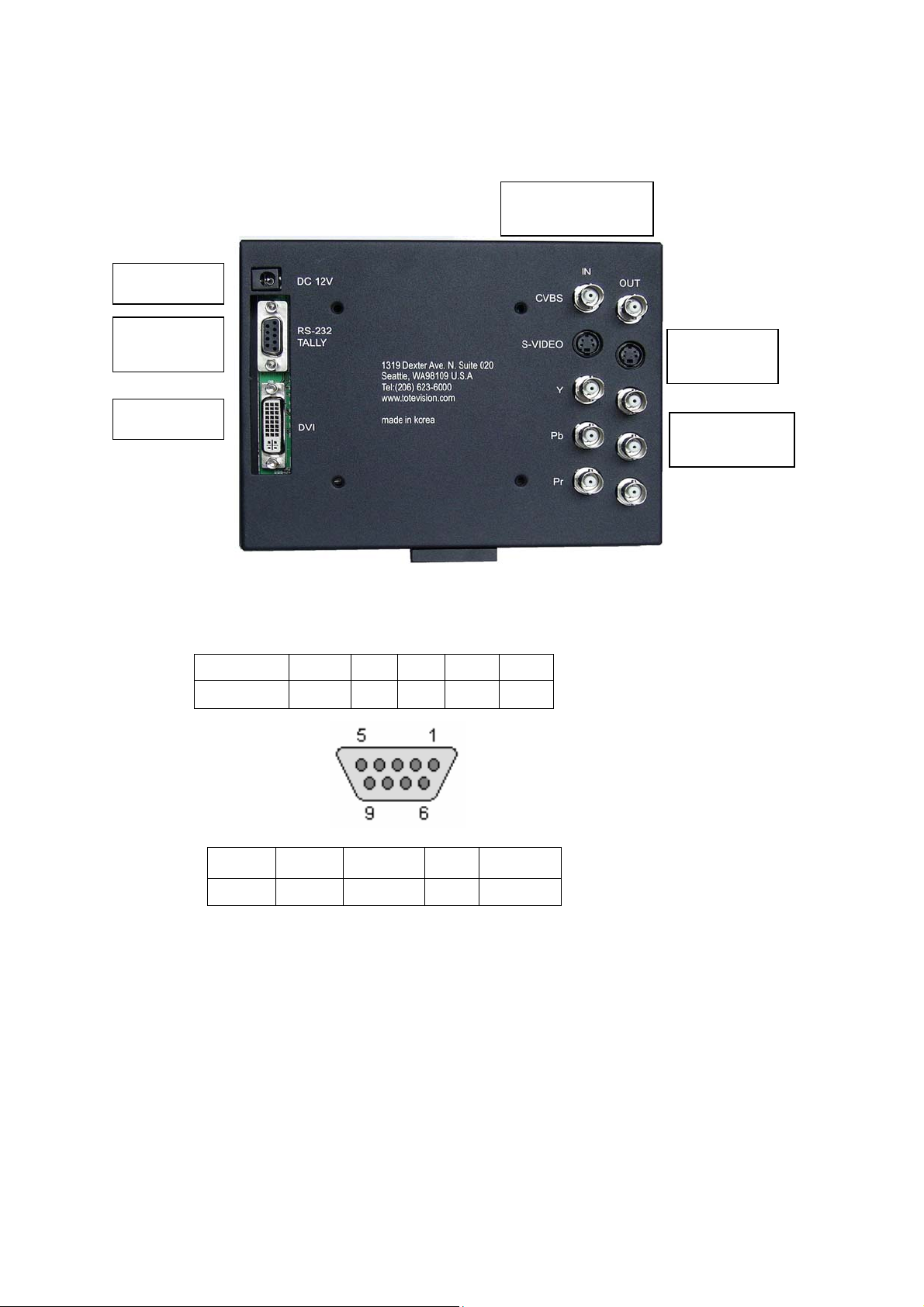

9 Input Connectors
* Composite Video Inputs comply to SMPTE-170M
* Component Inputs comply to ITU-BT.601/656
* BNC Output always active
* S-Video Outputs active when power is ON.
regardless of Power ON/OFF
/
/
/
DC INPUT
*RS-232
TALLY In
DVI INPUT
* 9pin D-Sub Connector pin assignment
RS-232 /TALLY pin configuration
5 4 3 2 1
Composite
Video IN
OUT
S-Video
IN
OUT
Component
OUTPUT
IN
RS-232 GND NC T/X R/X NC
9 8 7 6
TALLY GND Green RED Yellow
TALLY SYSTEM - The tally system on the LCD-703HD is accessed via the DB-09
connector on the back of the unit labeled ‘RS-232/TALLY’. The system works by closing
the contacts between the ground pin and the corresponding LED pin. The system is self
powered, DO NOT GIVE POWER TO THE PINS.
Applicable signal format
Signals Frames per Second Aspect
Raito
525-60i
480i
625-50i
480P
30/29.97 4:3/16:9
60/59.94/50
4:3/16:9
25 4:3/16:9
60/59.94/50/30/29.97
16:9
Active
Lines
483
483
576
483
Scanning
Method
Interlaced CVBS, Y/C,YPrPb
Interlaced CVBS, Y/C,YPrPb
Interlaced CVBS, Y/C,YPrPb
Progressive
YPrPb,DVI
/25/24/23.976
720P
60/59.94/50/30/29.97
16:9
720
Progressive
YPrPb,DVI
/25/24/23.976
1035i
1080i
1080P
60/59.94
60/59.94/50/48/47.96
16:9
16:9
30/29.97/25/24/23.976 16:9
1080
1080
1080
Interlaced
Interlaced
Progressive
YPrPb,DVI
YPrPb,DVI
YPrPb,DVI
Switch Settings, Functions and Indicators
CVBS, S-Video, YPrPb and DVI select input source and LED on when active.
Mode : select under scan or normal mode
Note: Tapping any active input signal toggles BLUE GUN On/Off.
Signal selection is active when Blue Gun is on.
Tap active selection to turn off.
Tally Indicators
Input
Model numbers of LCD-703HD Series
LCD-703HD
LCD-703HDX LCD-703HDL back
LCD-703HD1 (single unit)
LCD-703HD2 (two units)
LCD-703HDL
