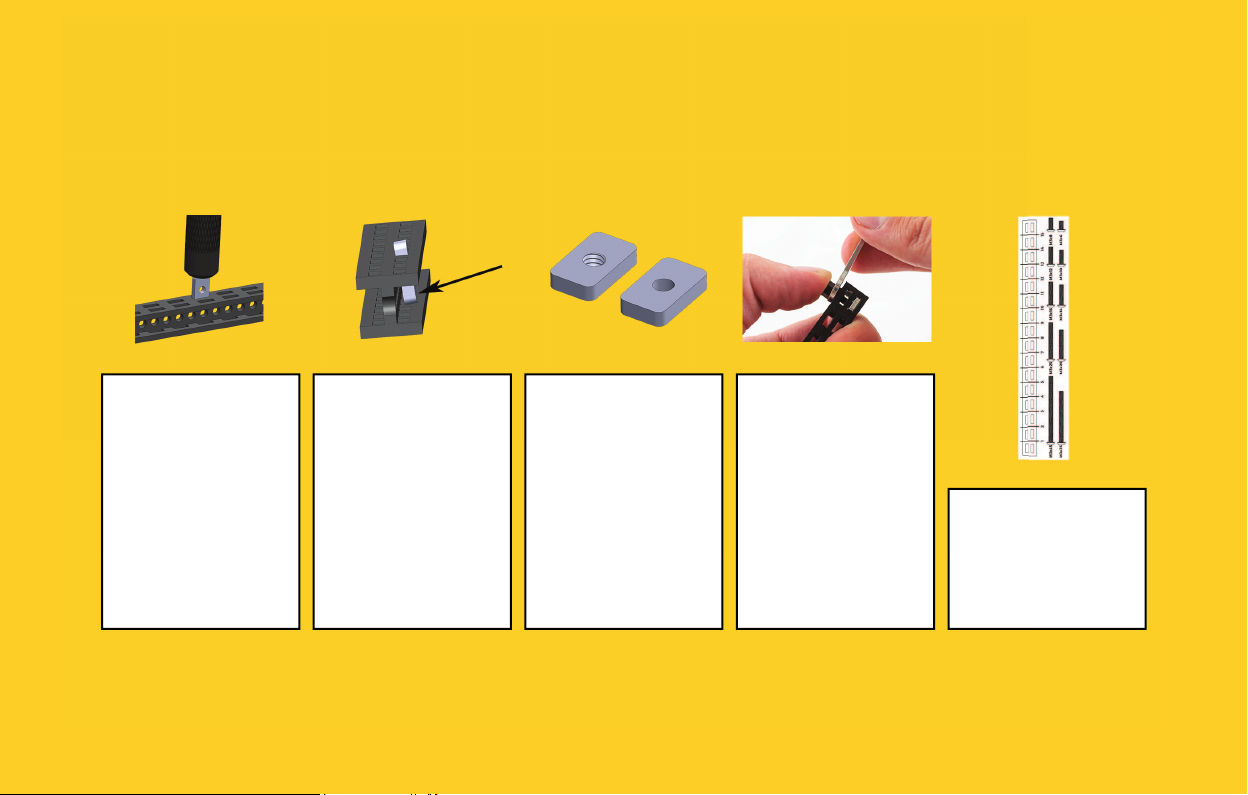

STARTING TIPS
Inserting nuts (1) Inserting nuts (2) Faulty threads Tightening
standoff s
It is a good idea to
start every step inserting nuts into
beams (if the step
requires).
Use the back of the
screwdriver to push
in the nuts.
After entering the
fi rst slot, nuts tend
to tilt. Use your
thumb to push it
back straight, and
then again use the
screwdriver to insert the nut all the
way in.
For more tips, please visit the link below:
Some of the nuts
are missing threads.
This is a manufacturing issue and we
are working on it. In
the mean time, we
add few extra nuts.
We apologize for
the inconvenience.
Push Nylon
Standoff with your
thumb while tightening it with the
wrench.
https://totemmaker.net/blog/totem-mechanics-for-beginners/
Ruler
Use Beam/Bolt
ruler to determine
the length of beams
and bolts.
Page 3

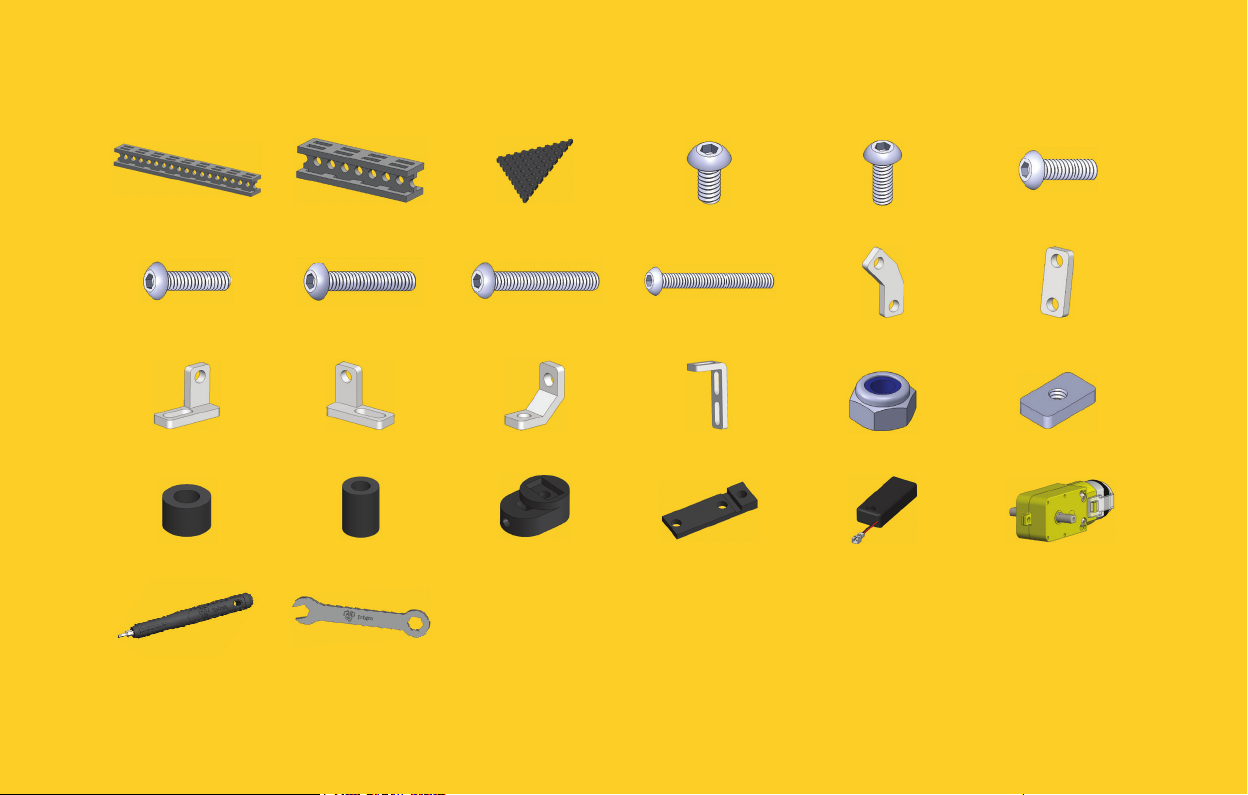

PART LIST
3x Beam 90 mm 18x Beam 40 mm 4x Board Triangular 37x Bolt M3x6 1x Bolt M3x8 2x Bolt M3x10
4x Bolt M3x12 1x Bolt M3x16 1x Bolt M3x20 4x Bolt M3x25 4x 2-Hole 45 Simple Bracket 9x 2-Hole Simple Bracket
1x L-Twisted Bracket 1x L-Twisted Mirror Bracket 2x C-Bracket 2x 3-Hole 90 Bracket 3x Lock Nut M3 47x Nut M3 6x10
2x Nylon Spacer 4 mm 1x Nylon Spacer 8 mm 2x DC Motor Hub 2x DC Motor Bracket 1x Battery Case with Switch 1x DC Motor
1x Totem Screwdriver 1x Totem Wrench
Page 4

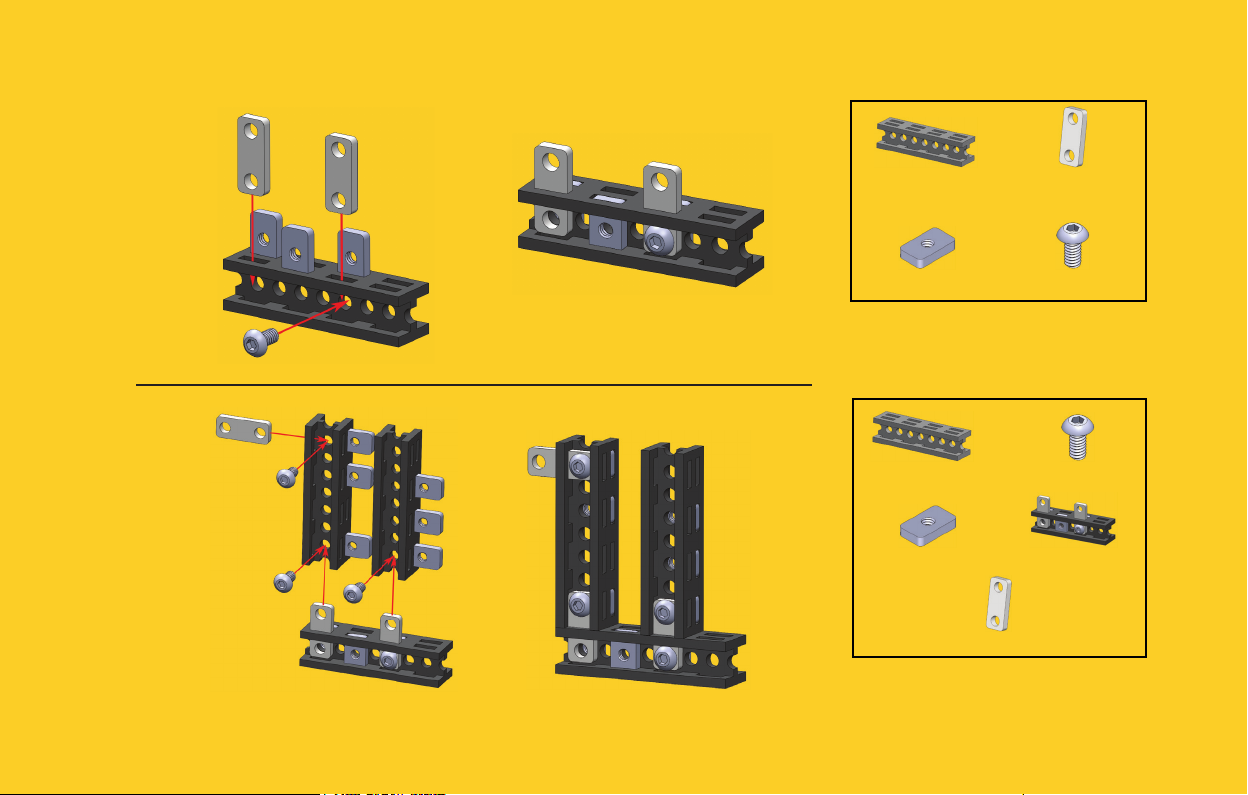

1
2
1x Beam 40 mm
3x Nut M3 6x10 1x Bolt M3x6
2x Beam 40 mm 3x Bolt M3x6
6x Nut M3 6x10 1x Step 1 Assembly
1x 2-Hole Simple Bracket
2x 2-Hole
Simple Bracket
Page 5

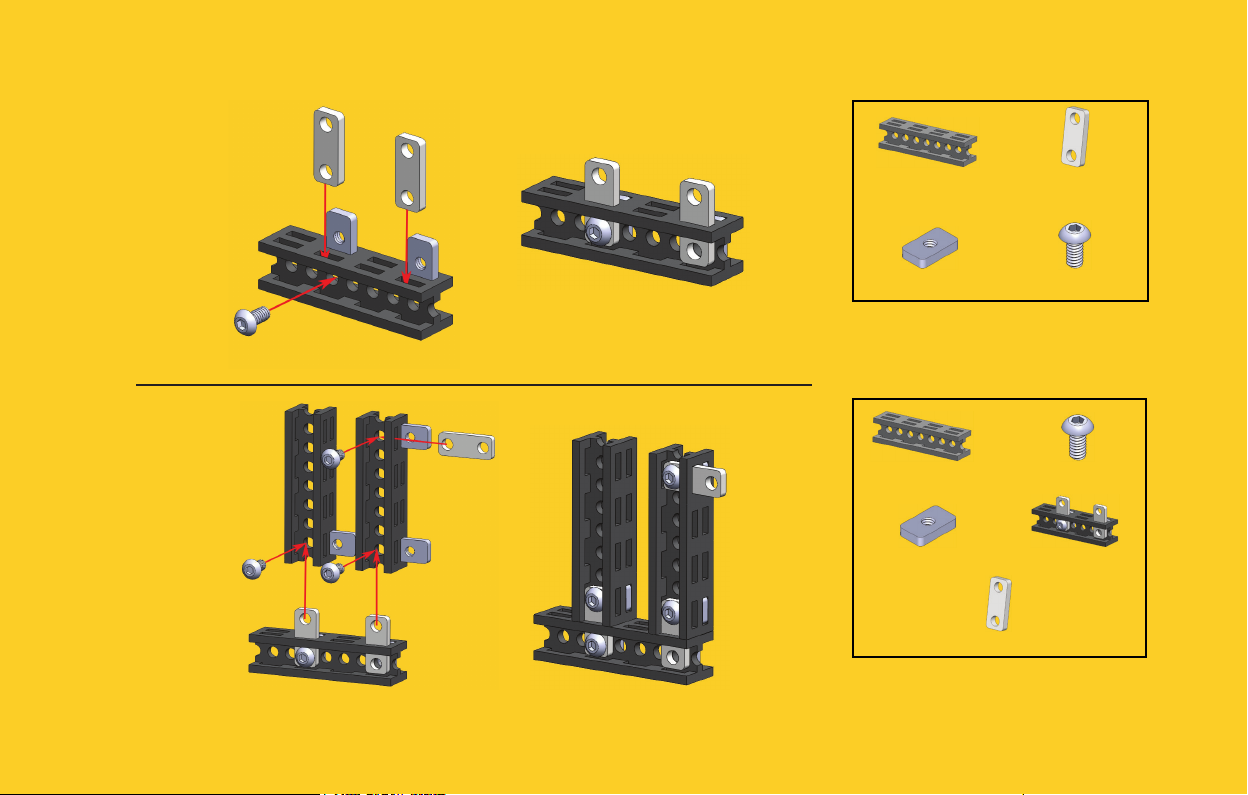

3
4
1x Beam 40 mm
2x Nut M3 6x10 1x Bolt M3x6
2x Beam 40 mm 3x Bolt M3x6
3x Nut M3 6x10 1x Step 3 Assembly
1x 2-Hole Simple Bracket
2x 2-Hole
Simple Bracket
Page 6

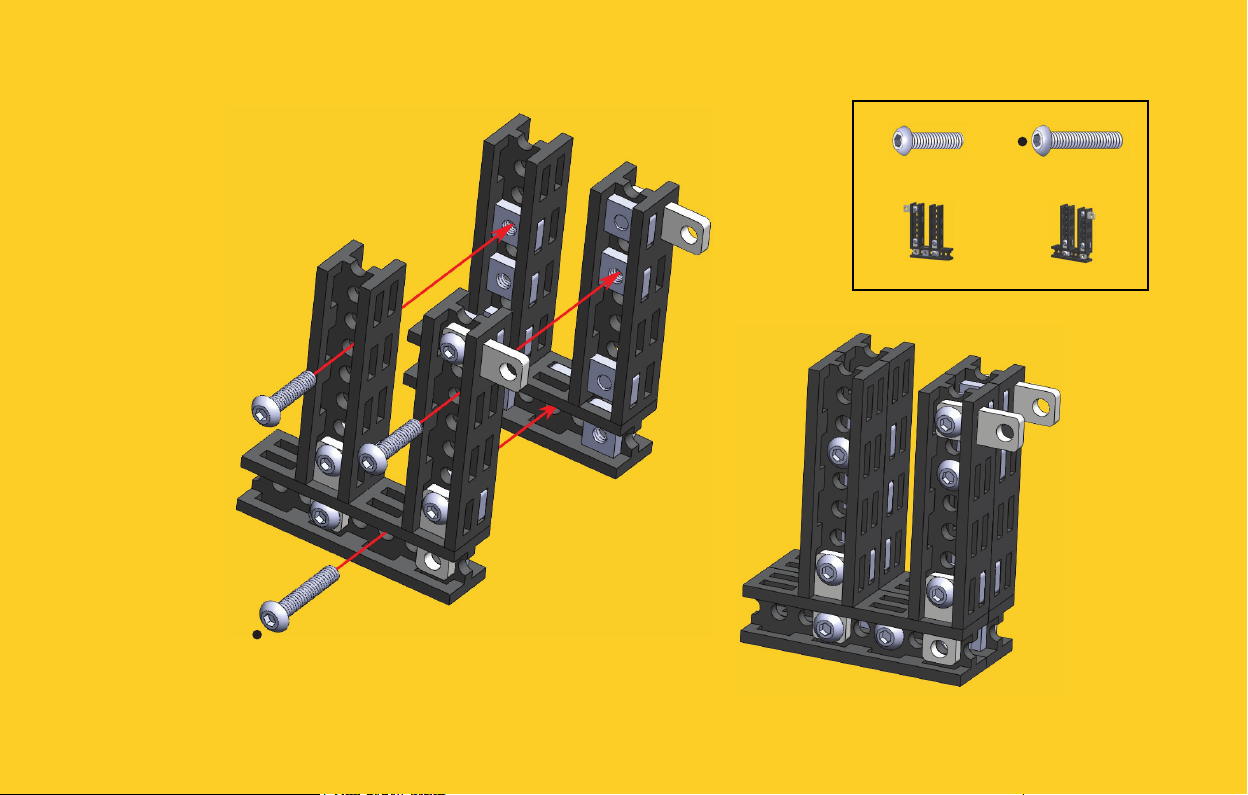

5
2x Bolt M3x12 1x Bolt M3x16
1x Step 2 Assembly 1x Step 4 Assembly
Page 7

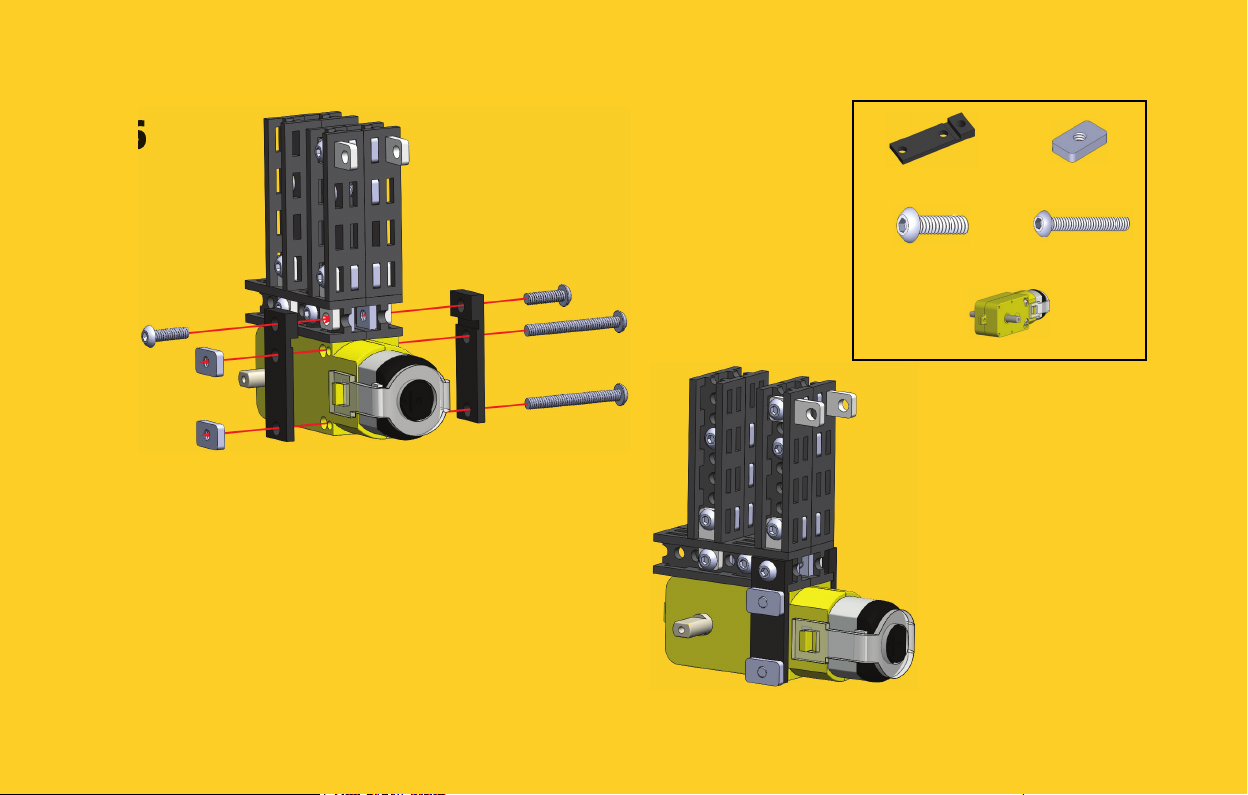

6
2x DC Motor Bracket 2x Nut M3 6x10
2x Bolt M3x10 2x Bolt M3x25
1x DC Motor
Page 8

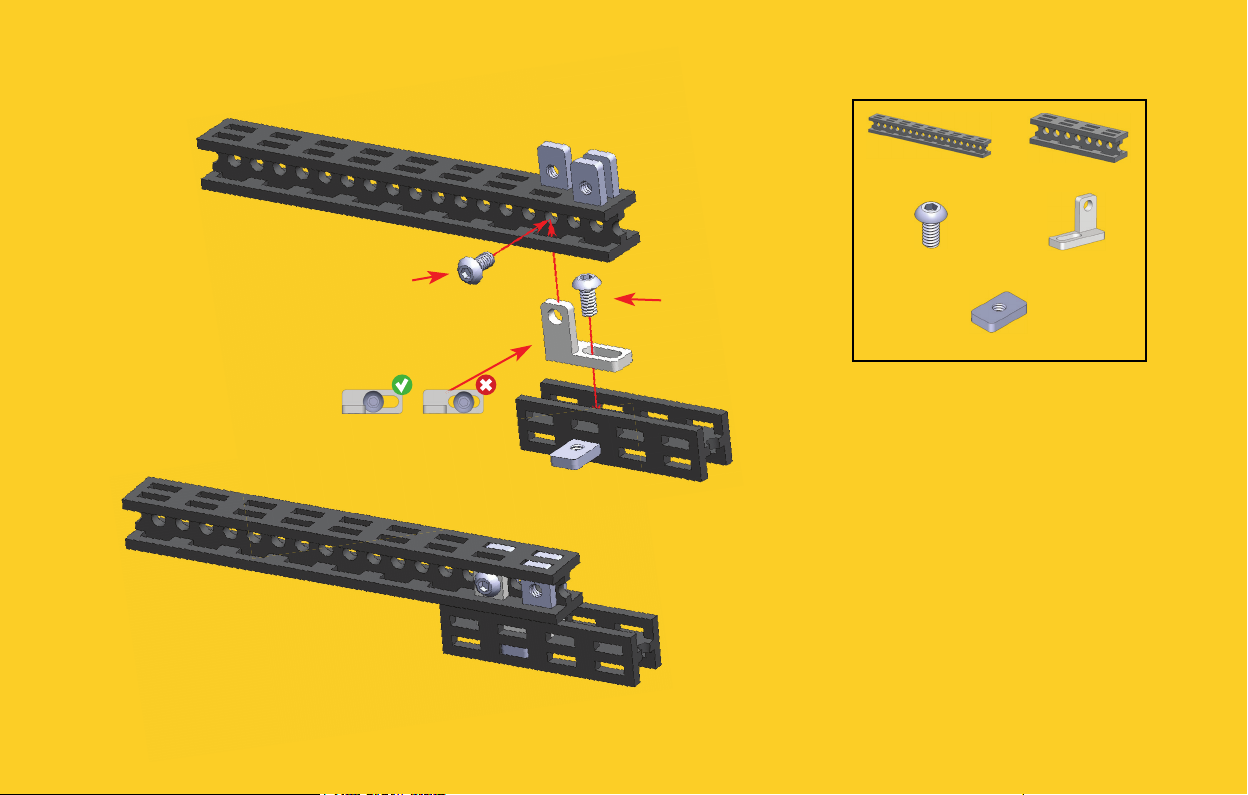

7
1x Beam 90 mm 1x Beam 40 mm
2) Screw this
bolt secondly.
2x Bolt M3x6 1x L-Twisted Bracket
1) Screw this
bolt fi rst.
4x Nut M3 6x10
Page 9

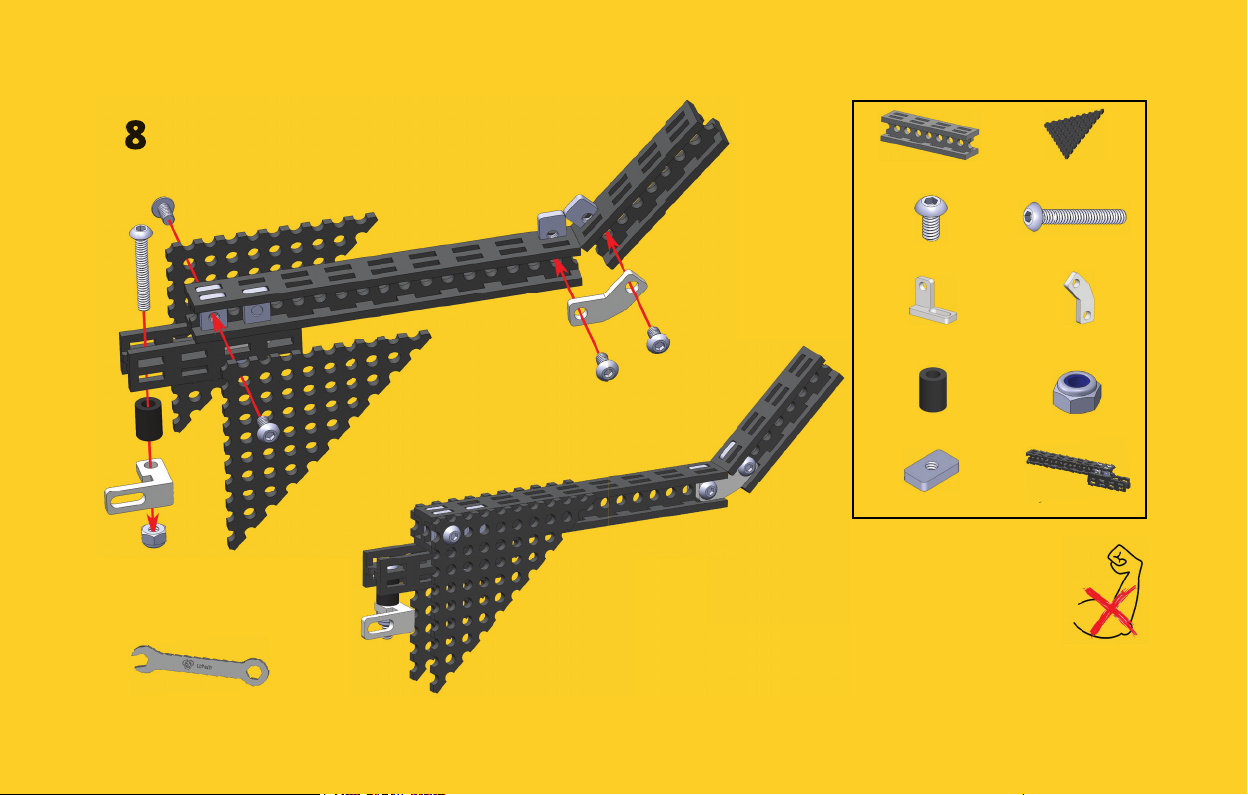

8
1x Beam 40 mm 2x Board Triangle
4x Bolt M3x6 1x Bolt M3x20
Use wrench for
Lock Nut.
1x L-Twisted
Mirror Bracket
1x Nylon Spacer 8 mm 1x Lock Nut M3
2x Nut M3 6x10 1x Step 7 Assembly
1x 2-Hole 45
Simple Bracket
Do not over tighten
the Lock Nut. Let
the tail move freely.
Page 10

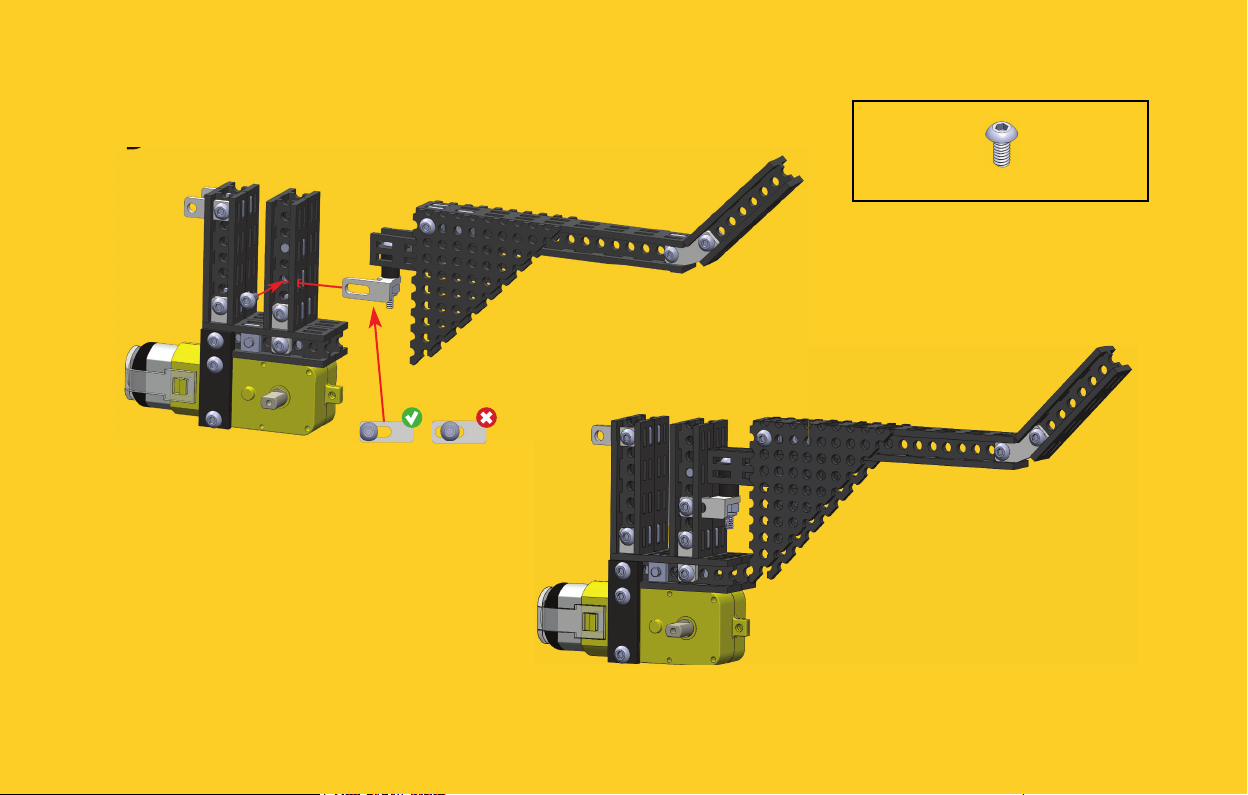

9
1x Bolt M3x6
Page 11

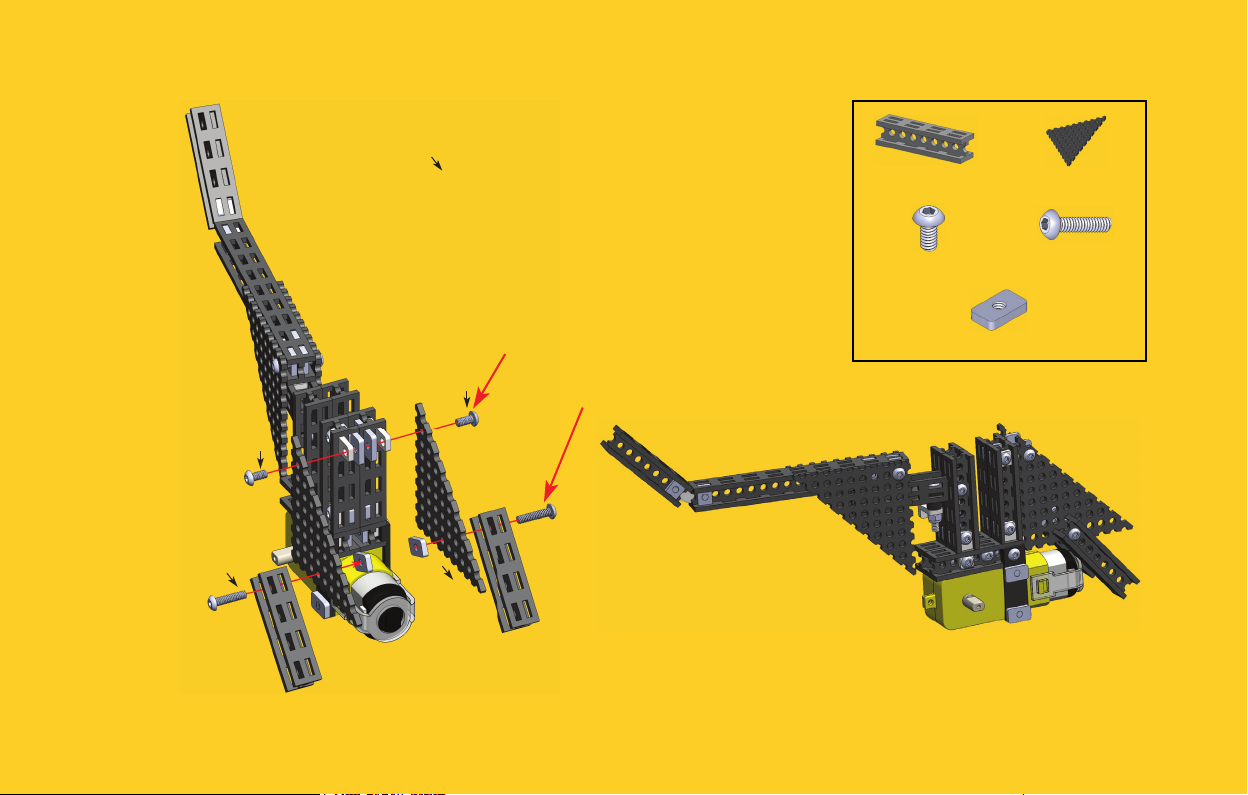

10
# indicates number of circular hole.
indicates counting direction.
2x Beam 40 mm 2x Board Triangle
2x Bolt M3x6 2x Bolt M3x12
#4
#1
2) Screw this bolt secondly.
#1
1) Screw this bolt fi rst.
#4
4x Nut M3 6x10
Page 12

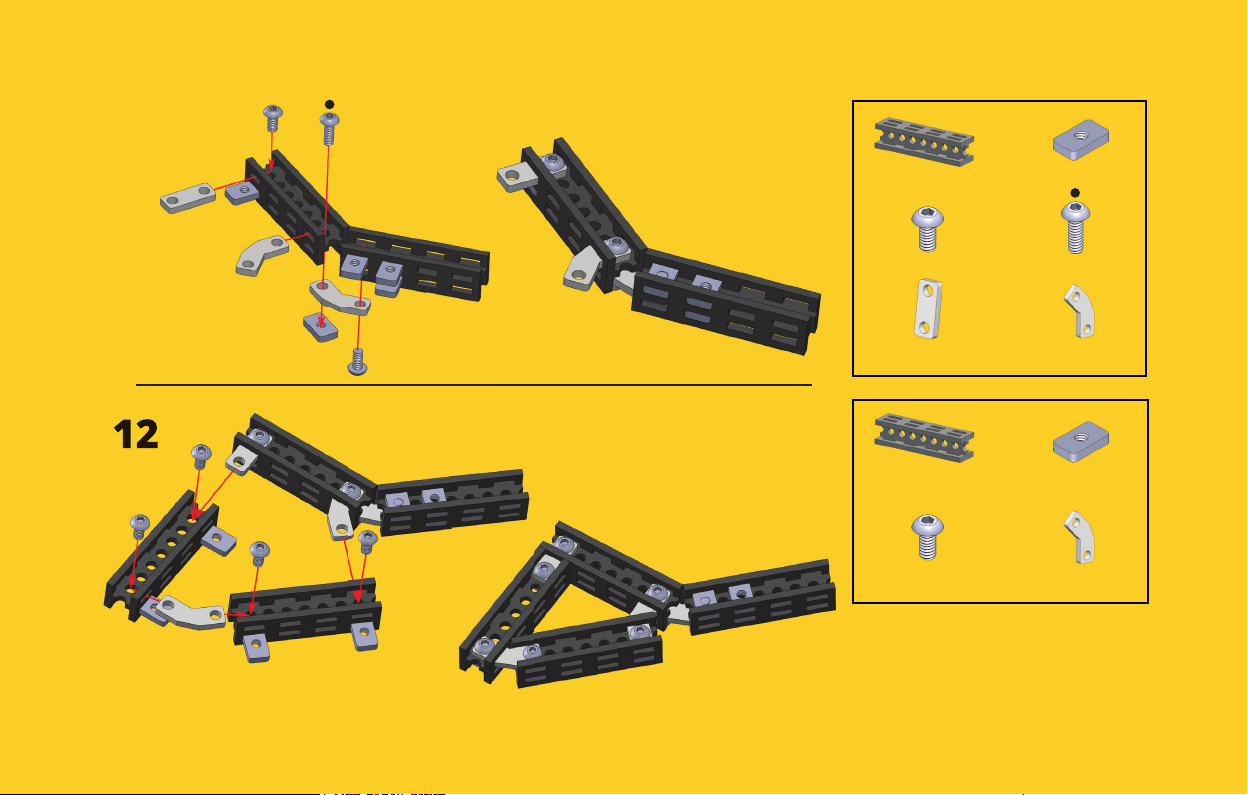

11
2x Beam 40 mm 5x Nut M3 6x10
2x Bolt M3x6 1x Bolt M3x8
12
1x 2-Hole Simple
Bracket
2x Beam 40 mm 4x Nut M3 6x10
4x Bolt M3x6
2x 2-Hole 45
Simple Bracket
1x 2-Hole 45
Simple Bracket
Page 13

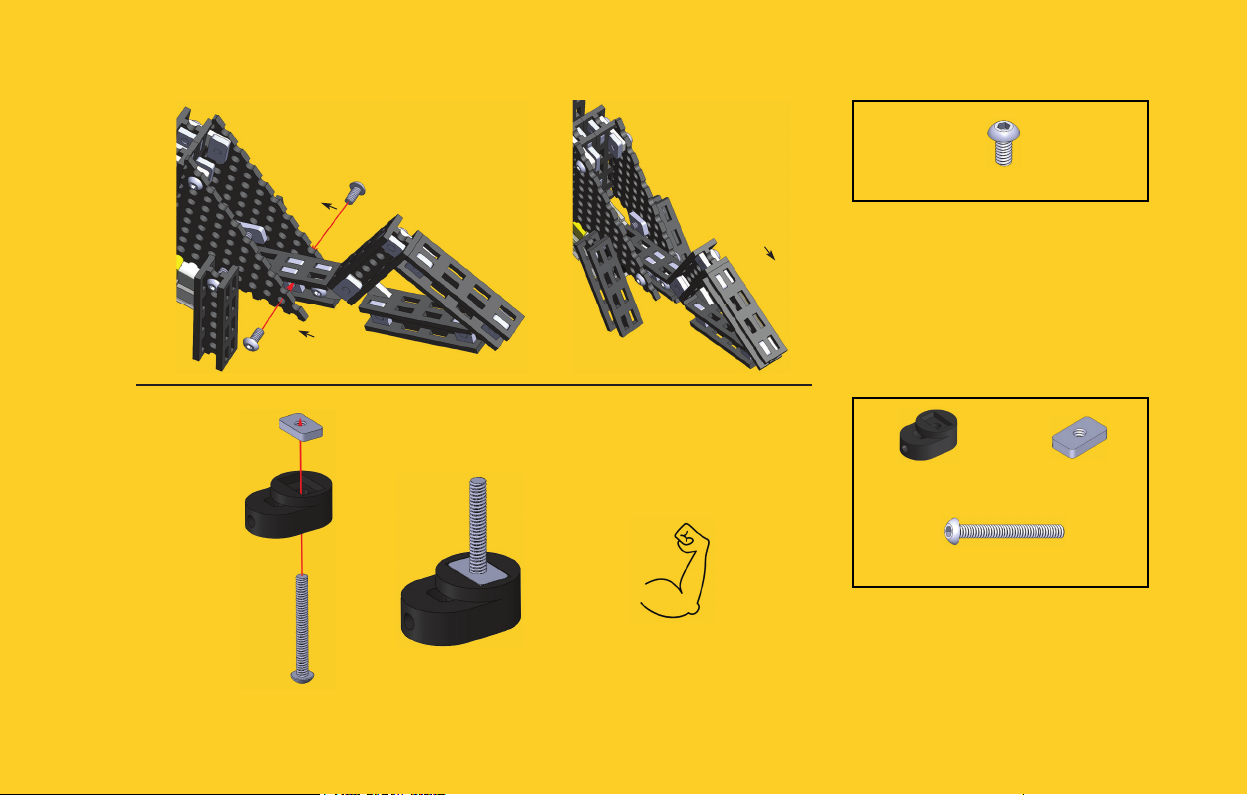

13
14
2x Bolt M3x6
#1
# indicates number of circular hole.
indicates counting direction.
#1
2x DC Motor Hub 2x Nut M3 6x10
Tighten the bolt fi rmly.
2x Bolt M3x25
Repeat this step twice.
2x
Page 14

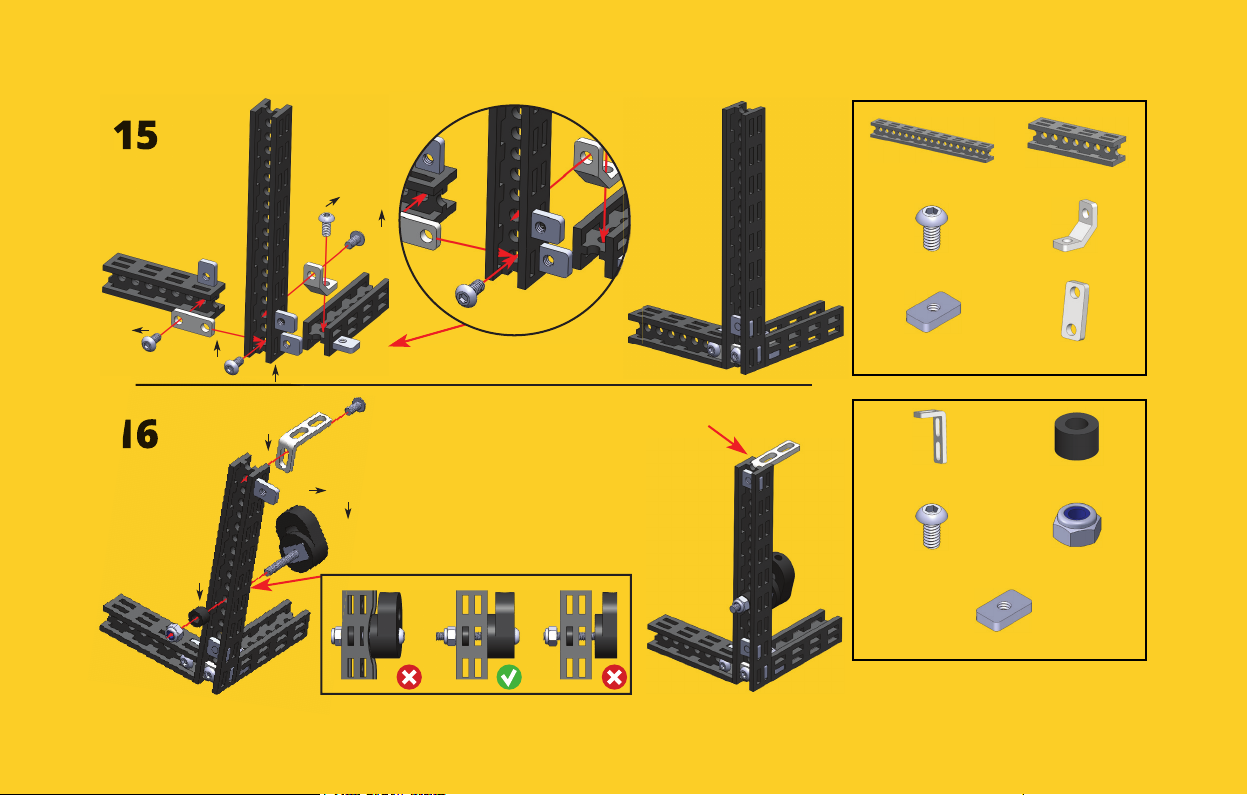

15
1x Beam 90 mm 2x Beam 40 mm
#1
#3
4x Bolt M3x6 1x C-Bracket
#1
16
#11
#1
#1
#1
# indicates number
of circular hole.
#1
indicates counting
direction.
Top of
bracket has
to be at the
same level
as top of
beam.
4x Nut M3 6x10 1x 2-Hole Simple
1x 3-Hole 90 Bracket 1x Nylon Spacer 4 mm
1x Bolt M3x6 1x Lock Nut M3
1x Nut M3 6x10
Bracket
Page 15

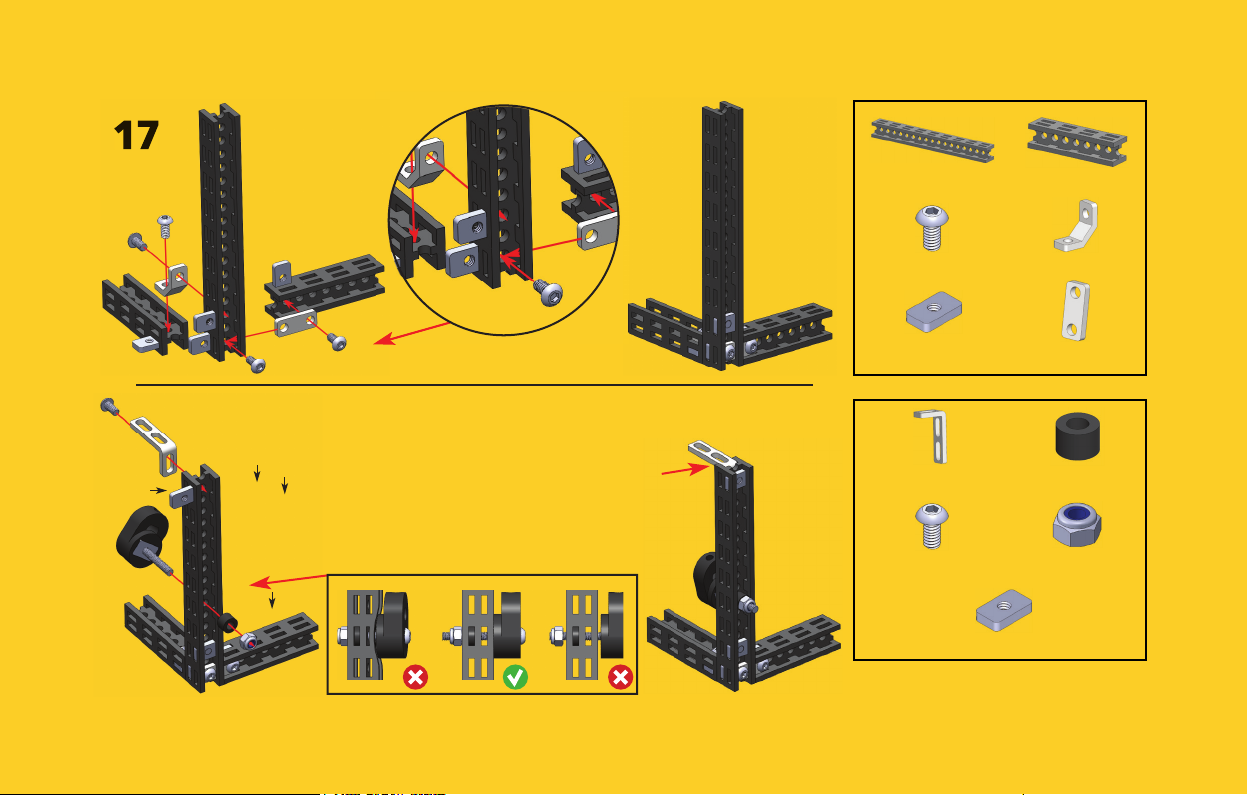

17
1x Beam 90 mm 2x Beam 40 mm
4x Bolt M3x6 1x C-Bracket
#2
18
#1
#11
# indicates number
of circular hole.
indicates counting
direction.
Top of
bracket has
to be at the
same level
as top of
beam.
4x Nut M3 6x10 1x 2-Hole Simple
1x 3-Hole 90 Bracket 1x Nylon Spacer 4 mm
1x Bolt M3x6 1x Lock Nut M3
1x Nut M3 6x10
Bracket
Page 16

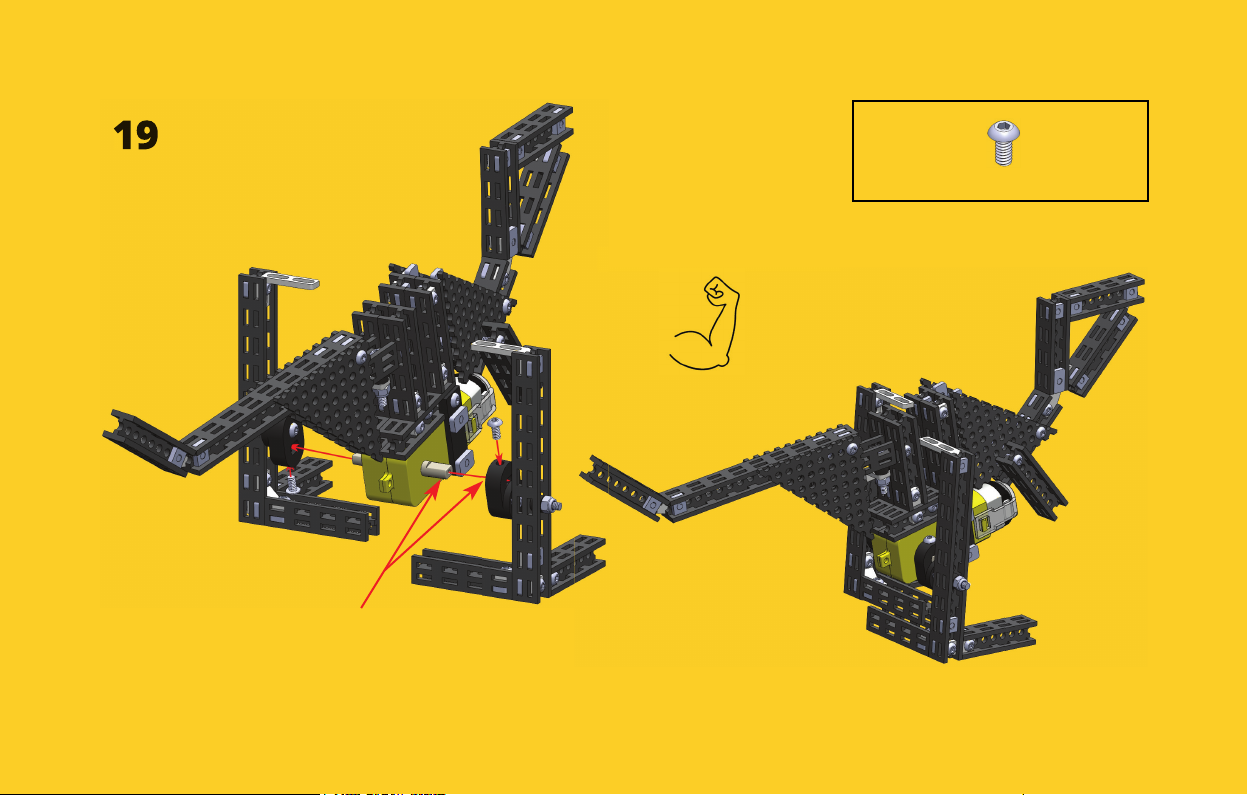

19
1) Screw bolts half way
in DC Motor Hubs.
When screwing bolts,
use strength as the
hubs holes are tight fi t.
2x Bolt M3x6
2) Mount hubs on motors’ schafts. To do so,
turn the hub accordingly so that its hole goes
onto motor’s schaft smoothly.
3) Finish tightening
the bolts.
Page 17

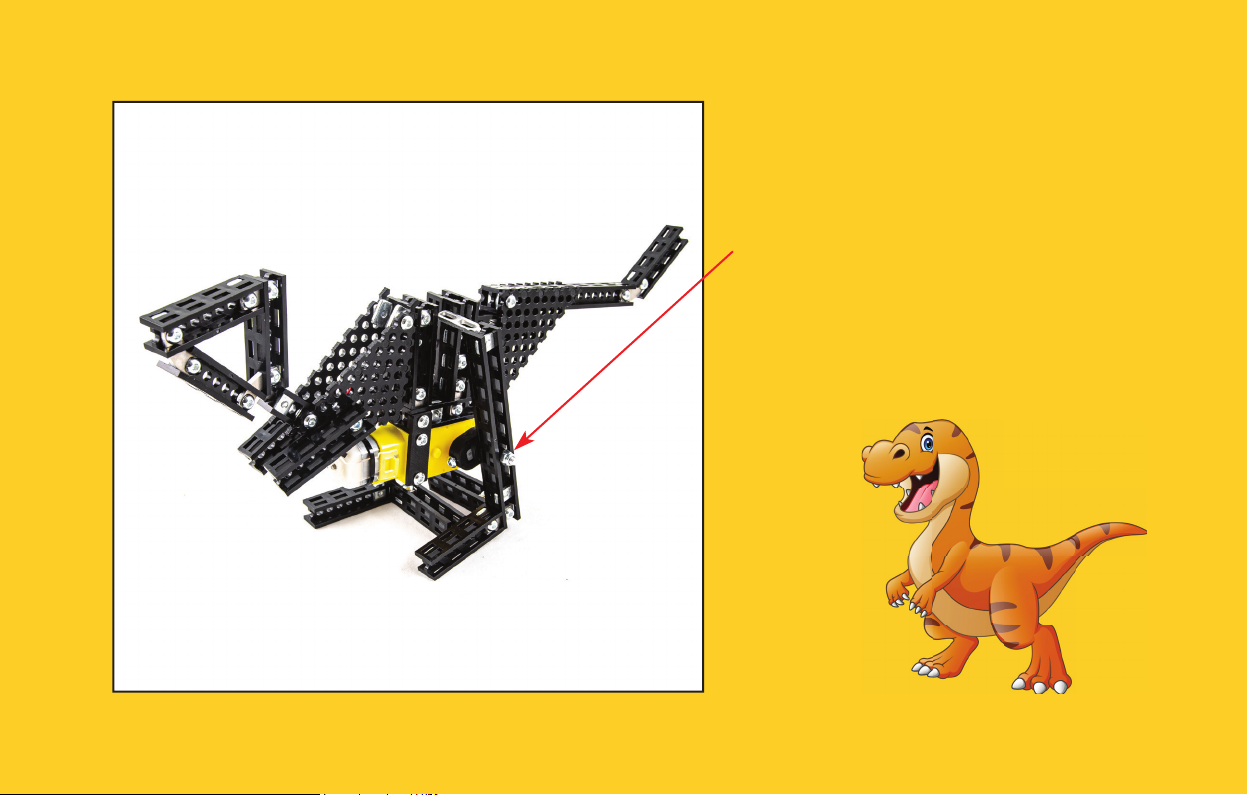

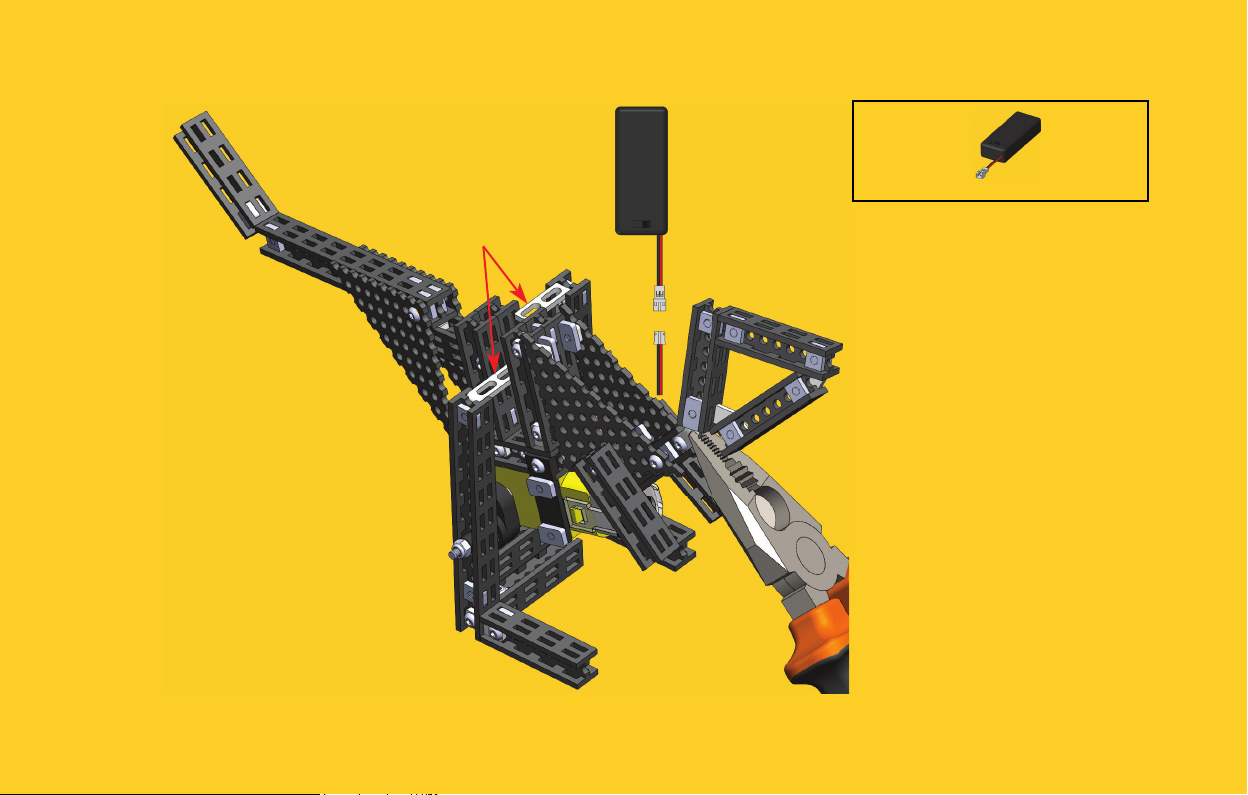

20
Make sure
these brackets
are in place.
1x Battery Case with Switch
Connect motor
with battery switch.
Optional step:
Bend the neck to
make the T-Rex
look more realistic.
Page 18
Loosen Lock Nuts (if needed, on both
sides) if motor cannot move legs.
Tighten Lock Nuts (if needed, on both
sides) if legs are too wobbly.
Woohoo!
Your T-Rex is now alive
and ready to play.
Page 19
Do not give this product to children aged 3 or below. As with all electronic products, precautions should be observed during handling and use.
Adult supervision required.
Note to adults: to ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child.
SAFETY WARNINGS:
• Do not pick up toy while in motion.
• Keep fi ngers, hair, and loose clothing away from moving parts, to avoid the injury.
• If the toy is dirty, please clean it with dry and soft cloth.
• Do not expose the vehicle to high temperature, high humidity, or direct sunlight.
• Indoor use only. Functions best on hard, fl at surface.
• Do not put this product in water,
• Do not disassemble or modify the motor.
TO AVOID BATTERY LEAKAGE:
• Do Always follow the instrutions carefully. Use only batteries specifi ed and be sure to insert them correctly by matching the + and – polarity markings.
• Do not mix old batteries and new batteries or standard (carbon-zinc) with alkaline batteries.
• Remove exhausted or dead batteries from the product.
• Remove batteries if product is not to be played with for a long time.
• Do not short-circuit the supply terminals.
• RECHARGEABLE batteries: Do not mix these with any other type of batteries. Always remove from the product before recharging. Recharge batteries under
adult supervision. DO NOT RECHARGE OTHER TYPES OF BATERIES.
• Should this product cause, or be aff ected by local electrical interference, move it away from other electrical equipment.
KEEP THIS INTRUCTION MANUAL AND THE PRODUCT BOX AS IT CONTAIN IMPORTANT INFORMATION FOR FUTURE REFERENCE.
Due to the continuous product improvement, the pictures on this manual may diff er slightly from the actual product. Please adhere to actual product instead.
Totem Maker names and logos are registered trademarks. All rights reserved.
www.totemmaker.net
Aldrea fi lalas Totem, UAB
Sauletekio al. 15-709, Vilnius, 10224, Lithuania
For customer support please contact: [email protected]
WARNING:
CHOKING HAZARD - Small parts.
Not for children under 3 years.
BATTERY INFORMATION:
• 2x 1.5V AA batteries required (not included).
• To insert batteries, use cross head screwdriver
(not included).
