Totem Mini Spider Assembly Guide

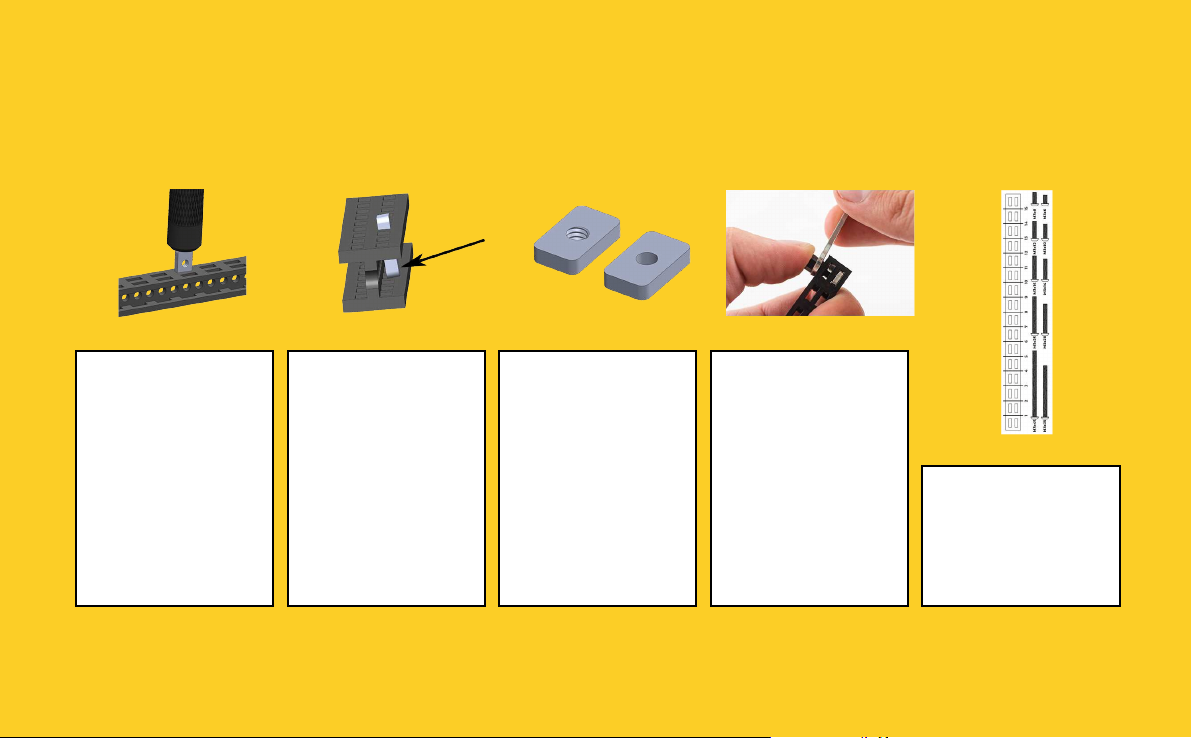

STARTING TIPS

Inserting nuts (1) Inserting nuts (2) Faulty threads Tightening

standos

It is a good idea to
start every step in­serting nuts into
beams (if the step
requires).
Use the back of the
screwdriver to push
in the nuts.

After entering the

rst slot, nuts tend
to tilt. Use your

thumb to push it

back straight, and

then again use the
screwdriver to in-

sert the nut all the

way in.

For more tips, please visit the link below:

Some of the nuts
are missing threads.
This is a manufac­turing issue and we
are working on it. In

the mean time, we

add few extra nuts.

We apologize for

the inconvenience.

Push Nylon
Stando with your
thumb while tight-

ening it with the
wrench.

https://totemmaker.net/blog/totem-mechanics-for-beginners/

Ruler

Use Beam/Bolt
ruler to determine
the length of beams
and bolts.

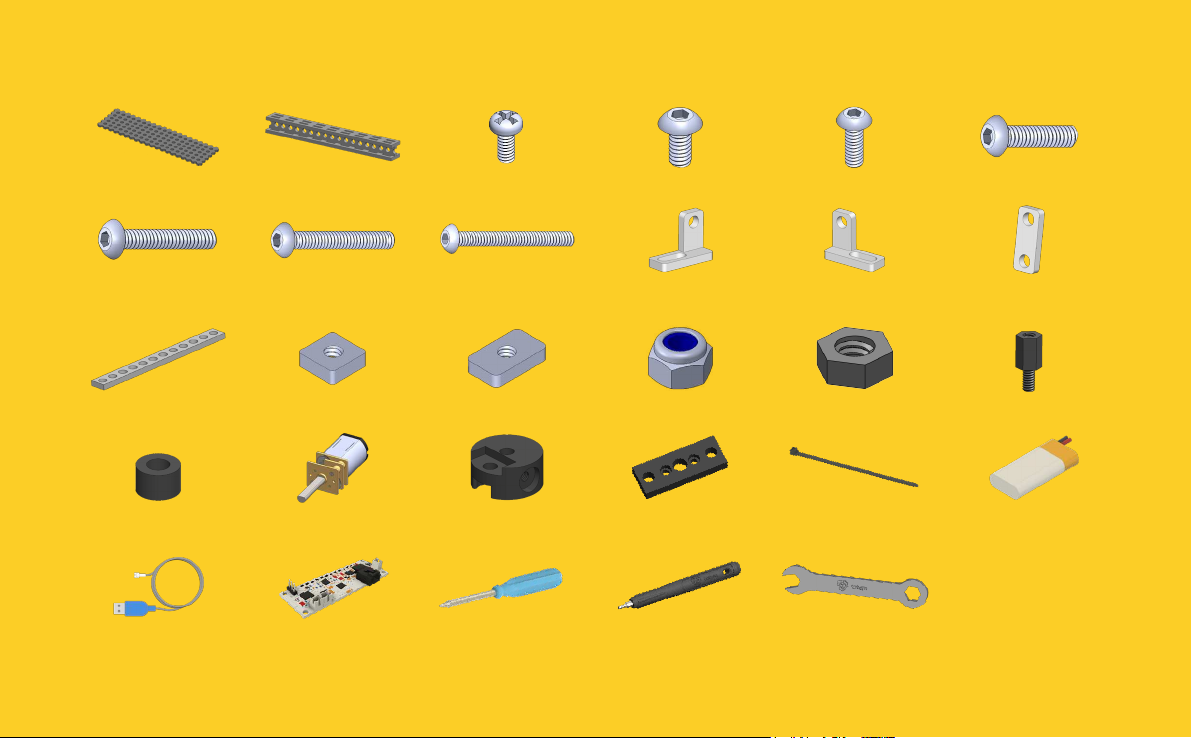

PART LIST

1x Board 30x100 10x Beam 90 mm 5x Bolt M1.6x3 30x Bolt M3x6 4x Bolt M3x8 6x Bolt M3x12

2x Bolt M3x16 4x Bolt M3x20 2x Bolt M3x25 2x L-Twisted Bracket

6x Strip Bracket 60 mm 4x Nut M3 5.5x5.5 34x Nut M3 6x10 14x Lock Nut M3 4x Nylon Nut M3 4x Nylon Stando M3x8

10x Nylon Spacer 4 mm 2x N20 Motor 2x N20 Motor Hub

1x Battery Charger 1x Mini Control Board 1x Mini Screwdriver 1x Totem Screwdriver 1x Totem Wrench

2x Mini DC Motor

Bracket

2x L-Twisted Mirror

Bracket

2x Zip Tie 1x Rechargeable Battery

8x 2-Hole Simple

Bracket

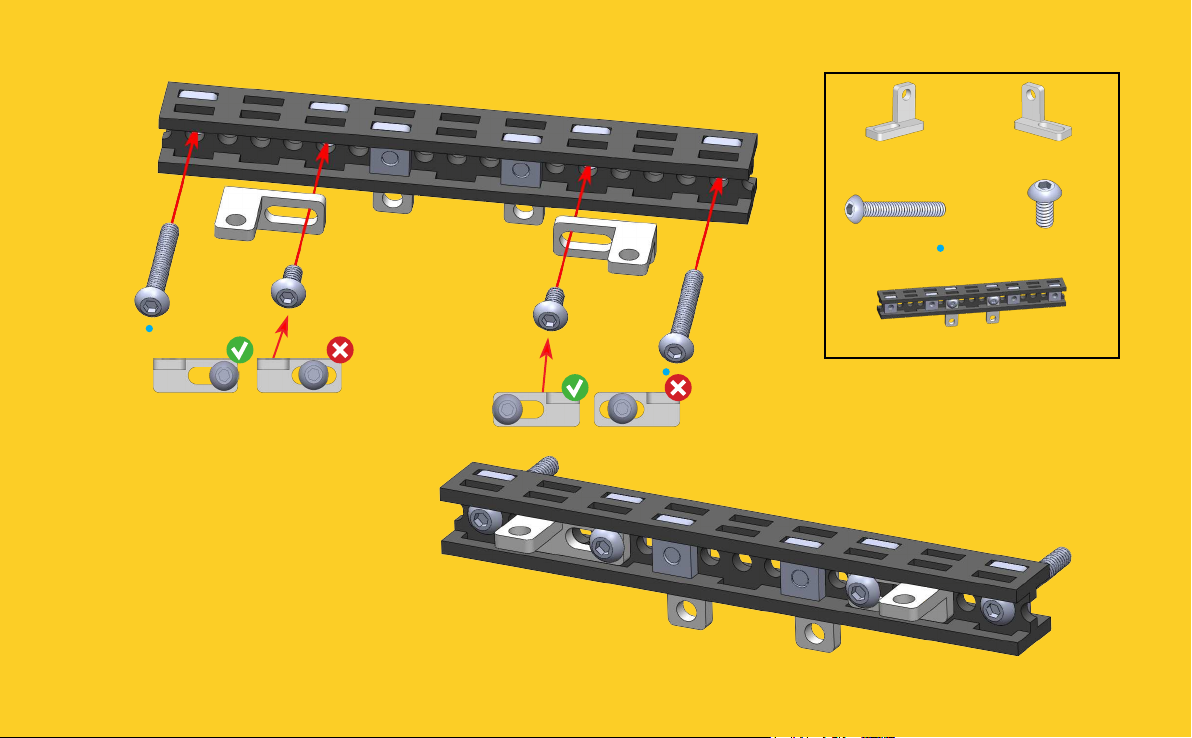

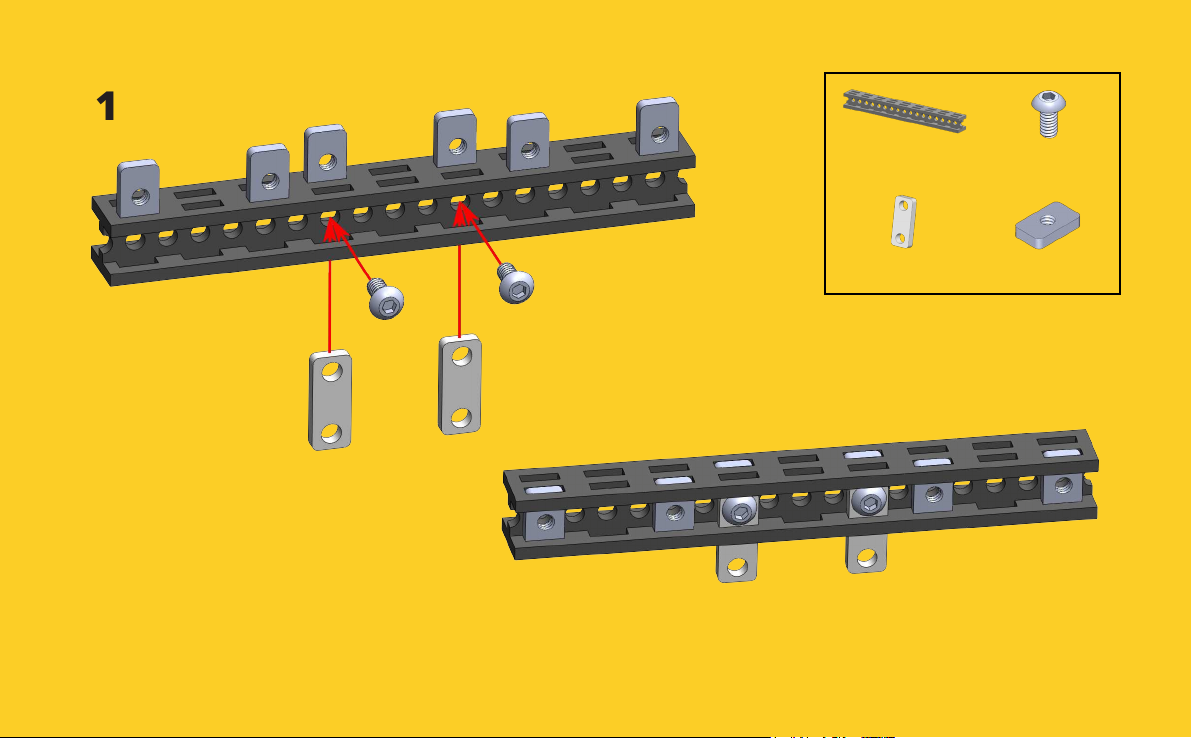

1

2x Beam 90 mm 4x Bolt M3x6

Repeat this step twice.

2x

4x 2-Hole Simple

Bracket

12x Nut M3 6x10

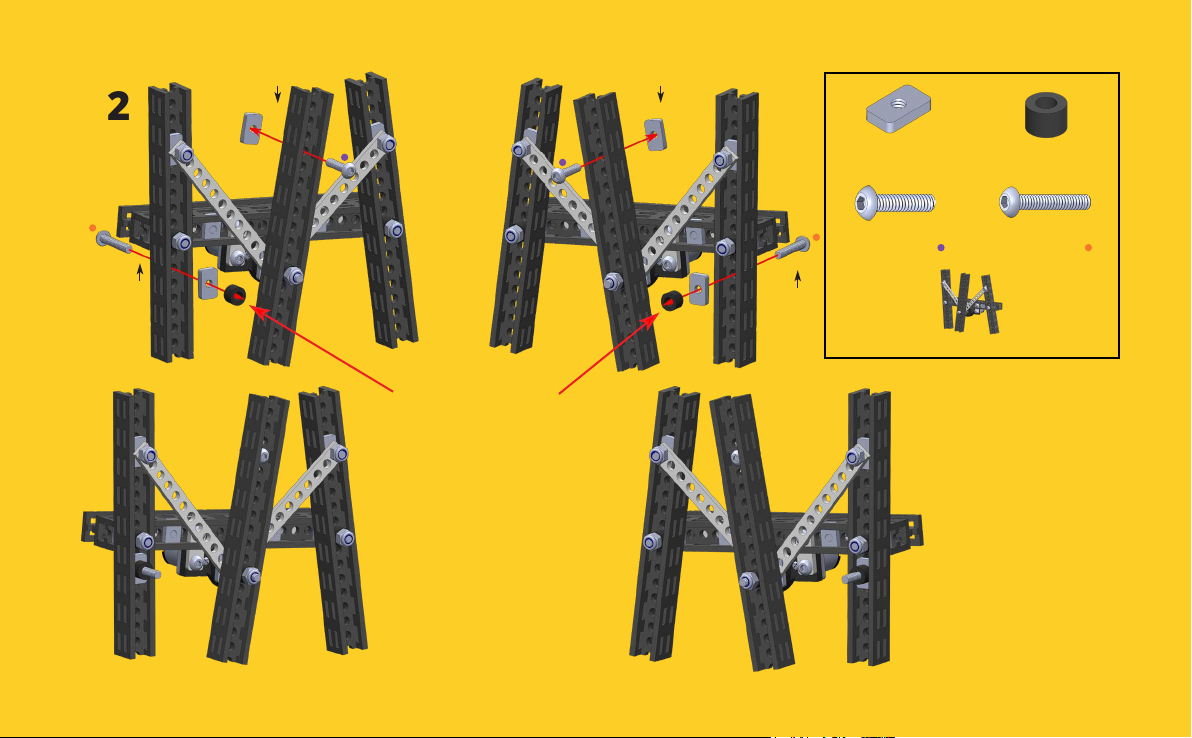

2

Repeat this step twice.

2x

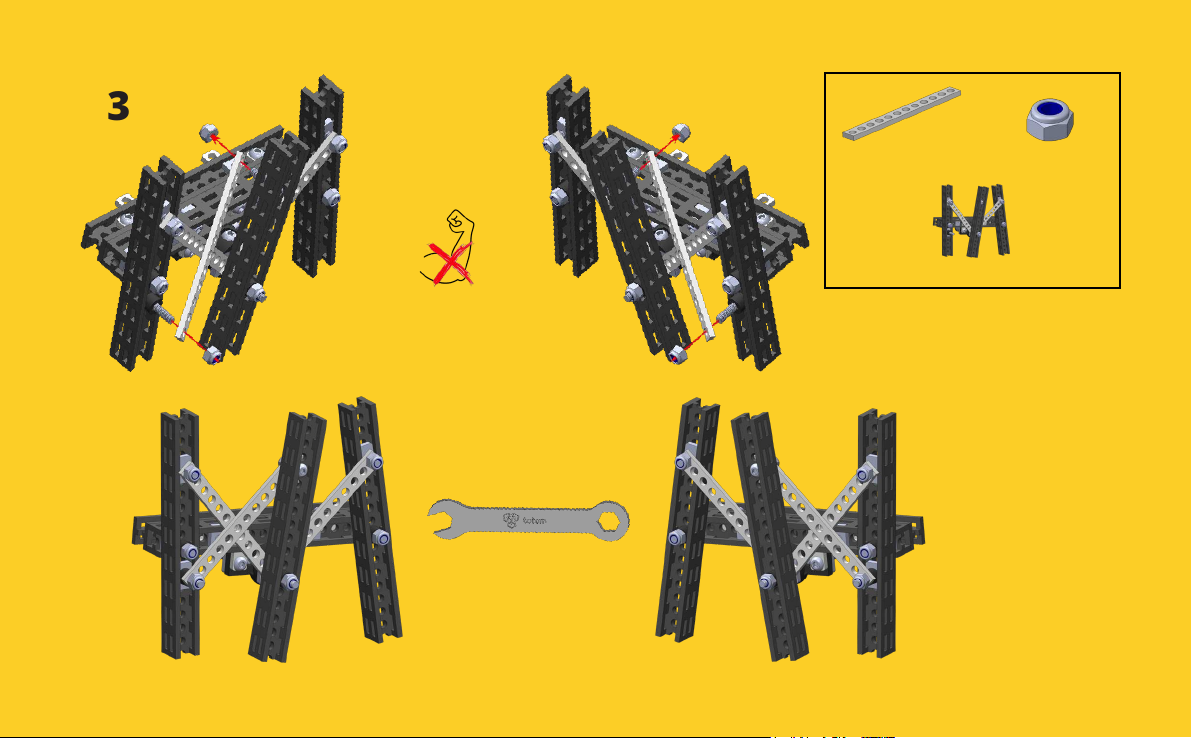

2x L-Twisted Bracket 2x L-Twisted Bracket

4x Bolt M3x20 4x Bolt M3x6

2x Step 1 Assembly

3

Repeat this step twice.

2x

2x Beam 90 mm 4x Bolt M3x6

4

4x 2-Hole Simple

Bracket

4x Bolt M3x6 2x Step 2 Assembly

2x Step 3 Assembly

Repeat this step twice.

8x Nut M3 6x10

2x

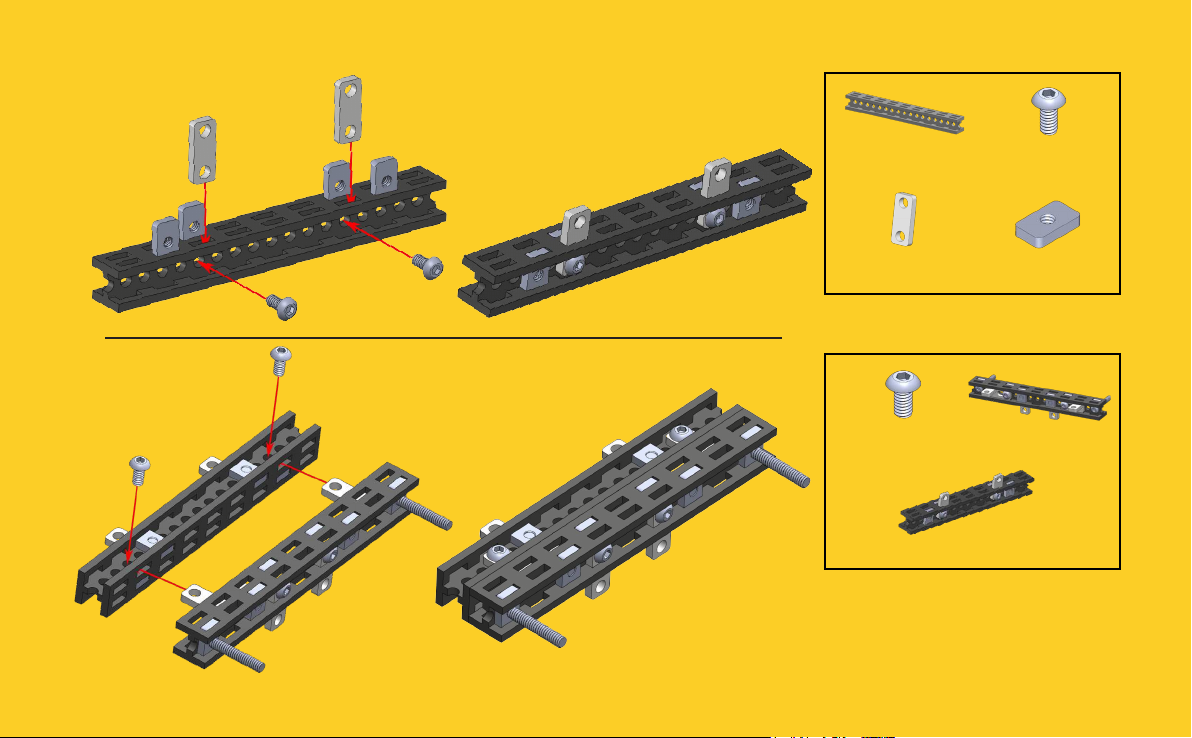

5

6

Repeat this step twice.

Use Mini Screwdriver
for this step.

2x

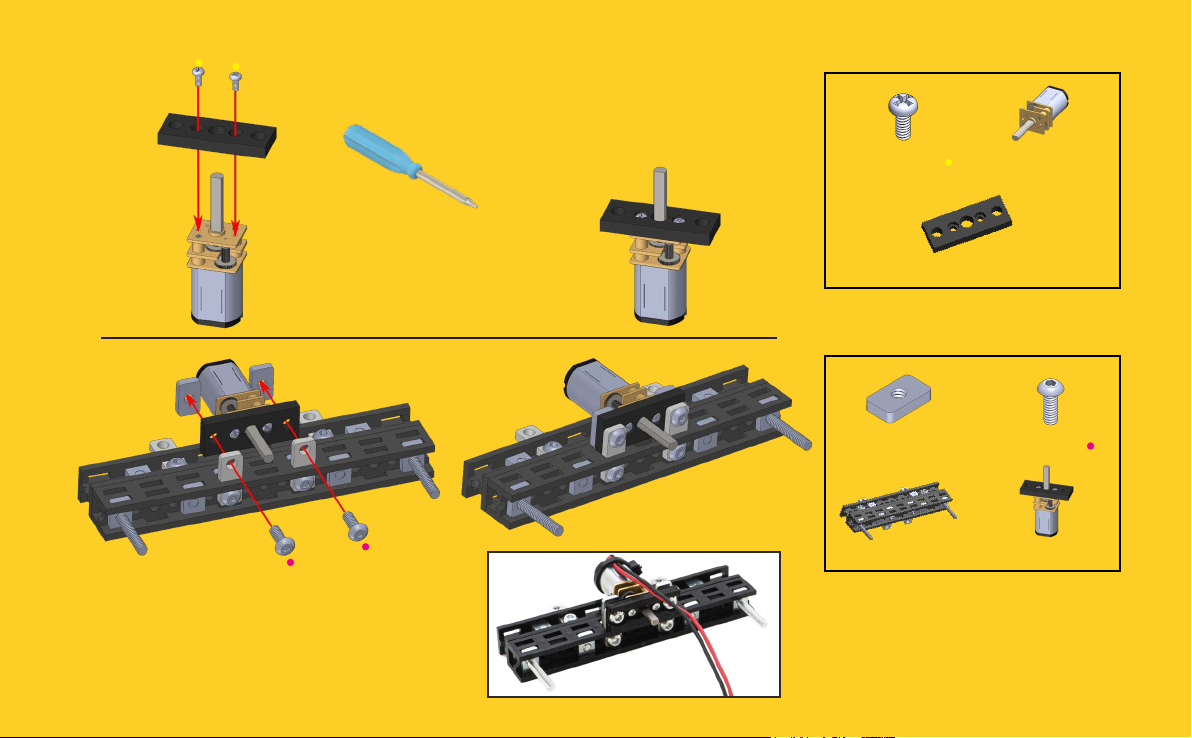

4x Bolt M1.6x3 2x N20 Motor

2x N20 Motor Bracket

4x Nut M3 6x10 4x Bolt M3x8

2x Step 4 Assembly 2x Step 5 Assembly

Make sure motor

cables go on top

Repeat this step twice.

2x

7

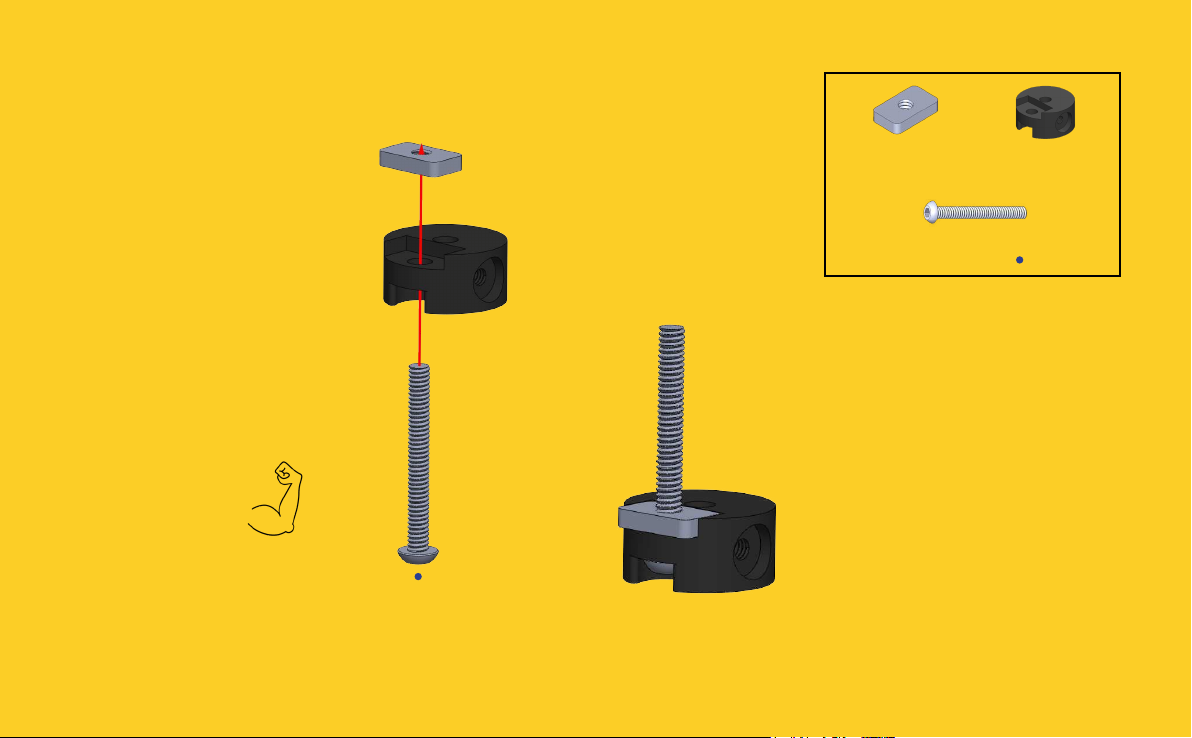

2x Nut M3 6x10 2x N20 Motor Hub

2x Bolt M3x25

Repeat this step twice.

2x

Tighten the

bolt rmly.

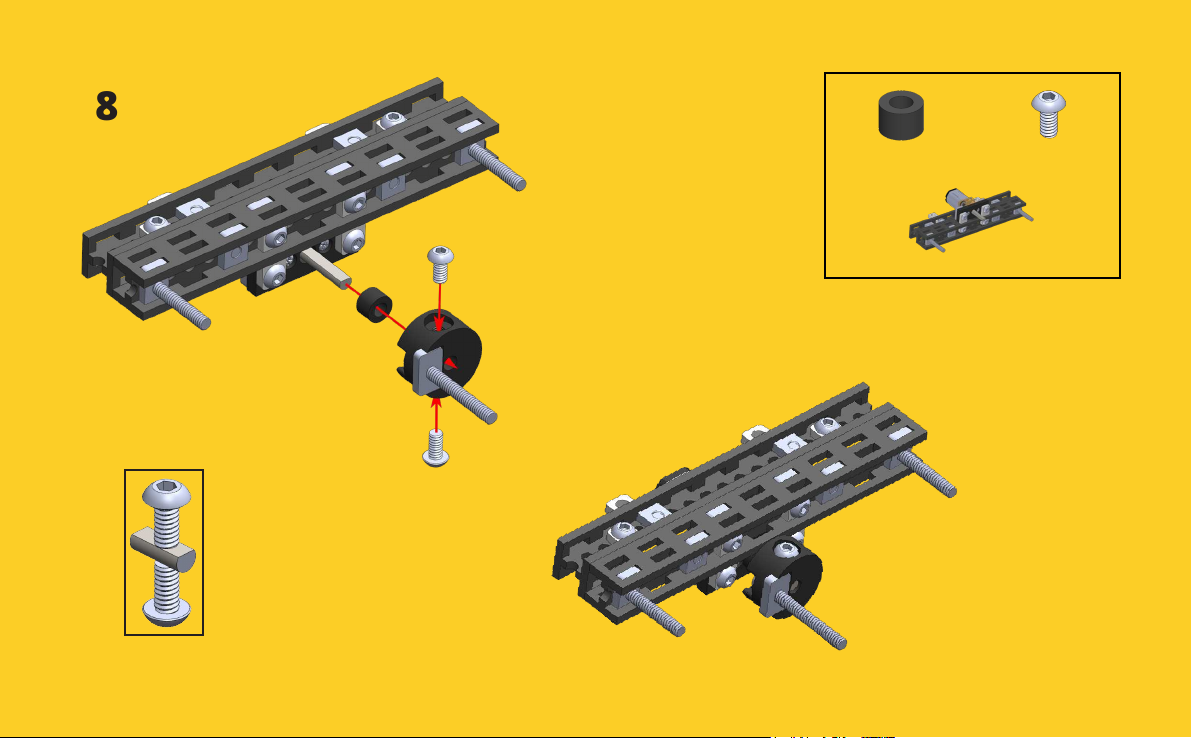

8

One of the bolts must hit
the at side of the shaft.
Tighten both bolts evenly

to keep the hub straight.

Prepare N20 Motor Hub:
screw bolts half way in
before placing hub on the

shaft of motor.

2x Nylon Spacer 4x Bolt M3x6

2x Step 6 Assembly

Repeat this step twice.

2x

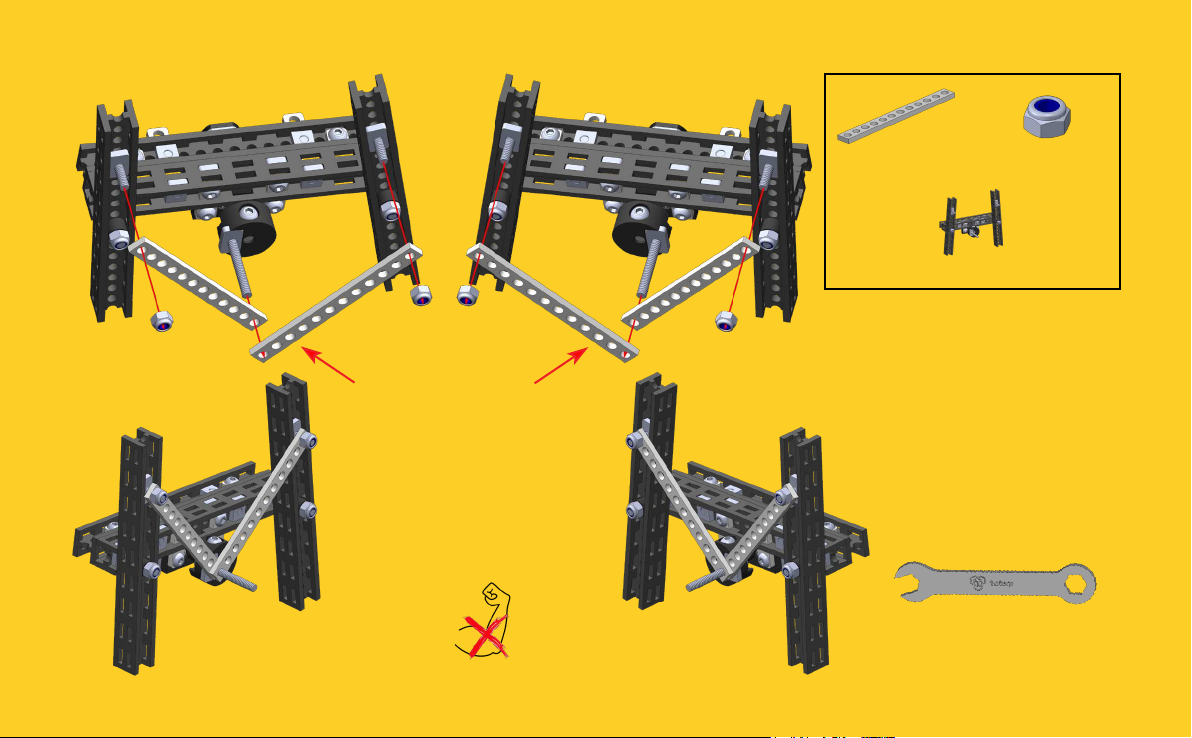

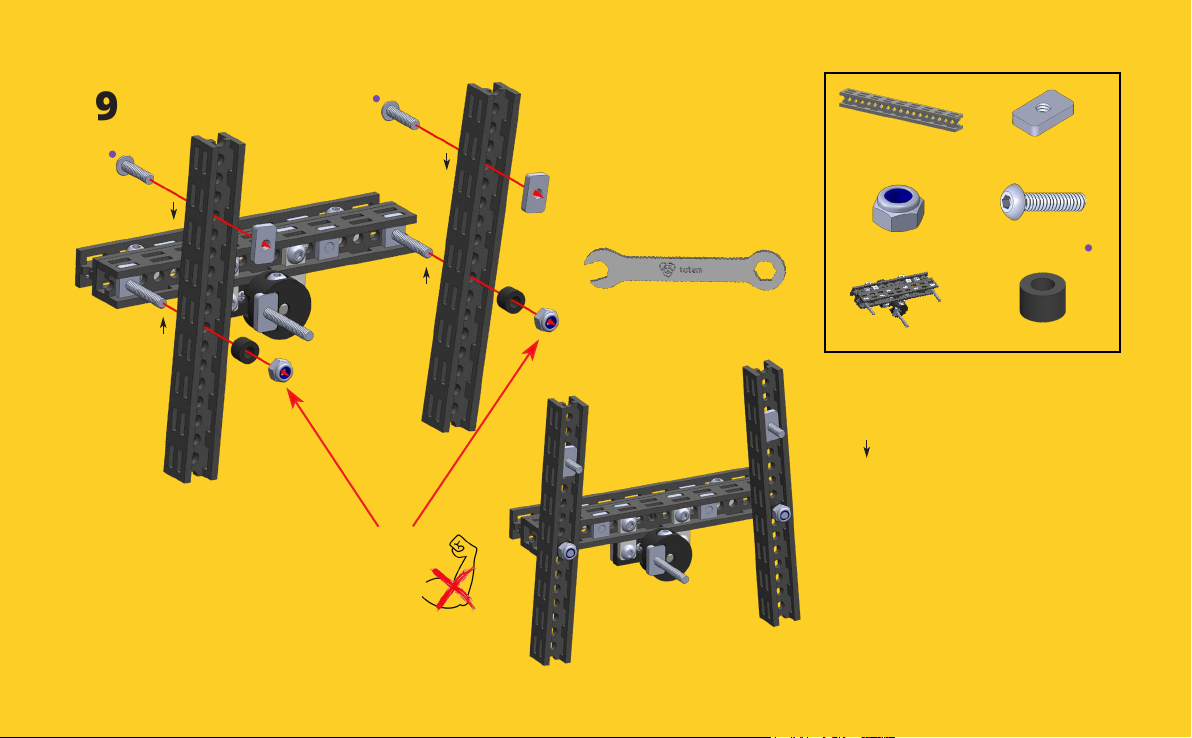

9

#4

#8

Do not over-tighten Lock
Nuts. Legs have to move

freely, but not to wobble.

#8

#4

4x Beam 90 mm 4x Nut M3 6x10

Use Totem Wrench
for Lock Nuts.

4x Lock Nut M3 4x Bolt M3x12

2x Step 8 Assembly 4x Nylon Spacer

# indicates number

of slot.

indicates counting
direction.

Repeat this step twice.

2x

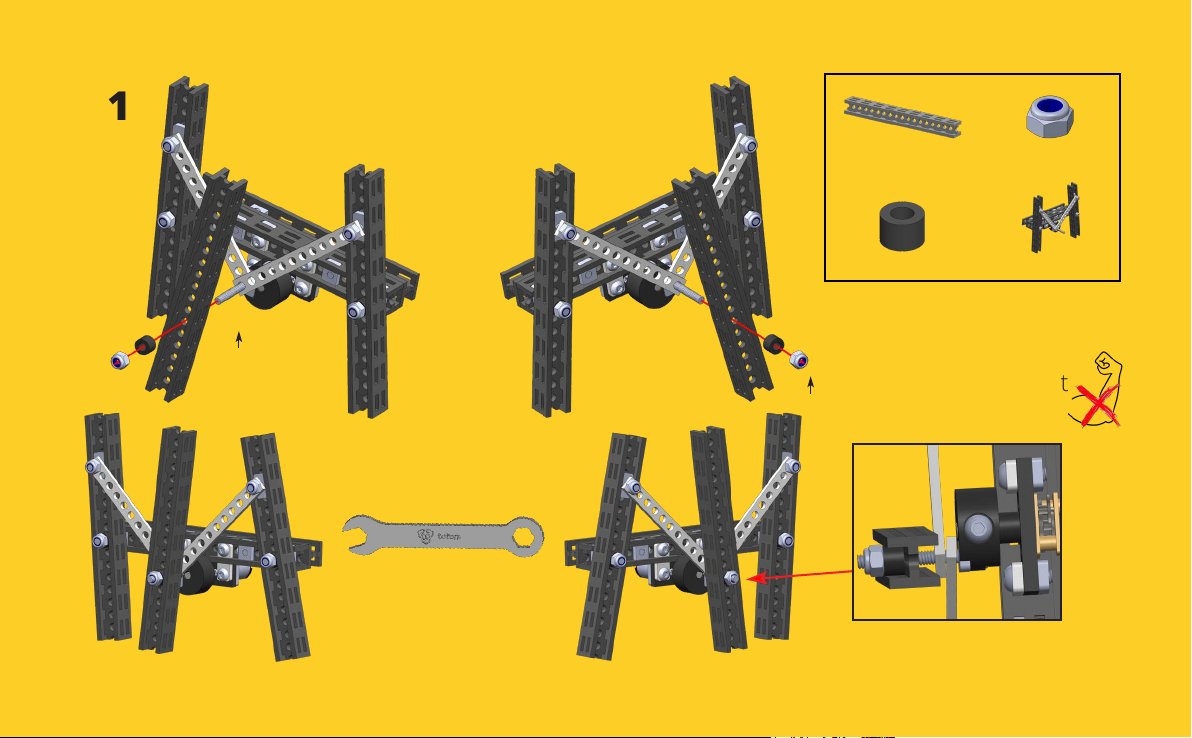

10

Mind Brackets’ order.

4x Strip Bracket 4x Lock Nut M3

2x Step 9 Assembly

In steps 10, 11, 12, and
13 assembly for each
side is slightly dierent

(mirrored).

Do not over-tighten
Lock Nuts. Brackets

must be slightly loose.

Use Totem Wrench
for Lock Nuts.

11

2x Beam 90 mm 2x Lock Nut M3

2x Nylon Spacer 2x Step 10 Assembly

#6

Use Totem Wrench
for Lock Nuts.

#6

Do not over-tighten
Lock Nut. Beam must

be slightly loose.

12

#6

#4

#4

4x Nut M3 6x10 2x Nylon Spacer

2x Bolt M3x12 2x Bolt M3x16

#6

2x Step 11 Assembly

Nylon Spacers
will be loose
until next step.

13

2x Strip Bracket 4x Lock Nut M3

2x Step 12 Assembly

Do not over-tighten
Lock Nuts. Brackets

must be slightly loose.

Use Totem Wrench
for Lock Nuts.

14

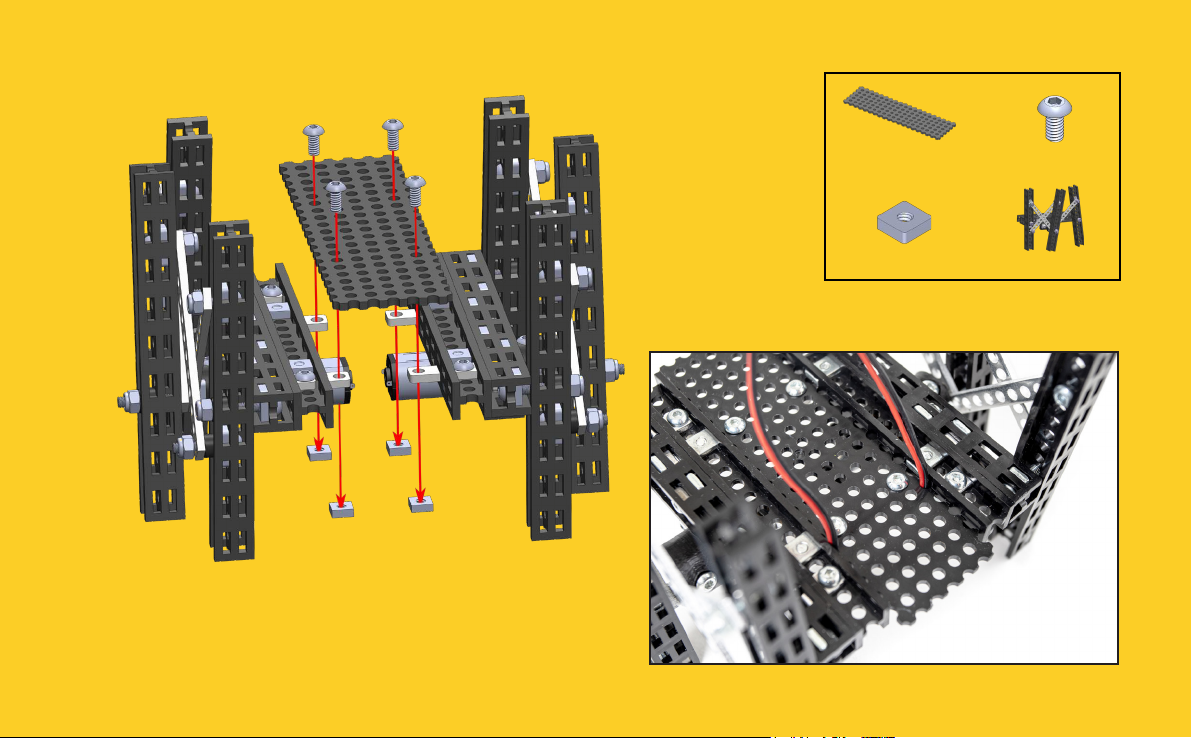

1x Board 30x100 4x Bolt M3x6

4x Nut M3 5.5x5.5 2x Step 13 Assembly

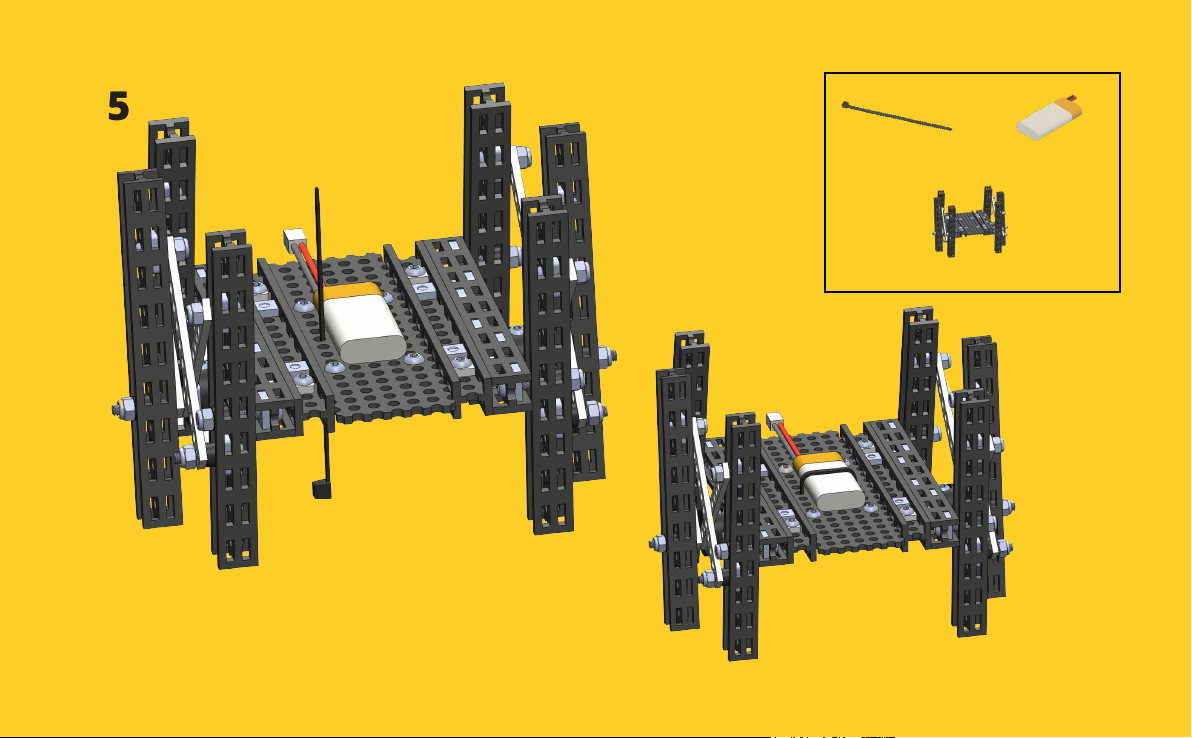

15

1x Zip Tie

2x Step 14 Assembly

1x Rechargeable

Battery

16

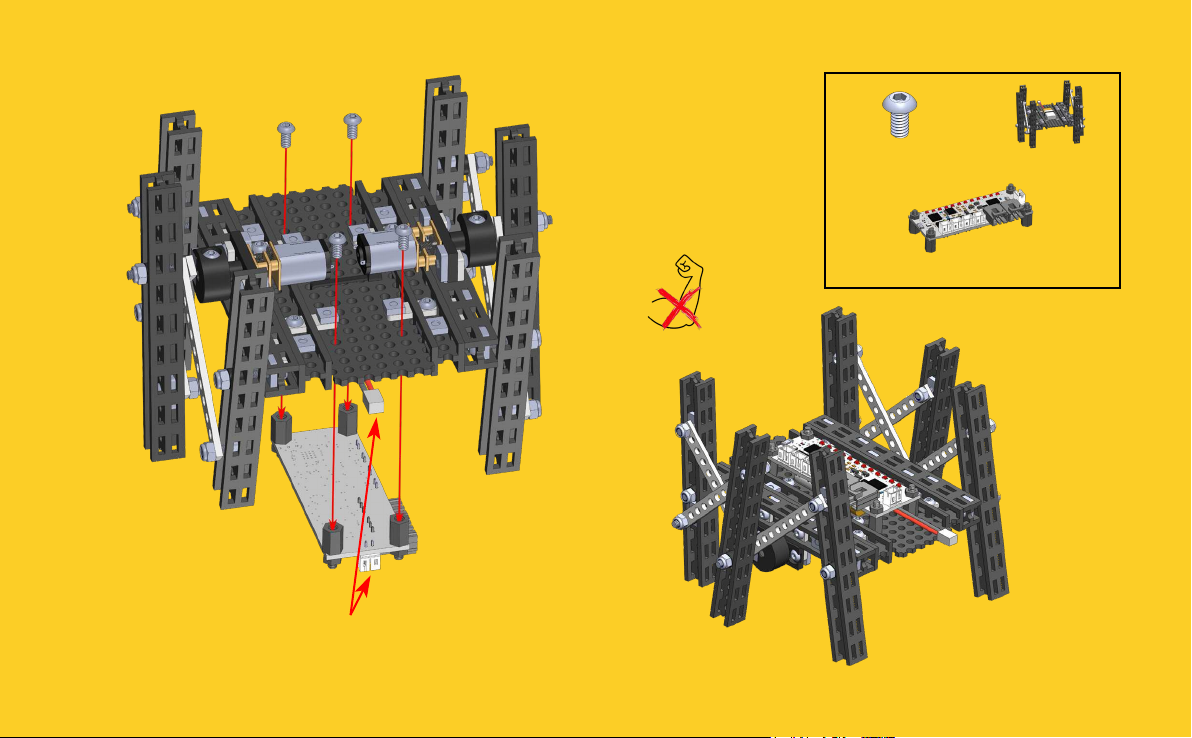

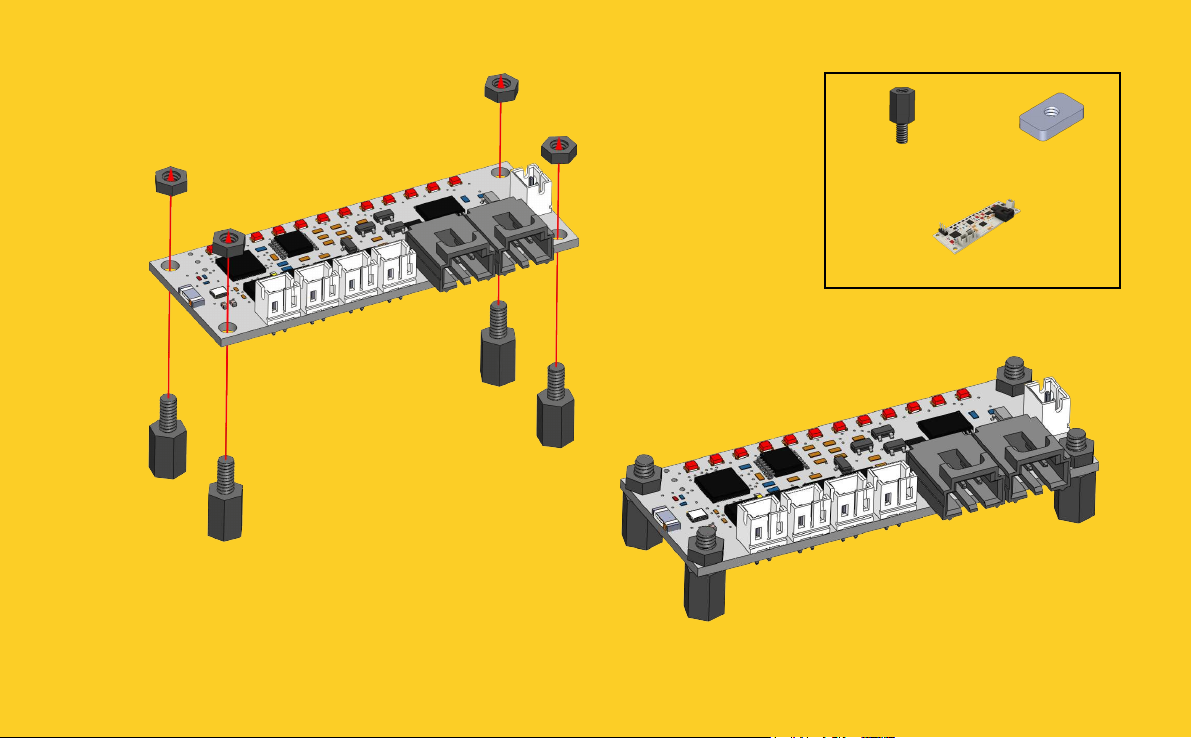

4x Nylon Stando 4x Nylon Nut M3

1x Mini Control Board

Use ngers only to tighten Nylon
Standos and Nylon Nuts.

17

Flip the model

(motors up).

Make sure battery connector is on

the same side as battery cable.

Do not use much
force when tightening

Bolts into Standos.

4x Bolt M3x6 1x Step 15 Assembly

1x Step 16 Assembly

18

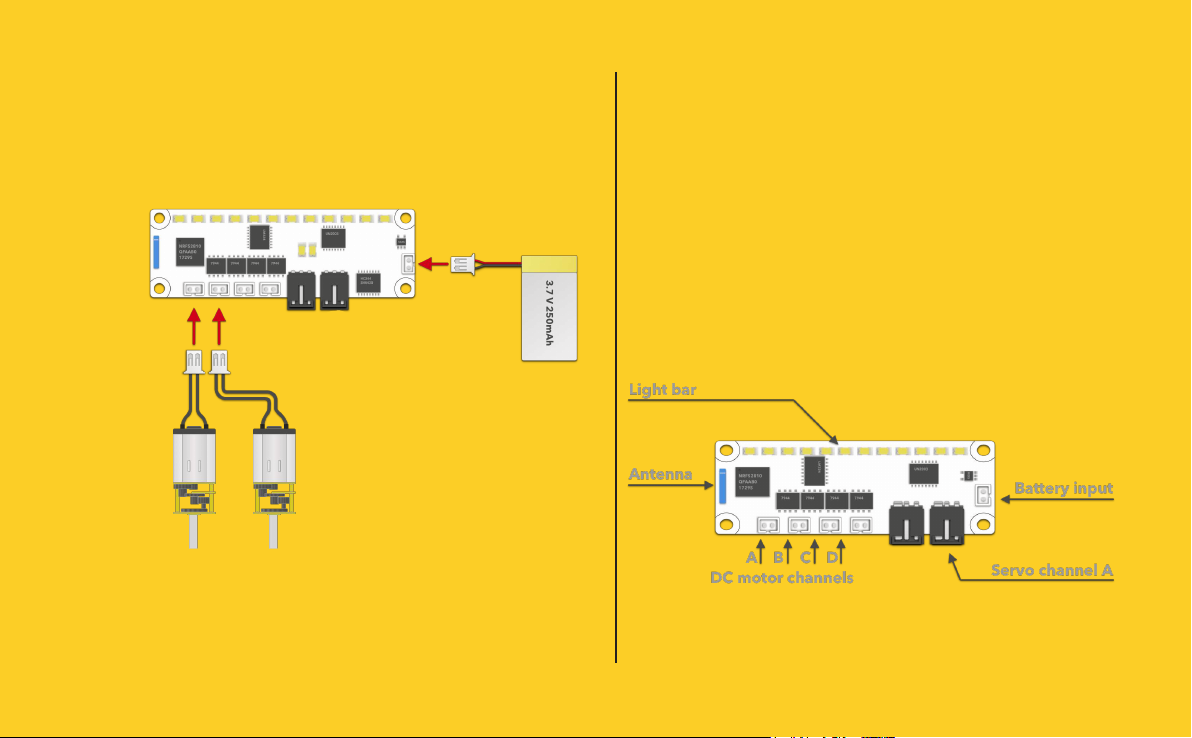

CONNECTING ELECTRONICS

Mini Control Board

Light Bar – to indicate the battery charge level.

Changes lights when successfully connected to the

app.

Up to 4 DC motor channels.

Up to 2 Servo motor channels.

HOW TO CONTROL

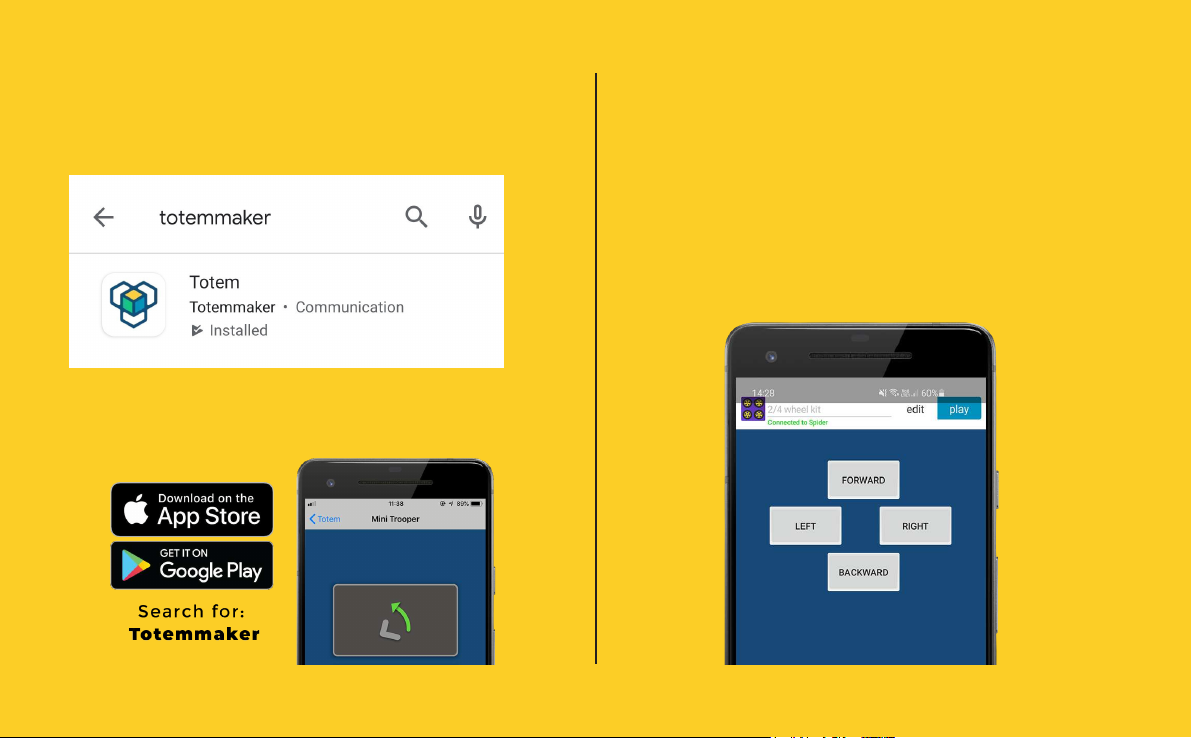

Download Totem app on your smartphone or
tablet via App Store or Google Play.

Follow the step by step guide to connect your Mini

Spider to your device.

To slow down the rotation speed, press

two buttons at the same time. I. e. press
both Forward and Right buttons.

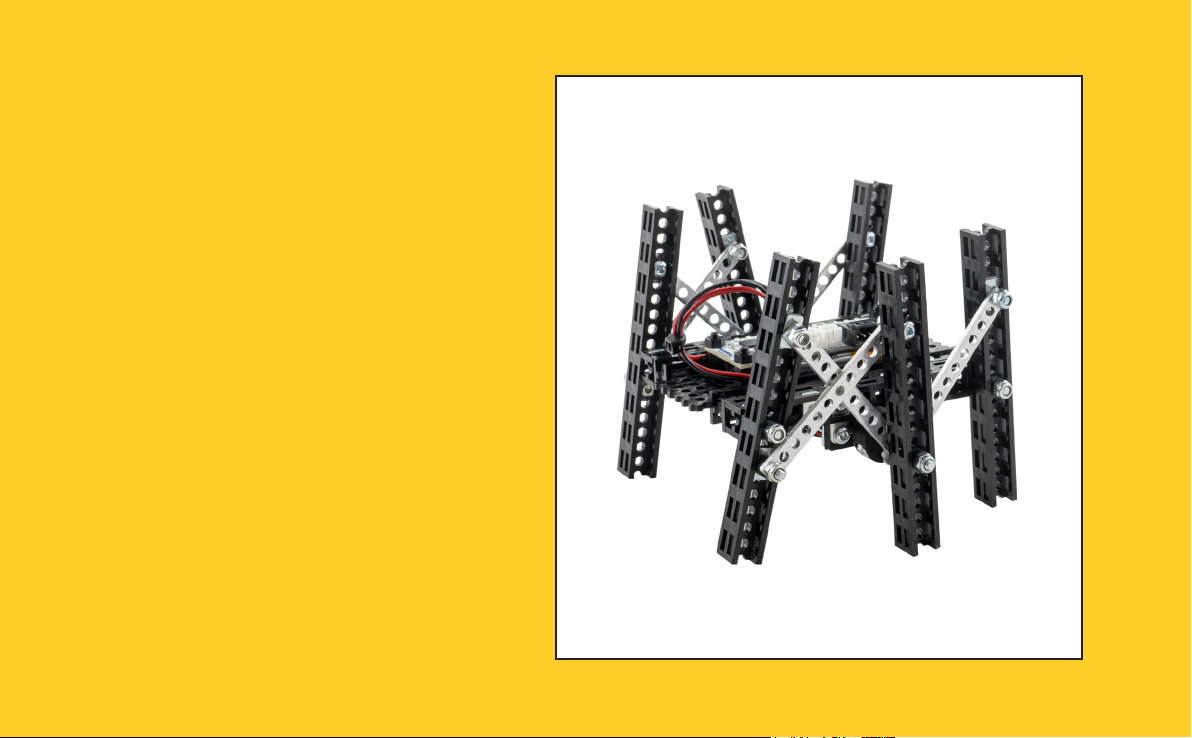

Voilà! Your Mini Spider is now alive and
ready to play.

Mini Spider walks best on smooth
surfaces like your desk top or oor.

PRECAUTIONS:
ELECTRONICALLY OPERATED PRODUCT

Do not give this product to children aged 8 or below. As with all electronic products, precautions should be observed during handling and use to prevent electric
chock.

Adult supervision required.

Note to adults: to ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child.

SAFETY WARNINGS:

• Do not pick up toy while in motion.

• Keep ngers, hair, and loose clothing away from moving mechanism, to avoid the injury.

• Adult supervision is required when this toy is being operated.

• If you stopped operating the toy, remember to unplug the battery, to avoid accidental operation.

• If the toy is dirty, please clean it with dry and soft cloth. Do not clean electronics.

• Do not expose the toy to high temperature, high humidity, or direct sunlight.

• Indoor use only. Do not put this product in water to avoid damaging its electronic components.

• The product is made of complex electronic circuit and electronic components, do not disassemble, or modify the circuit board.

BATTERY SAFETY INFORMATION:

• This toy is designed to work with provided 250 mAh 3.7V LiPo battery and charger.

• Rechargeable battery must be charged by adult only.

• Do not leave charging without supervision of adult.

• There is a risk of re and personal injury if battery is punctured, damaged or misused.

• Do not disassemble or damage the battery pack.

• Use only the supplied 250 mAh 3.7V LiPo battery battery. Using any other battery may damage the model.

• Use only the included USB charging cable to charge the battery.

• Please check on a regular basis the wire, plug, battery, charger, and other electronic parts on the toy. If any damage is found, please stop using the product
immediately.

• Stop charging if battery becomes hot, smells, smokes or gives o strong odour.

• Never throw batteries into re to avoid explosion or leakage.

• Check the batteries on regular basis to avoid leakage.

• Recycle or dispose of batteries according to local laws and guidelines.

BATTERY CHARGING:

Rechargeable battery must be charged by adult only.

• The new battery pack needs to be charged before use.

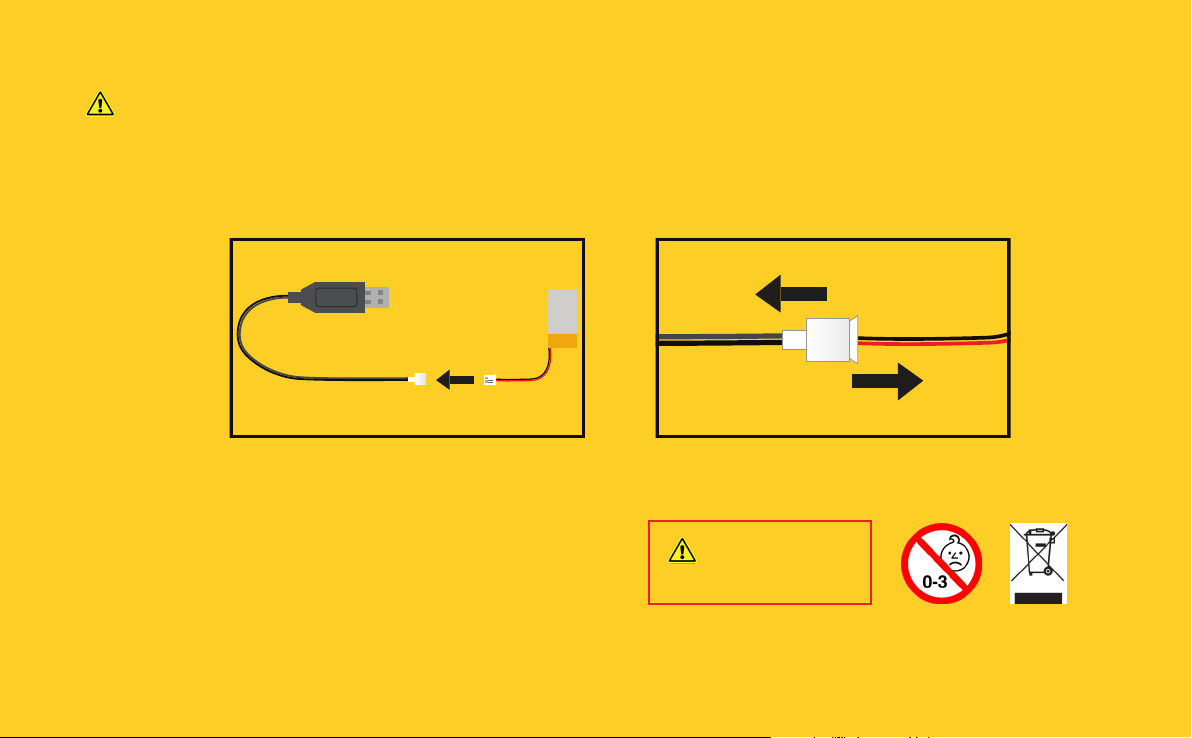

• Connect the USB charging cable to 5V USB power source, such as laptop.

• Connect the battery to the charger

red LED light turns o.

• To disconnect cables, hold the connectors of both cables and pull apart (see picture 2).

• Do not attempt to overcharge the battery.

KEEP THIS INTRUCTION MANUAL AND THE PRODUCT BOX AS IT CONTAIN IMPORTANT INFORMATION FOR FUTURE REFERENCE.

Due to the continuous product improvement, the pictures on this manual may dier slightly from the actual product. Please adhere to actual product instead.

Totem Maker names and logos are registered trademarks. All rights reserved.

www.totemmaker.net
