Totem Lucas Robot Assembly Guide

v.1.5

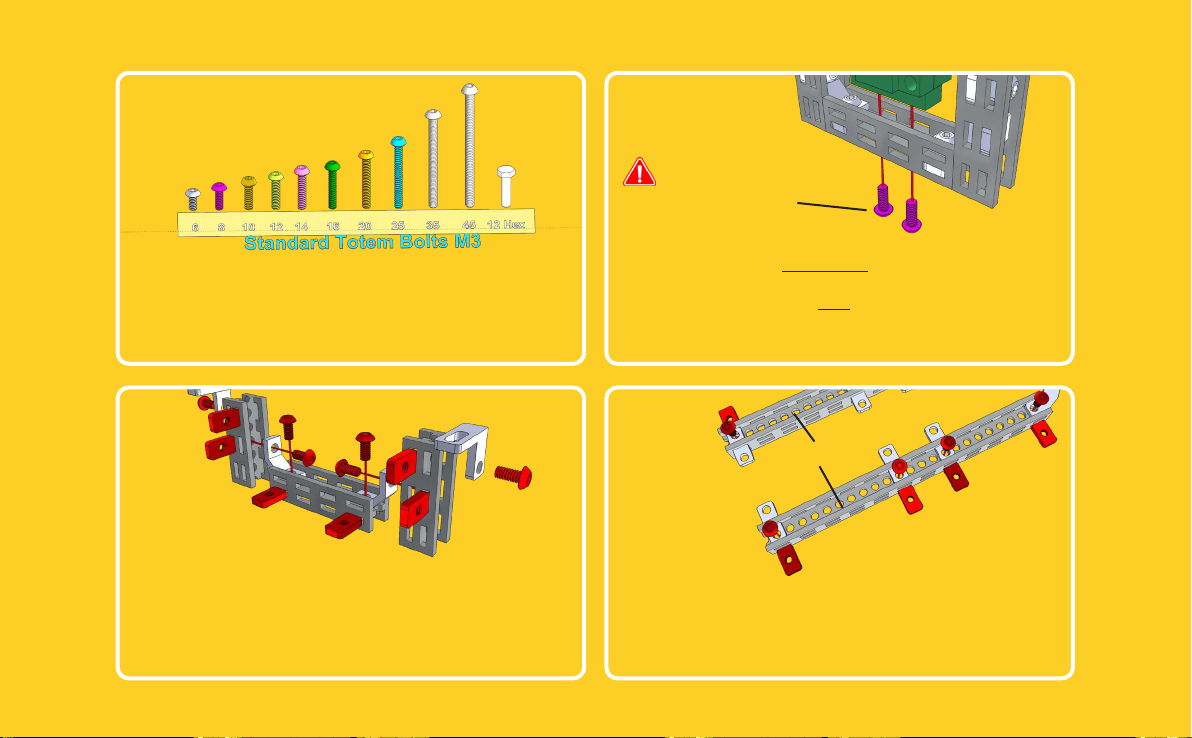

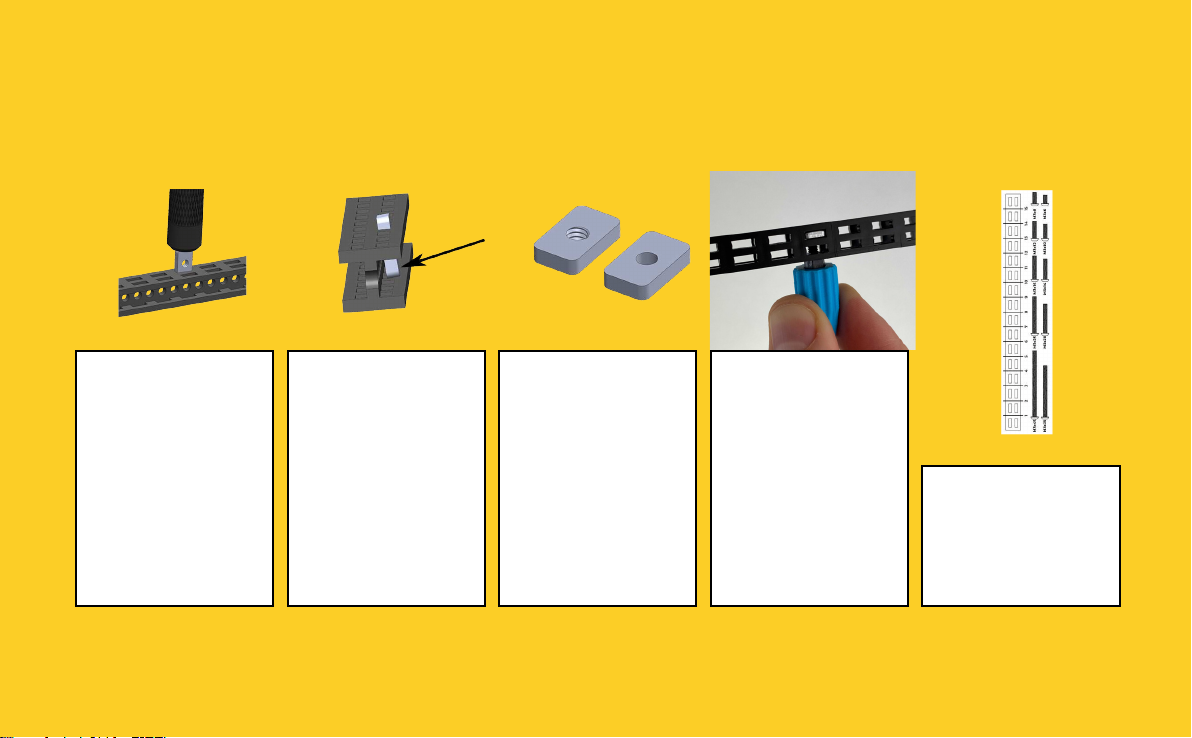

STARTING TIPS

Inserting nuts (1) Inserting nuts (2) Faulty threads Tightening

standos

It is a good idea to
start every step in­serting nuts into
beams (if the step
requires).
Use the back of the
screwdriver to push
in the nuts.

After entering the

rst slot, nuts tend
to tilt. Use your

thumb to push it

back straight, and

then again use the
screwdriver to in-

sert the nut all the

way in.

For more tips, please visit the link below:

Some of the nuts
are missing threads.
This is a manufac­turing issue and we
are working on it. In

the mean time, we

add few extra nuts.

We apologize for

the inconvenience.

Use the Totem
Wrench Socket

(Blue) to insert Ny­lon Standos used
to assemble the
electronics boards.

https://totemmaker.net/blog/totem-mechanics-for-beginners/

Ruler

Use Beam/Bolt
ruler to determine
the length of beams
and bolts.

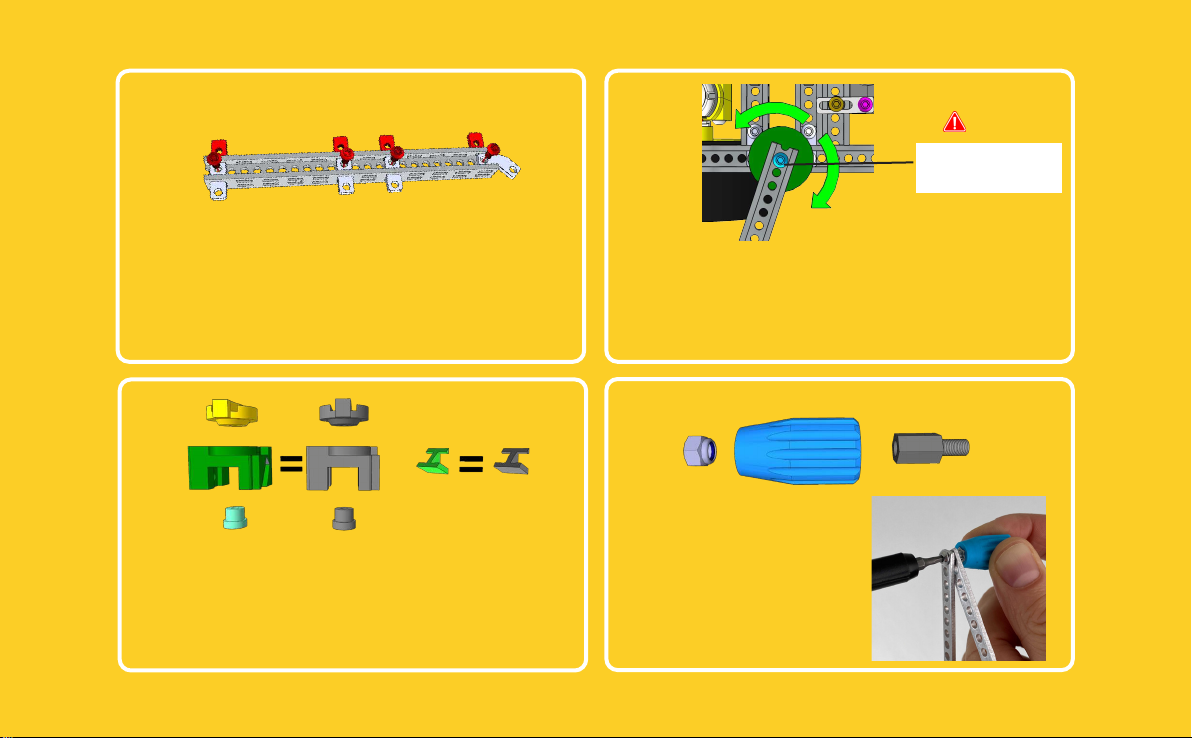

BEFORE YOU START BUILDING:

NOTE: 2x 8mm

Bolt colours codes:

We have put some colours on bolts to
make instructions more clear.

6mm bolts and 6x10mm nuts:

When starting on a building step, the 6mm bolts
and 6x10 nuts are coloured RED. It makes it
easier to see where the new bolts and nuts are
placed.

Notes for bolts other than 6mm:

When bolts that are not 6mm will be used, in
addition to colours, extra notes are given in
the instructions with lengths in mm.

12cm

I-beams lengths.

When a new Totem beam is needed in a step,
the length is indicated.

#1

#6 #8

#12

Don’t tighten
link too much.

Positions for nuts with #-symbol.

When it is helpful, the slot-number is indicated
in the Totem beam. Starting from #1 and count­ing slots.

The colour of parts.

The colours of plastic part may vary. Colours are
often changed on parts to make it easier to see
them in the instructions pictures.

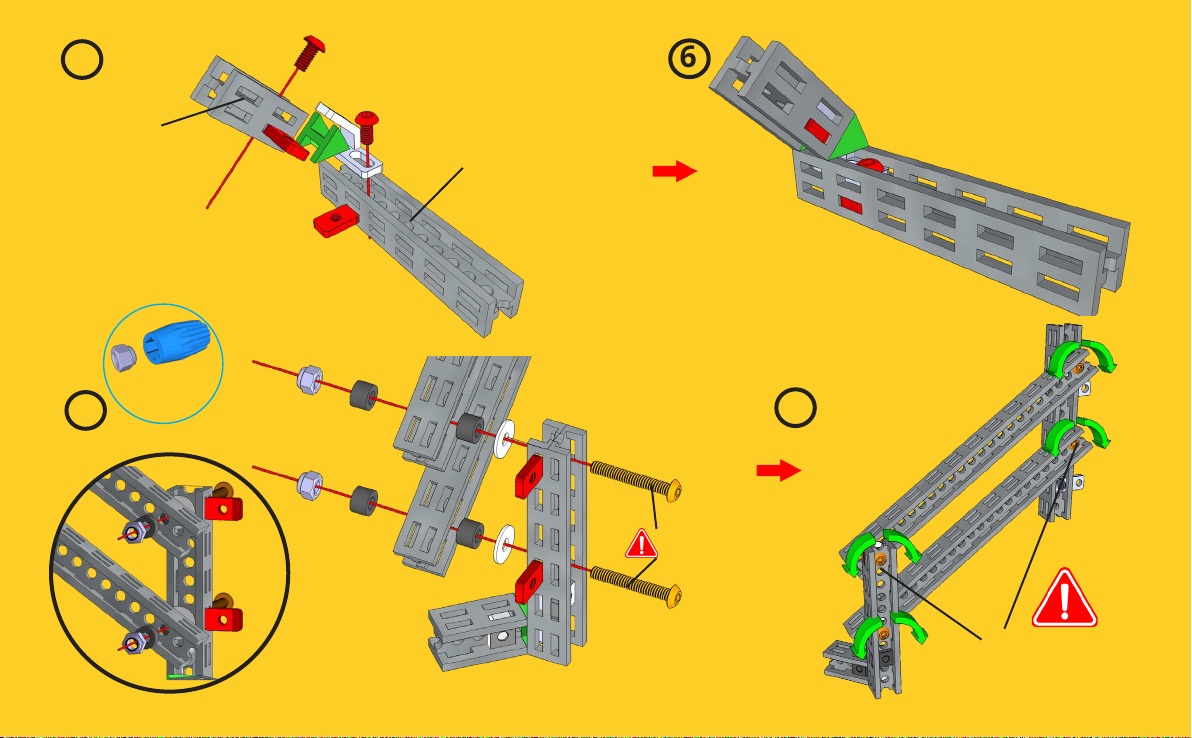

Green Rotating Arrows = rotating action.

When a connection is a rotating hub, you must
not tighten the bolt and nut too much. Test it for a
smooth rotation, but not too wobbly either.

Totem Wrench Socket

Helpful little tool:

Included in the kit is a
small hex-socket used for
fastening Lock Nuts and
Nylon Towers. The pointy
end is for Lock Nuts.

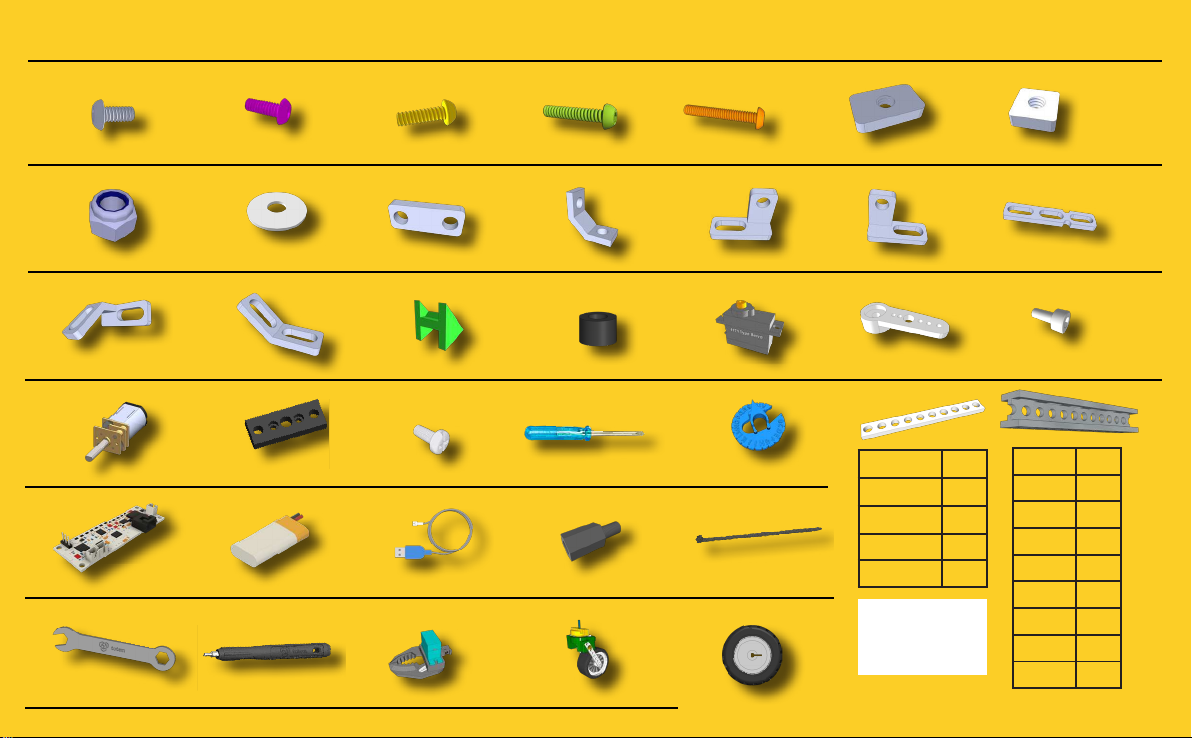

PARTS LIST:

110x

5x

10x

5x

5x

133x

1x

Bolt M3x6

7x

Lock Nut M3

1x

Swan90x45mirror

2x

N20 motor 75:1 6V

1x

X3 Controller Board

1x

5.5mm Totem Wrench

Bolt M3x8

7x

Metal washer M3

9x0.8mm

26x

2-hole 45 degrees

2x

Micro Motor

bracket V.3

1x

Li-Ion 3.7v Battery

1x

Totem Screw Driver

Bolt M3x10

12x

2-hole Simple

27x

Double side ller

4x

Bolt M1.6x3

1x

USB Battery Charger

1x

Gripper

Bolt M3x16

5x

C-Bracket

13x

Spacer Nylon 4mm

1x

Mini Screwdriver

2x

Nylon Stando

M3x8mm

1x

Caster Wheel Kit

Bolt M3x20

1x

L-Twisted

1x

Mini Servo Motor

1x

Servo arm Index

Disc set

3-5x

ZIP Tie

2x

43mm D-shaft Wheel

Nut M3 6x10

1x

L-Twisted mirror

1x

Arm for Mini Servo

Motor

4.0 cm/8H 1x

5.5 cm/11H 2x

6.5 cm/13H 4x

8.0cm/16H 1x

9.0cm/18H 1x

Explanation:
8H = 8 holes
etc.

Nut M3 5,5x5,5

5x

3 hole bracket

1x

Bolt M2.5x8

For servo arm

2 cm 3x

3 cm 28x

5 cm 3x

6 cm 3x

7 cm 2x

8 cm 3x

9 cm 1x

10 cm 2x

12 cm 2x

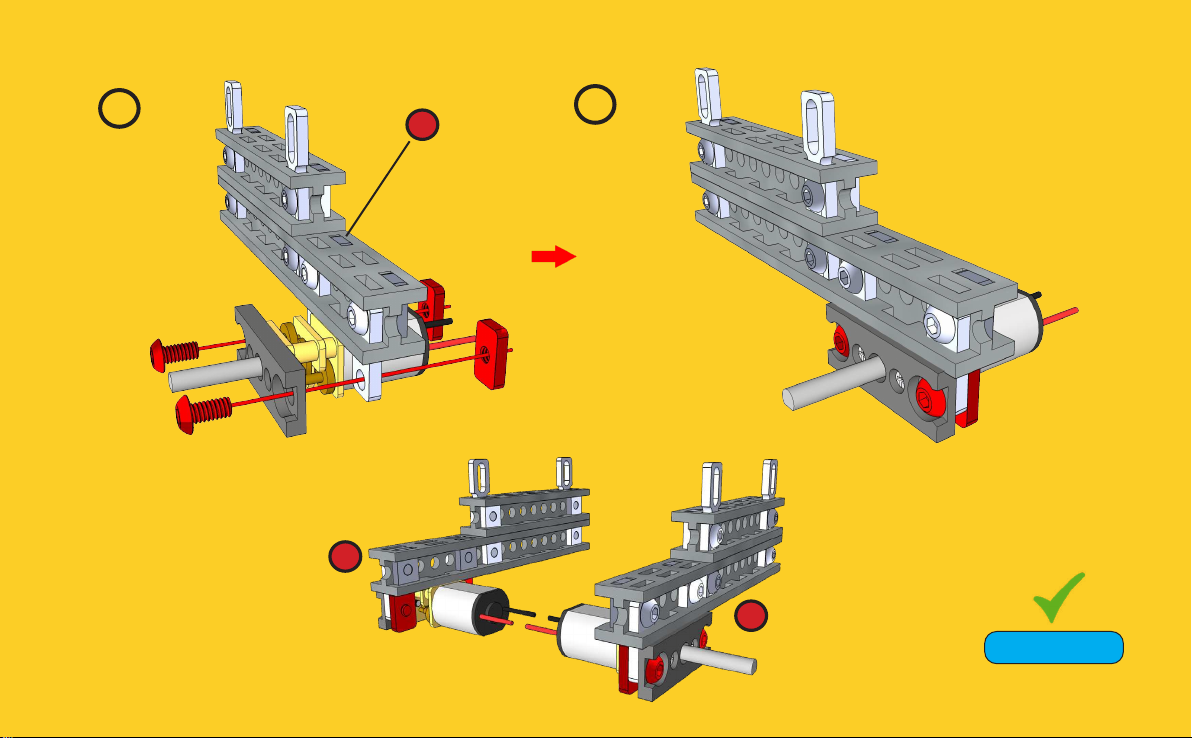

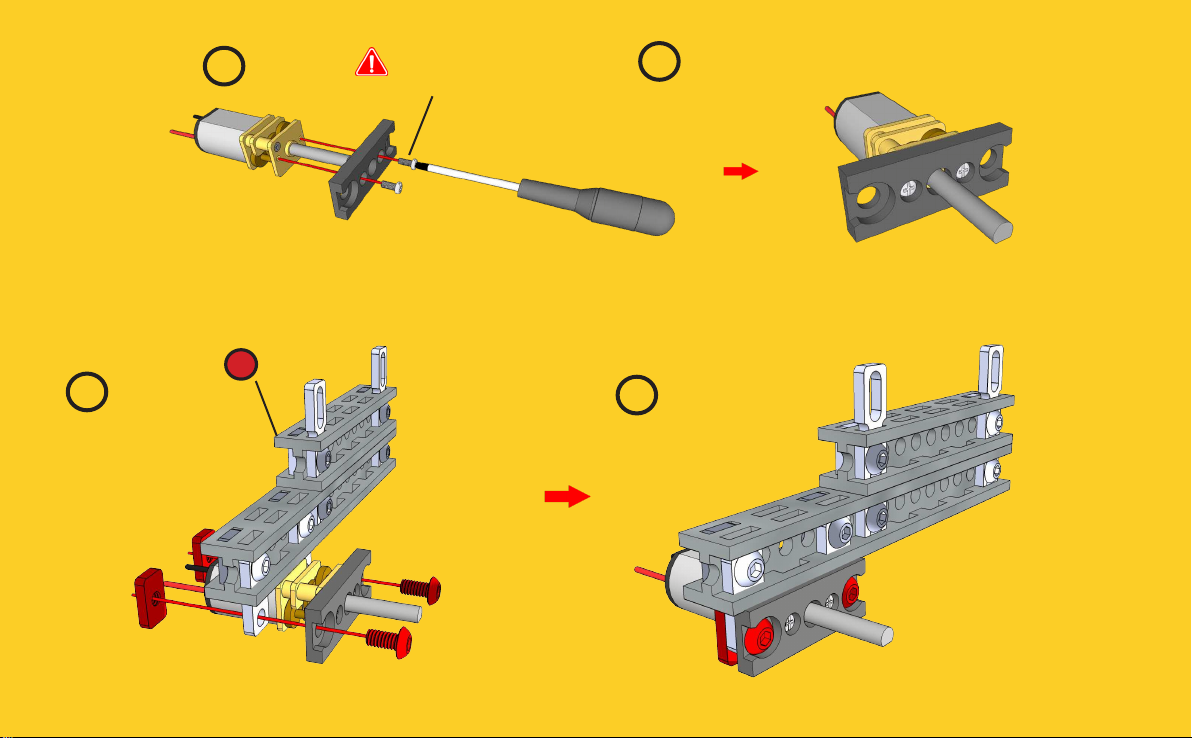

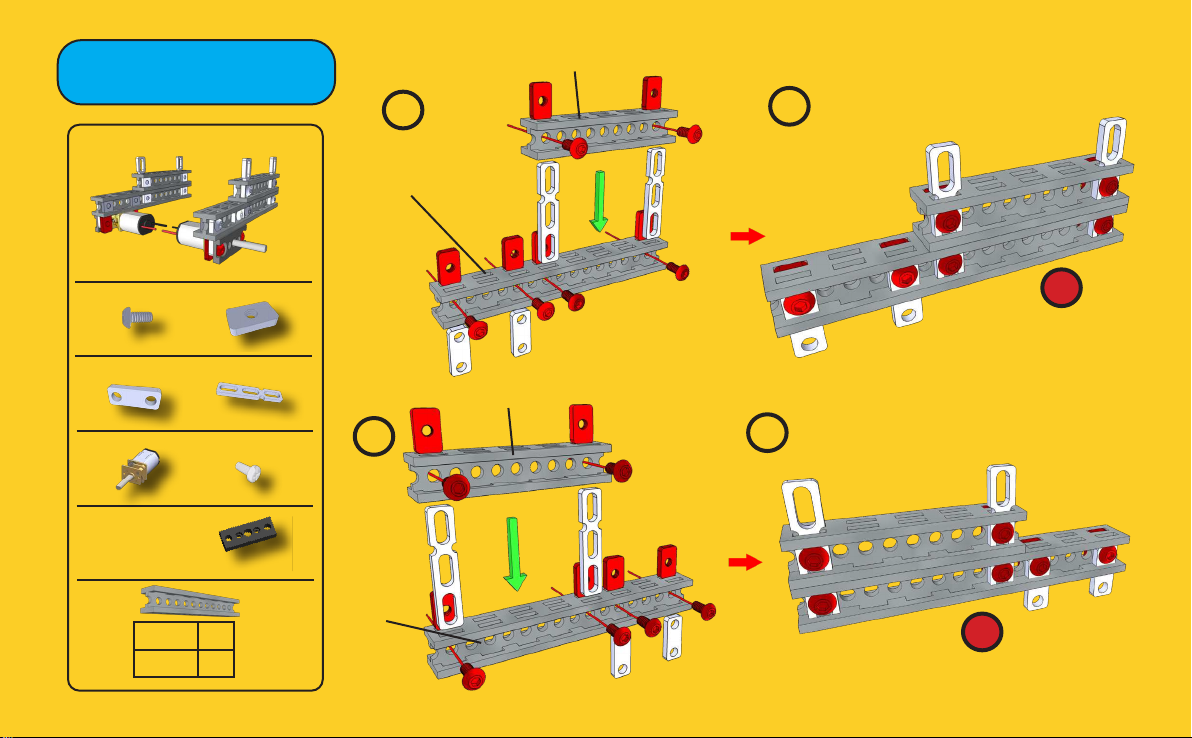

PART 1

1

5 cm

2

16x

Bolt M3x6

4x

2-hole Simple

2x

N20 motor 75:1 6V

5 cm 2x

8 cm 2x

16x

Nut M3 6x10

4x

3 hole bracket

4x

Bolt M1.6x3

2x

Micro Motor

bracket

8 cm

3

8 cm

#1

#7

#4

#3

5 cm

#4

#7

L

4

#1

#3

R

7

5

L

Note: 1.6mm
/3mm

6

2x

8

9

10

R

R

L

PART 1

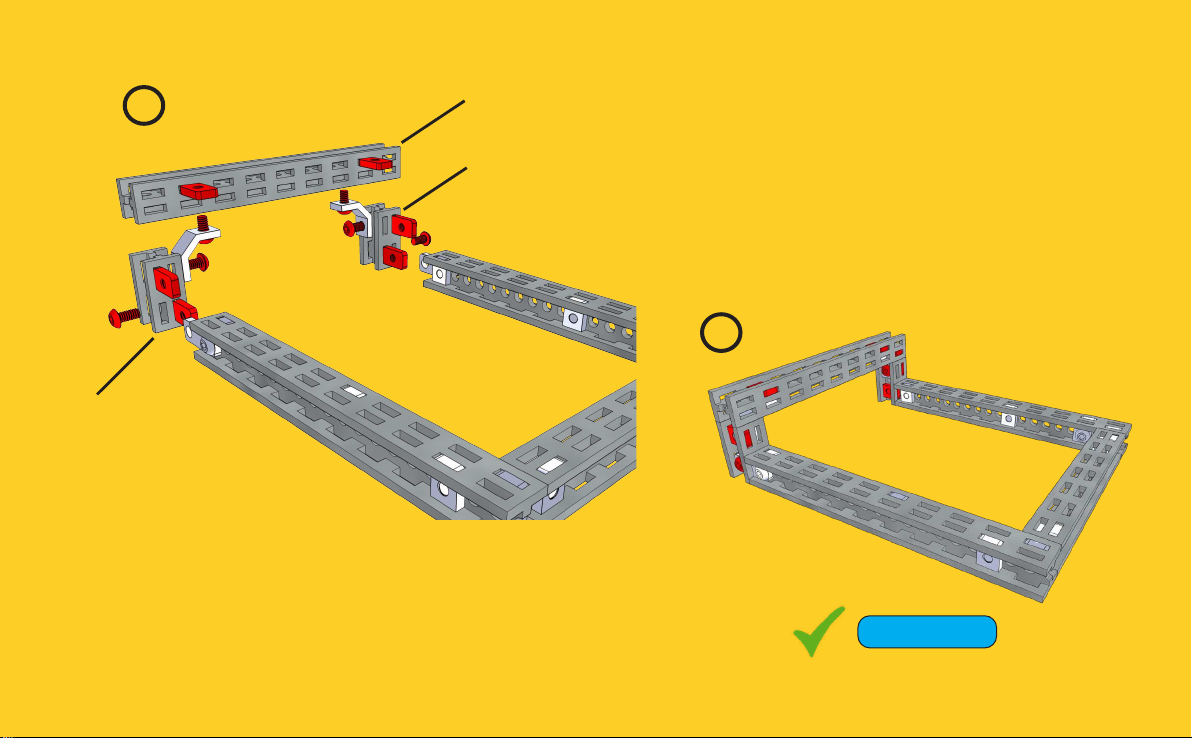

PART 2

10 cm

1

#1

12x

Bolt M3x6

2x

2-hole Simple

2 cm 2x

7 cm 1x

9 cm 1x

10 cm 2x

16x

Nut M3 6x10

4x

C-Bracket

7 cm

#6

10 cm

#9

#10

2

3

2 cm

9 cm

2 cm

4

PART 2

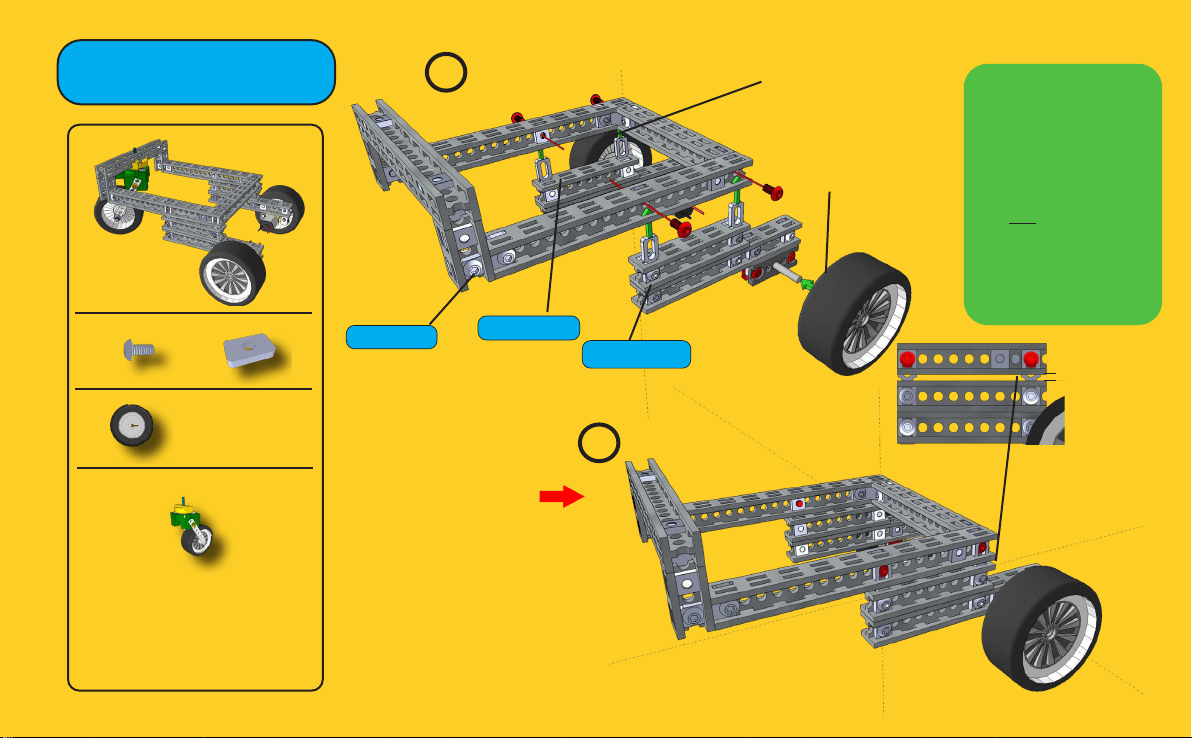

PART 3

4x

Bolt M3x6

2x

1x

Nut M3 6x10

PART2

1

PART1-L

PART1-H

The wheels
are pushed
on to the
axles.

Below we indicate
you should make a
gap between the 2
beams by adjusting
up or down.
It makes the robot

level to the oor.

It is not important to
have it accurate.

Just make it approxi­mately 2-3mm.

Approx.
2mm

43mm D-shaft Wheel

Caster Wheel Kit

2

1x

1x

Caster Wheel Kit

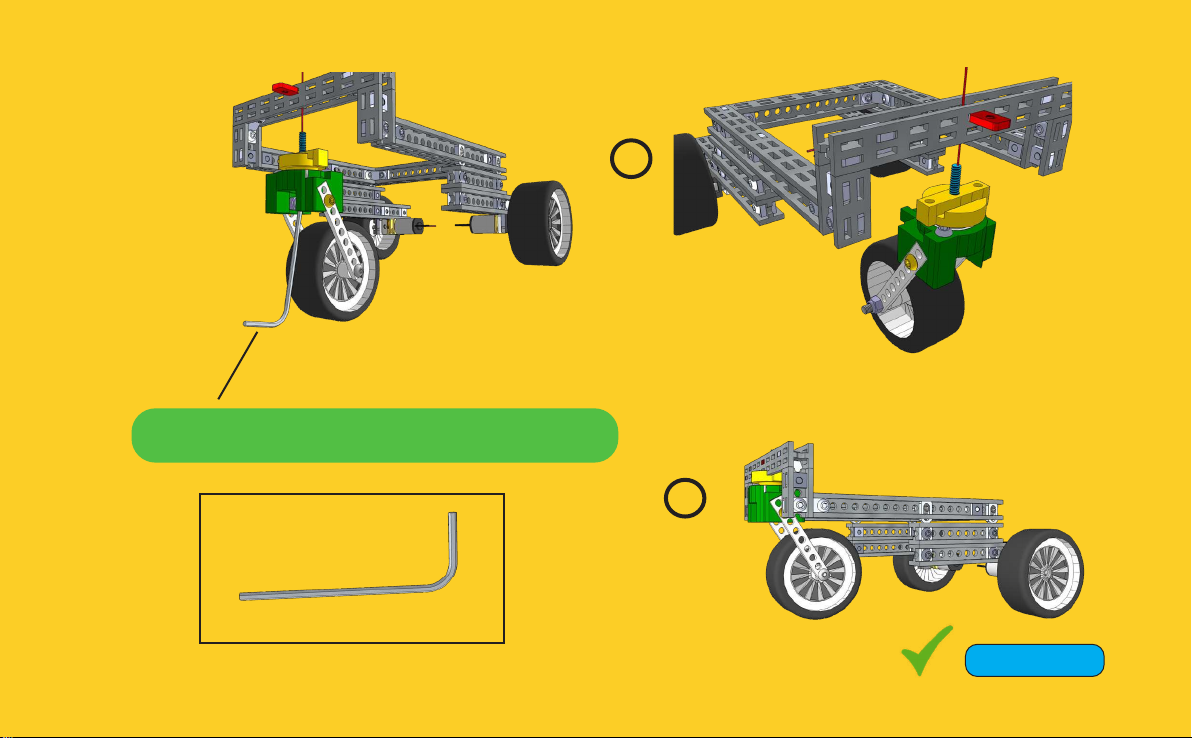

You can skip putting a
beam to the caster wheel
set here.
Just temporary put a
6x10mm nut there to
hold it together during

building the caster set.

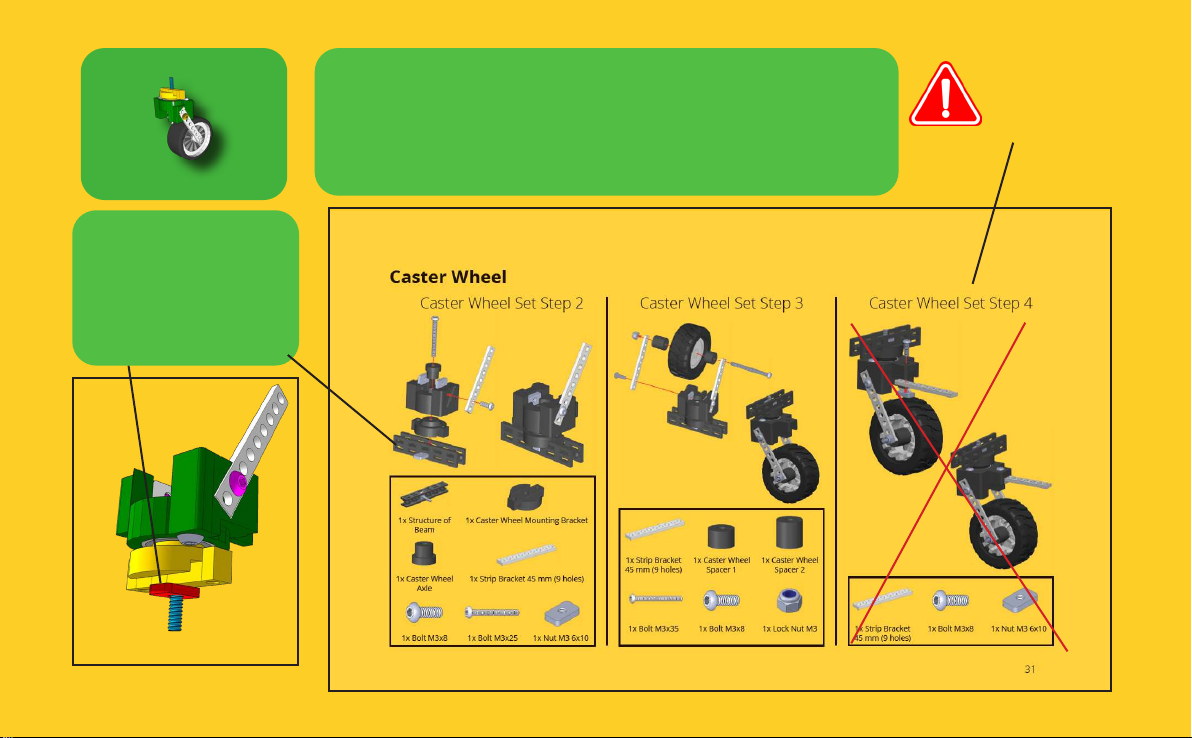

Caster Wheel Kit:

Read in the Robotics Kit Booklet in page 30 and 31 about how to build
a Caster Wheel set.
The colour green and yellow in some instructions are for clarity only,

the actual colour may be dierent.

Skip Step4,
it is not
needed.

Use the included Allen key to easier tighten the bolt.

3

4

PART 3

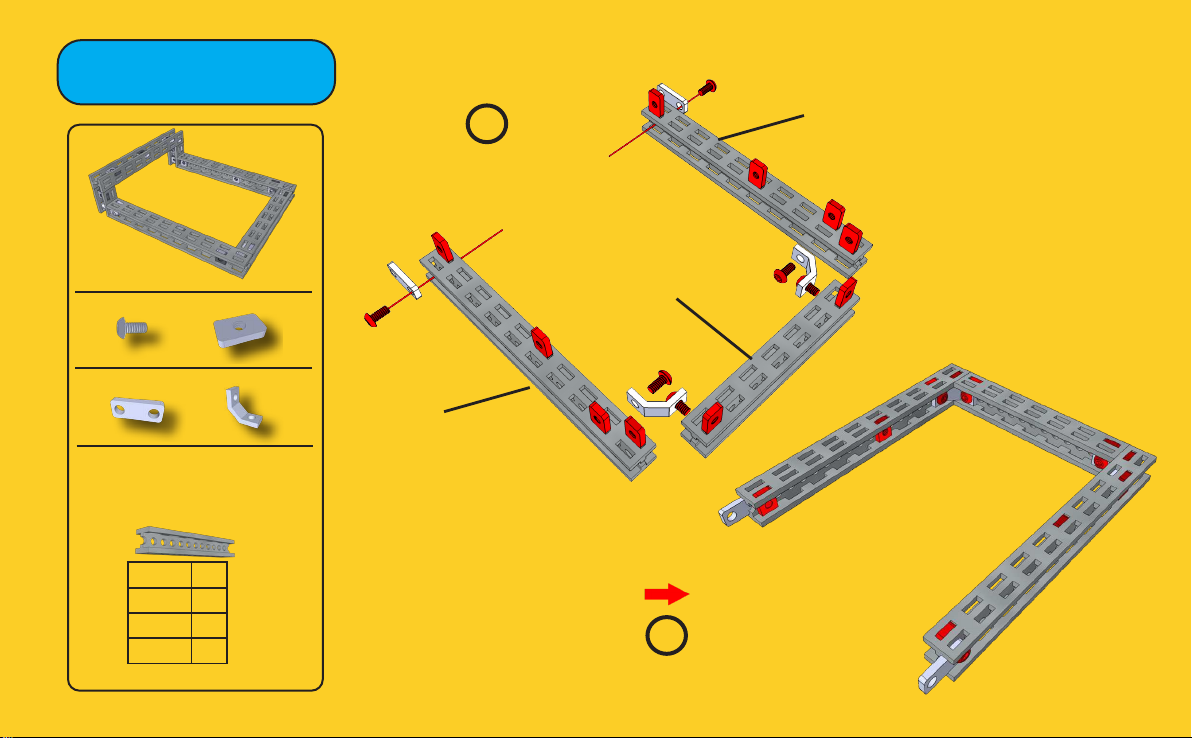

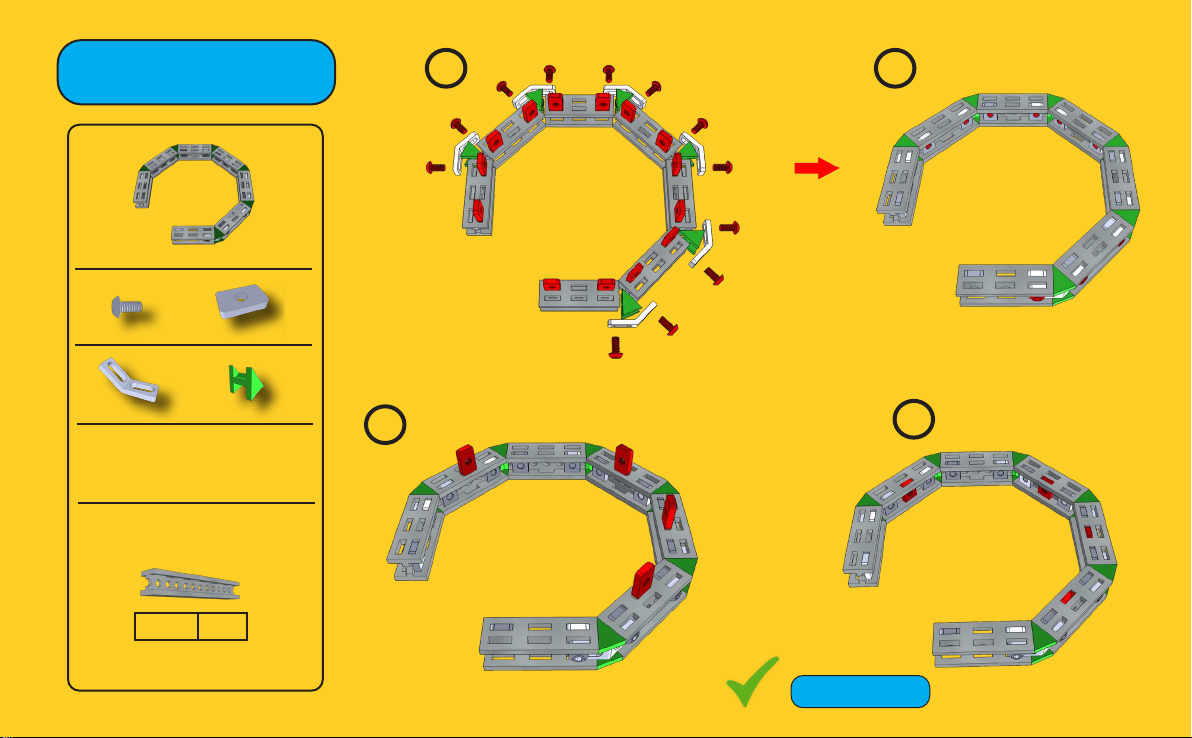

PART 4

1

Note: 8mm

2

10x

Bolt M3x6

8x

2-hole 45 degrees

3 cm 7x

2x

Bolt M3x8

1x

3 hole bracket

12x

Nut M3 6x10

4x

Double side ller

3

ALL: 3 cm

4

PART 4

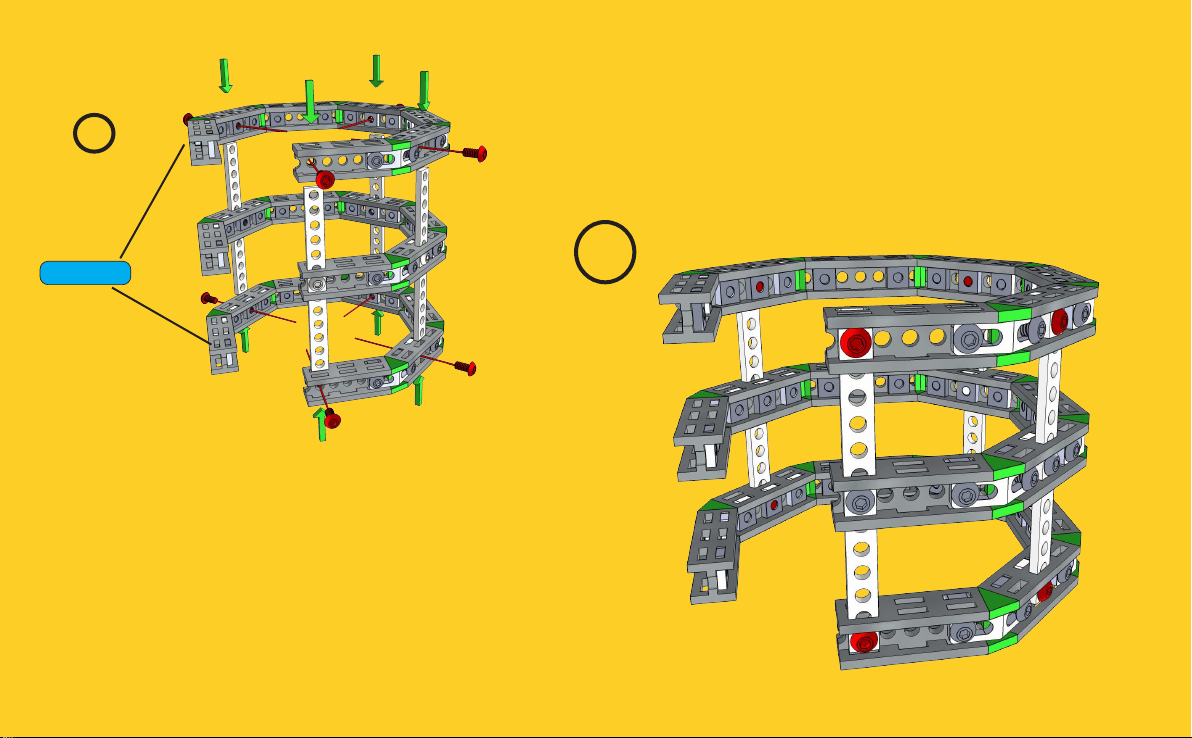

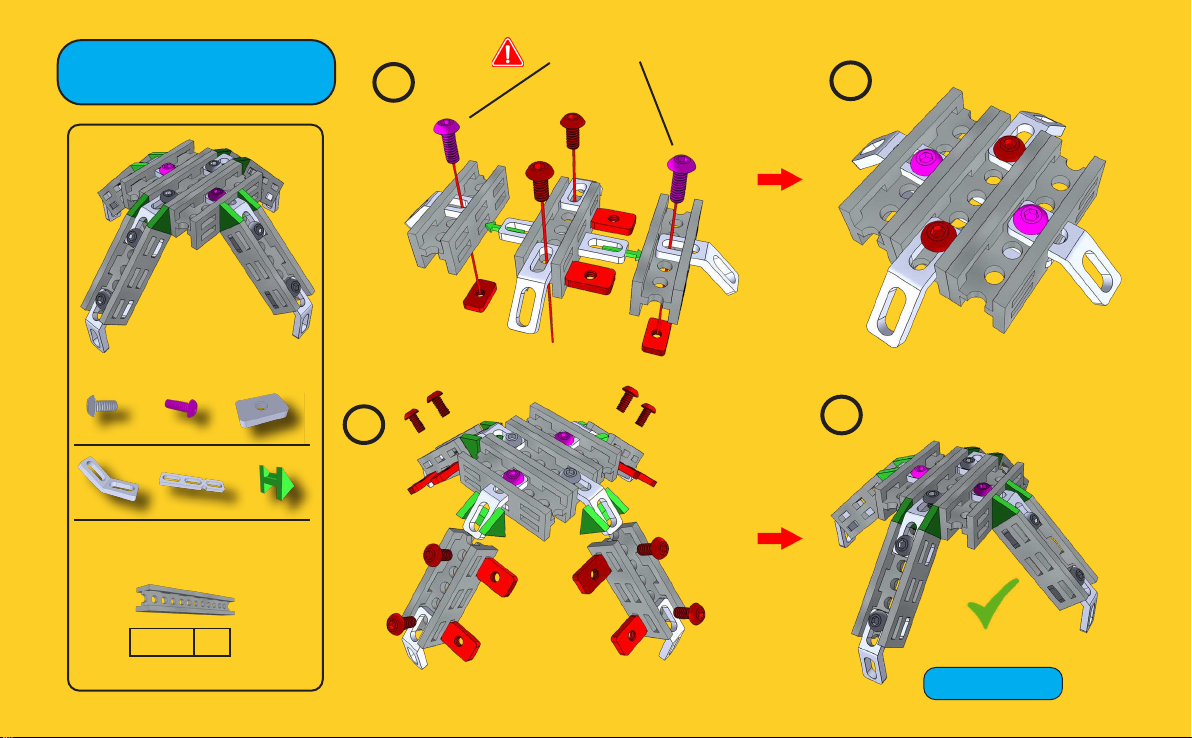

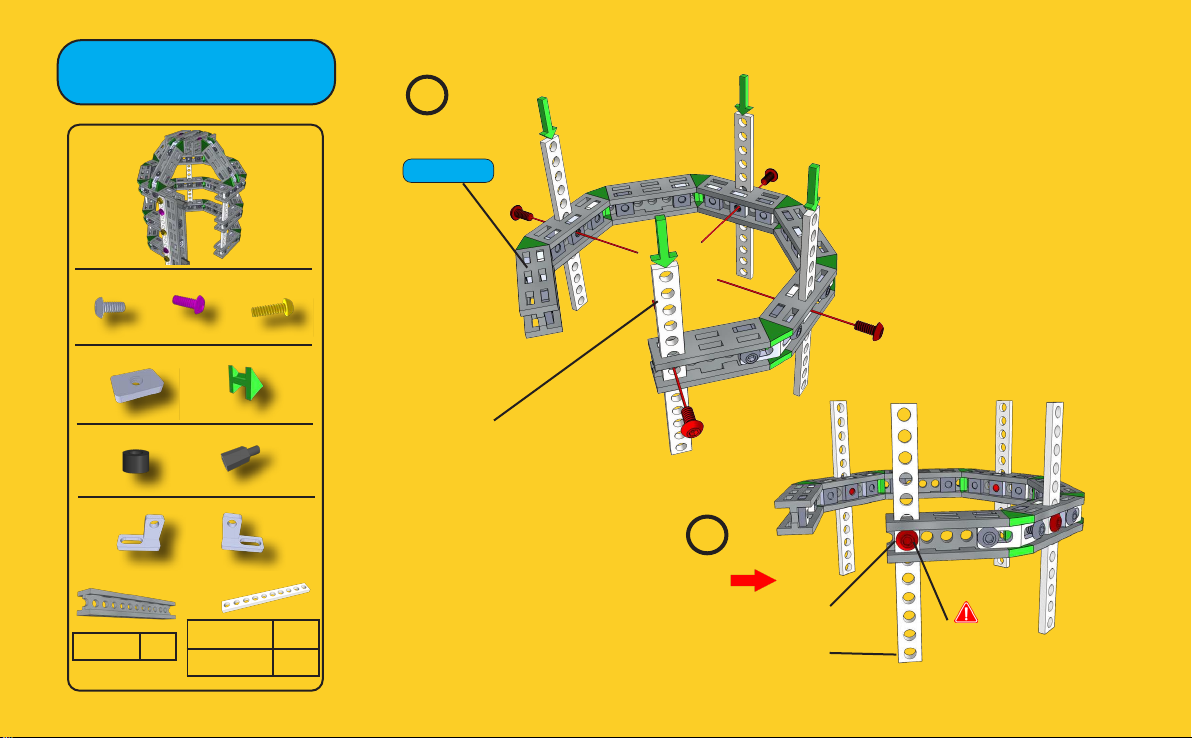

PART 5

3x

36x

54x

1 2

3x

Bolt M3x6

18x

2-hole 45 degrees

3 cm 21x

Nut M3 6x10

18x

Double side ller

3

ALL: 3 cm

4

3x

PART 5

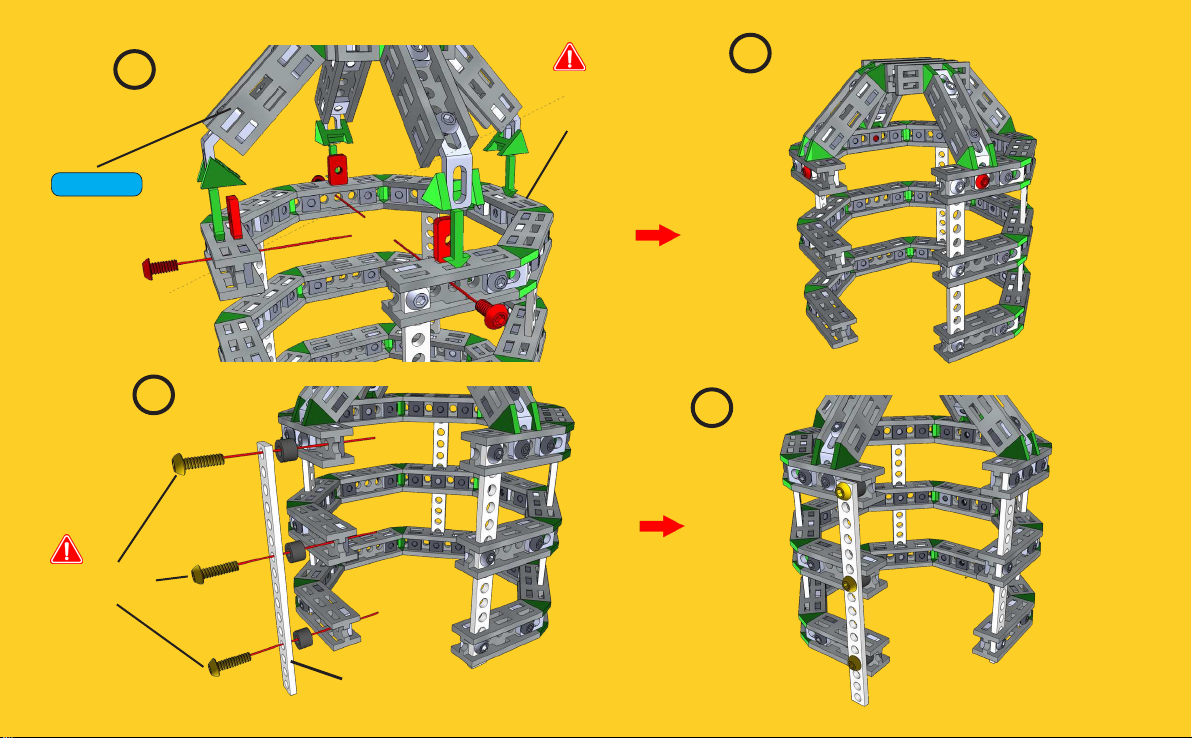

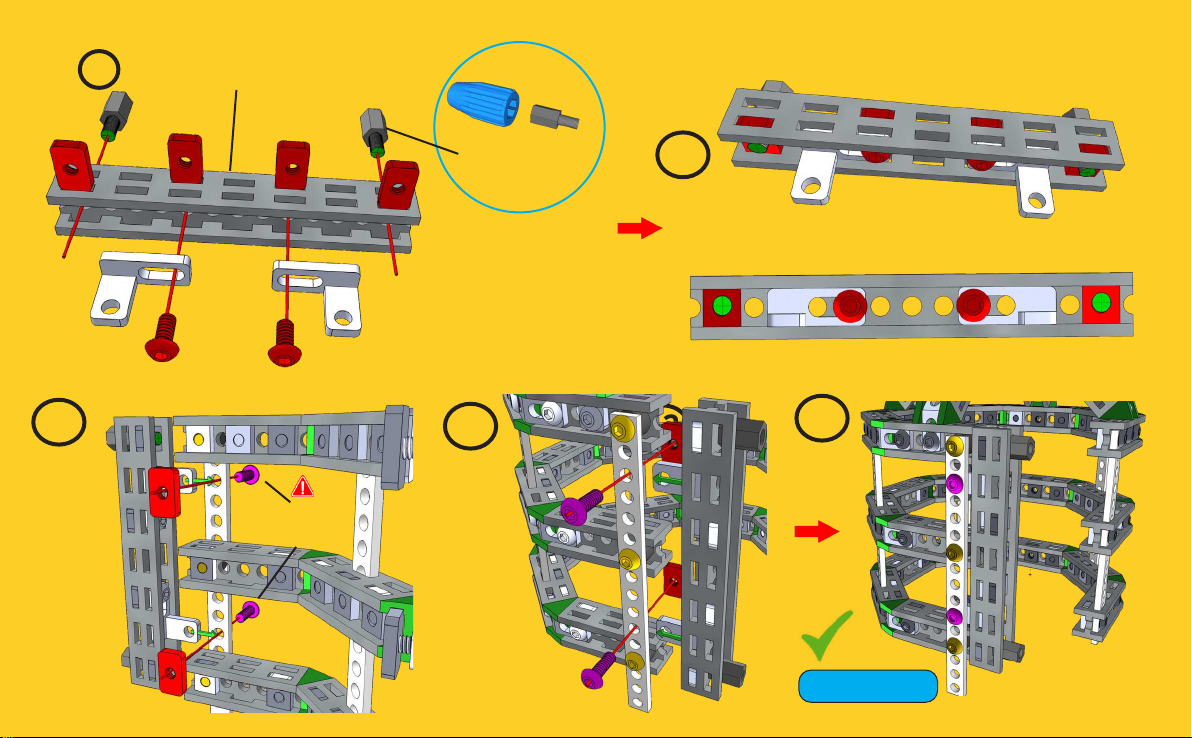

PART 6

1

PART5

17x

Bolt M3x6

9x

Nut M3 6x10

3x

Spacer Nylon 4mm

1x

L-Twisted

7 cm 1x

2x

Bolt M3x8

Double side ller

Nylon Stando

L-Twist mirror

6.5cm/13H 4x

8cm/16H 1x

Bolt M3x10

4x

2x

M3x8mm

1x

3x

4x 65mm/13H

2

#7

#1

Note:
Middle hole in
strip bracket

3

PART5

4

PART4

5

6

Note: No bolt
here yet.

Note: 10mm

7

8

80mm/16H

9

7 cm

11

Note:
8 mm

Use the Totem
Wrench Socket

11’

12

10

12

PART 6

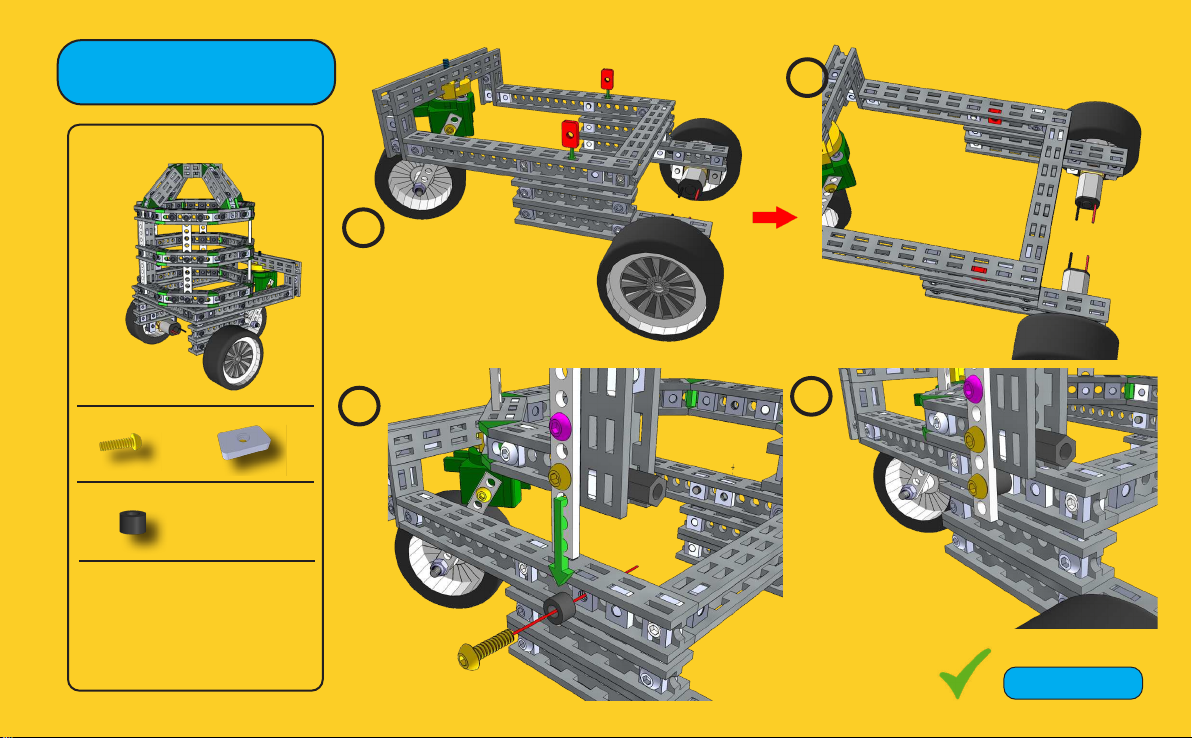

PART 7

2

1

1x

Bolt M3x10

1x

Spacer Nylon 4mm

2x

Nut M3 6x10

3

4

PART 7

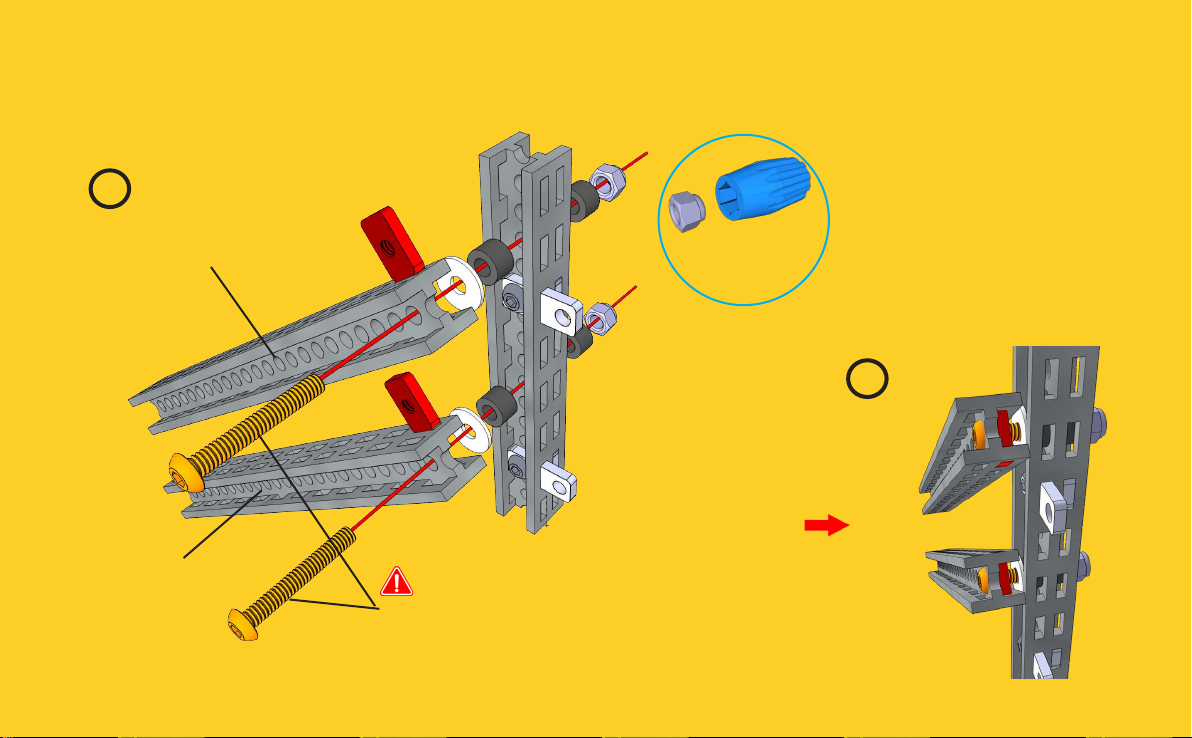

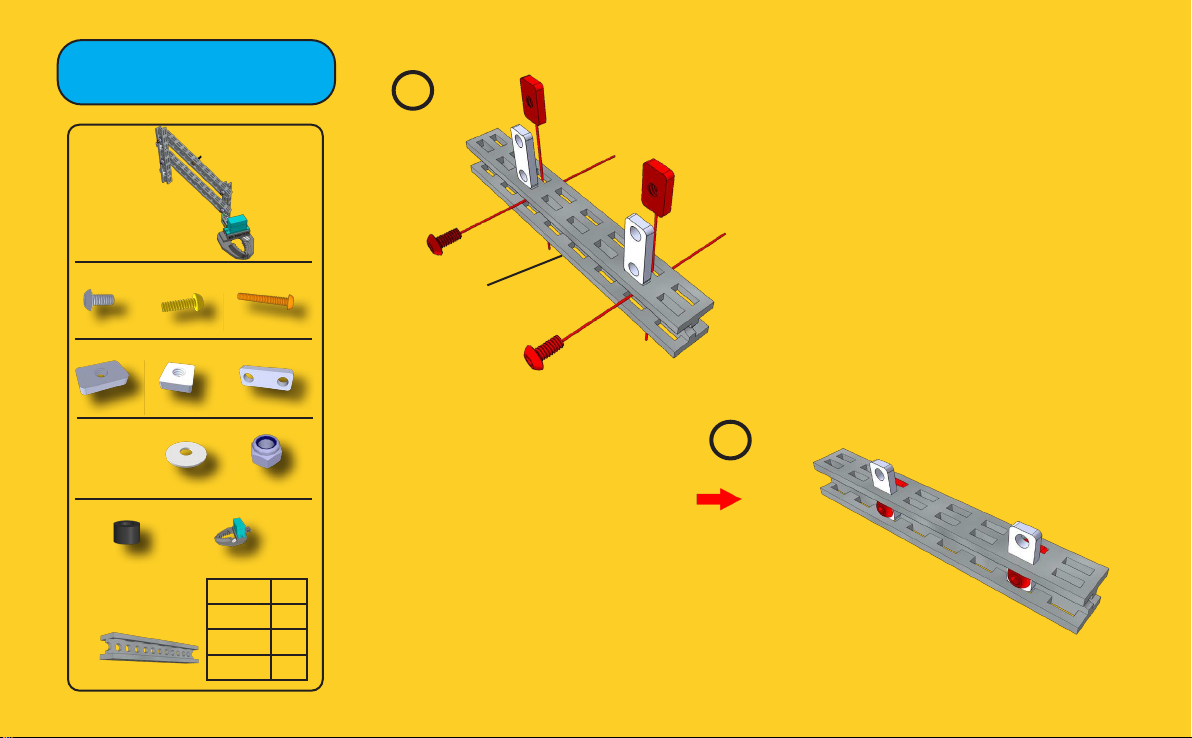

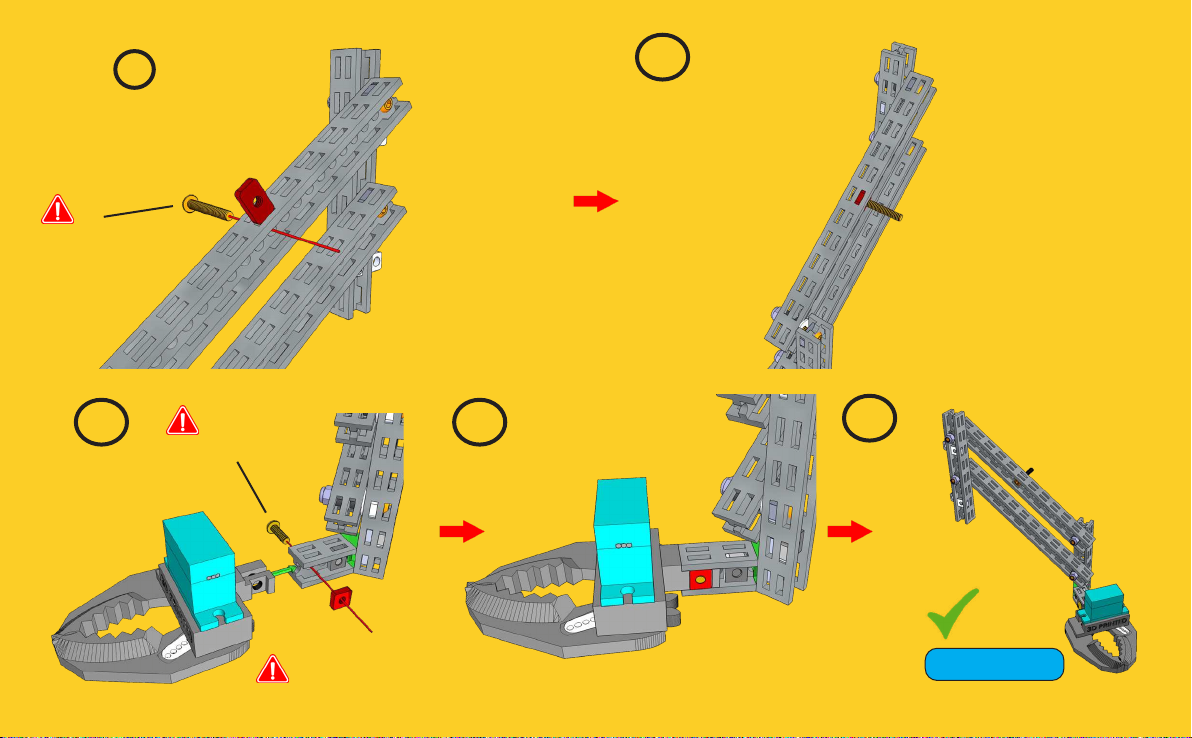

PART 8

1

#3

4x

Bolt M3x6

9x

Nut M3 6x10

8x

Spacer Nylon 4mm

1x

Bolt M3x10

1x

Nut M3 5,5x5,5

4x

Metal washer M3

9x0.8mm

5x

Bolt M3x20

2x

2-hole Simple

4x

Lock Nut M3

1x

Gripper

2 cm 1x

6 cm 1x

8 cm 1x

12 cm 2x

8 cm

#7

2

3

12 cm

12 cm

Use the Totem

Wrench Socket

4

Note: 20mm

5

2 cm

7

Use the Totem
Wrench Socket

6

6 cm

#2

8

Note: 20mm

Note:Smooth
rotation.

9

Note: 20mm

10

#1

#6

11 12

Note: 10mm

Note:
Nut M3 5.5x5.5mm

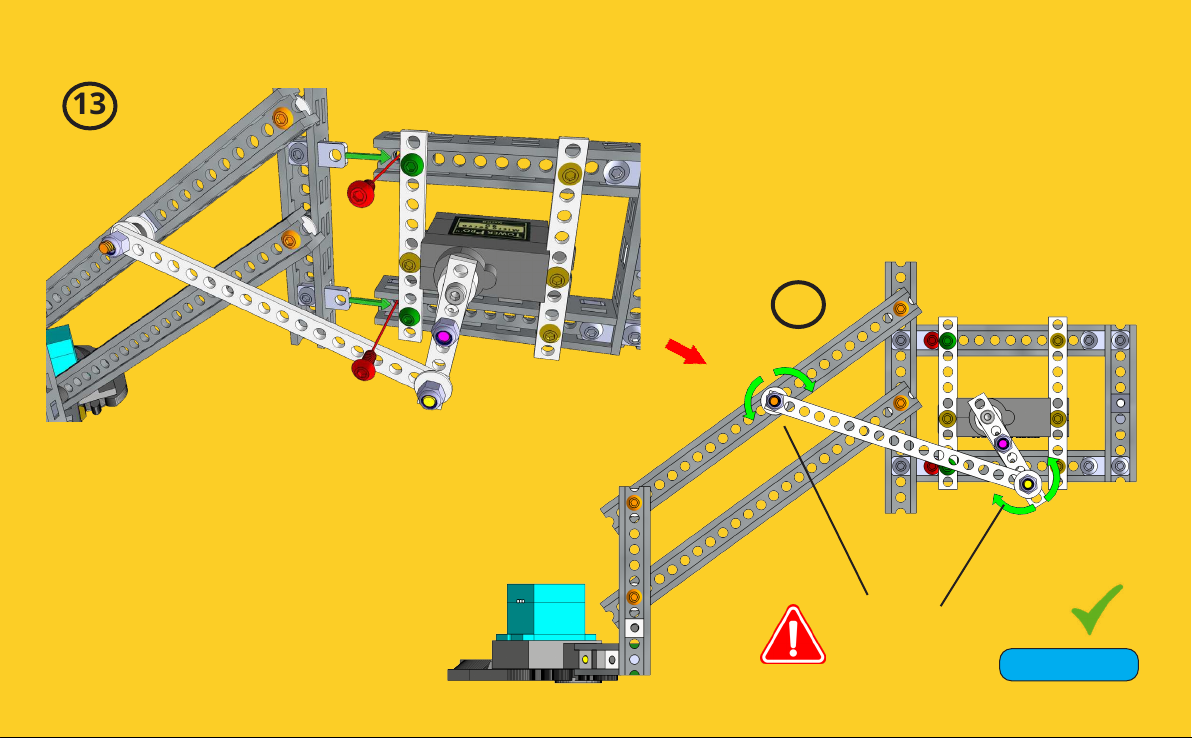

13

PART 8

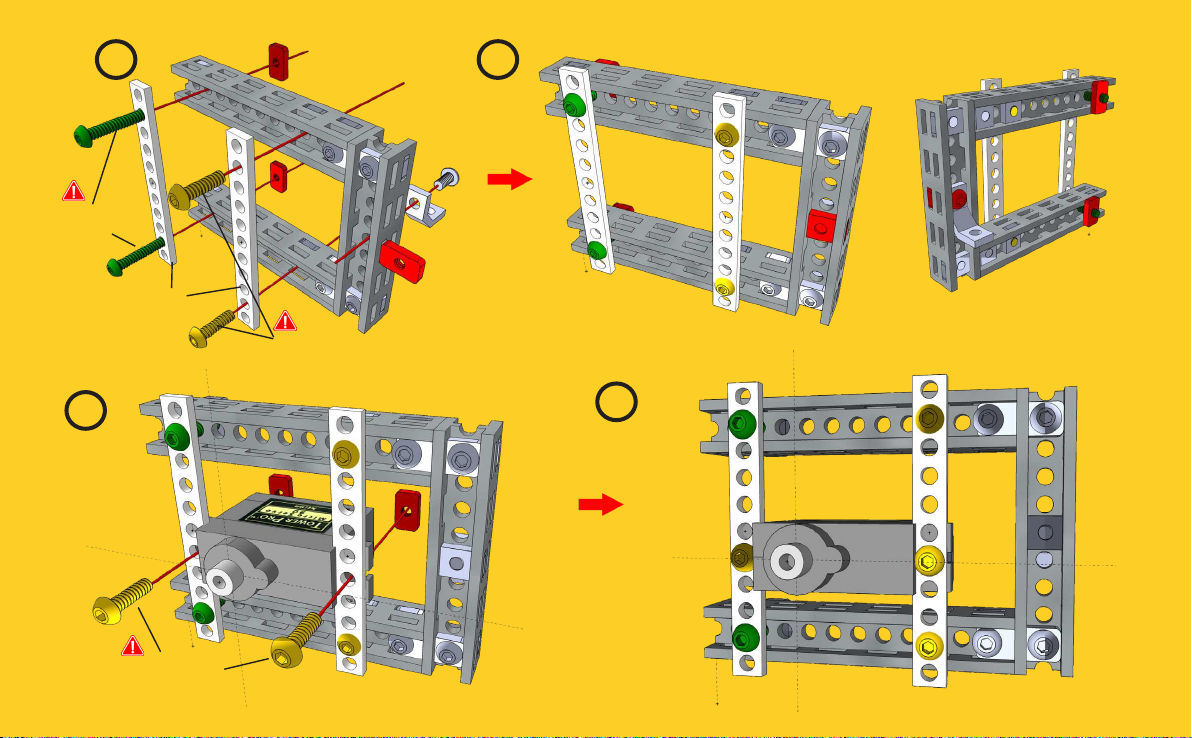

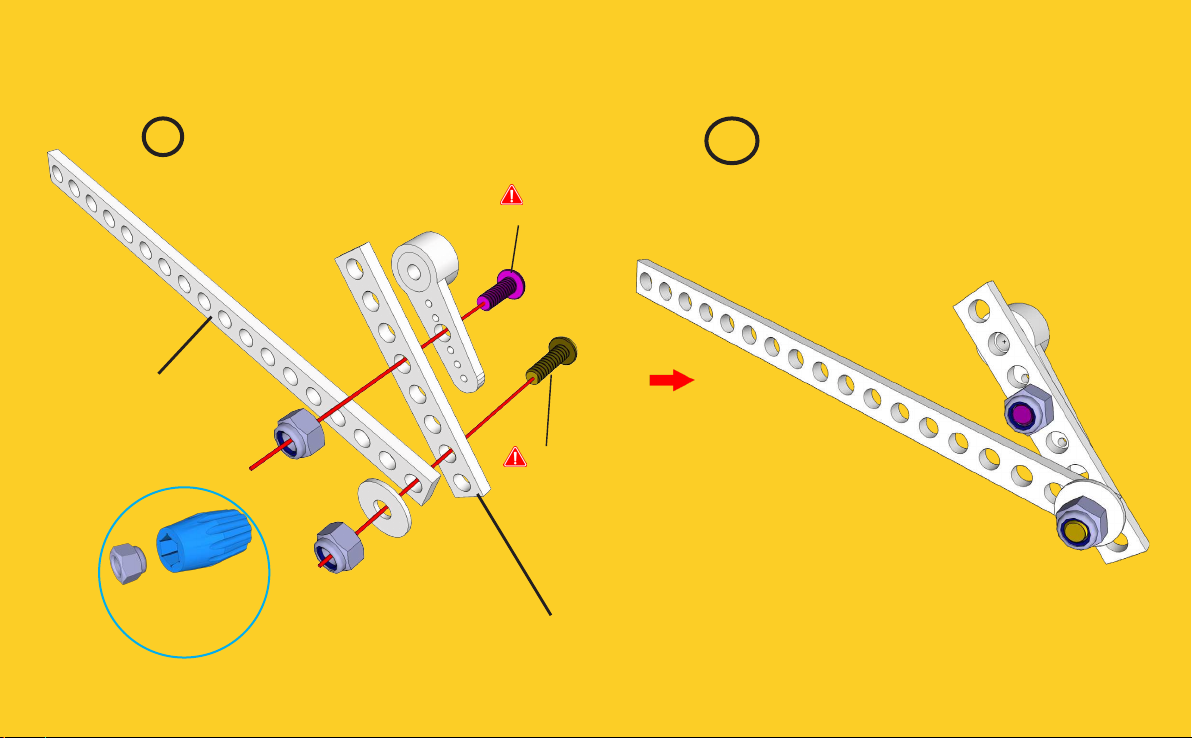

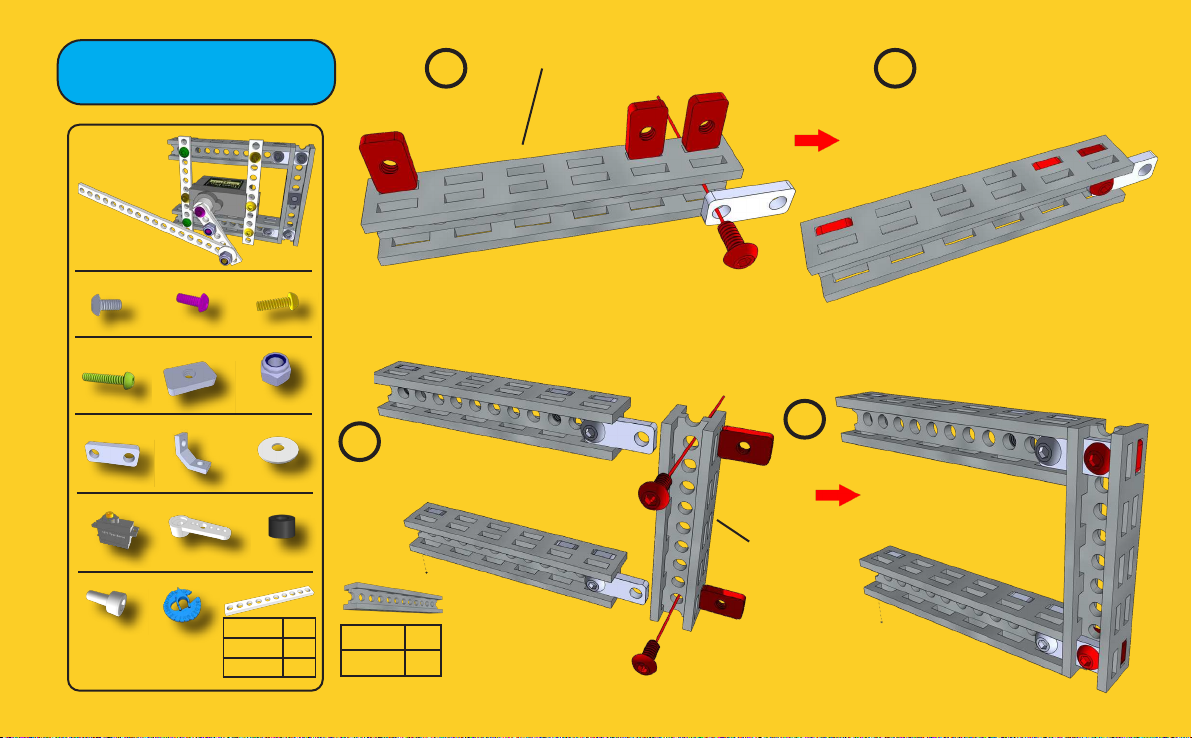

PART 9

1 2

6 cm

8x

Bolt M3x6

2x

Bolt M3x16

2x

2-hole Simple

1x

Mini Servo Motor

1x

Bolt M2.5x8

For servo arm

1x

Bolt M3x8

13x

Nut M3 6x10

1x

C-Bracket

1x

Arm for Mini

Servo Motor

1x

Servo arm

Index Disc set

5x

Bolt M3x10

3x

Lock Nut M3

3x

Metal washer M3

9x0.8mm

1x

Spacer Nylon

4mm

4.0cm/8H 1x

5.5cm/11H 2x

9cm/18tt H 1x

3

5 cm 1x

6 cm 2x

2x

2x

4

5 cm

Note:
16mm

2x 55mm/14H

65

Note: 10mm

7

8

Note: 10mm

9

90mm/18H

Use the Totem

Wrench Socket

10

Note: 8mm

Note: 10mm

40mm / 8H

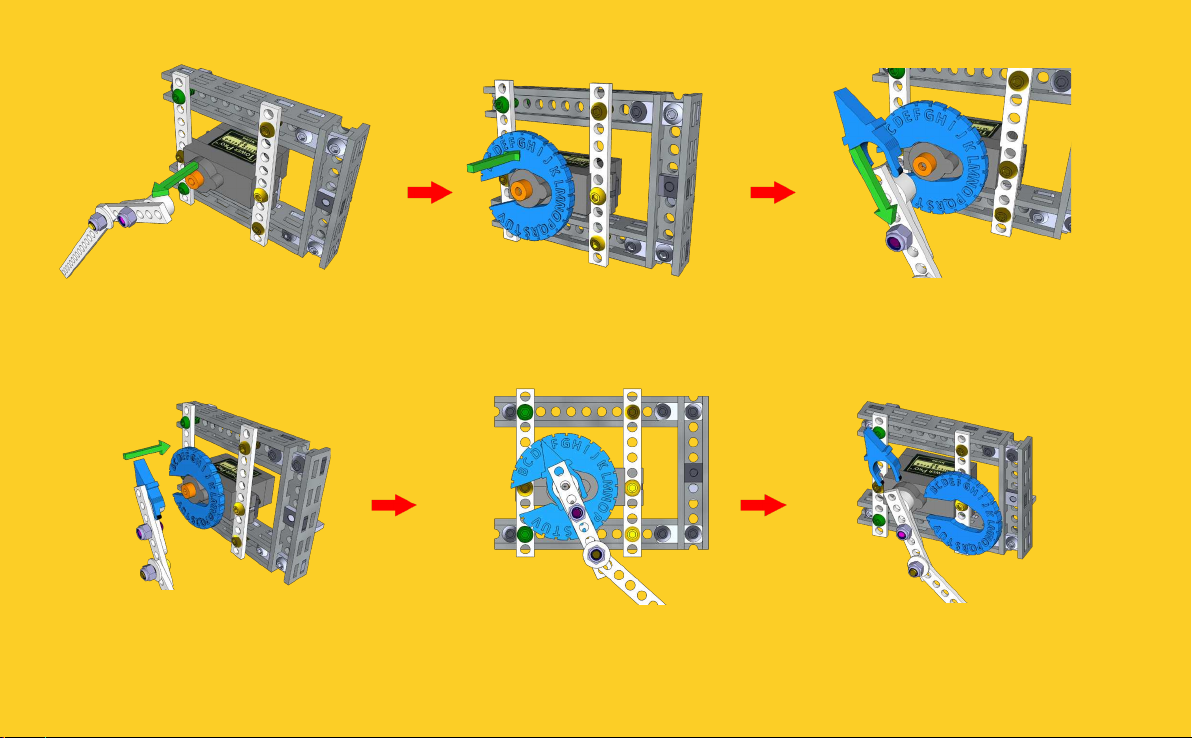

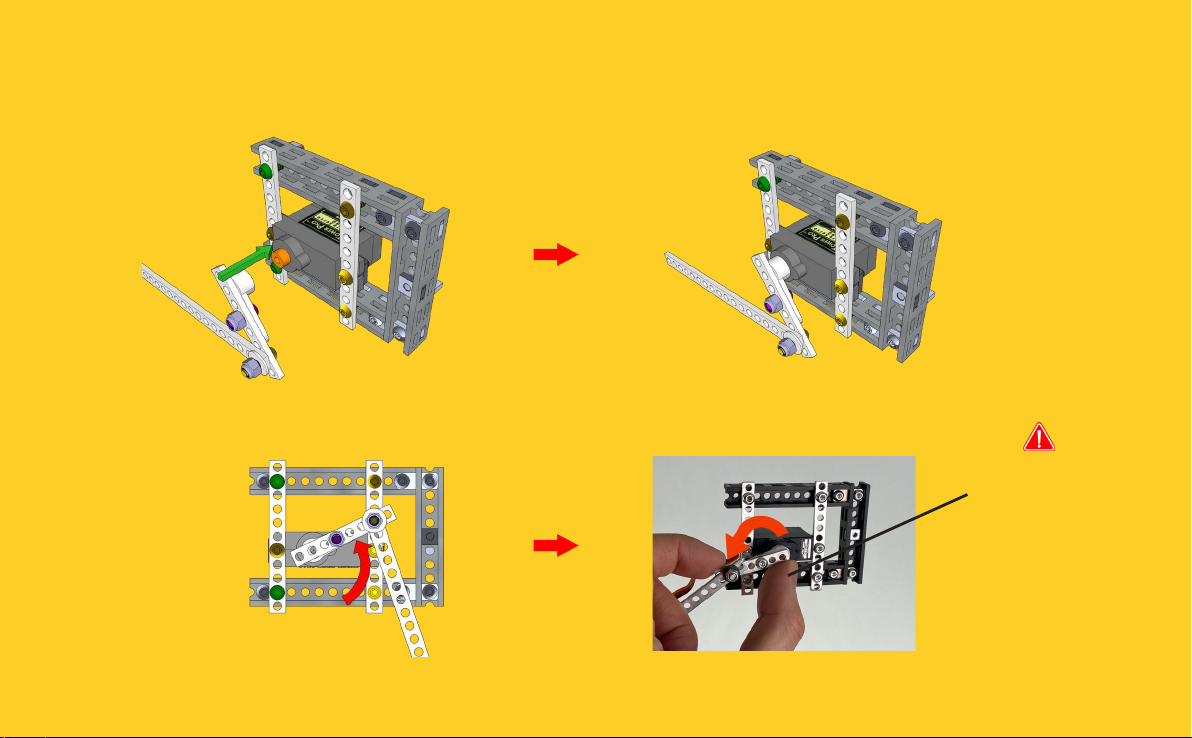

Register the servo arm.

A : Put on the servo arm assembly in any position.

Be careful.
Don’t use too
much force. Gen­tly twist it Coun­ter Clock-wise.

B : Manually twist the arm Counter Clockwise until it stops.

C : Temporarily take o the

servo arm.

D : Slip on the Servo Arm Index
Disc on to the servo.

E : Attach the Servo Arm Index
Arrow on to the servo arm.

F : Put the Servo Arm with Index
Arrow back on the servo match-

ing the “E” mark on the disc.

G : Here you can see the arrow
points to the “E” index mark.

H : Take o the disc and arrow.

Make sure the servo arm stays.

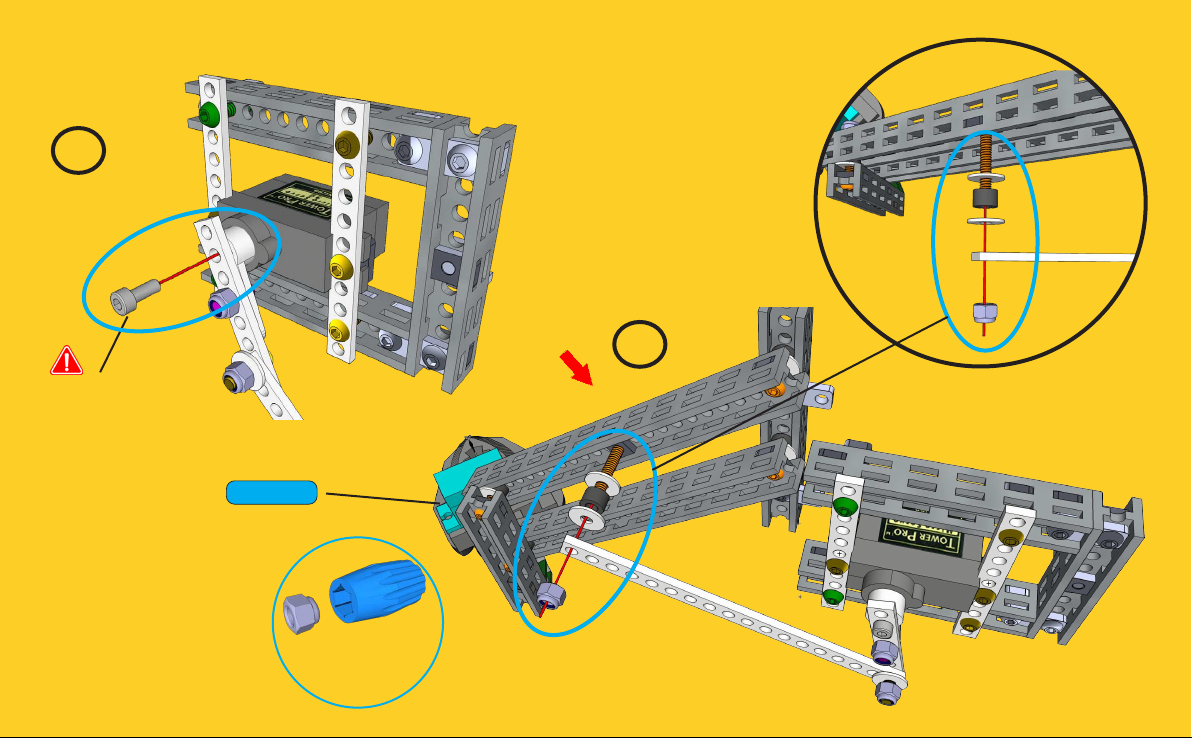

11

Note: M2.5/
8mm

12

PART8

Use the Totem
Wrench Socket

13

14

Note:Smooth
rotation.

PART 9

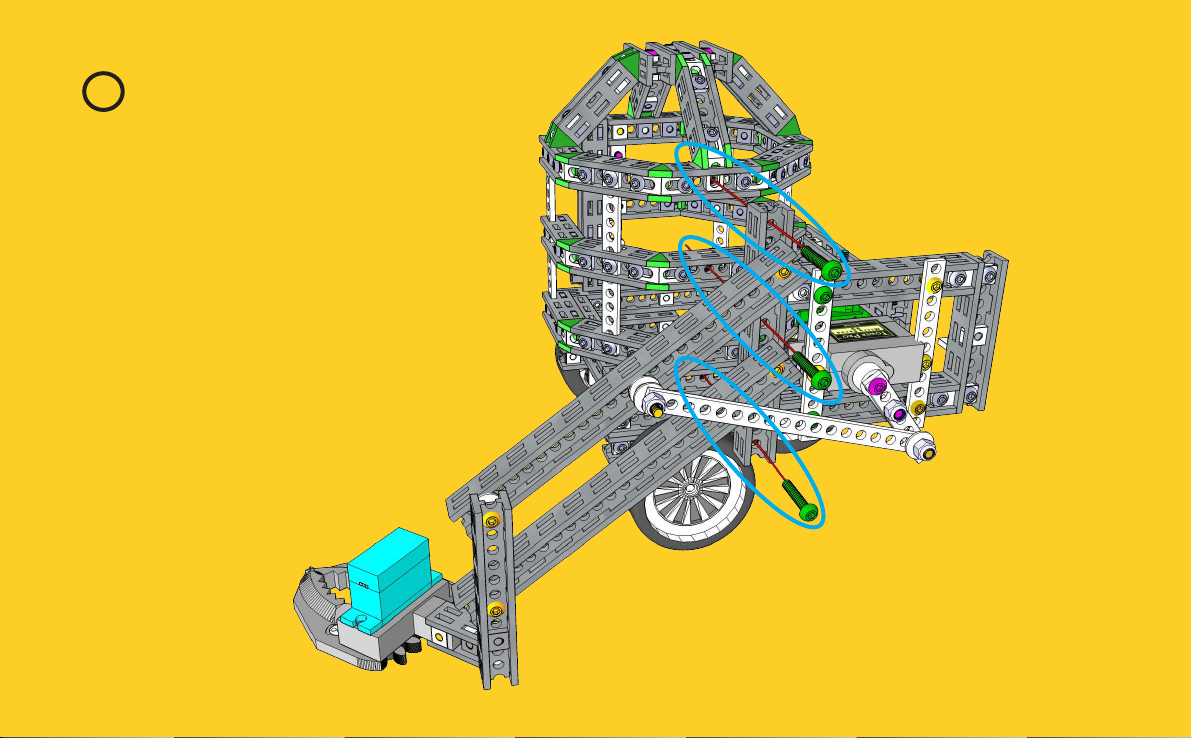

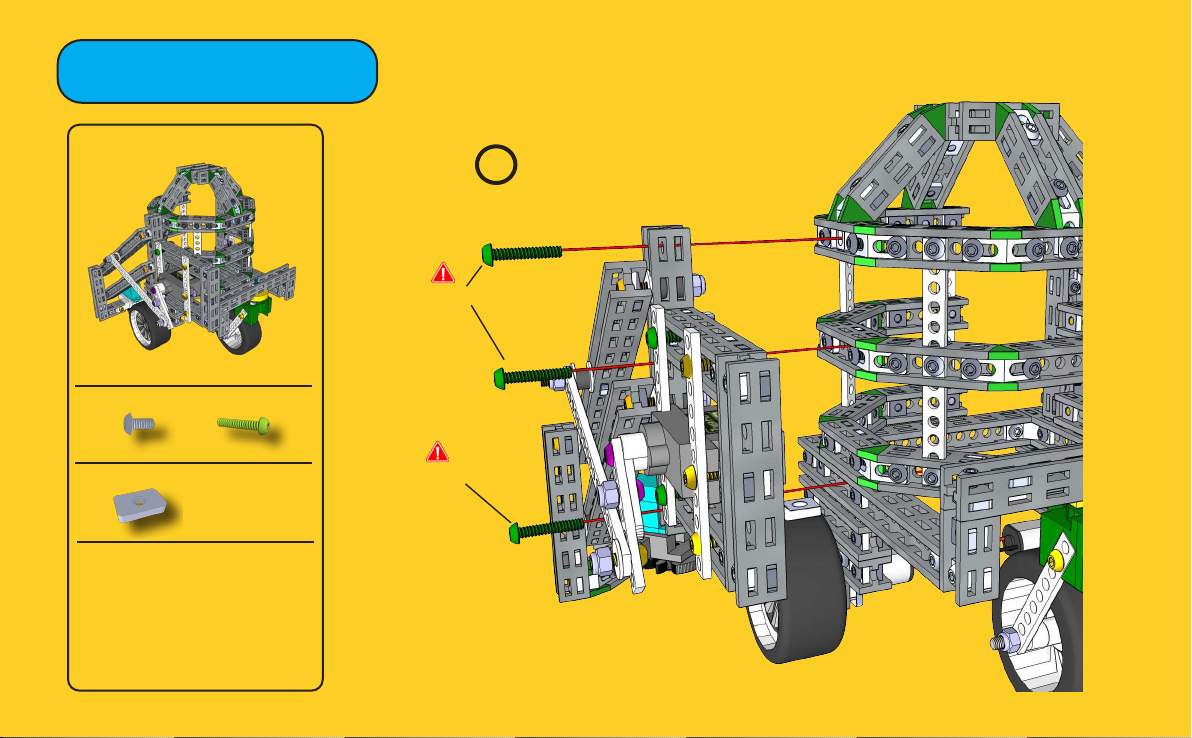

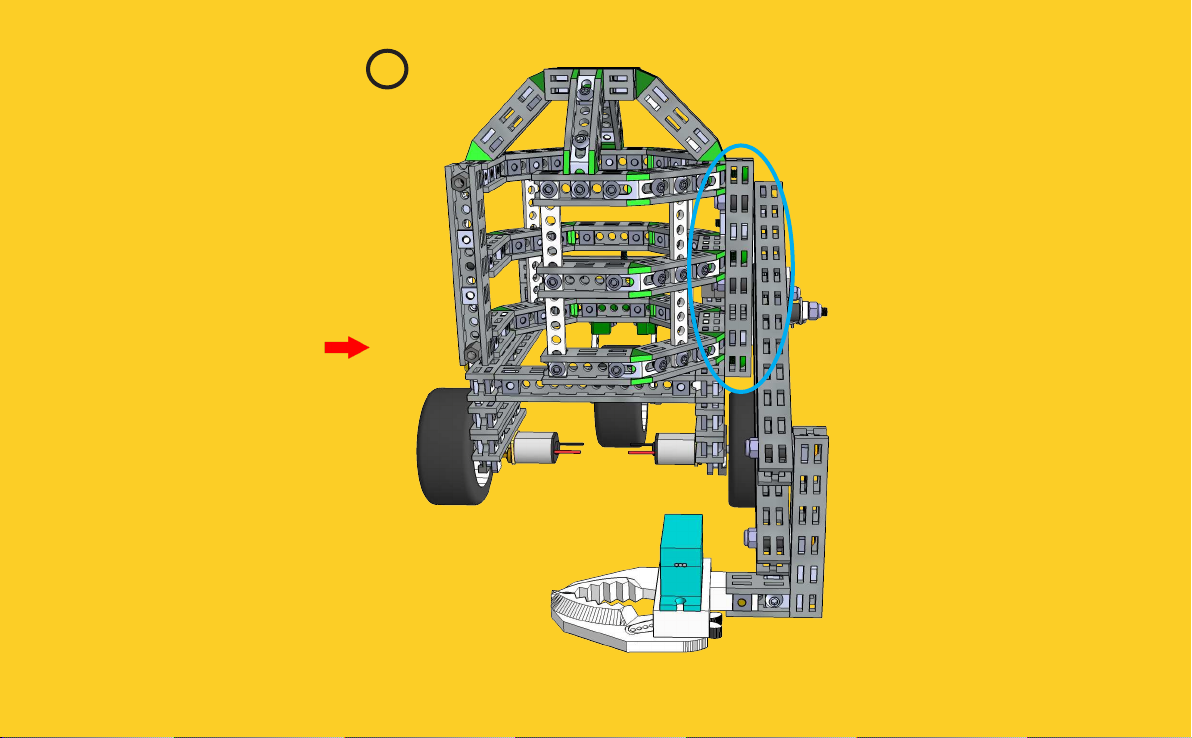

PART 10

1

Note: 16mm

1x

Bolt M3x6

1x

Nut M3 6x10

3x

Bolt M3x16

Note: 16mm

1’

2

3

4

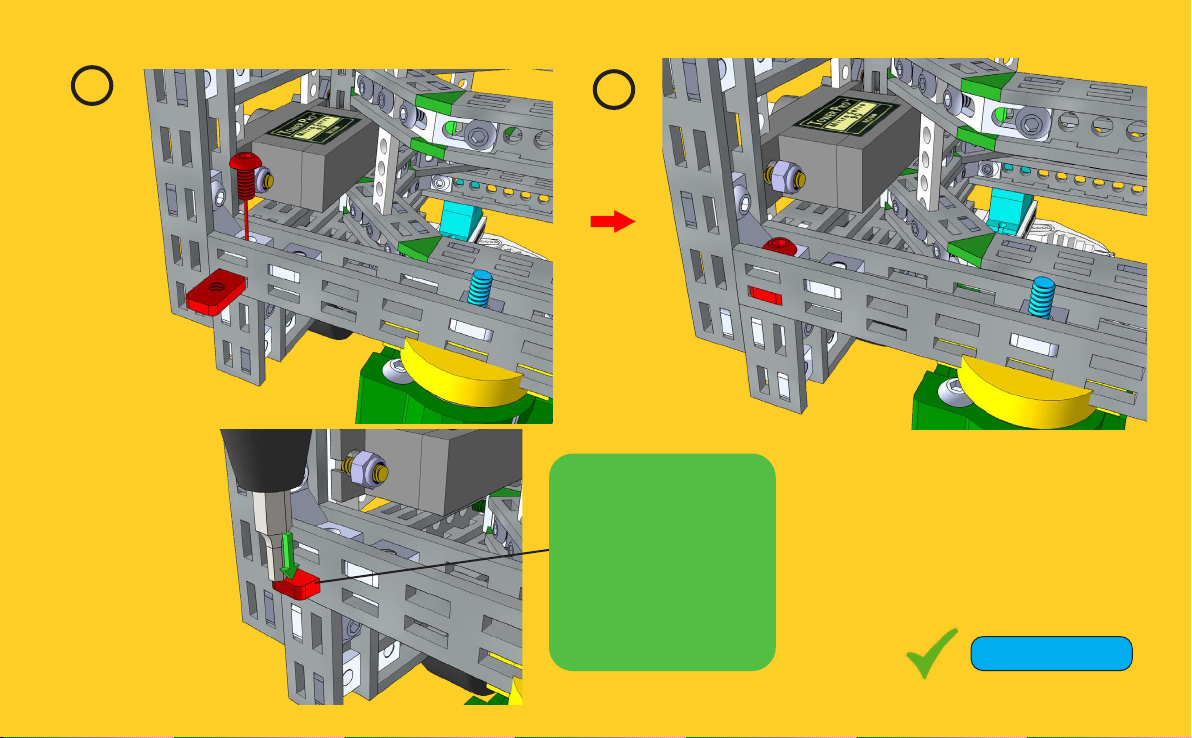

Tip:

If the nut is stuck when
pushed in:

Use the screwdriver as
shown and push down!

You should now be able
to push it all the way in.

PART 10

PART 11

2x

Bolt M3x6

1x

X3 Controller Board

1x

Li-Ion 3.7v Battery

3-5x

ZIP Tie

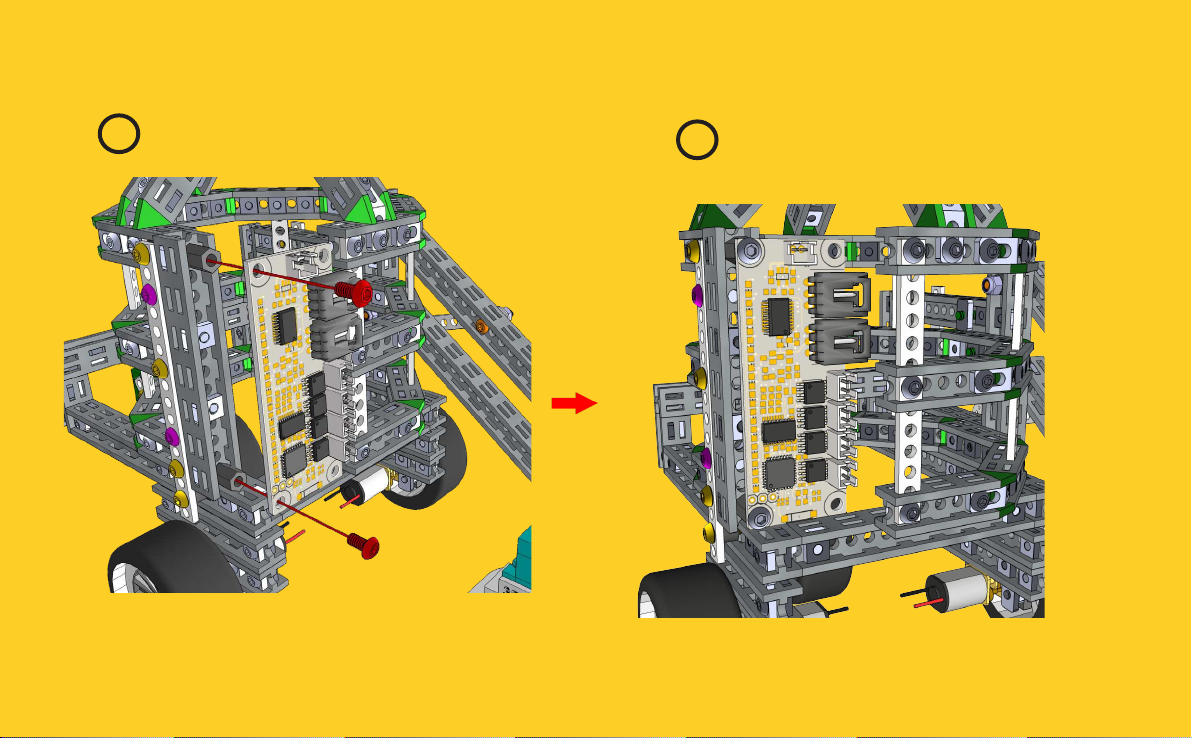

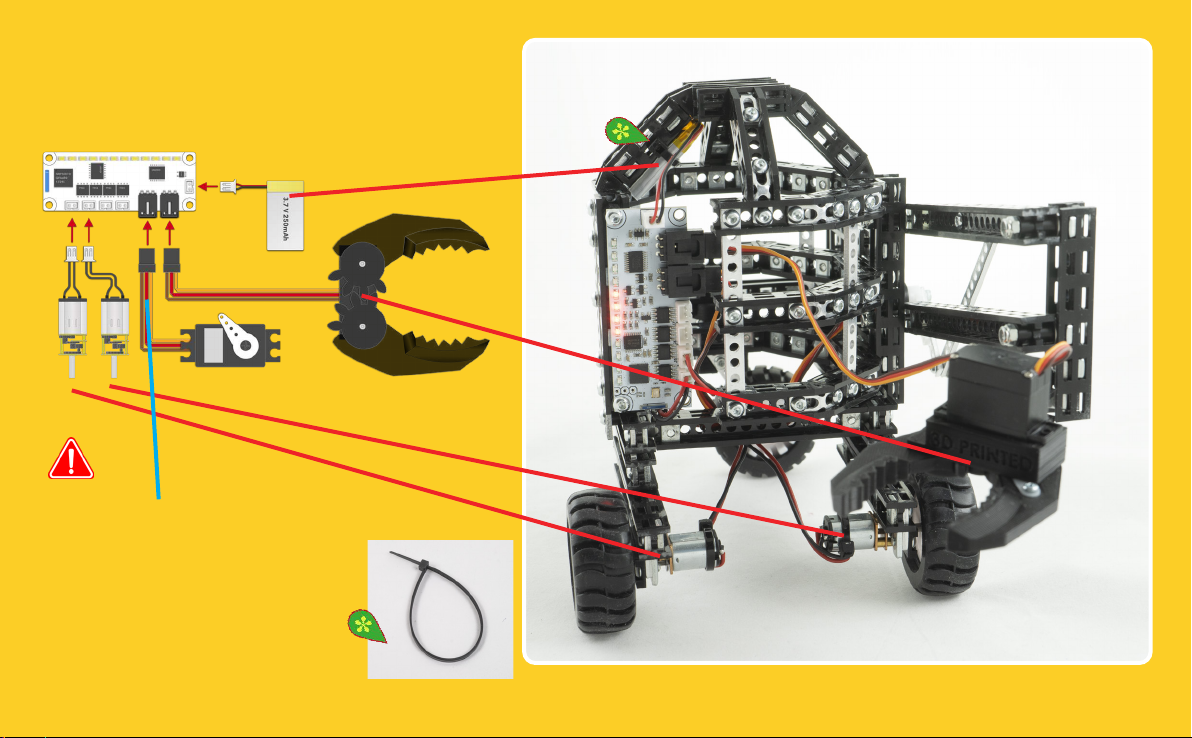

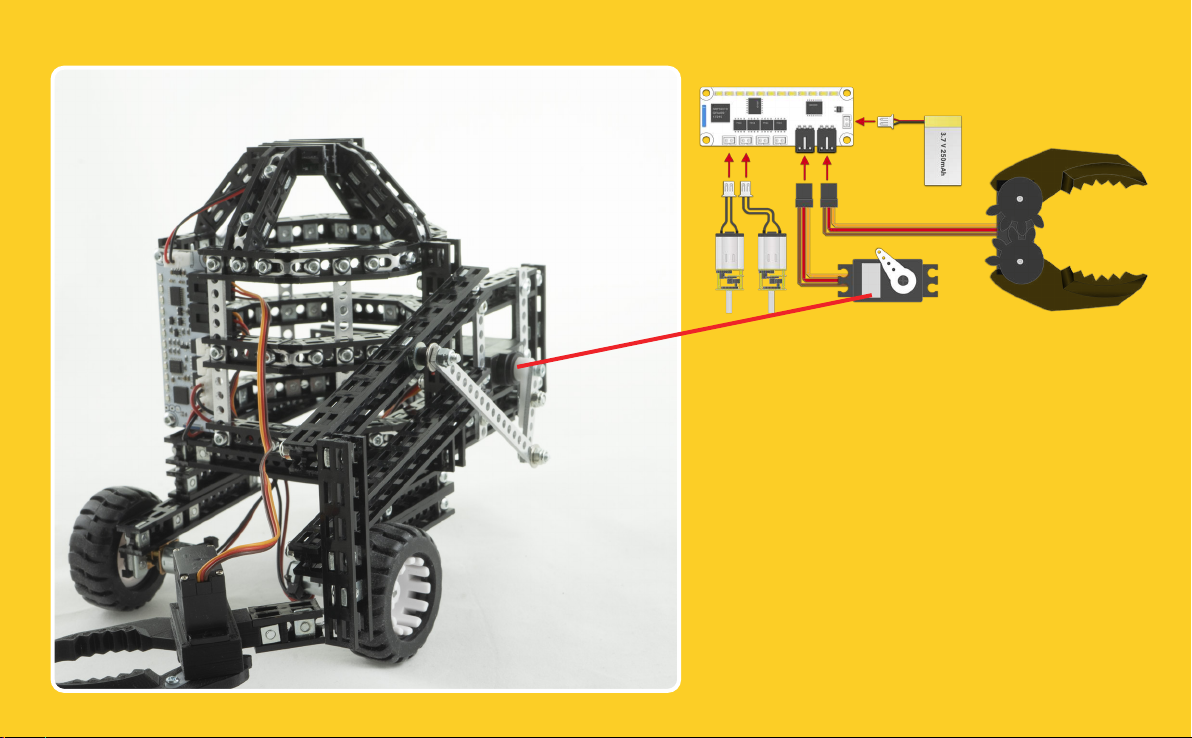

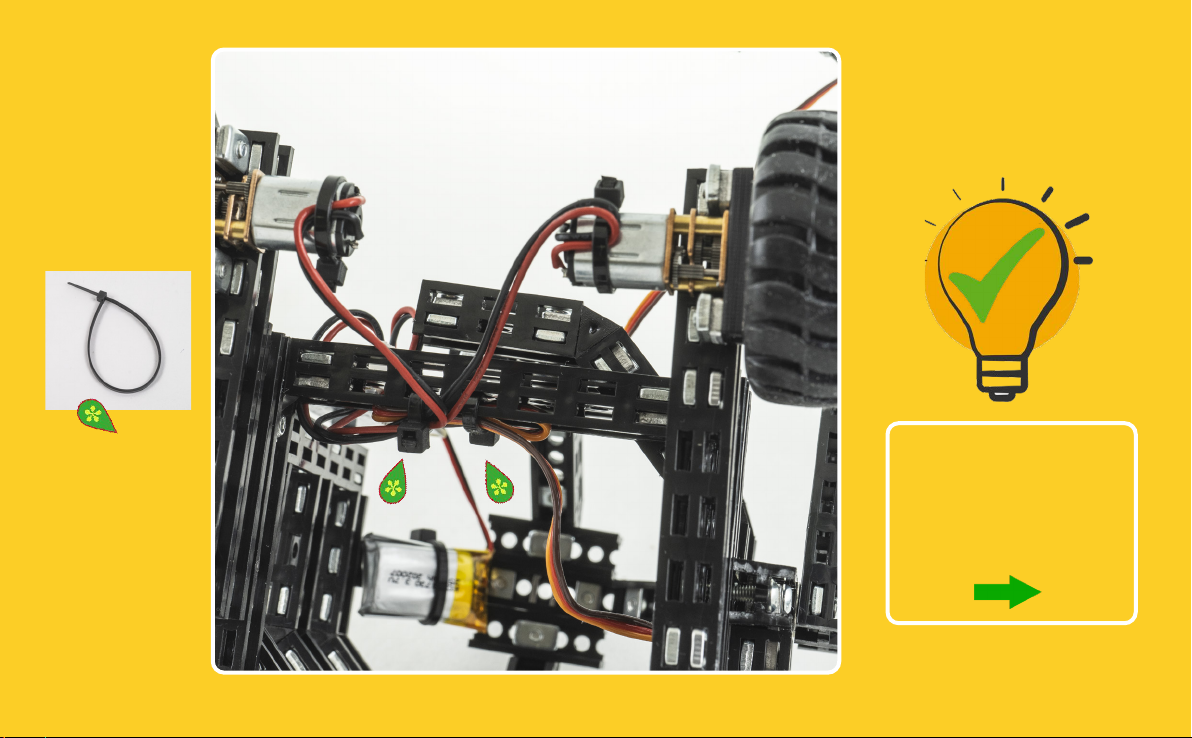

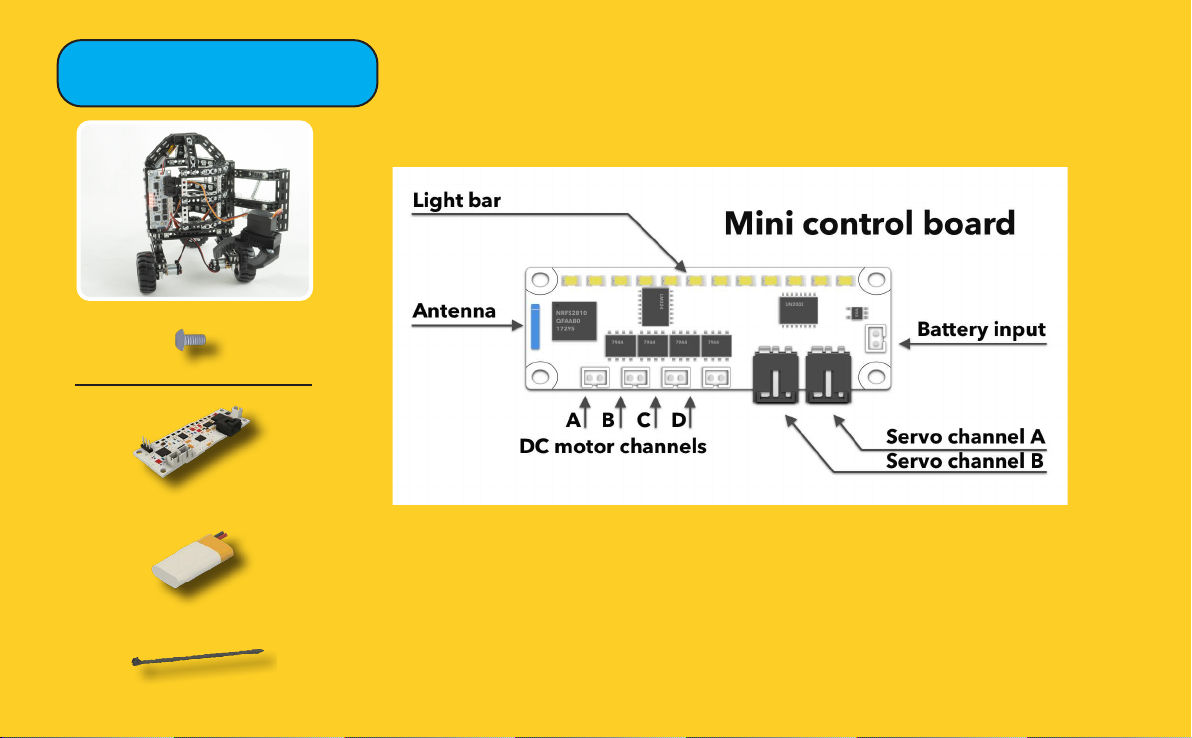

Mount the X3 controller and
cable connections

Integrated controller that has Bluetooth connection, 4 DC
motor channels and 2 Servo motor channels.

More info here:
https://totemmaker.net/wiki/x3-fbi-board-set-up/

5

6

Note:
Observe the wires
orientation:
Brown, Red and
Yellow.

Building is nished !

Now it is time to
test your model.

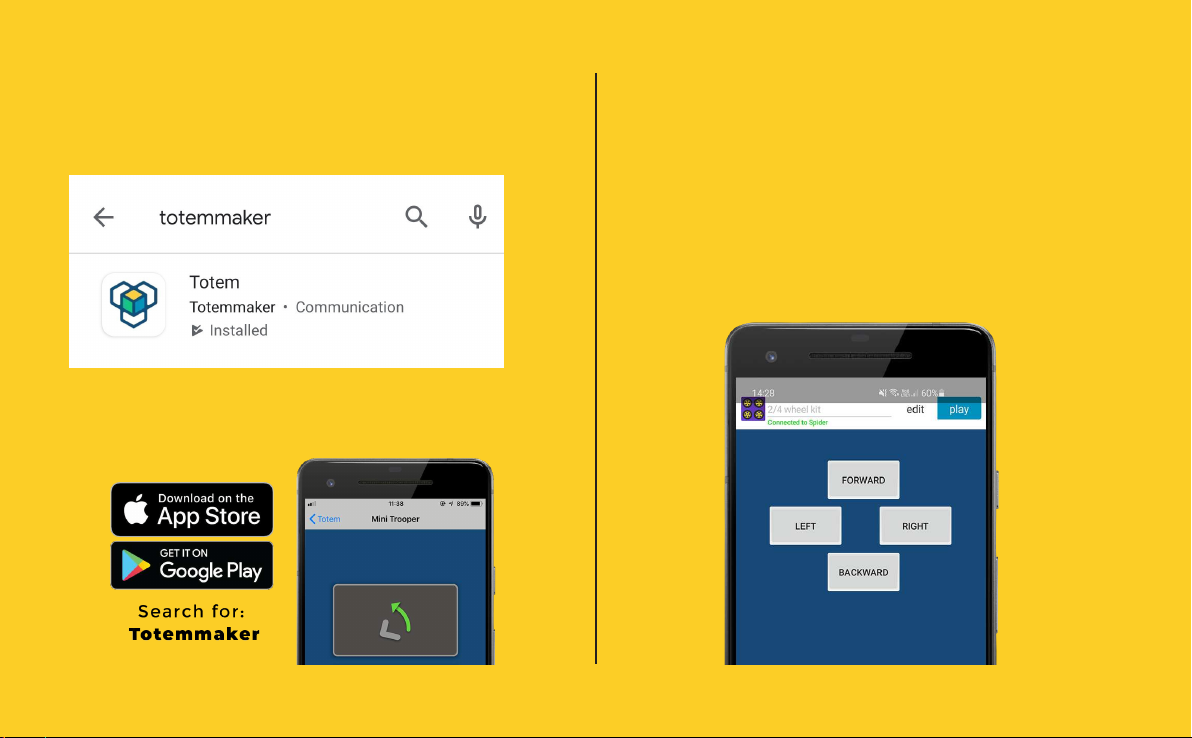

HOW TO CONTROL

Download Totem app on your smartphone or
tablet via App Store or Google Play.

Follow the step by step guide to connect your

Ladybug to your device.

To slow down the rotation speed, press

two buttons at the same time. I. e. press
both Forward and Right buttons.

PRECAUTIONS:
ELECTRONICALLY OPERATED PRODUCT

Do not give this product to children aged 8 or below. As with all electronic products, precautions should be observed during handling and use to prevent electric
chock.

Adult supervision required.

Note to adults: to ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child.

SAFETY WARNINGS:

• Do not pick up toy while in motion.

• Keep ngers, hair, and loose clothing away from moving parts, to avoid the injury.

• Adult supervision is required when this toy is being operated.

• If you stopped operating the toy, remember to unplug the battery, to avoid accidental operation.

• If the toy is dirty, please clean it with dry and soft cloth. Do not clean electronics.

• Do not expose the toy to high temperature, high humidity, or direct sunlight.

• Indoor use only. Do not put this product in water to avoid damaging its electronic components.

• The product is made of complex electronic circuit and electronic components, do not disassemble, or modify the circuit board.

BATTERY SAFETY INFORMATION:

• This toy is designed to work with provided 250 mAh 3.7V LiPo battery and charger.

• Rechargeable battery must be charged by adult only.

• Do not leave charging without supervision of adult.

• There is a risk of re and personal injury if battery is punctured, damaged or misused.

• Do not disassemble or damage the battery pack.

• Use only the supplied 250 mAh 3.7V LiPo battery. Using any other battery may damage the model.

• Use only the included USB charging cable to charge the battery.

• Please check on a regular basis the wire, plug, battery, charger, and other electronic parts on the toy. If any damage is found, please stop using the product
immediately.

• Stop charging if battery becomes hot, smells, smokes or gives o strong odour.

• Never throw batteries into re to avoid explosion or leakage.

• Check the batteries on regular basis to avoid leakage.

• Recycle or dispose of batteries according to local laws and guidelines.

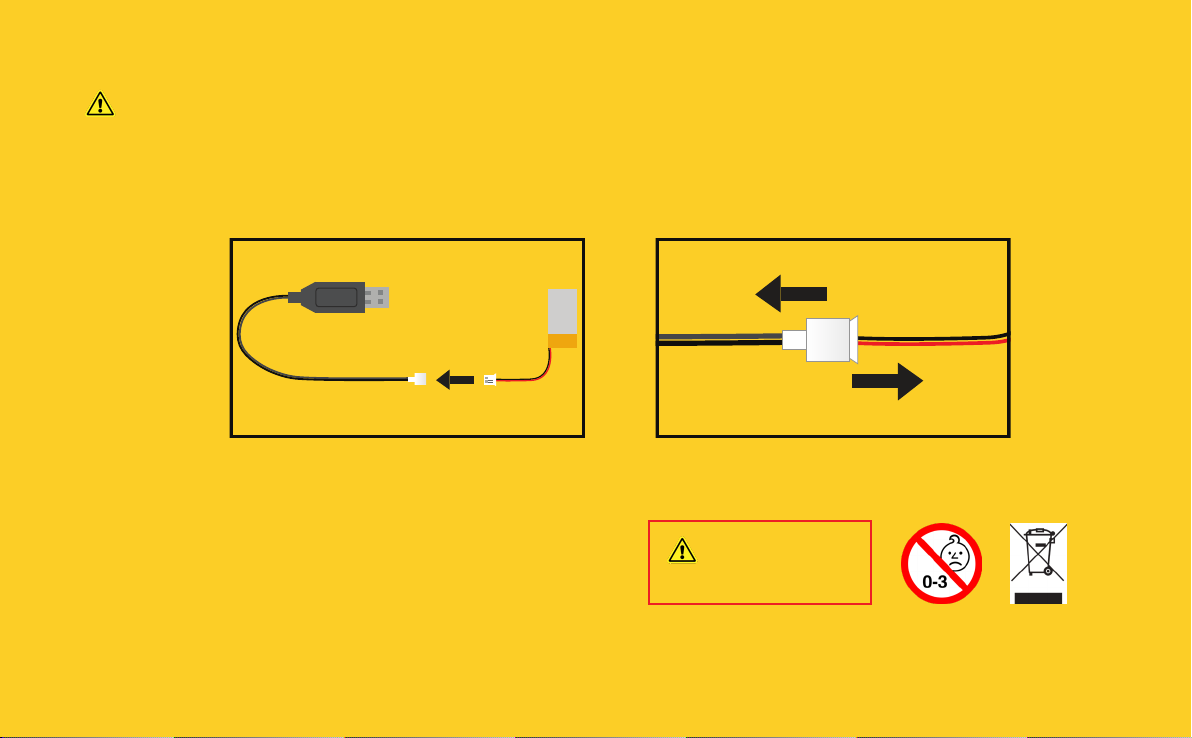

BATTERY CHARGING:

Rechargeable battery must be charged by adult only.

• The new battery pack needs to be charged before use.

• Connect the USB charging cable to 5V USB power source, such as laptop.

• Connect the battery to the charger

charged, the red LED light turns o.

• To disconnect cables, hold the connectors of both cables and pull apart (see picture on the right).

• Do not attempt to overcharge the battery.

KEEP THIS INSTRUCTION MANUAL AND THE PRODUCT BOX AS IT CONTAIN IMPORTANT INFORMATION FOR FUTURE REFERENCE.

Due to the continuous product improvement, the pictures on this manual may dier slightly from the actual product. Please adhere to actual product instead.

Totem Maker names and logos are registered trademarks. All rights reserved.

www.totemmaker.net
Totem Technology, UAB
Sauletekio al. 15-709, Vilnius, 10224, Lithuania
For customer support please contact: [email protected]

(see picture on the left). The charger will show a red LED light when charging the battery. When the battery is fully

3.7v 250 mAh

WARNING:

CHOKING HAZARD - Small parts.
Not for children under 3 years.
