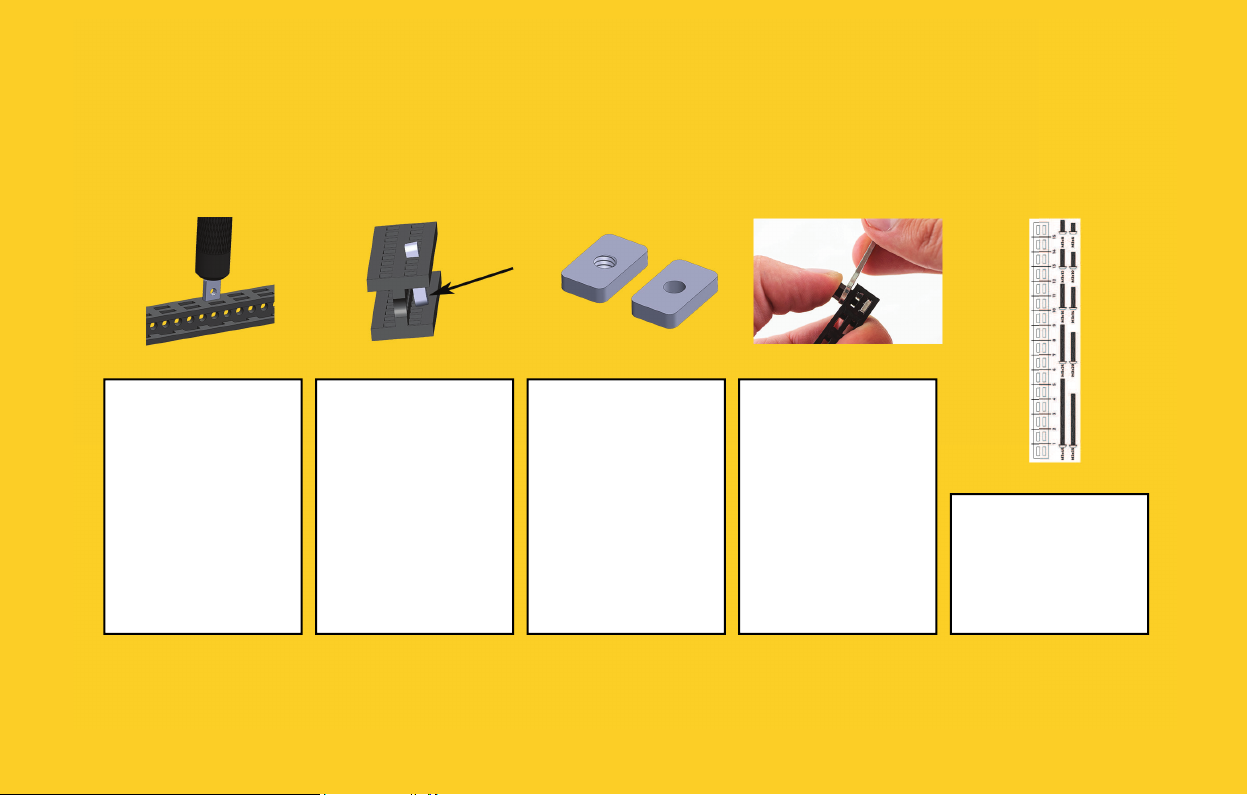

STARTING TIPS
Inserting nuts (1) Inserting nuts (2) Faulty threads Tightening
standoff s
It is a good idea to
start every step inserting nuts into
beams (if the step
requires).
Use the back of the
screwdriver to push
in the nuts.
After entering the
fi rst slot, nuts tend
to tilt. Use your
thumb to push it
back straight, and
then again use the
screwdriver to in-
sert the nut all the
way in.
For more tips, please visit the link below:
Some of the nuts
are missing threads.
This is a manufacturing issue and we
are working on it. In
the mean time, we
add few extra nuts.
We apologize for
the inconvenience.
Push Nylon
Standoff with your
thumb while tight-
ening it with the
wrench.
https://totemmaker.net/blog/totem-mechanics-for-beginners/
Ruler
Use Beam/Bolt
ruler to determine
the length of beams
and bolts.
Page 3

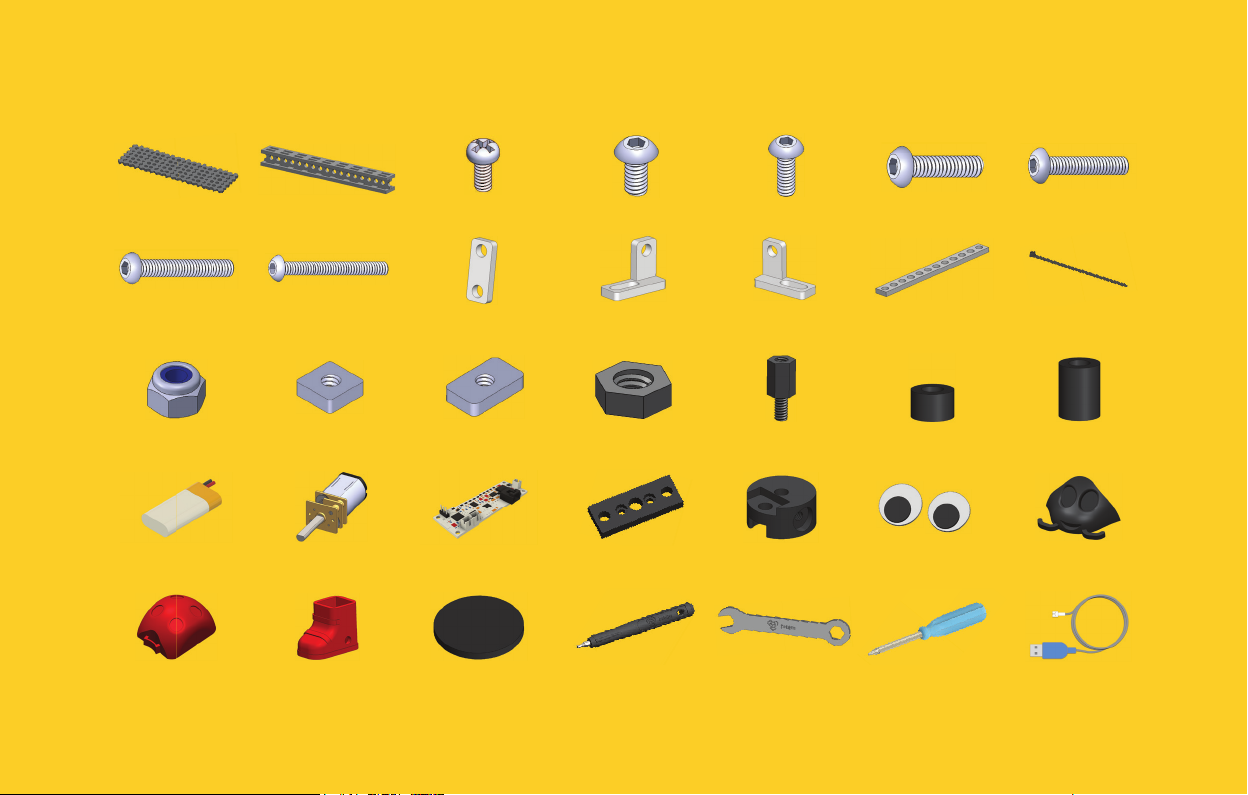

PART LIST
1x Board 30x100 10x Beam 90 mm 4x Bolt M1.6x3 34x Bolt M3x6 4x Bolt M3x8 8x Bolt M3x12 2x Bolt M3x16
4x Bolt M3x20 2x Bolt M3x25
14x Lock Nut M3 4x Nut M3 5.5x5.5 42x Nut M3 6x10 4x Nylon Nut M3
1x Rechargeable
Battery
1x Ladybug Shell 6x Moon Boot 4x Ladybug Dot
2x N20 Motor
8x 2-Hole Simple
Bracket
1x Mini Control
Board
2x L-Twisted
Bracket
2x Mini DC Motor
Bracket
1x Totem
Screwdriver
2x L-Twisted Mirror
Bracket
4x Nylon Standoff
M3x8 mm
2x N20 Motor Hub 2x Googly Eye 1x Ladybug Head
1x Totem Wrench
6x Strip Bracket
60 mm (12 Holes)
10x Nylon Spacer
4 mm
1x Mini
Screwdriver
2x Zip Tie
2x Nylon Spacer
8 mm
1x Battery Charger
Page 4

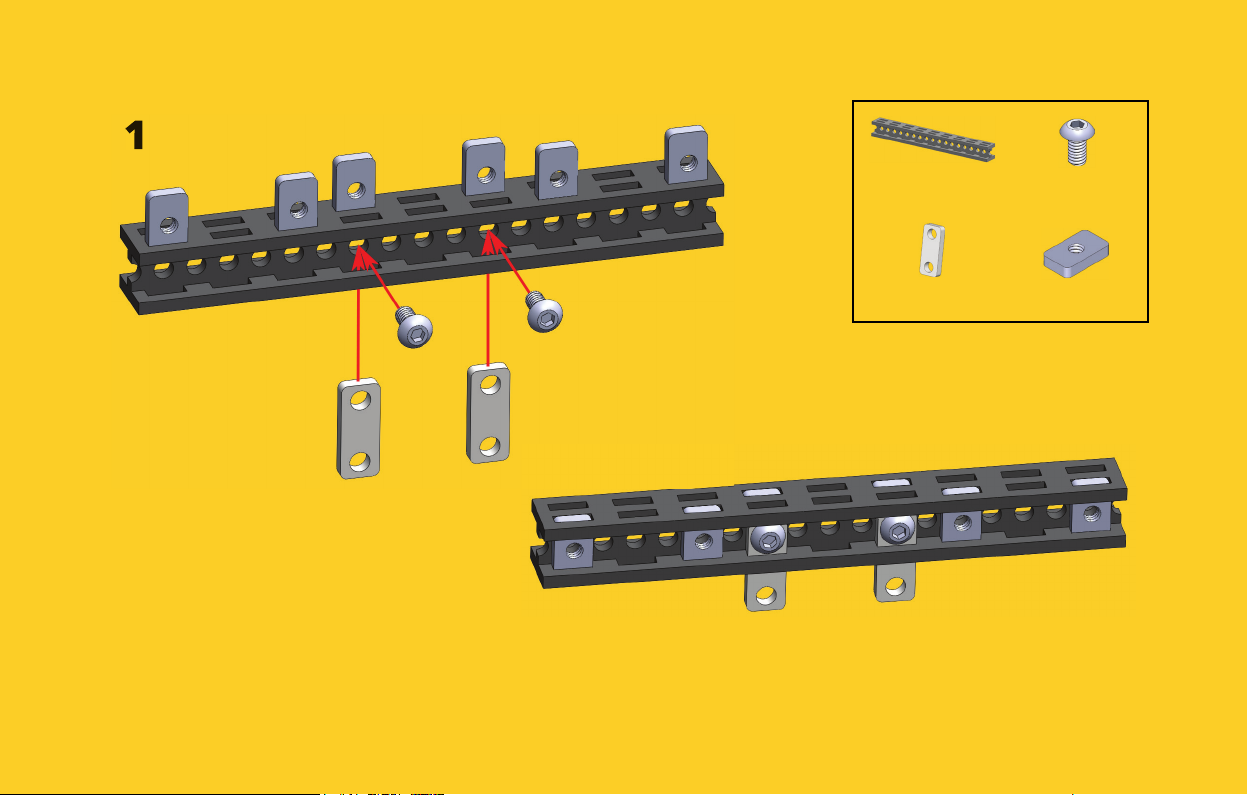

1
2x Beam 90 mm 4x Bolt M3x6
Repeat this step twice.
2x
4x 2-Hole Simple
Bracket
12x Nut M3 6x10
Page 5

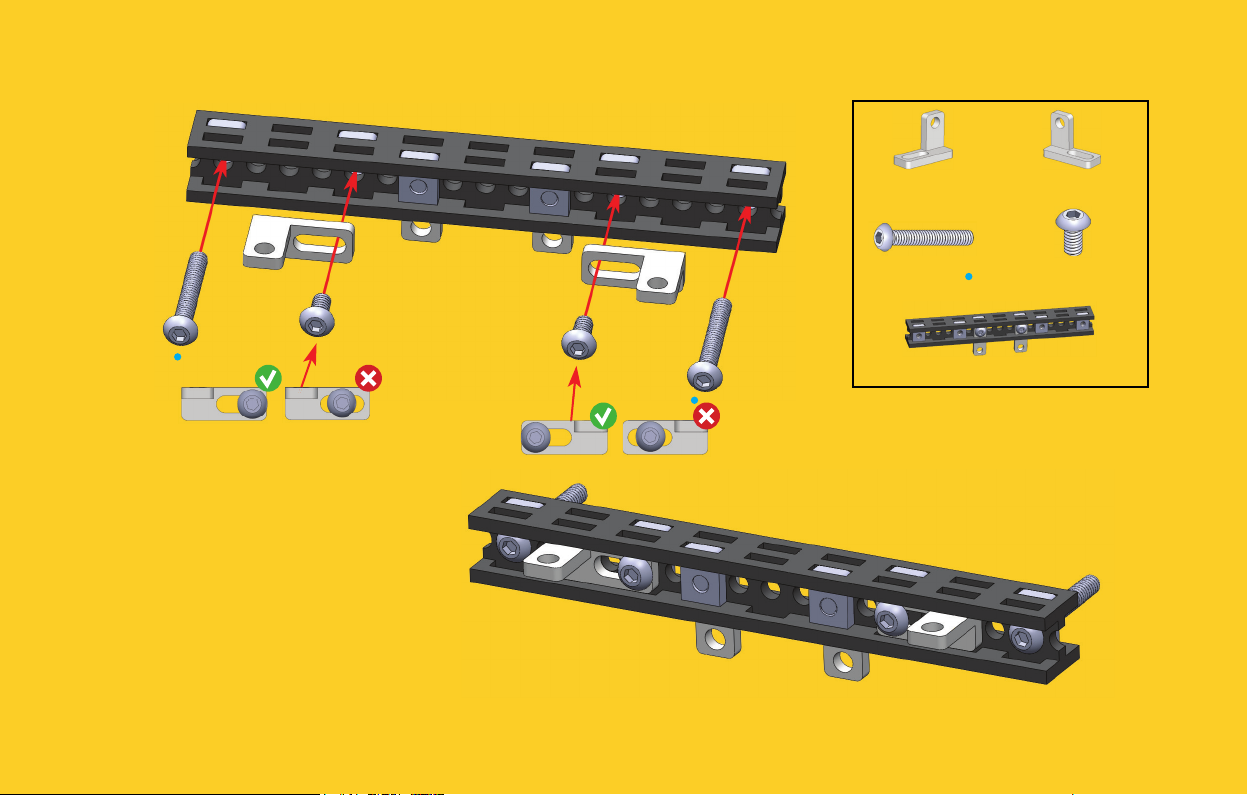

2
Repeat this step twice.
2x
2x L-Twisted Bracket 2x L-Twisted Bracket
4x Bolt M3x20 4x Bolt M3x6
2x Step 1 Assembly
Page 6

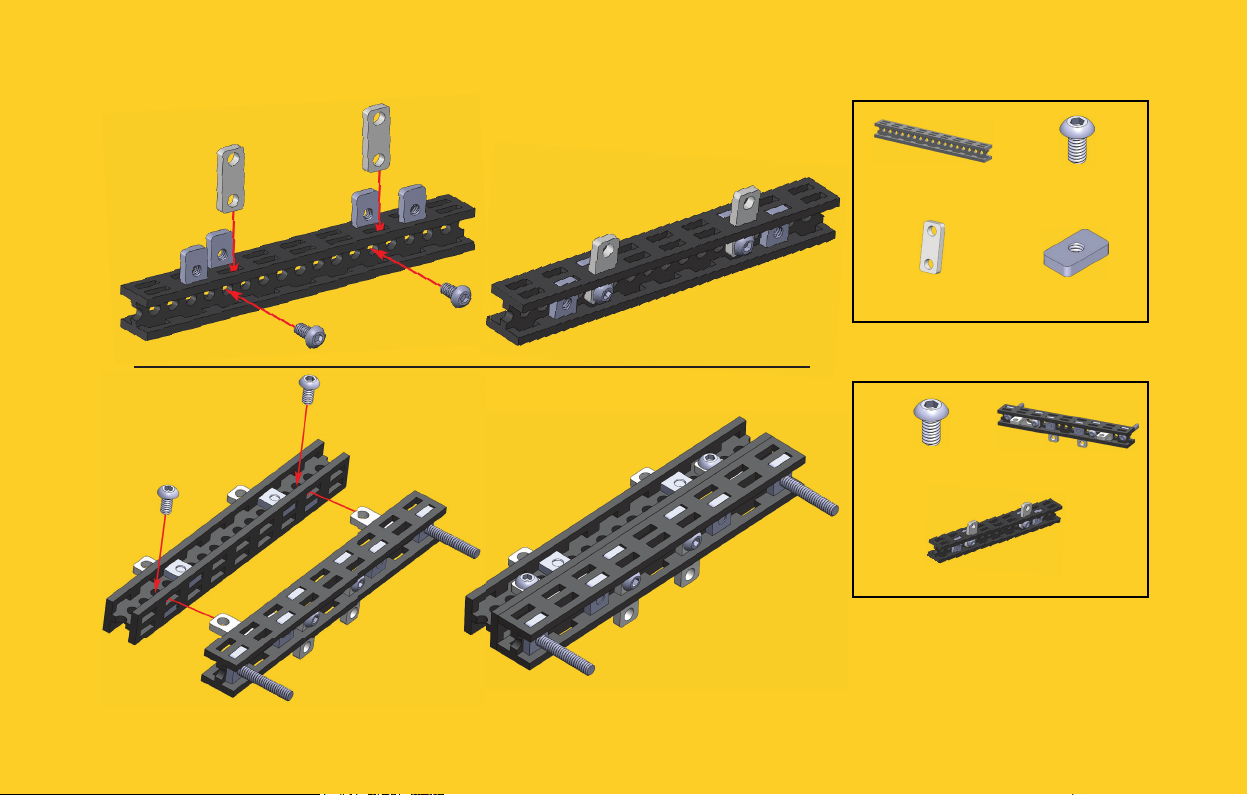

3
Repeat this step twice.
2x
2x Beam 90 mm 4x Bolt M3x6
4
4x 2-Hole Simple
Bracket
4x Bolt M3x6 2x Step 2 Assembly
2x Step 3 Assembly
Repeat this step twice.
8x Nut M3 6x10
2x
Page 7

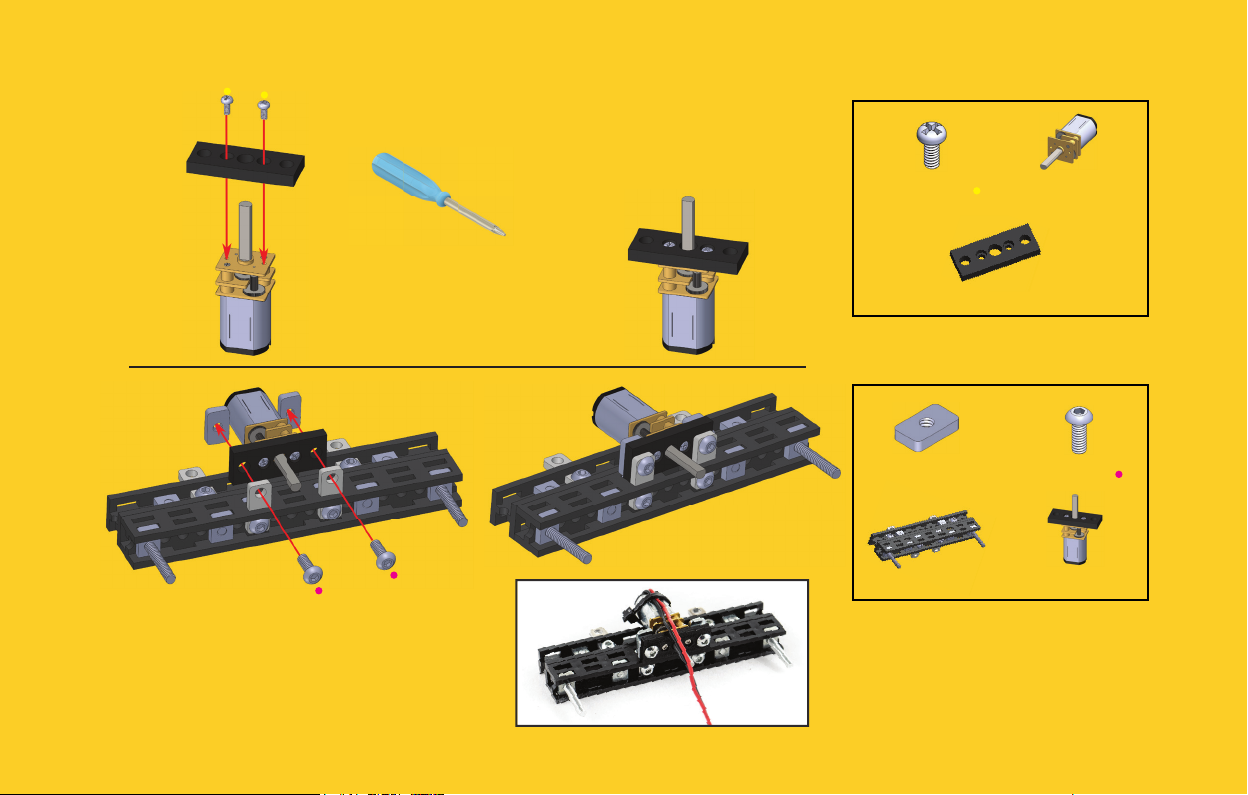

5
6
Repeat this step twice.
Use Mini Screwdriver
for this step.
2x
4x Bolt M1.6x3 2x N20 Motor
2x N20 Motor Bracket
4x Nut M3 6x10 4x Bolt M3x8
2x Step 4 Assembly 2x Step 5 Assembly
Make sure motor
cables go on top
Repeat this step twice.
2x
Page 8
7

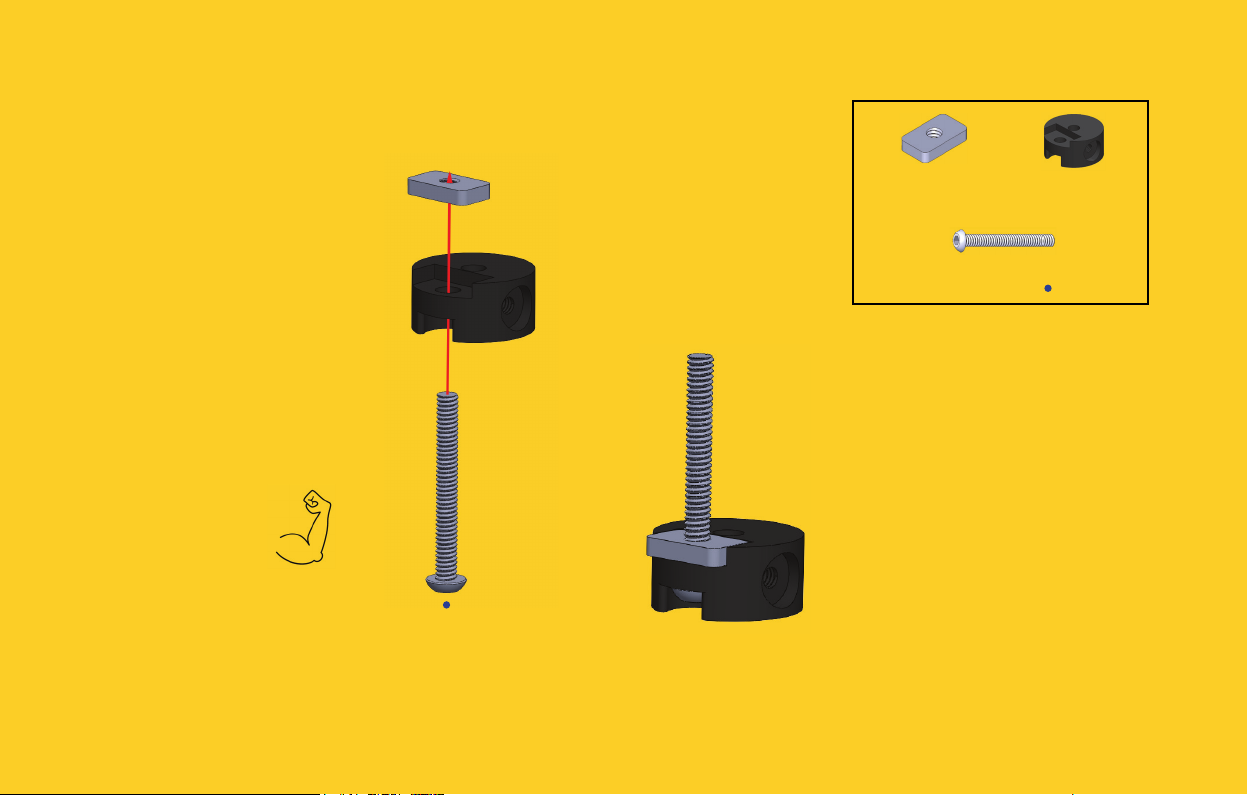

2x Nut M3 6x10 2x N20 Motor Hub
2x Bolt M3x25
Repeat this step twice.
2x
Tighten the
bolt fi rmly.
Page 9

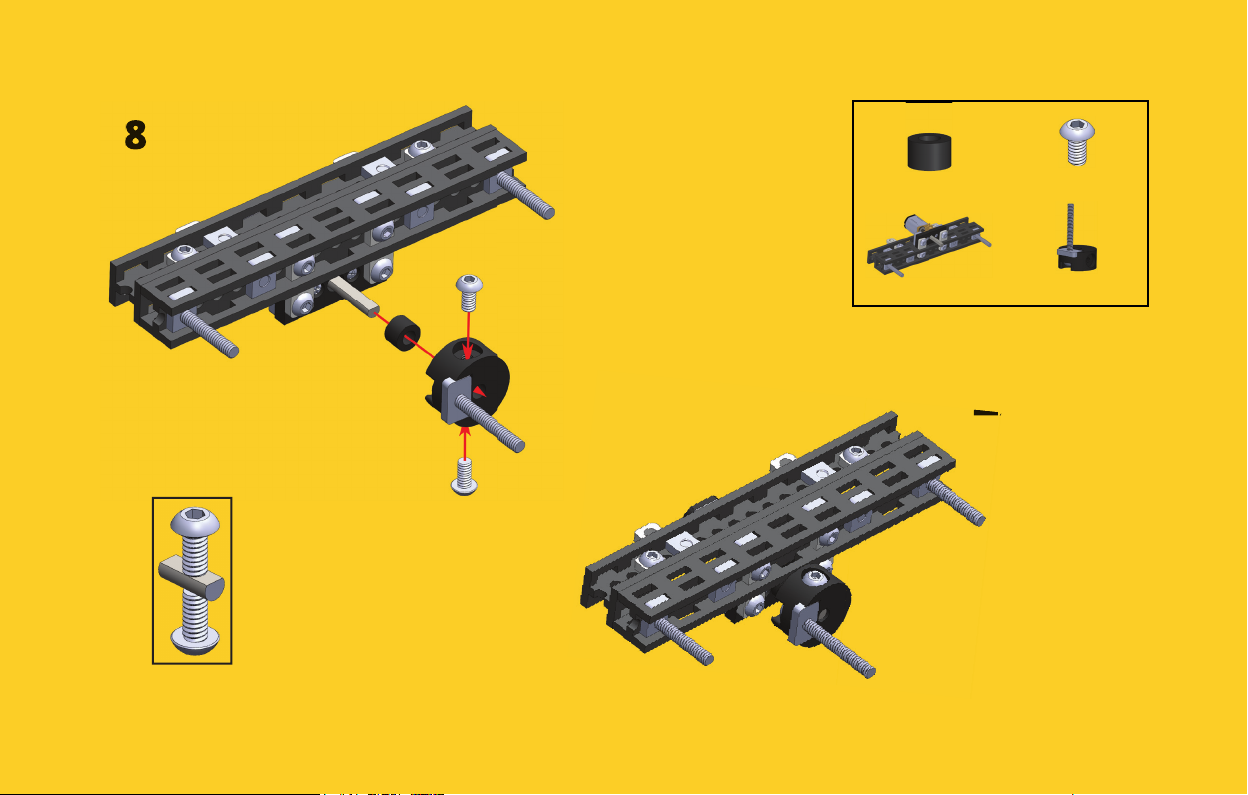

8
One of the bolts must hit
the at side of the shaft.
Tighten both bolts evenly
to keep the hub straight.
Prepare N20 Motor Hub:
screw bolts half way in
before placing hub on the
shaft of motor.
2x Nylon Spacer 4 mm 4x Bolt M3x6
2x Step 6 Assembly 2x Step 7 Assembly
Repeat this step twice.
2x
Page 10

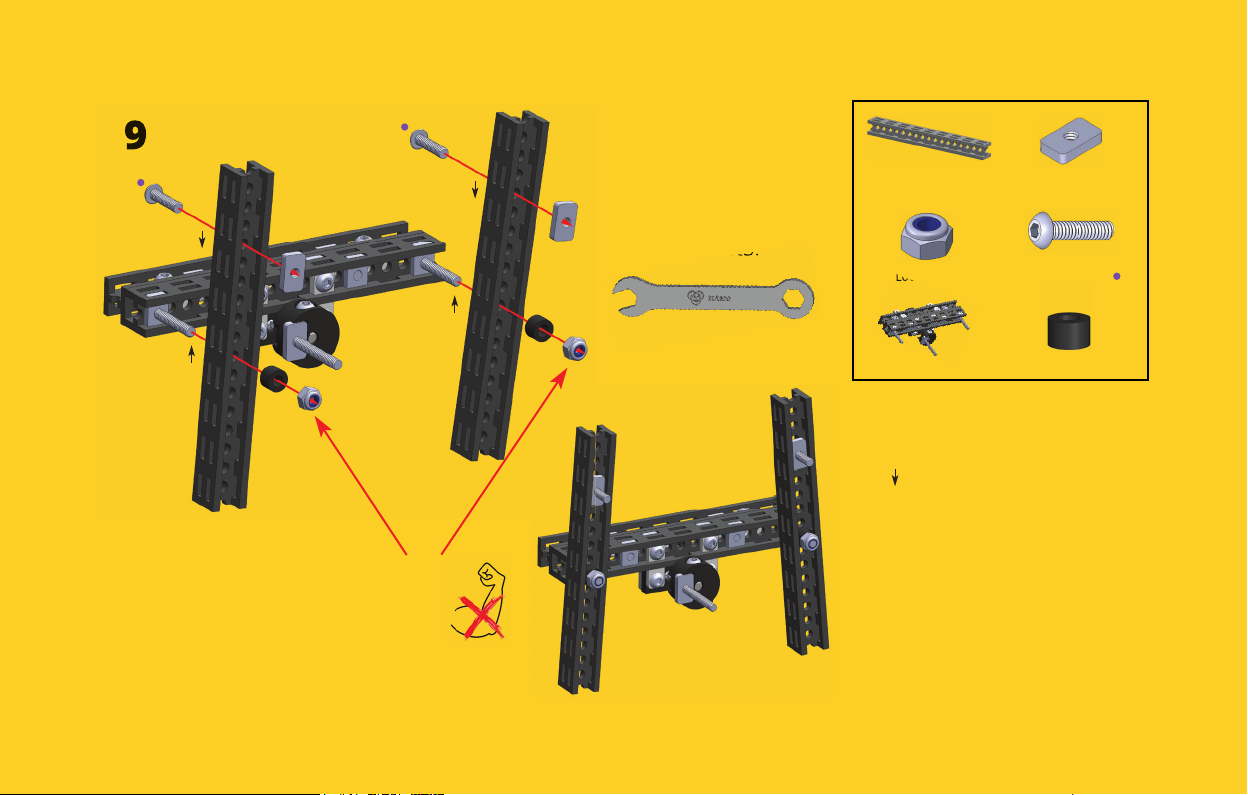

9
#4
#8
Do not over-tighten Lock
Nuts. Legs have to move
freely, but not to wobble.
#8
#4
4x Beam 90 mm 4x Nut M3 6x10
Use Totem Wrench
for Lock Nuts.
4x Lock Nut M3 4x Bolt M3x12
2x Step 8 Assembly 4x Nylon Spacer 4 mm
# indicates number
of circular slot.
indicates counting
direction.
Repeat this step twice.
2x
Page 11

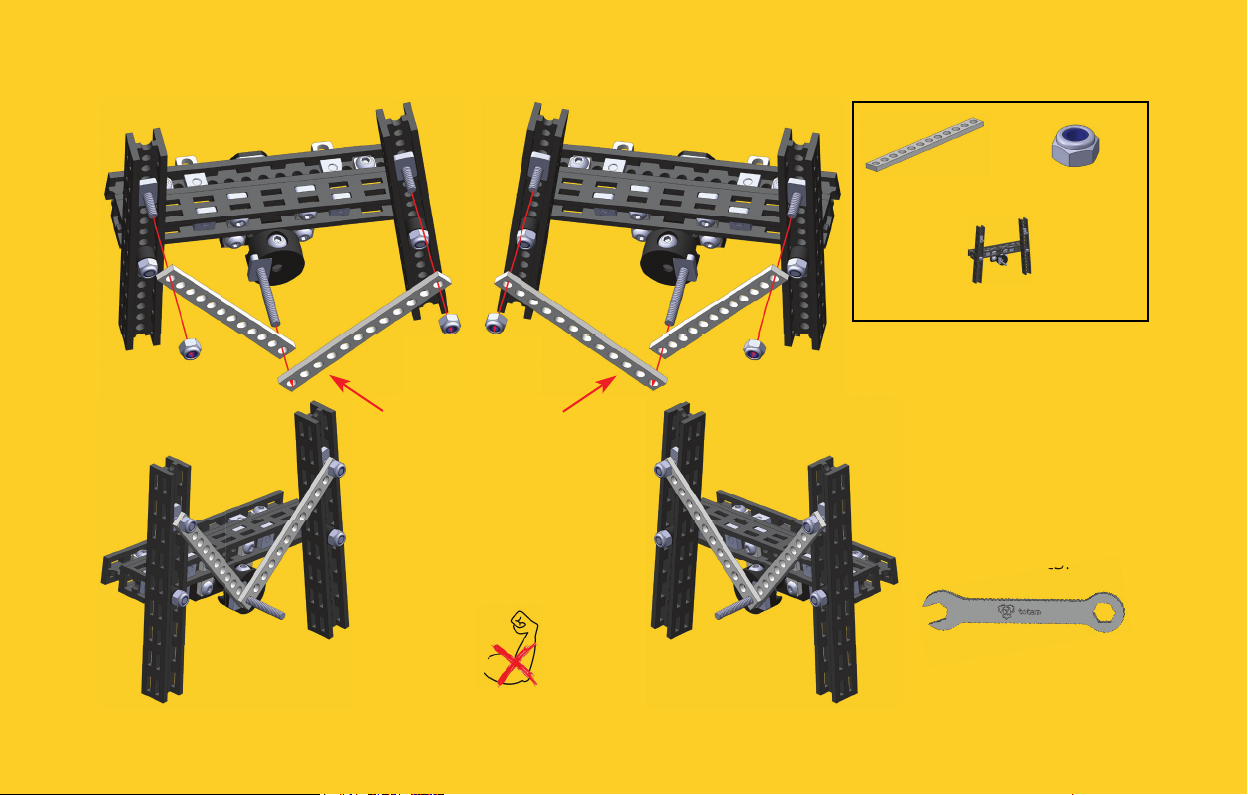

10
Mind Brackets’ order.
4x Strip Bracket 60 mm
(12 Holes)
2x Step 9 Assembly
4x Lock Nut M3
In steps 10, 11, 12, and
13 assembly for each
side is slightly diff erent
(mirrored).
Do not over-tighten
Lock Nuts. Brackets
must be slightly loose.
Use Totem Wrench
for Lock Nuts.
Page 12

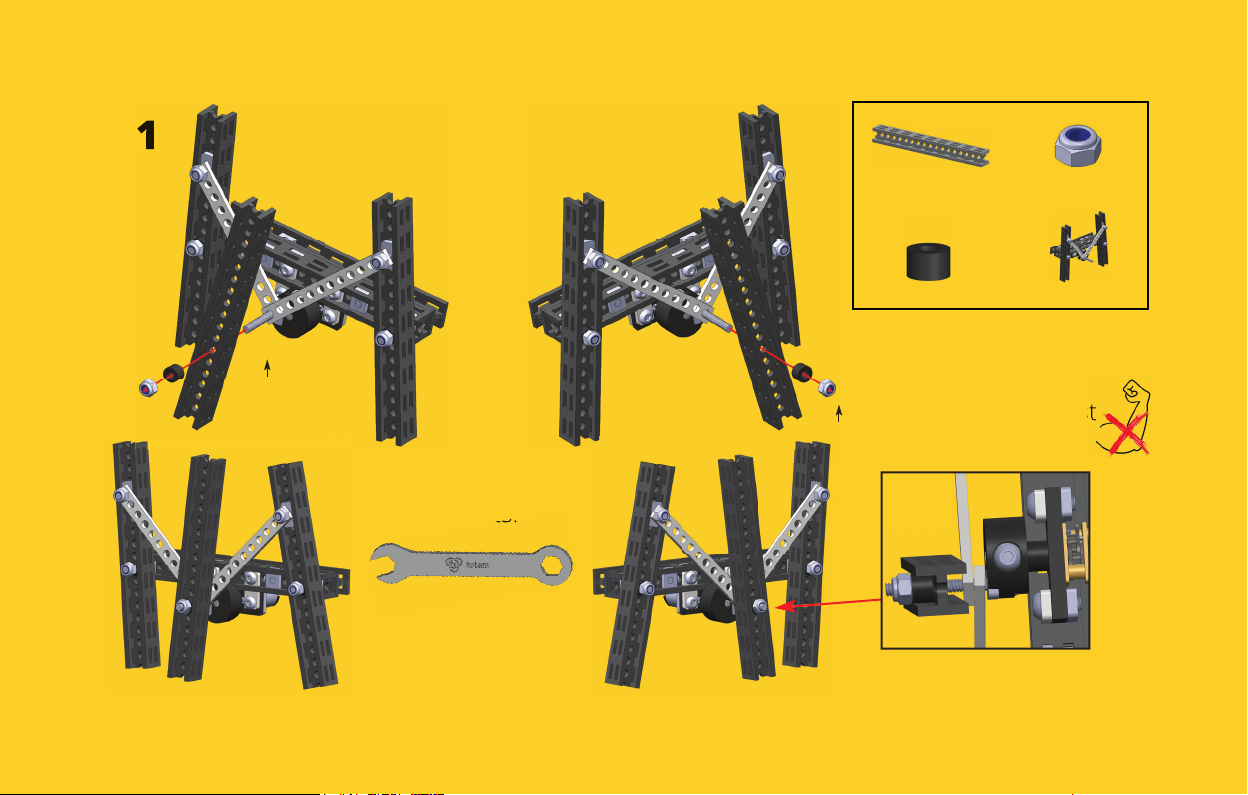

11
2x Beam 90 mm 2x Lock Nut M3
2x Nylon Spacer 4 mm 2x Step 10 Assembly
#6
Use Totem Wrench
for Lock Nuts.
#6
Do not over-tighten
Lock Nut. Beam must
be slightly loose.
Page 13

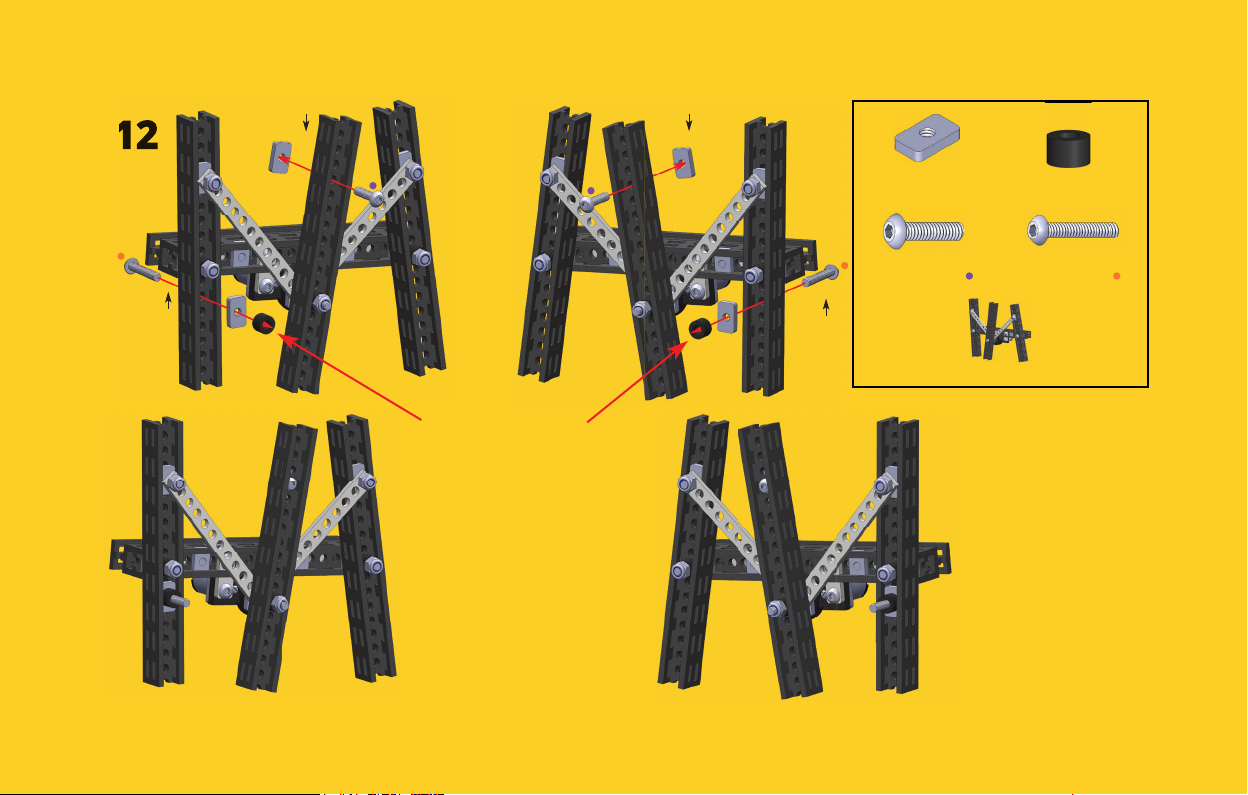

12
#6
#4
#4
4x Nut M3 6x10 2x Nylon Spacer 4 mm
2x Bolt M3x12 2x Bolt M3x16
#6
2x Step 11 Assembly
Nylon Spacers
will be loose
until next step.
Page 14

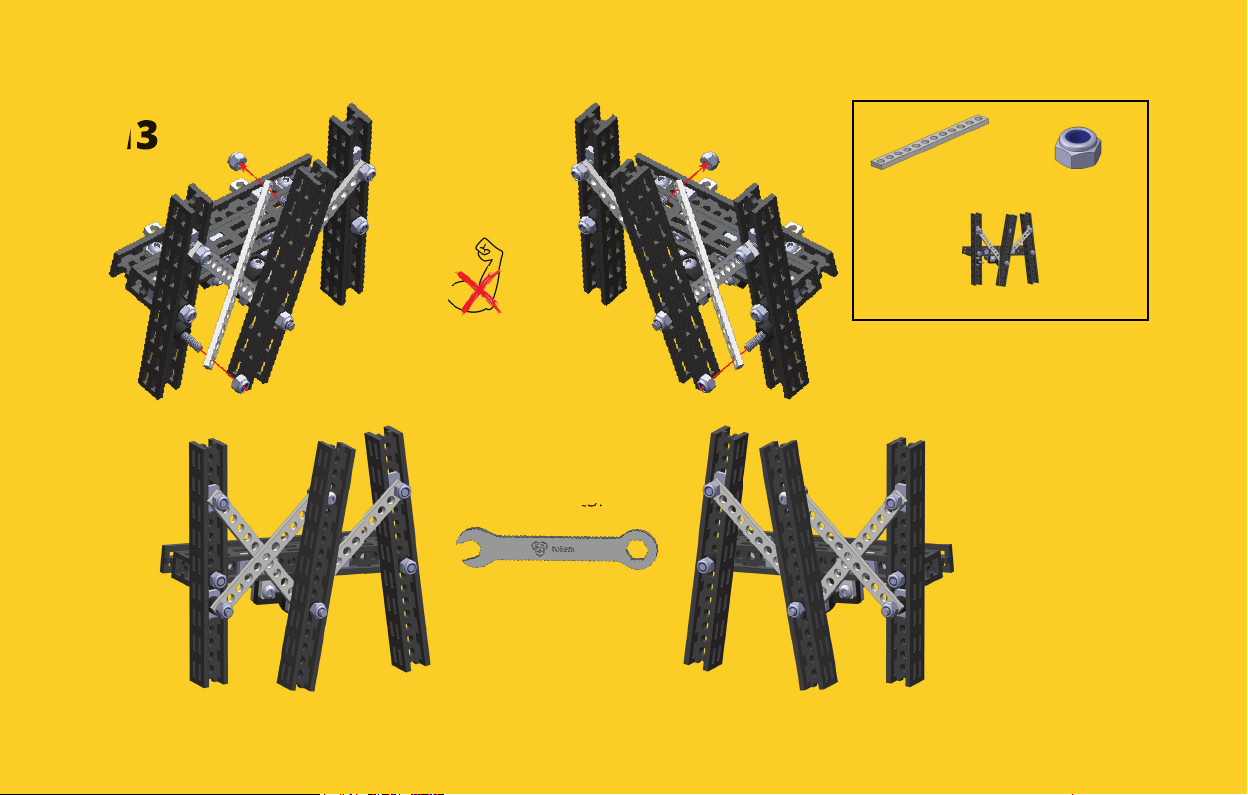

13
Do not over-tighten
Lock Nuts. Brackets
must be slightly loose.
Use Totem Wrench
for Lock Nuts.
2x Strip Bracket 60 mm
(12 Holes)
2x Step 12 Assembly
4x Lock Nut M3
Page 15

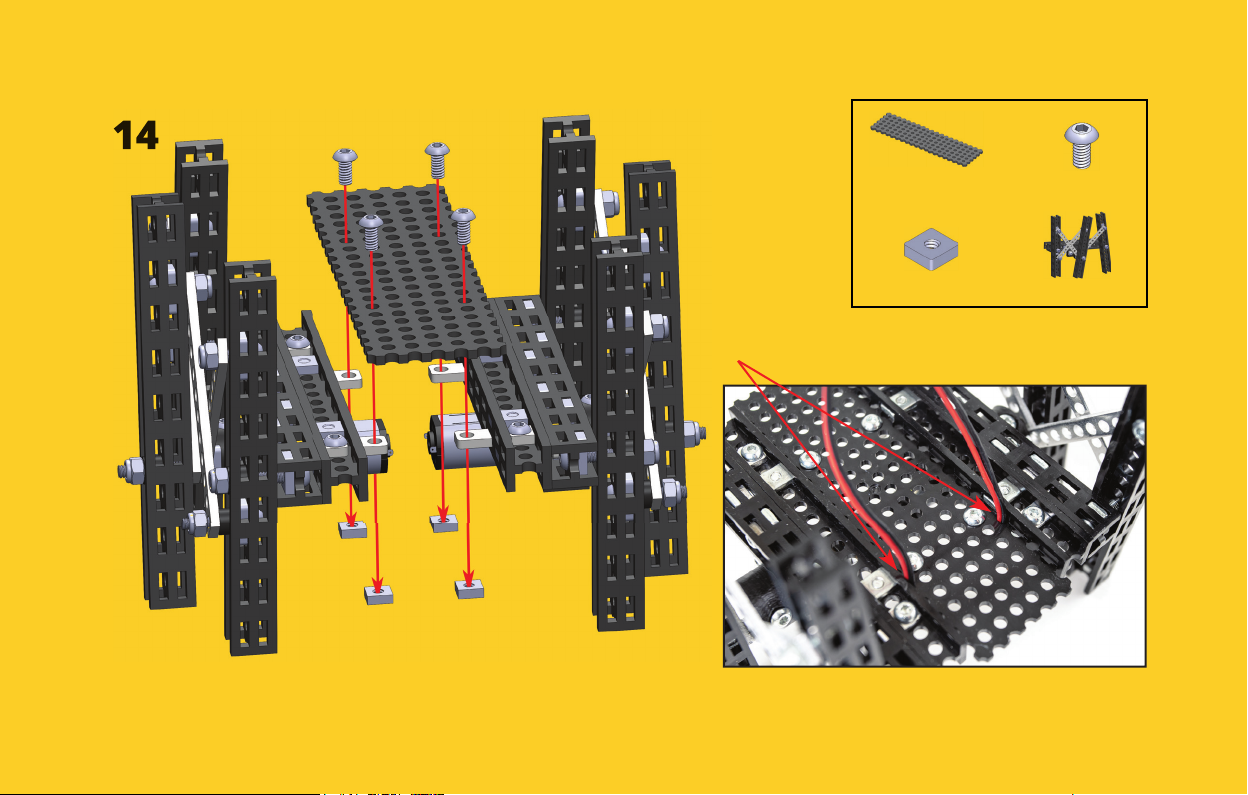

14
1x Board 30x100 4x Bolt M3x6
Mind the
position
of wires.
4x Nut M3 5.5x5.5 2x Step 13 Assembly
Page 16

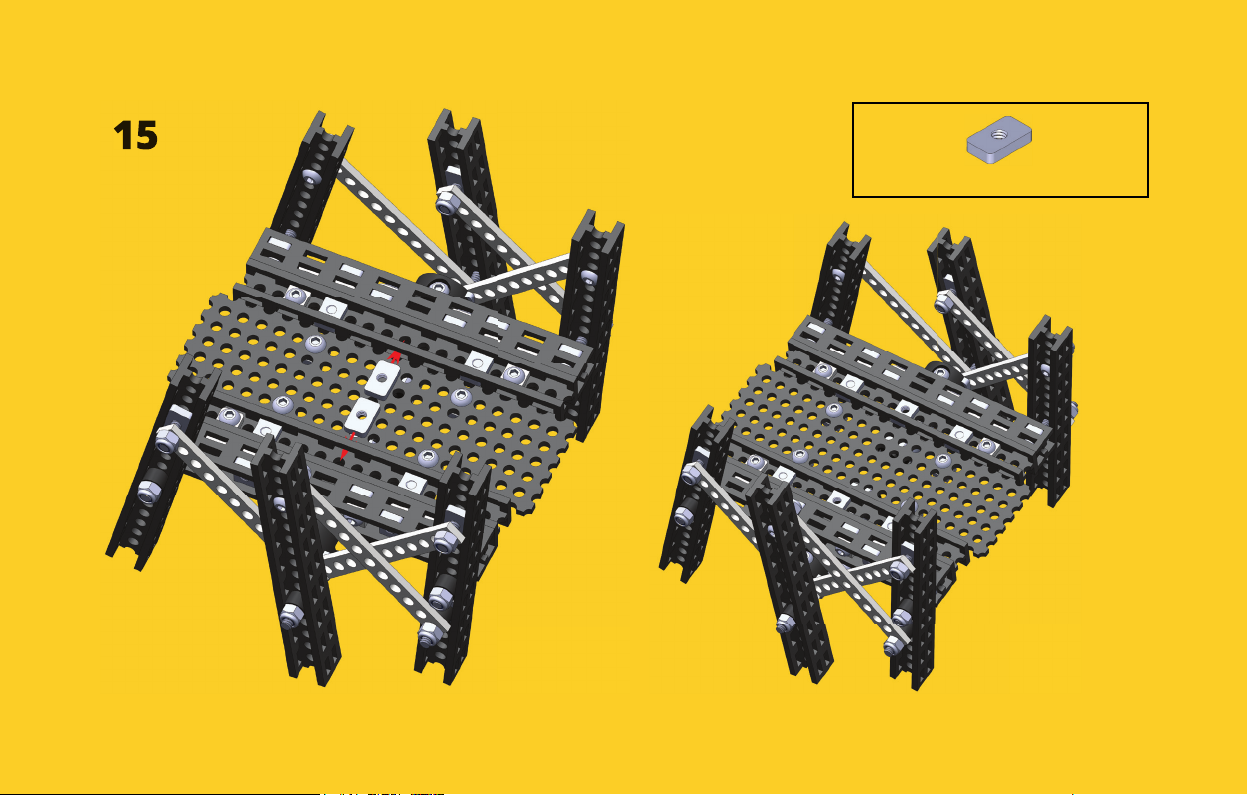

15
2x Nut M3 6x10
Page 17

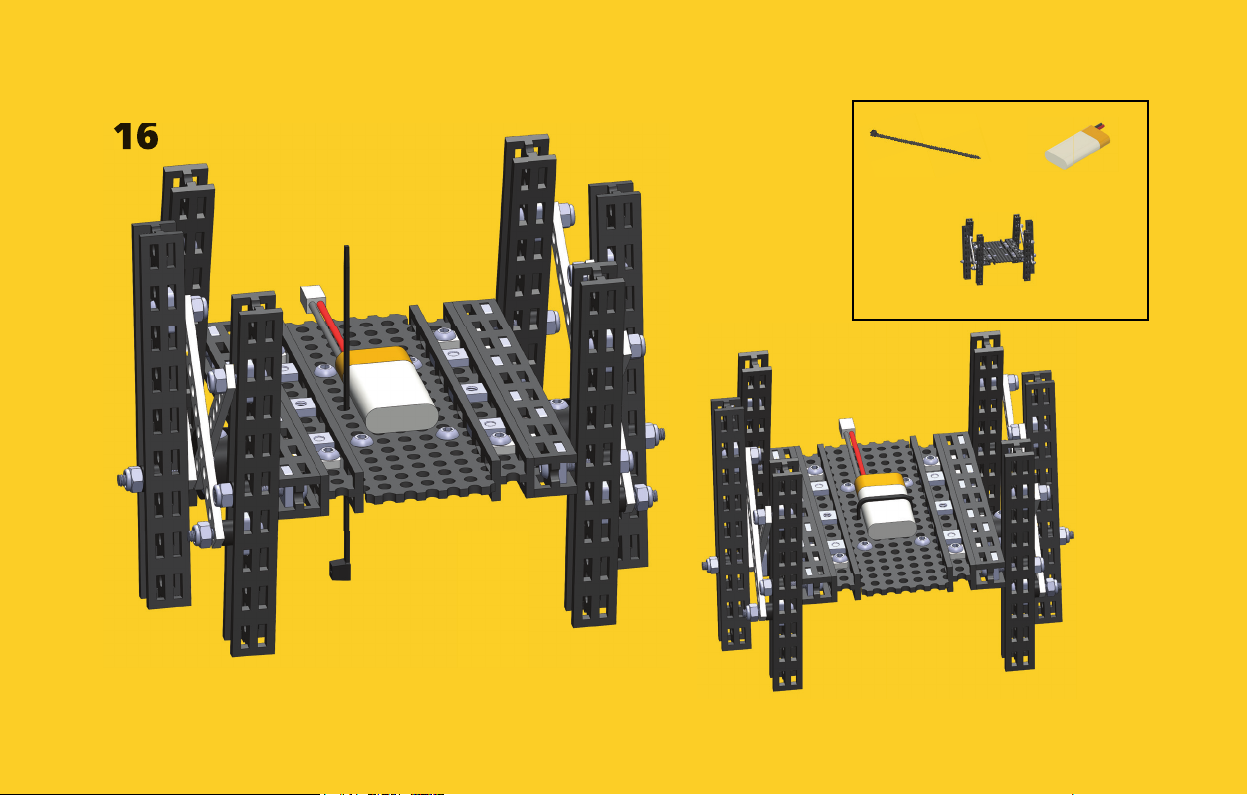

16
1x Zip Tie
2x Step 14 Assembly
1x Rechargeable
Battery
Page 18

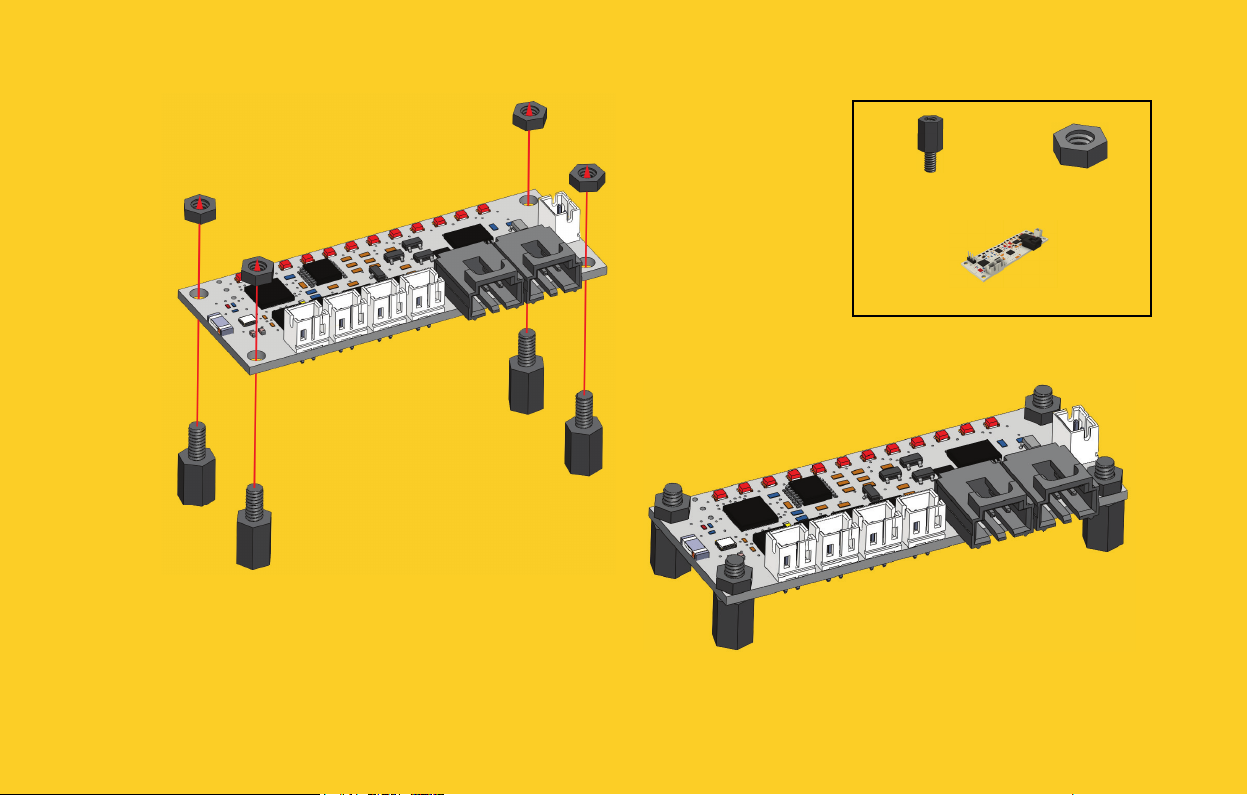

17
4x Nylon Standoff M3X8 4x Nylon Nut M3
1x Mini Control Board
Use fi ngers only to tighten Nylon
Standoff s and Nylon Nuts.
Page 19
18

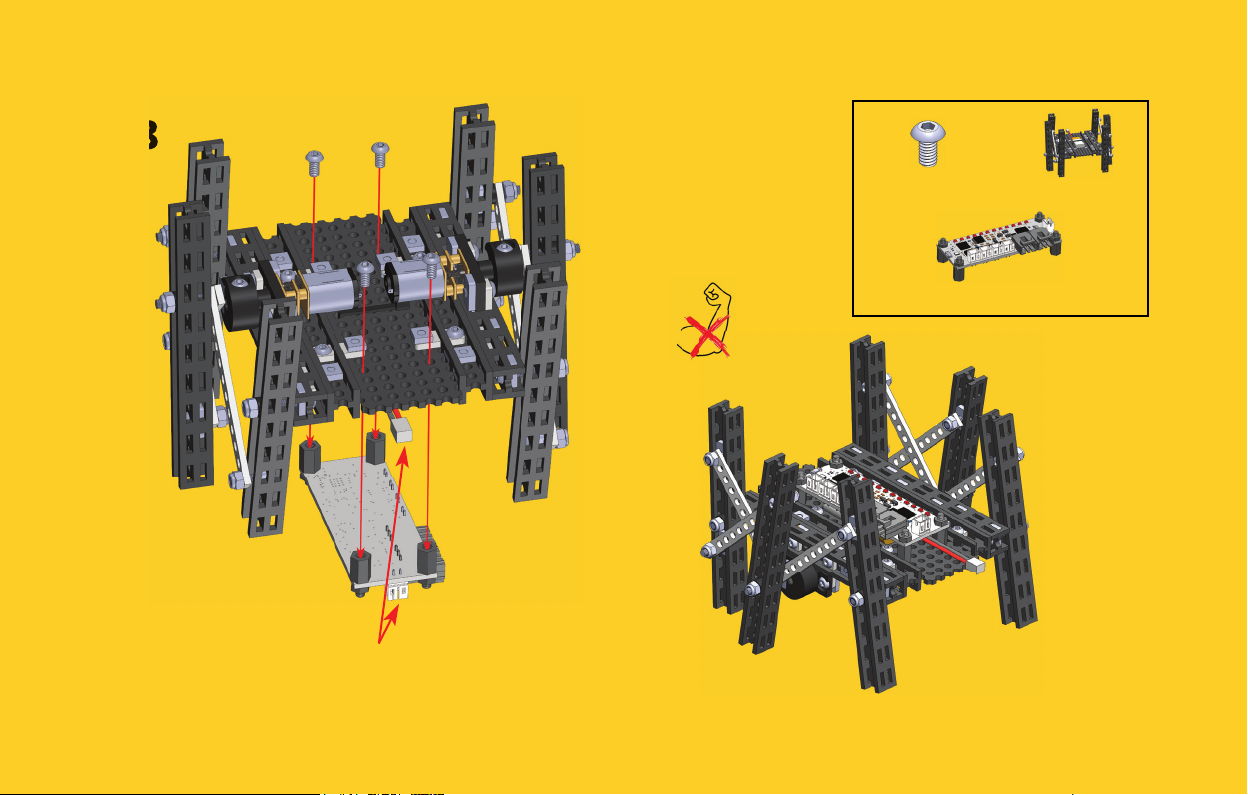

Flip the model
(motors up).
Make sure battery connector is on
the same side as battery cable.
Do not use much
force when tightening
Bolts into Standoff s.
4x Bolt M3x6 1x Step 15 Assembly
1x Step 16 Assembly
Page 20
19

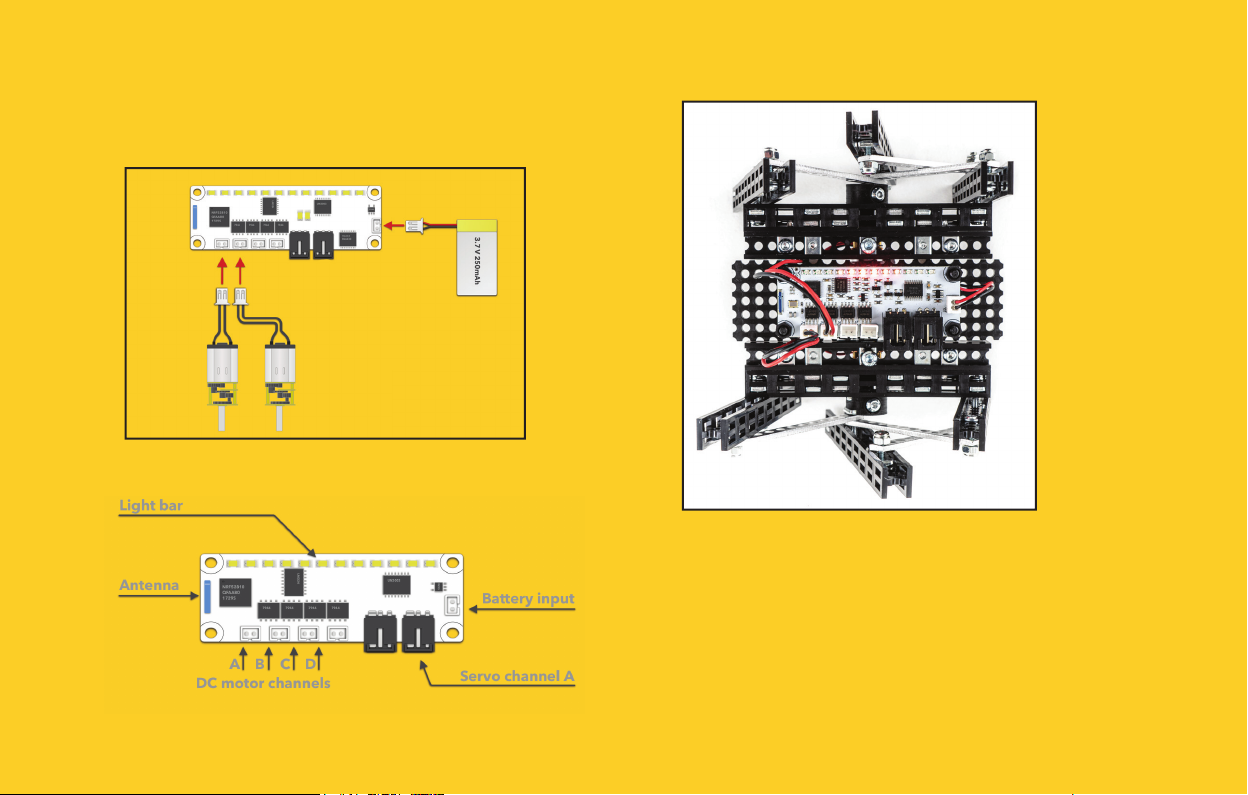

CONNECTING ELECTRONICS
Mini Control Board
Light Bar – to indicate the battery charge level. Changes
lights when successfully connected to the app.
Up to 4 DC motor channels.
Up to 2 Servo motor channels.
Page 21

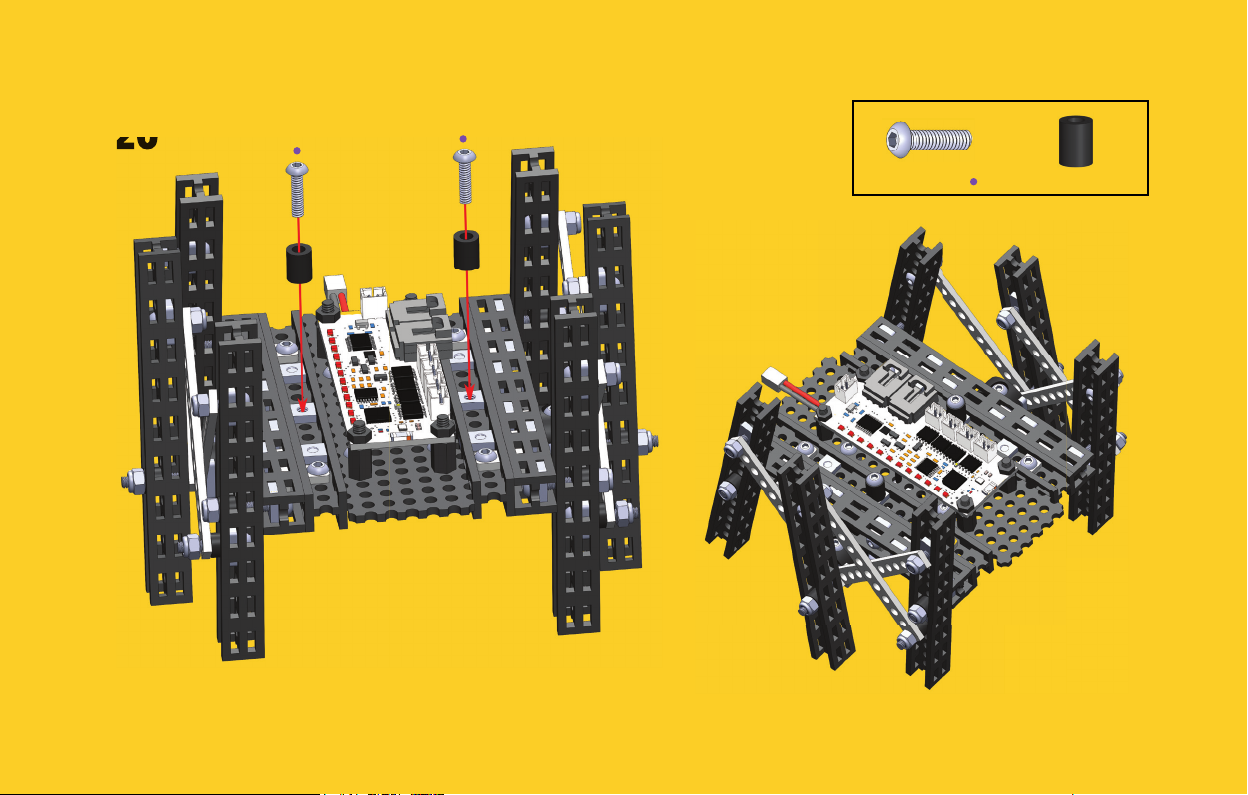

20
2x Bolt M3x12 2x Nylon Spacer 8 mm
Page 22

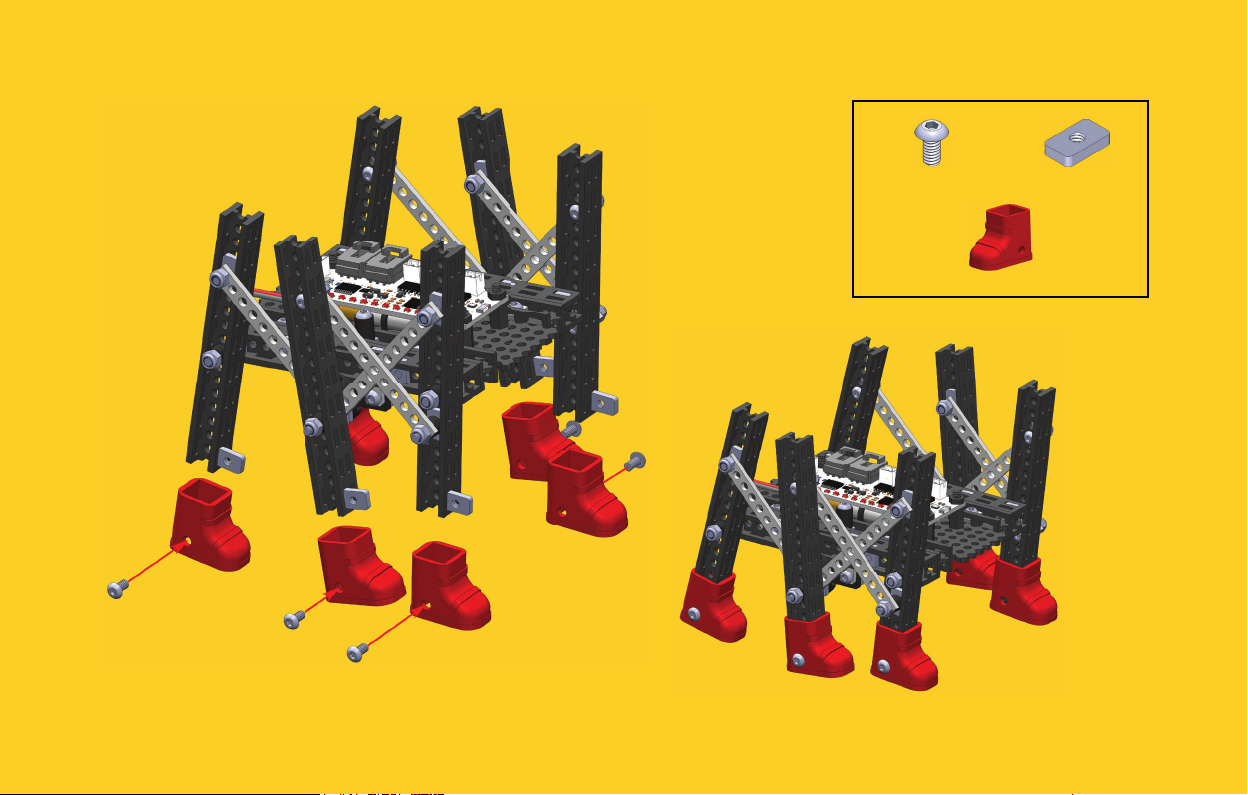

21
6x Bolt M3x6 6x Nut M3 6x10
6x Moon Boot
Page 23

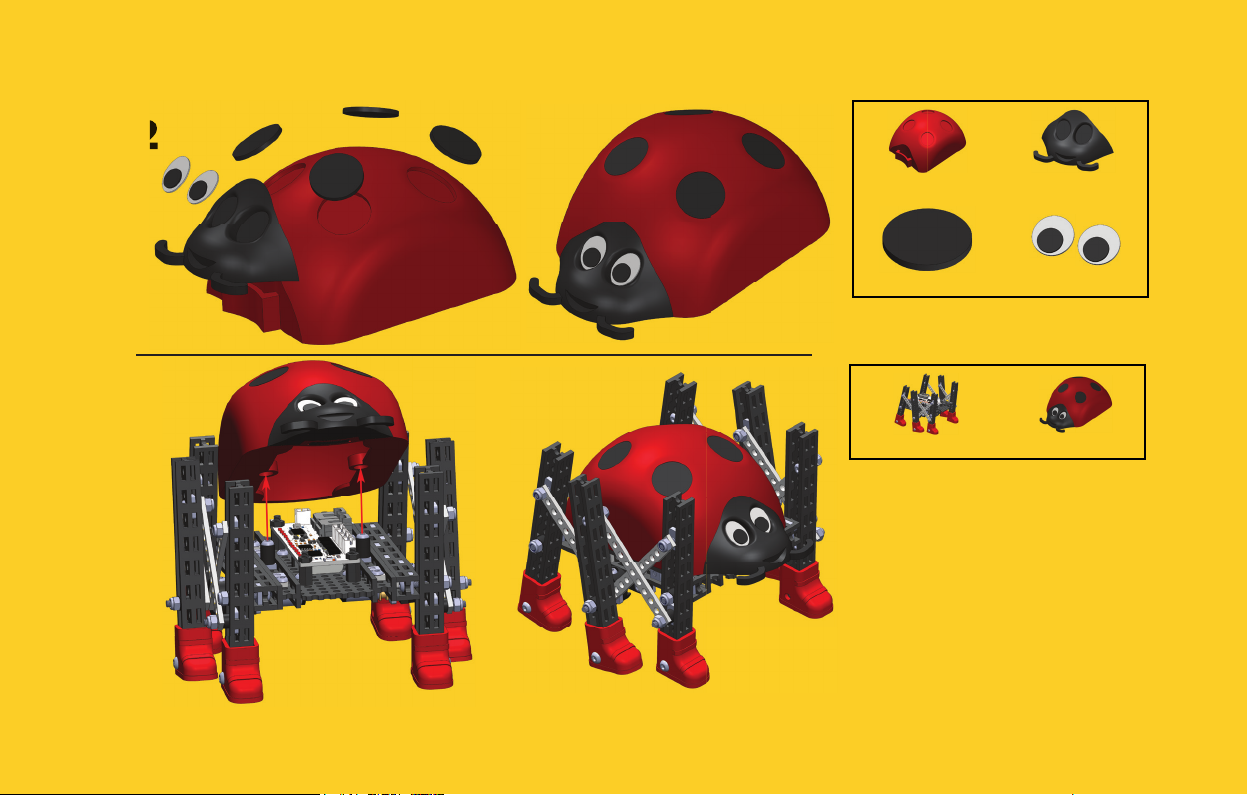

22
23
1x Ladybug Shell 1x Ladybug Head
4x Ladybug Dot 2x Googly Eye
1x Step 21 Assembly 1x Step 22 Assembly
Page 24

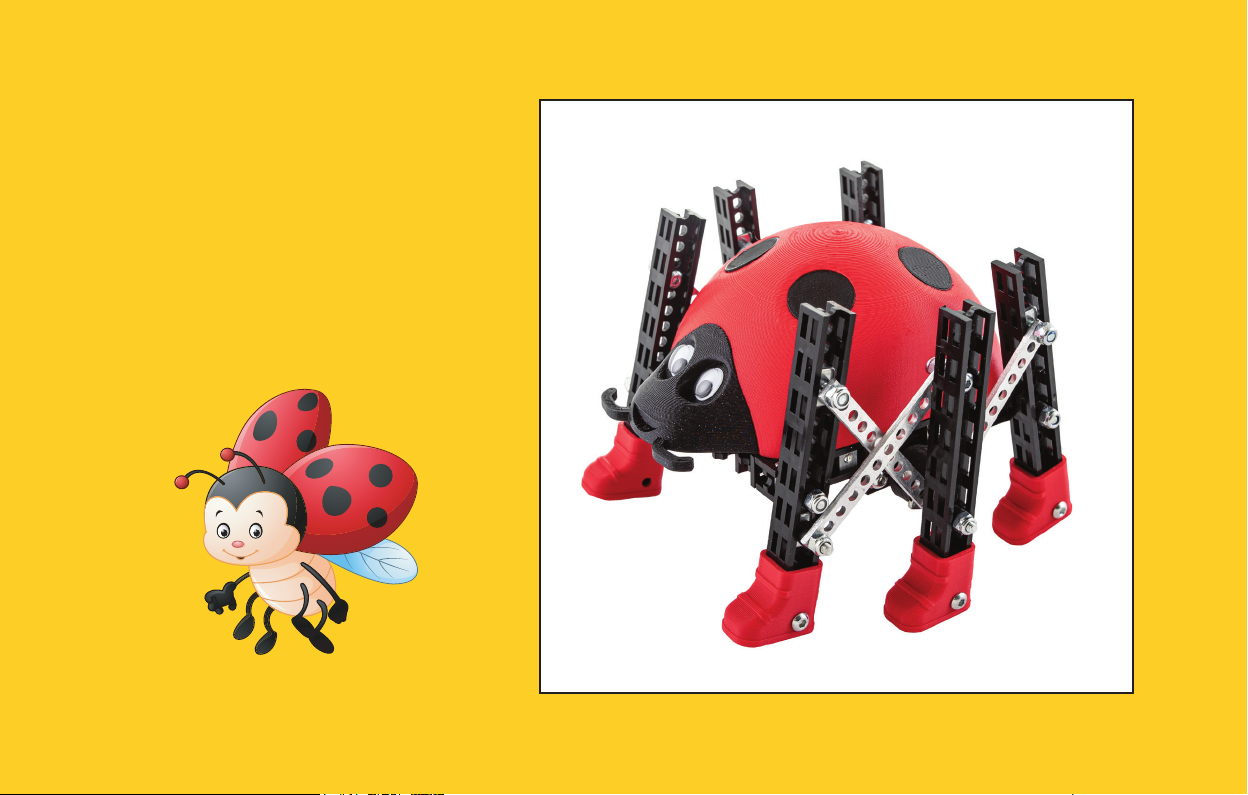

Woohoo! Your Ladybug
and ready to play.
Ladybug walks best on smooth
surfaces like your desk top or oor.
is now alive
Page 25

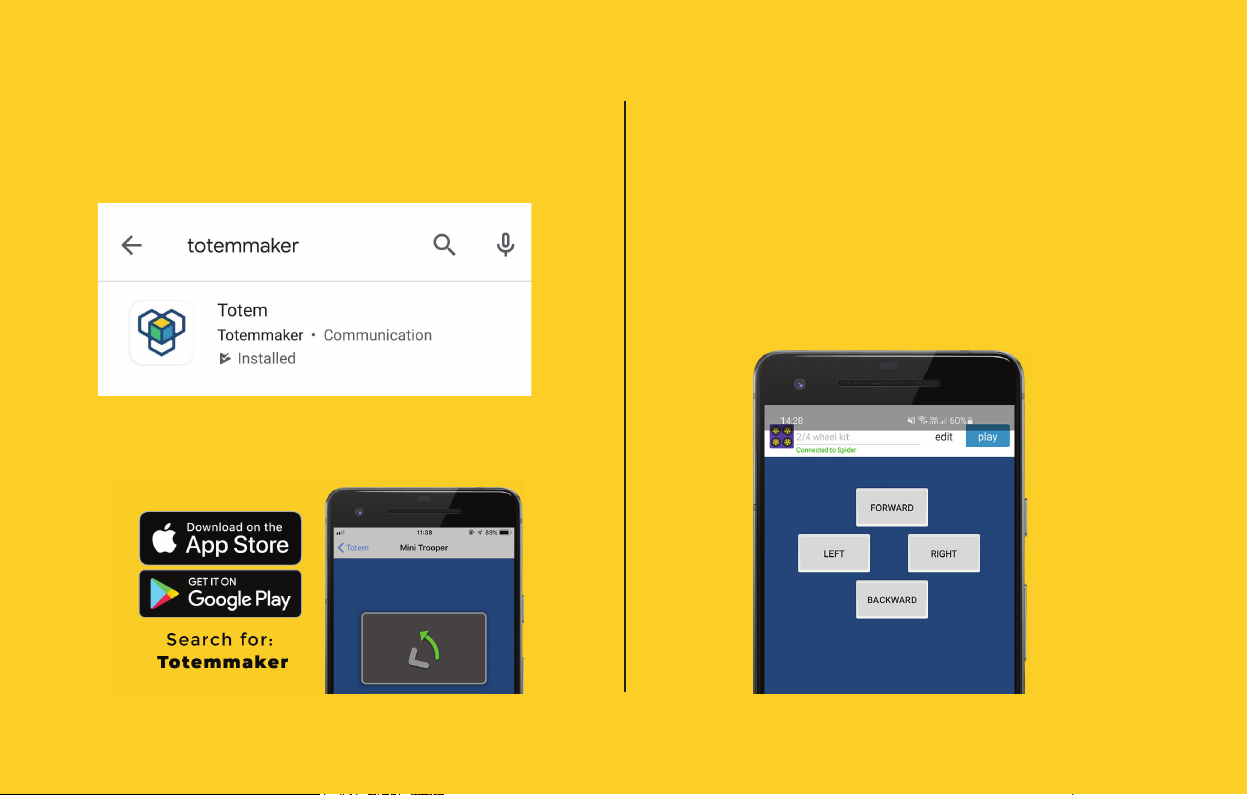

HOW TO CONTROL
Download Totem app on your smartphone or
tablet via App Store or Google Play.
Follow the step by step guide to connect your
Ladybug to your device.
To slow down the rotation speed, press
two buttons at the same time. I. e. press
both Forward and Right buttons.
Page 26
PRECAUTIONS:
ELECTRONICALLY OPERATED PRODUCT
Do not give this product to children aged 8 or below. As with all electronic products, precautions should be observed during handling and use to prevent electric
chock.
Adult supervision required.
Note to adults: to ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child.
SAFETY WARNINGS:
• Do not pick up toy while in motion.
• Keep fi ngers, hair, and loose clothing away from moving parts, to avoid the injury.
• Adult supervision is required when this toy is being operated.
• If you stopped operating the toy, remember to unplug the battery, to avoid accidental operation.
• If the toy is dirty, please clean it with dry and soft cloth. Do not clean electronics.
• Do not expose the toy to high temperature, high humidity, or direct sunlight.
• Indoor use only. Do not put this product in water to avoid damaging its electronic components.
• The product is made of complex electronic circuit and electronic components, do not disassemble, or modify the circuit board.
BATTERY SAFETY INFORMATION:
• This toy is designed to work with provided 250 mAh 3.7V LiPo battery and charger.
• Rechargeable battery must be charged by adult only.
• Do not leave charging without supervision of adult.
• There is a risk of fi re and personal injury if battery is punctured, damaged or misused.
• Do not disassemble or damage the battery pack.
• Use only the supplied 250 mAh 3.7V LiPo battery. Using any other battery may damage the model.
• Use only the included USB charging cable to charge the battery.
• Please check on a regular basis the wire, plug, battery, charger, and other electronic parts on the toy. If any damage is found, please stop using the product
immediately.
• Stop charging if battery becomes hot, smells, smokes or gives off strong odour.
• Never throw batteries into fi re to avoid explosion or leakage.
• Check the batteries on regular basis to avoid leakage.
• Recycle or dispose of batteries according to local laws and guidelines.
Page 27

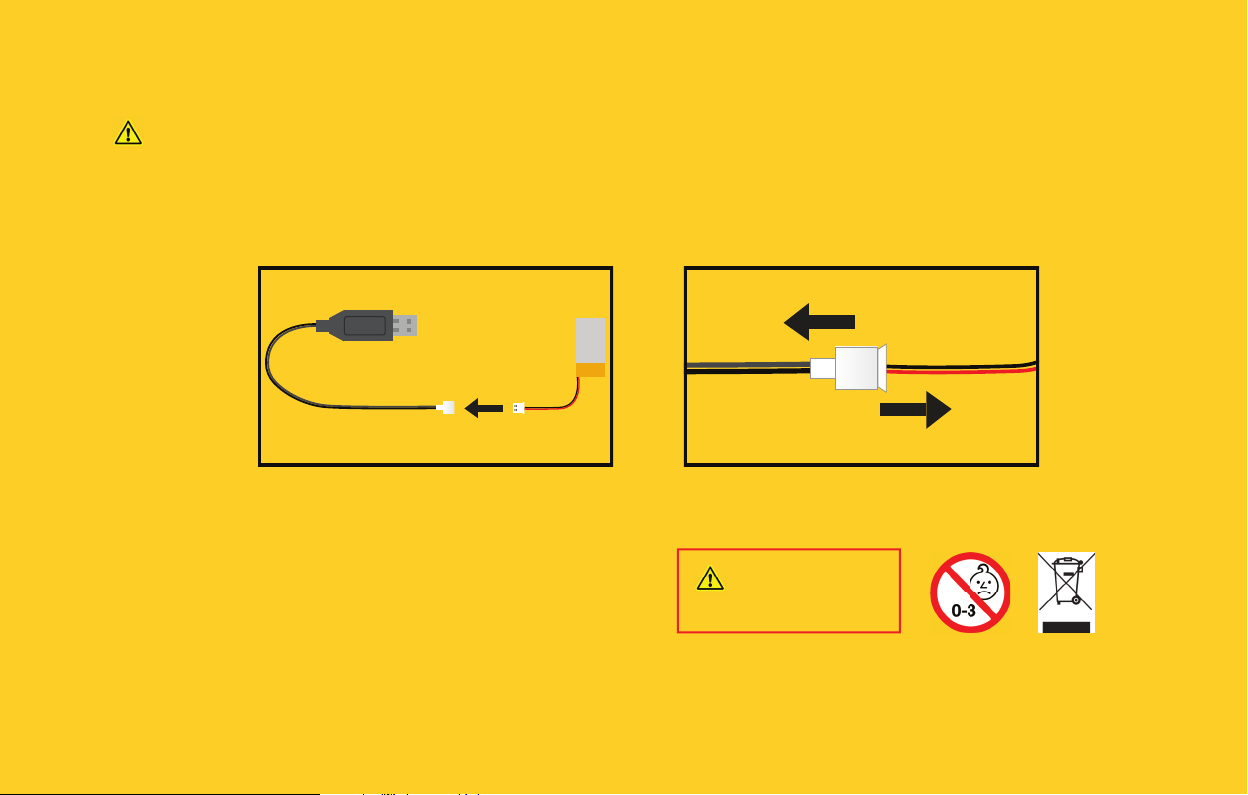

BATTERY CHARGING:
Rechargeable battery must be charged by adult only.
• The new battery pack needs to be charged before use.
• Connect the USB charging cable to 5V USB power source, such as laptop.
• Connect the battery to the charger (see picture on the left). The charger will show a red LED light when charging the battery. When the battery is fully
charged, the red LED light turns off .
• To disconnect cables, hold the connectors of both cables and pull apart (see picture on the right).
• Do not attempt to overcharge the battery.
3.7v 250 mAh
KEEP THIS INTRUCTION MANUAL AND THE PRODUCT BOX AS IT CONTAIN IMPORTANT INFORMATION FOR FUTURE REFERENCE.
Due to the continuous product improvement, the pictures on this manual may diff er slightly from the actual product. Please adhere to actual product instead.
Totem Maker names and logos are registered trademarks. All rights reserved.
www.totemmaker.net
Totem Technology, UAB
Sauletekio al. 15-709, Vilnius, 10224, Lithuania
For customer support please contact: [email protected]
WARNING:
CHOKING HAZARD - Small parts.
Not for children under 3 years.
