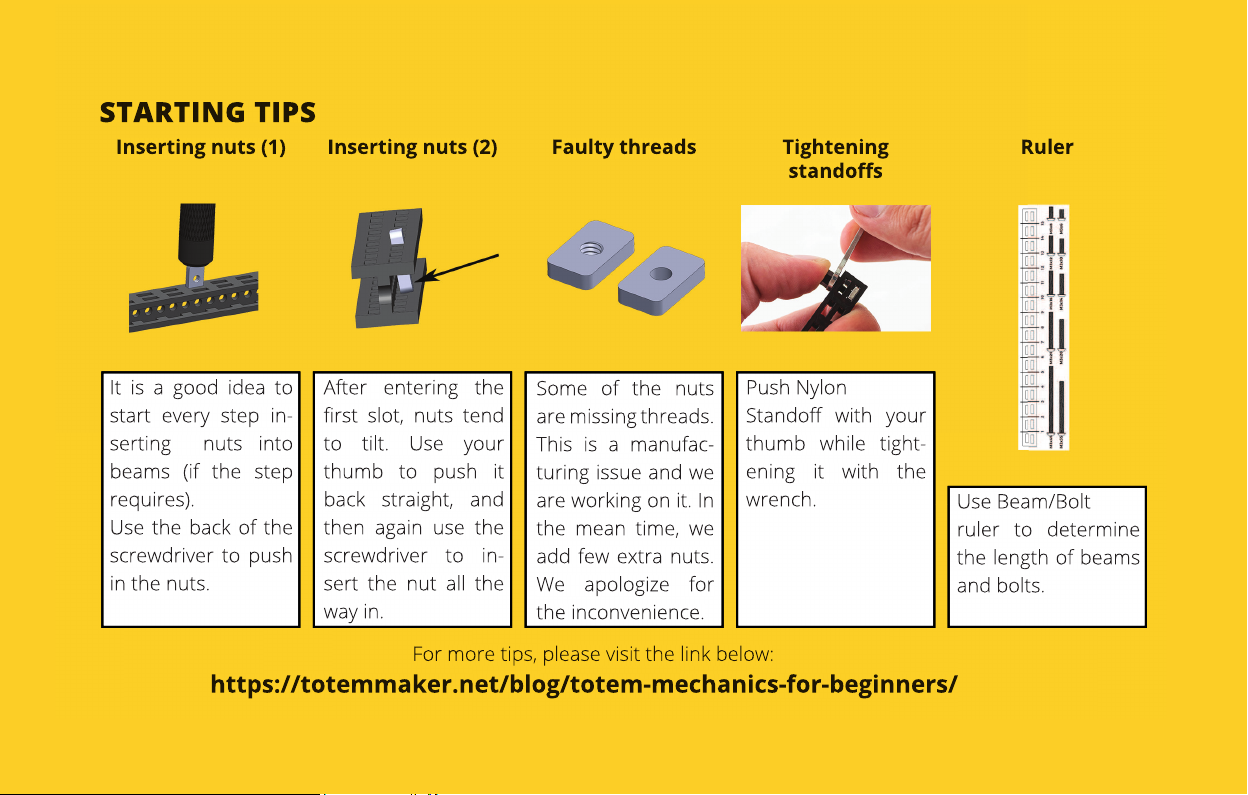

STARTING TIPS
STARTING TIPS

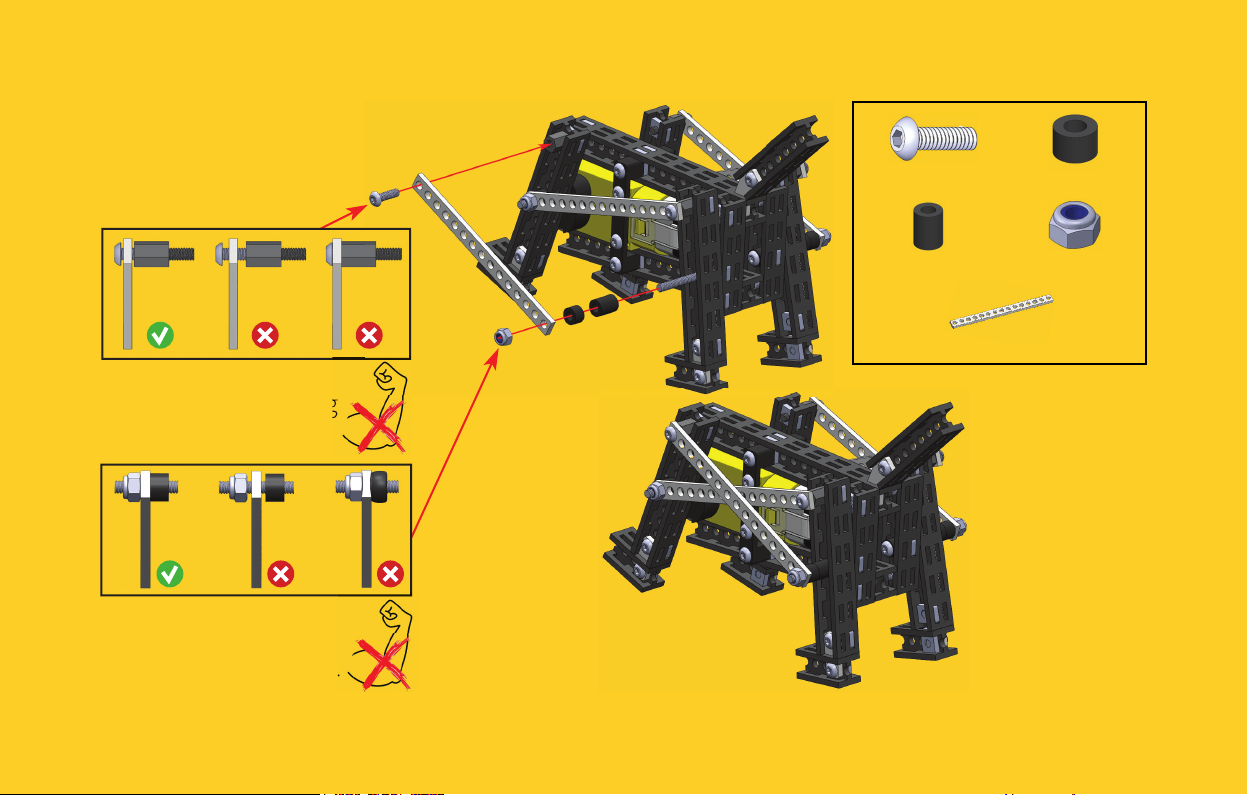

Inserting nuts (1) Inserting nuts (2) Faulty threads Tightening
standoff s
Ruler
It is a good idea to
It is a good idea to
start every step in-
start every step in-
serting nuts into
serting nuts into
beams (if the step
beams (if the step
requires).
Use the back of the
Use the back of the
screwdriver to push
screwdriver to push
in the nuts.
https://totemmaker.net/blog/totem-mechanics-for-beginners/
After entering the
After entering the
fi rst slot, nuts tend
to tilt. Use your
to tilt. Use your
thumb to push it
thumb to push it
back straight, and
back straight, and
then again use the
then again use the
screwdriver to in-
screwdriver to in-
sert the nut all the
sert the nut all the
way in.
For more tips, please visit the link below:
Some of the nuts
Some of the nuts
are missing threads.
are missing threads.
This is a manufac-
This is a manufac-
turing issue and we
turing issue and we
are working on it. In
are working on it. In
the mean time, we
the mean time, we
add few extra nuts.
add few extra nuts.
We apologize for
We apologize for
the inconvenience.
Push Nylon
Standoff with your
thumb while tight-
thumb while tight-
ening it with the
ening it with the
wrench.
Use Beam/Bolt
ruler to determine
ruler to determine
the length of beams
the length of beams
and bolts.
Page 3
PART LIST

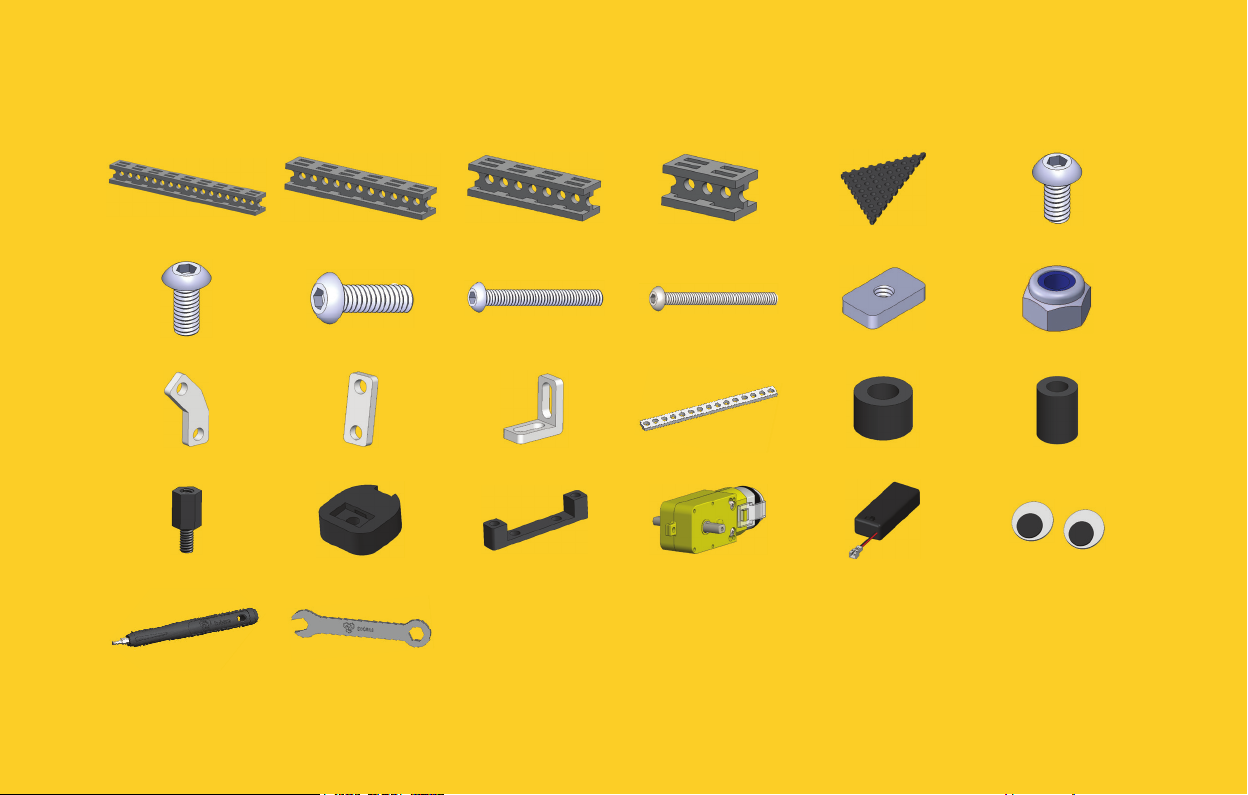

2x Beam 90 mm 4x Beam 60 mm 5x Beam 40 mm 4x Beam 20 mm 6x Board Triangular 21x Bolt M3x6
2x Bolt M3x8 8x Bolt M3x10 6x Bolt M3x25 2x Bolt M3x35 35x Nut M3 6x10 6x Lock Nut M3
2x 2-Hole 45 Simple Bracket 5x 2-Hole Simple Bracket 1x 2-Hole 90 Bracket 4x Strip Bracket 75 mm 6x Nylon Spacer 4 mm 2x Nylon spacer 8 mm
4x Nylon Standoff M3x8 2x DC Motor Hub 2x DC Motor Bracket 1x DC Motor 1x Battery Case with Switch 2x Dog Eye
1x Totem Screwdriver 1x Totem Wrench
Page 4

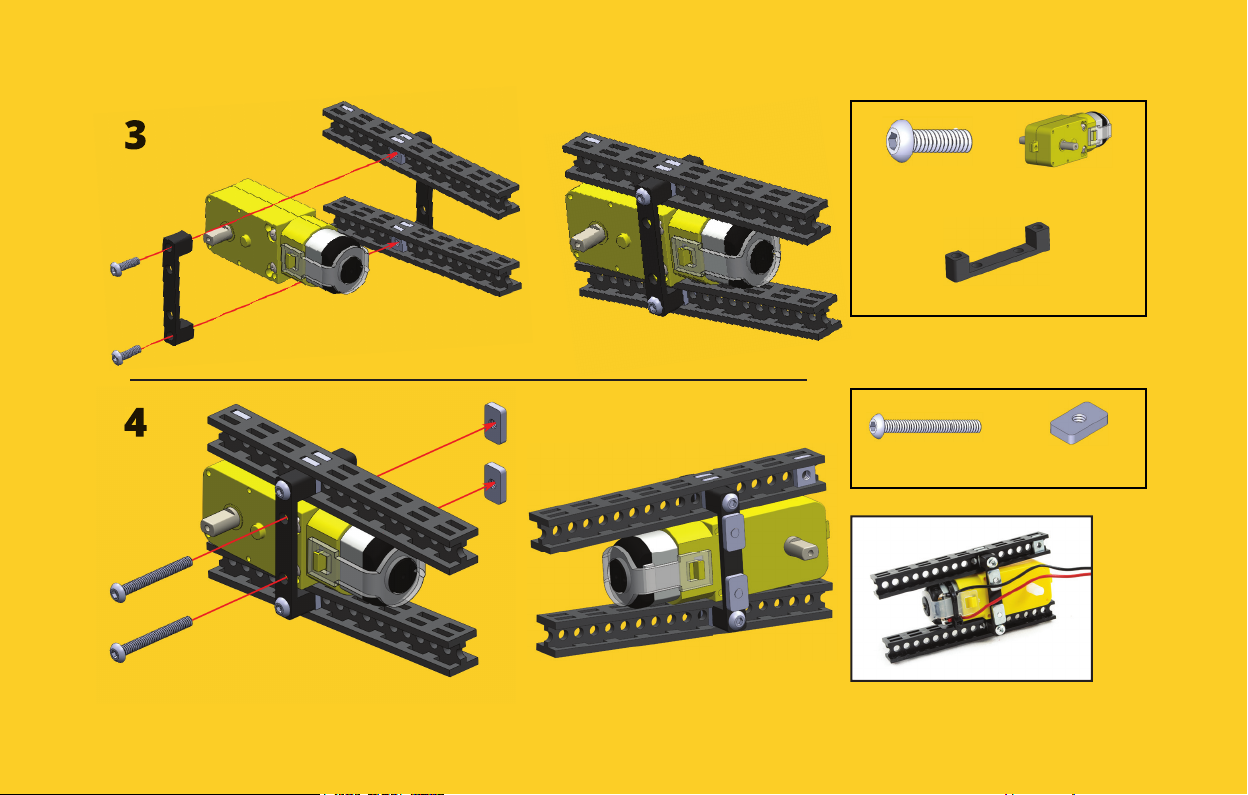

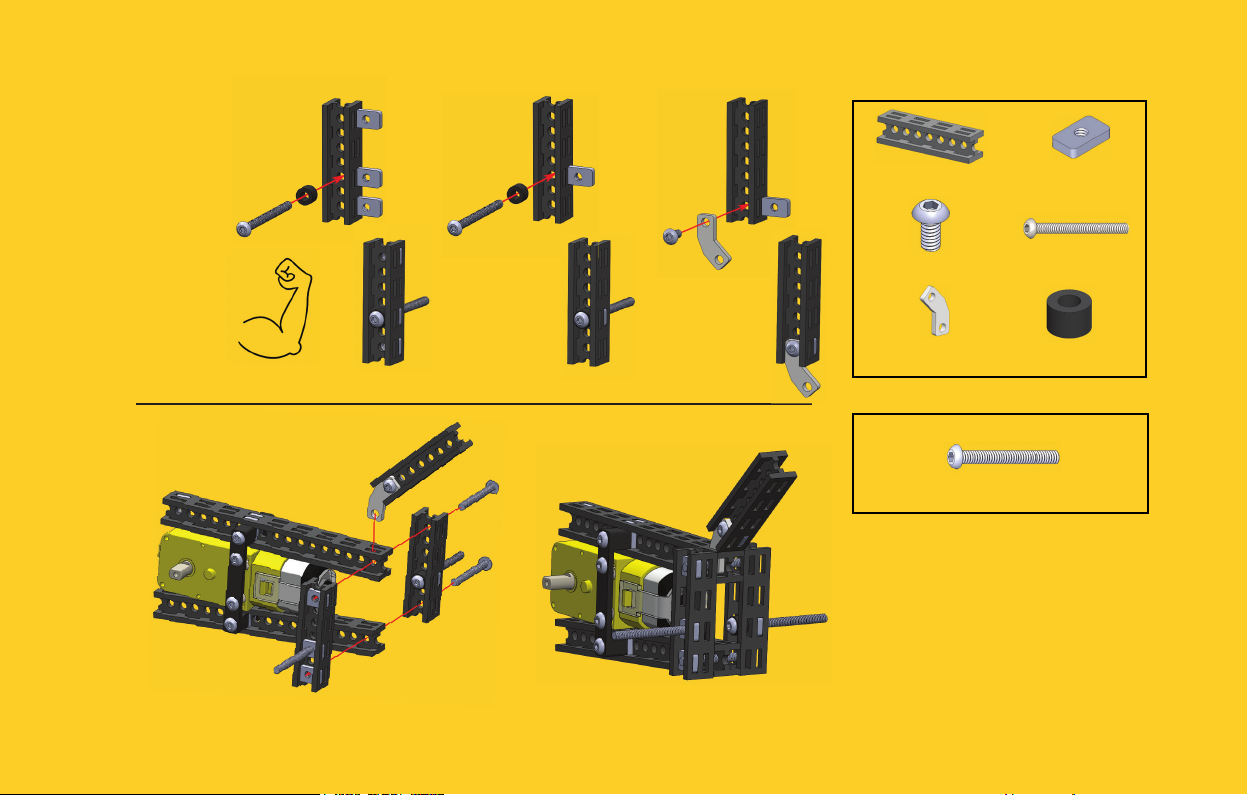

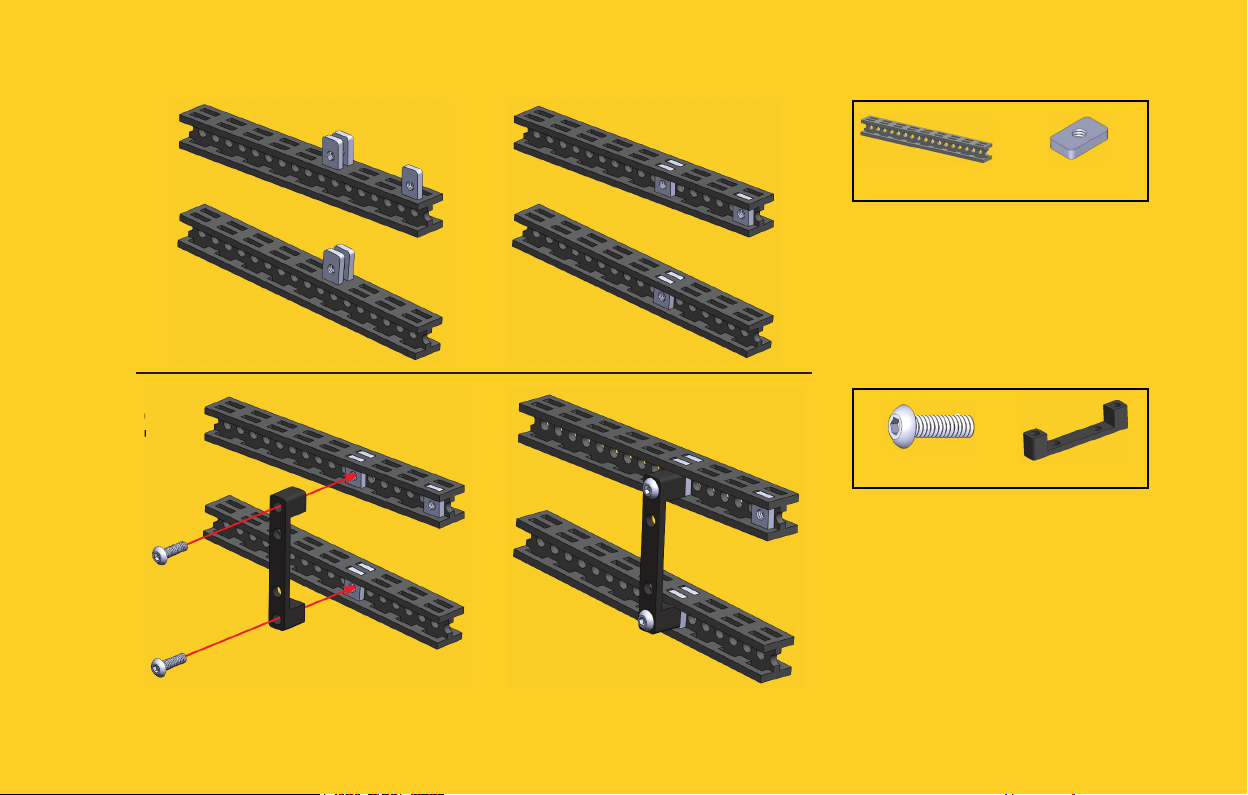

1
2
2x Beam 90 mm 5x Nut M3 6x10
2x Bolt M3x10 1x DC Motor Bracket
Page 5
3
4
2x Bolt M3x10 1x DC Motor
1x DC Motor Bracket
2x Bolt M3x25 2x Nut M3 6x10
Page 6
5

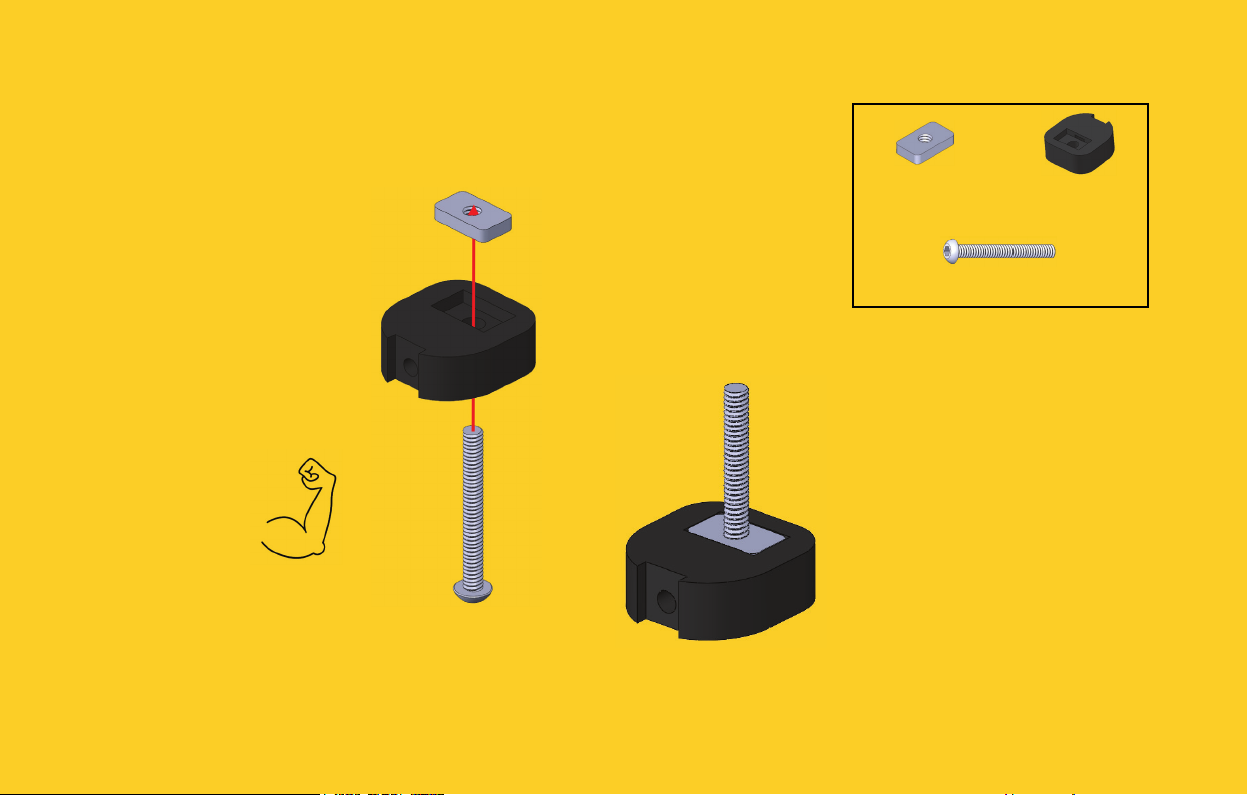

Tighten the
bolts fi rmly.
6
3x Beam 40 mm 5x Nut M3 6x10
1x Bolt M3x6 2x Bolt M3x35
1x 2-Hole 45 Simple
Bracket
2x Nylon Spacer 4 mm
2x Bolt M3x25
Page 7
7
Tighten the
bolts fi rmly.
2x Nut M3 6x10 2x DC Motor Hub
2x Bolt M3x25
Repeat this step twice.
2x
Page 8

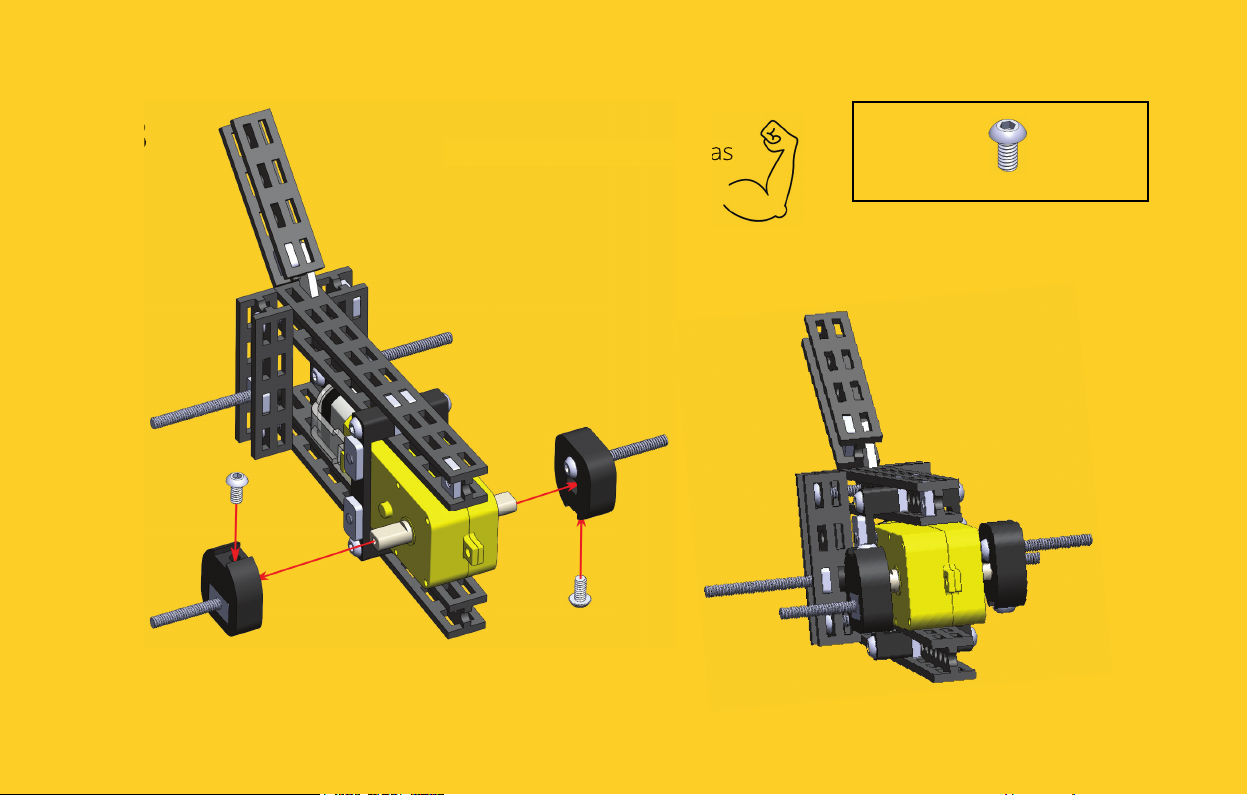

8
Screw bolt with strength as
the hub’s hole is tight fi t.
2x Bolt M3x6
Page 9
9
Repeat this step twice.

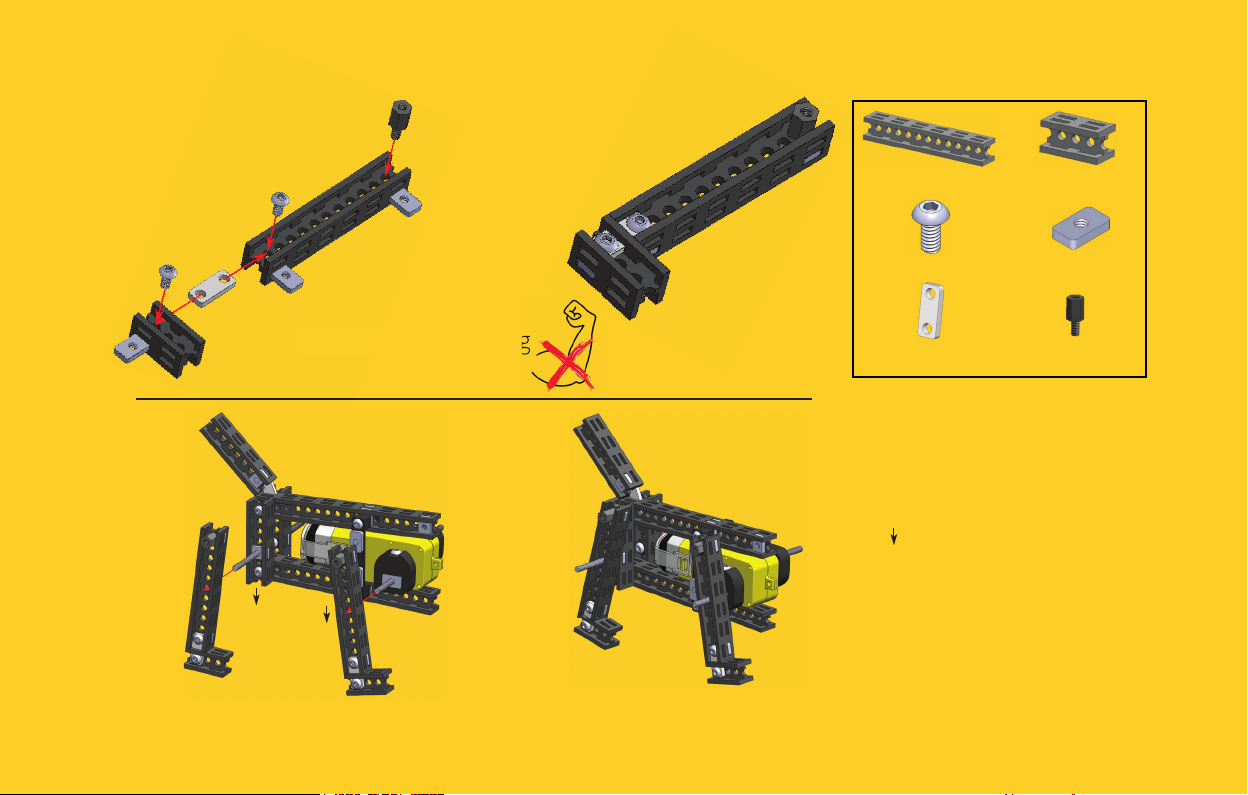

Do not use much
force when tightening
Nylon Standoff s.
2x
2x Beam 60 mm 2x Beam 20 mm
4x Bolt M3x6 6x Nut M3 6x10
2x 2-Hole Simple
Bracket
2x Nylon Standoff
10
# indicates number
of circular hole.
indicates counting
direction.
#6
#6
Page 10
11
Do not use much
force when tightening
Bolt into Standoff .

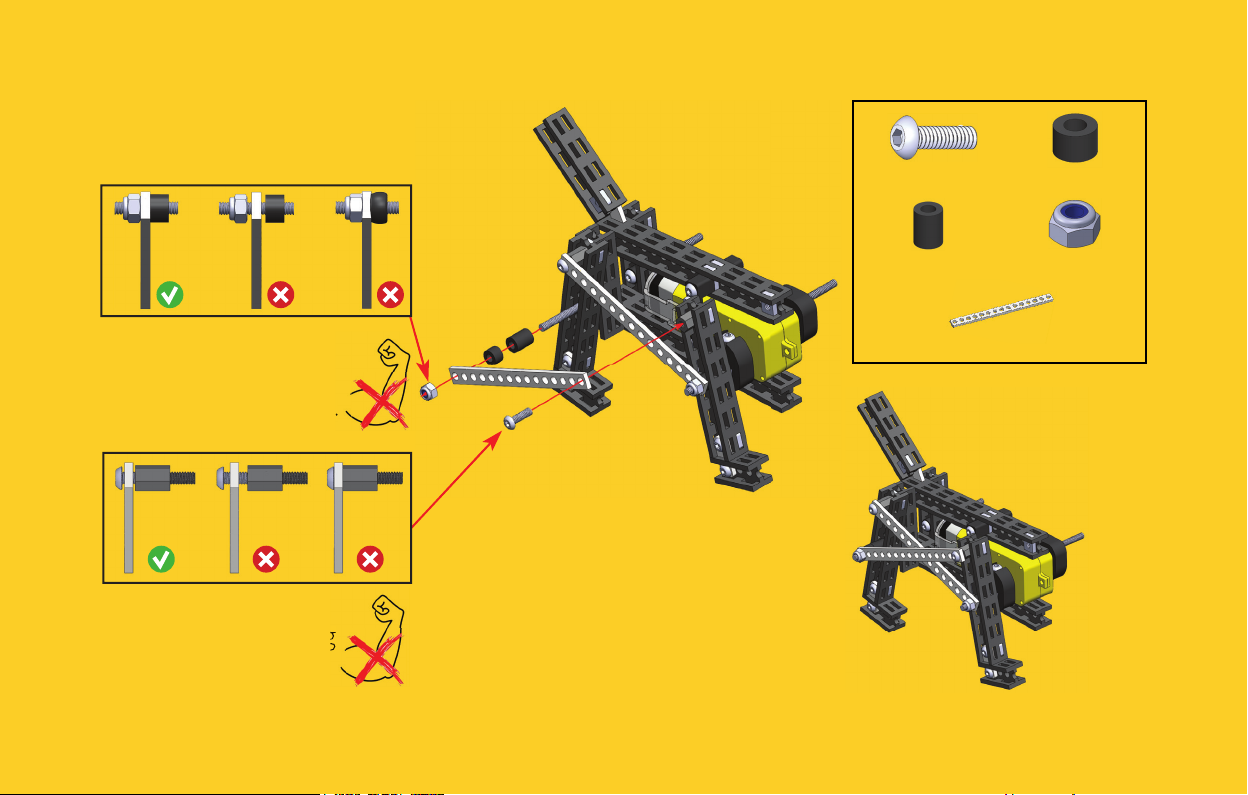

Do not over-tighten
Strip Bracket. Bracket
must be slightly loose.
1x Strip Bracket 1x Bolt M3x10
1x Nylon Spacer 4 mm 1x Lock Nut M3
Page 11

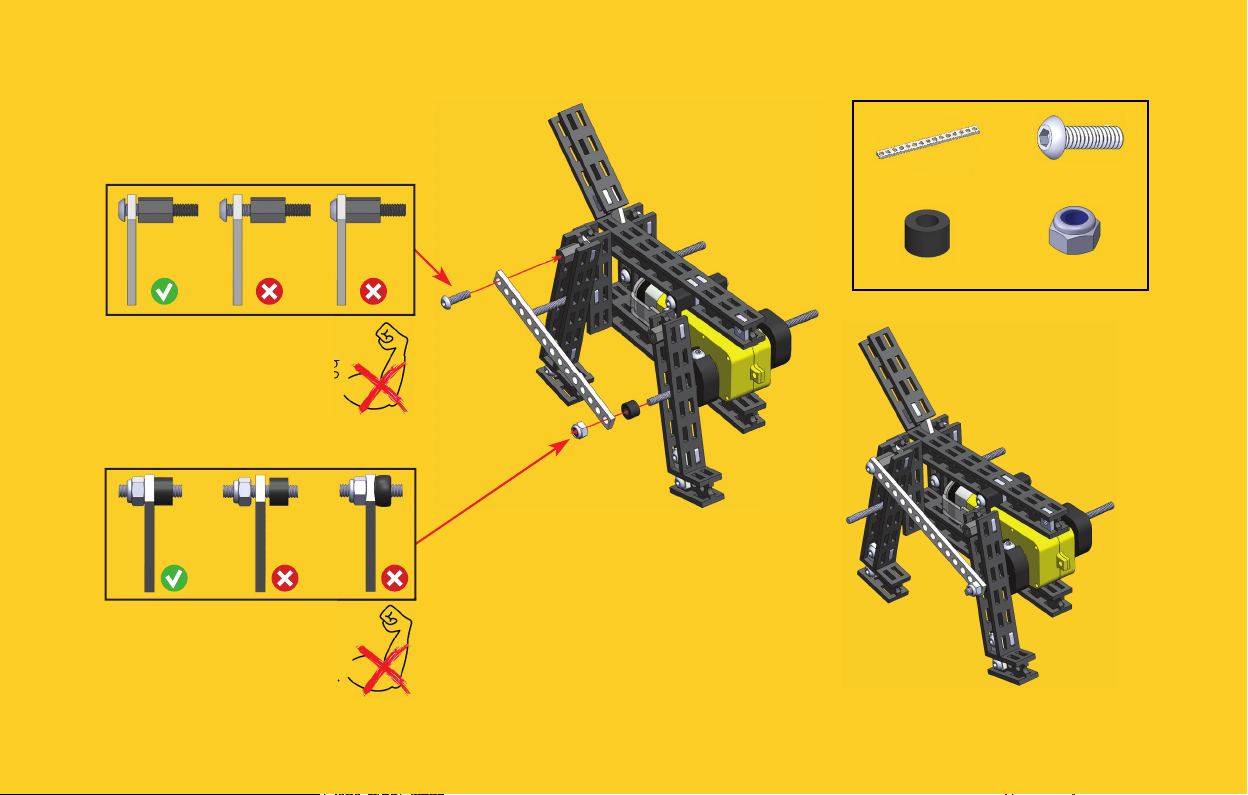

12
1x Bolt M3x10 1x Nylon Spacer 4 mm
1x Nylon Spacer 8 mm 1x Lock Nut M3
Do not over-tighten
Strip Bracket. Bracket
must be slightly loose.
Do not use much
force when tightening
Bolt into Standoff .
1x Strip Bracket
Page 12

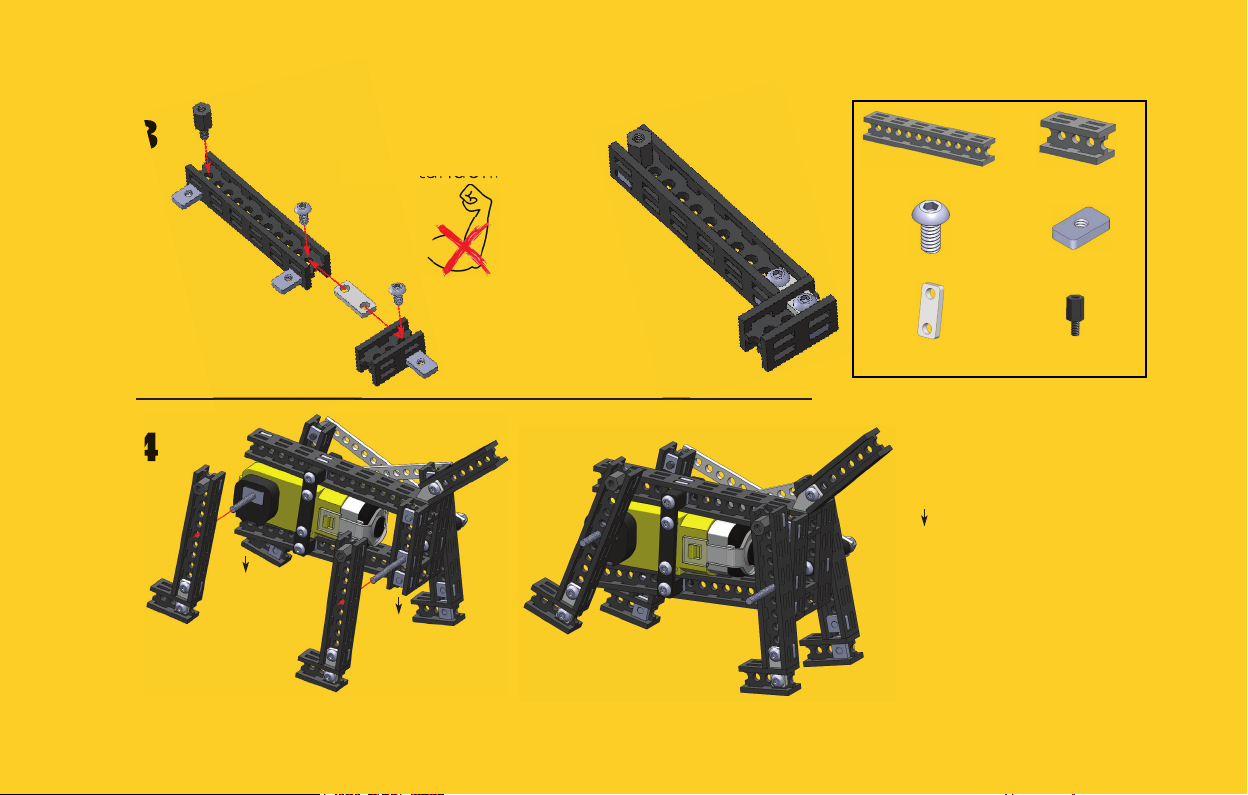

13
Do not use much
force when tightening
Nylon Standoff s.
Repeat this step twice.
2x Beam 60 mm 2x Beam 20 mm
4x Bolt M3x6 6x Nut M3 6x10
14
#6
#6
2x
2x 2-Hole Simple
Bracket
2x Nylon Standoff
# indicates number
of circular hole.
indicates counting
direction.
Page 13
15
1x Strip Bracket 1x Bolt M3x10
1x Nylon Spacer 4 mm 1x Lock Nut M3
Do not use much
force when tightening
Bolt into Standoff .
Do not over-tighten
Strip Bracket. Bracket
must be slightly loose.
Page 14

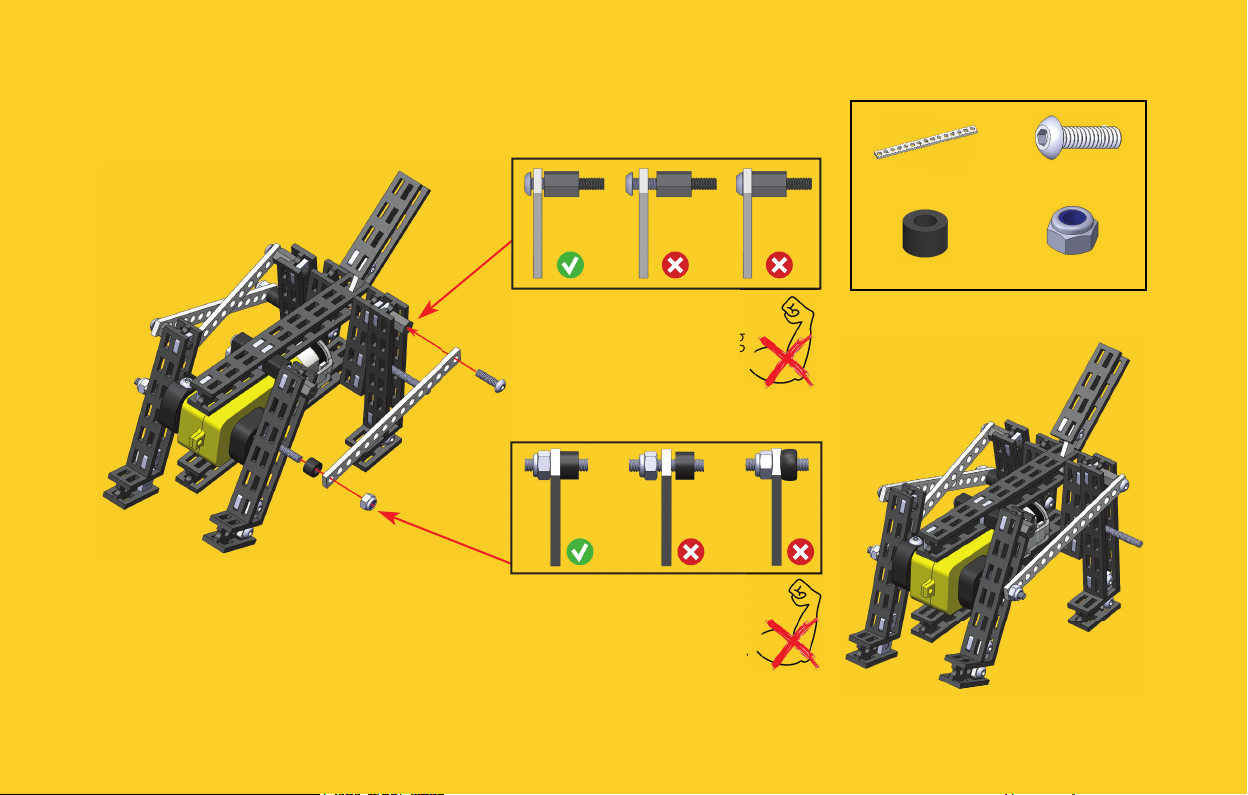

16
Do not use much
force when tightening
Bolt into Standoff .
Do not over-tighten
Strip Bracket. Bracket
must be slightly loose.
1x Bolt M3x10 1x Nylon Spacer 4 mm
1x Nylon Spacer 8 mm 1x Lock Nut M3
1x Strip Bracket
Page 15
17
2x Nut M3 6x10 2x Bolt M3x6

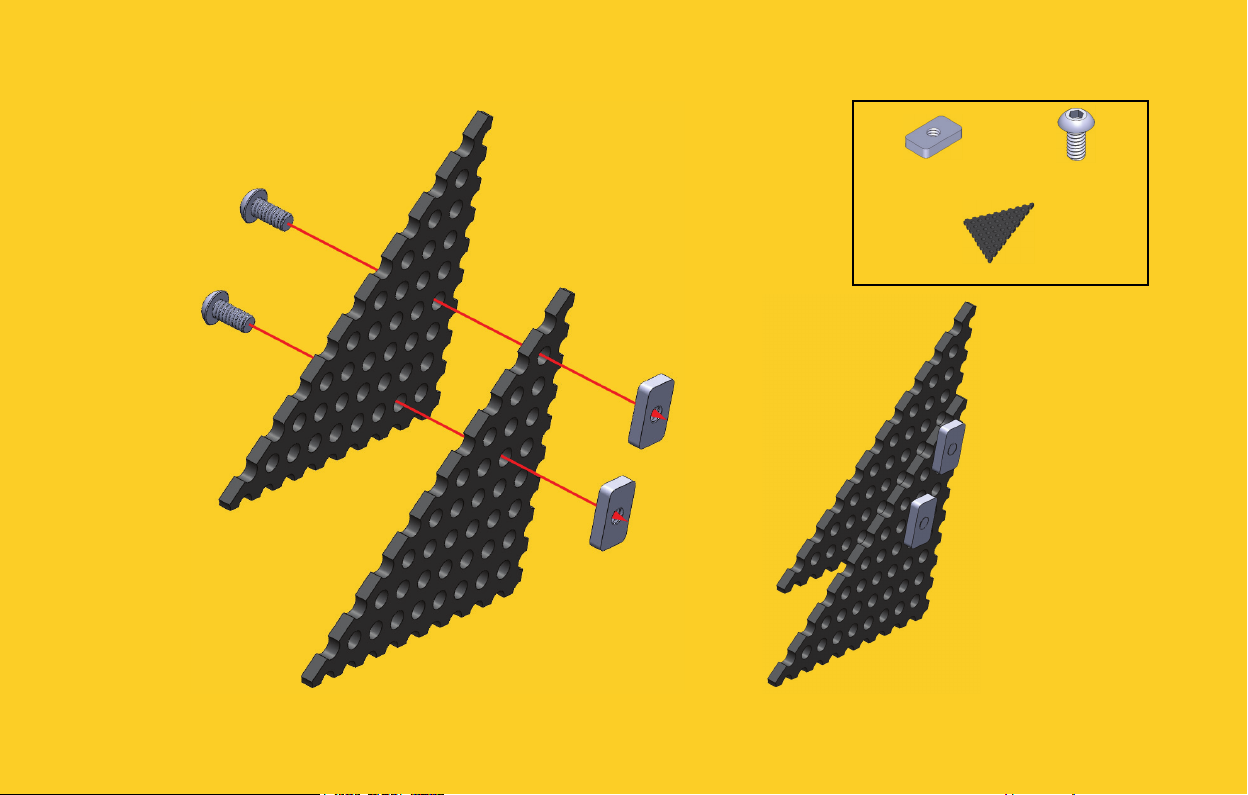

2x Board Triangular
Page 16

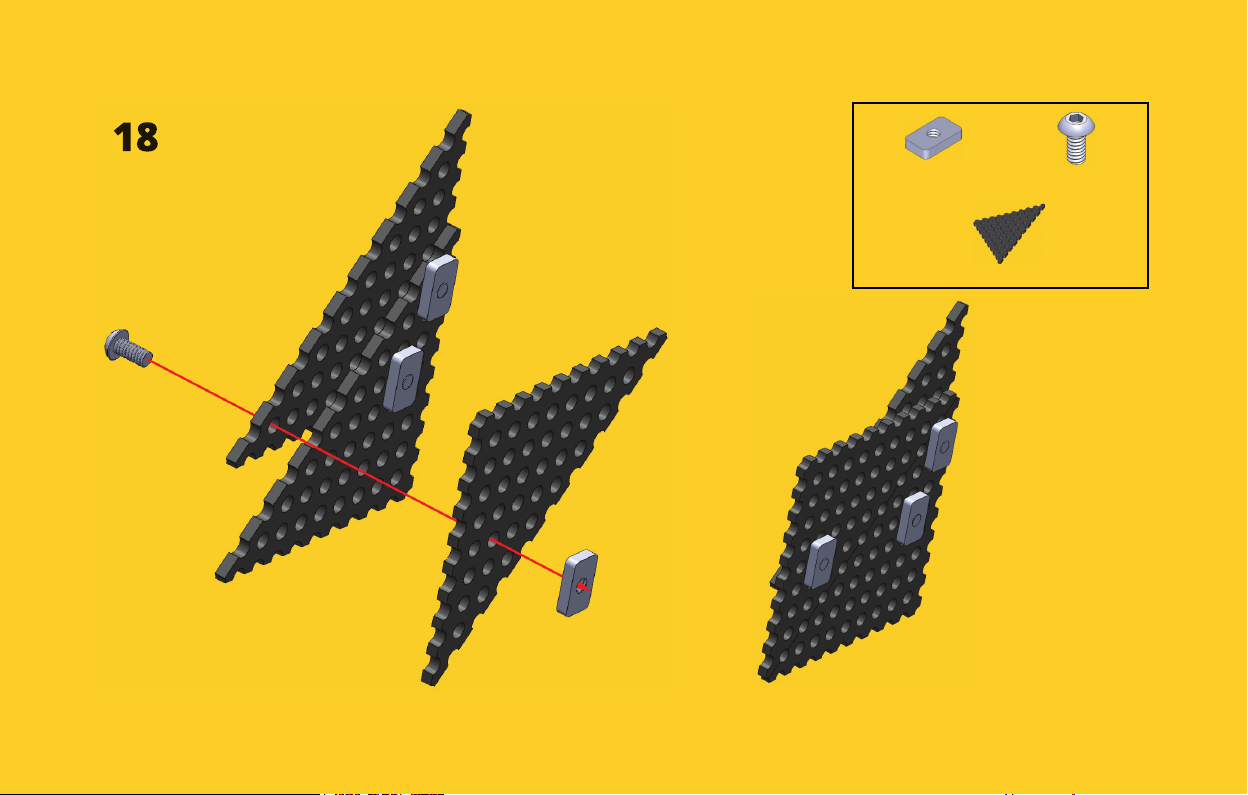

18
1x Nut M3 6x10 1x Bolt M3x6
1x Board Triangular
Page 17

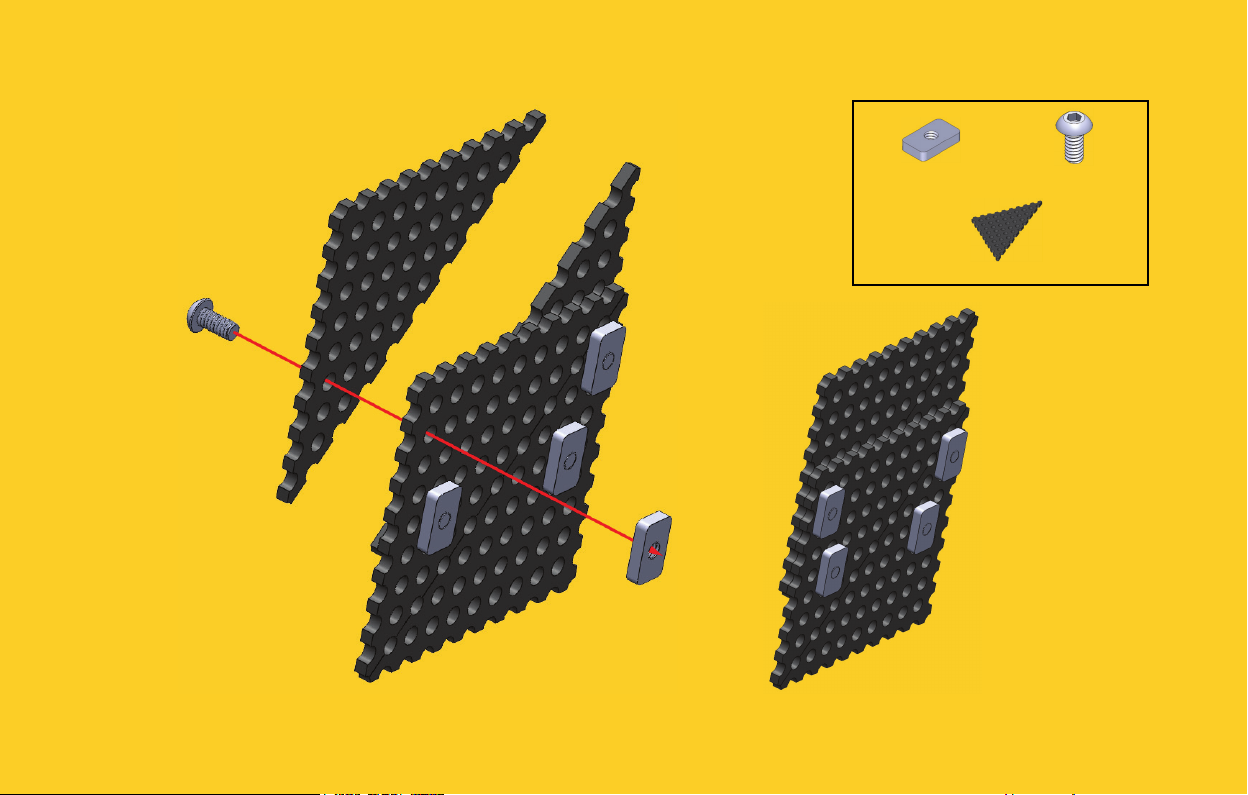

19
1x Nut M3 6x10 1x Bolt M3x6
1x Board Triangular
Page 18

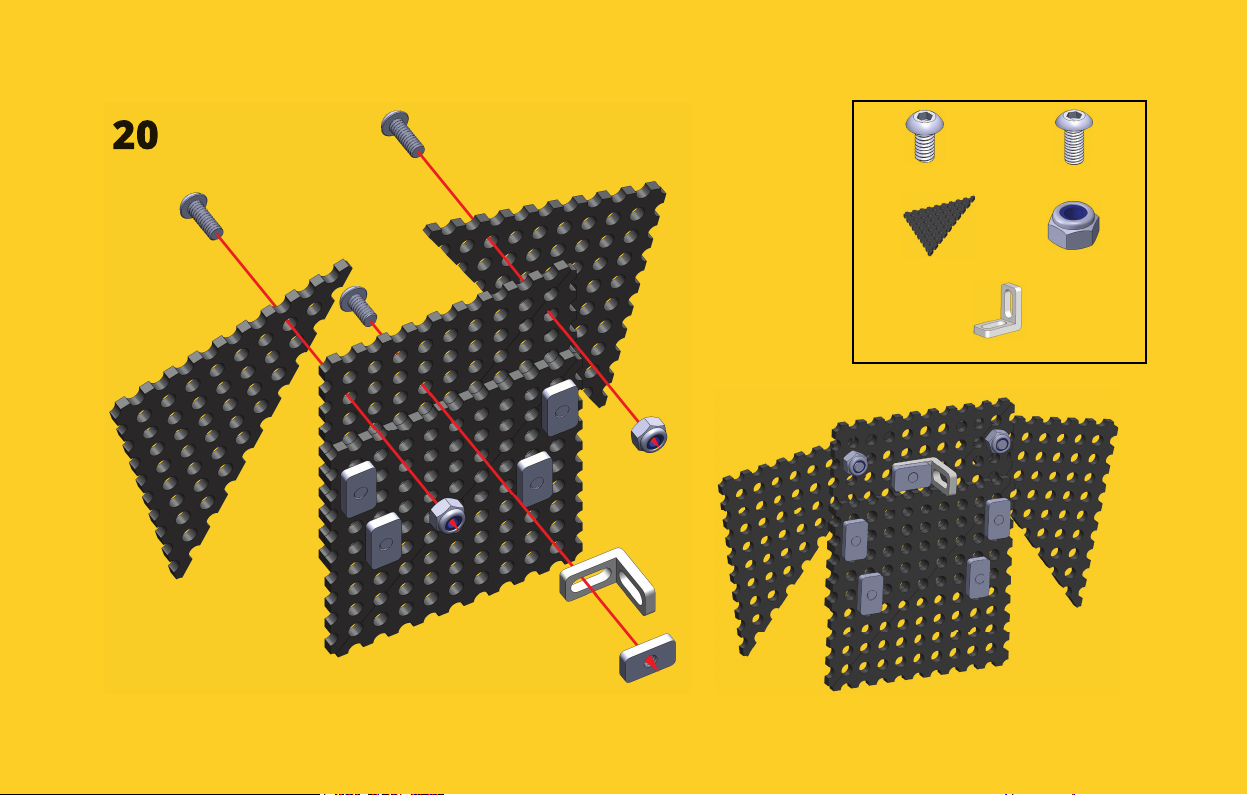

20
1x Bolt M3x6 2x Bolt M3x8
2x Board Triangular 2x Lock Nut M3
1x 2-Hole 90 Bracket
Page 19

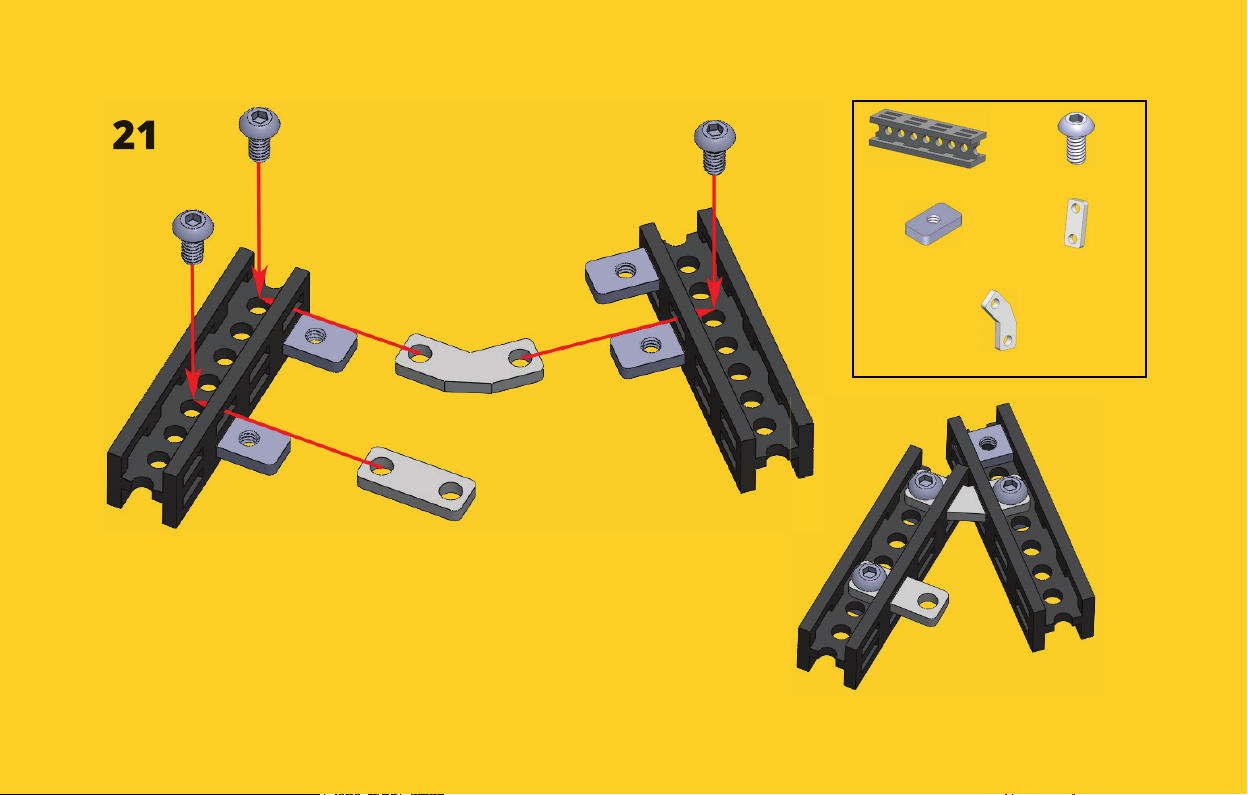

21
2x Beam 40 mm 3x Bolt M3x6
4x Nut M3 6x10 1x 2-Hole Simple
1x 2-Hole 45 Simple Bracket
Bracket
Page 20

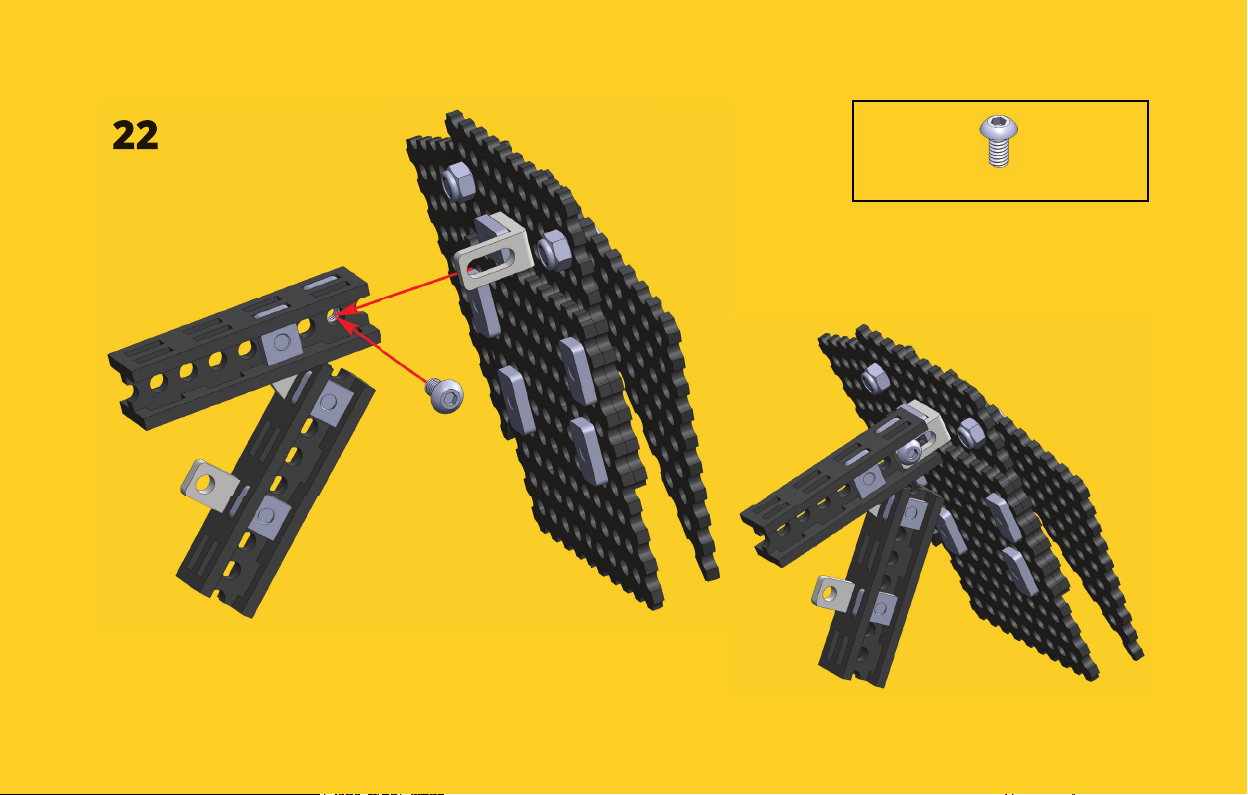

22
1x Bolt M3x6
Page 21
23
1x Bolt M3x6

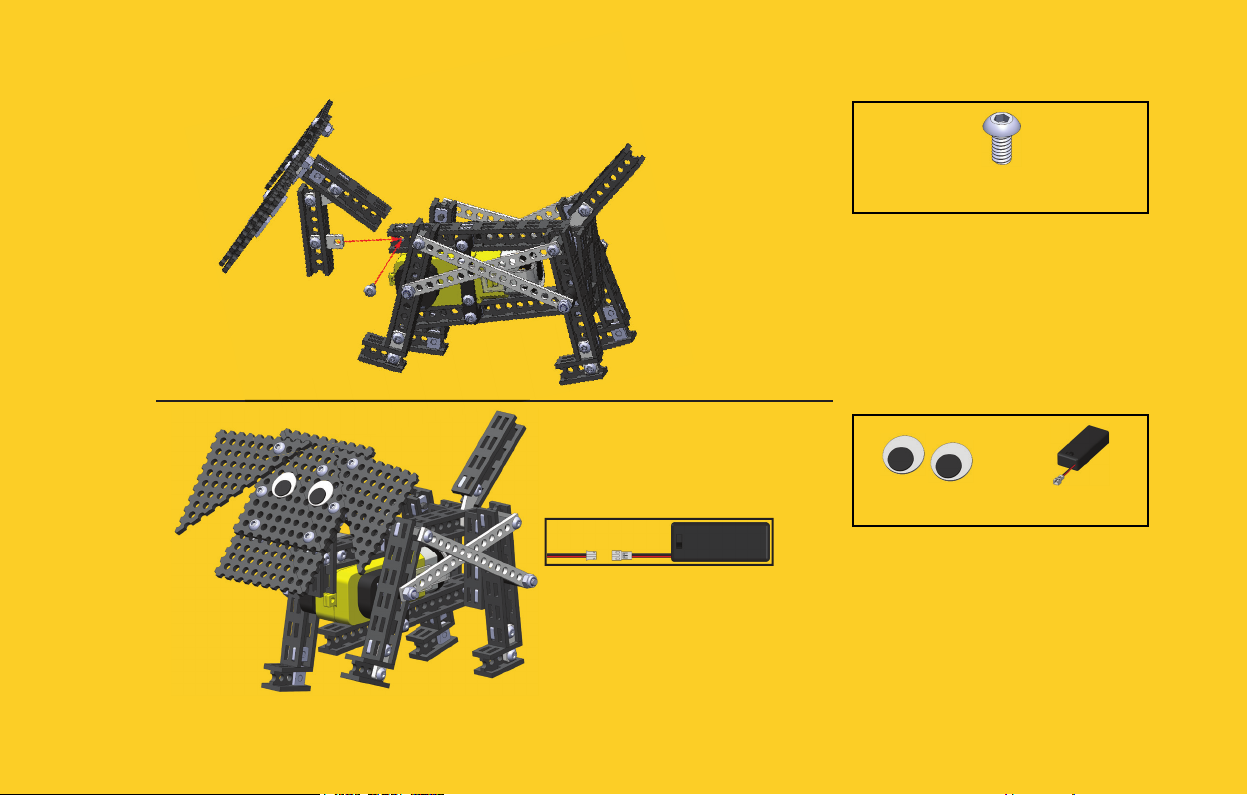

24
Connect motor
with battery switch.
2x Googly Eyes
1x Battery case
with a Switch
Glue Googly Eyes on
top of Dog’s head.
Page 22
Loosen Lock Nuts (if needed, on both
sides) if motor cannot move legs.
Tighten Lock Nuts (if needed, on both
sides) if legs are too wobbly.

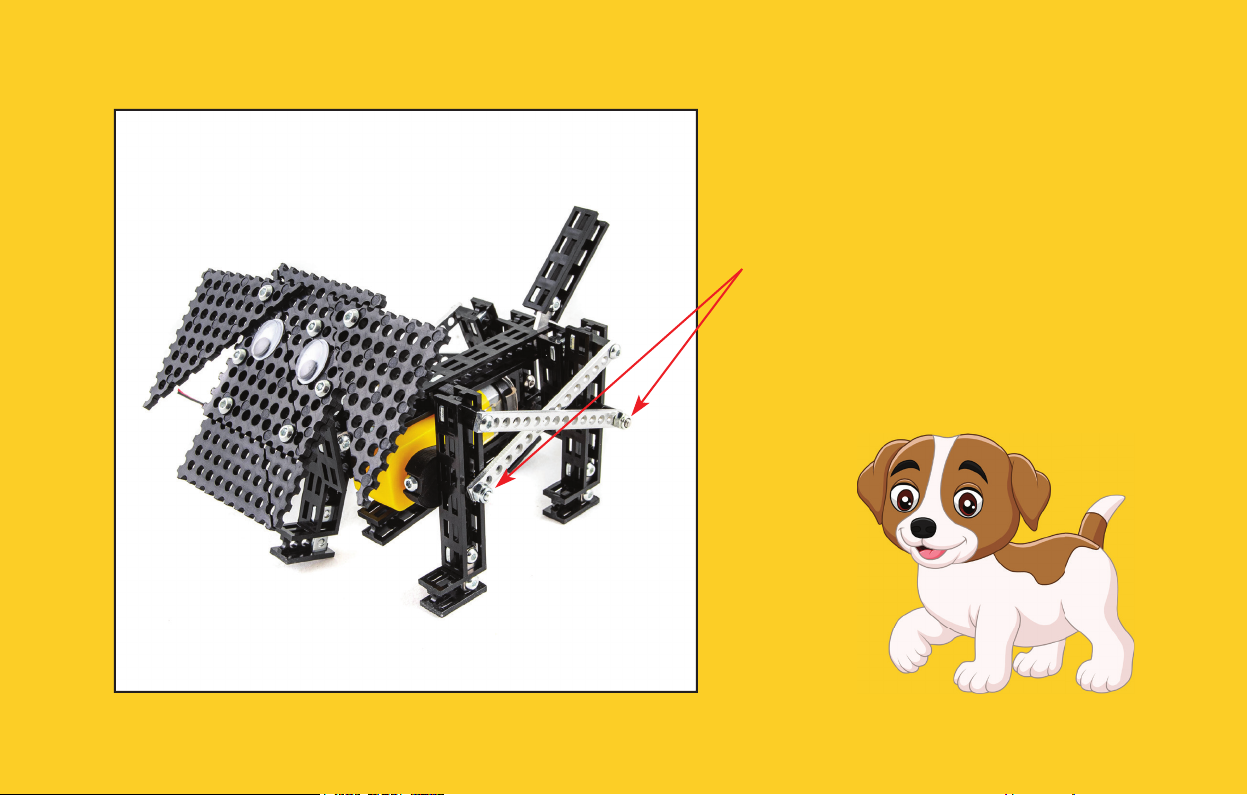

Woohoo!
Your Puppy is now alive
and ready to play.
Page 23
Do not give this product to children aged 3 or below. As with all electronic products, precautions should be observed during handling and use.
Adult supervision required.
Note to adults: to ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child.
SAFETY WARNINGS:
• Do not pick up toy while in motion.
• Keep fi ngers, hair, and loose clothing away from moving parts, to avoid the injury.
• If the toy is dirty, please clean it with dry and soft cloth.
• Do not expose the vehicle to high temperature, high humidity, or direct sunlight.
• Indoor use only. Functions best on hard, fl at surface.
• Do not put this product in water,
• Do not disassemble or modify the motor.
TO AVOID BATTERY LEAKAGE:
• Do Always follow the instrutions carefully. Use only batteries specifi ed and be sure to insert them correctly by matching the + and – polarity markings.
• Do not mix old batteries and new batteries or standard (carbon-zinc) with alkaline batteries.
• Remove exhausted or dead batteries from the product.
• Remove batteries if product is not to be played with for a long time.
• Do not short-circuit the supply terminals.
• RECHARGEABLE batteries: Do not mix these with any other type of batteries. Always remove from the product before recharging. Recharge batteries under
adult supervision. DO NOT RECHARGE OTHER TYPES OF BATERIES.
• Should this product cause, or be aff ected by local electrical interference, move it away from other electrical equipment.
KEEP THIS INTRUCTION MANUAL AND THE PRODUCT BOX AS IT CONTAIN IMPORTANT INFORMATION FOR FUTURE REFERENCE.
Due to the continuous product improvement, the pictures on this manual may diff er slightly from the actual product. Please adhere to actual product instead.
Totem Maker names and logos are registered trademarks. All rights reserved.
www.totemmaker.net
Aldrea fi lalas Totem, UAB
Sauletekio al. 15-709, Vilnius, 10224, Lithuania
For customer support please contact: [email protected]
WARNING:
CHOKING HAZARD - Small parts.
Not for children under 3 years.
BATTERY INFORMATION:
• 2x 1.5V AA batteries required (not included).
• To insert batteries, use cross head screwdriver
(not included).
