Totem 4WD Assembly Guide

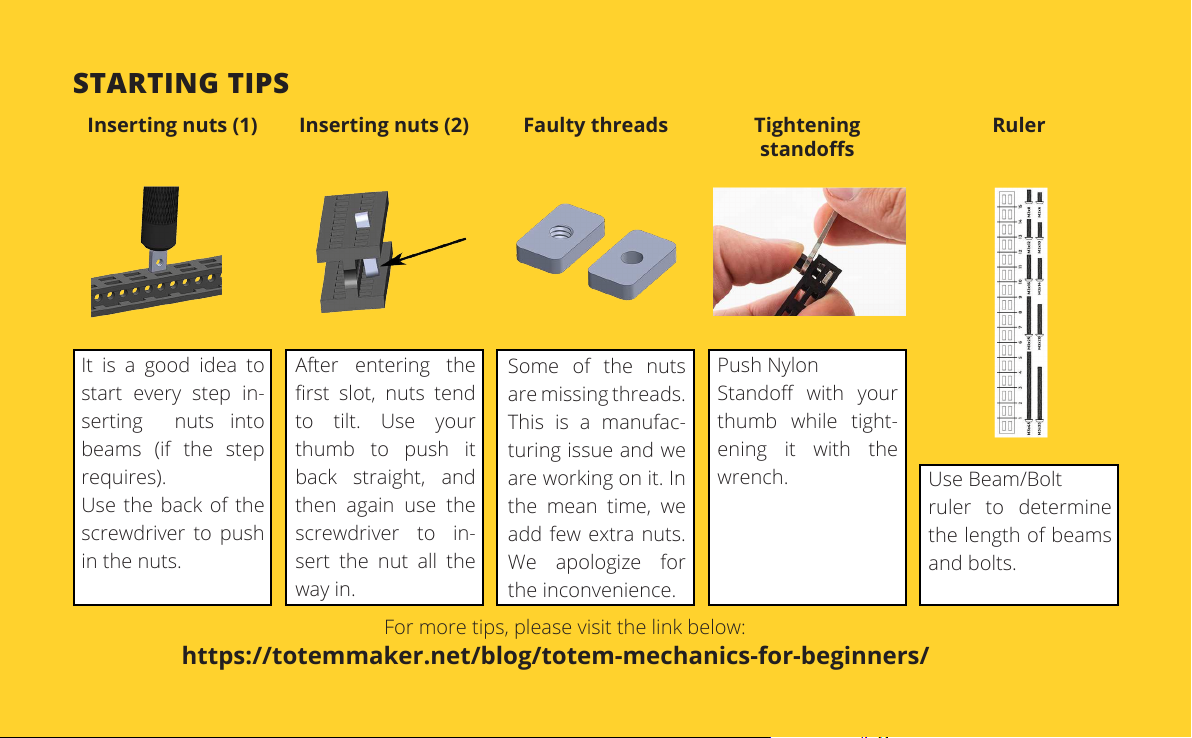

STARTING TIPS

Inserting nuts (1) Inserting nuts (2) Faulty threads Tightening

standos

It is a good idea to
start every step in-
serting nuts into
beams (if the step
requires).
Use the back of the
screwdriver to push
in the nuts.

After entering the

rst slot, nuts tend
to tilt. Use your

thumb to push it

back straight, and

then again use the
screwdriver to in-

sert the nut all the

way in.

For more tips, please visit the link below:

Some of the nuts
are missing threads.
This is a manufac-
turing issue and we
are working on it. In

the mean time, we

add few extra nuts.

We apologize for

the inconvenience.

Push Nylon
Stando with your
thumb while tight-

ening it with the
wrench.

https://totemmaker.net/blog/totem-mechanics-for-beginners/

Ruler

Use Beam/Bolt
ruler to determine
the length of beams
and bolts.

PART LIST

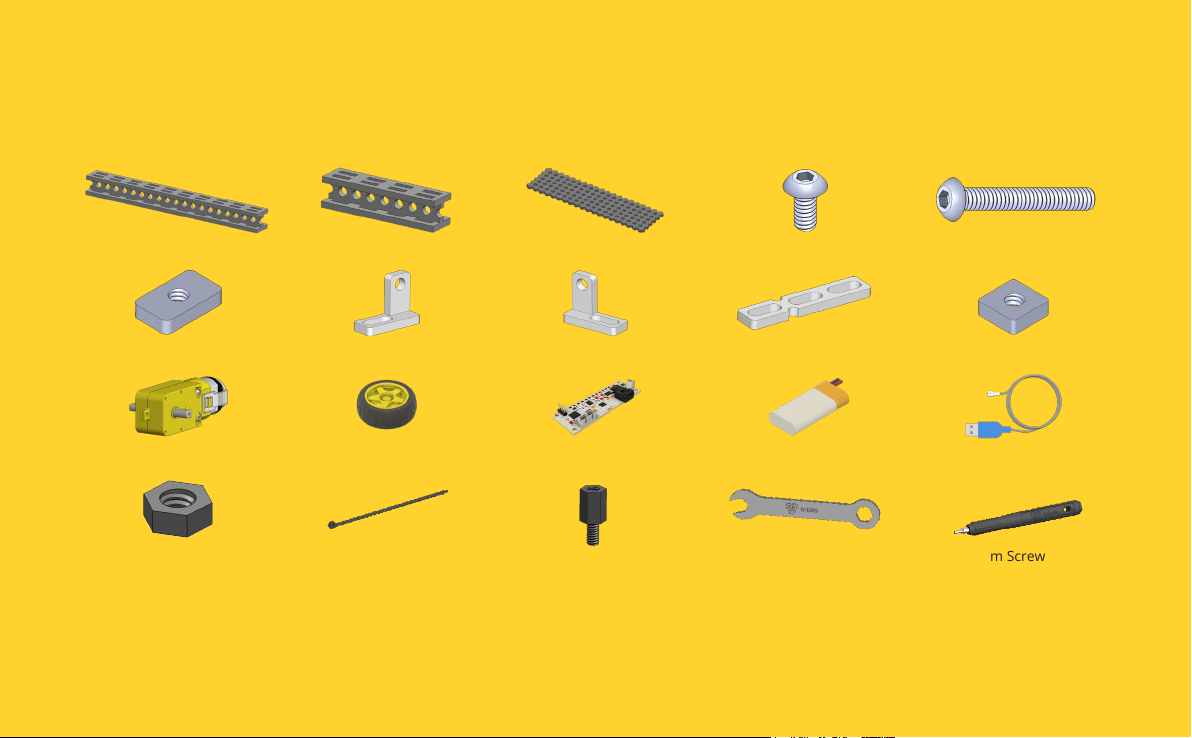

2x Beam 90 mm 2x Beam 40 mm 1x Board 30x100 mm 14x Bolt M3x6 8x Bolt M3x25

12x Nut M3 6x10 2x L-Twisted Bracket 2x L-Twisted Mirror Bracket 4x 3-Hole Bracket 4x Nut M3 5.5x5.5

4x DC Motor 4x Wheel 67 mm 1x Mini Control Board 1x Rechargeable Battery 1x Battery Charger

6x Nylon Nut M3 2x Zip Tie 6x Nylon Stando M3x8 1x Totem Wrench 1x Totem Screwdriver

1

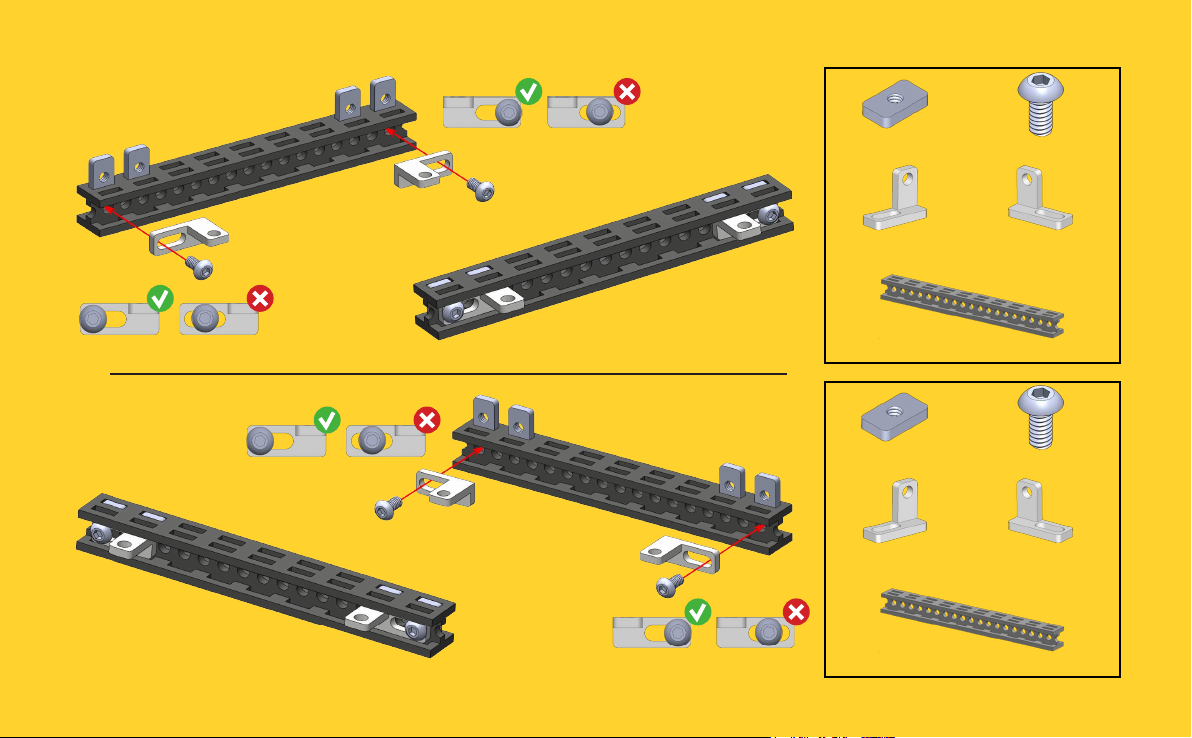

4x Nut M3 6x10 2x Bolt M3x6

2

1x L-Twisted Bracket

1x Beam 90 mm

4x Nut M3 6x10 2x Bolt M3x6

1x L-Twisted Bracket

1x Beam 90 mm

1x L-Twisted Mirror

Bracket

1x L-Twisted Mirror

Bracket

3

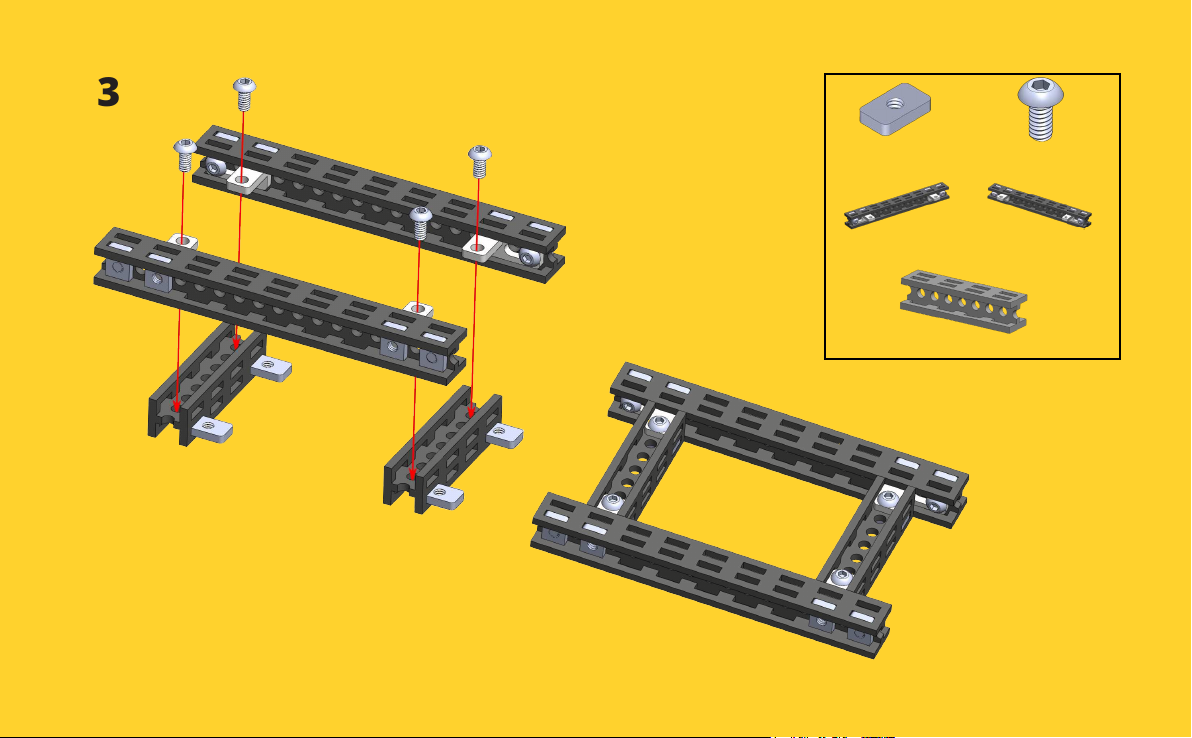

4x Nut M3 4x Bolt M3x6

1x Step 1 Assembly 1x Step 2 Assembly

2x Beam 40 mm

4

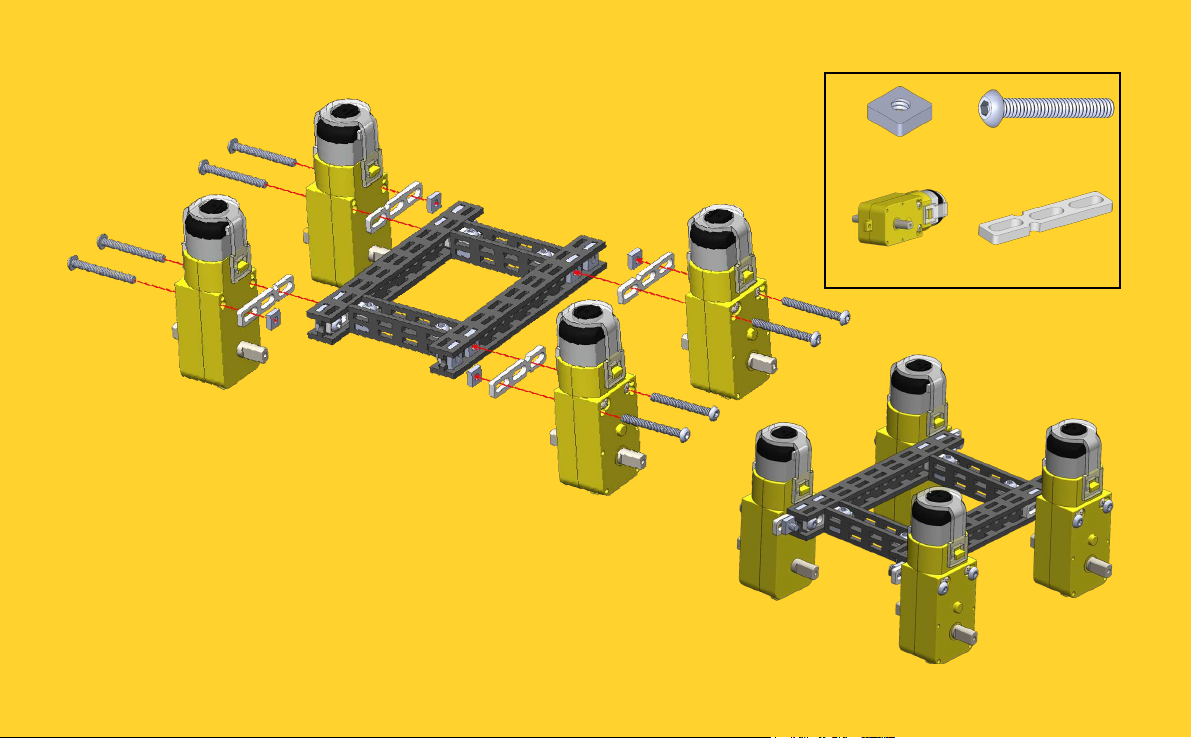

4x Nut M3 5.5x5.5 8x Bolt M3x25

4x DC Motor 4x 3-Hole Bracket

5

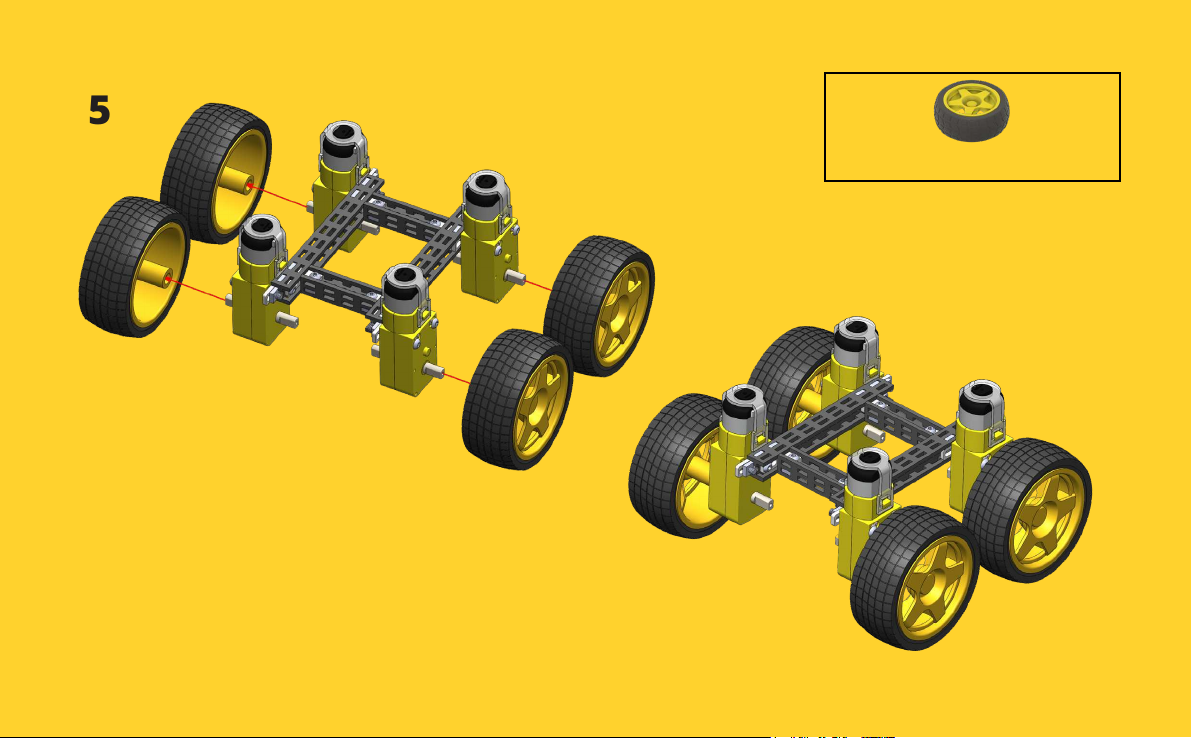

4x Wheel 67 mm

6

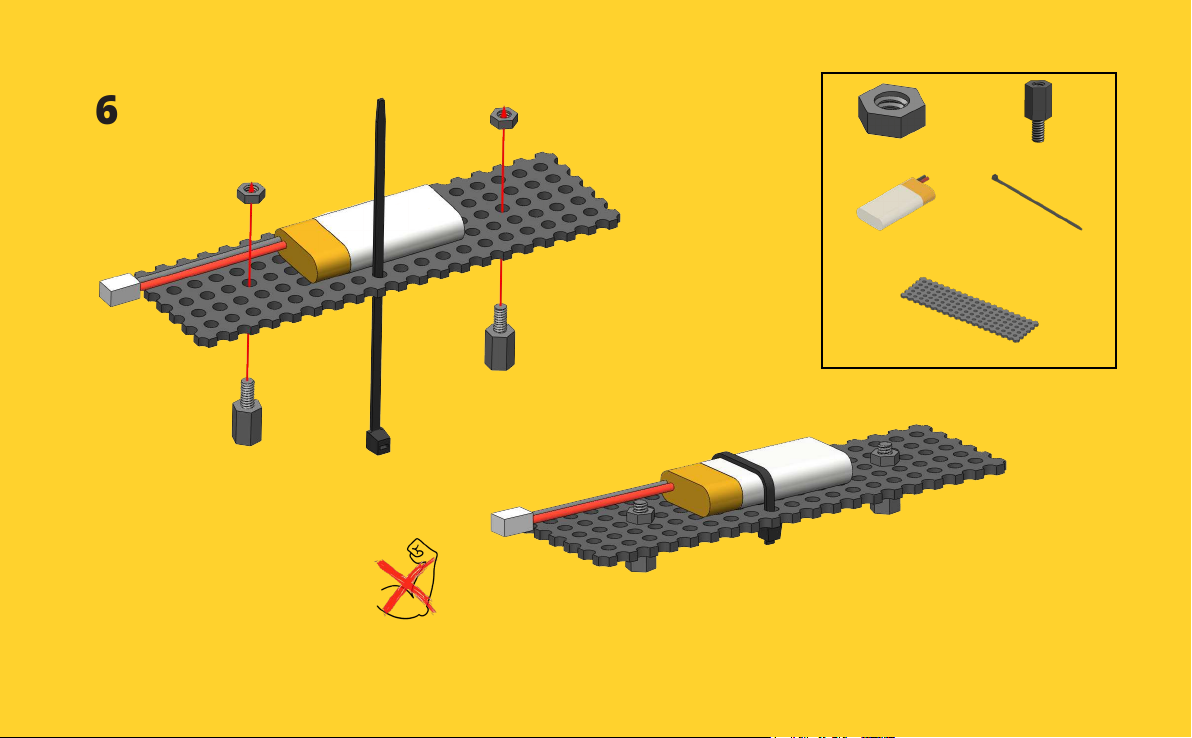

2x Nylon Nut M3 2x Nylon Stando M3x8

Gently tighten
Nylon Standos
and Nylon Nuts
with your ngers.

1x Rechargeable

Battery

1x Board 30x100 mm

1x Zip Tie

7

Gently tighten
Nylon Standos
and Nylon Nuts
with your ngers.

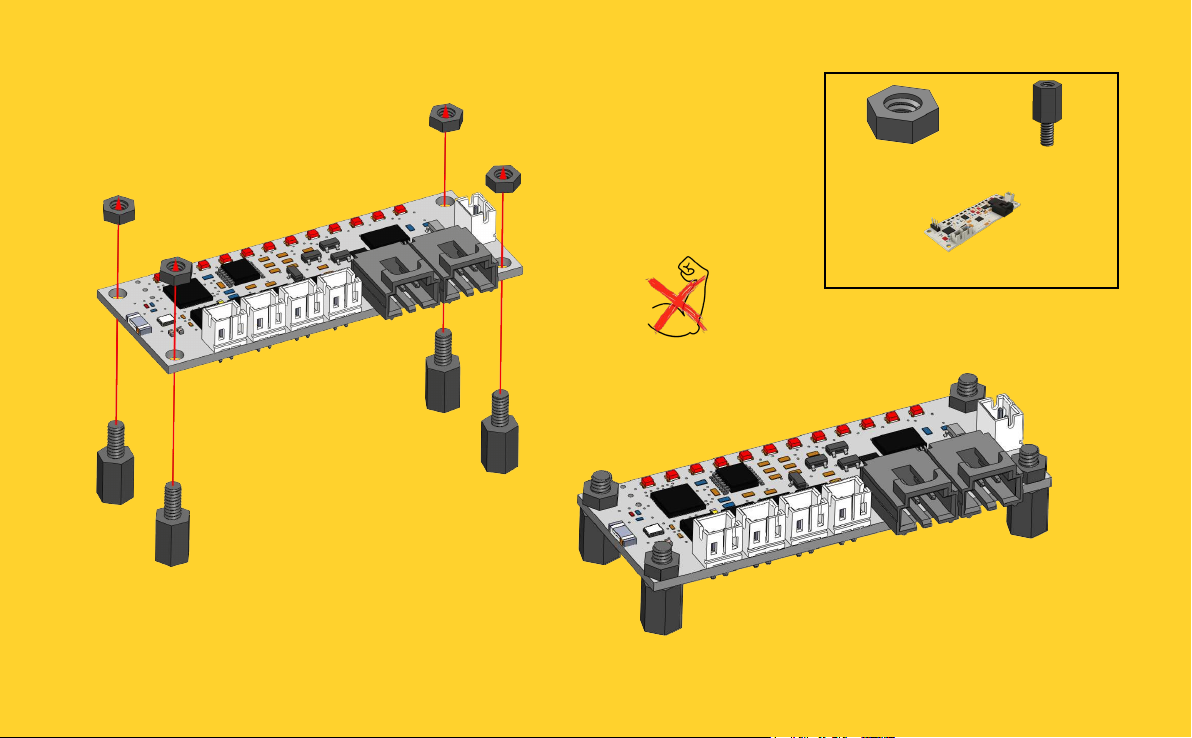

4x Nylon Nut M3 4x Nylon Stando M3x8

1x Mini Control Board

8

Don’t use much force

when tightening Bolts
into Nylon Standos.

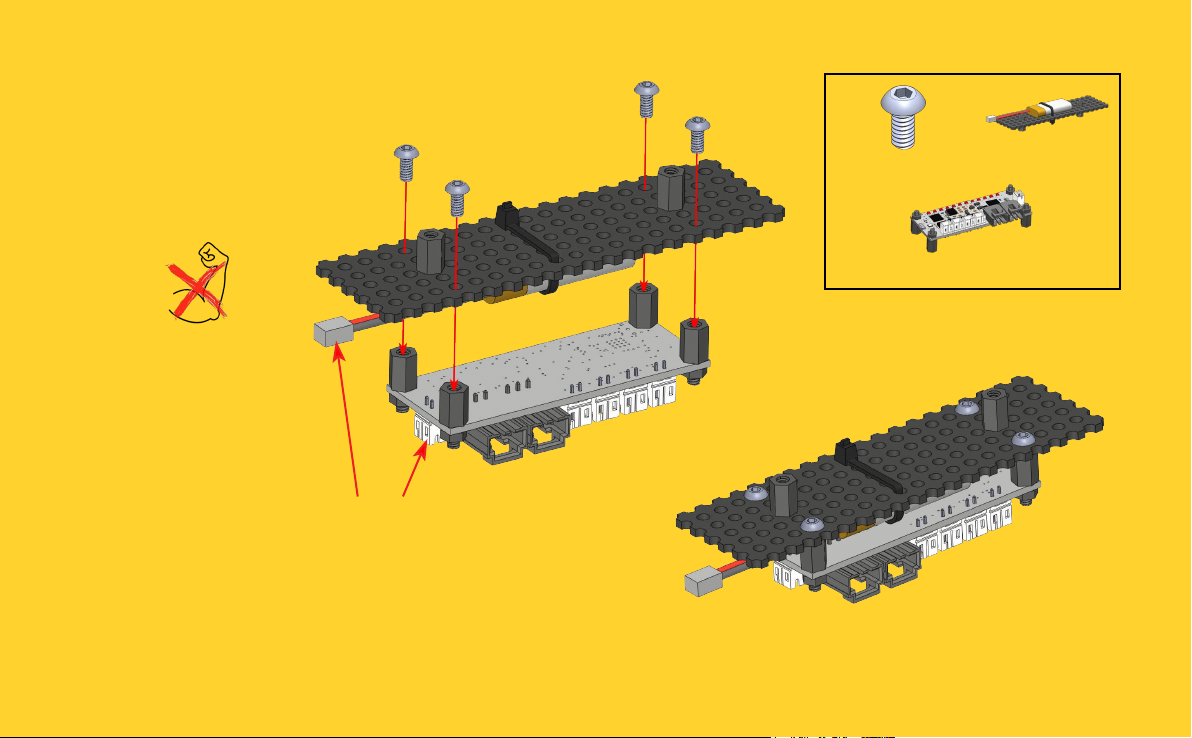

The battery’s connector and
board’s battery connector

should be facing the same side
so they can be easily connected.

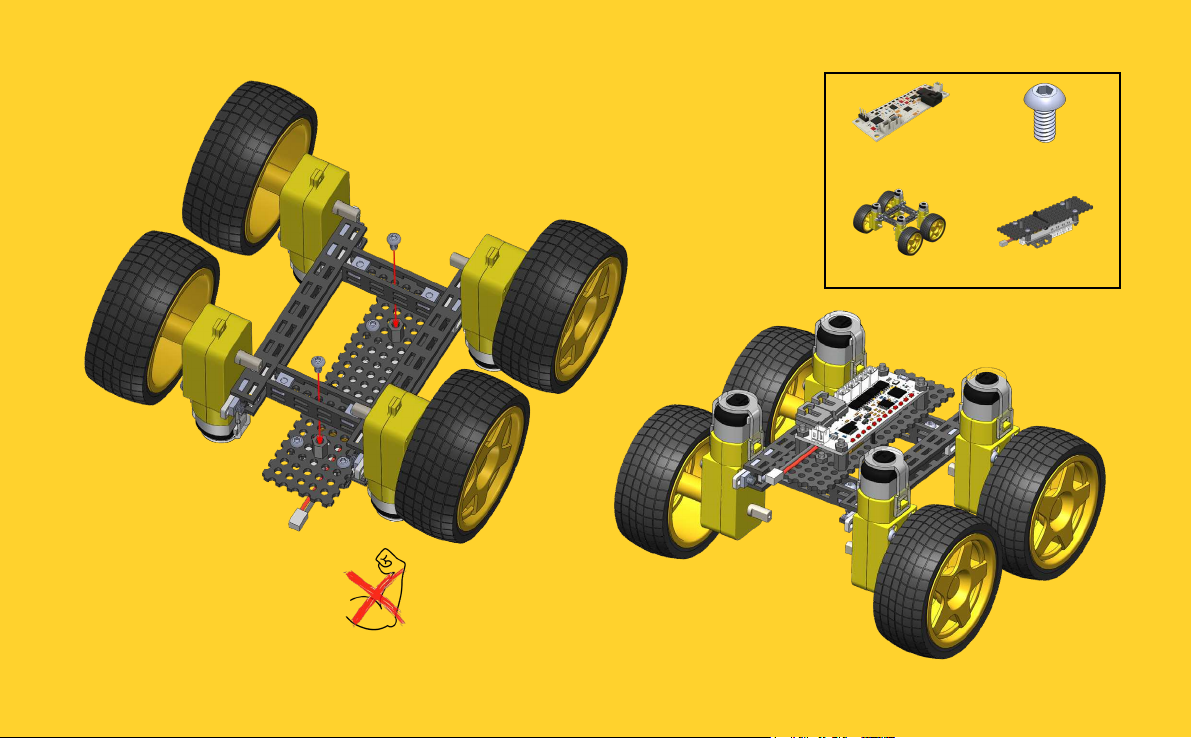

4x Bolt M3x6 1x Step 6 Assembly

1x Step 7 Assembly

9

Tighten the

Bolts into Nylon
Standos gently.

1x Mini Control Board 2x Bolt M3x6

1x Step 5 Assembly 1x Step 8 Assembly

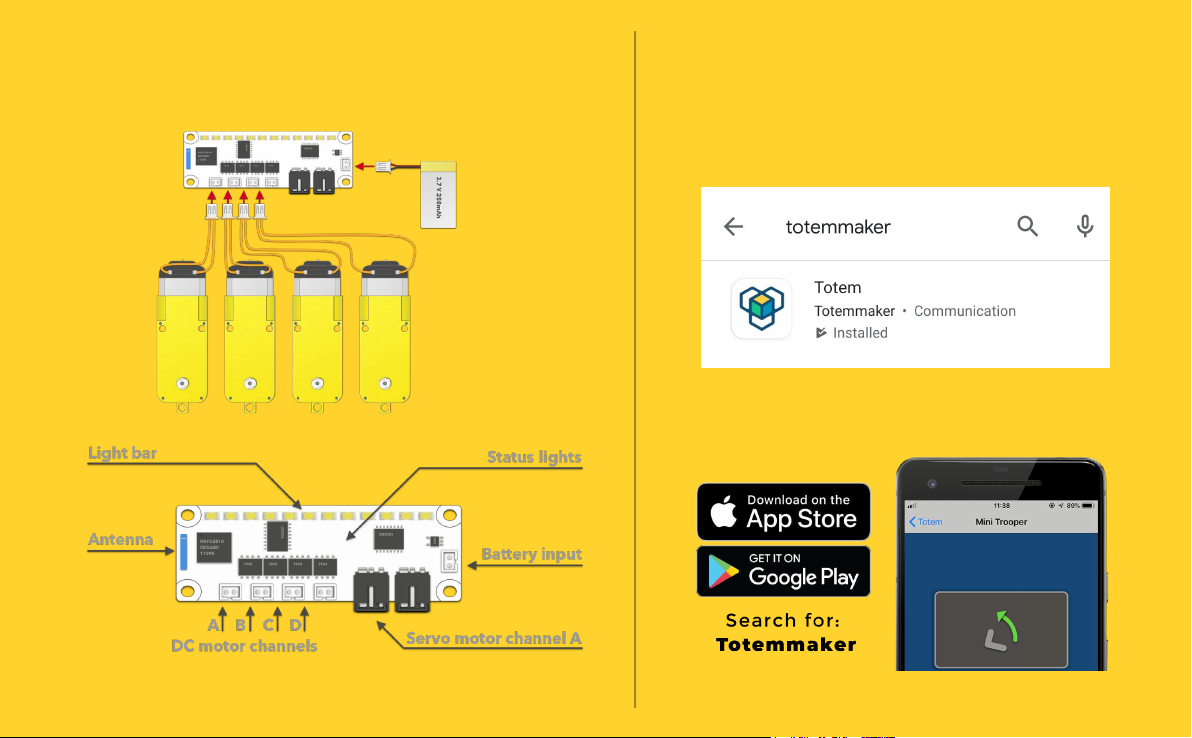

HOW TO CONTROL?CONNECTING ELECTRONICS

Download Totem app on your smartphone or
tablet via App Store or Google Play.

Follow the step by step guide to connect your 4
Wheels Drive to your device.

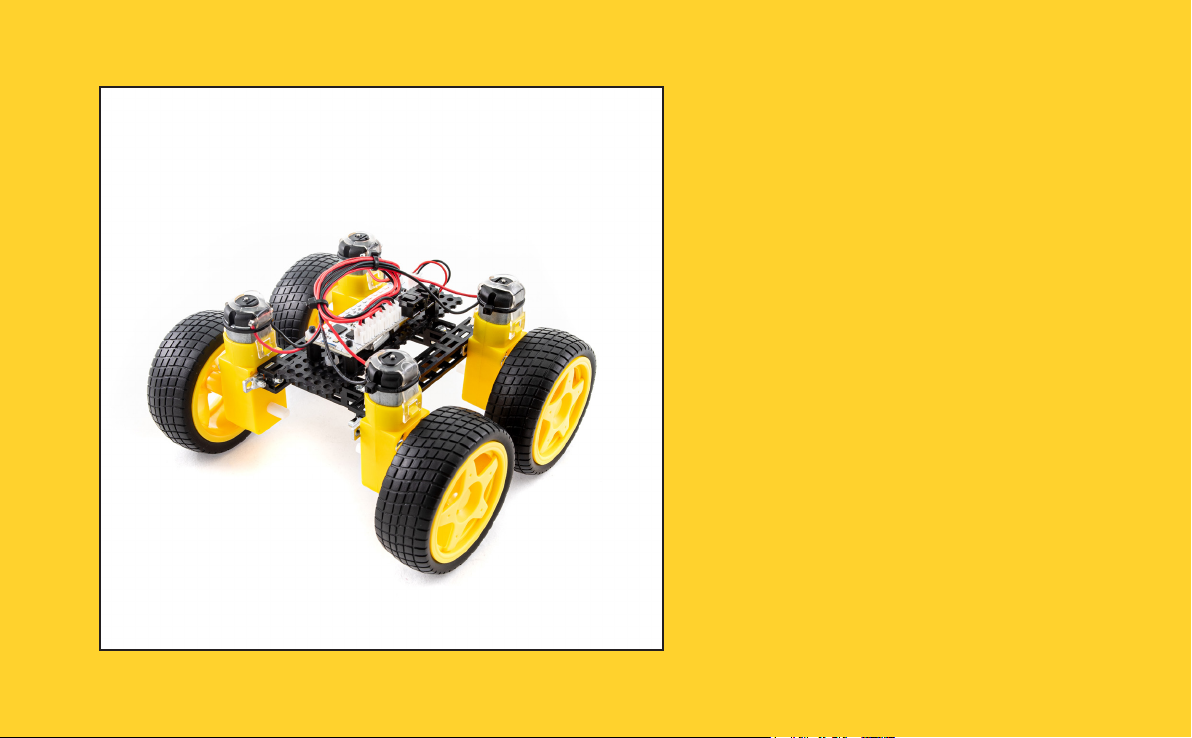

Woohoo!

Congratulations on
assembling your 4 Wheels
Drive Motor Wheel Platform.
Now let the games begin!

PRECAUTIONS:
ELECTRONICALLY OPERATED PRODUCT

Do not give this product to children aged 8 or below. As with all electronic products, precautions should be observed during handling and use to prevent electric
chock.

Adult supervision required.

Note to adults: to ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child.

SAFETY WARNINGS:

• Do not pick up vehicle while in motion.

• Keep ngers, hair, and loose clothing away from rotating wheels, to avoid the injury.

• Adult supervision is required when this vehicle is being operated.

• If you stopped operating the vehicle, remember to unplug the battery, to avoid accidental operation.

• If the vehicle is dirty, please clean it with dry and soft cloth. Do not clean electronics.

• Do not expose the vehicle to high temperature, high humidity, or direct sunlight.

• Indoor use only. Do not put this product in water to avoid damaging its electronic components.

• The product is made of complex electronic circuit and electronic components, do not disassemble, or modify the circuit board.

BATTERY SAFETY INFORMATION:

• This vehicle is designed to work with provided 250 mAh 3.7V LiPo battery and charger.

• Rechargeable battery must be charged by adult only.

• Do not leave charging without supervision of adult.

• There is a risk of re and personal injury if battery is punctured, damaged or misused.

• Do not disassemble or damage the battery pack.

• Use only the supplied 250 mAh 3.7V LiPo battery battery. Using any other battery may damage the model.

• Use only the included USB charging cable to charge the battery.

• Please check on a regular basis the wire, plug, battery, charger, and other electronic parts on the vehicle. If any damage is found, please stop using the
product immediately.

• Stop charging if battery becomes hot, smells, smokes or gives o strong odour.

• Never throw batteries into re to avoid explosion or leakage.

• Check the batteries on regular basis to avoid leakage.

• Recycle or dispose of batteries according to local laws and guidelines.

BATTERY CHARGING:

Rechargeable battery must be charged by adult only.

• The new battery pack needs to be charged before use.

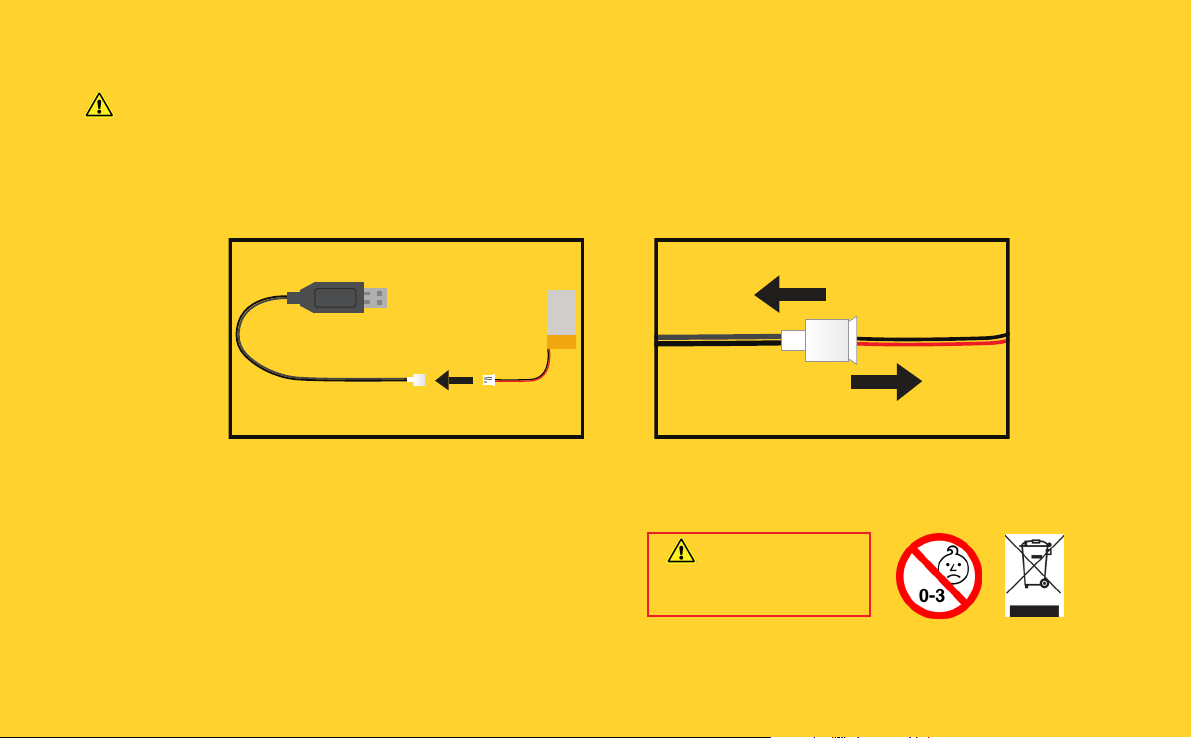

• Connect the USB charging cable to 5V USB power source, such as laptop.

• Connect the battery to the charger

red LED light turns o.

• To disconnect cables, hold the connectors of both cables and pull apart (see picture 2).

• Do not attempt to overcharge the battery.

KEEP THIS INTRUCTION MANUAL AND THE PRODUCT BOX AS IT CONTAIN IMPORTANT INFORMATION FOR FUTURE REFERENCE.

Due to the continuous product improvement, the pictures on this manual may dier slightly from the actual product. Please adhere to actual product instead.

Totem Maker names and logos are registered trademarks. All rights reserved.

www.totemmaker.net

Aldrea lalas Totem, UAB

Sauletekio al. 15-709, Vilnius, 10224, Lithuania
For customer support please contact: [email protected]

(see picture 1). The charger will show a red LED light when charging the battery. When the battery is fully charged, the

3.7v 250 mAh

WARNING:

CHOKING HAZARD - Small parts.
Not for children under 3 years.
