Totally Wicked ARC 5 User Manual

USER MANUAL

3

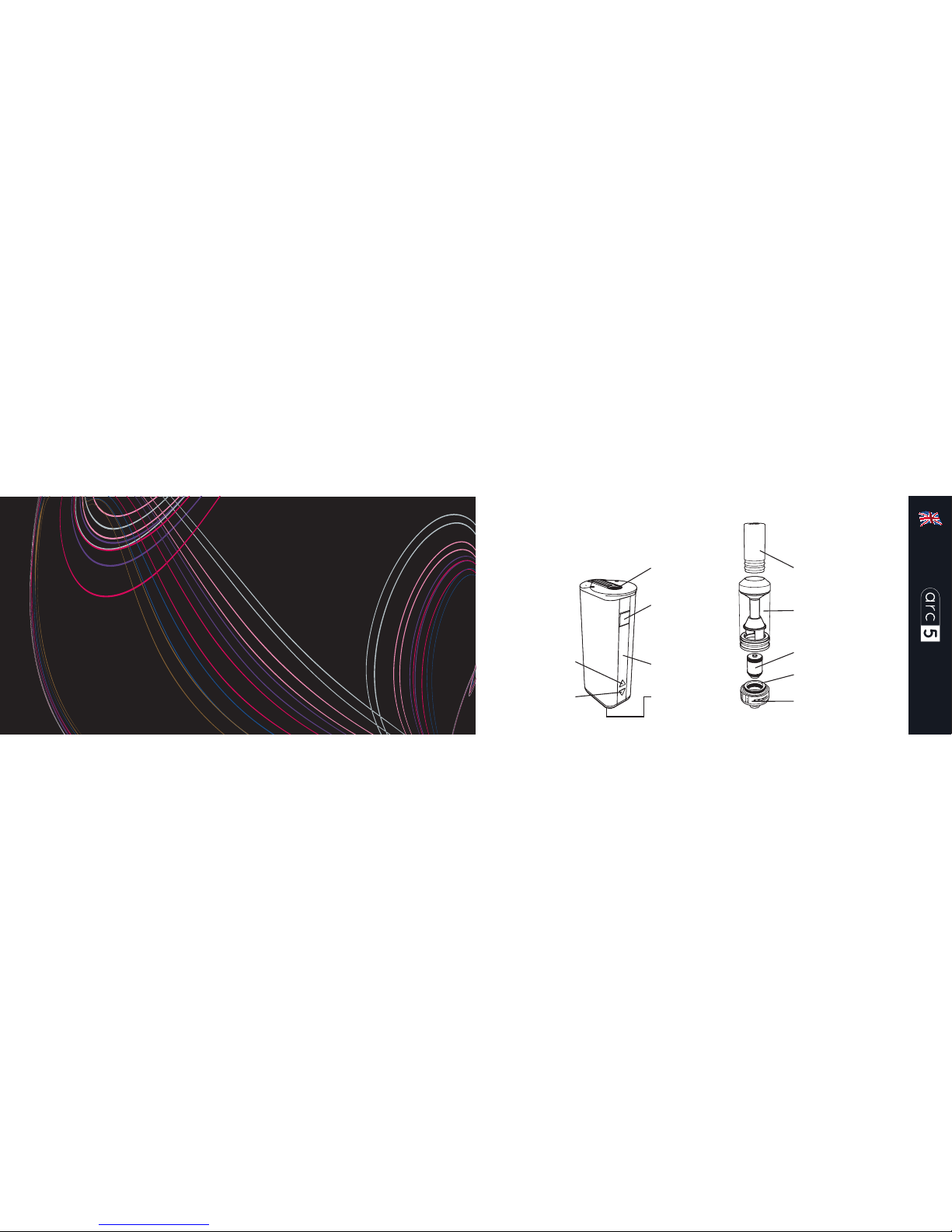

Tank
connection

Power
button

UP

adjustment

button

DOWN

adjustment

button

TOTALLY WICKED
ARC 5
ELECTRONIC
CIGARETTE KIT.

CONGRATULATIONS
ON PURCHASING YOUR

YOUR ARC 5 BATTERY CS AIR SLIM TANK

Mouthpiece

Glass
section

Airflow
control ring

Atomizer
head

Atomizer
base

LED
screen

USB
charging
port

4 5

ARC 5 QUICK START GUIDE

If you are familiar with using e-cigarettes, follow the quick start
guide below to be vaping in minutes:

• Prime the atomizer head.

• Fill the tank.

• Switch the arc 5 on (5 clicks of the power button).

• Set the power to 12 watts.

• Press the power button and inhale

• Charge the battery (possibly not shipped with a full charge).

Detailed descriptions of these steps and more are given in the full user guide.

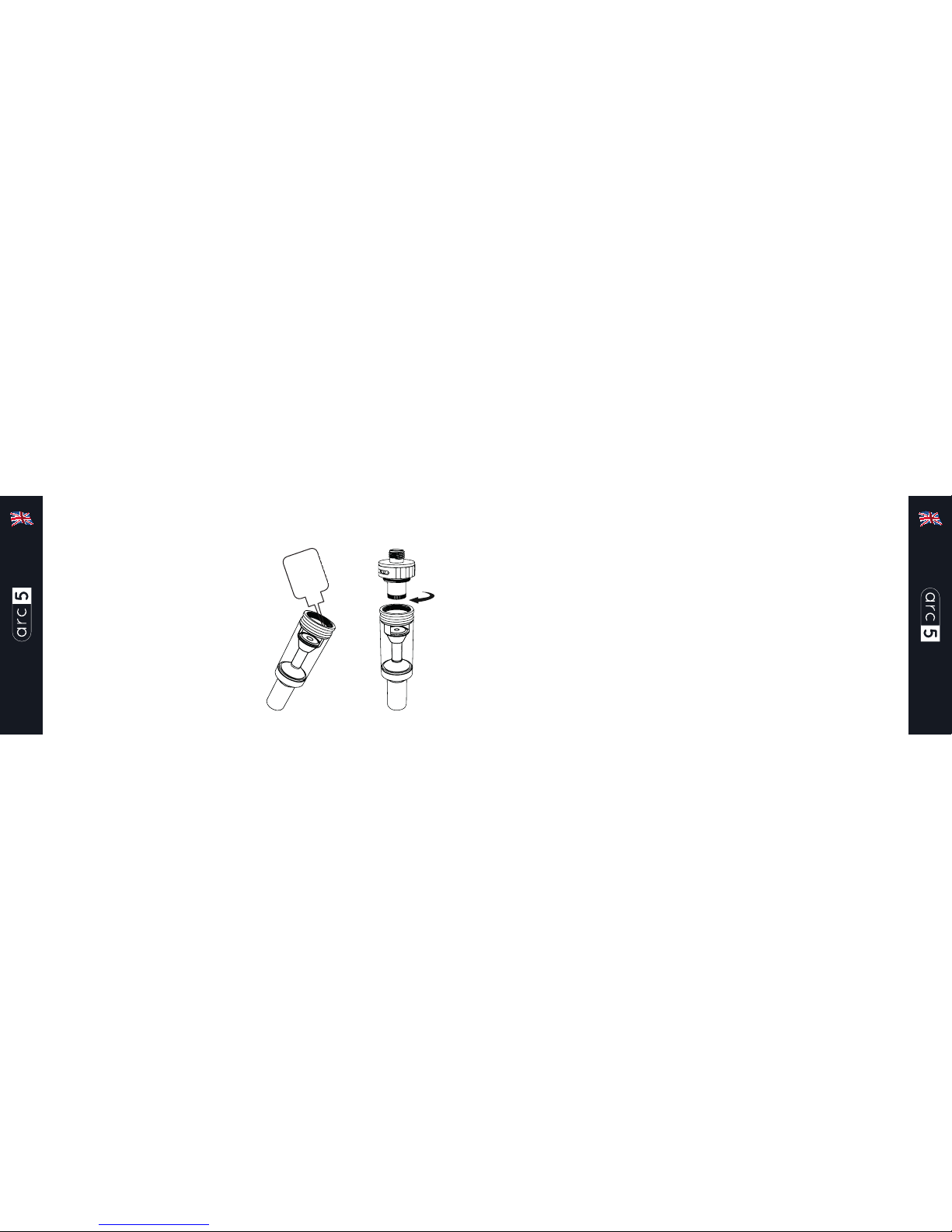

Priming the Atomizer Head

Remove the tank from the arc 5 battery by
unscrewing at the tank base. Turn the tank
upside down, then unscrew the tank base
from the glass section of the tank. Prime
the atomizer head by dripping a few drops
of e-liquid into its central hole.

USING YOUR ARC 5 - PRIMING

6 7

USING YOUR ARC 5 - FILLING

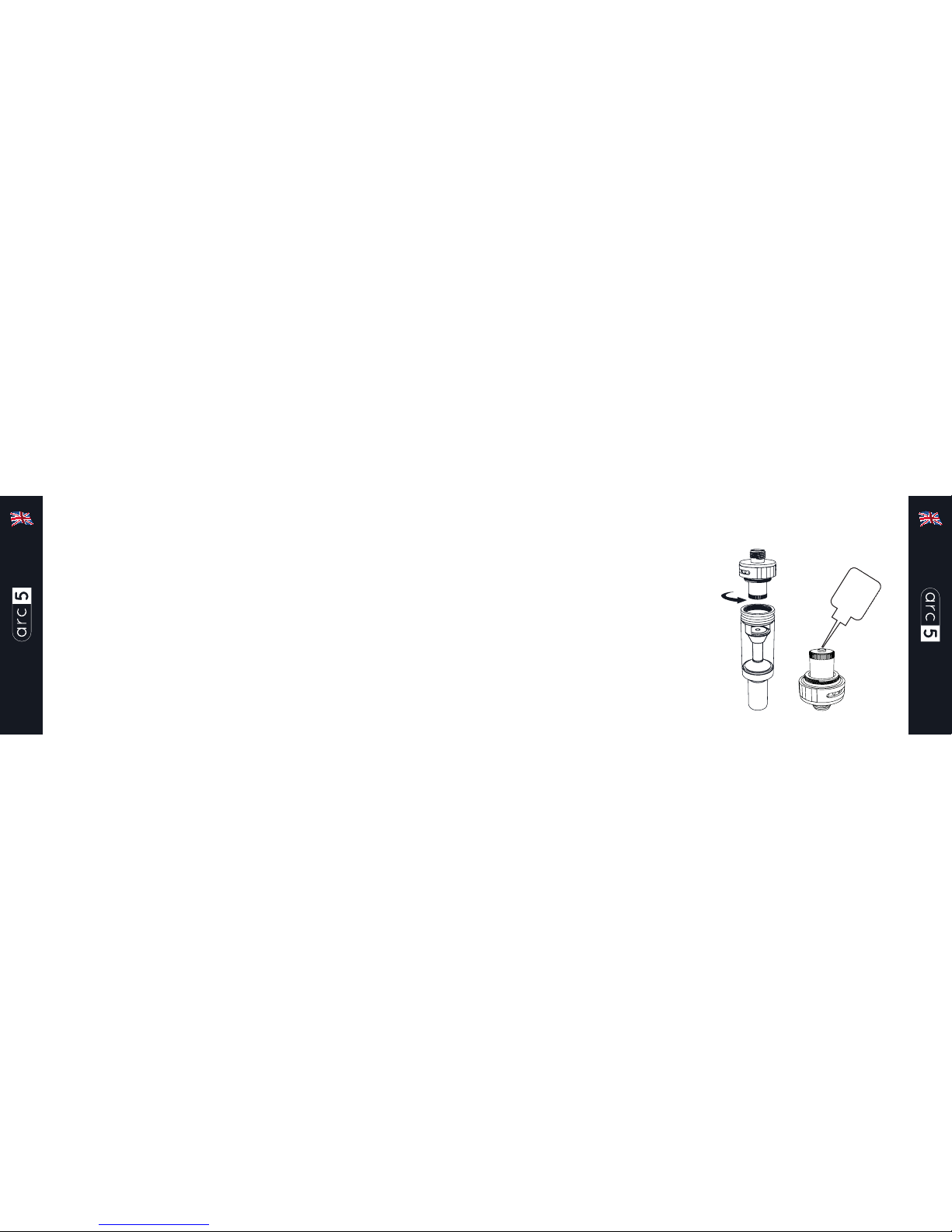

Filling the Tank

Fill the tank through one of the apertures
either side of the central air hole. Do not
allow any e-liquid to enter the central air
hole. Once filled, screw the tank base back
onto the glass section of the tank then fit
the tank back onto the battery.

Note: After priming a new atomizer head
and filling the tank, it is recommended to
wait 5 minutes before vaping to ensure the
atomizer head is fully saturated.

Atomizer Head Lifespan

Atomizer heads do not last forever and
need to be periodically replaced. Time
in use before replacement is required is
generally from a few days to several weeks,
depending on power used, vaping style,
flavour and type of e-liquid. A slight burnt
taste, general loss of vapour production or
a reduction in flavour intensity can all be
indicators that the atomizer head requires
replacement.

Powering On and Off

Turn the arc 5 on by quickly pressing the
power button five times, the screen will
activate indicating the arc 5 has been
switched on. Quickly press the power
button five times to switch the arc 5 off, the
screen will deactivate indicating the arc 5
has been switched off.

USING YOUR ARC 5

8 9

USING YOUR ARC 5 - SETTING THE CORRECT WATTAGE

The wattage on the arc 5 battery is
adjustable and can be set from 1-40 watts.
The wattage is set to 40W out of the box,
but we recommend reducing the wattage
to 12W to prevent the atomizer head from
burning prematurely. To set the correct
wattage, ensure the arc 5 is switched on;
then keep pressing the down adjustment
button until the screen reads 12W. Lower
wattage settings will give a cooler, less
dense vapour. Higher wattage settings
produce larger clouds of vapour, but setting
the wattage too high can lead to poor
flavour; or even a burnt taste in the vapour.

Experiment to find your own favourite
setting, which will generally be between
7W and 15W.

Tip: Press and hold down either of the
adjustment buttons to make speedy
changes to the wattage.

Vaping

Press and hold the power button as you
inhale the vapour, the screen will display a
vape timer while the power button is held
down.

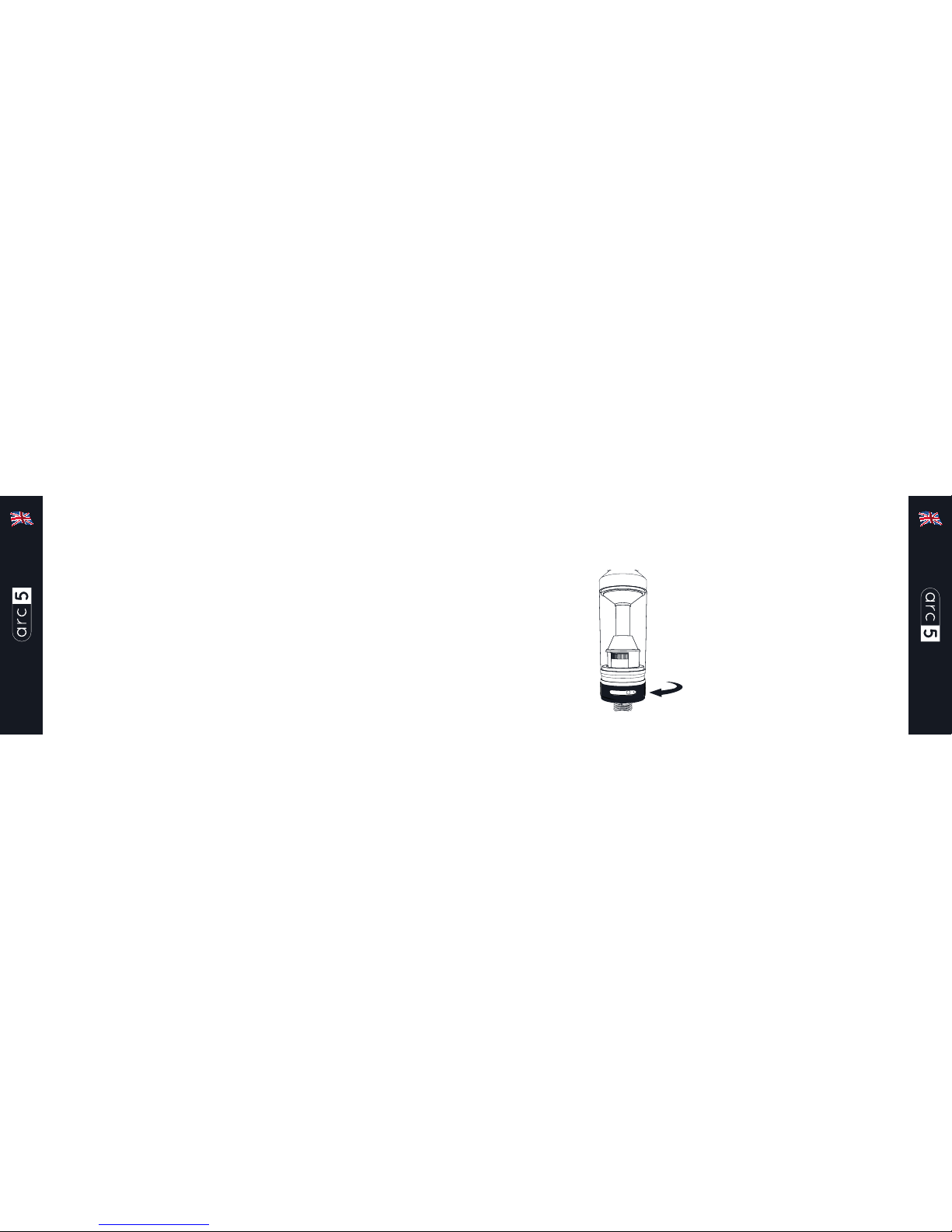

Adjusting the Airflow

If you find the air
flow too airy or too
tight while vaping,
rotate the black
airflow control ring
on the base of the
tank. Experiment to
find your preference.

E-liquid Level

To prevent the atomizer head from
becoming dry and burning prematurely,
ensure the e-liquid level does not drop
below the bottom of the glass section of
the tank.

Charging the Battery

The arc 5 is charged by connecting the charge
port on the battery to a USB port or suitable
wall adaptor with the supplied charging cable.
The screen will display an animated battery
icon while charging, once the battery is fully
charged the screen will switch off completely.

USING YOUR ARC 5

10 11

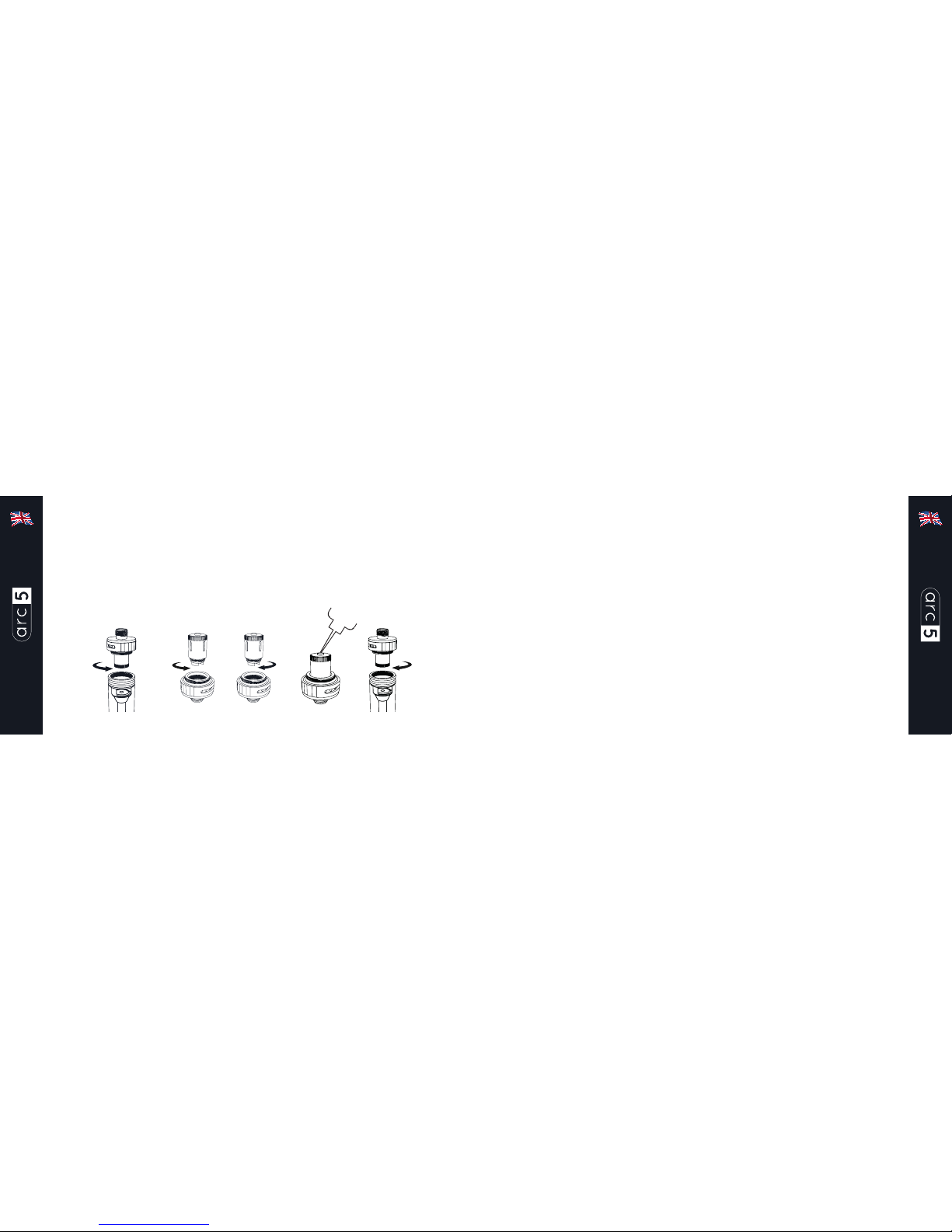

USING YOUR ARC 5 - REPLACING THE ATOMIZER HEAD

To replace the atomizer head, unscrew the tank from the arc 5 battery. Turn the tank
upside down, then unscrew the tank base from the glass section of the tank. Unscrew
the atomizer head from the tank base and replace. Prime the new atomizer head by
dripping a few drops of e-liquid into its central hole. Reassemble the tank and refit the
tank back onto the arc 5 battery.

Reminder: After priming a new atomizer
head it is recommended to wait 5 minutes
before vaping to ensure the atomizer head
is fully saturated.

Atomizer Head Protection

If the power button is held down for longer
than 10 seconds while vaping, the screen
will display “Over 10s” and the arc 5 will
refuse to power or produce any vapour.
Releasing the power button will allow
normal operation to resume.

Low Voltage Protection

If battery voltage drops to 3.3V, “Lock” will
be displayed onscreen and the arc 5 will
refuse to power or produce any vapour.
Charge the battery using the steps outlined
in Charging the Battery on page 9 to unlock
the arc 5 allowing normal operation to
resume.

Low Battery Alert

If battery drops to 10% charge, the power
symbol on screen will flash continuously.
This is a reminder the battery will need
charging soon.

USING YOUR ARC 5

12 13

USING YOUR ARC 5

Stealth Mode

If stealth mode is enabled, the display
will not activate when pressing the power
button to vape. The display will still activate
whenever the adjustment buttons are
pressed to make changes to wattage. To
enable stealth mode, ensure the arc 5 is
switched on, then press and hold down the
power and down adjustment buttons at the
same time, the screen will display “Stealth
ON” when enabled. Repeat the process
to disable stealth mode, the screen will
display “Stealth OFF” when disabled.

Key Lock Mode

Key lock mode prevents accidental
changes to the wattage. If key lock mode
is enabled, the screen will display “Lock”
if the adjustment buttons are pressed.
Adjustments to wattage cannot be made
until key lock has been disabled. To
enable key lock mode, ensure the arc 5 is
switched on, then press and hold down
both adjustment buttons at the same
time, then screen will display “Lock” when
enabled. Repeat the process to disable key
lock mode, the screen will display “Unlock”
when disabled.

Rotating the Display:

Switch the arc 5 off, then press and hold
down both adjustment buttons at the same
time to rotate the display 180°. Switch the
arc 5 back on.

Puff & Vape Duration

If the puff counter and vape duration
display is enabled, the arc 5 will display the
number of the times the power button has
been pressed to vape and total time spent
vaping in seconds. To enable the counter,
quickly press the power button 4 times

while the arc 5 is switched on. Puff counter
is displayed on the first row while vape
duration is displayed on the second row.
To reset the number of recorded puffs to
zero, press and hold down the power and
up adjustment buttons at the same time. To
reset the vape duration to zero, press and
hold down the power and down adjustment
buttons at the same time. Quickly pressing
the power button 4 times switches the arc 5
back to wattage display mode.

14 15

Short Circuit Protection

If an atomizer short circuit occurs, the
screen will display “Atomizer short” and
the arc 5 will refuse to power or produce
any vapour. Replacing the atomizer head
should allow normal operation to resume.
To replace the atomizer head follow the
steps outlined in Replacing the Atomizer
Head on page 10.

No Atomizer Detected Protection

If no atomizer head is detected, the screen
will display “No atomizer” and the arc 5 will
refuse to power or produce any vapour.
Ensure the atomizer head is fully screwed
into the base of the tank then fit the tank
back onto the battery. If the “No atomizer”
message continues, replacing the atomizer
head should allow normal operation to
resume. To replace the atomizer head
follow the steps outlined in Replacing the
Atomizer Head on page 10.

PROTECTIONS

Temperature Alert

If the temperature of the arc 5 exceeds the
maximum safe operating temperature, the
screen will display “Device Too Hot” and
the arc 5 will refuse to power or produce
any vapour. Stop vaping and allow the
arc 5 to cool down for normal operation
to resume.

Cleaning and Maintenance

The arc 5 battery and tank connection can
be cleaned by wiping down with tissue or
a dry cloth. The CS Air Slim tank can be

cleaned by removing it from the battery,
unscrewing the tank base from the glass
section of the tank then removing the
atomizer head. The entire tank and base
can now be cleaned under hot running
water. Allow the tank to fully dry before
refitting the atomizer head into the tank
base. Reassemble the tank.

Note: Do not attempt to clean the atomizer
head with water. Do not submerge the arc 5
battery unit in water or allow it to get wet.

16 17

arc 5 Battery

Dimensions: 77mm x 32.5mm x 23mm.
Weight: 90g.
Battery capacity:
2200mAh integrated battery
Wattage range: 1 – 40 watts.
Voltage range: 0.5 – 8.0 volts.
Thread type: Spring loaded
510 connection.
Atomizer resistance compatibility:
> 0.4ohm – 3.5ohm.

CS Air Slim Tank

Dimensions: 15mm diameter
x 53.5mm length (fitted).
Weight: 23.5g.
Tank capacity: 1.8ml.
Atomizer type: CS.
Thread type: 510 connection.
Atomizer head resistance: 1.5ohm.
Airflow type: Bottom, adjustable.
Maximum refill nozzle diameter: 9.0mm.
Suggested power: 7-15W.

SPECIFICATIONS KIT CONTENTS

1 x arc 5 battery
1 x CS Air Slim tank
1 x CS 1.5ohm atomizer head (fitted)
1 x USB charging cable
1 x User manual

Additional product information

There are no reported medical side
effects with this product. If you believe
you experience a side effect, please
contact the manufacturer.

18 19

• Store the arc 5 e-cigarette and its accessories away from children whilst
not in use.

• Please only use the charging cable provided.

• Please dispose of dead batteries in accordance with your country’s
appropriate legislation.

• Do not charge the battery in a damp environment, or in temperatures
under 0°C or above 45°C.

• Do not use the device in temperatures under -10°C or above 60°C.

• Do not carry batteries in a pocket or bag with other metallic objects.

• Do not attempt to repair a faulty arc 5 battery as these are sealed units
with no serviceable parts. Attempted repairs will void the warranty.

PRODUCT STORAGE AND BATTERY PRECAUTIONS

arc 5 components have a 28-day parts warranty with the exception of atomizer heads
which are consumable items and are covered by our ‘Dead on Arrival’ warranty only. The
USB cable supplied has a 12-month warranty. If any parts are found to be faulty within this
time please contact our customer service team, whose details are on the back page of this
booklet and we will arrange for a replacement. We may require the goods to be returned for
further investigation.

WARRANTY

Manufactured in China
under the authority
of Pillbox38 UK Ltd,
Stancliffe Street,
Blackburn, Lancashire,
BB2 2QR.

Tel [phone]
www.totallywicked.co.uk

Tel [phone]
www.totallywicked.com

Tel [phone]
www.totallywicked.de
