TOTALINE Basic 1H/1C, Basic 2H/1C Operating Manual

Operating Manual

Mode d’emploi

Manual de Uso

Heat

Fan

Auto

On

OffCool

Totaline® Basic 1H/1C & 2H/1C

Non-Programmable Thermostats

Thermostat non programmables

Termostatos no programables

570-207

Totaline Basic 1H/1C & 2H/1C

This manual covers the following models:
P310-0110: For 1-Heat / 1-Cool systems

P310-0210

(Remove the thermostat from its wallplate to find the model number.)

: For 2-Heat / 1-Cool heat pump systems

CAUTION: EQUIPMENT DAMAGE HAZARD.

To prevent possible compressor damage, do not use Cooling mode when the
outdoor temperature is below 50 °F (10 °C).

Need Help?

For assistance with this product please visit www.totaline.com.

Read and save these instructions.

® U.S. Registered Trademark. Patents pending.

ENGLISH

Operating Manual 570-207

Table of contents

Overview

Thermostat features............................. 1

ENGLISH

Quick reference to controls .................. 2

Quick reference to display.................... 3

Operation

System switch (Heat/Cool)................... 4

Fan switch (Auto/On)............................ 5

Temperature controls............................ 6

Compressor protection......................... 7

Appendices

Battery replacement ............................. 8

In case of difficulty................................ 9

Customer assistance.......................... 10

Limited two-year warranty ...................11

Totaline Basic 1H/1C & 2H/1C

About your new thermostat

Your new Totaline thermostat has been designed to give you many years of
reliable service and easy-to-use, push-button climate control.

Features

• Backlit display is easy to read

• Displays ambient (measured) temperature at all times

• One-touch access to setpoint temperature

• Built-in compressor protection

1

ENGLISH

Operating Manual 570-207

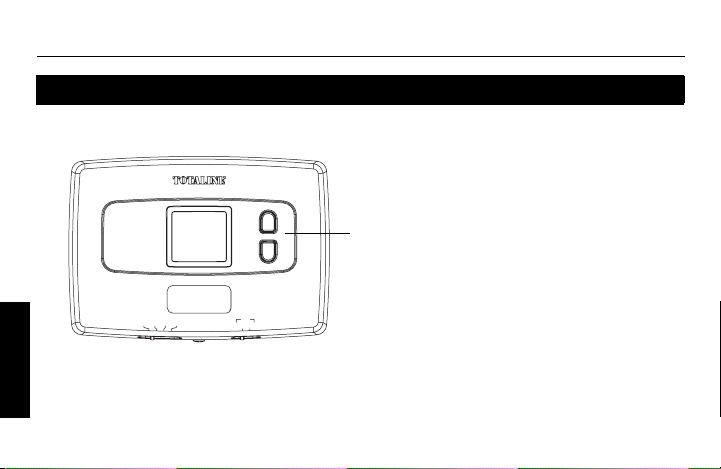

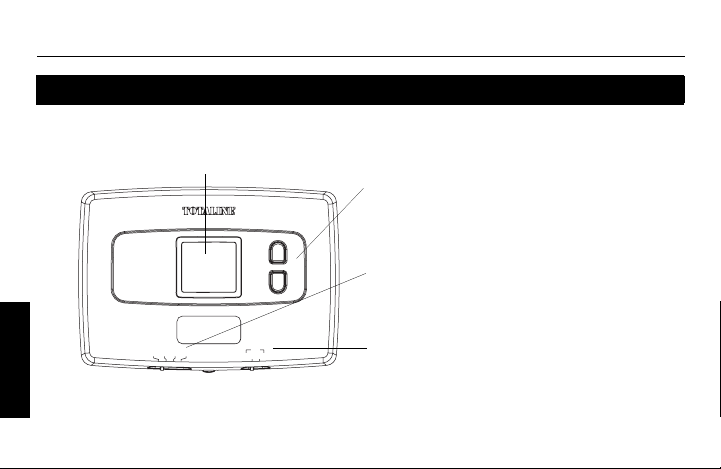

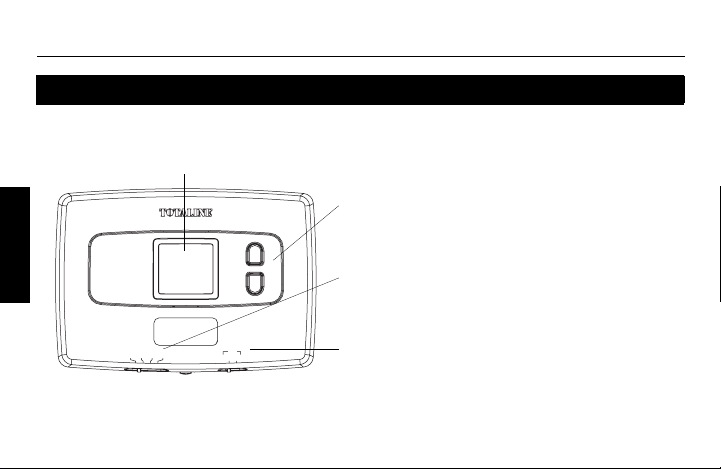

Quick reference to controls

Screen

ENGLISH

Lit for 12 seconds when
you press any button.

E.M. Heat

Heat

Off

Cool

Up/Down buttons

Press to adjust temperature

System switch (see page 4)

• Cool: System is in Cooling mode.

• Off: System is off.

• Heat: System is in Heating mode.

• Em Heat: System is in Emergency Heat mode.

Fan switch (see page 5)

Fan

Auto

On

• On: Fan runs continuously.

• Auto: Fan runs only when heating or cooling is
activated.

2

Totaline Basic 1H/1C & 2H/1C

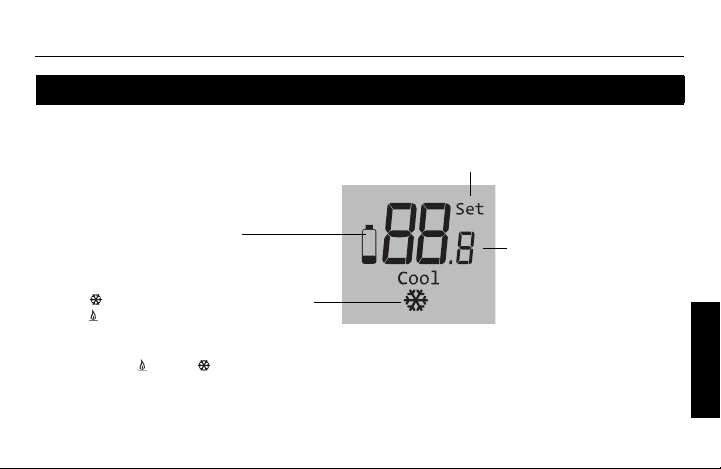

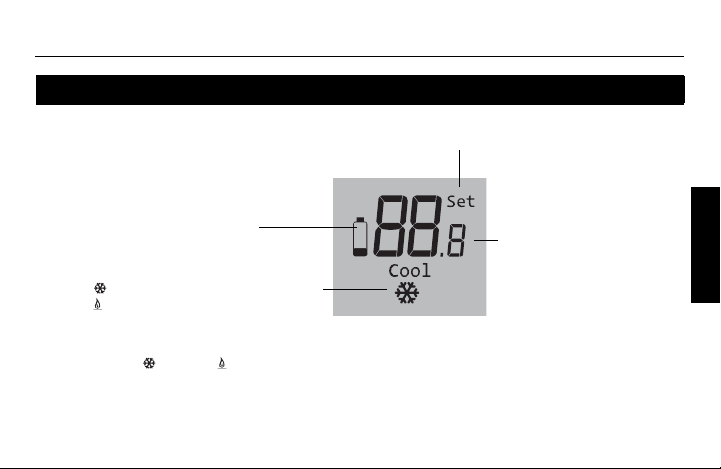

Quick reference to display

Setpoint indicator

Appears when the setpoint
temperature is displayed.

Temperature display

The ambient (measured)
temperature is normally

Low-battery warning (see page 8)

System status

• Cool : Cooling is activated. *

• Heat : Heating is activated. *

• Stg2: Auxiliary heat is activated. **
* If Heat or Cool is flashing, compressor protection is engaged (see page 7).

** Applies to P310-0210 model only.

3

displayed. To view the
setpoint temperature, press
either of the temperature
adjustment buttons once.
The setpoint temperature
will appear for five seconds.

ENGLISH

Operating Manual 570-207

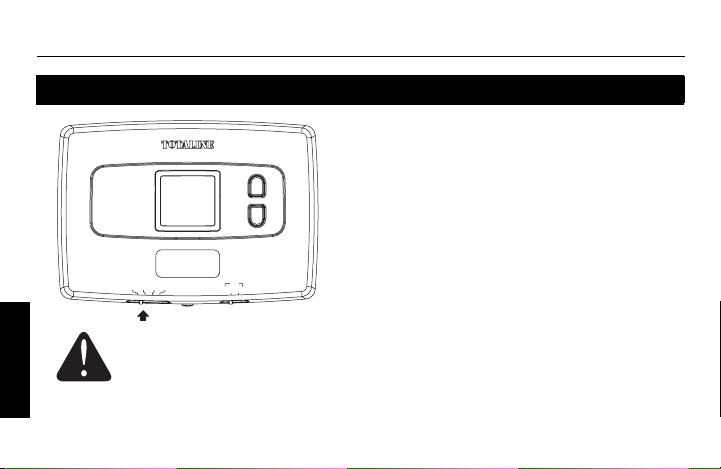

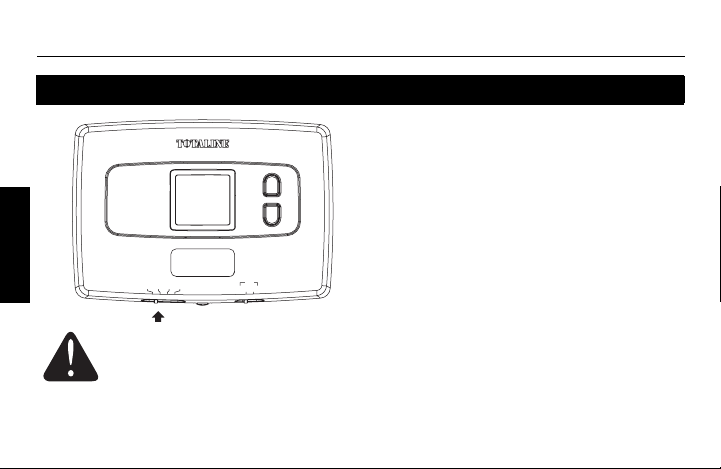

System switch

ENGLISH

E.M. Heat

Heat

Off

Cool

CAUTION: EQUIPMENT DAMAGE HAZARD

Do not use Cooling mode when the outdoor temperature is below 50 °F (10 °C).

Use the System switch to place the system in
one of the following modes.

• Cool: System is in Cooling mode.

• Off: System is off.

• Heat: System is in Heating mode.

• Em Heat: System is in Emergency Heat
mode. Only auxiliary heating can be

Fan

Auto

On

activated. The compressor is disabled. (This
mode is available on the P310-0210 model
only.)

4

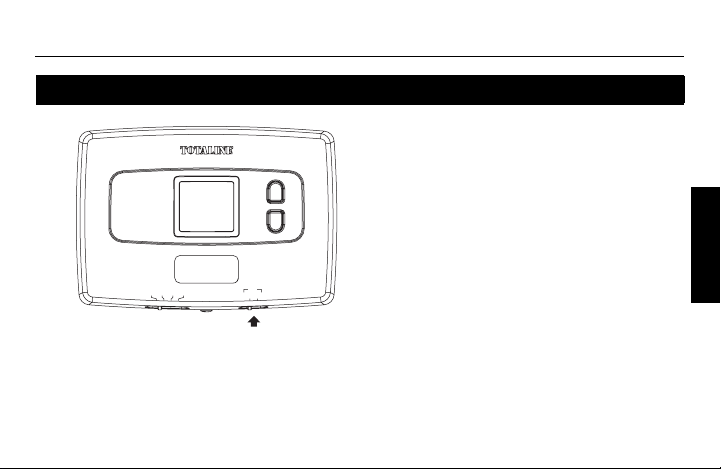

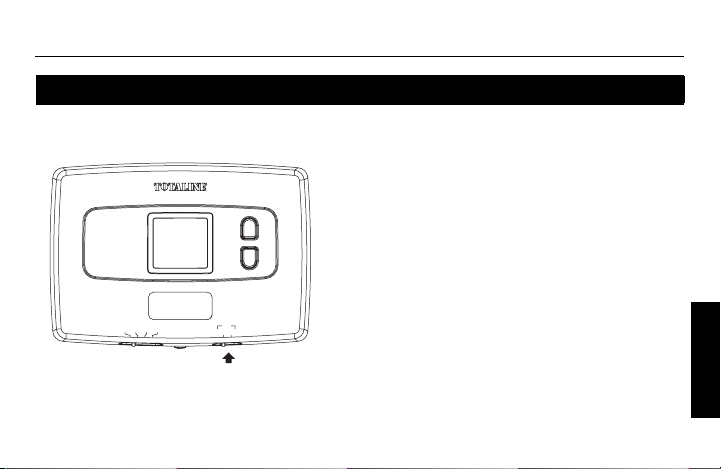

Fan switch

Totaline Basic 1H/1C & 2H/1C

E.M. Heat

Use the Fan switch to select the fan

ENGLISH

operation.

• Auto: The fan runs only when heating
or cooling is actually taking place
(commonly used setting).

• On: The fan runs continuously. Use

Heat

Off

Cool

Fan

Auto

On

this setting for improved air circulation
or for more efficient air cleaning.

5

Operating Manual 570-207

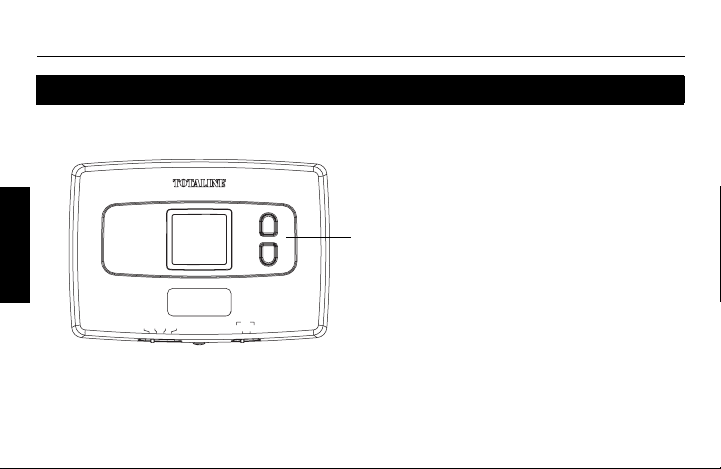

Temperature controls

ENGLISH

Press the Up or Down button once to
display the setpoint temperature.
Press either button more than once to
change the setpoint.

E.M. Heat

Heat

Off

Cool

Fan

Auto

On

6

Totaline Basic 1H/1C & 2H/1C

Built-in compressor protection

Your thermostat has a feature that helps prevent damage to the compressor of
your air conditioning or heat pump system. Because damage can occur if the
compressor is restarted too soon after shutdown, this feature forces the
compressor to wait 5 minutes before restarting. During the wait time, the message
Cool or Heat flashe s on the screen. When the safe wait time has elapsed,
the message stops flashing and the compressor turns on.

7

ENGLISH

Operating Manual 570-207

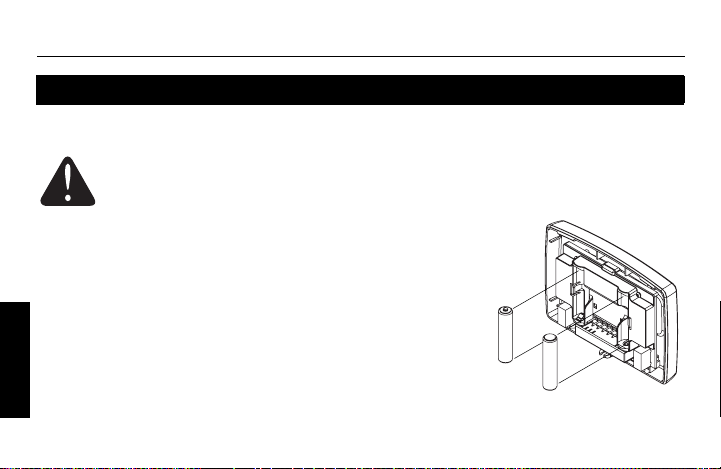

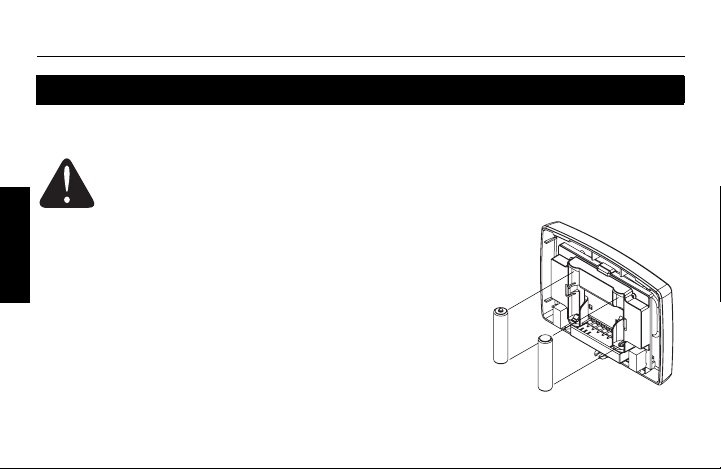

Battery replacement

NOTE: Batteries are optional (serving as backup power) only if your thermostat is connected to 24 VAC.

ENGLISH

Install two fresh AAA batteries when th e low-battery icon flashes
on the screen. The icon appears f or 60 days before the batteries
are depleted.
Replace batteries once a y ear, or when you will be aw ay fo r mor e
than a month.
The settings are stored in non-volatile (permanent) memory and
are thus preserved when the thermostat is without AC power or
batteries.

NOTE: The low-battery icon will not appear when the batteries are
depleted if the thermostat is connected to 24 VAC.

Set the System switch to Off before removing the batteries. Otherwise, the
heating/cooling system could remain activated even when batteries are
removed.

8

Totaline Basic 1H/1C & 2H/1C

In case of difficulty

Screen is blank. • Check circuit breaker and reset if necessary.

Temperature settings cannot be
changed.

Cool or Heat is flashing. • The compressor protection delay has been activated. Wait for the

HI appears on the screen. • The ambient (measured) temperature is above 122 °F (50°C).
LO appears on the screen. • The ambient (measured) temperature is below 32 °F (0 °C).
E1 appears on the screen. • The temperature sensor circuit is opened . Replace the thermost at.
E2 appears on the screen. • The temperature sensor circuit is shorted. Replace the thermostat.

• Ensure the heating/cooling system is powered up.

• Ensure the furnace door is properly closed.

• Ensure two fresh AAA alkaline batteries are correctly installed.

•The System switch is off.

• Y ou are setting the temperatures outside their allowable ranges:

• Heat: 40 °F to 90 °F (4.5 °C to 32 °C).

• Cool: 50 °F to 99 °F (10 °C to 37 °C).

delay to end (maximum of 5 minutes).

9

ENGLISH

Operating Manual 570-207

Customer assistance

For assistance with this product, visit our website at www.totaline.com.

ENGLISH

10

Totaline Basic 1H/1C & 2H/1C

Limited two-year warranty

TWO-YEAR WARRANTY — This CARRIER CORPORATION product is warranted to be free from
defects in material and workmanship under normal use and maintenance for a period of two years from
date of original installation. A new or remanufactured part to replace the defective part will be provided
without charge for the part itself, through a qualified servicing CARRIER CORPORATION dealer or
service, PROVIDED the defective part is returned to our distributor. The replacement part assumes the
unused portion of the warranty.

THIS WARRANTY DOES NOT INCLUDE ANY ADDITIONAL LABOR ALLOWANCE OR OTHER
COSTS incurred for diagnosis, repairing, removing, installing, shipping, servicing or handling of either

defective parts or replacement parts. SUCH COSTS MAY BE COVERED BY a separate warranty
provided by the installer.

LIMITATIONS OF WARRANTIES — ALL IMPLIED WARRANTIES (INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY) ARE HEREBY LIMITED IN DURATION TO THE PERIOD FOR
WHICH THE LIMITED WARRANTY IS GIVEN. THE EXPRESSED WARRANTIES MADE IN THIS
WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY
DISTRIBUTOR, DEALER, OR OTHER PERSON WHATSOEVER.

1.Normal maintenance as outlined in the installation and servicing instructions or owners manual.

CARRIER WILL NOT BE RESPONSIBLE FOR:

11
