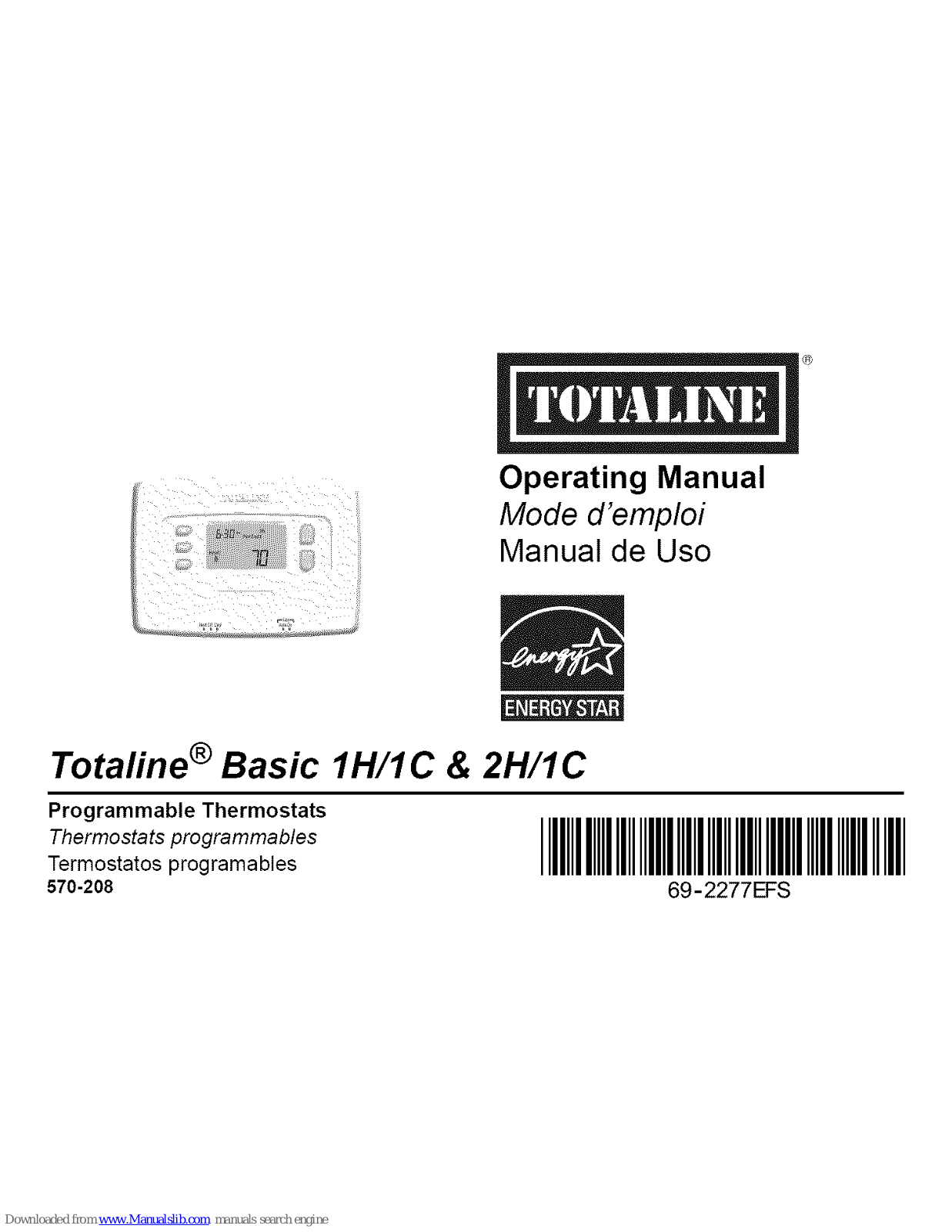

TOTALINE BASIC 1H, BASIC 1C, BASIC 2H, BASIC 1H/1C, BASIC 2H/1C Operating Manual

®

Operating Manual

Mode d'emploi

Manual de Uso

Totaline ® Basic 1H/1C & 2H/1C

Programmable Thermostats

Thermostats programmables

Termostatos programables

570-208

IIIIIIIIIIIIIIIIIIIIIIII

69-2277EFS

Totaline Basic 1H/1C & 2H/1C

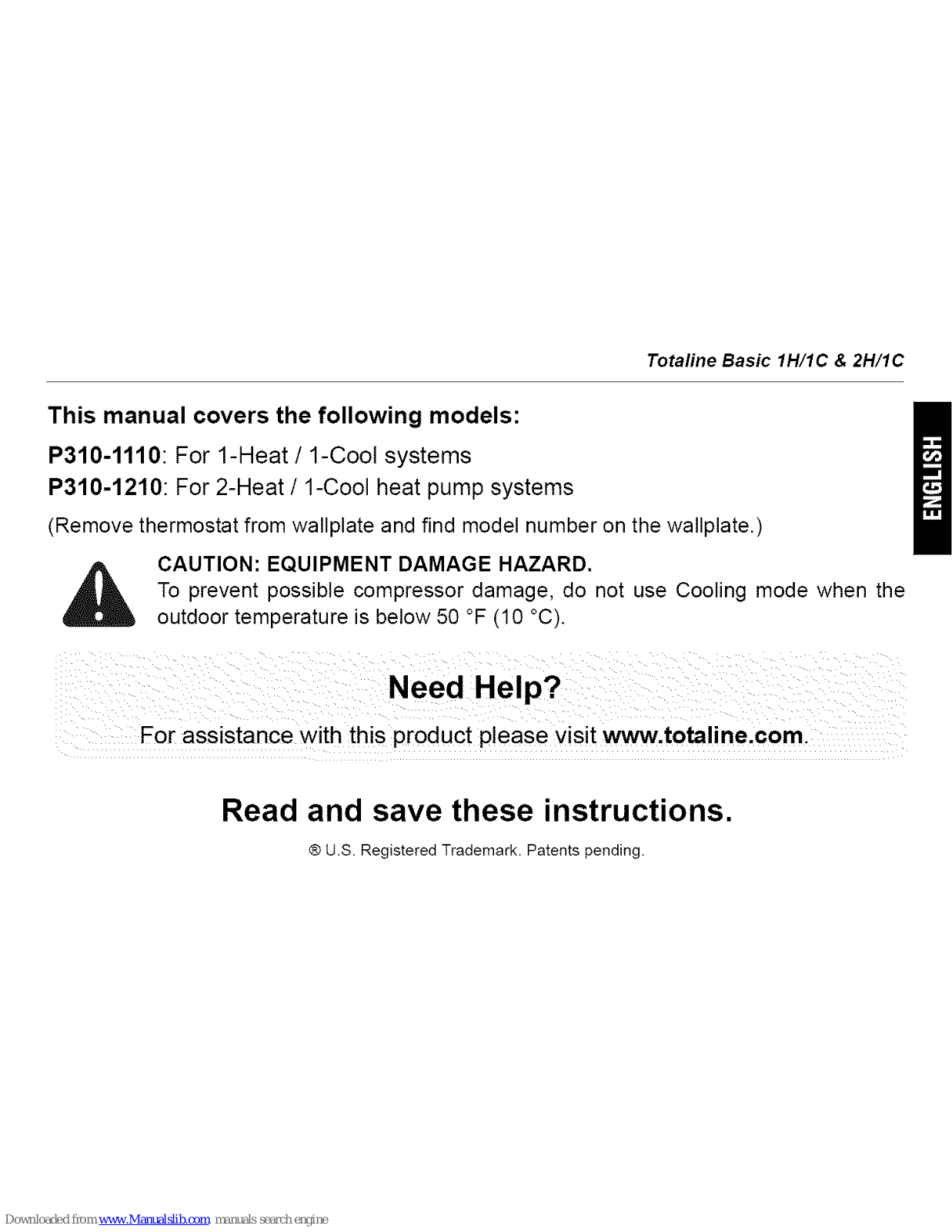

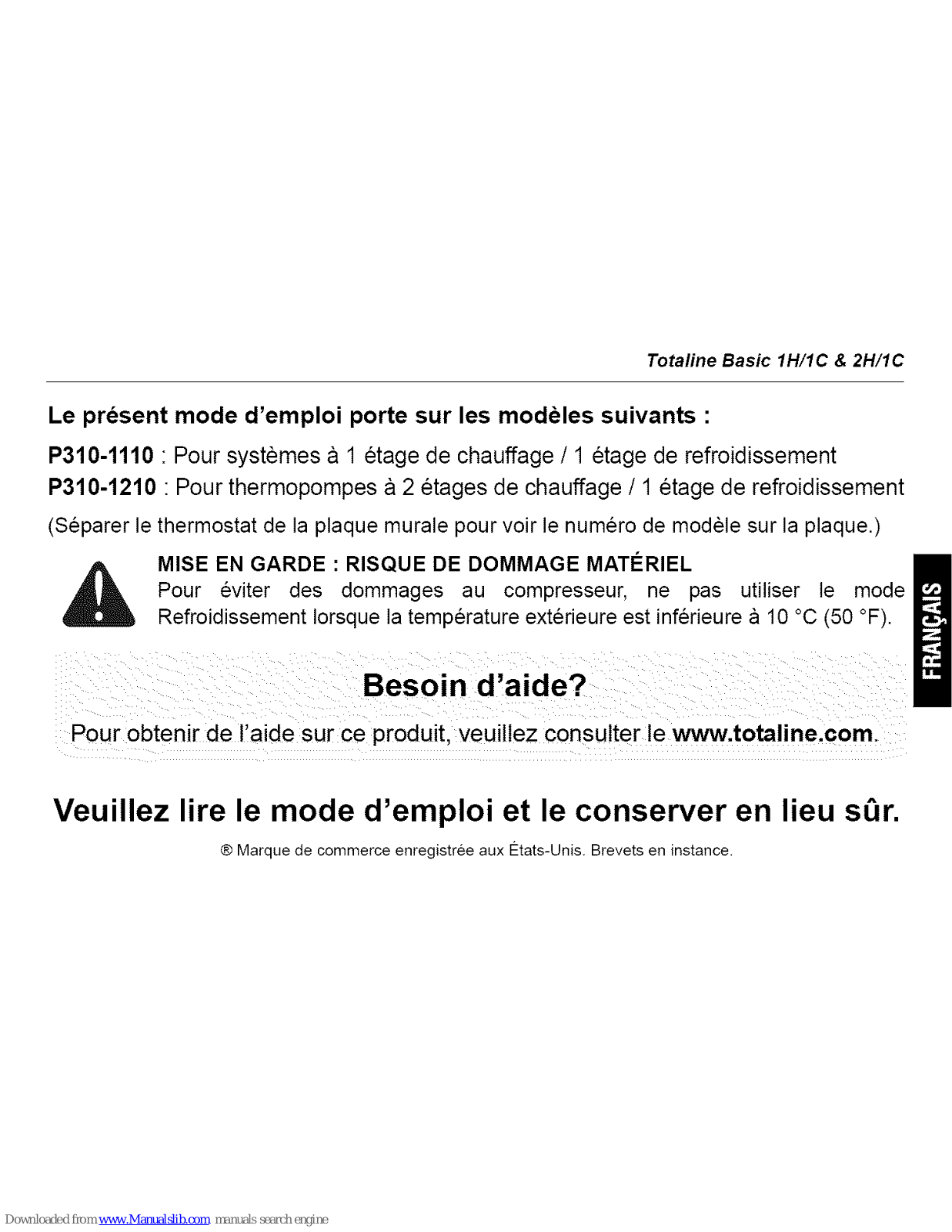

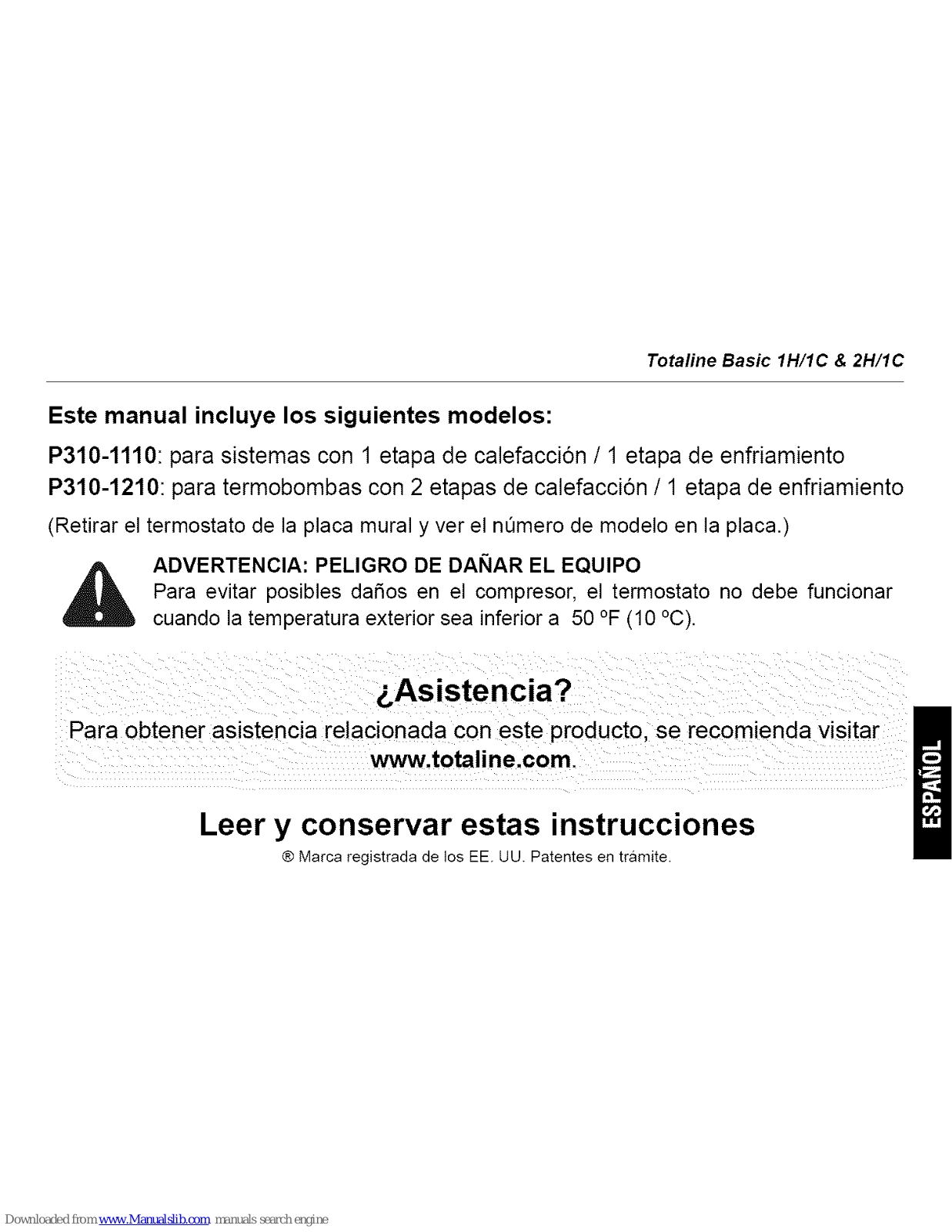

This manual covers the following models:
P310-1110: For 1-Heat/1-Cool systems

P310-1210: For 2-Heat / 1-Cool heat pump systems

(Remove thermostat from wallplate and find model number on the wallplate.)

CAUTION: EQUIPMENT DAMAGE HAZARD.
To prevent possible compressor damage, do not use Cooling mode when the
outdoor temperature is below 50 °F (10 °C).

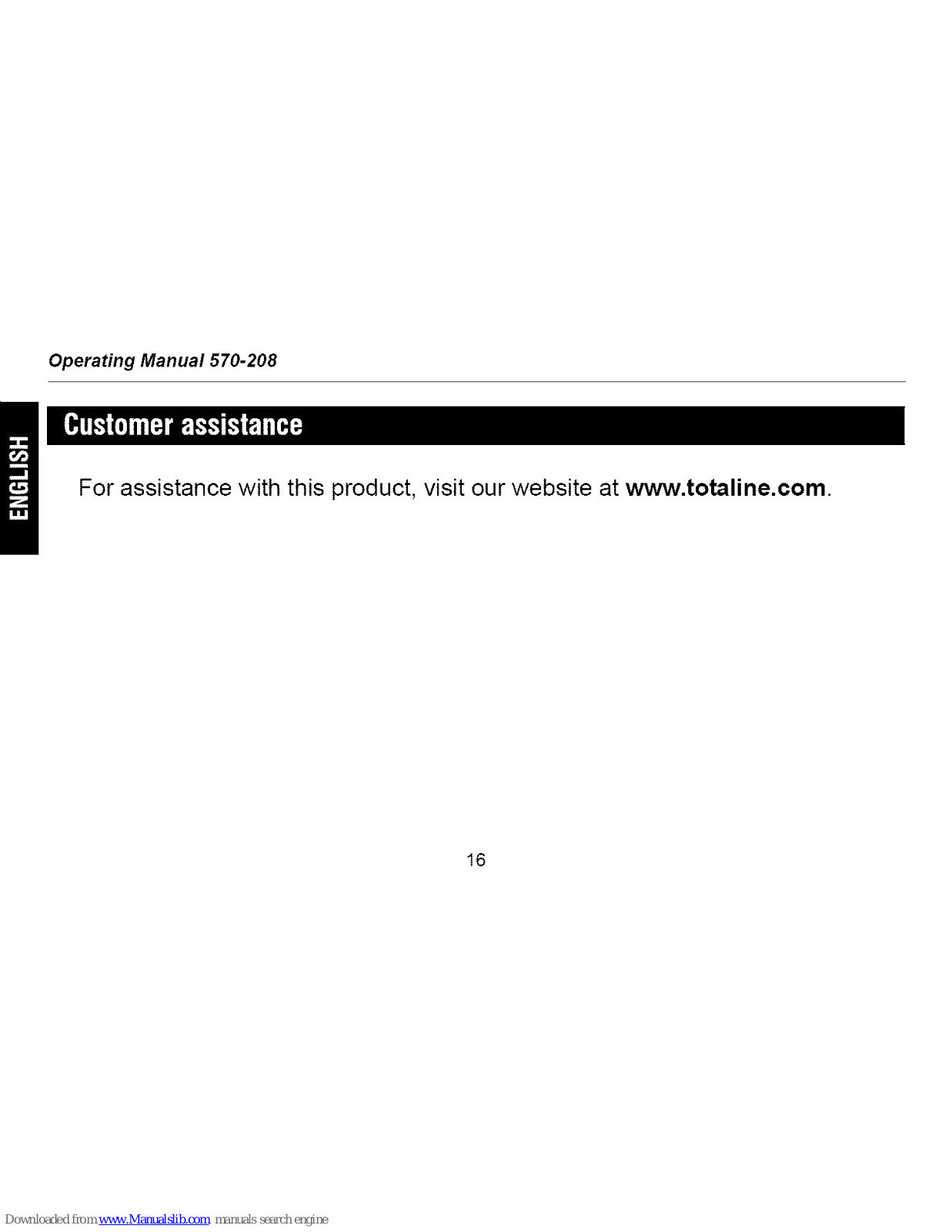

For assistance with this product please visit www.totaline.com.

Read and save these instructions.

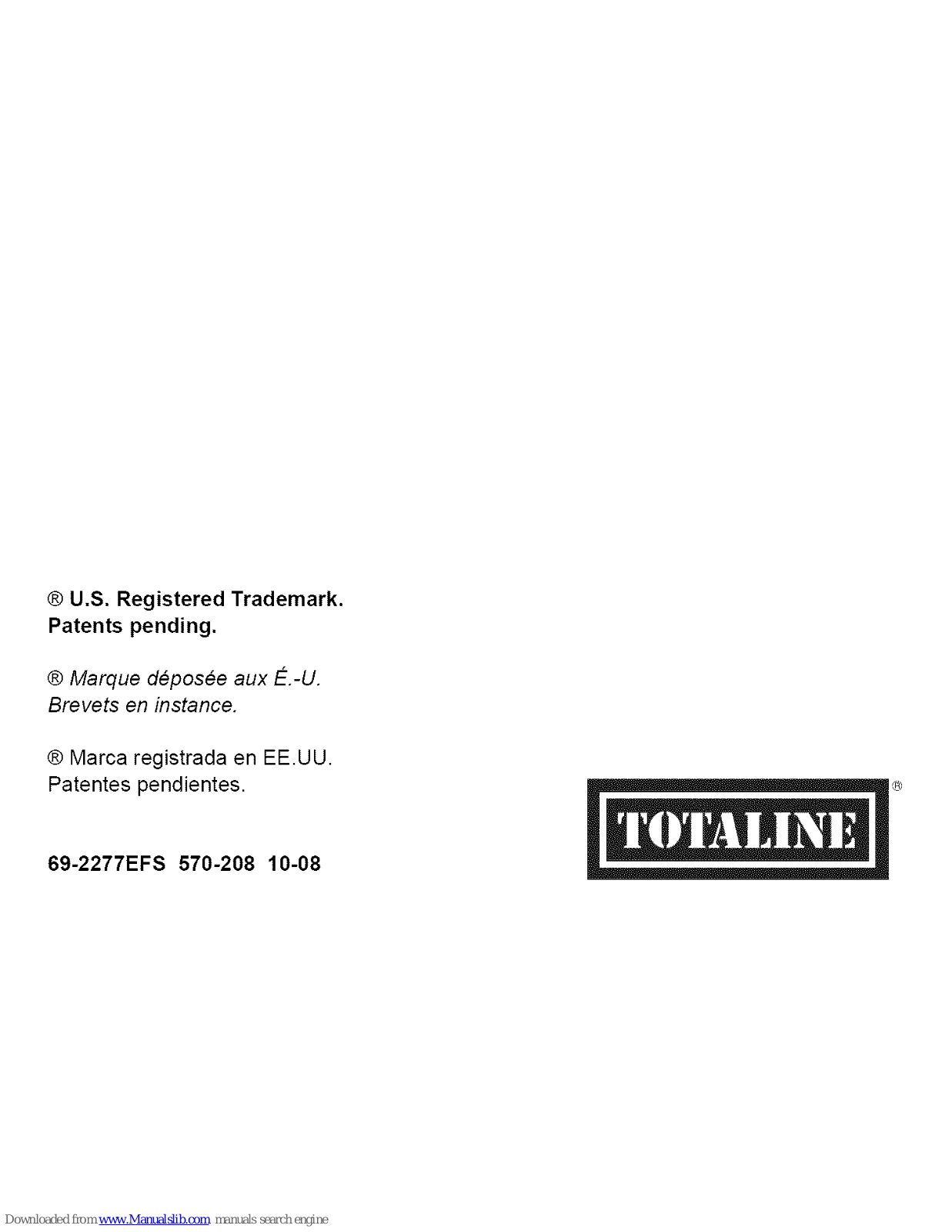

® U.S. Registered Trademark. Patents pending.

Operating Manual 570-208

i_1qFJ__

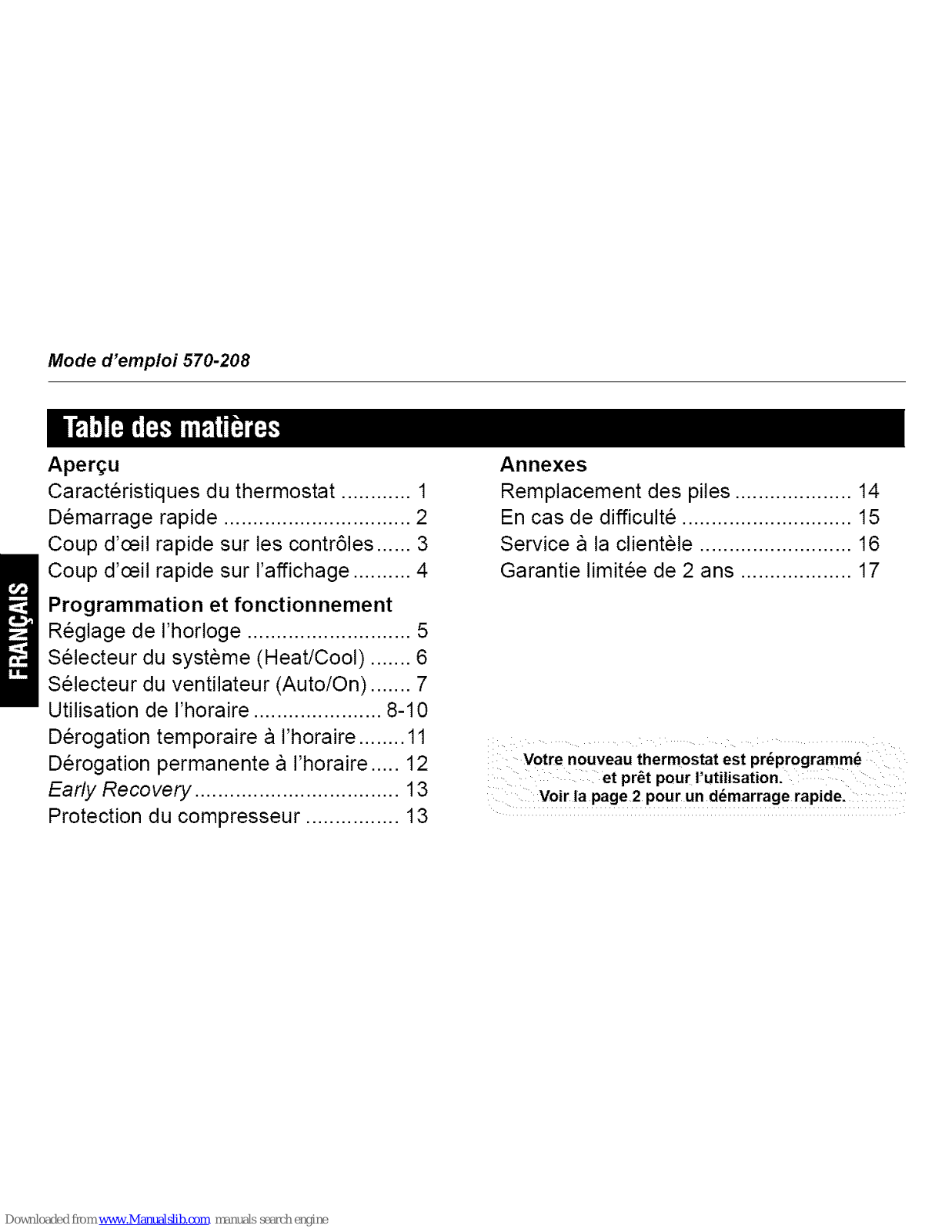

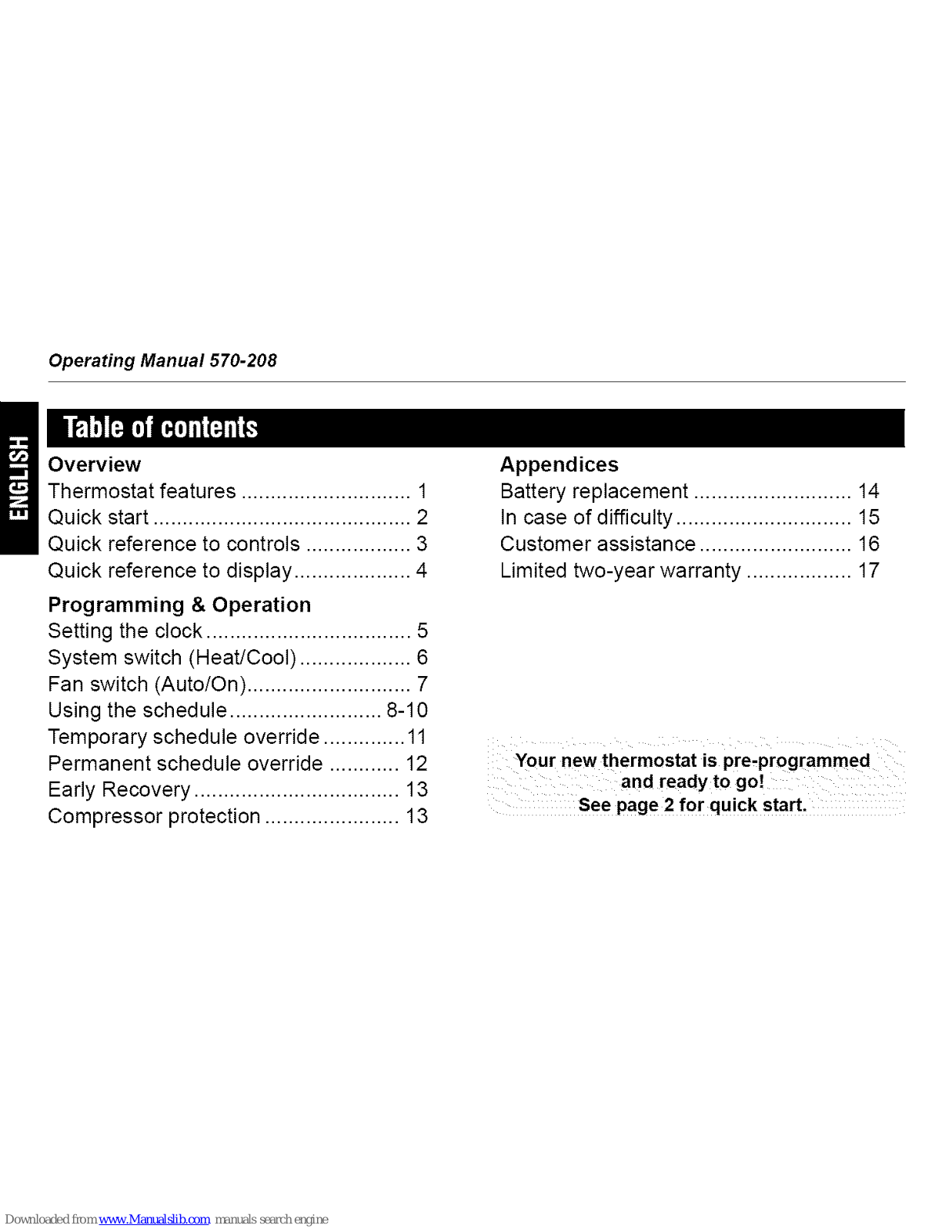

Overview

Thermostat features ............................. 1

Quick start ............................................ 2

Quick reference to controls .................. 3

Quick reference to display .................... 4

Programming & Operation

Setting the clock ................................... 5

System switch (Heat/Cool) ................... 6

Fan switch (Auto/On) ............................ 7

Using the schedule .......................... 8-10

Temporary schedule override .............. 11

Permanent schedule override ............ 12

Early Recovery ................................... 13

Compressor protection ....................... 13

Appendices

Battery replacement ........................... 14

In case of difficulty .............................. 15

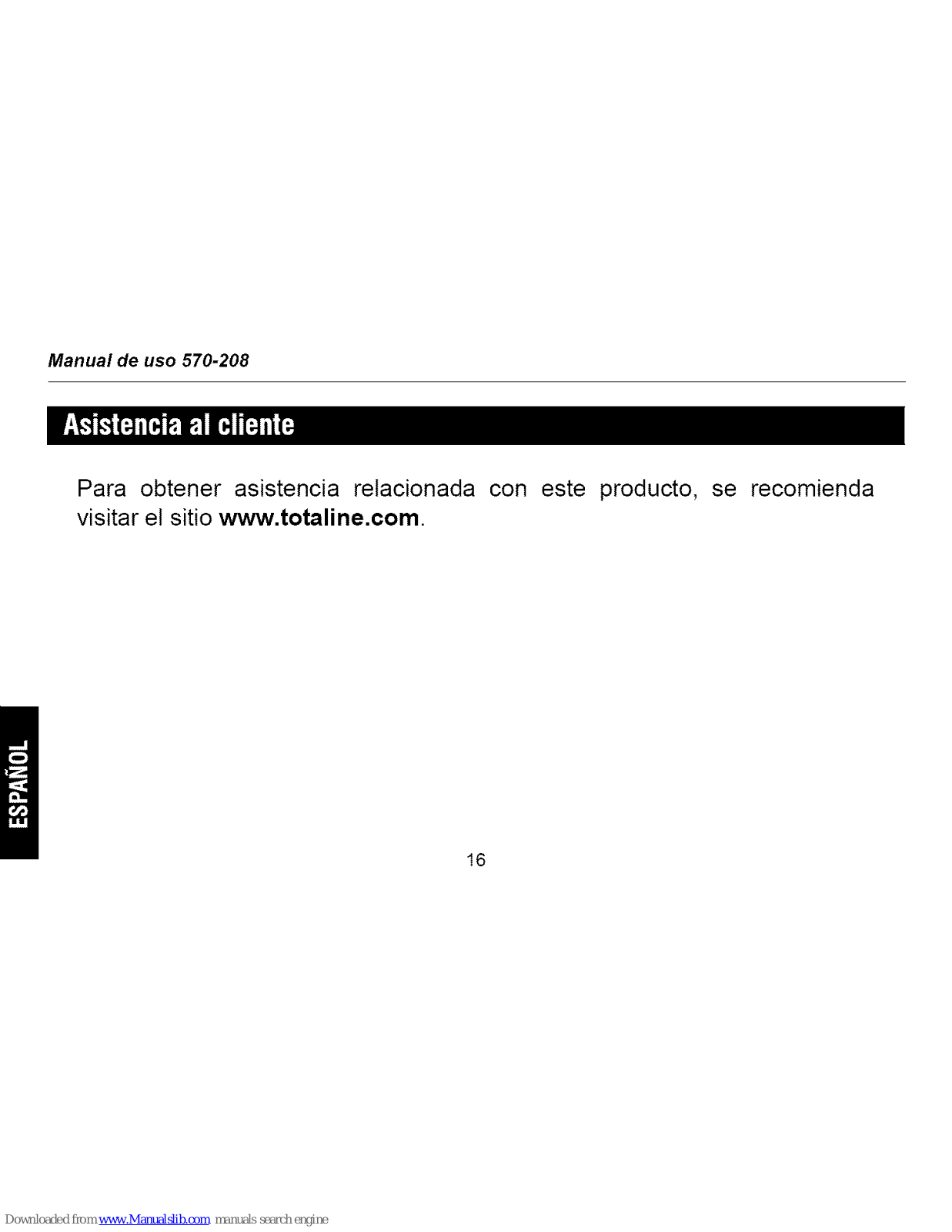

Customer assistance .......................... 16

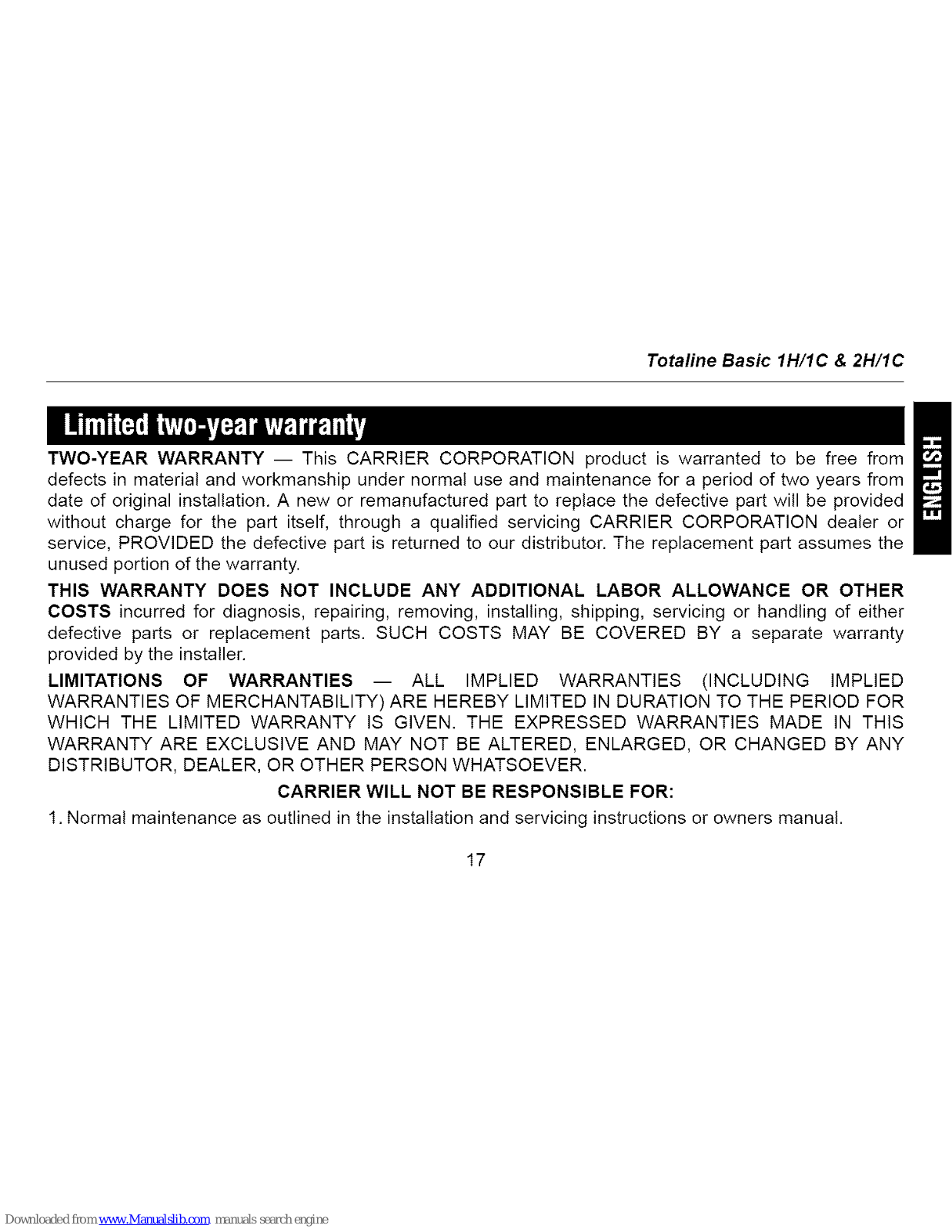

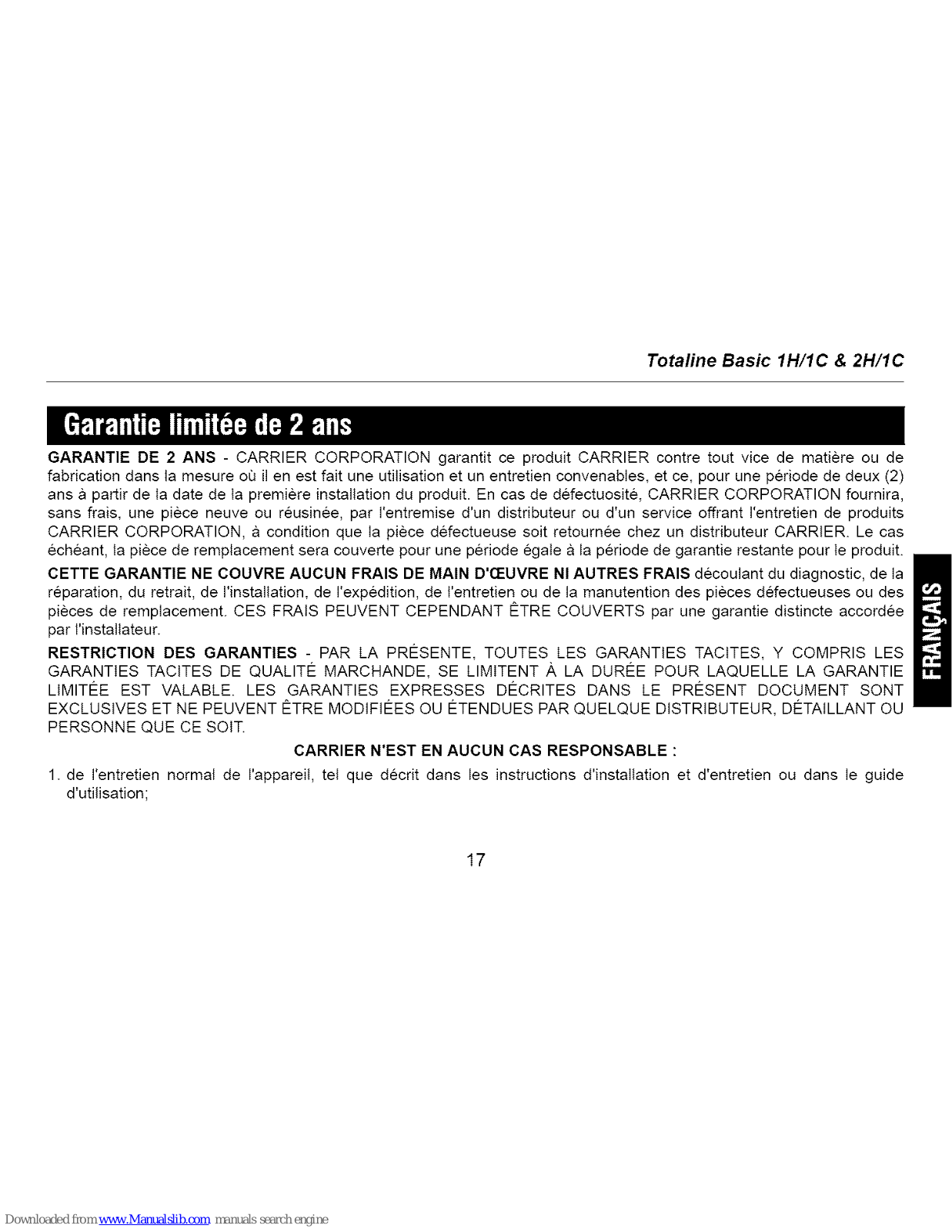

Limited two-year warranty .................. 17

Your new thermostat is pre-programmed

and readyto go!

see page 2 for quick start.

Totaline Basic 1H/1C & 2H/1C

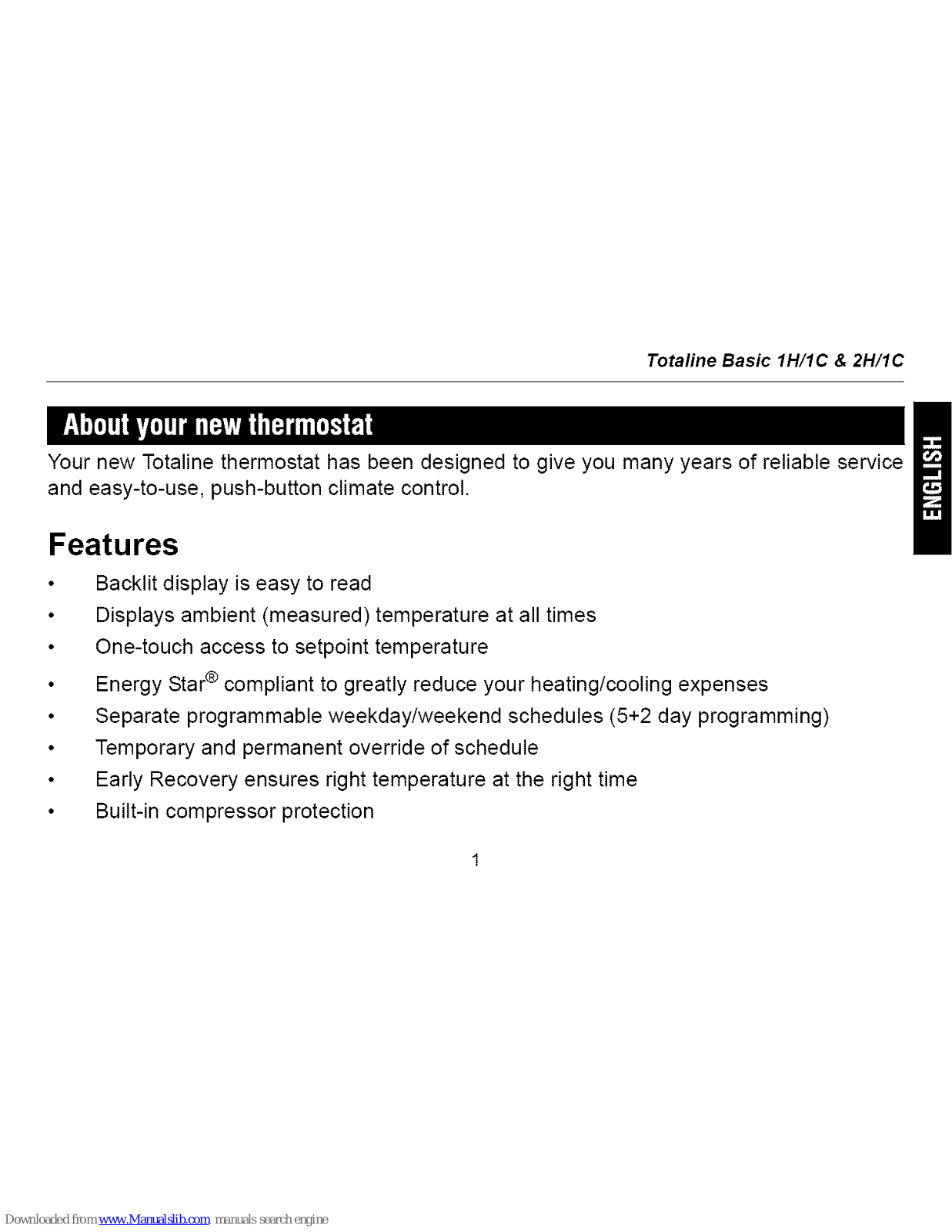

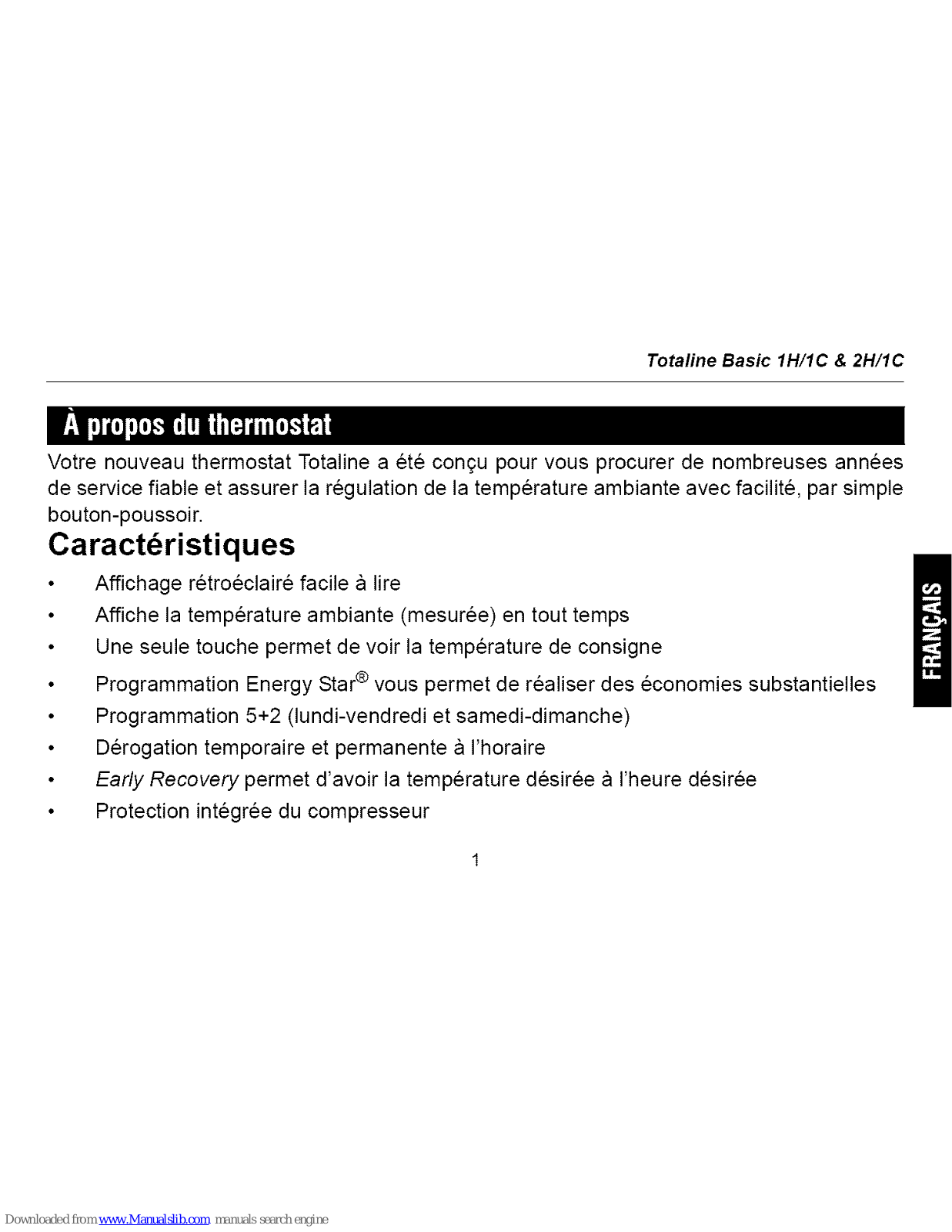

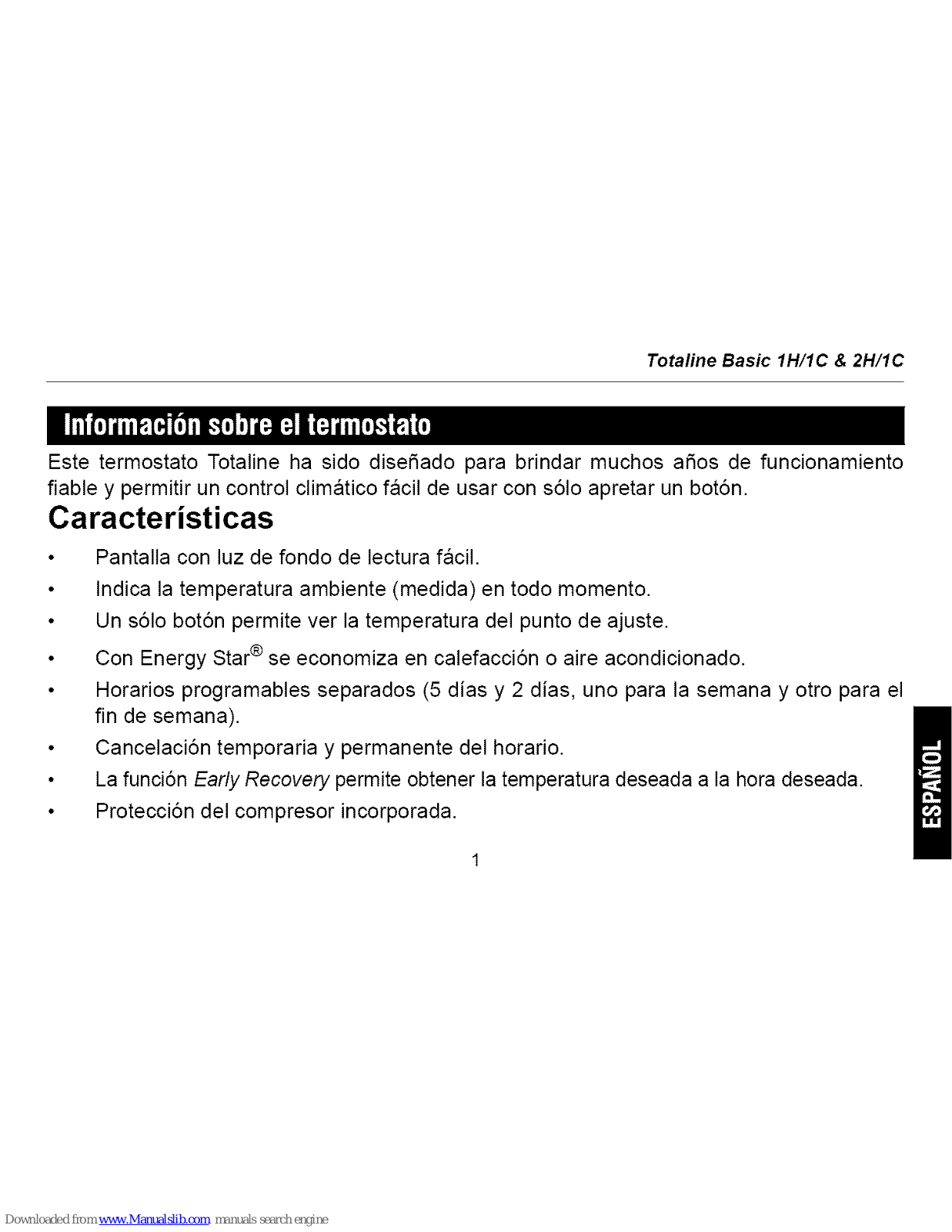

Your new Totaline thermostat has been designed to give you many years of reliable service
and easy-to-use, push-button climate control.

Features

Backlit display is easy to read
Displays ambient (measured) temperature at all times
One-touch access to setpoint temperature

Energy Star® compliant to greatly reduce your heating/cooling expenses
Separate programmable weekday/weekend schedules (5+2 day programming)

Temporary and permanent override of schedule
Early Recovery ensures right temperature at the right time
Built-in compressor protection

Operating Manual 570-208

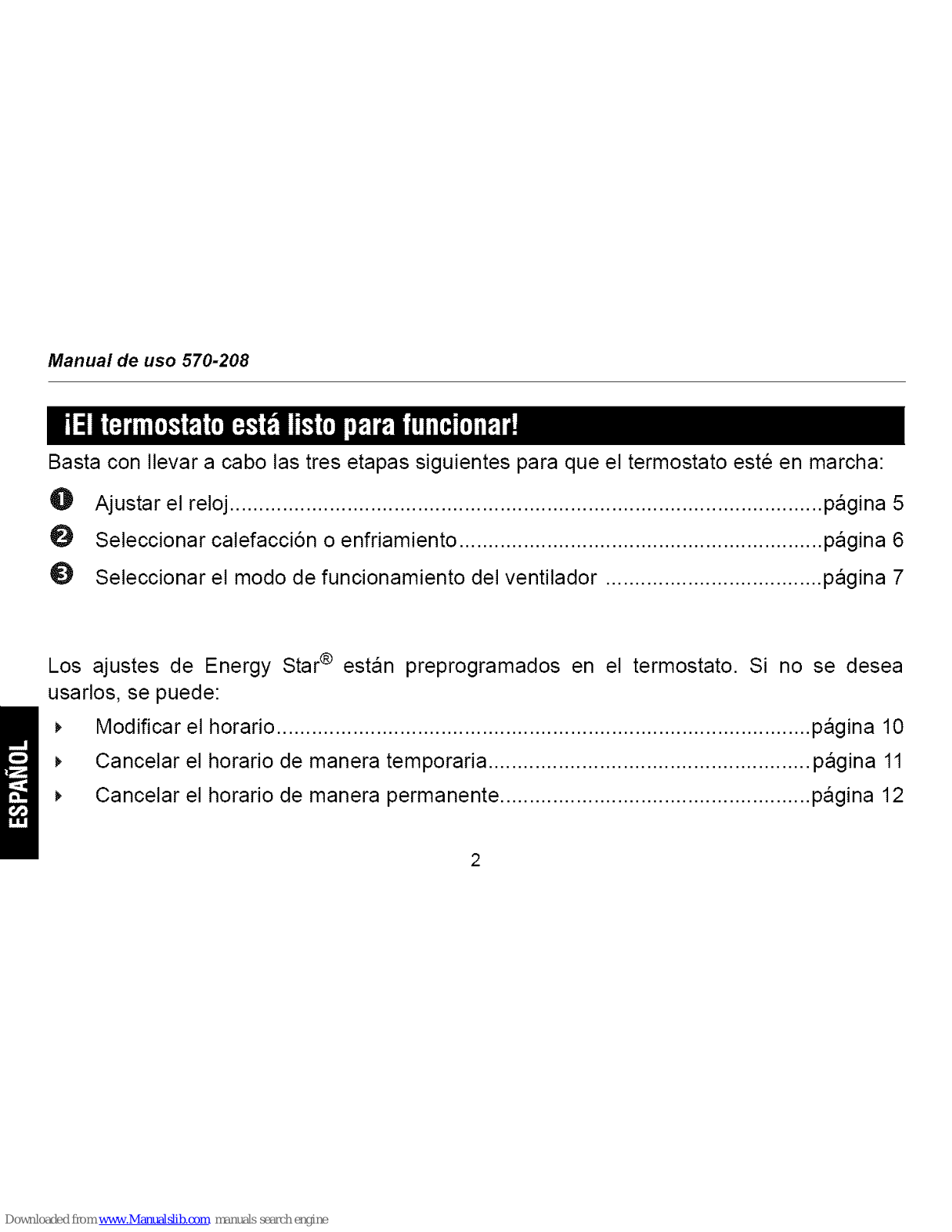

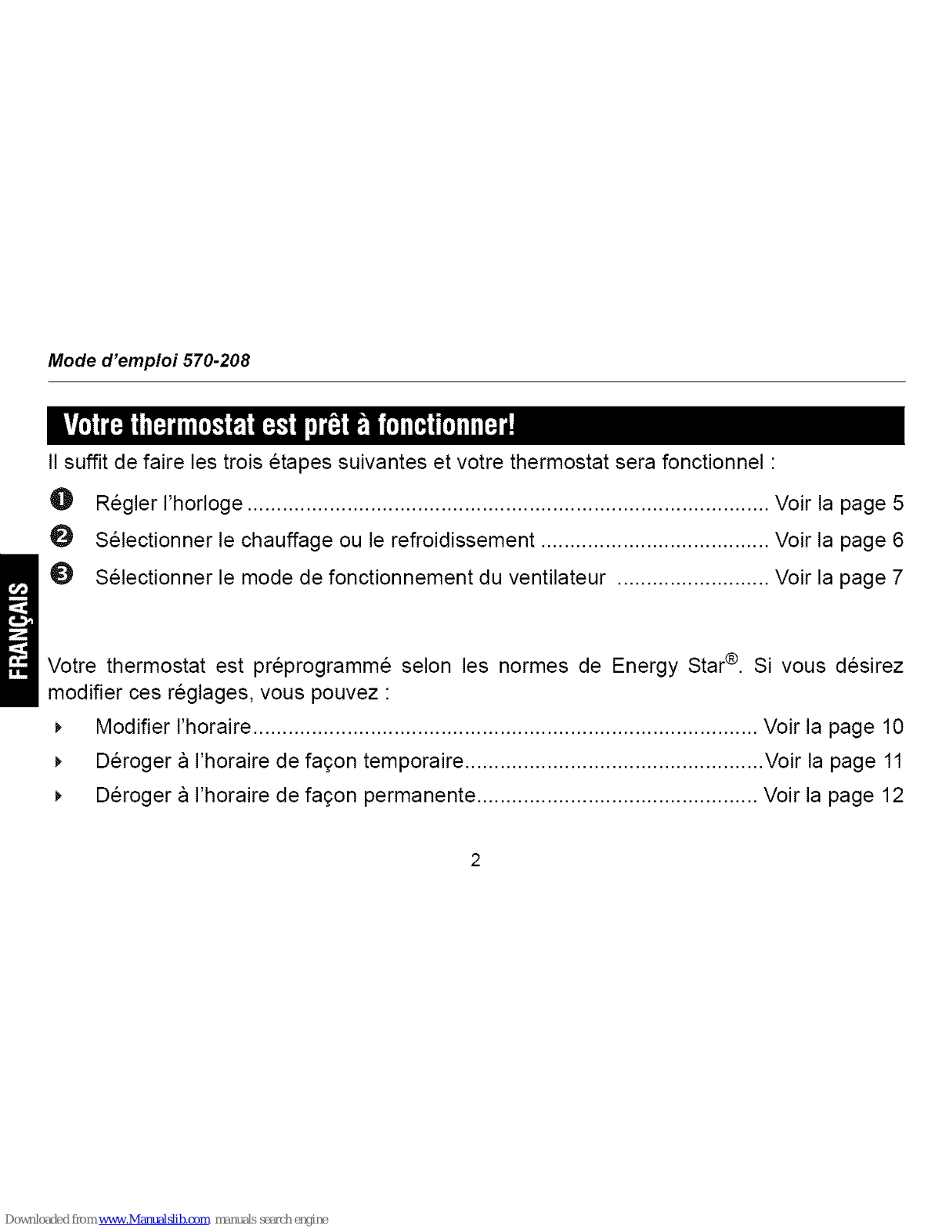

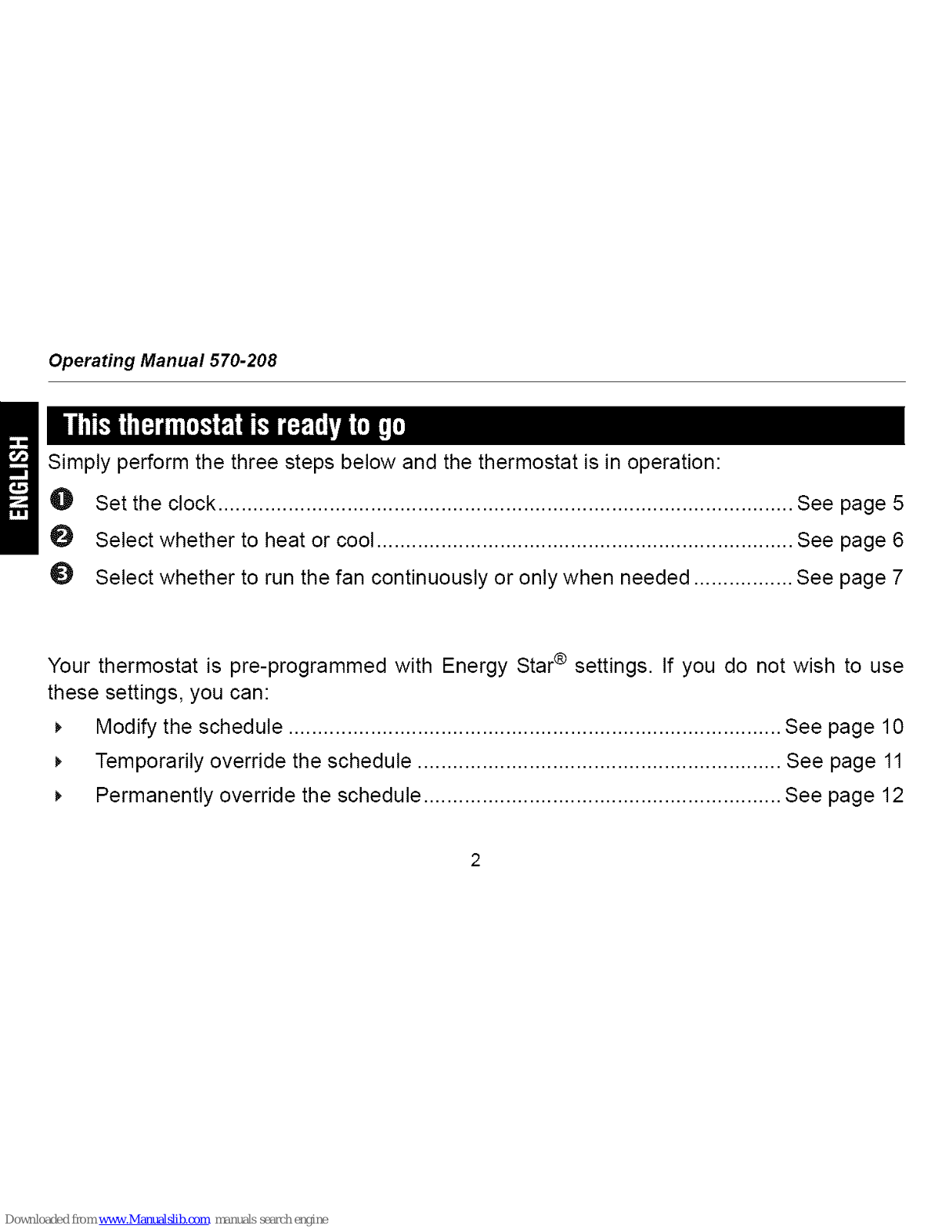

Simply perform the three steps below and the thermostat is in operation:

Set the clock .................................................................................................. See page 5

Select whether to heat or cool ....................................................................... See page 6

_) Select whether to run the fan continuously or only when needed ................. See page 7

Your thermostat is pre-programmed with Energy Star® settings. If you do not wish to use
these settings, you can:

Modify the schedule .................................................................................... See page 10

Temporarily override the schedule .............................................................. See page 11

Permanently override the schedule ............................................................. See page 12

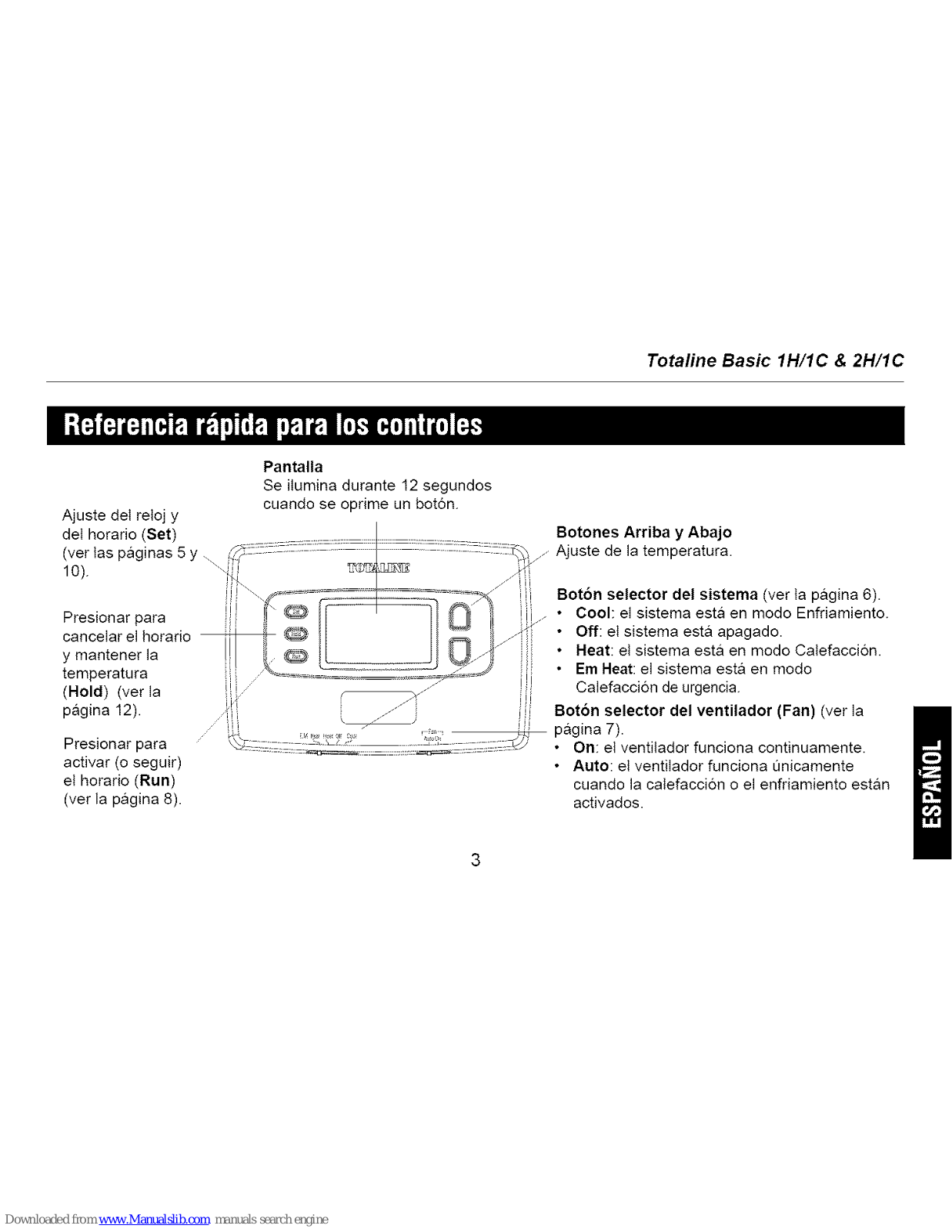

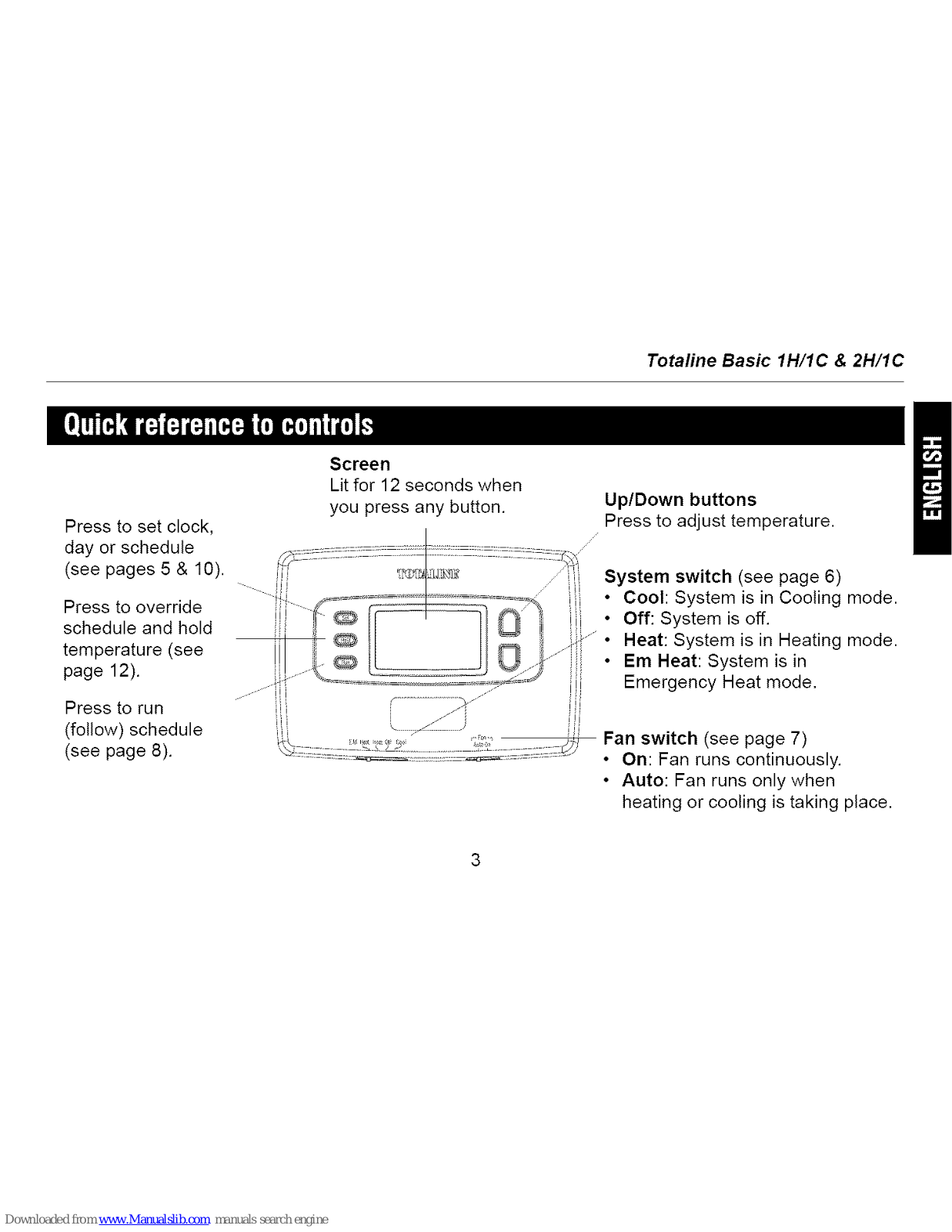

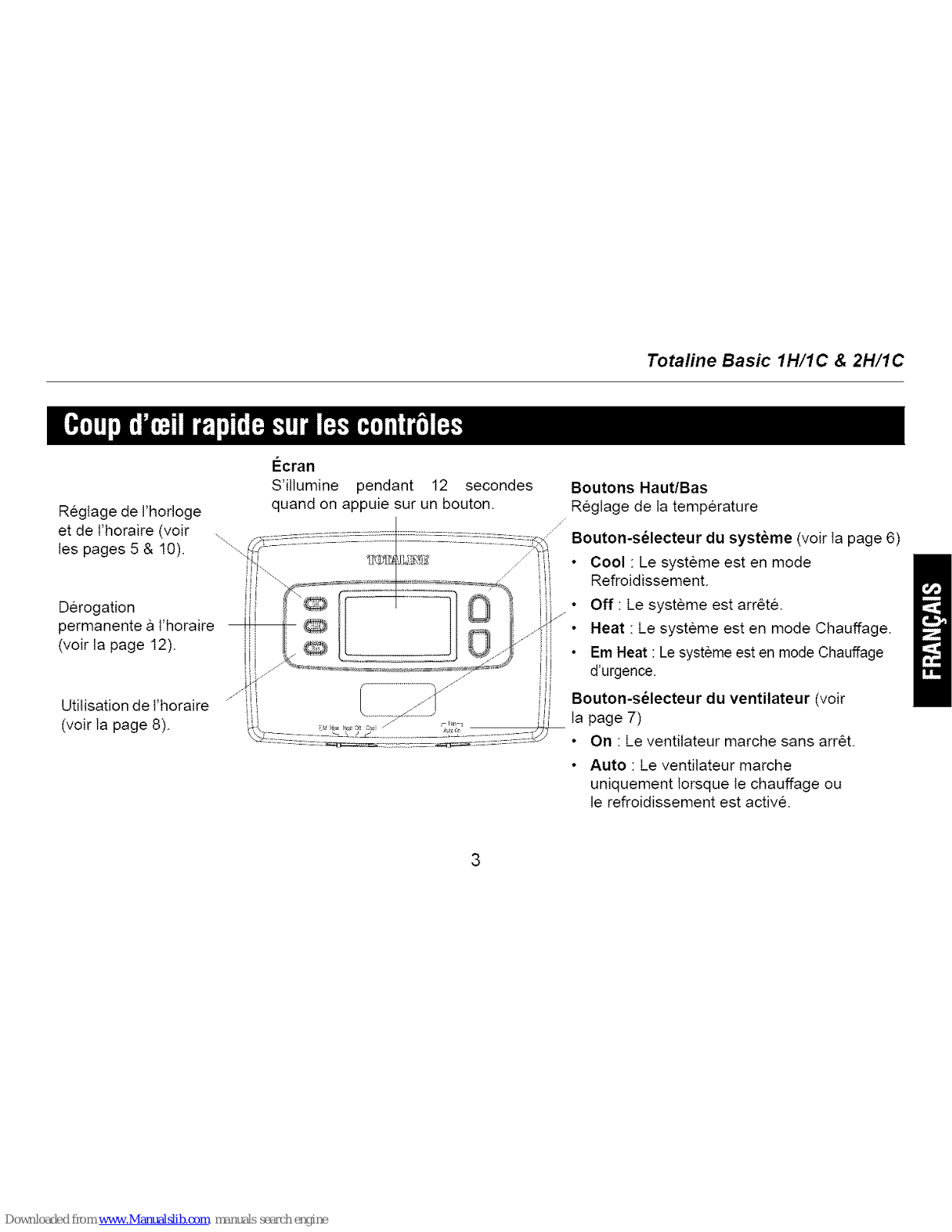

Press to set clock,
day or schedule

(see pages 5 & 10).
Press to override

schedule and hold
temperature (see

page 12).
Press to run

(follow) schedule
(see page 8).

Totaline Basic 1H/1C & 2H/1C

Screen
Lit for 12 seconds when

you press any button.

Up/Down buttons

Press to adjust temperature.

System switch (see page 6)

• Cool: System is in Cooling mode.

• Off: System is off.

• Heat: System is in Heating mode.

•Em Heat: System is in
Emergency Heat mode,

Fan switch (see page 7)

• On: Fan runs continuously.

• Auto: Fan runs only when

heating or cooling is taking place.

Operating Manual 570-208

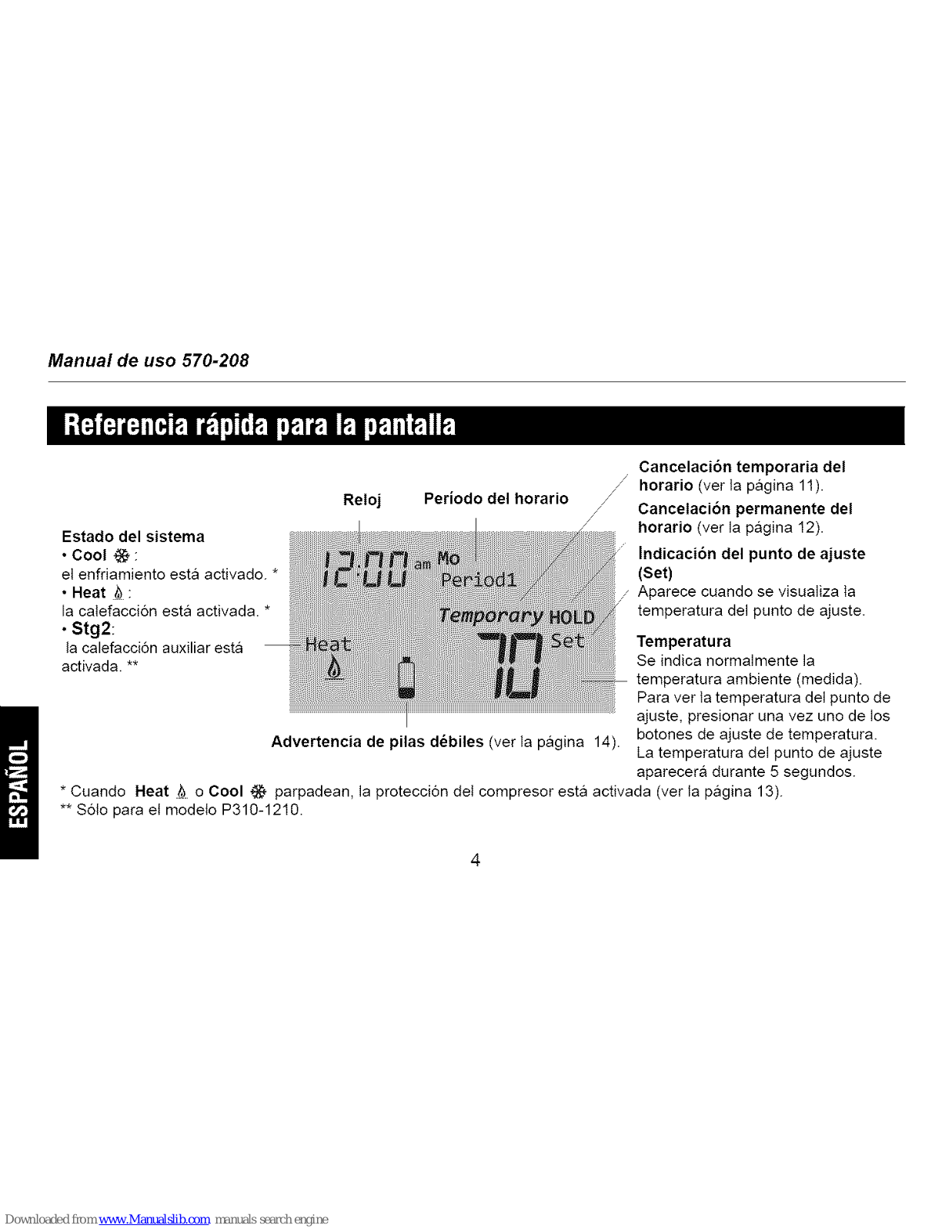

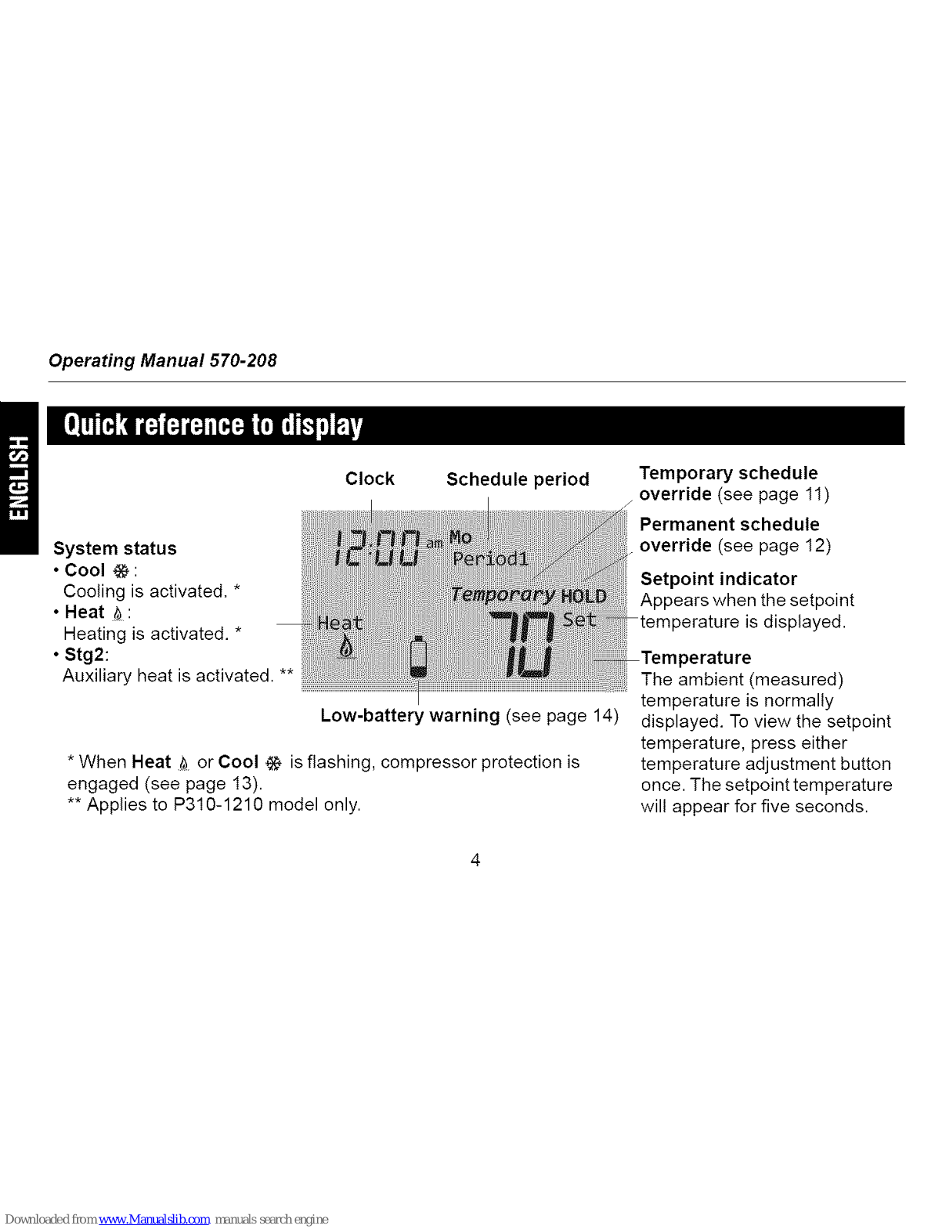

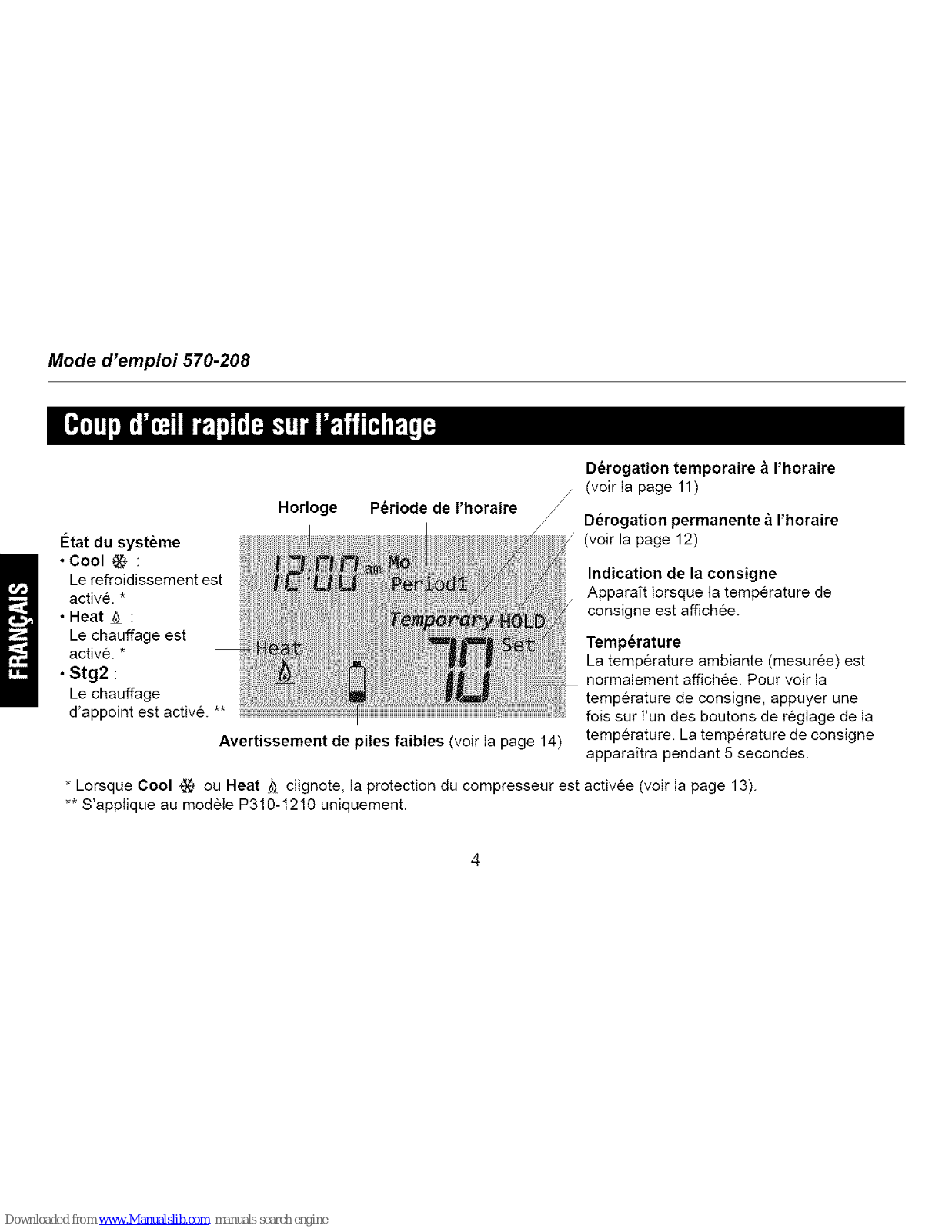

Clock Schedule period

System status

• Cool @ :
Cooling is activated. *

• Heat _ :
Heating is activated. *

• Stg2:

Auxiliary heat is activated. **

Low-battery warning (see page 14)

* When Heat _ or Cool @ is flashing, compressor protection is
engaged (see page 13).
** Applies to P310-1210 model only.

Temporary schedule

override (see page 11)
Permanent schedule

override (see page 12)
Setpoint indicator

Appears when the setpoint
temperature is displayed.

The ambient (measured)
temperature is normally
displayed. To view the setpoint
temperature, press either
temperature adjustment button
once. The setpoint temperature
will appear for five seconds.

Totaline Basic 1H/1C & 2H/1C

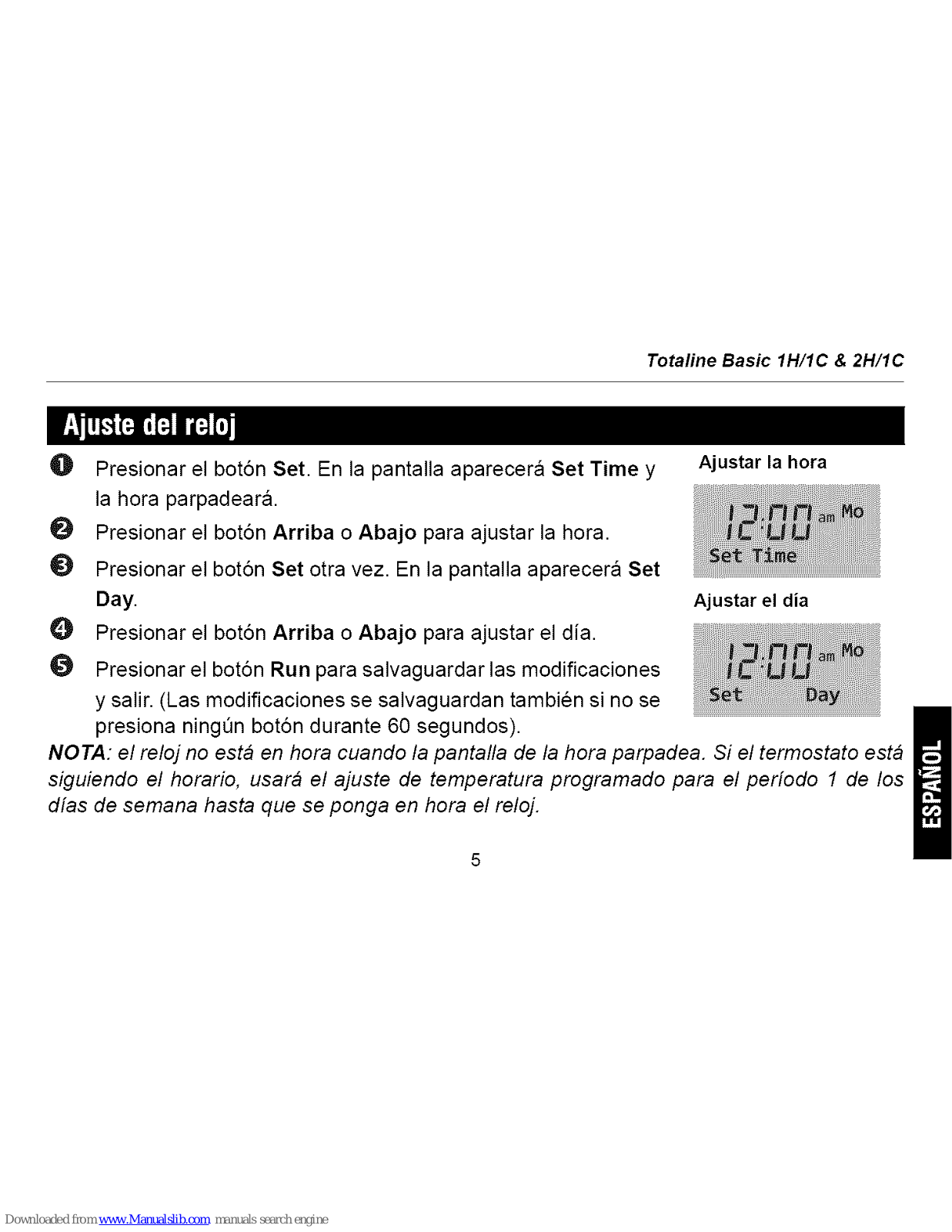

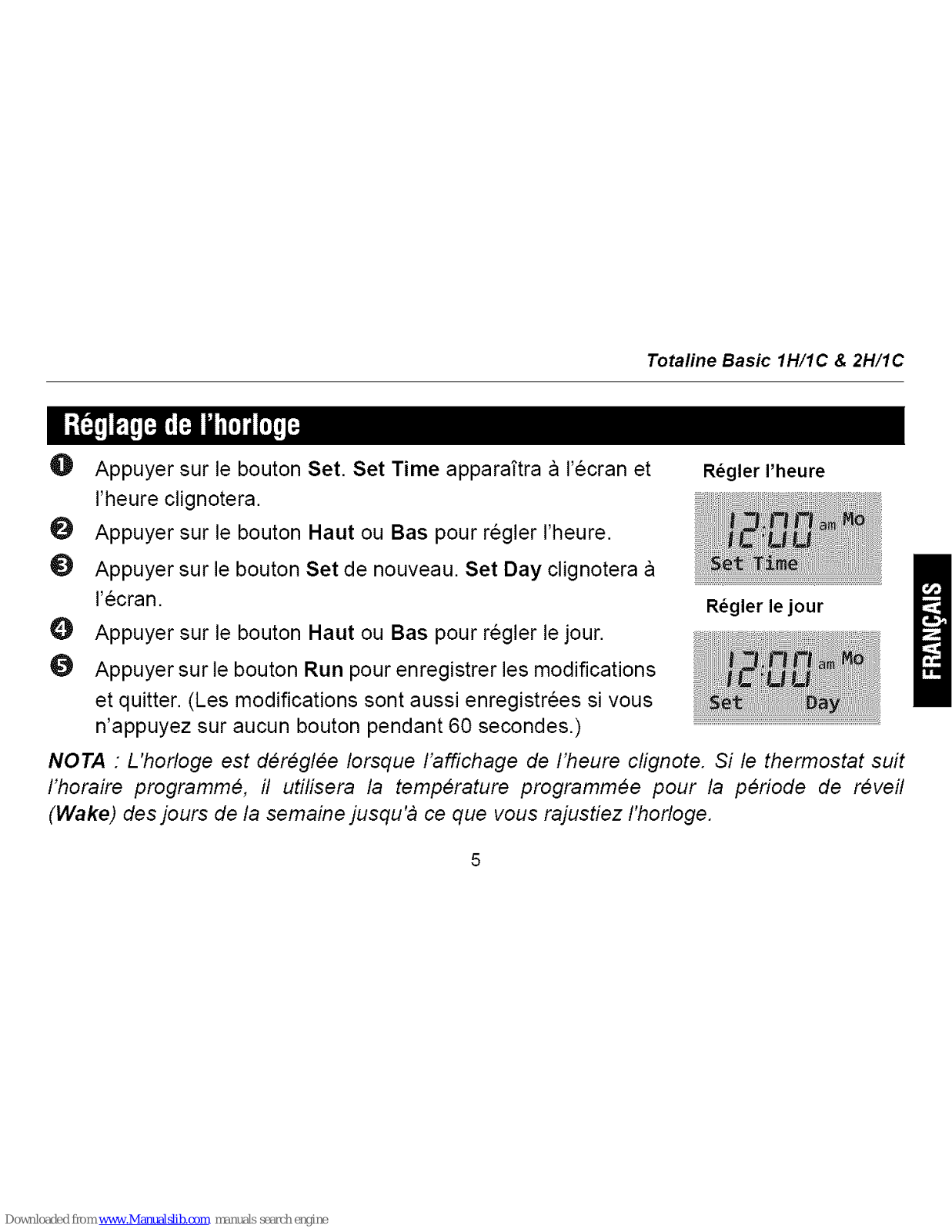

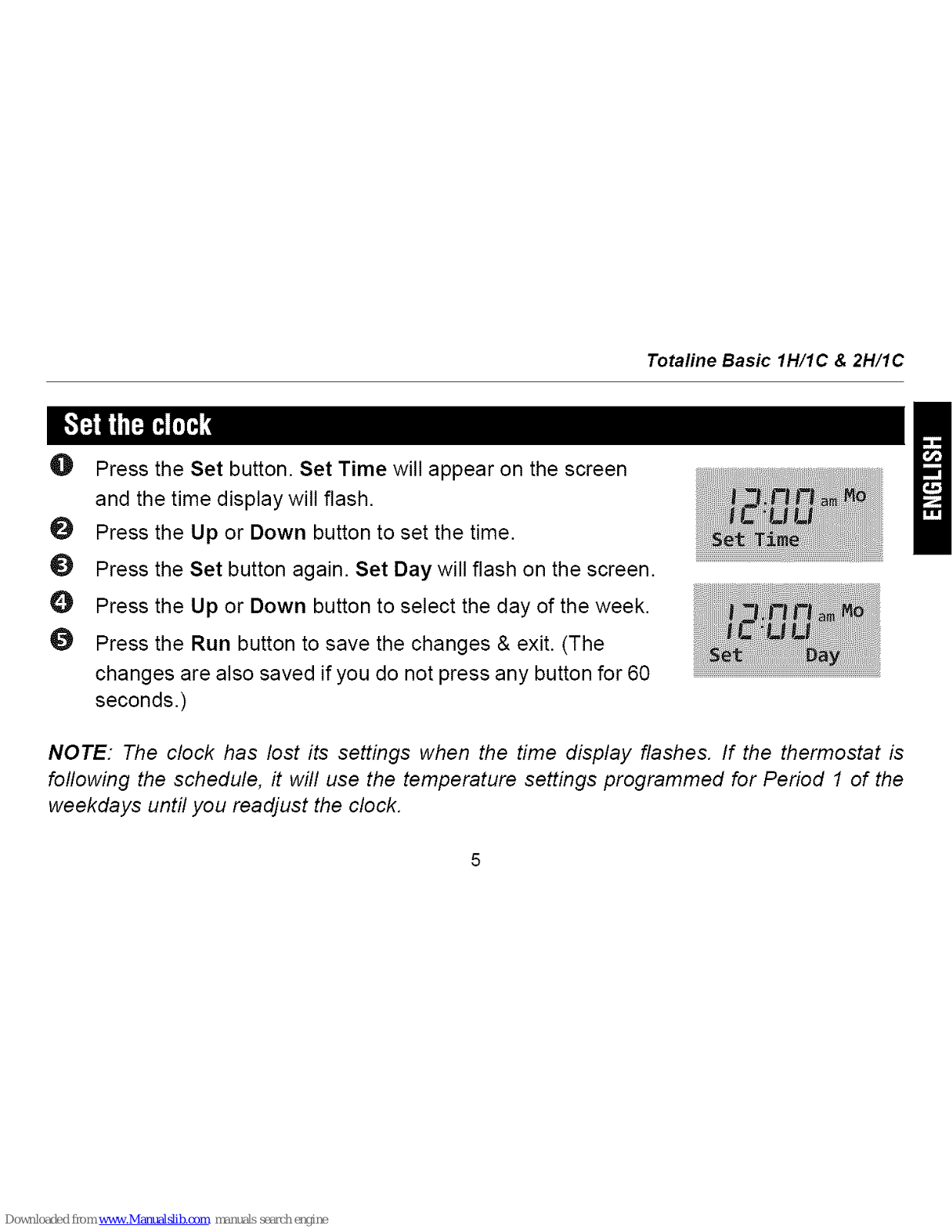

O Press the Set button. Set Time will appear on the screen

and the time display will flash.

O Press the Up or Down button to set the time.

Press the Set button again. Set Day will flash on the screen.

O Press the Up or Down button to select the day of the week.

Press the Run button to save the changes & exit. (The
changes are also saved if you do not press any button for 60

seconds.)

NOTE: The clock has lost its settings when the time display flashes. If the thermostat is
following the schedule, it will use the temperature settings programmed for Period 1 of the
weekdays until you readjust the clock.

Operating Manual 570-208

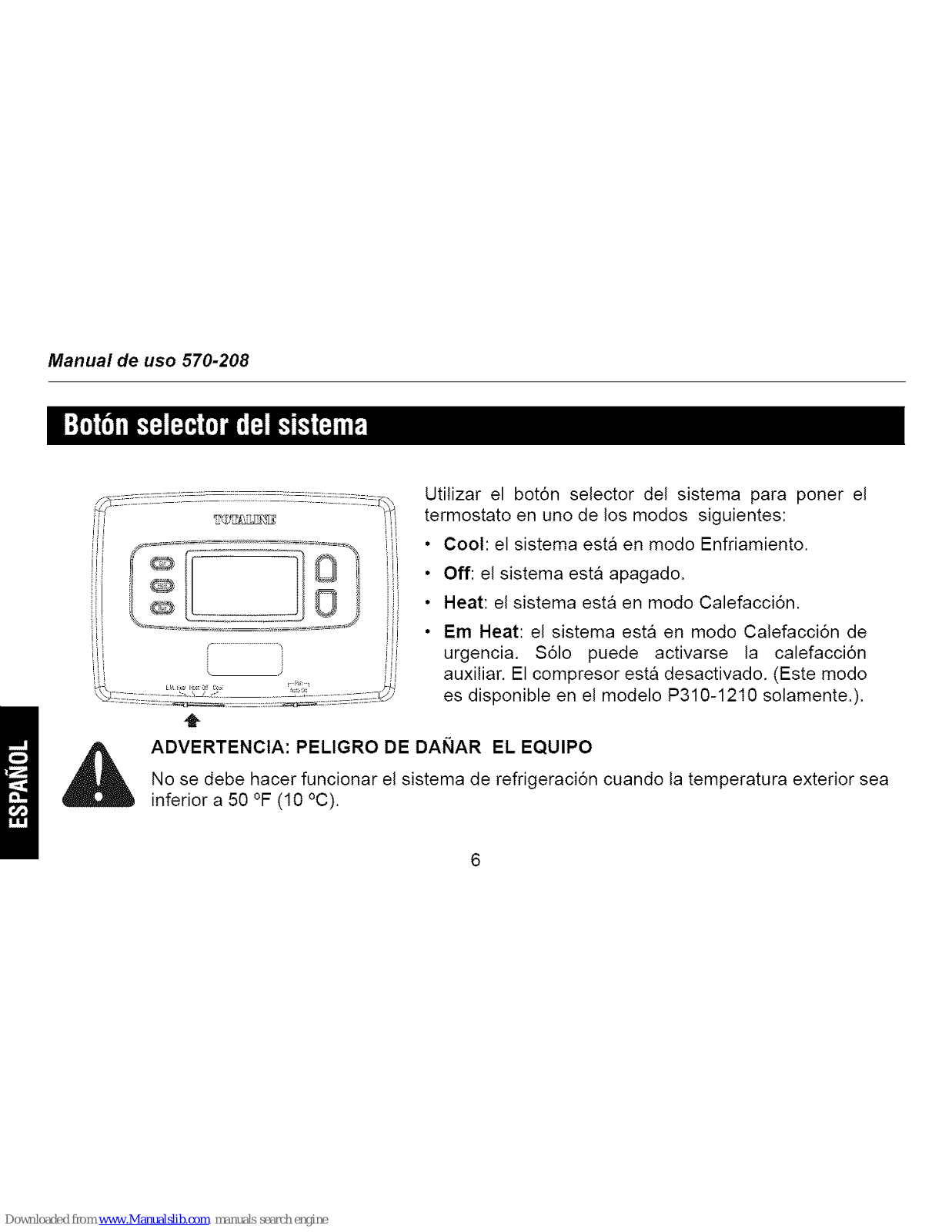

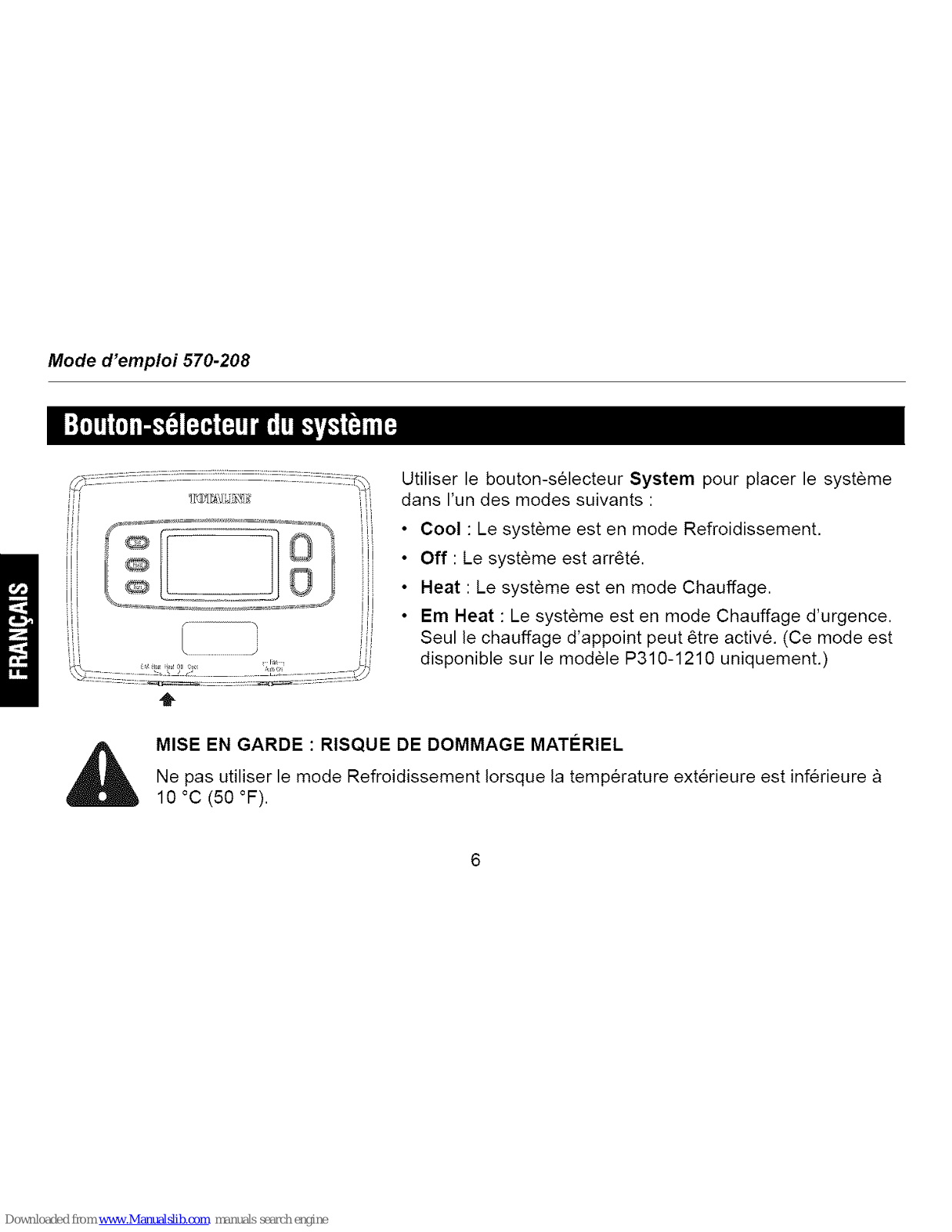

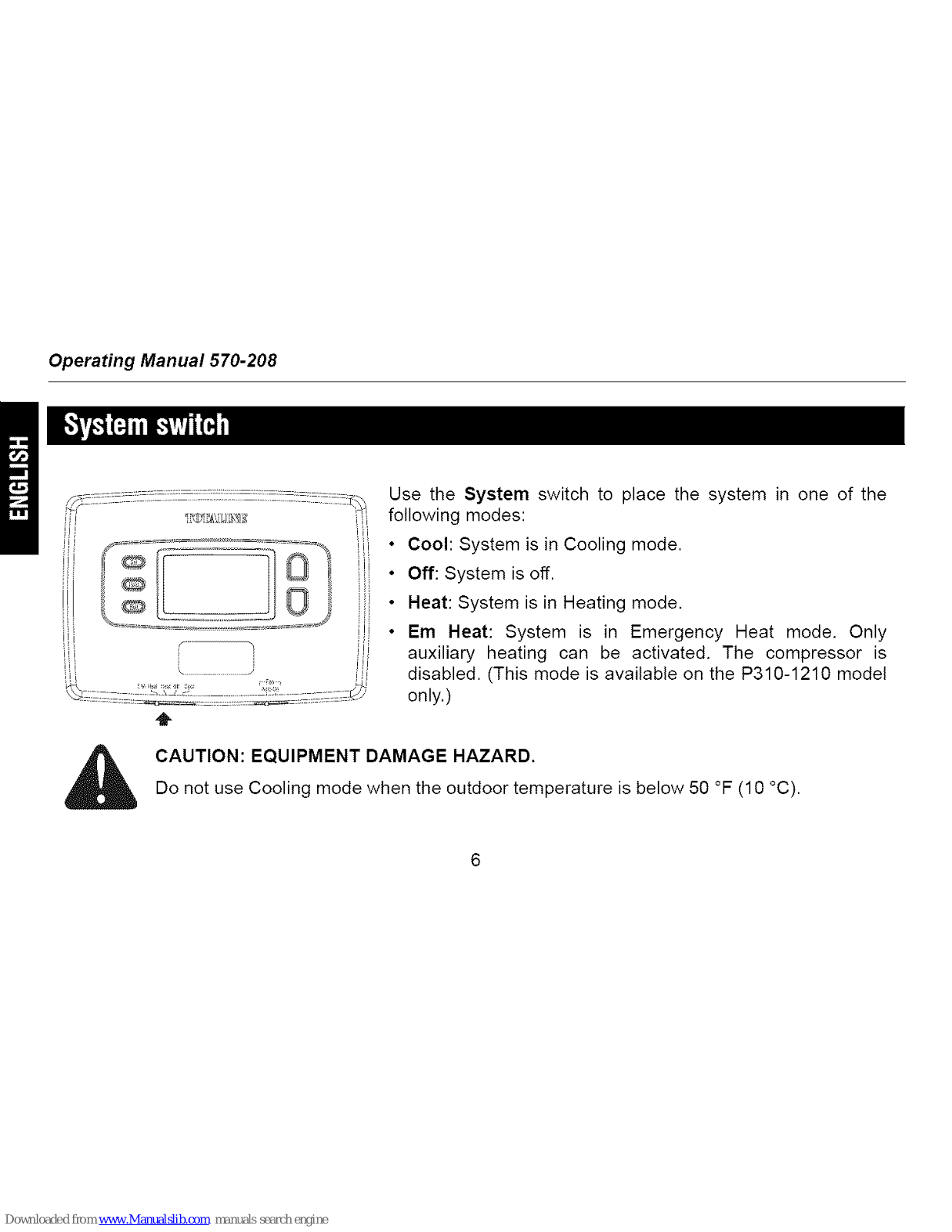

d; Use the System switch to place the system in one of the

ITij , _ '_:_LJ_i; ....... _i following modes:

i f"_ "_ i • Cool: System is in Cooling mode.

I II U • Off: System is off.

i _ 0 • Heat: System is in Heating mode.

•Em Heat: System is in Emergency Heat mode. Only

y.........................................._ ii auxiliary heating can be activated. The compressor is

:_, ............_;i[: _ ',:: iL disabled. (This mode is available on the P310-1210 model

_c: ......... _ ...... _:: ¢_' only.)

CAUTION: EQUIPMENT DAMAGE HAZARD.
Do not use Cooling mode when the outdoor temperature is below 50 °F (10 °C).

Totaline Basic 1H/1C & 2H/1C

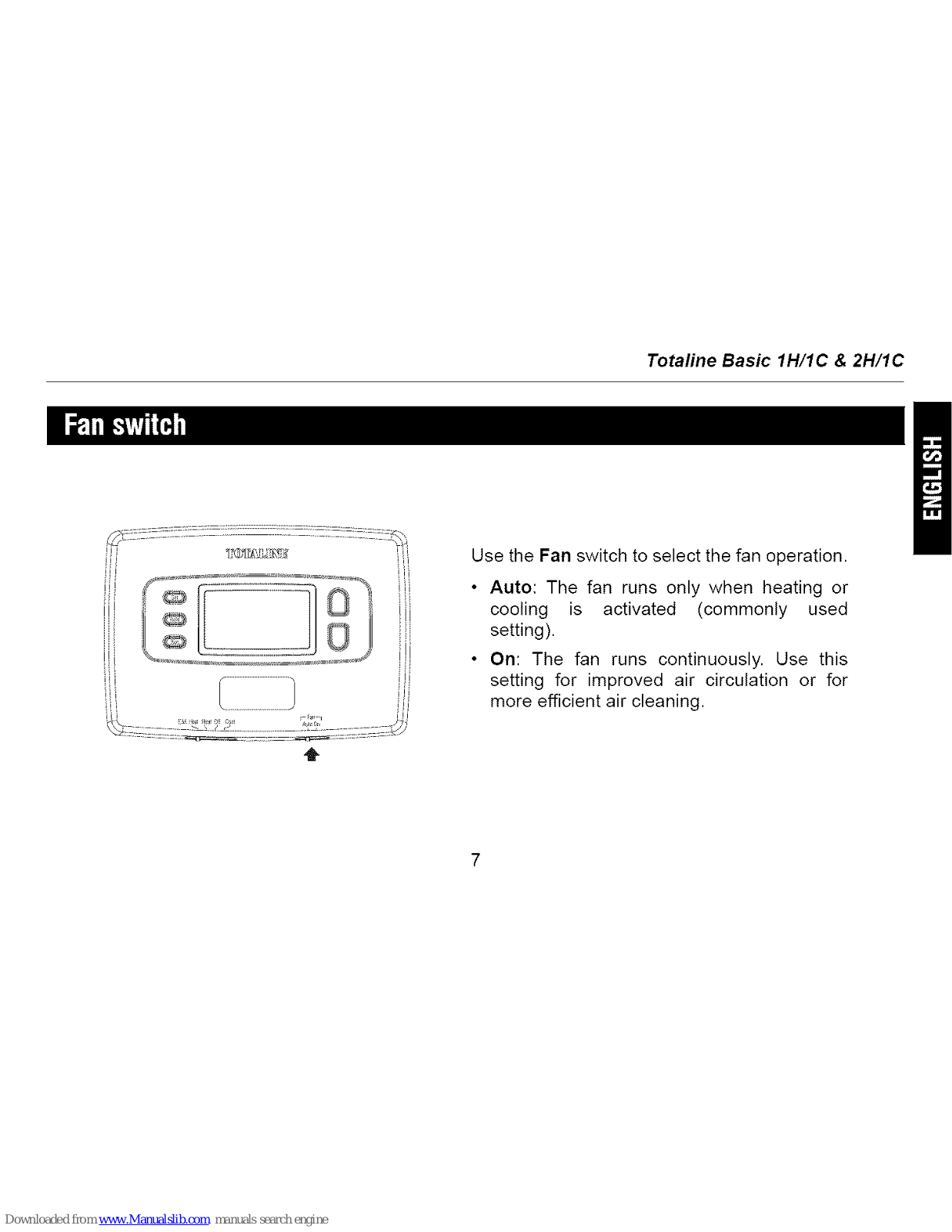

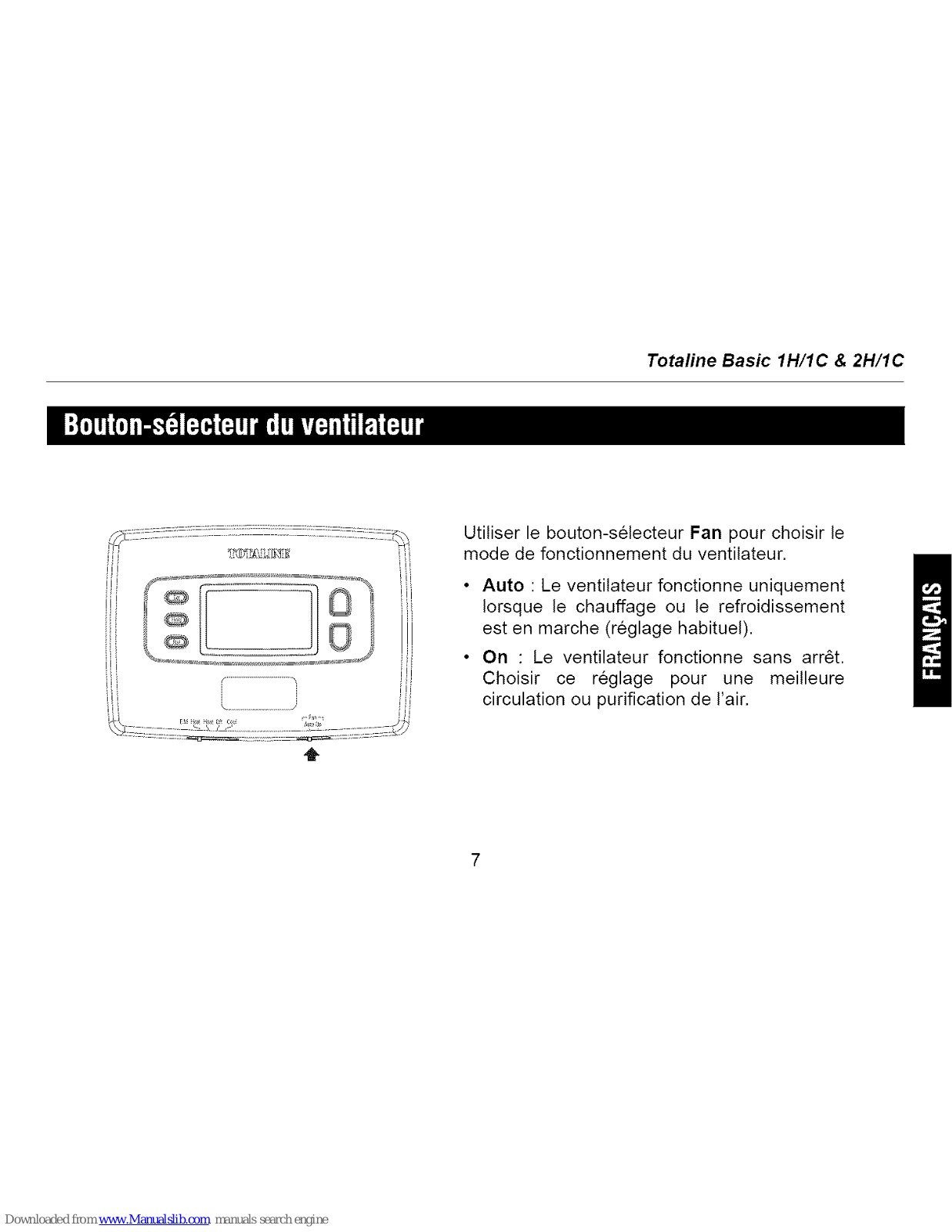

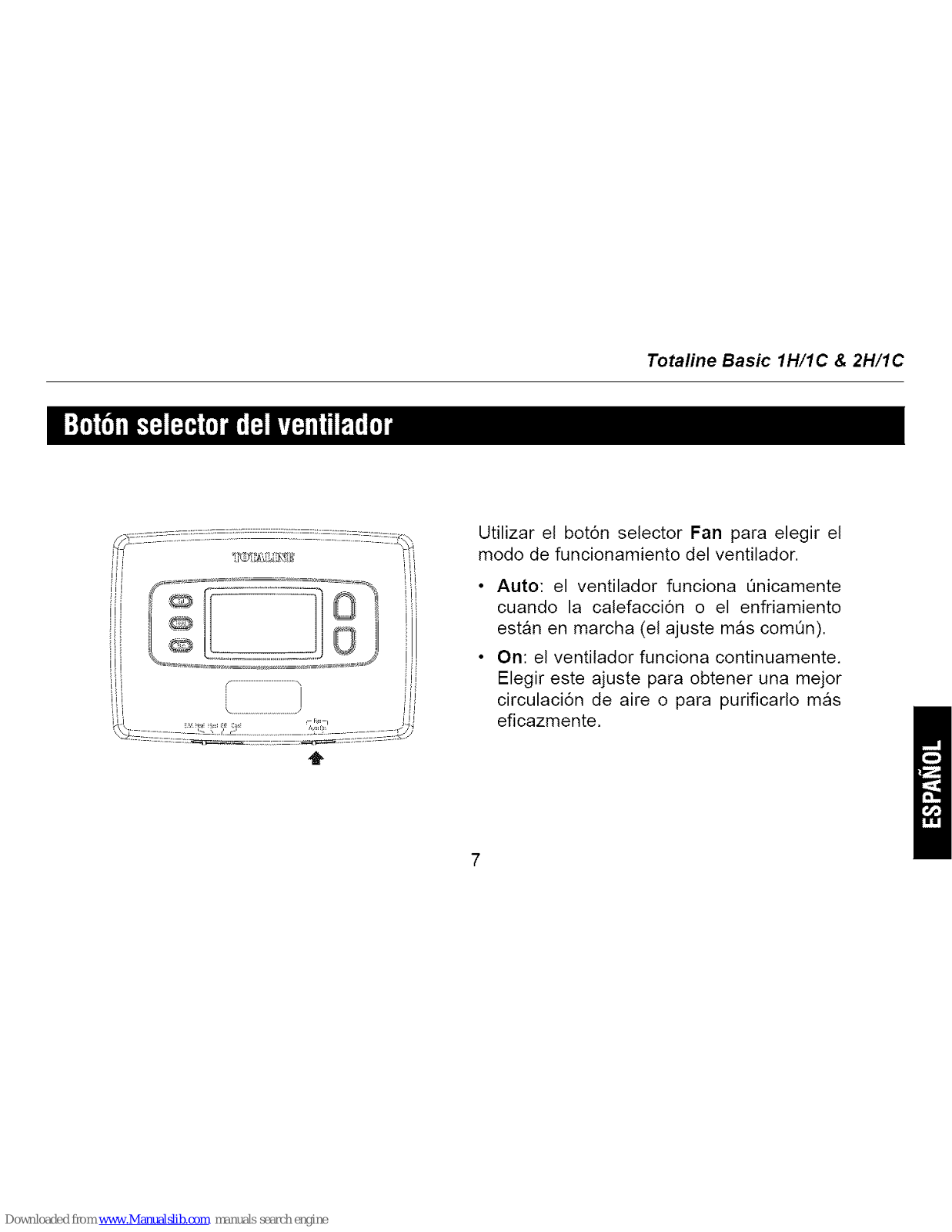

Use the Fan switch to select the fan operation.

• Auto: The fan runs only when heating or
cooling is activated (commonly used
setting).

• On: The fan runs continuously. Use this
setting for improved air circulation or for
more efficient air cleaning.

t

Operating Manual 570-208

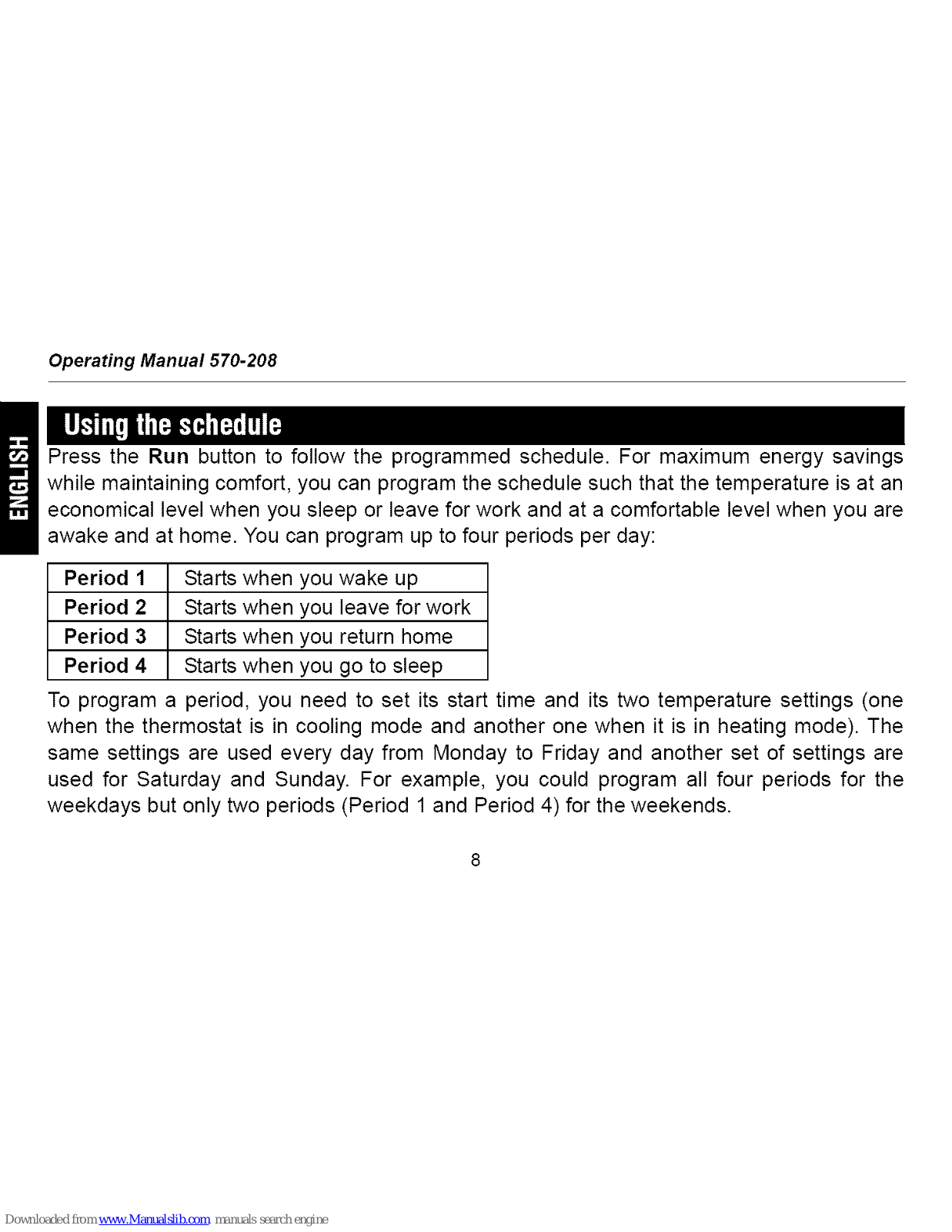

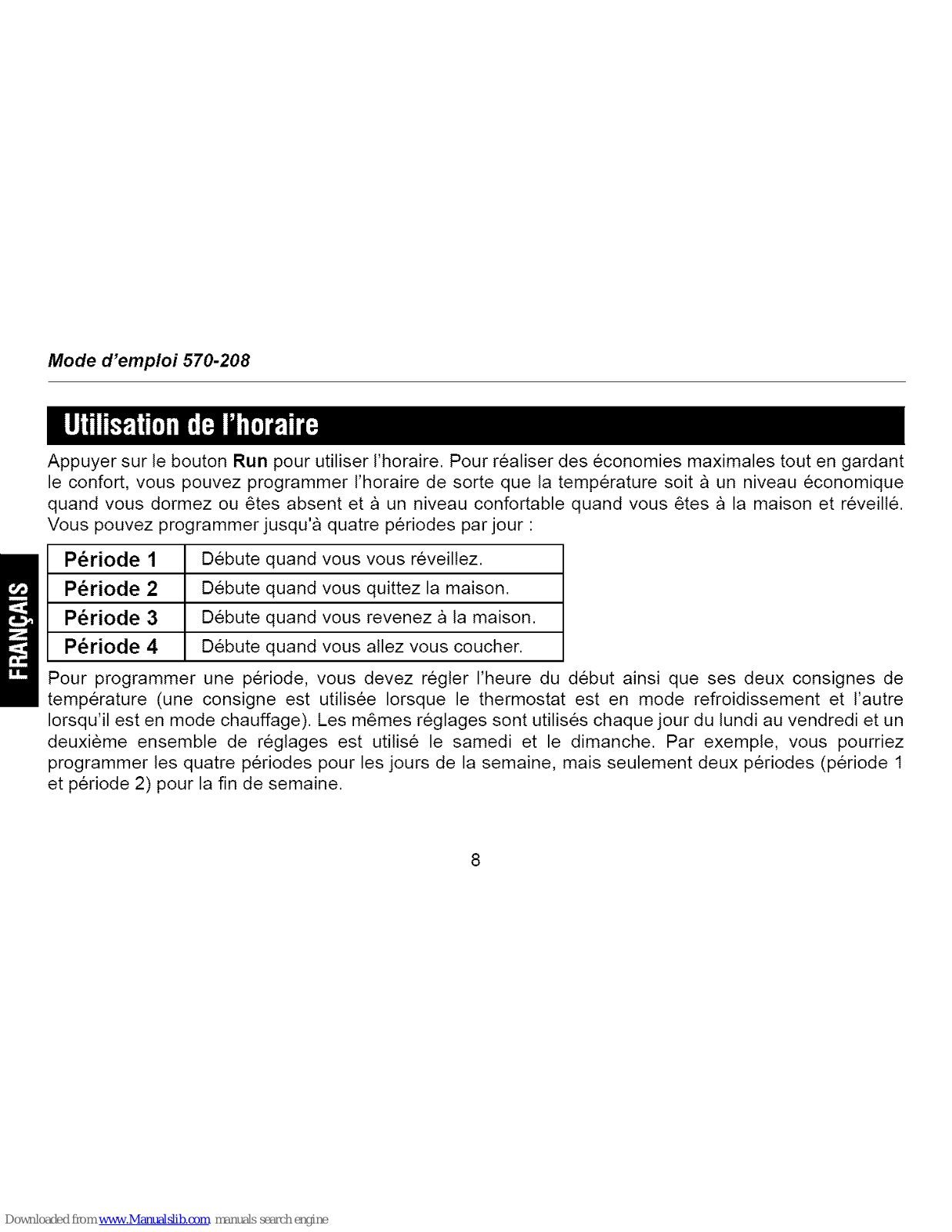

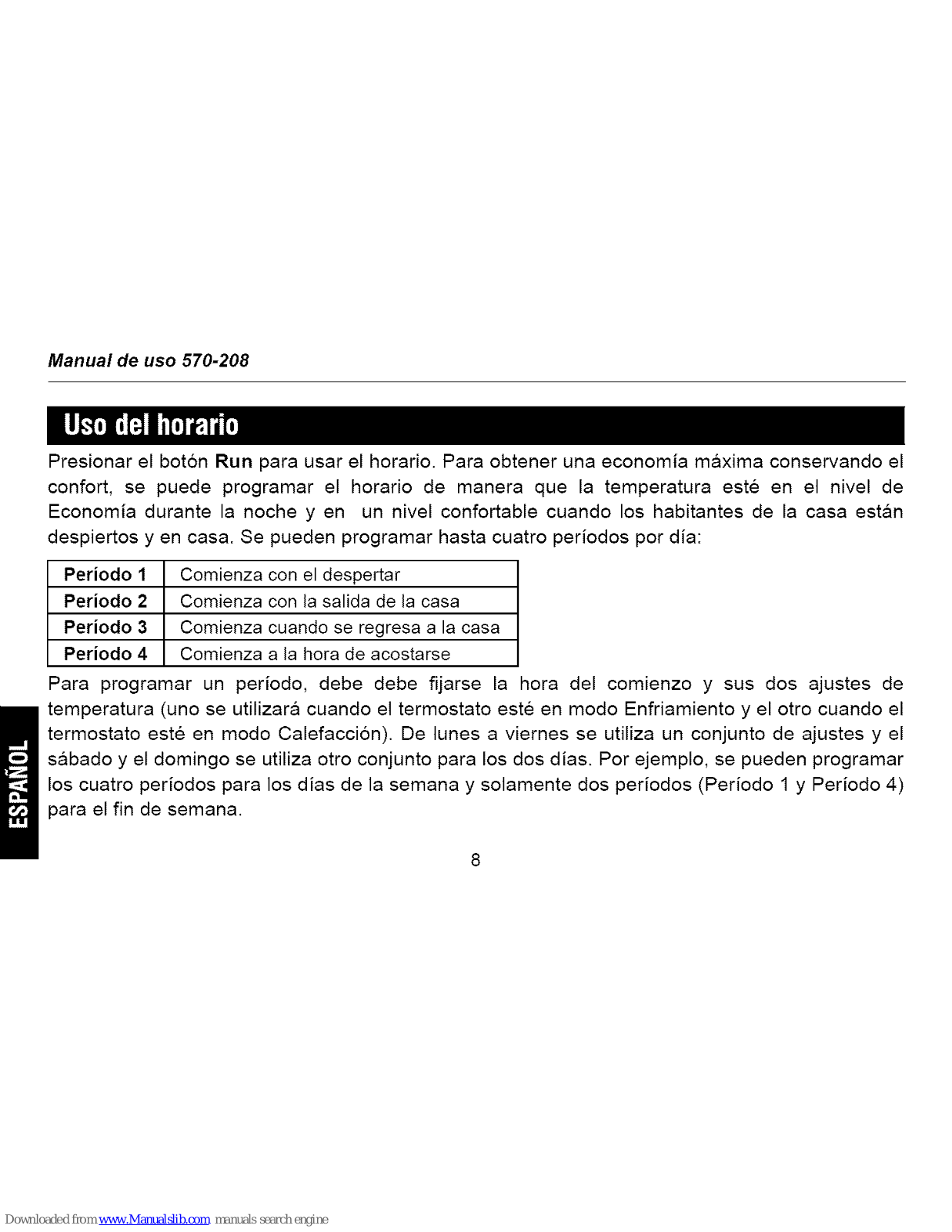

Press the Run button to follow the programmed schedule. For maximum energy savings
while maintaining comfort, you can program the schedule such that the temperature is at an
economical level when you sleep or leave for work and at a comfortable level when you are
awake and at home. You can program up to four periods per day:

Period 1 Starts when you wake up
Period 2 Starts when you leave for work

Period 3 Starts when you return home
Period 4 Starts when you go to sleep

To program a period, you need to set its start time and its two temperature settings (one
when the thermostat is in cooling mode and another one when it is in heating mode). The
same settings are used every day from Monday to Friday and another set of settings are
used for Saturday and Sunday. For example, you could program all four periods for the
weekdays but only two periods (Period 1and Period 4) for the weekends.

Totaline Basic 1H/1C & 2H/1C

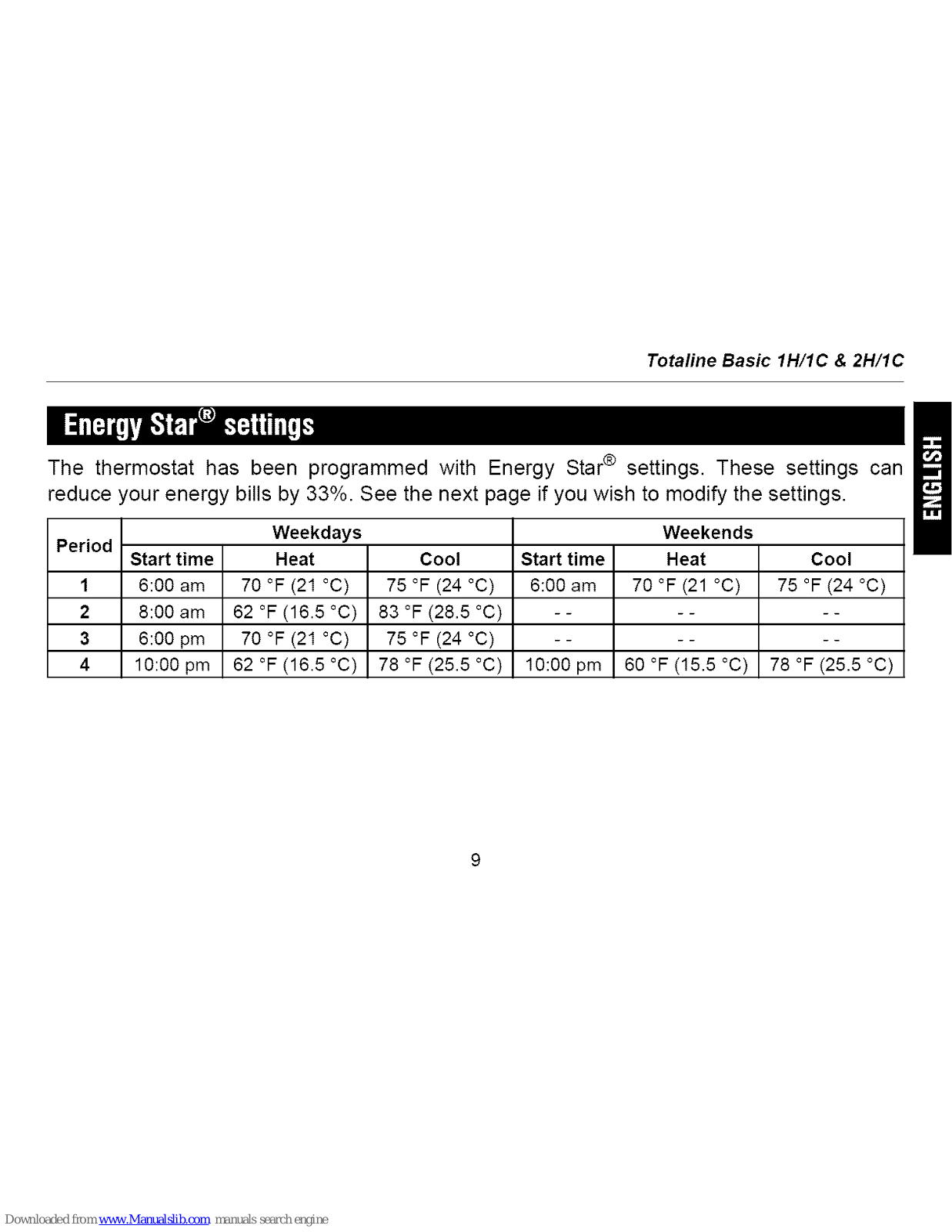

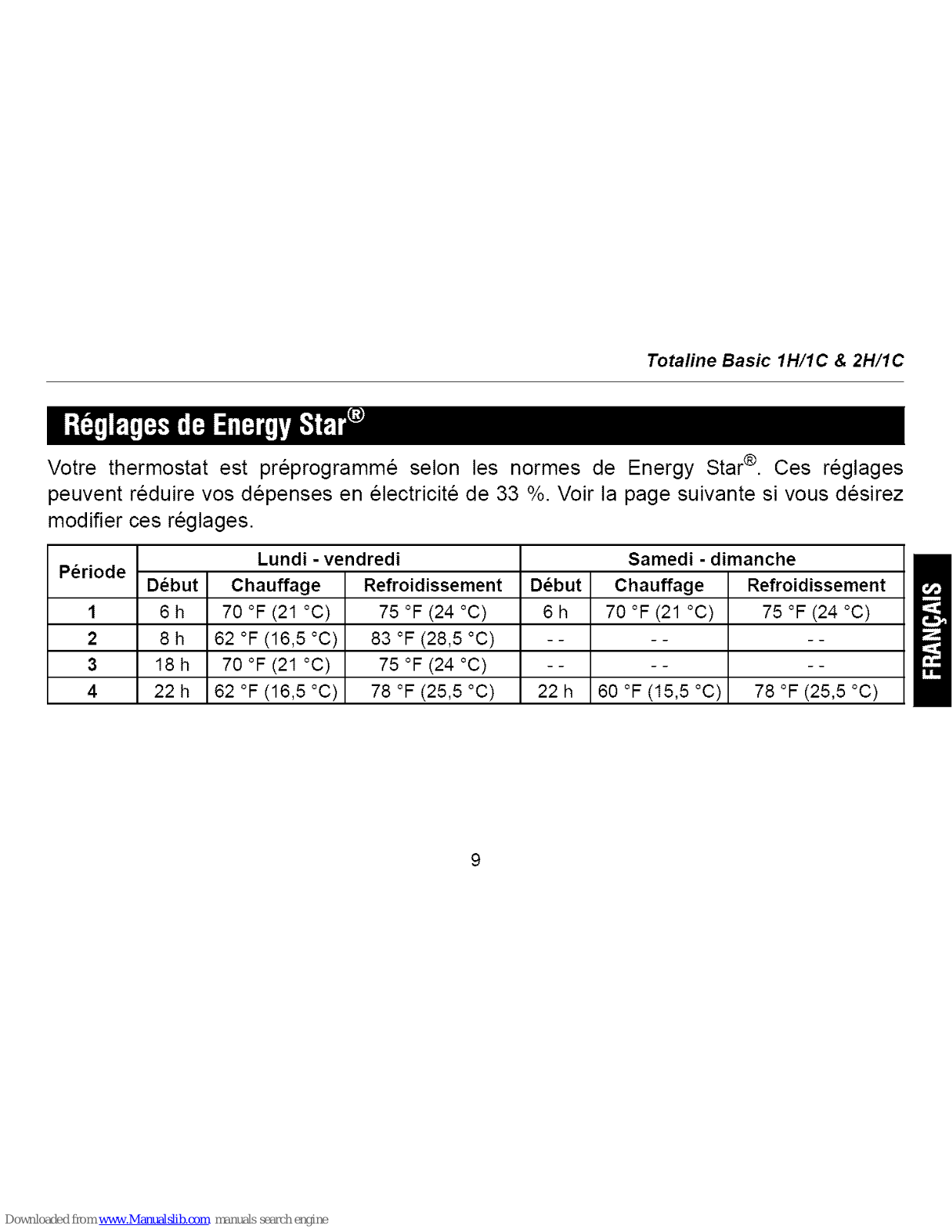

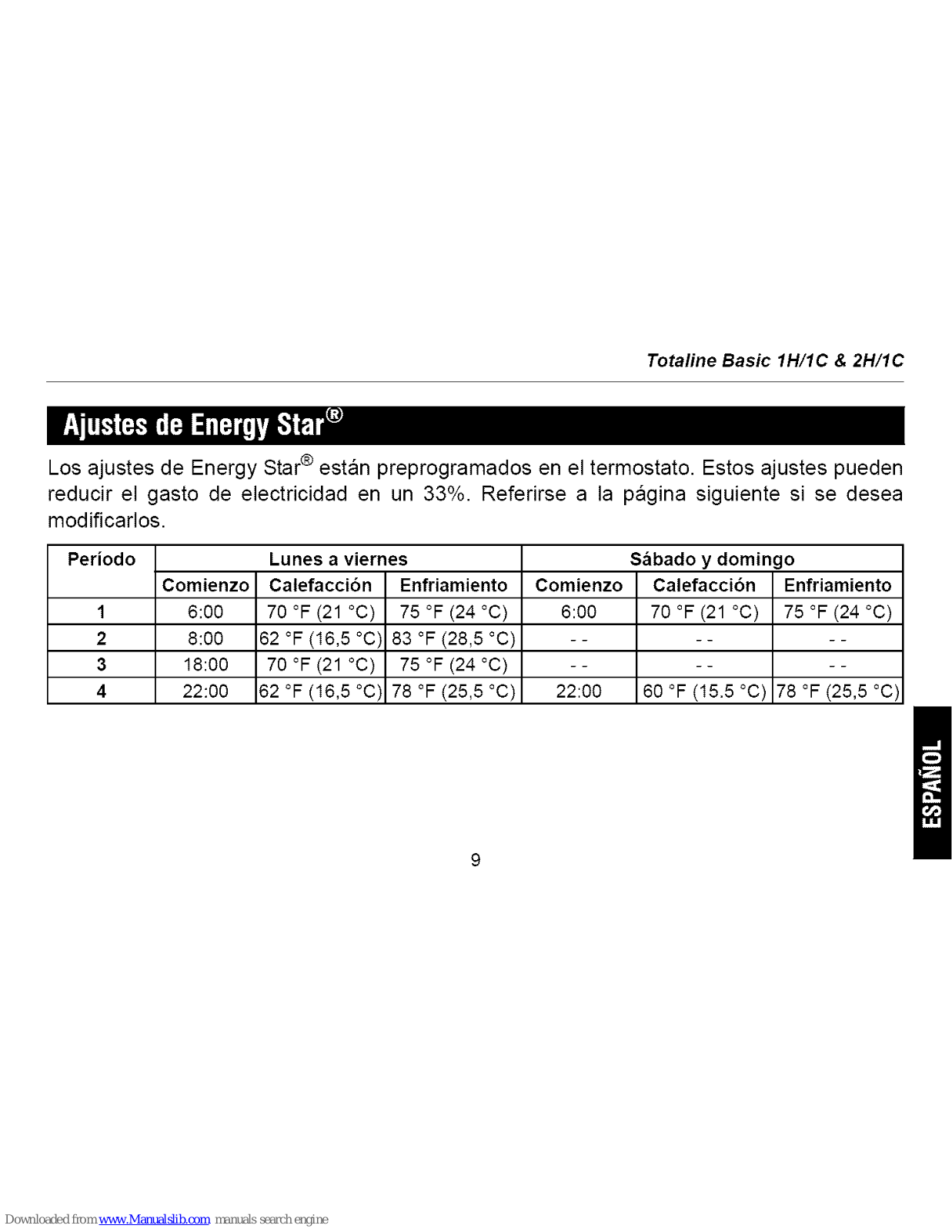

The thermostat has been programmed with Energy Star® settings. These settings can
reduce your energy bills by 33%. See the next page if you wish to modify the settings.

Period

1
2
3

4

Weekdays

Start time Heat

6:00 am 70 °F (21 °C)
8:00 am 62 °F (16.5 °C)
6:00 pm 70 °F (21 °C)

10:00pm 62°F(16.5°C)

Weekends

Cool Start time Heat

75 °F (24 °C) 6:00 am 70 °F (21 °C)

83 °F (28.5 °C) ....

75 °F (24 °C) ....

78°F(25,5°C) 10:00pm 60°F(15.5°C)

Cool

75 °F (24 °C)

78 °F (25,5 °C)

!

Operating Manual 570-208

o

@

0

0
0
Q

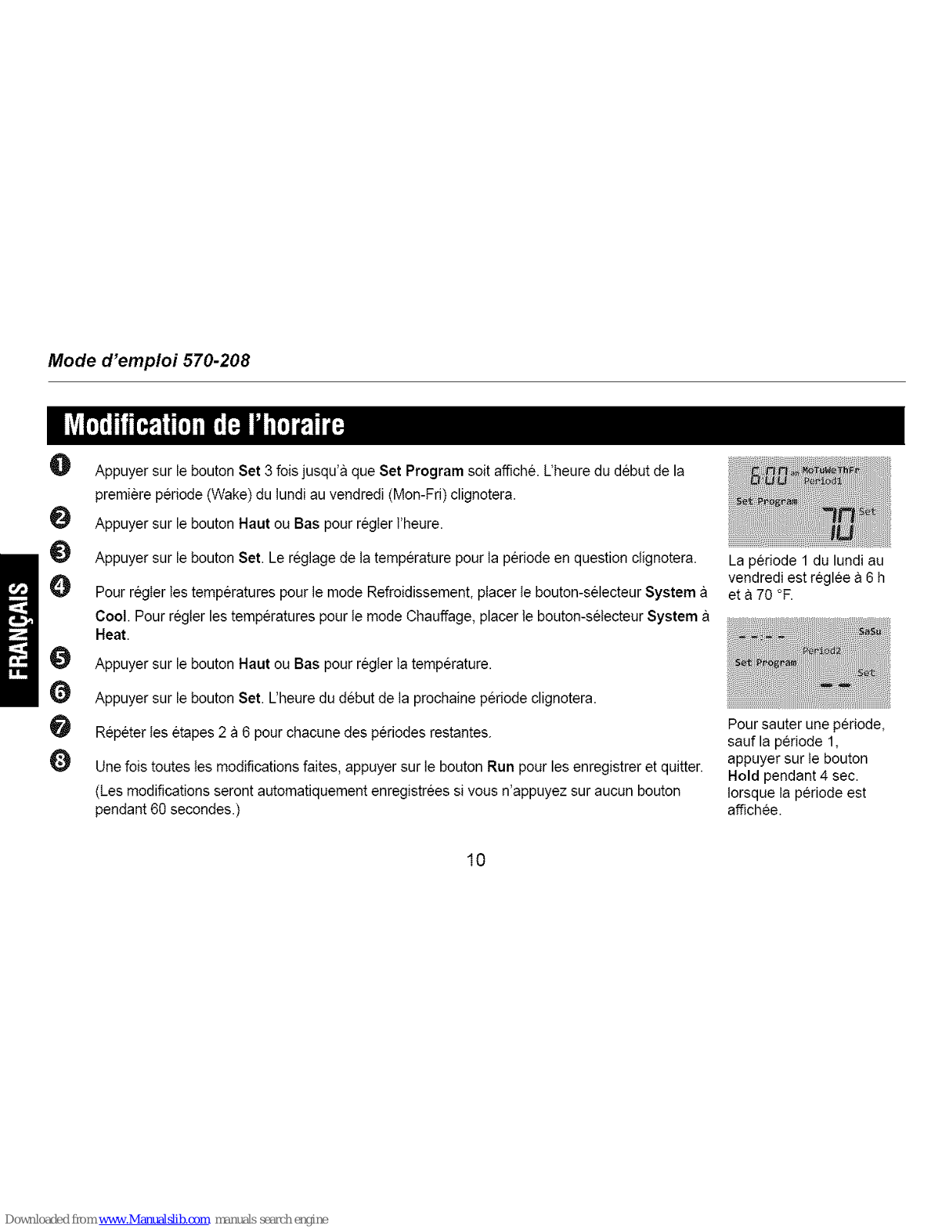

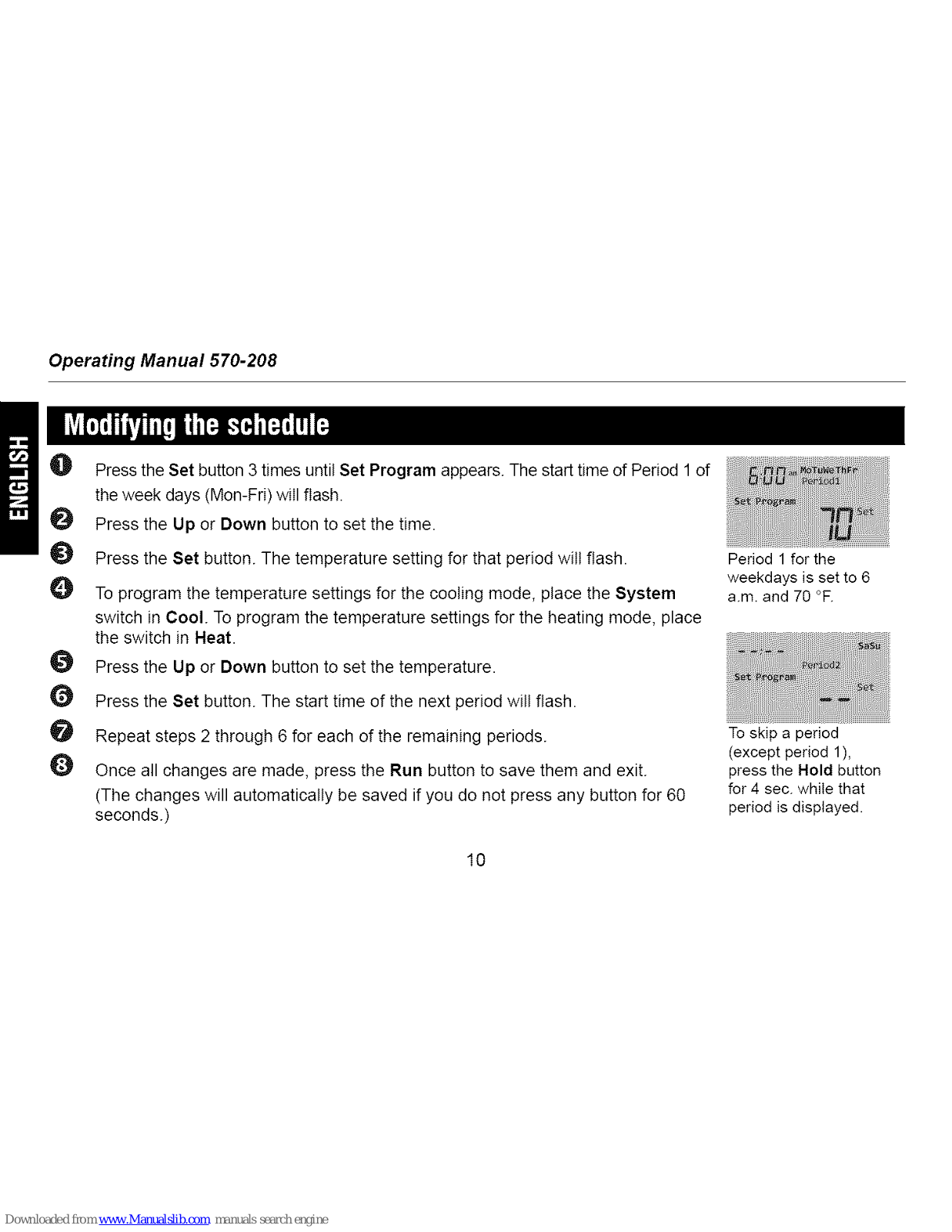

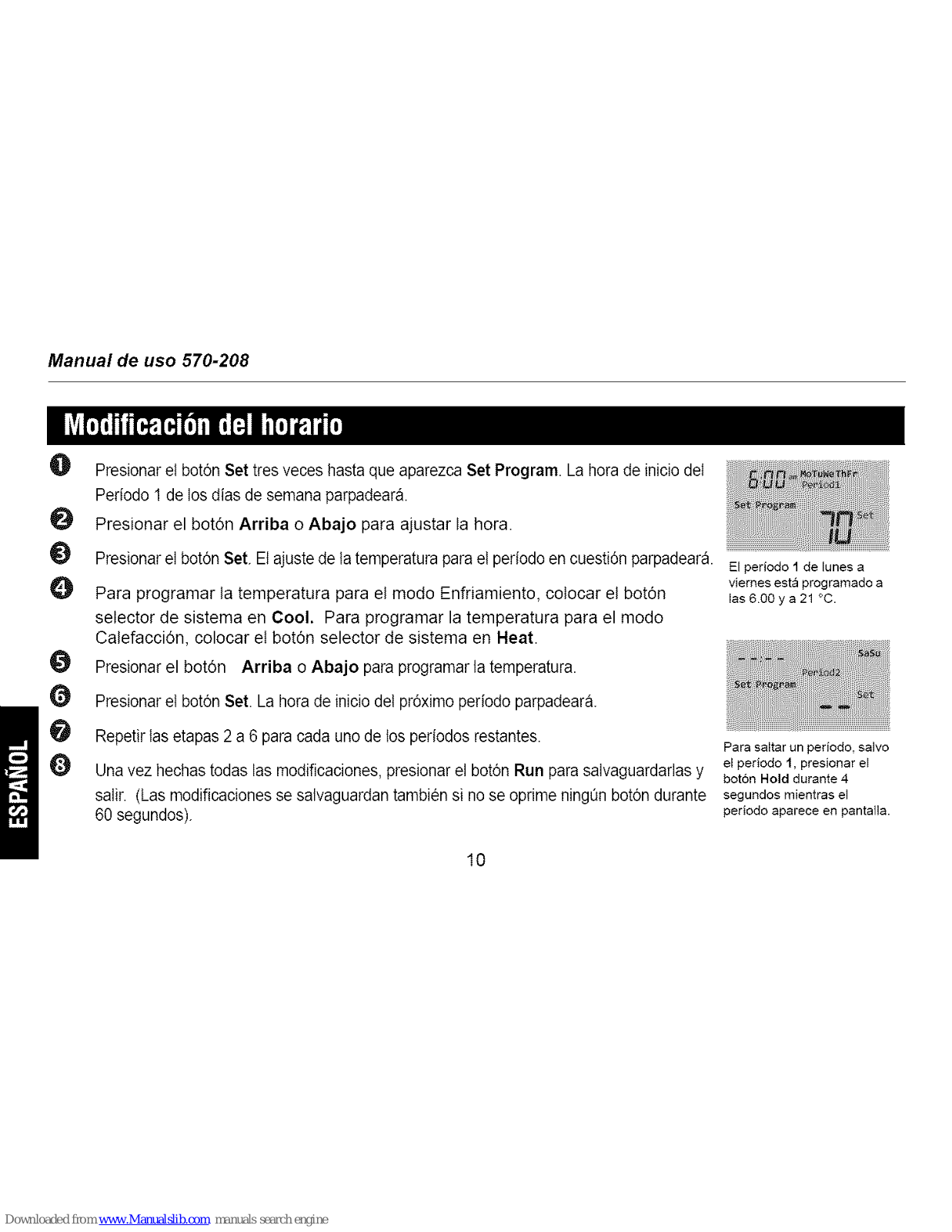

Press the Set button 3 times until Set Program appears. The start time of Period 1 of
the week days (Mon-Fri) will flash.

Press the Up or Down button to set the time.
Press the Set button. The temperature setting for that period wilt flash.
Toprogram the temperature settings for the cooling mode, place the System

switch in Cool. To program the temperature settings for the heating mode, place
the switch in Heat.

Press the Up or Down button to set the temperature.
Press the Set button. The start time of the next period wiltflash.
Repeat steps 2 through 6 for each of the remaining periods.
Once all changes are made, press the Run button to save them and exit.

(The changes will automatically be saved if you do not press any button for 60
seconds.)

Period 1 for the
weekdays is set to 6

a.m. and 70 °F.

To skip a period

(except period 1),
press the Hold button

for 4 sec. while that

period is displayed.

10

Totaline Basic 1H/1C & 2H/1C

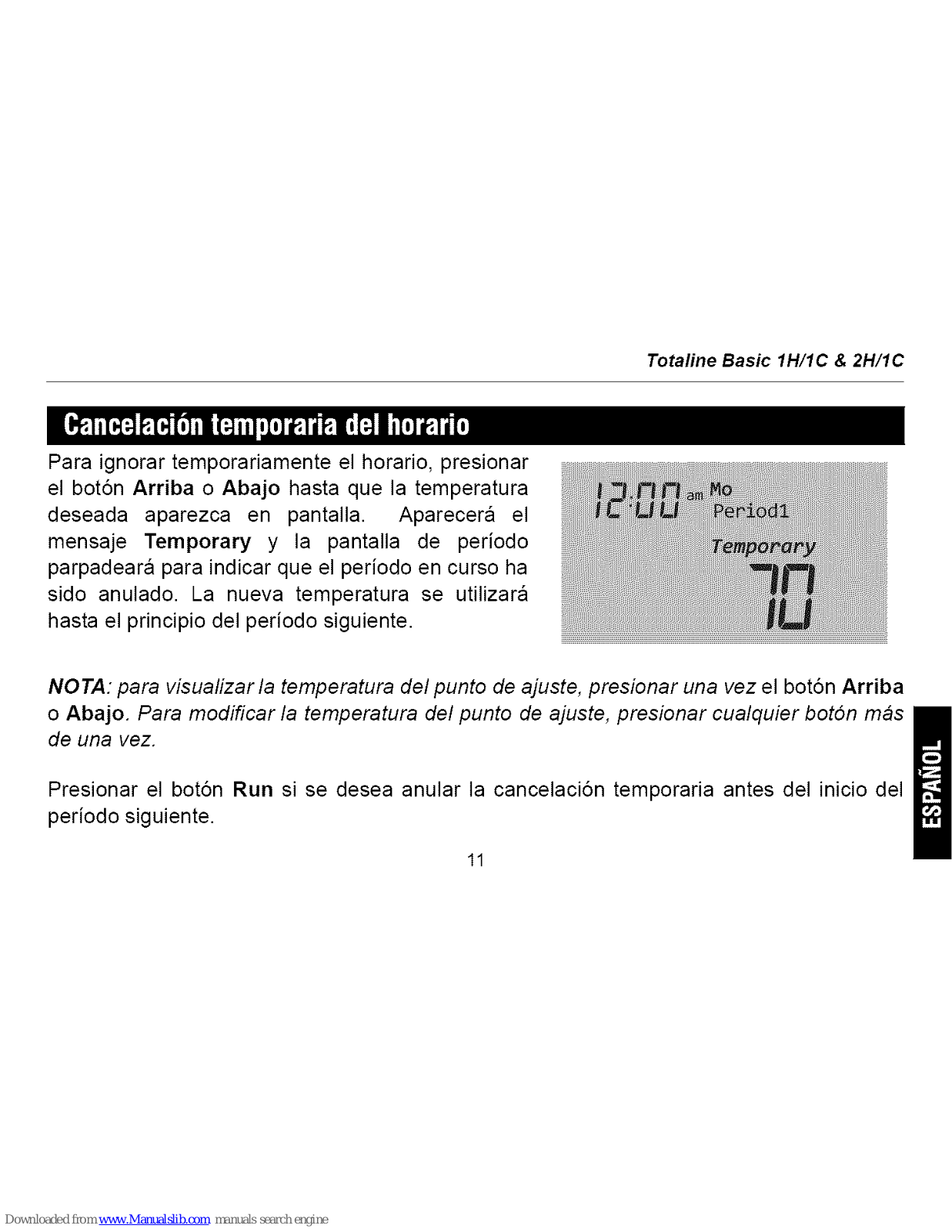

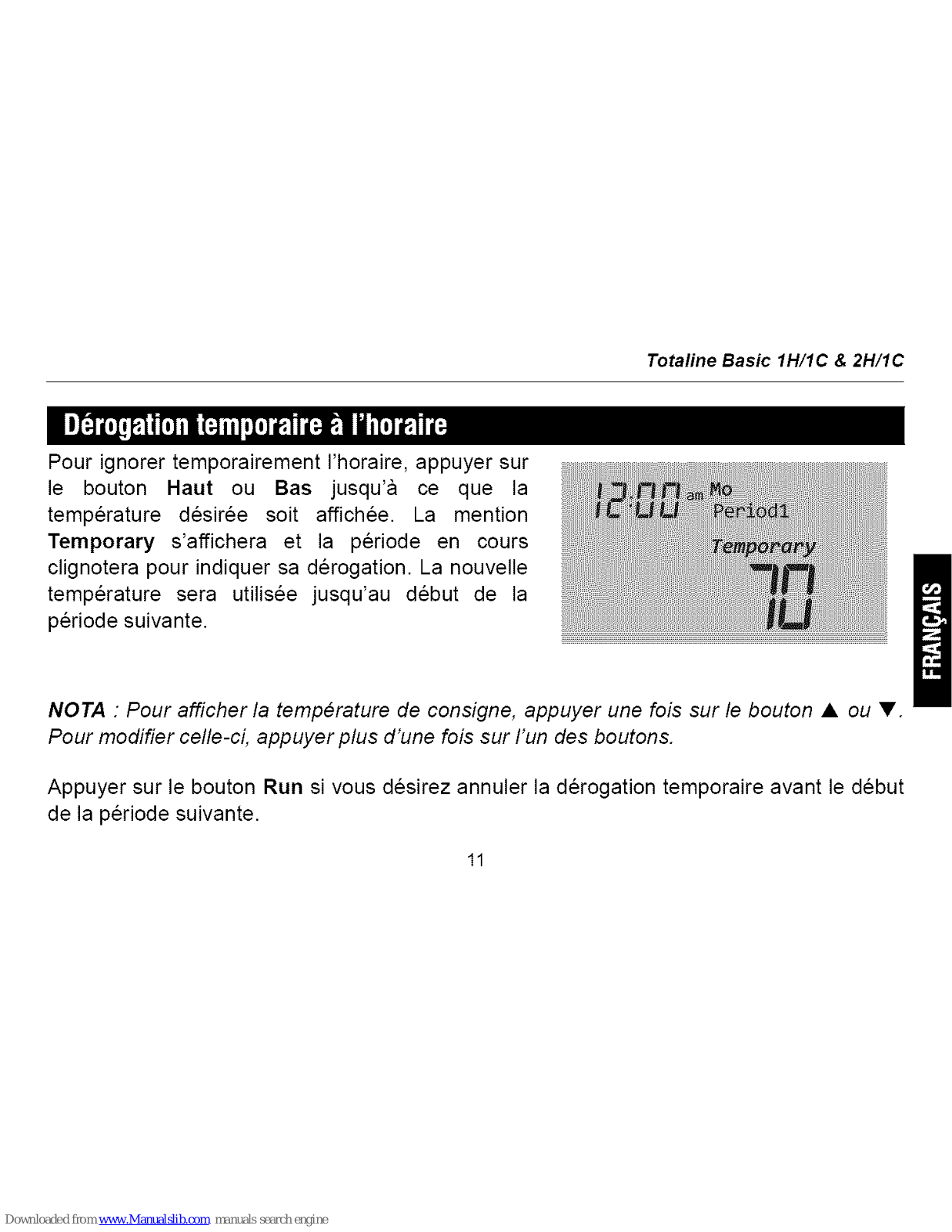

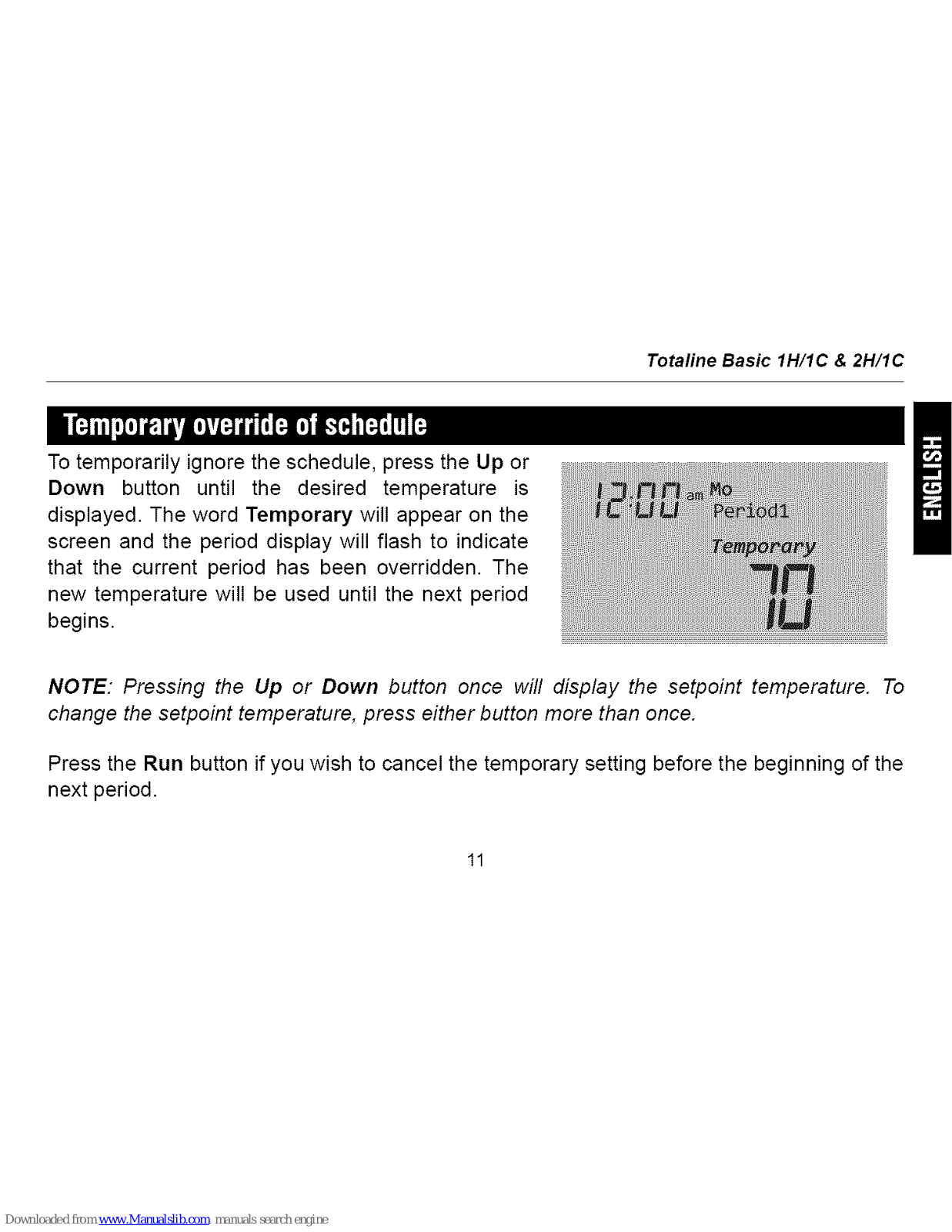

To temporarily ignore the schedule, press the Up or
Down button until the desired temperature is
displayed. The word Temporary will appear on the
screen and the period display will flash to indicate
that the current period has been overridden. The
new temperature will be used until the next period
begins.

NOTE: Pressing the Up or Down button once will display the setpoint temperature. To
change the setpoint temperature, press either button more than once.

Press the Run button if you wish to cancel the temporary setting before the beginning of the
next period.

Operating Manual 570-208

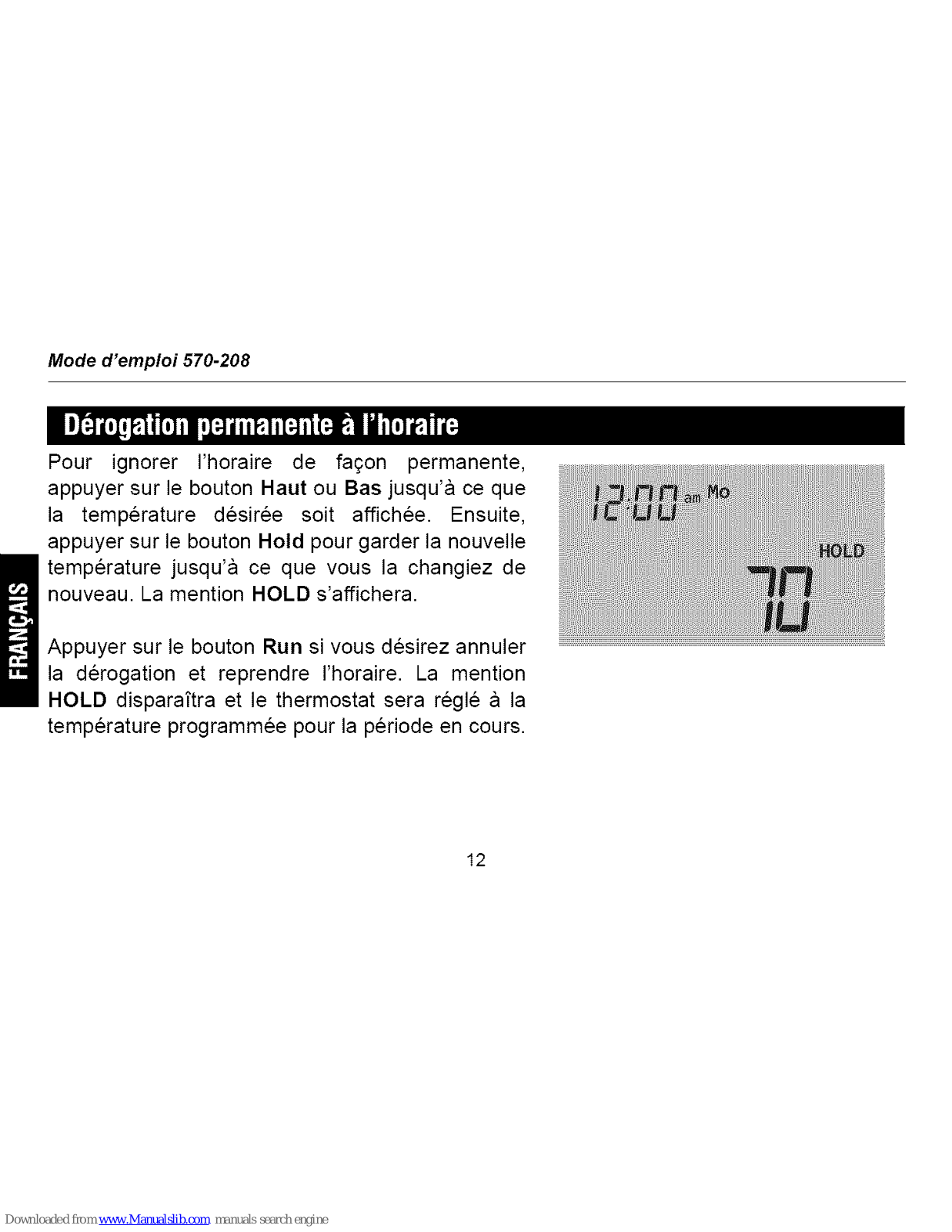

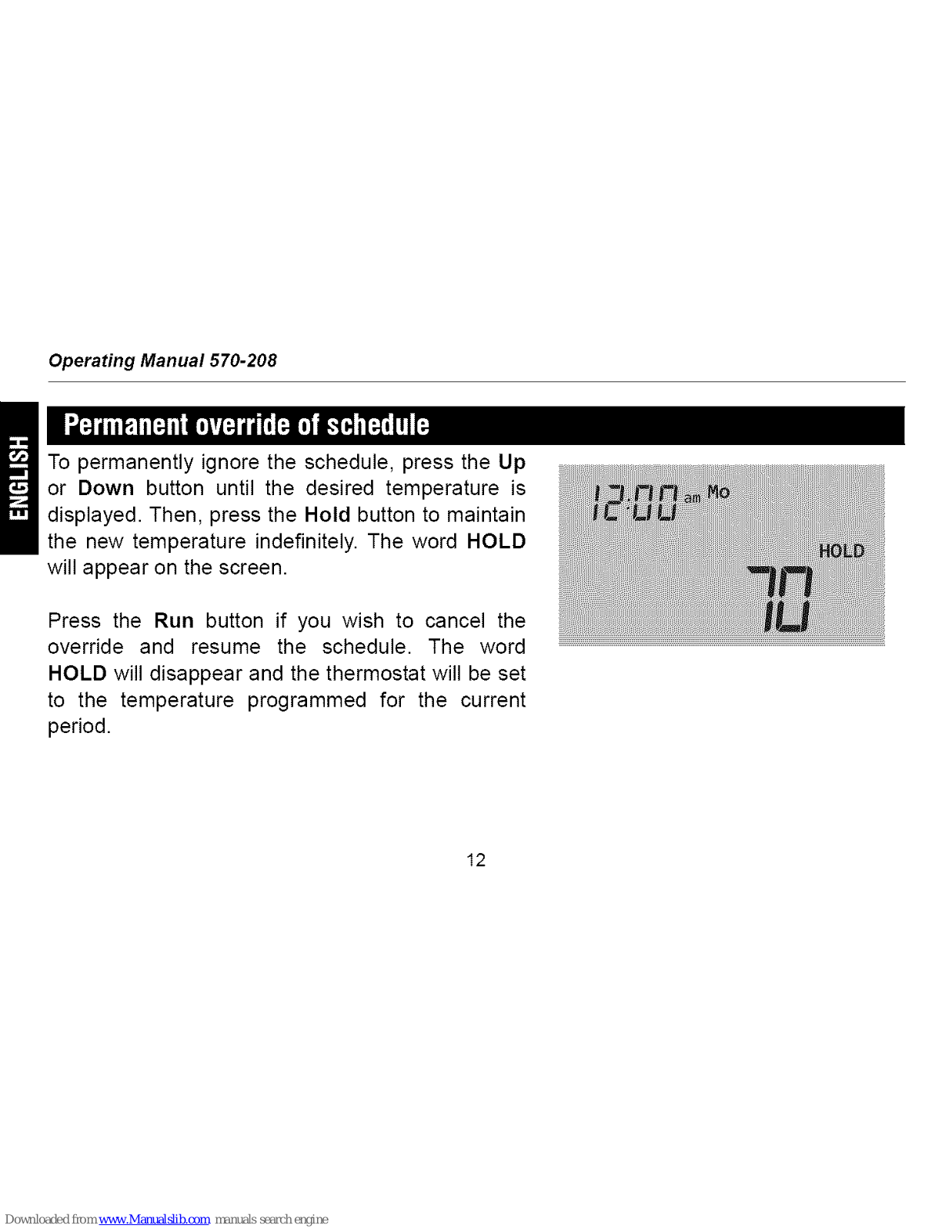

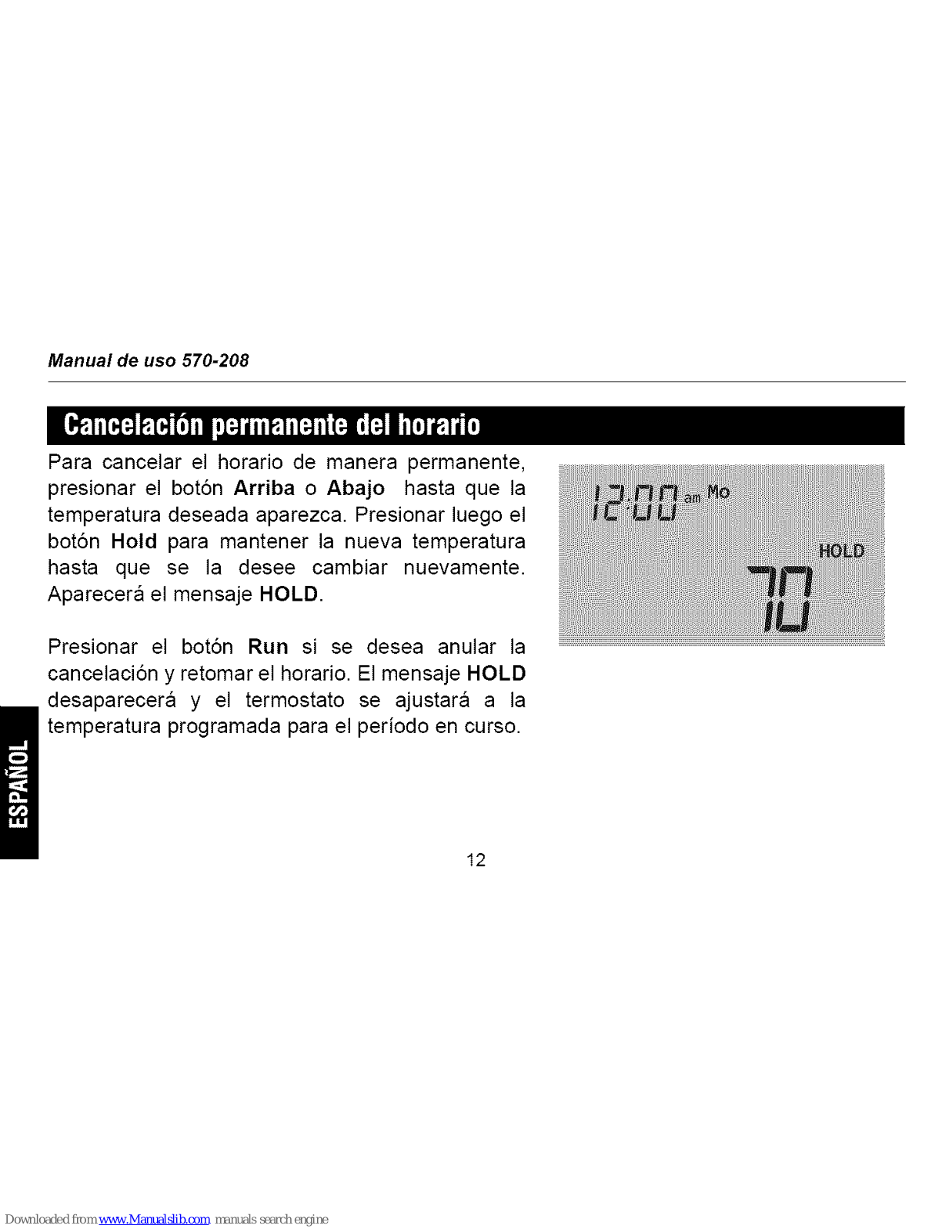

To permanently ignore the schedule, press the Up
or Down button until the desired temperature is
displayed. Then, press the Hold button to maintain
the new temperature indefinitely. The word HOLD
will appear on the screen.

Press the Run button if you wish to cancel the
override and resume the schedule. The word

HOLD will disappear and the thermostat will be set
to the temperature programmed for the current
period.

12

Totaline Basic 1H/1C & 2H/1C

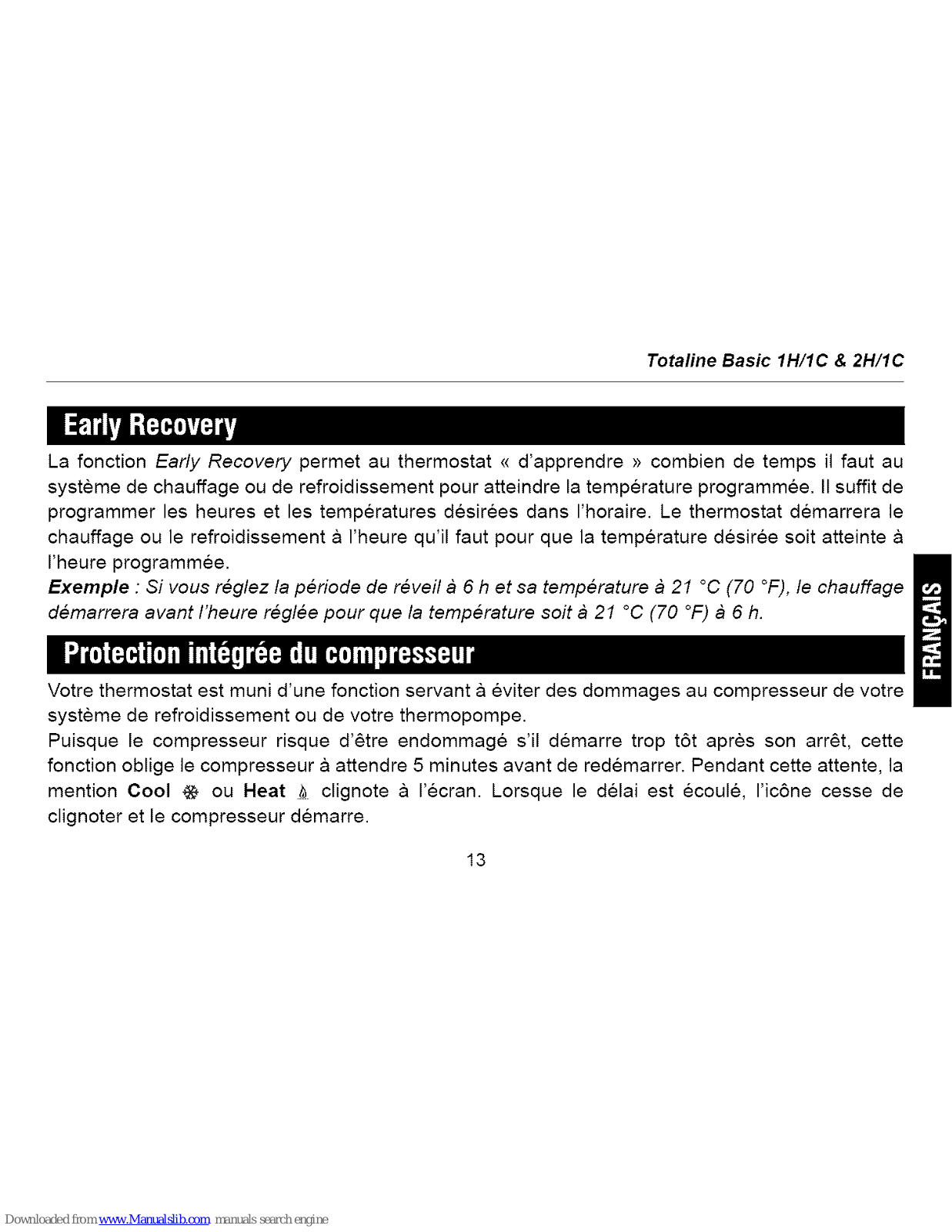

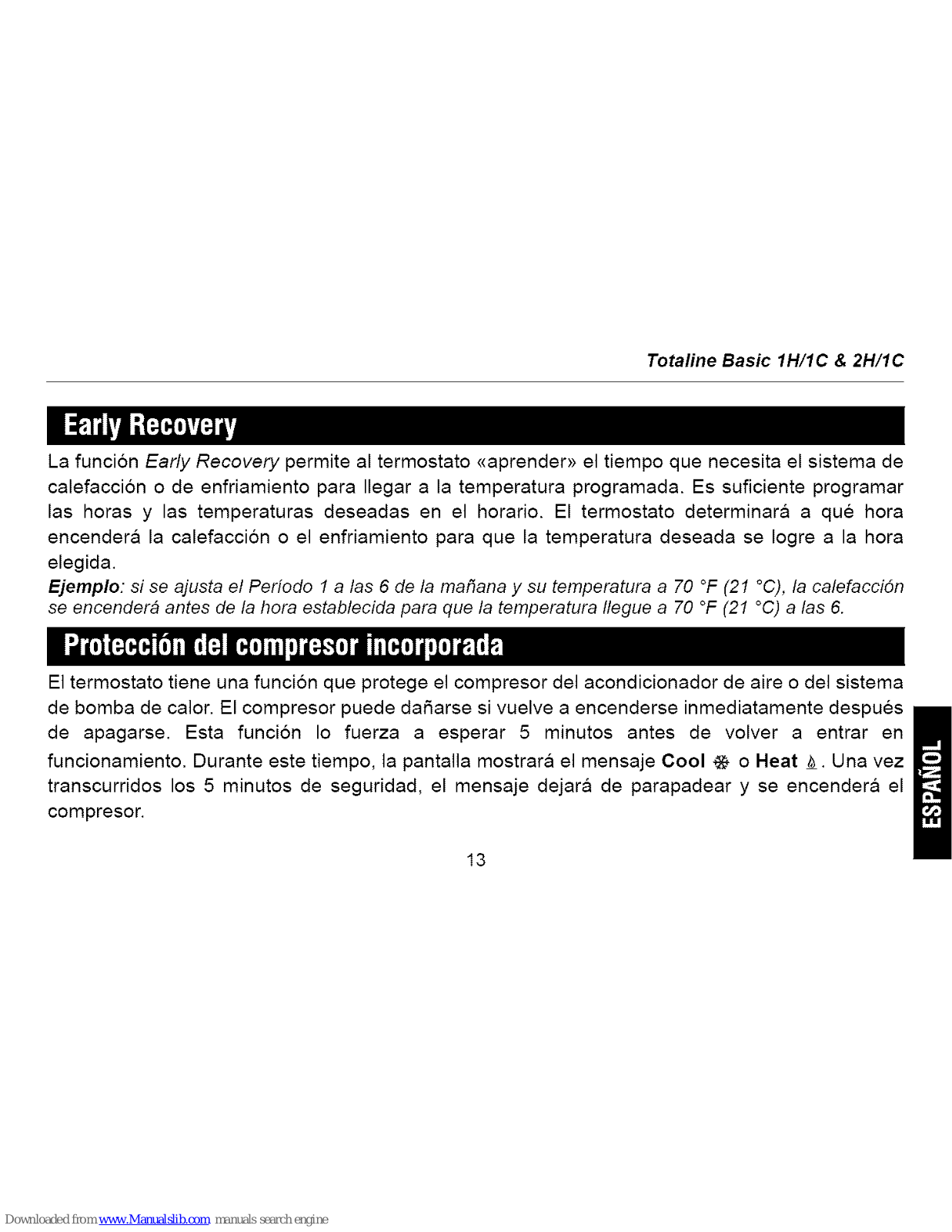

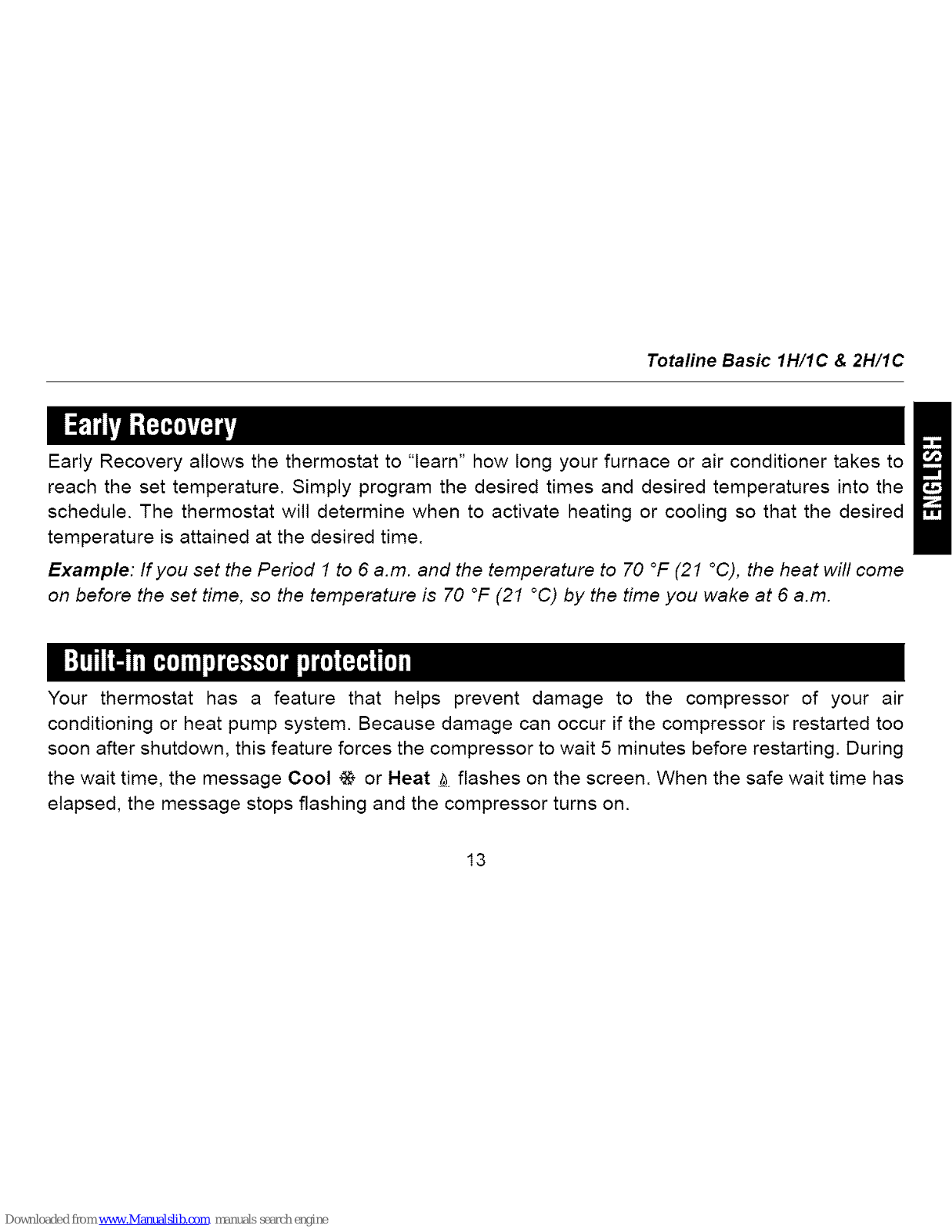

Early Recovery allows the thermostat to "learn" how long your furnace or air conditioner takes to
reach the set temperature. Simply program the desired times and desired temperatures into the

schedule. The thermostat will determine when to activate heating or cooling so that the desired
temperature is attained at the desired time.

Example: If you set the Period 1 to 6 a.m. and the temperature to 70 °F (21 °C), the heat will come
on before the set time, so the temperature is 70 °F (21 °C) by the time you wake at 6 a.m.

i:]'rlliOl_[,.[,]iil_ '1_

Your thermostat has a feature that helps prevent damage to the compressor of your air
conditioning or heat pump system. Because damage can occur if the compressor is restarted too

soon after shutdown, this feature forces the compressor to wait 5 minutes before restarting. During
the wait time, the message Cool @ or Heat # flashes on the screen. When the safe wait time has

elapsed, the message stops flashing and the compressor turns on.

13

Operating Manual 570-208

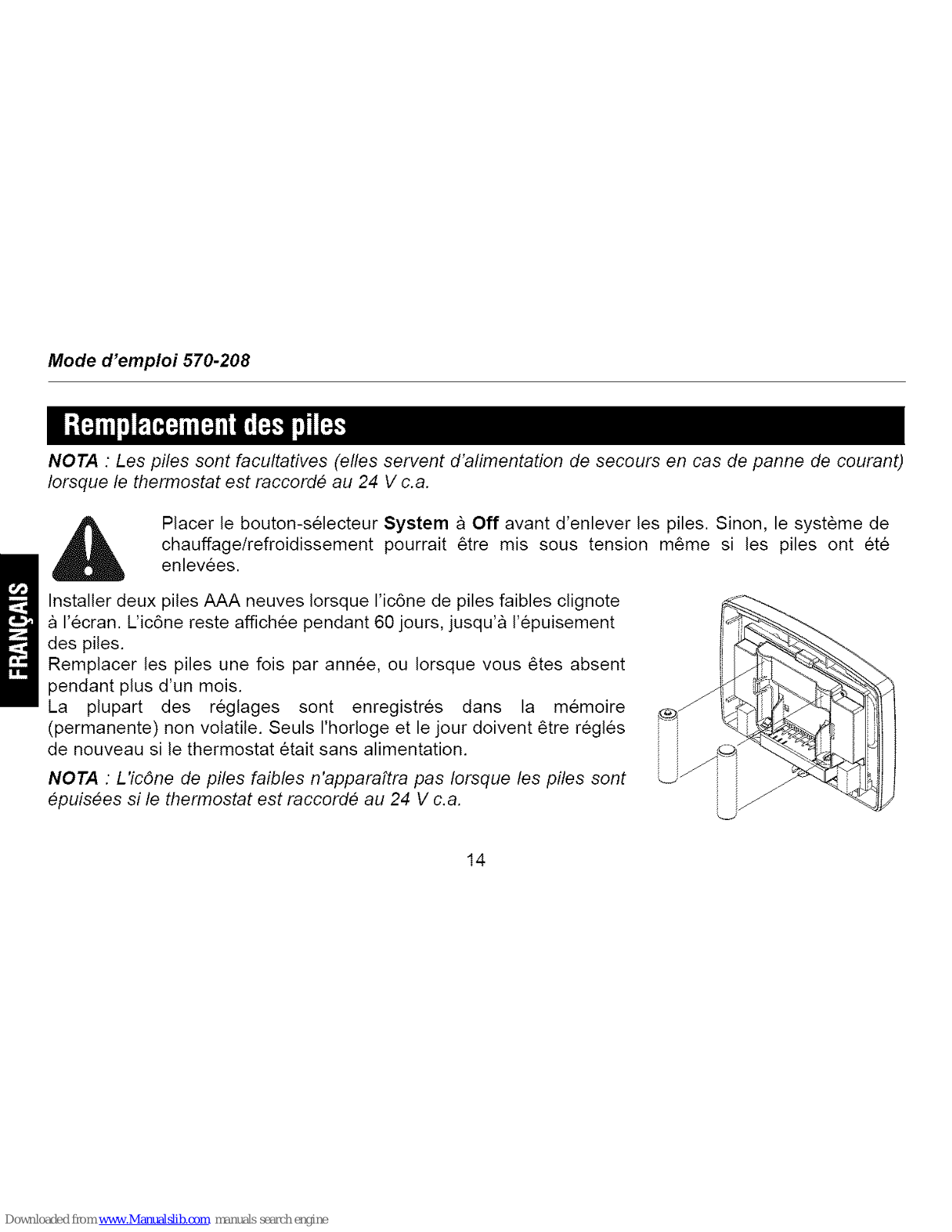

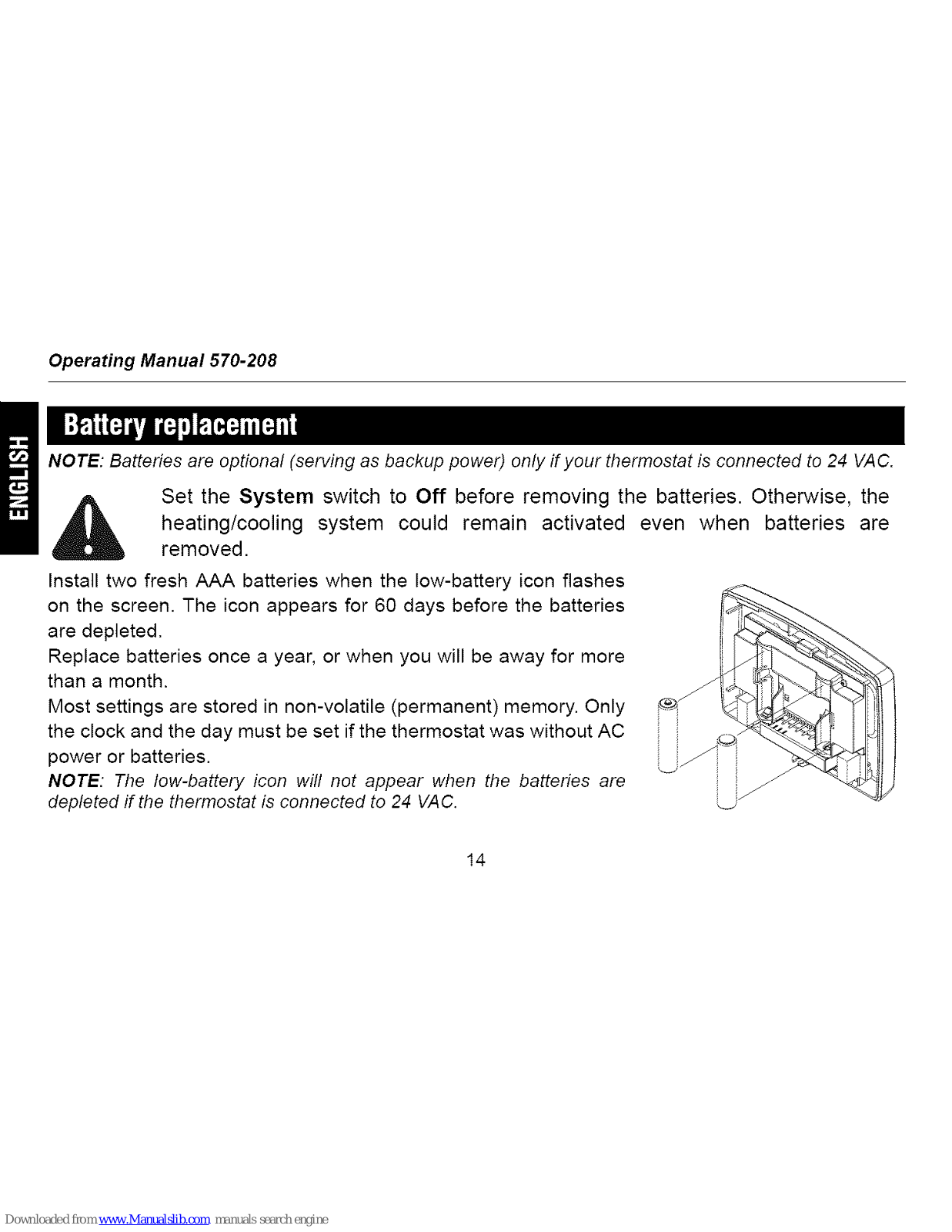

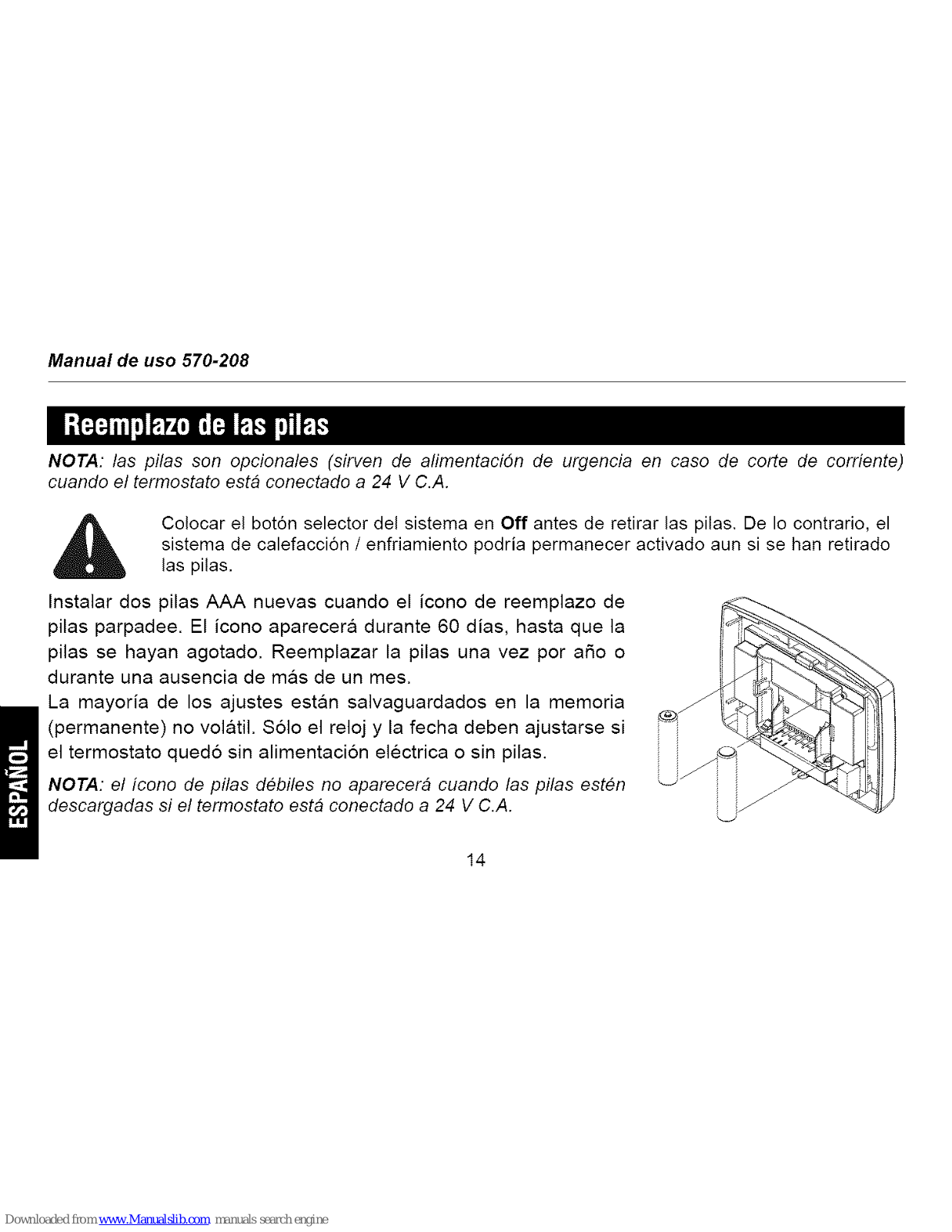

NOTE: Batteries are optional (serving as backup power) only if your thermostat is connected to 24 VAC.

Set the System switch to Off before removing the batteries. Otherwise, the
heating/cooling system could remain activated even when batteries are

removed.

Install two fresh AAA batteries when the low-battery icon flashes
on the screen. The icon appears for 60 days before the batteries

are depleted.
Replace batteries once a year, or when you will be away for more

than a month.
Most settings are stored in non-volatile (permanent) memory. Only

the clock and the day must be set if the thermostat was without AC ;; _<_z
power or batteries. _

NOTE: The low-battery icon will not appear when the batteries are _J
depleted if the thermostat is connected to 24 VAC. _

14

Totaline Basic 1H/1C & 2H/1C

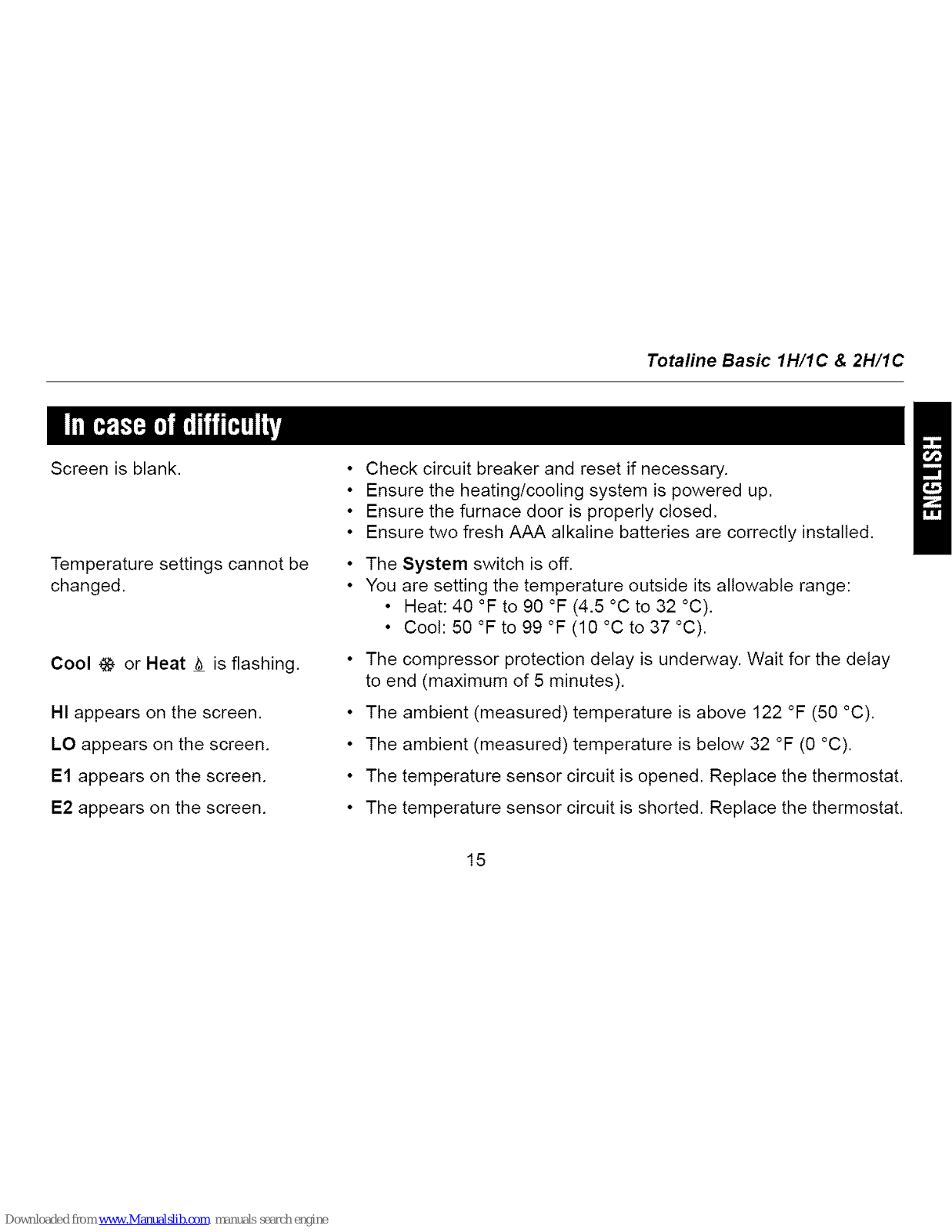

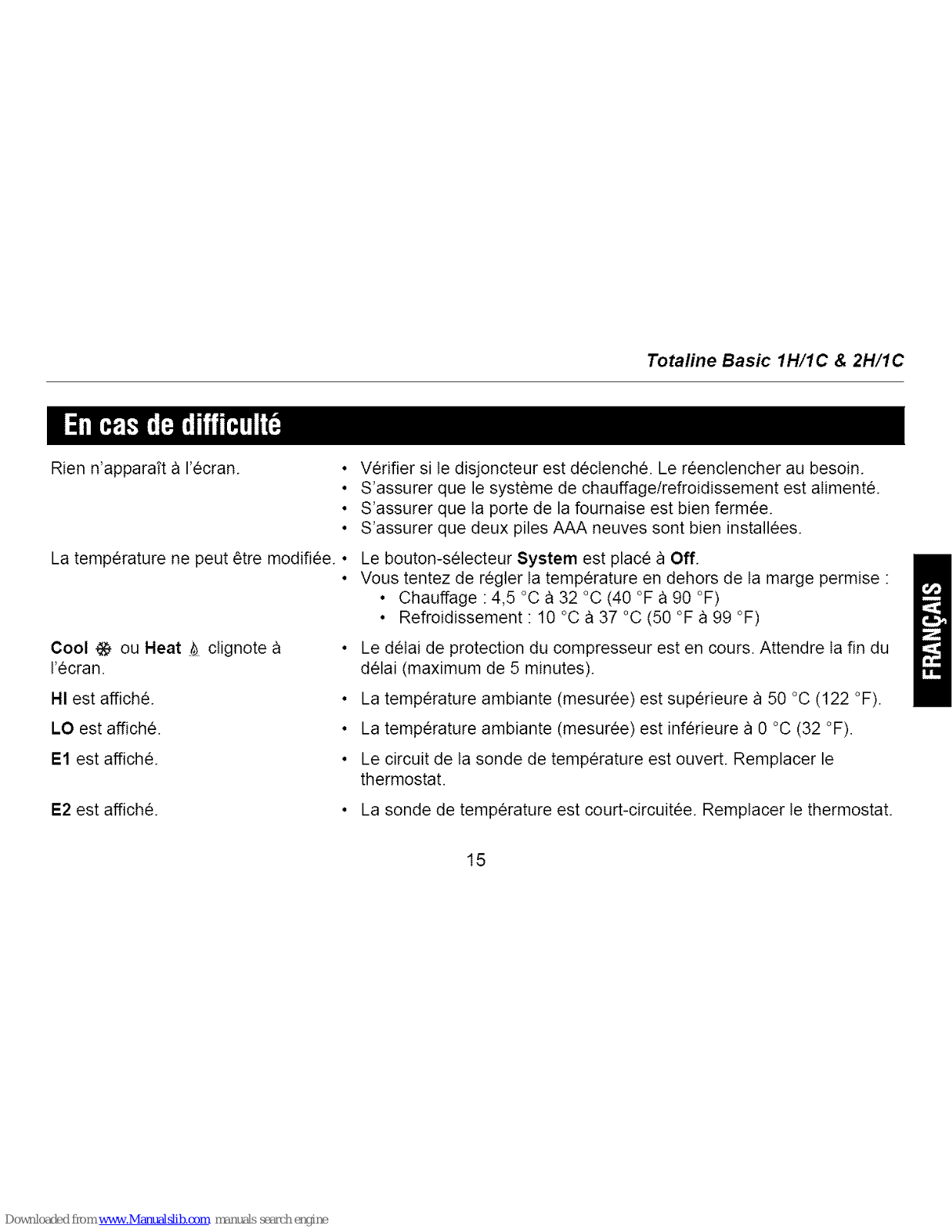

irtl[_,_ mi _rliil_,A

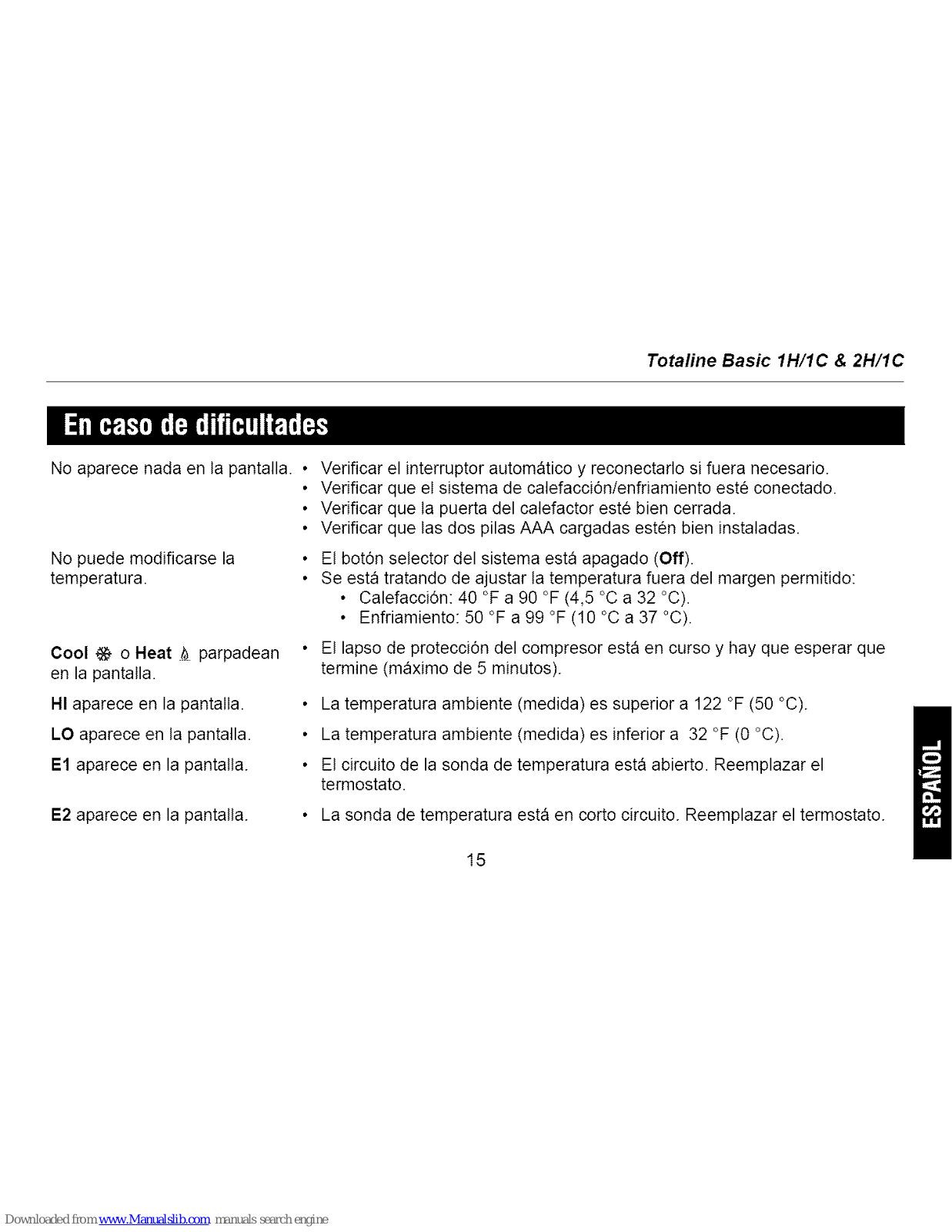

Screen is blank.

Temperature settings cannot be
changed.

Cool _ or Heat 8 is flashing.

HI appears on the screen.
LO appears on the screen.
E1 appears on the screen.
E2 appears on the screen.

• Check circuit breaker and reset if necessary.

• Ensure the heating/cooling system is powered up.

• Ensure the furnace door is properly closed.

• Ensure two fresh AAA alkaline batteries are correctly installed,

• The System switch is off.

• You are setting the temperature outside its allowable range:

• Heat: 40 °F to 90 °F (4.5 °C to 32 °C).

• Cool: 50 °F to 99 °F (10 °C to 37 °C).

• The compressor protection delay is underway. Wait for the delay
to end (maximum of 5 minutes).

• The ambient (measured) temperature is above 122 °F (50 °C).

• The ambient (measured) temperature is below 32 °F (0 °C).

• The temperature sensor circuit is opened. Replace the thermostat.

• The temperature sensor circuit is shorted. Replace the thermostat.

15

Operating Manual 570-208

[ 111" _ _1 "

For assistance with this product, visit our website at www.totaline.com.

16
