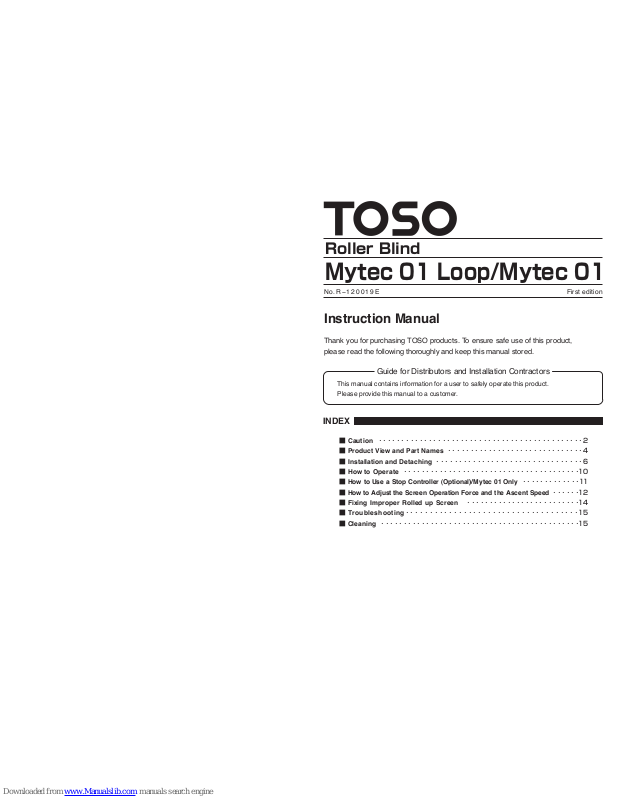

Page 1

No. R−120019E First edition

Instruction Manual

INDEX

■ Caution ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2

■ Product View and Part Names ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・4

■ Installation and Detaching ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 6

■ How to Ope rate ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・10

■ How to Use a Stop Controller (Optional)/Mytec 01 Only ・・・・・・・・・・・・・11

■ How to Adjust the Screen Operation Force and the Ascent Speed ・・・・・・12

■ Fixing Improper Rolled up Screen　・・・・・・・・・・・・・・・・・・・・・・・・・14

■ Troubleshooting・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・15

■ Cleaning ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・15

Roller Blind

Mytec 01 Loop/Mytec 01

Thank you for purchasing TOSO products. To ensure safe use of this product,

please read the following thoroughly and keep this manual stored.

Guide for Distributors and Installation Contractors

This manual contains information for a user to safely operate this product.

Please provide this manual to a customer.

Page 2

Caution

* This manual contains cautions and instructions for safe use of the product.

Please read it carefully before using to ensure appropriate use.

●

This document illustrates the dangers of using this product without taking necessary

precautions. Please refer to the symbols below for different types of safety points.

●

This document illustrates safety points to be followed using the symbols below.

Illustrates specific actions which are prohibited.

Illustrates specific guidelines which must be followed.

Caution

This product is intended for indoor use. Please do not use it for outdoor purposes.　

Locations subject to high temperatures and high humidity, or areas where water may leak, should be avoided.

Make sure to install this product horizontally.

Do not grab the set bar to carry or lift this product. It may cause damage to the product.

■ Precautions upon installing the product (Please read before installation.)

Check the foundation base and strength of the material before installing this product. If not installed properly to the foundation base, there are dangers of it falling.

Install this product as instructed with the necessary quantity of brackets. Otherwise the product may fall.

Warning

Caution

Illustrates that if this product is misused, there are dangers of serious injuries or possible fatal accidents.

Illustrates that if this product is misused, there are dangers of casualties or possible physical damage of the product.

P. 2

When there is a strong wind, either close the window or have the Screen completely rolled up.

Please do not dismantle the mechanical assembly nor lubricate the moving parts of this product. This will ensure physical damage or malfunction of the product.

Please do not use it by open flames.

■ Safety in Use (Please read thoroughly.)

Please do not hang from or pull on this product. This may damage the product or cause it to fall down.

Please do not operate the pro duct abruptly or with unreasonable force. This may cause the product to fall down or break.

Please do not let children play with the cord or chain.

Please do not wrap the cord or chain around you, or allow it to get caught on something, because this may result in an accident.

When not operating the product, tie the cord and chain at a height that is out of reach of small children.

P. 3

Warning

Caution

Be sure to grasp the pull cord or the ball chain to operate the blind. Do not operate it by grasping the screen, roller pipe or weight bar.

Do not place an object that is liable to break or an object that is likely to interfere with the operation of the product, inside the range of the opening and closing operation.

Use the product within the specified height range. If you use it outside this range, the screen may fall down or break.

Page 3

Product View and Part Names

* The size of Side Holder changes with the size of the product and the screen.

* The figure shows a right operation.

Side Holder Roller Pipe Screen Weight Bar

Weight Bar Cap Metal Ball Chain or Plastic Ball Chain Ball Chain Connector

Set Bar Bracket (For Set Bar type) Pull Ball Set

10)

P. 4

Mytec 01 Loop

Mytec 01

Component

10)

■ Accessories

■Optional Parts

P. 5

Bracket

(For Set Bar type) *1

Double-sided Tape

for Temporary

Positioning of Bracket *1

Component Winder *3

300-1400

1410-2700

2 pieces

3 pieces

2 sheets

3 sheets

2 screws

3 screws

Product Width

［mm］

Fixing Screw

（Bindφ3.5×16）

1 winder

Side Holder Cover

Pull Grip Set

Flat Grip Set

Mytec 01 Loop

Mytec 01

○

ー

○

ー

○

*1 Provided only with Set Bar Type.

*2 Set Bar Bracket Fixing Screws are for wooden part only. Use fixing screws that are suitable for

the strength and the material of the frame or wall to which the brackets are to be fixed.

*3 Please keep a Winder stored with this manual for future use.

Bracket Fixing Screw (For Set Bar type) *2

Page 4

P. 6

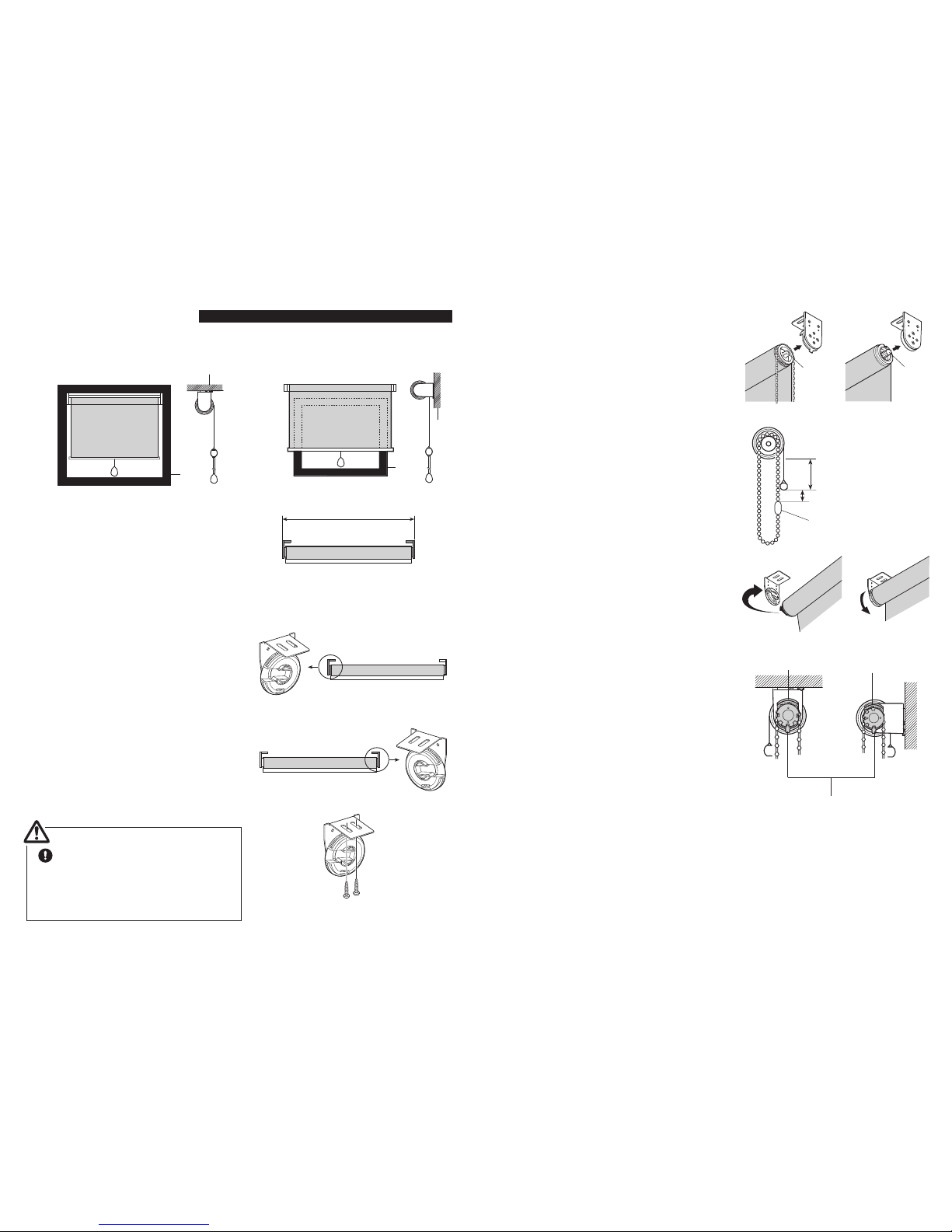

Installation and Detaching

■ Installation Type

< Ceiling Attachment>

Install inside of a window frame.

Window

frame

Install on a wall or outside of a window frame.

Window

frame

■ Installation and Detaching

(1)Determine the mounting positions of the

brackets while ensuring that the dimension between the brackets is the same as the width of the product that you ordered.

* In the case of Mytec 01 Loop (right operation) and

Mytec 01, install the brackets so that the bracket shown at right is on the left side.

* In the case of Mytec 01 Loop (left operation),

install the brackets so that the bracket shown at right is on the right side.

(2)Install the brackets using the fixing screws.

Use fixing screws that are suitable for the strength and the material of the wall or window frame to which the brackets are to be fixed. Be sure to install each side holder using at least two fixing screws.

Caution

Product Width

Ceiling

Wall

P. 7

1) Pull down the screen about 5 and 10 cm, then insert the dowel (transparent) at the end of the screen into Side Holder (right side).

* In the case of Mytec 01 Loop (left operation), insert

the protrusion into Side Holder on the left side.

2) Install the black knob on roll screen body to Side Holder (left side) to ensure that the red part is visible at the front. Once the screen is correctly in place, turn the dial in the “CLOSE” direction until it clicks.

3) In the case of Mytec 01 Loop, set the screen so that the position of the ball chain cover is at the top.

Push the tab on the ball chain cover to the side opposite the screen, and while keeping it pressed, turn the cover through 90°.

* In the case of My tec 01 Loop, set the chain as

the position of Chain Connector is located on the rear side, then at tach Chain Connector is about 3 cm below Bot tom Bar.

(3)Install the screen.

* The illustration applies to the case of Mytec 01 Loop

(right operation)/Mytec 01.

(4)Finally, open and close the screen two or three

times, and check the operation and speed at which the screen ascends and descends.

(5)How to remove the screen

1) Pull down the screen between about 5 and 10 cm and stop it in that position.

2) Turn the dial on Side Holder (left side) in the “OPEN” direction until it stops.

* In the case of Mytec 01 Loop (left operation), the

dial is on the right side.

3) Grasp the product with both hands, and slowly remove it.

* In the case of Mytec 01 Loop, take care that the

chain does not drop.

Dowel (transparent)

About 3cm

Chain Connector

About 5-10cm

Ball chain cover

Push this tab to the side opposite the screen, and while keeping it pressed, turn the cover through 90°.

Page 5

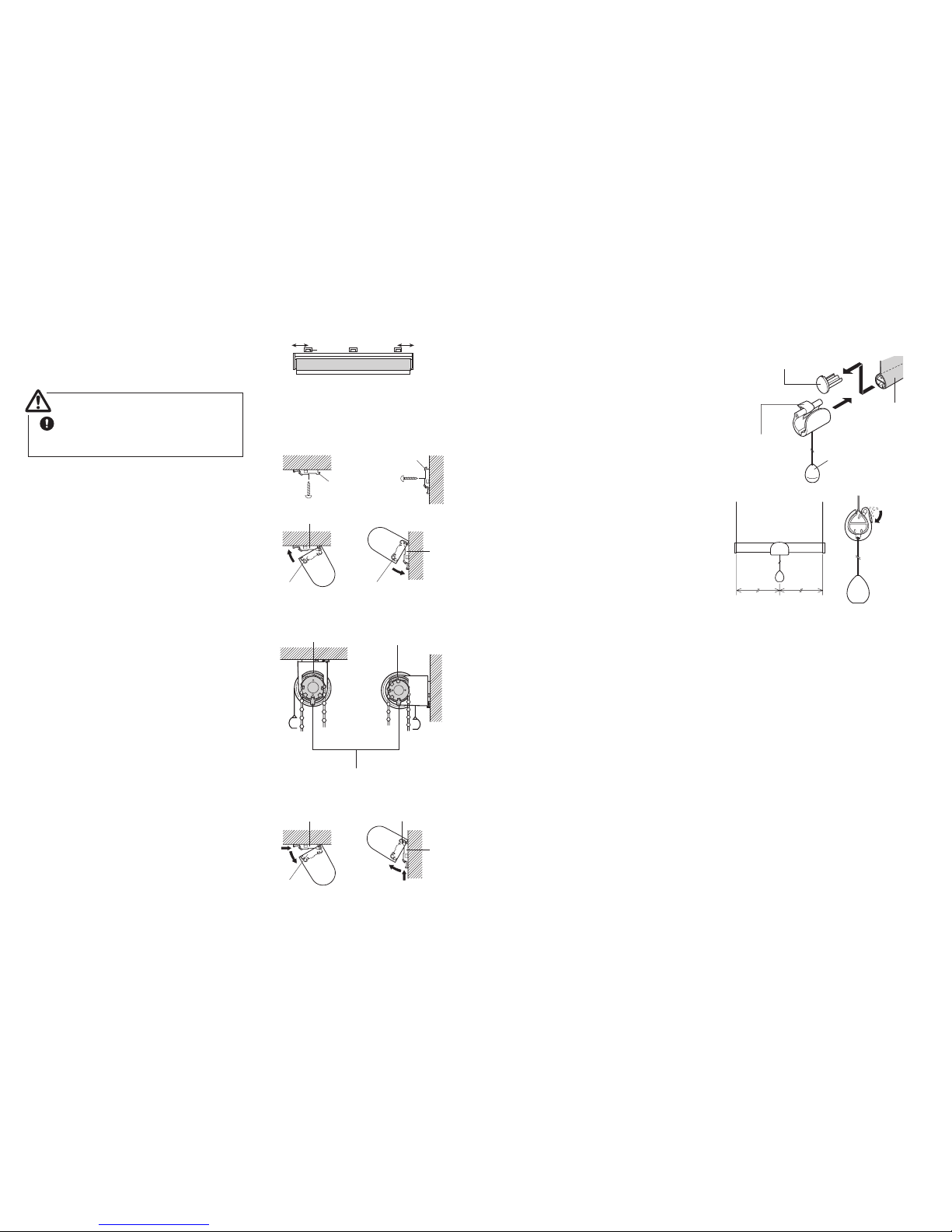

P. 8

Use mounting screws that are suitable for the strength and the material of the wall or window frame to which the brackets are to be fixed.

Caution

4-7 cm

Bracket

4-7 cm

Set Bar Set Bar

Bracket

Set Bar

Set BarBracket

Hook

(1)The optimum mounting position for the brackets

is between about 4 and 7 cm inward of both ends. If three brackets are used, install them at equal intervals.

(2)Install Brackets on the window frame or wall.

You can temporarily fix the brackets by using the tape for temporary positioning provided.

(3)Attach Set Bar to the temporary fixing hook,

then push it to fix it in place.

(4)In the case of Mytec 01 Loop, set the screen

so that the position of the ball chain cover is at the top.

* Push the tab on the ball chain to the side opposite

the screen, and while keeping it pressed, turn the cover through 90°.

(5)Finally, open and close the screen two or three

times, and check the operation and speed at which the screen ascends and descends.

(6)To remove Set Bar, push the tab on the

bracket 1), and while holding it pressed, pull the set bar toward you 2).

* Before removing the screen, refer to P.7 (5) How

to remove the screen.

Ball chain cover

Push this tab to the side opposite the screen, and while keeping it pressed, turn the cover through 90°.

Bracket

P. 9

■ Installing/Removing the Pull Ball Set (Mytec 01 only)

(1)Remove Weight Bar Cap on one side from

Weight Bar.

(2)With the fixing lever facing the rear (window

side), insert Pull Ball Set into Weight Bar.

(3)Align the position of Pull Ball Set with the

center of Weight Bar, then push down the fixing lever at the rear of Pull Ball Set to fix the Pull Ball Set in place.

(4)

To remove Pull Ball Set, carry out the

installation procedure in reverse((3)→(2)→ (1)).　

Center of Weight Bar

Pull Ball Set

Pull ball

Weight Bar

Weight Bar Cap

Fixing lever * Rear (window side)

Push down the fixing lever

Page 6

P.10

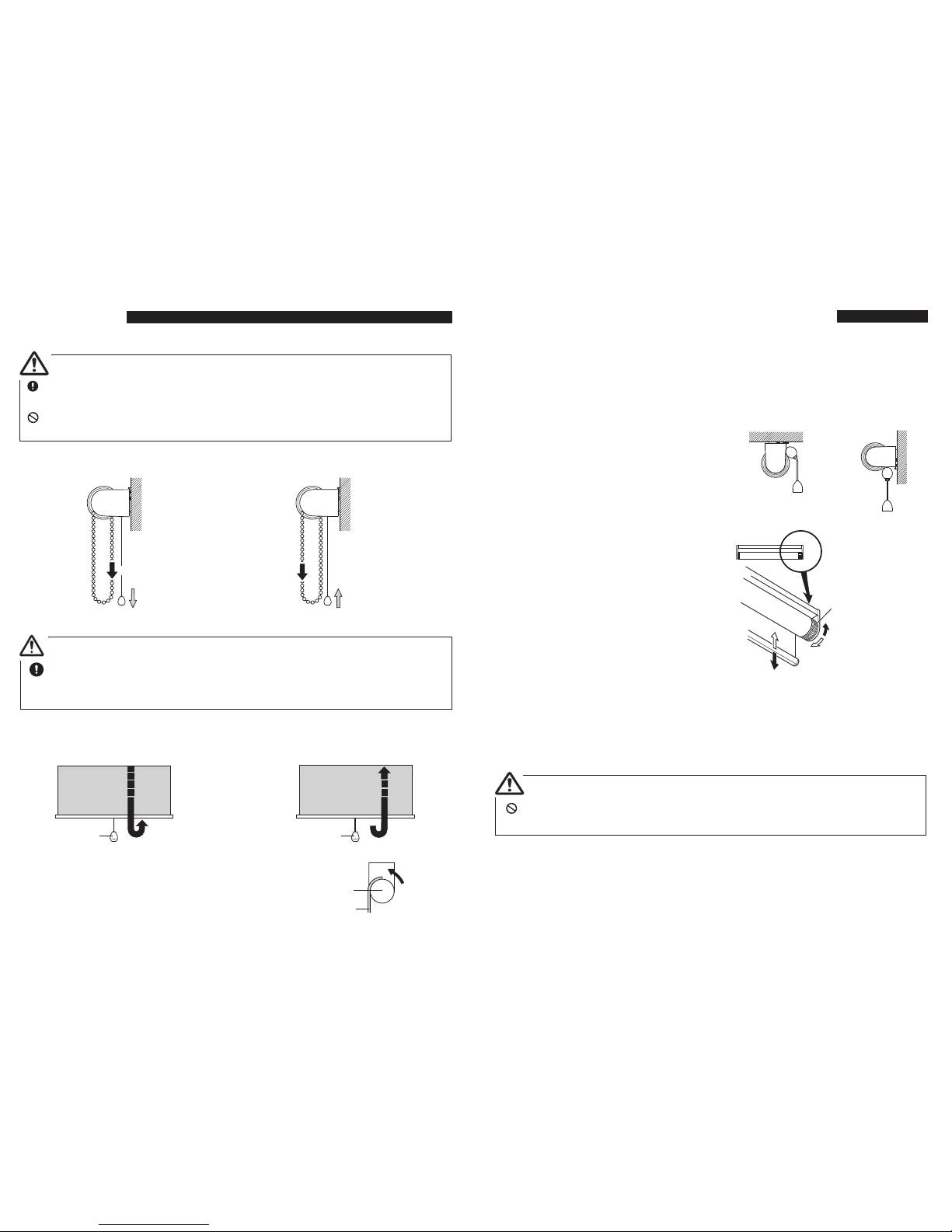

How to Operate

To operate the blind, grasp the pull ball with your hand, and move it in the vertical direction. Be sure to set the pull ball at the center of Weight Bar. If the pull ball does not coincide with the center, or if you move it obliquely, trouble is likely to occur.　　

■ How to close a screen

●

By pulling the pull ball directly downward and then releasing it, the screen will stop at that position.　

■ How to open a scresn

●

By pulling down the pull ball a distance of about 5

to 6 cm and then releasing it, the screen will rise.

* If you pull down the screen hard, for example, the screen is likely to

overrun, and may fail to rise again. In such a case, turning Roller Pipe slightly by hand will enable the screen to be rolled up.

* When the room temperature is low, such as during winter, the speed

at which the screen rises may slow down. Please note, however, that this does not mean that the blind is broken.

Turn by hand

Roller Pipe

Screen

Caution

Make sure to pull Ball Chain slowly when using the product. If Ball Chain is pulled quickly, the product may not roll up properly.

Please do not hang from the screen or the ball chain. The product may fall down.

■ How to close a screen

●

Pull the back side of Ball Chain downward.

■ How to open a screen

●

Pull the front side of Ball Chain downward.

Fixing over run

Pull ball

Pull

P. 11

■ How to adjust the stop position

(1)

First, set the screen in the fully rolled up con-

dition.

(2)

Turn the dial of the stop controller on Side Holder (right side) to the rear, and lower the screen to the desired height. Turning the dial toward you causes the screen to rise.

(3)

Pull the pull ball, and open and close the screen several times. If the stop position is incorrect, carry out fine adjustment by turning the dial.

Do not raise and lower the screen by turning the screen or Roller Pipe because this may damage the blind.

Caution

● Stop Controller is optional parts and it can be stopped at a predetermined height. Use this

function when you wish to stop the screens of connected windows at the same height, for example.

Lower the screen

Stop controller dial

Raise the screen

How to Use a Stop Controller (Optional)/Mytec 01 Only

Page 7

P.12

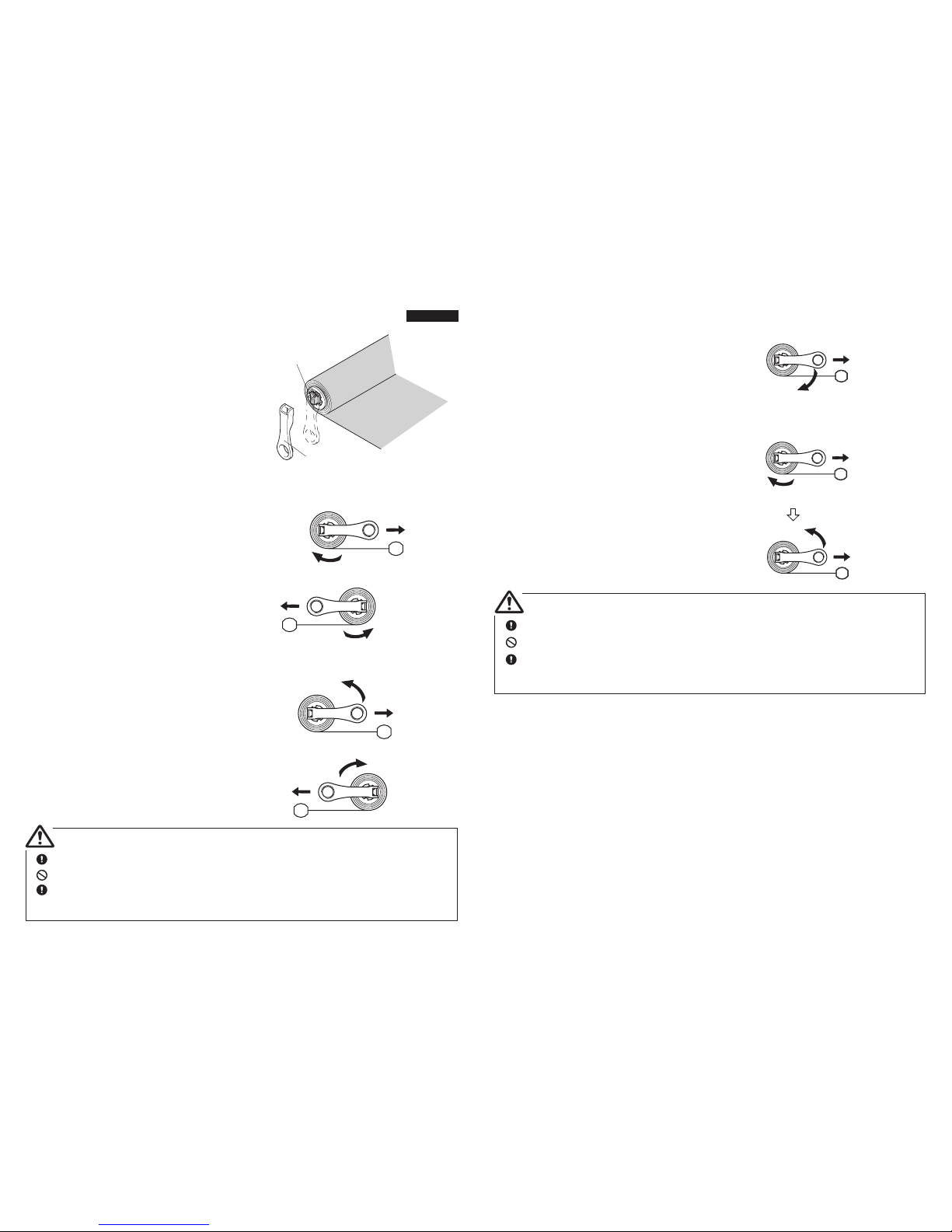

How to Adjust the Screen Operation Force and the Ascent Speed

■ Lighter roll up

●

Turn Winder 1-2 times clockwise while pulling Winder as directed and unlocking the speed.

●

Turn Winder 1-2 times counter- clockwise while pulling Winder as directed and unlocking the speed.

●

Turn Winder 1-2 times clockwise while pulling

Winder as directed and unlocking the speed.

■Heavier roll up

●

Turn Winder 1-2 times counter- clockwise while pulling Winder as directed and unlocking the speed.

(1)Remove the screen.

* Refer to P.7 (5) How to remove the screen.

(2)Align Winder provided with the black knob on

the screen that you removed, then carry out adjustment as described below.

Winder

Black knob

While pulling

Tur n counter- clockwise

While pulling

Tur n clockwise

While pulling

Tur n clockwise

While pulling

Tur n counter- clockwise

Winder does not turn if not pulled to unlock direction as illustrated.

Do not turn more than twice at once.

Caution

Hold Winder securely especially while pulling to unlock direction. If Winder is released while pulled to unlock direction, Roller Pipe blows off Winder, and it may cause accidents or injuries.

P.13

■ Faster roll up

●

Turn Winder 1-2 times clockwise while pulling Winder as directed and unlocking the speed.

■Slower roll up

●While pulling Winder as directed and

unlocking the speed, turn Winder half a turn in the clockwise direction and then 1-2 times in the opposite direction.

While pulling

Turn clockwise

Winder does not turn if not pulled to unlock direction as illustrated.

Do not turn more than twice at once.

Caution

(3)To install the screen, follow the procedure set out on P.7 (3).

Hold Winder securely especially while pulling to unlock direction. If Winder is released while pulled to unlock direction, Roller Pipe blows off Winder, and it may cause accidents or injuries.

While pulling

Turn counter- clockwise

While pulling

Turn clockwise half a turn

Page 8

P.14

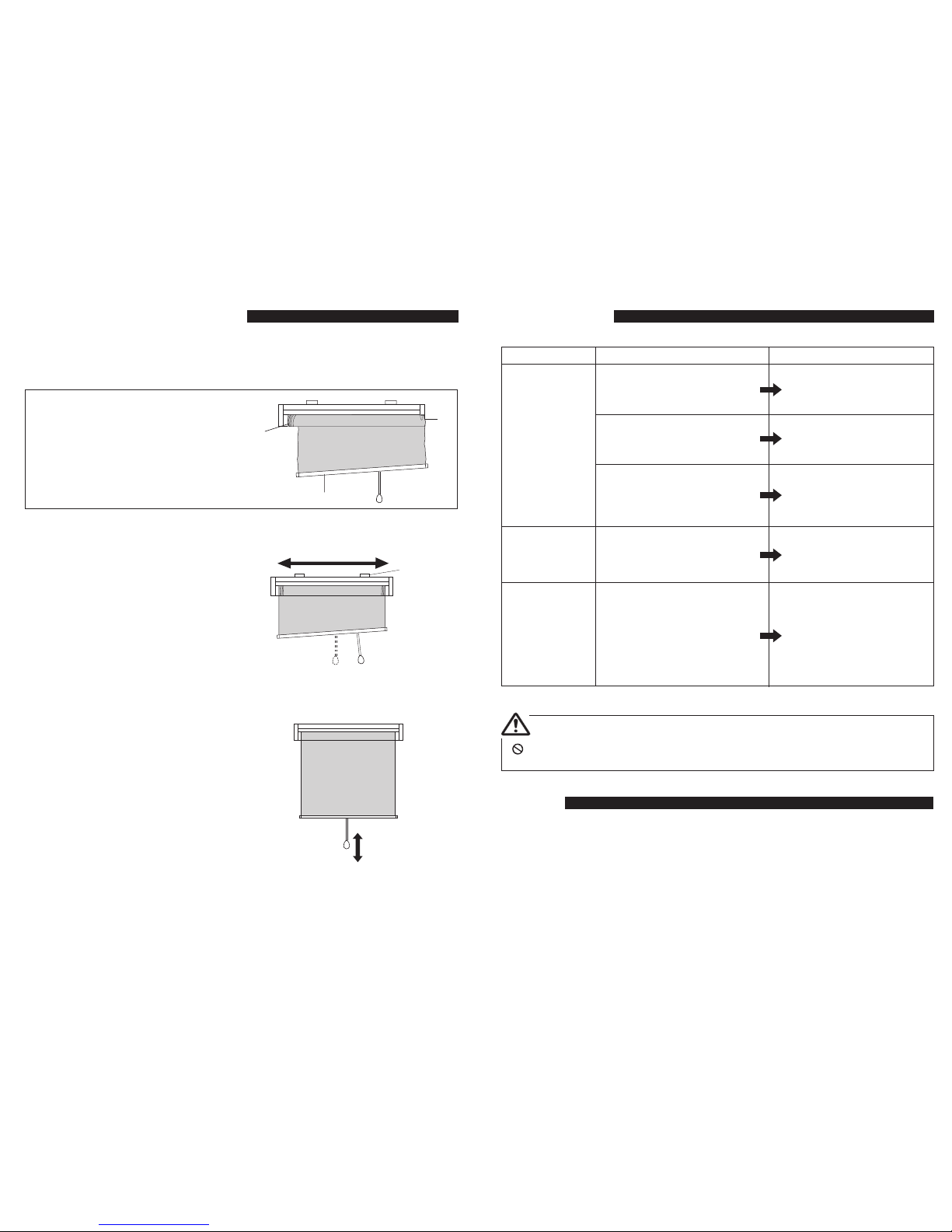

Fixing Improper Rolled up Screen

●

When a screen is not rolled up properly, it may cause damages to the screen or the product. TOSO Roller Blinds are inspected and adjusted to operate properly when delivered, however if a roller blind rolls improperly, follow below instruction.

1) Screen edge is misaligned.

2) Screen edge touches a side holder.

3) Weight Bar is not horizontal.

■ How to fix improper rolling?

(1) Make sure a product is installed correctly.

1) Is a product installed horizontally?

2) Are Brackets placed at correct at position?

3) Has the pull ball been set at the center of Weight Bar? (In the case of Mytec 01)

* Reinstall the product if it is not installed properly.

(2)In the case of Mytec 01 Loop, pull Ball Chain

slowly so as to lower the screen to the bottom and stop it there, then roll up the screen once again.

In the case of Mytec 01, pull the pull ball vertically

downward so as to lower the screen to the bottom and stop it there, then pull down the screen by a further 3 to 4 cm and release it so that it rises again.

(3)Repeat the instruction (2) for 2-3 times.

Pull the pull ball vertically

1) Install horizontally

2) Brackets are

placed in correct positions (Refer to P.9)

3) Set the pull ball at the center of

the weight bar (Refer to P.8)

P.15

Troubleshooting

Cleaning

●

For regular care, dust with a feather duster or a hand mop.

●

To avoid discoloration, avoid cleaning the screen with water or using it in a location

susceptible to splashing water.

Mytec 01 Loop

Mytec 01

Common

Do not disassemble or modify the mechanism inside Roller Pipe.

Caution

PhenomenonModel Actions

●

When the screen does not stop at the desired height, and rolls down.

●

When the screen does not stop at the desired height, and rolls up.

●

When Ball Chain is pulled, it does not operate smoothly with an unusual noise, or does not operate at all.

●

When the screen does not roll up, or when the roll-up speed is very low.

●

When the screen does not descend

●

Adjust the operating force by repeatedly carrying out the procedure described in “Lighter roll up” under <Mytec 01 Loop> on P.12.

●

Adjust the operating force by repeatedly carrying out the procedure described in “Heavier roll up” under <Mytec 01 Loop> on P.12.

●

It is likely that the position of Ball Chain Cover is incorrect. Carry out the procedure set out on P.7 or P.8.

●

Repeatedly carry out the adjustment procedure described in “Faster roll up” under <Mytec 01> on P.13.

●

It is likely that this is because the dial of Side Holder is not fully in the “CLOSE” condition.

Turn the dial in the “CLOSE”

direction until it stops completely.
