Toshiba YL875-42, YL875-46, YL875-55 User Manual

Download

EUROPEAN UNION ECOLABEL

Awarded to goods or services which meet the environmental

requirements of the EU ecolabelling scheme

WL86* Digital

Series

YL86* Digital

Series

YL87* Digital

Series

Contents

English

INSTALLING YOUR TV

Safety Precautions ............................................................................. 5

Installation and important information ..................................... 6

The remote control .........................................................................11

Inserting batteries and effective range ..........................11

CONNECTING YOUR TV

Connecting external equipment ................................................12

Connecting an HDMI® or DVI device to the HDMI input ...13

To connect an HDMI device ...............................................13

To connect a DVI device ......................................................13

HDMI’s ARC (Audio Return Channel) feature ...............13

REGZA-LINK connection ................................................................14

Connecting a computer ................................................................15

To connect a PC to the RGB/PC terminal .......................15

To connect a PC to the HDMI terminal ...........................15

Connecting a home network ......................................................16

To connect the TV to a home network - Wired ...........16

To connect the TV to a home network

with an internet connection - Wireless ......................16

Setting up the USB HDD ...............................................................17

Controls and input connections .................................................18

Switching on ............................................................................18

Using the menu system .......................................................18

Using the TV controls and connections .........................18

MENU structure ................................................................................19

SETTING UP YOUR TV

Startup Application .........................................................................20

Quick Setup ..............................................................................20

Ant/Cable/Satellite (if available) .......................................21

Satellite Settings .....................................................................22

Auto Tuning .............................................................................24

ATV Manual Tuning .........................................................................25

Tuning ........................................................................................25

Skip ..............................................................................................26

Sorting positions ....................................................................26

DTV Manual Tuning ........................................................................27

Manual Tuning ........................................................................27

Manual Tuning for DVB-C ...................................................27

Manual Tuning for DVB-S ....................................................27

DTV Settings ......................................................................................28

Channels (Antenna/Cable) .................................................28

Channels (Satellite) ................................................................29

Standby Channel Update ....................................................29

DVB Character Set ..................................................................29

Dynamic Scan ..........................................................................29

Location setting ......................................................................30

Analogue switch-off ............................................................30

CONTROLS AND FEATURES

General controls ...............................................................................31

Quick Menu ..............................................................................31

Selecting channels ................................................................ 31

The Time Display – analogue only .................................31

Stereo and Bilingual transmissions .................................31

Using 3D functions .........................................................................32

Using the 3D glasses ............................................................. 32

Viewing 3D images ............................................................... 33

Switching display mode or selecting 3D format ........33

Setting the auto start mode .............................................. 35

Setting the 3D PIN code ......................................................35

Setting 3D Start Message .................................................... 35

Setting 3D Lock ......................................................................36

Setting 3D Timer Lock .......................................................... 36

Setting Enable 3D Timer .....................................................36

Displaying 3D Important Info ............................................ 36

Adjusting 2D to 3D Depth ..................................................36

Switching left and right images .......................................36

Sound controls .................................................................................37

Volume controls and sound mute ...................................37

Dual ............................................................................................. 37

Balance ......................................................................................37

Sound Navi ............................................................................... 37

Surround Settings .................................................................. 37

Dolby Volume® .......................................................................37

Dynamic Range Control ......................................................38

Audio Level Offset .................................................................38

Headphone Settings .............................................................38

Audio Description ................................................................. 38

Widescreen viewing ....................................................................... 39

Picture controls ................................................................................ 41

Picture Mode ...........................................................................41

Picture preferences ...............................................................41

Reset ...........................................................................................41

ColourMaster ...........................................................................41

Base Colour Adjustment .....................................................42

Colour Temperature .............................................................42

Auto Brightness Sensor Settings ......................................42

LED Backlight Control ..........................................................42

Black/White Level ..................................................................43

Static Gamma .......................................................................... 43

MPEG NR – Noise Reduction ..............................................43

DNR – Digital Noise Reduction .........................................43

Resolution+ .............................................................................. 43

Active Vision M800 ................................................................43

Motion Detection Range ..................................................... 43

3D Judder Cancellation ....................................................... 44

Resetting the advanced picture settings ......................44

Expert Picture Settings ........................................................44

Control Visualization ............................................................ 46

Automatic Format (Widescreen) ......................................46

4:3 Stretch ................................................................................ 46

Blue Screen ...............................................................................46

Picture Position .......................................................................46

Picture still ................................................................................47

HDMI Information Display ..................................................47

Wireless LAN Information .............................................................48

Setting up the Network .................................................................49

Wireless Setup .........................................................................49

Advanced Network Setup ...................................................51

DNS Setup .................................................................................52

Network Connection Test ...................................................53

Using the software keyboard ......................................................53

Network Device Setup ...................................................................54

External Control Setup .........................................................54

Media Renderer Setup .........................................................54

Power Control Mode .............................................................55

Device Name Setup ...............................................................55

Using the USB HDD Function ......................................................55

To record DTV programmes

(One Touch Recording) ....................................................56

To schedule programmed recording .............................56

To check, edit or delete scheduling information .......59

To view a recorded programme .......................................59

Operations from the Library screen ................................60

Other useful functions (Time Shift Recording) ............61

Recording Setup .....................................................................61

To disconnect a USB HDD ...................................................62

To confirm/delete Recording Information ...................63

Scheduling priority ................................................................63

Camera Sensor Settings ................................................................64

Using Toshiba Places ......................................................................65

Using YouTube™ ..............................................................................65

Using the Function Menu ...................................................66

Using Hybrid TV Standard (if available) ...................................68

Using the Media Player ..................................................................68

Basic operation .......................................................................69

Viewing photo files

(on a DLNA CERTIFIED™ Server or USB device) .......70

Viewing movie files

(on a DLNA CERTIFIED™ Server or USB device) .......72

Playing music files

(on a DLNA CERTIFIED™ Server or USB device) .......75

Using the Photo Frame feature ..................................................76

To open Photo Frame ...........................................................76

Setting the features ...............................................................77

Other features ................................................................................... 78

Panel Lock .................................................................................78

The timers ...........................................................................................79

Programme Timers – digital only ...................................79

On Timer ....................................................................................79

Sleep Timer ..............................................................................80

Energy Saving Settings ..................................................................80

Automatic Power Down ......................................................80

No Signal Power Down ........................................................80

Digital on-screen information and Programme Guide ......81

Information .............................................................................. 81

Guide ..........................................................................................82

Genre selection/searching .................................................82

Digital settings – parental control ........................................... 83

Parental PIN Setup ................................................................ 83

Parental Setup ........................................................................ 83

Network Lock ..........................................................................83

Digital settings – Channel Options ..........................................84

Selecting favourite channels .............................................84

Favourite Channel Lists ....................................................... 84

Skip channels ..........................................................................84

Locking channels ................................................................... 84

Digital settings – other settings ................................................ 85

Subtitles ....................................................................................85

Audio languages .................................................................... 85

Common Interface ................................................................85

Software Upgrade and Licences ................................................86

Auto Upgrade ......................................................................... 86

Searching for New Software ..............................................86

Network Upgrade .................................................................. 86

Software Licences .................................................................. 86

System Information and Reset TV ............................................. 87

System Information ..............................................................87

Reset TV ..................................................................................... 87

PC Settings ......................................................................................... 87

Horizontal and Vertical Position .......................................87

Clock Phase .............................................................................. 87

Sampling Clock .......................................................................88

Reset ...........................................................................................88

Input selection and AV connections ........................................ 88

Input selection ........................................................................ 88

External input skip .................................................................89

Labeling video input sources ............................................89

PC Audio ...................................................................................90

Side Shared Audio ................................................................. 90

HDMI 3 Audio ..........................................................................90

HDMI Settings .........................................................................90

Digital Audio Output ............................................................90

Using Personal TV Mode ...............................................................91

Using REGZA-LINK ........................................................................... 93

Enable REGZA-LINK ............................................................... 93

TV Auto Power ........................................................................93

Auto Standby ..........................................................................94

Amplifier Control ................................................................... 94

Initial Speaker Setting ..........................................................94

Position Key Pass Through .................................................94

REGZA-LINK input source selection ................................94

REGZA-LINK Device Control ...............................................95

REGZA-LINK one touch play .............................................. 95

REGZA-LINK system standby .............................................95

REGZA-LINK system audio control .................................. 95

Toshiba PC compatible with REGZA-LINK ....................95

English

Using MHL TV function ..................................................................96

Connecting an MHL-compatible Device .......................96

Operating an MHL-compatible Device ..........................96

English

MHL Setup ................................................................................ 96

TEXT SERVICES

Text services ......................................................................................97

Selecting modes .....................................................................97

Text information ..................................................................... 97

Navigating pages using Auto ............................................97

Navigating pages using LIST ..............................................97

Control buttons ......................................................................98

PROBLEM SOLVING

Questions and Answers ...............................................................99

INFORMATION

License Information ..................................................................... 102

Information ..................................................................................... 104

Specifications and accessories ................................................. 109

Safety Precautions

INSTALLING YOUR TV

English

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products, and some points may not apply to the goods you have just purchased.

Air Circulation

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5°C (41°F) min. and 35°C (94°F) max.

Mains Supply

The mains supply required for this equipment is 220240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. Use only the supplied lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. IF IN DOUBT, PLEASE CONSULT A COMPETENT ELECTRICIAN.

DO read the operating instructions before you

attempt to use the equipment.

DO ensure that all electrical connections (including

the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about

the installation, operation or safety of your equipment.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. See page 6.

DO be careful with glass panels or doors on

equipment.

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND ‘LIVE’ PARTS.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Do not

DO NOT obstruct the ventilation openings of the

equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DO NOT allow electrical equipment to be exposed to

dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources,

such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times.

DO NOT use makeshift stands and NEVER fix legs with

wood screws. To ensure complete safety, always fit the manufacturer’s approved stand, bracket or legs with the fixings provided according to the instructions.

DO NOT leave equipment switched on when it is

unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, and make sure your family knows how to do this. Special arrangements may need to be made for people with disabilities.

DO NOT continue to operate the equipment if you

are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

WARNING – excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen and cabinet back, or push anything into holes, slots or any other openings in the case. These actions will damage screen or internal parts.

NEVER connect the supplied COMPONENT Adaptor cable, AV-SCART Adaptor cable or AV Adaptor cable to a wall outlet. These cables are ONLY for insertion into the socket provided for the purpose on the rear/side of the TV.

NEVER guess or take chances with electrical equipment of any kind - it is better to be safe than sorry.

INSTALLING YOUR TV

Stand style is dependent on model

Remove four screws. (Do not reuse these screws for attaching a wall bracket.)

Installation and important information

English

Where to install

Locate the television away from direct sunlight and strong lights. Soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place the TV on a stable, level surface that can support the weight of the TV. In order to prevent injury and maintain stability of this apparatus, secure the TV to the level surface using the strap if fitted, or to a wall using a sturdy tie to the P clips provided. Otherwise secure the TV on the level surface using the supplied mounting screw.

The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Make sure the television is located in a position where it cannot be p ushed or hit b y objects, as pressure wil l break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case.

When using a Wall Bracket

For 46WL, 55WL, 46YL and 55YL series, always use the screws recommended by the wall mount manufacturer.

Fixing strap

Sturdy tie (as short as possible)

Stand clip

‘P’ Clip

Screw (supplied)

When using MHL (Mobile High-definition Link)

• Interoperability with MHL devices of other manufacturers is not guaranteed.

• Toshiba does not provide any guarantee, therefore, against operational failure such as that described below when an MHL source is connected to the TV.

- No picture or sound

- Some of the functions do not work by remote operation from the TV

• If the MHL does not work properly, also contact the manufacturer of the source device for advice on its use.

• Do not disconnect the the power plug when the TV is active and the MHL device is being connected.

• Do not disconnect the the power plug when the TV is in standby mode and the MHL device is being connected.

INSTALLING YOUR TV

Please take note

The digital reception function of this television is only effective in the countries listed in the “Country” section of the “Setup/System Setup” menu. Depending on country/area, some of this television’s functions may not be available. Reception of future additional or modified services can not be guaranteed with this television.

If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on-screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. It is always advisable to reduce both the brightness and contrast settings.

Very long, co ntinuous use of the 4:3 picture on a 16:9 screen may result in some re tention of th e image at the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer’s warranty. Regular use of other size modes (e.g.: Super Live) will prevent permanent retention.

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by: i) Fire;

ii) Earthquake; iii) Accidental damage; iv) Intentional misuse of the product; v) Use of the product in improper conditions; vi) Loss and/or damage caused to the product whilst in the possession of a third party; vii) Any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s manual; viii) Any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with

associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

English

When Using a USB HDD (not supplied)

• The recording function has been designed for private use and entertainment in your home environment. Please note that any commercial use of the recording function could lead to copyright infringement of authors’ rights. Toshiba asks you to respect the intellectual property rights of third parties.

• Before recording to a device connected to the TV, make a test recording and check the recording performance.

• Programmes that are prohibited from copying due to copyright protection cannot be recorded.

• Toshiba shall not be liable for compensation or incidental damages of any kind whatsoever resulting from content that was not properly recorded on the recording device or that was modified or lost.

• Toshiba shall not be liable for damages of any kind whatsoever (breakdown of the recording device, modification or loss of the recorded content, etc.) resulting from malfunction, operating failure or incorrect operation due to combining with another connected device.

• If you connect and register a USB HDD that has been used with a PC or another TV, all the data and recorded programmes stored on the disk will be deleted.

• To use a USB HDD that has been used with this TV on a PC, the hard disk must first be formatted with the PC. At this time, all the data stored using the TV will be deleted.

• Do not turn off the power supply to the USB HDD or disconnect the connecting cable while the USB HDD is operating.

Doing so may result in loss of the recorded data or malfunction of the USB HDD.

• If you connect a USB bus-powered device to the USB 1 port, it may interfere with recording on the USB HDD.

• The recording function is not available in all countries.

• Please note that recording on the USB HDD is no longer playable after the TV’s main-board is exchanged during service.

INSTALLING YOUR TV

English

When using the 3D glasses

Available 3D glasses: Toshiba FPT-AG02G

YL86 and YL87 series : Supplied WL86 series : Not supplied

• The 3D function has been designed for private use and entertainment in your home environment. Please note that any commercial use of the 3D function could lead to copyright infringement of authors’ rights. Toshiba asks you to respect the intellectual property rights of third parties.

About handling the 3D glasses

• Do not leave the 3D glasses or the accessories within the reach of small children.

Inhaling or swallowing them may cause suffocation or lesions in the stomach wall.

If swallowed, consult a doctor immediately.

• Do not repair, modify, or disassemble the 3D glasses by yourself.

Doing so may cause a fire or cause you to become indisposed while viewing 3D images.

Contact the Toshiba Call Center for repair of your 3D glasses.

• Do not expose the glasses to excessive heat such as sunshine, fire, or the like.

About the 3D glasses

• Do not use the 3D glasses if they are not working properly or broken.

Continuing to use them in such a state may cause injury, eye strain, or indisposition.

Do not use the 3D glasses if they are broken or have any cracks.

• Do not stand or walk while wearing 3D glasses.

You may lose your balance which could result in falls or other accidents.

• Do not wear the 3D glasses for any purpose other than viewing 3D programming.

3D glasses do not function as sunglasses.

• Do not drop, exert pressure on, or step on the 3D glasses.

Doing so may damage the glass section, which may result in injury.

Exposing the 3D glasses to liquid or excessive heat may damage the liquid crystal shutter function.

• If your nose or temple turns red, or you feel pain or discomfort, stop using the 3D glasses.

Such symptoms as above may occur if you keep wearing them for a long time, which may also cause indisposition.

• Be careful not to pinch your fingers in the hinge of the 3D glasses.

Cautions on watching 3D images

• Some viewers may experience a seizure or blackout when exposed to certain flashing images or lights contained in certain 3D television pictures or video games.

Anyone who has had a seizure, loss of awareness, or other symptoms linked to an epileptic condition, or has a family history of epilepsy, should contact a health care provider before using the 3D function.

• Avoid use of the 3D function when under the influence of alcohol.

• If you are ill or feel ill, you should refrain from viewing 3D images, and consult your health care provider as may be appropriate.

• If you experience any of the following symptoms when viewing 3D video images, stop viewing and contact your health care provider:

Convulsions, eye or muscle twitching, loss of awareness, altered vision, involuntary movements, disorientation, eye strain, nausea/vomiting, dizziness, headaches.

• If you feel eye fatigue or other discomfort from viewing 3D video images, remove the 3D glasses and discontinue use until the condition is eliminated.

• Viewing in 3D may cause dizziness and/or disorientation for some viewers.

Therefore, to avoid injury do not place your TV near open stairwells, balconies, or wires.

Also do not sit near objects that could be broken if accidentally hit.

• When viewing 3D images, always wear 3D glasses.

Watching 3D images without 3D glasses may cause eye strain.

Use specified 3D glasses.

• When watching 3D images, do not wear 3D glasses at an angle and do not lie down.

If you watch while lying down or with the glasses tilted, the 3D effect is lost and it may cause eye strain.

• It is recommended that the viewer’s eyes and 3D glasses are level with the screen.

• If you have prescription eye glasses or contact lenses, wear the 3D glasses over them.

Watching 3D images without appropriate eyewear may cause eye strain.

• If 3D images often appear in double or if you cannot see the images in 3D, stop viewing.

Continuous viewing may cause eye strain.

• Due to the possible impact on vision development, viewers of 3D video images should be age 6 or above.

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised to avoid prolonged viewing without rest.

• Watching TV while sitting too close to the screen for an

Screen height

If the 3D PIN number has been forgotten:

Use the Master PIN code of 1276, and then change to a number of your choice. Select 3D PIN Setup from the

Preferences / 3D Setup menu to enter PIN.

extended period of time may cause eye strain.

The ideal viewing distance should be at least three times the screen height.

• Watch the TV within effective viewing angle.

Otherwise, you may not see the correct 3D image. Effective viewing angle:

- Within 30° horizontal, 20° vertical

Notes on handling the 3D glasses’ liquid crystal shutter lenses

• Do not put excessive force on the lenses.

• Do not scratch the surface of the lenses with sharp objects.

• Do not drop or bend the 3D glasses.

Notes on IR communication

• Do not block the IR sensor for 3D glasses on the TV by placing objects in front of it.

• Do not cover the IR sensor on the 3D glasses with stickers or labels.

• Keep the IR sensor on the 3D glasses clean.

• The use of 3D glasses could interfere with other IR communication devices. Other IR communication devices may cause the 3D glasses n ot to work correctly. Use the TV and 3D glasses in a place where they will not interfere with other devices or products.

INSTALLING YOUR TV

Notes on watching the TV

• 3D effect and image quality may vary depending upon content quality and display device capability/ functionality/settings.

• If you use any device, such as a mobile phone or mobile wireless device, near the 3D glasses, the 3D glasses may not work correctly.

• Use the product in the following temperature range; otherwise, the quality of the 3D image or the reliability of the product cannot be guaranteed.

- 3D glasses: 0°C - 40°C (32°F - 104°F)

- TV: 0°C - 35°C (32°F - 95°F)

• If you use a fluorescent light, it may flicker depending on the frequency of the light. In this case, reduce the brightness of the fluorescent light, or us e another light. (It is not recommended to watch the TV in a dark room, especially for children.)

• Wear the 3D glasses properly, otherwise you may not see the correct 3D image.

• When not viewing 3D images on this unit, take off the 3D glasses; otherwise, it may be difficult to see the display on other products such as PC, digital clock or calculator, etc.

About the connecting cable

• Use a high-speed and high-quality HDMI cable when you connect a device such as 3D compatible BD player or PC to the TV. When you use a standard HDMI cable, 3D images may not be shown.

About the lithium-ion polymer rechargeable battery

• Do not nail, hammer, or step on the battery.

Doing so may cause a short circuit, leading to overheating, cracking, or fire.

• Do not overheat, disassemble, or short-circuit the battery, or throw it into fire.

Doing so may cause cracking or fire.

• Do not connect the battery cord with metal items such as wires. Also, do not carry or store the battery with metal items such as necklaces or hairpins.

Doing so may cause a short circuit, leading to overheating, cracking, or fire.

English

INSTALLING YOUR TV

29° 29°

Personal Identication (50 ~ 400cm)

Face Detection (50 ~ 500cm)

27°

7°

Face Detection (50 ~ 500cm)

Personal Identication (50 ~ 400cm)

English

The camera sensor installed in this TV can detect a person’s face or movement and identify individuals by their registered faces. Please note that certain factors can affect the performance of the sensor function as set out below.

About the Camera Sensor

General Sensor Function

• For the sensor to operate (for each function) you will need to be within the sensor detection range as set out below.

• The approximate effective detection range of the camera sensor is as shown below. (Note: The distance and angle of the detection range are based on a standard viewing environment and conditions).

– Horizontal angle: approx. 58° (approx. 29° × 2)

– Vertical angle: approx. 34° (upward approx. 27°,

downward approx. 7°)

–Distance: approx. 50 cm to 500 cm (Personal Identification

Function: approx. 50 cm to 400 cm)

• Do not place anything in front of the TV that may obstruct detection or reduce the sensor detection range.

Motion Detection Function

• Motion detection may be affected by the surrounding environment, such as the brightness of the room. In addition, very slight, small or momentary movement may be undetected.

• Sensor performance can be enhanced by making sure the room is brightly lit and using prolonged and obvious movements.

• Billowing curtains, a pet or variations in illumination in the detection range may be detected as motion, even if there is no person there.

• You can use the camera sensor confirmation menu to check that no movement made by other persons is being detected.

Face Detection Function

• The sensor can detect up to eight persons.

• Face Detection may be affected if: – Your face is obstructed or partially hidden, for example,

by your hair, a mask or a hat, – Your head is tilted or turned to one side, or – You are wearing dark glasses or the light is reflected in

your glasses.

• You can use the camera sensor confirmation menu to check whether your face is detected.

• The camera sensor may detect background images such as a picture portrait or the pattern on the wall as eyes or nose even if there is no person there. You can use the confirmation screen to check whether any such object in the detection range is being incorrectly detected as a face.

• Face Detection can be less effective on darker complexions and in darker environments.

• Face Detection can be enhanced by making sure your face is clearly visible and evenly lit. If the room is dark, Face Detection can be enhanced by making sure the room is brightly lit. If the lighting environment creates a sh adow on your face, Face Detection can be enhanced by adjusting the lighting to prevent shadows.

Personal Identification Function

• The Personal Identification Function is part of the Face Detection Function. The factors affecting the Face Detection Function set out above also apply to the Personal Identification Function.

• Personal Identification may in addition be affected by: – A different shadow pattern from that when your face was

registered. Personal Identification accuracy can be enhanced by registering additional facial images under different conditions.

– A different lighting environment from when your face was

registered, such as during the day and at night. Personal Identification accuracy can be enhanced by registering your face under various lighting environments.

– Whether or not you are wearing glasses. If you wear

glasses, we recommend that you register your face both with and without glasses.

– A different facial expression. Personal Identification accuracy

can be enhanced by registering different facial expressions.

• Personal Identification may be affected when faces have similar characteristics (e.g. brothers, sisters, twins).

• Personal Identification is less effective on the faces of young children.

Face Registration Function

• Up to four people can be registered under the Personal Identification Function. The same person cannot be registered twice.

• A maximum of 10 different facial images per person can be registered. Personal identification accuracy can be enhanced by registering different facial images as set out above.

• It is advisable to register your face in your usual viewing position and with your natural facial expression. Registering your face too near to or too far from the screen may hinder identification performance.

The remote control

Simple at-a-glance reference of your remote control.

1 For On/Standby mode 2 To select external input sources 3 To select TV Mode 4 To access Quick Menu 5 To access the “TOSHIBA PLACES” Top Page

When network is not connected, an error message will be displayed.

6 To access the analogue or digital Channel List 7 To alter the TV volume 8 Switch the Audio Description On/Off 9 To mute the TV sound 10 To change programme positions

To change TEXT pages

11 On-screen Menus 12 To display the digital on-screen Programme Guide 13 When using menus, the arrows move the cursor on the

screen up, down, left or right

14 Press OK to confirm your selection 15 To return to previous Menu 16 To exit menus

INSTALLING YOUR TV

17 Colour buttons: Text and interactive service control

buttons

18 Number buttons 19 To display on-screen information

To access the index page in Text mode

20 To return to previous programme position

21 When in TV mode:

D Analogue time

display

When in Text mode:

A To reveal concealed

text

B To hold a page C To enlarge text

display size

D To select a page

while viewing a

When using Programme Guide:

Z –24 hours z +24 hours CC –1 page cc +1 page

normal picture

During Playback:

To PLAY

v To STOP W/w To PAUSE/STEP

To start Time Shift Recording

Z To SKIP-BACK CC To REWIND cc To FAST FORWARD z To SKIP-FORWARD

22 To record TV programmes 23 To call up text services 24 To switch between 2D and 3D mode 25 Picture still 26 To access Media Player Menu 27 Selectable Picture preferences 28 Widescreen viewing

s Stereo/bilingual transmissions

29 30 To access More Information Menu 31 Digital Subtitles or Analogue TEXT Subtitle pages if

available

Inserting batteries and effective range

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the proper way. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix

batteries immediately to prevent acid from leaking into the battery compartment. Dispose of them in accordance with instructions on page 103 of this manual.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced, the batteries may need replacing.

battery types. Remove dead

English

CONNECTING YOUR TV

Cableclamps(forStandtype)

Cableclamps (forWallMounttype)

RGB/PC INPUT

EXT 1

HEADPHONE jack

LAN port

HDMI 1/2/3/4 INPUTS

COMPONENT VIDEO INPUT

(EXT 2)

* When using the COMPONENT VIDEO INPUT (EXT 2), also connect

the AV Adaptor cable ② (RED and WHITE plugs) as Audio cables to the VIDEO/AUDIO INPUT (EXT 3). EXT 3 Audio is shared.

VIDEO/AUDIO INPUT (EXT 3)

DIGITAL AUDIO OUTPUT (OPTICAL)

Satellite dish

Media Recorder

Aerial Cable

“F-type”

Connecting external equipment

English

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

Aerial cables: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect the aerial to the socket on the rear of the television. If you use a decoder and/or a media recorder, it is essential that the aerial cable is connected through the decoder and/o r through the media recorder to the television.

Satellite cable: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect the LNB from the satellite dish to the SATELLITE ANTENNA socket on the TV. You can receive TV, radio, interactive TV, and HD TV with clear reception.

SCART leads: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect the media recorder IN/OUT socket to the television. Connect the decoder TV socket to the television.

Before running Auto Tuning, put your decoder and media recorder to Standby.

The Digital Audio Output socket enables the connection of a suitable surround sound system.

NOTE: This output is always active.

HDMI® (High-Definition Multimedia Interface) is for use with a DVD decoder or electrical equipment with digital audio and video output. For acceptable video or PC signal formats through the HDMI terminals, see page 105.

NOTE: Although this television is able to connect to HDMI equipment, it is possible that some equipment may not operate correctly.

LAN port is used to connect the TV to your home network. This TV can play digital content stored on a DLNA CERTIFIED™ product with server function.

A wide variety of external equipment can be connected to the back of the television; therefore, the relevant owner’s manuals for all additional equipment must be referred to for exact instructions.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press EXT 3, HDMI 1, HDMI 2, HDMI 3, HDMI 4, PC or ATV.

When the external input mode is s elected while viewing DTV mode, the SCART socket does not output video/audio signals.

o to select between DTV, EXT 1, EXT 2,

CONNECTING YOUR TV

the back of your television

HDMI device

HDMI cable

English

Connecting an HDMI® or DVI device to the HDMI input

The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device or uncompressed digital video from a DVI (Digital Visual Interface) source device.

This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D–compliant consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output). For acceptable video signal formats, see page 105.

NOTE:

• Some early HDMI equipment may not work properly with your latest HDMI TV, due to the adoption of a new standard. Please unplug your HDMI cable first and then try setting the INSTAPORT™ and Enable Content Type options to “Off”. Your early HDMI source should operate properly with your television. See page 90.

• Supported Audio format: Linear PCM, Dolby Digital (AC-3), sampling rate 32/44.1/48kHz.

To connect an HDMI device

Connect an HDMI cable (type A connector) to the HDMI terminal.

For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo ( ).

• If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this model.

• HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration).

• See “HDMI 3 Audio” section on page 90.

To connect a DVI device

Connect an HDMI-to-DVI adaptor cable (HDMI type A connector) to the HDMI 3 terminal and audio cables to the PC/ HDMI 3 (AUDIO) socket (see illustration).

• The recommended HDMI-to-DVI adaptor cable length is

6.6 ft (2m).

• An HDMI-to-DVI adaptor cable transfers video only. Separate analogue audio cables are required.

• See “HDMI 3 Audio” section on page 90.

the back of your television

HDMI-to- DVI adaptor Cable

Audio cable for HDMI to television connection (not supplied)

DVI device

NOTE:

To ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these procedures:

• When turning on your electronic components, turn on the television first, and then the HDMI or DVI device.

• When turning off your electronic components, turn off the HDMI or DVI device first, and then the television.

To view the HDMI device video, press the HDMI 1, HDMI 2, HDMI 3 or HDMI 4 mode.

o button to select

HDMI’s ARC (Audio Return Channel)

feature

This feature enables the audio signal of the TV to be sent to the AV amplifier via the HDMI cable. It will not be necessary to connect a cable from the audio output of the TV to the audio input of the AV amplifier to reproduce the audio received from the tuner of the TV through the AV amplifier.

the back of your television

AV amplier that supports ARC

HDMI cable

CONNECTING YOUR TV

the back of your television

AV amplier Playback device

Playback device

REGZA-LINK connection

English

You can control the basic functions of connected audio/video devices using the television’s remote control if you connect a REGZA-LINK compatible AV amplifier or playback device. For an explanation of setup and operations, see pages 93–95.

For the setup shown above, you will need three HDMI cables.

NOTE:

• If several devices are connected, the REGZA-LINK feature may not operate properly.

• For proper operation, it is recommended that you use HDMI cables with the HDMI Logo ( ).

• This function is available when one PC and one AV amplifier are connected separately. However, it may not operate properly if the PC is connected via the AV amplifier.

Before controlling the device(s):

• After completing the above connections, set the REGZALINK Setup menu as you desire (see page 93).

• The connected devices must also be set. For details, see the operation manual for each device.

• The REGZA-LINK feature uses CEC technology as regulated by the HDMI standard.

• This feature is limited to models incorporating Toshiba’s REGZA-LINK. However, Toshiba is not liable for those operations. Refer to individual instruction manuals for compatibility information.

Connecting a computer

Computer

Audio cable for PC to television connection (not supplied)

the back of your television

Conversion adaptor if required (not supplied)

Mini D-sub 15 pin connector

RGB PC cable

(not supplied)

With either an RGB/PC or an HDMI connection, you can watch your computer’s display on the television and hear the sound from the television’s speakers.

CONNECTING YOUR TV

• When PC input mode is selected, some of the television’s features will be unavailable e.g. Colour System in the Setup/System Setup menu.

• Some PC models may output unique signals that the television may be unable to detect (see page 104).

• If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

English

To connect a PC to the RGB/PC terminal

When connecting a PC to the RGB/PC terminal on the television, use an analogue RGB (15-pin) computer cable and a PC audio cable for the PC/HDMI 3 (AUDIO) socket. Select PC from the PC/HDMI 3 Audio options in the AV Connection menu located in the Preferences menu.

To use a PC, set the monitor output resolution on the PC before connecting it to the television. For acceptable PC signal formats, see page 104.

To display the optimum picture, use the PC setting feature (see page 87).

NOTE:

• The PC audio input terminal on the television is shared with the HDMI 3 analogue audio input terminal (see page 90).

• Some PC models cannot be connected to this television.

• An adaptor is not needed for computers with a compatible mini D-sub15-pin terminal.

• Depending on the DVD’s title and the specifications of the PC on which you are playing the DVD-Video, some scenes may be skipped or you may not be able to pause during multi-angle scenes.

• A ban d m ay a ppe ar at t he e dg es o f t he s cre en o r p art s of th e picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.

To connect a PC to the HDMI terminal

When connecting a PC to the HDMI terminal on th e television, use an HDMI-to-DVI adaptor cable and an analogue audio cable.

If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). A separate analogue cable is not necessary.

the back of your television

Computer

HDMI-to- DVI adaptor Cable

Audio cable for PC to television connection (not supplied)

For acceptable PC and video signal formats, see page 105.

NOTE:

• The edges of the images may be hidden.

• If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

CONNECTING YOUR TV

Modem (if available)

Server PC

Router with Hub

the back of your television

Cable or Phone jack

[1] [2]

[2]

[3][2]

Access point (AP)

Wireless LAN router

Modem

TV (Built-In WLAN system)

Computer

Connecting a home network

English

The LAN port allows your Toshiba TV to connect to your home network. You can use this revolutionary home entertainment networking system to access photo, video and audio files that are stored on a DL NA CER TIF IED ™ s erv er a nd pla y/d isp la y th em o n your TV.

NOTE:

• If you connect to a shared network outside your home, it is advisable to use a router. Always use DLNA CERTIFIED™ products in private network environments.

• If you use a hub or switch to connect the TV to your home network, you may not be able to use the automatic setup and will have to manually set up the network address. See page 52.

• If you use a router with built-in DHCP functionality, use the automatic setup. Manual setup may not work.

• If you connect the TV and PC directly, use a crossover LAN cable.

To connect the TV to a home network -

Wired

To connect the TV to a home network

with an internet connection - Wireless

Please refer to “Wireless Setup” section on page 49.

[1] Coaxial or telephone cable (depending on your modem typ e)

[2] Standard LAN cable

[3] Do NOT connect a phone jack directly to the TV’s LAN port.

Setting up the USB HDD

An unregistered USB HDD has been detected. Register the USB HDD?

Yes

Device Name

Registered

Connected USB HDD 1

USB HDD 2

USB HDD 3

Device List

To connect an USB HDD (not supplied)

USB2

USB cable (not supplied)

NOTE: For available USB HDD information, see "Product Information" on the website.

To register an USB HDD

When you connect a new USB HDD to the USB 2 port on the TV, the following screen will appear.

a Press C or c to select Yes and press OK.

The formatting confirmation window will appear.

b Press C or c to select Yes and press OK.

Registration will start.

c If you want to name the USB HDD, press C or c to

select Yes and press OK.

See page 53 to input characters.

The maximum number of characters is 10.

If you prefer the default name ”USB HDD X,” select No and press OK.

d The Device List will appear.

While in the list mode, the following key operations are available:

OK button................. To register/remove

RED button ..............To disconnect

GREEN button ........ To change Device Name

YELLOW button .....To test

BLUE button............ To format

NOTE:

• To disconnect a USB HDD from the TV, follow the procedures for “To disconnect a USB HDD” section (page 62).

• When using a USB HDD, if necessary, perform the settings and operations shown in “Using the USB HDD Function” section (see page 55).

• Connect the USB HDD to the USB 2 port. Recording and playback cannot be performed if connected to the USB 1 port.

• Up to 8 USB HDDs can be registered to this TV.

• Recorded programmes saved on the USB HDD can only be viewed on this TV. They cannot be viewed when connected to another TV (including the same model of TV), a PC, or other device.

• If an HDD is re-registered, it will not be formatted.

• When the USB HDD is formatted, all the data stored on the HDD will be deleted.

CONNECTING YOUR TV

English

USB HDD

You can now use registered USB HDDs.

CONNECTING YOUR TV

Ambient Light Sensor

Camera Sensor

Control panel (touch sensor)

3D IR

• RED (in 3D mode)

ORANGE LED – Programme timer set (digital only) RED LED – Programme timer Active (digital only)

RED LED – Standby BLUE LED – Power on

COMMON INTERFACE The Common Interface is for a Conditional Access Module (CAM). Contact a service provider. The software updating of CI Plus CAM may be automatically executed. At this time, your Recording/Reminder programming will be canceled.

USB 1 port Media Player

USB 2 port Media Player/ USB HDD connection port

Controls and input connections

English

A wide variety of external equipment can be connected to the input sockets on the side of the television.

While all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.

Switching on

If the RED LED is not lit, check that the mains plug is connected to the power supply and press control; it may take a few moments. The BLUE LED will be lit.

To put the television into Standby, press control. To view the television, press take a few seconds to appear.

For energy saving:

We recommend that you use the television with the factory settings. The factory settings are for energy saving. Unplugging the mains plug will cut energy use to zero for all televisions. This is recommended when the television is not being used for a long time, e.g. when on holiday. Reducing the brightness of the screen will reduce energy use. Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills.

NOTE: Putting the television into standby mode will reduce energy consumption, but will still draw some power.

Press MENU on the remote control to display the menu.

The five initial topics icons will appear. As each symbol is selected by pressing Press sub menu to see any options.

Using the menu system

C or c on the remote control.

Bb C c to enter a sub menu and then enter a further

1 again. The picture may

1 on the remote

NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes; however, where some items are not available in a mode, they will appear grayed out.

To use the option, press move up and down and press setting. Follow the on-screen instructions. The functions of each menu are described in detail throughout the manual.

B and b on the remote control to

C or c to select your desired

Using the TV controls and connections

To alter the volume gently touch – To alter the programme position touch Touch MENU and picture options. Touch MENU to finish. To select an external input, touch

input source is selected. The Media Player feature provides access to photo, movie and

music files stored on a USB storage device that is connected via the USB 1 or USB 2 port or on a network device. The USB 2 port has to be used with a USB HDD (not supplied) in order to record/playback TV programmes.

NOTE: The USB socket has limited functionality and Toshiba can take no responsibility for damage to other connected equipment.

Please always refer to the owner’s manual of the equipment to be connected for full details.

NOTE: Interactive video games that involve shooting a “gun” at an on-screen target may not work with this TV.

b p B, – 2 + to control the sound and

2 +.

b p B.

o until the appropriate

CONNECTING YOUR TV

TV Programmes

Media Player

Connected TV

Setup

Function

Programme

Timers

Genre Search

Library

Guide

MENU structure

To ope n th e mai n me nu ( ill ust rati on b elo w) , pre ss MENU on the remote control or on the TV control panel.

1st Layer 2nd Layer 3rd Layer

Press MENU. Press

TV Programmes

C c / B. Press C c.Press OK. Press BbC c.

English

Media Player

Connected TV

Function

Setup

Guide Genre Search Programme Timers Library

Photo Movie Music Media Player Setup

Toshiba Places YouTube

Photo Frame On Timer Sleep Timer

Picture Sound Preferences System Setup

Jump to Programme Guide (EPG) Jump to Genre Search Jump to Programme Timers Jump to Library

Device Select or Photo Viewer Device Select or Movie Viewer Device Select or Music Viewer Media Player Setup Menu

Jump to Toshiba Places Jump to YouTube

Jump to Photo Frame On Timer Menu Sleep Timer Menu

Picture Menu Sound Menu Preferences Menu System Setup Menu

SETTING UP YOUR TV

Quick Setup

Country

Germany

Primary Subtitle Language

German

English

Secondary Subtitle Language

Primary Audio Language

Secondary Audio Language

AutoView

AutoView mode automatically adjusts picture settings to suit ambient light conditions. Do you wish to enable AutoView mode?

Ant/Cable/Satellite

Satellite

Cable

Antenna

Auto Tuning

Progress Found

ATV Tune Waiting...

Channel: C7

DTV Tune 3% 2

Startup Application

English

Before switching on the television, set your decoder and media recorder, if applicable, to Standby. To set up the television, use the buttons on the remote control as detailed on page 11.

Quick Setup

a Press the 1 button. The Menu Language screen will

appear. This screen will appear the first time that the television is switched on and each time Reset TV is selected.

b Press B b C c to select the menu language and

press OK.

c Highlight Country and press C or c to select. The

television is now set to tune the stations for your country.

NOTE:

• The following display menus will differ slightly according to the country you selected.

• If there is not a country that you want to select in the list, select Others.

d Press OK, and the Location screen will appear.

Location

To use the TV for displaying in a store showroom, please select [Store]. [Home] mode is recommended for normal use.

Home

e Press C or c to select Home or Store. For normal

home use, select Home.

f Press OK, and the TV Mounting screen will appear,

press

C or c to select Stand or Wall.

TV Mounting If you are mounting the TV on a wall please select [Wall]. [Stand] is recommended for other uses. This setting may be modified later under Sound Navi in the Sound menu.

Stand

g Press OK, and the AutoView screen will appear. Press

C or c to select Yes or No.

h Press OK. If the Ant/Cable/Satellite screen appears,

press

B or b to select Antenna, Cable or Satellite

and press OK to check ( ).

If DVB-C is not supported in your area, Cable will not be displayed.

• When you select Antenna or Cable, follow steps 9 to 12.

• When you select Satellite, skip to step 13.

• When you select Antenna (or Cable) and Satellite, the Satellite Settings startup screen will appear automatically after completing the Antenna (or Cable) scan and pressing OK.

i Select Next and press OK. The Auto Tuning start up

screen will appear with the option to select between DTV and ATV, DTV or ATV if available. Use select the appropriate mode.

j Press B or b to highlight Start Scan and press OK.

The television will start to search for available DTV and/or ATV channels. The progress bar will indicate the scan status.

You must allow the television to complete the search.

When the search is complete, the television will automatically select position one.

The Auto Tuning screen will display the total number of services found.

NOTE: If there are multiple channels with the same channel number, a confirmation window will appear.

C or c to select the one you prefer.

Press

C or c to

k Press C or c to view the DTV (digital channel) or ATV

SatelliteNo. Dish LNB

ASTRA 19.2˚E

Satellite Settings

Transponder : 1/83 (10743 MHz) Dish Type : Fixed Lower LOF (MHz) : 9600 Upper LOF (MHz) : 10600

Switch Type

None

LNB Power

Done

Positioning

Signal Level 30%

Go to Stored Position

Store Position

Transponder

1/83 (10743 MHz H)

Positioning

Go to 0

Satellite : ASTRA 19.2°E

Step Size

PLEASE NOTE

Auto Tuning - Satellite

Start Scan

Satellite

Free to Air

ASTRA(19.2°E)

Scan Option

(analogue channel) lists.

l Press B or b to move through the list to select a

channel and press OK to view.

In ATV mode, some areas may receive duplicate stations. There may not be a clear picture or the signal may be weak, so the station order can be changed using ATV Manual Tuning.

REMEMBER: Press TV at any time to select between ATV and DTV (DTV Ant TV/Radio/Text, DTV Cable TV/

Radio/Text, DTV Sat TV/Radio/Text if available) modes.

NOTE: The time will be set automatically by transmission but can be advanced or decreased by using Local Time Setting in the DTV Settings screen.

m Select Next and press OK. The Satellite Settings

screen will appear. From this window, you can add the satellites that you wish to tune and configure detailed settings for each one individually. See “Satellite Settings” on page 22.

SETTING UP YOUR TV

B or b to highlight Store Position and press

Press OK to store the dish position. Repeat steps 13 and 14 for the next satellite as necessary.

If your satellite dish is not movable, the Positioning screen will not appear.

Adjust the dish position manually for the maximum Signal Level strength.

Highlight Done and press OK.

o If the reception testing completes successfully, the

Auto Tuning startup screen will display.

You can select Scan Option from Free to Air and All.

p Press B or b to highlight Start Scan and press OK.

The television will start to search for available DVB-S channels. The progress bar will indicate the scan status.

When the search is complete, the Auto Tuning results screen will display the total number of services found.

q Press B or b to move through the list to select a

channel and press OK to view.

English

Highlight Done and press OK.

n If your satellite dish is movable, the following

Positioning screen will appear.

B or b to highlight Positioning and press C or

Press

c to find the dish position with the strongest signal

level.

The Quick Setup menu can also be accessed at any time from the Setup/System Setup menu.

Ant/Cable/Satellite (if available)

From this menu, you can set the RF input configuration.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight System Setup icon.

c Press OK to display System Setup menu.

d Press B or b to select Ant/Cable/Satellite and press

C or c to select Antenna, Cable or Satellite.

NOTE: When you attempt to change the Ant/Cable/ Satellite setting, a warning message will appear

followed by PIN entry (if PIN has been set) and a prompt for Auto Tuning.

SETTING UP YOUR TV

Auto Tuning

DTV and ATVTuning Mode

DTV

Quick ScanScan Type

AutoStart Frequency

AutoEnd Frequency

AutoModulation

AutoSymbol Rate

AutoNetwork ID

Start Scan

e When Ant/Cable/Satellite is set to Cable, the

English

following setting options will be provided in the Auto Tuning screen.

Press

B or b to select an item and press C or c to

select your desired option.

With the exception of DTV Scan Type and DTV Modulation items, all of the following items will have 2 operating modes. The first is Auto where the values for each item are preset by the system. The second is an Input mode where you will be able to enter a single value in place of the pre-set value. If no channel is currently tuned and the Input state is chosen, a system default value will be shown. However, if a channel is currently tuned when the item is accessed, the value of the current channel will be displayed.

DTV Scan Type:

This item determines whether a Quick Scan or a Full Scan will be executed. The Quick Scan is a simplified version of the Full Scan that is designed to complete in less time.

DTV Start Frequency:

This sets the frequency from which the scan will begin.

DTV End Frequency:

This sets the frequency at which the scan will end.

DTV Modulation:

You can choose from five QAM modulation settings.

DTV Symbol Rate:

This is the baud rate (KS/s) of the scan.

DTV Network ID:

This is the Network ID to be utilized for the scan. This item is grayed out when DTV Scan Type is set to “Full Scan”.

Satellite Settings

From the System Setup menu, you can add the satellites that you

wish to tune and configure detailed settings for each one

individually.

To add a satellite:

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight System Setup icon.

c Press OK to display System Setup menu.

d Press B or b to select Satellite Settings and press

OK.

Satellite Settings

Switch Type

LNB Power

Transponder : 1/83 (10743 MHz) Dish Type : Fixed Lower LOF (MHz) : 9600 Upper LOF (MHz) : 10600

SatelliteNo. Dish LNB

ASTRA 19.2˚E

Done

None

e Press b to highlight a new line to add an another

satellite and press OK.

f Press b until the required satellite is displayed and

press OK.

To delete a satellite:

a In the Satellite Settings menu, press B or b to select

the satellite you want to delete.

b Press the RED button. A confirmation window will

appear.

c Press C or c to select Yes and press OK.

NOTE: It is not possible to delete position No.1.

To edit the satellite settings:

ASTRA 19.2˚E

111

Transponder Settings

1 10743 H

Frequency Polarisation Symbol Rate S/S2

7 10861

8 10876

2 10773

3 10788

4 10817

5 10832

6 10847

22000

Transponder Settings

76 12640 V

Frequency Polarisation Symbol Rate S/S2

82 12728

77 12662

78 12669

79 12692

80 12699

81 12721

22000

83 0 H0S

83 12731 H 22000 S2

a In the Satellite Settings menu, press B to highlight

Switch Type.

SETTING UP YOUR TV

English

To delete a transponder:

a In the Transponder Settings menu, press B or b to

highlight the line you want to delete.

b Press C or c to select None, ToneBurst, DiSEqC

2way or DiSEqC 4way as your satellite switch type.

c Press b to highlight LNB Power and press C or c to

select On or Off.

To add a transponder:

a In the Satellite Settings menu, press B or b to

highlight the line you want to edit and press OK.

b Press the GREEN button. The Transponder Settings

screen will appear.

c Press B to highlight a new line.

b Press the RED button.

To edit the Transponder Settings:

a In the Transponder Settings menu, press B or b to

highlight the line you want to edit and press OK.

b Press C or c to select Frequency, Polarisation,

Symbol Rate or S/S2, and set the item using the

number buttons if necessary.

c Press OK to save your settings.

d Repeat steps 1 through 3 for other lines.

e Press the BLUE button to finish editing and return to

Satellite Settings.

Press the GREEN but ton to c ancel any edi ts tha t were made.

Press the YELLOW button to reset all transponder settings to their initial default settings.

To select the Dish Type:

a In the Satellite Settings menu, press B or b to select

the required satellite line and press OK.

b Press C or c to highlight Dish and press the GREEN

button.

Dish Settings

Dish : 1

Dish Type

Fixed

d Press OK.

e Edit each parameter as required and press OK.

c Press C or c to select Dish Type. You can select

Movable or Fixed as the Dish Type.

SETTING UP YOUR TV

LNB Settings

Lower LOF

9750

LNB : 1

Upper LOF

10600

System Setup

Menu Language

English

Country

Ant/Cable/Satellite

Auto Tuning

ATV Manual Tuning

DTV Settings

DTV Manual Tuning

Satellite Settings

Germany

Auto Tuning

Previous settings will be lost! Press EXIT for no change.

AllSatellite

Free to AirSearch Option

Start Scan

To select the LNB Settings:

English

a In the Satellite Settings menu, press B or b to select

the required satellite line and press OK.

b Press C or c to highlight LNB and press the GREEN

button.

c Press B or b to select Lower LOF or Upper LOF and

input the appropriate frequencies.

Auto Tuning

NOTE: As new services are broadcast, it will be necessary to re-tune the television in order to view them.

Auto Tuning will completely re-tune the television and can be used to update the channel list. It is recommended that Auto

Tuning is run periodically to ensure that all new services are

added. All current channels and settings, i.e. locked channels,

will be lost.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight System Setup icon.

c Press OK to display System Setup menu.

e For DTV/ATV Tuning:

A screen will appear warning that previous programmes and settings will be deleted.

Auto Tuning

Previous settings will be lost! Press EXIT for no change.

DTV and ATVTuning Mode

Start Scan

Press

C or c to select DTV and ATV, DTV or ATV, if

available, then highlight Start Scan and press OK to continue with the Auto Tuning.

NOTE: If you have selected “Others” for the Country field in the System Setup menu, and selected a tuning mode other than “DTV” , choose the optimum ATV broadcasting system (B/G, I, D/K or L).

The television will start to search for all available DTV and/or ATV services.

You must allow the television to complete the search.

When the search is complete, the Auto Tuning screen will display the services found.

For Satellite Tuning:

A screen will appear warning that previous programmes and settings will be deleted.

d Press B or b to select Auto Tuning and press OK.

Press B or b to highlight Satellite and press C or c to select the desired satellite (No.1 Sat ~ No.4 Sat or All).

You can select Free to Air or All as the Search Option. Highlight Start Scan and press OK to continue with the Auto Tuning.

When the search is complete, the Auto Tuning screen will display the services found.

f Press B or b to move through the list to select a

channel and press OK to view.

SETTING UP YOUR TV

ATV Manual Tuning

System

1 A C 2 0 V C R

123 4 65 7 8 9

Pos. Channel Station

ATV Manual Tuning

S10

S40

C22

C25

C28

C30

ATV Manual Tuning

System

1 A C 2 0

ATV Manual Tuning

1 C 2 0 IA

English

ATV Manual Tuning

Tuning

The television can be tuned-in manually using ATV Manual

Tuning. For example, you might use the feature if the television

cannot be connected to a media recorder/decoder with a SCART

lead or when you want to tune-in a station on another System.

C and c to move across the screen and select any of the

Use ATV Manual Tuning options. Then use settings.

1 Position

The number to be pressed on the remote control to tune the channel.

2 System

Specific to certain areas.

3 Colour System

Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.

4 Skip

Set Skip to On (

8) or Off (() for the selected channel.

See page 26.

5 Signal Class

The channel classification.

6 Channel

The channel number on which a station is being broadcast.

7 Search

Search up and down for a signal.

8 Manual Fine Tuning

Only used if interference/weak signal is experienced. See page 99.

9 Station

Station identification. Use the enter up to seven characters.

To allocate a position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder, press PLAY and manually tune.

B or b to adjust the

B b and C c buttons to

a In the System Setup menu, press b to select ATV

Manual Tuning and press OK.

System Setup

Menu Language

Country

Ant/Cable/Satellite

Satellite Settings

Auto Tuning

ATV Manual Tuning

DTV Manual Tuning

DTV Settings

English

Germany

b Use B or b to select the desired position. We suggest

Pos. 0 for a media recorder.

Different Channel numbers may be displayed.

c Press OK to select. If the channel chosen for the media

recorder is set to skip, Skip should be removed before storing.

d Press c to select System and press B or b to change

if required.

e Then press c to select Search.

f Press B or b to begin the search. The search symbol

will flash.

SETTING UP YOUR TV

PLEASE NOTE

ATV Manual Tuning

Station

1 A C 2 0 V C R I

Pos. Channel Station

ATV Manual Tuning

S10

S40 ABC1

ABC1C22

C25

C28

C30

ATV Manual Tuning

Skip: On

1 A C 2 0 I

g Each signal will show on the television. If it is not your

English

media recorder, press search.

B or b again to restart the

h When your media rec order si gnal is fo und, pres s c to

move along to Station. Use the required characters, e.g. VCR.

B, b, C and c to put in

i Press OK to save.

j Repeat for each position you want to tune, or press

BACK to return to the list of channels and select the next number to tune.

k Press EXIT when you have finished.

This television has direct channel entry if the channel numbers are known. Select the ATV Manual Tuning screen in Step 3. Enter the Position number, the System, then C for standard (terrestrial) channels or S for cable channels and the Channel number. Press OK to save.

Skip

To prevent certain channels from being viewed, positions can be

skipped.

a Select ATV Manual Tuning from the System Setup

menu.

b Use B or b to highlight the position to be skipped

and press OK to select.

d Use B or b to turn Skip on.

Press OK.

8 on the screen indicates a skipped position.

e Press BACK and repeat from Step 2 or press EXIT.

Each position has to be individually selected. To turn Skip off, repeat the procedure for each position.

Skipped positions cannot be selected by P or by the controls on the television but can still be accessed by the number buttons on the remote control.

U and Pu

Sorting positions

Channels may be moved and saved to the position of your

choice.

a Select ATV Manual Tuning from the System Setup

menu.

b With the list of channels showing, use B or b to

highlight the channel you want to move and press

ATV Manual Tuning

Pos. Channel Station

S10

C40

C22

C25

C28

C30

ABC1

c Use B or b to move through the list to your preferred

position. As you do so, the other channels will move to make room.

c Press c to select Skip.

d Press C to save your move.

Repeat as necessary and press EXIT.

SETTING UP YOUR TV

DTV Manual Tuning

WEAK

Signal Strength Quality

Channel

GOOD

Start Scan

STRONGAVERAGE

Pos.New TypeName

ABC ONE

0 New Channels - Total 6

ABC TWO

ABC THREE

ABC NEWS 24

DTV Manual Tuning

ABCi

DTV Manual Tuning - Satellite

WEAK

Signal Strength Quality

Satellite

POOR

Start Scan

STRONGAVERAGE

ASTRA 28.2°E

Transponder

1/83

Frequency

10714 MHz

Symbol Rate

22000 KS/s

Polarisation

Search Option

Free to Air

English

DTV Manual Tuning

NOTE: The content of this menu varies depending on the DTV

input (Antenna, Cable, or Satellite) that is currently selected.

Manual Tuning

This feature is available for service engineers or can be used for

direct channel entry if the multiplex channel is known.

a Select DTV Manual Tuning from the System Setup

menu and press OK.

b Enter the multiplex number using the number

buttons or use down.

c Highlight Start Scan and press OK. The television will

automatically search for that multiplex.

C or c to adjust the number up or

Manual Tuning for DVB-C

When Ant/Cable/Satellite is set to Cable, DTV Manual Tuning items are as follows:

Frequency – input a specific frequency to be scanned

Modulation – choose from one of five QAM modulation

options

Symbol Rate – in put a sp ecifi c baud r ate (K S/s) to be use d for the manual scan

Highlight Start Scan and press OK.

Manual Tuning for DVB-S

When Ant/Cable/Satellite is set to Satellite, DTV Manual Tuning items are as follows:

Press

B or b to highlight an item (Satellite, Transponder,

Frequency, Symbol Rate, Polarisation or Search Option)

C or c to select the required option.

and press

Highlight Start Scan and press OK.

When the multiplex is found, any channels that are not currently in the channel list will be added and the channel information at the top of the screen will be updated.

d Repeat as necessary. Press EXIT to finish.

SETTING UP YOUR TV

DTV Settings

Channels

Parental PIN Setup

Subtitle and Audio

Parental Control

Local Time Setting

DVB Character Set

Dynamic Scan

Standby Channel Update

Standard

Off

Channels Line No. 1/10

Sort: A-Z Sort

1 ABC ONE

2 ABC TWO

Pos. Name

7 ABC THREE

30 CABC Channel

40 ABC NEWS 24

51 ABCi

822 AA

823 AC

ABC ONE

Pos.

----

Name

Sorting Type Number

Sort

DTV Settings

English

Channels (Antenna/Cable)

The channel order may be changed to suit your personal

preference.

a Select DTV Settings from the System Setup menu

and press OK.

b Select Channels and press OK.

c For y our c onv eni enc e, yo u ca n jum p to spe cifi c pl ace s

in the list by one of two methods.

Move — Press the GREEN button to activate the

Move feature. Press the

channel you wish to move and press OK to check. If you wish to move multiple channels at once, select another channel and check in the same way. Repeat as necessary. Once all desired channels have been checked, press the

B or b buttons to place the focus at the position

to which you wish to move the channels. The channels will be inserted above the highlighted channel. Press the GREEN button to execute the move.

Channels Line No. 1/10

Pos. Name

1 ABC ONE

2 ABC TWO

7 ABC THREE

30 CABC Channel

40 ABC NEWS 24

51 ABCi

822 AA

823 AC

B or b buttons to select the

Sort: A-Z Sort

Sort — Press the YELLOW button. A confirmation

window will appear. Press press OK.

Sort Your existing channel order will be lost. Do you wish to

continue?

The Sorting Type selection window will appear.

C or c to select Yes and

Yes

Line Number Jump —Use the number buttons

(0-9) to input the line number you want to select and press OK.

Name Jump —Press CC or cc to jump to the

next station name with a different initial letter.

It is also possible to change the Position number of a particular channel.

Renumber — Press the RED button to renumber

the highlighted channel. Edit the channel number using the number buttons and press OK. If the position number you input already exists, a confirmation window will appear.

C or c to set the sorting type.

Press

A-Z Sort Station name order (A to Z)

Number Position No. order (numerical sequence)

Press

b to highlight Sort and press OK.

Channels (Satellite)

Channels Line No. 3/1200

Satellite TV

1 DDD 19.2°E

Pos. Station Satellite

822 AA

823 AC

2AB

801 BBC

802 BB

803 BA

25.6°E

19.2°E

22.5°E

Group By Satellite

Sorting Type Number

Preset Order Yes

Sort

a Select DTV Settings from the System Setup menu

and press OK.

b Select Channels and press OK.

The satellite channel list will appear.

c For your convenience, you can edit and sort your

channel list.

Line Number Jump — Press the number buttons

(0-9) to input the line number you want to select and then press OK.

Station Letter Jump — Press CC or cc to jump

to the next station name with a different initial letter.

Satellite Jump —Press Z or z to jump to the

next channel on a different Satellite.

Renumber — Same as Antenna/Cable channels.

See page 28.

Move — Same as Antenna/Cable channels. See

page 28.

Sort — Press the YELLOW button. A confirmation

window will appear. Press press OK.

The Sort menu will appear.

C or c to select Yes and

SETTING UP YOUR TV

Group —Press C or

Sorting Type — Press C or

A-Z Sort Station name order (A to Z)

Number Position No. order (numerical sequence)

Preset Order — Press C or

This item is displayed when Country is set to Germany, and only applies to the Astra 19.2°E satellite.

Press

b to highlight Sort and press OK.

c to select All or By Satellite.

c to set the sorting type.

c to set Yes or No.

Standby Channel Update

If the Standby Channel Update is set to On, when the TV is in

standby mode, Digital Tuning is automatically executed and any

new channels are saved.

a Select DTV Settings from the System Setup menu

and press OK.

b Press b to select Standby Channel Update and

press

C or c to select On.

DVB Character Set

This feature allows you to manually select the character set

(Standard = Table 0, West = Table 5 or Latin alphabet 9) to

be used for DVB-C or DVB-T channels.

a Select DTV Settings from the System Setup menu

and press OK.

b Press b to select DVB Character Set and press C or

c to select Standard, West or Latin alphabet 9.

Dynamic Scan

If the broadcast information has changed in your DVB-T

receiving area, the TV screen will display the message

“Broadcast information has changed. Would you like to

rescan now?”. Select Yes or No. If you do not wish for the TV to

detect changes and prompt you to rescan, you shou ld set this

feature to “Off”.

a Select DTV Settings from the System Setup menu

and press OK.

English

b Press b to select Dynamic Scan and press C or c to

select On.

SETTING UP YOUR TV

English

You can select either Home or Store mode. Home is

recommended for normal home use. Select Store when using

Location setting

the television for displaying in a shop, etc.

a Select Location from the System Setup menu.

b Press C or c to select Home or Store.

Analogue switch-off

This is a digital television which is integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.

This ‘switch-off’ will happen in a number of phases, which will be advertised in your area well in advance. It is recommended that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption.

CONTROLS AND FEATURES

English

General controls

Quick Menu

Quick Menu helps you access some options quickly, such as Picture Mode, Picture Size, Personal Mode, More Information, Sleep Timer etc.

Press QUICK to display the Quick Menu and use select the option.

Quick Menu

Picture Mode AutoView

Picture Size

3D Settings

Personal Mode

More Information

Channel Options

Sleep Timer

REGZA-LINK Device Control

Speakers

Headphone Level

Wireless Information

Recording Information

NOTE: Quick Menu items are different depending on the current mode.

Super Live

00:00

TV Speakers

Quick menu item example

Mode Quick menu item Description

When viewing a TV programme or pictures from the external input

Single Window or 3D Single Window

When using EPG Genre Colour See page 82.

Media Player (Photo Multi View, List View)

Picture Mode See page 41. Picture Size See page 39. 3D Settings See page 34. Personal Mode See page 91. More Information See page 81. Channel Options See page 84. Sleep Timer See page 80. REGZA-LINK Device

Control Speakers See page 94. Headphone Level See page 38. Wireless Information See page 51. Recording

Information

EPG Update/ Cancel EPG Update

Sort See page 71. Playback Mode See page 72. Interval Time See page 71. Repeat See page 71. Shuffle See page 75. Device Information See page 72. Wireless Information See page 51.

B or b to

See page 95.

See page 63.

See page 82.

Mode Quick menu item Description

Photo Frame (Full Screen)

Picture See page 41. Picture Size See page 39. 3D Settings See page 34. Personal Mode See page 91.

Selecting channels

To select a channel, use the numbered buttons on the remote control.

Channels can also be selected using P

To display on-screen information such as channel, input mode or stereo/mono signal, press . Press again to cancel.

U and Pu.

The Time Display – analogue only

The time display facility allows the current (text service) time to

Press to see the time display from the broadcaster. It will remain on screen for about 5 seconds.

NOTE: This display may not be available in some cases.

be seen on the television screen.

D whilst watching a normal television broadcast

Stereo and Bilingual transmissions

For DTV programmes

For ste reo or d ual m ono bro adc asts , pr ess s and use C or

c to select settings.

Mode Display Pressing c

Stereo Stereo S Left S Right

Dual mono Dual 1

Mono –

Multichannel –

For multi-audio track broadcasts, press change the audio language (see “Audio languages” on page 85).

For ATV programmes

If stereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time positions are changed, disappearing after a few seconds. If the broadcast is not in stereo, the word Mono will appear.

Stereo… Press

Bilingual… Bilingual transmissions are rare. If they are

transmitted, the word Dual will be displayed. Choose the required programme number, and if the word Dual appears, press

s to select Stereo or Mono.

s to select Dual 1, Dual 2 or Mono.

S Dual 2 S Dual

s repeatedly to

CONTROLS AND FEATURES

Power switch and power light

Turns on or off the power of 3D glasses with the switch. – When working, the

power light blinks once every 2 seconds.

– When the power is

turned off, the power light goes out.

Power switch

Power light

OFF

Protective films

Peel these off before beginning use.

Lens (liquid-crystal shutter)

A right and left liquidcrystal shutter opens and closes alternately with the images for the left eye and for the right eye alternately projected on the television screen. In this way, 3D images are reproduced.

USB terminal

When charging the battery, connect to the TV with the battery charge cable.

DC IN

Infrared reception part

Receives the infrared signal for the liquidcrystal shutter control sent from the television.

Peel off

USB

Using 3D functions

English

Before using 3D programming, see and follow “When using the 3D glasses” section on page 8.

Viewing 3D programming requires the following:

• TOSHIBA 3D Glasses FPT-AG02G YL86 and YL87 series : Supplied WL86 series : Not supplied

• Compatible 3D playback device or 3D source

• 3D capable high quality HDMI cable

Using the 3D glasses

Names and functions

To set the 3D glasses:

a When you use for the first

time, peel off the protective films from the lenses.

b Turn the 3D glasses on

with the power switch.

NOTE: If the infrared data communication between the television and 3D glasses is lost for 5 minutes, the 3D glasses turn off automatically to preserve battery life.

To charge the battery:

If the 3D glasses are turned on while the battery power is low, the power light will blink 5 times. (If the battery is dead, the power light will not blink or light.)

a Turn the 3D glasses off with the power switch, and

connect to the TV with the battery charge cable.

NOTE:

• If the 3D glasses are turned on, the battery will not charge.

• When the TV is turned off or in standby mode, the battery will be not charge.

• When charging the battery, the use of a USB cable other than the battery charge cable supplied is not covered by warranty.

b The power light will Light up. c When the light goes out, the charging is completed.

NOTE:

• It takes approximately two hours to charge the battery.

• If the usage time is extremely short even after the battery has been charged fully, the battery may be worn out. Contact your dealer.

To check the battery level:

When the 3D glasses are turned on, the behaviour of power light is different.

• Charged: Lights up for 2 seconds

•Low charge:Blinks 5 times

CAUTION: Danger of explosion if battery is incorrectly disposed of.

Viewing 3D images

Trigger of Switching

Display Mode

Press 3D button

Input Signal

Type Additional

Information

Format Source

Signal

Select 3DSelect

2D to 3D

3D Format Signal

With 3D Auto Detect Information

SBS

Without 3D Auto Detect Information

SBS

2D Format Signal

3D 3D

DD3

Incoming video signals can either be in 2D or 3D format. A 2D signal can be viewed in either 2D or 3D, and 3D can be viewed in either 2D or 3D. If the TV can detect the fact that a signal is 3D, it

can change to 3D mode automatically – see “Setting the auto

start mode” (on page 35). Otherwise you can change the viewing

mode using the 3D button. Finally, the format of the 3D signal

can be either Side by Side (SBS) or Top and Bottom (TB). You may

have to choose the correct format if the TV can not detect it

automatically – see “Switching display mode o r selecting 3D

Moreover, you can change 2D images to 3D images by pressing

NOTE:

• When 3D format signal is not received, display mode is not

switched to 3D.

• If appropriate mode and format are not selected, 3D image

is not correctly displayed.

• There will be restrictions on the Picture Size settings for 3D

Mode and 2D Mode.

• There are individual differences in perception of 3D images.

• When viewing 3D images, wear the 3D Glasses.

• The 2D to 3D conversion function is activated and

controlled by you according to your personal preferences.

• T he 2D to 3 D co nver sio n fu ncti on i s me ant for e njo ymen t of

2D home video, and other 2D content you create, in 3D according to your personal preferences.

• The 2D to 3D conversion function is not intended for use

with pre-recorded 2D copyrighted content owned by a third-party unless the copyright owner has given direct or indirect permission, or unless applicable law permits such use.

format”, below.

the 3D button when viewing in 2D.

CONTROLS AND FEATURES

3D format select:

If a right and left images are same in Native mode, select SBS.

If a top and bottom images are same in Native mode, select TB. 3D formats are the following.

3D format Description

Side by Side (SBS)

Top and Bottom (TB)

Frame Packing (FP) *

Images for the left and right eyes are positioned side-by-side.

Images for the left and right eyes are positioned at the top and bottom of the screen.

Image for the left and right eyes for two frames are positioned at the top and bottom of the screen.

* This format cannot be selected manually.

The 3D button's operation:

The behaviour of 3D when viewing in Native mode is different depending on the input mode.

Depending on the input mode, the screen for selecting 2D or 3D is displayed or the display mode switches between 2D and 3D.

To switch to 3D mode:

•Set Preferences / 3D Setup / 3D Auto Start to 3D.

•Press 3D while viewing 2D mode or Native mode.

English

Switching display mode or selecting 3D

format

There are four modes for watching TV.

Mode Description

3D Displays 3D images.

2D Changes 3D images to 2D.

2D to 3D Changes 2D images to 3D.

Native Displays a received signal format as it is.

* Correct 3D image

3D 3D 3D 3D

CONTROLS AND FEATURES

Trigger of Switching

Display Mode

Quick menu

Input Signal 3D Fomat Select

Type Additional

Info

Format Source

Signal

SBS TB

3D Format Signal

With 3D Auto Detect Information

SBS

Without 3D Auto Detect Information

SBS

2D Format Signal

3D 3D

DD3

Trigger of Switching

Display Mode

Press 3D button

Input Signal

Type Additional

Info

Format Source

Signal

3D Format Signal

With 3D Auto Detect Information

SBS

Without 3D Auto Detect Information

SBS

2D Format Signal

3D 3D

Trigger of Switching

Display Mode

Quick menu

Input Signal 2D Fomat Select

Type

Additional Info

Format

Source Signal

SBS TB Native

3D Format Signal

With 3D Auto Detect Information

SBS

Without 3D Auto Detect Information

SBS

2D Format Signal

3D 3D3D3D 3D

3 3

3D33D

To select 3D format from the Quick menu in 3D mode:

English

a Press QUICK to display the Quick Menu.

b Press B or b to select 3D Settings and press OK.

c Press B or b to select 3D Format Select and press

OK.

d Press C or c to select Side by Side or Top and

Bottom.

3D 3D

* Correct 3D image

To switch to 2D mode:

•Set Preferences / 3D Setup/ 3D Auto Start to 2D.

• Press 3D while viewing 3D mode or Native mode.

* Correct 2D image

3D 3D

To select 2D format from the Quick menu in 2D mode:

a Press QUICK to display the Quick Menu.

b Press B or b to select 3D Settings and press OK.

c Press B or b to select 2D Format Select and press

OK.

d Press C or c to select 2D (SBS) or 2D (TB).

* Correct 2D image

NOTE: Take off the 3D Glasses in 2D mode.

To switch to Native mode:

•Press 3D while viewing 3D mode.

•Press 3D while viewing 2D to 3D mode. NOTE: When 3D format signal with 3D Auto Detect

Information is received, it is not possible t o switch to Native.

•From the Quick Menu in 2D mode.

a In the Quick Menu, press B or b to select 3D

Settings and press OK.

b Press B or b to select 2D Format Select and press

OK.

c Press C or c to select Native.

NOTE: When Frame Packing is input, 2D Format

Select will be grayed out.

To switch to 2D to 3D mode:

Press 3D and select 2D to 3D while viewing 2D or Native mode.

NOTE: Depending on the input mode, the display mode switches between 2D and 3D.

Setting the auto start mode

Preferences

Personal TV Setup

REGZA-LINK Setup

3D Setup

Media Renderer Setup

Network Setup

Recording Setup

Network Device Setup

Photo Frame Setup

Controls what the TV does when it detects a 3D signal.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select 3D Setup and press OK.

d Press B or b to select 3D Auto Start.

e Press C or c to select 3D, 2D, or Off.

Option Description

3D Displays as 3D mode automatically when 3D

2D Displays as 2D mode automatically when 3D

Off Displays a screen that allows you to select 3D

format signal is received.

or 2D when 3D format signal is received.

CONTROLS AND FEATURES

English

To change or delete your PIN code:

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D PIN Setup.

c Press the number buttons to enter your 4-digit PIN

code.

d Select Change PIN or Delete PIN and press OK.

NOTE:

• PIN code cannot be set to “0000”.

• If PIN is deleted, 3D Safety Settings is grayed out, and the settings are reset to the factory default.

Setting 3D Start Message

When this feature is set to On, a message is displayed onscreen

when a 3D signal is received.

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D Safety Settings and press

OK.

c Enter your 4-digit 3D PIN code.

d Press B or b to select 3D Start Message.

e Press C or c to select On or Off.

Setting the 3D PIN code

A 3D PIN code is necessary for using 3D Safety Settings.

To enter a new PIN code:

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D PIN Setup and press OK.

c Press the number buttons to enter a 4-digit number.

Confirm the code.

NOTE: PIN code cannot be set to “0000”.

CONTROLS AND FEATURES

English

When this feature is set to On, you must enter 3D PIN code for

Setting 3D Lock

changing display mode.

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D Safety Settings and press

OK.

c Enter your 4-digit 3D PIN code.

d Press B or b to select 3D Lock.

e Press C or c to select On.

Setting 3D Timer Lock

When the 3D Timer Lock feature is set to On, neither the PIN input

window nor the 3D start message will be shown while the 3D

Enable timer is active, even if a switch to 3D Mode occurs. This

helps to avoid asking for the 3D Lock PIN and displaying 3D start

message every time when switching to 3D.

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D Safety Settings and press

OK.

c Enter your 4-digit 3D PIN code.

d Press B or b to select 3D Timer Lock.

e Press C or c to select On.

Setting Enable 3D Timer

This feature helps to remind you not to watch 3D video for

extended periods of time. Once a set period of time has passed, a

dialogue will be shown asking you if you wish to continue

viewing or not.

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

Displaying 3D Important Info

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D Important Info and press

OK.

Adjusting 2D to 3D Depth

You can adjust the level of 3D.

From the Menu:

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 2D to 3D Depth and press OK.

c Press C or c to select 1, 2, 3, 4, or 5.

From the Quick Menu:

a Press QUICK on the remote to open the Quick Menu.

b Press B or b to select 2D to 3D Depth and press OK.

c Press C or c to select 1, 2, 3, 4, or 5.

Switching left and right images

The left and right eye shutter timing of the glasses can be

swapped. If 3D images look blurred, switch the left and right sides

of the 3D image.

a Press QUICK on the remote to open the Quick Menu.

b Press B or b to select 3D Settings and press OK.

c Press B or b to select Left and Right Image.

d Press C or c to select Swapped.

b Press B or b to select 3D Safety Settings and press

OK.

c Enter your 4-digit 3D PIN code.

d Press B or b to select Enable 3D Timer.

e Press C or c to select 30, 60, 90, or 120 minutes.

f To cancel the timer, select Off.

CONTROLS AND FEATURES

Sound

Dual

Balance

Advanced Sound Settings

Audio Level Offset

Headphone Settings

Audio Description

Dual 1

Dolby Volume Low

Dynamic Range Control Off

Surround Off

Voice Enhancement

Sound Navi

Dynamic Bass Boost Low

Advanced Sound Settings

English

Sound controls

Volume controls and sound mute

Volume

y or Y to adjust the volume.

Press

Sound Mute

Press once to turn the sound off and again to cancel.

Dual

If a programme or film is being broadcast with a soundtrack in

more than one language, the Dual feature allows selection

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Sound icon and press OK.

c Press B or b to select Dual and press C or c to

choose between Dual 1 or Dual 2.

between them.

c Press C or c to select either Stand or Wall depending

on how your TV is installed and press the RED button.

d Press C or c to select the frequency range you want

to adjust from the equalizer window and press

b to adjust the level.

Sound Navi

TV Mounting Stand

+20

-20

Equalizer

100 330 1K 3.3K 10K [Hz]

21012[Level]

B or

e Repeat step 4 for other frequencies.

Surround Settings

Surround, Voice Enhancement, and Dynamic Bass Boost

help to create an enhanced surround sound experience with

deep, rich bass from stereo sound sources. Your TV’s audio will

sound fuller, richer, and wider.

a In the Sound menu, press B or b to select Advanced

Sound Settings and press OK.

b Press B or b to select Surround and press C or c to

select Off, Spatial or Cinema.

Balance

a In the Sound menu, press B or b to select Balance

and press

C or c to emphasize left or right speaker

balance.

Sound Navi

You can customize current sound mode settings. Select the

appropriate mode in accordance with the installation location of

the TV (Stand or Wall) and adjust the equalizer on-screen as

desired.

a In the Sound menu, press B or b to select Advanced

Sound Settings and press OK.

b Press B or b to select Sound Navi and press OK.

Advanced Sound Settings

Sound Navi

Surround Off

Voice Enhancement

Dynamic Bass Boost Low

c Press b to highlight Voice Enhancement and press

C or c to select On.

d Press b to highlight Dynamic Bass Boost and press

C or c to select the desired bass e xpansion level (Off,

Low or High).

Dolby Volume®

This feature provides a consistent sound volume regardless of

programmes, channels or input sources.

a In the Sound menu, press B or b to select Dolby

Volume.

b Press C or c to select Low, High or Off.

CONTROLS AND FEATURES

-5

Audio Level Offset

ATV

DTV 2ch

External Input

NOTE:

•The Dolby Volume setting influences the Dynamic Range

English

Control and Digital Audio Output settings.

• This feature will automatically switch Off when Dynamic Range Control is set to On or Digital Audio Output is set to Auto.

Dynamic Range Control

This feature allows control of audio compression for some digital

TV programmes (MPEG-1 and MPEG-2 audio programmes are

not supported).

a In the Sound menu, press B or b to select Dynamic

Range Control.

b Press C or c to select On or Off.

NOTE: This feature will automatically switch Off when Dolby Volume is set to Low or High.

Audio Level Offset

Sometimes there can be large changes in volume when

switching from a DTV 5.1ch to a DTV 2ch, an ATV channel, or an

external input. Using the Audio Level Offset feature reduces

these volume differences.

a Set the volume level usually used when watching a

DTV 5.1ch programme.

b Tune to a channel which is DTV 2ch, ATV or an

external input.

c In the Sound menu, press B or b to select Audio

Level Offset and press OK.

d Press B or b to select an option, and then press C or

c to adjust the volume level.

NOTE:

• The available item changes depending on the current input source. For example, while watching a DTV 2ch programme, only DTV 2ch is available and the other two items are grayed out in the menu. This allows you to easily adjust according to each condition.

• When watching a DTV 5.1ch programme, this feature is not available.

Headphone Settings

This setting is used to set the sound output when headphones are

Speaker

Link

On Sound is output

Off Sound is output

connected.

Headphone Speakers

2 – + is available.)

(

(Headphone level menu is available.)

No sound

Sound is output

2 – + is available.)

(

a In the Sound menu, press B or b to select

Headphone Settings and press OK.

b Press B or b to select Speaker Link and press C or c

to select On or Off.

c If you select Off, then highlight Headphone Level

and use

C or c to adjust the headphone sound.

Headphone Settings

Speaker Link

Headphone Level

Off

Audio Description

Audio Description is an additional narrative sound track for

visually impaired individuals to understand and enjoy the story

line more fully. The letters AD will be displayed in the channel

banner when programmes contain AD content.

a In the Sound menu, select Audio Description and

press OK.

b Press B or b to select Audio Description and press

C or c to select On.

Audio Description

Mixing Level

The AD button on the Remote can also be used to toggle the Audio Description feature between On and Off.

c To adjust the level of the audio description sound to

the main sound, highlight Mixing Level and press or

CONTROLS AND FEATURES

SUBTITLE

SUPER LIVE

This setting will enlarge a 4:3 image

to fit the screen by stretching the

image horizontally and vertically,

holding better proportions at the

centre of the image. Some distortion

may occur.

When subtitles are included on a

letterbox format broadcast, this

setting will raise the pictu re to ensure

that all the text is displayed.

CINEMA

When watching ‘all sides panel

format’ films/video tapes, this setting

will eliminate or reduce the black

bars at all sides of the screen by

zooming in and selecting the image

without distortion.

Use this setting when watching a

widescreen DVD, widescreen video

tape or a 16:9 broadcast (when

available). Due to the range of

widescreen formats (16:9, 14:9, 20:9

etc.) black bars may be visible on the

top and bottom of the screen.

Use this setting to view a true 4:3

broadcast.

Use this setting when watching a

14:9 broadcast.

Widescreen viewing

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.

WIDE

4:3

English

14:9

CONTROLS AND FEATURES

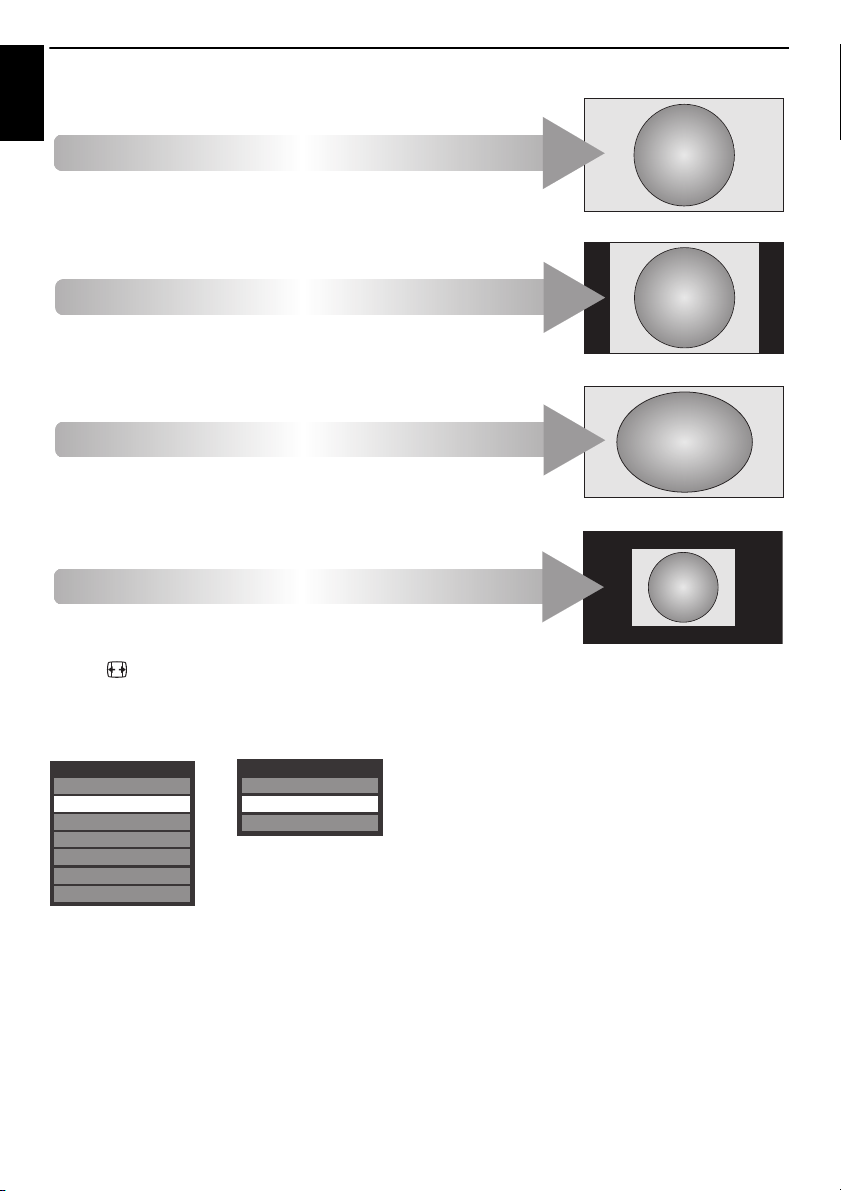

Dot by Dot

PC NORMAL

This setting will show the picture without overscan, i.e. WYSIWYG.

This option is only available when

watching a PC signal source via

HDMI or PC terminal.

PC WIDE

This setting will show the picture

without overscan or side panels.

This option is only available when

watching a PC signal source via

HDMI or PC terminal.

“Dot by Dot” is a non-scaling display. Depending on the input signal format, the picture is displayed with side panels and/or bars at the top and bottom (e.g.

VGA input source).

NATIVE

This setting will show the picture without overscan, i.e. WYSIWYG.

Picture Size

4:3

Super Live

Wide

Native

Cinema

14:9

Subtitle

AV format PC format

English

Press the button on the Remote to display the list of available widescreen formats.

Press the button repeatedly to highlight the required format.

The Quick Menu feature can also be used to select Picture Size.

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

Picture Size

Dot by Dot

PC Normal

PC Wide

CONTROLS AND FEATURES


Picture Mode

Reset

Backlight

Colour

Tint

Sharpness

100

Dynamic

Contrast

Brightness

Advanced Picture Settings

ColourMaster

Base Colour Adjustment

Colour Temperature 10

Off

Middle

Auto Brightness Sensor Settings

LED Backlight Control

Black/White Level

Static Gamma

Noise Reduction

English

Picture controls

Most of the picture controls and functions are available in both digital and analogue modes.

PLEASE NOTE: Features not available will be grayed out.

Picture Mode

This television offers the choice of personalising the picture style.

AutoView, Dynamic, Standard, Hollywood Night,

Hollywood Day, Hollywood Pro, Store, Game and PC are

preset options and affect many features/settings within the

NOTE:

• Because the AutoView mode automatically adjusts picture settings based on ambient light conditions and in put signal content, the Auto Brightness Sensor and Expert Mode menus are grayed out when it is selected.

• Store mode is only available when Location is set to Store.

• Game mode is available in external input mode (other than aerial input). When you select Game mode, suitable widescreen formats will be selected.

• PC mode is available in RGB/PC input mode or HDMI input mode.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Picture icon and press OK

to display Picture menu.

c Press B or b to select Picture Mode.

television.

Picture preferences

You can customize current picture mode settings as desired. For

example, while selecting “Dynamic”, i f y ou c ha ng e th e f oll ow in g

items, such as Backlight, Contrast, Brightness, Colour, Tint,

Sharpness and the Advanced Picture Settings items, your

new settings are saved for “Dynamic” picture mode.

a In the Picture menu press B or b to select either

Backlight, Contrast, Brightness, Colour, Tint or Sharpness and press OK.

b Press C or c to adjust the settings.

Reset

This feature resets all picture settings to the factory settings

except Picture Mode.

a In the Picture menu, press B or b to select Reset and

press OK.

b A confirmation message will appear. Press C or c to

select Yes and press OK.

ColourMaster

When ColourMaster is set to On, it allows the ‘Base Colour

Adjustment’ feature to become available.

a In the Picture menu, press B or b to select

Advanced Picture Settings and press OK.

b Press B or b to select ColourMaster.

d Press C or c to select the picture mode you prefer

and press OK.

NOTE: The picture mode you select affects the current input

only. You can select a different picture mode for each input.

c Press C or c to select On or Off and press OK.

CONTROLS AND FEATURES

Hue

Saturation

Reset

Brightness

0Red

Green

Blue

Yellow

Magenta Cyan

000

000 000

000

Base Colour Adjustment

Hue Saturation Brightness

0Red 0 -1

Auto Brightness Sensor Settings

Backlight Adjustment Pro

Auto Brightness Sensor

100

Backlight Adjustment Pro

Backlight Control Level

Control

Level

Ambient Light

Cancel

Reset

English

The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful

Base Colour Adjustment

when using an external source.

a In the Advanced Picture Settings menu, press B or

b to select Base Colour Adjustment and press OK.

b Press B or b to select an option and press c to move

to the adjustment window.

c Press C or c to select Hue, Saturation or Brightness

and press

B or b to adjust the settings as required.

d Press BACK to return to the previous menu.

To return to the factory settings, select Reset and press OK.

Auto Brightness Sensor Settings

When the Auto Brightness Sensor is activated, it will

automatically optimise the backlighting levels to suit ambient

light conditions.

a In the Advanced Picture Settings menu, press B or

b to select Auto Brightness Sensor Settings and

press OK.

b Press C or c to select On and press OK.

c Press B or b to select Backlight Adjustment Pro

and press OK.

d The Backlight Adjustment Pro window will appear.

Press OK again to display the adjustment window.

e Press C or c to select a point and press B or b to

adjust the level.

Colour Temperature

Colour Temperature increases the ‘warmth’ or ‘coolness’ of the

picture by increasing the red or blue tint.

a In the Advanced Picture Settings menu, press B or

b to select Colour Temperature and press OK.

b Press C or c to adjust the level.

The adjustment range is 0 (warm) to 10 (cool).

NOTE: If Picture Mode is set to AutoView, the adjustment range is -5 to +5.

f Press OK to fix the adjustment.

To cancel the adjustment when selecting a point, select Cancel and press OK.

To return the adjustments of all points to the factory defaults, select Reset and press OK.

LED Backlight Control

You can adjust the backlighting of the black areas of the image

and enhance the contrast.

a In the Advanced Picture Settings menu, press B or

b to select LED Backlight Control.

b Press C or c to select Low, Middle, High, Auto or Off.

NOTE: When Picture Mode is set to any mode other than AutoView, Auto is grayed out.

CONTROLS AND FEATURES

Noise Reduction

DNR

MPEG NR

Low

Auto

English

Black/White Level

Black/White Level increases the strength of dark areas of the

picture to improve the definition.

a In the Advanced Picture Settings menu, press B or

b to select Black/White Level.

b Press C or c to adjust the level. The effect depends on

the broadcast and is most noticeable on dark colours.

Static Gamma

The static gamma feature allows you to adjust the levels of black

in the picture.

a In the Advanced Picture Settings menu, press B or

b to select Static Gamma.

b Press C or c to adjust the level.

MPEG NR – Noise Reduction

When watching a DVD, the compression may cause some words

or picture elements to become distorted or pixelated.

Using the MPEG NR feature reduces this effect by smoothing out

the edges.

a In the Advanced Picture Settings menu, press B or

b to select Noise Reduction and press OK.

b Press b to select MPEG NR.

Resolution+

The Resolution+ feature allows you to adjust the clarity levels

for your desired picture settings.

a In the Advanced Picture Settings menu, press B or

b to select Resolution+ and press OK.

b In the Resolution+ field, select Auto.

Resolution+

Level

Auto

c Press B or b to highlight Level and press C or c to

adjust the level.

NOTE:

• This feature may not work properly depending on the content.

• Adjustable range varies according to the Picture Mode you set.

• Noise may appear in the picture depending on the device connected to the TV (e.g. a device with a specific enhancer function).

Active Vision M800

This feature will reduce picture blur without decreasing image

brightness or adding flicker.

a In the Advanced Picture Settings menu, press B or

b to select Active Vision M800.

c Press C or c to select Low, Middle, High or Off to suit

your preference.

DNR – Digital Noise Reduction

DNR allows you to ‘soften’ the screen representation of a weak

signal to reduce the noise effect.

a Select DNR from the Noise Reduction menu.

b Press C or c to select Low, Middle, High, Auto or Off.

The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

b Press C or c to select Smooth, Standard or Off.

NOTE: When Picture Mode is set to Game, this feature will be grayed out and automatically set to Off.

Motion Detection Range

This feature is to set the range of the adjustment of movement in the double-scan processing. If you feel uncomfortable in motion

picture, select Standard.

a In the Advanced Picture Settings menu, press B or

b to select Motion Detection Range.

b Press C or c to select Wide or Standard.

Wide—Double-scan effect for higher-speed motion


Standard—Stabilized double-scan effect

NOTE: When Active Vision M800 is set to Off, this feature will

be grayed out.

CONTROLS AND FEATURES

English

This feature will reduce 3D images blur without adding flicker.

3D Judder Cancellation

a In the Advanced Picture Settings menu, press B or

b to elect 3D Judder Cancellation.

b Press C or c to select Auto or Off.

NOTE: When Picture Mode is set to Game, this feature will be grayed out and automatically set to Off.

Resetting the advanced picture settings

This feature allows you to reset the current Advanced Picture

Settings to the default values.

a In the Advanced Picture Settings menu, press B or

b to select Reset.

b Press OK.

Expert Picture Settings

This feature is available when the Picture Mode option is

Standard, Hollywood Day, Hollywood Night, and

Test Pattern

When the test pattern is on screen, you can navigate in the Picture submenus and adjust picture settings without removing the image. When you move to a non-Picture menu, or close the menus, regular video will be restored.

Hollywood Pro.

a In the Picture menu, press B or b to select Expert

Picture Settings and press OK to display Expert Picture Settings menu.

b Press B or b to select Test Pattern. c Press C or c to select On.

d Press EXIT to close.

RGB Filter

This feature individually enables or disables the red, green, and blue components of the picture to allow for more accurate adjustment of each colour.

a In the Expert Picture Settings menu, press B or b to

select RGB Filter and press OK.

e Press EXIT.

NOTE: It is not possible to turn off all three colours

simultaneously.

Colour Decoding

If you view DVDs with this TV, the Colour Decoding option may be set to ensure the colourimetry reproduction.

NOTE: The modes excluding Auto (BT601 and BT709) are to convert an irregular signal output from the DVD etc. with incorrect colour to the optimum state. If BT601 or BT709 is selected with a normal signal received, the colour may not be correctly displayed. This feature should normally be set to Auto.

a In the Expert Picture Settings menu, press B or b to

select Colour Decoding.

b Press C or c to select Auto, BT601 or BT709.

White Balance-Window Display

This feature displays a special Window Pattern to be used when adjusting white balance with a measuring device.

a In the Expert Picture Settings menu, press B or b to

select White Balance and press OK.

b Press B or b to select Window Display and press C

c to select On.

c Press EXIT to close.

White Balance-Setting Type

You can choose from two types of White Balance adjustment.

a In the Expert Picture Settings menu, press B or b

to select White Balance and press OK.

b Press B or b to select Setting Type and press C or c

to select 2P or 10P.

White Balance-2P White Balance

a Press b to select 2P White Balance.

b Press B or b to select Red-Offset, Green-Offset,

Blue-Offset, Red-Gain, Green-Gain, or Blue-Gain.

c Press C or c to adjust. b Press B or b to select Red, Green or Blue to adjust. c Press C or c to select On.

d Press B or b to select Colour or Tint and press C or

c to adjust.

White Balance-10P White Balance

a Press b to select 10P White Balance.

b Press B or b to select IRE, Red, Green, or Blue.

c Press C or c to adjust.

NOTE: The adjustments made for Red / Green / Blue are

Manual Colour Calibration

Red

0.642

0.277

0.143

0.335

0.603

0.067

Blue

Green

Start

Reset

Please input the value measured with the coulour analyser.

Red

0.642

0.277

0.143

0.335

0.603

0.067

Blue

Green

Auto Gamma Calibration

Target Colour Temperature

0.313

2.4

0.329

Target Gamma

Start

Reset

Please input the target value and place the USB colour analyser over the square.

stored separately for each IRE setting. (There are ten IRE settings from 10 to 100.)

Colour Calibration

The aim of Colour Calibration is to measure and/or adjust the colour response (White Balance) of your LCD panel. Colour Calibration is used by various fields, such as gaming, photography, engineering, medical and more. In order to calibrate a display correctly, you need a colour analyzer TPA-1 (not supplied).

NOTE: This feature is available when the Picture Mode option is Hollywood Pro.

Apply Calibration

a In the Expert Picture Settings menu, press B or b to

select Colour Calibration and press OK.

b Press B or b to select Apply Calibration and press C

c to select Enabled.

Manual Colour Calibration

a In the Colour Calibration menu, press B or b to

select Manual Colour Calibration and press OK.

CONTROLS AND FEATURES

Auto Colour Calibration

a In the Colour Calibration menu, press B or b to

select Auto Colour Calibration and press OK.

b Connect the USB colour analyzer to the USB 1 or USB

2 port.

c Place the probe of the USB colour analyzer over the

square on screen and press OK.

Auto Colour Calibration will start.

Please wait until you see “Auto Colour Calibration has been completed.”.

Gamma Calibration

a In the Expert Picture Settings menu, press B or b to

select Gamma Calibration and press OK.

b Press B or b to select Apply Calibration and press C

c to select Enabled.

c Press B or b to select Auto Gamma Calibration and

press OK.

d Connect the USB colour analyzer to the USB 1 or USB

2 port.

e Input the target value and place the USB colour

analyzer over the square on screen.

English

b Place the probe of the colour analyzer over the square

on screen to measure.

c Input the value measured with the colour analyzer

using the number buttons (0-9).

d Press BbC c and input the values to fill all RGBxy

matrix table.

e Highlight Start and press OK.

Please wait until you see “Manual Colour Calibration has been completed.” on screen.

To return to factory setting

a Highlight Reset and press OK.

f Highlight Start and press OK.

Auto Gamma Calibration will start.

Please wait until you see “Auto Gamma Calibration has been completed.” on screen.

To return to factory setting

a Highlight Reset and press OK.

Resetting to the factory defaults

a In the Expert Picture Settings menu, press B or b to

select Reset and press OK.

A confirmation screen appears.

b Select Yes and press OK.

CONTROLS AND FEATURES

Brightness

Number

Pixels

Output

Control Visualization

Distribution

Input

Control Curve

Auto Format On

4:3 Stretch Off

Picture Position

PC Settings

Display Settings

Auto Format On

4:3 Stretch Off

Picture Position

PC Settings

Display Settings

Picture Position

Horizontal Position

Reset

Vertical Position

English

This feature displays the brightness histogram and control curve

Control Visualization

of the current video signal.

a In the Picture menu, press B or b to select Control

Visualization and press OK. The histogram window

will appear.

b Press BACK to return to the previous menu.

Automatic Format (Widescreen)

When this television receives a true Widescreen picture and Auto

format is On, it will automatically be displayed in Widescreen

format irrespective of the television’s previous setting.

a Press MENU / C c to highlight Setup icon.

4:3 Stretch

When 4:3 Stretch is activated, the size switching system

changes 4:3 programmes into full screen picture.

a In the Preferences menu, press B or b to select

Display Settings and press OK.

b Press B or b to select 4:3 Stretch and press C or c to

select On or Off.

Blue Screen

When Blue Screen is selected, the screen will turn blue and the

sound will be muted on analogue channels and external input

NOTE: Some external input sounds may not be muted.

modes when no signal is received.

a In the Preferences menu, p ress B or b to select Blue

Screen.

b Press C or c to select On or Off.

Picture Position

The picture position may be adjusted to suit personal preference

and can be particularly useful for external inputs.

a In the Preferences menu, press B or b to select

Display Settings and press OK.

b In the Display Settings menu, press B or b to select

Picture Position.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select Display Settings and press OK.

d Press B or b to select Auto Format and press C or c

to select On or Off.

c Press OK to view the options available for the picture

format that has been selected.

d Press B or b to select an option and press C or c to

adjust the settings.

The options differ depending on the currently selected widescreen format and the input signal.

To return to the original factory settings, select Reset in the Picture Position menu and press OK.

Picture still

This feature is used to hold a still image on the screen.

a Press r to hold an image on the screen, and press

r again to cancel.

HDMI Information Display

When the HDMI Information Display feature is On and you are

watching an HDMI input source, pressing the button

displays the HDMI signal information banner.

a In the Preferences menu, press B or b to select

HDMI Information Display.

b Press C or c to select On.

HDMI signal information is as follows: Resolution, Scan Type, Frame Rate*, Aspect, Bit Depth, Colour Space, RGB/YUV, Chroma Format, and Content Type (if available).

* If the HDMI input source is interlaced, “Field Rate”

will be displayed instead of “Frame Rate”.

CONTROLS AND FEATURES

English

CONTROLS AND FEATURES

Wireless LAN Information

English

Bluetooth™ and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth™ and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.

If you should experience any such problem, immediately turn off either your Bluetooth™ or Wireless LAN device.

Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Wireless LAN and your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices, however, is far less than the electromagnetic energy emitted by wireless devices such as mobile phones.

Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. Such restrictions may apply in environments where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment, you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment.

When using the TV under wireless LAN environment:

• The function of all IEEE802.11 is not supported.

• The ad-hoc mode is not supported.

• It is recommended to use IEEE 802.11a or IEEE 802.11n on

5 GHz for audio and SD video streaming.

• It is recommended to use IEEE 802.11n on 5 GHz for HD

video streaming.

• It is recommended that the encoding rate for streaming

video content is 20 Mbps or less.

• It is not recommended to use 2.4 GHz for audio and video

streaming.

• Content playback may be interrupted by various

surrounding interference.

Europe Statement

This built-in WLAN Module may be operated in below

country:

AT Austria IS Iceland

BE Belgium LI Liechtenstein

CH Switzerland LT Lithuania

CY Cyprus LU Luxembourg

CZ Czech Republic LV Latvia

DE Germany MT Malta

DK Denmark NL Netherlands

ES Spain NO Norway

FI Finland PL Poland

FR France PT Portugal

GB United Kingdom SE Sweden

GR Greece SI Slovenia

EE Estonia SK Slovakia

HU Hungary BG Bulgaria

IT Italy RO Romania

IE Ireland TR Turkey

• If this device is going to be operated in the frequency rang e of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.

• If this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to 2.4835 GHz in France, it is restricted to indoor use.

• A general authorization is required for using this device outdoors or in public places in Italy.

• This device is NOT ALLOWED to be used in the geographical area wit hin a radius of 20km from the cen tre of Ny-Alesu nd in Norway.

Ukraine Statement

Contains approved built-in WLAN Module, model name: WLU5060-D4 (ROHS), approved by CB “UkrCERTRADIO”.

Setting up the Network

Preferences

Personal TV Setup

REGZA-LINK Setup

MHL Setup

Recording Setup

3D Setup

Network Setup

Camera Sensor Setup

Network Device Setup

Network Type Wired

Network Connection Test

Advanced Network Setup

Network Setup

Wireless Setup

Easy Setup On

Enhanced 11n Off

Manual Setup

Wireless Setup

Assisted Setup

You can select the Network Type.

a Press MENU / C c to highlight Setup icon. b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select Network Setup and press OK.

d Press B or b to select Network Type and press C or

c to select Wired or Wireless.

e If you selected Wired, see “Advanced Network Setup”

on page 51.

Wireless Setup

NOTE: Continued connection of AP (Access Point) is not guaranteed. The connection may be disconnected while watching TV.

There are 3 methods for Wireless Setup:

Easy Setup (WPS)

If the AP supports WPS, this method can be used.

• WPS is an industry standard designed to make connection of wireless LAN equipment and security setup easy. WPS will automatically configure all wireless settings.

NOTE: WEP encryption may not be able to configured by easy setup.

Assisted Setup (setup by using the AP’s notification information)

Network Name, Authentication, and Encryption are decided based on information from the AP. You will manually set the Security Key.

Manual Setup (manual input of all settings)

CONTROLS AND FEATURES

Easy Setup using PBC (Push Button Configuration)

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Wireless Setup and press OK. c Press B or b to select Easy Setup and press OK.

d Press C or c to select PBC. e Press b to highlight Start Scan and press OK. f Following the on-screen instructions, push the

appropriate button on your AP.

g When a window reporting that the setup is complete

appears, press OK.

To cancel searching for the AP:

Press BACK while searching for the AP. A message will appear, and then press C or c to select Yes and press

OK.

Easy Setup using PIN (Personal Identification Number)

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Wireless Setup and press OK.

c Press B or b to select Easy Setup and press OK. d Press C or c to select PIN.

e Press b to select Start Scan and press OK. f Press B or b to select the desired AP and press OK.

NOTE: Check the Network Name and/or MAC address on the label of the AP or in the manual, and select your AP.

g When the PIN code window appears, enter the

displayed PIN into your AP, and then press Next to continue the PIN Setup. When a message displays to report that the setup is complete, press OK.

English

CONTROLS AND FEATURES

To cancel searching for the AP:

English

Press BACK while searching for the AP. A message will appear; then, press C or c to select Yes and press

Assisted Setup

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Wireless Setup and press OK.

c Press B or b to select Assisted Setup and press OK.

d Press B or b to select the desired AP and press OK.

NOTE: Check the MAC address on the label of the AP or in the manual, and select your AP.

e Highlight Security Key and press OK. The Software

Keyboard window will appear.

f Input the Security Key by using the Software

Keyboard (see page 53). To save your setting, press the BLUE button.

NOTE:

• The Security Key must adhere to these conditions:

- TKIP/AES: 8-63 ASCII or 64 Hex characters

- WEP: 5 or 13 ASCII or 10 or 26 Hex characters

• There is only one key ID to set for WEP encryption.

g Highlight Done and press OK.

NOTE: If Network Name is not displayed, see step 4

and 5 in Manual Setup below to set Network Name before pressing Done.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

Manual Setup

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Wireless Setup and press OK.

c Press B or b to select Manual Setup and press OK.

f Press B or b to select Authentication and press C or

c to select Open System, Shared Key, WPA-PSK or

OK.

WPA2-PSK.

g Press B or b to select Encryption and press C or c

to select None, WEP, TKIP or AES.

NOTE:

• Certain encryption types are only compatible with specific authentication types.

- When Authentication is Open System, only WEP

or None is compatible.

- When Authentication is Shared Key, only WEP is

compatible.

- When Authentication is WPA-PSK or WPA2-PSK,

only TKIP or AES is compatible.

• When incompatible Authentication/Encryption pairings are detected, a warning message will be displayed, and no connection attempt will be made until the incompatibility is resolved.

• There is only one key ID to set for WEP encryption.

h Press B or b to select Security Key and press OK.

i Input the Security Key by using the Software

Keyboard (see page 53). To save your setting, press the BLUE button.

NOTE: This item is grayed out when Encryption is None.

j Highlight Done and press OK.

NOTE: When Encryption is None, a message will

appear. Press

NOTE: Settings are not saved if BACK is pressed before Done is selected.

Enhanced 11n

When Enhanced 11n is set to On, the Dual Channel (40MHz) feature is available.

NOTE: In addition, some other optional 11n features will be enabled.

C or c to select Yes and press OK.

a In the Preferences menu, press B or b to select

Network Setup and press OK. Highlight Wireless Setup and press OK.

d Press B or b to select Network Name and press OK.

The Software Keyboard window will appear.

e Input the Network Name by using the Software

Keyboard (see page 53). To save your setting, press the BLUE button.

b Press B or b to select Enhanced 11n and press C or

c to select On.

Wireless Information

Quick Menu

Picture Size

Picture Mode AutoView

Super Live

More Information

Personal Mode

3D Settings

Sleep Timer

Channel Options

TV Speakers

Headphone Level

REGZA-LINK Device Control

Wireless Information

Speakers

00:00

The settings configured in Wireless Setup can be confirmed.

a Press QUICK to open the Quick Menu.

b Press B or b to select Wireless Information and

press OK.

c When the Network Type is Wireless, a Wireless

Information window will appear.

NOTE: Press the RED button to scan for all APs.

Item Description

Status Connected is displayed when the TV is

Signal Connection signal strength with AP

Speed Link with AP

Mode Working mode (11a, 11b, 11g, 11n)

Channel Channel in use (1-165)

Network Name SSID set

Authentication Authentication set

Encryption Encryption set

Security Key Security Key set

AP MAC Address

TV MAC Address

DHCP Enabled is displayed when using DHCP.

IP Address The TV’s IP address

Subnet Mask Value of the Subnet Mask

Default Gateway

DNS Address of the DNS

connected with the AP. Disconnected is displayed when the TV is not connected with the AP.

(STRONG/MEDIUM/WEAK)

The AP’s MAC address is displayed when the TV is connected with the AP.

The MAC address of the TV is displayed.

Disabled is displayed when not using DHCP.

Address of the Default GATEWAY

CONTROLS AND FEATURES

NOTE: Even if an AP for IEEE 802.11n is used when Encryption is set to WEP or TKIP, the Speed value might be low. It is recommended that Encryption be changed to AES (see “Manual Setup” on page 50).

Notes on wireless LAN environment:

• The function of all IEEE802.11 is not supported.

• The ad-hoc mode is not supported.

• It is recommended to use IEEE 802.11a or IEEE 802.11n on 5 GHz for audio and SD video streaming.

• It is recommended to use IEEE 802.11n on 5 GHz for HD video streaming.

• It is recommended that the encoding rate for streaming video content is 20 Mbps or less.

• It is not recommended to use 2.4 GHz for audio and video streaming.

• Content playback may be interrupted by various surrounding interference.

Advanced Network Setup

NOTE:

• When the DHCP function of the router connected with this TV is On, you can set Auto Setup to On or Off. (This should usually be set to On.)

• When the DHCP function of the router is Off, set A uto Setup to Off, and set the IP Address manually.

IP Address Setup

Auto Setup:

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup

and press OK.

Network Setup

Network Type Wired

Wireless Setup

Advanced Network Setup

Network Connection Test

c Press B or b to select IP Address Setup and press

OK.

Advanced Network Setup

IP Address Setup Wired

DNS Setup

MAC Address

English

CONTROLS AND FEATURES

Auto Setup On

Subnet Mask

IP Address Setup

IP Address

XXX . XXX . XXX . XXX

255 . 255 . 255 . 0

Default Gateway

. . .

Auto Setup Off

Subnet Mask

IP Address Setup

IP Address

255 . 255 . 255 . 0

Default Gateway

. . .

XXX . XXX . XXX . XXX

Auto Setup Off

Subnet Mask

IP Address Setup

IP Address

255 . 255 . 255 . 0

Default Gateway

. . .

XXX . XXX . XXX . XXX

d Highlight Auto Setup and press C or c to select On.

English

NOTE: Other items will be grayed out when Auto Setup is set to On.

Manual Setup:

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup and

press OK.

c Press B or b to select IP Address Setup and press

OK.

d Highlight Auto Setup and press C or c to select Off.

e Press B or b to select IP Address.

f Press C or c to highlight the field you want to

change, and then use the number buttons to input the IP address. To save the setting, press OK.

NOTE: IP address field numbers must be between 0 and 255. After each field number has been set, press OK to store the entire address. If the ent ire IP Address is invalid, a warning message will appear after OK is pressed.

DNS Setup

NOTE: When the DHCP function of the router connected to this TV is Off, set Auto Setup to Off, and manually set the DNS address(es). Your internet service provider should have provided these to you.

Auto setup:

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup and

press OK.

c Press B or b to select DNS Setup and press OK.

d Press B or b to highlight Auto Setup and press C or

c to select On.

NOTE: Other items will be grayed out when Auto Setup is s et to On.

Manual setup:

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup and

press OK.

c Press B or b to select DNS Setup and press OK.

d Press B or b to select Auto Setup and press C or c

to select Off.

DNS Setup

Auto Setup Off

Primary DNS Address

Secondary DNS Address

XXX . XXX . XXX . XXX

255 . 255 . 255 . 0

g Press B or b to select Subnet Mask, and edit in the

same way as IP Address.

h Press B or b to select Default Gateway, and edit in

the same way as IP Address.

NOTE: If you manually set the IP address, you must not use the same IP address for any other device. The IP address you use should be a private address.

e Press B or b to select Primary DNS Address.

f Press C or c to highlight the field you want to

change, and then use the number buttons to input the Primary DNS Address. To save the setting, press

OK.

NOTE: DNS address field numbers must be between 0

and 255. If you input an incompatible number and press OK, the field number will reset to the previous value.

g Press B or b to select Secondary DNS Address, and

edit in the same way as Primary DNS Address.

MAC Address

You can view the fixed MAC address for the TV.

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup and

press OK.

c Press B or b to select MAC Address and press OK.

Network Connection Test

This function checks the Internet connectivity.

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Network Connection Test and

press OK.

A message will appear to indicate if the connection was successful or if it could not be completed.

NOTE: The result of Network Connection Test does not always guarantee the connection. Depending on the situation, YouTube may not be able to be used.

To cancel the Network Connection Test:

Press BACK while searching for the Internet connection.

CONTROLS AND FEATURES

Using the software keyboard

You can enter text by using the Software Keyboard. The Software Keyboard window will appear when you press OK on a field that accepts character input.

To enter text using the software keyboard:

a Highlight the desired character on the on-screen

software keyboard.

b Press OK.

c Repeat steps 1 and 2 until you have entered all

desired text.

d Press the BLUE button to close the software keyboard

and return to the previous screen.

NOTE: If BACK is pressed, changes are not saved and the software keyboard window is closed. The text will remain as it was before starting the keyboard.

A a1@

AAA|

A BCDE F G

HIJKLMN

OPQRSTU

VWX YZ

English

Input operation on the remote control:

Button Description

OK Inputs the selected character.

0-9 Inputs the number directly.

B b C c Moves the character highlight. CC cc Moves the cursor. Z

RED Deletes 1 character to the left of

GREEN Cycles through upper case, lower

YELLOW Chooses an accented version of

BLUE Saves changes and closes the

BACK Closes the Software Keyboard

Moves the cursor to the head of a character string.

Moves the cursor to the end of a character string.

the cursor.

case, numbers, and symbols, if available.

the current letter, if applicable.

Software Keyboard window.

window without saving changes.

CONTROLS AND FEATURES

Preferences

Personal TV Setup

REGZA-LINK Setup

MHL Setup

Recording Setup

3D Setup

Network Setup

Camera Sensor Setup

Network Device Setup

English

External Control Setup

This setup allows you to operate a home network-connected

Media Controller Setup

your TV from an external device.

a In the Preferences menu, press B or b to select

Network Device Setup and press OK.

b Press B or b to select External Control Setup and

press OK.

c Press B or b to select an option and press OK.

The Software Keyboard window will appear.

User Name — Input the User Name (to control the TV from the iPhone etc.) by using the on-screen software keyboard (see page 53). The maximum number of characters is 16.

Password — Input the Password (to control the TV from the iPhone etc.) by using the on-screen software keyboard (see page 53). The maximum number of characters is 16.

NOTE: Toshiba does not guarantee normal operation with all connected devices.

Media Renderer Setup

Terminology:

DMS: DLNA CERTIFIED™ Server

DMR: DLNA CERTIFIED™ Renderer

DMC: DLNA CERTIFIED™ Controller

The TV can be configured as a DMR. When operating as a DMR, the TV displays content provided by a DMS. The selection of the media is done by the DMC - the TV does not select the input. The TV can play photo, movie, or audio files when operating as a DMR.

Media Renderer

a In the Preferences menu, press B or b to select

Network Device Setup and press OK.

b Press B or b to select Media Renderer Setup and

press OK.

c Press B or b to select Media Renderer, and then

press

C or c to select On or Off.

Media Controller Setup

You can limit which DMC can control this TV. If Access Control is enabled, only tho se DMCs with a check will be allowed to control the TV.

a In the Media Rend erer Setup menu, press B or b to

select Media Controller Setup and press OK.

b Press B or b to select Access Control and press C or

c to select On.

c Press B or b to select Select Media Controller and

press OK.

d Press B or b to highlight the i tem you want to select

and press OK. A check will appear in the box.

To remove the check, press OK again.

e Press c to highlight Done and press OK.

NOTE:

• You can select up to 8 DMC devices.

• If you would not like to limit the DMCs for this TV, set Access Control to Off.

• Devices other than DMCs may be displayed in the list. Confirm the MAC address of the DMC and set it.

Maximum Volume Setup

This feature allows you to set the maximum volume of the TV when it receives volume operation commands from a DMC.

a In the Media Rend erer Setup menu, press B or b to

select Maximum Volume Setup, and press adjust to the desired volume.

NOTE:

• The TV’s remote control can set volume regardless of the value of Maximum Volume Setup.

• When DMR playback ends, the TV volume will return to the value in effect when DMR playback was started.

C or c to

CONTROLS AND FEATURES

English

Power Control Mode

When the TV is connected to the home network via Wireless LAN,

Wake-on-LAN can be received from an external device

connected to the home network to turn on the TV.

a In the Preferences menu, press B or b to select

Network Device Setup and press OK.

b Press B or b to select Power Control Mode and

press

C or c to select On or Off.

NOTE:

• When Wired is selected for the Network type in Network Setup, this feature will be grayed out.

• Depending on the device connected to the home network, it may take a while for the TV to turn on.

• Depending on the device connected to the home network, this feature may not work.

• If the unencrypted Wireless Setup is done, this feature can not be used.

Device Name Setup

The TV’s DMR device name can be changed. The device name can

be confirmed from the DMC.

a In the Preferences menu, press B or b to select

Network Device Setup and press OK.

b Press B or b to highlight Device Name Setup and

press OK.

c Highlight the Device Name field and press OK. The

Software Keyboard window will appear.

d Input the Device Name by using the software

keyboard (see page 53). Press the BLUE button.

NOTE: The Device Name can be up to 15 characters

long.

e Highlight Done and press OK to save your setting.

Using the USB HDD Function

The USB HDD function can be used to record and view digital broadcast programmes. Read the precautions below before recording or viewing programmes using the USB HDD function.

NOTE:

• Recorded programmes saved on the USB HDD can only be viewed on this TV. They cannot be viewed when connected to another TV (including the same model of TV), a PC, or other device.

• You cannot watch one channel while recording another.

• If the recording time to the USB HDD is too short, no data may be saved.

• You cannot record video input signals on the USB HDD.

• Not all types of broadcast may be recordable.

• After programming the TV to record digital broadcasting, do not disconnect the power plug before recording starts. Also, leaving the power switch “ON” until recording is scheduled to start, may cause the recording to fail.

• Should video or audio recording fail due to malfunction of the TV or poor reception, no compensation shall be paid.

• You can reserve up to a total of 64 programmes for recording and viewing.

• If there is a power failure or the power plug is disconnected during programmed recording, recording will stop and will not resume when the power returns or the plug is reconnected.

• Do not disconnect the power plug when the indicator lamp is lit.

• Any changes implemented by the broadcasting station may affect programme scheduling.

• Scheduling of multiple consecutive programmes may result in the beginning of each programme not being recorded.

• When the “Programme Tracking” for programmed recording is set to “On” and the broadcast time of the scheduled programme overlaps with the start time of timer viewing due to delay, extension, or other causes, timer viewing will be cancelled.

• Depending on the situation at the time, not all items can be set or changed. (“X” indicates no setting.)

• Programmed recording cannot take place if the power plug is not connected.

• Disconnecting the power plug during recording may result in failure to save the recorded programme.

• Changing the USB 2 Port Setup to Media Player will invalidate all previously made prog rammed recordings (see page 70).

CONTROLS AND FEATURES

Set Timer

The Daily Politics

10:50 Tue, 26 Apr

Timer Type

Recording Device

Programme Tracking

Protect

USB HDD1

2 CABC Channel

11:30

12:30 Tue, 26 Apr

Recording

Change Time

Off

Subtitle

Personal Grouping

None

—

Edit

Set Timer Delete Timer

English

To record DTV programmes

(One Touch Recording)

You can easily record th e programme currently being viewed.

a Press the ● REC button on the remote control.

Recording for the currently viewing programmes will start.

The programme indicator (red) will be lit.

To stop recording

a Press the v (stop) button.

A confirmation window “Do you want to stop Recording” will appear.

b Press C or c to select Yes and press OK.

Recording will stop.

To schedule programmed recording

Programmed recording can be scheduled easily using the

Programme Guide or by specifying the date and time.

PLEASE NOTE:

When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled. It will only be possible to create or edit programme timers for the currently tuned DTV input.

To schedule programmed recording using the Programme Guide

a Press the GUIDE button on the remote control (or

select TV Programmes / Guide menu from the menu system) to display the EPG screen.

b Press B b C c to highlight the programme you want

to record.

c Press OK. The Set Timer menu will appear.

d Press B or b to highlight Timer Type and press C or

c to select Recording.

e Press B or b to highlight Recording Device and

press

C or c to select the connected USB HDD.

f Press B and b to go through the list adding the

details of the programme by using the number buttons and

Programme Tracking:

If information concerning programme delay is sent from the broadcasting station, Programme Tracking will link recording with a delay of up to three hours. Programme Tracking is enabled when On is selected. (It does not support advancing of the broadcast time.)

Protect:

Select this function when you want to protect a recorded programme. When On is selected, the programme will be protected. You can protect and unprotect recorded programmes afterwards.

Personal Grouping:

Setting Personal Mode for a programme when it is recorded makes it easier to find later for viewing. Select your preferred Personal Mode. If you select

None, the programme will be grouped by All in Library.

NOTE: To change the set Start Time or End Time, select Change Time and press OK. Change the Start Time or End Time from the displayed Set Timer

screen.

C and c to make selections.

g Press B or b to highlight Set Timer and press OK.

The ORANGE LED will be lit.

To search for and schedule a programme you want

Genre Colour

Movies

Colour Setup

Set Timer

The Daily Politics

10:50 Tue, 26 Apr

Timer Type

Recording Device

Programme Tracking

Protect

USB HDD1

2 CABC Channel

11:30

12:30 Tue, 26 Apr

Recording

Change Time

Off

Subtitle

Personal Grouping

None

—

Edit

Set Timer Delete Timer

to record using Genre Search

a In the Guide screen, press QUICK.

b Press B or b to highlight Genre Colour in the Quick

Menu and press OK.

c With the focus on a particul ar genre, press the desired

coloured button to assign. Four colours will be available to set. Press BACK to go back to the Guide screen.

CONTROLS AND FEATURES

English

f Press OK. The Set Timer menu will appear.

g Press B or b to highlight Timer Type and press C or

c to select Recording.

d Press the YELLOW button to access the Genre

Search screen.

Genre Search

Movies

31 PARIS PREMIERE

Hard Rain

34 AB1

Red Corner

The Lawnmower Man

11 NT1

A Vow to Kill

9 W9

34 AB1

Parenthood

11 NT1

Body and Soul

The Nun’s Story

9 W9

Red Corner

11 NT1

The Real Blonde

Critters

11 NT1

Indiana Jones and the Temple of Doom

11 NT1

The jackal

34 AB

Coup De Ville

e Press C or c to select the genre. Programmes listed

will change for the new genre. Press the programme for which you want to schedule recording.

10:50 Tue, 6 Apr

Wed,27 Apr 0:15- 1:45

Wed,27 Apr 22:15- 23:55

Thu,28 Apr 1:20- 3:00

Fri,29 Apr 1:30- 3:00

Sat,30 Apr 0:45- 2:40

Sat,30 Apr 1:15- 3:00

Sat,30 Apr 15:00- 17:30

Sat,30 Apr 23:20- 1:15

Sun,1 May 0:40- 2:00

Sun,1 May 0:40- 2:20

Sun,1 May 21:10- 23:20

Sun,1 May 23:20- 1:15

Mon,1 May 1:10- 3:00

B or b to select

h Press B or b to highlight Recording Device and

press

C or c to select the connected USB HDD.

i Press B and b to go through the list adding the

details of the programme by using the number buttons and

C and c to make selections.

Refer to step 6 on page 56 for details.

j Press B or b to highlight Set Timer and press OK.

The ORANGE LED will be lit.

CONTROLS AND FEATURES

Set Timer

10:50 Tue, 26 Apr

Repeat

Date

Start Time

End Time

Channel

Recording Device

Protect

Personal Grouping

USB HDD1

Once

Timer Type

Recording

Off

None

Subtitle

Off

—

Edit

Set Timer Delete Timer

30 CABC Channel

10:51

11:51

Tue, 26 Apr 2011

Set Timer

The Daily Politics

10:50 Tue, 26 Apr

Timer Type

Recording Device

Programme Tracking

Protect

USB HDD1

2 CABC Channel

11:30

12:30 Tue, 26 Apr

Recording

Change Time

Off

Subtitle

Personal Grouping

None

—

Edit

Set Timer Delete Timer

To programme the timer

English

a Press MENU / C c / B / C c to highlight TV

Programmed / Programme Timers icons and press OK.

b Select the unprogrammed column (blank column)

and press OK. The Set Timer menu will appear.

c Press B or b to highlight Timer Type and press C or

c to select Recording.

d Press B and b to go through the list adding the

details of the programme by using the number buttons and

Channel:

Select the channel for programmed recording.

Date:

Select the date for programmed recording.

Start Time:

Select the time to start recording.

End Time:

Select the time to end recording.

Repeat: Select “Once”, “Daily” or “Weekly”.

Once The selected content is recorded once.

Daily The same time s lot on the same c hannel

Weekly The same time sl ot on the same ch annel

Recording Device:

Select the connected USB HDD.

C and c to make selections.

is recorded every day on and after the selected day.

on the same day of the week is recorded on and after the selected day.

Protect:

Select this function when you want to protect a recorded programme. When On is selected, the programme will be protected. You can protect and unprotect recorded programme s afterwards.

Personal Grouping:

Select a Personal Mode for the programme to be recorded to make it easier to find later for viewing. Select your preferred Personal Mode. If you select

None, the programme will be recorded to All in Library.

Subtitle:

Select On when you want subtitles to be included in the recording.

e Press B or b to highlight Set Timer and press OK.

The ORANGE LED will be lit.

To schedule a programme using the information screen

a Press , the information screen will appear giving

details of the channel and programme currently being viewed.

REC

3D 2D

8888

ITV1 London

8888

AD English

Side by Side

ASTRA 19.2° E

Now

Also

ASTRA 19.2° E

MLB Young’s two-run triple leads AL over NL

16:9

AD 18

World News and Sports

MLB Young’s two-run triple leads AL over NL

Change

b Press B or b to select the Next and press OK. The Set

Timer menu will appear.

USER Name 3

News

6:00 Thu, 11 Oct

6:00- 8:00

15 min left

8:00- 9:00

c Press B or b to highlight Timer Type and press C or

Sort : New

Sun Mon Tue Thu Fri SatWed

WWWWWW

WWWWWWWWWWWW

WWWWW

14:15 Wed, 16 Feb

WWWWWWW

Library

Weekly

1235 ITV London

ASTRA 19.2°E

USB HDD3 Remaining Capacity: 86% (912.0GB)

10 July 2011 14:30(01:30)

Wed, 16 Feb 10:00 Wed, 16 Feb 10:00 Thu, 17 Feb 10:00

Thu, 17 Feb 10:00

Fri, 18 Feb 10:00

Sat, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00 Mon, 18 Feb 10:00

Sort : New

Sun Mon Tue

WWWWWW

WWWWWWWWWWWW

WWWWW

WWWWWWW

Library

Weekly

We We

c to select Recording.

d Press B or b to highlight Recording Device and press

C or c to select the connected USB HDD.

e Press B and b to go through the list adding the

details of the programme by using the number buttons and

C and c to make selections.

Refer to step 6 on page 56 for details.

f Press B or b to highlight Set Timer and press OK.

The ORANGE LED will be lit.

To check, edit or delete scheduling

information

You can check, edit or delete scheduling information.

a Press MENU / C c / B / C c to highlight TV

Programmes / Programme Timer icons and press OK. Programme Timer screen will appear.

Recording List:

• Depending on the transmitter information, the programme broadcast time or other information may not be correctly displayed in the recording list.

• The programme does not appear in the recording list immediately at the start of recording, but appears a few minutes after recording starts.

• Up to 500 programmes can be displayed in the recording list.

•If the channel settings are changed, the digital channel number, or other information may not appear correctly in the recording list.

• As the displayed programme time is calculated from the actual recording information, it may not match the recording time on the USB HDD.

To check a schedule

a Press B or b on the Programme Timer screen to

check the schedule.

To edit a schedule

a Press B or b on the Programme Timer screen to

select the title whose schedule you want to edit and

The Set Timer screen will appear. Change the settings as required, following the same procedure as for setting the schedule.

b Press B or b to highlight Set Timer and press OK.

press OK.

CONTROLS AND FEATURES

To delete a schedule

a Press B or b on the Programme Timer screen to

select the title whose schedule you want to delete.

b Press the RED button.

Press

C or c in the displayed confirmation window to

select Yes and press OK. The selected schedule will be deleted.

NOTE: You can also delete a schedule by selecting Delete Timer from the Set Timer menu for each programming

method.

To view a recorded programme

Display the Library screen and select the title of the recorded

programme from the list.

a Press MENU / C c / B / C c to highlight TV

Programmes / Library icons and press OK. Library

screen will appear.

b Press B or b to select the title you want to view.

The content of the title selected on the thumbnail screen is played.

To change the order in which the titles are liste d, press the BLUE button to select New or Old.

To display the titles by week or by Personal Mode, press the YELLOW button to select All, Weekly or Personal Grouping.

English

CONTROLS AND FEATURES

Sort : New

Sun Mon Tue Thu Fri SatWed

WWWWWW

WWWWWWWWWWWW

WWWWW

14:15 Wed, 16 Feb

WWWWWWW

Library

Weekly

1235 ITV London

ASTRA 19.2°E

USB HDD3 Remaining Capacity: 86% (912.0GB)

10 July 2011 14:30(01:30)

Wed, 16 Feb 10:00 Wed, 16 Feb 10:00 Thu, 17 Feb 10:00

Thu, 17 Feb 10:00

Fri, 18 Feb 10:00

Sat, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00 Mon, 18 Feb 10:00

Sort : New

Sun Mon Tue

WWWWWW

WWWWWWWWWWWW

WWWWW

WWWWWWW

Library

Weekly

We We

English

NOTE: If no titles have been registered to Personal Mode, Personal Grouping will be grayed out.

c Press OK.

Press C or c to select a day tab or Personal Mode tab.

Viewing starts.

● icon appears next to the title currently being recorded. When the title currently being recorded is selected and OK is pressed, playback will start from the beginning of the programme currently being recorded.

Operations during viewing

The following operations can be performed using the remote control buttons.

To PLAY Z To SKIP-BACK

v To STOP CC To REWIND W/w To PAUSE/STEP cc To FAST FORWARD

To start Time Shift

z To SKIP-FORWARD

Recording

Operations from the Library screen

As well as viewing the list of recorded titles on the Library screen,

you can protect or delete titles and register titles to Personal

To display the Library screen

Mode.

a Press MENU / C c / B / C c to highlight TV

Programmed / Programme Timers icons and press OK.

To protect or unprotect a recorded programme

Protecting a programme prevents it from being accidentally deleted. Select the title of the programme you want to protect and press the GREEN button. icon appea rs next to the title and the programme is protected. If Protect is set to On when the programme is recorded, icon appears next to the title of the recorded programme.

When a title with icon is selected and the GREEN button is pressed, icon disappears and the programme is unprotected.

To delete a recorded programme

a Press the RED button. Check boxes will appear next to

the titles.

b Press B or b to select the title you want to delete and

press OK. A check mark will be inserted in the check box.

b Press B or b to select Library and press OK. The

Library screen will appear.

To insert a check mark against all the titles, press the GREEN button. To uncheck all the check boxes, press the BLUE button.

NOTE:

• A check mark will not be inserted against protected titles.

• Note that once deleted, a title cannot be restored.

c Press the RED button.

Select Yes in the confirmation window and press OK.

All the titles with check marks will be deleted.

To register a recorded title to Personal Mode

1235 ITV London

ASTRA 19.2°E

USB HDD3 Remaining Capacity: 86% (912.0GB)

10 July 2011 14:30(01:30)

Thu, 17 Feb 10:00

Fri, 18 Feb 10:00

Sat, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00 Mon, 18 Feb 10:00

a Select the title you want to register to Personal

Mode.

b Press the QUICK button to display the Personal

Mode registration menu.

Quick Menu

Personal Grouping

None

CONTROLS AND FEATURES

Recording Setup

You can set your preferences for One Touch Recording or for

To set the recording time for One Touch Recording

scheduling recording.

a Press MENU / C c to highlight Setup icon. b Press B / C c to highlight Preferences icon and

press OK.

English

c Press C or c to select the Personal Mode to which

you want to register the title and press OK.

The title will be registered to the selected Personal Mode. You can remove a title from the registered Personal

Mode by selecting None.

To check the remaining USB HDD capacity

You can check the remaining capacity of the USB HDD using

Remaining Capacity.

NOTE: The remaining capacity displayed is only a guide; it is

not guaranteed.

Other useful functions (Time Shift Recording)

If you move away from the TV for a while, such as when the phone rings while you are watching TV, you can easily start

recording and then catch up with the progra mme later.

a Press W/w on the remote control while viewing

DTV.

The screen will switch to the Pause image and recording will start automatically. The recording time is the time set in One Touch Recording (see page 56).

b Press

(play).

Catch-up viewing will start from where the programme was paused.

c Press B or b to select Recording Setup and press

OK.

Preferences

Recording Setup

Camera Sensor Setup

Personal TV Setup

REGZA-LINK Setup

Network Setup

Network Device Setup

Photo Frame Setup

Teletext Auto

d Press B or b to select One Touch Recording Time.

Recording Setup

Recording Devices

One Touch Recording Time

Start Padding Time

End Padding Time None

Programme End Time

None

e Press C or c to select the recording time.

You can set the Programme End Time in 30-minute increments in the range of 30 minutes to 360 minutes.

To set the padding time for programmed recording start time and end time.

a In the Recording Setup scree n, press B or b to select

Start Padding Time.

b Press C or c to select a time.

You can select from None, 1 minute, 3 minutes, 5 minutes and 10 minutes. Recording will start at the selected number of minutes prior to the recording start time.

c Press B or b to select End Padding Time.

d Press C or c to select a time.

You can select from None, 1 minute, 3 minutes, 5 minutes and 10 minutes. Recording will end at the recording end time plus the selected number of minutes.

CONTROLS AND FEATURES

Recording Devices

Normal

Device List

Device Energy Saving Mode

Device List

USB HDD 1

Device Name Connected

Registered

Device List

USB HDD 1

Device Name Connected

Registered

Setting USB HDD Energy-Saving Mode

English

a In the Recording Setup screen, press B or b to sel ect

Recording Devices and press OK.

b Press B or b to select Device Energy Saving Mode.

c Press C or c to select Normal or Energy Saving.

NOTE:

• When set to Energy Saving, it may take a while for the USB HDD to function.

• When set to Energy Saving, depending on the type of USB HDD, the USB HDD indicator lamp may not indicate standby status even when in standby status.

To change the name of the USB HDD

a In the Recording Setup screen, press B or b to sel ect

Recording Devices and press OK.

b Press B or b to select Device List and press OK. The

Device List screen will appear.

To register a USB HDD

a Press OK on the Device List screen.

Press

C or c to select Yes in the confirmation window

that will appear and press OK. USB HDD registration will start. Wait until registration ends.

NOTE:

• If multiple USB HDD appear on the Device List screen, press

B or b to select the USB HDD you want to register.

• If a USB HDD is re-registered, it will not be formatted.

To format a USB HDD

a Press the BLUE button on the Device List screen.

Press

C or c to select Yes in the confirmation window

that will appear and press OK. Formatting will start. Wait until formatting ends.

NOTE:

• If multiple USB HDD appear on the Device List screen, press

B or b to select the USB HDD you want to format.

• When the USB HDD is formatted, all the data stored on the USB HDD will be deleted.

To disconnect a USB HDD

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press the GREEN button.

Edit the desired name by using the software keyboard (page 53). The maximum number of characters is 10.

NOTE: If mult iple USB HDD appear on the Device List screen in Step 2, press you want to change.

B or b to select the USB HDD whose name

To perform a USB HDD operation test

a Press the YELLOW button on the Device List screen.

USB HDD operation test will start. Wait until the test ends.

NOTE: The results of the device test are only a guide. The device may not function as shown in the results.

c Press B or b to select Recording Setup and press

OK.

d Press B or b to select Recording Devices and press

OK. The Device List screen will appear.

e Press the RED button.

Press

C or c to select Yes in the confirmation window

that will appear and press OK. The Connected check mark will be removed. Disconnect the USB HDD.

NOTE: If mu ltipl e USB HD D appe ar on th e Device List screen, press B or b to select the USB HDD you want to disconnect.

To confirm/delete Recording

Recording Information

8888 ITV1 London Wed, 23 Feb 10:00 - 11:00

8888 ITV1 London Wed, 23 Feb 10:00
