Chapter 1

TOSHIBA Legal, Regulatory, and Safety

This chapter states the Legal, regulatory, and safety information applicable to TOSHIBA computers.

Copyright, Disclaimer and Trademarks

Copyright

© 2014 TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein.

First edition October 2014

Copyright authority for music, movies, computer programs, databases and other intellectual property covered by copyright laws belongs to the author or to the copyright owner. Copyrighted material can be reproduced only for personal use or use within the home. Any other use beyond that stipulated above (including conversion to digital format, alteration, transfer of copied material and distribution on a network) without the permission of the copyright owner is a violation of copyright or author's rights and is subject to civil damages or criminal action. Comply with copyright laws in making any reproduction from this manual.

Disclaimer

Trademarks

User's Manual

This manual has been validated and reviewed for accuracy. The instructions and descriptions it contains are accurate for your computer at the time of this manual’s production. However, succeeding computers and manuals are subject to change without notice. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manual.

Intel is a trademark or registered trademark of Intel Corporation.

Windows, Microsoft, and Windows logo are registered trademarks of Microsoft Corporation.

1-1

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toshiba Corporation and its affiliates is under license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Secure Digital and SD are trademarks of SD Card Association.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

All other product names and service names in this manual might be trademarks or registered trademarks of their respective companies.

Regulatory Information

FCC information

FCC notice "Declaration of Conformity Information"

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Only peripherals complying with the FCC class B limits might be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by TOSHIBA is likely to result in interference to radio and TV reception. Shielded cables must be used between the external devices and the computer’s Micro HDMI port, Universal Serial Bus (USB

2.0 and 3.0) ports, HDMI port and Headphone/Microphone combo jack. Changes or modifications made to this equipment, not expressly approved by TOSHIBA or parties authorized by TOSHIBA could void the user’s authority to operate the equipment.

User's Manual 1-2

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Contact

Address: TOSHIBA America Information Systems, Inc.

9740 Irvine Boulevard

Irvine, California 92618-1697

Telephone: (949) 583-3000

This information is only applicable for the countries/regions where it is required.

EU Declaration of Conformity

This product is carrying the CE-Mark in accordance with the related European Directives. Responsible for CE-Marking is TOSHIBA EUROPE GMBH, Hammfelddamm 8, 41460 Neuss, Germany. The complete and official EU Declaration of Conformity can be found on TOSHIBA’s web site

http://epps.toshiba-teg.com on the Internet.

User's Manual

CE compliance

This product is labeled with the CE Mark in accordance with the applicable European Directives, notably RoHS Directive 2011/65/EU, Radio Equipment and Telecommunications Terminal Directive 1999/5/EC, Ecodesign Directive 2009/125/EC (ErP) and the related implementing measures.

This product and the original options are designed to observe the related EMC (Electromagnetic Compatibility) and safety standards. However, TOSHIBA cannot guarantee that this product still observes these EMC standards if options or cables not produced by TOSHIBA are connected or implemented. In this case the persons who have connected/implemented those options/cables have to provide assurance that the system (PC plus options/cables) still fulfils the required standards. To avoid general EMC problems, the following guidance should be noted:

1-3

Only CE marked options should be connected/implemented Only best shielded cables should be connected

Working environment

This product was designed to fulfil the EMC (Electromagnetic Compatibility) requirements to be observed for so-called “Residential, commercial and light industry environments”. TOSHIBA do not approve the use of this product in working environments other than the above mentioned “Residential, commercial and light industry environments”.

For example, the following environments are not approved:

Industrial Environments (e.g. environments where a mains voltage of 380 V three-phase is used)

Medical Environments Automotive Environments Aircraft Environments

Any consequences resulting from the use of this product in working environments that are not approved are not the responsibility of TOSHIBA.

The consequences of the use of this product in non-approved working environments may be:

Interference with other devices or machines in the near surrounding area.

Malfunction of, or data loss from, this product caused by disturbances generated by other devices or machines in the near surrounding area.

Therefore TOSHIBA strongly recommend that the electromagnetic compatibility of this product should be suitably tested in all non-approved working environments before use. In the case of automobiles or aircraft, the manufacturer or airline respectively should be asked for permission before use of this product.

Furthermore, for general safety reasons, the use of this product in environments with explosive atmospheres is not permitted.

Canadian regulatory information (Canada only)

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulation of the Canadian Department of Communications.

Note that Canadian Department of Communications (DOC) regulations provide, that changes or modifications not expressly approved by TOSHIBA Corporation could void your authority to operate this equipment.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la class B respecte toutes les exgences du Règlement sur le matériel brouileur du Canada.

User's Manual

1-4

Following information is only valid for EU-member States:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.

The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in the separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please visit our website

( www.toshiba.eu/recycling ) or contact your local council office or the retail outlet where you purchased the product.

User's Manual 1-5

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the European Battery Directive, then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in the separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. To achieve this you should take any battery and/or accumulator to your local recycling site, or to a retail outlet or facility that offers to collect these devices for environmentally friendly disposal, ensuring that the terminal contacts are covered by non-conductive tape.

For more detailed information about the collection and recycling programmes available in your country, please visit our website

( www.toshiba.eu/recycling ) or contact your local council office or the retail outlet where you purchased the product.

These symbols might not stick depending on the country and region where you purchased.

REACH - Compliance Statement

The European Union (EU) chemical regulation, REACH (Registration, Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018.

Toshiba will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.

Please consult the following website

www.toshiba.eu/reach for information about the presence in our articles of substances included on the candidate list according to REACH in a concentration above 0.1 % weight by weight.

User's Manual

1-6

Following information is only for Turkey:

Disposal of products:

The crossed wheelie bin symbol means that this product should not be collected and disposed with other household wastes. When product become waste at the end-of-life, to protect environment and human health, it should be given to nearest collection recycling or disposal center. For more information about collection and recycling programs in your country please contact your local authority or the retailer where the product was purchased.

Toshiba meets all requirements of Turkish regulation 28300 “Restriction of the use of certain hazardous substances in electrical and electronic equipment”.

AEEE Yönetmeliğine Uygundur

Toshiba 28300 sayılı Türkiye ''Elektrikle çalişan ve elektronik ekipmanda belirli tehlikeli maddelerin kullanimiyla ilgili kisitlama” yönetmeliği gereklerini tamamen yerine getirmektedir

The number of possible pixel failures of your display is defined according to ISO 9241-307 standards. If the number of pixel failures is less than this standard, they will not be counted as defect or failure.

Battery is a consumption product, since the battery time depends on the usage of your computer. If the battery can not be charged at all, then it is a defect or failure. The changes in battery time is not a defect or failure.

Following information is only for India:

The use of this symbol indicates that this product may not be treated as household waste.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please visit our website

( http://www.toshiba-india.com ) or contact call center (1800-200-8674).

These symbols might not stick depending on the country and region where you purchased.

User's Manual 1-7

Video Standard Notice

THIS PRODUCT IS LICENSED UNDER THE AVC, THE VC-1 AND MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (I) ENCODING VIDEO IN COMPLIANCE WITH THE ABOVE STANDARDS ("VIDEO") AND/OR (II) DECODING AVC, VC-1 AND MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE SUCH VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE

HTTP://WWW.MPEGLA.COM

User's Manual 1-8

ENERGY STAR® Program

Your Computer model may be ENERGY STAR compliant. If the model you purchased is compliant, it is labeled with the ENERGY STAR logo on the computer and the following information applies.

TOSHIBA is a partner in the ENERGY STAR Program and has designed this computer to meet the latest ENERGY STAR guidelines for energy efficiency. Your computer ships with the power management options preset to a configuration that will provide the most stable operating environment and optimum system performance for both AC power and battery modes.

To conserve energy, your computer is set to enter the lowpower Sleep Mode which shuts down the system and display within 15 minutes of inactivity in AC power mode.

TOSHIBA recommends that you leave this and other energy saving features active, so that your computer will operate at its maximum energy efficiency. You can wake the computer from Sleep Mode by pressing the power button.

Your ENERGY STAR certified computer should be set by default to enter a low-power "sleep mode" after a period of inactivity. Simply touching the mouse or keyboard "wakes" the computer in seconds. These sleep features can save you up to $23 per year (200 kWh per year in electricity) and prevent up to 300 pounds of greenhouse gas emissions annually.To learn how to adjust or activate these sleep settings on your computer, please go to:

www.energystar.gov/sleepinstructions

To activate sleep settings organization-wide quickly and easily through network tools, please go to

www.energystar.gov/powermanagement

Disposing of the computer and the computer's batteries

The computer's battery is not user-accessible. Contact an authorized TOSHIBA service provider for details regarding how to dispose of the computer and the batteries.

General Precautions

TOSHIBA computers are designed to optimize safety, minimize strain, and withstand the rigors of portability. However, certain precautions should be

User's Manual

1-9

observed to further reduce the risk of personal injury or damage to the computer.

Be certain to read the following general precautions and to note the cautions included in the text of the manual.

Provide adequate ventilation

Always make sure that your computer and AC adaptor have adequate ventilation and are protected from overheating when the power is turned on or when an AC adaptor is connected to a power outlet (even if your computer is in Sleep Mode). In this condition, observe the following:

Never cover your computer or AC adaptor with any object. Never place your computer or AC adaptor near a heat source, such as

an electric blanket or heater. Always provide sufficient space around the computer.

Overheating your computer or AC adaptor could cause system failure, computer or AC adaptor damage or a fire, possibly resulting in serious injury.

Creating a computer-friendly environment

To keep your computer in prime operating condition, protect your work area from:

Dust, moisture, and direct sunlight. Equipment that generates a strong electromagnetic field, such as

stereo speakers (other than speakers that are connected to the computer) or speakerphones.

Rapid changes in temperature or humidity and sources of temperature change such as air conditioner vents or heaters.

Extreme heat, cold, or humidity. Liquids and corrosive chemicals.

Stress injury

Heat injury

User's Manual

Carefully read the Instruction Manual for Safety and Comfort. It contains information on the prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use. It also includes information on work space design, posture, and lighting that can help reduce physical stress.

Avoid prolonged physical contact with the computer. If the computer is used for long periods, its surface can become very warm. While the temperature will not feel hot to the touch, if you maintain physical contact with the computer for a long time, for example if you rest the computer on your lap or if you keep your hands on the palm rest, your skin might suffer a low-heat injury.

1-10

If the computer has been used for a long time, avoid direct contact with the metal plate supporting the various interface ports as this can become hot.

The surface of the AC adaptor can become hot when in use but this condition does not indicate a malfunction. If you need to transport the AC adaptor, disconnect it and let it cool before moving it.

Do not lay the AC adaptor on a material that is sensitive to heat as the material could become damaged.

Pressure or impact damage

Do not apply heavy pressure to the computer or subject it to any form of strong impact as this can damage the computer's components or otherwise cause it to malfunction.

Cleaning the computer

To help ensure long, trouble-free operation, keep the computer free of dust and dirt, and use care with all liquids around it.

Be careful not to spill liquids into the computer. If the computer does get wet, turn the power off immediately and let the computer dry completely. In these circumstances, you should get the computer inspected by an authorized service provider in order to assess the scope of any damage.

Clean the plastics of the computer using a cloth slightly dampened with water.

You can clean the display screen by spraying a small amount of glass cleaner onto a soft, clean cloth and then wiping the screen gently with the cloth.

Never spray cleaner directly onto the computer or let liquid run into any part of it. Never use harsh or caustic chemical products to clean the computer.

Moving the computer

While the computer is designed for flexible day-to-day usage, you should exercise a few simple precautions when moving it in order to help ensure trouble-free operation.

Make sure all disk activity has ended before moving the computer. Turn off (shut down) the computer. Disconnect the AC adaptor and all peripherals before moving the

computer. Before carrying your computer, shut it down, disconnect the AC

adaptor and allow it to cool down. A failure to follow this instruction might result in minor heat injury.

User's Manual

1-11

Be careful not to subject the computer to impact or shock. A failure to follow this instruction could result in damage to computer, computer failure, or loss of data.

Never transport your computer with any cards installed. This might damage either the computer and/or the card resulting in computer failure.

Always use a suitable carry case when transporting the computer. When carrying your computer, be sure to hold it securely so that it

does not fall or hit anything. Do not carry your computer by holding any of its protruding elements.

Mobile phones

Be aware that the use of mobile phones can interfere with the audio system. The operation of the computer will not be impaired in any way, but it is recommended that a minimum distance of 30 cm is maintained between the computer and a mobile phone that is in use.

Instruction Manual for Safety and Comfort

All important information on the safe and proper use of this computer is described in the enclosed Instruction Manual for Safety and Comfort. Be sure to read it before using the computer.

Safety Icons

Safety icons are used in this manual to bring important information to your attention. Each type of message is identified as follows.

Indicates a potentially hazardous situation, which could result in death or serious injury, if you do not follow instructions.

A caution informs you that improper use of equipment or failure to follow instructions might cause data loss, equipment damage, or might result in minor or moderate injury.

Please read. A note is a hint or advice that helps you make best use of your equipment.

User's Manual 1-12

Getting Started

This chapter provides an equipment checklist, and basic information to start using your tablet.

If you use an operating system that was not pre-installed by TOSHIBA, some of the features described in this manual might not function properly.

In this manual, both words "tablet" and "computer" refer to the TOSHIBA tablet.

Equipment checklist

Carefully unpack your tablet, taking care to save the box and packaging materials for future use.

Hardware

Check to make sure that you have all the following items:

TOSHIBA Tablet TOSHIBA Bluetooth Keyboard for Encore 2 (Only provided with some

models of TOSHIBA WT10PE-A) Stylus Pen One AAAA battery (prepared for Stylus Pen) One replacement pen tip (prepared for Stylus Pen) USB Data and Charge Y-Cable (provided with some models) Micro-USB cable AC adaptor and power cord (2-pin plug or 3-pin plug) Tether string

Chapter 2

Documentation

User's Manual

Quickstart Instruction Manual for Safety and Comfort Warranty Information

If any of the items are missing or damaged, contact your dealer immediately.

2-1

Conventions

This manual uses the following formats to describe, identify, and highlight terms and operating procedures.

Internal storage Your tablet is equipped with an eMMC

Charm By swiping in from the right edge of your screen,

Desktop Tap the Desktop tile from the Start screen to

Start screen You can go back to the Start screen from an app

Apps view You can find all of your apps including desktop

(Embedded Multi Media Card). In this manual, the word "internal storage" refers to the eMMC unless otherwise stated.

you can find a list of charms: Search, Share, Start, Devices, and Settings.

access the desktop.

or the desktop by the following ways:

Press the Windows® button ( ) on your tablet. Tap the Start charm. Tap the Start button ( ) in the lower-left corner of the screen (Only on Desktop).

For detailed information, refer to the Windows Help and Support.

programs in the Apps view.

To get to the Apps view:

Slide up from the middle of the Start screen. Slide leftwards until the icon appears in the lower-left corner of the Start screen, and

then tap .

Using your tablet for the first time

Be sure to read the enclosed Instruction Manual for Safety and Comfort for information on the safe and proper use of this tablet. It is intended to help you be more comfortable and productive while using a tablet. By following the recommendations in it, you can reduce your chance of developing a painful or disabling injury to your hand, arms, shoulders, or neck.

This section provides basic information to start using your tablet. It covers the following topics:

Connecting the AC adaptor Turning on the power Initial setup

User's Manual

2-2

Use a virus-check program and make sure that it is updated regularly.

Never format storage media without checking its content - formatting destroys all stored data.

It is a good idea to back up the internal storage to external media periodically. General storage media is not durable or stable over long periods of time and under certain conditions might result in data loss.

Before you install a device or application, save any data in memory to the internal storage or other storage media. Failure to do so might result in data loss.

Connecting the AC adaptor

Attach the AC adaptor when you want to charge the battery or operate from AC power. It is also the fastest way to get started, because the battery pack must be charged before you can operate from battery power.

The AC adaptor can automatically adjust to any voltage ranging from 100 volts to 240 volts and to a frequency of either 50 hertz or 60 hertz, enabling you to use this tablet in almost any country/region. The adaptor converts AC power to DC power and reduces the voltage supplied to this tablet.

Always use the TOSHIBA AC adaptor that was included with your tablet, or use AC adaptors specified by TOSHIBA to avoid any risk of fire or other damage to the tablet. Use of an incompatible AC adaptor could cause fire or damage to the tablet possibly resulting in serious injury. TOSHIBA assumes no liability for any damage caused by use of an incompatible adaptor.

Never plug the AC adaptor into a power source that does not correspond to both the voltage and the frequency specified on the regulatory label of the unit. Failure to do so could result in a fire or electric shock, possibly resulting in serious injury.

Always use or purchase power cables that comply with the legal voltage and frequency specifications and requirements in the country of use. Failure to do so could result in a fire or electric shock, possibly resulting in serious injury.

The supplied power cord conforms to safety rules and regulations in the region the tablet is bought and should not be used outside this region. For use in other regions, buy power cords that conform to safety rules and regulations in the particular region.

Do not use a 3-pin to 2-pin conversion plug.

User's Manual 2-3

When you connect the AC adaptor to the tablet, always follow the

2-pin

3-pin

steps in the exact order as described in this User’s Manual. Connecting the power cable to a live electrical outlet should be the last step otherwise the adaptor DC output plug could hold an electrical charge and cause an electrical shock or minor bodily injury when touched. As a general safety precaution, avoid touching any metal parts.

Never place your tablet or AC adaptor on a wooden surface, furniture, or any other surface that could be marred by exposure to heat since the tablet base and the surface of the AC adaptor increase in temperature during normal use.

Always place your tablet or AC adaptor on a flat and hard surface that is resistant to heat damage.

Refer to the enclosed Instruction Manual for Safety and Comfort for detailed precautions and handling instructions.

1. Plug the USB connector of the Micro-USB cable into the AC adaptor.

Figure 2-1 Plugging the Micro-USB cable into the AC adaptor

Either a 2-pin or 3-pin adaptor is included with the tablet depending on the model.

User's Manual 2-4

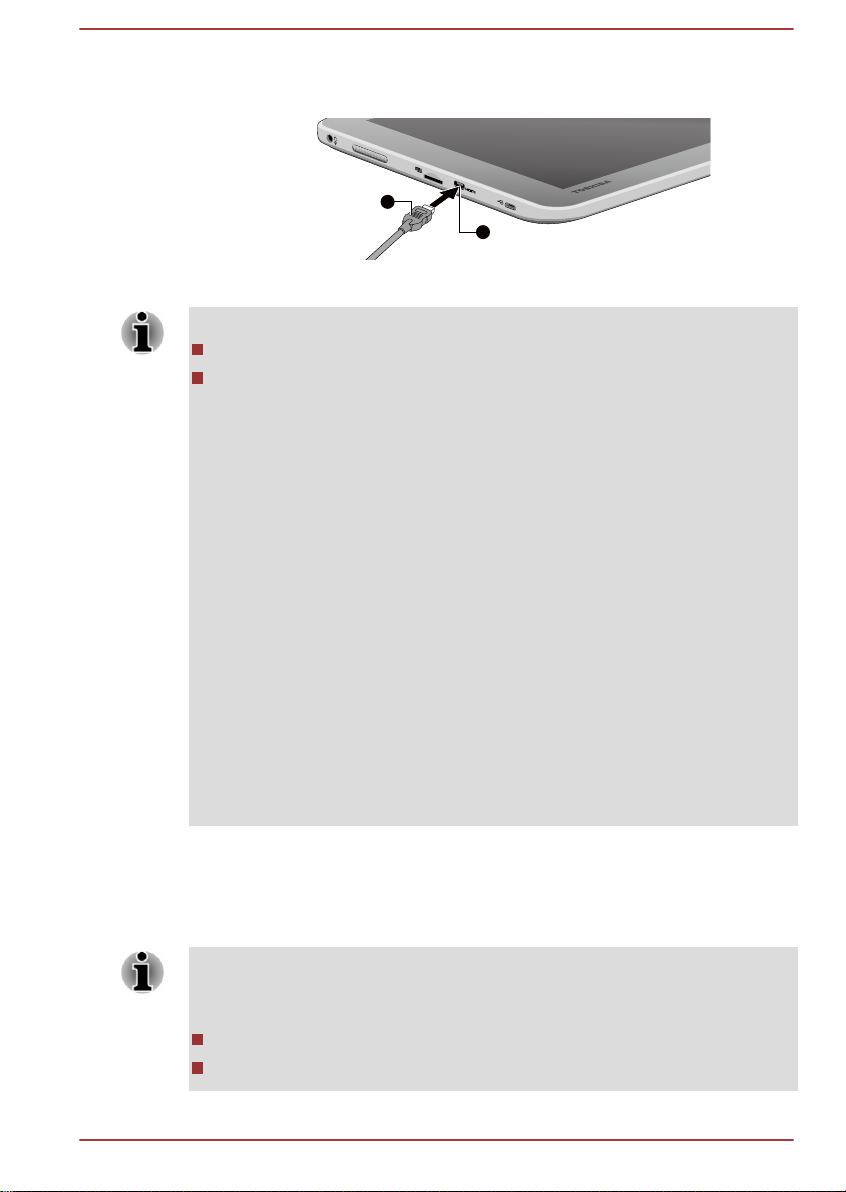

2. Plug the other smaller connector of the Micro-USB cable into the

2-pin

3-pin

2-pin

3-pin

Micro-USB port on your tablet.

You can also establish connection through the provided "USB Data and Charge Y-Cable". Refer to the USB Device section for more information.

Figure 2-2 Plugging the Micro-USB cable into tablet (TOSHIBA WT10PE-A)

Figure 2-3 Plugging the Micro-USB cable into tablet (TOSHIBA WT8PE-B)

Product appearance depends on the model you purchased.

The Micro-USB connector of the Micro-USB cable must be correctly plugged into the Micro-USB port on the tablet. Failure to do so can result in damage to the Micro-USB port.

3. Plug the AC adaptor into a live wall outlet.

Turning on the power

This section describes how to turn on the power.

After you turn on the power for the first time, do not turn it off until you have set up the operating system.

Volume cannot be adjusted during Windows Setup.

The tablet can not be powered on by pressing the power button if the battery power is completely exhausted. It is recommended to charge the battery pack by connecting the AC adaptor for 30 minutes before turning on the power.

Press and hold the power button for one second to turn on the tablet.

User's Manual

2-5

Figure 2-4 Turning on the power (TOSHIBA WT10PE-A)

Figure 2-5 Turning on the power (TOSHIBA WT8PE-B)

1. Power button

Product appearance depends on the model you purchased.

Initial setup

The Windows Startup Screen is the first screen displayed when you turn on the power. To install the operating system properly, follow the on-screen instructions on each screen.

When it is displayed, be sure to read the License Terms carefully.

Getting to know Windows

For detailed information on what is new and how to operate Windows, refer to the Windows Help and Support.

Start screen

User's Manual

The Start screen is the launching pad for everything you can do in the Windows operating system, providing new and easy ways to access everything from your favorite apps and websites to your contacts and other important information.

2-6

From the Start screen, you can start typing to search for what you want. From there, you can easily switch between results for apps, files, and more.

Charms

Use the Windows charms to start apps, find documents, set up system components, and perform most other computing tasks.

By swiping in from the right edge of your screen, you can find a list of charms: Search, Share, Start, Devices, and Settings.

Search This charm allows you to search your tablet

(apps, settings, and files), the web, or within an app. You can also find the Search icon on the upper right of the Start screen.

Share This charm allows you to share items (links,

photos, and more).

Start This charm takes you to the Start screen or, if

already on the Start screen, returns you to your last app.

Devices This charm allows you to manage your hardware.

Settings This charm allows you to access your tablet

settings (volume, brightness, connecting to the internet, and more).

Tiles

Windows Store

Sign-in options

User's Manual

Tiles can be accessed and launched from the Start screen.

Typical Start screen tiles are the Desktop tile and Mail tile, as well as tiles representing all other applications downloaded to your system.

Although many applications are pre-installed or built-in to your tablet, you can also download many other applications.

In the Windows Store, you can search for and browse thousands of apps, all grouped into easy to find categories.

Windows offers a number of sign-in options including Password ( ),

PIN ( ) and Picture password ( ) authentication to prevent from

2-7

unauthorized access. If you have multiple sign-in methods set for a user account, you can select an option on the Windows login screen by tapping sign-in options. Password authentication is the default sign-in option.

Turning off the power

The power can be turned off in one of the following modes, either Shut Down Mode, Sleep Mode or Hibernation Mode.

Shut Down Mode

When you turn off the power in Shut Down Mode, no data will be saved and the tablet will boot to the main screen of the operating system the next time it is turned on.

1. If you have entered data, either save it to the internal storage or to other storage media.

Never turn off the power while an application is running. Failure to do so can cause data loss.

Never turn off the power, disconnect an external storage device, or remove storage media during data read/write. Failure to do so can cause data loss.

In any emergency case, you can also press and hold Power button for about 10 seconds to force off the power.

2. Tap the Settings charm.

3. Tap Power, and then select Shut down. Or press and hold the power button for about two seconds till the screen shows Slide to shut down your PC appears, and then slide down the screen to shut down the tablet.

4. Turn off any peripheral devices connected to your tablet.

Do not turn the tablet or peripheral devices back on immediately. Wait a short period to avoid any potential damage.

Restarting the tablet

Certain conditions require that you reset the tablet, for example if:

You change certain tablet settings.

If you need to restart the tablet, tap Power, and then select Restart in the Settings charm.

Sleep Mode

If you have to interrupt your work, you are able to turn off the power without exiting from your software by placing the tablet into Sleep Mode. In this mode, data is maintained in the main memory of the tablet. When you turn on the power again, you can continue working right where you left off.

User's Manual

2-8

Your system supports Connected Standby function, which starts working after your tablet goes into Sleep Mode. Connected Standby function is to provide a constant connectivity while delivering long battery life, and at the same time, some activities are allowed to run to ensure that the supported Connected Standby scenarios (for example, receiving emails, updating tiles alive with fresh content, downloading/uploading a file from/to a website, and playing music) are functioning properly.

When you have to turn off your tablet aboard an aircraft or in places where electronic devices are regulated or controlled, always shut down the tablet. This includes turning off any wireless communication functionalities, and canceling settings that reactivate the tablet automatically, such as a timer recording function. Failure to shut down the tablet in this way could allow the operating system to reactivate and run pre-programmed tasks or preserve unsaved data, which could interfere with aviation or other systems, possibly causing serious injury.

Before entering Sleep Mode, be sure to save your data.

To prevent data loss, do not switch to Sleep Mode while transferring data to external media, such as USB devices, memory media, or other external memory devices.

When the AC adaptor is connected, the tablet will go into Sleep Mode according to the settings in the Power Options (to access it, tap

Control Panel -> System and Security -> Power Options under Windows System in the Apps view).

To restore the operation of the tablet from Sleep Mode, press the power button.

If the tablet enters Sleep Mode while a network application is active, the application might not be restored when the tablet is next turned on and the system returns from Sleep Mode.

To prevent the tablet from automatically entering Sleep Mode, disable Sleep Mode within the Power Options.

User's Manual

Benefits of Sleep Mode

The Sleep Mode feature provides the following benefits:

Restores the previous working environment more rapidly than the Hibernation Mode feature.

Saves power by shutting down the system when the tablet receives no input or hardware access for the time period set by the System Sleep Mode feature.

2-9

Executing Sleep Mode

You can enter Sleep Mode in one of following ways:

In the Settings charm, tap Power, and then select Sleep. Press the power button. Note that this feature must be enabled within

the Power Options.

When you turn the power back on, you can continue where you left off when you shut down the tablet.

Sleep Mode limitations

Sleep Mode will not function under the following conditions:

Power is turned back on immediately after shutting down. Memory circuits are exposed to static electricity or electrical noise.

Hibernation Mode

The Hibernation Mode feature saves the contents of memory to the internal storage when the tablet is turned off so that, the next time it is turned on, the previous state is restored. Note that the Hibernation Mode feature does not save the status of any peripheral devices connected to the tablet.

Save your data. While entering Hibernation Mode, the tablet saves the contents of memory to the internal storage. However, for safety sake, it is best to save your data manually.

Data will be lost if you disconnect the AC adaptor before the save is completed.

User's Manual

Automatic Hibernation Mode

The tablet can be configured to enter Hibernation Mode automatically when battery power is exhausted to the point that tablet operation cannot be continued. This can be specified in the Power Options. To define this setting, do the following:

1. Tap Control Panel -> System and Security -> Power Options ->

Change when the computer sleeps -> Change advanced power settings under Windows System in the Apps view.

2. Tap Low battery action or Critical battery action under Battery, and then select Hibernate from the list with the condition of On battery or Plugged in.

Benefits of Hibernation Mode

The Hibernation Mode feature provides the following benefits:

Saves data to the internal storage when the tablet automatically shuts down because of a low battery condition.

You can return to your previous working environment immediately when you turn on the tablet.

2-10

User's Manual 2-11

Chapter 3

The Grand Tour

This chapter identifies the various components of the tablet. It is recommended that you become familiar with each before you operate the tablet.

Legal Footnote (Non-applicable Icons)

For more information regarding Non-applicable Icons, refer to the Legal

Footnotes section.

Handle your computer carefully to avoid scratching or damaging the surface.

The Grand Tour for TOSHIBA WT10PE-A

The following figure shows each important component of the tablet.

User's Manual 3-1

Figure 3-1 Grand tour of the tablet (TOSHIBA WT10PE-A)

3 4 5

131415

1. Display screen 9. Memory media slot

2. Web Camera (front) 10. Micro HDMI port

3. Power button 11. Micro-USB port

4. Volume up/down button 12. Pen hole

5. Windows button 13. Strap hole for pen

6. Microphones 14. Web Camera (back)

7. Headphone/Microphone combo jack 15. Wireless communication antennas

8. Speakers

(not shown)

Product appearance depends on the model you purchased.

Display screen 25.6 cm (10.1") LCD screen, configured with the

following resolution:

HD, 1280 horizontal x 800 vertical pixels

Be aware that, when the tablet is operating on the AC adaptor, the image displayed on the internal screen is somewhat brighter than when it operates on battery power. This difference in brightness levels is intended to save power when operating on battery.

Legal Footnote (LCD)

User's Manual 3-2

For more information regarding LCD, refer to the Legal Footnotes section.

Web Camera (front) Web Camera is a device that allows you to

record video or take photographs with your tablet. You can use it for video chatting or video conferences using a communication tool.

Do not point the web camera directly at the sun.

Do not touch or press strongly on the web camera lens. Failure to do so might reduce image quality. Use an eyeglass cleaner (cleaner cloth) or other soft cloth to clean the lens if it becomes dirty.

Power button Press and hold this button to turn on/off the

tablet.

Volume up/down button

Press the button to increase or decrease the volume.

Windows button Press this button to open the Start screen or, if

already on the Start screen, returns you to your last app.

Microphones The built-in microphones allow you to import and

record sounds for your application. Refer to the

Sound System and Video mode section for more

information.

Headphone/ Microphone combo jack

A 3.5 mm mini headphone/microphone combo jack enables connection of a monaural microphone or a stereo headphone.

Speakers The speakers emit sound generated by your

software as well as audio alarms, such as low battery condition, generated by the system.

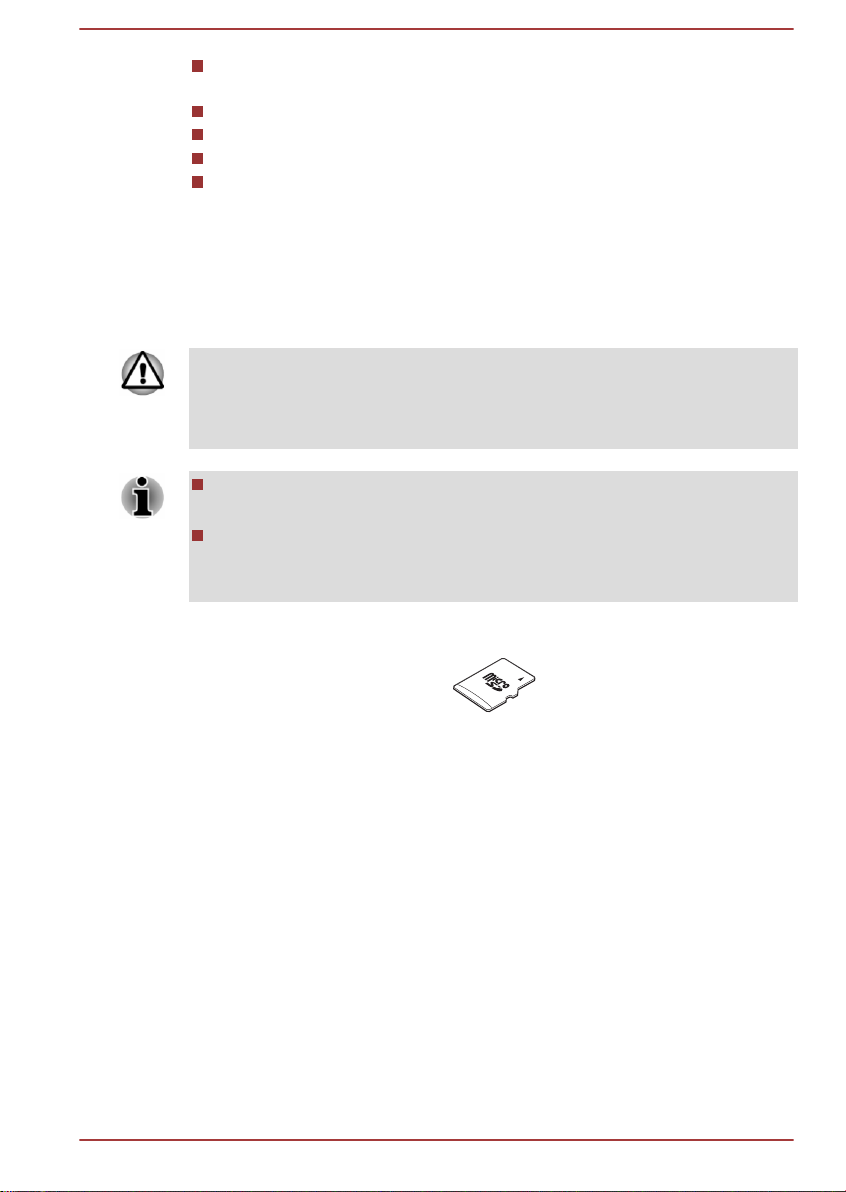

Memory media slot This slot lets you insert a micro SD™/SDHC™/

SDXC™ memory card. Refer to the Memory

media section for more information.

Keep foreign metal objects, such as screws, staples, and paper clips, out of the Memory media slot. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury.

User's Manual 3-3

Micro HDMI port The micro HDMI port can connect to HDMI cable

with Type D connector.

An HDMI cable sends video and audio signals.

Micro-USB port The tablet acts as a host via this port. When

acting as a host, the tablet can fast and directly communicate with other client devices.

Refer to the USB Device section for more information.

Note that it is not possible to confirm the operation of all functions of all USB devices that are available. Some functions associated with a specific device might not operate properly.

The Micro-USB port does not support external optical disc drive without its own power adapter.

Before removing a USB device from the Micro-USB port of your tablet, tap the Safely Remove Hardware and Eject Media icon on the Windows Taskbar, and then select the USB device that you want to remove.

Keep foreign metal objects, such as screws, staples, and paper clips, out of the Micro-USB port. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury.

Pen hole This hole is used for inserting the pen clip.

Strap hole for pen This hole is used for hanging your pen with a

Web Camera (back) Your tablet is also equipped with a back Web

Wireless communication antennas

Magnets location

Read the following information before using the tablet.

User's Manual

string.

Camera used for recording video or taking photographs.

Do not point the web camera directly at the sun.

Do not touch or press strongly on the web camera lens. Failure to do so might reduce image quality. Use an eyeglass cleaner (cleaner cloth) or other soft cloth to clean the lens if it becomes dirty.

The tablet is equipped with the Wireless LAN and Bluetooth antennas.

3-4

Figure 3-2 Magnets location (tablet)

Product appearance depends on the model you purchased.

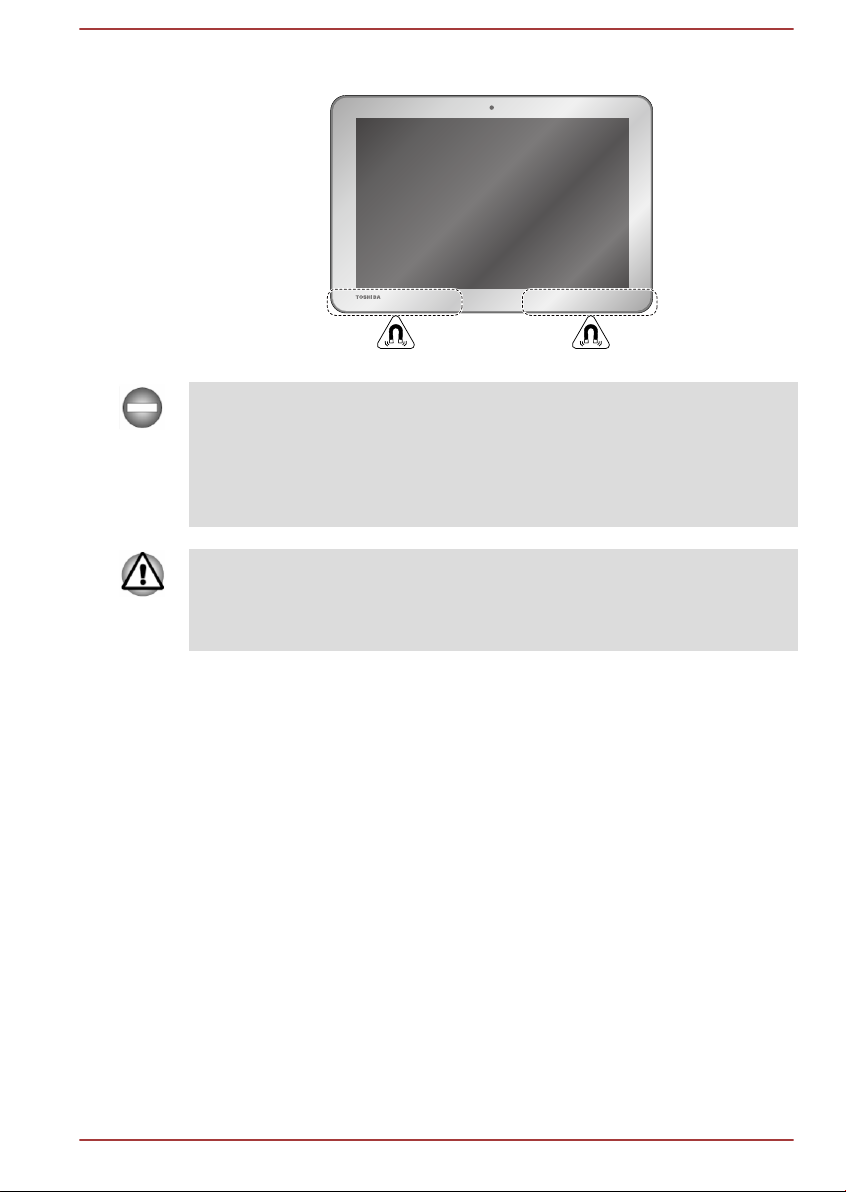

The tablet contains magnets that can interfere with pacemakers, defibrillators, or other medical devices. If you wear a pacemaker, keep at least 1.2 inches (approximately 3 cm) of separation between your medical device and the tablet. If you suspect that the tablet is interfering with your medical device, discontinue use and consult your physician for information related to your specific device.

The circled areas in the illustrations above show the location of magnets. Do not place any products utilizing magnetic materials or magnetic data stored devices (for example, credit cards, compass) on the magnetic areas as it can cause damage to the magnetic products.

The Grand Tour for TOSHIBA WT8PE-B

The following figure shows each important component of the tablet.

User's Manual

3-5

Figure 3-3 Grand tour of the tablet (TOSHIBA WT8PE-B)

8 9

1011

1. Display screen 8. Memory media slot

2. Web Camera (front) 9. Microphones

3. Micro-USB port 10. Strap hole for pen

4. Windows button 11. Pen hole

5. Headphone/Microphone combo jack 12. Web Camera (back)

6. Power button 13. Wireless communication antennas (not shown)

7. Volume up/down button 14. Speakers

Product appearance depends on the model you purchased.

Display screen 20.3 cm (8") LCD screen, configured with the

following resolution:

HD, 800 horizontal x 1280 vertical pixels

Be aware that, when the tablet is operating on the AC adaptor, the image displayed on the internal screen is somewhat brighter than when it

Legal Footnote (LCD)

For more information regarding LCD, refer to the Legal Footnotes section.

operates on battery power. This difference in brightness levels is intended to save power when operating on battery.

Web Camera (front) Web Camera is a device that allows you to

record video or take photographs with your tablet. You can use it for video chatting or video

User's Manual 3-6

conferences using a communication tool.

Do not point the web camera directly at the sun.

Do not touch or press strongly on the web camera lens. Failure to do so might reduce image quality. Use an eyeglass cleaner (cleaner cloth) or other soft cloth to clean the lens if it becomes dirty.

Micro-USB port The tablet acts as a host via this port. When

acting as a host, the tablet can fast and directly communicate with other client devices.

Refer to the USB Device section for more information.

Note that it is not possible to confirm the operation of all functions of all USB devices that are available. Some functions associated with a specific device might not operate properly.

The Micro-USB port does not support external optical disc drive without its own power adapter.

Windows button Press this button to open the Start screen or, if

already on the Start screen, returns you to your last app.

Headphone/ Microphone combo jack

A 3.5 mm mini headphone/microphone combo jack enables connection of a monaural microphone or a stereo headphone.

Power button Press and hold this button to turn on/off the

tablet.

Volume up/down button

Press the button to increase or decrease the volume.

Memory media slot This slot lets you insert a micro SD™/SDHC™/

SDXC™ memory card. Refer to the Memory

media section for more information.

User's Manual 3-7

Keep foreign metal objects, such as screws, staples and paper clips, out of the Memory media slot. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury.

Microphones The built-in microphones allow you to import and

record sounds for your application. Refer to the

Sound System and Video mode section for more

information.

Strap hole for pen This hole is used for hanging your pen with a

string.

Pen hole This hole is used for inserting the pen clip.

Web Camera (back) Your tablet is also equipped with a back Web

Camera used for recording video or taking photographs.

Do not point the web camera directly at the sun.

Do not touch or press strongly on the web camera lens. Failure to do so might reduce image quality. Use an eyeglass cleaner (cleaner cloth) or other soft cloth to clean the lens if it becomes dirty.

Wireless communication antennas

Speakers The speakers emit sound generated by your

The tablet is equipped with the Wireless LAN and Bluetooth antennas.

software as well as audio alarms, such as low battery condition, generated by the system.

Internal Hardware Components

This section describes the internal hardware components of your tablet.

The actual specifications might vary depending on the model you purchased.

Battery pack This tablet includes a battery pack inside.

However, do not attempt to dismount or replace it by yourself. Contact an authorized TOSHIBA service provider, if necessary.

The rechargeable lithium-ion battery pack provides power to the tablet when the AC adaptor is not connected.

For more detailed information on the use and operation of the battery pack, refer to the Battery section.

User's Manual 3-8

Legal Footnote (Battery Life)

For more information regarding Battery Life, refer to the Legal Footnotes section.

CPU The processor type varies depending on model.

To check which type of processor is included in your model, tap Control Panel -> System and Security -> System under Windows System in the Apps view.

Legal Footnote (CPU)

For more information regarding CPU, refer to the Legal Footnotes section.

Video RAM The memory in the graphics adaptor of the tablet,

used to store the image displayed on a bitmap display.

The amount of Video RAM available depends on the system memory of the tablet.

Tap Control Panel -> Appearance and

Personalization -> Display -> Adjust resolution under Windows System in the Apps

view.

The amount of Video RAM can be verified by tapping the Advanced settings button in the Screen Resolution window.

Memory This tablet is equipped with a 2 GB memory on

board depending on the model. The actual amount of usable system memory is less than the installed memory modules. This tablet does not support memory expansion.

Legal Footnote (Memory (Main System))

For more information regarding Memory (Main System), refer to the Legal

Footnotes section.

Graphics Processing Unit

Graphics processing unit (GPU) performance might vary depending on product model, design configuration, applications, power management settings and features utilized. GPU performance is only optimized when operating in AC power mode and might decrease considerably when operating in battery power mode.

User's Manual 3-9

Legal Footnote (Graphics Processing Unit (GPU))

For more information regarding Graphics Processing Unit (GPU), refer to the Legal Footnotes section.

User's Manual 3-10

Operating Basics

This chapter describes the basic operations of your tablet, and highlights the precautions that must be taken when using it.

Using the Touch Screen

You can use your finger to manipulate icons, buttons, menu items, the onscreen keyboard, and other items on the touch screen.

Tap Simply tap your finger once on the touch screen

to activate an item, such as an app.

Press and hold Press your finger down and leave it there for a

few seconds. This shows information to help you learn more about an item or opens a menu specific to what you are doing.

Pinch or stretch Touch the screen or an item with two or more

fingers, and then move the fingers toward each other (pinch) or away from each other (stretch). This shows different levels of information or visually zooms in or out.

Chapter 4

Rotate Put two or more fingers on an item and then turn

your hand to rotate things in the direction you turn your hand. Only some items can be rotated.

Slide Drag your finger on the touch screen to move

through what is on the screen.

User's Manual 4-1

Swipe Quickly move your finger in from the edge of the

For details and more advanced touch screen gestures to interact with Windows operating system, refer to Help and Support.

Do not press or push with excess force on the touch screen.

Do not apply excess force when cleaning the touch screen.

Never touch the screen with a sharp object such as a ball-point pen which might scratch or damage the surface.

Do not use a protecting sheet for the touch screen as it might decrease its sensitivity to gestures.

It is recommended that the screen not be touched while powering on or placed into Sleep Mode as the functionality might be affected.

Using the Stylus Pen

You can use the Stylus Pen to execute actions and enter data. Hold the Stylus Pen in a natural position, and tap, press, or trace on the screen lightly.

screen, without pausing when you first touch it.

Swipe from the left edge: shows your recently opened apps, and so on.

Swipe from the right edge: opens or closes the charms (Search, Share, Start, Devices, Settings).

Swipe from the top edge: opens or closes the app command bar.

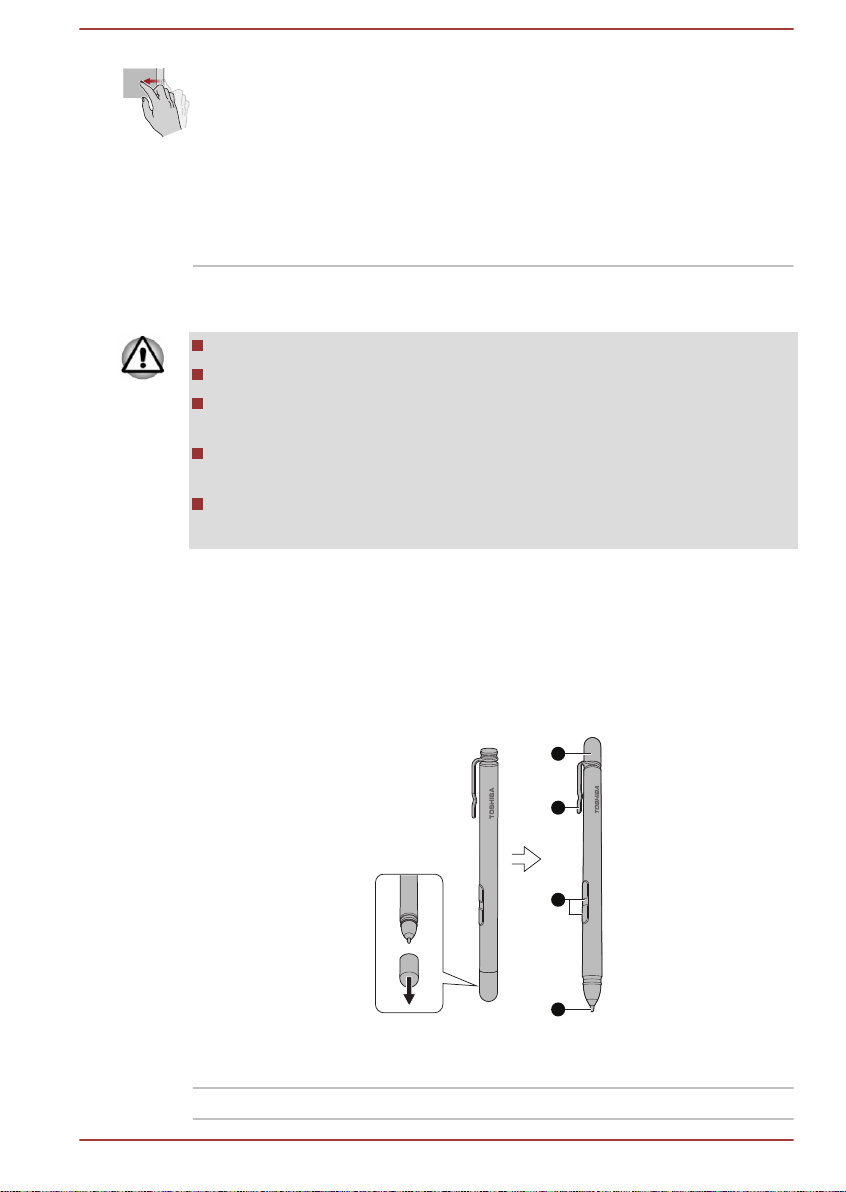

Figure 4-1 Stylus Pen

1. Pen cap

2. Pen clip 4. Pen point

3. Side buttons

Pen cap Provides protection to the pen tip.

User's Manual 4-2

Pen clip The pen clip allows you to insert the pen into the

pen hole on the tablet.

Side buttons The pen is equipped with two side buttons which

support right-click and eraser functions.

Right-click: Press and hold the button and touch an object with the pen tip. This action displays a pop-up menu or executes a specific action. It functions the same as right-click of a mouse.

Eraser: The virtual eraser allows you to delete notes or sketches in applications that support eraser function.

By default, the lower button functions as eraser.

Pen point You can use pen point to operate same like as by

your finger.

You can choose to enable/disable the Side buttons function in Pen

Options. To access it, tap Control panel -> Hardware and Sound -> Pen and Touch -> Pen Options under Windows System in the Apps

view.

Observe the following precautions on the handling of the Stylus Pen.

To avoid damages to the display screen, refrain from doing anything other than the specified operation methods. Failure to do so could cause a malfunction or characteristic deterioration.

Do not tap or press the Stylus Pen forcefully against the display as this could damage the Stylus Pen and the screen itself.

Avoid using or keeping the Stylus Pen in areas where the temperature can change rapidly or in places, such as a car, where the Stylus Pen is exposed to direct sunlight. Store the Stylus Pen without any pressure being applied to the Side buttons. Failure to do so could cause a malfunction or characteristic deterioration.

The Stylus Pen is composed of precision parts. Do not drop the Stylus Pen. Strong impact causes a malfunction or characteristic deterioration.

Do not apply excessive force to the Stylus Pen point and the Side buttons. Excessive force applied to these parts causes short life or characteristic deterioration.

Avoid water entering the Stylus Pen or condensation forming within it as either condition will cause a malfunction.

Do not disassemble the Stylus Pen. It could cause maladjustment or short life.

User's Manual 4-3

Do not stain the Stylus Pen with cosmetics or chemicals as this can cause a deterioration in appearance. Use a glass wiping cloth or dry cloth to clean the Stylus Pen. Do not use volatile liquids such as alcohol, thinner, or petroleum benzine to clean the Stylus Pen.

Do not apply excessive force to the Stylus Pen point as a bent or deformed pen point can cause a malfunction.

Keep the small parts of the Stylus Pen, such as the pen point or the knob of the Side buttons, away from infants and small children to prevent the accidental ingestion by them.

Do not use a ball point pen instead of the Stylus Pen included with the product.

Do not continue to use a broken pen point as this could result in scratching of the display screen.

You can change the pen settings in Pen and Touch. To access it, tap

Control panel -> Hardware and Sound -> Pen and Touch under Windows System in the Apps view.

TOSHIBA is not liable for any problems arising on the products due to the use of the Stylus Pen in an environment where the above conditions are not satisfied or because of its use by unspecified number of users.

Installing the battery

Install the battery before using the Stylus Pen.

Inserting the Stylus Pen

The pen clip allows you to insert the pen into the pen hole on the tablet when you do not need to use it or you want to take the pen with your tablet.

User's Manual

Figure 4-2 Installing the battery

4-4

Figure 4-3 Inserting the Stylus Pen (TOSHIBA AT10PE-A)

1. Pen hole 2. Pen clip

Figure 4-4 Inserting the Stylus Pen (TOSHIBA AT8PE-B)

1. Pen hole 2. Pen clip

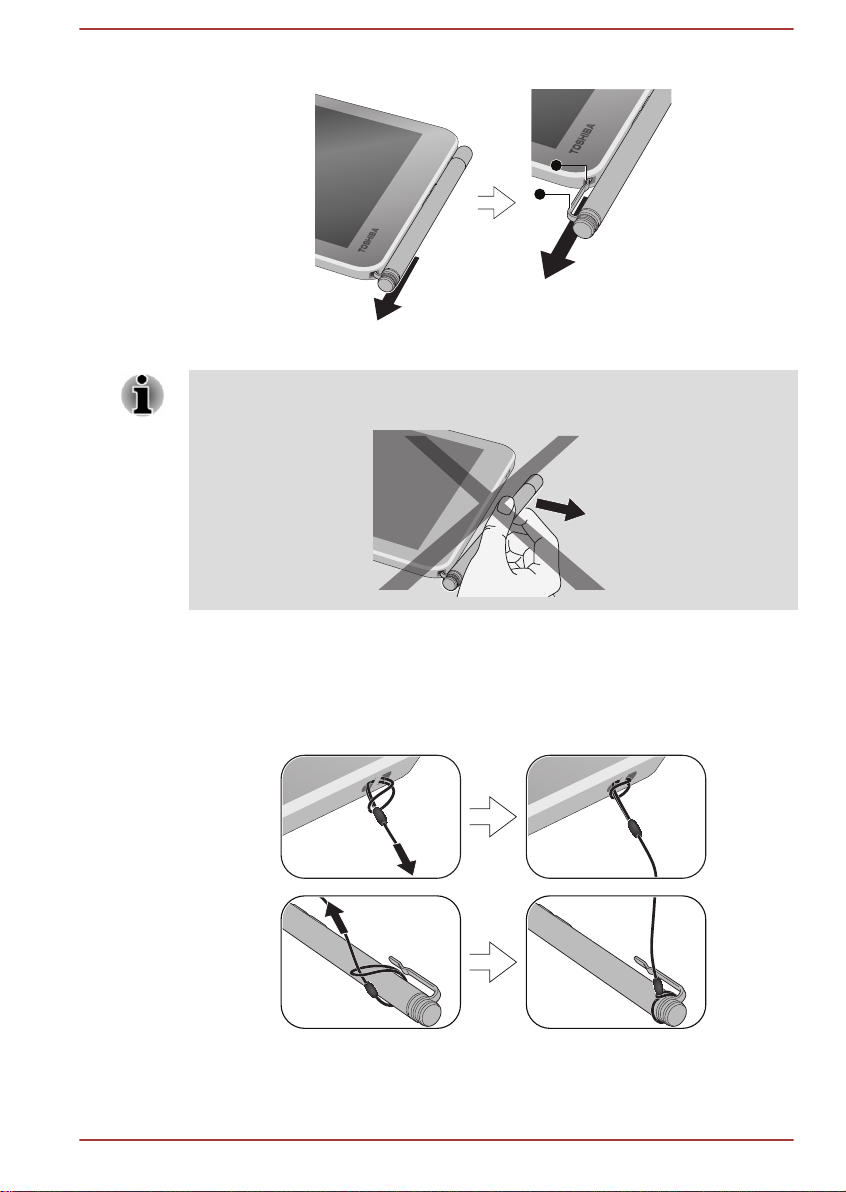

Removing the Stylus Pen

To remove the Stylus Pen, slowly pull the pen to remove it from the Pen hole on the tablet.

Figure 4-5 Removing the Stylus Pen (TOSHIBA AT10PE-A)

1. Pen hole

User's Manual 4-5

2. Pen clip

Figure 4-6 Removing the Stylus Pen (TOSHIBA AT8PE-B)

1. Pen hole 2. Pen clip

To avoid bending the pen clip, do not pull the pen away from the device. To remove the pen, slide it in a parallel direction to the device.

Using the tether string

You can use the provided tether string to hang the Stylus Pen on the tablet.

User's Manual

Figure 4-7 Using the tether string

4-6

Pen actions

You can use the Stylus Pen to enter data, start programs, move objects and execute other actions.

Single tap

Lightly tap the tip of the Stylus Pen on an object and lift it immediately to execute an action.

Double tap

Lightly tap the tip of the Stylus Pen twice on an object and lift it immediately to execute an action.

Press and hold

Touch the tip of the Stylus Pen to the display screen and hold it there to display a pop-up menu or other action.

Drag

Touch the Stylus Pen on the screen. Without lifting the Stylus Pen, drag it across the screen to select text or objects.

Drag and drop

Touch the Stylus Pen on the screen to select an object. Without lifting the Stylus Pen, drag it across the screen. Lift the Stylus Pen to drop the object to a new location.

The thickness and/or width of drawing lines are changing in response to pen pressure level. The harder the pen is pressed, the thicker and/or wider is the drawing line.

Replacing the pen tip

The pen tip of the Stylus Pen can be replaced with a new one which is provided when it is worn. To replace the pen tip, do the following:

1. Pinch the tip with your fingers and pull it out.

2. Insert a new pen tip into the Stylus Pen carefully, and press it securely.

User's Manual

4-7

Figure 4-8 Replacing the pen tip

Product appearance depends on the model you purchased.

Do not continue to use a broken pen tip as this could result in scratching of the display screen. When the pen tip breaks, replace it with the refill delivered with the Stylus Pen. When these refills have run out, you can purchase a new pen set from a TOSHIBA authorized dealer.

Always use the refills delivered with the Stylus Pen. Use of an incompatible refill could cause a malfunction or characteristic deterioration.

A short and worn pen tip is difficult to pull out. Replace the pen tip with a refill before it becomes too short to remove.

It is recommended that you keep another pen set as a spare. You can buy replacement pen sets from your TOSHIBA authorized dealer.

3D Playback on an External 3D Device

3D playback on an external 3D device feature is only provided with TOSHIBA WT10PE-A models.

Effect of 3D can be shown only on an external 3D devices connected via an HDMI output. It cannot be shown on the internal display. In order for 3D playback to work on external display/TV, you need a 3D enabled display TV that has an HDCP compliant HDMI port.

3D playback feature supports the following resolutions:1920x1080 24 Hz and 1280x720 60 Hz.

Change the Screen Resolution to one of the above before using 3D playback function.

Important Safety Information for 3D Function

Refrain from or stop viewing if you feel ill or experience discomfort before or while watching 3D video images.

Refrain from viewing 3D video images if you experience convulsions, photosensitivity reaction, or heart disease.

User's Manual

4-8

Battery

Battery pack

Due to the possibility of impact on vision development, viewers of 3D video images should be aged 6 or older. Children and teenagers could be more susceptible to health issues associated with viewing in 3D and should be closely supervised to avoid prolonged viewing without rest.

Avoid use of the 3D function when under the influence of alcohol. Read the user’s manual that comes with the tablet carefully before

using the 3D playback function. The 3D effect differs between individuals.

This section explains battery types, use, recharging methods and handling.

When the AC adaptor is not connected, the main power source of the tablet is this lithium ion battery pack, also referred to in this manual as the main battery.

Real-Time Clock (RTC) function

The Real-Time Clock (RTC) function is supported. The main battery provides power for the internal real-time clock and calendar function and also maintains the system configuration while the tablet is turned off. If the RTC lasting time completely runs out, the system will lose this information and the real-time clock and calendar will stop working.

You can change the Real-Time Clock settings in the BIOS setup utility. Refer to Troubleshooting for further information.

Care and use of the battery pack

This section provides the important safety precautions in order to handle your battery pack properly.

Refer to the enclosed Instruction Manual for Safety and Comfort for detailed precautions and handling instructions.

Charge the battery pack only in an ambient temperature from 5 through 35 degrees Celsius. Otherwise, the electrolyte solution might leak, battery pack performance might deteriorate, and the battery life might be shortened.

Charging the battery

When the power in the battery pack becomes low, the tablet enters Hibernation Mode so that you do not lose any data, and automatically turn itself off.

You must recharge a battery pack when it becomes discharged.

User's Manual

4-9

Procedures

To recharge a battery pack, connect the AC adaptor to the Micro-USB port on the tablet and plug the other end into a working outlet.

Charging Time

The following table shows the approximate time required to charge an exhausted battery fully.

Charging time for TOSHIBA WT10PE-A

Battery type Power off Power on

Battery pack (22.5 Wh, 2 cell) about 5 hours about 8 hours

Charging time for TOSHIBA WT8PE-B

Battery type Power off Power on

Battery pack (15 Wh, 1 cell) about 5 hours about 8 hours

Be aware that the charging time when the tablet is on is affected by ambient temperature, the temperature of the tablet and how you are using the tablet. If you make heavy use of external devices for example, the battery might scarcely charge at all during operation.

User's Manual

Battery charging notice

The battery might not begin charging immediately under the following conditions:

The battery is extremely hot or cold (if the battery is extremely hot, it might not charge at all). To ensure the battery charges to its full capacity, charge it at room temperature of between 5°C to 35°C (41– 95°F).

The battery is nearly completely discharged. In this instance, leave the AC adaptor connected for a few minutes and the battery should begin charging.

The battery might have a rapid decrease in battery operating time when you try to charge a battery under the following conditions:

The battery has not been used for a long time. The battery has completely discharged and been left in the tablet for a

long time.

In such cases, do the following:

1. Fully discharge the battery by leaving it in the tablet with the power on until the system automatically turns itself off.

4-10

2. Connect the AC adaptor to the Micro-USB port of the tablet, and to a wall outlet that is supplying power.

3. Charge the battery until the battery reaches its full capacity.

Repeat these steps two or three times until the battery recovers normal capacity.

Monitoring battery capacity

Remaining battery power can be monitored using the following methods.

Tapping the battery icon on the Windows Taskbar Via the Battery Status in the Windows Mobility Center window

Be aware that the actual remaining operating time might differ slightly from the calculated time.

With repeated discharges and recharges, the battery capacity will gradually decrease. In view of this, it is noted that an often used, older battery will not operate for as long as a new battery even when both are fully charged.

Maximizing battery operating time

The usefulness of a battery depends on how long it can supply power on a single charge, while how long the charge lasts in a battery depends on:

Processor speed Screen brightness System Sleep Mode System Hibernation Mode Display power off period

How often and for how long you use the internal storage and external disk drives, for example, optical disc

How much charge the battery contained to begin with How you use optional devices, such as a USB device, to which the

battery supplies power Whether you enable Sleep Mode, which can conserve battery power if

you are frequently turning the tablet off and on Where you store your programs and data The environmental temperature - operating time decreases at low

temperatures.

Batteries exhausted time

When you turn off the power of your tablet with battery fully charged, the battery exhausts within the following approximate period.

User's Manual

4-11

Battery exhausted time for TOSHIBA WT10PE-A

Battery type Sleep Mode Shut Down Mode

Battery pack (22.5 Wh, 2 cell) about 10 days about 6 weeks

Battery exhausted time for TOSHIBA WT8PE-B

Battery type Sleep Mode Shut Down Mode

Battery pack (15 Wh, 1 cell) about 6 days about 6 weeks

Extending battery life

To maximize the life of your battery pack, do the following at least once a month.

1. Turn off the tablet's power.

2. Disconnect the AC adaptor and turn on the tablet's power. If it does not turn on then go to Step 4.

3. Operate the tablet on battery power for five minutes. If you find that the battery pack has at least five minutes of operating time, continue operating until the battery pack is fully discharged, however, if there is warning to indicate a low battery condition, go to Step 4.

4. Connect the AC adaptor to the Micro-USB port of the tablet, and to a wall outlet that is supplying power.

5. Charge the battery pack until the battery reaches its full capacity.

GPS Function

Your tablet might include a built-in GPS (Global Positioning System).

The performance of GPS varies depending on the environment. It might happen that a location cannot be determined.

Your current location might not be shown depending on the status of GPS or the location. If you are obtaining your current location information from the tablet, your current location might not be detected due to the information accuracy. Specifically, your current location might not be detected in the following places or situations:

Inside or directly under a building Inside a bag or box Among dense trees

User's Manual

4-12

When there is an obstacle (person or object) in the front of the antenna

Underground tunnel, underground, or underwater Buildings streets or residential areas Near to the high voltage cables Bad weather such as heavy rain or snow

Memory media

The tablet is equipped with a memory media slot that can accommodate some kinds of memory media with various memory capacities so that you can easily transfer data from devices, such as digital cameras and Personal Digital Assistants.

Keep foreign objects out of the memory media slot. Never allow metal objects, such as screws, staples and paper clips, to enter the tablet. Foreign metal objects can create a short circuit, which can cause tablet damage and fire, possibly resulting in serious injury.

This Memory media slot supports the following memory media: microSD/SDHC/SDXC Card.

Not all memory media have been tested and verified to work correctly. Therefore, it is not possible to guarantee that all memory media can operate properly.

Figure 4-9 Examples of memory media (microSD card)

Points to note about the memory media card

microSD/SDHC/SDXC memory cards comply with SDMI (Secure Digital Music Initiative), which is a technology adopted to prevent unlawful copy or playback of digital music. For this reason, you cannot copy or play back protected material on another computer or other device, and you cannot reproduce any copyrighted material except for your personal enjoyment.

The supported maximum capacity of memory card is 128GB.

Memory media format

New media cards are formatted according to specific standards. If you wish to reformat a media card, be sure to do so with a device that uses media cards.

User's Manual

4-13

Formatting a memory media card

Memory media cards are sold already formatted in conformity to specific standards. If you reformat a memory card, be sure to reformat it with a device such as digital camera or digital audio player that uses the memory cards, not with the format command provided within Windows.

To format all areas of the memory card, including the protected area, you must obtain an appropriate application that applies the copy protection system.

Media care

Observe the following precautions when handling the card.

Do not twist or bend cards. Do not expose cards to liquids or store in humid areas or lay media

close to containers of liquid. Do not touch the metal part of a card or expose it to liquids or let it get

dirty. After using card, return it to its case. The card is designed so that it can be inserted only one way. Do not

try to force the card into the slot. Do not leave a card partially inserted in the slot. Press the card until

you hear it click into place. Memory cards have a limited lifespan, so it is important to back up

important data. Do not write to a card if the battery power is low. Low power could

affect writing accuracy. Do not remove a card while read/write is in progress.

For more details on using memory cards, see manuals accompanying the cards.

Inserting memory media

The following instructions apply to all types of supported media devices. To insert memory media, do the following:

1. Turn the memory media so that the contacts (metal areas) face down.

2. Insert the memory media into the memory media slot on the tablet.

User's Manual

4-14

3. Press the memory media gently until it clicks into place.

1 2

Figure 4-10 Inserting memory media (TOSHIBA WT10PE-A)

Figure 4-11 Inserting memory media (TOSHIBA WT8PE-B)

1. Memory media slot 2. Memory media

Product appearance depends on the model you purchased.

Make sure that the memory media is oriented properly before you insert it. If you insert the media in wrong direction, you might not be able to remove it.

When inserting the memory media, do not touch the metal contacts. You could expose the storage area to static electricity, which can destroy data.

Do not turn off the tablet or switch to Sleep Mode or Hibernation Mode while files are being copied. Failure to do so might cause data loss.

Removing memory media

The following instructions apply to all types of supported media devices. To remove memory media, do the following:

1. Tap the Safely Remove Hardware and Eject Media icon on the Windows Taskbar.

2. Tap memory media to eject.

3. Push the memory media until you hear a click to partially release it.

4. Grasp the media and pull it out of the slot.

If you remove the memory media or turn off the power while the tablet is accessing the memory media, you might lose data or damage the media.

Do not remove the memory media while the tablet is in Sleep or Hibernation Mode. The tablet could become unstable or data in the memory media could be lost.

User's Manual 4-15

USB Device

This tablet is equipped with a Micro-USB port that complies with USB 2.0 standard.

You can connect the USB device into the Micro-USB port on your tablet directly or through the USB port on the provided "USB Data and Charge YCable" depending on the USB device.

Make sure the connector is properly aligned with the socket. Do not try to force the connection, doing so can damage the connecting pins.

As the port operation of all USB devices has not been confirmed, some USB devices might not function properly.

Using the "USB Data and Charge Y-Cable"

The "USB Data and Charge Y-Cable" is provided with some models and it can be used for the following scenarios:

Charging only

Charging the tablet as a charging cable connected with the AC adaptor.

Charging and Data transfer

Charging the tablet as a charging cable connected with the AC adaptor and connecting to a standard USB device at the same time.

Figure 4-12 USB Data and Charge Y-Cable (TOSHIBA WT10PE-A for

example)

1. USB Data and Charge Y-Cable

2. Micro-USB port (Charge only)

3. Universal Serial Bus (USB 2.0) port

Data transfer only

Connecting to a standard USB device only.

Charging the tablet via connecting the "USB Data and Charge YCable" might take longer.

User's Manual 4-16

The AC adaptor should not be disconnected with the "USB Data and Charge Y-Cable" if it is connecting with USB device and tablet at the same time. If the USB device works with USB bus power, which comes from "USB Data and Charge Y-Cable", the disconnection of AC adaptor would cause power loss. Even if the USB device has its own power source, the device will stop around 60 miliseconds because USB controller would detect with “no bus power” due to sudden disconnection with AC adaptor. The disconnection might cause data loss and thus Windows might detect error and start data recovery.

Charging the tablet via connecting the "USB Data and Charge YCable" needs 1.5 A for charging, and if a USB device is connected to the tablet, it needs 2 A for charging. In this case, when charging from PC’s USB port which only supports 1 A, the power supply might stop working.

When using “USB Data and Charge Y-Cable”, there might be a possibility that power charging to the tablet might not work. Possibility will get higher if the USB device connected with the “USB Data and Charge Y-Cable” is non-standard USB 2.0 device.

Tablets other than TOSHIBA WT10PE-A and TOSHIBA WT8PE-B cannot support "USB Data and Charge Y-Cable".

External Display

Your tablet video capabilities can be enhanced with additional displays.

External displays allow you to share your desktop or extend the desktop area.

HDMI device

User's Manual

HDMI feature is only provided with TOSHIBA WT10PE-A models.

The tablet is equipped with a Micro HDMI port that can send video by connecting with external devices. Your tablet supports 1080p, 720p signal format. The available format depends on the HDMI device you are connected to.

To connect an HDMI-compatible display device, do the following:

As the port operation of all external display devices have not been confirmed, some devices might not function properly.

To connect a device to the Micro HDMI port, you must purchase a suitable HDMI cable.

1. Plug one end of the HDMI cable into the HDMI in port of the HDMI display device.

2. Plug the other smaller end of the HDMI cable into the Micro HDMI port on your tablet.

4-17

3. Turn the HDMI display device's power on.

Figure 4-13 Connecting an HDMI cable

1. Micro HDMI port 2. HDMI cable (Type D connector)

Do not plug/unplug an HDMI device under the following conditions:

The system is starting up.

The system is shutting down.

When you connect a television or external monitor to the Micro HDMI port, the display output device is set to HDMI.

When you unplug the HDMI cable and re-plug it, wait at least 5 seconds before you re-plug the HDMI cable again.

When you change the display output device, the playback device might not switch automatically. In this case, in order to set the playback device to the same device as the display output device, please adjust the playback device manually by the following steps:

1. Tap Control Panel -> Hardware and Sound -> Sound under

Windows System in the Apps view.

2. In the Playback tab, select the playback device which you want to

switch to.

3. To use the internal speakers on your tablet, select Speakers.To use the

television or the external monitor that you have connected to the tablet, select a different playback device.

4. Tap the Set Default button.

5. Tap OK to close the Sound dialog.

Settings for display video on HDMI

To view video on the HDMI display device, be sure to configure the following settings otherwise you might find that nothing is displayed.

Be sure to select the display device before starting to play video. Do not change the display device while playing video.

Do not change the display device under the following conditions.

While data is being read or written.

While communication is being carried out.

User's Manual 4-18

Selecting HD Format

To select the display mode, do the following:

1. Tap Control Panel -> Appearance and Personalization -> Display -

> Change display settings -> Advanced settings -> List All Modes

under Windows System in the Apps view.

2. Select one of the modes at List All Modes.

Wireless display

Your tablet might support Wireless display, a wireless technology which utilizes Wi-Fi to allow the tablet to be wirelessly connected to external displays including TVs as extended screens. With Wireless display, documents, streamed/local media contents or other online contents can be shared wirelessly with others.

To use Wireless display, either one of the following devices is required:

A compatible external display with built-in support for Wireless display. An external display with HDMI port and a Wireless display adaptor.

The Wireless display adaptor is a device that connects to the external display via HDMI port and can receive Wi-Fi signals from your tablet.

To wirelessly connect to an external display, do the following:

1. Tap Settings charm.

2. Tap Change PC settings -> PC and devices -> Devices.

3. Tap Add a device. Your tablet will start searching for the Wireless display device.

4. After the Wireless display device is searched, follow the on-screen instructions to finish connection.

After the connection is established, the name of the Wireless display device will appear under Projectors.

To disconnect the Wireless display device, tap the Wireless display device name, and then tap Remove device.

If wireless display feature is activated before connecting to a Wi-Fi Access Point, wireless display might be disabled. If it happens, please enable wireless display again.

Changing the display settings

After one or more external displays are connected, the operating system can automatically detect, identify, and set up the display settings.

You can also manually manage how the external displays work and change the display settings by tapping Project in the Devices charm. If you disconnect the external display before you turn off the tablet's power, be sure to switch to the internal display.

User's Manual

4-19

TOSHIBA Bluetooth Keyboard for Encore 2

TOSHIBA Bluetooth Keyboard for Encore 2 is provided with some models of TOSHIBA WT10PE-A. It provides Bluetooth keyboard with powerful features and great convenience when using your tablet.

Grand tour

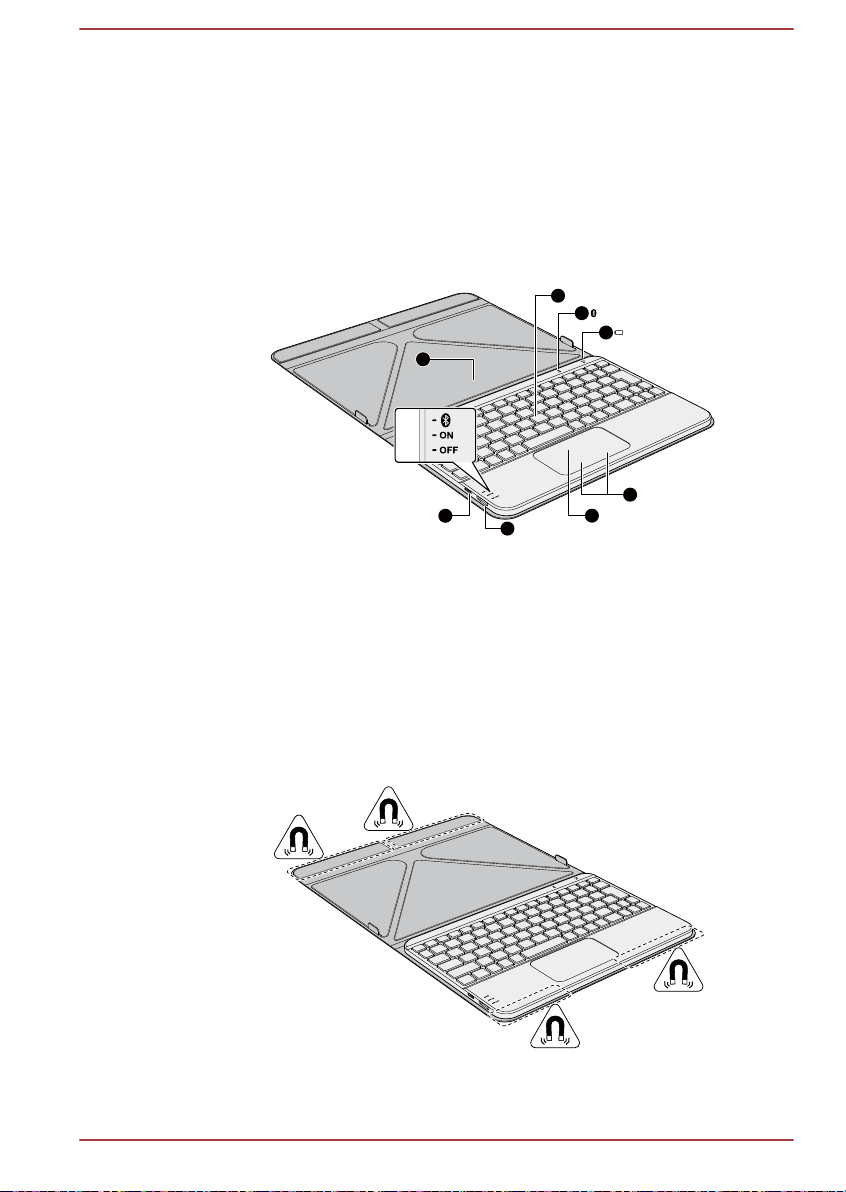

The following figure shows an overview of the Keyboard.

Figure 4-14 Grand tour

1. Keyboard 5. Power switch

2. Bluetooth indicator 6. Touch Pad

3. Battery indicator 7. Touch Pad control buttons

4. Micro-USB port (Charge only) 8. Keyboard cover

Product appearance depends on the model you purchased.

User's Manual

Magnets location

Read the following information before using the Keyboard.

Figure 4-15 Magnets location (Keyboard)

Product appearance depends on the model you purchased.

4-20

The Keyboard contains magnets that might interfere with pacemakers, defibrillators or other medical devices. If you wear a pacemaker, keep at least 6 inches (approximately 15 cm) of separation between your medical device and the Keyboard. If you suspect that the Keyboard is interfering with your medical device, discontinue use and consult your physician for information related to your specific device.

Keyboard indicators

The Keyboard has two indicators indicating the battery and bluetooth status respectively.

Icon Item Function

Battery indicator Glows white for

approximately 5 seconds when power on.

Charging: Glows amber, and the indicator will be off when fully charged.

Low battery: Blinks amber.

Setting up the Keyboard

Fit your tablet into the Keyboard properly. The Keyboard supports two modes when using it with your tablet.

Stand mode

You can put your tablet onto the Keyboard cover and operate like a laptop when in this mode.

User's Manual

Bluetooth indicator Searching: Blinks white until

pairing is finished

4-21

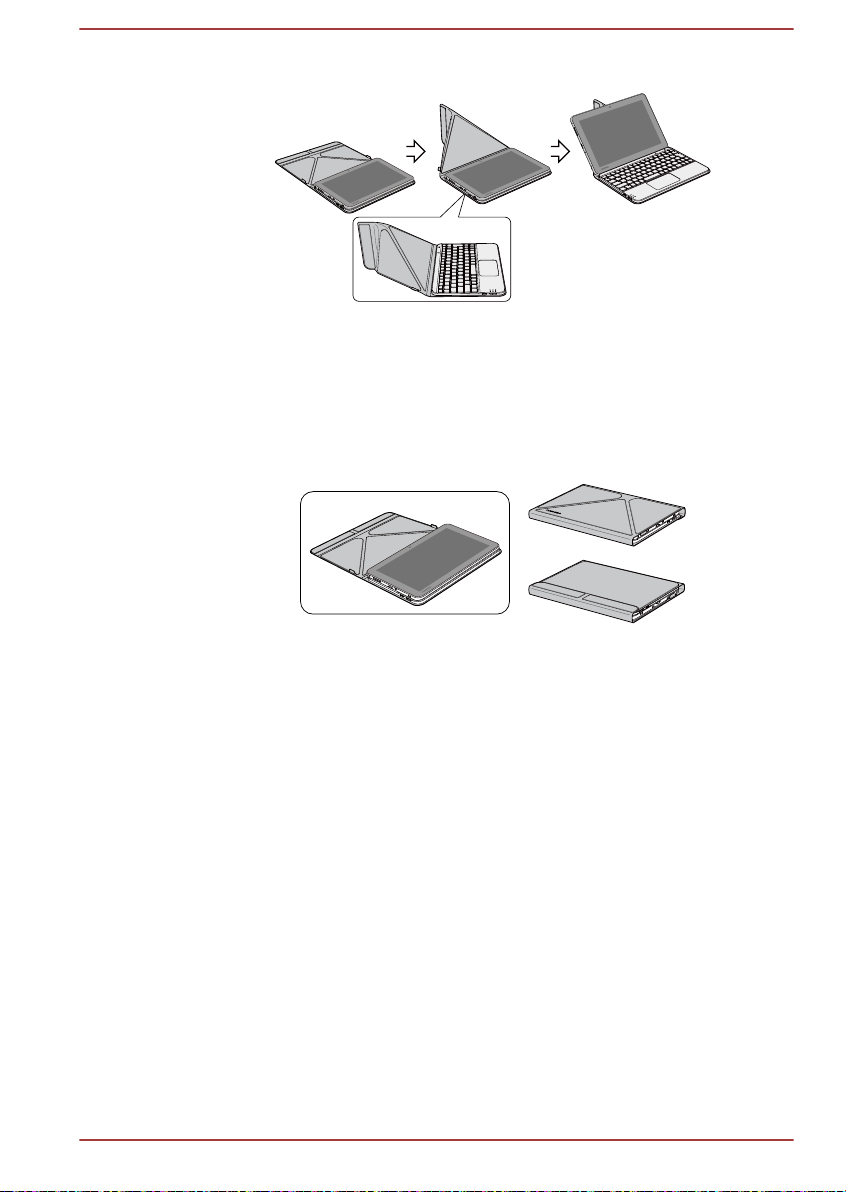

Figure 4-16 Stand mode

Top view

Bottom view

Product appearance depends on the model you purchased.

Portable mode

This mode provides you the convenience to carry the Keyboard and prevent damage or scratch to it.

Figure 4-17 Portable mode

Product appearance depends on the model you purchased.

Charging the Keyboard

Before using the Keyboard, it is recommended that you charge the battery.

You can use the provided AC adaptor and Micro-USB cable for charging. To charge the Keyboard, do the following:

1. Plug the USB connector of the Micro-USB cable into the AC adaptor.

User's Manual

4-22

2. Plug the smaller connector of the Micro-USB cable into the Micro-USB

2-pin

3-pin

port on your Keyboard.

Figure 4-18 Charging the Keyboard

Product appearance depends on the model you purchased.

3. Plug the AC adaptor into a live wall outlet.

A full charge takes about 3 hours.

If you are not going to use the Keyboard for a long period of time, turn it off to conserve power.

Connecting your tablet to the Keyboard

Before you start using the Keyboard, it is necessary to do Bluetooth pairing.This is required for the first time and after that, the system will remember this keyboard until manually unpaired.

To complete the pairing, do the following:

1. On the Keyboard, slide the Power switch to the Bluetooth position for one second and release, the Bluetooth indicator starts blinking white for pairing.

2. On your tablet, swipe in from the right edge of your screen on the desktop to open charms, and then tap Settings -> Change PC settings -> PC and devices -> Bluetooth.

The Bluetooth function on your tablet is enabled by default. Your tablet will just start scanning available Bluetooth devices, and you can see a list of available Bluetooth devices for connection.

3. Tap the device named Bluetooth Keyboard, a Bluetooth pairing request window pops up. Follow the on-screen instructions to complete pairing. You will see Bluetooth Keyboard as connected after the pairing has been successfully completed.

Now the Keyboard is ready for use

If you want to pair more than one Keyboard with your tablet, it is recommended to do pairing one by one.

One Keyboard only supports one tablet in Bluetooth connecting.

User's Manual 4-23

To manually disconnect the Keyboard, tap Bluetooth Keyboard and tap Remove device.

The touch pad might not work properly by immediate use after turning on the Bluetooth keyboard. If it happens, turn off/on the keyboard again and wait for over three seconds.

Reconnecting the Keyboard

Under any of the following conditions, the connection between your tablet and the Keyboard will be lost.

Bluetooth is turned off on your tablet. Keyboard is manually disconnected from tablet. Keyboard is manually unpaired from tablet. Tablet is powered off. Keyboard is powered off. Keyboard is in idle mode for 10 minutes.

Generally the Keyboard automatically searches the tablet and complete the re-connection by pressing any key. However, if it is not the case, you can try to turn off and on the Keyboard and/or turn off and on the tablet's bluetooth. If you are still not able to get reconnected, you might need to manually re-connect the keyboard.

Unpairing the Keyboard

If you will not use the Keyboard for a long time or no longer need it, you might unpair it from your tablet by the following steps:

1. On your tablet, tap Settings -> Change PC settings -> PC and devices -> Bluetooth.

2. Tap Bluetooth Keyboard and tap Remove device to remove the Keyboard.

Using the Touch Pad

The Touch Pad located in the palm rest might support the following gestures:

Tap Tap once on the Touch Pad to activate an item,

such as an app.

Two-Finger Tap Tap once on the Touch Pad with two fingers

together to display a menu or other function depending on the software you are using. (Similar to right-click)

Pinch or stretch Place two fingers down on the Touch Pad and

move them toward each other (pinch) or away from each other (stretch). This will show different levels of information or visually zooms in or out.

User's Manual 4-24

Two-Finger Scroll Place two fingers down and slide them vertically

or horizontally from anywhere on the Touch Pad. This allows you to operate the scroll bars of a window.

Swipe Quickly move your finger in from the edge of the

Touch Pad, without pausing when you first touch it.

Swipe from the left edge: shows your recently opened apps.

Swipe from the right edge: opens or closes the charms (Search, Share, Start, Devices, Settings).

Swipe from the top edge: opens or closes the app command bar.

Some of the Touch Pad operations described in this section are only supported in certain applications.

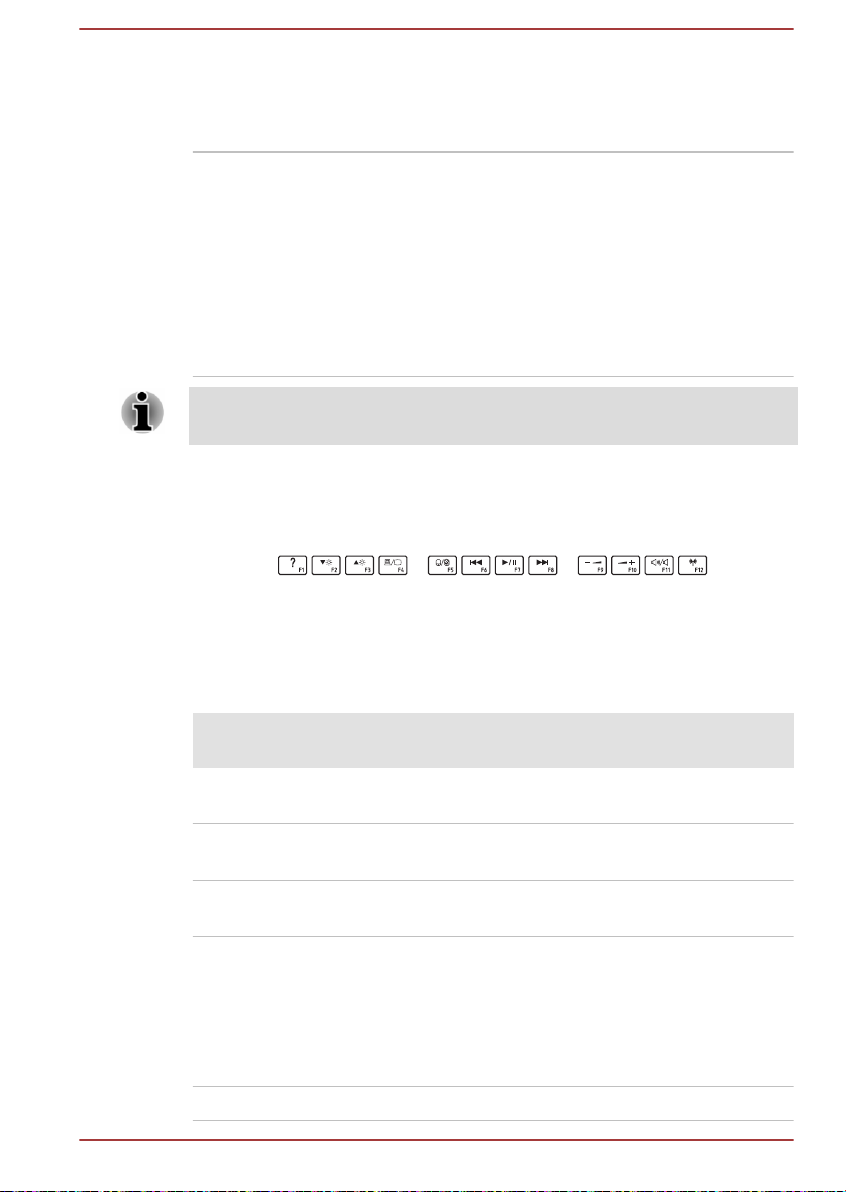

Function Keys

The function keys (F1 ~ F12) are the 12 keys at the top of your keyboard.

You can configure the function keys’ mode as "Special function mode" or "Standard F1-F12 mode" by tapping Function Key under TOSHIBA group in the Apps view.

"Special function mode" allows you to use special functions without pressing the FN key.

Special function mode

F1 FN + F1 Launches the help file supplied with

F2 FN + F2 Decreases the brightness of display

F3 FN + F3 Increases the brightness of display

F4 FN + F4 Changes the active display device.

F5 FN + F5 Enables or disables the Touch Pad.

User's Manual 4-25

Standard F1F12 mode

Function

the software.

screen in individual steps.

To use a simultaneous mode, you must set the resolution of the internal display screen to match the resolution of the external display device.

Special function mode

Standard F1F12 mode

Function

F6 FN + F6 Moves media backward.

F7 FN + F7 Plays or pauses media playback.

F8 FN + F8 Moves media forward.

F9 FN + F9 Decreases the tablet's volume.

F10 FN + F10 Increases the tablet's volume.

F11 FN + F11 Turns the sound on or off.

F12 FN + F12 Launches the Function Key

utility at the first time (by default).

You can enable/disable F12 key’s function within the utility.

Turns the Airplane mode on if the F12 key’s function is enabled.

The Bluetooth Keyboard will be disconnected when Airplane mode is turned on. To turn it off, you need to tap the network icon in the

Settings charm, and then slide the button to the Off position under Airplane mode option.

F12 key’s function can be enabled/disabled by tapping Function Key under TOSHIBA group in the Apps view, and then slide the button under F12 Key option to enable/disable the function.

Special function mode

Standard F1F12 mode

Function

FN + 1 FN + 1 Reduces the icon size on the desktop

or the font sizes within one of the supported application windows.

FN + 2 FN + 2 Enlarges the icon size on the desktop

or the font sizes within one of the supported application windows.

FN + Space FN + Space Changes the display resolution.

Some functions show the toast notification at the edges of the screen.

Those toast notifications are disabled by default. You can enable them in the TOSHIBA Function Key application.

User's Manual 4-26

To access it, tap Function Key under TOSHIBA group in the Apps view.

Windows special keys

The keyboard provides two keys that have special functions in Windows, the Windows® logo key activates the Start screen while the application key has the same function as the secondary (right) mouse button.

This key activates the Windows Start screen.

This key has the same function as the secondary (right) mouse button.

Optional TOSHIBA Accessories

To make your tablet even more powerful and convenient to use, you can add a number of options and accessories. For reference, the following list details some of the items that are available from your reseller or TOSHIBA dealer:

Universal AC Adaptor If you frequently use your tablet at more than one

site, it might be convenient to purchase an additional AC adaptor to be kept at each site in order to remove the need to carry the adaptor with you always.

Sound System and Video mode

This section describes some of the audio control functions.

Volume Mixer

The Volume Mixer utility lets you control the audio volume for playback of devices and applications under Windows.

To launch the Volume Mixer utility, tap Desktop, and press and hold on the speaker icon on the Windows Taskbar, and then select Open Volume Mixer from the sub menu.

To adjust the volume level of speakers or headphones, move the Speakers slider.

To adjust the volume level of an application that you are using, move the slider for the corresponding application.

Microphone Level

To change the microphone recording level, do the following:

User's Manual

4-27

1. Press and hold on the speaker icon on the Windows Taskbar, and select Recording devices from the sub menu.

2. Select Microphone, and tap Properties.

3. On the Levels tab, move the Microphone slider to increase or decrease the microphone volume level.

If you feel the microphone volume level is inadequate, move the Microphone Boost slider to a higher level.

Video mode

Video mode settings are configured via the Screen Resolution dialog.

To open the Screen Resolution dialog, tap Control Panel ->

Appearance and Personalization -> Display -> Change display settings under Windows System in the Apps view.

If you are running some applications (for example a 3D application or video playback), you might see some disturbance, flickering, or frame dropping on your screen.

If that occurs, adjust the resolution of display, lowering it until the screen is displayed properly.

User's Manual 4-28

Chapter 5

Utilities and Advanced Usage

This chapter describes the utilities and special features of this tablet, and the advanced usage of some utilities.

Utilities and Applications

This section describes the pre-installed utilities that come with the tablet and details how to start them. For further information on their operation, refer to online manual, help files, or README.TXT file (if applicable) of each utility.

TruCapture This software is a camera application with special

features to take improved photographs of whiteboards, books, printed material, notebooks, and so on.

To access it, tap TruCapture in the Apps view.

For more information, refer to the TruCapture section.

TruNote This software is note taking application that can

take and management handwritten notes. To access it, tap TruNote in the Apps view.

For more information, refer to the TruNote section.

TOSHIBA Screen Mirroring

TOSHIBA Tablet Access Code Logon Utility

You can use TOSHIBA Screen Mirroring application to output the same screen of PC/ tablet/phone onto your tablet display screen and display it as the secondary screen using Wireless display technology. To access it, tap Screen Mirroring in the Apps view.

For more information, refer to the TOSHIBA

Screen Mirroring section.

You can use the utility to perform user login authentication using a hand-written access code. To access this utility, tap Tablet Access Code Logon Utility under TOSHIBA group in the Apps view.

User's Manual 5-1

TOSHIBA Display Utility

TOSHIBA Setup Utility

TOSHIBA Function Key

TOSHIBA Service Station

TOSHIBA Display Utility includes Desktop Text Size utility which allows you to make the text size bigger or smaller on the desktop according to your usage and favorite. You can change the text size on the display and on the title bar of windows by changing the scaling of the text size. When the scaling is smaller, more information appears on the display simultaneously but the text size becomes smaller. When the scaling is larger, less information appears on the display simultaneously but the text size becomes larger. You can install Split Screen utility by yourself. Split Screen utility enables you to create multiple display zones on a screen and to fit the active windows to within those zones. To access this utility, tap Display Utility under TOSHIBA group in the Apps view.

For details on this utility, see the help file.

TOSHIBA Setup Utility is a BIOS setup utility that provides you a menu-based user interface so that you can easily view and change BIOS settings.

For more information, refer to the TOSHIBA

Setup Utility section.

This utility allows you to perform some features by pressing a specified key or combined with the FN key. To setup this utility, tap Function Key under TOSHIBA group in the Apps view.

For details, refer to the TOSHIBA Bluetooth

Keyboard for Encore 2 section.

This application allows your tablet to automatically search for TOSHIBA software updates or other alerts from TOSHIBA that are specific to your tablet system and its programs. When enabled, this application periodically transmits to our servers a limited amount of system information, which will be treated in strict accordance with the rules and regulations as well as applicable data protection law.

To access this utility, tap Service Station under TOSHIBA group in the Apps view.

User's Manual 5-2

Dolby® Digital Plus™ Advanced Audio™

You might not have all the software listed in this section depending on the model you purchased.

Special features

The following features are either unique to TOSHIBA computers or are advanced features which make the computer more convenient to use.

Access each function using the following procedures.

To access the Power Options, tap Control Panel -> System and

Security -> Power Options under Windows System in the Apps view.

Display automatic power off

Power on password Two levels of password security, supervisor and

Battery save mode

Low battery automatic Hibernation Mode

Dolby® Digital Plus™ Advanced Audio™ is a suite of audio technologies that enables a PC to deliver a crisp, clear cinematic surround sound experience over its built-in speakers. It also adds clarity to sound from headphones.

To access this utility, tap the Dolby Digital Plus icon in the Apps view.

This feature automatically cuts off power to the computer's display when there is no input for a specified time, with power being restored the next time a key is pressed. This can be specified in the Power Options.

user, are available to prevent unauthorized access to your computer.

This feature lets you configure the computer in order to save battery power. This can be specified in the Power Options.

When battery power is exhausted to the point that computer operation cannot be continued, the system automatically enters Hibernation Mode and shuts itself down. This can be specified in the Power Options.

TruCapture

TruCapture is a camera application with special features to improve the readability of whiteboards, books, and so on in photographs taken by TruCapture. Those features include reflection reduction, color enhancement, and cropping.

To open TruCapture, tap TruCapture in the Apps view.

A Tutorial will appear on the screen which provides the basic information about how to use this feature.

User's Manual

5-3

Tap Next if you want to continue viewing the Tutorial.

For more detailed information on the use of this feature, tap More information. You can also find it by swiping from the right edge of the screen, and then tap Settings -> Help.

TruNote

You can use this application to take and manage the handwritten notes.

For non-preinstalled models, you can download the application from Windows store.

To open TruNote, tap TruNote in the Apps view.

You can also write down your note immediately from the lock screen by tapping the lock screen using the provided Stylus Pen while pressing its eraser button.

TOSHIBA Screen Mirroring

This application might not be pre-installed in some models.

You can use TOSHIBA Screen Mirroring application to output the same screen of PC/tablet/phone onto your tablet display screen and display it as the secondary screen using Wireless display technology.

This application allows you to enjoy the contents of PC/tablet/phone on your tablet display screen.

TOSHIBA Tablet Access Code Logon Utility

You can use the Tablet Access Code Logon Utility to perform user login authentication using a hand-written access code.

Your access code is registered by using characters, symbols, speed of your signature, pen pressure, or directions in which you move the pen between characters or symbols.

Always register your access code in accordance with the procedure that appears on the screen. You need to re-enter the same code several times to register your access code properly.

Use multiple characters or symbols to create an access code that is not easily identified by a third party, to prevent illegal access to your device.

Disclaimer

User's Manual

TOSHIBA does not guarantee that the Tablet Access Code Logon Utility is completely secure or error-free at all times. TOSHIBA is not liable for any failure or damage that might arise out of your use of the Tablet Access Code Logon Utility, even if advised of the possibility thereof.

TOSHIBA, ITS AFFILIATES AND SUPPLIERS SHALL HAVE NO RESPONSIBILITY FOR DAMAGE TO OR LOSS OF ANY BUSINESS,

5-4

PROFITS, PROGRAMS, DATA, NETWORK SYSTEMS OR REMOVABLE STORAGE MEDIA ARISING OUT OF OR RESULTING FROM THE USE OF THE TABLET ACCESS CODE LOGON UTILITY, EVEN IF ADVISED OF THE POSSIBILITY THEREOF.

TOSHIBA Setup Utility

TOSHIBA Setup Utility is a BIOS setup utility that provides you a menubased user interface so that you can easily view and change BIOS settings.

To enter the BIOS setup utility, do the following:

1. Save your work.

2. In the Settings charm, tap Power and then select Shut down.

3. After completely shut down the tablet, wait for about 10 seconds. Then hold down the Power button and Volume up button simultaneously.

Make sure that fast startup is disabled in the Power Options by following the steps below:

1. Tap Control Panel -> System and Security -> Power Options under

Windows System in the Apps view.

2. Tap Choose what the power button does.

3. Tap Change settings that are currently unavailable.

4. Deselect the Turn on fast startup check box from Shutdown settings.

5. Tap the Save changes button.

To save the changes and exit the utility, select Save and Exit -> Exit Saving Changes -> Yes. The tablet will restart immediately.

Navigating the utility

TOSHIBA Setup Utility can be navigated through the touch screen.

Some buttons on the tablet are also designated to execute the corresponding functions. Details are described as follows:

Button Function

Windows Proceed or confirm operation

Volume up Select an item

Volume down Select an item

System Recovery

There is a hidden partition allocated on the internal storage for the System Recovery Options in the event of a problem.

You can also create recovery media and restore the system.

User's Manual

5-5

The following items are described in this section:

Creating Recovery Media Restoring the pre-installed software from your created Recovery

Media Restoring the pre-installed software from the Recovery Partition

Creating Recovery Media

This section describes how to create Recovery Media.

Be sure to connect the AC adaptor when you create Recovery Media.

Be sure to close all other software programs.

Do not run software such as screen savers which can put a heavy load on the CPU.

Operate the tablet at full power.

Do not use power-saving features.

Do not write to the media when the virus check software is running. Wait for it to finish, then disable virus detection programs including any software that checks files automatically in the background.

Do not use utilities, including those intended to enhance internal storage access speed. They might cause unstable operation and damage data.

Do not shut down/log off or Sleep/Hibernate while writing or rewriting the media.

Set the tablet on a level surface and avoid places subjected to vibrations such as airplanes, trains, or cars.

Do not use on an unstable surface such as a stand.

User's Manual

A recovery image of the software on your tablet is stored on the internal storage, and can be copied to a USB Flash Memory by using the following steps:

To connect a USB Flash Memory to the Micro-USB port, you must purchase a suitable "Micro USB to USB Converter Cable".

USB Flash Memory will be formatted and all the data in the USB Flash Memory will be lost when proceeding.

1. Turn on your tablet and allow it to load the Windows operating system as normal.

2. Insert the USB Flash Memory into Micro-USB port on your tablet by using the "Micro USB to USB Converter Cable".

3. Tap Control Panel -> System and Security -> Action Center -> Recovery -> Create a recovery drive under Windows System in the Apps view.

5-6

4. Follow the on-screen instructions to finish creating the Recovery Media.

Restoring the pre-installed software from your created Recovery Media

If the pre-installed files are damaged, you are able to use the Recovery Media you have created to restore the tablet to the state it was in when you originally received it. To perform this restoration, do the following:

Make sure that the AC adaptor is connected during the restoring process.

When you reinstall the Windows operating system, the internal storage will be reformatted and all data will be lost.

1. Insert the recovery USB Flash Memory into Micro-USB port on your tablet by using the "Micro USB to USB Converter Cable".

2. In the Settings charm, tap Power and then select Shut down.

3. After completely shut down the tablet, wait for about 10 seconds. Then hold down the Power button and Volume up button simultaneously until the Boot menu is loaded.

4. Use the Volume up and the Volume down button to select the appropriate option from the menu according to your actual recovery media and press the Windows button to confirm the selection.

5. A menu will be displayed from which you should follow the on-screen instructions.

Refresh your PC and Reset your PC buttons will be displayed as options for recovery. However, only Yes, repartition the drives under Reset your PC is supported when booting from the recovery media.

For some models, Office will no longer be present after the recovery completes. To enable users to reinstall Office, please follow the instructions described below:

If you have a product key for an Office 365 product, you can enter the key at https://officesetup.getmicrosoftkey.com/

You can also go directly to your Office Account at

https://office.microsoft.com/MyAccount.aspx to install. If you have a product key for Office Home and Student, Office

Home and Business or Office Professional, you can go to https:// downloadoffice.getmicrosoftkey.com/ to install.

The recovery partition can be removed depending on the model. For the models that the recovery partition can be removed, if you have previously

User's Manual 5-7

chosen to remove the recovery partition without creating "Recovery Media", the "Recovery Media" cannot be created.

However, if you have already created a "Recovery Media", you can use it to restore the recovery partition.

If you have not created "Recovery Media", contact TOSHIBA support for assistance.

Restoring the pre-installed software from the Recovery Partition

A portion of the internal storage space is configured as a hidden recovery partition. This partition stores files which can be used to restore preinstalled software in the event of a problem.

If you set up your internal storage again later, do not change, delete, or add partitions in a manner other than specified in the manual, otherwise you might find that space for the required software is not available.

In addition, if you use a third-party partitioning program to reconfigure the partitions on your internal storage, you might find that it becomes impossible to set up your tablet.

Make sure that the AC adaptor is connected during the restoring process.

When you reinstall the Windows operating system, the internal storage will be reformatted and all data will be lost. For detailed information, please refer to the Windows Help and Support.

User's Manual

1. In the Settings charm, tap Power and then select Shut down.

2. After completely shut down the tablet, wait for about 10 seconds. Then hold down the Power button and Volume up button simultaneously until the Boot menu is loaded and then select HDD Recovery.

3. A dialog box will appear asking if you are sure you wan to continue. Select Yes.

4. Select Troubleshoot.

5. Select Reset your PC.

6. Follow the on screen instructions to finish the recovery.

You can also perform the restoration through PC settings in the operating system:

1. Tap the Settings charm and tap Change PC settings.

2. Tap Update and recovery under PC settings and then tap Recovery.

3. Tap Get started under Remove everything and reinstall Windows.

4. Follow the on screen instructions to finish the recovery.

5-8

Enabling System Protection for System Restore

Depending upon your system, the Windows® System Protection feature, that automatically creates restore points, might be disabled to conserve space on your system. To enable this feature, do the following:

1. Tap Control Panel -> System and Security -> System -> System protection under Windows System in the Apps view.

2. In the System Protection tab, tap Configure, and then tap Turn on system protection to enable the function.

After the System Protection feature is enabled, you can undo changes by reverting your tablet to a previous state by creating a restore point.

User's Manual 5-9

Troubleshooting

TOSHIBA has designed this computer for durability, however, should problems occur you are able to use the procedures detailed in this chapter to help determine the cause.

You should become familiar with this chapter as knowing what might go wrong can help prevent problems from occurring in the first place.

Problem-solving process

If you observe the following guidelines, resolving problems will be much easier.

Stop immediately when you recognize a problem exists as taking further action might result in data loss or damage, or you might destroy valuable problem-related information that can help solve the problem.

Observe what is happening. Write down what the system is doing and what actions you performed immediately before the problem occurred. Make a screenshot of the current display.

Also be aware that the questions and procedures described in this chapter are meant only as a guide, they are not definitive problem-solving techniques. In reality many problems can be solved simply, but a few might require help from TOSHIBA Support. If you find you need to consult others, be prepared to describe the problem in as much detail as possible.

Chapter 6

Preliminary checklist

You should always consider the simplest solution first. The items detailed in this checklist are easy to fix and yet can cause what appears to be a serious problem:

Make sure that you turn on all peripheral devices before you turn on the computer. This includes your printer and any other external device you are using.

Before you attach an external device you should first turn off the computer, then when you turn the computer back on it recognizes the new device.

Make sure that all optional accessories are configured properly in the computer's setup program and that all required driver software has been loaded (refer to the documentation included with the optional accessories for further information on its installation and configuration).

User's Manual

6-1

Check all cables to ensure that they are correctly and firmly attached to the computer - loose cables can cause signal errors.

Inspect all connecting cables for loose wires and all connectors for loose pins.

Always try to make detailed notes of your observations and keep them in a permanent error log - this helps you to describe your problems to TOSHIBA Support. In addition, if a problem recurs, the log you have made helps to identify the problem faster.

Analyzing the problem

Sometimes the computer gives you clues that can help you identify why it is malfunctioning. In view of this, keep the following questions in mind:

Which part of the computer is not operating properly - keyboard, internal storage, display panel, Touch Pad, Touch Pad control buttons

- as each device produces different symptoms. Check the options within the operating system to ensure that its

configuration is set properly. What appears on the display? Does it display any messages or

random characters? Make a screenshot of the current display and, if possible, look up the messages in the documentation included with the computer, software, or operating system.

Check that all connecting cables are correctly and firmly attached as loose cables can cause erroneous or intermittent signals.

Do any indicators light, if so, which ones, what color are they and do they stay on or blink? Write down what you see.

Do you hear any beeps, if so how many, are they long or short and are they high pitched or low pitched? In addition, is the computer making any unusual noises? Write down what you hear.

Record your observations so you can describe them in detail to TOSHIBA Support.

Software The problems might be caused by your software.

If you cannot load a software package, the media might be damaged or the program might be corrupted. In these instances, try loading another copy of the software if possible.

If an error message appears while you are using a software package, you should refer to the documentation supplied with it as this usually includes a problem-solving section or a summary of error messages.

Next, check any error messages against the operating system documentation.

User's Manual 6-2

Hardware If you cannot find a software problem, you should

then check the setup and configuration of your hardware. First run through the items in the preliminary checklist as described previously then, if you still cannot correct the problem, try to identify the source. The next section provides checklists for individual components and peripherals.

Before using a peripheral device or application software that is not an authorized TOSHIBA part or product, make sure that the device or software can be used with your computer. Use of incompatible devices might cause injury or might damage your computer.

If something goes wrong

Your program stops responding

If you are working with a program that suddenly freezes all operations, chances are the program has stopped responding. You can exit the failed program without shutting down the operating system or closing other programs.

To close a program that has stopped responding:

1. Press and hold the Windows Taskbar, and then select Task Manager from the sub menu. The Windows Task Manager window appears.

2. Select the program you want to close, then tap End Task. Closing the failed program should allow you to continue working. If it does not, continue with the next step.

3. Close the remaining programs one by one by selecting the program name, then End Task. Closing all programs should allow you to continue working. If it does not, power off your computer and then restart it.

User's Manual

The computer does not start

Make sure that you attached the AC adaptor and power cord/cable properly.

If you are using the AC adaptor, check that the wall outlet is working by plugging in another device, such as a lamp.

Verify that the computer is on.

If you are using an AC adaptor, verify that the computer is receiving power from the external power source.

6-3

The computer does not load advanced options during startup

By holding down one of the following buttons during startup, your computer can load the following advanced options.

Advanced option Key & button operations

BIOS utility

Boot menu

If your computer starts to load the Operating System instead of desired advanced options, do the following:

Please make sure that fast startup is disabled in the Power Options by following the steps below:

1. Tap Control Panel -> System and Security -> Power Options under

Windows System in the Apps view.

2. Tap Choose what the power button does.

3. Tap Change settings that are currently unavailable.

4. Deselect the Turn on fast startup check box from Shutdown settings.

5. Tap the Save changes button.

1. In the Setting charm, tap Power and then select Restart.

2. Hold down the corresponding buttons until the advanced option is loaded.

3. Follow the on-screen instructions to proceed.

Hold down Power button and Volume up button simultaneously.

Hardware and system checklist

This section discusses problems caused by your computer’s hardware or attached peripherals. Basic problems might occur in the following areas:

Power Display screen Internal Storage Memory Media Card

Power

When the computer is not plugged into an AC power outlet, the battery pack is the primary power source. Your computer also has Real-Time Clock (RTC) function. All of the power resources are interrelated with anyone having the ability to produce apparent power problems.

User's Manual

USB device Sound system External monitor Wireless LAN Bluetooth

6-4

Overheating power down

If the processor's temperature reaches an unacceptably high level with either setting, the computer automatically shuts down to prevent any damage. In this instance, all unsaved data in memory is lost.

Problem Procedure

Computer shuts down automatically.

Leave the computer off until it reaches room temperature. If the computer has reached room temperature and it still does not start, or if it starts but shuts down quickly, contact TOSHIBA Support.

AC power

Problem Procedure

AC adaptor does not power the computer

Check the connections to make sure that the power cord/adaptor is firmly connected to the computer and a working power outlet.

Check the condition of the cord and terminals. If the cord is frayed or damaged it should be replaced, while if the terminals are soiled, they should be cleaned with a clean cotton cloth.

If the AC adaptor still does not power the computer, you should contact TOSHIBA Support.

Battery

Problem Procedure

Battery does not power the computer

Battery does not charge when the AC adaptor is attached.

Battery does not power the computer as long as expected

User's Manual 6-5

The battery might be discharged. Connect the AC adaptor to recharge the battery.

If the battery is completely discharged, it will not begin charging immediately. In these instances, wait a few minutes before trying again. If the battery still does not charge, check that the power outlet the AC adaptor is connected to is supplying power. This can be tested by plugging another appliance into it.

If you frequently recharge a partially charged battery, the battery might not charge to its full potential. In these instances, you should fully discharge the battery and then attempt to charge it again.

Real-Time Clock

Problem Procedure

The BIOS setting and system date/ time are lost.

The lasting time of the Real-Time Clock (RTC) has run out. You must set the date and time in the BIOS setup utility by using the following steps:

1. Launch the BIOS setup utility.

Refer to the TOSHIBA Setup Utility section for further information.

2. Set the date in the System Date field.

3. Set the time in the System Time field.

4. Select Save and Exit -> Exit Saving Changes- a confirmation message will be displayed.

5. Select Yes - the BIOS setup utility will end and the computer will restart.

Display screen

Apparent problems of the computer's display panel might be related to setup and configuration of the computer.

Problem Procedure

No display Change the display priority and ensure that it is not

set for the external display only.

Markings appear on the computer's display screen.

User's Manual 6-6

These marks might have come from contact with the screen. Try to remove the marks by gently wiping the display screen with a clean dry cloth or, if this fails, with a good quality LCD screen cleaner. In this latter instance, you should always follow the instructions with the screen cleaner and always ensure that you let the display screen dry properly.

Internal Storage

Problem Procedure

Slow performance The files on the internal storage might be

fragmented. In this instance, you should run the disk Defragmentation utility to check the condition of your files and the internal storage. Refer to the operating system's documentation or online Help File for further information on operating and using the Defragmentation utility.

As a last resort, you should reformat the internal storage and then reload the operating system and all other files and data. If you are still unable to resolve the problem, contact TOSHIBA Support.

Memory Media Card

For further information, refer to Operating Basics.

Problem Procedure

Memory media card error occurs

Remove the memory media card from the computer and then reinsert it in order to ensure that it is firmly connected.

If the problem persists, then you should refer to the documentation supplied with your memory media card for further information.

USB device

User's Manual

You cannot read a file

In addition to the information in this section, also refer to the documentation supplied with your USB device.

Check to ensure that the required file is actually on the memory media card that is inserted into the computer.

If you are still unable to resolve the problem, contact TOSHIBA Support.

6-7

Problem Procedure

USB device does not work

Remove the USB device from the computer and then reconnect it to Micro-USB port in order to ensure that it is firmly attached.

Ensure that any required USB device drivers are properly installed. To achieve this, you should refer to both the device documentation and the operating system documentation.

Sound system

In addition to the information in this section, also refer to the documentation supplied with your audio device.

Problem Procedure

No sound is heard Adjust the volume.

Check the software volume settings.

Check to see if Mute is turned to Off

Check to make sure that the headphone connection is secure.

Check within the Windows Device Manager application to ensure that the sound device is enabled and that the device is properly working.

Annoying sound is heard

In this instance, you might be experiencing feedback from either the internal microphone or an external microphone connected to the computer. Refer to Sound System and Video mode for further information.

Volume cannot be adjusted during Windows start up or shut down.

If you are still unable to resolve the problem, contact TOSHIBA Support.

External monitor

Also refer to Operating Basics, and to the documentation supplied with your monitor for further information.

Problem Procedure

Monitor does not turn on

User's Manual 6-8

After confirming that the monitor's power switch is on, check the connections to make sure that the power cord/adaptor is firmly connected to the monitor and to a working power outlet.

Problem Procedure

No display Try adjusting the contrast and brightness controls

on the external monitor.

Change the display priority and ensure that it is not set for the internal display only.

Check to see if the external monitor is connected.

When the external monitor is set as the primary display device in extended desktop mode, it does not display when the computer wakes up from Sleep Mode if the external monitor has been disconnected while in Sleep Mode.

To keep this from happening, do not disconnect the external monitor while the computer is in Sleep or Hibernation Mode.

Remember to turn off the computer before disconnecting the external monitor.

When the display panel and an external monitor are set to clone mode and they are turned off by the timer, the display panel or the external monitor might not display when turned on again.

Display error occurs Check that the cable connecting the external

monitor to the computer is firmly attached.

If you are still unable to resolve the problem, contact TOSHIBA Support.

Wireless LAN

Problem Procedure

Cannot access Wireless LAN

User's Manual 6-9

Make sure that the wireless communication function of the computer is on.

If problems persist, contact your LAN administrator.

Bluetooth

Problem Procedure

Cannot access Bluetooth device

TOSHIBA support

If you require any additional help using your computer or if you are having problems operating the computer, you might need to contact TOSHIBA for additional technical assistance.

Before you call

Some problems you experience might be related to software or the operating system so it is important that you investigate other sources of assistance first. Before contacting TOSHIBA, try the following:

Review troubleshooting sections in the documentation supplied with your software and/or peripheral devices.

If a problem occurs when you are running software applications, consult the software documentation for troubleshooting suggestions and consider calling the software company's technical support department for assistance.

Consult the reseller or dealer from where you purchased your computer and/or software - they are your best resource for current information and support.

Check to ensure that the wireless communication function of the computer is on.

Check to ensure that the Bluetooth Manager application is running on the computer and that power to the external Bluetooth device is turned on.

Check to ensure that no optional Bluetooth Adaptor is installed in the computer. The built-in Bluetooth hardware cannot operate simultaneously with another Bluetooth controller.

If you are still unable to resolve the problem, contact TOSHIBA Support.

TOSHIBA technical support

If you are still unable to solve the problem and suspect that it is hardwarerelated, read the enclosed warranty booklet or visit the TOSHIBA technical support website

http://pc-support.toshiba.eu

User's Manual

6-10

Appendix

Specifications

This section summarizes the technical specifications of the tablet.

Physical Dimensions

The following physical dimensions do not include parts that extend beyond the main body. The physical dimensions might vary depending on the model you purchased.

TOSHIBA WT10PE-A Approximately 258.8 (w) x 175 (d) x 9.1 (h)

TOSHIBA WT8PE-B Approximately 132 (w) x 210.62 (d) x 9.6 (h)

Chapter 7

millimeters

(not including parts that extend beyond the main body).

millimeters

(not including parts that extend beyond the main body).

Environmental Requirements

Conditions Ambient temperature Relative humidity

Operating 5°C (41°F) to 35°C

(95°F)

Non-operating -20°C (-4°F) to 60°C

(140°F)

Wet-bulb temperature 29°C maximum

Conditions Altitude (from sea

level)

Operating -60 to 3,000 meters

Non-operating -60 to 10,000 meters

maximum

User's Manual 7-1

20% to 80% (noncondensing)

10% to 90% (noncondensing)

Power Requirements

610

AC adaptor 100-240V AC

50 Hz or 60 Hz (cycles per second)

Computer 19 V DC

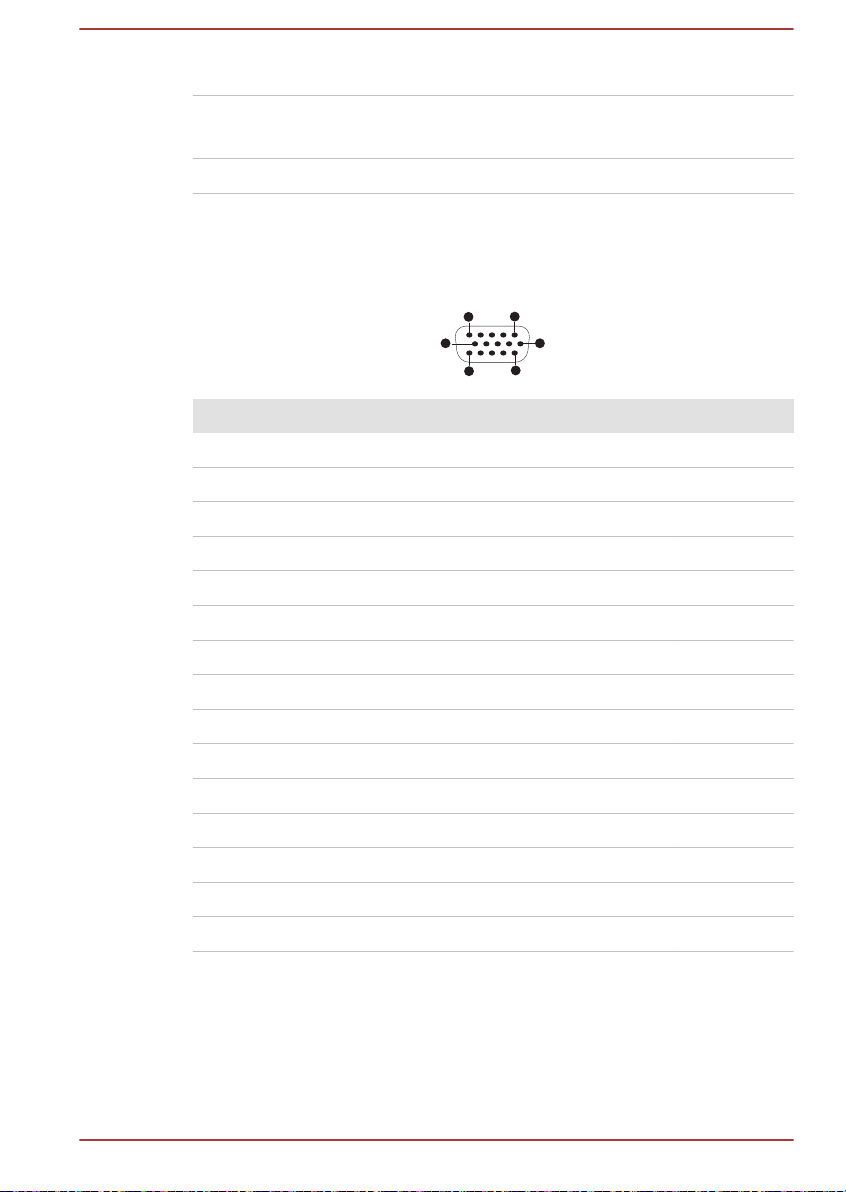

External RGB monitor port pin assignment

Pin Signal Name Description I/O

1 CRV Red Video Signal O

2 CGV Green Video Signal O

3 CBV Blue Video Signal O

4 Reserved Reserved

5 GND Ground

6 GND Ground

User's Manual

7 GND Ground

8 GND Ground

9 +5V Power Supply

10 GND Ground

11 Reserved Reserved

12 SDA Data Signal I/O

13 HSYNC Horizontal Sync Signal O

14 VSYNC Vertical Sync Signal O

15 SCL Data Clock Signal O

I/O (I): Input to computer

I/O (O): Output from computer

7-2

AC Power Cord and Connectors

The AC input plug of the power cord must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications:

Wire size:

Current rating: Minimum 2.5 amperes

Certification agencies

China: CQC

U.S. and Canada: UL listed and CSA certified

Australia: AS

Japan: DENANHO

Europe:

Austria: OVE Italy: IMQ

Belgium: CEBEC The Netherlands: KEMA

Minimum 0.75 mm

No. 18 AWG, Type SVT or SPT-2

User's Manual

Denmark: DEMKO Norway: NEMKO

Finland: FIMKO Sweden: SEMKO

France: LCIE Switzerland: SEV

Germany: VDE United Kingdom: BSI

In Europe, two conductors power cord must be VDE type, H05VVH2-F or H03VVH2-F and for three conductors power cord must be VDE type, H05VV-F.

For the United States and Canada, two-pin plug configuration must be a 2-15P (250 V) or 1-15P (125 V) and three-pin plug configuration must be 6-15P (250 V) or 5-15P (125 V) as designated in the U.S. National Electrical code handbook and the Canadian Electrical Code Part II.

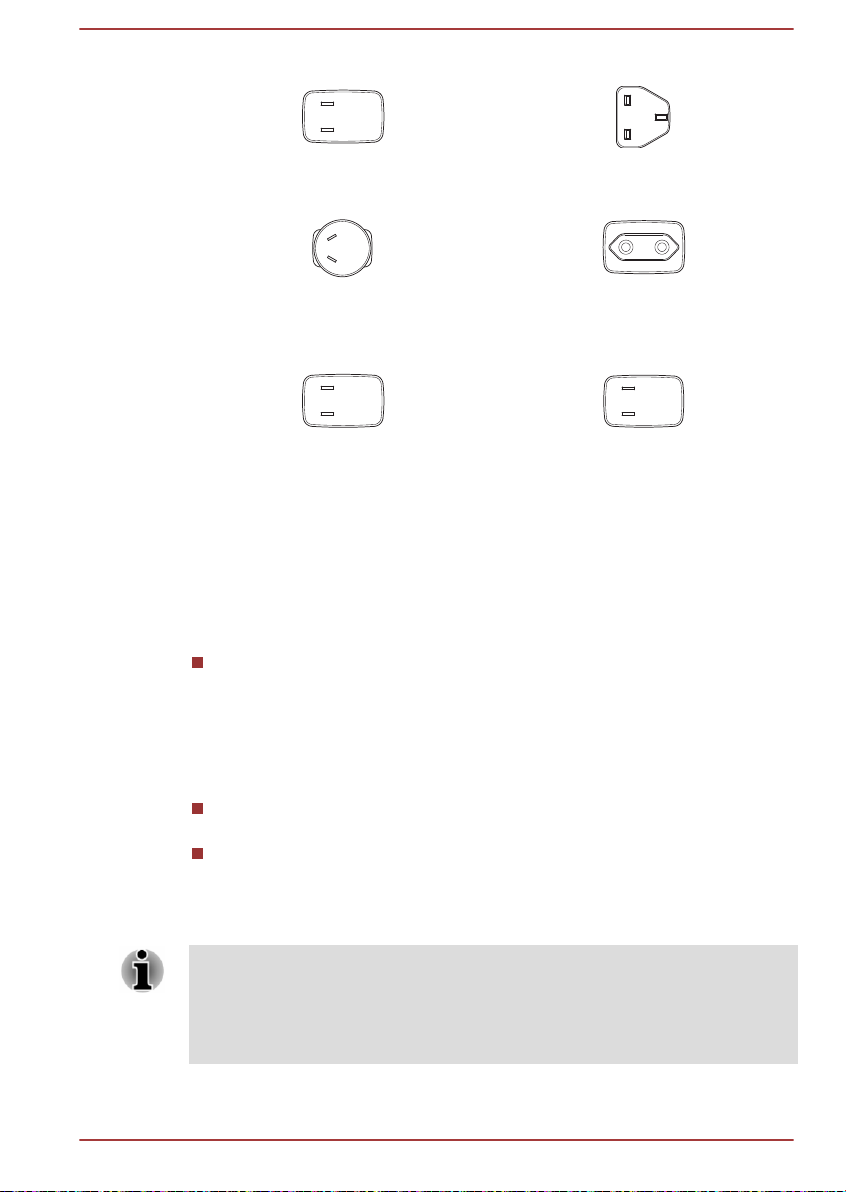

The following illustrations show the plug shapes for the U.S.A. and Canada, the United Kingdom, Australia, Europe, and China.

7-3

USA

United Kingdom

UL approved

Australia

AS approved

Canada

CSA approved

Approved by the appropriate

Information for Wireless Devices

Wireless Technology Interoperability

The Wireless LAN is compatible with other LAN systems Direct Sequence Spread Spectrum (DSSS) /Orthogonal Frequency Division Multiplexing (OFDM) radio technology, and is compliant to:

The IEEE 802.11 Standard on Wireless LANs (Revision a/b/g/n, b/g/n or Revision a/b/g/n/ac), as defined and approved by the Institute of Electrical and Electronics Engineers.

Bluetooth® Modules are designed to be interoperable with any product with Bluetooth wireless technology that is based on Frequency Hopping Spread Spectrum (FHSS) radio technology, and is compliant to:

Bluetooth Specification (depending on the model you purchased), as defined and approved by the Bluetooth Special Interest Group.

Logo certification with Bluetooth wireless technology as defined by the Bluetooth Special interest Group.

This Bluetooth product is not compatible with devices using Bluetooth Version 1.0B specifications.

The wireless devices have not completed verification of connection and operation with all devices which are using the Wireless LAN or Bluetooth radio technology.

Bluetooth and Wireless LAN devices operate within the same radio frequency range and might interfere with one another. If you use Bluetooth

BS approved

Europe

agency

China

CCC approved

User's Manual 7-4

and Wireless LAN devices simultaneously, you might occasionally experience a less than optimal network performance or even lose your network connection.

If you experience any such problem, immediately turn off either one of your Bluetooth or Wireless LAN.

If you have any questions about using Wireless LAN or Bluetooth Module, visit

http://www.pc.support.global.toshiba.com

In Europe, visit

http://www.toshiba-europe.com/computers/tnt/bluetooth.htm

Wireless Devices and your health

Wireless products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless products however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.

Because Wireless products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless products are safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless products may be restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:

Using the Wireless products equipment on board of airplanes, or In any other environment where the risk of interference to other

devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use the Wireless device prior to turning on the equipment.

Wireless LAN Technology

The wireless communication function of the computer supports some wireless communication devices.

Only some models are equipped with both Wireless LAN and Bluetooth functions.

User's Manual

7-5

Do not use the Wireless LAN (Wi-Fi) or Bluetooth functionalities near a microwave oven or in areas subject to radio interference or magnetic fields. Interference from a microwave oven or other source can disrupt Wi-Fi or Bluetooth operation.

Turn off all wireless functionalities when near a person who might have a cardiac pacemaker implant or other medical electric device. Radio waves might affect pacemaker or medical device operation, possibly resulting in serious injury. Follow the instruction for your medical device when using any wireless functionality.

Always turn off wireless functionality if the computer is near automatic control equipment or appliances such as automatic doors or fire detectors. Radio waves can cause malfunction of such equipment, possibly resulting in serious injury.

It might not be possible to make a network connection to a specified network name using the ad hoc network function. If this occurs, the new network (*) has to be configured for all computers connected to the same network in order to re-enable network connections. * Make sure to use new network name.

Security

TOSHIBA strongly recommends that you enable encryption functionality, otherwise your computer is open to illegal access by an outsider using a wireless connection. If this occurs, the outsider might illegally access your system, eavesdrop, or cause the loss or destruction of stored data.

TOSHIBA is not liable for the loss of data due to eavesdropping or illegal access through the wireless LAN and the damage thereof.

User's Manual

Card Specifications

Compatibility IEEE 802.11 Standard for Wireless LANs

Network Operating

Microsoft Windows Networking

System

Media Access Protocol

CSMA/CA (Collision Avoidance) with Acknowledgment (ACK)

Radio Characteristics

Radio Characteristics of Wireless LAN module might vary according to:

Country/region where the product was purchased Type of product

Wireless communication is often subject to local radio regulations. Although Wireless LAN wireless networking products have been designed for operation in the license-free 2.4 GHz and 5 GHz band, local radio

7-6

regulations might impose a number of limitations to the use of wireless communication equipment.

Radio Frequency Band 5 GHz (5150-5850 MHz) (Revision a

and n) Band 2.4 GHz (2400-2483.5 MHz) (Revision

b/g and n)

The range of the wireless signal is related to the transmit rate of the wireless communication. Communications at lower transmit range might travel larger distances.

The range of your wireless devices can be affected when the antennas are placed near metal surfaces and solid high-density materials.

Range is also impacted due to "obstacles" in the signal path of the radio that might either absorb or reflect the radio signal.

Radio Frequency Interference Requirements

This device is restricted to indoor use due to its operation in the 5.15 to

5.25GHz frequency range.

High-power radars are allocated as primary users (i.e. priority users) of the bands 5.25 to 5.35GHz and 5.65 to 5.85GHz and that these radars could cause interference and/or damage to LE-LAN devices.

Bluetooth wireless technology

Some computers in this series have Bluetooth wireless communication function which eliminates the need for cables between electronic devices such as computers, printers, and mobile phones. When it is enabled, Bluetooth provides the wireless personal area network environment which is safe and trustworthy, that is quick and easy.

You cannot use the built-in Bluetooth functions of the computer and an external Bluetooth adaptor simultaneously. For reference, Bluetooth wireless technology has the following features:

User's Manual

Security

Two advanced security mechanisms ensure a high level of security:

Authentication prevents access to critical data and makes it impossible to falsify the origin of a message.

Encryption prevents eavesdropping and maintains link privacy.

Worldwide operation

The Bluetooth radio transmitter and receiver operate in the 2.4 GHz band, which is license-free and compatible with radio systems in most countries in the world.

7-7

Radio links

You can easily establish links between two or more devices, with these links being maintained even if the devices are not within a line-of-sight of each other.

Radio Regulatory Information

The Wireless device must be installed and used in strict accordance with the manufacturer’s instructions as described in the user documentation that comes with the product. This product complies with the following radio frequency and safety standards.

Europe

Restrictions for Use of 2400.0-2483.5MHz Frequencies in Europe

France: Outdoor use

limited to 10mW e.i.r.p. within the band 2454-2483.5MHz

Italy: - For private use, a general

Luxembourg: Implemented General authorization required for

Norway: Implemented This subsection does not apply for

Russian Federation:

Restrictions for Use of 5150-5350MHz Frequencies in Europe

Italy: - For private use, a general

- Only for indoor applications.

Military Radiolocation use.Refarming of the 2.4GHz band has been ongoing in recent years to allow current relaxed regulation Full implementation planned 2012.

authorization is required if WAS/ RLAN’s are used outside own premises. For public use, a general authorization is required.

network and service supply.

the geographical area within a radius of 20 km from the centre of Ny-Alesund.

authorization is required if WAS/ RLAN’s are used outside own premises.

Luxembourg: Implemented General authorization required for

network and service supply.

User's Manual 7-8

Russian Federation:

Limited e.i.r.p 100mW. Permitted to use

only for indoor applications, closed industrial and warehouse areas, and on board aircraft.

1. Permitted to use for local networks of aircraft crew service communications on board aircraft in area of the airport and at all stages of flight.

2. Permitted to use for public wireless access local networks on board aircraft during a flight at the altitude not less than 3000m.

Restrictions for Use of 5470-5725MHz Frequencies in Europe

Italy: - For private use, a general

authorization is required if WAS/ RLAN’s are used outside own premises.

Luxembourg: Implemented General authorization required for

network and service supply

User's Manual

Russian Federation:

Limited e.i.r.p 100mW. Permitted to use

only for indoor applications, closed industrial and warehouse areas, and on board aircraft.

1. Permitted to use for local networks of aircraft crew service communications on board aircraft in area of the airport and at all stages of flight.

2. Permitted to use for public wireless access local networks on board aircraft during a flight at the altitude not less than 3000m.

To remain in conformance with European spectrum usage laws for Wireless LAN operation, the above 2.4GHz and 5GHz channel limitations apply for outdoor usage. The user should use the wireless LAN utility to

7-9

check the current channel of operation. If operation is occurring outside of the allowable frequencies for outdoor use, as listed above, the user must contact the applicable national spectrum regulator to request a license for outdoor operation.

Canada - Industry Canada (IC)

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

Les dispositifs fonctionnant dans la bande 5.15-5.25GHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.

Les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bandes 5.25-5.35GHz et 5.65-5.85GHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LANEL.

The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met.

USA-Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Refer to the FCC information section for the detailed information.

The radiated output power of the Wireless device is far below the FCC radio frequency exposure limits. Nevertheless, the Wireless device shall be used in such a manner that the potential for human contact during normal operation is minimized.

In the usual operating configuration, the distance between the antenna and the user should not be less than 20cm. Please refer to the computer user’s manual for the details regarding antenna location.

User's Manual 7-10

The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website

www.hc-sc.gc.ca

Taiwan

Article 12 Without permission granted by the NCC, any

company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to an approved low power radio frequency devices.

Article 14 The low power radio-frequency devices shall not

influence aircraft security and interfere legal communications;

If found, the user shall cease operating immediately until no interference is achieved.

The said legal communications means radio communications is operated in compliance with the Telecommunications Act.

The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices.

User's Manual

Using this equipment in Japan

In Japan, the frequency bandwidth of 2,400MHz to 2,483.5MHz for second generation low-power data communication systems such as this equipment overlaps that of mobile object identification systems (premises radio station and specified low-power radio station).

1. Important notice

The frequency bandwidth of this equipment may operate within the same range as industrial devices, scientific devices, medical devices, microwave ovens, licensed radio stations and non-licensed specified low-power radio stations for mobile object identification systems (RFID) used in factory production lines (Other Radio Stations).

1. Before using this equipment, ensure that it does not interfere with any of the equipment listed above.

7-11

2. If this equipment causes RF interference to other radio stations,

(1)(2) (3)(4)

(5)

(4)

(1)

(2) (3)

promptly change the frequency being used, change the location of use, or turn off the source of emissions.

3. Contact an authorized TOSHIBA service provider if you have problems with interference caused by this product to Other Radio Stations.

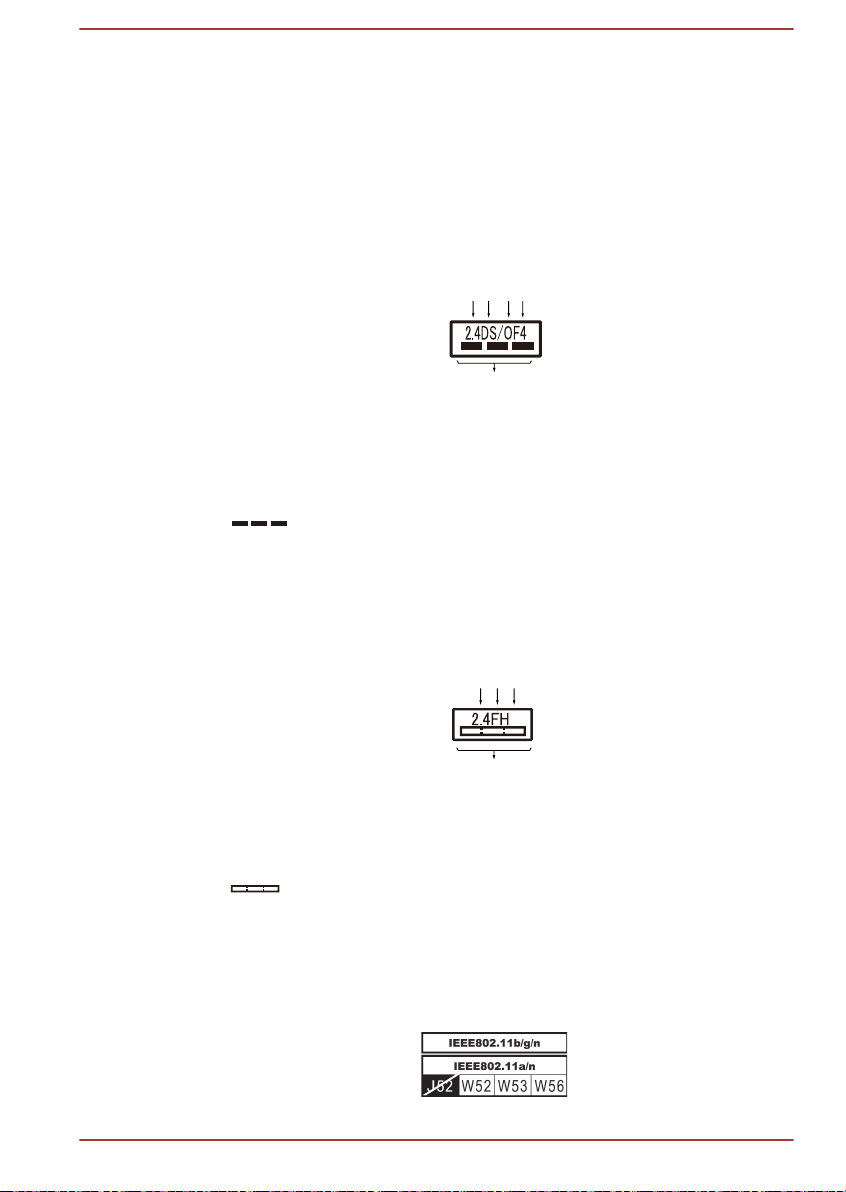

2. Indication for Wireless LAN

The indication shown below appears on this equipment.

1. 2.4: This equipment uses a frequency of 2.4GHz.

2. DS: This equipment uses DS-SS modulation.

3. OF: This equipment uses OFDM modulation.

4. 4: The interference range of this equipment is less than 40m.

: This equipment uses a frequency bandwidth from 2,400MHz to 2,483.5MHz. It is possible to avoid the band of mobile object identification systems.

3. Indication for Bluetooth

The indication shown below appears on this equipment.

User's Manual

1. 2.4: This equipment uses a frequency of 2.4 GHz.

2. FH: This equipment uses FH-SS modulation.

3. 1: The interference range of this equipment is less than 10m.

: This equipment uses a frequency bandwidth from 2,400 MHz to 2,483.5 MHz. It is impossible to avoid the band of mobile object identification systems.

4. About the JEITA

5GHz Wireless LAN supports W52/W53/W56 Channel.

7-12

Device Authorization

This device obtains the Technical Regulation Conformity Certification and it belongs to the device class of radio equipment of low-power data communication system radio station stipulated in the Telecommunications Business Law of Japan.

Broadcom® BCM43340 802.11a/b/g/n Wireless LAN and Bluetooth

The Name of the radio equipment: BCM43340

Telefication B.V. Ltd.

Approval Number for TOSHIBA WT10PE-A: D14-0123 201

Approval Number for TOSHIBA WT8PE-B: D14-0113 201

The following restrictions apply:

Do not disassemble or modify the device. Do not install the embedded wireless module into other device.

Radio approvals for wireless devices

This equipment is approved to the radio standard by the countries/regions in the following table.

If you use this equipment in the countries/regions which are not listed in the following table, contact TOSHIBA Support.

As of September 2014

Austria Belgium Bulgaria Canada

Cyprus Czech Rep Denmark Estonia

Finland France Germany Greece

Hong Kong Hungary Iceland India

Indonesia Ireland Italy Japan

Korea Latvia Liechtenstein Lithuania

Luxemburg Malta Monaco Netherlands

Norway Philippines Poland Portugal

Romania Slovak Republic Slovenia Spain

Sweden Switzerland UK USA

User's Manual 7-13

Legal Footnotes

Non-applicable Icons

Certain computer chassis are designed to accommodate all possible configurations for an entire product series. Therefore, be aware that your selected model might not have all the features and specifications corresponding to all of the icons or switches shown on the computer chassis.

CPU

Central Processing Unit (CPU) Performance Legal Footnotes.

CPU performance in your computer product might vary from specifications under the following conditions:

use of certain external peripheral products use of battery power instead of AC power use of certain multimedia, computer generated graphics or video

applications use of standard telephone lines or low speed network connections use of complex modeling software, such as high end computer aided

design applications use of several applications or functionalities simultaneously use of computer in areas with low air pressure (high altitude >1,000

meters or >3,280 feet above sea level) use of computer at temperatures outside the range of 5°C to 30°C

(41–86°F) or >25°C (77°F) at high altitude (all temperature references are approximate and might vary depending on the specific computer model - contact TOSHIBA support for details).

CPU performance might also vary from specifications due to design configuration.

Under some conditions, your computer product might automatically shutdown. This is a normal protective feature designed to reduce the risk of lost data or damage to the product when used outside recommended conditions. To avoid risk of lost data, always make back-up copies of data by periodically storing it on an external storage medium. For optimum performance, use your computer product only under recommended conditions. Read additional restrictions in your product documentation. Contact TOSHIBA technical service and support, refer to TOSHIBA support section for more information.

Memory (Main System)

Part of the main system memory might be used by the graphics system for graphics performance and therefore reduce the amount of main system memory available for other computing activities. The amount of main system memory allocated to support graphics might vary depending on the

User's Manual

7-14

graphics system, applications utilized, system memory size, and other factors.

If your computer is configured with more than 3 GB memory, the memory might be displayed as approximately 3 GB only (depending on the hardware specifications of the computer).

This is correct because the operating system usually displays the available memory instead of the physical memory (RAM) built into the computer.

Various system components (like the video adapter’s GPU and PCI devices like Wireless LAN, and so on) require their own memory space. Since a 32-bit operating system cannot address more than 4 GB of memory, these system resources overlap the physical memory. It is a technical limitation that the overlapped memory is not available to the operating system. Even though some tools might display the actual physical memory built into your computer, the memory available to the operating system is still approximately 3 GB only.

Computers configured with a 64-bit operating system can address 4 GB or more of system memory.

Battery Life

Battery life might vary considerably depending on product model, configuration, applications, power management settings, and features utilized, as well as the natural performance variations produced by the design of individual components. Published battery life numbers are achieved on select models and configurations tested by TOSHIBA at the time of publication. Recharge time varies depending on usage. Battery might not charge while computer is consuming full power.

After going through many charge and discharge cycles, the battery loses its ability to perform at maximum capacity and needs to be replaced. This is a normal phenomenon for all batteries. To purchase a new battery pack, see the accessories information that is shipped with your computer.

Internal Storage Capacity

1 Gigabyte (GB) means 109 = 1,000,000,000 bytes using powers of 10. The computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 230 = 1,073,741,824 bytes, and therefore shows less storage capacity. Available storage capacity will also be less if the product includes one or more pre-installed operating systems, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity might vary.

LCD

Over a period of time, and depending on the usage of the computer, the brightness of the LCD screen will deteriorate. This is an intrinsic characteristic of LCD technology.

User's Manual

7-15

Maximum brightness is only available when operating in AC power mode.

この装置は、クラスＢ情報技術装置です。この装置は、家庭環境で使用することを目的としていますが、この装置がラジオやテレビジョン

受信機に近接して使用されると、受信障害を引き起こすことがあります。

取扱説明書に従って正しい取り扱いをしてください。

ＶＣＣＩ－Ｂ

Screen dims when the computer is operated on battery power and you might not be able to increase the brightness of the screen.

Graphics Processing Unit (GPU)

Total Available Graphics Memory is the total of, as applicable, Dedicated Video Memory, System Video Memory and Shared System Memory. Shared System Memory varies depending on system memory size and other factors.

Wireless LAN

The transmission speed over the wireless LAN and the distance over which wireless LAN can reach might vary depending on surrounding electromagnetic environment, obstacles, access point design and configuration, and client design and software/hardware configurations.

The actual transmission speed is lower than the theoretical maximum speed.

Copy Protection

Applicable copy protection standards included in certain media might prevent or limit recording or viewing of the media.

VCCI Class B Information (Japan Only)

OpenSSL Toolkit License Issues

LICENSE ISSUES

==============

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL

User's Manual

please contact openssl-core@openssl.org.

7-16

OpenSSL License

------------------------

/*=====================================================

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgment:

"This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit."

( http://www.openssl.org/ )

4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.

5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment:

"This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit"

( http://www.openssl.org/ )

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

=====================================================

User's Manual

7-17
