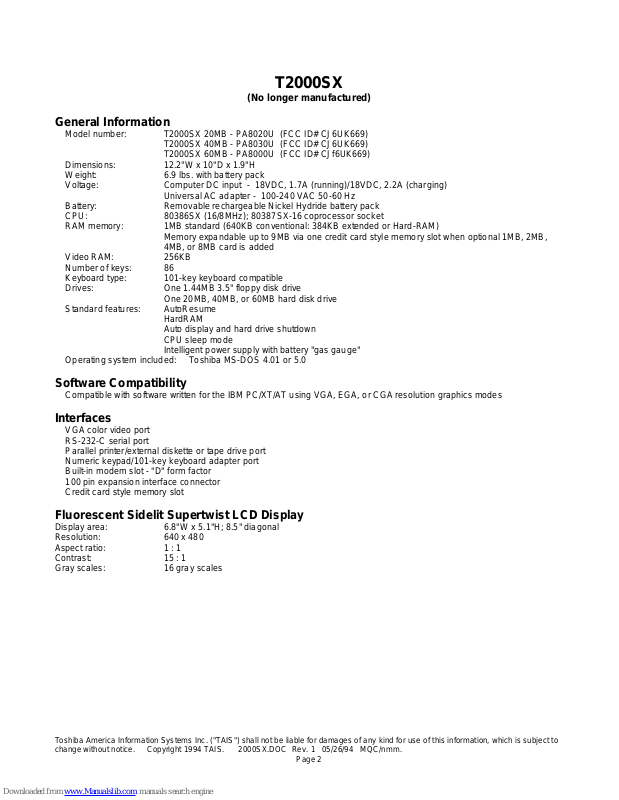

T2000SX
(No longer manufactured)
General Information
Model number: T2000SX 20MB - PA8020U (FCC ID# CJ6UK669)
T2000SX 40MB - PA8030U (FCC ID# CJ6UK669)
Universal AC adapter - 100-240 VAC 50-60 Hz Battery: Removable rechargeable Nickel Hydride battery pack CPU: 80386SX (16/8MHz); 80387SX-16 coprocessor socket RAM memory: 1MB standard (640KB conventional: 384KB extended or Hard-RAM)
Memory expandable up to 9MB via one credit card style memory slot when optional 1MB, 2MB,
4MB, or 8MB card is added Video RAM: 256KB Number of keys: 86 Keyboard type: 101-key keyboard compatible Drives: One 1.44MB 3.5" floppy disk drive
One 20MB, 40MB, or 60MB hard disk drive Standard features: AutoResume
HardRAM
Auto display and hard drive shutdown
CPU sleep mode
Intelligent power supply with battery "gas gauge" Operating system included: Toshiba MS-DOS 4.01 or 5.0
Software Compatibility
Compatible with software written for the IBM PC/XT/AT using VGA, EGA, or CGA resolution graphics modes
Interfaces
VGA color video port RS-232-C serial port Parallel printer/external diskette or tape drive port Numeric keypad/101-key keyboard adapter port Built-in modem slot - "D" form factor 100 pin expansion interface connector Credit card style memory slot
Fluorescent Sidelit Supertwist LCD Display
Display area: 6.8"W x 5.1"H; 8.5" diagonal Resolution: 640 x 480 Aspect ratio: 1 : 1 Contrast: 15 : 1 Gray scales: 16 gray scales
Toshiba America Inf ormation Systems I nc. ("TAIS") shall not be li abl e f or damages of any kind for use of thi s information, which is subject to change without notice. Copyright 1994 TAIS. 2000SX.DOC Rev. 1 05/26/94 MQC/nmm .
Page 2
Page 2
T2000SX
2.5" 20MB Hard Disk Drive Conner Peripherals HDD: CP2024 Interface: IDE Average Access Time: 25ms Recording Method: 2-7 RLL
2.5" 40MB Hard Disk Drive Conner Peripherals HDD: CP2044 Interface: IDE Average access Time: 19ms Recording Method: 2-7 RLL
2.5" 60MB Hard Disk Drive Conner Peripherals HDD: CP2064 Interface: IDE Average access time: 19ms Recording Method: 2-7 RLL
Soft Switches
1) Change CPU speed Fn + PgUp 16MHz CPU Speed Fn + PgDn 8MHz CPU Speed
2) Pop-up window Fn + Esc Toggles pop-up window
3) Keypad overlay Fn + NumLock Toggles keypad overlay
4) Fn key Fn + Ctrl Simulate IBM enhanced keyboard Right Ctrl Fn + Alt Simulate IBM enhanced keyboard Right Alt Fn + Enter Simulate IBM enhanced keyboard numeric keypad Enter
(continued)
Hardware Switches and Controls
1) Power on/off Located on left side of computer
2) Reset Located on left side of computer
3) LCD brightness and contrast dials Located on right side of computer
Environmental Specifications
1) Operating condition Ambient temperature: 41 to 95 degrees F. 5 to 35 degrees C. Relative Humidity: 20% to 80% non-condensing Altitude (from sea level): 0 to 12,000 ft. (0 to 3,657 meters)
2) Non-Operating condition Ambient temperature: -4 to 140 degrees F. -20 to 60 degrees C. Relative Humidity: 8% to 80% non-condensing Altitude (from sea level): 40,000 ft. (12,192 meters) max.
3) Wet bulb temperature condition Ambient temperature: 79 degrees F. (26 degrees C.) maximum
T2000SX
(continued)
Options and Extra Accessories
Toshiba America Inf ormation Systems I nc. ("TAIS") shall not be li abl e f or damages of any kind for use of thi s information, which is subject to change without notice. Copyright 1994 TAIS. 2000SX.DOC Rev. 1 05/26/94 MQC/nmm .
Page 2
Page 3
PC18-PA8316U 1MB memory card (no longer manufactured) PC18-PA8317U 2MB memory card (no longer manufactured) PC-PA2000U 2MB memory card (no longer manufactured) PC-PA2001U 4MB memory card (no longer manufactured) PC-PA2002U 8MB memory card (no longer manufactured) PC-T24D 2400 bps Hayes compatible dedicated built-in modem (Bell or CCITT) (no longer manufactured) PC-T24D/F 2400bps data/9600bps send/receive FAX built-in modem PC-T144D/F 14400 bps send/receive FAX built-in modem (no longer manufactured) PC-T24D/X or PC-T24D/X2 2400 bps Hayes compatible dedicated built-in modem w/enhanced protocol (MNP5 V.42 bis)
(both no longer manufactured) PC-TCL24A Audiovox Axsys cellular connection for use with T24D/X modem (no longer manufactured) PC-TCL24M Motorola Axsys cellular connection for use with T24D/X modem (no longer manufactured) PC-TCL24N NEC Axsys cellular connection for use with T24D/X modem (no longer manufactured) PC-TCL24U Uniden Axsys cellular connection for use with T24D/X modem (no longer manufactured) PC-PA7225U 5.25" 360KB external FDD with 18VDC adapter PC18-PA8725U Battery pack - 2200 mAh PC18-PA8726U Battery pack recharger with AC adapter (no longer manufactured) PC18-PA8727U Universal AC adapter PC18-PA749L Auto adapter - 12 VAC (no longer manufactured) PC-PA801L Statpower Prowatt 125 auto adapter PC-PA7354E 17-key numeric keypad PC-PA8718U 101-key keyboard adapter with external power supply PC-PA722L TD80 external tape backup drive (no longer manufactured) PC-PA8600U Desk Station ll (no longer manufactured) PC18-PA875L Fabric carrying case (no longer manufactured) PC-PA1000L Leather carrying case (no longer manufactured) PC-PA1050L Leather attache case PC13-PA874L Executive leather portfolio (no longer manufactured) PR-PA2750U ExpressWriter 201 portable printer (no longer manufactured) PC-SW013 Toshiba MS-DOS 5.0 (no longer manufactured) PC-SW015 Toshiba MS-DOS 5.0 (no longer manufactured) PC-SW007 Toshiba MS-DOS 4.01 (no longer manufactured) PC-SW008 Toshiba MS-DOS 3.30 (no longer manufactured) PC-SW004 Toshiba BASIC 3.30 (no longer manufactured) PC-SW012 Toshiba MS OS/2 v1.21 operating system (no longer manufactured)
Interrupts
Interrupt Level Assigned To:____
--- NMI RAM Parity Error, I/O Channel Error_ 0Timer
1 Keyboard
2 PIC 2 for level 8 to 15 1 3 Secondary Communications (COM 2) 4 Primary Communications (COM 1) 5PRT 2 6FDC 7 PRT 1_________________________ 8RTC 9 Software Redirect to INT '0A' 2 10 (Reserved) 11 (Reserved) 12 COM 3 13 80387SX 14 HDC 15 (Reserved)
T2000SX
(continued)
System Memory Map
Address range Space (Kilobytes) Used For:
Toshiba America Inf ormation Systems I nc. ("TAIS") shall not be li abl e f or damages of any kind for use of thi s information, which is subject to change without notice. Copyright 1994 TAIS. 2000SX.DOC Rev. 1 05/26/94 MQC/nmm .
Page 2
Page 4
'000000'-'09FFFF' 640 System working memory '0A0000'-'0BFFFF' 128 Video RAM '0C0000'-'0C7FFF' 32 VGA BIOS ROM '0C8000'-'0CFFFF' 32 (Reserved) 'D00000'-'DFFFFF' 64 (Reserved) '0E0000'-'0E7FFF' 32 HardRAM window ‘0E8000'-'0EFFFF' 32 Backup RAM '0F0000'-'0FFFFF' 64 System BIOS ROM '100000'-'8FFFFF' 8.192 Optional memory cards '900000'-'FEFFFF' 7,104 Memory expansion in expansion port 'FF0000'-'FFFFFF' 64 System BIOS ROM (Duplicated)
I/O Port Assignment
Port Address From / To Device / Function
'000' / '01F' 82C37 : DMA Controller 1 '020' / '03F' 82C59 : PIC 1 '040' / '05F' 82C54 : Timer '060' / '06F' 80C42 : KBC '070' NMI Mask Register '070' / '07F' RTC '080' / '09F' DMA Page Register '0A0' / '0BF' 82C59 : PIC 2 '0C0' / '0DF' 82C37 : DMA Controller 2 '0E0' / '0EF' Special Register '0F0' / '0F7' 80387SX : NDP '100' / '1EF' VGA '1F0' / '1FF' HDC '200' / '207' Game I/O '208' / '20F' (Not Used) '210' / 217' Expansion Unit '218' / '21F' (Not Used) '220' / '257' (Not Used) '258' / '25F' (Not Used) '260' / '267' (Not Used) '268' / '26F' (Not Used) '270' / '277' (Not Used) '278' / '27F' Parallel PRT 2 '280' / '2A7' (Not Used) '2A8' / '2AF' Reserved for EMS '2B0' / '2B7' (Not Used) '2B8' / '2BF' Reserved for EMS '2C0' / '2DF' (Not Used) '2E0' / '2E7' (Not Used) '2E8' / '2EF' Reserved for EMS '2F0' / '2F7' (Not Use d) '2F8' / '2FF' Serial Port 2 (COM2) '300' / '31F' Prototype card '320' / '32F' XT type HDC '330' / '337' (Not Used) '338' / '33F' Serial Port 3 (COM 3) '340' / '377' (Not Used) '378' / '37F' Parallel PRT 1
T2000SX
Toshiba America Inf ormation Systems I nc. ("TAIS") shall not be li abl e f or damages of any kind for use of thi s information, which is subject to change without notice. Copyright 1994 TAIS. 2000SX.DOC Rev. 1 05/26/94 MQC/nmm .
(continued)
Page 2
Page 5
I/O Port Assignment
Port Address From / To Device / Function
'380' / '38F' SDLC, Bisync 2 '390' / '39F' (Not Used) '3A0' / '3AF' Bisync 1 '3B0' / '3BF' MDA and PRT '3C0' / '3DF' CGA, EGA, VGA '3E0' / '3E7' (Not Used) '3E8' / '3E7' Serial Port 3 (COM3) '3F0' / '3F7' FDC '3F8' / '3FF' Serial Port 1 (COM1)
(continued)
Toshiba America Inf ormation Systems I nc. ("TAIS") shall not be li abl e f or damages of any kind for use of thi s information, which is subject to change without notice. Copyright 1994 TAIS. 2000SX.DOC Rev. 1 05/26/94 MQC/nmm .
Page 2
