TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π−MOSVI)
TPC8004
TPC8004
Lithium Ion Battery Applications
Portable Equipment Applications
Notebook PC Applications
Small footprint due to small and thin package
Low drain−source ON resistance : R
DS (ON)
High forward transfer admittance : |Y
Low leakage current : I
Enhancement−mode : V
= 10 µA (max) (VDS = 30 V)
DSS
= 0.8~2.0 V (VDS = 10 V, ID = 1 mA)
th
Maximum Ratings
Characteristics Symbol Rating Unit
Drain-source voltage
Drain-gate voltage (RGS = 20 kΩ)
Gate-source voltage
Drain current
Drain power dissipation (t = 10 s)
(Note 2a)
Drain power dissipation (t = 10 s)
(Note 2b)
Single pulse avalanche energy
(Note 3)
Avalanche current IAR 5 A
Repetitive avalanche energy
(Note 2a) (Note 4)
Channel temperature
Storage temperature range
(Ta = 25°C)
DC (Note 1) ID 5
Pulse (Note 1) IDP 20
V
V
V
= 37 mΩ (typ.)
| = 6 S (typ.)
fs
30 V
DSS
30 V
DGR
±20 V
GSS
A
2.4 W
P
D
1.0 W
P
D
32.5 mJ
E
AS
0.24 mJ
E
AR
T
150 °C
ch
T
−55 to 150 °C
stg
Unit: mm
JEDEC ―
JEITA ―
TOSHIBA 2-6J1B
Weight: 0.080 g (typ.)
Circuit Configuration
Note: For (Note 1), (Note 2), (Note 3) and (Note 4), please refer to the
next page.
This transistor is an electrostatic sensitive device. Please handle with
caution.
1
2002-02-06
Thermal Characteristics
Characteristics Symbol Max Unit
TPC8004
Thermal resistance, channel to ambient
(t = 10 s) (Note 2a)
Thermal resistance, channel to ambient
(t = 10 s) (Note 2b)
R
th (ch-a)
R
th (ch-a)
52.1 °C/W
125 °C/W
Marking
(Note 5)
TPC8004
※
Type
Note 1: Please use devices on condition that the channel temperature is below 150°C.
Note 2: (a) Device mounted on a glass-epoxy board (a) (b) Device mounted on a glass-epoxy board (b)
FR-4
25.4 × 25.4 × 0.8
(unit: mm)
FR-4
25.4 × 25.4 × 0.8
(unit: mm)
(a)
(b)
Note 3: V
= 24 V, Tch = 25°C (initial), L = 1.0 mH, RG = 25 Ω, IAR = 5 A
DD
Note 4: Reptitve rating; pulse width limited by maximum channel temperature
Note 5: ● on lower left of the marking indicates Pin 1.
※ shows lot number. (year of manufacture: last decimal digit of the year of manufacture, month of
manufacture: January to December are denoted by letters A to L respectively.)
2
2002-02-06
TPC8004
Electrical Characteristics
(Ta = 25°C)
Characteristics Symbol Test Condition Min Typ. Max Unit
Gate leakage current I
Drain cut−off current I
Drain−source breakdown voltage V
(BR) DSS
Gate threshold voltage V
Drain−source ON resistance R
DS (ON)
GSS
DSS
th
VGS = ±16 V, VDS = 0 V — — ±10 µA
VDS = 30 V, VGS = 0 V — — 10 µA
ID = 10 mA, VGS = 0 V 30 — — V
VDS = 10 V, ID = 1 mA 0.8 — 2.0 V
VGS = 4 V, ID = 2.5 A — 58 80
VGS = 10 V, ID = 2.5 A — 37 50
Forward transfer admittance |Yfs| VDS = 10 V, ID = 2.5 A 3 6 — S
Input capacitance C
Reverse transfer capacitance C
Output capacitance C
— 475 —
iss
= 10 V, VGS = 0 V, f = 1 MHz
V
— 85 —
rss
oss
DS
— 270 —
Rise time tr — 10 —
Turn−on time ton — 16 —
Switching time
Fall time tf — 13 —
mΩ
pF
ns
Turn−off time t
Total gate charge (Gate−source
plus gate−drain)
Gate−source charge Qgs — 11 —
Gate−drain (“miller”) charge Qgd
off
Q
— 16 —
g
≈ 24 V, VGS = 10 V, ID = 5 A
V
DD
— 70 —
nC
— 5 —
Source−Drain Ratings and Characteristics
Characteristics Symbol Test Condition Min Typ. Max Unit
Drain reverse
current
Forward voltage (diode) V
Pulse (Note 1) I
DRP
DSF
IDR = 5 A, VGS = 0 V — — −1.2 V
(Ta = 25°C)
— — — 20 A
3
2002-02-06

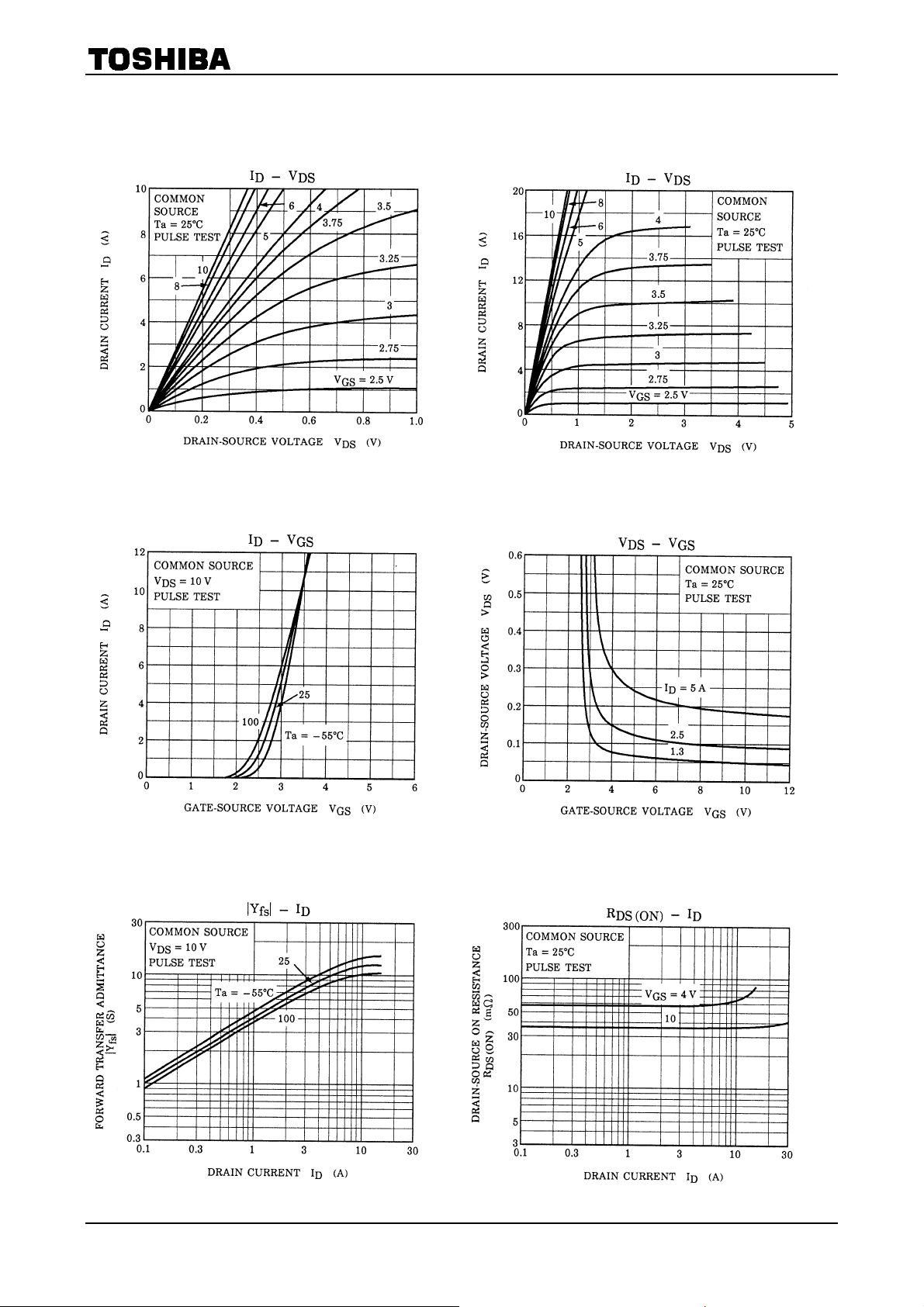

TPC8004
4
2002-02-06

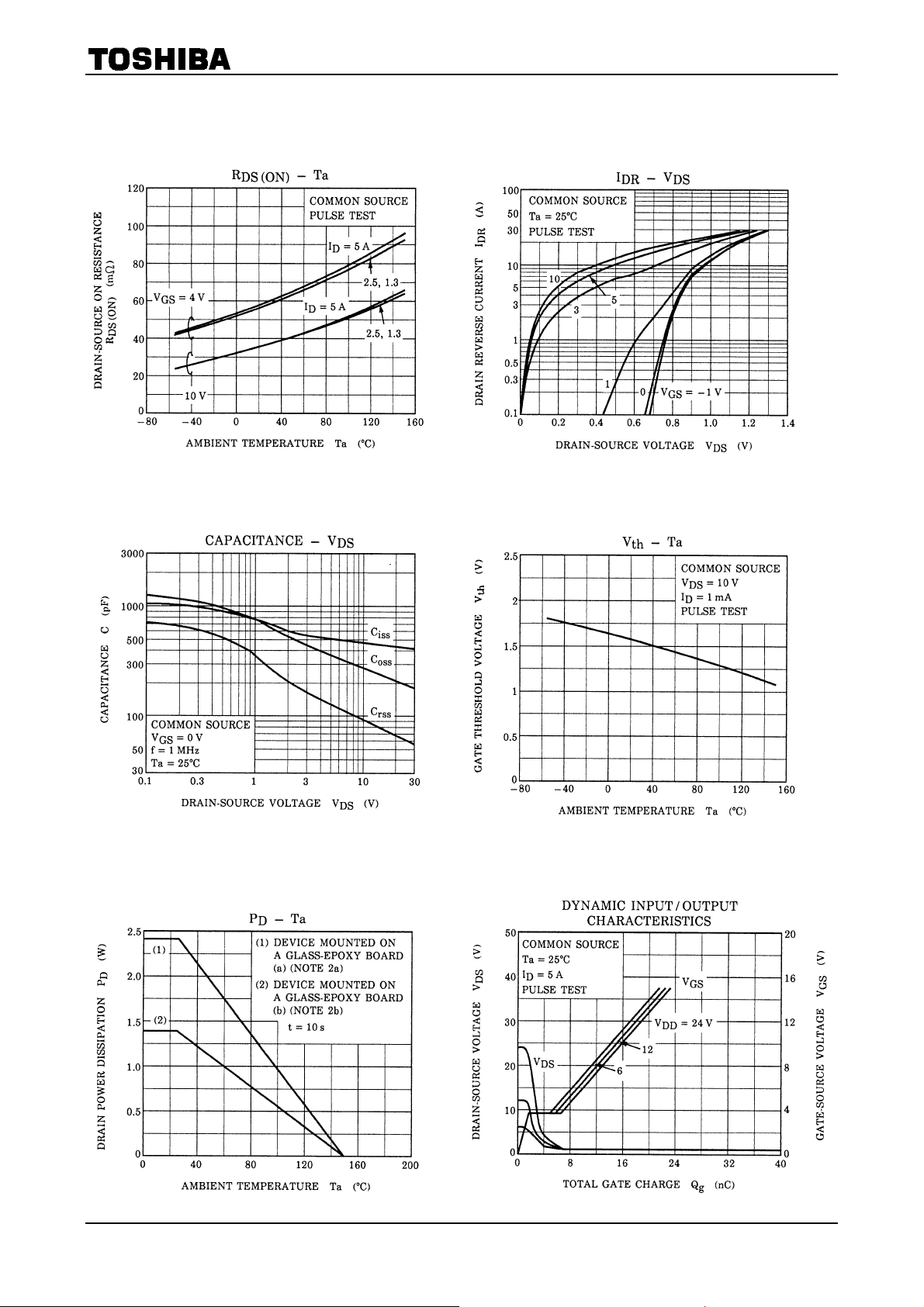

TPC8004
5
2002-02-06
TPC8004
6
2002-02-06
TPC8004
A
