Toshiba TLP-X200 User Manual

Download

TLP-X200

(XGA)

Before UsingPreparationsOperationsMaintenanceOthers

TLP-WX200

(WXGA)

DATA PROJECTOR

OWNER’S MANUAL

Network/

USB memory

In the spaces provided below, record the Model and Serial No. located at the bottom of your projector. Model No Retain this information for future reference.

. Serial No.

Before Using

SAFETY PRECAUTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

WARNING:

USA only

MODEL NAME: TLP-X200 / TLP-WX200

TRADE NAME: DATA PROJECTOR MODEL NAME: TLP-X200 / TLP-WX200

FOR HOME OR OFFICE USE

Handling the cord on this product or cords associated with accessories sold with this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

Lamp contains mercury. Disposal of this product may be regulated due to environmental considerations. For disposal, reuse or recycling information, please contact your local government or the Electronic Industries Alliance at www.eiae.org.

USA only

Tested To Comply With FCC Standards

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

RESPONSIBLE P

CAUTION:

USA only

Notice:

CANADA only

ARTY: TOSHIBA AMERICA INFORMATION SYSTEMS, INC.

9740 Ir

vine Blvd., Irvine, CA 92618-1697 U.S.A

Phone:

(949) 583-3000

Changes or modiﬁcations made to this equipment, not expressly approved by Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

FCC NOTICE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Before Using

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND

INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This unit is fully transistorized and does not contain any parts that can be repaired by the user.

WARNING:DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE

EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read Owner’s Manual

After unpacking this product, read the owner's manual carefully, and follow all the operating and other instructions.

2. Power Sources

This product should be operated only from the type of power source which does not exceed the voltage range speciﬁed on the rating label and the power cord. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

3. Source of Light

Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyesight.

4. Ventilation

Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. Never block an opening by placing the product on a bed, sofa, rug or other similar surface. Do not place it in a built-in installation such as a bookcase or rack, unless proper ventilation is provided.

5. Heat

6. Water and Moisture

7. Cleaning

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including ampliﬁers) that produce heat.

Do not use this product near water.

- for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and other similar environments.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Always use a soft cloth for cleaning.

8. Be sure that you ﬁrmly insert the plug into the wall outlet.

Incorrect or faulty connections may result in ﬁre or electric shock. Avoid using an unsound or loose outlet.

9. Power Cord Protection

Power cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

10. Overloading

Do not overload wall outlets. To reduce the risk of electric shock, do not use the polarized plug with an extension cord , receptacle, or other outlet unless the blades can be inserted completely with threewire grounding type to prevent blade exposure. Failure to follow these instructions may result in ﬁre or electric shock.

Before Using

IMPORTANT SAFETY INSTRUCTIONS (Continued)

S3125A

11. Lightning storms

For added protection for this product during a storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges. Never operate this unit on AC power during a thunderstorm. If you see lightning or hear thunder, never touch the unit, cables and/or peripherals. An electric surge caused by the storm, may result in an electrical shock or damage to the unit.

12. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. Never spill liquid of any kind on the product.

13. Do not place or keep the projector within the reach of the children.

It may fall or tip over, possibly causing serious injury.

14. Do not place the product vertically

Do not use the product in the upright position or any other vertical positions to project the pictures. It may fall which could result in serious injury and/or damage to the product.

15. Stack Inhibited

Do not stack other equipment on this product and do not place this product on other equipment. The top and bottom surface of this product increase in temperature during normal use and may damage the other unit.

16. Attachments

Do not use attachments not recommended by the product manufacturer. Use of an incompatible attachments could cause hazards or damage to the product.

17. Accessories

18. Damage Requiring Service

a) The power supply cord or plug is b) Liquid has been spilled, or objects c) The product has been exposed to d) The product does not operate

e) The product has been dropped or

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

Unplug this product from the wall outlet and take the product to qualiﬁed service personnel if you encounter any of the following conditions:

damaged. have fallen into the product. rain or water. normally when following the

operating instructions. Adjust only those controls that are covered by the operating instructions since an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the product to its normal operation.

damaged in any way. (If the cabinet should break, please handle with care to avoid injury.)

f) The product exhibits a distinct

change in performance, which indicates a need for service.

19. If glass components, including lens and lamp, should break, contact your dealer for repair service.

This product incorporates glass components, including a lens and a lamp. If these should break, please handle with care to avoid injury and contact your dealer for repair service. Avoid any broken pieces of glass since they may cause injury. In the unlikely event that the lamp ruptures, thoroughly clean the area around the projector and discard any edible items placed in that area since they may be contaminated.

20. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualiﬁed service personnel.

Before Using

IMPORTANT SAFETY INSTRUCTIONS (Continued)

Plug configuration

Plug type

Australian 240 V 10 A

North American 240 V 15 A

Switzerland 240 V 6 A

Line voltage

EURO

220 – 240 V

200 – 240 V

Plug configuration

Plug type Line voltage

Use a 5 A fuse which is approved by ASTA or BSI to BSI362. Always replace the fuse cover after changing the fuse.

p.43

POWER SUPPLY INFORMATION

21. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts speciﬁed by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁre, electric shock, or other hazards. (Only the replacement of the lamp should be made by users.)

22. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to verify that the product is in proper operating condition.

23. Do not leave thermalpaper documents or easily deformed items on top of the unit or near the air exhaust for long periods of time.

The heat from the unit could erase the information on the thermal paper, or cause deformation or warping.

24. Do not use the product in a closed installation location.

Do not place the product in a box or in any other closed installation location. Otherwise it may overheat, which could result in a risk of ﬁre.

25. Do not look into the laser light source of the remote control or direct the laser pointer toward a person or a mirror.

The laser beam may cause damage to the eyesight.

26. When using a wireless LAN function:

• Do not use near people with heart pacemakers.

• Do not use near electr medical equipment, or in hospitals or other medical institutions.

• Do not use inside air or in places where the wireless LAN function could interfere with electromagnetic signals.

The electromagnetic interference could cause a malfunction, resulting in an accident.

27. If the use of a wireless LAN function interferes with another device’s electromagnetic signals, cease use immediately.

The electromagnetic interference could cause a malfunction, resulting in an accident.

onic

craft

If your line voltage is 220 to 240 V, use one of the following types of cable/plug.

IMPORTANT PRECAUTIONS

Moisture Condensation

Never operate this unit immediately after moving it from a cold location to a warm location. When the unit is exposed to such a change in temperature, moisture may condense on the lens and the cr extreme or sudden change in temperature to prevent the unit from possible damage.

Place and Manner of Installation

•

Do not place in hot locations, such as near heating equipment. Doing so could cause a malfuntion, and shorten the life of the projector.

•

Avoid locations with oil or cigarette smoke. These environments will dirty the optical parts, shortening their lives, and darkening the screen.

•

Do not use this product in the upr level. Doing so may cause a failure or shorten the life of the product.

•

Using this instrument near a TV or radio may cause interference to the images or audio sound. If this happens, move it away from the TV or radio.

•

In a high altitude location where air is thin, cooling efﬁciency is reduced so use the projector with [Fan mode] set to [High].

•

Only plug the power cord into outlets rated for use within the power cord’s speciﬁed voltage range. Do not overload extension cords or power strips as this can result in ﬁre or electric shock.

•

Route the power cable or the connecting cable away from where people could trip over it. The projector may fall, which could result in serious injury and/or damage to the product.

•

Be sure the power cord is easily reached for unplugging in case of emergency. Do not place any obstacles near a wall outlet in which the cord is plugged.

Avoid Volatile Liquid

Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or plastic products touching the unit for a long time as they will leave marks on the ﬁnish. Do not use a chemically saturated cloth on the unit.

ucial internal parts. Do not use the unit for at least 2 hours when there is an

ight position or tilt it up or down by more than 20° from

Before Using

IMPORTANT PRECAUTIONS (Continued)

p.36

OTHER INFORMATION (Continued)

LCD Panel

•

If the air ﬁlter is stained or clogged, the main unit inner temperature rises. As a result, the life of the LCD is shortened and a malfunction may also occur. Clean the air ﬁlter from time to time and replace it regularly. It is recommended that you replace the ﬁlter at the time you replace the lamp. (Ask a dealer where the unit was purchased or your nearby service station about an air ﬁlter for replacement.)

EXEMPTION CLAUSES

•

Toshiba Corporation bears no responsibility in the case of damages arising from natural disaster such as earthquakes, lightning, etc., ﬁre not liable to Toshiba Corporation, acts by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems.

•

Toshiba Corporation bears no responsibility for incidental damages (lost proﬁt, work interruption, corruption or loss of the memory contents, etc.) arising from the use of or the inability to use this unit.

•

Toshiba Corporation accepts no liability whatsoever for any damages arising from not having followed the descriptions in this Owner’s Manual.

•

Toshiba Corporation accepts no liability whatsoever for any damages arising from malfunctions arising from combination with equipment or software that is not related to Toshiba Corporation.

•

Toshiba bears no responsibility for information being intercepted or leaked due to the use of a wireless LAN, or any damages therefore.

OTHER INFORMATION

Copyrights

Showing or transmitting commercial imaging software or broadcast or cable-broad casting programs with the purpose of other than the personal and private viewing, including modifying images using the freeze or resize functions, or displaying with the varying aspect ratio of the images, could violate the direct or indirect copyrights of the imaging software or broadcast program, etc., if done without ﬁrst consulting with the copyright holder. For this reason, please take appropriate measures including obtaining a license from the copyright holder, before performing one of the actions listed above.

Disposal

This product contains substances which are harmful to humans and the environment.

•

The lamp contains mercury.

Please dispose of this product or used lamps in accordance with local regulations.

Following information is only for EU-member states:

The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city ofﬁce, your household waste disposal service or the shop where you purchased the product.

Trademarks

VGA, SVGA, XGA, SXGA, UXGA and WXGA are trademarks or registered trademarks of

• International Business Machines Corporation. Macintosh is a registered trademark of Apple Computer, Inc.

• Microsoft, Windows and Windows Vista are registered trademarks or trademarks of Microsoft

• Corporation in the U.S. and other countries. Adobe and Acrobat Reader are registered trademarks of Adobe Systems Incorporated.

• Contains technology by Ingenient Technologies, Inc.

• respective companies. HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface are trademarks or

• registered trademarks of HDMI licensing LLC.

Notational Conventions Used in This Manual

References to pages with related information are annotated as follows.

• For example, if making a reference to page 36: The illustrations in this document are for reference purposes only and may not reﬂect

• your package exactly.

REMOTE CONTROL BATTERIES

Warning

Never throw batteries into a ﬁre.

•

Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking ﬂuid contacts skin, wash the ﬂuid off immediately with clean water and consult a doctor. If the ﬂuid spills on an instrument, avoid contact and wipe it off using tissue paper. Then dispose of the used tissue paper as ﬂammable garbage after moistening the tissue with water.

Notes

Be sure to use AAA (LR03) size batteries.

• Dispose of batteries in a designated disposal area.

• Attention should be drawn to the environmental aspects of battery disposal.

• Do not mix different battery types or combine used batteries with new ones.

• If the remote control does not operate correctly, or if the operating range becomes

• reduced, replace both batteries with new ones. If the batteries are dead or if you will not be using the remote control for a long time,

• remove the batteries to prevent battery acid from leaking into the battery compartment.

Following information is only for EU-member states:

• [Disposal of batteries and/or accumulators] The crossed out wheeled dust bin symbol indicates that batteries and/or

accumulators must be collected and disposed of separately from household waste. If the battery or accumulator contains more than the speciﬁed values of lead

(Pb), mercury (Hg), and/or cadmium (Cd) deﬁned in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city ofﬁce or the shop where you purchased the product.

Before Using

SAFETY PRECAUTIONS .............................................................................2

IMPORTANT SAFETY INSTRUCTIONS .......................................................4

POWER SUPPLY INFORMATION ................................................................9

IMPORTANT PRECAUTIONS .......................................................................9

EXEMPTION CLAUSES .............................................................................10

OTHER INFORMATION ..............................................................................10

REMOTE CONTROL BATTERIES ..............................................................11

CONTENTS ................................................................................................12

Preparations

Checking the package contents ..................................................................14

Names of each part on the main unit ..........................................................15

Names of each part on the control panel and remote control .....................16

Label location ..............................................................................................17

Names of the terminals on the rear panel ...................................................18

Preparing and using the remote control ......................................................19

Operating a computer using the remote control ..........................................20

Placement ...................................................................................................21

Connection ..................................................................................................24

Operations

Turning the power on and off .......................................................................26

Basic operations ..........................................................................................28

Using handy features ..................................................................................31

Using auto setting (For computer input only) ...........................................31

Correcting the keystone distortion ...........................................................31

Resizing image ........................................................................................32

Cutting off the picture and sound temporarily (Mute) ...............................33

Changing picture mode ............................................................................33

Changing screen size ..............................................................................33

Freezing the image (Freeze) ....................................................................34

Setting the password ...............................................................................34

Using the menus 1 ......................................................................................36

Setup using the Setting display ................................................................36

The image adjustment menu ...................................................................37

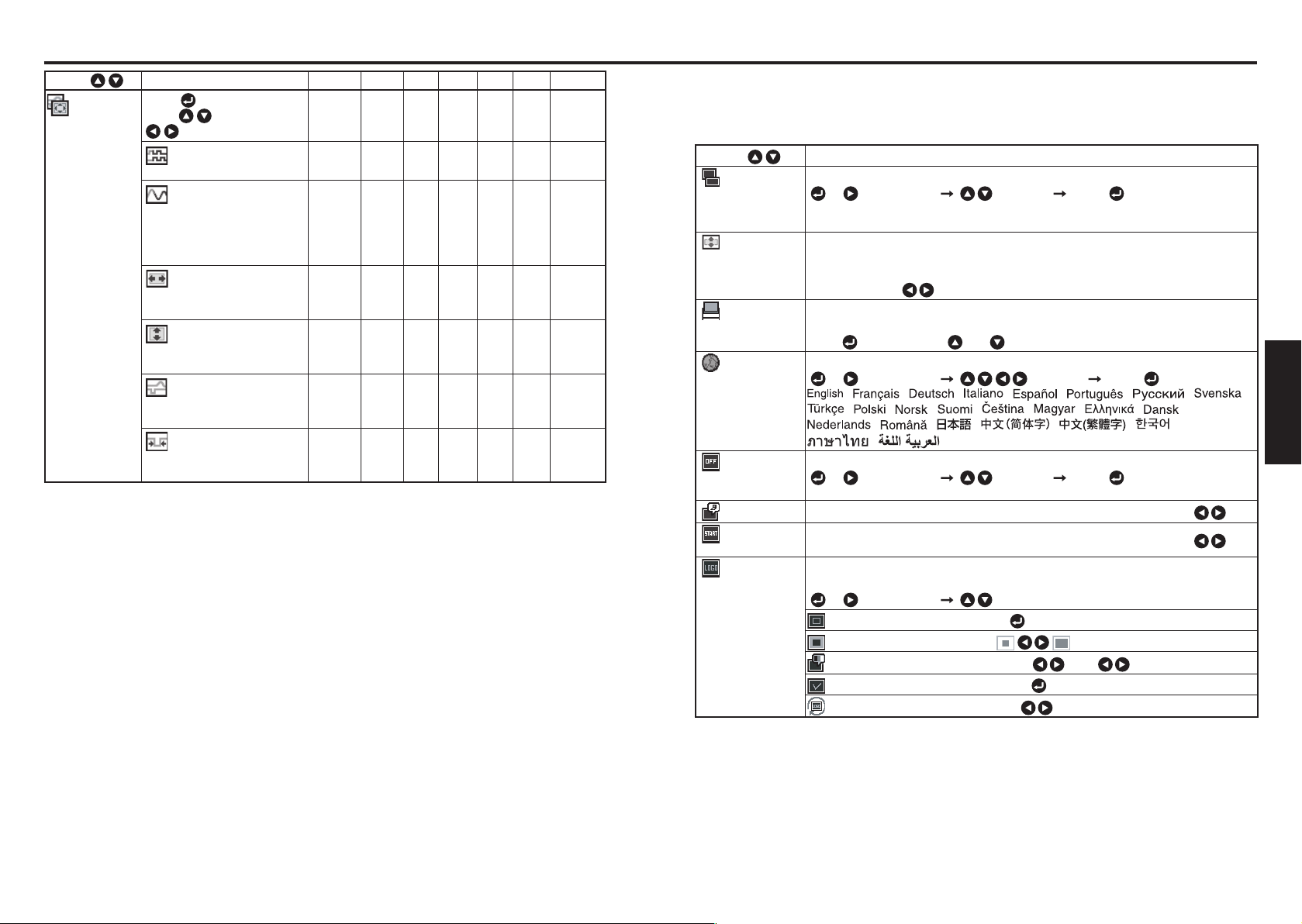

The display setting menu .........................................................................39

The default setting menu .........................................................................42

Displaying Information (Status display) ....................................................45

Network /USB memory

Before connecting via a network .................................................................46

How to use the USB terminal ......................................................................48

Using the menus 2 ......................................................................................50

Setup using the Setting display (2) ..........................................................50

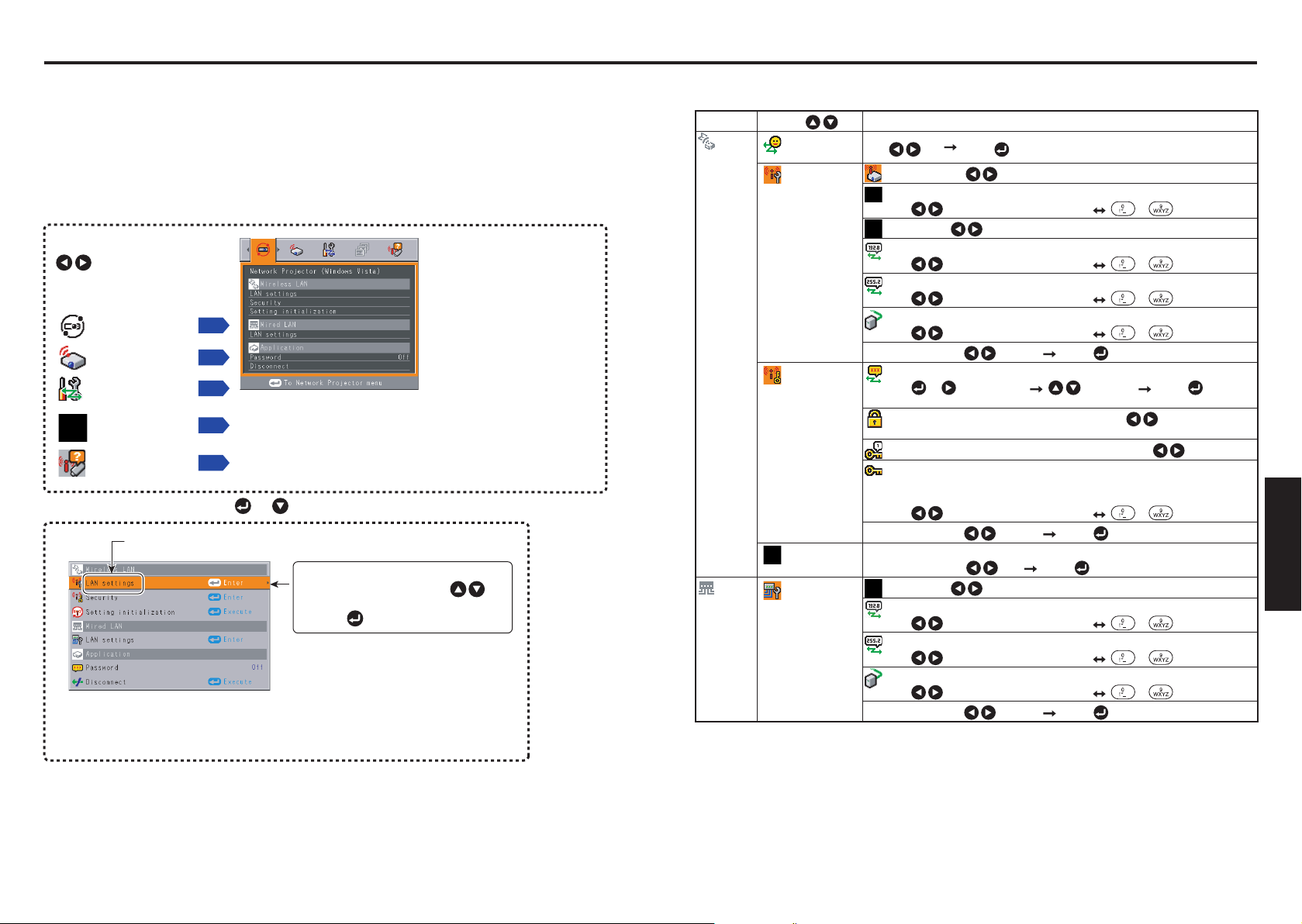

Setting up the Network Projector/Network Utility .....................................51

Computer settings ....................................................................................56

The control setting menu .........................................................................57

Setting slideshow options ........................................................................58

Checking the projector status ......................................................................60

Status display ...........................................................................................60

Using the Network Projector .......................................................................61

Installing the applications ............................................................................62

Using the Network Utility .............................................................................64

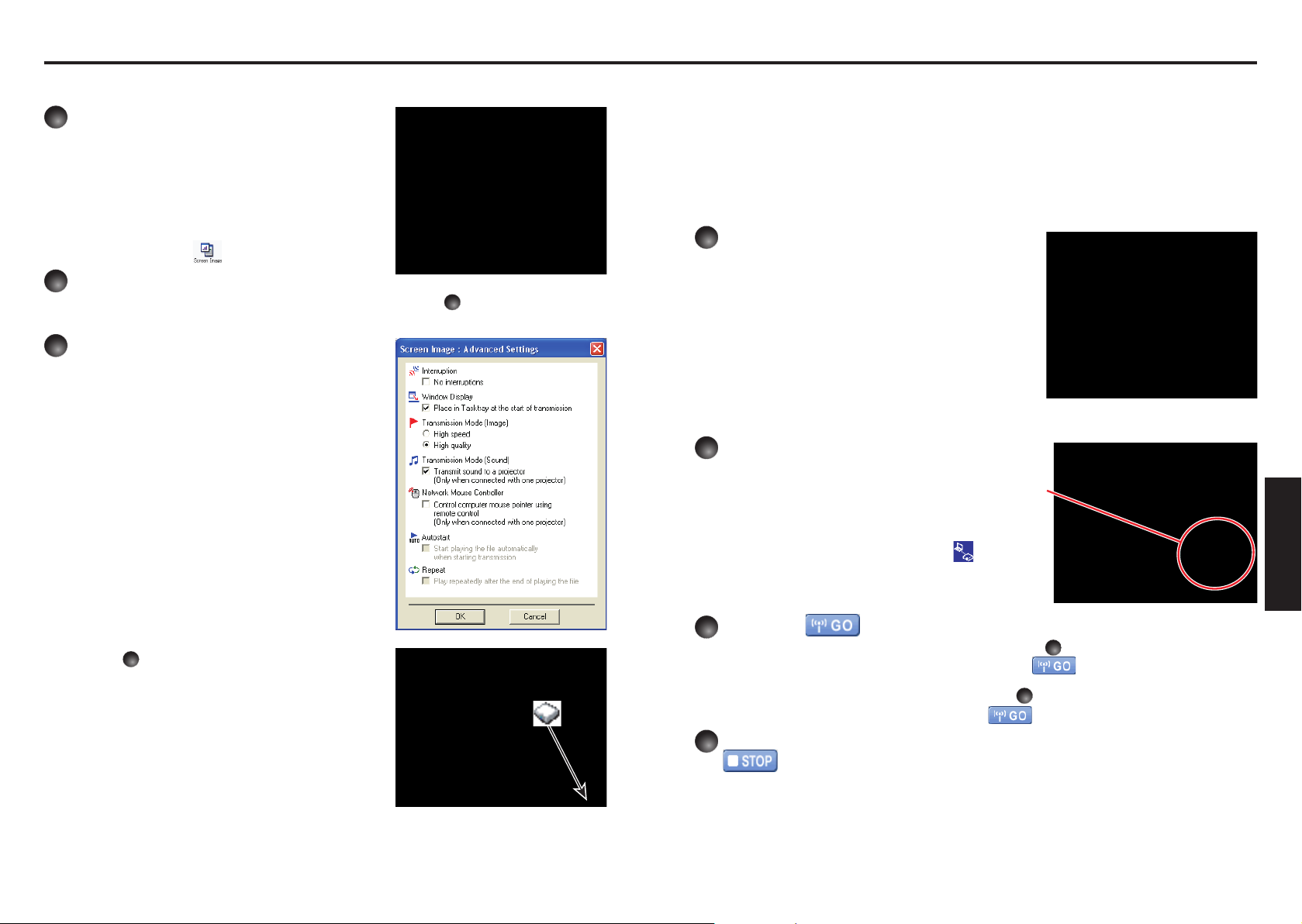

Displaying a computer’s screen via the projector .....................................64

Displaying a JPEG image saved on a computer via the projector ...........66

Displaying a video ﬁle saved on a computer via the projector .................67

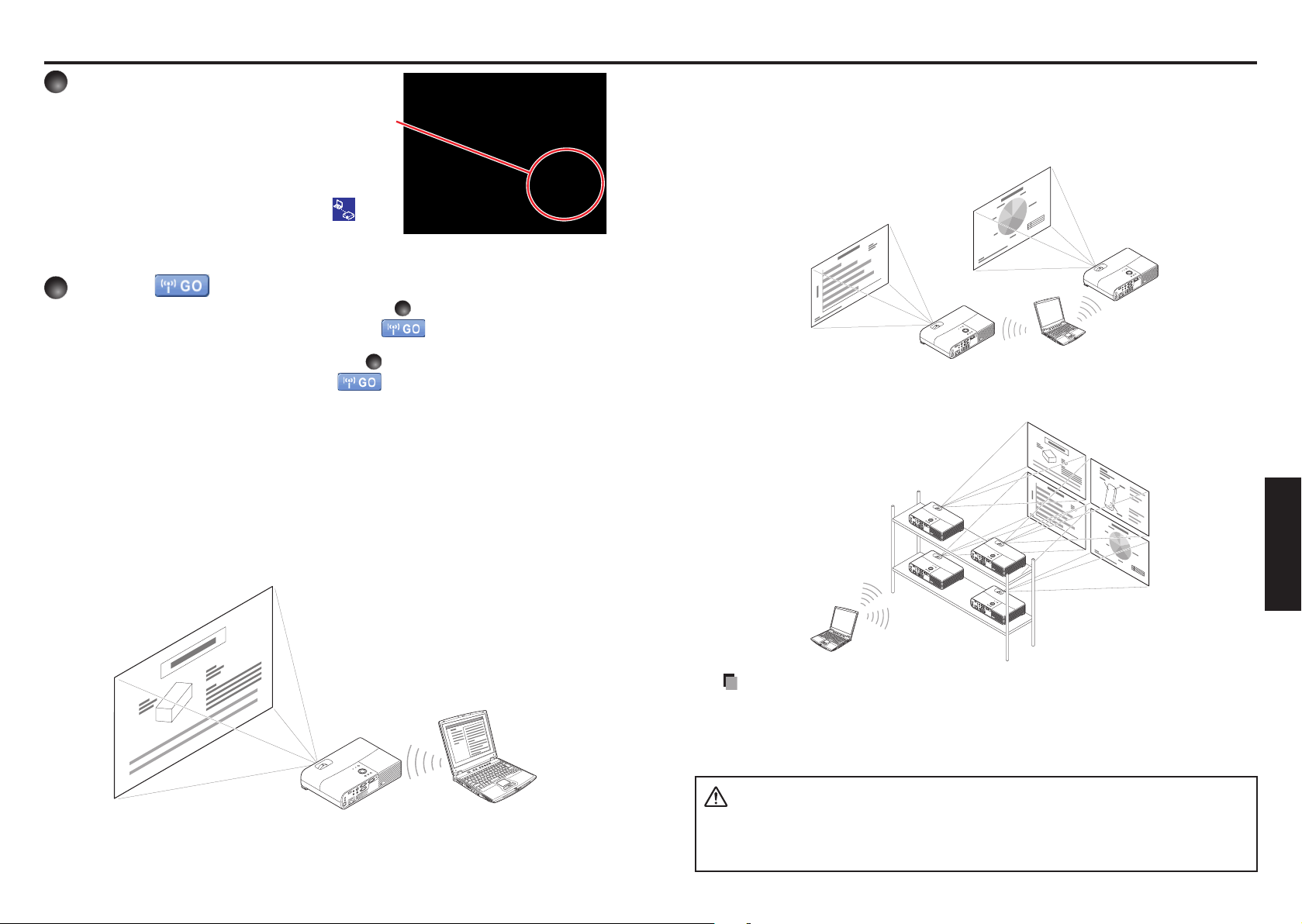

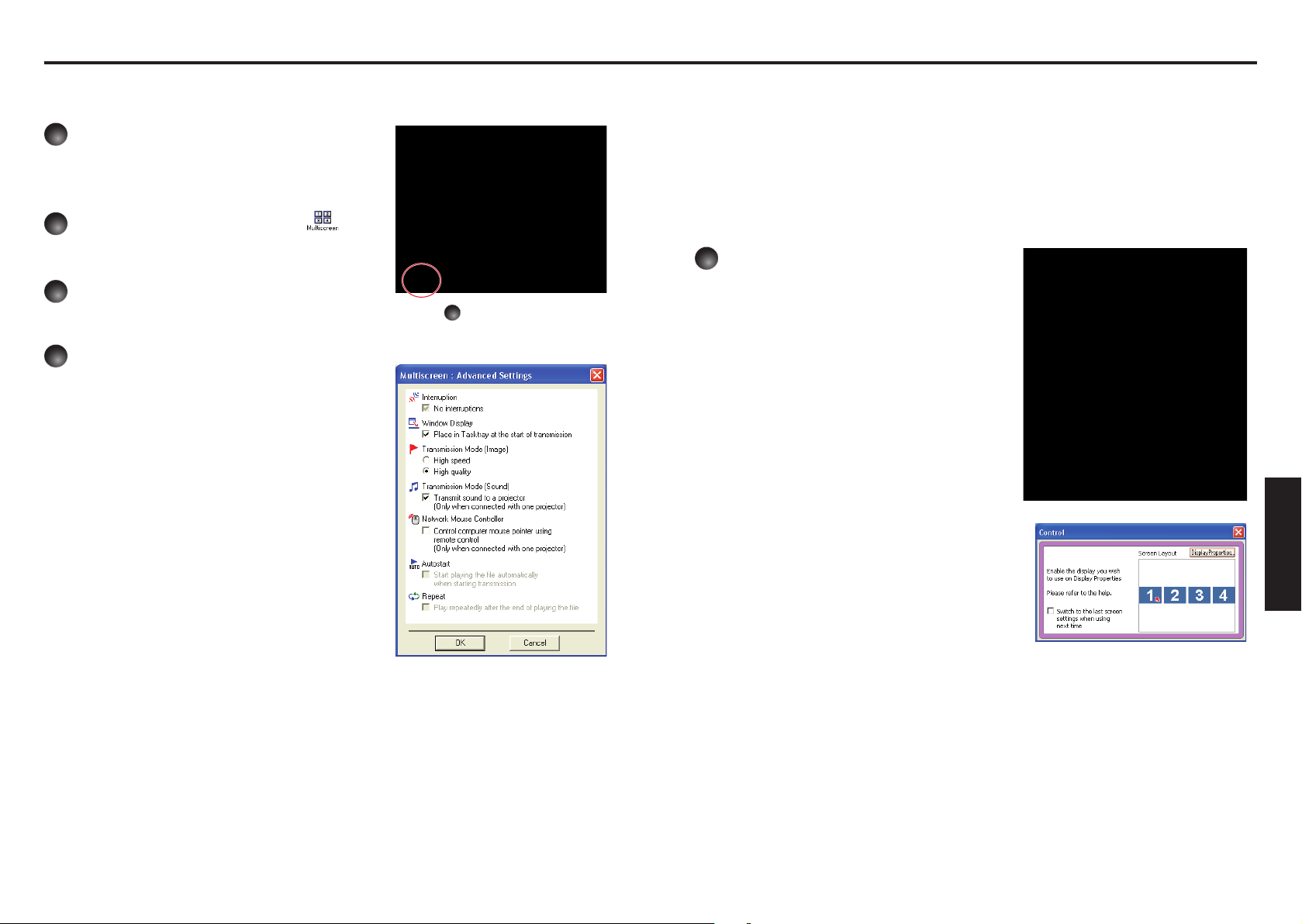

Displaying computer’s screens via projectors using the Multiscreen function

Easy Connect utility .................................................................................75

Operating the projector ............................................................................79

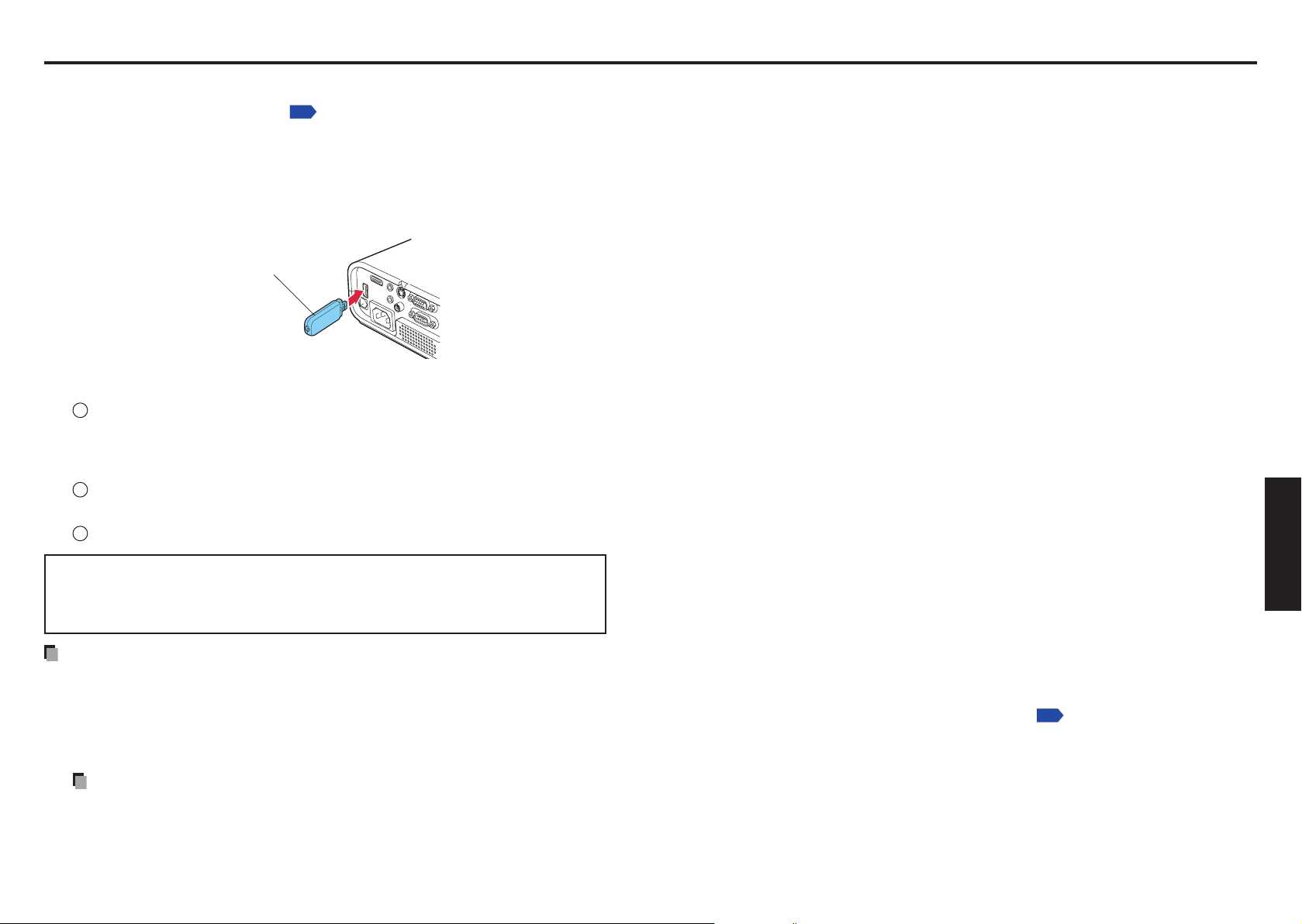

Projecting images stored in a USB memory device ....................................80

Playing a slide show from a thumbnail list ...............................................80

How to use the JPEG Conversion Tool........................................................83

Launching the JPEG Conversion Tool .....................................................83

Converting an image ﬁle ..........................................................................83

Converting ﬁles created with Microsoft

Making a presentation with converted JPEG ﬁles....................................85

Creating a screen capture and converting it into a JPEG ﬁle ..................86

Setting up the projector using a Web browser .............................................87

PowerPoint® ..............................84

...70

Maintenance

About lamp ..................................................................................................90

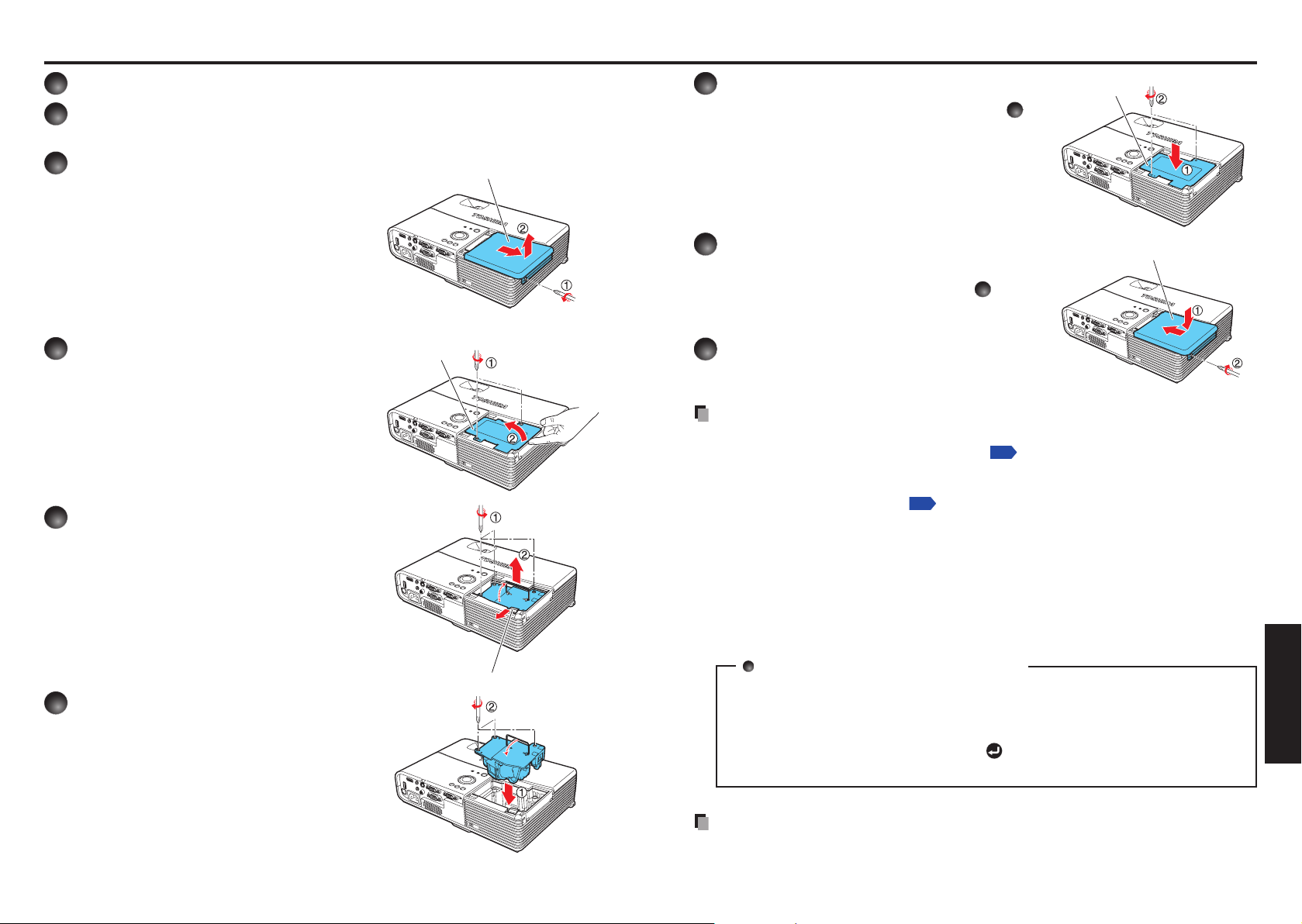

Lamp replacement ......................................................................................91

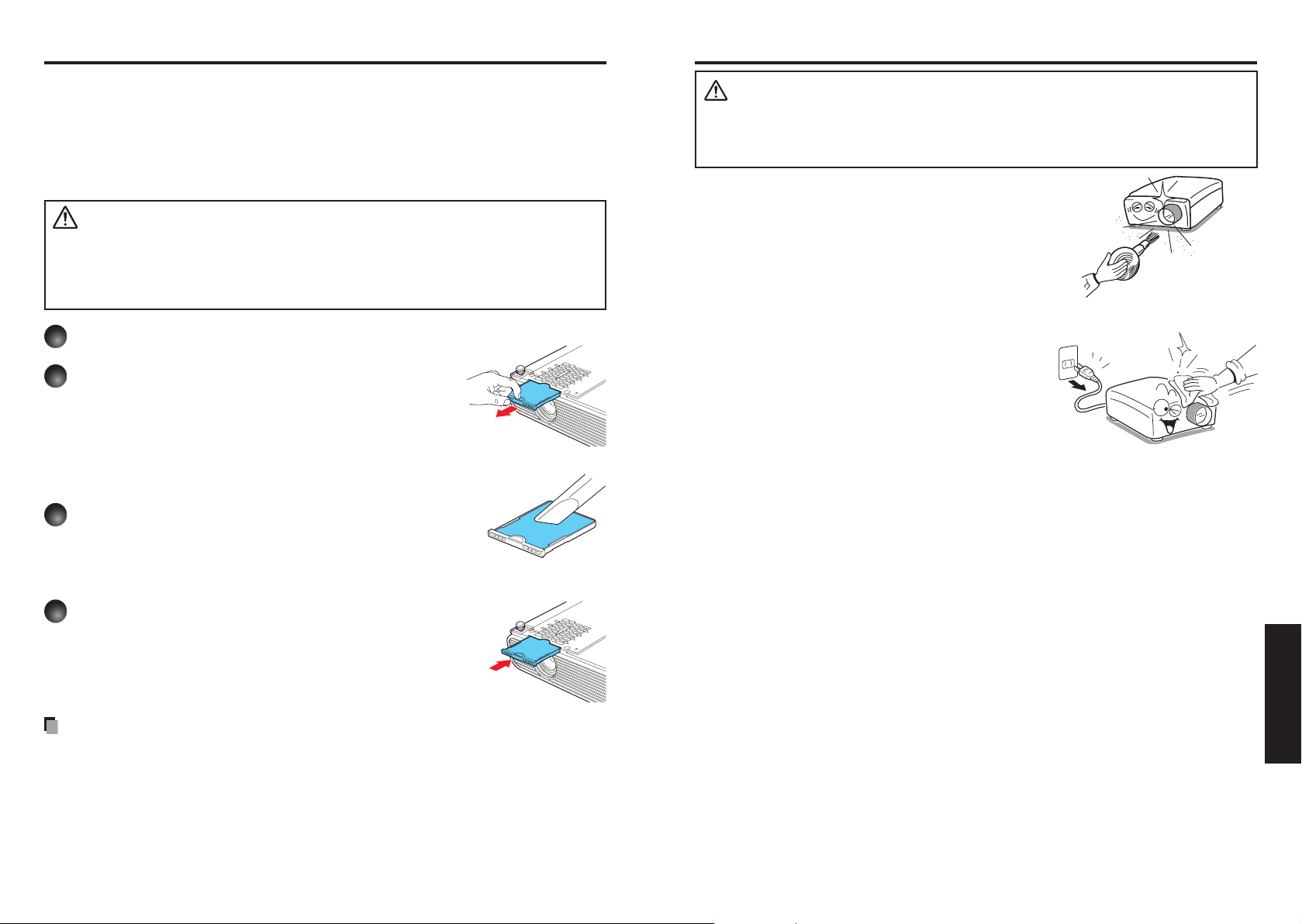

Air ﬁlter cleaning ..........................................................................................94

Lens and main unit cleaning .......................................................................95

Others

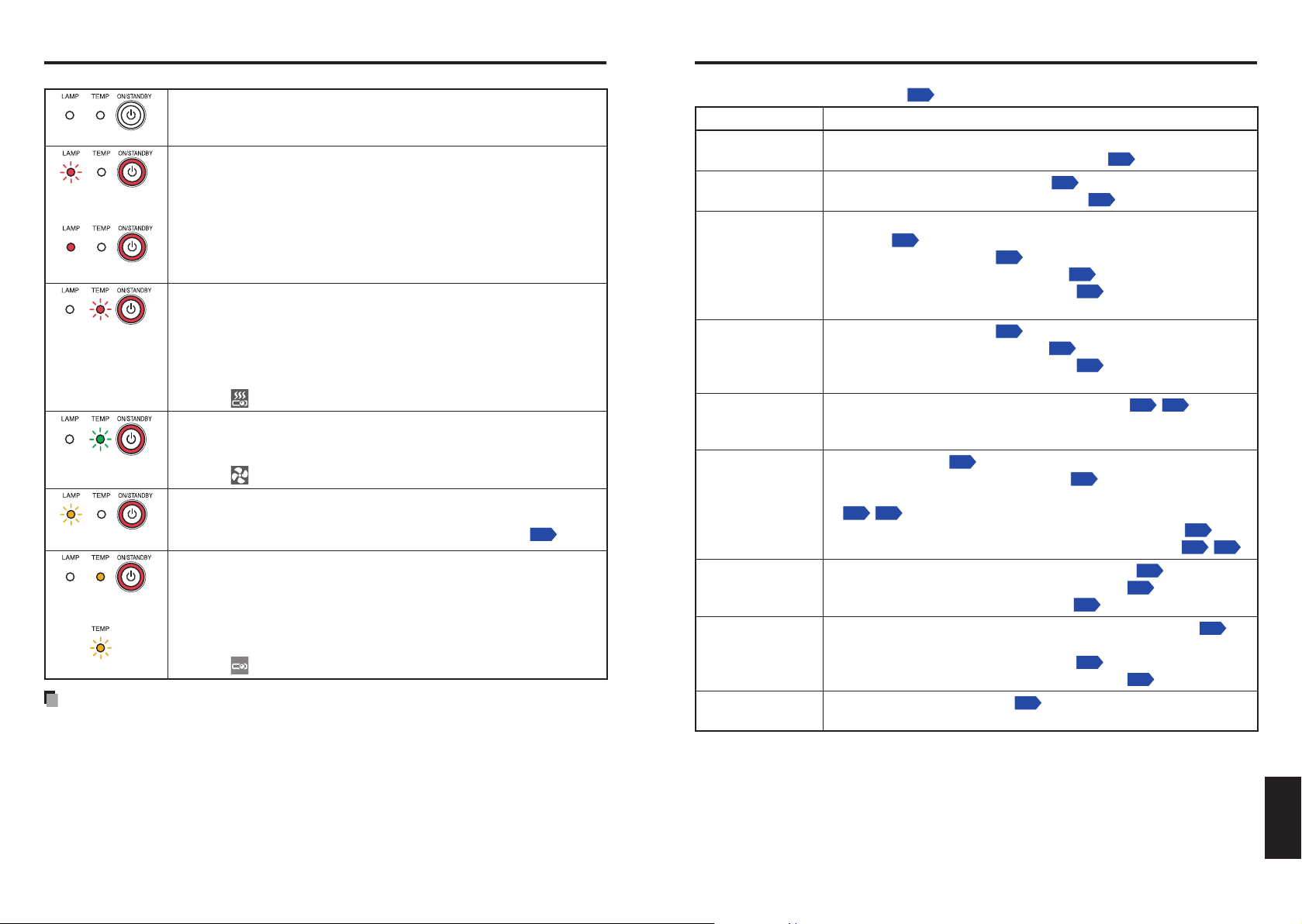

Trouble indications .......................................................................................96

Troubleshooting ...........................................................................................97

Speciﬁcations ..............................................................................................99

Before Using

12 13

Preparations

(3)

(2)

(16)(15) (15)(14) (14)(13)(10)(11) (12)

(9)(5)(4) (8)(7)(6)(1)

p.16

p.29

p.92

p.19

p.18

p.29

p.94

Checking the package contents

Please make sure that the following items are included in the box, along with the main unit. If any item is missing, immediately contact the store where you purchased the product.

(1) (4) (7)

(2) (5)

(3) (6) (8)

(5)

(1) Remote control



(2) LR03 (SIZE AAA) batteries for remote control (2)



(3) CD-ROM



(4)

Owner’s Manual



Notes

1: To maintain original performance, always use the supplied cables. 2: The shape and number of supplied power cords vary depending on the product destination.

RGB cable (3 m)



(6)

Power cord



(7)

Carrying bag



(8) Mouse remote control receiver



Save Original Packing Materials

The original shipping carton and packing materials will come in handy if you ever have to ship your projector. For maximum protection when shipping your projector, repack the set as it was originally packed at the factory.

The Supplied CD-ROM



The supplied CD-ROM contains an owner’s manual which includes information not available for the printed Owner’s manual (Getting started), each Application and Project

Management Utility Manual in Portable Document Format (PDF). Please use Acrobat

Reader 5 or later version to view the manual.

Adobe





The supplied CD-ROM does not contain Acrobat® Reader®. If you cannot read PDF ﬁles, please install Acrobat Reader software in your computer by downloading it from the Adobe Systems website.

Viewing the manual





Run the CD-ROM and double-click Start.pdf. Acrobat® Reader® launches, then category selection menu appears. Click [Owner’s manual] and then select your desired language. The Owner’s Manual cover and list of bookmarks appear. Click a bookmark title to view that section of the manual. Click Help menu for more information about Acrobat

Acrobat® Reader® or Adobe® Reader

to view a reference page with related information. See the

Reader®.

[Note 1]

[Note 1, 2]

Names of each part on the main unit

Name : Function (1) Control panel : (2) Zooming lever : (3) Focusing lever : (4) Lamp cover : (5) Air exhaust : Expels air that has grown hot inside the projector. (6) Air intake : Draws in air from outside the projector for internal cool

(7) Lens cap : (8) Lens : Projects expanded image.

(9) Infrared remote sensor : (10) AC IN socket : Connects the supplied power cord here. (

11)Terminals on the rear panel (12) Speaker : Outputs audio sound. (

) Antitheft lock slot : Attach a safety cable or any other antitheft device.

(

14)Foot adjuster release button (15) Foot adjuster : (16) Air ﬁlter : Prevents dirt and dust from getting into the inside of the

Back Front

Operates the projector. Adjusts screen size. Adjusts screen focus. Remove to replace lamp.

down. Replace the cap when not using the projector to protect the lens.

Senses commands from the remote control.

Connects external devices.

Press to set up or stow the foot adjuster. Adjusts the vertical projection angle.

projector.

Preparations

p.36

p.20 p.65 p.71

p.33

p.34

p.52

p.43

p.33

p.82

p.32

p.20 p.65 p.71

(1)

(8)

(3)

(2)(4)

(6) (5)(7)

(10) (3) (4)

(20) (22)

(1)

(9)

(23)

(11) (12)

(2)

(15)

(19)

(16)

(5)

(6) (14) (13)

(21)

(7)

(8)

(17) (18)

Remote control transmitter Laser light source

Battery cover

Caution label

p.28

p.36

p.26

p.96

p.36

p.26

p.31

p.28

p.50

Names of each part on the control panel and remote control

CAUTION

Do not look into the laser light

•

source of the remote control or direct the laser pointer toward a person or a mirror. Handling and adjusting other than

•

described in this manual may lead to dangerous exposure to laser.

Name : Main Function

Control panel

(1) ENTER button : Accepts the selected mode. (2) INPUT button : (3) MENU button : (4) RETURN button : Goes back one screen. (5) ON/STANDBY button/ :

ON/STANDBY indicator : (6) TEMP indicator : (7) LAMP indicator : (8) Selection button :

Remote control

(1) ENTER button : Accepts the selected mode. (2) MENU button :

(3) ON/STANDBY button : (4) AUTO SET button : (5) INPUT button : (6) NETWORK button :

Selects input. Displays menus.

Turns the power on/off (standby). Displays whether power is on or off (standby). Lights when internal temperature is too high. Displays lamp mode. Menu selections and adjustments, volume control and

keystone adjustment, etc.

Displays menus. Turns the power on/off (standby). Performs auto-adjustment of input signals from computer. Selects input. Switches to network input mode.

Remote ControlControl panel

Name : Main Function

(7) RETURN button : Goes back one screen. (8) Selection button :

Menu selections and adjustments, volume control and keystone adjustment, etc.

(9) LASER button : Shows a laser pointer.

) Laser indicator : Lights when laser is on.

(

) Mouse control button :

( (12) PAGE+ button : (13) MUTE button : (14) FREEZE button :

Controls a mouse pointer. Proceeds PowerPoint

slides. Cuts off the picture and sound temporarily. Pauses image.

(15) Ten-Key button : Use as a ten-key pad with wireless LAN, from which

numbers and characters can be entered.

(16)

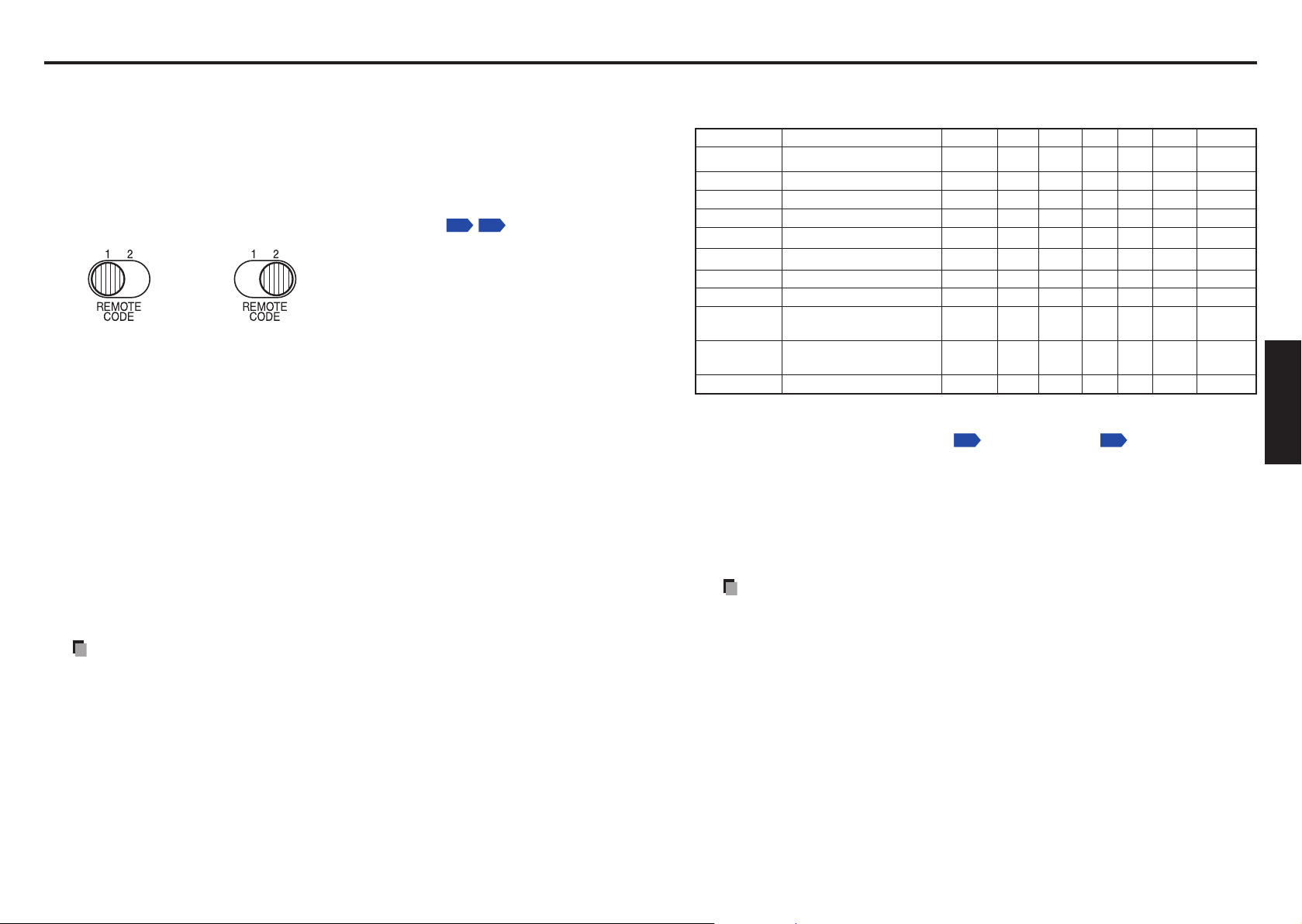

Remote control code switch (17) NCE button : (18) SCREEN SIZE button : (19) GUIDE button : (20)

RESIZE button (21) PAGE- button : (22) R-CLICK button : (23) L-CLICK button :

Sets the code of remote control to that of the projector. Changes picture mode. Changes screen size. Displays operation guide for slideshow.

Enlarges image. Goes back PowerPoint

slides. Functions as right-click of a mouse. Functions as left-click of a mouse.

Note

For the remainder of this manual, buttons are referred to as follows:

• Selection buttons

; ENTER button ⇒

⇒

Label location

CAUTION – use of controls or adjustments or performance of procedures other than

those speciﬁed herein may result in hazardous radiation exposure.

Preparations

Names of the terminals on the rear panel

(6) (7)

(5)(4)

(2)(1) (3)

(11)

(10)(9)

(8)

(12)

p.48

103

Approx.15°

Approx.5m

Name : Main Function (1) USB terminal : (2) HDMI™ terminal : Inputs digital signals from HDMI (High-Deﬁnition

(3)

AUDIO IN terminal

(4) S-VIDEO terminal : Inputs S video signals from video equipment. (5) COMPUTER 1 IN (Y/P

(6) COMPUTER 2 IN (Y/P

(7) Switch : (8) LAN terminal : Connects a network cable. (9) AC IN socket : Connects the supplied power cord here.

) AUDIO OUT terminal : Outputs audio signals.

(

) VIDEO terminal : Inputs video signals from video equipment.

(

) CONTROL terminal : When operating the projector via a computer, connect

(

Connects a commercial USB memory device. Multimedia Interface) compatible digital source.

: Inputs audio signals from a computer or video equipment.

(Multiple use for COMPUTER 1 IN/2 IN, VIDEO and SVIDEO)

1) terminal

B/PR

: Inputs analog RGB signal from a computer or a

component video signal (Y/P

2) terminal/MONITOR OUT terminal

B/PR

Inputs analog RGB signal from a computer or a

component video signal ( It can also be used as MONITOR OUT terminal by the switch of (7).

Switches between COMPUTER 2 IN and MONITOR OUT.

this to the controlling computer’s RS-232C port.

Y/PB/PR) from video equipment.

) from video equipment.

B/PR

Preparing and using the remote control

Loading dry-cell batteries

■ Operating the remote into the remote control

Remove the battery cover.

Insert the dry-cell batteries.

Be sure to align the plus and minus ends of the batteries properly.

Two batteries (LR03, SIZE AAA) are used.

Replace the battery cover.

Dry-cell batteries

•

Before using the batteries, be sure to observe the Safety Precautions described in previous pages.

•

Remove batteries from remote control when not using for extended periods.

•

If the remote control stops working, or if its range decreases, replace all the batteries with new ones. (2 batteries (LR03 SIZE AAA))

•

Keep the batteries away from the reach of children. Batteries are choking hazards and can be very dangerous if swallowed. If the batteries are swallowed, seek medical assistance immediately.

The remote control

•

The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or ﬂuorescent lighting.

•

Do not drop or bang.

•

Do not leave in hot or humid locations.

•

Do not allow it to get wet or place it on top of wet objects.

•

Do not take it apart.

•

In rare cases, ambient conditions could impede the operation of the remote control. If this happens, point the remote control at the main unit again, and repeat the operation.

■

control

Point toward the projector’s infrared remote sensor, and press any button on the remote control.

Operating the projector from the front

•

Note: When operating the remote control from behind the projector, the infrared signal is reﬂected on the projecting surface. The operating range therefore may decrease depending on the shape and material of the projecting surface.

Preparations

p.43

Operating a computer using the remote control

Mouse remote control receiver

To USB port

Remote Control Top Remote Control Underside

Mouse control

PAGE –

PAGE +

R-CLICK

L-CLICK

Placement

A computer can be operated using the projector’s remote control. This function is available on any computer with the Windows Windows Vista

2.0 (The mouse remote control receiver is also supported on Mac OS 9 and Mac OS X for the Macintosh). However, please note that Toshiba does not guarantee the operation of all computers.

operating system, that is equipped with a USB port which can support USB

98/98SE, Windows® Me, Windows® 2000, Windows® XP, or

Connecting a computer

Connect the mouse remote control receiver (supplied) to a computer.

The remote control may fail to operate if the mouse remote control receiver is exposed to bright sunlight or ﬂuorescent lighting.

In such a case, change position or direction of the mouse remote control receiver and retry.

Operating a computer

Operate remote control’s buttons towards the mouse remote control receiver.

Moving the mouse pointer



Press the mouse control button in the direction you wish the mouse pointer to move.

To left click



Press the L-CLICK button.

To right click



Press the R-CLICK button.

To drag and drop



Holding down the L-CLICK button, move the mouse control button until the mouse pointer is over the desired location, then release the L-CLICK button.

Using the computer’s page up [↑] and down [↓] function



Press the PAGE+ and PAGE- buttons to switch PowerPoint

slides.

Placement Styles

As shown in the ﬁgures below, this device can be placed in 4 different styles. The factory setting is “ﬂoor-mounted front projection.” Set the [Projection mode] in the

Default setting 2 menu

Floor-mounted front projection

Floor-mounted rear projection

Ceiling-mounted front projection

Ceiling-mounted rear projection

, in accordance with your needs.

WARNING

Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS

• when placing the unit. Attempting to clean and replace the lamp in a high location by yourself may cause you to fall, resulting in injury.

If you wish to mount the projector on the ceiling, be sure to ask your dealer

• to do so. Mounting the projector on a ceiling requires special ceiling brackets (sold separately) and specialized knowledge. Improper mounting could cause the projector to fall, resulting in possible injury and unit damage.

If the projector is ceiling-mounted, install the breaker for turning off the power in

• case of anomaly. Let everyone involved with the use of the projector know that fact.

Preparations

90°

Placement (Continued)

Projection Distance and Size

Use the ﬁgures, tables, and formulas below to determine the projection size and projection distance. (Projection sizes are approximate values for full-size picture with no keystone adjustment.)

TLP-X200

a (min length) =

32.863

Screen

As seen from above

As seen from the side

Lens center

a is the distance (m, feet) between the lens and the screen, and corresponds to a range of 0.89 m (2.92 ft.) to 10.94 m (35.89 ft.). H is the height from the image bottom to the center of the lens.

a (max length) =

27.363

Projection

size

30 inches 0.89 m (2.92 ft.) 1.07 m (3.51 ft.) 6.50 cm (0.21 ft.) 40 inches 1.19 m (3.90 ft.) 1.44 m (4.72 ft.) 8.70 cm (0.29 ft.) 50 inches 1.49 m (4.89 ft.) 1.80 m (5.91 ft.) 10.90 cm (0.36 ft.) 60 inches 1.80 m (5.91 ft.) 2.17 m (7.12 ft.) 13.10 cm (0.43 ft.) 70 inches 2.10 m (6.89 ft.) 2.53 m (8.30 ft.) 15.20 cm (0.50 ft.) 80 inches 2.41 m (7.91 ft.) 2.90 m (9.51 ft.) 17.40 cm (0.57 ft.)

90 inches 2.71 m (8.89 ft.) 3.26 m (10.70 ft.) 19.60 cm (0.64 ft.) 100 inches 3.02 m (9.91 ft.) 3.63 m (11.91 ft.) 21.80 cm (0.72 ft.) 120 inches 3.62 m (11.88 ft.) 4.36 m (14.30 ft.) 26.10 cm (0.86 ft.) 150 inches 4.54 m (14.90 ft.) 5.46 m (17.91 ft.) 32.70 cm (1.07 ft.) 200 inches 6.06 m (19.88 ft.) 7.28 m (23.88 ft.) 43.50 cm (1.43 ft.) 250 inches 7.58 m (24.87 ft.) 9.11 m (29.89 ft.) 54.40 cm (1.78 ft.) 300 inches 9.10 m (29.86 ft.) 10.94 m (35.89 ft.) 65.30 cm (2.14 ft.)

Projection size (inches) - 0.890

Projection size (inches) - 0.748

Projection distance a

min length

(zooming max)

max length

(zooming min)

Height (H)

TLP-WX200

Screen

a is the distance (m, feet) between the lens and the screen, and corresponds to a range of 0.94 m (3.08 ft.) to11.58 m (37.99 ft.). The lens center is in the same level with an image bottom.

As seen from above

As seen from the side

Lens center

a (min length) =

31.022 a (max length) =

25.845

Projection

size

30 inches 0.94 m (3.08 ft.) 1.14 m (3.74 ft.) 40 inches 1.27 m (4.17 ft.) 1.52 m (4.99 ft.) 50 inches 1.59 m (5.22 ft.) 1.91 m (6.27 ft.) 60 inches 1.91 m (6.27 ft.) 2.30 m (7.55 ft.) 70 inches 2.23 m (7.32 ft.) 2.68 m (8.79 ft.) 80 inches 2.55 m (8.37 ft.) 3.07 m (10.07 ft.)

90 inches 2.88 m (9.45 ft.) 3.46 m (11.35 ft.) 100 inches 3.20 m (10.50 ft.) 3.84 m (12.60 ft.) 120 inches 3.84 m (12.60 ft.) 4.62 m (15.16 ft.) 150 inches 4.81 m (15.78 ft.) 5.78 m (18.96 ft.) 200 inches 6.42 m (21.06 ft.) 7.71 m (25.30 ft.) 250 inches 8.03 m (26.35 ft.) 9.65 m (31.66 ft.) 300 inches 9.65 m (31.66 ft.) 11.58 m (37.99 ft.)

Projection size (inches) - 0.758

Projection size (inches) - 0.643

Projection distance a

min length

(zooming max)

max length

(zooming min)

Preparations

Connection

100

103

p.18

Before connection

Read the owner’s manual of the device you are connecting to the projector.

• Some computers cannot be used with or connected to this projector.

• Check for an RGB output terminal, supported signal Turn off the power of both devices before connecting.

• The ﬁgure below shows sample connections. This does not mean that all of these devices

•

, etc.

can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)

Video recorder,

To audio

output

White (L)/

Red (R)

Audio cable

(not supplied)

DVD player, etc.

To video output

Video cable

(not supplied)

To S-video output

S-video cable (not supplied)

RGB cable

(supplied)

(not supplied)

To RGB output

Audio cable

Computer

Conversion adapter

BNC-pin (not supplied)

To Y/CB/CR output

Green(Y)/Blue(CB)/

To audio ouput

Red (CR)

Monitor cable Mini

D-sub 15P-BNC

(not supplied)

Audio cable (not supplied)

DVD video recorder, etc.

To audio ouput White (L)/ Red (R)

Notes

•

When COMPUTER 2 IN terminal is used as MONITOR OUT terminal, the signal which is input to COMPUTER 1 IN terminal is output.

•

Signals are output from MONITOR OUT terminal even in standby mode. However, from AUDIO OUT terminal, no audio signal is output.

•

A computer monitor cannot accept Y/P

•

The AUDIO IN terminal can be used for devices connected to COMPUTER 1 IN terminal, COMPUTER 2 IN ter

•

When an AUDIO OUT terminal is connected, sound is not output from the projector speaker.

•

Output volume of AUDIO OUT terminal can be adjusted by the VOL button.

•

Some devices may not operate properly when connecting with HDMI™.

•

For optimal performance, it is recommended that you use an HDMI™ cable with the HDMI Logo ( cable. A conventional HDMI™ cable may not work properly.

B/PR signals correctly.

minal, VIDEO terminal and S-VIDEO terminal.

). To display a 1080p signal format, you will need a High Speed HDMI™

HDMI™ cable

(not supplied)

To HDMI™ terminal

DVD video recorder, etc.

* The connection f

or COMPUTER 1 IN terminal described here is also applicable for COMPUTER 2 IN terminal.

Audio cable

(not supplied)

To audio intput White

(L)/Red (R)

Audio ampliﬁer, etc.

Control cable (not supplied)

o RS-232C

terminal

Computer (for control)

Monitor

It is necessary to switch to MONITOR OUT by the switch.

Operations

p.39

p.28

p.42

p.43

p.35

Operations

Turning the power on and off

Connect the power cord



Insert the power cord connector into the AC IN socket of the projector.

Insert the power cord plug into a

wall or other power outlet.

The ON/STANDBY indicator will change to orange, indicating standby mode.

Turn the power on



Remove the lens cap.

Be sure to remove the lens cap when the power is turned on. If the cap is left on the projector, it could become deformed due to heat.

Press the ON/STANDBY button.

The power turns on with a beep sound (if the beep sound is set to [On]), and the ON/STANDBY indicator ﬂashes green. After a moment, the start-up screen appears.

Power cord connector (Supplied)

Control panel

Remote

control

Turn the power off



Press the ON/STANDBY button.

When the beep sound setting is [On], the projector beeps, and a message appears, conﬁrming that you wish to shut off the power. To shut off the power, press the ON/ STANDBY button again. If you do not wish to shut off the power, wait for a while without conducting any operations. The message will disappear after a moment and the operation will no longer be valid.

Press the ON/STANDBY button again.

When the beep sound setting is [On], the projector beeps, and the screen disappears, but the internal cooling fan continues to operate. The projector will then go into standby mode. During cooling, the ON/STANDBY indicator ﬂashes. While the indicator is ﬂashing, the power cannot be turned back on. There is no problem with unplugging the power cord in this state.

Replace the lens cap.

After use, replace the lens cap.

Control panel

Remote

control

CAUTION

Do not look into the lens while the lamp is on. The strong light from the lamp may cause

•

damage to your eyesight. Do not block the air intake or exhaust. Doing so could cause a ﬁre due to internal overheating.

•

Do not place your hands, face, or other objects near the air exhaust, the lamp cover or the

•

bottom of the unit. Doing so could result in injury and/or damage the object.

Notes

The start-up screen will disappear after a moment. You can also conﬁgure the system to

• prevent the start-up screen from appearing. To do this, use the Display setting menu

The ﬁrst time you use the projector after purchase, after the start-up screen disappears,

• the start menu is displayed You can disable the beep sound in the Default setting 1 menu

• When [Key lock] is [On], the operation buttons of the projector do not work

• When [Password] is [On], enter password then the start-up screen is displayed after the

• Password entry screen disappears Do not touch the lens directly with your hand.

• If ﬁngerprints or stains are left on the projection lens surface, they may interfere with the projector’s ability to project images on the screen.

Note

The projector consumes about 4.5 W of power in standby. We recommend that you

• unplug the power cord if you will not be using the projector for an extended period. When [Network standby] is [On], it consumes about 8 W during standby.

Precautions

If you wish to restart the projector again right after turning off the power, give the lamp

• time (about 5 minutes) to cool before plugging it back in. If the lamp overheats, it may fail to light. Right after turning off the power, the unit may become very hot, especially the air

• exhaust, lamp cover or bottom of the unit. Please handle with care to avoid burn injuries.

Basic operations

p.26

English French German Italian Spanish Portuguese Russian Swedish Turkish

Polish Norwegian Finnish Czech Hungarian Greek Danish Dutch Rumanian

Japanese Chinese (simplified) Chinese (traditional) Korean Indonesian Thai Arabic

p.43

p.39

p.42

Front

Turn on the power.

Turn on the power by following the instructions in “Turn the power on”

Select the language and the lamp power during initial

startup.

When the projector is used for the ﬁrst time after purchase, the start menu for language selection, lamp power selection and conﬁguration is displayed in English. (If the screen is out of focus, adjust it according to the step

Use the

then press the

The message for setup conﬁrmation is displayed in the selected language. Then, the menu for lamp power selection and conﬁguration is displayed. It is automatically set as Standard. To change the setting, follow the step

Use the

or button to select the lamp power and press the

button to select the desired language and

button.

The lamp power, if selected, will be toggled without pressing the automatically disappears in a few seconds.

button. The display

Notes

When the projector is turned on the next time, the start menu will not appear upon

• startup. However, if [Reset all] is executed from the Default setting 2 menu the start menu will be displayed the next time the power is turned on.

•

The language can also be set via the Display setting menu via the Default setting 1 menu

•

This owner’s manual assumes that English has been selected.

and Lamp power

Activate the connected device.

Turn on and start the connected device such as a computer.

Notes

•

When [Auto input search] is set to [Off] in the Default setting 1 menu the Input select menu appears if you press the INPUT button. The factory default setting is [On].

•

If no signal is being output from the connected equipment, pressing the INPUT button does not change the input and “There is no other input signal.” message will appear.

Adjust projector placement angle.

You can adjust the placement angle and the height of the projected image using the foot adjuster.

Lift up the front of the projector to

the desired angle, then press the foot adjuster release button upward.

The foot adjuster extends. Release the button to lock the position.

To ﬁne adjust the angle, twist the

foot adjuster.

To stow the foot adjuster, hold up the

• projector while pressing the foot adjuster release button, then slowly lower the projector.

Operations

Note

When [Auto keystone] is set to [On] in the Default setting 1 menu, the keystone

• distortion will automatically be corrected based on the projector placement angle. If you do not desire the automatic keystone correction, set [Auto keystone] to [Off].

Adjust the screen size and focus.

Use the zooming lever to adjust the screen size.

Use the focusing lever to adjust the focus.

Adjust the volume with the buttons.

The speaker volume can be adjusted when an audio signal is being input.

Press the INPUT button.

An image of the connected equipment is projected. Each time you press the INPUT button, it switches to the input of the connected equipment that is outputting video signals.

28 29

Operations

100

p.94

Basic operations (Continued)

p.37

100, p.

101

p.38

Precautions

•

Lamp characteristics may rarely cause the brightness to ﬂuctuate slightly.

•

The LCD panel is manufactured using high precision technology. There may be black spots (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel. These are intrinsic characteristics of the manufacturing technology and are not malfunctions.

Notes

•

A lamp is a consumable item. If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. The lifetime of the lamp depends on conditions of use.

•

Although this projector supports a wide range of RGB signals not supported by this projector (XGA for X200, WXGA for WX200) will be expanded or shrunk, which will slightly affect image quality. To view high-quality images, set the computer’s external output to XGA for X200 and WXGA for WX200. With some computer models having LCD or similar displays, displaying images

• simultaneously on the projector and the monitor’s display may prevent the images from displaying properly. If this happens, turn off the computer’s LCD display. For information on how to turn off the LCD display, see the computer’s owner’s manual. A “No signal” message will appear if no signal is being input from the connected

• equipment or if signal input is stopped while projecting. If a signal not supported by the projector is input, the “Unsupported signal” message

• will appear.

If an unavailable operation button is pressed, the

• (if the beep sound is set to [On]).

Moving pictures played back on computers using DVD software may appear unnatural

• when projected with this projector. However, it is not a malfunction of the projector.

icon will appear with a beep sound

, any resolutions

Using handy features

Using auto setting (For computer input only)

■

This function automatically sets up the projector to the optimum state. It sets up the sampling phase, frequency and screen position, etc., for each type of input signal through a simple operation.

•

Correcting the keystone distortion

■

When the projector placement angle toward the screen is changed while projecting the image, the picture will undergo keystone (trapezoidal) distortion. This projector is capable of automatically correcting this keystone distortion based on the projector’s placement angle.

Remote

control

Press the remote control’s AUTO SET button.

The icon will appear during processing. You can also set it by selecting [Auto setting] in the Image

adjustment menu

Notes

The image may not be projected or auto adjustment/setting may not be performed correctly for input signals other than those supported by the projector If auto setting fails adjustment, adjust it manually with [Position] in the Image adjustment menu

Before correction

After correction

LCD Panels

LCD panels wear out. In order to prolong the lifetime of your LCD panel, take the following precautions:

• T

o extend the lifetime of the LCD panel, always turn off the power when it is not in use,

and make sure that the lamp is off. Keeping the lamp off will also save electricity.

• If the air ﬁlter becomes dir rise, shortening the lifetime of the LCD panel and causing malfunctions. Clean the air ﬁlter from time to time purchased your projector, or your local Service Station for air ﬁlter replacement.

ty and clogged, the projector’s internal temperature will

, and replace it periodically. Contact the store where you

Adjusting Keystone distortion Manually

Use the buttons for manual keystone adjustment.

Control panel

Remote

control

Notes

Depending on the amount of keystone

• adjustment needed and the image content, some information may be lost, or the picture quality may suffer. Even if [Auto keystone] is set to [On], keystone distortion can be adjusted

• manually. Note that if you change the position or angle of the projector, automatic keystone correction will be performed again. When [Auto keystone] is set to [On], the automatic keystone correction will be

• performed each time the power is turned on. Since keystone correction settings are memorized after the power has been turned

• off, it is recommended that you ﬁrst set [Auto keystone] to [Off]. Then if the projector placement angle against the screen remains unchanged, the keystone adjustment will also remain unchanged.

Operations

Using handy features (Continued)

p.37

p.39

Resizing image

■

The projected image can be resized (zoomed in/out).

Press the remote control’s RESIZE button.

Each time you press the RESIZE button, zoom ratio is up. You can keep pressing it to enlarge the image further.

To zoom out, press the remote control’s RESIZE

button.

Each time you press the RESIZE button, zoom ratio is down. You can keep pressing it to reduce the image further. (However, the image cannot be smaller than the original size.)

To move the area to zoom in, use the

buttons.

You can keep pressing the button until reaching the desired area.

Remote

control

Cutting off the picture and sound temporarily

■

(Mute)

When you want to project the images of another projector or overhead projector temporarily, this projector’s images and sound can be turned off using the MUTE button.

•

Changing picture mode

■

The projected image mode can be selected using the NCE button.

•

Remote

control

Press the remote control’s MUTE button.

The picture and sound are cut off. (The Mute function is released by pressing the MUTE button again.)

Notes

The icon will appear while mute is in effect. Operating any other function will also cancel the muting.

Remote

control

Press the remote control’s NCE button and select with

buttons.

the

After selection, apply it by pressing the button.

•

For computer, USB memory and Network-input images, the

following settings are available.

Dynamic/Standard/Photographic

For Y/P

•

settings are available.

B/PR

, Video and S-video-input images, the following

Vivid/Standard/Cinema

Note

You can also change the picture mode using [NCE] of the Image adjustment menu

When the image returns to the original size by pressing RESIZE

button several times, the zoom will be reset.

Pressing the RETURN button during resizing also resets the zoom.

Notes

The icon appears while resizing.

• Operating a function other than Mute will release resizing.

• As zooming is processed digitally, the image quality is degraded in larger zoom

• ratio. During resizing or moving the zooming area, the image may be distorted.

•

Changing screen size

■

The screen size for the projected image can be changed using the

SCREEN SIZE button.

Remote

control

Press the remote control’s SCREEN SIZE button.

Pressing the button switches in turn as follows: X200 : Normal/Full/Thru/Wide WX200 :

Normal/Full/Thru/4:3 zoom

Notes

•

Thru display is available for Computer and Network-input images.

•

Wide or 4:3 zoom display is available for Y/P S-video-input images. [Screen size] of the Display setting menu has the same function

• Using this function on commercial video software, broadcast or cable-broadcasting

• except for the purpose of your private viewing and listening may infringe the copyright protected by the copyright laws.

B/PR, Video and

Operations

Using handy features (Continued)

Freezing the image (Freeze)

■

This function is used to pause or freeze a video during a presentation.

Press the remote control’s FREEZE button.

The picture will pause. To release the freeze function, press the

FREEZE button again.

Notes

•

The icon will appear while the freeze function is in effect.

•

Other operations will also release the freeze function.

•

Even if an image is frozen on the projector, the pictures are running on the video or other equipment.

•

Using this function on commercial video software, broadcast or cable-broadcasting except for the purpose of your private viewing and listening may infringe the copyright protected by the copyright laws.

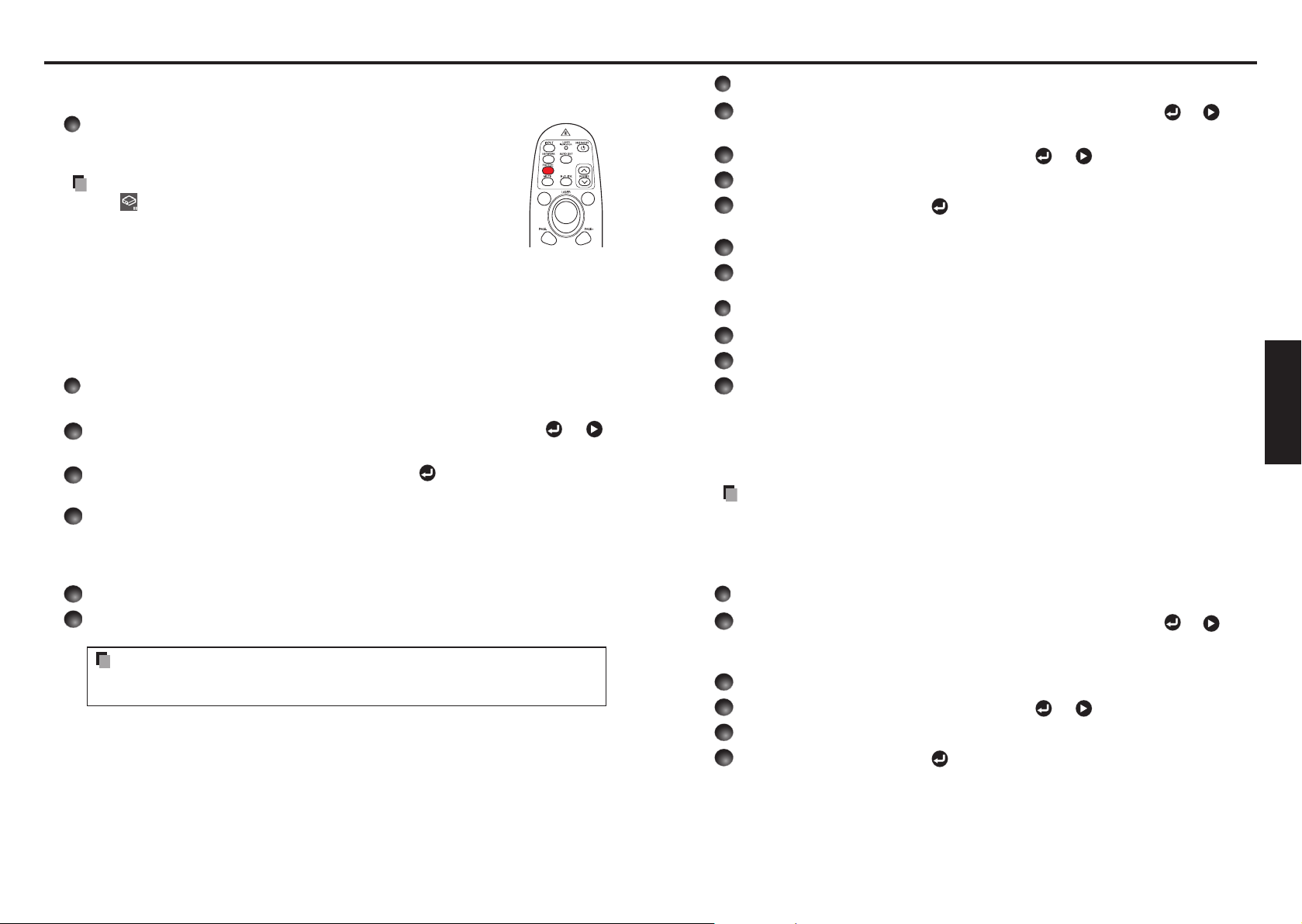

Setting the password

■

How to change password

The default password is 000000.

Select [Password] in the Default setting 2 menu and press the or

button.

Select [Password registration] and press the button.

The password entry screen is displayed.

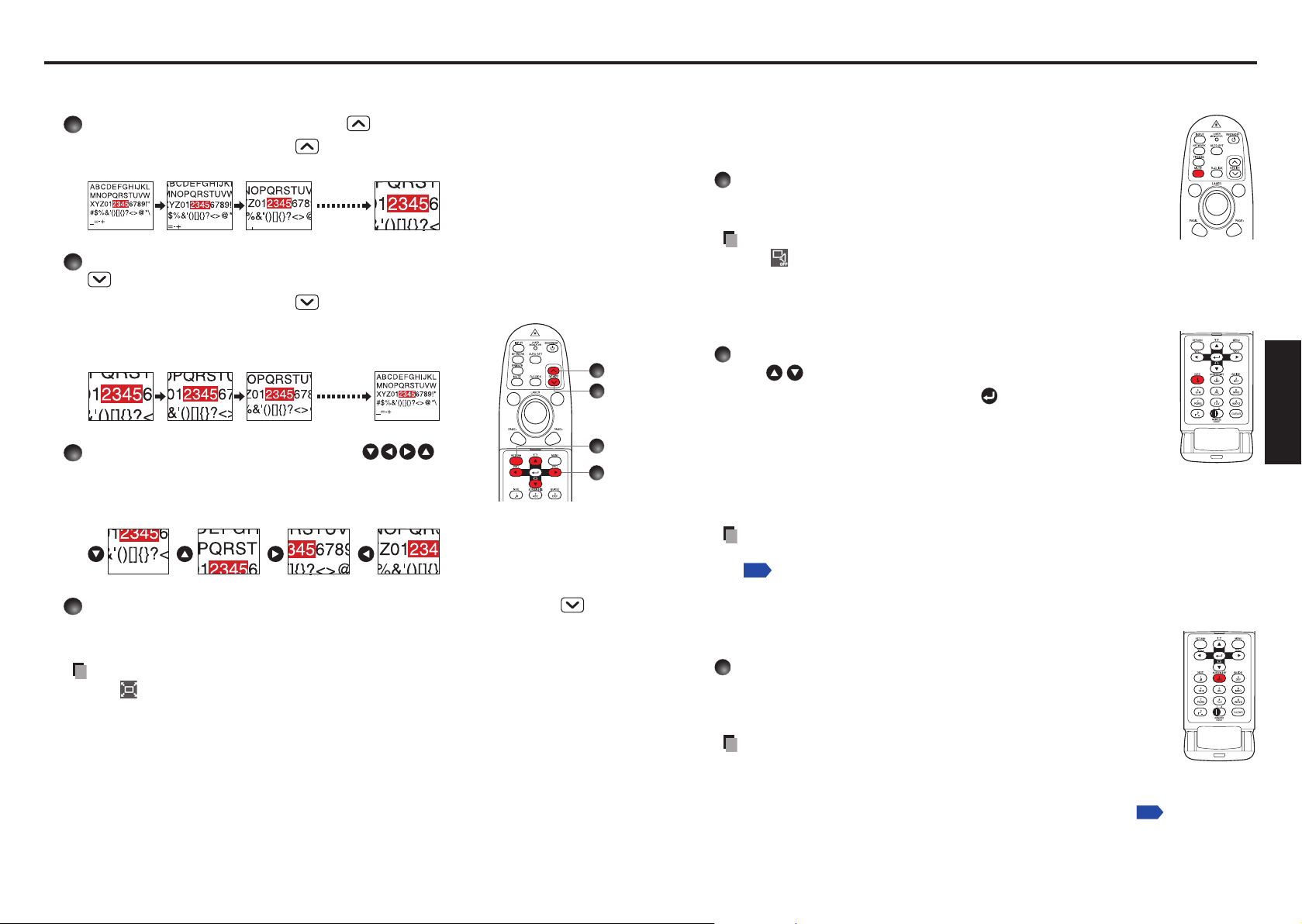

Enter the current password (6-digit number) using numeric keys of the

remote control.

Enter [000000] (6 zeros) for the ﬁrst change.

• The password is not displayed. Instead it appears as [******].

•

Enter a new password (6-digit number). Re-enter the new password for conﬁrmation.

Note

Please do not forget your password or you will be unable to access the unit. If

• that happens, you will need to contact your dealer.

Remote

control

How to set password (from [Off] to [On])

Select [Password] in the Default setting 2 menu and press the or

button. Select [Password setting] and press the or Select [On]. Select [OK] and press the button.

The password entry screen is displayed.

Enter the password using the numeric keys of the remote control. The password setting will be set as [On].

button.

How to operate when password is [On]

Turn on the power. The lamp lights and the password entry screen appears. Enter the password using the numeric keys of the remote control.

If the entered password is correct, the start-up screen appears and the projector

goes into normal operation. If the password is incorrect, a message will appear

prompting you to re-enter the password, and the password entry screen is displayed

again. If you enter an incorrect password more than 5 times, the projector will

automatically power off and enter standby mode.

Note

When the password setting is [On], the password function will be enabled only

• when the projector is restarted after the power cord has been unplugged. The password that you set will not be enabled when restarting from standby mode without unplugging the power cord.

How to set password (from [On] to [Off])

Select [Password] in the Default setting 2 menu and press the or button.

The password entry screen is displayed.

Enter the password using the numeric keys of the remote control. Select [Password setting] and press the or Select [OFF]. Select [OK] and press the button.

button.

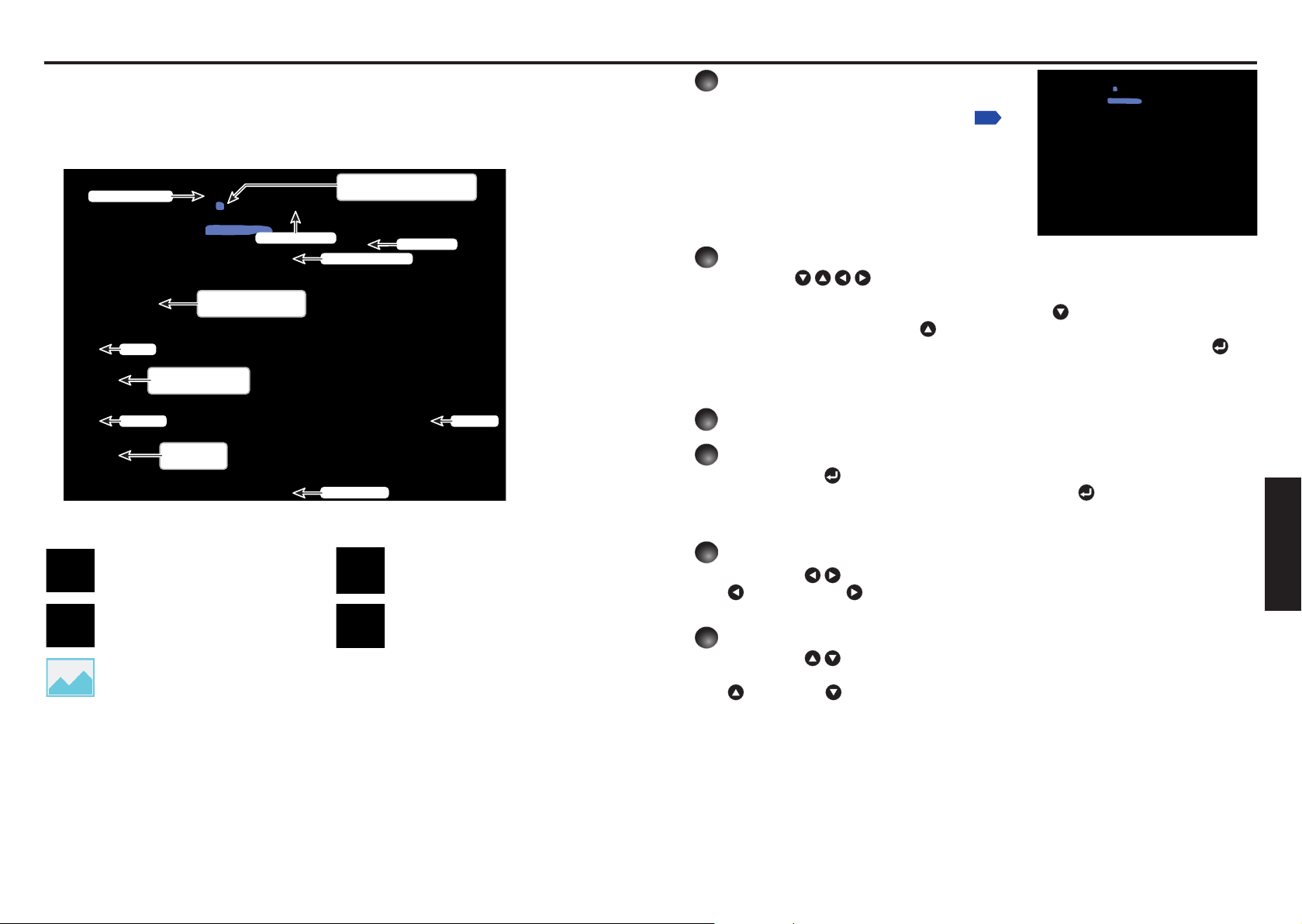

Using the menus 1

p.16

These marks signify that there are options. Press or to display a list of options.

* When no item is

changed, press .

These marks signify that there are setting screens. Press or to display a list of setting screens.

Toggle items with . Select items with and press . Fix selection with .

This will display the Setting display menu.

1. Press the MENU button

2. Select a Category

3. Adjustments & Settings

• The figure shows displays given for operation instructions purposes. As the display may differ depending on the item, refer to the following applicable pages for the menu item you desire.

• To return to previous item, press the RETURN button.

• When Network or USB memory input is selected, pressing the MENU button twice displays the Setting display (2) menu.

Item

Adjustment/Setting Value

These marks signify the items can be adjusted/set by using

These marks signify the items can be selected from the list by using . After an item is selected, apply it by pressing .

Press or to open the menu.

4. End Press the MENU button once more.

(The menu will disappear automatically after 30 seconds, if no operation is conducted.)

Select a category by using

There are 5 categories:

Displays the current adjustments and settings of the selected category. Items shown in gray cannot be adjusted with the current input source.

p.37

Image adjustment menu

p.39

Display setting menu Default setting 1 menu

p.42

Default setting 2 menu

p.43

Status display menu

p.45

p.33

You can call up on-screen menus, and conduct a number of adjustments and settings using the MENU button

Setup using the Setting display

■

on the control panel of the main unit and remote control.

The menu shown below is for operation instructions purposes and might differ from the actual display.

36 37

Note

Menu adjustments and settings will not be saved, if the power cable is disconnected or

• the power goes out before the adjustments and settings have been completed and the menu display has been closed.

The image adjustment menu

■

Use this menu to set or adjust image related items. Items that can be set or adjusted are marked “Yes”, and those that cannot are marked “No”. (When an item is masked, it indicates that you cannot select it using the current input.)

Item Description

Contrast

Brightness

Color

Sharpness

Noise reduction

NCE

R–level

G–level

B–level

NTSC mode

RGB input range

Auto setting

Equalizer Reduce noise on the screen.

Adjust the image contrast.

wer

Adjust the brightness of the image.

Darker Brighter

Adjust the color of the image.

Lighter

Adjust the sharpness of the image.

Softer Sharper

Set the function to reduce

screen noise.

On (Enable)

Switches the picture mode. Press mode with

for details. Adjust red of the image color.

Less red

Adjust green of the image color.

Less green More green

Adjust blue of the image color.

Less blue

Set the black level with .

US : NTSC (US) mode JAPAN : NTSC (JAPAN) mode

Set the RGB input range with

Standard becomes lighter. Full : becomes too dark.

Automatically adjusts items such as the sampling phase depending on the type of input signal.

Adjust with

. Toggle the NCE

: When black color

When dark area

Higher

Deeper

Off (Disable)

. See

More red

More blue

Computer

Y/PB/PR

HDMI

Video

S-video

Yes Yes Yes Yes Yes Yes Yes

No Yes No Yes Yes No No

Yes No Yes Yes Yes No Yes

No Yes No Yes Yes No No

Yes Yes Yes Yes Yes Yes Yes

No No No Yes Yes No No

No No Yes No No No No

Yes No No No No No No

No No Yes No No No No

Network USB memory

Operations

Using the menus 1 (Continued)

Item Description

Position

*1: [Noise reduction] may not work depending on signal type. *2: [NTSC mode] can be displayed and adjusted only when the video signal is set to [NTSC] or

[NTSC4.43]. NTSC mode is set to JAPAN when the language is set to Japanese. It is set to US for other languages.

*3: [RGB input range] will not be displayed when transmitting DVI signals using DVI-HDMI conversion

connector.

Press using

Adjust to eliminate ﬂicker.

Adjust to eliminate periodic patterns and ﬂickering when many ﬁne vertical lines appear on the screen.

Adjust the horizontal position of the image.

Adjust the vertical position of the image.

Adjusts the clamp pulse position.

Adjusts the clamp pulse width.

then change mode

and adjust with

Phase

Frequency

H-position

V-position

Clamp 1

Clamp 2

Computer

Y/PB/PR

HDMI

Video

S-video

Network USB memory

Yes No No No No No No

The display setting menu



Use this menu to set screen display related items. (The items in gray color cannot be set with the current input selection.)

Item

Screen size Screen size setting

Up/down shift

Blackboard mode

Language Select one of the languages below to use for displaying the menu and messages

Background Screen to display when there is no input signal

Icon Display icons as function guides On Off Start-up

screen User logo Display a logo customized by the user for the start-up screen or when there is no

Description

or : Enter setting]

[

X200 : Normal/Full/Thru/Wide WX200 : Normal/Full/Thru/4:3 zoom

Allows the projected images to shift vertically when the screen size setting is selected Wide for X200 (within the range of 1024 x 768) and 4:3 zoom for WX200 (within the range of 1280 ×800). Lower the image

When projecting on a non-screen surface, select a color in accordance with the projecting surface. Press

[

Logo/Blue/None

Display start-up screen when power is turned on On Off

input signal. [

and switch with and . Off/Green/Black/Brown/Blue/Beige

or : Enter setting]

/ / / / / / / / / / / / / /

/ / / / / / Indonesia /

or : Enter setting]

or : Enter setting] Logo registration Press to display the registration menu. Display style Background Black Blue White Logo conﬁrmation Press . Reset logo Yes No

[

:Selection]

Raise the image

[

:Selection]

[

:Selection]

[

: Selection]

[Enter:

]

[Enter:

]

/ /

Operations

Using the menus 1 (Continued)

Detailed description

[Screen size]

Normal• : Enlarges an input image to ﬁt the screen without changing the aspect Full• : Displa

Thru• :

Wide

• : Displays an input image in the center of the screen with a 16:9 aspect

(X200)

4:3 zoom

• : Displa

(WX200)

For Y/P

• with a 16:9 aspect ratio. For the Network-input images, the size can be set only when the image is displayed.

• The size setting is not available when the projector is connected to your computer

• using the Network Projector (Windows Vista image to ﬁll the entire screen with some input image sizes. For the USB memory-input images, the size cannot be set.

•

ratio of video signals.

ys an input image in 1024 × 768 dot resolution by enlarging it to ﬁll the entire screen. (X200) Displays an input image in 1280 x 800 dot resolution by enlarging it to ﬁll the entire screen. (WX200) Displays an input image in the native resolution of the video signals. Thru display is not available for Y/P The larger image than the screen size will be displayed over the screen. The input image may appear vertically long with some frequencies of video signals.

ratio by enlarging it to ﬁt the width of the screen. The upper and lower portions of the image will be compressed. Wide display is not available for Computer and Network-input images.

ys an input image with a 4:3 aspect ratio by enlarging it vertically. The enlarged image will be displayed over the screen. 4:3 zoom display is not available for Computer and Network-input images.

B/PR input, screen size setting function is not available for the video signals

B/PR, Video and S-Video-input images.

) function. It may fail to display the

Note

Using the screen size setting function on commercial video software, broadcast or

• cable-broadcasting programs to display images with the varying aspect ratio except for the purpose of your private viewing and listening may infringe the copyright protected by the copyright laws.

[Up/down shift]

Shifts the projected image vertically when [Screen size] is set to [Wide] for X200. Shifts the projected image vertically when [Screen size] is set to [4:3 zoom] for WX200.

[Blackboard mode]

Projects the image in colors similar to projecting on a screen.

Precaution

The projected image may differ depending on the type, color, and material of the

• blackboard and wall even if the selected color is the same as the projected screens.

[Background]

•

TOSHIBA is set for [Logo] by factory setting.

•

If user’s logo has been registered, it is displayed when [Logo] is set for background.

[Start-up screen]

If user’s logo has been registered and this setting is [On], the logo is displayed at start-up.

[User logo]

Part of the image that is input from a computer is registered as a stationary picture and is displayed it as a logo at start-up and when no signal is input.

How to register user logo

Project a picture to register. Select [User logo] in the Display setting menu, and press the or

button.

Select <Logo registration> from the displayed menu list and press

button.

the

The registration area is displayed for conﬁrmation. Select [OK]

and press the

•

If the picture does not fall within the display area, use the computer to scroll the screen.

button.

Select [Yes] to register and press the button. Registration starts.

•

A message is displayed while registration is in process.

Notes

•

You can register a logo when the input is set to Computer, Network or USB memory.

•

For the Network-input, a logo can be registered only when the image is displayed.

•

For the USB memory-input, a logo cannot be registered when a thumbnail list is displayed.

•

The area that can be registered is 512 x 384 dots f WX200 at the center of the screen. To register a company logo, modify the image within that space.

•

Only one logo can be registered. When a new image is registered, the old one is deleted.

•

The time needed to register or display the image varies depending on the data size.

•

or X200 and 640 x 400 dots for

Select the size of the registered logo.

: Displays the registered image in the original size at center of the screen. : Displays the registered image by enlarging it fully within the screen.

(As processed digitally, the image quality is degraded.)

Sets background color when [Center] is selected for the logo [Display style].

You can preview the registered logo.

You can reset the registered logo, display style and background to the factory setting. (The logo set for the start-up screen and background is reset.)

Operations

Computer 1 Y/PB/PR 1 Computer 2 Y/PB/PR 2 HDMI Video S-video Network USB memory

Input select

/ shows whether signal is input or not.

Using the menus 1 (Continued)

p.21

p.34

The default setting menu

■

This menu shows placement status and other settings.

Default setting 1 menu

Item

Auto keystone Always corrects keystone distortion automatically. On Off No signal

power off Auto input

search Network input

detection Beep

Voice guide Informs the operation status and abnormal conditions.

Power on Sets whether to turn on the power when the ON/STANDBY button is pressed

Network standby Lamp power

Detailed description [Auto input search]

[On]: Automatically searches the signals that can be

projected, and switches input from the connected device that outputs the video signals each time the INPUT button is pressed. Input from a connected device that outputs no video signals

is skipped. [Off]: Displa Toggle with

(The input without signals can be also selected.)

Note

In normal operation, set [Auto input search] to [On].

• Set to [Off] when you want to select the input source from Input select menu, or if the image does not appear properly.

[Network input detection]

If [Always] is set, even while no images are sent to the projector through the Network input, the Network input will be selected when the Auto input search is [On].

If [Normal] is set, the Network input is selected only while images are being sent to the projector through the Network input.

Note

•

It is recommend that you set the [Network input detection] to [Normal] as long as you do not use the Network input.

Sets the time to wait for the power to be turned off after the last operation is made with no input signal.

Sets whether the input with signals is only selected or not. On Off Sets how to detect the Network input when Auto input search is [On].

Always Normal Beeps when operation is made. On Off

Off

(Manual), or when the power cord is plugged in (Auto). Manual

Switches on/off the network while the projector is in standby. On Off Sets the lamp power.

ys the Input select menu.

Description

buttons and press button.

On (not turned off)

Small Loud

Low

Input select menu

30 min.

Auto

Standard

[Power on]

If [Power on] is set to [Auto] and there is a power outage, the projector will come on once power is restored.

[Network standby]

When [Network standby] is set to [On], the network is switched to the standby state as the projector enters standby. While the network is in standby, the projector can be powered on using the remote control function of the Network Utility. When [Network standby] is set to [Off], the projector cannot be powered on with the remote control function of the Network Utility.

[Lamp power]

When [Lamp power] is set to [Low], the screen becomes a little darker, but the cooling fan noise gets quieter.

Default setting 2 menu

Item

Projection mode

Fan mode Sets the cooling fan speed. Standard Remote control When 2 projectors are used and controlled by the remote control respectively,

Key lock Lock the control panel buttons.

Closed Caption Closed Caption settings.

Reset all

Password

Detailed description [Fan mode]

Setting [Fan mode] to [High] increases the cooling fan speed. (The cooling fan noise increases.) Set this option to use the projector at high altitude (over 1,500 meters above sea level).

Description

Sets projection mode in accordance with Placement Style.

(Standard)

this menu sets the code for the projector and the remote control.

or : Enter setting] [

[

:Select OK to end

[ Press [Cancel] to return.

or : Enter setting] [

[

:Select OK to end

[ Press [Cancel] to return.

Press Off/ CC1/ CC2/CC3/CC4/T1/T2/T3/T4

Press Resets all adjustments and settings to their factory settings. Yes

Password setting Press . Password registration/Password setting

or and switch with and .

. (The password and user logo are not reset.)

]

(Rear)

: Select from 1, 2

: Select On/Off

(Ceiling)

] [ : Conﬁrm]

(Rear ceiling)

High

Do not set Fan mode to [High] when using the projector at a lower altitude.•

Operations

p.16 p.17

Using the menus 1 (Continued)

100

101

[Remote control]

Sets a remote control code from 2 types. You can set each code respectively for up to 2 projectors. The factory setting is [1]. To switch codes, set the same code for the projector and the remote control. A remote control code is applied after the setting is done.

•

You cannot operate the remote control if the codes of the projector and the remote control do not match.

Remote control code setting for remote control

Set the same remote control code switch as the projector.

[Key lock]

Avoid operating errors by locking the projector’s control panel buttons. (The remote control operations are still available.) Control panel operations are locked after the setting is done, and operations using the control panel buttons are disabled.

•

To release the key lock, set the [Key lock] to [Off] using the remote control. You can also set the [Key lock] to [Off] by pressing the [RETURN] button on the projector for 10 seconds. (When operating the main unit, the LAMP and TEMP indicators will glow orange for 3 seconds, and the projector will beep.) Note that when Network or USB memory input is selected, the [Key lock] cannot be set to [Off] with the [RETURN] button on the projector.

[Closed Caption]

•

Off : Closed Caption is not displayed.

•

CC1-CC4 :

Displays the dialogue and narration of TV programs and videos that are

(Caption) closed captioned.

•

T1-T4 : (Text) stoc

Displays information not related to the current program, such as weather,

k data or the like, when it is provided by individual station.

Note

•

This projector supports a special feature called closed captioning which allows subtitles to be displayed at the bottom of the picture. This is pursuant to the Regulations set forth by the US Federal Communications Commission (FCC). Due to the different broadcasting or signaling system, it may not operate correctly in other regions or countries where TV programs do not support closed captioning.

•

Closed Caption may not appear correctly depending on the signal conditions or the recording conditions of videotapes.

•

If the Text is not available, only a black rectangle background may appear on screen. To prevent this from appearing, set the Closed Caption to [Off].

•

When you switch channels of broadcasting programs or play a videotape using “trick play” functions such as rewind or fast-forward, the operations in the connected device may cause the Caption or Text to remain on the screen for a while.

•

Closed Caption is available for Video and S-Video input images.

Displaying Information (Status display)

■

This displays information about the input signal, lamp use time, etc.

“Yes”: displayed, “No”: not displayed

Item Description Input Input source name Yes Yes Yes Yes Yes Yes Yes Mode name

Resolution Resolution (in dots) Yes No Yes No No No No Frequency Sync frequency Yes No Yes No No No No Sync Sync signal polarity

Signal format Y/P Video mode Color method of video signal No No No Yes Yes No No Lamp time Time of lamp use Lamp reset

count Total time The total time that this

Version Firmware version

RGB or HDMI input mode

[Note 2]

B/PR signal format No Yes No No No No No

[Note 3]

The count for lamp replacement

projector is used.

[Note 4]

Computer

[Note 1]

Y/PB/PR

HDMI

Video

S-video

Yes No Yes No No No No

Yes No No No No No No

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Network USB memory

Notes

1: The mode of supported RGB signals 2: Sync signal polarity shown as P (positive) or N (negative) for [H/V]. 3: Displays [Lamp time] as an estimated measure of when the lamp should be replaced.

(Cannot be used as a counter of guaranteed lamp time.) When the displayed time approaches 2,000 hours, consult with a dealer about getting a replacement lamp TLPLW21 (sold separately).

[Version] shows the version of the projector’s internal control program. This version

will be requested for customer service purposes.

and HDMI signals

are shown.

Note

The displayed information will not be refreshed if the status changes. To refresh the

• information, dismiss the display, then display it again.

Network/

USB memory

p.46

p.51

p.61

p.46

p.51

p.64

To LAN Internet, etc.

Hub

Wireless LAN access point

Network / USB memory

Before connecting via a network

Check your computer’s Operating System before you connect a projector with your computer via a network.

This projector supports the Network Projector function of Windows Vista® features.

• If your computer’s Operating System is Windows Vista

Network Projector function for network connection, see “Connection using the Network Projector (Windows Vista Network Utility”

If your computer’s Operating System is Windows® 2000 or Windows® XP, see “Connection

•

using the Network Utility (Toshiba original tool) Projector/Network Utility

Connection using the Network Projector (Windows Vista®)*

■

* Now referred to as “Network Projector.”

●

Functions

By using the Connect to a Network Projector wizard, you can connect to any projectors which support the Network Projector function over a wireless or a wired network. You can make a presentation without any connection setting issues.

Notes

This function’s operation has been veriﬁed on the Ultimate and Business

• editions of Windows Vista

•

To communicate in Ad hoc mode with a computer over wireless LAN also requires IP address settings.

•

In case the resolution of your computer is higher than that of the projector, your computer must be set at lower resolution.

•

Transferring video images and audio sound is not available.

•

This function does not work while the projector is connected to your computer using the Network Utility software.

Connection using the Network Utility (Toshiba original tool)

■

●

Functions

The following functions are available with the wired LAN, or via wireless LAN when the LAN dedicated application software: [Network Utility] projector is used.

1) Displaying a computer’s screen via the projector

The computer’s desktop screen can be sent, as well as the screens of a variety of software applications, to the projector for display. Likewise, the sound being played on a computer can also be sent to the projector. Using the Network Mouse Controller function, you can operate your computer with the projector’s remote control.

Displaying a JPEG ﬁle saved on a computer via the projector

JPEG ﬁles can be sent to the projector for display.

and “Using the Network Projector”

”

and “Using the Network Utility”

and you intend to use the

)”

, “Setting up the Network Projector/

”

, “Setting up the Network

included with this

3) Displaying a video image saved on a computer via the projector

Video ﬁles can be sent to the projector for image display. As well, the sound stored in the video ﬁle is sent to the projector.

4) Displaying computer’s screens via projectors using the Multiscreen function

This function allows users to display multiple screens by sending data to different projectors from a single computer by setting up the virtual displays on the computer. You can also send only the screens that you specify to the projector for display.

5) Operating the projector by means of a computer

Some of the same functions available from the remote control can be performed.

Note

Network Utility is also operable with Windows Vista®.

•

Communication mode

■

The wireless LAN of this projector supports both Ad hoc and Infrastructure Communication modes.

Ad hoc communication mode



This is the transmission mode to communicate between wireless LAN equipment. This mode is applicable, for example, to a presentation in the conference room, as it requires

no other facilities. This function can only be used if the projector is in range of the computer’s wireless signals. Toshiba does not guarantee the coverage of the radio wave in the form of ﬁgures. The coverage varies depending on the performance of each wireless LAN equipment, existence of obstacles or other wireless LAN equipment used by nearby working groups, etc. The coverage is generally estimated on the assumption that wireless LAN equipment be used in an unobstructed ofﬁce or conference room.

Infrastructure communication mode



To LAN Internet, etc.

Hub

Wireless LAN access point

Caution when using the wireless LAN functions

■

The Wireless LAN in this unit uses the 2.4 GHz waveband. If there is a similar wireless LAN in the area, or a wireless device using the 2.4 GHz waveband, or a microwave oven, the communication efﬁciency of this apparatus will be reduced, and may become unusable, but it is not a fault. If this happens, check an area away from the current location that will not cause radio interference to medical, industrial and public equipment, and change to it, or stop using the unit.

A mixed wireless and wired LAN can be created

via wireless LAN access points. (Communications

between wireless LAN devices are also allowed.)

Connecting to the rest of the world via a wired

LAN or the Internet generally requires a high level

of security.

Use the appropriate transmission mode for your

network environment.

Network/

USB memory

How to use the USB terminal

p.49

USB device

p.83

This projector can connect to a commercial USB memory device and a USB memory card reader/writer that are USB2.0 compliant, a digital camera or the like and display the JPEG and MPEG ﬁles saved in those devices. (Toshiba does not guarantee the operation of all USB 2.0-compliant devices.) To connect or disconnect a USB device, use the following procedure:

Connecting USB device

■

Plug in the USB device.

Make sure the orientation is correct then plug in the USB device until it is secure.

Disconnecting USB device

■

Switch the input to USB memory and press the MENU button twice to

display the Setting display (2), then select and run [Unplug device] in the Slideshow setting menu.

The process for disconnecting a USB device starts.

The message “This USB device can be unplugged safely” appears on

the screen.

Unplug the USB device.

CAUTION

Be sure to perform the above steps. Disconnecting a USB during operation may

•

cause a system malfunction or data corruption.

Notes

A USB device can be plugged in even when the power is on.

• The projector may not recognize a supported USB device. If that happens, unplug

• the USB device then plug it in again. The USB terminal does not support the supplied mouse remote control receiver or

• a commercial mouse controller. A USB hub is not supported.

•

Precaution

•

Disconnecting the power plug while the USB device is operating may cause a malfunction or data corruption.

USB memory devices

■

This projector can read JPEG, MPEG1, and MPEG2 (PS) ﬁles stored in a USB memory device and display them on the screen. This allows you to give presentations without a computer, create an advertising screen board using the slideshow function, and more. (The projector cannot reproduce animation effects such as those produced by Microsoft

The USB terminal



The USB terminal of the projector is USB2.0 compliant and can connect with a USB memory device, a USB memory card reader/writer, a digital camera and other similar devices.

USB devices whose operation has been veriﬁed



Toshiba does not guarantee the operation of all USB devices.

Toshiba USB memory : U2K series (1GB, 2 GB, 4 GB, 8 GB)

• Toshiba USB memory : U2G series (16 GB, 32 GB)

• SanDiskUSB memory : SDCZ7 series (1 GB, 2 GB)

• SanDiskUSB memory : SDCZ8 series (4 GB, 8 GB)

• SanDiskUSB memory : SDCZ23 series (1 GB, 2 GB, 4 GB, 8 GB)

• Toshiba USB card R/W : IPCS078A

• SanDiskUSB card R/W : SDDR-88-J70

•

Note that this projector does not support all USB memory devices, USB card readers/ writers, and digital cameras.

Backing up data

■

Toshiba recommends that you back up the data saved in the USB memory device onto your computer or storage device before use. Toshiba assumes no liability for losses incurred by data lost through the use of this projector.

Supported ﬁles

■

(1) Supported ﬁle extensions are .jpg, .JPG, .jpeg, .JPEG, .mpg, .MPG, .mpeg, and

.MPEG. (2) The maxim (3) Some JPEG and MPEG ﬁles are not supported by this projector.

Regarding JPEG ﬁles, the limitations in (3) above can be alleviated by converting the JPEG ﬁle with the supplied JPEG Conversion Tool

um number including both folders and ﬁles is 512.

PowerPoint®.)

software application.

1. Press the NETWORK button and press the MENU button twice

2. Select a Category

3. Make settings

Select a category by using

The following 5 categories are available:

Displays the current settings of selected category. Item shown in gray cannot be set with the currently set conditions of the projector.

p.51

Network utility

setup

Network Projector

setup

p.57

Slideshow setup

Status display

p.60

The figure shows a typical example. As the display may differ depending on the item, use the following pages as a reference. While the video file transfer function of Network Utility or the slideshow function is in use, the background image of the Setting display (2) does not appear.

Item

The Setting display (2) is displayed.

* Appears only when Network or USB memory input is selected.

These marks signify the items can be selected from the list by using . After an item is selected, apply it by pressing .

Press or to open the menu.

4. Back RETURN button

5. End Press the MENU button or RETURN button.

(The menu disappears 30 seconds after the last operation is conducted.)

Control setting

p.58

Using the menus 2

Setup using the Setting display (2)

■

Projector settings (Be sure to read this subsection.)



Using the factory settings as-is may suffer security damage, so be sure to change the projector settings.

Setting up the Network Projector/Network Utility

■

If you select

Computer settings

■

Refer to your computer’s instruction manuals or wireless LAN adapter to perform the following settings.

Select Ad hoc (for some wireless LAN adapters, this is Peer-to-Peer Group).

• Set SSID (for some types of wireless LAN adapter, use Network name instead) as

• the same as projector’s SSID (at factory shipment, this is set to TDPJ). If Encryption, Network authentication, Key index and Network key are set on

• the projector, set to the same values.

Note

•

The Easy Connect utility a computer over wireless networks, without making wireless LAN settings. For Easy Connect support, the computer requires a wireless LAN environment that is NDIS5.1 or higher driver compliant. Refer to the user’s manual supplied with the wireless LAN adapter or the wireless LAN embedded computer for more information.

allows users to easily connect the projector to

Off

The control setting menu

■

This menu sets Projector name, Email function and PJLink function, etc. Select Control setting in step 2 in “Projector settings”

Item

Projector name

PJLink

Wireless network

Detailed description



[Projector name]

•

Specify a desired character string (0 to 16 characters). [

or : Enter setting.] [ : Move left or right one character.] [ to

: Set a character.] [ : Conﬁrm] [ : Select OK to end]

Press [Cancel] to return.

: E-mail setting] [ : Select item]

[

Status notiﬁcation: On Off SMTP server: Enter a character string using numeric keys of the remote

control. Port number: Enter a character string using numeric keys of the remote

control. Destination address: Enter a character string using numeric keys of the

remote control. Conﬁrm: [OK

: PJLink setting] [ : Select item]

[

PJLink authentication: On Off Password: Enter a character string (1 to 32 characters) using numeric keys of

the remote control.

Conﬁrm: [OK

[ or : Enter setting.] [ [ : Conﬁrm] [ : Select OK to end] Press [Cancel] to return.

Cancel]

. The following content will be displayed.

Description

Cancel]

: Select from Enabled, Disabled]

This can be used to identify projectors when communicating with multiple projectors, or if there is a possibility that another person who is out of communication range will be using the same projector. It is recommended this is set to prevent incorrect transmission.

[Email]

• <Status notiﬁcation>: Sends alarm information to the speciﬁed E-mail address when an error such as lamp failure occurs.

<SMTP server>: Set an IP address of the SMTP server. <Port number>: Enter a port number of the SMTP server. <Destination address>: Enter within 60 characters. (Example: xxx@xxx.xxx)

[PJLink]

• <PJLink authentication>: Set whether or not to authenticate the user by password when the projector is accessed via the PJLink-compliant Software Application. (Set [On] or [Off].) <Password>: Enter a password for conﬁrmation when the above <PJLink authentication> is set to [On].

Network/

USB memory

Using the menus 2 (Continued)

Precautions

When purchased, <PJLink authentication> is set to [Off] and <Password> is not set

• by factory setting. You are recommended to make authentication setting as soon as possible. If you forget a passwork, set it again.

•

[Wireless network]

• If you set Wireless network to Disabled, the wireless LAN connection will be unusable. Set Wireless network to Disabled when you do not wish to use the wireless LAN for network connection.

Note

The Email function does not support transmission to the SMTP server that requires

• authentication.

Setting slideshow options



Slideshow is the function to allow users to display JPEG and MPEG image ﬁles saved in a USB memory device. If you select Slideshow, the following items can be set.

Category Item Description

Still


Movie


Common

Auto. demo

Interval Select the slide show display interval.

Display effect Select the slide show display effect.

Auto. start

Repeat

Play icon Thumbnail

display Unplug device Run when unplugging a USB device.

(Select whether to automatically start a slide show when a USB memory device is plugged.)

5 sec./10 sec./30 sec./1 min./3 min./5 min./10 min.

None / Wipe / Cover / Cover / Cover

(When a ﬁle is selected, start playing the ﬁle automatically.)

(Play repeatedly after the end of playing)

Standard Continuous

Switch the form of a thumbnail list.

All

Yes

Off

or : Begin a slide show. Use the buttons to select.

/ Wipe / Wipe / Wipe / Dissolve / Cover

Off

File Off

Details on individual items



Still Image

[Auto. demo]

• On: A slide show begins automatically when a USB memory device is inserted and

input switches to USB memory. At this time, the JPEG ﬁles in the root directory of the USB memory device are used in the slide show. If the input has already been switched to USB memory, the slide show begins automatically when the USB memory device is inserted.

To pause the slide show, press the button. Pressing this button again allows

•

the slide show to begin. To stop the slide show, press the RETURN button.

Off:

A list of thumbnails will be displayed when plugging in a USB memory device or

other similar devices. Select a desired ﬁle from the list.

Notes

The Auto Demo function does not work when using a USB memory card reader/

• writer to mount multiple media. The Auto Demo function is available for JPEG ﬁles only.

•

[Interval]

• You can set the display interval of time (in seconds or minutes) for slide shows to be played automatically.

Note

•

It may take time to display slide show with some ﬁles.

•

[Display effect]

When playing a slide show, the projector can give various display effects or transitions to each slide being displayed. The transitions available are listed below:

None

• Displays each slide with no display effects.

Wipe

• Displays the next slide with a gradual upward (Wipe ↑), downward (Wipe ↓), to the left (Wipe ←), or to the right (Wipe →), over the current slide.

Dissolve

• Displays the next slide gradually in a certain ﬁxed block pattern over the current slide.

Cover

• Displays the next slide as sliding upward (Cover ↑), downward (Cover ↓), to the left (Cover ←), or to the right (Cover →), over the current slide.

Movie Image

•

[Auto. start] On: Start playing a video ﬁle automatically when it is selected.

•

[Repeat] On:

Repeat automatically from the beginning when the ﬁle reaches the end.

Network/

USB memory

p.50

Using the menus 2 (Continued)

Using the Network Projector

Common

[Play icon]

• The slideshow icon can be displayed.

•

Standard

The projector handles the slideshow icon as follows depending on the “On/Off” setting of Icon on the projector’s menu. Icon On: The projector displa

turns it off after a few seconds.

Icon Off: The projector does not displa

•

Continuous

The projector keeps the icon displayed during the slide show.

[Thumbnail display]

• Select the form of a thumbnail list.

All: Displa File: Displa Off: Displa

ys a thumbnail preview of JPEG ﬁles, and if any JPEG ﬁles exist in the folder

displays the leading thumbnail image.

ys only a thumbnail image of JPEG ﬁles. The thumbnail image of the JPEG

ﬁles in the folder is not displayed.

ys an icon without displaying thumbnail preview.

ys the icon upon the start of playing a slide show and

y the icon.

Note

•

Thumbnail image of MPEG ﬁles cannot be displayed.

•

[Unplug device]

Run when unplugging a USB memory device, a USB memory card reader/writer or a digital camera and other similar devices.

Checking the projector status

Status display

■

To check the current status of the projector, select Status display in step 2 in “Projector settings”

Application

Details

Version The ﬁrmware version number of the network feature and the USB

. The following items of information will then be displayed.

The name of the application currently running on the projector is displayed. (Examples: Slideshow, Network Utility)

•

When inputting from USB memory device

“Free space/Status” are displayed.

•

When inputting from network

For wireless LAN, “MAC address/Mode/Channel/SSID/ Encryption/IP address/Subnet mask/Gateway” are displayed.

For wired LAN, “Connection status/MAC address/IP address/ Subnet mask/Gateway” are displayed.

•

PJLink class is displayed.

memory device feature is displayed.

Setting up the projector

■

Turn the projector power on. Switch the input to Network.

Make sure to set the projector’s input to Network. If the other inputs are selected, the projector will not be recognized by the computer.

A password will be displayed.

A password will be displayed only when [Password] is set to [On] in the Application category of the Network Projector settings.

By referring to “Using the menus 2”, make the wireless LAN or wired

LAN settings.

Setting up the computer

■

Make the wireless LAN or wired LAN settings. Please see the help

function of your computer for details.

Open the [Connect to a Network Projector] wizard by clicking the [Start]

button, by clicking [All Programs], then clicking [Accessories], ﬁnally clicking [Connect to a Network Projector].

Select the desired projector from the list or enter the projector address. When the password is displayed in step 3, enter the password.

Precaution

Before connection, be sure that either setting described below has been applied to your

• computer.

1) The

X200 : WX200 : WXGA (1280 x 800 dots) or lower

2) Windows Vista SP 1 (Service Pack 1) has been installed on your computer.

<For users of TLP-WX200> If you are unable to set the screen resolution to 1280 × 800 with your computer whose resolution is higher than 1280 × 800, perform the setting 1) for connection.

screen resolution of your computer is set in the following resolution depending on

the projector you are using.

XGA (1024 x 768 dots) or lower

Network/

USB memory

Installing the applications

p.64

p.83

If you want to use the projector’s internal wireless LAN function, install the Network Utility on the supplied CD-ROM onto your computer.

System Requirements



Supported Operating System

CPU:

Pentium M 1 GHz or higher recommended RAM: 256 MB or more recommended Screen area (resolution): 1024 by 768 dots recommended (X200) 1280 by 800 dots recommended (WX200)

* The system requirements may vary depending on the conditions of use.

: Windows® 2000, Windows® XP and Windows Vista® (Ultimate,

Business) (Windows Conversion Tool.)

98SE and Windows® Me are supported by JPEG

Notes

The Windows Vista® 64-bit version is not supported.

• Some functions of applications may not be operational with Windows Vista

•

Application Types and Major Functions



Network Utility

This application is used for network connections. Use it to send the images from the computer’s screen to your projector, and display on the screen. In addition, also use it to transmit the sound being played on a computer to the projector.

JPEG Conversion Tool

Use to convert JPEG and other ﬁles into a format that can be displayed as a slide show using a USB memory device.

How to uninstall



Uninstall [Toshiba Data Projector] and [Jpeg Conversion Tool] programs by using a program removal utility found in the [Control Panel] on your computer.

Notes

Your computer screen may temporarily go out during installation, but it is not an error.

• Before beginning installation or uninstallation, you need to log on as Administrator.

• For Windows Vista

• “automatic restart” is selected. However, this is not an error so that the computer will restart itself and uninstallation process will be completed.

, an error message may appear at the end of uninstallation when

How to install



Run the CD-ROM and double-click Start.pdf. Adobe® Acrobat® Reader® launches, and a screen appears asking you that “Select your desired category,” then click Application. Select Network Utility and JPEG Conversion Tool in the application items. Follow the on-screen instructions. If a message appears during installation, please respond to it to continue the installation process. When installation is ﬁnished, the following shortcuts will appear on your computer’s desktop:

Network Utility → JPEG Conversion Tool → Operations

Operations

Using the Network Utility

Displaying a computer’s screen via the projector



Launch the Network Utility

software application.

When the Network Utility launches, the Screen Image transmission mode window appears on

the computer screen. To switch to the Screen Image transmission mode window from another mode, click the

Screen Image icon

Select Transmission mode.

Click Update automatically or Update manually. See step 6 for the descriptions of Update automatically and Update manually.

Click the Advanced button.

The Screen Image: Advanced Settings dialog appears. Set the dialog as shown below, as necessary.

Interruption

•

Check the No Interruptions checkbox to prevent other computers from interrupting the projector, for example, during a presentation.

Window Display

•

Select the Place in Tasktray at the start

of transmission checkbox to iconify the Network Utility and place it in the computer’s

tasktray when transmission initiated. To display the window, double click this icon, or right click and select Open from the popup menu. Even with the Network Utility window minimized, you can use the pop-up menu to stop or resume transmission as described in

step

and later.

Transmission Mode (Image)

•

Selecting High quality improves the quality of the projected image, but lowers communication speed. Selecting High speed has the opposite effect.

Transmission Mode (Sound)

•

Check the Transmit sound to a projector (Only when connected with one projector) checkbox to transmit the sound being played on a computer to the projector. Note: The sound can be sent when only one projector is connected.

Network Mouse Controller

•

Check the Control computer mouse pointer using remote control (Only when connected with one projector) checkbox to control computer mouse pointer with Mouse control button, PAGE+ button, PAGE - button, L-CLICK button and R-CLICK button of the projector’s remote control.

Note 1: This function is available when only one projector is connected to computer.

When you use the Network Mouse Controller function, do not connect the

Note 2:

mouse remote control receiver to your computer. The function will fail to operate properly.

Select the Transmission Image you

wish the projector to display.

Select Desktop

The computer screen image is transmitted as-is.

Select application window

Select a running application (e.g. Microsoft® PowerPoint window only.

The desktop and a list of running applications are displayed. Select the desired application from this list. (If the desired application is not on the list, launch it. Note that if too many applications are running, it will consume the computer’s resources, which could slow communication speed.)

), and send that application’s

Select the projector to be

transmitted.

The IDs of projectors accessible for transmission will be listed. (When a projector name is set, that name appears instead of MAC address.) Select the checkbox of the projector you wish

to transmit to from this list. Then icon displayed on the projector’s screen for a few seconds. It is possible to select up-to four projectors.

Click the button.

When “Update automatically” is selected in step

Screen images are sent consecutively after the button is clicked. Besides, the sound being played on a computer can be sent to the projector.

When “Update manually” is selected in step

A single screen image is sent when the button is clicked.

To halt transmission from Update automatically, click the

button.

If the Network Utility icon has been placed in the tasktray, double click the icon to display the window, then halt transmission, or right click the icon, and halt transmission.

Network/

USB memory

64 65

Network/

USB memory

Using the Network Utility (Continued)

Notes

•

It may not be possible to transmit the images from a movie player or other video applications.

•

When using “Update automatically”, the transmitted image refresh rate depends on the performance of the computer you are using and the surrounding radio wave environment.

•

The projector screen may have a few differences from the computer screen.

•

If you selected application window in step image may not be correctly displayed by the projector. The projector ID is the MAC address of the wired LAN inserted into the projector.

• Playing contents protected by copyright is not supported.

• To transmit sound, press the

• contents including the sound. When you operate the projector using Windows Vista “Switching audio play device” window may be displayed after pressing the start button of Network Utility. If this window is displayed, follow the instruction to switch the audio play device, and then launch the application that plays the contents including sounds. If no sound can be heard from the computer though the connection is stopped, re-

• launch the application that plays the contents including the sound. Transmission may not be available depending on the sound type.

• Sound cannot be transmitted if multiple projectors are selected.

• The audio signals transmitted by a computer become mono.

• Network Mouse Controller function may not work properly depending on the network

• condition.

Displaying a JPEG image saved on a computer via the



button then launch the application that plays the

, if that application is not active (in use), the

projector

Launch the Network Utility software

application.

The Screen Image transmission mode window appears on the computer’s screen.

Click the JPEG File icon .

The Network Utility window changes to JPEG File transmission mode.

Click the Browse button, and select

the ﬁle to send.

Clicking the Browse button displays the Open dialog box. Select the ﬁle to send, then click the Open button.

The selected ﬁle is added to the pull-down list in the Network Utility’s Transmission File ﬁeld.

Select the ﬁle to be sent from the

pull-down list of the Transmission File ﬁeld.

Click the Transmission File ﬁeld’s button to display the pull-down list. Select the ﬁle to be sent from this list. A thumbnail of the selected ﬁle appears in the

Preview box. The ﬁle displayed here will be transmitted.

Step The way that drag and drop the ﬁle to be sent from the desktop or Windows Explorer into the Preview box is also available. In this case as well, the selected ﬁle is added to the ﬁle pull-down list Transmission File ﬁeld’s.

can be skipped.

Select the projector to be

transmitted.

The IDs of projectors accessible for transmission will be listed. (If projector name has been set up already, it is shown instead of the MAC address.) Select the checkbox of the projector

to be transmitted to from this list. Then icon is displayed on the projector’s screen for a few seconds. It is possible to select up-to four projectors.

Click the button.

The selected ﬁle’s image is displayed by the projector.

Notes

•

Only one ﬁle can be sent at a time. To send another ﬁle, repeat steps 4 and 6.

•

Selecting a ﬁle by drag and drop may not be available with Windows Vista

Displaying a video ﬁle saved on a



computer via the projector

Launch the Network Utility

software application.

The Screen Image transmission mode window appears on the computer's screen.

Click Movie File icon

The Network Utility window changes to Movie File transmission mode.

Network/

USB memory

Using the Network Utility (Continued)

Click the Advanced button.

The Movie ﬁle: Advanced Settings dialog appears. Set the dialog as shown below, as necessary.

Interruption

• Check the No Interruptions checkbox to prevent other computers from interrupting the projector, for example, during a presentation.

Transmission Mode (Sound)

• Check the Transmit sound to a projector (Only when connected with one projector) checkbox to transmit the sound being played on a computer to the projector.

Autostart

• Check the Start playing the ﬁle automatically when starting transmission checkbox to automatically start playing the video ﬁle when connecting to the projector.

Repeat

• Check the Play repeatedly after the end of playing checkbox to automatically repeat from the beginning when the ﬁle reaches the end.

Click the Browse button and select

the ﬁle to send.

Clicking on the Browse button displays the Open dialog box. Select the ﬁle to send then click the Open button.

The selected ﬁle is added to the pull-down list in the Network Utility’s Select ﬁle ﬁeld.

Select the ﬁle to send from the pull-

down list of the Transmission File ﬁeld.

Click the Transmission File ﬁeld’s button to display the pull-down list. Select the ﬁle to send from this list.

A thumbnail of the selected ﬁle appears in the Preview box. The ﬁle displayed here will be transmitted.

Step The way that drag and drop the ﬁle to send from the desktop or Windows Explorer into the Preview box is also available. In this case as well, the selected ﬁle is added to the pull-down list.

can be skipped.

Note

You may not select a ﬁle by drag and drop with Windows Vista®.

•

Select the projector to transmit to.

The IDs of projectors accessible for transmission will be listed. (If the projector name has been set up already, it is shown.) Select the checkbox of the projector to be transmitted to from this

list. Then icon screen for a few seconds. It is possible to select only one projector.

is displayed on the projector's

Click the button.

The selected ﬁle's image is displayed by the projector and the Control window appears as well.

Play the video ﬁle via the Control window.

The function of each button and box is as follows:

(Current position): Indicates the playing position. Dragging the slider

can move the playing position.

(Play): Starts playing the video ﬁle. (Freeze): The picture is paused. (Stop): Stops playing the video ﬁle.

(Volume): Adjusts sound volume contained in the video ﬁle.

(Mute): (Release mute): Restores picture and sound contained in the

Notes

•

Only one ﬁle can be sent at a time. To send another ﬁle, repeat steps 5 and 7.

•

MPEG/AVI/ASF/WMV ﬁles can be transmitted.

•

The update speed of the transmitted ﬁle depends on your computer's performance and the surrounding radio environment.

•

The projector ID is the MAC address of the wired LAN mounted on the projector.

•

The audio signals transmitted by a computer become mono.

•

Playing contents protected by copyright is not supported.

Cuts off picture and sound contained in the video ﬁle.

video ﬁle.

Using the Network Utility (Continued)

Displaying computer’s screens via projectors using the



Multiscreen function

Launch the Network Utility

software application.

The Screen Image transmission mode window appears on the computer’s screen.

Click the Multiscreen icon .

The Network Utility window changes to Multiscreen transmission mode.

Select Transmission mode.

Click Update automatically or Update manually. See step 7 for the descriptions of Update automatically and Update manually.

Click the Advanced button.

The Multiscreen: Advanced Settings dialog appears. Set the dialog as shown below, as necessary.

Window Display

•

Select the Place in Tasktray at the start

of transmission checkbox to iconify the Network Utility and place it in the computer’s

Transmission Mode (Image)

•

Selecting High quality improves the quality of the projected image, but lowers communication speed. Selecting High speed has the opposite effect.

Transmission Mode (Sound)

•

Network Mouse Controller

•

Note 1: This function is available when only one projector is connected to computer. Note 2:

When you use the Network Mouse Controller function, do not connect the

mouse remote control receiver to your computer. The function will fail to operate properly.

Arrange the virtual display

layout.

Clicking the Display Properties button in

the Control window displays the window for screen display settings.

Right click the desired virtual display

(Toshiba DPJ Secondary Display Driver) and select Attached from the popup menu.

Allocate screen displays by drag and drop of

monitor icons.

Click OK button in the window for screen

display settings, then the Screen Layout in the Control window will be updated

accordingly. When you check Switch to the last screen settings when using next time the virtual display layout that has been set will be memorized upon exit from Network Utility and it will switch to the screen settings the next time you use the Multiscreen feature.

Network/

USB memory

70 71

Network/

USB memory

Using the Network Utility (Continued)

Select the projector to transmit to.

The IDs of projectors accessible for transmission will be listed. (When a projector name is set, that name appears instead of MAC address. ) Check the checkbox of the projector you wish to transmit to from this list. And select the virtual display number that you wish to transmit to from

the pull-down list in the Screen box. Then icon marked with a number (corresponding to the screen number) is displayed on the selected projector’s screen for a few seconds. Up-to four projectors are available to select.

Click the button.

When “Update automatically” is selected in step

Screen images are sent consecutively after the button is clicked. Besides, the sound being played on a computer can be sent to the projector.

When “Update manually” is selected in step

A single screen image is sent when the button is clicked.

Multiscreen Usage Examples

●

Example 1)

While projecting image data sent from your computer on a screen, you can also display the other image data such as a presenter script on your computer so that you can give a presentation without showing any image data which you do not wish to let other participants see.

Example 2)

Using only a single computer, you can make an effective presentation by displaying different image data stored in the computer via multiple projectors (up to 4 projectors).

[When using 2 projectors]

[When using 4 projectors]

This projector is unable to display a divided

single image in large size by combining each

Notes

•

The ﬁgures shown here are illustrated as projectors are connected to a computer via wireless LAN, however, this also applies for the connection via wired LAN.

•

Note the characteristics such as the brightness or the color tint of the projected image may vary depending on each projector. This is not a malfunction.

display sent by multiple projectors.

CAUTION

When you use multiple projectors with Multiscreen feature, make sure to leave sufﬁcient space (more than 70 cm) between projectors. If you set the projector near

the air exhaust of the other projector, it may cause damage to other units due to heat.

Network/

USB memory

Using the Network Utility (Continued)

Notes

•

It may not be possible to transmit the images from a movie player or other video applications.

•

When using “Update automatically”, the transmitted image refresh rate depends on the performance of the computer you are using and the surrounding radio wave environment.

•

The projector screen may have a few differences from the computer screen.

•

The projector ID is the MAC address of the wired LAN inserted into the projector.

•

Playing contents protected by copyright is not supported.

•

To transmit sound, press the including the sound. When you operate the projector using Windows Vista audio play device” window may be displayed after pressing the start button of Network Utility. If this window is displayed, follow the instruction to switch the audio play device, and then launch the application that plays the contents including sounds.

•

If no sound can be heard from the computer though the connection is stopped, re-launch the application that plays the contents including the sound.

•

Transmission may not be conducted depending on the sound type.

•

Sound cannot be transmitted if multiple projectors are selected.

•

The audio signals transmitted by a computer become mono.

•

Network Mouse Controller function may not work properly depending on the network condition.

•

If you make any changes in the screen display settings of the window without launching Network Utility, the settings you made will be erased and not be reﬂected even if you check Switch to the last screen settings when using next time checkbox.

•

For multiscreen function, the images on the computer’s desktop can only be selected to transmit for display. Note that the application software are not available to select as transmission images.

button then launch the application that plays the contents

, “Switching

Easy Connect utility



This feature allows users to easily connect the projector to a computer over wireless networks, without making Wireless LAN settings using Network Utility.

Launch the Network Utility software application and click the Tool button the Wireless LAN Settings Utility dialog box. Select a desired connection mode in this dialog box.

How to set up with [Simple 1:1 connection]



•

Setting on the projector

to bring up

Turn the projector power on. Switch the input to Network. Press the button on the projector control panel.

•

Setting on the computer

Launch the Network Utility software

application.

When the Network Utility launches, the

Screen Image transmission mode window

appears on the computer screen.

Click the Tool button .

The Wireless LAN Settings Utility dialog

box appears.

Select [Simple 1:1 connection] then

click OK.

The connection starts up.

When a connection conﬁrmation message

appears, proceed as instructed in the

message.

When the connection is complete,

the computer screen image is

transmitted.

If the transmission does not start, uncheck the Conﬁrm and immediately transmit

screen image checkbox.

Notes

This operation is allowed only when the Transmission mode is set to Ad hoc in the

• projector’s wireless LAN settings. The operation procedure of the projector setting and the computer setting can be altered

• without affecting the connection setup, assuming the operation on each side is complete within 60 seconds. Be sure to use Network Utility version 5.1.

•

Network/

USB memory

p.49

Using the Network Utility (Continued)

How to set up with [USB memory connection]



Set up wireless LAN using a commercial USB memory device. See USB memory devices.

1) Copying the computer settings to the projector

Setting on the computer

•

Insert the USB memory device into the USB terminal slot on the computer.

Click the Tool button of the

Network Utility to bring up the Wireless LAN Settings Utility dialog box. Select [USB memory connection] and click OK.

The dialog box for [USB memory connection] appears.

Select [Projector settings] and click OK,

then enter the required setting items and click OK.

The setting information is saved to the USB memory device.

for available

2) Modifying the computer settings using the projector settings

Setting on the projector

•

Turn the projector power on. Switch the input to Network. Press the MENU button twice, then select Easy Connect (USB

memory) in Network Utility settings from the Setting display (2) menu and press the

When a conﬁrmation window appears, insert the USB memory device

into the projector.

Click Yes then press the button.

The wireless LAN settings are saved to the USB memory device. When successfully saved, a message appears.

Unplug the USB memory device.

•

Setting on the computer

Launch the Network Utility software

application.

Insert the USB memory device into the

computer.

After a conﬁrmation message appears,

make settings.

button.

Unplug the USB memory device from the computer.

To unplug the USB memory device, follow the instructions in the user’s manual supplied with the USB memory device or the computer.

Setting on the projector

•

Turn the projector power on. Switch the input to Network. Insert the USB memory device into the projector.

A message appears, notifying that the projector settings have been changed.

The projector name or the projector ID (MAC address of wired LAN)

will be displayed in the projector’s list in the Network Utility window.

When the setting is complete, the projector name of the connected

projector or the projector ID (MAC address of wired LAN) is displayed in projector’s list in the Network utility window.

Note

This operation is allowed only when the Transmission mode is set to Ad hoc in the

• projector’s wireless LAN settings. Be sure to use Network Utility version 5.1.

Using the Network Utility (Continued)

How to use [Proﬁle settings]



This feature allows the user to save the computer’s wireless LAN settings. This feature is useful when you need to change wireless LAN settings according to where you use.

Advanced setting

•

This feature allows the user to set details for Easy Connect settings. Make the following settings as required in this dialog.

Registering proﬁle automatically

• Check this checkbox to automatically register the settings of the Easy Connect as proﬁle setting data.

Switching settings automatically at start-up

• Check this checkbox to automatically switch to the last used wireless LAN settings when launching the Network Utility.

WEB browser

•

Where the computer and the projector are connected over the network, bring up the window of Projector Conﬁguration Tool by pressing the WEB browser button.

Precautions

If the page is not displayed correctly, re-select the projector.

• When the network settings are changed, the network connection is disconnected. If

• you wish to reconnect, set up the computer again.

Precaution

•

The simple 1:1 connection, the USB memory connection and the proﬁle setting may not work normally depending on the type of the wireless LAN adapter and the wireless LAN embedded computer. When such a case arises, use the Network Utility menu to make necessary wireless LAN settings manually.

Operating the projector



This function can be used with any projector input.

Launch the Network Utility software application.

The Screen Image transmission mode window appears on the computer’s screen.

Click the Remote

Control button.

The Remote Control window appears. As the Network Utility window is still displayed, you can operate the projector via the Remote Control window, while using the Network Utility’s functions. While it is possible to use this function merely to operate the projector, closing the

Network Utility also closes the Remote Control window.

Select the projector to be operated.

In the Remote Control window, click the button, and select the desired projector from the pull-down list. When you make a selection, the Remote Control window displays as shown in the right ﬁgure. Only one projector can be selected. (It is not possible to operate multiple projectors.)

Click the Remote Control window’s buttons.

The function of each button and box is as follows:

Power On: T Power Off: T Freeze: The picture is paused. Input (box): Go: Switches to the input selected in the Input bo Mute: Cuts off picture and sound. Volume +/–: Adjust sound v Resize Off Restores the picture to its or Resize +/–: Adjusts the enlargement r

: Move screen (up/down/left/right/diagonal)

urns projector power on. urns projector power off.

Click the button, and select the desired input from the pull-down list.

Click again to restore picture and sound.

olume.

iginal size.

atio.

To quit, click the button on the Remote Control window.

Performing this does not close the Network Utility window. To exit both the Network Utility and the Remote Control, click the

Network Utility window.

button on the

Network/

USB memory

78 79

Projecting images stored in a USB memory device

Thumbnail image of first file in folder

Folder

Thumbnail image of file

JPEG file MPEG file

Previous page exists

Current File Name

Current Folder Name

Operation Guide

Orange frame: currently selected file or folder

Thumbnail list number Current list No./Total number of lists

Next page exists

p.48

Playing a slide show from a thumbnail list



With Auto. demo set to Off in “Setting slideshow options”, data readout begins when a USB memory device is inserted and the input switches to USB memory. A list of thumbnails will then appear on the screen. The ﬁgure below is an example of this process:

Symbols in the thumbnail list

Indicates that only folders are inside the folder.

Indicates that the ﬁrst JPEG, MPEG or other ﬁle is not supported.

When the Thumbnail display is set to Off, the screen appears like this.

Indicates that there is no data to be displayed in the folder.

Indicates that an unsupported JPEG, MPEG or other ﬁle is present.

Plug a USB memory device.

Plug in a USB memory device according to the procedure in “Connecting USB device” The projector starts loading data from the USB memory device and displays a thumbnail list on the screen.

Searching for a target ﬁle

Use the buttons to move the orange frame over the desired ﬁle or

• folder.

•

If there are multiple pages of thumbnails, click the go to the next page, and the

•

To open a folder, move the orange frame to the desired folder and press the button. You can navigate down 5 levels using the same procedure. Pressing the

RETURN button returns you to the next/other upper level folder.

button on the top row to go to the previous page.

button on the bottom row to

For JPEG ﬁles Displaying slides

•

Pressing the button with a ﬁle selected displays the only images in that ﬁle in full-screen view on the screen as a slide. Pressing the play mode. To return to the thumbnail list display screen, press the RETURN button.

•

button begins automatic

Changing slides

Pressing the buttons with a slide displayed changes slides. (

: previous slide; : next slide. These buttons are not available during an automatic

play.)

Rotating a slide

Pressing the buttons with a slide displayed rotates the slide 90 degrees. The rotation information is preserved as long as you remain in the current folder.

: Rotate left; : Rotate right. These buttons are not available during an automatic

( play.)

Network/

USB memory

80 81

Network/

USB memory

p.83

p.66

(1)

(2) (5)

(7)-(a)

(1)

(2) (5)

(7)-(a)

(3)-(b)(3)-(b)

(3)-(a)

(4)

(6)-(b) (6)-(c)

(6)-(a)

(7)-(c)(7)-(c)

(7)-(b)(7)-(b)

Projecting images stored in a USB memory device (Continued)

How to use the JPEG Conversion Tool

For MPEG ﬁles Displaying video

•

Pressing the button while a ﬁle is selected plays only the video image in fullscreen view. Pressing the

•

To return to the thumbnail list display screen, press the RETURN button.

button again pauses the video image.

Fast-forwarding and rewinding video images

Pressing the buttons while a video image is displayed fast-forwards or rewinds the video image.

: Fast-forward; : Rewind)

(

Notes

•

The thumbnail display and slide order are listed from the shortest ﬁle name to the longest. If two ﬁle names have the same number of characters, they are ordered numerically if numbers are used in the ﬁle name, and alphabetically otherwise.

•

It is possible to give presentations without using a computer by converting presentations created with Microsoft and storing them on a USB memory device. Note, however, that functions such as animation effects and hyperlinks cannot be used, so the converted ﬁle should be tested before the actual presentation.

•

Freeze function cannot be used during slide show or automatic play.

•

A slide show is terminated when the input is switched to another.

•

With some USB memory devices, the slideshow playback may stop midway. If you encounter this, use another USB memory device because the current one is not supported.

•

Pressing the GUIDE button on the remote control with a slide or video image displayed displays the slideshow operation guide.

•

When you operate the projector using the USB memory card reader/writer, up to 4 media types are supported.

PowerPoint® into JPEG ﬁles using the JPEG Conversion Tool,

The JPEG Conversion Tool converts JPEG ﬁles not supported by the projector, image ﬁles in other formats, Microsoft JPEG ﬁles converted with this tool can be displayed by sending them using the wireless LAN

■

, or saving them on a USB memory device.

Launching the JPEG Conversion Tool

The window shown in the ﬁgure to the right appears on the computer screen.

Drag the Image Quality Settings slider to the left or right to set the image quality of the ﬁle after conversion. Lower values create smaller ﬁles, but will lower the image quality. (It is not possible to restore the quality of an image after it has been lowered.)

Converting an image ﬁle

This takes JPEG ﬁles created with compression formats not supported by the projector, for example, Windows ﬁles. (1) In the Conversion Method ﬁeld, select Converting image

ﬁle. (Status on launch)

(2) In the File settings ﬁeld, click the Browse button for Original

Image File Name.

The Open dialog box appears. (3) In the Open dialog box: (a) Specify the location of the ﬁle to be con

(b) In the

(4) In the Open dialog box, select the ﬁle to convert, then

click the Open button.

(5) In the JPEG Conversion Tool window, in the File

settings ﬁeld, select Browse for File name after conversion. The Save As dialog box appears.

(6) In the Save As dialog box: (a) Specify the location in which to sa

(b) Enter a ﬁle name of up to 8 char (c) Clic

(7) (a) In the JPEG Conversion Tool, click the Conversion (b) The resolution selection dialog bo (c) A conﬁr

Files of Type ﬁeld, click the

ﬁle format. A list of ﬁles of that format appear in the Open dialog box.

ﬁle; Name ﬁeld; and

k the Save button.

button. desired resolution and click the OK button. The computer converts the ﬁle. When it ﬁnishes a

message appears informing you that “a JPEG ﬁle has been created”.

PowerPoint® ﬁles, and other similar ﬁles into JPEG ﬁles. The

metaﬁles (wmf), and bitmapped ﬁles (bmp), and converts into JPEG

verted; and

button to select the

ve the converted

acters in the File

x appears. Select a

mation dialog box opens. Click Yes.

Network/

USB memory

(1)

(2) (4)

(9)-(a)

(1)

(2) (4)

(9)-(a)

(3)-(b)

(3)-(a)

(6)

(8)-(a)

(6)

(8)-(a)

(5)

(7)-(a)

(7)-(b)

(8)-(b)(8)-(b)

p.80

(9)-(c)(9)-(c)

(9)-(b)(9)-(b)

How to use the JPEG Conversion Tool (Continued)

Converting ﬁles created with Microsoft® PowerPoint



This process provides presentations without using a computer by converting presentation ﬁles created with Microsoft

PowerPoint® into JPEG ﬁles, storing them on a

USB memory device, and displaying them in a slide show.

To use this conversion mode, Microsoft

•

PowerPoint® must be installed on the

computer.

•

Only static images are supported by this process. Animation and audio are not supported. Presentation ﬁles created with Microsoft

PowerPoint® usually consist of several slides. For this reason, the tool creates a folder with the name speciﬁed in step (5), below, and ﬁle for each slide is created in the folder (starting with slide001.jpg).

(1) In the Conversion Method ﬁeld, select Converting PPT ﬁle. (2) In the File settings ﬁeld, click the Browse button for PPT

File Name.

The Open dialog box appears. (3) In the Open dialog box:

(a) Specify the location of the ﬁle to be con (b) Select the PowerPoint

presentation ﬁle to convert,

verted; and

then click the Open button.

(4) In the JPEG Conversion Tool window, in the File

settings ﬁeld, click the Create button for New folder name.

The Folder create dialog box appears. (5) In the Folder create dialog box, in the Folder Name of

document of document ﬁeld, specify a f

older name of 12

characters or less.

(6) In the Folder create dialog box, click the Selection button. The Browse for Folder dialog box appears.

(7) In the Browse for Folder dialog box: (a) Specify the location in which to sa

ve the folder; and

(b) Click the OK button. (8) In the Folder create dialog box:

(a) Clic

k the Create button.

A conﬁrmation dialog box appears;

(b) Clic

k the OK button.

(9) (a) In the JPEG Conversion Tool window, click the

Conversion button.

(b) The resolution selection dialog bo

x appears. Select a

desired resolution and click the OK button.

mation dialog box opens. Click Yes. The computer begins to convert the ﬁle. When it ﬁnishes, a message appears informing you that “a JPEG ﬁle has

been created”.

Making a presentation with converted JPEG ﬁles



(1) Copy the folder created by the JPEG Conversion Tool, and/or its contents, onto a

USB memory device.

(2) Use step

in “Playing a slide show from a thumbnail list”

to display a list

of thumbnails.

ollow the instructions in step

(3) F

in “Playing a slide show from a thumbnail list”

to ﬁnd the thumbnail of the ﬁrst slide, Slide001.jpg, and move the orange

frame to it. (Select Slide001.jpg)

(4) Press the

button on the remote control. An enlarged view of the ﬁrst slide

appears on the screen. This starts the presentation.

o continue to the next slide, click the remote control’s

(5) T

previous slide, click the

button.

button. To go back to the

Network/

USB memory

(1)(1)

(2)

(4)-(a)(4)-(a)

(3)-(b) (3)-(c)

(3)-(a)

(4)-(b)(4)-(b)

p.60

Projector name Projector ID

How to use the JPEG Conversion Tool (Continued)

Creating a screen capture and converting it into a JPEG ﬁle

■

This function saves the current computer screen as a JPEG ﬁle. (1) In the Conversion Method ﬁeld, select Creating screen

capture.

(2) In the File settings ﬁeld, click the Browse button for File

name after conversion.

The Save As dialog box appears. (3) In the Save As dialog box:

(a) Specify the location in which to sa (b) Enter a ﬁle name of up to 8 characters in the File Name

ﬁeld; and

(b) The resolution selection dialog bo (c) A conﬁr

k the Save button.

Conversion button.

a desired resolution and click the OK button.

mation message appears. Click Yes. The computer creates a screen capture, and converts it into a JPEG ﬁle in the speciﬁed location. When it is ﬁnished, a message appears to tell you that “a JPEG ﬁle has been created”.

ve the converted ﬁle;

x appears. Select

Setting up the projector using a Web browser

How to use the “Projector Conﬁguration Tool”

■

The “Projector Conﬁguration Tool” uses the Web server features of the projector to set up the projector using the network. When using the “Projector Conﬁguration Tool”, set up the Network connecting the projector and the computer.

See “Checking the projector status”

information on the screen and write down the IP address.

Invoke Internet Explorer.

Internet Explorer Ver. 6.0 or Ver. 7.0* is recommended. Enable the Javascript functions. * Toshiba does not guarantee the operation for later versions.

In the address bar, enter the IP address “http://xxx.xxx.xxx.

xxx/” recorded in step

The Web browser will then display the following page.

above.

to display

•

(4)-(c)(4)-(c)

Note

The selected resolution in the dialog box will be the maximum resolution of the converted image ﬁle. Specify the resolution in accordance with your projector’s resolution.

Note: If you use a proxy server, do not enable the proxy when accessing the above IP

address.

When the wireless LAN is set to use Ad hoc mode

function in the Wireless LAN Settings Utility dialog box of Network Utility.

, use the WEB browser

Note

This function can be enabled using the WEB Browser function in the Wireless LAN

• Settings Utility dialog box of Network Utility without specifying the URL into the browser’s address bar.

Setting up the projector using a Web browser (Continued)

Select items from the menu on the left.

Settings: Make settings for the Network or USB memory input menu. Status Display: V Features: Sho

Top: Retur TOSHIBA Projector Site: T

(The

erify the projector state.

ws the functions available with the Network or USB

memory.

ns you to the top page.

he browser will display the home page at http://multimedia. projector-toshiba.com/map.html, providing projector information. The home page address is subject to change without notice.

Toshiba’s web site can be browsed only when your

computer can access the Internet.)

 Details on major items

Settings

•

When Browser authentication has been set to On, access to the setup page requires the input of the password.

The following settings are available for [Wireless LAN], [Wired LAN], [Control settings] and [Slideshow].

The items displayed on the screen can be set.

• Enter individual items and press the Execute button to update their setting.

•

Status display

•

Displays some states of the projector.

Projector: Displa Network/USB: Displa

Maintenance: Descr

ys the contents of status display in the Setting display. ys the contents of status display of the Network or USB

memory input in the Setting display (2).

ibes an error if it occurs, for example, when the lamp has

blown.

Notes

Clicking the ? button opens a popup help window.

• The security items such as “Remote control” and “Browser authentication” cannot be

• set.

Network/

USB memory

88 89

Maintenance

p.45

About lamp

CAUTION

The product’s light source is a mercury lamp that lights at increased internal pressure. Be sure to fully understand the following characteristics of the lamp and handle it with extreme care.

•

The lamp may burst with a loud noise due to impact or deterioration, or fail to light at the expiration of its life.

•

How long it takes before the lamp bursts or the life expires may vary greatly by lamp. Some may burst shortly after ﬁrst use.

•

Burst is likely to happen if the lamp is used after the replacement period has elapsed.

•

When the lamp bursts, the broken pieces of glass may get inside the product or be released outside from the openings for ventilation.

•

When the lamp bursts, a slight amount of mercury gas enclosed in the lamp along with glass dust may be released from the openings for ventilation.

Immediately replace the lamp when a replacement



message appears on the screen.

When the replacement time approaches, a message will appear on the screen.

• The risk of burst will increase if the lamp continues to be used without being

• replaced. Frequently check the used hours and prepare spares when the replacement time

• approaches. (Refer to “Status display”.

When the lamp is broken



If glass components, including a lamp and a lens, should break, handle the broken

• pieces with care to avoid possible injury and contact your dealer for repair service. In the event of lamp burst, unplug the product from the wall outlet, leave and

• completely ventilate the room. Then, thoroughly clean the area around the projector and discard any edible items placed in that area, as they may be contaminated. If the lamp bursts, consult a doctor if glass dust or mercury gas gets into your eyes or

• is inhaled.

)

Lamp replacement

A lamp is a consumable item. If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on condition of use.) If this happens, replace it with a new one.

WARNING

•

If the projector is mounted on the ceiling, it is strongly recommended that you contact a Toshiba dealer when the lamp has to be exchanged. Do not attempt to replace the lamp by yourself.

If you uncover the lamp while the projector is mounted on a ceiling, there may be a danger of damage from falling pieces of glass if the lamp is broken, resulting in possible injury. In addition, working at high elevations can also be potentially hazardous. Do not attempt to replace the lamp by yourself.

Always use lamp “TLPLW21” (sold separately) when replacing the lamp.

• Using a lamp other than the one speciﬁed may cause a malfunction or damage to the unit due to the difference in the connector shape or the lamp rate.

CAUTION

•

If you have been using the projector, the lamp will be very hot, and may cause burn injuries.

Wait 1 hour or longer for the lamp to cool before replacing it.

If the lamp should break, please handle with care to avoid injury due to broken

•

pieces and contact your dealer for repair service.

p.45

p.42

Lamp replacement (Continued)

Unplug power cord. Wait until lamp is sufﬁciently cooled.

Wait for at least 1 hour.

Remove the outer lamp cover.

Loosen the screw attached on the side of the outer lamp cover. Remove the cover by sliding it in the direction of the arrow.

Remove the inner lamp cover.

Remove the screws and carefully set them aside, and remove the inner lamp cover. Be sure not to loose the screws.

Inner lamp cover

Pull out the lamp.

Loosen the 3 lamp locking screws, pull up the handle, and press the tab to remove the lamp.

Outer lamp cover

Replace the inner lamp cover.

Replace and tighten the screws removed in step the inner lamp cover is secure.

Replace the outer lamp cover.

Align the cover and slide in the direction of the arrow, then tighten the screw loosened in step outer lamp cover is secure. Always replace the outer lamp cover.

Reset the lamp time.

See the lamp’s manual for instructions on resetting the lamp time.

until the

Inner lamp cover

until

Outer lamp cover

Notes and Precautions

•

The [Lamp time] item in the Status display menu indicates the time of lamp use. (Use it as a rough estimate or guide for lamp life.)

•

Please replace the lamp after 2000 hours of use if [Lamp power] in the Default setting

1 menu is set to [Standard], or after 3000 hours of use if [Lamp power] in the Default setting 1 menu is set to [Low].

•

There may be cases where the lamp stops working before the above mentioned period expires or before the replacement message is displayed.

•

Attach the outer lamp cover correctly so that it is secure and not loose. If it is not attached correctly, the projector may fail to turn on or the lamp may fail to come on.

•

Always replace the lamp with a new one.

•

The lamp is made out of glass. Do not touch the glass surface with your bare hands, bang it, or scratch it. Since dirt, jolts, scratches and other similar particles may affect the lamp.

Mount the new lamp.

Align the orientation, press down the new lamp until the bottom is reached. Then lock it in place using the 3 lamp loc

king screws.

92 93

Tab

About lamp replacement messages

•

The lamp replacement message displays an appropriate period based on the use period selected in [Lamp power].

•

When the replacement time approaches, “The lamp life is ending. Please change the lamp.” message is displayed each time the power is turned on. The display disappears when you press the

button.

Used Lamps

This projector’s lamp contains trace amounts of environmentally harmful inorganic mercury. Be careful not to break used lamps, and dispose of them in accordance with local regulations.

Maintenance

Air ﬁlter cleaning

Lens and main unit cleaning

The air ﬁlter prevents dust and debris from getting inside the projector. Never run the projector with the ﬁlter removed. It is recommended that you clean the air ﬁlter regularly.

• The message usage time e time the power is turned on and an image is displayed. The message will disappear with any operation.)

• Chec

k the ﬁlter and if any debris is found, use the following cleaning procedure.

WARNING

• Request cleaning and maintenance of a ceiling-mounted unit from your projec-

tor dealership.

Attempting to clean or replace the ﬁlter in a high location by yourself may cause you to fall, resulting in injury.

“Check the air ﬁlter for dirt.” is displayed every 100 hours. (Once the

xceeds 100 hours, the message is displayed for about 30 seconds the ﬁrst

Unplug power cord. Remove the air ﬁlter.

Pull out the air ﬁlter by holding the release knob with your ﬁngers as shown in the ﬁgure.

Clean the ﬁlter.

Carefully remove the dust and dirt from the air ﬁlter with a vacuum cleaner or the like.

WARNING

Request cleaning and maintenance of a ceiling-mounted unit from your

• projector dealership. Attempting to clean the unit or replace the lamp in a high

location by yourself may cause you to fall, possibly

Lens cleaning



Clean the lens with a commercially available blower

• and/or lens cleaner. The lens is easily scratched, so do not rub it with hard

• objects, or strike it.

Main unit cleaning



Always unplug the power cord before cleaning the main unit.

• Wipe dirt off the main unit gently using a soft cloth.

• Do not wipe the main unit with a damp cloth.

• Doing so may allow water to get inside, resulting in possible electric shock or unit failure. Do not use benzene, thinner or other similar

• chemical solutions as they may deform or discolor the unit or damage the paint surface. Do not use a chemically saturated cloth.

•

resulting in injury.

Replace the air ﬁlter.

Insert the air ﬁlter ﬁrmly until you hear a click.

Notes

• When dirt and dust build up in the air ﬁlter, the air circulation inside the projector is affected and the internal temperature will rise, causing the projector to stop working or malfunction.

• Be sure the air ﬁlter is inser dirt to get inside the projector again.

• If y

ou wash the air ﬁler with water, make sure you dry it thoroughly before replacing it.

• If the air ﬁlter is torn, consult with your dealer about replacing it with a new one.

Continuing to use a ripped ﬁlter will allow dust and dirt to get inside the projector.

ted all the way into the slot. Leaving gaps will allow dust and

Others

p.92

Others

p.96

p.92

p.96

p.42

p.33

p.37

p.24

p.33

p.29

p.24

100 p.

101

p.95

p.29

p.22 p.23

p.29

p.37 p.38

p.37

p.45

p.37

p.39

p.45

p.43

Trouble indications

The indicator illuminates and a beep sounds to inform you of internal abnormalities.

No power

⇒

(OFF)

(Red

ﬂashing)

(Red lit)

(Orange

ﬂashing)

(Red

ﬂashing)

(Green

ﬂashing)

(Orange lit)

(Red lit)

(Orange ﬂashing)

Note

After there is an abnormal indication, the abnormal status remains until the power cord

• is unplugged.

Problem with projector

Unplug the power cord, and contact your dealer.•

Lamp went out during use, or won’t come on

Lamp temperature is high so that it is difﬁcult to turn on, the

⇒

lifetime of the lamp has ended or the projector is malfunctioning.

Unplug the power cord and wait for a short while, then turn the

• power back on. If a lamp burns out, replace it with a new one.

•

Power went out during use

Internal overheating, or the outside temperature is too high.

⇒

Make sure the projector is placed so that the air intake and

• exhaust are not blocked. Unplug the power cord and wait for a short while, then turn the

• power back on.

The icon will appear before the power goes out.



Power went out during use

Problem with internal cooling fan.

⇒

Unplug the power cord, and contact your dealer.

• The icon will appear before the power goes out.



Power went out during use, or power won’t come on

The lamp cover is not properly attached.

⇒

Unplug the power cord, and reattach the lamp cover.

•

Power went out during use

Problem inside the projector.

⇒

Unplug the power cord and wait for a short while, then turn the

• power back on. If the above action does not clear the problem, unplug the power

• cord, and contact your dealer.

The icon will appear before the power goes out.



Troubleshooting

If you think something is wrong, check the followings before contacting customer service. Please see “Trouble indications”

If This Happens Check

No power Is the power cord plugged in? Is it connected to the projector?

Power goes out during use

No picture Is the input source selected correctly? (When [Auto input search]

•

Is the outer lamp cover attached properly? Is the ambient temperature high?

•

Is the air intake or air exhaust blocked?

• is [Off]) Is the mute function on?

• Is the brightness setting minimized?

• Are the connections set up correctly?

• Are all the connected devices functioning properly?

•

No audio

Picture not displayed correctly

Picture blurred Part of picture out of focus

Image is dark

Colors too light Bad shading

Control panel key

•

Is the mute function on?

•

Is the volume setting minimized?

•

Are the connections set up correctly?

•

Are all the connected devices functioning properly? Is the input signal supported by the projector?

• Is there something generating an abnormal video signal, for

• instance the video tape?

Is the lens dirty?

•

Is the lens focus adjusted optimally?

•

Is the projection distance within the projector’s supported range?

Is the projector’s screen placement angle tilted too far?

•

Are the sharpness or sampling phase adjustments off? Are the brightness or contrast adjustments off?

•

Is the lamp nearing the end of its service life?

•

Is the RGB input range set properly? Are the color, R-level, G-level, or B-level adjustments off?

•

Is the screen dirty?

•

Is the blackboard mode set properly?

•

Is the lamp nearing the end of its service life? Is the key lock function on?

•

doesn’t work

as well.

Others

p.43

p.19

p.49

p.83

p.62

Troubleshooting (Continued)

If This Happens Check

Remote control doesn’t work

USB device images aren’t projected

The wireless LAN doesn’t work

Is the remote control code identical with the projector’s code?

•

Are the remote control’s batteries drained?

•

Are the batteries inserted into the remote control correctly?

•

Is the remote control being used within the effective range?

•

Are there any obstructions between the remote control and projector?

•

Are there any ﬂuorescent or other bright lights directed at the projector’s infrared remote sensor?

Is the USB memory device inserted correctly?

• Is a USB memory device not supported by the projector inserted?

•

Are there any JPEG or MPEG ﬁles saved on the USB memory device?

•

Are the ﬁles in an unsupported format or too large for the projector? For JPEG ﬁles, convert them with the supplied software application.

Are the transmission mode, SSID, etc. properly conﬁgured?

• Are there any obstructions between the computer and the

• projector? Do your computer and operating system support the supplied

• software application?

Speciﬁcations

List of general speciﬁcations

■

Item Speciﬁcation

Consumption Power 270 W Weight 2.0 kg External Dimensions (including protruding parts) Cabinet material Conditions for usage environment

Display method 3-panel transmission Panel size X200: 0.7 type

LCD Panel

Lens Lamp High-pressure mercury lamp (180 W)

Projection screen size 30-300 inches Projection distance Speaker 1 W (Mono)

COMPUTER1 IN terminal Mini D sub 15 pin RGB / Y/PB / PR (dual use) COMPUTER 2 IN terminal HDMI™ terminal HDMI (v. 1.3a)

S-VIDEO terminal Mini DIN 4 pin VIDEO terminal RCA Pin Jack, 1 V (p-p), 75

AUDIO IN terminal AUDIO OUT terminal 3.5 mm diameter stereo mini-jack

CONTROL terminal D sub 9 pin (RS-232C)

Connection terminal

USB terminal LAN terminal 10BASE-–T/100BASE-TX

Drive system TFT active matrix Picture elements

295 × 82 × 196 mm (W × H × D) PC+ABS resin and PC resin (contains Mg alloy in some parts)

Temp: 5°C to 35°C; relative humidity: 30% to 70%

WX200: 0.59 type

X200: 786,432 pixels (1024 H × 768 V) WX200: 1,024,000 pixels (1280 H × 800 V) X200: F=1.60 – 1.76 f=21.5 – 25.8 mm WX200: F=1.70 – 1.87

X200: 0.89 m – 10.94 m WX200: 0.94 m – 11.58 m

Mini D sub 15 pin RGB / Y/P

3.5 mm diameter stereo mini-jack: 1.5 V (rms), 22 kΩ or more COMPUTER 1 IN / 2 IN/VIDEO/S-VIDEO (multiple use)

USB 2.0 High-speed enabled Type A; Output voltage: +5 VDC; Supply current: 500 mA

B / PR / MONITOR OUT (multiple use)

19.2 – 23.0

Notes

This model complies with the above speciﬁcations.

• Designs and speciﬁcations are subject to change without notice.

• This model may not be compatible with features and/or speciﬁcations that may be added

• in the future.

Separately sold product

■

Replacement Lamp Model : TLPLW21

100

101

Others

Speciﬁcations (Continued)

List of supported signals (Computer input)



This projector supports the following RGB signals. Note, however, that depending on the computer model, the screen may show ﬂicker or streaking. Please adjust the projector if this happens.

Resolution Mode

720 x 400 720x400_85 85.039 37.927 35.500 640 x 480 VGA_60 59.940 31.469 25.175

GA_72 72.809 37.861 31.500 VGA_75 75.000 37.500 31.500 VGA_85 85.008 43.269 36.000

800 x 600 SVGA_56 56.250 35.156 36.000

SVGA_60 60.317 37.879 40.000 SV

GA_72 72.188 48.077 50.000 SVGA_75 75.000 46.875 49.500 SVGA_85 85.061 53.674 56.250

832 x 624 MAC16" 74.550 49.725 57.283

1024 x 768 XGA_60 60.004 48.363 65.000

XGA_70 70.069 56.476 75.000 XGA_75 75.029 60.023 78.750 XGA_85 84.997 68.667 94.500

MAC19" 74.700 60.134 79.857

1152 x 864 SXGA1_75 75.000 67.500 108.000

1280 x 800 WXGA_60 59.880 49.580 83.300

1280 x 960 QuadVGA_60 60.000 60.000 108.000

QuadVGA_85 85.002 85.938 148.500

1280 x 1024 SXGA3_60 60.020 63.981 108.000

SXGA3_75 75.025 79.976 135.000

SXGA3_85 85.024 91.146 157.500 1400 x 1050 SXGA+ 59.978 65.317 121.750 1600 x 1200 UXGA_60 60.000 75.000 162.000

UXGA_65 65.000 81.250 175.500 UXGA_70 70.000 87.500 189.000 UXGA_75 75.000 93.750 202.500 UXGA_85 85.000 106.250 229.500

* : 1280 x 800 is only available for WX200

Refresh rate

(Hz)

H-frequency

(kHz)

Clock

(MHz)

Note

Signals whose resolution exceeds the native resolution mentioned below will be compressed.

• For this reason, some information may be lost and/or image quality may be affected. X200 : WX200 : 1280 × 800 dots

1024 × 768 dots

List of supported signals (Y/PB/PR input)



Signal format fh(kHz) fv(Hz)

480i(525i)@60Hz 15.73 59.94

480p(525p)@60Hz 31.47 59.94

576i(625i)@50Hz 15.63 50.00 576p(625p)@50Hz 31.25 50.00 720p(750p)@60Hz 45.00 60.00 720p(750p)@50Hz 37.50 50.00

1080i(1125i)@60Hz 33.75 60.00

1080i(1125i)@50Hz 28.13 50.00 1080p(1125p)@60Hz 67.50 60.00 1080p(1125p)@50Hz 56.25 50.00

List of supported signals (Video, S-Video input)



Video mode fh(kHz) fv(Hz) fsc(MHz)

NTSC 15.73 60 3.58

PAL 15.63 50 4.43

SECAM 15.63 50 4.25 or 4.41

PAL-M 15.73 60 3.58 PAL-N 15.63 50 3.58

PAL-60 15.73 60 4.43

NTSC4.43 15.73 60 4.43

List of supported signals (HDMI input)



Since the resolutions or frequencies input from a computer or picture device vary and may be different from the signals listed below, the images may not appear correctly or some signal formats may not be detected properly and even it may fail to display the images. If that happens, set your computer or the device so that an input signal listed below can be received.

Resolution Mode

720 x 480 480p(525p) 59.94 31.469 27.000 720 x 576 576p(625p) 50.00 31.250 27.000

1280 x 720

1920 x 1080

640 x 480

800 x 600

1024 x 768

* 1280 x 800 WXGA_60 59.880 49.580 83.300 1280 x 1024 SXGA3_60 60.020 63.981 108.000 1400 x 1050 SXGA+ 59.978 65.317 121.750

* 1280 x 800 is only a

720p(750p) 60.00 45.000 74.250

720p(750p) 50.00 37.500 74.250 1080i(1125i) 60.00 33.750 74.250 1080i(1125i) 50.00 28.125 74.250

1080p(1125p) 60.00 67.500 148.50 1080p(1125p) 50.00 56.250 148.50

VGA_60 59.940 31.469 25.175

GA_72 72.809 37.861 31.500

VGA_75 75.000 37.500 31.500 SVGA_60 60.317 37.879 40.000 SV

GA_72 72.188 48.077 50.000

SVGA_75 75.000 46.875 49.500

XGA_60 60.004 48.363 65.000

XGA_70 70.069 56.476 75.000

XGA_75 75.029 60.023 78.750

vailable for WX200

Refresh rate or

V-frequency (Hz)

H-frequency

(kHz)

Clock

(MHz)

Speciﬁcations (Continued)

1511

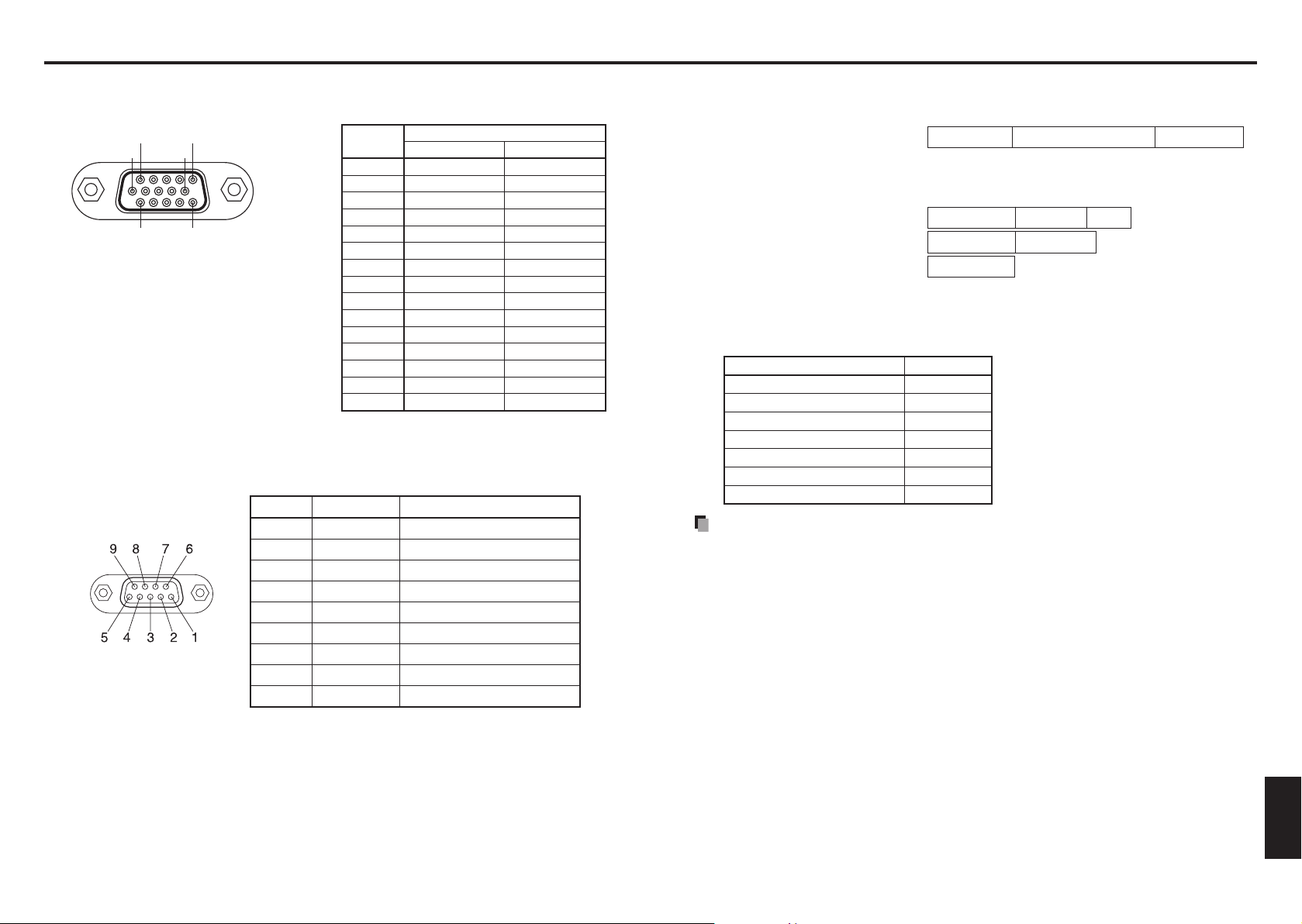

Pin assignment of COMPUTER 1 IN, COMPUTER 2 IN and



MONITOR terminals

Pin description

During Y/PB/PR input Color difference signal (PR) Luminance signal (Y) Color difference signal (PB) * *

* * * * * * *

Mini D sub 15 Pin connector

Input Signal

RGB input

• RGB signals:

0.7 V (p-p) 75 Horizontal sync signal: TTL level (Pos/neg polarity) Vertical sync signal: TTL level (Pos/neg polarity)

Y/PB/PR input

• Y signal: 1.0 V (p-p) 75 P

B/PR signals: 0.7 V (p-p) 75

CONTROL terminal





Pin assignment

Pin No. Signal Name Description

D sub 9 pin connector

Pin No.

Do not connect anything.

During RGB input 1 Video signal (R) 2 Video signal (G) 3 Video signal (B) 4 GND 5 GND 6 GND(R) GND(P 7 GND(G) GND(Y) 8 GND(B) GND(P 9 N.C

10 GND 11 GND 12 N.C 13

Horizontal sync signal

Vertical sync signal

15 N.C

1 DCD Data carrier detect 2 TXD Sending data 3 RXD Receiving data 4 DTR Data terminal ready 5 GND Signal ground 6 DSR Data set ready 7 RTS Request to send 8 CTS Consent to send 9 RI Ring indicator



Interface format

1. Communication method RS-232C, 9600 bps, No Parity, Data Length: 8 bits; Stop Bit Length: 1 bit

2. Communication format

STX (02 h) Command (3 Byte) ETX (03 h)

Only 1 command valid per communication.

3. Data format For input commands, only ASCII-compliant alluppercase alphanumeric characters supported.

Replies Acknowledge

No acknowledge

If commands are to be sent consecutively, wait for the response from the projector

ACK (06 h) CR(0 Dh) Data

CK (06 h) ESC(1 Bh)

... Aborted

NAK (15 h)

... Normally ended

before sending the next command.



Main Commands

Item Command

Power on PON Power off POF Icon display on MO0 Icon display off MO1 Auto setting (RGB input) PAT Status display on DON Status display off DOF

Note

Contact your dealer for control cable and other commands.

•

Others

102 103
