Toshiba TLP-T60M, TLP-S40, TLP-T70M User Manual

OWNER’S MANUAL
3LCD DATA PROJECTOR
Before Using
Preparations
Operations
TLP-T70M / T60M / TLP-S40
Maintenance
Others

Before Using

SAFETY PRECAUTIONS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
WARNING: Handling the cord on this product or cords associated with accessories sold with
USA only
FCC Radio Frequency Interference Statement
Note: This equipment has been tested and found to comply with the limits for a Class
USA only
WARNING: Changes or modifications made to this equipment, not expressly approved by
USA only
Notice: This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
CANADA only
WARNING: This is a Class A product. In a domestic environment this product may cause
this product, will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiates radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate the equipment.
numérique de la classe A est conforme à la norme NMB-003 du Canada.
radio interference in which case the user may be required to take adequate measures.
Wash hands after handling

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND
INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
1. Read Owner's Manual
After unpacking this product, read the owner's manual carefully, and follow all the operating and other instructions.
.
2. Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
3. Source of Light
Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes or sight.
4. Ventilation
Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
Before Using
CAUTION: Laser beam is emitted when the laser button of the remote control is pressed.
Do not look at the laser beam directly from the front of the remote control. Do not turn the laser beam toward a person or to a mirror.
2 3
IMPORTANT SAFETY INSTRUCTIONS (Continued)
5. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
6. Water and Moisture
Do not use this product near water.
- for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and the like.
7. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft cloth for cleaning.
8. Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
9. Overloading
Do not overload wall outlets; extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
10. Lightning storms
For added protection for this product during storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.
11. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
12. Do not place the product vertically
Do not use the product in the upright position to project the pictures at the ceiling, or any other vertical positions. It may fall down and dangerous.
13. Stack Inhibited
Do not stack other equipment on this product or do not place this product on the other equipment. Top and bottom plates of this product develops heat and may give some undesirable damage to other unit.
14. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
15. Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
S3125A
Before Using
4 5
IMPORTANT SAFETY INSTRUCTIONS (Continued)
16. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a) When the power-supply cord or
plug is damaged.
b) If liquid has been spilled, or
objects have fallen into the product.
c) If the product has been exposed to
rain or water.
d) If the product does not operate
normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e) If the product has been dropped or
damaged in any way.
f) When the product exhibits a
distinct change in performance ­this indicates a need for service.
17. If glass components, including lens and lamp, should break, contact your dealer for repair service.
This product incorporates glass components, including a lens and a lamp. If such parts should break, please handle with care to avoid injury and contact your dealer for repair service. The broken pieces of glass may cause to injury. In the unlikely event of the lamp rupturing, thoroughly clean the area around the projector and discard any edible items placed in that area.
18. Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
19. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. (Replacement of the lamp only should be made by users.)
20. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
21. Do not leave thermal­paper documents or easily deformed items on top of the unit or near the air exhaust for long periods of time.
The heat from the unit could erase the information on the thermal paper, or cause deformation or warping.
22. Do not get your hands between the camera arm and the main unit when setting the camera arm back in its original position.
with document camera)
To avoid injury, be careful not to get your hands caught when setting the camera arm back in its original position. Families with children should be particularly careful.
(Models equipped
23. Do not carry by the camera
(Models equipped with
arm.
document camera)
Do not carry the projector by the camera arm. Doing so can result in damage or injury.
24. Do not move the projector while the arm is still erect.
(Models equipped with document camera)
Always store the arm back in position when moving the projector. Otherwise injury or damage may result.
Before Using
6 7

LABEL LOCATIONS

POWER SUPPLY CORD SELECTION

CAUTION Label
CAUTION Label (LASER)
Remote Control
CAUTION Label (LASER)
WARNING Label
WARNING Label
PLAY
INPUT
MODEL NO. / RATING Label
CAUTION Label
LASER WARNING
SERIAL NO. Label
MANUFACTURED;
SERIAL NO.
CAUTION Label
Models with Document Camera
If your line voltage is 220 to 240V, use one of the following types of cable.
Plug configuration
Plug type
EURO
Line voltage
220 – 240V
Plug configuration
Plug type Line voltage
Australian
200 – 240V 240V 10A
UK
220 – 240V
Switzerland 240V
200 – 240V
6A
Use a 5A fuse which is approved by ASTA or BSI to BSI362. Always replace the fuse cover after changing the fuse.
North American 240V 15A
200 – 240V

IMPORTANT PRECAUTIONS

Save Original Packing Materials The original shipping carton and packing materials will come in handy if you ever have to ship your LCD projector. For maximum protection, repack the set as it was originally packed at the factory.
Moisture Condensation
Never operate this unit immediately after moving it from a cold location to a warm location. When the unit is exposed to such a change in temperature, moisture may condense on the crucial internal parts. To prevent the unit from possible damage, do not use the unit for at least 2 hours when there is an extreme or sudden change in temperature
Place and Manner of Installation
Do not place in hot locations, such as near heating equipment. Doing so could cause malfunction, and shorten the life of the LCD panel.
Avoid locations with oil or cigarette smoke. Doing so will dirty the LCD panel and other optical parts, shortening their lives, and darkening the screen.
Do not place slantwise in angle of 20° or more. Doing so could shorten the life of the lamp.
Using this instrument near a TV or radio may cause intereference to the images or audio sound. If this happens, move it away from the TV or radio.
Moving the projector from a low-temperature room to a high-temperature room may cause condensation on the lens or internal parts in the instrument. If you continue to use it in that situation, the malfunction may result. Ensure to wait until the condensation naturally disappears.
In a high altitude location where air is thin, cooling efficiency of the scanner is reduced so use it with the ambient temperature being lowered.
.
Before Using
8 9
IMPORTANT PRECAUTIONS (Continued)

EXEMPTION CLAUSES

Avoid Volatile Liquid
Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or plastic products touching the unit for a long time. They will leave marks on the finish. If cleaning with a chemically saturated cloth, be sure to follow the product's precautions.
LCD Panel
The life of the LCD panel is limited. Take care over the points below so as to use the panel for years.
To prolong the life of this panel, never fail to turn the power off when the panel is not in use and make sure that the lamp has gone out. The state of the lamp being extinguished helps enhance the effect of energy saving.
If the air filter is stained and is clogged up, the main unit inner temperature rises. As a result, the life of the LCD is shortened and a malfunction may also occur. Clean the air filter from time to time and replace it regularly. It is recommended that this replacement be done at the time of replacing a lamp. (Ask a dealer where the unit was purchased or your nearby service station about an air filter for replacement.)
In the spaces provided below, record the Model and Serial No. located at the bottom of your LCD projector.
Model No. Serial No.
Retain this information for future reference.
Toshiba Corporation bears no responsibility in the case of damages arising from natural disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation, operating by third parties, other accidents, or use under abnormal conditions including erroneous or improper operation and other problems.
Toshiba Corporation bears no responsibility for incidental damages (lost profit, work interruption, corruption or loss of the memory contents, etc.) arising from the use of or the inability to use this unit.
Toshiba Corporation accepts no liability whatsoever for any damages arising from not having followed the descriptions in this Instruction Manual.
Toshiba Corporation accepts no liability whatsoever for any damages arising from malfunctions arising from combination with equipment or software that is not related to Toshiba Corporation.

OTHER CAUTIONS AND INFORMATIONS

Copyrights
Showing or transmitting commercial imaging software or broadcast or cable-broad casting programs with the purpose of other than the personal and private viewing, including modifying images using the freeze or resize functions, or displaying with the varying aspect ratio of the images, could violate the direct or indirect copyrights of the imaging software or broadcast program, etc., if done without first consulting with the copyright holder. For this reason, please take appropriate measures before performing one of the actions listed above, including obtaining a license from the copyright holder.
Disposal
This product contains substances which are harmful to humans and the environment.
Solder used in the internal parts contains the lead.
The lamp contains inorganic mercury.
Please dispose of this product or used lamps in accordance with local regulations.
Before Using
Trademarks
VGA, SVGA, XGA, SXGA, UXGA are trademarks or registered trademarks of International Business Machines Corporation.
Macintosh is a registered trademark of Apple Computer, Inc.
Windows is a registered trademark of Microsoft Corporation in the U.S. and other
countries.
Adobe is a registered trademark and Acrobat Reader is a trademark of Adobe Systems Incorporated.
Notational Conventions Used in This Manual
References to pages with related information are annotated as follows. For example, if making a reference to page 36:
10 11
p.36

CONTENTS

Before Using
SAFETY PRECAUTIONS ................................................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ......................................................... 3
LABEL LOCATIONS ........................................................................................ 8
POWER SUPPLY CORD SELECTION ............................................................ 9
IMPORTANT PRECAUTIONS ......................................................................... 9
EXEMPTION CLAUSES ................................................................................ 11
OTHER CAUTIONS AND INFORMATIONS .................................................. 11
CONTENTS ................................................................................................... 12
Preparations
Checking the package contents ..................................................................... 14
Names of each part on the main unit ............................................................. 15
Names of each part on the control panel and remote control ........................ 16
Names of each part on the document camera
(models with a document camera) ................................................................. 17
Preparing and using the remote control ......................................................... 18
Placement ...................................................................................................... 19
Connection ..................................................................................................... 21
Operations
Turning the power on and off ......................................................................... 22
Basic operations ............................................................................................ 24
Using handy features ..................................................................................... 26
Using auto setting (Auto setting) ................................................................ 26
Correcting the keystone distortion (Keystone)............................................ 27
Zooming out the images ............................................................................. 27
Cutting off the picture and sound temporarily (Mute) ................................. 28
Freezing the image (Freeze) ...................................................................... 28
Enlarging the picture size (Resize) ............................................................. 29
Displaying Information [Status display]....................................................... 30
Using the menus ............................................................................................ 31
How to use the menus ................................................................................ 31
The image adjustment menu ...................................................................... 32
The default setting menu ............................................................................ 32
The display setting menu............................................................................ 33
Reset menu (Special menu) ....................................................................... 33
Using the document camera .......................................................................... 34
Uninstalling the camera .............................................................................. 34
Installing the camera .................................................................................. 34
Preparation of the document camera (when loading the camera).............. 35
Preparing the document camera
(for use being separated from the projector) .............................................. 35
Image projection with the document camera .............................................. 36
Locking the white balance .......................................................................... 38
Mainenance
Air filter cleaning ............................................................................................ 39
Lens and main unit cleaning .......................................................................... 40
Lamp replacement ......................................................................................... 40
Others
Trouble indications ......................................................................................... 42
Before calling service personnel .................................................................... 43
Specifications ................................................................................................. 45
List of general specifications ...................................................................... 45
Document camera specifications
(Models equipped with document camera) ................................................ 45
List of supported signals (RGB signals) ..................................................... 46
List of supported signals (Y/P
List of supported signals (Video, S-Video signals) ..................................... 47
Pin assignment of COMPUTER & MONITOR terminals ............................ 47
CONTROL terminal .................................................................................... 48
Separately Sold Product ............................................................................. 48
B/PR signals) ................................................ 47
Before Using
12 13

Preparations

Checking the package contents

Please make sure that the following items are included in the box, along with the main unit. If any item is missing, please contact the store immediately where you purchased the product.
(1) (6) (11)
(2) (7) (12)
(See note)
(8)
(10)
R E S A L
Y A L P
TER
K C I
EN
L
/
T
C
-
U
NU
R
P N
ME
I
­.
E
L
D
O
O
P
V
O
M
T
J
S
P
10
) Audio cable
■ (
11
) Camera extension cable
■ (
(supplied with the document camera)
12
) Carrying bag
■ (
13
) Mouse remote control set (*)
■ (
Mouse remote control
R03 (SIZE AAA) batteries for
mouse remote control (2)
Mouse remote control receiver
Mouse remote control manual
(*) Supplied with TLP-T60M, TLP-T61M,
TLP-T70M, TLP-T71M
®
Reader to view the manual.
p.
to view a reference page with related information.
®
Reader™.
(3)
(4) (9) (13)
(5)
(1) Remote control
(2) R03 (SIZE AAA) batteries for remote
control (2)
(3) Quick Reference
(4) CD-ROM
(5) Owners Manual
(6) Power cord
(7) RGB cable
(8) Video cable
(9) Audio cable (for computer)
Note
The shape and number of supplied power cords vary depending on the product destination.
The Supplied CD-ROM
The supplied CD-ROM contains an owner’s manual, including information omitted in this Owners manual (Getting started) and Acrobat
Installing Acrobat® Reader™
Windows®: Run the CD-ROM, select the Reader/English folder, and run ar500enu.exe. Follow the on-screen instructions. Macintosh: Run the CD-ROM, select the Reader/English folder, and run Reader Installer. Follow the on-screen instructions to install the software.
Viewing the manual
Run the CD-ROM and double-click on Start.pdf. Acrobat® Reader launches, and the menu screen of the Owners manual appears. Click on your language. The Owner’s Manual cover and list of bookmarks appear. Click on a bookmark title to view that section of the manual. Click on See the Help menu for more information about Acrobat

Names of each part on the main unit

(5) (4) (2)(3)
(1)
(12)
(5)
(10)
(9)
(18)
AUDIO
MONITOR
(19)
(1)
COMPUTER-
( Y/P
)
B/PR
(14)
(20)
VIDEO
S-VIDEOVIDEO
(6)
(7)
(8)
(13)
(17)
Name : Function
(1) Infrared remote sensor : Senses commands from the remote control. (2) Lens : Projects expanded image. (3) Zooming lever : Adjusts screen size. (4) Focusing ring : Adjusts screen focus.
p.25
p.25
(5) Air intake : Draws in air from outside unit. (6) Tilt adjuster : Adjusts the projectors horizontal tilt. (7) Lamp cover : Remove to replace lamp.
p.41
(8) AC IN socket : Connect the supplied power cord here. (9) Foot adjuster : Adjusts the vertical projection angle.
p.25
p.35
p.34
(10) Foot adjuster release button : Press to stow the foot adjuster. (11) Control panel : Operates the projector. (12) Camera input terminal* : Connect the camera.
p.16
p.34
(13) Camera mounting stays* : Hold the camera control panel. (14) Air exhaust : Expels air that has grown hot inside the projector.
15
) Speaker : Plays audio.
( (
16
) Anti-theft lock hole : Attach a security chain, etc. here.
17
) AUDIO terminal : Feeds the audio signal from a computer or video
(
equipment.
18
) MONITOR terminal : Connected to the monitor display.
(
19
) COMPUTER terminal : Feeds the RBG signal from a computer or the compo-
(
nent video signal (Y/P
20
) VIDEO terminal : Feeds the video signal from a video equipment.
( (
21
) S-VIDEO terminal : Feeds the S-video signal from a video equipment.
22
) CONTROL terminal : Connected to the RS-232C port on a controlling
(
B/PR) from a video equipment.
computer for operating the projector.
Note *: For the models with a document camera
1514
(15)
(21)
CONTROL
p.25
p.25
p.48
(22)
p.22
(16)
(11)
(14)
p.18
(6)
Preparations

Names of each part on the control panel and remote control

Names of each part on the document camera

(models with a document camera)
Control panel
Remote Control
CLASS 1 LED PRODUCT
Remote control transmitter
ON/
KEYSTONE
-
AUTO
RESIZE
ZOOM +
MENU VOL.
ZOOM
-
p.26
p.23
STANDBY
SET
INPUT
FREEZE
+
(1)
(4)
(12)
(2)
(5) (6)
p.22
p.31
p.31
p.42
p.22
p.30
(15)
CALL
(3)
(7) ( 8) (9) (10)
FAN
TEMP
LAMP
ON
ZOOM +
ZOOM
ON / STANDBY
MENU
AUTO SET
-
VOL.
(1)(2)
(6)
+
(5)
INPUT
VOL.
-
AUTO
KEYSTONE
(3) (4)
(11)
(13)
(14)
MUTE
CANCEL
VOL.
Name : Main Function
(1) ON/STANDBY button : Turns the power on/off (standby).
(2) INPUT button : Selects input.
p.24
(3) AUTO KEYSTONE button : Adjusts keystone (trapezoidal distortion).
(4) AUTO SET button : Sets up image and mode.
(5) MENU button : Displays menus and makes selections.
(6) Selection buttons : Menu selections and adjustments, etc.
(7) FAN indicator : Displays cooling fan mode.
(8) TEMP indicator : Lights when internal temperature too high.
(9) LAMP indicator : Displays lamp mode.
p.23
(10) ON indicator : Displays whether power is on or off.
(11) MUTE button : Cuts off the picture and sound temporarily.
(12) FREEZE button : Pauses image.
(13) RESIZE buttons : Enlarges picture size.
(14) CANCEL button : Exiting the operation.
p.28
p.29
p.30
(15) CALL button : Displays the information on the screen.
p.27
p.42
p.28
(1)
(4)
(12)
(13)
(2) (3)
(7)
(5)
(8)
(11)
(10)
(9)
(6)
Name : Function
(1) Camera head : Document camera. (2) Camera lens : Shooting lens for the document camera. (3) Focus ring : Adjusts the focus. (4) Camera arm : Adjusts the shooting angle.
(5) CAMERA GAIN buttons : Adjusts the camera gain.
(6) CAMERA button :
Toggles between the camera input and previous input.
(7) Tip resistant bar : Pulled out when a camera is used separated from the
projector. (8) Stay mounting holes : Aligns with the projector's stay. (9) Camera output terminal
(CAMERA OUT) : Connected to the accessory camera cable when a
camera is used separated from the projector.
10
) Lock bar : Locked to the projector.
(
11
) Connector : Camera signal is output.
( (
12
) Connect lever : Connector is connected to the projector.
13
) Lock lever : Used when the camera is disconnected from the
(
projector.
p.37
(8)
p.36
p.36
Preparations
Notes
For the remainder of this manual, buttons are referred to as follows: Selection buttons
For further information of the mouse remote control supplied with the TLP-T60M, TLP­T61M, TLP-T70M, TLP-T71M, see the Owners Manual of the Mouse Remote Control.
; MENU button
1716

Preparing and using the remote control

Placement

Loading dry-cell batteries
into the remote control
q Remove the battery cover.
Operating the remote control
Point the remote control toward the projectors infrared remote sensor, and press a button on the remote control.
Operating the projector from the front
w Insert the dry-cell batteries.
Be sure to align the plus and minus ends of the batteries properly.
Operating the projector from the rear
Two batteries (R03, SIZE AAA) are used.
Approx. 15°
Approx. 5m
e Replace the battery cover.
Approx. 15°
Approx. 5m
Dry-cell batteries
Before using the batteries, be sure to observe the Safety Precautions described in previous pages.
Remove batteries from remote control when not using for extended periods.
If the remote control stops working, or if its range decreases, replace all the batteries with
new ones.
The remote control
The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.
Do not drop or bang.
Do not leave in hot or humid locations.
Do not get wet or place on top of wet objects.
Do not take apart.
In rare cases, ambient conditions could impede the operation of the remote control. If this
happens, point the remote control at the main unit again, and repeat the operation.
For further information of the mouse remote control supplied with the TLP-T60M, TLP­T61M, TLP-T70M, TLP-T71M, see the Owners Manual of the Mouse Remote Control.
Placement Styles
As shown in the figures below, this device can be placed in 4 different styles. The factory setting is floor-mounted front projection.” Set the placement style in the
default setting menu
Floor-mounted front projection
Ceiling-mounted front projection Ceiling-mounted rear projection
p.32
, in accordance with your needs.
Floor-mounted rear projection
AC IN
AC IN
CAUTION
Always obey the instructions listed in IMPORTANT SAFETY INSTRUCTIONS when placing the unit.
If you wish to mount the projector on the ceiling, be sure to ask your dealer to do so. Mounting the projector on a ceiling requires special ceiling brackets (sold separately) and specialized knowledge. Improper mounting could cause the projector to fall, resulting in an accident.
If the projector is ceiling-mounted, install the breaker for turning off the power in case of anomaly. Let everyone involved with the use of the projector know that.fact.
Preparations
1918
Placement (Continued)

Connection

Projection Distance and Screen Size (with optical zooming)
Use the figures, tables, and formulas below to determine the screen size and projection distance. (Screen sizes are approximate values for full-size picture with no keystone adjust­ment)
Screen
As seen from above
90°
For TLP-T70M/T71M
a (min length) =
a (max length) =
projection size (inches) – 1.547
26.44
projection size (inches) – 1.2907
22.06
a is the distance (m) between the lens and the screen, and corresponds to a range of
1.45 m to 11.29 m.
screen
size (cm)
40 (102) 1.45 1.75 60 (152) 2.21 2.66
80 (203) 2.97 3.57 100 (254) 3.72 4.47 150 (381) 5.61 6.74 200 (508) 7.51 9.01 250 (635) 9.40 11.27 300 (762) 11.29
projection distance a(m)
min length max length
(zooming max) (zooming min)
a (min length) =
a (max length) =
a is the distance (m) between the lens and the screen, and corresponds to a range of
1.26 m to 9.73 m.
100 (254) 3.21 3.86 150 (381) 4.84 5.82 200 (508) 6.47 7.77 250 (635) 8.10 9.73 300 (762) 9.73
As seen from the side
Lens center
90°
a
For TLP-T60M/T61M/S40/S41
projection size (inches) – 1.4285
30.68
projection size (inches) – 1.1908
25.574
screen
size (cm)
40 (102) 1.26 1.52 60 (152) 1.91 2.30 80 (203) 2.56 3.08
projection distance a(m)
min length max length
(zooming max) (zooming min)
Before connection
Read the owners manual of the device to connect to the projector.
Some types of computer cannot be used or connected to this projector.
Check for an RGB output terminal, supported signal
Turn off the power of both devices before connecting.
The figure below is a sample connection. This does not mean that all of these devices
can or must be connected simultaneously. (Dotted lines mean items can be exchanged.)
CRT monitor, etc.
To audio output
Audio cable (for computer) (supplied)
)
To audio output White (L) Red (R)
VIDEO
S-VIDEOVIDEO
CONTROL
To audio output White (L) Red (R)
MONITOR
AUDIO
Monitor cable
Mini D-sub 15P-BNC
(not supplied)
To Y/CB/CR output Green (Y)
B),
Blue (C
R)
Red (C
Conversion adapter BNC-pin (not supplied)
COMPUTER-
(
Y/P
B/PR
Audio cable
(supplied)
Yellow (to video output)
p.46
S-Video cable (not supplied)
Video cable (supplied)
To S-Video output
, etc.
Computer
To RGB output
RGB cable
(supplied)
Control cable
p48
To RS-232C terminal
Preparations
DVD player
VCR
Computer (for control)
Note
The AUDIO terminal can be used with all the devices for input terminal.
2120

Operations

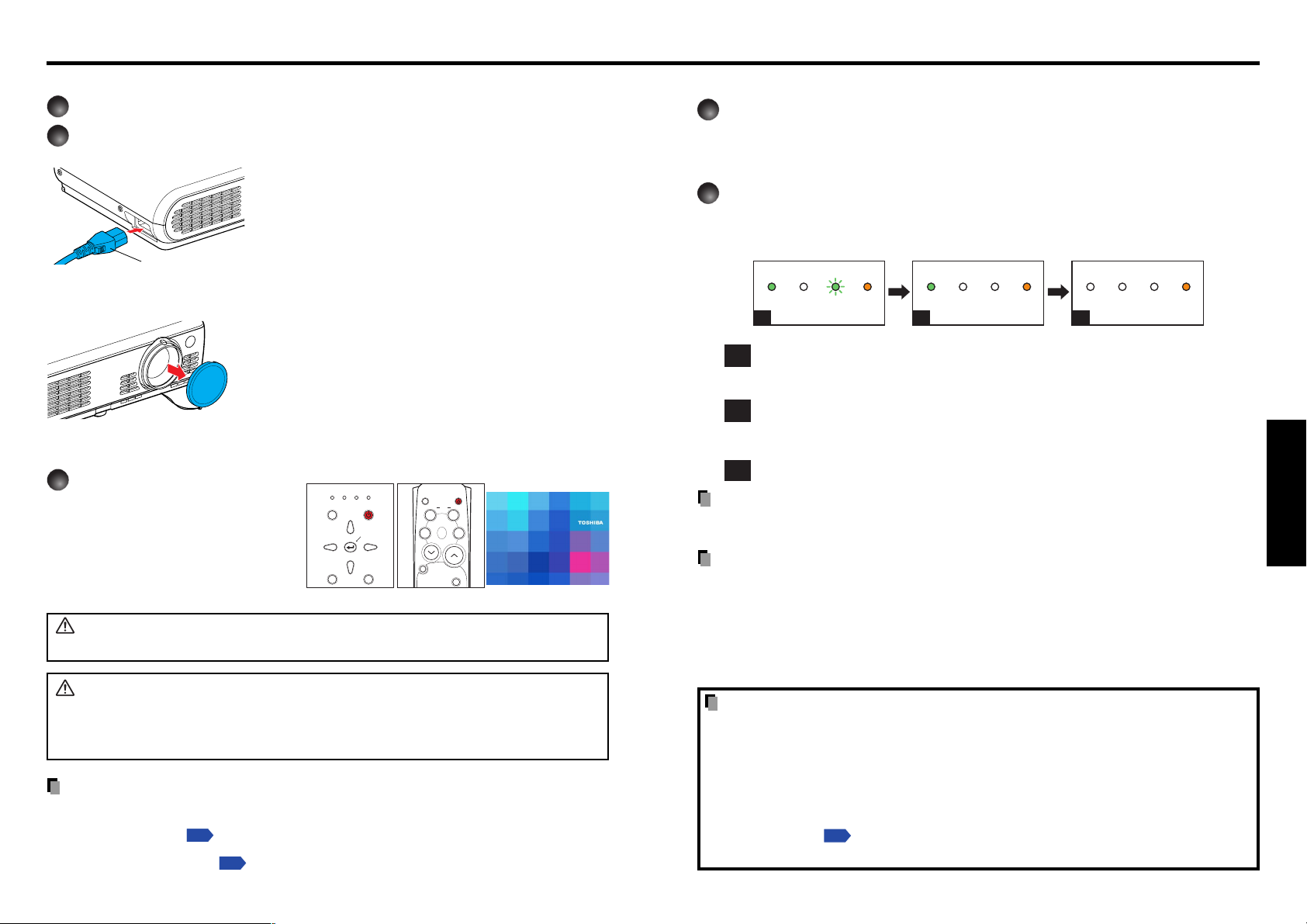

Turning the power on and off

Connecting the power cord
Insert the power cord connector into the AC IN socket of the projector.
1
Insert the power cord plug into a wall or other power outlet.
2
When the power cord is plugged in, the following three green indicators will come on for several seconds: ON, TEMP, and LAMP. Next, the ON indicator will change to orange, indicating standby mode. (Do not perform any operations while the 3 green
(Supplied) Power cord connector
indicators are on.)
Removing the lens cover
Be sure to remove the lens cover when the power is turned on. If it is left on, it could become deformed due to heat.
Turning the power on
Press the ON/STANDBY
button.
The power turns on, and the following 3 green indicators light: ON, LAMP, and FAN. After a moment, the start­up screen appears.
Control panel
FAN
TEMP
LAMP
ON
ON / STANDBYINPUT
ZOOM +
-
AUTO
KEYSTONE
MENU
AUTO SET
ZOOM
-
VOL.
Remote Control
ON/ STANDBY
CALL
AUTO
SET
KEYSTONE
MUTE
FREEZE
VOL.
+
RESIZE
RESIZE OFF
INPUT
WARNING
Do not look into the lens during operation. Doing so could damage your vision.
CAUTION
Do not block the air intake or exhaust. Doing so could cause a fire due to internal overheating.
Do not place your hands, face, or other objects near the air exhaust. Doing so could
cause burns, deform/break the object.
Notes
The start-up screen will disappear after a moment. You can dismiss the start-up screen before this by performing any operation. You can also configure the start-up screen not to appear via the Display setting menu
The first time you use the projector after purchase, after the start-up screen disappears, the Language menu is displayed
p.33
.
p.24
.
Turning the power off
Press the ON/STANDBY button.
1
A message appears on the screen, confirming that you wish to shut off the power. This message will disappear after a moment. (This operation is no longer valid after the message disappears.)
Press the ON/STANDBY button again.
2
The screen turns off, but the internal cooling fan continues to operate for a short while. Then, the projector goes into standby mode.
When cooling lamp During internal cooling After cooling is completed
FAN TEMP LAMP ON
(Green) (Green) (Orange)
A
During cooling, the LAMP indicator flashes. In this state, the power cannot be
A
turned back on. In addition, unplugging the power cord in this state will shorten
Flashing
(Green) (Off) (Orange)
B C
the life of the lamp.
After the LAMP indicator goes off, the cooling fan continues to operate for a
B
short while in order to expel excess internal heat. If you are in a hurry, there is no problem with unplugging the power cord in this state.
In standby mode.
C
Note
The projector consumes about 6W of power in standby. We recommend you to unplug the power cord if you will not use the projector for an extended period.
PRECAUTIONS
Before unplugging the power cord, make sure that the LAMP indicator is off. Unplugging the power cord and cutting off the power while the projector is running or being cooled will shorten the life of the lamp. However, please unplug the power cord if the
projector locks up or acts abnormally.
If the power cord was unplugged before cooling was complete, give the lamp sufficient time to cool before plugging it back in. If the lamp overheats, it may fail to light, and its lifetime will be shortened.
LCD Panels
LCD panels wear out. In order to prolong the lifetime of your LCD panel, take the following precautions.
In order to extend the lifetime of the LCD panel, always turn off the power when not in use, and make sure that the lamp is off. Keeping the lamp off is also very effective at saving electricity.
If the air filter becomes dirty and clogged, the projectors internal temperature will rise, shortening the lifetime of the LCD panel and causing malfunctions. Clean the air filter from time to time purchased your projector, or your local Service Station for replacement air filters.
p.39
, and replace it periodically. Contact the store where you
FAN TEMP LAMP ONFAN TEMP LAMP ON
(Off) (Off) (Orange)
Operations
22
23

Basic operations

Turn on the power.
1
Turn on the power by following the instructions in Turning on the power
2
Select the language and the lamp power (When using the
first time).
When the projector is used for the first time after purchase, menu for language and lamp power selection and configuration is displayed in English. (If the screen is out of focus, adjust it according to the step
q Use the or buttons to select the
desired language and press the
Message for setup confirmation is displayed in a selected language.
w Using the or button, select Standard
or Low and press the
The lamp power, if selected, will be toggled without pressing the disappears in a few seconds.
button. The display automatically
Notes
When the projector is turned on the next time, the Language and Lamp power
menus do not appear upon startup. However, if Reset all is executed from the
p.33
Reset menu
time when the power is turned on
The language can also be set via the Display setting menu via the Default setting menu
This owners manual assumes that English has been selected.
Place connected device(s) in operating status.
3
Turn on and boot up connected computers and other devices.
4
Select input.
, the Language and Lamp power menus will be displayed the next
q Press the INPUT button.
A list of inputs appears on the screen.
w Use the buttons to select the desired
input, and press the
The picture for the selected input is projected.
button.
.)
6
button.
p.32
.
button.
................
English Fran çais Deutsch
................
Italiano
...............
Español Português
...................
...................
p.33
Computer Y/P
B/PR
Video S-video
When a camera is connected with the document camera model:
Computer Y/P
B/PR
Video S-video Camera
English
..............
French
..............
German Italian Spanish
..........
Portuguese Japanese
.......
Chinese (simplified)
.......
Chinese (traditional) Korean
and Lamp power
p.22
5
Projector placement angle adjustments
.
The placement angle and the height of the projected image can be adjusted by the foot adjuster.
q Lift up the front of the projector to
1
the desired angle, then press the foot adjuster release button.
The foot adjuster extends. Release the button to lock the position.
w Turn the foot adjuster to fine-tune
the angle.
3
2
e To adjust the horizontal angle, use
the tilt adjuster.
To stow the foot adjuster, hold up the projector while pressing the foot adjuster release button, then slowly lower the projector.
Adjusting the picture size and focus
6
1
q Use the zooming lever to adjust the screen
size.
2
w Use the focusing ring to adjust the focus.
Adjusting the volume with the buttons
7
The speaker volume can be adjusted when an audio signal is being input.
Notes
Note that because of the lamp characteristics, the brightness of the lamp may fluctuate slightly
A lamp is a consumable supply. If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on conditions of use.)
The LCD panel is made using extremely advanced technology, but there may be black spots (pixels that do not light) or bright spots (pixels that are constantly lit) on the panel. Please note that these are not malfunctions.
Although this projector supports a wide range of RGB signals supported by the model (XGA or SVGA, depending on the model) will expand or shrink the pictures, and will affect image quality slightly. To view high-quality images, it is recommended that the computer’s external output should be set to the projector’s resolution.
With some models of computer having LCD displays or the like, displaying images simultaneously on the projector and the monitors display may cause the images to be shown improperly. If this happens, turn off the computers LCD display. For information on how to turn off the LCD display, see the owner’s manual of your computer.
If a signal not supported by the projector is input, the
If a no signal is being input from the connected device, the
If an unavailable operation button is pressed, the
p.46
, any resolutions not
icon will appear.
icon will appear.
icon will appear.
Operations
.
24
25

Using handy features

Using auto setting (Auto setting)

This function sets up the projector to the optimum state for each type of the input signal by using simple operations.
1
Press the AUTO SET button.
The Auto setting menu appears.
2
Press the AUTO SET button again.
The menu item is automatically adjusted/set. For computer input, the
icon will appear during
processing.
Note
Auto adjustment/setting may not be performed correctly for input signals other than those supported by the projector
p.46, p.47
.
Manual adjustment and setting
The menu items vary depending on the input type, as shown in the table below. Use the the
buttons to adjust the items in the table below, then press
button when you are finished. The menu disappears. (The CANCEL button
on the remote control also allows you to exit the menu mode.)
Input Item
Computer
Phase Adjust with to eliminate flicker.
Frequency
Adjust with to eliminate periodic patterns and flickering when many vertical lines appear on the screen.
H-position Move left Move right
V-position Move up Move down
Select ItemSelect Item
Clamp 1 Adjusts the clamp pulse position with or .
Clamp 2 Adjusts the clamp pulse width with or .
Y/PB/PR
Phase Adjust with to eliminate flicker.
Signal format
[ : Enter to setting mode] [ : Select one of the following] [Apply: ]
480i(525i)@60Hz/480p(525p)@60Hz/ 576i(625i)@50Hz/576p(625p)@50Hz/ 720p(750p)@60Hz/720p(750p)@50Hz/ 1080i(1125i)@60Hz/1080i(1125i)@50Hz/ 1035i(1125i)@60Hz/1152i(1250i)@50Hz
Video S-video
Video mode [ : Enter to setting mode] [ : Select one
of the followings] [Apply: ]
NTSC/PAL/SECAM/PAL-N/PAL-M/PAL60/NTSC4.43
Note
Moving pictures generated with the DVD software for computers may appear unnatural if it is projected with this projector, but it is not a malfunction.
Control panel
FAN
TEMP
VOL.
-
AUTO
KEYSTONE
Description
ZOOM +
ZOOM
LAMP
ON
ON / STANDBYINPUT
MENU
VOL.
+
AUTO SET
-
Remote Control
CALL
AUTO
KEYSTONE
MUTE
RESIZE
RESIZE OFF

Correcting the keystone distortion (Keystone)

When the foot adjuster
ON/ STANDBY
SET
FREEZE
INPUT
projection angle, the picture will undergo keystone (trap­ezoidal) distortion. This projector is capable of correcting this keystone distortion
1
Press the AUTO KEYSTONE button.
The Keystone menu appears.
2
Press the AUTO KEYSTONE button again.
The keystone distortion is automatically corrected. The icon will appear during processing
Manual adjustment
Use the buttons for keystone adjustment. When the adjustment is finished,
press the
control also allows you to exit the menu mode.)
Item Description
Keystone Shrink button of the screen Shrink top of the screen
Notes
Depending on the amount of keystone adjustment and the content of images, some information may be lost, or the picture quality may suffer.
Keystone adjustment will not change the shape of the menus.
p.25
is used to change the
Before correction
After correction
Control panel
FAN
TEMP
.
VOL.
-
AUTO
KEYSTONE
LAMP
ON
ON / STANDBYINPUT
+
ZOOM
MENU
AUTO SET
ZOOM
-
Remote Control
CALL
AUTO
KEYSTONE
MUTE
VOL.
+
RESIZE
RESIZE OFF
button. The menu disappears. (The CANCEL button on the remote
ON/ STANDBY
SET
FREEZE
INPUT
.
Operations

Zooming out the images

This equipment is provided with the digital zoom (electric zoom) (100-80%) capability in addition to the optical zoom. You can use the digital zoom in applications where the optical zoom is not applicable due to some physical reasons for installations (Note, however, that digitally zoomed display suffers from some degradation).
1
Press the ZOOM – button.
Each time the ZOOM – button is pressed, the image is reduced in size.
Control panel
FAN
TEMP
LAMP
ON
ON / STANDBYINPUT
ZOOM
+
-
AUTO
KEYSTONE
MENU
AUTO SET
ZOOM
-
VOL.
Remote Control
RESIZE
CANCEL
INPUT
ZOOM
VOL.
+
+
MENU VOL.
+
VOL.
-
ZOOM
-
26
27
Using handy features (Continued)
2
Press the ZOOM + button to bring it back to the original size.
Each time the ZOOM + button is pressed, the image size increases. (You cannot make it larger than the original size.)
Notes
Pressing either the ZOOM- or ZOOM+ button would display the icon.
The adjustment value will automatically be saved.

Cutting off the picture and sound temporarily (Mute)

When you want to project the images of another projector, overhead projector, etc. temporarily, this projectors images and sound can be turned off.
Press the remote controls MUTE button.
The picture and sound are cut off. The Mute function is released when pressing the MUTE button again. To cancel the command, press the CANCEL button.
Notes
The icon will appear while mute is in effect.
Operating any other functions cancel the muting.

Freezing the image (Freeze)

The image being projected can be made to be frozen. This function is to be used to pause a video during a presentation, etc.
Press the remote controls FREEZE button.
The picture pauses. The Freeze function is released when pressing the FREEZE button again. To cancel the command, press the CANCEL button.
Notes
The icon will appear while freeze is in effect.
The freeze function can be used on the resize function. Other operations will
release the freeze.
Even if an image is frozen on the projector, the pictures are running on the video or other equipment.
If you use this function on video soft sold on the market, broadcast or broadcast on cable except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.
Remote
Control
CALL
AUTO
KEYSTONE
MUTE
RESIZE
RESIZE OFF
Remote Control
CALL
AUTO
KEYSTONE
MUTE
RESIZE
RESIZE OFF

Enlarging the picture size (Resize)

The image being projected can be enlarged.
1
Press the remote controls RESIZE button.
The enlargement ratio is increased each time the RESIZE button is pressed.
To decrease the enlargement ratio, press the remote control’s
2
RESIZE
The enlargement ratio is decreased each time the RESIZE button is pressed. (The image cannot be shrunk to less than its original size.)
3
ON/ STANDBY
SET
FREEZE
INPUT
ON/ STANDBY
SET
FREEZE
INPUT
Press and hold down the buttons to move the enlarged area.
4
Press the CANCEL button to undo the resize.
The resize is released, and the image returns to its original size.
Notes
The icon will appear while resize is in effect.
An enlarged image can be frozen using the FREEZE button. The resize function on
a frozen image can also be used.
Operations other than freeze will cancel the resize.
Since the enlargement is performed using digital processing, enlarging will cause
the image to appear jagged.
Rarely, the picture could become garbled while the enlarged area is being moved.
If you use this function on video soft sold on the market, broadcast or broadcast on
cable except for the purpose of your private viewing and listening, it may infringe the copyright protected by the copyright laws.
button.
2 4
Remote Control
RESIZE
CANCEL
ZOOM
+
MENU VOL.
VOL.
-
ZOOM
-
1
INPUT
+
3
Operations
28
29
Using handy features (Continued)

Using the menus

Displaying Information [Status display]

This displays information about the input signal, lamp use time, etc.
Press the button twice (or press the CALL button on the remote control once).
When the button is pressed once, the Setting display menu appears. Pressing it again displays
information of information is displayed. Press the
p.31
. The table below shows what kind
button (or press the CALL or CANCEL button on the remote control to serve the same purpose) again to dismiss the display.
Item Description
Input Input source name Yes Yes Yes Yes RGB signal mode RGB input mode
[Note 1]
H-resolution Horizontal resolution (in bits) Yes No No No V-resolution Vertical resolution (in bits) Yes No No No H-frequency Horizontal sync frequency Yes No No No V-frequency Vertical sync frequency Sync Sync signal polarity
[Note 2]
[Note 3]
Signal format Y/PB/PR signal format No Yes No No Video mode Color method of video signal No No Yes No Lamp time Time of lamp use Version Firmware version
Notes
1: The mode of supported RGB signals 2: Same as the refresh rate of the computer signal. 3: Sync signal polarity shown as P (positive) or N (negative) for [H/V]. 4: Displays [Lamp time] as a measure of when the lamp should be replaced. (Cannot be
used as a counter of guaranteed lamp time.) When the displayed time approaches 3,000 hours, consult with a store about getting a TLPLV2 replacement lamp (sold separately) prepared.
5: [Version] shows the version of the projector’s internal control program. This version is
referred to for customer service, etc.
[Note 5]
p.46
[Note 4]
is shown.
Notes
The displayed information will not be refreshed if the status changes. To refresh the information, dismiss the display, then display it again.
Conducting another operation while information is being displayed dismisses the display.
Control panel
FAN
TEMP
LAMP
ON
ON / STANDBYINPUT
ZOOM
+
MENU
VOL.
-
+
AUTO SET
VOL.
-
AUTO
KEYSTONE
ZOOM
Ye s : displayed, “No: not displayed
Computer Y/PB/PR
Video
S-video
YesNoNoNo
YesNoNoNo YesNoNoNo
Ye s Ye s Ye s Ye s Ye s Ye s Ye s Ye s
Remote Control
CALL
AUTO
KEYSTONE
MUTE
RESIZE
RESIZE OFF
Camera
You can call up on-screen menus, and conduct a number of adjustments and settings using the operation buttons
p.16
on the control panel (main unit side) and remote control.

How to use the menus

The menu shown below is only for operation instructions and might be different from the actual display.
ON/ STANDBY
SET
FREEZE
2. Select a Category
Select a category by using
1. Start
.
There are following three
INPUT
categorys.
Image adjustment menu
Default setting menu
Display setting menu
p.32
p.32
p.33
Press to open the menu
3. Adjustments & Settings
of the selected category.
Item
Adjustment/Setting Value
These marks signify the items can be adjusted/set by using .
These marks signify an item can be switched by using .
The figure shows a typical example. As the display may differ depending on the item, use the following pages as a reference.
These marks signify the items can be selected from the list by using . After an item is selected, apply it by pressing .
4. Back
Note
Menu adjustments and settings are saved when the power is turned off via the ON/ STANDBY button. If the power cable is disconnected before this, or the power goes out,
then the data will not be saved.
You can also use the CANCEL button on the remote control to dismiss the menu display.
Display the Setting display menu
Displays the current adjustments of selected category. Item shown with gray cannot be adjusted with the current input source.
Finish via the Status display menu.
This mark signfy that there are options. Press to display a list of options.
The menu disappears.
5. To Finish
To Status display
p.30
6. End
Operations
30
31
Using the menu (Continued)

The image adjustment menu

Use this menu to adjust image-related items. Items that can be adjusted are marked with “Ye s ”, and those that cannot are marked with “No”.
Item Description
Contrast
Brightness
Color
[Note 1]
Tint
Sharpness
R-level
G-level
B-level
Up/down shift
Notes
1: Tint can only be adjusted when Video mode 2: Up/down shift can only be adjusted when Screen size
[Note 2]
Lower Higher
Darker Brighter
Lighter Deeper
Reddish Greenish
Softer Sharper
Less red More red
Less green More green
Less blue More blue
Shift down Shift up
Computer
Y/PB/PR Video S-video
Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes
N o Ye s Ye s Ye s N o
No No Yes Yes No
N o Ye s Ye s Ye s Ye s
Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes
N o Ye s Ye s Ye s N o
p.26
is set to NTSC or NTSC4.43.
p.33
is set Wide.
Camera

The default setting menu

This menu shows placement status and other settings.
Item
Projection mode
No signal power off
Power on
Sets projection mode in accordance with Placement Style
(Placed on floor)
Sets the period of time to wait until turning off the power after signal input stops: Off (not turned off) 1 min 2 min ... 60 min
Sets whether to turn on the power when the ON/STANDBY button is pressed (Manual), or when the power cord is plugged in (Auto). Manual Auto
[Note 1]
Lamp power
Shutter speed
White balance
Notes
1: When lamp power is set to low, the screen becomes a little darker, but the cooling fan noise gets
quieter. This setting will be cleared when you turn the power off. The setting will be back to Standard when the power is turned on next time.
2: White balance, if set to Fixed, is reset upon power off and the Auto is resumed the next time the
unit is turned on. (Models with the document camera)
Sets the lamp power Standard Low
Sets the cameras shutter speed to either (50Hz) or (60Hz).
[Note 2]
Sets the cameras white balance to (Auto) or (Fixed).
Notes
Note that if Power on is set to Auto, then if the power cord is plugged in when power is
restored after a power outage, the projector power will come on.
Even if Power on is set to Auto, press the ON/STANDBY button to turn off the power.
Unplugging the power cord to cut off the power will shorten the life of the lamp.
Description
(Rear)
32
(Hung from ceiling)
50Hz 60Hz.
Auto Fixed.
p.19
(Back hung from ceiling)

The display setting menu

Use this menu to set screen display-related items.
Item
Description
Screen size
(Full): Display with LCD panels resolution (Thru): Display with sampling resolution (for computer input)
Language
(Wide): Wide-screen display (for Video, S-video, and Y/P
Select one of the languages below to use for displaying menus and messages
B/PR
)
[ : Enter setting mode] [ :Selection] [Apply: ] English/Français/Deutsch/Italiano/Español/ Português/ / / /
Background
Icon
Start-up screen
Screen to display when there is no input signal
Display icons as function guides On Off
Display start-up screen when power turned on On Off
(Logo) (Blue) (None)
Notes
If Thru is selected for screen size, portions exceeding the pixel count of the LCD panel
p.45
will not appear on the screen. Note that for RGB signals with clock speeds
p.46
SXGA3_60 when the screen is enlarged using the Resize function is higher than this, the RGB pixel signal is reduced before sampling.
Displaying the images with the aspect ratio different from the original with the purpose of other than the personal and private viewing, using the screen size menu may violate the copyright protected by the law.
or lower, all input pixel signals are sampled. (This effect is noticeable
p.29
). However, if the clock speed

Reset menu (Special menu)

When other menus are not displayed and the button is held down, the menu appears.
When the screen is placed vertically, and Auto keystone correction is executed, but the keystone correction is not successful, stow the foot adjuster in its original position, place the projector on a flat surface, select Horizontal reference value reset, and press the button.
Select Reset All and press the
Horizontal reference value reset
Reset all
Reset the horizontal reference value for Auto keystone correction [ : Enter execution mode] [Yes No] [Apply: ]
Reset all menu items to their factory settings [ : Enter execution mode] [Yes No] [Apply: ]
button to return all menu items to the factory settings.
DescriptionItem
33
Operations

Using the document camera

Please read this chapter if the model you purchased includes a document camera.

Uninstalling the camera

1)
Place the folded document camera with the bottom side up.
2) Slide the connect lever in the direction of an arrow.
3) Pressing the lock lever in the direction of an arrow, slide the document camera.

Installing the camera

1)
Place the folded document camera with the bottom side up.
4) Slide the connect lever in the direction of an arrow.
2) Align the four registration marks.
3) Slide the document camera in the direction of an arrow until it clicks.

Preparation of the document camera (when loading the camera)

Status before preparation (When stowed)
3) Rotate arm 4) Raise camera head
1) Set up arm 2) Extend arm
PRECAUTIONS
Do not jolt or force the camera head or camera arm. Doing so could cause malfunction.
Note that when extending or rotating the camera arm, the arm moves in an arc. Take care
not to bump yourself or others with it.

Preparing the document camera (for use being separated from the projector)

Before connecting the camera cable, make sure that the projector power is off.
1) Connect the supplied camera cable to the camera input terminal.
2) Connect the other end of the camera cable to the camera terminal on the document camera.
3)
Pull out the tip resistant bar and set up the document camera
.
Operations
PRECAUTIONS
Before mounting or dismounting the document camera, disconnect the power plug.
Place a soft cloth beneath the projector when mounting or dismounting the camera.
Do not dismount or mount the document camera while the projector is upright or kept in the air
Before mounting the camera, confirm that the interconnection connector is closed with the connect lever. If you attempt to mount the camera with the connector being protruded, connector may be damaged.
When mounting the camera, be sure to slide the document camera until it is locked with click sound.
Confirm the four registration stays are aligned before sliding the camera.
34
PRECAUTIONS
Insert a camera cable straight and securely until it locks. When disconnecting the cable, pull it out releasing the lock on both sides of the plug.
Be sure to pull the tip resistant bar fully until it forms the angle of 90 degree. If you don’t use the bar, the camera may topple over.
Note that the camera may tip over if you attempt to rotate the arm in the opposite side of
.
the tip resistant bar.
For camera interconnection, be sure to use the supplied camera cable (1 m). If you use the other cables, the normal operation cannot be achieved and even the malfunction may result.
Note
Connecting or disconnecting the camera cable with the projector's power ON may cause camera error (
is displayed) and even turn off the power.
35
Using the document camera (Continued)

Image projection with the document camera

1
Place the document.
Set the document at the top of or the side of the projector
Press the CAMERA button, and select camera input.
2
The input returns to the previous input when the CAMERA button is pressed again.
Camera input can also be selected by pressing the remote control or camera’s INPUT button.
3
Rotate the camera lens to align the orientation of the document for shooting.
.
5
Adjust the focus using the focus ring on the camera head
Rotate the focus ring to either NEAR or FAR, whichever is better in focusing.
Turn the focusing ring to adjust the focus.
Near : 100 mm to 300 mm Far : 300 mm to 5 m
6
If the screen is too dark or too bright, use the CAMERA GAIN (+/–) buttons to make it easier to see.
The Sharpness of the camera image can also be adjusted using the Image adjustment menu
7
After use, turn off the light, and fold up the document camera.
Fold up the camera using the opposite order from Preparation of the document camera
p.32
.
PRECAUTION
If the rooms fluorescent lighting causes the image to flicker, either turn off the fluorescent
light, or set the Shutter speed from the Default menu Shutter speed setting may not eliminate the flicker, depending on the lighting, state of the document, or image adjustment.
p.32
. Note that changing the
.
Operations
4
Move the camera head up and down to adjust the image size.
Farther: Smaller image
Closer: Larger image
Closeup shot with the distance shorter than 100 mm cannot be performed.
36
Note
No audio is output when camera input is selected.
37
Mainenance
Using the document camera (Continued)

Locking the white balance

Although the projectors camera is constantly adjusting the color balance of the images it photographs, the color balance may be disrupted, depending on the color layout of the document, etc. If this happens, the white balance can be locked using the proce­dures below.
1
Lay down a piece of white paper, and adjust so it fills the screen.
Adjust the camera head and arm so that the white paper fills the screen completely.
Set the White balance to Lock in the
2
Default menu.
The white balance is locked. If you want to return to the auto adjustment, set the White balance to Auto in the Default menu.
Notes
White balance setting to Fixed, if power is turned off, will be back to Auto.
The color of the room lighting may prevent the white balance from being adjusted to the
optimum level. In this situation, or if you want to use a certain tinting, adjust the R-level, G-level and B-level on the Image adjustment menu
p.32
p.32
.

Air filter cleaning

The air filter prevents dust and debris from getting inside the projector. Never run the projector with the filter removed. It is recommended that the air filter is cleaned regularly.
The icon message Check the air filter for dirt.” is displayed every 100 hours. (If the
usage time exceeds 100 hours, this message is displayed for 30 seconds when the image is displayed for the first time after power is turned on. This display will be dismissed with any operation.)
Check out the filter and any debris is found, use the following procedure for cleaning.
WARNING
Request cleaning and maintenance of a ceiling-mounted unit from your projector dealership.
Unplug power cord.
1
Remove the air filter.
2
Pull out the air filter by taking the catch shown in the figure.
Clean the filter.
3
Carefully remove the dust and dirt from the air filter with a vacuum cleaner or the like.
Replace the air filter.
4
Notes
Allowing dirt and dust to build up in the air filter will worsen the air circulation inside the projector, causing the internal temperature to rise, causing the projector to stop working or malfunction.
Insert the air filter all the way in. Leaving gaps will allow dust and dirt to get inside the projector again.
If you wash the air filer with water, make sure to dry it completely before replacing it.
If the air filter is torn, consult with your dealer about replacing it with a new one.
Continuing to use a ripped filter will allow dust and dirt to get inside the projector.
38 39

Maintenance

Lens and main unit cleaning

WARNING
Request cleaning and maintenance of a ceiling-mounted unit from your projector dealership
.
Lens cleaning
Clean the lens with a commercially available blower and/or lens cleaner.
The lens is easily scratched, so do not rub it with hard objects, or strike it.
Main unit cleaning
Clean the main unit after unplugging the power cord.
Wipe dirt off the main unit gently with a soft cloth.
If the soiling is severe, dip the cloth in a neutral
detergent diluted in water, wring well, and gently wipe off the dirt, then finish up by wiping with a dry cloth.
Replacing air intake and exhaust fans, and air filter
To maintain the performance, it is recommended that these should be replaced about every 2 to 3 years. Consult with your dealer for details.

Lamp replacement

A lamp is consumable supplies. If used for extended periods, images will appear dark, and the lamp could burn out. This is characteristic of a lamp, and is not malfunction. (The lifetime of the lamp depends on condition of use. If this happens, replace it with a new one
WARNING
If the projector is mounted on a ceiling, request a lamp replacement from your projector dealership.
When replacing, always use lamp “TLPLV2 (sold separately).
CAUTION
If you have been using the projector, the lamp will be very hot, and may cause burn injuries Wait for the lamp to cool (for longer than 1 hour) before replacing it.
If the lamp should break, please handle with care to avoid injury due to broken pieces and contact your dealer for repair service.
Unplug power cord.
1
Wait until lamp is sufficiently cooled.
2
Wait for at least 1 hour.
40
.
.
Lamp replacement (Continued)
Remove the lamp cover.
3
Loosen the 2 screws, then pull up to the direction of the arrow with your fingers on the area shown in the figure to remove the lamp cover.
Pull out the lamp.
4
Loosen the 2 screws holding the lamp in place, and pull up the handle to remove the lamp.
Mount the new lamp.
5
Align the orientation, press down until the bottom is reached, and lock in place using the two lamp locking screws.
Replace the lamp cover.
6
Align the cover, and press it in, then tighten the screws loosened in step no longer loose.
Reset the lamp timer.
7
See the lamps manual for instructions on resetting the lamp timer.
Notes and Precautions
Press the button twice to display (a rough guide) the time of lamp use, the Lamp time item, in the Status display menu.
It is recommended that the lamp should be replaced after 3,000 hours of use. When Lamp time reaches 3,000 hours, the disappears when you press
Attach the lamp cover correctly so that it is not loose. If it is not attached correctly, the lamp may fail to come on
Always replace the lamp with a new one.
The lamp is made out of glass. Do not touch the glass surface with your bare hands,
bang it, or scratch it. (Dirt, jolts, scratches and the like could break the lamp.)
Used Lamps
This projectors lamps contain trace amounts of environmentally harmful inorganic mercury. Be careful not to break used lamps, and dispose it in accordance with local regulations.
3
until the lamp cover is
p.30
icon and a message will appear. This display
button.
p.42
, and the lamps lifetime may be shortened.
41
3
4
5
1
2
1
2
2
1
Maintenance

Others

Trouble indications

The indicator lights inform you of internal abnormalities.
LAMPTEMP
LAMPTEMP
(Red lit) (Red lit)
Or (Orange lit)
Or (Green lit)
LAMPTEMP
(Red lit)
LAMPTEMP
(Orange
(Red lit)
flashing)
LAMPTEMP
(Red lit)
ON
No power
Problem with projector
(Off)
ON
ONLAMPTEMPFAN
ON
ON
Unplug the power cord, and contact your dealer.
Lamp went out during use, or wont come on
Lamp temperature is high so that it is difficult to turn on, the lifetime of
the lamp has ended or the projector is malfunctioning.
Unplug the power cord and wait for a short while, then turn the power back on.
If a lamp burns out, replace it with a new one.
After approx. one minute of abnormal display, the projector returns to
the standby state waiting for internal cool down.
Power went out during use
Internal overheating, or the outside temperature is too high.
Place the projector so that the air intake and exhaust are not blocked.
Unplug the power cord and wait for a short while, then turn the power
back on.
Clean the air filter.
The icon will appear before the power goes out.After approx. one minute of abnormal display, the projector returns to
the standby state waiting for internal cool down.
p.39
Power went out during use
Problem with internal cooling fan.
Unplug the power cord, and contact your dealer.
The After approx. one minute of abnormal display, the projector returns to
icon will appear before the power goes out.
the standby state waiting for internal cool down.
Power went out during use, or power wont come on
The lamp cover is not properly attached.
Unplug the power cord, and reattach the lamp cover.
After approx. one minute of abnormal display, the projector returns to
the standby state waiting for internal cool down.
Power went out during use
Camera is not correctly connected.
Disconnect the power plug and check the connection with the camera
ON
The After approx. one minute of abnormal display, the projector returns to
icon will appear before the power goes out.
the standby state waiting for internal cool down.
42
p.41
FAN
FAN
(Red lit) (Red lit)
(Green lit)
Or
(Off)
FAN
(Red lit or flashing)
Or (Orange lit or flashing)
FAN
Model with a document camera
FAN
(Green lit)
PRECAUTIONS
Make sure to unplug the power cord if something goes wrong.
If the power cord is unplugged before cooling is complete, give the lamp enough time to
cool before plugging it back in. If the lamp overheats, it may fail to light. Unplugging the power cord repeatedly when the temperature is high will shorten the life of the lamp. (Even if you are not concerned about lamp lifetime, the light may not come on if you do not wait at least 3 minutes.)

Before calling service personnel

If you think something is wrong, check the followings before contacting customer service. Please see Trouble indications
If This Happens Check
No power
Is the power cord plugged in? Is it connected to the projector?
Is the lamp cover loose?
Power goes out during use
Is the ambient temperature high?
Is the air filter clogged?
Is the air intake or air exhaust blocked?
No picture
Is the projector turned on?
Is the mute function on?
Is the brightness setting minimized?
Are the connections set up correctly?
Are all the connected devices functioning properly?
No audio
Is the projector turned on?
Is the mute function on?
Is the volume setting minimized?
Are the connections set up correctly?
Are all the connected devices functioning properly?
Picture not displayed correctly
Is the input signal supported by the projector?
Is the correct video mode selected?
Is the correct signal format selected?
Is the selecting of computer or Y/PB/PR input correct?
Is there something generating an abnormal video signal, for
instance the video tape?
Picture blurred Part of picture out of focus
Is the lens dirty?
Is the lens focus adjusted optimally?
Is the projection distance within the projectors supported range?
p.20
Is the projectors screen placement angle tilted too far?
Are the sharpness or sampling phase adjustments off?
Image is dark
Are the brightness or contrast adjustments off?
Is the lamp nearing the end of its service life?
.
Colors too light Bad shading
Are the color, tint, R-level, G-level, or B-level adjustments off?
Is the screen dirty?
Is the lamp nearing the end of its service life?
Remote control doesnt work
Are the remote controls batteries drained?
Are the batteries inserted into the remote control correctly?
Is the remote control being used within the effective range?
Are there any obstructions between the remote control and
projector?
Are there any fluorescent or other bright lights shining at the projectors infrared remote sensor?
p.42
as well.
p.40
43
p.42
p.42
p.28
p.28
p.24
p.24
p.42
p.25
p.32
p.21
p.21
p.26
p.25
p.26
p.42
p.46
p.32
p.30
p.30
,
p.47
p.24
p.19
p.26
p.32
p.18
p.18
p.32
Others
Before calling service personnel (Continued)

Specifications

If This Happens Check
The images from the document camera are blurry
The images from the document camera are flickering
Is the document imaging cameras lens dirty?
Is the document imaging camera out of focus?
Is the location of the object being focused too dark?
Is there impact from the rooms fluorescent lighting?
Turn off the fluorescent lights, or change the shutter speed settings.
p.32
p.37

List of general specifications

Item Specification
Consumption Power 265 W
Weight
External Dimensions 303 × 84 × 206 mm (W × H × D) (including protruding parts)
Cabinet material* PC+ABS resin and ABS resin Conditions for usage environment
Display method Panel size
LCD Panel
Lens Zoom lens TLP-T60M/T61M/S40/S41 F=2.0-2.3 f=23.0-27.4 mm
Lamp High-pressure mercury lamp Projection screen size 33-300 type Projection distance TLP-T60M/T61M/S40/S41 : 1.26-9.73 m
Speaker 1 W (Monaural)
COMPUTER terminal Mini D sub 15 pin RGB / Y/PB/PR (dual use) MONITOR terminal Mini D sub 15 pin RGB / Y/PB/PR (dual use) S-VIDEO terminal Mini DIN 4 pin VIDEO terminal RCA Pin Jack, 1 V (p-p), 75 AUDIO terminal 3.5mm dia. stereo mini-jack, 1.5V (rms); 22 k or more CONTROL terminal Mini DIN 8 pin (RS-232C)
Connection terminal
* Each plastic part displays the materials it is made from, in order to facilitate recycling after this
product becomes no longer usable.
Drive system Picture elements
TLP-T70M/T60M/S40: 2.3 kg TLP-T71M/T61M/S41: 2.8 kg Models without document imaging camera:
Models equipped with document imaging camera: 358 × 84 × 206 mm (W × H × D)
Temp: 0°C to 35°C; relative humidity: 30% to 70% 3-panel transmission
0.7 type TFT active matrix TLP-T series: 786,432 pixels (1,024H × 768V) TLP-S series: 480,000 pixels (800H × 600V)
TLP-T70M/T71M F=1.8-2.1 f=26.5-31.5 mm
TLP-T70M/T71M : 1.45-11.29 m
44
Document camera specifications (Models equipped with document camera)
Item Specification
Lens F=2.8, f=2.8mm Focusing Switching in two steps Zooming None (adjusted through distance from subject) Image element 1/4.2 type honeycomb CCD Effective pixels for pickup section
629,856 pixels (648H × 486V × 2)
45
Others
51
10
1511
6
Specifications (Continued)

List of supported signals (RGB signals)

This projector supports the following RGB signals. Note, however, that depending on the computer model, the screen may show flicker or streaking. Please adjust the projector if this happens. (Press the AUTO SET button, and adjust automatically or manually.
Resolution
720 x 400 640 x 480
800 x 600
832 x 624
1024 x 768
1152 x 864 1280 x 960
1280 x 1024
1400 x 1050 1600 x 1200
1792 x 1344 1856 x 1392 1920 x 1440
Mode
720x400_85
VGA_60 VGA_72 VGA_75
VGA_85 SVGA_56 SVGA_60 SVGA_72 SVGA_75 SVGA_85
MAC16" XGA_43i XGA_60 XGA_70 XGA_75 XGA_85
MAC19"
SXGA1_75 QuadVGA_60 QuadVGA_85
SXGA3_60
SXGA3_75
SXGA3_85
SXGA+ UXGA_60 UXGA_65 UXGA_70 UXGA_75 UXGA_85
1792x1344_60 1856x1392_60 1920x1440_60
Refresh rate
(Hz)
85.039
59.940
72.809
75.000
85.008
56.250
60.317
72.188
75.000
85.061
74.550
86.957
60.004
70.069
75.029
84.997
74.700
75.000
60.000
85.002
60.020
75.025
85.024
60.012
60.000
65.000
70.000
75.000
85.000
60.000
60.000
60.000
H-frequency
37.927
31.469
37.861
37.500
43.269
35.156
37.879
48.077
46.875
53.674
49.725
35.522
48.363
56.476
60.023
68.667
60.134
67.500
60.000
85.938
63.981
79.976
91.146
63.973
75.000
81.250
87.500
93.750
106.250
83.640
86.333
90.000
Note
Signals whose resolution exceeds the LCD panels number of pixels compressed. For this reason, some information may be lost, or image quality may be affected.
(kHz)
p.26
p.45
)
Clock
(MHz)
35.500
25.175
31.500
31.500
36.000
36.000
40.000
50.000
49.500
56.250
57.283
44.900
65.000
75.000
78.750
94.500
79.857
108.000
108.000
148.500
108.000
135.000
157.500
118.094
162.000
175.500
189.000
202.500
229.500
204.750
218.250
234.000
will be
List of supported signals (Y/PB/PR signals)
Signal format fh(kHz) fv(Hz)
480i(525i)@60Hz 15.73 59.94
480p(525p)@60Hz 31.47 59.94
576i(625i)@50Hz 15.63 50.00
576p(625p)@50Hz 31.25 50.00
720p(750p)@60Hz 45.00 60.00
720p(750p)@50Hz 37.50 50.00
1080i(1125i)@60Hz 33.75 60.00
1080i(1125i)@50Hz 28.13 50.00
1035i(1125i)@60Hz 33.75 60.00
1152i(1250i)@50Hz 31.25 50.00

List of supported signals (Video, S-Video signals)

Video mode fh(kHz) fv(Hz) fsc(MHz)
NTSC 15.73 60 3.58
PAL 15.63 50 4.43
SECAM 15.63 50 4.25 or 4.41
PAL-M 15.73 60 3.58
PAL-N 15.63 50 3.58
PAL-60 15.73 60 4.43
NTSC4.43 15.73 60 4.43

Pin assignment of COMPUTER & MONITOR terminals

Pin Pin description
Mini D sub 15 Pin connector Input Signal
RGB input R/G/B signals: 0.7V (p-p) 75 Horizontal sync signal: TTL level (Pos/neg polarity) Vertical sync signal: TTL level (Pos/neg polarity)
Y/PB/PR input Y signal: 1.0V (p-p) 75
B/PR signals: 0.7V (p-p) 75
P
No. During RGB input
1
Video signal (R) 2 Video signal (G) Luminance signal (Y) 3 Video signal (B) 4 GND 5 GND 6 GND (R) GND (PR) 7 GND (G) GND (Y) 8 GND (B) GND (PB) 9 N.C
10 GND 11 GND 12 N.C 13 Horizontal sync signal 14 Vertical sync signal 15 N.C
Do not connect anything.
During Y/PB/PR input
Color difference signal (PR)
Color difference signal (PB)
Others
46
47
Specifications (Continued)

CONTROL terminal

Pin assignment
Pin No.
7
8
6
5
4
1
2
Mini DIN 8 pin connector
3
1 2 3 4 5 6 7 8
Interface format
1 Communication method RS-232C, 9600bps, No Parity, Data Length: 8 bits;
Stop Bit Length: 1 bit
2 Communication format STX (02h) Command (3Byte) ETX (03h)
Only 1 command valid per communication.
3 Data format For input commands, only ASCII-compliant all-uppercase
alphanumeric characters supported.
4 Replies Acknowledge ACK (06h) CR (0Dh) Data ... Normally ended
No acknowledge NAK (15h)
If commands are to be sent consecutively, wait for the response from the projector before sending the next command.
Main Commands
Item Command
Power on PON Power off POF Icon display on MO0 Icon display off MO1 Auto setting (RGB input) PAT Status display on DON Status display off DOF
Note
Contact your dealer for control cable and other commands.
Signal Name
RXD
CTS DSR GND
RTS
N.C
TXD
N.C
ACK (06h) ESC (1Bh) ... Aborted
Computer input select IN1 Y/PB/PR input select IN2 Video input select IN3 S-video input select IN4 Camera input select IN5
Description Receiving data Consent to send Data set ready Signal ground Request to send No connection Sending data No connection
Item Command

Separately Sold Product

Replacement Lamp Model TLPLV2
Note
Design, specifications, etc. subject to change without notice for improvements, etc.
48
