TOSHIBA TLGE23T, TLPGE23T Technical data
f
e
e
t
e
y
r
查询TLGE23T供应商
TLGE23T,TLPGE23T
TOSHIBA
l
PInGaA
LED
TLGE23T, TLPGE23T
Panel Circuit Indicator
• 5 mm package
• PInGaAl technology
• All plastic mold type
• Transparent lens
• Excellent low current light output
• Applications:
outdoor message signboards, safety equipment, automotive use, etc.
Line-Up
Product Name Color Material
TLGE23T Green
TLPGE23T Pure green
Maximum Ratings
Product Name
TLGE23T 50 4 120
TLPGE23T 50 4 120
(Ta ==== 25°C)
Forward Current
I
(mA)
F
PInGaAl
Reverse Voltage
VR (V)
Power Dissipation
PD (mW)
Operating
Temperature
(°C)
T
opr
−40~100 −40~120
Storage
Temperature
T
(°C)
stg
961001EAC1
• TOSHIBA is continually working to improve the quality and the reliability of its products. Nevertheless, semiconductor devices in
general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility o
the buyer, when utilizing TOSHIBA products, to observe standards of safety, and to avoid situations in which a malfunction or failur
of a TOSHIBA product could cause loss of human life, bodily injury or damage to property. In developing your designs, pleas
ensure that TOSHIBA products are used within specified operating ranges as set forth in the most recent products specifications.
Also, please keep in mind the precautions and conditions set forth in the TOSHIBA Semiconductor Reliability Handbook.
• Gallium arsenide (GaAs) is a substance used in the products described in this document. GaAs dust and fumes are toxic. Do no
break, cut or pulverize the product, or use chemicals to dissolve them. When disposing of the products, follow the appropriat
regulations. Do not dispose of the products with other industrial waste or with domestic garbage.
• The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed b
TOSHIBA CORPORATION for any infringements of intellectual property or other rights of the third parties which may result from its
use. No license is granted by implication or otherwise under any intellectual property or other rights of TOSHIBA CORPORATION o
others.
• The information contained herein is subject to change without notice.
2000-06-14 1/4
TLGE23T,TLPGE23T

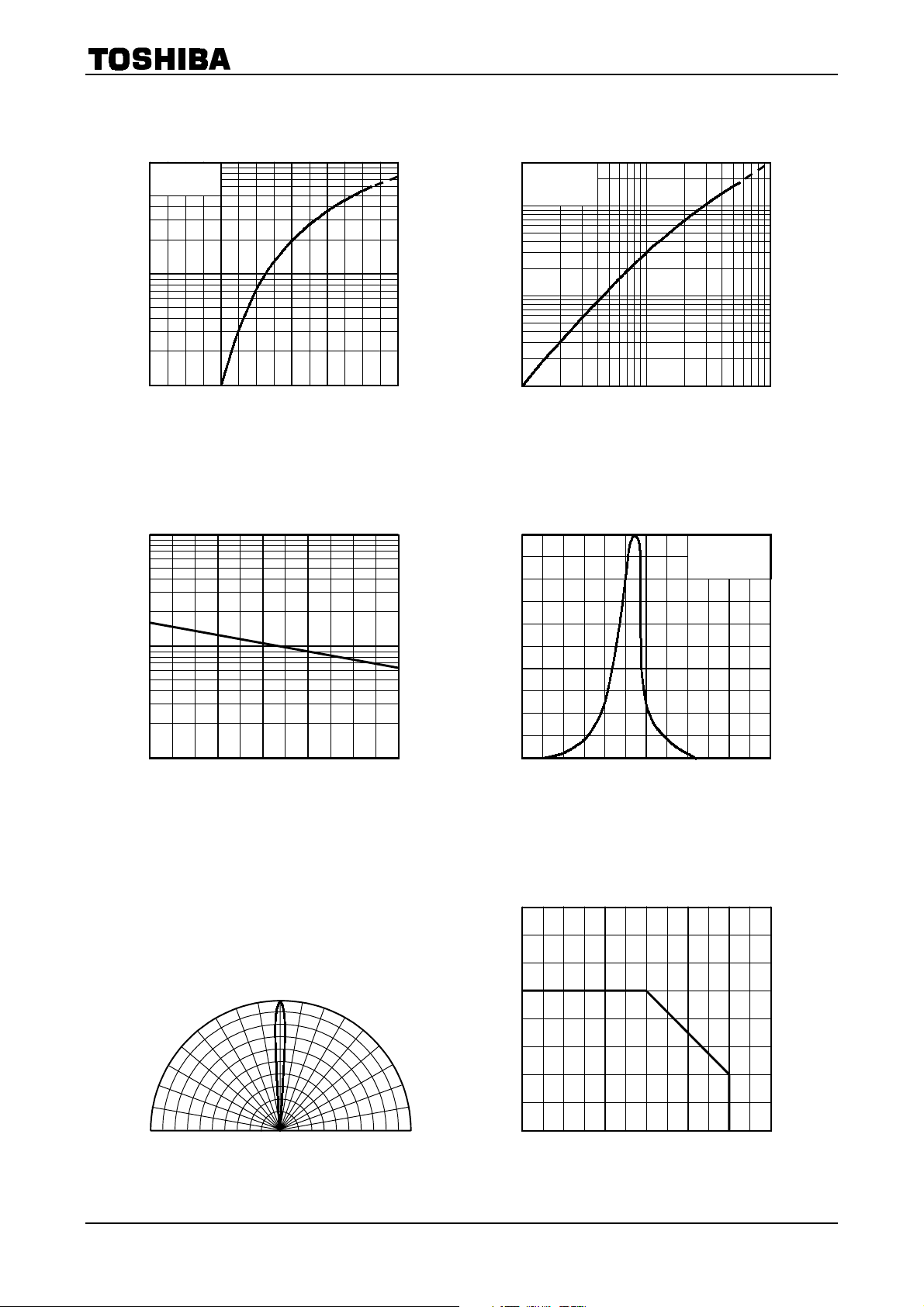

Electrical and Optical Characteristics
Product Name
TLGE23T 571 (574) 17 20 2720 7000 20 2.0 2.4 20 50 4
TLPGE23T 558 (562) 14 20 850 3000 20 2.1 2.4 20 50 4
Unit nm mA mcd mA V mA µA V
Typ. Emission W avelength
λ
λP ∆λ IF Min Typ. IF Typ. Max IF Max VR
d
(Ta ==== 25°C)
Luminous Intensity
Forward Voltage
I
V
VF
Reverse Current
IR
Precautions
Please be careful of the following:
• Soldering temperature: 260°C max, soldering time: 3 s max
(soldering portion of lead: below the lead stopper)
• If the lead is formed, the lead should be formed up to 5 mm from the body of the device without forming stress to
the resin. Soldering should be performed after lead forming.
• This visible LED lamp also emits some IR light.
If a photodetector is located near the LED lamp, please ensure that it will not be affected by this IR light.
2000-06-14 2/4
