Toshiba UL975-46, UL975-32, UL975-40, TL966-40, TL966-46 User Manual

...

Download

TL96* Digital

Series

UL97* Digital

Series

ML96* Digital

Series

Contents

English

INSTALLING YOUR TV

Safety Precautions ............................................................................. 4

Installation and important information ..................................... 5

The remote control ........................................................................... 9

Inserting batteries and effective range ............................ 9

CONNECTING YOUR TV

Connecting external equipment ................................................10

Connecting an HDMI® device ......................................................11

To connect an HDMI device ...............................................11

HDMI’s ARC (Audio Return Channel) feature ...............11

REGZA-LINK connection ................................................................12

Connecting a computer ................................................................13

To connect a PC to the RGB/PC terminal .......................13

To connect a PC to the HDMI terminal ...........................13

Connecting a home network ......................................................14

To connect the TV to a home network - Wired ...........14

To connect the TV to a home network with

an internet connection - Wireless ................................14

To connect the TV to the PC with

Intel® Wireless Display ......................................................14

Controls and input connections .................................................15

Switching on ............................................................................15

Using the menu system .......................................................15

Using the TV controls and connections .........................15

MENU structure ................................................................................16

SETTING UP YOUR TV

Startup Application .........................................................................17

Quick Setup ..............................................................................17

Ant/Cable/Satellite (if available) .......................................20

Satellite Settings .....................................................................21

Auto Tuning .............................................................................23

ATV Manual Tuning .........................................................................24

Tuning ........................................................................................24

Skip ..............................................................................................25

Sorting positions ....................................................................26

DTV Manual Tuning ........................................................................26

Manual Tuning ........................................................................26

Manual Tuning for DVB-C ...................................................27

Manual Tuning for DVB-S ....................................................27

DTV Settings ......................................................................................27

Channels (Antenna/Cable) .................................................27

Channels (Satellite) ................................................................28

Standby Channel Update ....................................................28

Location setting ......................................................................28

Analogue switch-off ............................................................28

CONTROLS AND FEATURES

General controls ............................................................................... 29

Quick Menu ..............................................................................29

Selecting channels ................................................................29

The Time Display – analogue only .................................29

Stereo and Bilingual transmissions .................................29

Using 3D functions ..........................................................................30

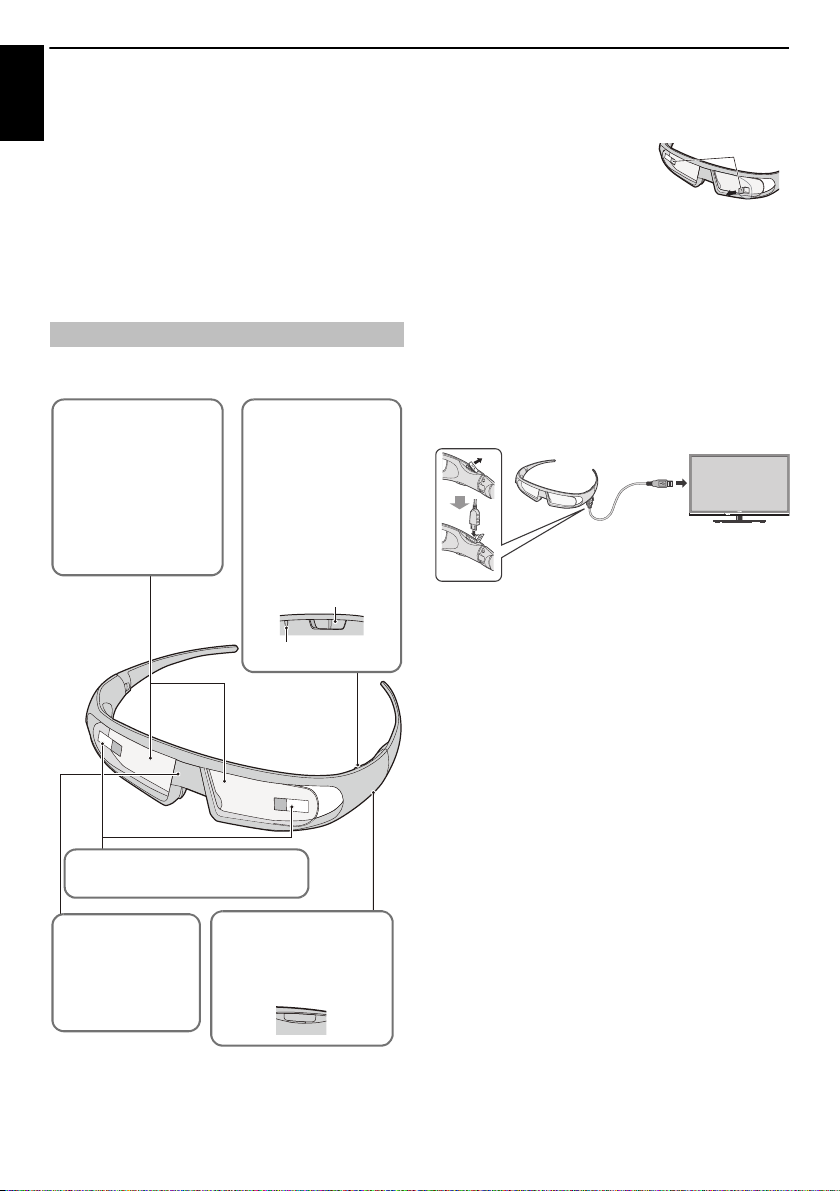

Using the 3D glasses .............................................................30

Viewing 3D images ................................................................ 31

Switching display mode or selecting 3D format ........31

Setting the auto start mode .............................................. 33

Adjusting 2D to 3D Depth ..................................................33

Setting the 3D PIN code ......................................................33

Setting 3D Start Message .................................................... 33

Setting 3D Lock ......................................................................34

Setting 3D Timer Lock .......................................................... 34

Setting Enable 3D Timer .....................................................34

Displaying 3D Important Info ............................................ 34

Switching left and right images .......................................34

Sound controls .................................................................................35

Volume controls and sound mute ...................................35

Dual ............................................................................................. 35

Balance ......................................................................................35

Bass, Treble .............................................................................. 35

Voice Enhancement .............................................................. 35

Dynamic Bass Boost ..............................................................35

Stable Sound® .........................................................................35

Dynamic Range Control ......................................................35

Audio Level Offset .................................................................36

TV Speakers On/Off ............................................................... 36

Headphone Settings .............................................................36

Audio Description ................................................................. 36

Widescreen viewing ....................................................................... 37

Picture controls ................................................................................ 39

Picture Mode ...........................................................................39

Picture preferences ...............................................................39

Reset ...........................................................................................39

ColourMaster ...........................................................................39

Base Colour Adjustment .....................................................40

Colour Temperature .............................................................40

Auto Brightness Sensor .......................................................40

Active Backlight Control ...................................................... 40

Black/White Level ..................................................................40

MPEG NR – Noise Reduction ..............................................40

DNR – Digital Noise Reduction .........................................41

Active Vision ............................................................................41

Resetting the advanced picture settings ......................41

Automatic Format (Widescreen) ......................................41

4:3 Stretch ................................................................................ 41

Blue Screen .............................................................................. 41

Picture Position ...................................................................... 41

Picture still ................................................................................ 41

Using your home network ...........................................................42

Setting up the Network ................................................................. 43

Wireless Setup ........................................................................ 43

Advanced Network Setup .................................................. 45

DNS Setup ................................................................................ 46

Network Connection Test ................................................... 46

Using the software keyboard ............................................47

Network Device Setup ................................................................... 47

External Control Setup ......................................................... 47

Device Name Setup .............................................................. 48

USB HDD Record Function ........................................................... 49

Setting up the USB HDD for recording ..........................49

To record DTV programmes

(One Touch Recording) .................................................... 49

How to set recordings via the Programme Guide .....50

To check, edit or delete scheduling information .......51

To view a recorded programme .......................................52

Operations from the Library screen ................................52

Recording Setup .....................................................................53

Scheduling priority ................................................................55

Using Toshiba Places ......................................................................56

Using Hybrid TV Standard (if available) ...................................56

Using Intel® Wireless Display .......................................................57

Intel® Wireless Display Device Name ..............................57

PC List .........................................................................................57

Using the Media Player ..................................................................58

Basic operation .......................................................................58

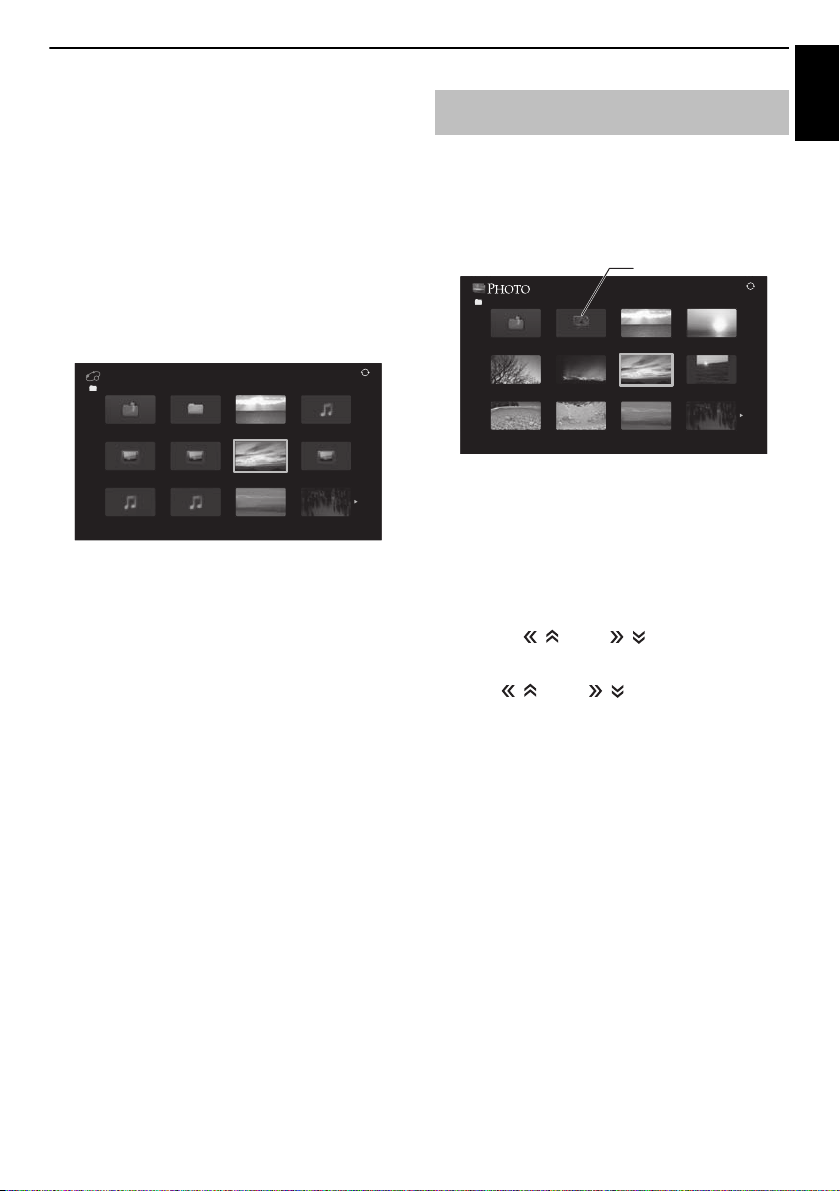

Viewing photo files

(on a DLNA CERTIFIED™ Server or USB device) .......59

Viewing movie files

(on a DLNA CERTIFIED™ Server or USB device) .......61

Playing music files

(on a DLNA CERTIFIED™ Server or USB device) .......64

Other features ................................................................................... 65

Panel Lock .................................................................................65

The timers ...........................................................................................65

Programme Timers – digital only ...................................65

On Timer ....................................................................................66

Sleep Timer ..............................................................................66

Energy Saving Settings ..................................................................67

Automatic Power Down ......................................................67

No Signal Power Down ........................................................67

Digital on-screen information .....................................................67

Information ..............................................................................67

Using EPG (Electronic Programme Guide) ..............................68

Using Broadcast Guide ........................................................68

Genre selection/searching ..................................................69

Using MediaGuide ................................................................69

MediaGuide screen ............................................................... 69

Primary Navigation menu ...................................................69

Digital settings – parental control ............................................70

Parental PIN Setup .................................................................70

Parental Setup .........................................................................71

Network Lock .......................................................................... 71

Digital settings – Channel Options ..........................................71

Selecting favourite channels .............................................71

Favourite Channel List .........................................................71

Skip channels ...........................................................................72

Locking channels ...................................................................72

Digital settings – other settings ................................................72

Subtitles ....................................................................................72

Audio languages .................................................................... 72

Common Interface ................................................................73

Software Upgrade and Licences ................................................73

Searching for New Software ..............................................73

Network Upgrade .................................................................. 73

Software Licences .................................................................. 73

System Information and Reset TV ............................................. 74

System Information ..............................................................74

Reset TV ..................................................................................... 74

PC Settings ......................................................................................... 74

Horizontal and Vertical Position .......................................74

Clock Phase .............................................................................. 74

Sampling Clock .......................................................................75

Reset ...........................................................................................75

Input selection and AV connections ........................................ 75

Input selection ........................................................................ 75

Labeling video input sources ............................................76

Digital Audio Output ............................................................76

Using REGZA-LINK ........................................................................... 77

Enable REGZA-LINK ............................................................... 77

TV Auto Power ........................................................................77

Auto Standby ..........................................................................77

Amplifier Control ................................................................... 77

Initial Speaker Setting ..........................................................77

REGZA-LINK input source selection ................................77

REGZA-LINK one touch play .............................................. 78

REGZA-LINK system standby .............................................78

TEXT SERVICES

Text services ......................................................................................79

Selecting modes ....................................................................79

Text information ....................................................................79

Navigating pages using Auto ............................................79

Navigating pages using LIST .............................................79

Control buttons ......................................................................80

PROBLEM SOLVING

Questions and Answers ............................................................... 81

INFORMATION

License Information ........................................................................ 84

Information ........................................................................................ 86

Specifications and accessories ................................................... 92

English

During the life of your TV firmware updates will be made available to ensure that your TV maintains optimum performance:

USB HDD Recording is supported on this TV, if this functionality is not implemented at time of purchase it will be made available via

*Please note the USB HDD recording feature will not be available in all countries.

Intel® Wireless Display (Intel® WiDi) is supported on this TV, if this functionality is not implemented at time of purchase it will be

If your TV is connected to the internet, firmware will be automatically made available.

If your TV is not connected to the internet, you can download the latest version of firmware from

*Some features are limited due to local legislation and may not be available in all countries

firmware update in mid 2012.

made available via firmware update in mid 2012.

www.toshiba-om.net/firmware.php

INSTALLING YOUR TV

Safety Precautions

English

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products, and some points may not apply to the goods you have just purchased.

Air Circulation

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5°C min. and 35°C max.

Mains Supply

The mains supply required for this equipment is 220240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. Use only the supplied lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. IF IN DOUBT, PLEASE CONSULT A COMPETENT ELECTRICIAN.

DO read the operating instructions before you

attempt to use the equipment.

DO ensure that all electrical connections (including

the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about

the installation, operation or safety of your equipment.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. See page 5.

DO be careful with glass panels or doors on

equipment.

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND ‘LIVE’ PARTS.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Do not

DO NOT obstruct the ventilation openings of the

equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DO NOT allow electrical equipment to be exposed to

dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources,

such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times.

DO NOT use makeshift stands and NEVER fix legs with

wood screws. To ensure complete safety, always fit the manufacturer’s approved stand, bracket or legs with the fixings provided according to the instructions.

DO NOT leave equipment switched on when it is

unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, and make sure your family knows how to do this. Special arrangements may need to be made for people with disabilities.

DO NOT continue to operate the equipment if you

are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen and cabinet back, or push anything into holes, slots or any other openings in the case. These actions will damage screen or internal parts.

NEVER guess or take chances with electrical equipment of any kind - it is better to be safe than sorry.

INSTALLING YOUR TV

Stand style is dependent on model

Sturdy tie (as short as possible)

Stand clip

Fixing strap

Screw (supplied)

Fixing strap

‘P’ Clip

CAUTION: The diameter and length of the screws differ depending on wall bracket model. Use of screws other than the screws specified may result in internal damage to the TV set or cause it to fall, etc.

Place four spacers (supplied).

Screw

Spacer (supplied)

TV back panel

Wall bracket

28–32mm

M6 (32TL/32UL/32ML) M8 (40TL/40UL/40ML and 46TL/46UL/46ML)

Four screws

Installation and important information

Where to install

Locate the television away from direct sunlight and strong lights. Soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place the TV on a stable, level surface that can support the weight of the TV. In order to prevent injury and maintain stability of this apparatus, secure the TV to the level surface using the strap if fitted, or to a wall using a sturdy tie to the P clips provided. Otherwise secure the TV on the level surface using the supplied mounting screw.

The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case.

Avoid using chemicals (such as air refreshers, cleaning agents, etc.) on or near the TV pedestal. Studies

indicate that plastics may weaken and crack over time from the combination effects of chemical agents and mechanical stress (such as weight of TV). Failure to follow these instructions could result in serious injury and/or permanent damage to TV and TV pedestal.

English

Please use a wall bracket appropriate for the size and weight of the LCD TV.

• Two people are required for installation.

• To install a wall-mount from another manufacturer, use the

SPACERS (supplied).

1 Unplug and remove any cables and/or other component

connectors from the rear of the TV.

2 Carefully lay the front of the unit face down on a flat,

cushioned surface such as a quilt or blanket.

3 Follow the instructions provided with your wall bracket.

Before proceeding, make sure the appropriate bracket(s) are attached to the wall and the back of the TV as described in the instructions provided with the wall bracket.

4 Make sure to place the spacers supplied between the

bracket and the back of the TV.

5 Always use the screws supplied or recommended by the

wall mount manufacturer.

When using a Wall Bracket

Removing the Pedestal Stand:

1 Carefully lay the front of the unit face down on a flat,

cushioned surface such as a quilt or blanket. Leave the stand protruding over the edge of the surface.

NOTE: Extreme care should always be used when removing the pedestal stand to avoid damage to the LCD panel.

2 Remove the four screws.

3 Once you have removed all four screws holding the

pedestal stand in place, remove the pedestal stand from the TV by sliding the pedestal stand away from the TV.

INSTALLING YOUR TV

English

Available 3D glasses : Toshiba FPT-AG02G

UL975/TL963RB/ML963RB series : Supplied TL963/TL966 series : Not supplied

• The 3D function has been designed for private use and

entertainment in your home environment. Please note that any commercial use of the 3D function could lead to copyright infringement of authors’ rights. Toshiba asks you to respect the intellectual property rights of third parties.

When using the 3D glasses

About handling the 3D glasses

• Do not leave the 3D glasses or the accessories within the

reach of small children.

Inhaling or swallowing them may cause suffocation or lesions in the stomach wall.

If swallowed, consult a doctor immediately.

• Do not repair, modify, or disassemble the 3D glasses by

yourself.

Doing so may cause a fire or cause you to become indisposed while viewing 3D images.

Contact the Toshiba Call Center for repair of your 3D glasses.

• Do not expose the glasses to excessive heat such as

sunshine, fire, or the like.

About the 3D glasses

• Do not use the 3D glasses if they are not working

properly or broken.

Continuing to use them in such a state may cause injury, eye strain, or indisposition.

Do not use the 3D glasses if they are broken or have any cracks.

• Do not stand or walk while wearing 3D glasses.

You may lose your balance which could result in falls or other accidents.

• Do not wear the 3D glasses for any purpose other than

viewing 3D programming.

3D glasses do not function as sunglasses.

• Do not drop, exert pressure on, or step on the 3D

glasses.

Doing so may damage the glass section, which may result in injury.

Exposing the 3D glasses to liquid or excessive heat may damage the liquid crystal shutter function.

• If your nose or temple turns red, or you feel pain or

discomfort, stop using the 3D glasses.

Such symptoms as above may occur if you keep wearing them for a long time, which may also cause indisposition.

• Be careful not to pinch your fingers in the hinge of the

3D glasses.

Cautions on watching 3D images

• Some viewers may experience a seizure or blackout

when exposed to certain flashing images or lights contained in certain 3D television pictures or video games.

Anyone who has had a seizure, loss of awareness, or other symptoms linked to an epileptic condition, or has a family history of epilepsy, should contact a health care provider before using the 3D function.

• Avoid use of the 3D function when under the influence of alcohol.

• If you are ill or feel ill, you should refrain from viewing 3D images, and consult your health care provider as may be appropriate.

• If you experience any of the following symptoms when viewing 3D video images, stop viewing and contact your health care provider:

Convulsions, eye or muscle twitching, loss of awareness, altered vision, involuntary movements, disorientation, eye strain, nausea/vomiting, dizziness, headaches.

• If you feel eye fatigue or other discomfort from viewing 3D video images, remove the 3D glasses and discontinue use until the condition is eliminated.

• Viewing in 3D may cause dizziness and/or disorientation for some viewers.

Therefore, to avoid injury do not place your TV near open stairwells, balconies, or wires.

Also do not sit near objects that could be broken if accidentally hit.

• When viewing 3D images, always wear 3D glasses.

Watching 3D images without 3D glasses may cause eye strain.

Use specified 3D glasses.

• When watching 3D images, do not wear 3D glasses at an angle and do not lie down.

If you watch while lying down or with the glasses tilted, the 3D effect is lost and it may cause eye strain.

• It is recommended that the viewer’s eyes and 3D glasses are level with the screen.

• If you have prescription eye glasses or contact lenses, wear the 3D glasses over them.

Watching 3D images without appropriate eyewear may cause eye strain.

• If 3D images often appear in double or if you cannot see the images in 3D, stop viewing.

Continuous viewing may cause eye strain.

• Due to the possible impact on vision development, viewers of 3D video images should be age 6 or above.

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised to avoid prolonged viewing without rest.

• Watching TV while sitting too close to the screen for an extended period of time may cause eye strain.

The ideal viewing distance should be at least three times the screen height.

If the 3D PIN number has been forgotten:

Use the Master PIN code of 1276, and then change to a number of your choice. Select 3D PIN from the Preferences / 3D Setup menu to enter PIN.

Notes on handling the 3D glasses’ liquid crystal shutter lenses

• Do not put excessive force on the lenses.

• Do not scratch the surface of the lenses with sharp objects.

• Do not drop or bend the 3D glasses.

Notes on IR communication

• Do not block the IR sensor for 3D glasses on the TV by placing objects in front of it.

• Do not cover the IR sensor on the 3D glasses with stickers or labels.

• Keep the IR sensor on the 3D glasses clean.

• The use of 3D glasses could interfere with other IR communication devices. Other IR communication devices may cause the 3D glasses n ot to work correctly. Use the TV and 3D glasses in a place where they will not interfere with other devices or products.

Notes on watching the TV

• 3D effect and image quality may vary depending upon content quality and display device capability/ functionality/settings.

• If you use any device, such as a mobile phone or mobile wireless device, near the 3D glasses, the 3D glasses may not work correctly.

INSTALLING YOUR TV

• Use the product in the following temperature range; otherwise, the quality of the 3D image or the reliability of the product cannot be guaranteed.

– 3D glasses: 0°C - 40°C (32°F - 104°F) – TV: 0°C - 35°C (32°F - 95°F)

• If you use a fluorescent light, it may flicker depending on the frequency of the light. In this case, reduce the brightness of the fluorescent light, or us e another light. (It is not recommended to watch the TV in a dark room, especially for children.)

• Wear the 3D glasses properly, otherwise you may not see the correct 3D image.

• When not viewing 3D images on this unit, take off the 3D glasses; otherwise, it may be difficult to see the display on other products such as PC, digital clock or calculator, etc.

About the connecting cable

• Use a high-speed and high-quality HDMI cable when you connect a device such as 3D compatible BD player or PC to the TV. When you use a standard HDMI cable, 3D images may not be shown.

English

INSTALLING YOUR TV

English

The digital reception function of this television is only effective in the countries listed in the “Country” section of the “System Setup” menu. Depending on country/area, some of this television's functions may not be available. Reception of future additional or modified services can not be guaranteed with this television.

If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on-screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. It is always advisable to reduce both the brightness and contrast settings.

Very long, co ntinuous use of the 4:3 picture on a 16:9 screen may result in some re tention of th e image at the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer’s warranty. Regular use of other size modes (e.g.: Super Live) will prevent permanent retention.

Please take note

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by: i) Fire;

ii) Earthquake; iii) Accidental damage; iv) Intentional misuse of the product; v) Use of the product in improper conditions; vi) Loss and/or damage caused to the product whilst in the possession of a third party; vii) Any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s

manual;

viii) Any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with

associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

When Using a USB HDD

• The recording function has been designed for private use and entertainment in your home environment. Please note that any commercial use of the recording function could lead to copyright infringement of authors’ rights. Toshiba asks you to respect the intellectual property rights of third parties.

• Before recording to a device connected to the TV, make a test recording and check the recording performance.

• Programmes that are prohibited from copying due to copyright protection cannot be recorded.

• Toshiba shall not be liable for compensation or incidental damages of any kind whatsoever resulting from content that was not properly recorded on the recording device or that was modified or lost.

• Toshiba shall not be liable for damages of any kind whatsoever (breakdown of the recording device, modification or loss of the recorded content, etc.) resulting from malfunction, operating failure or incorrect operation due to combining with another connected device.

• If you connect a USB HDD that has been used with a PC or another TV, only programmes which are recorded using this TV can be playback.

• Turn off the TV power supply before if you disconnect USB HDD.

Not doing so may result in loss of the recorded data or malfunction of the USB HDD.

• Please note that recording on the USB HDD is no longer playable after the TV’s main-board is exchanged during service.

The remote control

2 2

Simple at-a-glance reference of your remote control.

1 2

5 4

16 17

0 2

829

CT-90405

6 7

10 12

13 15

14 19 18 21

23 25

16 To access the “TOSHIBA PLACES” Top Page

When network is not connected, an error message will be displayed.

17 To access Media Player Menu

18 To call up text services

19 To access the analogue or digital Channel List

20 On-screen Menus

21 To display the digital on-screen Programme Guide

22 To page up, down, left or right

23 When using menus, the arrows move the cursor on the screen

up, down, left or right. Press OK to confirm your selection

24 To return to previous Menu

25 To exit menus and applications

26 When in TV mode:

D Analogue time

display

When using Programme Guide:

Z –24 hours z +24 hours CC –1 page cc +1 page

27 Colour buttons: Text and interactive service control buttons

28 Picture still

29 To record DTV programmes

INSTALLING YOUR TV

When in Text mode:

A To reveal concealed

text

B To hold a wanted

page

C To enlarge text

display size

D To select a page

while viewing a normal picture

During Playback:

c To PLAY v To STOP W/w To PAUSE/STEP Z To SKIP-BACK CC To REWIND cc To FAST FORWARD z To SKIP-FORWARD

English

1 For On/Standby mode

2 To select external input sources

3 To select TV Mode (DTV Ant/DTV Cable/DTV Sat/ATV)

4 To switch between 2D and 3D modes

5 Widescreen viewing

s Stereo/bilingual transmissions

7 Digital Subtitles or Analogue TEXT Subtitle pages if available

8 Number buttons

9 Switch the Audio Description On/Off

10 To return to previous channel

11 To alter the TV volume

12 To display on-screen information

To access the index page in Text mode

13 To mute the TV sound

14 To access Quick Menu

15 To change programme positions

To change TEXT pages

Inserting batteries and effective range

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the proper way. Suitable battery types for this remote are AA, IEC R6 1.5V.

Do not combine a used, old

battery types. Remove dead batteries immediately to preven t acid from leaking into the battery compartment. Dispose of them in accordance with instructions on page 85 of this manual.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced, the batteries may need replacing.

battery with a new one or mix

CONNECTING YOUR TV

Satellite dish

LAN port

SCART (EXT 1)

DIGITAL AUDIO OUTPUT

(OPTICAL)

HDMI 4 INPUT

HEADPHONE jack

HDMI 1/2/3 INPUTS

COMPONENT VIDEO/AUDIO INPUT, VIDEO/AUDIO INPUT (Y/L/R) (EXT 2)

RGB/PC INPUT

Media Recorder

Aerial Cable

Power cord

ILLUSTRATION SHOWS 40TL963.

“F-type”

Connecting external equipment

English

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

Aerial cables: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect the aerial to the socket on the rear of the television. If you use a decoder and/or a media recorder, it is essential that the aerial cable is connected through the decoder and/o r through the media recorder to the television.

Satellite cable: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect the LNB from the satellite dish to the SATELLITE ANTENNA socket on the TV. You can receive TV, radio, interactive TV, and HD TV with clear reception.

SCART leads: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connect the media recorder IN/OUT socket to the television. Connect the decoder TV socket to the television.

Before running Auto Tuning, put your decoder and media recorder to Standby.

The RCA sockets alongside the COMPONENT VIDEO INPUT sockets will accept L and R audio signals.

When connecting the VIDEO/AUDIO devices, connect those cables to Y/L/R sockets.

The Digital Audio Output socket enables the connection of a suitable surround sound system.

NOTE: This output is always active.

HDMI® (High-Definition Multimedia Interface) is for use with a DVD decoder or electrical equipment with digital audio and video output. For acceptable video or PC signal formats through the HDMI terminals, see page 87.

NOTE: Although this television is able to connect to HDMI equipment, it is possible that some equipment may not operate correctly.

LAN port is used to connect the TV to your home network. This TV can play digital content stored on a DLNA CERTIFIED™ product with server function.

A wide variety of external equipment can be connected to the back of the television; therefore, the relevant owner’s manuals for all additional equipment must be referred to for exact instructions.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PC.

When the external input mode is s elected while viewing DTV mode, the SCART socket does not output video/audio signals.

o to select between TV, EXT 1, EXT 2,

CONNECTING YOUR TV

HDMI cable

HDMI device

the back of your television

English

Connecting an HDMI® device

The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device.

This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D–compliant consumer electronic devices (such as a set-top box or DVD player with HDMI output). For acceptable video signal formats, see page 87.

NOTE: Supported Audio format: Linear PCM, Dolby Digital (AC-3), sampling rate 32/44.1/48kHz.

To connect an HDMI device

Connect an HDMI cable (type A connector) to the HDMI terminal.

For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo ( ).

• If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this model.

• HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration).

HDMI’s ARC (Audio Return Channel)

feature

This feature enables the audio signal of the TV to be sent to the AV amplifier via the HDMI cable. It will not be necessary to connect a cable from the audio output of the TV to the audio input of the AV amplifier to reproduce the audio received from the tuner of the TV through the AV amplifier.

the back of your television

AV ampliﬁer that supports ARC

HDMI cable

To view the HDMI device video, press the HDMI 1, HDMI 2, HDMI 3 or HDMI 4 mode.

o button to select

CONNECTING YOUR TV

AV amplier Playback device

Playback device

the back of your television

REGZA-LINK connection

English

You can control the basic functions of connected audio/video devices using the television’s remote control if you connect a REGZA-LINK compatible AV amplifier or playback device. For an explanation of setup and operations, see pages 77–78.

For the setup shown above, you will need three HDMI cables.

NOTE:

• If several devices are connected, the REGZA-LINK feature may not operate properly.

• For proper operation, it is recommended that you use HDMI cables with the HDMI Logo ( ).

• This function is available when one PC and one AV amplifier are connected separately. However, it may not operate properly if the PC is connected via the AV amplifier.

Before controlling the device(s):

• After completing the above connections, set the REGZALINK Setup menu as you desire (see page 77).

• The connected devices must also be set. For details, see the operation manual for each device.

• The REGZA-LINK feature uses CEC technology as regulated by the HDMI standard.

• This feature is limited to models incorporating Toshiba’s REGZA-LINK. However, Toshiba is not liable for those operations. Refer to individual instruction manuals for compatibility information.

CONNECTING YOUR TV

English

Connecting a computer

With either an RGB/PC or an HDMI connection, you can watch your computer’s display on the television.

To connect a PC to the RGB/PC terminal

When connecting a PC to the RGB/PC terminal on the television, use an analogue RGB (15-pin) computer cable.

the back of your television

Mini D-sub 15 pin connector

Computer

RGB PC cable (not

supplied)

Conversion adaptor if required (not supplied)

To use a PC, set the monitor output resolution on the PC before connecting it to the television. For acceptable PC signal formats, see page 86.

To display the optimum picture, use the PC setting feature (see page 74).

NOTE:

• Some PC models cannot be connected to this television.

• An adaptor is not needed for computers with a compatible mini D-sub15-pin terminal.

• Depending on the DVD’s title and the specifications of the PC on which you are playing the DVD-Video, some scenes may be skipped or you may not be able to pause during multi-angle scenes.

• A ban d m ay a ppe ar at t he e dg es o f th e s cre en o r p art s of th e picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.

• When PC input mode is selected, some of the television’s features will be unavailable e.g. Colour System in the System Setup menu.

• Some PC models may output unique signals that the television may be unable to detect (see page 86).

• If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

To connect a PC to the HDMI terminal

When connecting a PC to the HDMI terminal on th e television, use an HDMI-to-DVI adaptor cable.

If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector).

the back of your television

Computer

HDMI-to-DVI

adaptor cable

For acceptable PC and video signal formats, see page 87.

NOTE:

• The edges of the images may be hidden.

• If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

CONNECTING YOUR TV

Modem (if available)

Server PC

Router with Hub

the back of your television

Cable or Phone jack

[1] [2]

[2]

[3][2]

Access point (AP)

Wireless LAN router

Modem

TOSHIBA Dual Band WLAN adaptor

the back of your television

Computer

Connecting a home network

English

The LAN port allows your Toshiba TV to connect to your home network. You can use this revolutionary home entertainment networking system to access photo, video and audio files that are stored on a DL NA CER TIF IED ™ s erv er a nd pla y/d isp la y th em o n your TV.

NOTE:

• If you connect to a shared network outside your home, it is advisable to use a router. Always use DLNA CERTIFIED™ products in private network environments. Con nect this TV to the same router as other DLNA CERTIFIED™ products (server).

• If you use a hub or switch to connect the TV to your home network, you may not be able to use the automatic setup and will have to manually set up the network address. See page 45.

• If you use a router with built-in DHCP functionality, use the automatic setup. Manual setup may not work.

• If you connect the TV and PC directly, use a crossover LAN cable.

• Please consult your PC manufacturer about details of PC settings.

• Wireless appliances may interfere with Intel® Wireless Display.

To connect the TV to a home network -

Wired

To connect the TV to a home network

with an internet connection - Wireless

Please refer to “Wireless Setup” section on page 43.

How to use this Dual Band Wireless LAN Adaptor

• If this device is going to be operated in the frequency ran ge of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.

• If this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to 2.4835 GHz in France, it is restricted to indoor use.

• A general authorization is required for using this device outdoors or in public places in Italy.

• This device is NOT ALLOWED to be used in the geographical area wit hin a radius of 20km from the cen tre of Ny-Alesu nd in Norway.

To connect the TV to the PC with Intel®

Wireless Display

PC with Intel® Wireless

Display

[1] Coaxial or telephone cable (depending on your modem typ e)

[2] Standard LAN cable

[3] Do NOT connect a phone jack directly to the TV’s LAN port.

Intel® WiDi

TOSHIBA Dual Band WLAN adaptor

CONNECTING YOUR TV

ILLUSTRATION SHOWS 40TL963.

COMMON INTERFACE The Common Interface is for a Conditional Access Module (CAM). Contact a service provider. The software updating of CI Plus CAM may be automatically executed. At this time, your Recording/Reminder programming will be canceled.

Ambient Light Sensor

RED LED – Standby GREEN LED – Power on

ORANGE LED – Programme timer set (digital only) RED LED – Recording

USB 1 port Media Player/Wireless LAN adaptor ready for a home network

USB 2 port Media Player/Wireless LAN adaptor ready for a home network

Control panel

3D IR

Controls and input connections

A wide variety of external equipment can be connected to the input sockets on the side of the television.

While all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.

English

Switching on

If the RED LED is not lit, check that the mains plug is connected to the power supply and press control; it may take a few moments. The GREEN LED will be lit.

To put the television into Standby, press control. To view the television, press take a few seconds to appear.

For energy saving:

We recommend that you use the television with the factory settings. The factory settings are for energy saving. Unplugging the mains plug will cut energy use to zero for all televisions. This is recommended when the television is not being used for a long time, e.g. when on holiday. Reducing the brightness of the screen will reduce energy use. Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills.

NOTE: Putting the television into standby mode will reduce energy consumption, but will still draw some power.

Press MENU on the remote control to display the menu.

The menu appears as a list of five topics. As each symbol is selected by pressing respective options will appear above.

NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes; however, where some items are not available in a mode, they will appear grayed out.

Using the menu system

C or c on the remote control, its

1 on the remote

1 again. The picture may

1 on the remote

To use the option, press move up and down and press setting.

B and b on the remote control to

C or c to select your desired

Using the TV controls and connections

• To turn on or off the TV, press

• To alter the volume, press + or – . + and – buttons operate as volume up/down as default.

• To alter the programme position, press press

or U.

• To select an external input, press and hold Inputs window appears, and then press appropriate input source.

The Media Player feature provides access to photo, movie and music files stored on a USB storage device that is connected via the USB 1 or USB 2 port or on a network device.

The USB port also has to be used with the “TOSHIBA Dual Band WLAN Adaptor WLM-20U2” in order to access a wireless network.

You must use the TOSHIBA Wireless LAN device to ensure correct operation of this feature. This feature is available only when the “TOSHIBA Dual Band WLAN Adaptor“ is used.

Please always refer to the owner’s manual of the equipment to be connected for full details.

NOTE:

• The USB socket has limited functionality and Toshiba can take no responsibility for damage to other connected equipment.

• Interactive video games that involve shooting a “gun” at an on-screen target may not work with this TV.

p / o once and

p / o until the

or U to select the

CONNECTING YOUR TV

TV Programmes

Media Player

Connected TV

Setup

Function

Genre Search

Guide

Programme

Timers

Library

MENU structure

English

To open the main menu (illustration below) , press MENU on the remote control.

1st Layer 2nd Layer 3rd Layer

Press MENU. Press

TV Programmes

C c / B. Press C c.Press OK. Press BbC c.

Media Player

Connected TV

Function

Setup

Guide Genre Search Programme Timers Library

USB Media Player Network Media Player

Toshiba Places

On Timer Sleep Timer Intel® Wireless Display

Picture Sound Preferences System Setup

Jump to Programme Guide (EPG) Jump to Genre Search Jump to Programme Timers Jump to Library

USB Media Player Menu Network Media Player Menu

Jump to Toshiba Places NOTE: This menu item is subject to

change without notice.

On Timer Menu Sleep Timer Menu Jump to Intel® Wireless Display

Picture Menu Sound Menu Preferences Menu System Setup Menu

SETTING UP YOUR TV

Quick Setup

Country

Germany

Primary Subtitle Language

Turkish

German

German English

Secondary Subtitle Language Primary Audio Language Secondary Audio Language

AutoView

AutoView mode automatically adjusts picture settings to suit ambient light conditions. Do you wish to enable AutoView mode?

Network Setup

Yes

Do you want to configure network setup?

Network Type

Wired

Please select a network type.

English

Startup Application

Before switching on the TV, make sure your decoder/media recorder, if applicable, is in standby. To set up the television, use the buttons on the remote control as detailed on page 9.

Quick Setup

a Press the 1 button. The Menu Language screen will

appear. This screen will appear the first time that the television is switched on and each time Reset TV is selected.

b Press BbCc to select the menu language and

press OK.

c Highlight Country and press C or c to select. The

television is now set to tune the stations for your country.

NOTE:

• The following display menus will differ slightly according to the country you selected.

• If there is not a country that you want to select in the list, select Others.

d Press OK, and the Location screen will appear.

Location

To use the TV for displaying in a store showroom, please select [Store]. [Home] mode is recommended for normal use.

e Press C or c to select Home or Store. For normal

home use, select Home.

f Press OK, and the AutoView screen will appear, press

C or c to select Yes or No.

g Press OK, and the Network Setup screen will appear.

Press

C or c to select Yes or No.

• When you select No, skip to step 15.

Home

h Press OK, and the Network Type screen will appear.

Press

C or c to select Wired or Wireless.

• When you select Wired (LAN cable connection), skip to step 12.

• When you select Wireless (USB WLAN adaptor connection), follow step 9.

NOTE: If the USB WLAN adaptor is not connected, Network Type screen does not display and skip to

step 12.

i Press OK, and the Wireless Setup screen will appear.

Press

C or c to select the Wireless Setup type.

• Assisted Setup - follow step 10. Input the Security Key only.

• Manual Setup, skip to step 11. Input the all settings.

Wireless Setup

Please select a kind of wireless network.

Assisted Setup

NOTE: EXIT is available during settings.

j In step 9, when you select Assisted Setup;

Press OK, and the Assisted Setup screen will appear. Press

B or b to select the desired AP and press OK.

NOTE: Check the MAC address on the label of the AP

or in the manual, and select your AP.

B or b to select Security Key and press OK.

Press The Software Keyboard window will appear (page 47). Input the Security Key by using the Software Keyboard. To save your setting, press the BLUE button.

NOTE:

• The Security Key must adhere to these conditions:

- TKIP/AES: 8-63 ASCII or 64 Hex characters

- WEP: 5 or 13 ASCII or 10 or 26 Hex characters

• There is only one key ID to set for WEP encryption.

B or b to highlight Done and press OK.

Press

NOTE:

• If Network Name is not displayed, see Manual Setup below to set Network Name before pressing Done.

•If BACK is pressed before Done is selected, settings are not saved.

When the message “Wireless configuration is complete.” appears on screen, press OK. The screen will skip to step 12.

SETTING UP YOUR TV

IP Address Setup

Auto Setup

Default Gateway

Subnet Mask

IP Address

00:11:22:33:44:55

DNS Setup

Auto Setup

Secondary DNS Address

MAC Address

Primary DNS Address

XXX . XXX . XXX . XXX

255 . 255 . 255 . 0

0 . 0 . 0 . 0

255 . 255 . 255 . 0

0 . 0 . 0 . 0

Advanced Network Setup

k In step 9, when you select Manual Setup;

English

Press OK, and the Manual Setup screen will appear. Press

B or b to select Network Name and press OK.

The Software Keyboard window will appear (page 47). Input the Network Name by using the Software Keyboard. To save your setting, press the BLUE button.

Press

B or b to select Authentication and then press

C or c to select Open System, Shared Key, WPA-

PSK or WPA2-PSK.

B or b to select Encryption, and then press C

Press or

c to select None, WEP, TKIP or AES.

NOTE:

• Certain encryption types are only compatible with specific authentication types.

- When Authentication is Open System, only WEP

or None is compatible.

- When Authentication is Shared Key, only WEP is

compatible.

- When Authentication is WPA-PSK or WPA2-PSK,

only TKIP or AES is compatible.

• When incompatible Authentication/Encryption pairings are detected, a warning message will be displayed, and no connection attempt will be made until the incompatibility is resolved.

• There is only one key ID to set for WEP encryption.

B or b to select Security Key and press OK.

Press Input the Security Key by using the Software Keyboard (page 47). To save your setting, press the BLUE button. This item is grayed out when Encryption is None.

When Encryption is WEP, Key ID setting is available. Press

B or b to select Key ID and press C or c to

select 1(default), 2, 3 or 4.

Press

B or b to select Done and press OK.

When the message “Wireless configuration is complete.” appears on screen, press OK.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

l The Advanced Network Setup screen will appear.

When the DHCP function of the router connected with this TV is On, you can set Auto Setup to On or Off. (This should usually be set to On.) Whe n the DH CP fun ction o f the r outer i s Off, set Auto Setup to Off, and set the IP Address DNS address(es) manually.

You can view the fixed MAC address for the TV and for the Dual Band WLAN Adaptor, if one is installed.

Press

B or b to select Next.

m Press OK, and Network Connection Test will start.

A message will appear to indicate if the connection was successful or it could not be completed.

Network connection was completed successfully.

NOTE: The result of Network Connection Test does not always guarantee the connection.

To cancel the Network Connection Test:

Press BACK while searching for the Internet connection.

SETTING UP YOUR TV

Ant/Cable/Satellite

Cable Satellite

Antenna

Auto Tuning - Antenna

Progress Found

ATV Tune Waiting...

: C7Channel

DTV Tune 3 % 2

English

n Press OK. If your country supports Network Guide,

The Guide Type screen will appear.

Guide Type

Please select Guide Type.

Broadcast Guide

C or c to select Broadcast Guide or

Press

MediaGuide.

NOTE: If you select MediaGuide, it may take time to

access the Guide screen depending on active channel numbers.

o Press OK. If the Ant/Cable/Satellite screen appears,

press

B or b to select Antenna, Cable or Satellite

and then press OK to check ( ).

If DVB-C is not supported in your area, Cable will not be displayed.

• When you select Antenna or Cable, follow steps 16 to 19.

• When you select Satellite, skip to step 20.

• When you select Antenna (or Cable) and Satellite, the Satellite Settings startup screen will appear automatically after completing the Antenna (or Cable) scan and pressing OK.

p Select Next and press OK. The Auto Tuning start up

screen will appear with the option to select between DTV and ATV, DTV or ATV if available. Use select the appropriate mode.

C or c to

q Press B or b to highlight Start Scan, and then press

OK.

The television will start to search for available DTV and/or ATV channels. The progress bar will indicate the scan status.

You must allow the television to complete the search.

When the search is complete, the television will automatically select channel one.

The Auto Tuning screen will display the total number of services found.

r Press C or c to view the DTV (digital channel) or ATV

(analogue channel) lists.

s Use B or b to move through the list to select a

channel, and then press OK to view.

In ATV mode, some areas may receive duplicate stations. There may not be a clear picture or the signal may be weak, so the station order can be changed using ATV Manual Tuning.

REMEMBER: Press TV at any time to select between ATV and DTV modes.

NOTE: The time will be set automatically by

transmission but can be advanced or decreased by using Local Time Setting in the DTV Settings screen.

SETTING UP YOUR TV

SatelliteNo. Dish LNB

ASTRA 19.2˚E

Satellite Settings

Transponder: 1/85 (10729 MHz) Dish Type: Fixed Lower LOF: 9750 Upper LOF: 10600

Switch Type

None

LNB Power

Done

Positioning

Signal Level 30%

Go to Stored Position

Store Position

Transponder

1/83 (10743 MHz H)

Positioning

Go to 0

Satellite : ASTRA 19.2°E

Step Size

PLEASE NOTE

Auto Tuning - Satellite

Start Scan

Satellite

Free to Air

ASTRA 19.2°E

Search Option

T Select Next and press OK. The Satellite Settings

English

screen will appear. From this window, you can add the satellites that you wish to tune and configure detailed settings for each one individually. For further information, visit www.Toshiba-om.net

Highlight Done and press OK.

u If your satellite dish is movable, the following

Positioning screen will appear.

B or b to highlight Positioning, and then press

Press

C or c to find the dish position with the strongest

signal level.

Press

B or b to highlight Store Position and press

OK to store the dish position. Repeat steps 20 and 21

for the next satellite as necessary.

If your satellite dish is not movable, the Positioning screen will not appear.

Adjust the dish position manually for the maximum Signal Level strength.

Highlight Done and press OK.

v If the reception testing completes successfully, the

Auto Tuning startup screen will display.

You can select Search Option between Free to Air and All.

w Press B or b to highlight Start Scan, and then press

OK.

The television will start to search for available DVB-S channels. The progress bar will indicate the scan status.

When the search is complete, the Auto Tuning results screen will display the total number of services found.

x Use B or b to move through the list to select a

channel, and then press OK to view.

The Quick Setup menu can also be accessed at any time from the Setup/System Setup menu.

Ant/Cable/Satellite (if available)

From this menu, you can set the RF input configuration.

a Press MENU / C c to highlight Setup icon.

b Press B / Cc to highlight System Setup icon and

press OK.

c Press b to select Ant/Cable/Satellite and press C or

c to select Antenna, Cable or Satellite.

NOTE: When you attempt to change the Ant/Cable/ Satellite setting, a warning message will appear

followed by PIN entry (if PIN has been set) and a prompt for Auto Tuning.

SETTING UP YOUR TV

Auto Tuning

DTV and ATVTuning Mode

DTV

OthersOperator Selection

Quick ScanScan Type

AutoStart Frequency AutoEnd Frequency AutoModulation AutoSymbol Rate AutoNetwork ID

Start Scan

English

d When Ant/Cable/Satellite is set to Cable, the

following setting options will be provided in the Auto Tuning screen.

Press

B or b to select an item and press C or c to

select your desired option.

With the exception of DTV Scan Type and DTV Modulation items, all of the following items will have 2 operating modes. The first is Auto where the values for each item are preset by the system. The second is an Input mode where you will be able to enter a single value in place of the pre-set value. If no channel is currently tuned and the Input state is chosen, a system default value will be shown. However, if a channel is currently tuned when the item is accessed, the value of the current channel will be displayed.

Operator Selection:

You can choose the Cable operator depending on the

Country you set.

DTV Scan Type:

This item determines whether a Quick Scan or a Full Scan will be executed. The Quick Scan is a simplified version of the Full Scan that is designed to complete in less time.

DTV Start Frequency:

This sets the frequency from which the scan will begin.

DTV End Frequency:

This sets the frequency at which the scan will end.

DTV Modulation:

You can choose from five QAM modulation settings.

DTV Symbol Rate:

This is the baud rate (KS/s) of the scan.

DTV Network ID:

This is the Network ID to be utilized for the scan. This item is grayed out when DTV Scan Type is set to “Full Scan”.

Satellite Settings

From the System Setup menu, you can add the satellites that you

wish to tune and configure detailed settings for each one

individually.

To add a satellite:

a Press MENU / C c to highlight Setup icon.

b Press B / Cc to highlight System Setup icon and

press OK.

c Press b to select Satellite Settings and press OK.

Satellite Settings

Switch Type LNB Power

Transponder: 1/85 (10729 MHz) Dish Type: Fixed Lower LOF: 9750 Upper LOF: 10600

SatelliteNo. Dish LNB

ASTRA 19.2˚E

1 2 3 4

Done

None

d Press b to highlight a new line to add an another

satellite and press OK.

e Press b until the required satellite is displayed and

press OK.

To delete a satellite:

a In the Satellite Settings menu, press B or b to select

the satellite you want to delete.

b Press the RED button. A confirmation window will

appear.

c Press C or c to select Yes and press OK.

NOTE: It is not possible to delete position No.1.

SETTING UP YOUR TV

ASTRA 19.2˚E

111

83 0 H 0 S

83 1231 H 22000 S2

Dish Settings

Dish Type

Fixed

Dish : 1

To edit the satellite settings:

English

a In the Satellite Settings menu, press B to highlight

Switch Type.

b Press C or c to select None, ToneBurst, DiSEqC

2way or DiSEqC 4way as your satellite switch type.

c Press b to highlight LNB Power and press C or c to

select On or Off.

To add a transponder:

a In the Satellite Settings menu, press B or b to

highlight the line you want to edit and press OK.

b Press the GREEN button. The Transponder Settings

screen will appear.

Transponder Settings

Frequency Polarisation

1 10743 H 2 10773 3 10788 4 10817 5 10832 6 10847 7 10861 8 10876

H V V H V H V

Symbol Rate

22000 22000 22000 22000 22000 22000 22000 22000

c Press B to highlight a new line.

Transponder Settings

Frequency Polarisation

76 12640 H 77 12662 78 12669 79 12692 80 12699 81 12721 82 12728 83

H V H V H V

Symbol Rate

22000 22000 22000 22000 22000 22000 22000

S/S2

S S S S S S S S

S/S2

S S S S S S S

To delete a transponder:

a In the Transponder Settings menu, press B or b to

highlight the line you want to delete.

b Press the RED button.

To edit the Transponder Settings:

a In the Transponder Settings menu, press B or b to

highlight the line you want to edit and press OK.

b Press C or c to select Frequency, Polarisation,

Symbol Rate or S/S2, and set the item using the

number buttons if necessary.

c Press OK to save your settings.

d Repeat steps 1 through 3 for other lines.

e Press the BLUE button to finish editing and return to

Satellite Settings.

Press the GREEN but ton to c ancel any edi ts tha t were made.

Press the YELLOW button to reset all transponder settings to their initial default settings.

To select the Dish Type:

a In the Satellite Settings menu, press B or b to select

the required satellite line and press OK.

b Press C or c to highlight Dish and press the GREEN

button.

c Press C or c to select Dish Type. You can select

Movable or Fixed as the Dish Type.

Press OK.

Edit each parameter as required and press OK.

To select the LNB Settings:

LNB Settings

Lower LOF

9750

LNB : 1

Upper LOF

10600

a In the Satellite Settings menu, press B or b to select

the required satellite line and press OK.

b Press C or c to highlight LNB and press the GREEN

button.

c Press B or b to select Lower LOF or Upper LOF and

input the appropriate frequencies.

Auto Tuning

NOTE: As new services are broadcast, it will be necessary to re-tune the television in order to view them.

Auto Tuning will completely re-tune the television and can be

used to update the channel list. It is recommended that Auto

Tuning is run periodically to ensure that all new services are

added. All current channels and settings, i.e. locked channels,

will be lost.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight System Setup icon and

press OK.

c Press B or b to select Auto Tuning and press OK.

System Setup

Menu Language

Country Ant/Cable/Satellite Satellite Settings Auto Tuning

ATV Manual Tuning

DTV Manual Tuning

DTV Settings

English

Germany

SETTING UP YOUR TV

d For DTV/ATV Tuning:

Press

C or c to select Yes and press OK.

Auto Tuning - Antenna

DTV and ATVTuning Mode

Start Scan

Press

C or c to select DTV and ATV, DTV or ATV, if

available, then highlight Start Scan and press OK to continue with the Auto Tuning.

NOTE: If you have selected “Others” for the Country field in the Setup menu, and selected a tuning mode other than “DTV” , choose the optimum ATV broadcasting system (B/G, I, D/K or L).

The television will start to search for all available DTV and/or ATV services.

You must allow the television to complete the search.

When the search is complete, the Auto Tuning screen will display the services found.

For Satellite Tuning:

Press

C or c to select Yes and press OK.

Auto Tuning - Satellite

Satellite

Search Option

Press

B or b to highlight Satellite and press C or c

to select the desired satellite (No.1 Sat ~ No.4 Sat or All).

You can select Free to Air or All as the Search Option. Highlight Start Scan and press OK to continue with the Auto Tuning.

When the search is complete, the Auto Tuning screen will display the services found.

Start Scan

ASTRA 19.2°E

English

Free to Air

e Press B or b to move through the list to select a

channel and press OK to view.

SETTING UP YOUR TV

Pos. Channel Station

ATV Manual Tuning

2 3 4

6 7 8

S10

S40 C22

C25 C28 C30

ATV Manual Tuning

System

ATV Manual Tuning

English

Tuning

The television can be tuned-in manually using ATV Manual

Tuning. For example, you might use the feature if the television

cannot be connected to a media recorder/decoder with a SCART

lead or when you want to tune-in a station on another System.

C and c to move across the screen and select any of the

Use ATV Manual Tuning options. Then use settings.

ATV Manual Tuning

System

123 4 65 7 8 9

1 Position

The number to be pressed on the remote control to tune the channel.

2 System

Specific to certain areas.

3 Colour System

Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.

4 Skip

Set Skip to On ( See page 25.

5 Signal Class

The channel classification.

6 Channel

The channel number on which a station is being broadcast.

7 Search

Search up and down for a signal.

8 Manual Fine Tuning

Only used if interference/weak signal is experienced. See page 81.

9 Station

Station identification. Use the enter up to seven characters.

To allocate a position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder, press PLAY and manually tune.

8) or Off (() for the selected channel.

B or b to adjust the

CVR

B b and C c buttons to

a In the System Setup menu, press b to select ATV

Manual Tuning and press OK.

System Setup

Menu Language

Country Ant/Cable/Satellite Satellite Settings Auto Tuning ATV Manual Tuning

DTV Manual Tuning

DTV Settings

English

Germany

b Use B or b to select the desired position. We suggest

Pos. 0 for a media recorder.

Different Channel numbers may be displayed.

c Press OK to select. If the channel chosen for the media

recorder is set to skip, Skip should be removed before storing.

d Press c to select System and press B or b to change

if required.

e Then press c to select Search.

f Press B or b to begin the search. The search symbol

will flash.

SETTING UP YOUR TV

PLEASE NOTE

ATV Manual Tuning

Station

CVR

Pos. Channel Station

ATV Manual Tuning

2 3 4

6 7 8

S10

S40 C22

ABC1 ABC1

C25 C28 C30

ATV Manual Tuning

Skip: On

English

g Each signal will show on the television. If it is not your

media recorder, press search.

B or b again to restart the

h When your media rec order si gnal is fo und, pres s c to

move along to Station. Use the required characters, e.g. VCR.

B, b, C and c to put in

i Press OK to save.

j Repeat for each position you want to tune.

k Press EXIT when you have finished.

This television has direct channel entry if the channel numbers are known. Select the ATV Manual Tuning screen in Step 3. Enter the Position number, the System, then C for standard (terrestrial) channels or S for cable channels and the Channel number. Press OK to save.

Skip

To prevent certain channels from being viewed, positions can be

skipped.

a Select ATV Manual Tuning from the System Setup

menu.

b Use B or b to highlight the position to be skipped

and press OK to select.

c Press c to select Skip.

d Use B or b to turn Skip on.

Press OK.

8 on the screen indicates a skipped position.

e Press EXIT and repeat steps 1 through 4 to set other

positions if necessary.

Each position has to be individually selected. To turn Skip off, repeat the procedure for each position.

Skipped positions cannot be selected by P or by the controls on the television but can still be accessed by the number buttons on the remote control.

U and Pu

SETTING UP YOUR TV

Pos. Channel Station

ATV Manual Tuning

2 3 4

6 7 8

S10

S40 C22

ABC1 ABC1

C25 C28 C30

Pos.New TypeName

ABC ONE

0 New Channels - Total 6

ABC TWO ABC THREE ABC NEWS 24

DTV Manual Tuning - Antenna

ABCi

English

Channels may be moved and saved to the position of your

Sorting positions

choice.

a Select ATV Manual Tuning from the System Setup

menu.

b With the list of channels showing, use B or b to

highlight the channel you want to move and press

c Use B or b to move through the list to your preferred

position. As you do so, the other channels will move to make room.

d Press C to save your move.

Repeat as necessary and press EXIT.

DTV Manual Tuning

NOTE: This feature varies depending on the Ant/Cable/ Satellite setting.

Manual Tuning

This feature is available for service engineers or can be used for

direct channel entr y if the multiplex channel is known.

a Select DTV Manual Tuning from the System Setup

menu and press OK.

DTV Manual Tuning - Antenna

Signal Strength Quality

Channel Frequency Bandwidth

WEAK

GOOD

Start Scan

b Enter the multiplex number using the number

buttons or use down.

C or c to adjust the number up or

c Highlight Start Scan and press OK. The television will

automatically search for that multiplex.

STRONGAVERAGE

842.0 MHz 8 MHz

When the multiplex is found, any channels that are not currently in the channel list will be added and the channel information at the top of the screen will be updated.

d Repeat as necessary. Press EXIT to finish.

SETTING UP YOUR TV

DTV Manual Tuning - Satellite

WEAK

Signal Strength Quality

Satellite

POOR

Start Scan

STRONGAVERAGE

ASTRA 28.2°E

Transponder

1/83

Frequency

10714 MHz

Symbol Rate

22000 KS/s

Polarisation

Search Option

Free to Air

DTV Settings

Channels

Parental PIN Setup

Subtitle and Audio

Parental Control

Local Time Setting Standby Channel Update Common Interface

Channels Antenna TV

1ABC ONE

2 ABC TWO

Pos. Name

7 ABC THREE 30 CABC Channel 40 ABC NEWS 24 51 ABCi

822 AA 823 AC

Line No. 1/10

English

Manual Tuning for DVB-C

When Ant/Cable/Satellite is set to Cable, DTV Manual Tuning items are as follows:

Frequency: Input a specific frequency to be scanned

Modulation: Choose from one of five QAM modulation

options

Symbol Rate: Input a specific baud rate (KS/s) to be used for the manual scan

Highlight Start Scan and press OK.

Manual Tuning for DVB-S

When Ant/Cable/Satellite is set to Satellite, DTV Manual Tuning items are as follows:

B or b to highlight an item (Satellite, Transponder,

Use Frequency, Symbol Rate, Polarisation or Search Option)

C or c to select the required option.

and press

Highlight Start Scan and press OK.

DTV Settings

Channels (Antenna/Cable)

The channel order may be changed to suit your personal

a Select DTV Settings from the System Setup menu

and press OK.

b Select Channels and press OK.

c For your convenience, you can jump to specific places

in the list by one of two methods.

preference.

Line Number Jump —Use the number buttons

(0-9) to input the line number you want to select and press OK.

It is also possible to change the Position number of a particular channel.

Renumber —Press the RED button to renumber

the highlighted channel. Edit the channel number using the number buttons and press OK. If the position number you input already exists, a confirmation window will appear.

Pos. Name

ABC ONE

SETTING UP YOUR TV

Channels Antenna TV

1 ABC ONE

2 ABC TWO

Pos. Name

7 ABC THREE 30 CABC Channel 40 ABC NEWS 24 51 ABCi

822 AA 823 AC

Line No. 1/10

Channels

Line No. 3/20

Satellite TV

1 DDD 19.2°E

Pos. Name Satellite

822 AA 823 AC

2AB

3E 801 BBC 802 BB 803 BA

25.6°E

19.2°E

22.5°E

English

Move feature. Press the channel you wish to move and press OK to check. If you wish to move multiple channels at once, select another channel and check in the same way. Repeat as necessary. Once all desired channels have been checked, press the

B or b buttons to place the focus at the position

to which you wish to move the channels. The channels will be inserted above the highlighted channel. Press the GREEN button to execute the move.

B or b buttons to select the

Position No. Sort — Press the YELLOW button. A

Move — Press the GREEN button to activate the

confirmation window will appear. Press select Yes and press OK.

Your existing channel order will be lost. Do you wish to continue?

Yes

Channels (Satellite)

a Select DTV Settings from the System Setup menu

and press OK.

b Select Channels and press OK.

The satellite channel list will appear.

C or c to

c For your convenience, you can edit and sort your

channel list.

Line Number Jump —Press the number buttons

(0-9) to input the line number you want to select and press OK.

Satellite Jump —Press Z or z to jump to the

next channel on a different Satellite.

Renumber — Same as Antenna/Cable channels.

See page 27.

Move — Same as Antenna/Cable channels. See

page 28.

Position No. Sort —Press the YELLOW button. A

confirmation window will appear. Press select Yes and press OK.

Standby Channel Update

If the Standby Channel Update is set to On, when the TV is in

standby mode, Digital Tuning is automatically executed.

a Select DTV Settings from the System Setup menu

and press OK.

b Press b to select Standby Channel Update and

press

C or c to select On.

Location setting

You can select either Home or Store mode. Home is

recommended for normal home use. Select Store when using

the television for displaying in a shop, etc.

a Select Location from the System Setup menu.

b Press C or c to select Home or Store.

Analogue switch-off

This is a digital tel evisi on whic h is in tegrat ed to al low th e use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.

This ‘switch-off’ will happen in a number of phases, which will be adve rti sed in y our a rea wel l in adva nce . It is r ecom men ded that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption.

C or c to

CONTROLS AND FEATURES

Quick Menu

Picture Size

Picture Mode AutoView

Super Live

Sleep Timer

3D Settings

Channel Options

Headphone Level

00:00

Speakers

TV Speakers

More Information

English

General controls

Quick Menu

Quick Menu helps you access some options quickly, such as Picture Mode, Picture Size, More Information, Sleep Timer

etc.

Press QUICK to display the Quick Menu and use select the option.

NOTE: Quick Menu items are different depending on the current mode.

Quick menu item example

Mode Quick menu item Description

When viewing a TV programme or pictures from the external input

Single Window or 3D Single Window

When using EPG Genre Colour See page 69.

USB Media Player (Photo Single View, Slide Show)

Picture Mode See page 39.

Picture Size See page 37.

3D Settings See page 32.

More Information See page 68.

Channel Options See page 71.

Sleep Timer See page 66.

Speakers See page 77.

Headphone Level See page 36.

Wireless Information See page 44.

Picture See page 39.

3D Settings See page 32.

Sound See page 35.

Interval Time See page 60.

Repeat See page 60.

Background Music See page 60.

Play List See page 61.

Sleep Timer See page 66.

Speakers See page 77.

Headphone Level See page 36.

B or b to

Selecting channels

To select a channel, use the numbered buttons on the remote control.

Channels can also be selected using P

To display on-screen information such as channel, input mode or stereo/mono signal, press . Press again to cancel.

U and Pu.

The Time Display – analogue only

The time display facility allows the current (text service) time to

Press to see the time display from the broadcaster. It will remain on screen for about 5 seconds.

NOTE: This display may not be available in some cases.

be seen on the television screen.

D whilst watching a normal television broadcast

Stereo and Bilingual transmissions

For DTV programmes

For ste reo or d ual m ono bro adc asts , pr ess s and use C or

c to select settings.

Mode Display Pressing c

Stereo Stereo S Left S Right

Dual mono Dual 1

Mono –

Multichannel –

For multi-audio track broadcasts, press change the audio language (see “Audio languages” on page 72).

For ATV programmes

If stereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time channels are changed, disappearing after a few seconds. If the broadcast is not in stereo, the word Mono will appear.

Stereo… Press

Bilingual… Bilingual transmissions are rare. If they are

transmitted, the word Dual will be displayed. Choose the required programme number, and if the word Dual appears, press

s to select Stereo or Mono.

s to select Dual 1, Dual 2 or Mono.

S Dual 2 S Dual

s repeatedly to

CONTROLS AND FEATURES

Power switch and power light

Turns on or off the power of 3D glasses with the switch. – When working, the

power light blinks once every 2 seconds.

– When the power is

turned off, the power light goes out.

Power switch

Power light

OFF

Protective films

Peel these off before beginning use.

Infrared reception part

Receives the infrared signal for the liquidcrystal shutter control sent from the television.

Lens (liquid-crystal shutter)

A right and left liquidcrystal shutter opens and closes alternately with the images for the left eye and for the right eye alternately projected on the television screen. In this way, 3D images are reproduced.

USB terminal

When charging the battery, connect to the TV with the battery charge cable.

DC IN

Peel off

USB

Using 3D functions

English

Before using 3D programming, see and follow “When using the 3D glasses” section on page 6.

Viewing 3D programming requires the following:

• 3D glasses: Toshiba FPT-AG02G UL975/TL963RB/ML963RB series : Supplied TL963/TL966 series : Not supplied

• Compatible 3D playback device or 3D source

• 3D capable high quality HDMI cable

Using the 3D glasses

Names and functions

To set the 3D glasses:

a When you use for the first

time, peel off the protective films from the lenses.

b Turn the 3D glasses on

with the power switch.

NOTE: If the infrared data communication between the television and 3D glasses is lost for 5 minutes, the 3D glasses turn off automatically to preserve battery life.

To charge the battery:

If the 3D glasses are turned on while the battery power is low, the power light will blink 5 times. (If the battery is dead, the power light will not blink or light.)

a Turn the 3D glasses off with the power switch, and

connect to the TV with the battery charge cable.

NOTE:

• If the 3D glasses are turned on, the battery will not charge.

• When the TV is turned off or in standby mode, the battery will not charged.

• When charging the battery the use of a USB cable other than the battery charge cable supplied is not covered by warranty.

b The power light will Light up. c When the light goes out, the charging is completed.

NOTE:

• It takes approximately two hours to charge the battery.

• If the usage time is extremely short even after the battery has been charged fully, the battery may be worn out. Contact your dealer.

To check the battery level:

When the 3D glasses are turned on, the behavior of power light is different.

• Charged: Lights up for 2 seconds

•Low charge:Blinks 5 times

CAUTION: Danger of explosion if battery is incorrectly disposed of.

Viewing 3D images Switching display mode or selecting 3D

Trigger of Switching

Display Mode

Press 3D button

Input Signal

Type Additional

Information

Format Source

Signal

Select 3DSelect

2D to 3D

3D Format Signal

With 3D Auto Detect Information

SBS

Without 3D Auto Detect Information

SBS

2D Format Signal

DD3

Incoming video signals can either be in 2D or 3D format. A 2D signal can be viewed in either 2D or 3D, and 3D can be viewed in either 2D or 3D. If the TV can detect the fact that a signal is 3D, it

can change to 3D mode automatically – see “Setting the auto start mode” (on page 33). Otherwise you can change the viewing

mode using the 3D button. Finally, the format of the 3D signal

can be either Side by Side (SBS) or Top and Bottom (TB). You may

have to choose the correct format if the TV can not detect it

automatically – see “Switching display mode o r selecting 3D

Moreover, you can change 2D images to 3D images by pressing

NOTE:

• When 3D format signal is not received, display mode is not

the 3D button when viewing in 2D.

switched to 3D.

• If appropriate mode and format are not selected, 3D image

is not correctly displayed.

• There will be restrictions on the Picture Size settings for 3D

Mode and 2D Mode.

• There are individual differences in perception of 3D images.

• When viewing 3D images, wear the 3D Glasses.

• The 2D to 3D conversion function is activated and

controlled by you according to your personal preferences.

• T he 2D to 3 D co nver sio n fu ncti on i s me ant for e njo ymen t of

2D home video, and other 2D content you create, in 3D according to your personal preferences.

• The 2D to 3D conversion function is not intended for use

with pre-recorded 2D copyrighted content owned by a third-party unless the copyright owner has given direct or indirect permission, or unless applicable law permits such use.

format”.

CONTROLS AND FEATURES

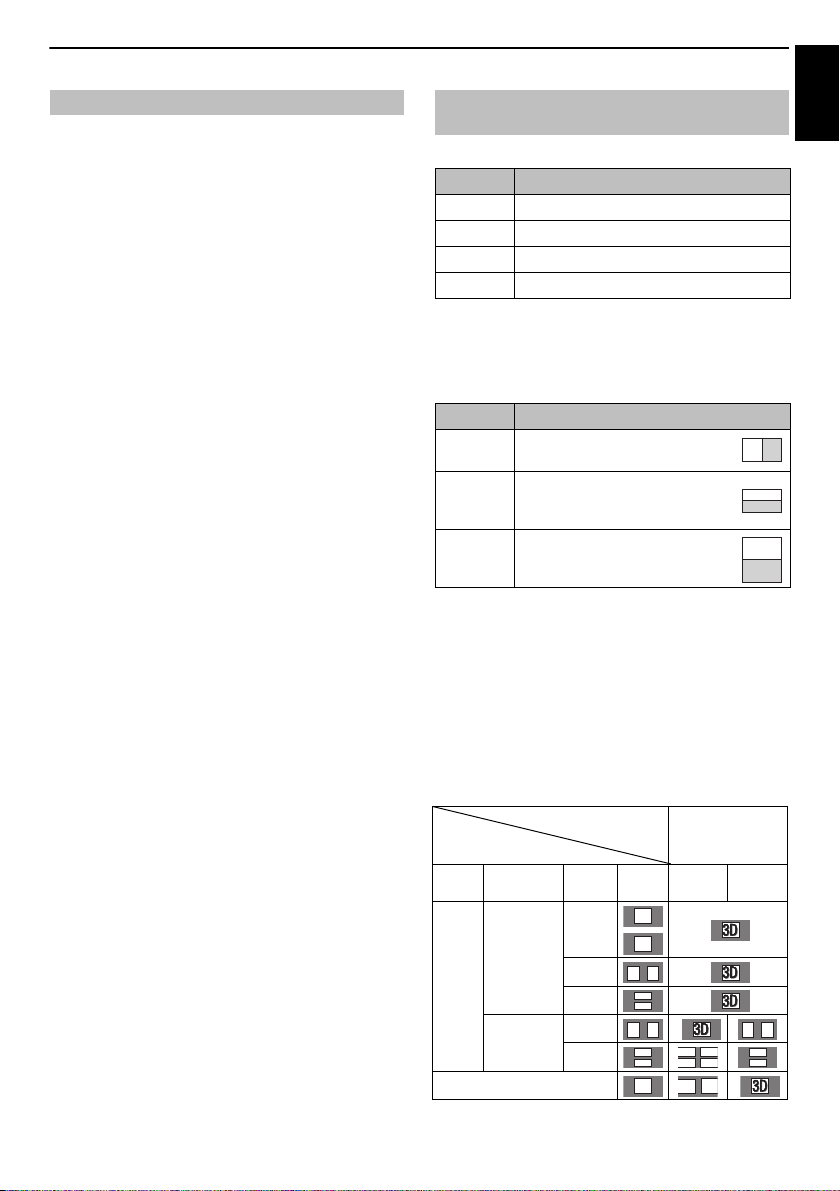

format

There are four modes for watching TV.

Mode Description

3D Displays 3D images.

2D Changes 3D images to 2D.

2D to 3D Changes 2D images to 3D.

Native Displays a received signal format as it is.

3D format select:

If a right and left images are same in Native mode, select SBS.

If a top and bottom images are same in Native mode, select TB. 3D formats are the following.

3D format Description

Side by Side (SBS)

Top and Bottom (TB)

Frame Packing (FP) *

* This format cannot be selected manually.

The 3D button's operation:

The behaviour of 3D when viewing in Native mode is different depending on the input mode.

Depending on the input mode, the screen for selecting 2D or 3D is displayed or the display mode switches between 2D and 3D.

To switch to 3D mode:

•Set Preferences / 3D Setup / 3D Auto Start to 3D.

•Press 3D while viewing 2D mode or Native mode.

Images for the left and right eyes are positioned side-by-side.

Images for the left and right eyes are positioned at the top and bottom of the screen.

Image for the left and right eyes for two frames are positioned at the top and bottom of the screen.

English

* Correct 3D image

3D 3D

3D 3D 3D 3D

CONTROLS AND FEATURES

Trigger of Switching

Display Mode

Quick menu

Input Signal 3D Fomat Select

Type Additional

Info

Format Source

Signal

SBS TB

3D Format Signal

With 3D Auto Detect Information

SBS

Without 3D Auto Detect Information

SBS

2D Format Signal

3D 3D

DD3

Trigger of Switching

Display Mode

Press 3D button

Input Signal

Type Additional

Info

Format Source

Signal

3D Format Signal

With 3D Auto Detect Information

SBS

Without 3D Auto Detect Information

SBS

2D Format Signal

3D 3D

Trigger of Switching

Display Mode

Quick menu

Input Signal 2D Fomat Select

Type

Additional Info

Format

Source Signal

SBS TB Native

3D Format Signal

With 3D Auto Detect Information

SBS

Without 3D Auto Detect Information

SBS

2D Format Signal

3D 3D3D3D 3D

3 3

3D33D

To select 3D format from the Quick menu in 3D mode:

English

a Press QUICK to display the Quick Menu.

b Press B or b to select 3D Settings and press OK.

c Press B or b to select 3D Format Select and press

OK.

d Press C or c to select 3D (SBS) or 3D (TB).

3D 3D

* Correct 3D image

To switch to 2D mode:

•Set Preferences / 3D Setup / 3D Auto Start to 2D.

• Press 3D while viewing 3D mode or Native mode.

To select 2D format from the Quick menu in 2D mode:

a Press QUICK to display the Quick Menu.

b Press B or b to select 3D Settings and press OK.

c Press B or b to select 2D Format Select and press

OK.

d Press C or c to select Native, Side by Side (SBS) or

Top and Bottom (TB).

* Correct 2D image

NOTE: Take off the 3D Glasses in 2D mode.

To switch to Native mode:

•Press 3D while viewing 3D mode.

•Press 3D while viewing 2D to 3D mode.

NOTE: When 3D format signal with 3D Auto Detect Information is received, it is not possible t o switch to Native.

•From the Quick Menu in 2D mode.

a In the Quick Menu, press B or b to select 3D

Settings and press OK.

* Correct 2D image

3D 3D

b Press B or b to select 2D Format Select and press

OK.

c Press C or c to select Native.

NOTE: When Frame Packing is input, 2D Format

Select will be grayed out.

To switch to 2D to 3D mode:

Press 3D while viewing 2D or Native mode.

NOTE: Depending on the input mode, the display mode

switches between 2D and 3D.

Setting the auto start mode

Recording Setup

Off

Auto

Network Setup

Teletext

Guide Type Network Device Setup

Network Lock

3D Setup

Preferences

REGZA-LINK Setup

Controls what the TV does when it detects a 3D signal.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select 3D Setup and press OK.

d Press B or b to select 3D Auto Start.

e Press C or c to select 3D, 2D, or Off.

Option Description

3D Displays as 3D mode automatically when 3D

2D Displays as 2D mode automatically when 3D

Off Displays a screen that allows you to select 3D

format signal is received.

or 2D when 3D format signal is received.

CONTROLS AND FEATURES

NOTE: Depending on the content, setting the 3D effect to a high level may result in blurring of the image contours and background.

If you experience any abnormal sensation or feel fatigue or nausea when viewing 3D images, stop watching and rest until the symptoms subside. Before viewing again, adjust the 3D effect to a lower number and view at a level at which the symptoms do not occur.

Setting the 3D PIN code

A 3D PIN code is necessary for using 3D Safety Settings.

To enter a new PIN code:

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D PIN and press OK.

c Press the number buttons to enter a 4-digit number.

Confirm the code.

NOTE: PIN code cannot be set to “0000”.

To change or delete your PIN code:

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D PIN and press OK.

c Press the number buttons to enter your 4-digit PIN

code.

English

Adjusting 2D to 3D Depth

You can adjust the level of 3D.

From the Menu:

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 2D to 3D Depth.

c Press C or c to select 1, 2, 3, 4, or 5.

The higher the number, the stronger the 3D effect.

From the Quick Menu:

a Press QUICK on the remote to open the Quick Menu.

b Press B or b to select 2D to 3D Depth.

c Press C or c to select 1, 2, 3, 4, or 5.

The higher the number, the stronger the 3D effect.

d Select Change PIN or Delete PIN and press OK.

NOTE:

• PIN code cannot be set to “0000”.

• If PIN is deleted, 3D Safety Settings is grayed out, and the settings are reset to the factory default.

Setting 3D Start Message

When this feature is set to On, a message is displayed onscreen

when a 3D signal is received.

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D Safety Settings and press

OK.

c Enter your 4-digit 3D PIN code.

d Press B or b to select 3D Start Message.

e Press C or c to select On or Off.

CONTROLS AND FEATURES

English

When this feature is set to On, you must enter 3D PIN code for

Setting 3D Lock

changing display mode.

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D Safety Settings and press

OK.

c Enter your 4-digit 3D PIN code.

d Press B or b to select 3D Lock.

e Press C or c to select On.

Setting 3D Timer Lock

When the 3D Timer Lock feature is set to On, neither the PIN input

window nor the 3D start message will be shown while the 3D

Enable timer is active, even if a switch to 3D Mode occurs. This

helps to avoid asking for the 3D Lock PIN and displaying 3D start

message every time when switching to 3D.

NOTE: This feature cannot be selected until the 3D PIN is set.

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D Safety Settings and press

OK.

c Enter your 4-digit 3D PIN code.

d Press B or b to select 3D Timer Lock.

e Press C or c to select On.

Setting Enable 3D Timer

This feature helps to remind you not to watch 3D video for

extended periods of time. Once a set period of time has passed, a

dialogue will be shown asking you if you wish to continue

viewing or not.

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D Safety Settings and press

OK.

c Enter your 4-digit 3D PIN code.

d Press B or b to select Enable 3D Timer.

e Press C or c to select 30, 60, 90, or 120 minutes.

f To cancel the timer, select Off.

Displaying 3D Important Info

a In the Preferences menu, press B or b to select 3D

Setup and press OK.

b Press B or b to select 3D Important Info and press

OK.

Switching left and right images

The left and right eye shutter timing of the glasses can be

swapped. If 3D images look blurred, switch the left and right sides

of the 3D image.

a Press QUICK on the remote to open the Quick Menu.

b Press B or b to select 3D Settings and press OK.

c Press B or b to select Left and Right Image.

d Press C or c to select Swapped.

CONTROLS AND FEATURES

Sound

Dual Balance Advanced Sound Settings

Audio Level Offset TV Speakers Headphone Settings

Dual 1

Stable Sound Off Dynamic Range Control On

English

Sound controls

Volume controls and sound mute

Volume

2 + or 2 – to adjust the volume.

Press

Sound Mute

Press once to turn the sound off and again to cancel.

Dual

If a programme or film is being broadcast with a soundtrack in

more than one language, the Dual feature allows selection

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Sound icon and press OK.

c Press B or b to select Dual and press C or c to

choose between Dual 1 or Dual 2.

between them.

Voice Enhancement

Voice Enhancement emphasises the frequency range of the

speaker’s voice, making it easier to catch what they are saying.

a In the Advanced Sound Settings menu, press B or

b to select Voice Enhancement.

b Press C or c to select On or Off.

Dynamic Bass Boost

Dynamic Bass Boost enhances the depth of the sound on the

TV speakers. The difference will only be noticeable on sound with

strong bass.

a In the Advanced Sound Settings menu, press B or

b to select Dynamic Bass Boost.

b Press C or c to select the desired bass expansion level

(Low, High or Off).

Stable Sound®

Stable Sound reduces the volume level differences between channels. It automatically remains on the same volume level

when you change channels.

a In the Sound menu, press B or b to select Stable

Sound.

b Press C or c to select On or Off.

Balance

a In the Sound menu, press B or b to select Balance

and press

C or c to emphasize left or right speaker

balance.

Bass, Treble

a In the Sound menu, press B or b to select Advanced

Sound Settings and press OK.

b Press B or b to select Bass or Treble.

c Press C or c to change the setting.

Dynamic Range Control

This feature allows control of audio compression for some digital

TV programmes (MPEG-1 and MPEG-2 audio programmes are

not supported).

a In the Sound menu, press B or b to select Dynamic

Range Control.

b Press C or c to select On or Off.

CONTROLS AND FEATURES

-5

Audio Level Offset

ATV

DTV 2ch

External Input

English

Sometimes there can be large changes in volume when

switching from a DTV 5.1ch to a DTV 2ch, an ATV channel, or an

external input. Using the Audio Level Offset feature reduces

Audio Level Offset

these volume differences.

a Set the volume level usually used when watching a

DTV 5.1ch programme.

b Tune to a channel which is DTV 2ch, ATV or an

external input.

c In the Sound menu, press B or b to select Audio

Level Offset and press OK.

d Press B or b to select an option, and then press C or

c to adjust the volume level.

NOTE:

• The available item changes depending on the current input source. For example, while watching a DTV 2ch programme, only DTV 2ch is available and the other two items are grayed out in the menu. This allows you to easily adjust according to each condition.

• When watching a DTV 5.1ch programme, this feature is not available.

TV Speakers On/Off

This feature allows you to turn the TV speakers off when

connecting the audio system.

a In the Sound menu, press B or b to select TV

Speakers.

b Press C or c to select Off.

To turn on the built-in speakers:

Choose On in step 2.

Headphone Settings

This setting is used to set the sound output when headphones are

Speaker

Link

On Sound is output

Off Sound is output

connected.

Headphone Speakers

2 ± is available.)

(

(Headphone level menu is available.)

No sound

Sound is output

2 ± is available.)

(

a In the Sound menu, press B or b to select

Headphone Settings and press OK.

b Press B or b to select Speaker Link and press C or c

to select On or Off.

c If you select Off, then highlight Headphone Level

and use

C or c to adjust the headphone sound.

Headphone Settings

Speaker Link

Headphone Level

Audio Description

Audio Description is an additional narrative sound track for

visually impaired individuals to understand and enjoy the story

line more fully. The letters AD will be displayed in the channel

banner when programmes contain AD content.

a In the Sound menu, press B or b to select Audio

Description and press OK.

b Press B or b to select Audio Description and press

C or c to select On.

Audio Description

Audio Description Mixing Level

The AD button on the Remote can also be used to toggle the Audio Description feature between On and Off.

c To adjust the level of the audio description sound to

the main sound, highlight Mixing Level and press or

CONTROLS AND FEATURES

SUBTITLE

SUPER LIVE

This setting will enlarge a 4:3 image

to fit the screen by stretching the

image horizontally and vertically,

holding better proportions at the

centre of the image. Some distortion

may occur.

When subtitles are included on a

letterbox format broadcast, this

setting will raise the pictu re to ensure

that all the text is displayed.

CINEMA

When watching ‘all sides panel

format’ films/video tapes, this setting

will eliminate or reduce the black

bars at all sides of the screen by

zooming in and selecting the image

without distortion.

Use this setting when watching a

widescreen DVD, widescreen video

tape or a 16:9 broadcast (when

available). Due to the range of widescreen formats (16:9, 14:9, 20:9 etc.) black bars may be visible on the

top and bottom of the screen.

Use this setting to view a true 4:3

broadcast.

Use this setting when watching a

14:9 broadcast.

Widescreen viewing

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.

WIDE

4:3

English

14:9

CONTROLS AND FEATURES

Dot by Dot

PC NORMAL

This setting will show the picture

without overscan, i.e. WYSIWYG.

This option is only available when

watching a PC signal source via

HDMI or PC terminal.

PC WIDE

This setting will show the picture

without overscan or side panels.

This option is only available when

watching a PC signal source via

HDMI or PC terminal.

“Dot by Dot” is a non-scaling display. Depending on the input signal format,

the picture is displayed with side panels and/or bars at the top and bottom (e.g.

VGA input source).

NATIVE

This setting will show the picture without overscan, i.e. WYSIWYG.

Picture Size

Dot by Dot

PC Normal

PC Wide

AV format PC format

English

Press the button on the Remote to display the list of available widescreen formats.

Press the button repeatedly to highlight the required format.

The Quick Menu feature can also be used to select Picture Size.

Picture Size

Wide 4:3 Super Live

Cinema Subtitle

14:9 Native

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

CONTROLS AND FEATURES


Picture Mode

Reset

Backlight

Colour Tint Sharpness

100 100

0 0 0 0

Standard

Contrast Brightness

English

Picture controls

Most of the picture controls and functions are available in both digital and analogue modes.

PLEASE NOTE: Features not available will be grayed out.

Picture Mode

This television offers the choice of personalising the picture style.

AutoView, Dynamic, Standard, Hollywood 1, Hollywood 2,

Store, Game and PC are preset options and affect many

features/settings within the televisi on.

NOTE:

• Because the AutoView mode automatically adjusts picture settings based on ambient light conditions and in put signal content, the Auto Brightness Sensor menu is grayed out when it is selected.

• Store mode is only available when Location is set to Store.

• Game mode is available in external input mode (other than aerial input). When you select Game mode, suitable widescreen formats will be selected.

• PC mode is available in RGB/PC input mode or HDMI input mode.

a Press MENU / C c to highlight Setup icon.

b Press B /C c to highlight Picture icon and press OK.

c Press B or b to select Picture Mode.

Picture preferences

You can customize current picture mode settings as desired. For

example, while selecting “Dynamic”, i f y ou c ha ng e th e f oll ow in g

items, such as Backlight, Contrast, Brightness, Colour, Tint,

Sharpness and the Advanced Picture Settings items, your

new settings are saved for “Dynamic” picture mode.

a In the Picture menu, press B or b to select either

Backlight, Contrast, Brightness, Colour, Tint or Sharpness and press OK.

b Press C or c to adjust the settings.

Reset

This feature resets all picture settings to the factory settings

except Picture Mode.

a In the Picture menu, press B or b to select Reset and

press OK.

b A confirmation message will appear. Press C or c to

select Yes and press OK.

ColourMaster

When ColourMaster is set to On, it allows the ‘Base Colour

Adjustment’ feature to become available.

a In the Picture menu, press B or b to select

Advanced Picture Settings and press OK.

d Press C or c to select the picture mode you prefer

and press OK.

NOTE: The picture mode you select affects the current input

only. You can select a different picture mode for each input.

b Press b to select ColourMaster.

Advanced Picture Settings

ColourMaster

Base Colour Adjustment

Colour Temperature Auto Brightness Sensor Active Backlight Control Black/White Level Noise Reduction Active Vision

c Press C or c to select On or Off and press OK.

Off

Low

Middle

High

CONTROLS AND FEATURES

Hue

Saturation

Reset

Brightness

0Red

Green

Blue Yellow Magenta Cyan

00 000 000 000 000 000

Base Colour Adjustment

Hue Saturation Brightness

0Red 0 -1

English

The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful

Base Colour Adjustment

when using an external source.

a In the Advanced Picture Settings menu, press B or

b to select Base Colour Adjustment and press OK.

b Press B or b to select an option and press c to move

to the adjustment window.

c Press C or c to select Hue, Saturation or Brightness

and press

B or b to adjust the settings as required.

d Press BACK to return to the previous menu.

To return to the factory settings, select Reset and press OK.

Auto Brightness Sensor

When the Auto Brightness Sensor is activated, it will

automatically optimise the backlighting levels to suit ambient

light conditions.

a In the Advanced Picture Settings menu, press B or

b to select Auto Brightness Sensor.

b Press C or c to select On or Off.

Active Backlight Control

When the Active Backlight Control feature is activated, it will

control the backlighting levels depending on various scenes such

as picture motion bright scene or dark scene.

a In the Advanced Picture Settings menu, press B or

b to select Active Backlight Control.

b Press C or c to select High, Low or Off.

High: To control the backlighting levels depending on various

scenes such as motion picture bright scene or dark scene

Low: To control the backlighting levels for dark scene

Black/White Level

Black/White Level increases the strength of dark areas of the

picture to improve the definition.

a In the Advanced Picture Settings menu, press B or

b to select Black/White Level.

Colour Temperature

Colour Temperature increases the “warmth” or “coolness” of

the picture by increasing the red or blue tint.

a In the Advanced Picture Settings menu, press B or

b to select Colour Temperature and press OK.

b Press B or b to select Colour Temperature and

press

C or c to select Cool, Natural or Warm to suit

your preference.

c Press B or b to select Red Level, Green Level or

Blue Level and press

NOTE: To return the adjustments to the factory defaults, select Reset and press OK.

C or c to adjust the level.

b Press C or c to select High, Middle, Lo w or Off.

MPEG NR – Noise Reduction

When watching a DVD, the compression may cause some words

or picture elements to become distorted or pixelated.

Using the MPEG NR feature reduces this effect by smoothing out

the edges.

a In the Advanced Picture Settings menu, press B or

b to select Noise Reduction and press OK.

b Press b to select MPEG NR.

Noise Reduction

MPEG NR DNR

Low

Auto

c Press C or c to select High, Middle, Low or Off to suit

your preference.

CONTROLS AND FEATURES

Auto Format On 4:3 Stretch Off

Picture Position PC Settings

Display Settings

Auto Format On 4:3 Stretch Off Picture Position PC Settings

Display Settings

Picture Position

Horizontal Position

Reset

Vertical Position

English

DNR – Digital Noise Reduction

DNR allows you to “soften” the screen representation of a weak

signal to reduce the noise effect.

a Select DNR from the Noise Reduction menu.

b Press C or c to select Low, Middle, High, Auto or Off.

The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

Active Vision

This feature will reduce picture blur without decreasing image

brightness or adding flicker.

a In the Advanced Picture Settings menu, press B or

b to select Active Vision.

b Press C or c to select High, Middle, Standard or Off.

NOTE: When Picture Mode is set to Game, this feature will be grayed out and automatically set to Off.

Resetting the advanced picture settings

This feature allows you to reset the current Advanced Picture

Settings to the default values.

a In the Advanced Picture Settings menu, press B or

b to select Reset.

b Press OK.

4:3 Stretch

When 4:3 Stretch is activated, the size switching system

changes 4:3 programmes into full screen picture.

a In the Preferences menu, press B or b to select

Display Settings and press OK.

b Press B or b to select 4:3 Stretch and press C or c to

select On or Off.

Blue Screen

When Blue Screen is selected, the screen will turn blue and the

sound will be muted on analogue channels and external input

NOTE: Some external input sounds may not be muted.

modes when no signal is received.

a In the Preferences menu, press B or b to select Blue

Screen.

b Press C or c to select On or Off.

Picture Position

The picture position may be adjusted to suit personal preference

and can be particularly useful for external inputs.

NOTE: The Picture Position feature cannot be selected in the DTV mode.

a In the Preferences menu, press B or b to select

Display Settings and press OK.

b Press B or b to select Picture Position.

Automatic Format (Widescreen)

When this television receives a true Widescreen picture and Auto

Format is On, it will automatically be displayed in Widescreen

format irrespective of the television’s previous setting.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select Display Settings and press OK.

d Press B or b to select Auto Format and press C or c

to select On or Off.

c Press OK to view the options available for the picture

format that has been selected.

d Press B or b to select an option and press C or c to

adjust the settings.

The options differ depending on the currently selected widescreen format and the input signal.

To return to the original factory settings, select Reset in the Picture Position menu and press OK.

Picture still

This feature is used to hold a still image on the screen.

a Press r to hold an image on the screen, and press

r again to cancel.

CONTROLS AND FEATURES

Using your home network

English

This TV is a DLNA CERTIFIED™ Player. This TV can play digital content stored on a DLNA CERTIFIED™ product with server function. If you want to use this TV as a DLNA CERTIFIED™ Player, you will have to configure the network on your TV (see page 14).

If you want to use your home network, you will have to configure the network on your TV. (see page 14) Change the network settings if necessary (see “Setting up the Network” on page 43).

When using a wireless home network:

Wireless Interoperability

The TOSHIBA Dual Band WLAN Adaptor is designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS)/Orthogonal Frequency Division Multiplexing (OFDM) radio technology, and is compliant to:

• The IEEE 802.11 Standard on Wireless LANs (Revision a/b/g/ n), as defined and approved by the Institute of Electrical and Electronics Engineers.

• The TOSHIBA Dual Band WLAN Adaptor is intended for use with the TL96/UL97/ML96 series LCD TV’s and should not be used with any other devices.

Use of the WLAN Adaptor in other USB products may result in damage to the WLAN Adaptor and or the equipment. Such use will void any warranty that may otherwise apply, and TOSHIBA will have no liability for any damage that may result from such use.

CAUTION

Bluetooth™ and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth™ and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.

If you should experience any such problem, immediately turn off either your Bluetooth™ or Wireless LAN device.

Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage.

Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Wireless LAN and your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices, however, is far less than the electromagnetic energy emitted by wireless devices such as mobile phones.

Because Wireless LAN products operate with in the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. Such restrictions may apply in environments where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment, you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment.

This Dual Band Wireless LAN Adaptor may be operated in the following countries:

AT Austria IS Iceland

BE Belgium LI Liechtenstein

CH Switzerland LT Lithuania

CY Cyprus LU Luxembourg

CZ Czech Republic LV Latvia

DE Germany MT Malta

DK Denmark NL Netherlands

ES Spain NO Norway

FI Finland PL Poland

FR France PT Portugal

GB United Kingdom SE Sweden

GR Greece SI Slovenia

EE Estonia SK Slovakia

HU Hungary BG Bulgaria

IT Italy RO Romania

IE Ireland TR Turkey

How to use this Dual Band Wireless LAN Adaptor

• If this device is going to be operated in the frequency range of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.

• If this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to 2.4835 GHz in France, it is restricted to indoor use.

• A general authorization is required for using this device outdoors or in public places in Italy.

• This device is NOT ALLOWED to be used in the geographical area wit hin a radius of 20km from the cen tre of Ny-Alesu nd in Norway.

Setting up the Network

Recording Setup

Off

Auto

Network Setup

Teletext

Guide Type Network Device Setup

Network Lock

3D Setup

Preferences

REGZA-LINK Setup

Network Type Wired

Network Connection Test

Advanced Network Setup

Network Setup

Wireless Setup

You can select the Network Type.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select Network Setup and press OK.

d Press B or b to select Network Type and press C or

c to select Wired or Wireless.

NOTE: If the Dual Band WLAN Adaptor is not

connected, Wireless cannot be selected.

e If you selected Wired, see “Advanced Network Setup”

on page 45.

CONTROLS AND FEATURES

Assisted Setup

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Network Type and press C or

c to select Wireless.

c Press B or b to select Wireless Setup and press OK.

d Press B or b to select Assisted Setup and press OK.

Wireless Setup

Assisted Setup Manual Setup

e Press B or b to select the desired AP and press OK.

NOTE: Check the MAC address on the label of the AP

or in the manual, and select your AP.

f Highlight Security Key and press OK. The Software

Keyboard window will appear.

g Input the Security Key by using the Software

Keyboard (see page 47). To save your setting, press the BLUE button.

NOTE:

• The Security Key must adhere to these conditions:

- TKIP/AES: 8-63 ASCII or 64 Hex characters

- WEP: 5 or 13 ASCII or 10 or 26 Hex characters

• There is only one key ID to set for WEP encryption.

English

Wireless Setup

NOTE:

• This feature is grayed out when the Dual Band WLAN Adaptor is not connected or Network Type is set to Wired.

• When you insert or remove the wireless LAN adaptor, you must turn off your TV and unplug the power cord, and then plug and turn on again.

• Continued connection of AP (Access Point) is not guaranteed. The connection may be disconnected while watching TV.

• Do not remove the Dual Band WLAN Adaptor when Network Type is set to Wireless or wireless communication is active.

There are 2 methods for Wireless Setup:

Assisted setup by using the Wi-Fi Routers notification information.

Network name, Authentication and Encryption are decided based on information sent from the Wi-Fi router. Security key to be set manually.

Manual setup

Network name, Authentication, Encryption and Security Key all to be inputted manually.

h Highlight Done and press OK.

NOTE: If Network Name is not displayed, see step 4

and 5 in Manual Setup below to set Network Name before pressing Done.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

Manual Setup

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Network Type and press C or

c to select Wireless.

c Press B or b to select Wireless Setup and press OK.

d Press B or b to select Manual Setup and press OK.

e Press B or b to select Network Name and press OK.

The Software Keyboard window will appear.

CONTROLS AND FEATURES

f Input the Network Name by using the Software

English

Keyboard (see page 47). To save your setting, press the BLUE button.

g Press B or b to select Authentication and press C or

c to select Open System, Shared Key, WPA-PSK or

WPA2-PSK.

h Press B or b to select Encryption and press C or c

to select None, WEP, TKIP or AES.

NOTE:

• Certain encryption types are only compatible with specific authentication types.

- When Authentication is Open System, only WEP

or None is compatible.

- When Authentication is Shared Key, only WEP is

compatible.

- When Authentication is WPA-PSK or WPA2-PSK,

only TKIP or AES is compatible.

• When incompatible Authentication/Encryption pairings are detected, a warning message will be displayed, and no connection attempt will be made until the incompatibility is resolved.

• There is only one key ID to set for WEP encryption.

i Press B or b to select Security Key and press OK.

j Input the Security Key by using the Software

Keyboard (see page 47). To save your setting, press the BLUE button.

NOTE: This item is grayed out when Encryption is None.

k Highlight Done and press OK.

NOTE: When Encryption is None, a message will

appear. Press

NOTE: Settings are not saved if BACK is pressed before Done is selected.

C or c to select Yes and press OK.

Wireless Information

The settings configured in Wireless Setup can be confirmed.

a Press QUICK to open the Quick Menu.

b Press B or b to select Wireless Information and

press OK.

Quick Menu

Picture Size 3D Settings More Information Channel Options Sleep Timer Speakers Headphone Level Wireless Information

Super Live

00:00

TV Speakers

c When the Network Type is Wireless, a Wireless

Information window will appear.

NOTE: Press the RED button to scan for all APs.

Item Description

Status Connected is displayed when the TV is

Signal Connection signal strength with AP

Speed Link with AP

Mode Working mode (11a, 11b, 11g, 11n)

Network Name SSID set

Authentication Authentication set

Encryption Encryption set

Security Key Security Key set

AP MAC Address

TV MAC Address

DHCP Enabled is displayed when using DHCP.

IP Address The TV’s IP address

Subnet Mask Value of the Subnet Mask

Default Gateway

DNS Address of the DNS

connected with the AP. Disconnected is displayed when the TV is not connected with the AP.

(STRONG/MEDIUM/WEAK)

The AP’s MAC address is displayed when the TV is connected with the AP.

The MAC address of the USB (Dual Band WLAN Adaptor) is displayed.

Disabled is displayed when not using DHCP.

Address of the Default GATEWAY

NOTE: Even if an AP for IEEE 802.11n is used when Encryption

Network Type Wired

Advanced Network Setup

Network Setup

Wireless Setup

IP Address Setup

MAC Address

DNS Setup

Advanced Network Setup

Auto Setup On

Subnet Mask

IP Address Setup

IP Address

xxx . xxx . xxx . xxx

Default Gateway

. . .

Auto Setup Off

Subnet Mask

IP Address Setup

IP Address

xxx . xxx . xxx . xxx xxx . xxx . xxx . xxx

Default Gateway

xxx . xxx . xxx . xxx

Auto Setup Off

Subnet Mask

IP Address Setup

IP Address

xxx . xxx . xxx . xxx xxx . xxx . xxx . xxx

Default Gateway

xxx . xxx . xxx . xxx

is set to WEP or TKIP, the Speed value might be low. It is recommended that Encryption be changed to AES (see “Manual Setup” on page 43).

Notes on wireless LAN environment:

• The function of all IEEE802.11 is not supported.

• The ad-hoc mode is not supported.

• It is recommended to use IEEE 802.11a or IEEE 802.11n on 5 GHz for audio and SD video streaming.

• It is recommended to use IEEE 802.11n on 5 GHz for HD video streaming.

• It is recommended that the encoding rate for streaming video content is 20 Mbps or less.

• It is not recommended to use 2.4 GHz for audio and video streaming.

• Content playback may be interrupted by various surrounding interference.

Advanced Network Setup

NOTE:

• When the DHCP function of the router connected with this TV is On, you can set Auto Setup to On or Off. (This should usually be set to On.)

• When the DHCP function of the router is Off, set Auto Setup to Off, and set the IP Address manually.

IP Address Setup

Auto Setup:

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup

and press OK.

CONTROLS AND FEATURES

d Highlight Auto Setup and press C or c to select On.

NOTE: Other items will be grayed out when Auto Setup is set to On.

Manual Setup:

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup and

press OK.

c Press B or b to select IP Address Setup and press

OK.

d Highlight Auto Setup and press C or c to select Off.

e Press B or b to select IP Address.

f Press C or c to highlight the field you want to

change, and then use the number buttons to input the IP address. To save the setting, press OK.

NOTE: IP address field numbers must be between 0 and 255. After each field number has been set, press OK to store the entire address. If the entire IP Address is invalid, a warning message will appear after OK is pressed.

English

c Press B or b to select IP Address Setup and press

OK.

g Press B or b to select Subnet Mask, and edit in the

same way as IP Address.

h Press B or b to select Default Gateway, and edit in

the same way as IP Address.

NOTE: If you manually set the IP address, you must not use the same IP address for any other device. The IP address you use should be a private address.

CONTROLS AND FEATURES

Auto Setup Off

Secondary DNS Address

DNS Setup

Primary DNS Address

xxx . xxx . xxx . xxx xxx . xxx . xxx . xxx

English

NOTE: When the DHCP function of the router connected to this TV is Off, set Auto Setup to Off, and manually set the DNS address(es). Your internet service provider should have provided these to you.

Auto setup:

DNS Setup

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup and

press OK.

c Press B or b to select DNS Setup and press OK.

d Press B or b to highlight Auto Setup and press C or

c to select On.

NOTE: Other items will be grayed out when Auto Setup is set to On.

Manual setup:

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup and

press OK.

c Press B or b to select DNS Setup and press OK.

MAC Address

You can view the fixed MAC address for the TV and for the Dual Band WLAN Adaptor, if one is installed.

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Advanced Network Setup and

press OK.

c Press B or b to select MAC Address and press OK.

Network Connection Test

This function checks the Internet connectivity.

a In the Preferences menu, press B or b to select

Network Setup and press OK.

b Press B or b to select Network Connection Test and

press OK.

A message will appear to indicate if the connection was successful or if it could not be completed.

NOTE: The result of Network Connection Test does not always guarantee the connection.

To cancel the Network Connection Test:

a Press BACK while searching for the Internet

connection.

d Press B or b to select Auto Setup and press C or c

to select Off.

e Press B or b to select Primary DNS Address.

f Press C or c to highlight the field you want to

change, and then use the number buttons to input the Primary DNS Address. To save the setting, press

OK.

NOTE: DNS address field numbers must be between 0

and 255. If you input an incompatible number and press OK, the field number will reset to the previous value.

g Press B or b to select Secondary DNS Address, and

edit in the same way as Primary DNS Address.

CONTROLS AND FEATURES

ABCDEFG

AAA|

HIJKLMN

OPQRSTU

VWXY Z

Recording Setup

Off

Auto

Network Setup

Teletext

Guide Type Network Device Setup

Network Lock

3D Setup

Preferences

REGZA-LINK Setup

English

Using the software keyboard

You can enter text by using the Software Keyboard. The Software Keyboard window will appear when you press OK on a field that

accepts character input.

To enter text using the software keyboard:

a Highlight the desired character on the on-screen

software keyboard.

b Press OK.

c Repeat steps 1 and 2 until you have entered all

desired text.

d Press the BLUE bu tton to close the software keyboard

and return to the previous screen.

NOTE: If BACK is pressed, changes are not saved and the software keyboard window is closed. The text will remain as it was before starting the keyboard.

Input operation on the remote control:

Button Description

OK Inputs the selected character.

0-9 Inputs the number directly.

B b C c Moves the character highlight. CC cc Moves the cursor. Z

RED Deletes 1 character to the left of

GREEN Cycles through upper case, lower

BLUE Saves changes and closes the

BACK Closes the Software Keyboard

Moves the cursor to the head of a character string.

Moves the cursor to the end of a character string.

the cursor.

case, numbers, and symbols, if available.

Software Keyboard window.

window without saving changes.

Network Device Setup

External Control Setup

This setup allows you to operate a home network-connected

Media Controller Setup

your TV from an external device.

a In the Preferences menu, press B or b to select

Network Device Setup and press OK.

b Press B or b to select External Control Setup and

press OK.

c Press B or b to select an option and press OK.

The Software Keyboard window will appear.

User Name — Input the User Name (to control the TV from the iPhone etc.) by using the on-screen softw are keyboard (see page 47). The maximum number of characters is 16.

Password — Input the Password (to control the TV fr om t he i Ph one et c.) by u si ng t he o n- scr een so ftw are keyboard (see page 47). The maximum number of characters is 16.

NOTE: Toshiba does not guarantee normal operation with all connected devices.

CONTROLS AND FEATURES

English

Device Name Setup

The TV’s device name can be changed.

a In the Preferences menu, press B or b to select

Network Device Setup and press OK.

b Press B or b to highlight Device Name Setup and

press OK.

c Highlight the Device Name field and press OK. The

Software Keyboard window will appear.

d Input the Device Name by using the software

keyboard (see page 47). Press the BLUE button.

NOTE: The Device Name can be up to 15 characters

long.

e Highlight Done and press OK to save your setting.

CONTROLS AND FEATURES

To USB1 or USB2

USB cable (not supplied)

USB HDD

English

USB HDD Record Function

Th is fu nct io n c an be u se d t o re co rd an d pl ay di git al broadcast programmes. Read the precautions below before recording or viewing programmes using the USB HDD record function.

NOTE:

• In order to use this function a USB flash memory or USB HDD needs to be connected to the TV.

• Recorded programmes saved on the USB HDD can only be viewed on this TV. They cannot be viewed when connect ed to another TV (including the same model of TV), a PC, or other device.

• You cannot watch one channel while recording another.

• If the recording time to the USB HDD is too short, no data may be saved.

• You cannot record video input signals on the USB HDD.

• Not all types of broadcast may be recordable.

• After programming the TV to record digital broadcasting, do not disconnect the power plug before recording starts. Also, leaving the power switch “ON” until recording is scheduled to start, may cause the recording to fail.

• Should video or audio recording fail due to malfunction of the TV or poor reception, no compensation shall be paid.

• If there is a power failure or the power plug is disconnected during programmed recording, recording will stop and will not resume when the power returns or the plug is reconnected.

• Do not disconnect the power plug when the indicator LED is lit.

• Any changes implemented by the broadcasting station may affect programme scheduling.

• Scheduling of multiple consecutive programmes may result in the beginning of each programme not being recorded.

• Programmed recording cannot take place if the power plug is not connected.

• Disconnecting the power plug during recording may result in failure to save the recorded programme.

• USB HDD recording feature is not available in all countries.

• Do not turn off the TV during recording.

• When the USB HDD is formatted, all the data stored on the HDD will be erased.

Setting up the USB HDD for recording

To connect an USB HDD (not supplied)

When you connect a USB HDD to the USB port on the TV, a prompt will appear.

a Press C or c to select No and press OK.

NOTE: Not guaranteed to work with all USB HDD.

To record DTV programmes

(One Touch Recording)

To record the programme currently being viewed.

a Press the zREC button on the remote control.

The currently viewed programme will start to be recorded. The programme indicator (red) will be lit.

To stop recording

a Press the v (stop) button.

A confirmation window “Do you want to stop Recording?” will appear.

b Press C or c to select Yes and press OK.

Recording will stop.

CONTROLS AND FEATURES

Edit Timer

The Daily Politics

10:50 Tue, 26 Apr

Timer Type

Channel2 CABC

11:30 - 12:30 Tue, 26 Apr

Recording

Set Timer Delete Timer

Edit Timer

The Daily Politics

10:50 Tue, 26 Apr

Timer Type

Channel2 CABC

11:30 - 12:30 Tue, 26 Apr

Recording

Set Timer Delete Timer

English

How to set recordings via the

Programme Guide

Programmed recording can be scheduled easily using the

Programme Guide or by specifying the date and time.

PLEASE NOTE:

When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. Other channels will not be available during the timed programme unless the programme timer is cancelled.

It will only be possible to create or edit programme timers for the currently tuned DTV input.

Using the Programme Guide to set future recordings

a Press the GUIDE button on the remote control (or

select TV Programmes / Guide menu from the menu system) to display the Electronic Programme Guide (EPG).

b Press B b C c to highlight the programme you

want to record.

c Press OK. The Edit Timer menu will appear.

To search for and record a programme using Genre Search

a Press MENU / C c / B / C c to highlight

TV Programmes / Genre Search icons and press OK to access the Genre Search screen.

Genre Search 10:50 Tue, 6 Apr

Movies

AB134

PARIS PREMIERE

NT1

AB1

NT1 31 PARIS PREMIERE 9 W9 11 NT1

31 PARIS PREMIERE 11 NT1 11 NT1 34 AB1

Hard Rain

Red Corner The Lawnmower Man

A Vow to Kill Parenthood Body and Soul The Nun’s Story

Red Corner The Real Blonde Critters Indiana Jones and the Temple of Doom The jackal

Coup De Ville

Wed,27 Apr 0:15- 1:45

Wed,27 Apr 22:15- 23:55 Thu,28 Apr 1:20- 3:00

Fri,29 Apr 1:30- 3:00 Sat,30 Apr 0:45- 2:40 Sat,30 Apr 1:15- 3:00 Sat,30 Apr 15:00- 17:30 Sat,30 Apr 23:20- 1:15 Sun,1 May 0:40- 2:00 Sun,1 May 0:40- 2:20 Sun,1 May 21:10- 23:20 Sun,1 May 23:20- 1:15 Mon,1 May 1:10- 3:00

b Press C or c to select the genre. Programmes listed

will change for the new genre. Press the programme for which you want to schedule recording.

B or b to select

c Press OK. The Edit Timer menu will appear.

d Press B or b to highlight Timer Type and press C or

c to select Recording.

e Press B or b to highlight Set Timer and press OK.

The ORANGE LED will be lit.

d Press B or b to highlight Timer Type and press C or

c to select Recording.

e Press B or b to highlight Set Timer and press OK.

The ORANGE LED will be lit.

To programme the timer

Edit Timer

10:50 Tue, 26 Apr

Repeat

Date Start Time End Time

Channel

Once

Timer Type

Recording

Set Timer Delete Timer

30 CABC Channel

10:51

11:51

Tue, 26 Apr 2011

Edit Timer

The Daily Politics

10:50 Tue, 26 Apr

Timer Type

Channel2 CABC

11:30 - 12:30 Tue, 26 Apr

Recording

Set Timer Delete Timer

a Press MENU / C c / B / C c to highlight

TV Programmes / Programme Timers icons and press OK.

b Select the unprogrammed column (blank column)

and press OK. The Edit Timer menu will appear.

CONTROLS AND FEATURES

To schedule a programme using the information screen

a Press , the information screen will appear giving

details of the channel and programme currently being viewed.

ITV1 London ASTRA 19.2°E

8888

English

3D 2D

Side by Side

6:00 Thu, 11 Oct

English

c Press B or b to highlight Timer Type and press C or

c to select Recording.

d Press B and b to go through the list adding the

details of the programme by using the number buttons and

C and c to make selections.

Channel:

Select the channel you wish to record.

Date:

Select the date that you wish recording to start.

Start Time:

Select the time to start recording.

End Time:

Select the time to end recording.

Repeat:

Select “Once”, “Daily” or “Weekly”.

Once The selected content is recorded once. Daily The same time slot on the same channel is

recorded every day on and after the selected day.

Weekly The same time slot on the same channel on

the same day of the week is recorded on and after the selected day.

e Press B or b to highlight Set Timer and press OK.

The ORANGE LED will be lit.

MLB Young’s two-run triple leads AL over NL

Now

16:9

Next Also

AD 18

World News and Sports MLB Young’s two-run triple leads AL over NL

Change

b Press B or b to select the Next and press OK. The

Edit Timer menu will appear.

c Press B or b to highlight Timer Type and press C or

c to select Recording.

d Press B or b to highlight Set Timer and press OK.

The ORANGE LED will be lit.

To check, edit or delete scheduling

information

You can check, edit or delete scheduling information.

a Press MENU / C c / B / C c to highlight

TV Programmes / Programme Timers icons and press OK. Programme Timers screen will appear.

Recording List:

• Depending on the transmitter information, the programme broadcast time or other information may not be correctly displayed in the recording list.

• The programme does not appear in the recording list immediately at the start of recording, but appears a few minutes after recording starts.

• Up to 500 programmes can be displayed in the recording list.

• If the channel settings are changed, the digital channel number, or other information may not appear correctly in the recording list.

News

6:00- 8:00

15 min left

8:00- 9:00

CONTROLS AND FEATURES

Sun Mon Tue Thu Fri SatWed

Sort : New

WWWWWW WWWWWWWWWWWW

WWWWW

14:15 Wed, 16 Feb

WWWWWWW WWWWWWW

WWWWWWW

WWWWWWW WWWWWWW WWWWWWW WWWWWWW WWWWWWW

Library

All

1235 ITV London

ASTRA 19.2°E

USB HDD3 Remaining Capacity: 86% (912.0GB)

10 July 2011 14:30(01:30)

Wed, 16 Feb 10:00 Wed, 16 Feb 10:00

Thu, 17 Feb 10:00 Thu, 17 Feb 10:00

Fri, 18 Feb 10:00 Fri, 18 Feb 10:00 Fri, 18 Feb 10:00

Sat, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00

Mon, 18 Feb 10:00

Sun Mon Tue Thu Fri SatWed

Sort : New

WWWWWW WWWWWWWWWWWW

WWWWW

14:15 Wed, 16 Feb

WWWWWWW WWWWWWW

WWWWWWW

WWWWWWW WWWWWWW WWWWWWW WWWWWWW WWWWWWW

Library

All

1235 ITV London

ASTRA 19.2°E

USB HDD3 Remaining Capacity: 86% (912.0GB)

10 July 2011 14:30(01:30)

Wed, 16 Feb 10:00 Wed, 16 Feb 10:00

Thu, 17 Feb 10:00 Thu, 17 Feb 10:00

Fri, 18 Feb 10:00 Fri, 18 Feb 10:00 Fri, 18 Feb 10:00

Sat, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00

Mon, 18 Feb 10:00

• As the displayed programme time is calculated

English

from the actual recording information, it may not match the recording time on the USB HDD.

To check a schedule

a Press B or b on the Programme Timers screen to

check the schedule.

To edit a schedule

a Press B or b on the Programme Timers screen to

select the title whose schedule you want to edit and press OK.

The Edit Timer screen will appear. Change the settings as required, following the same procedure as for setting the schedule.

b Press B or b to highlight Set Timer and press OK.

To delete a schedule

a Press B or b on the Library screen to select the title

whose schedule you want to delete.

b Press the RED button.

Press

C or c in the displayed confirmation window to

select Yes and press OK. The selected schedule will be deleted.

NOTE: You can also delete a schedule by selecting Delete Timer from the Edit Timer menu for each programming

method.

To view a recorded programme

To view the recorded Library screen and select a title from the

recorded programme list.

a Press MENU / C c / B / C c to highlight

TV Programmes / Library icons and press OK. Library screen will appear.

b Press B or b to select the title you want to view.

A preview of the content selected can be seen on the preview screen.

To change the order in which the titles are listed, press the BLUE button.

c Press OK.

Viewing starts.

● icon appears next to the title currently being recorded. When the title currently being recorded is selected and OK is pressed, playback will start from the beginning of the programme currently being recorded.

Operations during viewing

The following operations can be performed using the remote control buttons.

To PLAY

To STOP

v W/w To PAUSE/STEP

To SKIP-BACK

To REWIND

cc z C c

To FAST FORWARD To SKIP-FORWARD To shift playback

position

Operations from the Library screen

As well as viewing the list of recorded titles on the Library screen,

you can protect or delete titles and register titles to Personal

To display the Library screen

Mode.

a Press MENU / C c / B / C c to highlight

TV Programmes / Library icons and press OK.

The Library screen will appear.

To protect or unprotect a recorded programme

Sort : New

WWWWWW WWWWWWWWWWWW

WWWWW

WWWWWWW WWWWWWW WWWWWWW WWWWWWW WWWWWWW WWWWWWW

Library

All

We We

Th Th

F F F

1235 ITV London

ASTRA 19.2°E

USB HDD3 Remaining Capacity: 86% (912.0GB)

10 July 2011 14:30(01:30)

Thu, 17 Feb 10:00

Fri, 18 Feb 10:00 Fri, 18 Feb 10:00 Fri, 18 Feb 10:00

Sat, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00 Sun, 18 Feb 10:00

Mon, 18 Feb 10:00

REGZA-LINK Setup

Panel Lock

Off

Auto

Network Setup

Teletext

Guide Type

Network Device Setup

Off

Network Lock

Recording Setup

Preferences

Protecting a programme prevents it from being accidentally deleted.

Select the title of the programme you want to protect and press the GREEN button. icon appears next to the ti tle and the programme is protected.

If Protect is set to On when the programme is recorded,

icon appears next to the title of the recorded programme.

When a title with icon is selected and the GREEN button is pressed, icon disappears and the programme is unprotected.

To delete a recorded programme

a Press the RED button. Check boxes will appear next to

the titles.

b Press B or b to select the title you want to delete and

press OK. A check mark will be inserted in the check box.

CONTROLS AND FEATURES

USB HDD capacity

You can check the remaining capacity of the USB HDD using

Remaining Capacity.

NOTE: The remaining capacity displayed is only a guide; it is

not guaranteed.

Recording Setup

You can set your preferences for recording.

To select USB HDD and Partition for Recording

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select Recording Setup and press

OK.

English

To insert a check mark against all the titles, press the YELLOW button.

To uncheck all the check boxes, press the BLUE button.

NOTE:

• A check mark will not be inserted against protected titles.

• Note that once deleted, a title cannot be restored.

c Press the RED button.

Select Yes in the confirmation window and press OK. All the titles with check marks will be deleted.

d Press B or b to select Select Device and press OK.

USB HDD and Partition list will be appear. If USB HDD is partitioned by PC, several partitions will be displayed.

e Select USB HDD and Partition you want to recording.

To set the recording time for One Touch Recording

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select Recording Setup and press

OK.

CONTROLS AND FEATURES

Recording Setup

TimeShift Size Start Padding Time None End Padding Time None Device Test Format Device

512 MB

Programme End Time

Select Device One Touch Recording Time

d Press B or b to select One Touch Recording Time.

English

e Press C or c to select the recording time.

You can set the Programme End Time in 30-minute increments in the range of 30 minutes to 360 minutes.

To select the TimeShift Size

a In the Recording Setup screen, press B or b to sel ect

TimeSift Size.

b Press C or c to select 512MB, 1GB, 2GB or 4GB and

press OK.

To use TimeShift recording

Time Shift recording allows you to pause live TV for a fixed

period of time.

For Example: If you move away from the TV for a short period, such as when the phone rings while you are watching TV, you can easily pause live TV and then continue to view from the same point in the programme when you return.

a Press W/w on the remote control while viewing the

DTV programme. The screen will switch to a still image and recording will start automatically. The recording time is decided by TimeShift Size. If the TimeShift file size reaches the limit set, then the TV will continue to be paused, but the recording buffer will be reset to the beginning.

To set the padding time for programmed recording start time and end time

a In the Recording Setup screen, press B or b to select

Start Padding Time.

b Press C or c to select a time.

You can select from None, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, and 45 minutes.

Recording will start at the selected number of minutes prior to the recording start time.

c Press B or b to select End Padding Time.

d Press C or c to select a time.

You can select from None, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, and 45 minutes.

Recording will end at the recording end time plus the selected number of minutes.

To perform a USB HDD operation test

a In the Recording Setup screen, press B or b to select

Device Test and press OK.

USB HDD operation test will start. Wait until the test ends.

NOTE: The results of the device test are only a guide. The device may not function as shown in the results.

b Press c (play).

Catch-up viewing will start from where the programme was paused.

c Press v (stop) to stop the recording.

To format a USB HDD

a In the Recording Setup screen, press B or b to sel ect

Format Device and press OK.

b Press C or c to select Yes in the confirmation window

that will appear and press OK. Formatting will start. Wait until formatting ends.

NOTE:

• If the USB HDD is separated several partitions by PC and multiple Partition appear on the Device List screen, press

B or b to select the Partition you want to format.

• When the USB HDD (or Partition) is formatted, all the data stored on the USB HDD (or Partition) will be deleted.

CONTROLS AND FEATURES

Scheduling priority

If scheduled time slots are next to each other and there is more than one minute between the end time of the first schedule and the start time of the next schedule, programmed recording will be performed correctly.

• When Start Padding Time and End Padding Time are set (see page 54), the start time and end time will be the time plus the additional minutes.

If scheduling times overlap, priority will be given to the programmed recording which starts first. When the programmed recording that started first ends, recording will switch to the next scheduled programme. At this time, depending on how far the scheduling times overlap, the beginning section of the next scheduled programme may not be recorded.

• When End Padding Time is set for the first programmed recording (see page 54), depending on how far the scheduling times overlap, the End Padding Time may be ignored and recording of the next scheduled programme may start. As priority is given to the time set in the Set Timer menu over the Padding Time, recording will automatically be triggered when the next scheduled programme start time is reached during End Padding Time.

English

CONTROLS AND FEATURES

Using Toshiba Places

English

A new cloud based service, where content (movies, photos, etc.) can be viewed and shared across the web through a simple user interface called “Toshiba Places”.

NOTE: You need to configure a home network before using this feature (see page 14).

a Press on the remote control, or press MENU / C c

to highlight Connected TV icon and press highlight Toshiba Places icon and press OK.

B / C c to

b Press BbC c to select the desired place and press

OK.

NOTE:

• Some features require an always-on broadband internet connection, firmware update and/or additional bandwidth dedicated to this product. Third party interne t services may change or be discontinued or restricted at any time. Toshiba makes no warranties, representations, or assurances about the content, availability or functionality of third-party content or services. Use of third party internet services may require registration by a computer and/or payment of charges and membership. Not all services or content may be available on this product, in your country or with your language. In order to experience the full capabilities of this product, fully compatible devices may be required. For more information, visit http://www.toshibaplaces.com/about

• This service may be forcibly blocked according to the situation of CSP service.

Using Hybrid TV Standard (if available)

Hybrid TV Standard enables the TV to receive HbbTV services. TV services which support this feature often show “press RED” on the screen.

NOTE: You need to configure a home network before using this feature (see page 14).

a Press MENU / Cc to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press b to select Hybrid TV Standard.

d Press C or c to change from Disabled to Enabled.

When changing from Disabled to Enabled, a Network Connection Test is performed. If the result

is OK, then the setting changes to Enabled. If not, the setting remains Disabled.

When “press RED” is indicated on the screen, press the RED button to access HbbTV service site, and then press

BbC c to select the desired contents.

NOTE:

• This service is not available outside Germany.

• The HbbTV service indication or required key operations may not be possible depending on the service contents. In this case set the Hybrid TV Standard setting to Disabled.

• Toshiba makes no warranties, representations, or assurances about the content.

Using Intel® Wireless Display

Intel® Wireless Display (Intel® WiDi) is supported on this TV. You can use your TV as second display for PC with Intel® Wireless Display.

NOTE: In order to use this feature, the TOSHIBA Dual Band WLAN Adaptor WLM-20U2 (not supplied) is required (see page 14).

a Press MENU / C c to highlight Function icon.

b Press B / C c to highlight Intel® Wireless Display

icon and press OK.

A prompt will appear on the screen. Select Yes.

c Launch the Intel® WiDi software on your PC and select

“scan for available adaptors”.

Intel® WiDi device name and ID list will then be displayed on the PC screen.

Select the TV which you wish to connect to.

“Connecting” will be shown on the TV.

d Connecting your PC to your TV the first time:

When selecting the Toshiba TV for the first time, a 4digit code will appear on your TV screen. This code needs to be inputted into your computer to authenticate the connection.

If authentication has already taken place:

”Connected to Intel® Wireless Display. Please Wait” will appear on screen.

e After the Intel® WiDi connection is complete, the TV

screen will mirror the content shown on the PC screen.

NOTE:

• When connecting Intel® WiDi, PC must have power turned on.

• When the Intel® WiDi software is active, other TV network connections are not available.

• When the Intel® WiDi software is active, other applications may not be usable.

• Inte l® WiDi d evice nam e of the T V can be ch anged fro m the Intel® WiDi software.

CONTROLS AND FEATURES

To exit Intel® Wireless Display

Exit Intel® Wireless Display by pushing the disconnect button on Intel® WiDi software or by pressing EXIT on the TV remote control.

NOTE: If the PC has been inactive for some time, the Intel® WiDi connection will be disconnected automatically.

Intel® Wireless Display Device Name

The TV's Intel® Wireless Display device name can be changed.

a In the Preferences menu, press B or b to select

Setup and press OK.

b Press B or b to highlight Intel® Wireless Display

Setup and press OK.

c Highlight the Intel® Wireless Display Name and

press OK. The Software Keyboard window will appear.

d Input the Intel® Wireless Display device name by

using the software keyboard (see page 47). Press the BLUE button.

e Highlight Done and press OK to save your setting.

PC List

PC List displays a list of MAC addresses for previously connected

PC that have been connected before. The maximum number that

If the list run out of space, the least-recently-used MAC address will be deleted and the new MAC address added automatically.

can be stored is 20.

a In the Intel® Wireless Display Setup screen,

highlight the PC List and press OK. PC List will appear.

The registered PC can be deleted one by one by pressing RED key in the List.

When doing so the following text can be seen “Do you want to unregister this PC? Yes/No” (default cursor is “No”).

English

CONTROLS AND FEATURES

Using the Media Player

English

This TV allows you to enjoy movie, music and photo files stored on a USB device connected to the USB port. Moreover, you can also play photos, movies or music files from your PC by connecting the TV to your home network.

Terminology:

DMP: DLNA CERTIFIED™ Player

DMS: DLNA CERTIFIED™ Server

• DMP: The TV can control and play content from a DMS.

- A DMS is a device that can function as a server for DMP.

NOTE:

• Do not insert/remove USB device while in use.

• MENU is not available during playback.

Media Player Specifications

Device

USB device

Interface version: USB2.0 HS

USB Mass Storage Class devices (MSC)

NOTE:

• Connectivity is not guaranteed for all devices.

• Incorrect behaviour may occur with a USB hub connection.

File system: FAT16 and FAT32

Maximum memory size: Unlimited

DLNA CERTIFIED™ Server: Your PC (for example)

c Press B or b to select Media Player s etup and press

OK.

d Press B or b to select USB Auto Start and press C or

c to select On or Off.

Auto Start:

a Insert USB device into the USB socket on the left side

of the TV. A prompt will appear.

b Press C or c to select Yes and press OK.

c Press B or b to select Photo, Movie, or Music and

press OK.

d Select the connected USB device and press OK.

Multi View will appear.

NOTE: If Auto Start is set to Off, you can start the Media

Player manually.

Manual Start:

a Insert USB device into the USB socket on the left side

of the TV.

b Press MENU / Cc to highlight Media Player icon.

c Press B / Cc to highlight USB Media Player and

press OK.

d Press B or b to select Photo, Movie or Music and

press OK.

You must obtain any required permission from copyright owners to download or use copyrighted content. TOSHIBA cannot and does not grant such permission.

Basic operation

Using Media Player with USB

When Auto Start is enabled, you will be asked if you want to start the Media Player whenever a USB device is inserted. If Auto Start is disabled (or if you want to connect to a DMS on the network), you must manually start the Media Player from the menu.

To change the Auto Start setting:

a Press MENU / Cc to highlight Media Player icon.

b Press B / Cc to highlight USB Media Player and

press OK.

e Select the connected USB device and press OK.

Multi View will appear.

To select a file in the Multi View:

a Press Bb C c to select a file or folder.

b Press OK to move to the next layer, or press BACK to

return to the previous layer.

NOTE: You can also return to the previous layer by selecting the icon at the top left of the Multi View screen and pressing OK.

To close the Media Player:

a Press EXIT.

Using the Media Player with a DLNA CERTIFIED™

Multi View (DMS)

///Folder name

5/9999

Return

xxxxxxxxx.mp3xxxxxxxxx

xxxxxxxxx.mp3xxxxxxxxx.mp3

Network Media Player


xxxxxxxxx.mpgxxxxxxxxx.mpgxxxxxxxxx.mpg

Server

You need to configure a home network before using this feature (see page 14).

a Press MENU / Cc to highlight Media Player icon.

b Press B / Cc to highlight Network Media Player

and press OK.

c Select the server you want to use and press OK.

Multi View will appear.

CONTROLS AND FEATURES

Viewing photo files (on a DLNA

CERTIFIED™ Server or USB device)

There are three types of viewing modes.

Multi View (USB Photo)

This view allows you to search for photos in a grid format. The pictures are displayed using thumbnail data in each image file.

Broken photo contents

/Folder/select Folder or File

Return


5/9999


English

Photo, Movie and Music files and folders are displayed in the Multi View (DMS). Files are displayed according to the type first selected (Photo, Movie or Music). e.g. If you first selected a Photo file, only Photo files will be displayed.

To select a file in the Multi View:

a Press Bb C c to select a file or folder.

b Press OK to move to the next layer, or press BACK to

return to the previous layer.

NOTE: You can also return to the previous layer by selecting the icon at the top left of the Multi View screen and pressing OK.

To close the Media Player:

a Press EXIT.


The initial highlighted position will be on the top left thumbnail in the Multi View.


a Press B b C c to move the highlight in one window.

If all of the photos will not fit in one screen, when pressing

C at the top left thumbnail, the screen will

move to the previous page. Conversely, when pressing

c at the bottom right thumbnail, the screen

will move to the next page.

U (or / ) Pu (or / ) buttons can be used to

page up/down the Multi View when there are more photos than will fit onto one screen. When the P (or / ) P

u (or / ) buttons are pressed, the

highlight shall be on the photo at the top left of Previous/Next Multi View.

NOTE: The page down function on the last page and page up function on the first page are not available.

b When you select a folder, press OK to move to the

next layer. Press BACK to move back to the previous layer.

c Press OK to view the selected photo in Single View

mode.

CONTROLS AND FEATURES

Single View

English

In this mode, only files locate d in the selected directory will be displayed. This view allows you to change the photo content manually. When moving from Multi View to Single View, the currently selected photo will be displayed.

a Press c to view the next photo. Press C to view the

previous photo.

b Press B to rotate the image 90° clockwise. Press b to

rotate the image 90° counterclockwise.

c Press to display file status information (file

number, photo title, resolution etc.).

NOTE:

• The information may not be correctly displayed depending on the contents or DMS.

• You can not rotate in 3D (2D to 3D) mode.

Slide Show

This view allows you to watch a slide show of your photos. In this mode, only files located in the selected directory will be played.

a To start slide show, press OK in the Single View mode . b Press C or c to view the previous/next photo. c Press to display file status information.

NOTE: Pressing stop the slideshow and rotate the photo.

To set Interval Time and Repeat settings:

B or b while in the Slide Show mode will

a Press QUICK to open the Quick Menu. b Press B or b to se lec t ei th er Interval Time or Repeat. c Press C or c to adjust the setting and press OK.

NOTE: When in the DMS and Multi View modes, this feature cannot be used.

To set Background Music (USB only)

a Press QUICK to open the Quick Menu while in the

Slide Show mode.

b Press B or b to select Background Music and press

C or c to select On.

The music file in the same folder as the displayed photo will start playing.

NOTE:

• When the music file repeat mode is set to All (see page 64), all the music files in the same folder as the photo will be played repeatedly.

• To stop music file playback, select Off in Background

Music.

To zoom in/out photos

During the Single View mode or Slide Show mode, the zoom function can be used.

RED button (Zoom in)

S x2 S x4 S x8 zoom

USB: x1 DMP: x1/8

GREEN button (Zoom out)

USB: x8 DMP: x8

BACK button: Normal playback

S x1/4 S x1/2 S x1 S x2 S x4 S x8 zoom

S x4 S x2 S x1 zoom

S x4 S x2 S x1 S x1/2 S x1/4 S x1/8 zoom

B b C c buttons: Vertical or Horizontal scrolling

NOTE: Using the zoom function while in the Slide Show mode will stop the slideshow and zoom in/out the photo.

Selecting the Playback Mode (USB only)

You can view 3D photos in 3D and you can also view 2D photos in 3D.

Select the playback mode from the Quick Menu or switch playback modes using the 3D button on the remote control.

The current Playback Mode is displayed at the top left of the list mode.

To select the playback mode from the Quick Menu

a Press QUICK to open the Quick Menu in Multi View

mode.

b Press B or b to select Playback Mode and press OK.

c Press B or b to select 2D Mode, 3D Mode 1 or 3D

Mode 2.

2D Mode

All photos are displayed in 2D.

3D Mode 1

3D photos are displayed in 3D and 2D photos in 2D.

3D Mode 2

All photos are displayed in 3D. 2D photos are converted and displayed in 3D, and 3D photos are displayed in 3D.

To switch playback modes using the remote control

a Press 3D while in Single View mode.

The mode switches between 2D Mode, 3D Mode 1 and 3D Mode 2 each time 3D is pressed.

To select a photo from Play List

While in the Single View mode or Slide Show mode, you can select a different photo from the Play List.

a Press QUICK to open the Quick Menu from Single

View mode or Slide Show mode.

CONTROLS AND FEATURES

English

Viewing movie files (on a DLNA

CERTIFIED™ Server or USB device)

You can select movies from a Multi View of available files.

Multi View (USB Movie)

b Press B or b to select Play List and press OK.

The Photo List will appear.

c Press B or b to select a file name.

To close the Photo Viewer

a Press EXIT. The television will return to the last viewed

channel or external input.

File Compatibility

See page 88.

///Folder name

xxxxxxxxx.mpg

Return

xxxxxxxxx

xxxxxxxxx.mpg

5/9999

xxxxxxxxx.mpg

a Press B b C c to select a file or folder. PU (or / )

u (or / ) b utton s can be used t o page u p/dow n

the Multi View when there are more files than will fit onto one screen.

NOTE: The page down function on the last page and page up function on the first page are not available.

b When you select a folder, press OK to move to the

next layer. Press BACK to move back to the previous layer.

c With the desired file selected, press OK or

(play) to

start playback.

NOTE:

• On preview screen, if you highlight the file without pressing OK, the content is played on a preview screen. When OK is pressed, it is played in ful l screen mode.

• Depending on the file size, it may take some time to start playback.

d Press v to stop playback.

NOTE:

• If playback finishes before return to the Multi View.

• Depending on the file size, it may take some time for playback to begin.

v is pressed, the screen will

CONTROLS AND FEATURES

During playback:

English

• Press W/w to pause.

PAUSE may not be available depending on the contents or DMS.

• To resume normal playback, press

• To play in fast reverse or fast forward directions, press or

cc during playback. Each time you press the CC or cc,

the playback speed will change.

• To locate a specific file, press

• Press to display the file status information (content number, movie title, progress time etc.).

NOTE:

• The information may not be correctly displayed

depending on the contents or DMS.

•During playback, you can adjust the Picture and Sound

menu functions from the Quick Menu.

• The playback speed (

depending on the stream.

CC / cc) may not change

(play).

Z or z repeatedly.

To select subtitle and audio languages (USB only)

• Press SUBTITLE repeatedly to select your preferred subtitle language.

s repeatedly to select your preferred audio

• Press language.

NOTE: This feture is not available depending on the contents.

To set the repeat mode

a Press QUICK to open the Quick Menu.

b Press C or c to select Off, All or 1.

Mode Description

Off The file is played back only once.

All Files in the same folder are repeatedly

1 The same file is repeatedly played back.

played back.

Resume Play (USB only)

You can resume playback from where it was last stopped.

Press

v while playing the movie to memorize the stopped

position. On the Multi View screen, if you select a movie whose stopped position has been memorized, the message “Resume

Play?” will appear. Select Yes to resume playback from the last stopped position.

NOTE: If you play different content or exit Media Player, the memorized stopped position will be deleted.

To select a movie from Play List

While playing a movie, you can select a different movie from the Play List.

a Press QUICK to open the Quick Menu.

b Press B or b to select Play List and press OK.

The Movie List will appear.

c Press B or b to select a file name.

To close the Movie Viewer

a Press EXIT.

File Compatibility

See page 88.

c Press BACK.

NOTE: When in the DMS and Multi View modes, this feature

cannot be used.

To register your TV to a DivX® account

DivX® VOD Registration DivX

VOD Deregistration

DivX® VOD

This TV allows you to play back files purchased or rented from DivX® Video-On Demand (VOD) services. When you purchase or rent DivX® VOD files on the internet, you will be asked to enter a registration code.

a In the Media Player Setup menu, press B or b to

display DivX® VOD and press OK.

b Press B or b to highlight DivX® VOD Registration

and press OK.

c The DivX® VOD window will appear and you will see

the registration code. For details on registration, please visit the DivX® website at

http://vod.divx.com

d Copy the activation file to a memory device and play

it on the TV.

To deregistration your device

a In step 2 above, highlight DivX® VOD

Deregistration, and then press OK.

b A confirmation message will appear. Select Yes and

press OK.

c The DivX® VOD window will appear and you will see

the deregistration code. For details on registration, please visit the DivX® website at

http://vod.divx.com

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your registration code, loc ate t he Di vX VO D sec tion i n you r dev ice s etup menu. Go to vod.divx.com registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

for more information on how to complete your

for

CONTROLS AND FEATURES

To playback DivX Plus HD content:

• To play in fast reverse or fast forward directions, press CC

cc during playback. Each time you press the CC or cc,

or the playback speed will change.

• This TV generates original chapter point in 10% increments for 10 chapters in total, that are accessible by using the Number buttons on the remote control.

During playback, press chapter. When two times of above. If playback will skip to the beginning of the next content.

Z to skip to the beginning of the current chapter.

Press

Z is pressed twice in succession, it will skip to the

When beginning of the previous chapter. If succession at the first chapter, stop playing the current content and skip to the beginning of the previous content.

The Number button is used for direct jump. If the 3 button is pressed, playback will jump to the beginning of 3rd chapter. Even if the playback content has authored chapters, the Number button is used to jump directly to Auto Generated Chapter.

If the content has Authored Chapters, Authored Chapters.

NOTE:

• Depending on the content data will not be operated.

• The playback speed ( on the stream.

z to skip to the beginning of the next

z is pressed twice in succession, it will repeat

z is pressed at the last chapter,

Z is pressed twice in

Z / z are using for

CC / cc) may not change depending

Using Multi Title and Alternative Timelines Multi Title

DivX Plus HD files may contain up to 100 titles.

You can change the title (It contains same video file) by pressing the RED button.

When the RED button is pressed, it will display the title change window at the bottom on the screen (same as Subtitle or Audio change window).

The title is changed cyclically each time the RED button is pressed. Playback will start from start time of selected title

B or b.

every

NOTE: Depending on the content data will not be operated.

English

CONTROLS AND FEATURES

/Folder/select Folder or File

5/9999

Return

xxxxxxxxx.mp3

xxxxxxxxx

xxxxxxxxx.mp3

English

Playing music files (on a DLNA

CERTIFIED™ Server or USB device)

You can listen to music from a Multi View of available files.

Multi View (USB Music)

a Press B b C c to select a file or folder. PU (or / )

u (or / ) buttons can be used to page up/down

the Multi View when there are more files than will fit onto one screen.

NOTE: The page down function on the last page and page up function on the first page are not available.

b When you select a folder, press OK to move to the

next layer. Press BACK to move back to the previous layer.

c With the desired file selected, press OK or

start playback.

NOTE: If you highlight the file without pressing OK, the content is played on a Multi View. When OK is pressed, it is played in full screen mode.

(play) to

d Press v to stop playback.

NOTE:

• Depending on the file size, it may take some time for playback to begin.

• During playback, you can adjust the Sound menu functions from the Quick Menu.

During playback:

• Press W/w to pause.

• To resume normal playback, press PAUSE may not be available depending on the contents or

DMS.

• To play in fast reverse or fast forward directions, press

cc. Each time you press CC or cc, the playback speed

or will change.

(play).

To set the repeat mode:

a Press QUICK to open the Quick Menu.

b Press B or b to select Repeat.

c Press C or c to select Off, All or 1.

Mode Description

Off Files in the same folder are played back

All Files in the same folder are repeatedly

1 The same file is repeatedly played back.

once.

played back.

d Press BACK.

NOTE: When in the DMS and Multi View modes, this feature

cannot be used.

To select a music file from Play List

While playing a music file, you can select a different music file from the Play List.

a Press QUICK to open the Quick Menu.

b Press B or b to select Play List and press OK.

The Music List will appear.

c Press B or b to select a file name

To display the file status information

a Press during playback. The information will be

displayed on the bottom of the screen.

b Press again to remove the information.

NOTE: The information may not be correctly displayed depending on the contents or DMS.

To close the Music Player:

a Press EXIT.

File Compatibility

See page 88.

CONTROLS AND FEATURES

REGZA-LINK Setup

Panel Lock

Off

Auto

Network Setup

Teletext

Guide Type Network Device Setup

Off

Network Lock

Recording Setup

Preferences

Edit Timer

10:50 Tue, 26 Apr

Repeat

Date Start Time

Channel

Once

Timer Type

Recording

Set Timer Delete Timer

30 CABC Channel

10:51

Tue, 26 Apr 2011

English

Other features

Panel Lock

Panel Lock disables the buttons on the television. All buttons on

a Press MENU / Cc to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

c Press B or b to select Panel Lock. d Press C or c to select On.

When Panel Lock is On, a reminder will appear when the buttons on the television are pressed. If th e standby button

is pressed, the television will switch off and can only be brought out of standby by using the remote control.

the remote control can still be used.

press OK.

The timers

Programme Timers – digital only

This feature will set the television to go to a specific channel at a certain time. It can be used to view a particular programme, or by

setting the mode to daily or weekly, can be used to view a series

a Press MENU / Cc to highlight TV Programmes icon. b Press B / C c to highlight Programme Timers icon

and press OK.

c Press b if necessary to select an open timer position,

then press OK. The Edit Timer menu will now appear on screen.

d Press B and b to go through the list adding the

details of the programme by using the number buttons and

e When all of the details have been entered, highlight

Set Timer and press OK to save the timer.

The ORANGE programme timer indicator on the front of the television will be lit (see page 83 for details).

of programmes.

C and c to make selections.

CONTROLS AND FEATURES

On Timer

Enable On Timer Enable DTV Clock

Volume

Time Until Power On

00:00

Done

Channel

12 ABC

Repeat

Once

Input

DTV

Power On Time

00:00

On On

English

The feature allows you to set the television to turn on

automatically to a preset channel at a certain time of day or after

On Timer

a certain length of time.

a Press MENU / Cc to highlight Function icon.

b Press B / C c to highlight On Timer icon and press

OK.

c Press B or b to select Enable On Timer and press C

c to select On.

d Press b to select Enable DTV Clock, and then press C

c to select On or Off.

e Press B or b to go through the list adding the details

of the On Timer by using the number buttons and and

c to make selections.

Power On Time (only for DTV Clock On mode): Set the time you prefer with the number buttons. Repeat (only for DTV Clock On mode): Select the desired On Timer operation (Once, Every Day, Mon-

Fri, Mon-Sat, Sat-Sun). Input: Select a video input source (ATV, DTV Ant, EXT

1, EXT 2, HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PC). Channel: Set the channel that will be tuned when the television turns on.

NOTE: When an external input is selected in the Input field, a channel cannot be selected.

Volume: Set the volume that will be applied when the television turns on. Time until Power On (only for DTV Clock Off mode): Set the amount of time from now until the TV turns o n using the number buttons (maximum of 12 hours).

To cancel the On Timer

a In the On Timer menu, select Enable On Timer.

b Press C or c to select Off.

c Press B or b to highlight Done and press OK.

Sleep Timer

The television can be set to turn itself Off after a certain length of

time.

a Press MENU / Cc to highlight Function icon.

b Press B / C c to highlight Sleep Timer icon and

press OK.

c Use the number buttons to set the desired time. For

example, to switch the television off in one and a half hours enter 01:30, or press in steps of 10 minutes. (Maximum time setting is 12 hours)

c / C to increase/decrease

d Press EXIT to finish.

e To cancel the Sleep Timer, enter all zeros for the

above setting.

f Press B or b to highlight Done and press OK.

CONTROLS AND FEATURES

Edit Timer

The Daily Politics

10:50 Tue, 26 Apr

Timer Type

Channel2 CABC

11:30 - 12:30 Tue, 26 Apr

Recording

Set Timer Delete Timer

English

Energy Saving Settings

Automatic Power Down

The TV will automatically turn itself off (standby) after 4 hours, if

you do not operate the TV either from the remote control or the

a Press MENU / Cc to highlight Setup icon.

b Press B / Cc to highlight Preferences icon and

press OK.

c Press B or b to select Energy Saving Settings and

press OK.

d Press B or b to select Automatic Power Down.

e Press C or c to select On or Off.

NOTE:

• This feature is set to On when Location is set to Home.

•1 minute before switching to standby, a Warning message will appear.

• When the following features are set, the feature that is set for the nearest time will function.

- Automatic Power Down

-Sleep Timer

- Auto shutdown after 1 hour of inactivity (after power on

by On Timer)

- No signal auto power off (after 15 minute of no signal)

TV control panel.

Digital on-screen information

When viewing in digital mode, the on-screen information and programme guide provide access to programme details for all available channels.

Information

a Press , the information screen will appear giving

details of the channel and programme currently being viewed.

3D 2D

b Press B or b to select the “Now”, “Next” or “Also”

information guide.

The selected information content will appear.

c To record the next scheduled programme, select

Next and press OK. The Edit Timer screen will appear.

Display Example

ITV1 London ASTRA 19.2°E

8888

English

Side by Side

MLB Young’s two-run triple leads AL over NL

Now

16:9

World News and Sports

Also

MLB Young’s two-run triple leads AL over NL

AD 18

Change

News

6:00 Thu, 11 Oct

6:00- 8:00

15 min left

8:00- 9:00

No Signal Power Down

The TV will automatically turn itself off after 15 minutes when no

signal is detected. You can change the setting to Off for the

following purposes:

• Low signal strength of analog channel (no signal detection)

• Only Audio L/R is connected to external input to listen to music through the TV speakers.

a In the Energy Saving Settings menu, press B or b to

select No Signal Power Down and press OK.

b Press B or b to select the item you want to change

and press

C or c to select On or Off.

NOTE:

• Default setting is all On.

• A warning message will appear 1 minute before turning off.

d The details of the programme will already have been

added to the timer. Highlight Set Timer and press OK to save.

To indicate that a Recording Timer has been set, a clock icon will be displayed in the Next fields of the information screen. A check mark will appear if the timer is a Reminder Timer.

CONTROLS AND FEATURES

1 AAA ONE

3 AAA THREE

5 AAAi

9 DDD HD

4 AAA NEWS 24

6 CAAA Channel 7 BBB HD 8 CCC HD

2 AAA TWO

Thu 26

11:30 12:00 12:30

13:00

11:52 Tue, 26 Apr

13:30 14:00

Mind You...45Bargain Hunt

Cl... Class... Xchange

AAAi

AAA News

This is AAA THREE

AAAi

This is AAA THREE

School... The Daily Politics Working lun... Scho...

AAA News AAA News AAA News

Houses Behaving Ba... AAA News

La...50Schoo...

S...

Cl...40Class...55Cla...20Class...40Cla...20Class...

City Hospital

To display More Information

English

a Press QUICK to open the Quick Menu.

b Press b to highlight More Information and press OK.

On-screen Information icons

Icon Description

Service info Service type

Audio info Mono

AD Audio Description

Audio/Subtitle

info

Recording info ●REC Recording + Service

3D info 3D

3D→2D

Event info HD, SD Video format (HD, SD)

16:9, 4:3 Video Aspect

Subtitle (Single, Multi)

Audio track

0, 4 – 18 Parental rating

Timer info Recording

(TV, Radio, Text)

Skip

Stereo

Dual mono

Multichannel

Dolby Digital

Dolby Digital+

When HE-AAC is

decoded

For Hard of Hearing

info

Teletext

(Mono, Multi)

Encrypted

Reminder

Using EPG (Electronic Programme Guide)

You can choose the desired EPG system between the Broadcast Guide or MediaGuide that needs a internet connection.

Using Broadcast Guide

Make sure you selected Broadcast Guide in the Guide Type

menu of Initial Setup (see p age 19.) This setup can also be done

from the Setup / System Setup / Quick Setup menu or Setup

/ Preferences / Guide Type menu any time.

a Select the on-screen Guide by pressing GUIDE, and

the Guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

You can switch the time scale to 1.5 or 3 hours by pressing the GREEN button.

b Press C or c for information on other programmes

scheduled for the channel selected. To highlight the first programme in the genre grid, press the RED button.

c For details of other programmes currently available,

press

B and b to scroll up and down the channel list.

As channels are selected, details of the programme currently being broadcast will appear. Press view information for future programmes.

C or c to

d For information on a highlighted programme, press

e To set the timer for that programme, press the BLUE

button to bring up the Programme Timers menu.

f Press Pu to advance to the next page, or press PU to

go back to the previous page.

Genre selection/searching

Genre Colour

Movies

Colour Setup

:▲ :▼ :◄ :►

wwwwwww

6:15-7:00pm wwwwwwwwwwwwwwwwwwwwwwww wwwwwwwwwwwwwwwwww

Terms And Conditions

Primary Navigation

Terms And Conditions

ABCDE FGHI J KLMNO PQRST UVWXY Z .?123 ÀÊÖ

Space ClearBack

Recent Searches

Search For: ►

4:01pm

1 2

From the Guide screen, you can use the genre selection and

search features.

a In the Guide screen, press QUICK. b Press B or b to highlight Genre Colour in the Quick

Menu and press OK.

c With the focus on a particul ar genre, press the desired

coloured button to assign. Four colours will be available to set. Press BACK to go back to the Guide screen.

Using MediaGuide

MediaGuide is a service of Rovi Corporation. This service is an integrative media guide through the Internet besides television contents and internet contents.

NOTE:

• You need to configure a home network before using this feature (see page 14).

• Make sure you selected MediaGuide in the Guide Type menu of Initial Setup (see page 19.) This setup can also be done from the Setup / System Setup / Quick Setup menu any time.

CONTROLS AND FEATURES

This will tune to live TV for the particular show.

If the show is not being aired, you will be directed to the Overview screen with upcoming show times.

Primary Navigation menu

a In the Secondary Navigation menu, press C to expand

the Primary Navigation menu.

Hotlist

Press B or b to select Hotlist and press OK. Shows will be listed. Selecting a movie or show will bring you to the overview page.

Press B or b to select Search and press OK.

Terms And Conditions

Press B or b to select Terms And Conditions.

The License Terms and Conditions will be displayed.

Search screen

English

MediaGuide screen

a Press GUIDE on the remote control, or select Guide in

the TV Programmes menu and press OK.

The Listings menu in the Secondary Navigation will be selected. Default focus position is the current channel.

Remote control key operation

cRecent Searches button. Pressing OK will take you to the

Recent Searches screen.

dSearch input area displays what you are typing.

Pressing Search For will conduct the search and take you to Search Results.

eSearch keyboard.

NOTE:

• Toshiba does not take responsibility for the accuracy of content displayed.

• Service Information may not be displayed or there may be little service information displayed depending on the area or the kind of broadcast.

• The MediaGuide can only be used when your TV is connected to the internet.

• Starting and operation of this service may take time.

• Software update may be needed in order to use this service.

• This service does not support all languages.

• MediaGuide is a service of Rovi Corporation.

• During use of the MediaGuide usage information will be notified to the Rovi server to ensure continued efficient operation of the guide.

CONTROLS AND FEATURES

System Setup

Menu Language

English

Country Ant/Cable/Satellite

Auto Tuning

ATV Manual Tuning

DTV Settings

DTV Manual Tuning

Satellite Settings

Germany

DTV Settings

Channels

Parental PIN Setup

Subtitle and Audio

Parental Control

Local Time Setting

Common Interface

Standby Channel Update

Off

* * * *

New PIN:

Confirm PIN:

PIN Setting

• Rovi Corporation and/or its subsidiaries and related affiliates are not in any way liable for the accuracy or

English

availability of the program schedule information or other data in the Rovi Guide system and cannot guarantee service availability in your area. In no event shall Rovi Corporation and/or its related affiliates be liable for any damages in connection with the accuracy or availab ility of the program schedule information or other data in the Rovi Guide system.

• Third party internet services are not provided by Toshiba, may change or be discontinued at any time and may be subject to internet service provider restrictions. Toshiba makes no warranties, representations, or assurances about the content, availability or functionality of third-party content or services. Use of third party internet services may require the creation of a separate account through a computer with internet access and/or payme nt of one-time and/or recurring charges and membership. Not all third party services may be available on or compatible with this product. In order to experience the full suggested capabilities of this product, fully-compatible devices may be required.

Digital settings – parental control

In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked in digital mode. These can then only be accessed with a security code PIN.

Parental PIN Setup

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight System Setup icon and

press OK.

c Press B or b to select DTV Settings and press OK.

d Press B or b to highlight Parental PIN Setup and

press OK.

e Using the number buttons enter a four digit number.

Once entered you will be prompted to confirm by entering again.

The PIN number is now set.

If the PIN code has been set, when Auto Tuning and Reset TV are executed, entering the PIN will be necessary. “0000” is not acceptable.

CONTROLS AND FEATURES

Parental Setup None

Parental Control

Recording Setup

Off

Auto

Network Setup

Teletext

Guide Type Network Device Setup

Network Lock

3D Setup

Preferences

REGZA-LINK Setup

Fav.

Channel Options

Channel List

Favourites

6 M6

9 W9 11 NT1 31 PARIS PREMIERE 34 AB1 51 ITV1

English

Parental Setup

The Parental Control feature allows you to block programmes

according to their rating levels. If a PIN has been set, you will need

to enter it before adjusting the level.

a In the DTV Settings menu, press B or b to select

Parental Control and press OK.

b Use C or c to choose an option (None or an age

setting (4-17 or 4-18 depending on the Country setting)).

To view blocked programmes, enter the PIN. To reactivate the Parental Control, turn the TV off and then on again.

Network Lock

You can use the Network Lock feature to prevent the Web

browser from launching. When this feature is set to On, PIN input

will be necessary to use network functions.

This feature will be grayed out until a PIN is set.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or bto select Network Lock .

Digital settings – Channel Options

Selecting favourite channels

From the Quick Menu / Channel Options menu, it is possible

to create a list of the digi tal channels that are watched most.

Press LIST /

a Select a channel you want to add to your favourite list.

b Press QUICK to open the Quick Menu.

c Press b to select Channel Options and press OK.

d Press c to select the favourite list (Fav.).

e Press OK to select the ones required. A tick will appear

f Repeat steps 1 through 5 for other channels.

g When all favourites have been selected, press EXIT.

a Press LIST to display Channel List.

Cc to select the Favourite Channel list.

in the box as they are selected.

Favourite Channel List

Each time you press

Channels, Radio channels, Text channels or Favourites is selected in order.

C or c, All Channels, TV

d Press C or c to select On.

To unlock the Network:

a Select Off in step 4 above.

b Press C or c to select Favourites. The number of

favourites available depends on how many lists have been created.

c Press B or b to highlight a channel and press OK to

watch.

CONTROLS AND FEATURES

Subtitle and Audio

Subtitle Type

Secondary Subtitle Language

Primary Subtitle Language

Audio Type Primary Audio Language Secondary Audio Language

English

English English Normal English

Normal

Subtitle Display

Off

English

This feature allows you to set channels that will be skipped when

Skip channels

u or PU are used to tune.

a Select the channel you want to skip in your channel

list.

b From the Quick Menu, press b to select Channel

Options and press OK.

c Press c repeatedly to highlight the skip (8) box.

d Press OK to select. A tick will appear in the box.

e Repeat steps 1 through 4 for other channels.

f Press EXIT.

NOTE: Skipped channels cannot b e se lec ted by P

U but still be accessed by direct number entry

(when tuned a banner to indicate as a skipped channel).

8 icon will be displayed in the

Locking channels

Locking Channels stops the viewing of digital channels, and

they can only be accessed by entering the PIN.

a Select the channel you want to lock in your channel

list.

b From the Quick Menu, press b to select Channel

Options and press OK.

c Press c repeatedly to highlight the lock ( ) box.

d Press OK to select. A tick will appear in the box.

If a PIN has already been set, PIN entry will be required to set the locked channels.

e Repeat steps 1 through 4 for other channels.

f Press EXIT.

g From this point on, when any of the channels in the

Locked Channel list are selected, the PIN must be entered before they can be accessed.

Digital settings – other settings

Subtitles

In digital mode, this feature will show subtitles on the screen in

the selected language provided they are being broadcast.

a In the DTV Settings menu, press B or b to select

Subtitle and Audio and press OK.

b Press b to select Subtitle Display and press C or c

to select On or Off.

u or

c Press B or b to select Primary Subtitle Language or

Secondary Subtitle Language and press

select an option.

The SUBTITLE button can be used to select subtitle on or off for the current channel only and to select the subtitle language if more than one subtitle is available.

Audio languages

This feature allows a programme or film to be viewed with a choice of soundtrack language, provided multiple language

a In the Subtitle and Audio menu, press B or b to

b Press B or b to select Primary Audio Language or

tracks are being b roadcast.

select Audio Type and press or For Hard of Hearing.

Secondary Audio Language and press select an option.

If more than one soundtrack is available, use the s button to select between them.

C or c to select Normal

C or c to

CONTROLS AND FEATURES

SEARCHING FOR NEW SOFTWARE Searching for a new software upgrade for this TV.

48 %...

CH 31

English

Common Interface

The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional Access Module) and

card. These are purchased from a service provider and allow

additional subscription broadcasts to be viewed. For

information, see a service provider.

a Insert the CAM and card into the Common Interface

Slot, following the instructions provided with the CAM. A box will appear on screen to confirm that the CAM has been inserted.

b Press MENU / Cc to highlight Setup icon.

c Press B / C c to highlight System Setup icon and

press OK.

d Press B or b to select DTV Settings and press OK.

e Press B or b to select Common Interface and press

OK.

f Details of the CAM should now be available.

NOTE:

• Software update of a CI Plus CAM may occur automatically if instigated by the broadcaster. This could cause the cancellation of any Reminders/Recordings during this process.

• Some CI or CI+ CAM may not be supported.

• CI+ operation is not guaranteed except for Canal Ready DT T services on suffix FC models.

Software Upgrade and Licences

Searching for New Software

If preferred, software upgrades can be searched for manually

a In the System Setup menu, press B or b to select

b Press B or b to select Search for New Software.

c Press OK. The television will automatically start

TOSHIBA may offer upgrades for the TV’s software in the future.

Before downloading software:

Configure your TV to connect to the Internet.

NOTE: While the upgrade is being performed, you will not be able to watch the TV.

a In the System Setup menu, press B or b to select

using Search for New Software.

Software Upgrade and press OK.

searching for a software upgrade, the progress bar will move along the line.

If an upgrade is found, the television will automatically start downloading. If not, a screen will appear stating that an upgrade is unavailable.

Network Upgrade

The TV’s software is upgraded via the Network.

Software Upgrade and press OK.

b Press B or b to select Network Upgrade and press

OK.

NOTE: If the network is not available, a warning

message will appear.

c The TV software upgrade will start when download

succeeds.

Software Licences

The licences for the software used in this television are available

for viewing.

a In the System Setup menu, press B or b to select

Software Licences and press OK.

A screen will appear displaying all the licensing information required for the televisions software.

CONTROLS AND FEATURES

System Information

2012

6.8.05.1 Jan 19 2012 - 53. 5. 73. 5

MBOOT Version : xxxxxxxx

MFC Version : xxxxxx

WEAK

CH 25

GOOD

CH 33

GOOD

CH 67

GOOD

AVERAGE

STRONG

TOSHIBA

System Information and Reset TV

English

System Information

This feature can be used to check the version of software

currently installed. When in DTV mode, it includes additional

diagnostic information such as signal strength, signal quality,

centre frequency, modulation, etc.

a In the System Setup menu, press B or b to select

System Information.

b Press OK to display the System Information.

c For information about the signal quality of a particular

multiplex, press

B or b to select that multiplex.

d Press OK for a screen showing detailed technical

information about the selected multiplex.

Reset TV

Selecting Reset TV will reset all TV settings, including saved

channels, to their original factory values.

a In the System Setup menu, press B or b to select

Reset TV.

b Press OK to select. A screen will appear warning that

all settings will be lost. Press OK to continue.

When the set powers back on, the Quick Setup screen will appear. Press OK to advance the setup and perform an auto tune. (See “Quick Setup” section on page 17.)

PC Settings

Horizontal and Vertical Position

Connect the PC (as shown in the ‘Connecting a computer’

section) and ensure that a picture is showing on the television

screen. The picture p osition may now be adjusted to suit

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select Display Settings and press OK.

d Press B or b to select PC Setting and press OK.

Display Settings

Auto Format On 4:3 Stretch Off Picture Position PC Settings

e Press B or b to select an option and press C or c to

adjust the settings.

PC Settings

Horizontal Position Vertical Position Clock Phase Sampling Clock

The Clock Phase matches the PC signal with the LCD display.

Adjusting this can clear h orizontal stripes and picture blur.

a In the Display Settings menu, press B or b to select

PC Settings and press OK.

b Press B or b to select Clock Phase.

c Press C or c to adjust until the picture clears.

personal preference.

0 0 0 0

Reset

Clock Phase

CONTROLS AND FEATURES

1 2

HDMI 2

HDMI 1

HDMI 3 HDMI 4

Inputs DTV Ant DTV Sat

ATV

1 2

HDMI 2

HDMI 1

HDMI 3 HDMI 4

Inputs

Press o on the remote

control

Press and hold p / o

on the TV

English

Sampling Clock

Adjusting the Sampling Clock alters the number of pulses per

scan, this will clear vertical lines on the screen.

a In the Display Settings menu, press B or b to select

PC Settings and press OK.

b Press B or b to select Sampling Clock.

c Press C or c to adjust until the picture clears.

Reset

Use Reset to return all items to the original factory settings.

a In the Display Settings menu, press B or b to select

PC Settings and press OK.

b Press B or b to select Reset and press OK.

NOTE: When a PC is connected using HDMI, none of th ese functions will be available.

The screen is disrupted momentarily when adjusting PC Settings. This is not a sign of malfunction.

The default settings and adjustment ranges may vary depending on the input signal format.

Input selection and AV connections

See page 10 for a detailed image showing recommended connections.

Most media recorders and decoders send a signal through the SCART lead to switch the television to the correct Input socket.

Alternatively, press the external source selection button until the picture from connected equipment is shown.

Input selection

Use the Input Selection window if the television does not switch

over automatically.

a By pressing o on the remote control or TV, a list will

appear on screen showing all inputs and external equipment.

HDMI® displays equipment connected to In put HDMI on the back or side of the television.

PC displays a computer connected to Input RGB/PC on the back of the television.

CONTROLS AND FEATURES

REGZA-LINK Setup

Panel Lock

Off

Auto

Network Setup

Teletext

Guide Type Network Device Setup

Off

Network Lock

Preferences

AV Connection

Input Labeling Digital Audio Output

Input Label

Input Labeling

EXT 1

EXT 2 HDMI 1 HDMI 2 HDMI 3 HDMI 4

AV Connection

Input Labeling

Digital Audio Output

English

Labeling video input sources

These input labels are shown in the input selector. You can label video inputs according to the devices you have connected to the

TV.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select AV Connection.

d Press OK to display the AV Connection menu.

e Press B or b to highlight Input Labeling and press

OK.

f Press B or b to select Input Labeling and press OK.

g Press B or b to s elect the ite m you wa nt to la bel, an d

then press Game, PC, Recorder or Satellite.

C or c to se lect --, Amplifier, Cable, DVD,

h Repeat step 7 for other video inputs.

Digital Audio Output

When connecting a surround sound amplifier to the digital audio

output (Sony/Philips Digital Interface Format [S/PDIF]), the

following options can be selected or adjusted.

a In the Preferences menu, press B or b to select AV

Connection and press OK.

b Press B or b to select Digital Audio Output.

c Press OK to display Digital Audio Output menu and

press

B or b to select an option.

Audio Format:

Press

C or c to select PCM or Auto.

PCM: This mode outputs PCM format to the digital

audio output socket.

Auto: This mode outputs Dolby Digital (if available)

or PCM to the digital audio output socket. Dolby Digital

Dolby Digital Plus MPEG HE-AAC

Audio Delay:

C or c to select Auto or Manual.

Press

Auto: This mode automatically adjusts the audio

timing to meet the video timing. NOTE: The time lag might be large between

the image and sound depending on the connected equipment (amplifier etc.). In that case, select Manual.

Manual:You can manually adjust the audio signal

timing to meet the video signal timing.

Delay Adjustment:

C or c to adjust the audio signal timing

Press (0 – 250ms) to meet the video signal timing.

NOTE:

• This feature is grayed out when

• A time lag will occur when the video signal or audio signal is changed. Adjust the timing accordingly.

• When adjusting the timing, turn down the volume of the AV equipment used as far as possible. Depending on the equipment, noise etc. may occur when the signal is changed.

• Depending on the connected equipment (amplifier, etc.), adjustment may not be possible.

• When the optical digital output setting (Auto is changed, it may be necessary to adjust the timing again.

• Do not use other than for audio output from the AV amplifier, etc. (Malfunction may occur)

S Dolby Digital

S PCM

S Dolby Digital

Audio Delay

is in

Auto

tPCM)

CONTROLS AND FEATURES

REGZA-LINK Setup

Enable REGZA-LINK

On TV Auto Power On Auto Standby On Amplifier Control On Initial Speaker Setting TV Speakers

Inputs

1 2

HDMI 2

HDMI 1

HDMI 3 HDMI 4

1 DVD 2 VCR/DVR 3 CBL/SAT 4 GAME/TV 5 AUX

English

Using REGZA-LINK

This is a new feature that uses CEC technology and allows you to control Toshiba REGZA-LINK compatible devices from the television remote control via HDMI connection (page 12).

When the Enable REGZA-LINK item in the REGZA-LINK Setup menu is set to On, individual functions also set to On will be activated.

Enable REGZA-LINK

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select REGZA-LINK Setup and press

OK.

d Press b to select Enable REGZA-LINK and press C or

c to select On.

NOTE: If you set Enable REGZA-LINK to Off, all other

items will be grayed out.

TV Auto Power

The TV Auto Power setting allows the television to be

automatically switched on if a REGZA-LINK device is turned on.

a In the REGZA-LINK Setup menu, press b to highlight

TV Auto Power.

Amplifier Control

When Amplifier Control is set to on/off the connected REGZA-

LINK amplifier.

a In the REGZA-LI NK Setup menu, press b to highlight

Amplifier Control.

b Press C or c to select On or Off.

Initial Speaker Setting

The Initial Speaker Setting allows to select TV speakers or

Amplifier speakers.

a In the REGZA-LI NK Setup menu, press b to highlight

Initial Speaker Setting.

b Press C or c to select TV Speakers or Amplifier.

REGZA-LINK input source selection

If a REGZA-LINK device with HDMI switching ca pability (e.g. AV amplifier) is connected to the HDMI input, you can select another REGZA-LINK device that is connected to the master HDMI device

on the input source list.

a Press o and a list will appear on screen showing

available input sources.

b Press b to select the desired input source with

REGZA-LINK icon.

c Press c and a second selection screen will appear

showing all connected REGZA-LINK equipment.

b Press C or c to select On or Off.

Auto Standby

When Auto Standby is enabled, the television, when switched

off, will automatically switch off (standby mode) all connected

a In the REGZA-LINK Setup menu, press b to highlight

Auto Standby.

b Press C or c to select On or Off.

REGZA-LINK equipment.

d Press B or b to select the desired input source, and

then press OK.

CONTROLS AND FEATURES

NOTE:

• These functions depend on the device connected.

English

• If you select the REGZA-LINK input source from the popup window, some REGZA-LINK devices may automatically turn on.

• When the television is switched on it will take a few minutes for the REGZA-LINK icon to appear in the list. When an HDMI cable is removed, it will take a few minutes for the icon to disappear.

• If the HDMI cable from connected equipment is changed, Enable REGZA-LINK in the REGZA-LINK Setup menu may need to be reset to On.

• If you change the HDMI lead to a connected device or change an HDMI device setting, reset the Enable REGZA- LINK item on the REGZA-LINK Setup menu from Off to On.

REGZA-LINK one touch play

When connected equipment is switched on, REGZA-LINK will automatically detect the television through the input selection. If the television is in standby, it will be switched on automatically.

These functions can be enabled or disabled from the REGZALINK Setup (see page 77).

NOTE:

• Even if the equipment is showing a menu, the television may automatically show the input source.

• This feature depends on the connected equipment and television state.

REGZA-LINK system standby

If the television is turned off (standby mode), the television will send a message to turn off (standby mode) all of the REGZA-LINK devices connected to the television.

These functions can be enabled or disabled from the REGZALINK Setup (see page 77).

NOTE: This feature depends on the connected equipment and television state.

TEXT SERVICES

Recording Setup

Off

Auto

Network Setup

Teletext

Guide Type Network Device Setup

Network Lock

3D Setup

Preferences

REGZA-LINK Setup

English

Text services

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text – Auto will display Fastext, if available. List will save your four favourite pages.

Selecting modes

The text character set will be automatical ly chosen by the

language setting in the Setup menu.

a Press MENU / C c to highlight Setup icon.

b Press B / C c to highlight Preferences icon and

press OK.

c Press B or b to select Teletext, and then press C or

c to select Auto or List.

Text information

The TEXT button:

To view text services press TEXT. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Channels cannot be changed until text is cancelled.

The first text page shown will be the initial page.

Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing P to go back to the previous page.

Sub-pages

The pages on the screen will dynamically update as subpages are received.

If you open a page containing sub-pages, the sub-pages are automatically displayed in sequence. To quit automatic subpage change, press

Once selected, the sub-page you are viewing will be highlighted and, as the television loads any additional subpages, t he colour of the numbers will change, indicating that these pages have been loaded.

These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

U to advance to the next page and Pu

C or c.

Navigating pages using Auto

If Fastext is available, four coloured titles will appear at the base of the screen.

To access one of the four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text system(s), see the broadcast text index page or consult your local Toshiba dealer.

Navigating pages using LIST

The four coloured choices at the bottom of the screen are numbers – 100, 101, 102 and 103, which have been programmed into the television’s memory. To view these pages, press the relevant coloured buttons.

To change these saved pages, press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Press OK to save. Whenever OK is pressed, all four page

numbers showing at the bottom will be saved and the previous ones will be lost.

NOTE: The video signal from the external inputs (EXT-1 and

EXT-2) is not saved.

If OK is not pressed, the selection will be forgotten when the channel is changed.

Other pages may be viewed by entering the 3 digit page number – but DO NOT press OK or these pages will be saved.

TEXT SERVICES

English

Below is a guide to the functions of the remote control text buttons.

Control buttons

k To display the index/initial page:

Press k to access the index/initial page. The one displayed is dependant on the broadcaster.

TEXT To display a page of text:

Press TEXT to display text. Press again to superimpose text over a normal picture. Press again to return to normal te levi sio n vi ewin g. C han nel s can not be c hang ed u nti l th is ha s been done.

A To reveal concealed text:

To discover the solutions on quiz and joke pages press the A button.

B To hold a wanted page:

At times it is convenient to hold a page of text. Press B and

B will appear in the top left of the screen. The page will be

held on screen until the button is pressed again.

C To enlarge the text display size:

Press C once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.

D To temporarily erase the text screen:

Press D once to erase the text screen temporarily. To recall the text screen, press the button again.

To display news flashes:

Select the news flash page for the chosen text service (see the index page of text service). The news flashes will be displayed as and when they are broadcast.

Remember to cancel text before

changing channels - press the TEXT button twice.

PROBLEM SOLVING

System Setup

Country Germany Colour System

Auto

Menu Language English

ATV Manual Tuning

Manual Fine Tuning

English

Questions and Answers

Below are the answers to some of the most common queries.

Why is there no sound or picture?

Check the television is not in standby mode. Check the mains plug and all mains connections.

There is a picture, but why is there little or no

colour?

When using an external source, for instance, a poor quality video tape, if there is little or no colour,

improvements may sometimes be achieved. The colour is factory set to Auto to automatically displa y the best colour system.

To check that you have the best colour:

a With the external source playing, select Colour

System from the System Setup menu.

b With C or c choose between Auto, PAL, SECAM,

NTSC 4.43 or NTSC 3.58.

Why doesn’t the video/DVD being played show

on screen?

Make sure the media recorder or DVD player is connected to the television as shown on page 10,

and then select the correct input by pressing

Why is there a picture but no sound?

Check all lead connections. No sound or unacceptable format sound may be

received. Check the volume has not been turned down or that sound mute has not been selected. Check shared audio settings.

What else can cause a poor picture?

Interference or a weak signal. Try a different television station. Manual Fine Tuning may help.

a Select the ATV Manual Tuning menu. Highlight the

station and press OK. Then press Fine Tuning.

c to select Manual

b Using B or b adjust to get the best picture and

sound. Press OK and then EXIT.

Why don’t the controls of the television work?

Check that Panel Lock is not On.

Why doesn’t the remote control work?

Check that the batteries aren’t dead or inserted incorrectly.

Why is the digital channel locked?

The channel has been locked in Channel Options (see ’Digital settings – Channel Options’ section).

Why are some of the digital subscription channels

unavailable?

Your subscription needs upgrading. Contact your service provider.

Why is the soundtrack in English whe n a different

audio language has been selected?

The programme is currently being broadcast with an English soundtrack only.

Why is there incorrect or no sound when in DTV

mode?

Press s to ensure the hard of hearing option has not been selected.

PROBLEM SOLVING

What is DVB-T?

English

Digital Video Broadcast via an aerial/antenna.

What is DVB-C?

Digital Video Broadcast via a cable connection.

How are DTV radio channels selected?

Select from All Channel List (LIST button).

What can be done if the PIN num ber has been

forgotten?

Use the Master PIN code of 1276, then change to a number of your choice. Select Parental PIN Setup

from the DTV Settings menu to enter PIN. Ensure that no-one else can use the Master PIN by removing the Owner’s Manual.

Why are there vertical stripes on the sc reen wh en

in PC mode?

The Sampling Clock may need adjustment. Select PC Settings from the Display Settings menu, highlight

Sampling Clock and adjust until the lines clear.

Why are there horizontal stripes and/or blurred

images on the screen when in PC mode?

The Clock Phase may need adjustment. Select PC Settings from the Display Settings menu, highlight

Clock Phase and adjust until the picture clears.

Why when digital subtitles have been selected are

they not showing on screen?

Subtitles are not currently being transmitted by the broadcaster.

Why are there problems with analogue text?

Good performance of text depends on a good strong broadcast signal. This normally requires a roof or loft

aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.

Why is a page number visible at the top of the

screen but no text?

Text has been selected but Teletext information is currently unavailable on the current source.

Why are the colours wrong when an NTSC source

is played?

Connect the source via a SCART lead and play. Select Colour System from the Setup menu.

a Set the Colour to Auto and exit.

b Go to the Picture menu and adjust the tint.

Why don’t the devices con nected via HDMI

operate properly?

Make sure to use cables with the HDMI logo

Some early HDMI equipment may not work properly with the latest HDMI TV products, due to new standard adoption.

Why don’t the REGZA-LINK devices work?

When the connected REGZA-LINK device does not work correctly after you have changed the settings of

the device, turn off your television and unplug the power cord, and then plug and turn on again. Unplug the HDMI cable of the REGZA-LINK device and lead again.

Why is the REGZA-LINK logo still show ing when

the equipment has been disconnected?

If the REGZA-LINK device is disconnected, the logo will disappear after approximately one minute.

Why don’t the networked devices work?

The LAN cables are not connected properly or at all. Connect all cables (see page 14).

Make sure your network address is set up correctly (see page 45).

Why doesn’t the wireless network work?

Make sure the TOSHIBA Dual Band WLAN Adaptor is used (see page 14).

Check that the AP is powered on.

(see page 11).

Why doesn’t the Media Player feature operate?

LED 2LED 1

Make sure that devices are connected correctly. Incorrect behaviour may occur with a USB Hub

connection. Check your network setup if us ing DLNA CERTIFIED™ Server.

Why are not 3D images displayed?

Ensure that there is no object blocking the infrared signals in the infrared reception part of television and

3D glasses. If the infrared data communication between the television and 3D glasses is lost for 5 minutes, the power of 3D glasses is turned off.

Why doesn’t the USB HDD work?

Your country/area may not support the USB HDD function.

PROBLEM SOLVING

INFORMATION

License Information

English

• Manufactured under license from Dolby

• HDMI, the HDMI logo, and High-Definition

• This product contains Adobe® Flash® Player software under license from Adobe Systems Incorporated. Copyright © 1995-2009 Adobe Systems Incorporated. All rights reserved. Adobe and Flash are trademarks of Adobe Systems Incorporated.

• DivX®, DivX Certified®, DivX Plus® HD and

• This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

• This product includes technology owned by Microsoft Corporation and can not be used or distributed without a license from Microsoft Licensing, GP.

• Content owners use Windows Media digital rights management technology (WMDRM) to protect their intellectual property, including copyrights. This device uses WMDRM software to access WMDRM-protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft to revoke the software's ability to use WMDRM to play or copy protected content. Revocation does not affect unprotected content. When you download licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519 ,274

• DLNA™, DLNA CERTIFIED™, DLNA CERTIFIED Logo are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

• Rovi and Rovi Guide are trademarks of Rovi

• DVB is a registered trademark of the DVB Project.

• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (AVC VIDEO) AND/ OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

•THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH T HE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA,L.L.C. SEE HTTP://WWW.MPEGLA.COM

• MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

• Hybrid TV Standard is implemented according to ETSI TS 102 796 v1.1.1.

• Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries.

Corporation and/or its subsidiaries. The Rovi Guide system is manufactured under

license from Rovi Corporation and/or its subsidiaries.

INFORMATION

Cleaning the screen and cabinet…

Turn off the power, and clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Disposal…

The following information is only for EU-member states:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after August 13, 2005. By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste. If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol. By participating in sepa rate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

English

INFORMATION

Information

English

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

Signal information for Mini D-sub 15 pin connector

Pin No. Signal name Pin No. Signal name Pin No. Signal name

1 R 6 Ground 11 NC

2 G 7 Ground 12 DDC Data

3 B 8 Ground 13 H-sync

4NC*9+5V14V-sync

5 Ground 10 Ground 15 DDC Clock

* NC = not connected

Acceptable PC signals through the PC terminal

The PC input on this TV only accepts signal formats which are compliant with VESA-DMT as shown in the table below. Since some PCs input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC to conform to a signal in the table below.

Format Resolution V. Frequency H. Frequency Pixel Clock Frequency VESA Standard (DMT)

VGA 640 × 480 59.940Hz 31.469kHz 25.175MHz

72.809Hz 37.861kHz 31.500MHz

75.000Hz 37.500kHz 31.500MHz

SVGA 800 × 600 56.250Hz 35.156kHz 36.000MHz

60.317Hz 37.879kHz 40.000MHz

72.188Hz 48.077kHz 50.000MHz

75.000Hz 46.875kHz 49.500MHz

XGA 1024 × 768 60.004Hz 48.363kHz 65.000MHz

70.069Hz 56.476kHz 75.000MHz

75.029Hz 60.023kHz 78.750MHz

WXGA 1280 × 768 59.995Hz 47.396kHz 68.250MHz

59.870Hz 47.776kHz 79.500MHz

74.893Hz 60.289kHz 102.250MHz

1280 × 800 59.810Hz 49.702kHz 83.500MHz

1360 × 768 60.015Hz 47.712kHz 85.500MHz

WXGA+ 1440 × 900 59.887Hz 55.935kHz 106.500MHz

SXGA 1280 × 1024 60.020Hz 63.981kHz 108.000MHz

75.025Hz 79.976kHz 135.000MHz

1080p 1920 × 1080p 60.000Hz 67.500Hz 148.500MHz

INFORMATION

Acceptable video or PC signals through the HDMI terminals

The HDMI inputs on this TV only accept VGA, SVGA, XGA, WXGA, and SXGA signal formats which are compliant with VESA as shown in the table below. Since some PCs and HDMI or DVI devices input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC, HDMI or DVI device to conform to a signal in the table below.

English

Format Resolution V. Frequency H. Frequency Pixel Clock Frequency VESA

480i 720 × 480i 59.940/60.000Hz 15.734/15.750kHz 27.000/27.027MHz

576i 720 × 576i 50.000Hz 15.625kHz 27.000MHz

480p 720 × 480p 59.940/60.000Hz 31.469/31.500kHz 27.000/27.027MHz

576p 720 × 576p 50.000Hz 31.250kHz 27.000MHz

1080i 1920 × 1080i 59.940/60.000Hz 33.716/33.750kHz 74.176/74.250MHz

1080i 1920 × 1080i 50.000Hz 28.125kHz 74.250MHz

720p 1280 × 720p 59.940/60.000Hz 44.955/45.000kHz 74.176/74.250MHz

720p 1280 × 720p 50.000Hz 37.500kHz 74.250MHz

1080p 1920 × 1080p 59.940/60.000Hz 67.433/67.500kHz 148.352/148.500MHz

1080p 1920 × 1080p 50.000Hz 56.250kHz 148.500MHz

1080p 1920 × 1080p 24.000Hz 27.000kHz 74.250MHz

VGA 640 × 480 59.940/60.000Hz 31.469/31.500kHz 25.175/25.200MHz

72.809Hz 37.861kHz 31.500MHz

75.000Hz 37.500kHz 31.500MHz

SVGA 800 × 600 56.250Hz 35.156kHz 36.000MHz

60.317Hz 37.879kHz 40.000MHz

72.188Hz 48.077kHz 50.000MHz

75.000Hz 46.875kHz 49.500MHz

XGA 1024 × 768 60.004Hz 48.363kHz 65.000MHz

70.069Hz 56.476kHz 75.000MHz

75.029Hz 60.023kHz 78.750MHz

WXGA 1280 × 768 59.995Hz 47.396kHz 68.250MHz

59.870Hz 47.776kHz 79.500MHz

74.893Hz 60.289kHz 102.250MHz

1360 × 768 60.015Hz 47.712kHz 85.500MHz

SXGA 1280 × 1024 60.020Hz 63.981kHz 108.000MHz

75.025Hz 79.976kHz 135.000MHz

Standard

INFORMATION

Media Player Supported Format

English

Media

Player

Photo JPEG .jpg

Movie AVI .avi MPEG-2

Media

Format

MPO .mpo MPO

BMP .bmp BMP

MPEG-2 PS .mpg

MPEG-2 TS .ts

MPEG-2 VOB . vob MPEG-1 Video

MOV .mov H.264 (MPEG-4 AVC)

MP4 .mp4

ASF .asf

DivX .divx

Xvid .xvid Xvid

File

Extention

.jpeg

.mpeg

.trp .tp

.m4v

.wmv

.div

Video codec Audio codec USB DMS Note

JPEG

–

MPEG-4 part2 H.264 (MPEG-4 AVC) DivX Xvid

MPEG-1 Video MPEG-2 Video

MPEG-2 Video MPEG-1/2 Layer2

H.264(MPEG-4 AVC) VC-1(WMV9)

MPEG-2 Video

MPEG-4 part2

H.264 (MPEG-4 AVC) MPEG-4 part12,14

VC-1 (WMV9) WMA7/8/9 Std

DivX 3,4,5,6 MPEG-1/2 Layer2

MPEG-1/2 Layer2 MPEG-1/2 Layer3 Dolby Digital (AC-3) L-PCM ADPCM MPEG-2/4 LC AAC MPEG-4 HE-AAC

MPEG-1/2 Layer2 MPEG-1/2 Layer3 Dolby Digital (AC-3) L-PCM

MPEG-1/2 Layer3 Dolby Digital (AC-3) L-PCM MPEG-4 LC AAC MPEG-4 HE-AAC

MPEG-1/2 Layer2 MPEG-1/2 Layer3 Dolby Digital (AC-3) L-PCM

MPEG-1/2 Layer3 MPEG-2/4 LC AAC MPEG-4 HE-AAC

WMA9 Pro

MPEG-1/2 Layer3 Dolby Digital (AC-3) PCM ADPCM

yes yes •<USB>

yes

no <USB>

yes

Data compatibility: JPEG Exif ver 2.2 Maximum viewable resolution:

•JPEG 15360 × 8640 (Base-line) 1024 × 768 (Progressive)

•BMP 9600 × 6400 Maximum number of files: 1000 / folder <DMS> Data compatibility: JPEG Exif ver 2.2 Maximum viewable resolution: 1024 × 768 Maximum number of files: 1000/folder *) Some files may not be

played depending on file size.

Maximum number of files: 1000 / folder Maximum viewable resolution:

•Motion-JPEG:640 × 480

•Other:1920 × 1080

*) Some files may not be played.

INFORMATION

English

Media

Player

Movie MKV .mkv MPEG-1 Video

Music MP3 .mp3 – MPEG-1/2 Layer-3 yes

Media

Format

RealMedia .rm

Flash Video (FLV1)

3GPP .3gp MPEG-4 part2

Motion JPEG .avi

MP4 .m4a – MPEG-2/4 LC AAC yes no

WMA .wma – WMA7/8/9/ Std yes

WAV .wav – LPCM

LPCM –

File

Extention

.rmvb

.flv .swf

.mp4 .mkv

Video codec Audio codec USB DMS Note

MPEG-2 Video MPEG-4 part2 H.264 (MPEG-4 AVC)

RealVideo 8,9,10 Dolby Digital (AC-3)

Sorenson H.263 (FLV1) H.264 (MPEG-4 AVC)

H.264 (MPEG-4 AVC)

JPEG L-PCM

–WMA9 Proyes

MPEG-1/2 Layer2 MPEG-1/2 Layer3 Dolby Digital (AC-3) L-PCM MPEG-2/4 LC AAC MPEG-4 HE-AAC

MPEG-2/4 LC AAC

MPEG-1/2 Layer3 MPEG-2/4 LC AAC L-PCM ADPCM

MPEG-2/4 LC AAC AMR

ADPCM

ADPCM MPEG-1/2 Layer-3 WMA7/8/9/ Std WMA9 Pro

yes

no yes

yes <USB>

Maximum number of files: 1000 / folder

INFORMATION

3D Support Format (HDMI)

English

Resolution Aspect ratio V.Fraquency H.Fraquency Pixel Clock Frequency 3D Structure

720 × 480p 16:9 59.940/60.000Hz 31.469/31.500kHz 27.000/27.027MHz Side by Side (Full)

Side by Side (Half)

Top and Bottom

720 × 576p 16:9 50.000Hz 31.250kHz 27.000MHz Side by Side (Full)

Side by Side (Half)

Top and Bottom

1280 × 720p 16:9 59.940/60.000Hz 90.0/89.91kHz 148.352/148.500MHz Frame Packing

44.955/45.000kHz 74.176/74.250MHz Side by Side (Half)

Top and Bottom

50.000Hz 75.000kHz 148.500MHz Frame Packing

37.500kHz 74.250MHz Side by Side (Half)

Top and Bottom

1920 × 1080i 16:9 59.940/60.000Hz 33.716/33.750kHz 74.176/74.250MHz Side by Side (Half)

Top and Bottom

50.000Hz 28.125kHz 74.250MHz Side by Side (Half)

Top and Bottom

1920 × 1080p 16:9 24.000Hz 54.000kHz 148.500MHz Frame Packing

27.000kHz 74.250MHz Side by Side (Half)

Top and Bottom

30.000Hz 67.433/67.500kHz 148.352/148.500MHz Frame Packing

33.716/33.750kHz 74.176/74.250MHz Side by Side (Half)

Top and Bottom

50.000Hz 56.250kHz 148.500MHz Side by Side (Half)

Top and Bottom

59.940/60.000Hz 67.433/67.500kHz 148.352/148.500MHz Side by Side (Half)

Top and Bottom

3D Support Format (DTV)

2D Video

Side by Side (Full)

3D Video

Side by Side (Half)

2D Video 3D Video

Video Format Aspect ratio V.Fraquency 3D Structure

480i, 480p 16:9 59.940/60.000Hz Side by Side (Half)

Top and Bottom

576i, 576p 16:9 50.000Hz Side by Side (Half)

Top and Bottom

720p 16:9 59.940/60.000Hz Side by Side (Half)

Top and Bottom

50.000Hz Side by Side (Half)

Top and Bottom

1080i 16:9 59.940/60.000Hz Side by Side (Half)

Top and Bottom

50.000Hz Side by Side (Half)

Top and Bottom

1080p 16:9 24.000Hz Side by Side (Half)

Top and Bottom

30.000Hz Side by Side (Half)

Top and Bottom

50.000Hz Side by Side (Half)

Top and Bottom

59.940/60.000Hz Side by Side (Half)

Top and Bottom

* Side by Side (Full) is composed of left and right stereoscopic pictures that each size is equal to 2D.

INFORMATION

English

INFORMATION

Specification is subject to change without notice.

Reproduction in whole or part without written permission is strictly prohibited.

TOSHIBA Television Central Europe Sp. z o.o.

ul. Pokoju 1, Biskupice Podgór ne, 55-040 Kobierzyce, Poland

Specifications and accessories

English

Receiving systems

DVB-T Broadcast systems/channels

UK UHF 21-68 PAL-I UHF UK21-UK69

France VHF 05-10 (VHF 01- 05)

Germany VHF 05-12

Austria VHF 05-12

Switzerland VHF 05-12

Italy VHF 05-12 (D,E,F,G,H,H1,H2)

Spain UHF 21-69

Nederlands VHF 05-12

Greece VHF 05-12

DVB-C Broadcast systems DVB-S/DVB-S2 Broadcast systems

Video Input PAL, SECAM, NTSC 3.58/4.43

External connections

EXT 1 Input/Output 21-pin SCART RGB, A/V input

EXT 2 Input RCA jacks

HDMI 1/2/3/4 Input HDMI® compliant

PC Input Mini D-sub 15-pin Analogue

Digital Audio Output (S/PDIF) Optical

LAN port RJ-45

USB 1/USB 2 port Media Player

Headphone socket 3.5mm stereo

Stereo A2, Nicam

Visible Screen Size

(approx.)

Display 16:9

Sound output

(at 10% distortion)

UHF 21-69

Broadcast systems/channels

PAL-B/G UHF E21-E69

SECAM-L UHF F21-F69

SECAM-D/K UHF R21-R69

RCA jack RCA jacks

HDCP compliant

Interface version: USB 2.0 USB class: Mass Storage File system: FAT16 and FAT32

Maximum output: 500mA (specified to change the 3D glasses FPT-AG02G)

Wireless LAN adaptor ready for a home network, IEEE802.11a/b/g/n compatible

2 carrier system

32 40 46

Main: 10W + 10W

VHF E2-E12, S1-S41

VHF F1-F10, B-Q

VHF R1-R12

AV out, TV out

Y, PB/CB, PR/C Video (Y is shared) Audio L + R (shared)

80cm 102cm 117cm

Power consumption

(approx.)

Standby power consumption

(approx.)

Energy Efficiency Class 32TL/32UL/32ML

On-mode power consumption* (approx.)

Average annual energy consumption** (approx.)

* Tested in accordance with IEC 62087-BD Ed. 2.0:2008 in default

settings.

** Operating 4 hours a day and 365 days a year.

Dimensions

(approx.)

Weight (approx.) 32TL/32UL/32ML

Operating condition Temperature 5°C - 35°C (41°F - 94°F)

Supplied accessories • Remote control CT-90405

Optional accessories • Toshiba 3D glasses : FPT-AG02G (for TL963/

32TL/32UL/32ML 40TL/40UL/40ML 46TL/46UL/46ML

0.3W

40TL/40UL/40ML 46TL/46UL/46ML

32TL/32UL/32ML 40TL/40UL/40ML 46TL/46UL/46ML

32TL/32UL/32ML 51cm (H) 74cm (W) 22cm (D) 40TL/40UL/40ML 61cm (H) 92cm (W) 22cm (D) 46TL/46UL/46ML 69cm (H) 106cm (W) 24cm (D)

(Height dimension includes foot stand)

40TL/40UL/40ML 46TL/46UL/46ML
