Field Intelligent Device Series
Sanitary Electromagnetic Flowmeter
LF494/LF610
LF494/LF612
1S to 4S (25 to 100 mm)
Introduction
Sanitary electromagnetic flowmeters LF490 series are
designed for applications handling food and beverages.
Sanitary flowmeters must be structured in such a way
that operation and handling is simple, easy and
thorough for the purpose of sanitary control such as
cleaning (CIP/SIP), sterilization and drying. The
sanitary flowmeter has features provided with normal
electromagnetic flowmeters and by using sanitary
fittings for pipeline connections fluid does not remain
in any place along the detector pipeline. Therefore, it is
fit for flowrate measurement for food and beverages.
The electromagnetic flowmeter uses Faraday’s Law of
electromagnetic induction to measure the process flow.
The device consists of two units: a detector, through
which the fluid to be measured flows and in which
low-level signals proportional to flow rates are
obtained; and a converter, which supplies excitation
current to the detector, and amplifies the signals from
the detector and then processes and converts the
signals into the 4–20mAdc current signal or
communication signal. With the unique patented
Mount-Anywhere magnetic field distribution
technology, the meter is highly immune to upstream
flow disturbances. Combined with a multi-functional
converter LF610 (combined type) or LF612 (separate
type) equipped with its patented Noise-Sentry original
noise-suppression circuit and advanced algorithms.
The LF490 has a very high tolerance to noise, giving
the unit a very stable output even for slurry fluid
measurement. IR (Infrared) switches enable parameter
setting of the converter without removing the cover.
Flow direction can be set in either way, and its unique
128 x 128 dot matrix LCD display allows the LCD to
be rotated electronically to 90, 180 and 270 degrees
without opening the cover.
Power suppl
Detector
I/O
Combined type
LF490/LF610
LF494/LF610F
Converter
Figure1. Configuration
Converter
Signal cable
Terminal box
Separate type
LF490/LF612
LF494/LF612F
Power
supply
I/O
Excitation cable
Detector
LF490/LF610
LF494/LF610F
LF490
LF494
LF612
LF612F
Figure2. LF490 series flowmeters
The AF900 hand-held terminal (HART*
Certification
number
Z01207
1
communicator) can be used to communicate with the
flowmeter from a remote place. PROFIBUS-PA*2
interface is available as an option.
*1: HART protocol (Highway Addressable Remote
Transducer) is a communication protocol for industrial
sensors recommended by the HCF
Communication Foundation).
*2: PROFIBUS is the communication protocol for factory
and process automation that the PROFIBUS
Organization recommends. Instead of analog control
with a conventional analog signal (4-20mA), it is the
fieldbus which digitizes all signals. Flowmeters support
PROFIBUS-PA.
(HART
TIC-LF494B
TIC-LF494B
Specifications
Overall Specifications
Measurement range in terms of flow velocity:
–1.0 ft/s to 0 – 32.8 ft/s (0 – 0.3 m/s to 0 –10 m/s)
0
– 0.3 ft/s to 0 – 1.0 ft/s (0 – 0.1 m/s to 0 – 0.3 m/s)
0
range is available optionally.
Accuracy:
* This pulse output error result is established under standard
operating conditions at Toshiba's flow calibration facility,
Fuchu Japan. (NIST Traceable).
* Individual meter measurement error may vary up to ±0.5% of
Rate at 1.64 ft/s (0.5m/s) or more and ±0.3% of rate ±0.039
inch/s (1mm/s) at 1.64ft/s (0.5 m/s) or less.
* Current output: plus ± 8µA (0.05% of span.)
*Refer to individual calibration data for each individual meter's
measurement error.
Fluid conductivity: 5µS/cm minimum
Fluid temperature:
14 to 248 °F (–10 to +120 °C)
Ambient temperature: – 4 to 140 °F (–20 to +60 °C)
Structure: IP 67 and NEMA 4X Watertight
Power consumption:
17 W(27VA) or less
19 W(29VA) or less (with PROFIBUS)
Conformance to European Community Directives:
EMC directive 89/336/EEC
The low voltage 93/68/EEC
3A standard (LF490 and LF494 detectors):
Approved for 3A standard with FDA approved
Teflon PFA lining.
Approved hazardous location certifications:
Model: LF494/LF610F and LF494/LF612F
cFMus explosion proof:
FM Class I, Division 2, Groups A,B,C, and D.
FM Class II, Division 2, Groups E, F and G.
FM Class III.
Detector and converter combination:
LF490/LF610 : Combined type for standard
LF490/LF612 : Separate type for standard
LF494/LF610F: Combined type with Ex approval
LF494/LF612F: Separate type with Ex approval
±0.2 % of Rate*
specification.
specification.
of Class I, Division 2 (cFMus).
of Class I, Division 2 (cFMus).
Note : The test results were obtained and demonstrated at
TOSHIBA's flow calibration facility, Fuchu Japan.
Model LF490 and LF494 Detectors
Fluid pressure:
–15 to 300 psi, or –1.0 to 20 bar (–0.1 to 2.0 MPa)
Note: This pressure is the allowable pressure for the
detector. The actual pressure will be restricted by
the type of connection method. For example, in
the case of sanitary clamp type, the maximum
pressure is 150 psi or 10 bar(1.0 MPa).
Note: The test pressure before shipping from the
factory is equal to twice the nominal pressure
rating of the customer specified flange
connection during 15 minutes.
Connection method:
Sanitary clamp type (ISO 2852)
Note:
Tri-clamp® can connect except meter size 4" (100 mm).
Tri-clamp® is a registered trademark for Tri-Clover Inc.
Principal materials:
Case — stainless steel
Linings — Teflon PFA (FDA approved)
Note: Teflon liners are mechanically retained for
full vacuum service.
Electrodes — 316L stainless steel (std.)
Note: Electrodes are electro-chemically polished
after mechanically buffed.
Sanitary fittings — 304 stainless steel (std.)
Seal gaskets — Silicon rubber (FDA approved)
Note: See Table 5 for optional materials and other
related information.
Measuring tube material — 304 stainless steel
Coating: no coating (std.)
Dimensions and weights: See Figures 3 to 6.
Cable connection port: for separate type detectors.
Cable glands —
LF490: Provided as standard, R(PT) 1/2
male screws.
LF494: Not provided, 3/4–14NPT male
screws are required.
Applicable diameter —
0.433 to 0.512 inch (11 to 13mm)
Mount-Anywhere Technology:
Thanks to TOSHIBA’s unique patented magnetic
field distribution technology, the meter is highly
immune to upstream flow disturbances.
A minimum of 1D (diameter) length of upstream
straight pipe from the flange is required to
maintain the performance specification.
2
Model LF610 and LF612 converters
Input signals
Analog signal — the voltage signal from detector,
proportional to process flow rate (for LF612
separate type converter).
Digital input DI (opt.)
Signal type: 20 to 30Vdc voltage signal
Input resistance: 2.7kΩ
• Converter failure alarm output
Note 1: Two outputs (DO1 and DO2) are needed
for 4-range switching and forward/reverse
2-range switching.
Note 2: Normal Open (default set) or Normal
Close is selected for alarm outputs when
programming.
When power failure occurs, unit will be fault to
Normal Open.
Number of inputs: one point
DI function — One of the following functions
can be assigned to the optional DI signal.
Range switching — Selects either the higher or
lower range in the unidirectional or
bidirectional 2-range setting.
Totalizer control — Starts and stops the built-in
totalizer.
Fixed-value outputs —Outputs fixed-values for
current and pulse outputs.
Zero adjustment — Executes zero adjustment
(on-stream at zero flow rate).
Output signals
Current output:
4–20mAdc (load resistance 0 to 750Ω)
Note: The current output cannot be used with
the PROFIBUS-PA ccommunication.
Digital outputs — One point (std.) and one more
point is optionally available as follows.
Digital output DO1 (std.):
Output type: Transistor open collector
Number of outputs: One point
Output capacity: 30Vdc, 200mA maximum
Digital output DO2 (opt.):
Output type: Solidstate relay output (non
polarity)
Number of outputs: One point
Output capacity: 150Vdc, 150mA maximum
or 150Vac (peak to peak), 100mA maximum
DO1 and DO2 functions — One of the following
functions can be assigned to DO1 (std.) and/or
DO2 (opt.)
• Pulse output (available only for DO1,DO2)
Pulse rate: 3.6 to 36,000,000 pulses/hr (DO1)
3.6 to 360,000 pulses/hr (DO2)
(Over 3,600,000 pulses/hr, auto-setting)
Pulse width: 0.5 to 500ms (but less than half of
the period for 100% flow rate)
Note: The same and simultaneous pulse is not
available between DO1 and DO2.)
• Multi-range selection outputs (Note 1)
• High, High high, Low, and/or Low low alarm
outputs (Note 2)
• Empty pipe alarm output
• Digital Output Active Status (DO1 and DO2)
(Note 2)
• Preset count output
Communications output:
• HART (std.) — Digital signal is superimposed
on 4–20mAdc current signal as follows:
Conforms to HART protocol
Load resistance: 240 to 750Ω
Load capacitance: 0.25µF maximum
Load inductance: 4mH maximum
• PROFIBUS (opt.)
Protocol : PROFIBUS-PA
Baud rate : 31.25kbps
Bus voltage : 9-30VDC
Consumption electric current of bus:less than 16mA
Manufacture Ident-No. : 093B
Standard Ident-No. : 9740
Slave address : 0-126 (Default address is 126)
Profile : Profile Ver.3.01 for Process Control
Devices
Function blocks : AI(Flow)×1 , Totalizer×1
LCD display: Full dot-matrix 128×128 dot LCD
display (back-light provided)
The data on the LCD inside the converter can
rotate to 90, 180, and 270 degrees by a software,
without rotating the indicator itself. (Combined
type only)
Parameter settings — Parameters can be set as
follows:
• IR Switches: Three key switches are provided to
set configuration parameters.
• Digital communication: The AF900 hand-held
terminal or PROFIBUS is needed to set
parameters.
•Zero adjustment: Zero point adjustment can be
started by pressing the switch in the converter.
•Damping: 0.5 to 60 seconds (selectable in one
second increments)
“Field re-verification”
Zero span calibration tool allows unit to be
re-calibrated and verified using an internal
software program. (For more information contact
Toshiba International Corp.)
Conditions when power fails:
Parameter setting values are stored in non-volatile
memory and the values will be restored when the
power returns to normal condition. The outputs
and display will remain as follows when power
fails.
• Current output: 0mAdc
TIC-LF494B
HEX
HEX
Mag-Prover – Toshiba’s
3
TIC-LF494B
• Digital output: OFF
• LCD display: No display
• PROFIBUS: No communication
Power supply:
One of the following can be selected:
• 100 to 240Vac, 50/60Hz (std.)
(allowable voltage 80 to 264Vac)
• 24Vdc (allowable voltage 18 to 36Vdc)
• 110Vdc (allowable voltage 90 to 130Vdc)
Surge protection:
Arresters are installed in the power supply, and a
current signal output circuit to help protect the
meter from lightning and improve personnel
safety.
Case: Aluminum alloy (equal to IP 67)
Coating: Acrylic resin-baked coating, pearl-gray
colored
Cable connection ports:
Cable glands —
LF610 and LF612 without cFMus Approval:
Provided as standard, OD of cableφ
11~13mm
Material Nylon 66
G (PF) 1/2 male screws.
LF610F and LF612F with cFMus Approval:
Not provided, 1/2–14NPT male screws are
required.
Applicable diameter —
0.433 to 0.512 inch (11 to 13mm)
Note: When PROFIBUS option is specified, cable gland size
is φ6～8mm for signal cable, φ11～13mm for power
cable
Vibration resistance:
No resonance to the following levels of
vibration:
• 10 to 150Hz with acceleration of 9.8m/s
2
• Vibration of 30Hz with 29.4 m/s2 in 4h in each
direction will not cause any defect to unit.
Note: Avoid using the flowmeter in an environment with
constant vibration.
Dimensions and Weights:
See Figure 8 (for Separate type)
MTBF:
Converter: 220,000 hours (25 years) at 77 °F
(25 °C) based on strict military
specification MIL-HDBK-217F
Detector: 350,000 hours (40 years) at 77 °F
(25 °C) based on strict military
specification MIL-HDBK-217F
4
)
)
Installation
Dimensions (Combined type)
Clamp connection Unit : inch(mm)
Note1: Clamp (Joint) size is different from meter size of
Note2: Cable glands are not provided for cFMus
For English unit
Meter size
(inch)
1 (1S) 2 S 4.33 9.17 2.87 Approx. 11
1-1/2 (1-1/2S)
2 (2S) 3 S 5.51 9.64 4.09 Approx. 15.4
3 (3S) 4 S 5.51 10.00 5.12 Approx. 19.8
4 (4S) 5 1/2 S 6.30 10.19 6.38 Approx. 26.5
For SI unit
Meter size
mm (inch)
25 (1S) 2 S 110 233 73 Approx. 5
40 (1 1/2S) 2 1/2 S 125 286 90 Approx. 6
50 (2S) 3 S 140 245 104 Approx. 7
80 (3S) 4 S 140 254 130 Approx. 9
100 (4S) 5 1/2 S 160 259 162 Approx. 12
Note: Tri-clamp® is available to use the same joint size
Note: 1 inch = 25.4 mm
Figure 3. LF490/LF610 and LF494/LF610F
8.86(225)
5.16(131
(L 2)
ØD1
5.63(143)1.42(36
L1
LF490 and LF494. See the following table.
approved type.
Joint size
(ISO2852)
2 1/2 S 4.92 11.25 3.54 Approx. 13.2
Joint size
(ISO2852)
(inch)
L1
L1
(mm)
L2
(inch)
L2
(mm)
D1
(inch)
D1
(mm)
Weight
(lbs)
Weight
(kg)
instead of ISO2852 clamp except meter size 100
mm (4").
Flowmeters
(Ferrules and Clamps not attached)
TIC-LF494B
Welding connection
8.86(225)
1.42(36)
Unit : inch(mm)
5.63(143)
Note1: L1 dimension is for the standard (Normal length)
type ferrule.
Note2: See Figure 7 for Ferrule dimensions.
Note3: Cable glands are not provided for cFMus approved
type.
For English unit
Meter size
(inch)
1 (1S)
1-1/2 (1-1/2S)
2 (2S)
3 (3S)
4 (4S)
Joint size
(ISO2852)
2 S
2 1/2 S
3 S
4 S
5 1/2 S
L1
(inch)
6.16 1.00 3.11
6.75 1.50 3.66
7.34 2.00 4.17
7.85 3.00 5.28
8.64 4.00 6.81
D1
(inch)
(inch)
D2
Weight
(lbs)
Approx. 13.2
Approx. 17.6
Approx. 19.8
Approx. 26.5
Approx. 35.3
For SI unit
Meter size
mm (inch)
25 (1S) 2 S 156.4 25.4 79 Approx. 6
40(1 1/2S) 2 1/2 S 171.4 38.1 93 Approx. 8
50 (2S) 3 S 186.4 50.8 106 Approx. 9
80 (3S) 4 S 199.4 76.3 134 Approx. 12
100 (4S) 5 1/2 S 219.4 101.6 173 Approx. 16
Note: Tri-clamp® is available to use the same joint size
Note: 1 inch = 25.4 mm
Joint size
(ISO2852)
instead of ISO2852 clamp except meter size 100
mm (4").
L1
(mm)
D1
(mm)
D2
(mm)
Weight
(kg)
Figure 4. LF490/LF610 and LF494/LF610F
Flowmeters
(Ferrules and Clamps attached)
5
TIC-LF494B
3.46(88
)
)
(
単位
)
)
)
)
Dimensions (Separate type)
Clamp connection
1.57(40
(L2)
1.38(36
R(PT)1/2
Male screw
ΦD１
Unit : inch(mm)
4.96(126
3.58(91
Welding connection
3.46(88)
1.57(40)
R(PT)1/2
Male screw
2
D
φ
1.38(36)
φD1
Unit : inch(mm)
4.96(126)
3.58(91)
L1
：mm
Note1: Clamp (Joint) size is different from meter size
of LF490. See the following table.
Note2: Cable glands are not provided for cFMus
approved type.
For English unit
Meter size
(inch)
1 (1S) 2 S 4.33 7.05 2.87 approx. 8.8
1-1/2 (1-1/2S)
2 (2S) 3 S 5.51 8.27 4.09 approx. 13.2
3 (3S) 4 S 5.51 9.29 5.12 approx. 17.6
4 (4S) 5 1/2 S 6.30 10.55 6.38 approx. 24.3
Joint size
(ISO2852)
2 1/2 S 4.92 7.72 3.54 approx. 11.0
(inch)
L1
L2
(inch)
D1
(inch)
Weight
(lbs)
For SI unit
Meter size
(mm)
25 (1S) 2 S 110 179 73 approx. 4
40 (1 1/2S) 2 1/2 S 125 196 90 approx. 5
50 (2S) 3 S 140 210 104 approx. 6
80 (3S) 4 S 140 236 130 approx. 8
100 (4S) 5 1/2 S 160 268 162 approx. 11
Note: Tri-clamp® is available to use the same joint size
Note: 1 inch = 25.4 mm
Joint size
(ISO2852)
L1
(mm)
L2
(mm)
D1
(mm)
Weight
(kg)
instead of ISO2852 clamp except meter size 4"
(100 mm).
Figure 5. LF490/LF612 and LF494/LF612F
Flowmeters
(Ferrules and Clamps not attached)
L1
Note1: L1 dimension is for the standard (Normal
length) type ferrule
Note2:
See Figure 7 for Ferrule dimensions.
.
Note3:Cable glands are not provided for cFMus
approved type.
For English unit
Meter size
(inch)
1 (1S)
1-1/2 (1-1/2S)
2 (2S)
3 (3S)
4 (4S)
Joint size
(ISO2852)
2 S
2 1/2 S
3 S
4 S
5 1/2 S
L1
(inch)
6.16 1.00 3.11
6.75 1.50 3.66
7.34 2.00 4.17
7.85 3.00 5.28
8.64 4.00 6.81
D1
(inch)
D2
(inch)
For SI unit
Meter size
mm (inch)
25 (1S) 2 S 156.4 25.4 79 approx. 5
40(1 1/2S) 2 1/2 S 171.4 38.1 93 approx. 7
50 (2S) 3 S 186.4 50.8 106 approx. 8
80 (3S) 4 S 199.4 76.3 134 approx. 11.
100 (4S) 5 1/2 S 219.4 101.6 173 approx. 15
Note: Tri-clamp® is available to use the same joint size
instead of ISO2852 clamp except meter size 4"
(100 mm).
Note: 1 inch = 25.4 mm
Joint size
(ISO2852)
L1
(mm)
D1
(mm)
D2
(mm)
Figure 6. LF490/LF612 and LF494/LF612F
Flowmeters
(Ferrules and Clamps attached)
Weight
(lbs)
approx. 11.0
approx. 15.4
approx. 17.6
approx. 24.3
approx. 33.1
Weight
(kg)
6
LF490,
LF494
Detectors
Pipe
(welding)
Normal type For English unit
Meter size
(inch)
1 (1S)
1-1/2
(1-1/2S)
2 (2S)
3 (3S)
4 (4S)
Joint size
(ISO2852)
2 S
2 1/2 S
3 S
4 S
5 1/2S
L1
L2
D1
D2
D3
(inch)
(inch)
(inch)
(inch)
(inch)
0.85 0.11 2.52 0.91 1.00
0.85 0.11 3.05 1.41 1.50
0.85 0.11 3.58 1.88 2.00
1.10 0.11 4.69 2.85 3.00
1.10 0.22 6.10 3.84 4.00
Weight
(lbs)
Approx.0.4
Approx. 0.4
Approx. 0.7
Approx. 1.1
Approx. 2.2
Normal type For SI unit
Meter size
mm (inch)
25 (1S) 2 S 21.5 2.85 64.0 23.0 25.4 Approx. 0.2
(1 1/2S)
50 (2S) 3 S 21.5 2.85 91.0 47.8 50.8 Approx. 0.3
80 (3S) 4 S 28.0 2.85 119.0 72.3 76.3 Approx. 0.5
100 (4S) 5 1/2S 28.0 5.6 155.0 97.6 101.6 Approx. 1.0
40
Joint size
(ISO2852)
2 1/2 S 21.5 2.85 77.5 35.7 38.1
L1
(mm)
L2
(mm)
D1
(mm)
D2
(mm)
D3
(mm)
Weight
(kg)
Approx. 0.2
Long type For English unit
Meter size
(inch)
1 (1S)
1-1/2
(1-1/2S)
2 (2S)
3 (3S)
4 (4S)
Joint size
(ISO2852)
2 S
2 1/2 S
3 S
4 S
5 1/2S
L1
L2
D1
D2
(inch)
(inch)
(inch)
(inch) D3(inch)
3.00 0.11 2.52 0.91 1.00
3.00 0.11 3.05 1.41 1.50
3.00 0.11 3.58 1.88 2.00
4.00 0.11 4.69 2.85 3.00
4.00 0.22 6.10 3.84 4.00
Weight
(lbs)
Approx. 0.4
Approx. 0.7
Approx. 0.9
Approx. 1.8
Approx. 3.1
Long type For SI unit
Meter size
mm (inch)
25 (1S) 2 S 76.2 2.85 64.0 23.0 25.4 Approx. 0.2
(1 1/2S)
50 (2S) 3 S 76.2 2.85 91.0 47.8 50.8 Approx. 0.4
80 (3S) 4 S 101.6 2.85 119.0 72.3 76.3 Approx. 0.8
100 (4S) 5 1/2S 101.6 5.6 155.0 97.6 101.6 Approx. 1.4
Note1: This special Ferrule, which fits on TOSHIBA LF490
Note2: "D1" is Toshiba's original dimension.
Note3: 1 inch = 25.4 mm
40
Joint size
(ISO2852)
2 1/2 S 76.2 2.85 77.5 35.7 38.1
L1
(mm)
L2
(mm)
D1
(mm)
D2
(mm)
D3
(mm)
and LF494, can be fastened to ISO2852 clamp.
Tri-clamp® is available to use the same joint size
instead of ISO2852 clamp except meter size 4"
(100mm).
Weight
(kg)
Approx. 0.3
TIC-LF494B
Figure 7. Ferrule dimensions
7
TIC-LF494B
矢視
A
(
)
(
)
7.87(
00 )
)
)
y
t
y
4－φ11
5.94(151)
151
2. 91( 74)
74 ±0.3
4 – φ0.43(φ11 )
Attachment
取付金具
LCD display
LCD 表示器
15 1
151
5.94
IR Switch
赤外線スイッチ
Cable ground
ケーブルグランド
178
178
7.01
25
3 .23( 82)
82
0.98(25
2
200
6 .14( 156 ) 1.42(36)
(36) 156
Figure 8. Separate type converter LF612 and LF612F
External Connections
Combined type LF490/LF610 and LF494/LF610F flowmeters
Ground terminal
Intermediate
voltage (IV) wire,
2
or more.
5.5mm
To be grounded
with 100Ω or less
ground resistance.
I/O Cable (CVV-S)
0.51(13
13
Excitation cable ground
励磁ケーブルグランド
Sig na l ca b le grou nd
信号ケーブル
グランド
Unit : inch(mm)
I/O cable ground
電流出力ケーブルグランド
Gr ound te rm in al
接地端子
(M4)
(M4)
取付金具
Po wer s upp ly cab le g round
Blind screw
矢視 A
Instrument Panel : Ordered separatel
電源ケーブルグランド
封止栓
Current output
(4~20mAdc) or
PROFIBUS
Digital Output 1
Signal common
for DI and DO
Digital Output 2
Digital Inpu
(20 to 30Vdc)
Grounded with
100Ω or less
ground resistance
Grounded with
100Ω or less
ground resistance
Power suppl
Power Cable (CVV)
1
*
Power Switch
(External double-pole power switch)
*1 Locate an external double-pole power switch on the power line near the flowmeter within easy reach of operation.
Use the appropriate switch rating as shown below:
Switch rating: 250Vac, 6A or more
In rush current: 15A or more

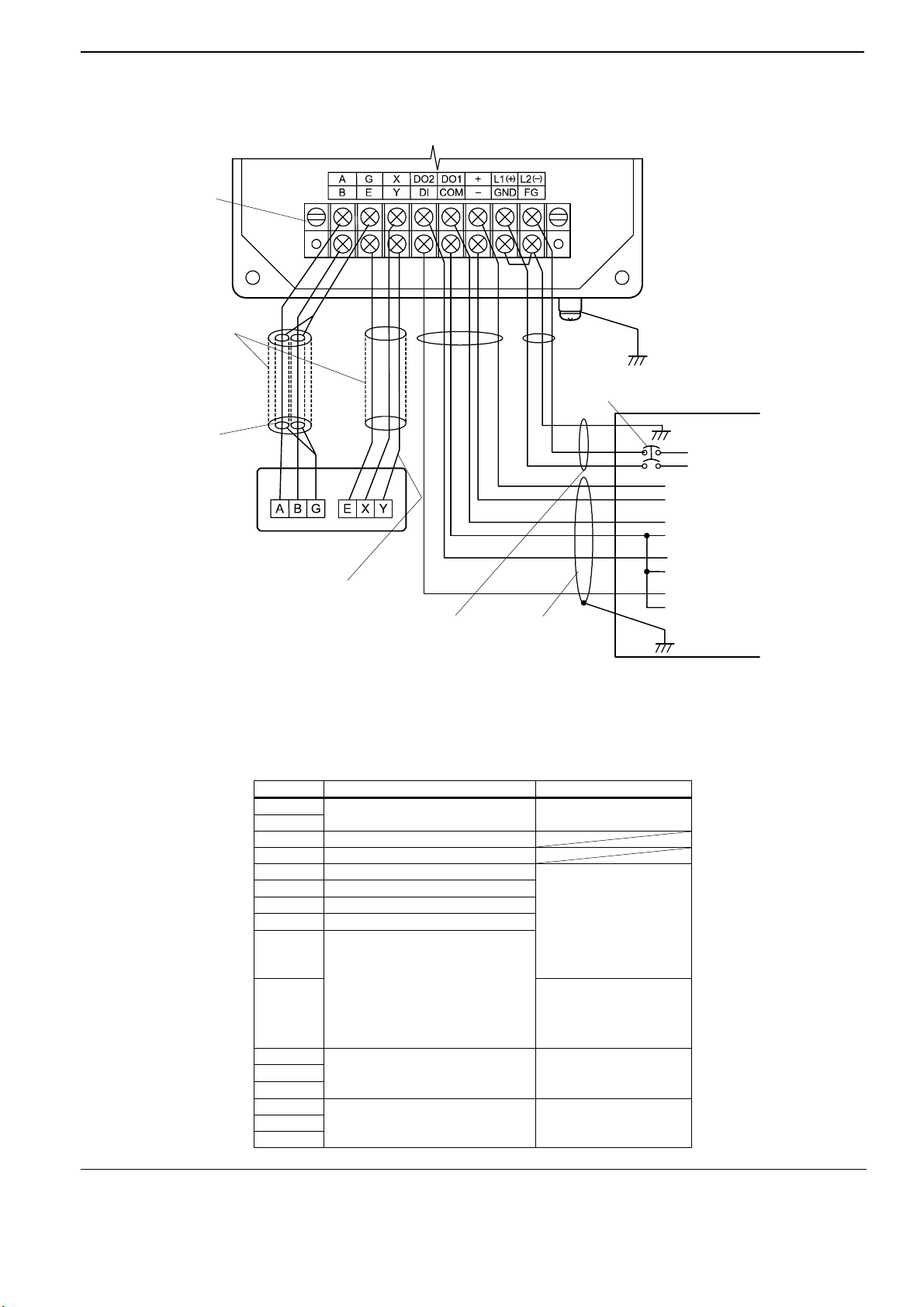

Figure 9. Combined type LF490/LF610 and LF494/LF610F
flowmeters Wiring Diagram
8
Separate type LF490/LF612 and LF494/LF612F flowmeters
Terminal board
Thick walled steel conduit
IV wire
2
5.5 mm
or more
Grounded with 100Ω or less
ground resistance
Power switch
(External double-pole power switch )
[Instrument panel : ordered separately]
TIC-LF494B
Signal cable
(2-wire shielded hard-rubber
sheathed cable)
(3-wire shielded hard-rubber cable)
Connected detector
Excitation cable
Power cable
(CVV)
Digital input cable
(CVV-S)
Grounded with 100Ω or
less ground resistance
Power supply
Current output (4~20mAdc)
or PROFIBUS
Digital output 1
Signal common for DI and DO
Digital output 2
Digital input
(20~30Vdc)
Grounded with 100Ω or
less ground resistance
Figure 10. Separate type LF490/LF612 and LF494/LF612F flowmeters wiring Diagram
Table 1. LF610, LF610F, LF612 and LF612F Converters Signal Table
Symbol Description Cable
L1 (＋)
L2 (－)
GND Ground (for arrester)
FG Frame ground
DI Digital Input (20～30Vdc)
DO1 Digital Output 1
DO2 Digital Output 2
COM Signal Common for DI, DO1, DO2
＋
－
Power supply Power cable (CVV)
I/O cable (CVV-S)
Current Output (4～20mAdc)
or PROFIBUS
Shielded cable for
PROFIBUS-PA
X
Y Excitation Output
E
A
B Signal Input
G
Excitation cable
(for LF612, LF612F only)
Signal cable
(for LF612, LF612F only)
9
TIC-LF494B
µ
Wiring Precautions
(1) Explosion proof type flowmeters are not
provided cable glands.
Refer to the part Cable connection port at
detector and converter.
(2) Connect the grounding wire (IV wire 5.5mm² or
more) to a good earth ground (100
Ω or less
ground resistance). Make the wire as short as
possible. Do not use a common ground shared
with other equipment where earth current may
flow. An independent earth ground is
recommended.
(3) The allowable cable lengths between the
detector and converter for the separate type
flowmeter depend on the electrical conductivity
of the object fluid. See Figure 11.
(4) DO1, DO2 (opt.), and DI (opt.) use the same
common terminal (COM). This COM can not
connect to other equipments which have their
own ground terminal. (Power supply for
connecting to DI or DO, etc…) Need to wire
separately.
Wiring Precautions (PROFIBUS)
(1) For wiring path, avoid places near electrical
equipment that may cause electromagnetic
induction or electrostatic induction interference
(such as a motor, transformer and wireless
transmitter).
(2) Use a PROFIBUS-PA cable for signal cable. In
addition, make sure to use a shielded cable to
improve noise resistance. Furthermore,
installation of signal cable in metal conduit is
recommended.
(3) General PROFIBUS-PA cables are designed for
indoor use where cables are not exposed to
humidity, rain, etc. When you install cables,
make sure to check the operating conditions such
as the operating temperature range of the cable
by contacting its manufacturer.
(4) When you carry out cable end treatment of
PROFIBUS-PA cable, use a dedicated cable
stripper etc. so that the core wire of the cable will
not be nicked or damaged. In addition, for cables,
be careful of allowable maximum bend diameter
etc. (Basically, do not install cables in a way
cables are twisted or bent.).
(5) Consider installing a PROFIBUS-PA arrester in
the communication path of PROFBUS-PA so
that the electromagnetic flowmeter will not be
affected by lightning etc.
(6) The electromagnetic flowmeter is not equipped
with terminating resistors.Use the terminating
resistor unit for PROFIBUS-PA
or junction box,
if necessary.
(7) Only one PROFIBUS-PA cable goes through a
cable gland of the Electromagnetic Flowmeter.
Please use the junction box at system
configuration
.
300
200
100
50
30
10
5
3
Allowable cable length (m)
3 5 10 20 30 50 100 200
Conductivity (
S/cm)

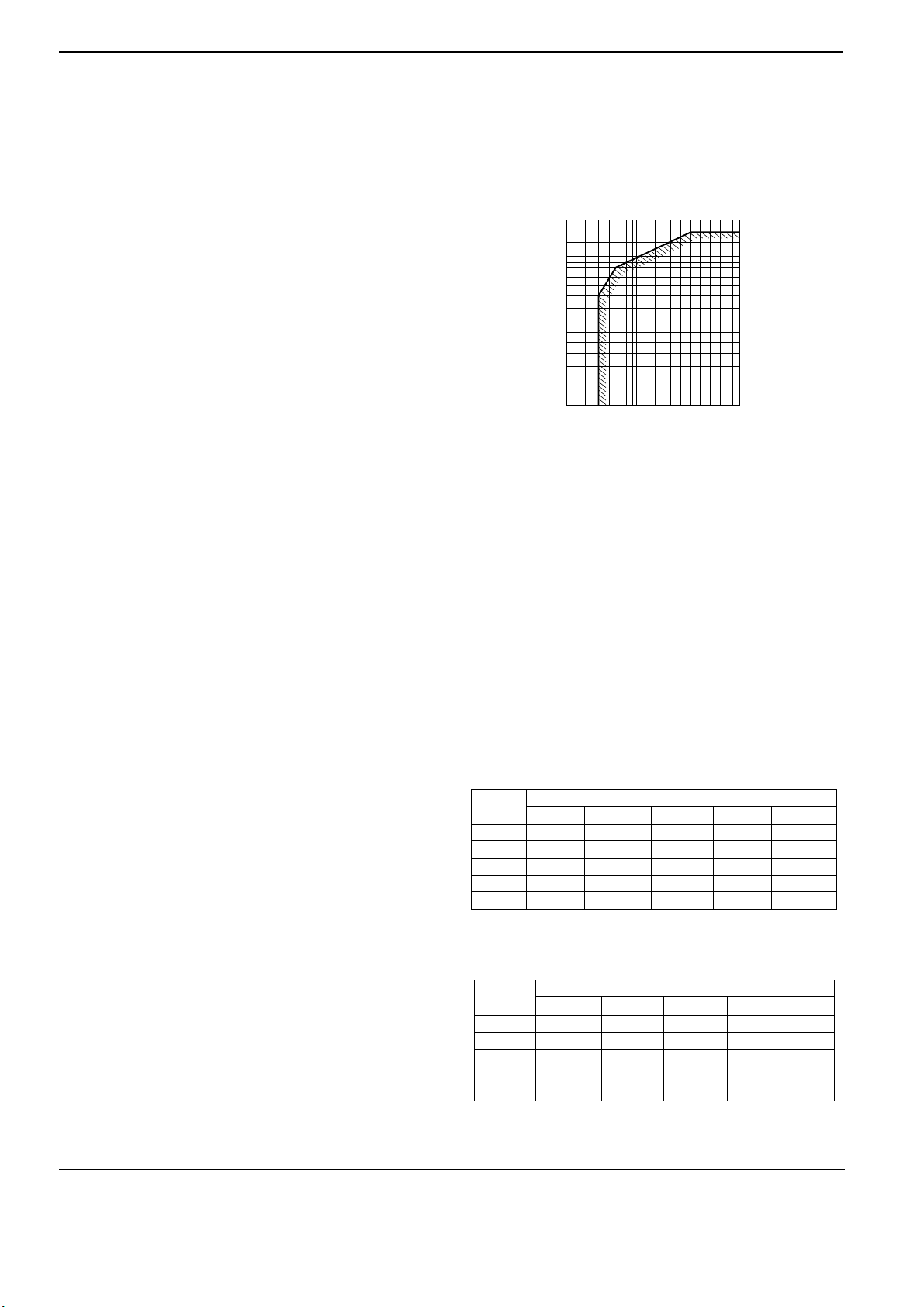

Figure 11. Electrical Conductivity and
Cable Length
Meter Size
To select the meter size:
See Table 2 to 3 and find meter sizes within the
velocity of 0.3 to 32.8 ft/s (0.1 to 10m/s ) for a
specified full-scale (measuring range high limit)
flow. Select one that has its full-scale velocity
between 3.0 and 10 ft/s (1 and 3m/s).
Note: Make sure the full-scale flow rate used for the final
planning stage stays within 32.8 ft/s (10m/s) in
terms of flow velocity.
Table 2. Flow Rate and Flow Velocity (English unit)
Unit: gal/min
Size
(inch)
1
1 ½
2
3
4
0.3ft/s 0.98ft/s 3ft/s 10ft/s 32.8ft/s
0.7781
1.992
3.112
7.967
12.45
Flow rate
2.334 7.115
5.975 18.21
9.337 28.46
23.90 72.85
37.35 113.8
23.72
60.71
94.86
242.8
379.4
77.81
199.2
311.2
796.7
1,245
Table 3. Flow Rate and Flow Velocity (SI unit)
Unit: m
Size
(mm)
25
40
50
80
100
0.１ m/s 0.3 m/s 1.0 m/s 3 m/s 10 m/s
0.1767
0.4523
0.7067
1.809
2.827
Flow rate
0.5301 1.767
1.357 4.523
2.120 7.067
5.428 18.09
8.482 28.27
5.301
13.57
21.20
54.28
84.82
3
/h
17.67
45.23
70.67
180.9
282.7
10
Calibration Range
If the calibration range is not specified, the standard
range as shown below will be used. If the range is
specified, we will use the specified range for
calibration.
Table 4. Standard Flow Range
Meter size
inch(mm)
1 (25) 75 6 3.395
1 1/2 (40) 175 15 3.316
2 (50) 300 25 3.537
3 (80) 650 60 3.316
4 (100) 1,000 100 3.537
Note: The unit of "gal/min" is not exchanged
(converted) by "m
Flow rate
(gal/min)
Standard flow range
Flow rate
(m³/h)
3
/h".
Flow velocity
(m/s)
TIC-LF494B
About establishment environment
Do not store or install the flowmeter :
• Where there is direct sunlight.
• Where excessive vibration or mechanical shock
occurs.
• Where high temperature or high humidity
conditions exist.
• Where corrosive atmospheres exist.
• Places that can be submerged under water.
• Where there is a sloped floor. To put the flowmeter
temporarily on the floor, place it carefully with
something, such as a block, to support it so that the
flowmeter will not topple over.
In areas like the following, there may be the case that
infrared switches do not function correctly. (If these
are unavoidable, use an appropriate cover.)
(1) Where unit (operation panel) is exposed to direct
sunlight, reflection of light onto window pane and
diffused light reflection.
(2) Where smoke and steam may occur.
(3) Where exposed to direct snow, ice or mud.
Ordering Information
1. When ordering the LF490 series flowmeters, refer
to Tables 5 and 6 (Type Specification Codes).
An entry must be made for each of the columns in
each of these tables.
2. Fluid characteristics:
(1) Type of fluid to be measured and its characteristics
(2) Fluid temperature
(3) Fluid pressure
(4) Electrical conductivity of the fluid
3. Measuring range
4. I/O function setting
5. Ordering scope:
Flow calibration data: (required or not)
6. Other items
Specifications other than standard items
Consult a Toshiba representative before ordering
when choosing materials of the wetted parts such as
lining, electrodes, and grounding rings.
11
TIC-LF494B
Table 5. Specification Code (Sanitary type detector LF490 Series)
Model Specification Code Type
1 2 3 4 5 6 7 8 9 10 11 12 13 14
L F 4 9 0 Normal specification type √
L F 4 9 4 Hazardous location certification type (Note 1) √
Meter size (Clamp size)
E 1"(25mm) (2S) √ √
F 1 1/2"(40mm) (2 1/2S) √ √
G 2"(50mm) (3S) √ √
H 3"(80mm) (4S) √ √
J 4"(100mm) (5 1/2S) √ √
Mounting Style
L Detector/Converter combined type (LF490/LF610) √
M Detector/Converter separate type (LF490/LF612) √
cFMus class I, Division 2 (Note 1)
A Detector/Converter combined type (LF494/LF610F) √
B Detector/Converter separate type (LF494/LF612F) √
Connection method
A Sanitary clamp type (ISO 2852) (Note 2)
Z Other
Electrode Material (Note 5)
B 316L stainless steel
Z Other
Lining and Sealing materials (gaskets) (Note 5)
S Teflon PFA and Silicone rubber
Piping connection parts (ferrules, clamps) (Note 2, 3, 5)
A No ferrule and no clamp
B Normal type of Ferrules (304 stainless steel) with no clamp
C Normal type of Ferrules (304 stainless steel) with clamp
D Long type of Ferrules (304 stainless steel) with no clamp
E Long type of Ferrules (304 stainless steel) with clamp
Z Other
Flow and calibration velocity range
A 1.0 to 32.8 ft/s (standard range calibration)
B 1.0 to 32.8 ft/s (specified range calibration)
C 0.3 to 32.8 ft/s (specified range calibration)
Excitation and Signal Cables
A not provided
B 30 m cable, provided (Note 4)
C other lengths, provided (Note 4)
Coating (Note 6)
A no coating
F
3A approved type
Other
Z
Size code explanation: √ : Object : Standard : Option
Note1: Cable glands are not provided. Refer to the part of “Cable connection port” at detector and converter.
Note2: Tri-clamp® is available to use the same joint size instead of ISO2852 clamp except meter size 100mm (4").
Note3: Toshiba’s original ferrule is required to use for LF490 series detectors to keep just fitting between the joint in case
of choosing clamp type.
Note4: Applies to the separate type flowmeter only. Specifying the code C, indicate the length of cable from 1 to 300m in
1 meter increments.
Note5: Consult Toshiba before ordering when choose materials at the wetting parts.
Note6: LF494 have only 3A approved type.
Description
–
: Not available
Normal Ex. type
–
–
–
–
–
12
Table 6. Specification Code for converters
Model Specification Code
1 2 3 4 5 6 7 8 9 10 11 12 13 14
L F 6 1 Electromagnetic flowmeter converter
0 Combined (Integral) type
2 Separate (Remote) type
E Instruction manual
A
F
Shape
A
B
Converter mounting fitting
A
C
E
1
2
Digital input/output
Current output and Communication function
1
2
Power supply
1
2
3
Purpose
Standard
cFMus class I, Division 2 approved
Integral type with case
Separate type with case
None
Panel, Accessory for wall mounting (BNP material: SUS304)
Accessory for pipe installation (BNP material: SUS304)
Digital output points 1 (DO1)
Digital output points 2 (DO1+DO2) +Digital input point 1 (DI)
Current output + HART communication
PROFIBUS communication (Current output is not usable)
100Vac-240Vac, 50/60Hz
24Vdc
110Vdc
English
Code explanation: : Standard : Option –: Not available
Table 7. Type Specification Code for Maintenance Parts
Meter size
inch(mm)
Joint size
(ISO2852)
Gasket
1S(25) 2S 3L8A0355P001 3A8A7164P001 3A8A7164P006 4A8A2957P002
1 1/2S(40) 2 1/2S 3L8A0355P002 3A8A7164P002 3A8A7164P007 4A8A2957P003
2S(50) 3S 3L8A0355P003 3A8A7164P003 3A8A7164P008 4A8A2957P004
3S(80) 4S 3L8A0355P004 3A8A7164P004 3A8A7164P009 4A8A2957P006
4S(100) 5 1/2S 3L8A0355P005 3A8A7164P005 3A8A7164P010 4A8A2957P008
Note1: A pair of parts are packed in each specification code.
Note2: Tri-clamp® is available to use the same joint size instead of ISO2852 clamp except meter size 4"(100mm).
Specification code for maintenance parts
Normal type Long type
Contents
Ferrule
TIC-LF494B
LF600
type
–
–
–
–
ISO2852 Clamp
LF602
type
–
–
13
TIC-LF494B
This Page Intentionally Blank
14
TIC-LF494B
This Page Intentionally Blank
15
TIC-LF494B
ISO9001 and ISO14001 are certified.
Misuse of this product can result in damages to property or human injury.
Read related manuals carefully before using this product.
TIC-LF494B
Specifications are subject to change without notice.
Printed in Japan 2008-5 (TDOC)
© TOSHIBA Corporation 2008
All Rights Reserved.
http://www.toshiba.com/ind/
Loading...
