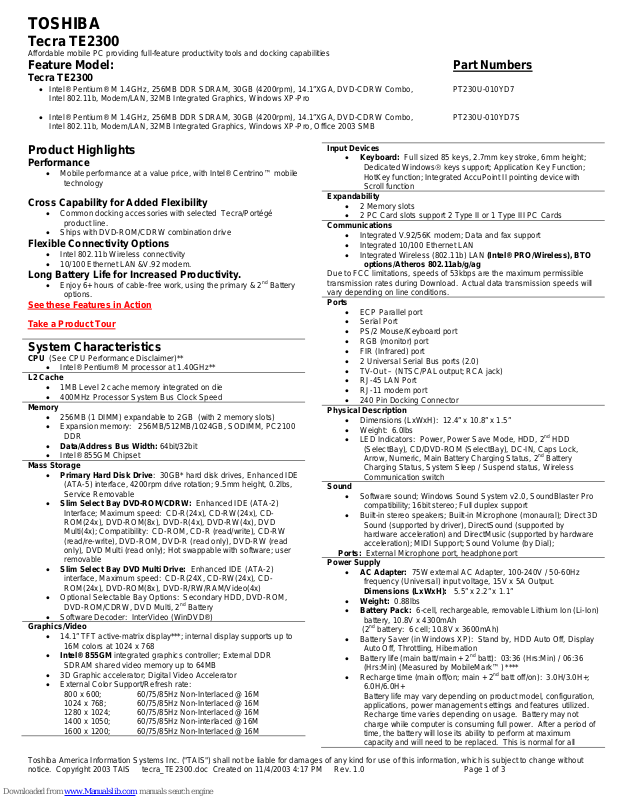

TOSHIBA

Tecra TE2300

Affordable mobile PC providing full-feature productivity tools and docking capabilities

Feature Model: Part Numbers

Tecra TE2300

• Intel® Pentium® M 1.4GHz, 256MB DDR SDRAM, 30GB (4200rpm), 14.1”XGA, DVD-CDRW Combo, PT230U-010YD7 Intel 802.11b, Modem/LAN, 32MB Integrated Graphics, Windows XP-Pro

• Intel® Pentium® M 1.4GHz, 256MB DDR SDRAM, 30GB (4200rpm), 14.1”XGA, DVD-CDRW Combo, PT230U-010YD7S Intel 802.11b, Modem/LAN, 32MB Integrated Graphics, Windows XP-Pro, Office 2003 SMB

Product Highlights

Performance

• Mobile performance at a value price, with Intel® Centrino™ mobile technology

Cross Capability for Added Flexibility

• Common docking accessories with selected Tecra/Portégé product line.

• Ships with DVD-ROM/CDRW combination drive

Flexible Connectivity Options

• Intel 802.11b Wireless connectivity

• 10/100 Ethernet LAN &V.92 modem.

Long Battery Life for Increased Productivity.

• Enjoy 6+ hours of cable-free work, using the primary & 2nd Battery options.

See these Features in Action Take a Product Tour

System Characteristics

CPU (See CPU Performance Disclaimer)**

• Intel® Pentium® M processor at 1.40GHz**

L2 Cache

• 1MB Level 2 cache memory integrated on die

• 400MHz Processor System Bus Clock Speed

Memory

• 256MB (1 DIMM) expandable to 2GB (with 2 memory slots)

• Expansion memory: 256MB/512MB/1024GB, SODIMM, PC2100

DDR

• Data/Address Bus Width: 64bit/32bit

• Intel® 855GM Chipset

Mass Storage

• Primary Hard Disk Drive: 30GB* hard disk drives, Enhanced IDE (ATA-5) interface, 4200rpm drive rotation; 9.5mm height, 0.2lbs, Service Removable

• Slim Select Bay DVD-ROM/CDRW: Enhanced IDE (ATA-2) Interface; Maximum speed: CD-R(24x), CD-RW(24x), CDROM(24x), DVD-ROM(8x), DVD-R(4x), DVD-RW(4x), DVD Multi(4x); Compatibility: CD-ROM, CD-R (read/write), CD-RW (read/re-write), DVD-ROM, DVD-R (read only), DVD-RW (read only), DVD Multi (read only); Hot swappable with software; user removable

• Slim Select Bay DVD Multi Drive: Enhanced IDE (ATA-2) interface, Maximum speed: CD-R(24X, CD-RW(24x), CDROM(24x), DVD-ROM(8x), DVD-R/RW/RAM/Video(4x)

• Optional Selectable Bay Options: Secondary HDD, DVD-ROM, DVD-ROM/CDRW, DVD Multi, 2

• Software Decoder: InterVideo (WinDVD®)

Graphics/Video

• 14.1” TFT active-matrix display***; internal display supports up to 16M colors at 1024 x 768

• Intel® 855GM integrated graphics controller; External DDR SDRAM shared video memory up to 64MB

• 3D Graphic accelerator; Digital Video Accelerator

• External Color Support/Refresh rate:

800 x 600; 60/75/85Hz Non-Interlaced @16M 1024 x 768; 60/75/85Hz Non-Interlaced @16M 1280 x 1024; 60/75/85Hz Non-Interlaced @16M 1400 x 1050; 60/75/85Hz Non-interlaced @16M 1600 x 1200; 60/75/85Hz Non-Interlaced @16M

Battery

Input Devices

• Keyboard: Full sized 85 keys, 2.7mm key stroke, 6mm height; Dedicated Windows® keys support; Application Key Function; HotKey function; Integrated AccuPoint II pointing device with

Expandability

Communications

Due to FCC limitations, speeds of 53kbps are the maximum permissible transmission rates during Download. Actual data transmission speeds will vary depending on line conditions.

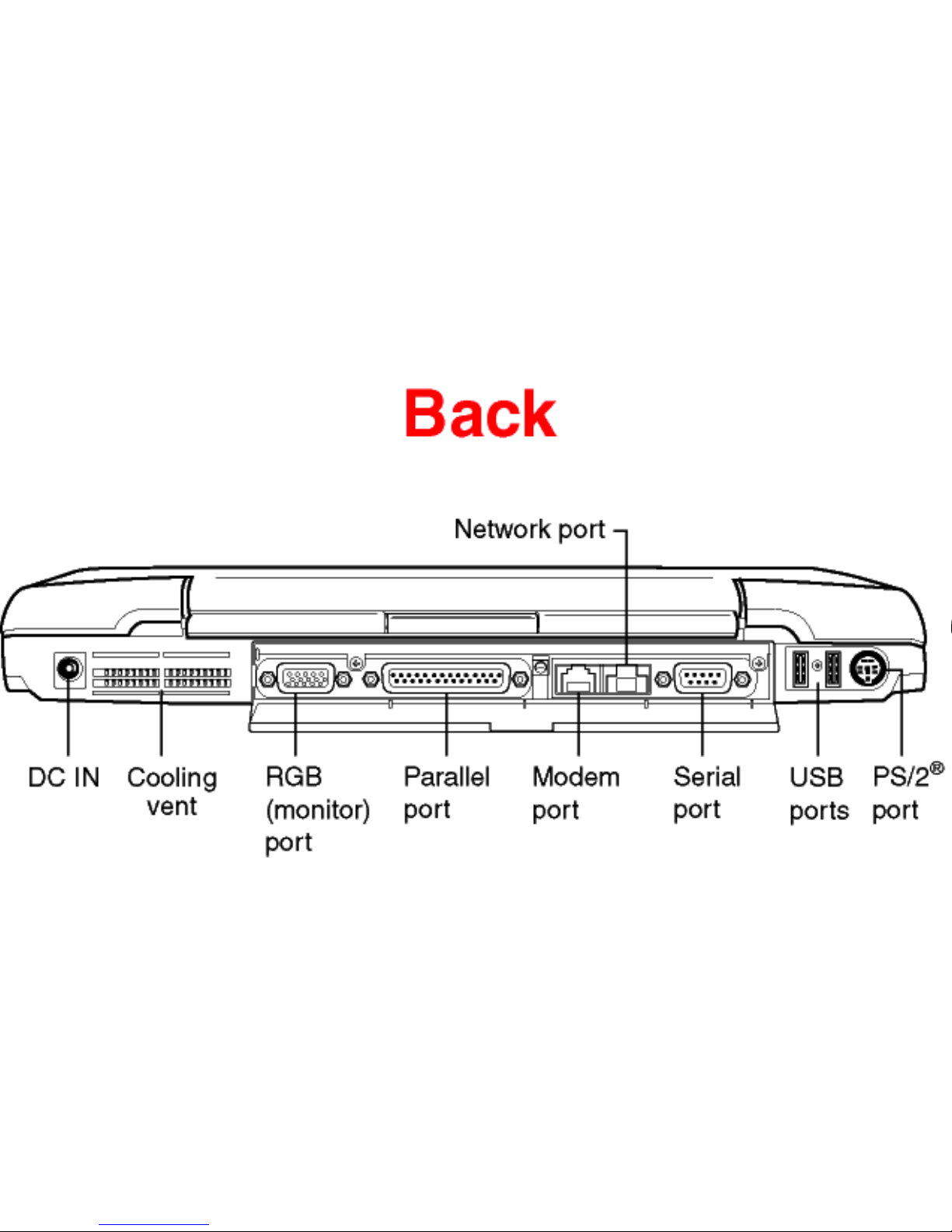

Ports

Physical Description

Sound

Ports: External Microphone port, headphone port Power Supply

Scroll function

• 2 Memory slots

• 2 PC Card slots support 2 Type II or 1 Type III PC Cards

• Integrated V.92/56K modem; Data and fax support

• Integrated 10/100 Ethernet LAN

• Integrated Wireless (802.11b) LAN (Intel® PRO/Wireless), BTO

options/Atheros 802.11ab/g/ag

• ECP Parallel port

• Serial Port

• PS/2 Mouse/Keyboard port

• RGB (monitor) port

• FIR (Infrared) port

• 2 Universal Serial Bus ports (2.0)

• TV-Out – (NTSC/PAL output; RCA jack)

• RJ-45 LAN Port

• RJ-11 modem port

• 240 Pin Docking Connector

• Dimensions (LxWxH): 12.4” x 10.8” x 1.5”

• Weight: 6.0lbs

• LED Indicators: Power, Power Save Mode, HDD, 2

(SelectBay), CD/DVD-ROM (SelectBay), DC-IN, Caps Lock, Arrow, Numeric, Main Battery Charging Status, 2 Charging Status, System Sleep / Suspend status, Wireless Communication switch

• Software sound; Windows Sound System v2.0, SoundBlaster Pro compatibility; 16bit stereo; Full duplex support

• Built-in stereo speakers; Built-in Microphone (monaural); Direct 3D Sound (supported by driver), DirectSound (supported by hardware acceleration) and DirectMusic (supported by hardware acceleration); MIDI Support; Sound Volume (by Dial);

• AC Adapte r : 75W external AC Adapter, 100-240V / 50-60Hz frequency (Universal) input voltage, 15V x 5A Output. Dimensions (LxWxH): 5.5” x 2.2” x 1.1”

• Weight: 0.88lbs

• Battery Pack: 6-cell, rechargeable, removable Lithium Ion (Li-Ion)

battery, 10.8V x 4300mAh

battery: 6 cell; 10.8V x 3600mAh)

• Battery Saver (in Windows XP): Stand by, HDD Auto Off, Display Auto Off, Throttling, Hibernation

• Battery life (main batt/main + 2 (Hrs:Min) (Measured by MobileMark™) ****

• Recharge time (main off/on; main + 2

6.0H/6.0H+ Battery life may vary depending on product model, configuration, applications, power management settings and features utilized. Recharge time varies depending on usage. Battery may not charge while computer is consuming full power. After a period of time, the battery will lose its ability to perform at maximum capacity and will need to be replaced. This is normal for all

batt): 03:36 (Hrs:Min) / 06:36

batt off/on): 3.0H/3.0H+;

HDD

Battery

Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without notice. Copyright 2003 TAIS tecra_TE2300.doc Created on 11/4/2003 4:17 PM Rev. 1.0 Page 1 of 3

Page 2

TOSHIBA

batteries. To purchase a new battery pack, see the accessories information that shipped with your computer or visit the Toshiba website at www.accessories.toshiba.com

Security

• Slot for computer lock, PC Card (sliding lock), Main Battery Pack (sliding lock), HDD and memory (by screw only), Selectable Bay Device (by screw), Builit-in Modem/LAN (screw only), User Power-on password, Setup Security (by help of SVPW utility), CPU serial No. security (By help of SVPW utility), HDD Password (for Primary HDD; By help of HDD password setup utility), Keyboard Lock (by HotKey), Screen Blank (by Hotkey), Screen Saver (by software)

Bios

• ACPI, PnP, VESA, DPMS, DDC, SM BIOS, PC BIOS support

Operating System

• Microsoft® Windows XP Pro pre-installed (See Product/Part Numbers below)

• Windows 2000 component drivers on the web

Additional Software

• Microsoft® Office XP SB 2003 (Small Business) (on some models – See Product/Part Numbers below)

• Toshiba ConfigFree Software

• Adobe® Acrobat Reader

• Microsoft Internet Explorer

• Toshiba Custom Utilities

• Microsoft™ OneNote Software

• Toshiba Electronic Users Guide

Limited Warranty

• 1 year parts, labor and battery

SelectServ Limited Warranty Extensions

SWP-PEQQ3V Warranty Extension to 3 Years SWP-PEGQ3V 3 Year SystemGuard SWP-PEQX3V 3 Year Depot Express SWP-PEGX3V 3 Year SystemGuard + Depot Express SWP-PEQN3V 3 Year Business On-Site Repair; Next Day Business Day Response

Environmental Specifications

• Temperature: Operating: 5° to 35°C (41° to 95°F); Nonoperating: -20° to 65°C (-4° to 149°F)

• Thermal gradient: Operating: 15°C per hour maximum; Nonoperating: 20°C per hour maximum

• Relative Humidity: Operating: 20% to 80%; Non-operating: 10% to 95%

• Altitude (relative to sea level): Operating: -60 to 3000 meters; Non-operating: -60 to 10,000 meters

• Shock: Operating: 10G; Non-operating: 60G

• Vibration: Operating: 0.5G; Non-operating: 1.0G

Selected Accessories

Toshiba Accessories

PA3283U-1ACA Global AC Adapter (75W) PA3286U-1BRS Primary Battery Pack (6 cell) PA3249U-1BRS Slim Select Bay 2 PA3082U-2PRP Toshiba Advanced Port Replicator II PA3109U-1FDD USB Floppy Disk Drive PA3133U-1H40 40GB HDD PA3204U-1H60 60GB HDD PA3134U-1ETC Slim Select Bay HDD Adapter PA3137U-3CD2 Slim Select Bay DVD/CD-RW (Combo) PA3231U-1DV1 Slim Select Bay DVD Multi

Kingston Memory

KTT3614/256 256MB Memory KTT3614/512 512MB Memory KTT3614/1G 1GB Memory

Cases

NWCGV1 Targus Ambassador Classic NWCC52 Targus Global Traveler NWCEC2 Targus Executive Classic

Battery Pack

Other Accessories

PA400U Targus DEFCON1 Security System PA450U Targus DEFCON KL Key Lock PA360U Targus Universal Auto/Air NW05WM Targus Wireless Optical Mini Mouse w/Charger NWKBMO Targus MultiMedia Keyboard NWUK01 USB Combo 17-Key Keypad/Calculator Combo TNFWABS-60.0 CMS Firewire Automatic Backup System 60GB

www.accessories.toshiba.com for additional, available accessories

* Go to

Product/Part Numbers

TE2300 (Win XP Pro). Part Number: PT230U-010YD7 UPC Code: 032017216891

TE2300 (XP-Pro + Office 2003 SMB). Part Number: PT230U-010YD7S

*GB = 1 Billion Bytes

** Central Processing Unit (“CPU”) Performance Disclaimer:

CPU performance in your computer product may vary from specifications under the following conditions:

• use of certain external peripheral products

• use of battery power instead of AC power

• use of certain multimedia games or videos with special effects

• use of standard telephone lines or low speed network connections

• use of complex modeling software, such as high end computer

aided design applications

• use of computer in areas with low air pressure (high altitude >1,000 meters or >3,280 feet above sea level)

• use of computer at temperatures outside the range of 5°C to 35°C (41°F to 95° F) or >25°C (77°F) at high altitude (all temperature references are approximate).

CPU performance may also vary from specifications due to design configuration

Under some conditions, your computer product may automatically shutdown. This is a normal protective feature designed to reduce the risk of lost data or damage to the product when used outside recommended conditions. To avoid risk of lost data, always make back-up copies of data by periodically storing it on an external storage medium. For optimum performance, use your computer product only under recommended conditions. Read additional restrictions under “Environmental Conditions” in your product Resource Guide. Contact Toshiba Technical Service and Support for more information.

*** TFT Display Disclaimer: Small bright dots may appear on your TFT display when you turn on your PC. Your display contains an extremely large number of thin-filmtransistors (TFT) and is manufactured using high-precision technology. Any small bright dots that may appear on your display are an intrinsic characteristic of the TFT manufacturing technology.

****MobileMark™ is a trademark of the Business Applications Performance Corporation

TAIS does not accept the return of component parts, or bundled software, which have been removed from the PC system. Pro-rata refunds on individual PC components or bundled software, including the operating system, will not be granted. If you wish to return a complete PC system, contact the TAIS dealer where you purchased the product, and comply with the dealer’s standard return policies and procedures.

Return Policy

Page 3

TOSHIBA

MobileMark2002 Score

(Standard) b) Intel® Pentium® M 1.40GHz,14"XGA,256MB+0MB,40GB(5400rpm),DV D,802.11b(Intel),WinXP Pro

Catalog Spec (1st) (1st+2nd) BenchMark Score (1st) 142 (1st+2nd) 156 Number of Conditioning Phase 1

CPU Name speed

amount of RAM 256MB+0MB

Li-Ion (Graphite)

model number(1st) PA3286U-1BAS/1BRS Li-Ion (Graphite)

model number(2nd) PA3249U-1BAS/1BRS

Graphics Intel® 855GM 32MB, Shared with main memory

graphics driver name and version Intel(R) 82852/82855 GM/GME Graphics Controller

hard disk capacity 40GB (5400rpm) hard disk file system & transfer mode Enhanced IDE (ATA-5) hard disk controller model Intel® 82801DBM Ultra ATA Storage Controller - 24CA

operating system version, service pack Windows XP Professional Version2002 Service Pack 1

BIOS version TOSHIBA BIOS V1.03

B Battery

Battery Life

Processor info

Amount of secondary RAM cache 1MB (L2 RAM CACHE)

amount and type of RAM

graphics resolution and color depth, refresh rate 14.1" 1024x768/16bit/60Hz

size of hardware cache if any 16MB

other special conditions N/A

Power management setting another worksheet(=PowerSaveSetting)

Battery Life: 3:36 (measured by MobileMark TM) Battery Life: 6:36 (measured by MobileMark TM)

Life Test Run 2

Intel® Pentium®M Processor

1.4GHz

number of processors 1

type(1st)

10.8V X 4300mAh

type(2nd)

10.8V X 3600mAh

number of batteries 1st=one,2nd=one

DDR

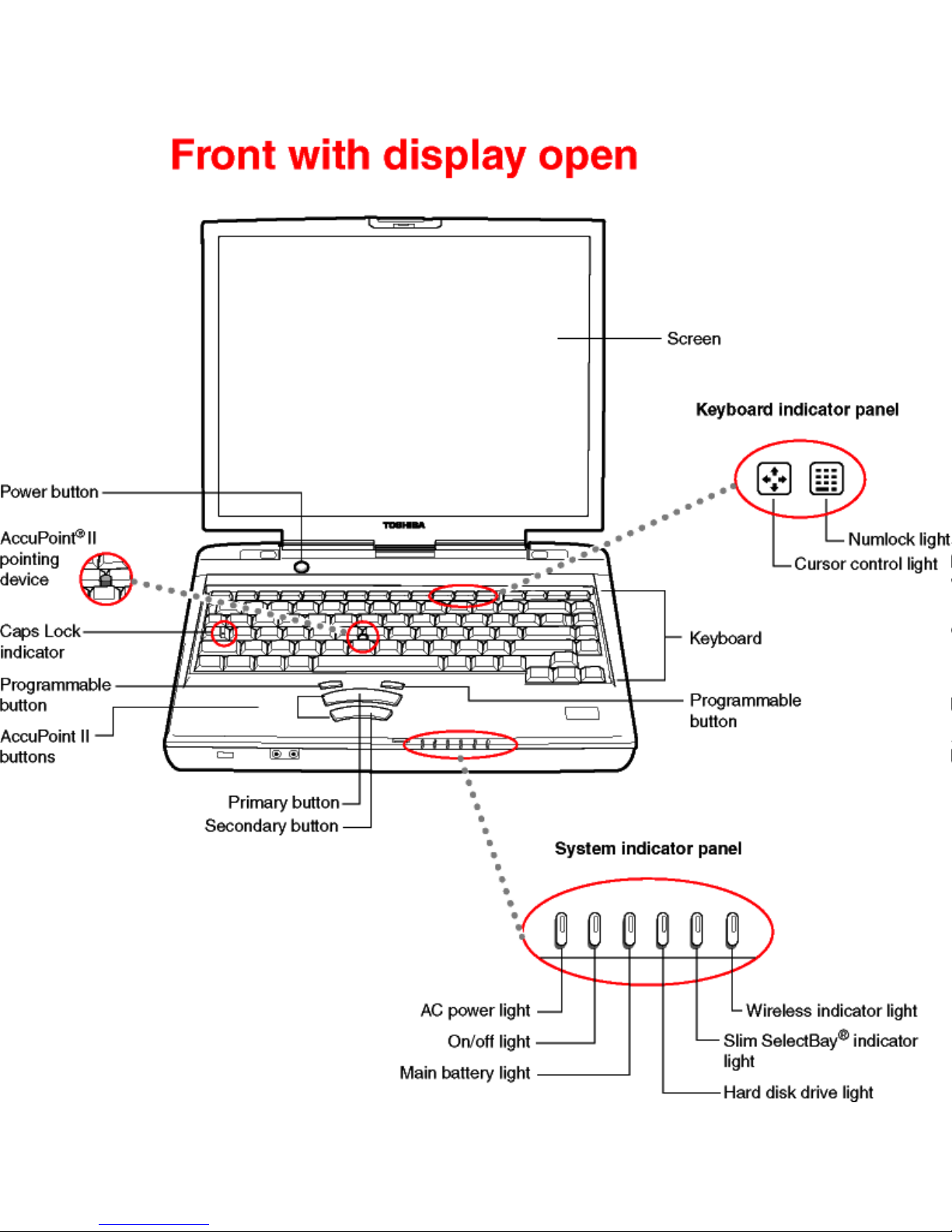

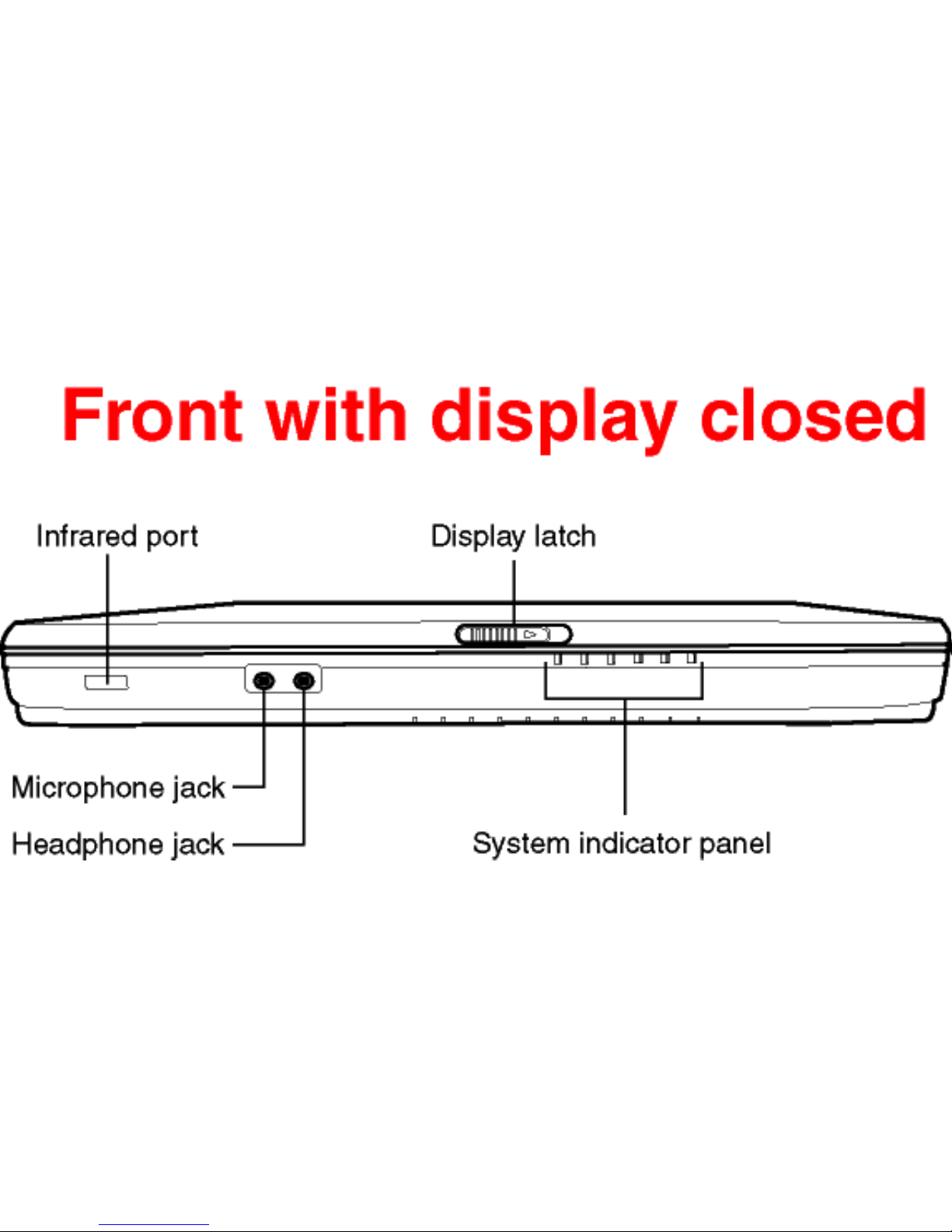

Page 4

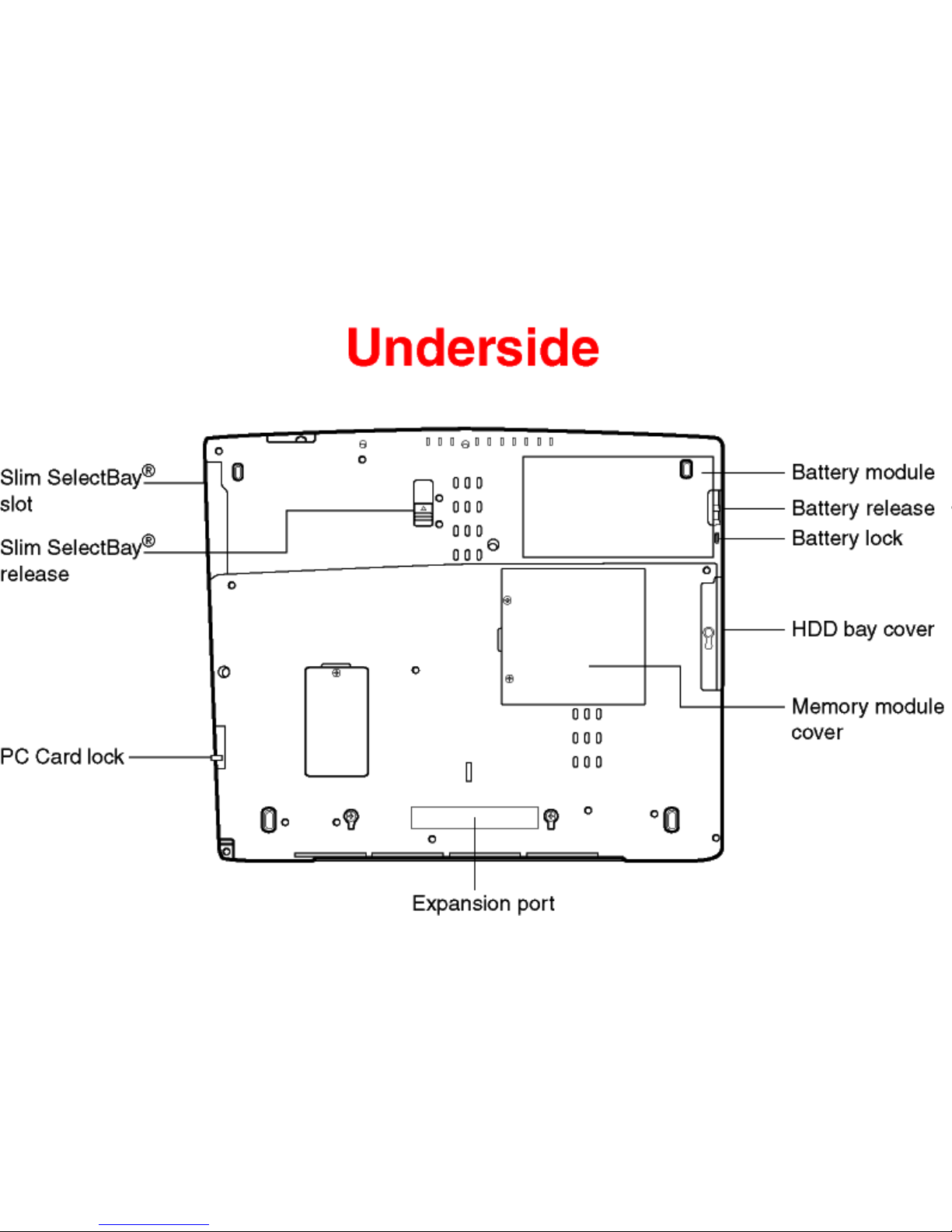

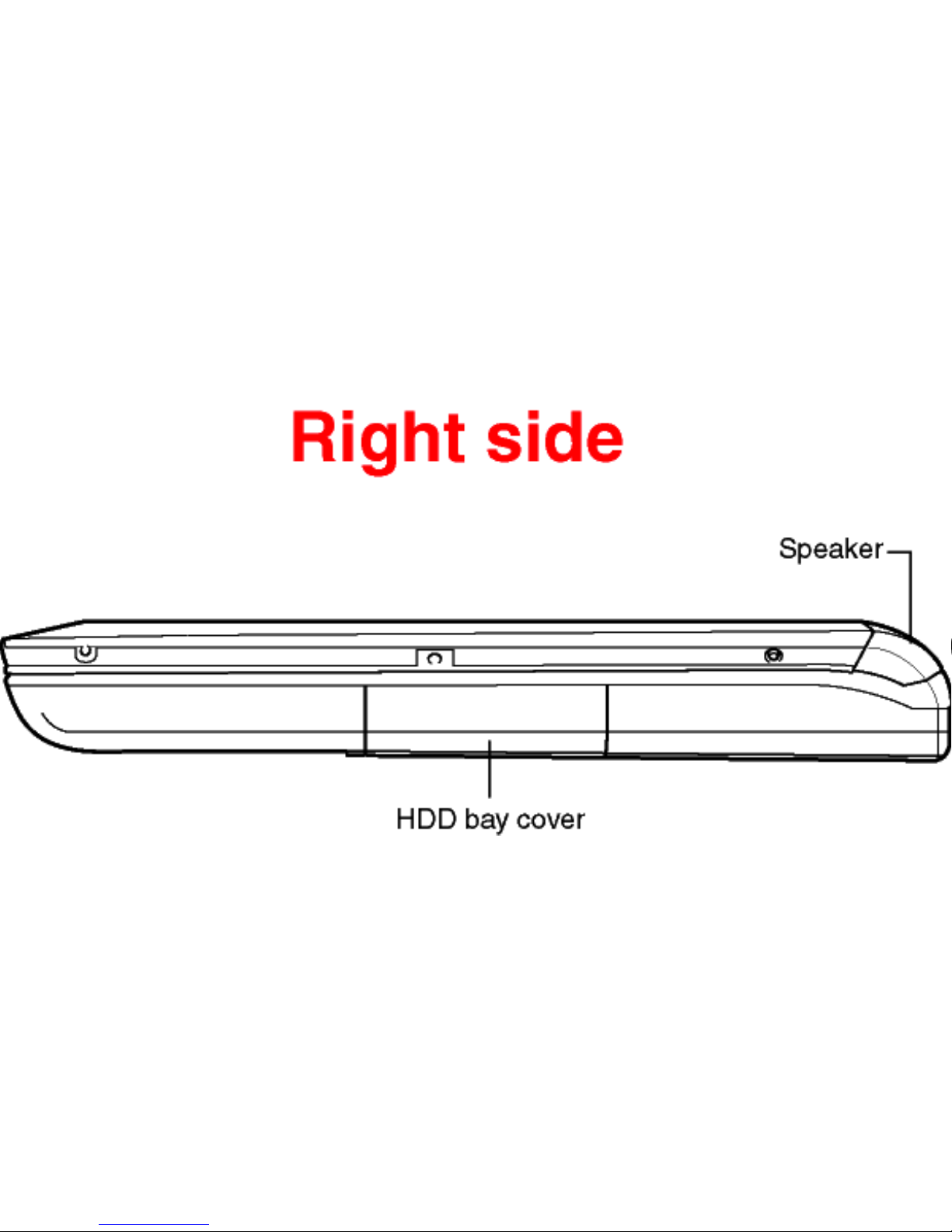

Page 5

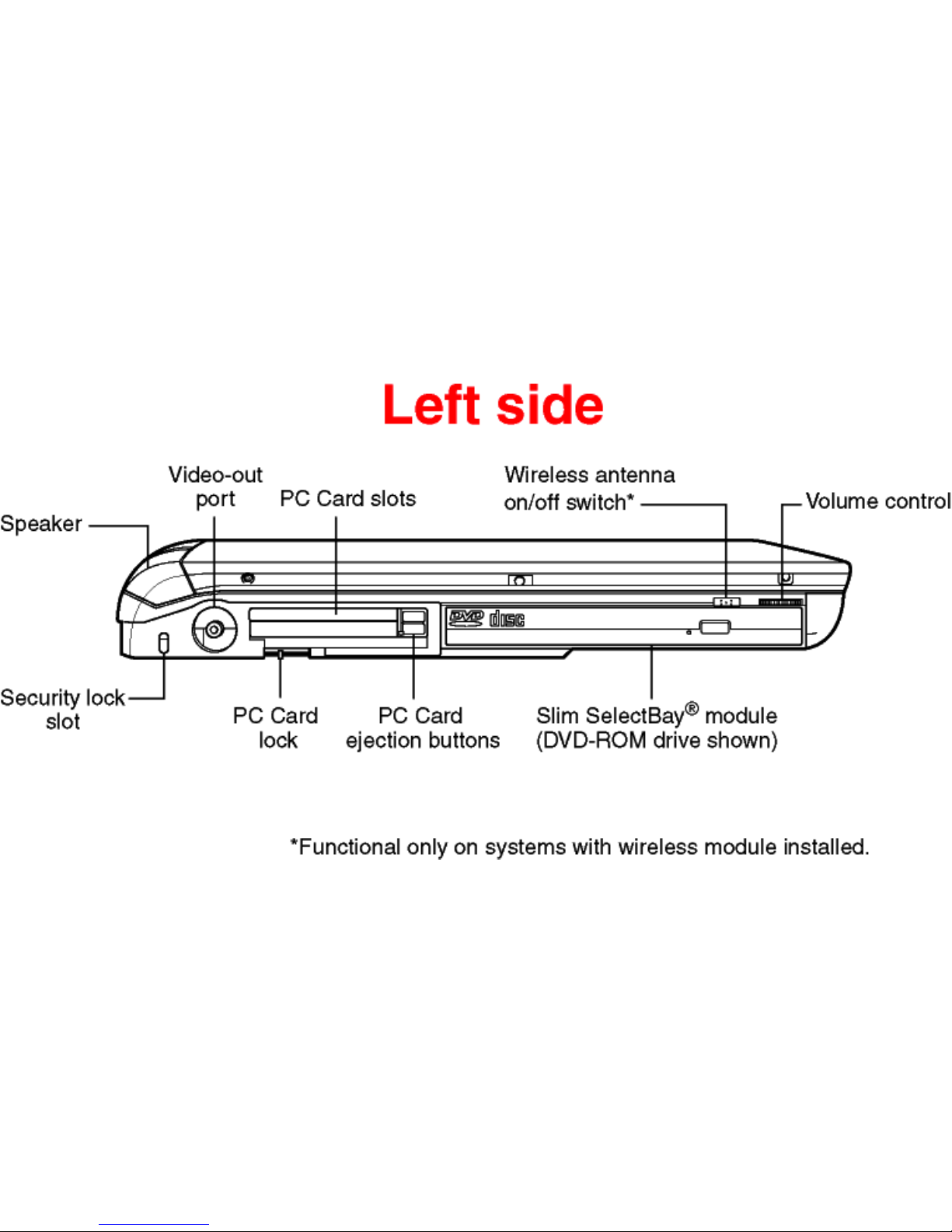

Page 6
